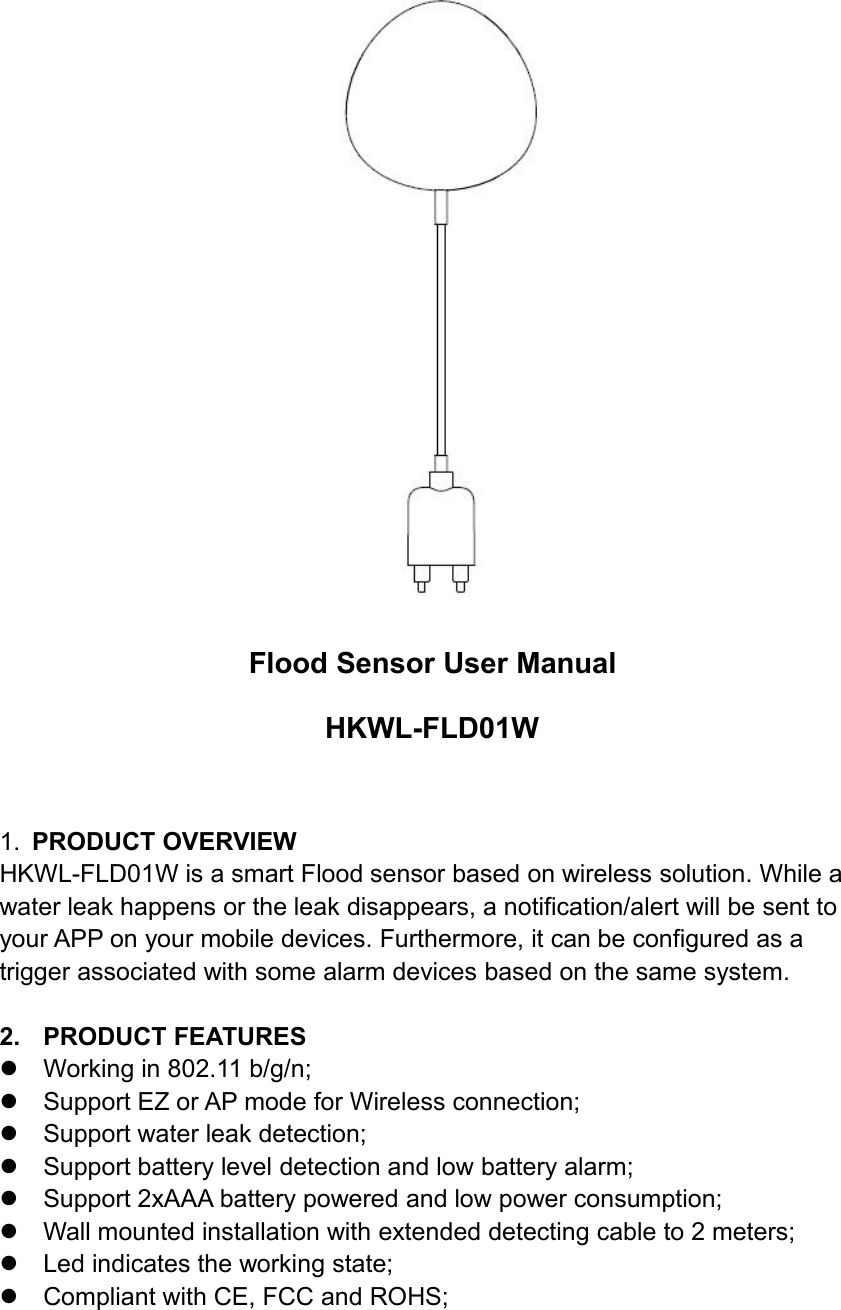

Flood Sensor User ManualHKWL-FLD01W1. PRODUCT OVERVIEWHKWL-FLD01W is a smart Flood sensor based on wireless solution. While awater leak happens or the leak disappears, a notification/alert will be sent toyour APP on your mobile devices. Furthermore, it can be configured as atrigger associated with some alarm devices based on the same system.2. PRODUCT FEATURESWorking in 802.11 b/g/n;Support EZ or AP mode for Wireless connection;Support water leak detection;Support battery level detection and low battery alarm;Support 2xAAA battery powered and low power consumption;Wall mounted installation with extended detecting cable to 2 meters;Led indicates the working state;Compliant with CE, FCC and ROHS;

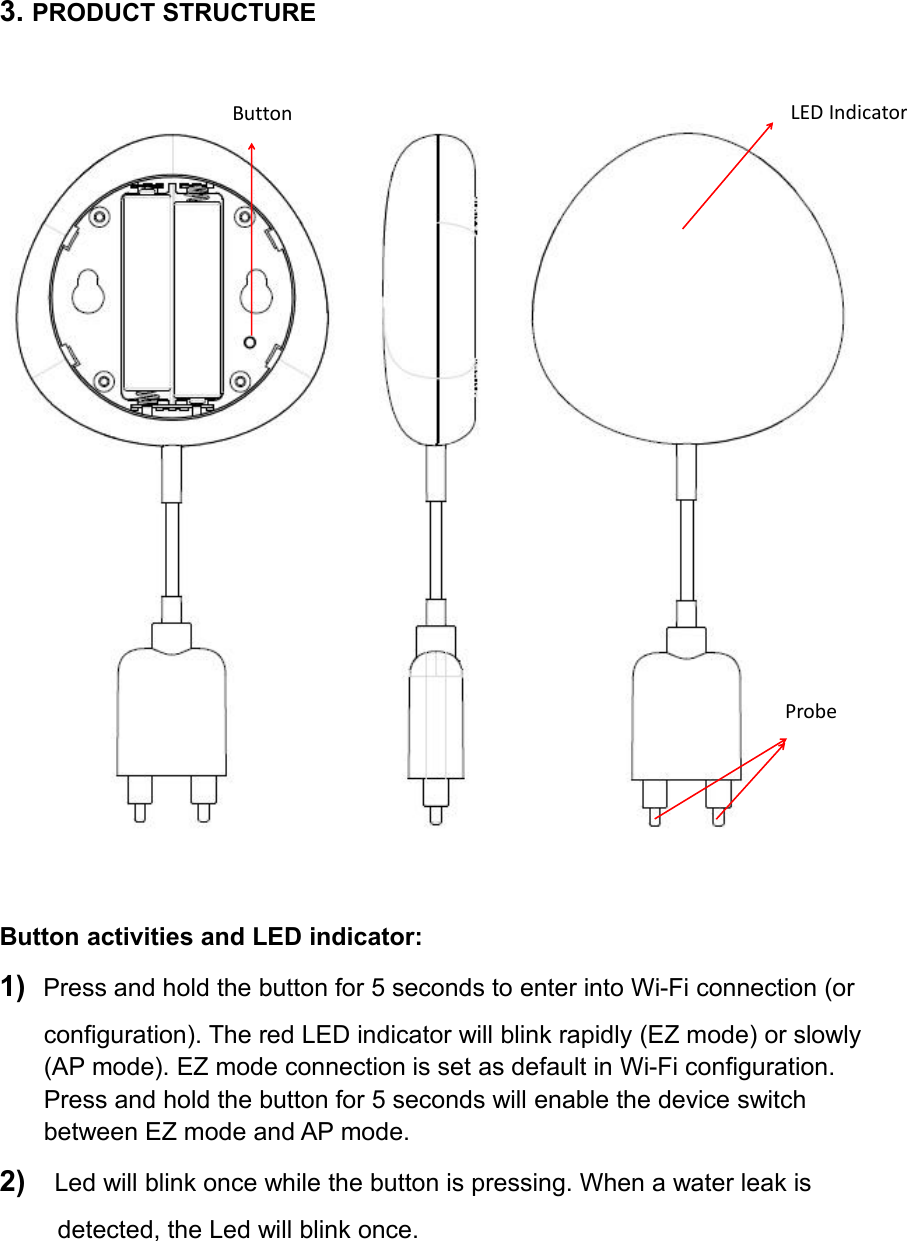

3. PRODUCT STRUCTUREButton activities and LED indicator:1) Press and hold the button for 5 seconds to enter into Wi-Fi connection (orconfiguration). The red LED indicator will blink rapidly (EZ mode) or slowly(AP mode). EZ mode connection is set as default in Wi-Fi configuration.Press and hold the button for 5 seconds will enable the device switchbetween EZ mode and AP mode.2) Led will blink once while the button is pressing. When a water leak isdetected, the Led will blink once.ButtonLED IndicatorProbe

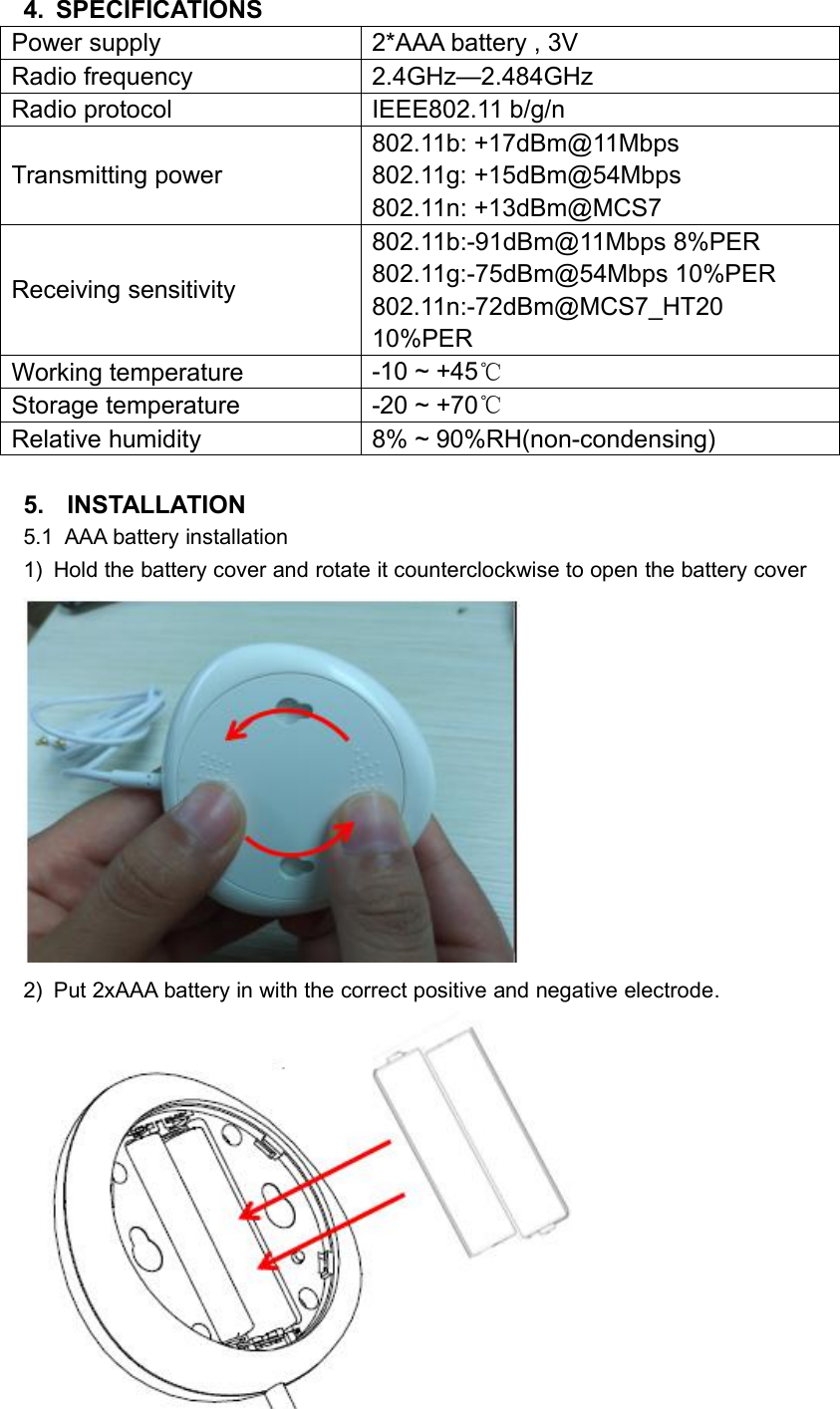

4. SPECIFICATIONSPower supply2*AAA battery , 3VRadio frequency2.4GHz—2.484GHzRadio protocolIEEE802.11 b/g/nTransmitting power802.11b: +17dBm@11Mbps802.11g: +15dBm@54Mbps802.11n: +13dBm@MCS7Receiving sensitivity802.11b:-91dBm@11Mbps 8%PER802.11g:-75dBm@54Mbps 10%PER802.11n:-72dBm@MCS7_HT2010%PERWorking temperature-10 ~ +45℃Storage temperature-20 ~ +70℃Relative humidity8% ~ 90%RH(non-condensing)5. INSTALLATION5.1 AAA battery installation1) Hold the battery cover and rotate it counterclockwise to open the battery cover2) Put 2xAAA battery in with the correct positive and negative electrode.

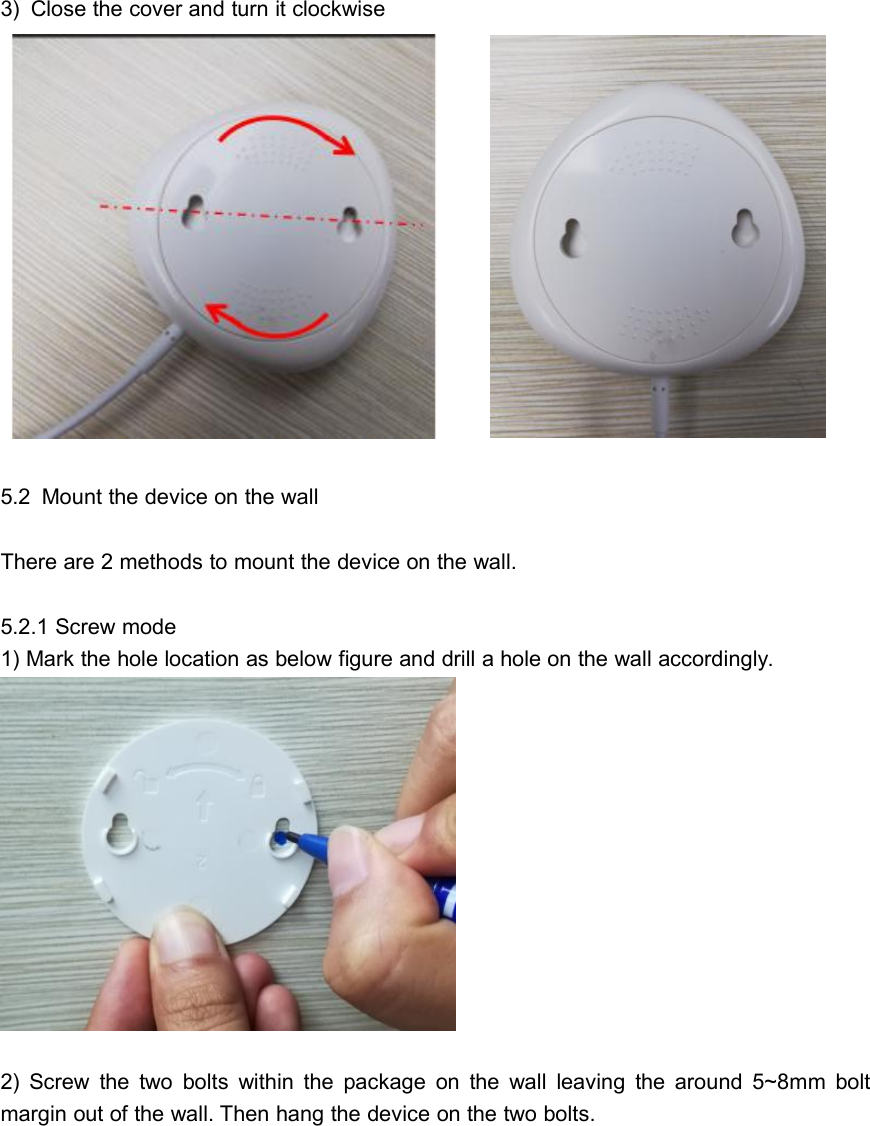

3) Close the cover and turn it clockwise5.2 Mount the device on the wallThere are 2 methods to mount the device on the wall.5.2.1 Screw mode1) Mark the hole location as below figure and drill a hole on the wall accordingly.2) Screw the two bolts within the package on the wall leaving the around 5~8mm boltmargin out of the wall. Then hang the device on the two bolts.

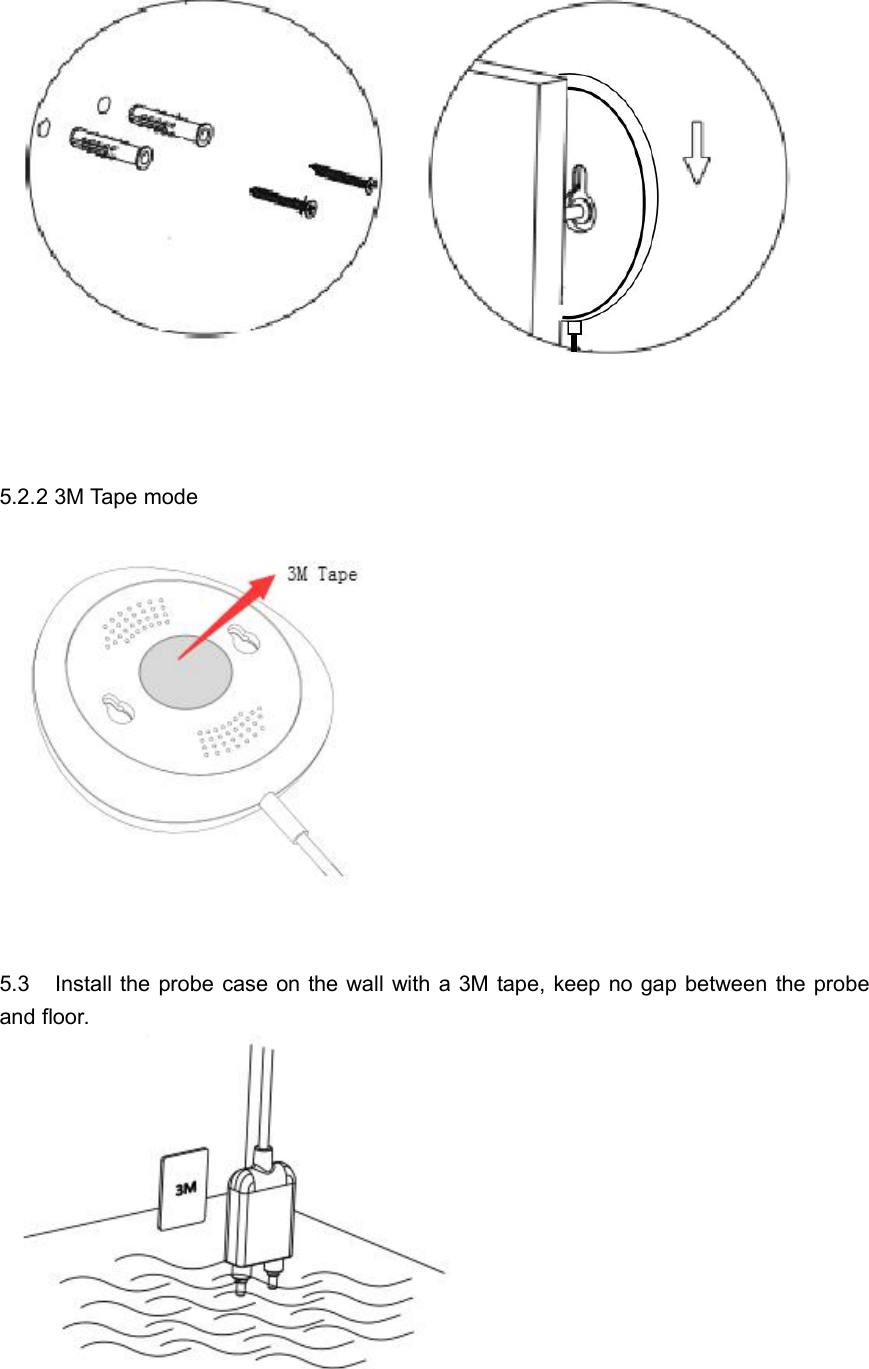

5.2.2 3M Tape mode5.3 Install the probe case on the wall with a 3M tape, keep no gap between the probeand floor.

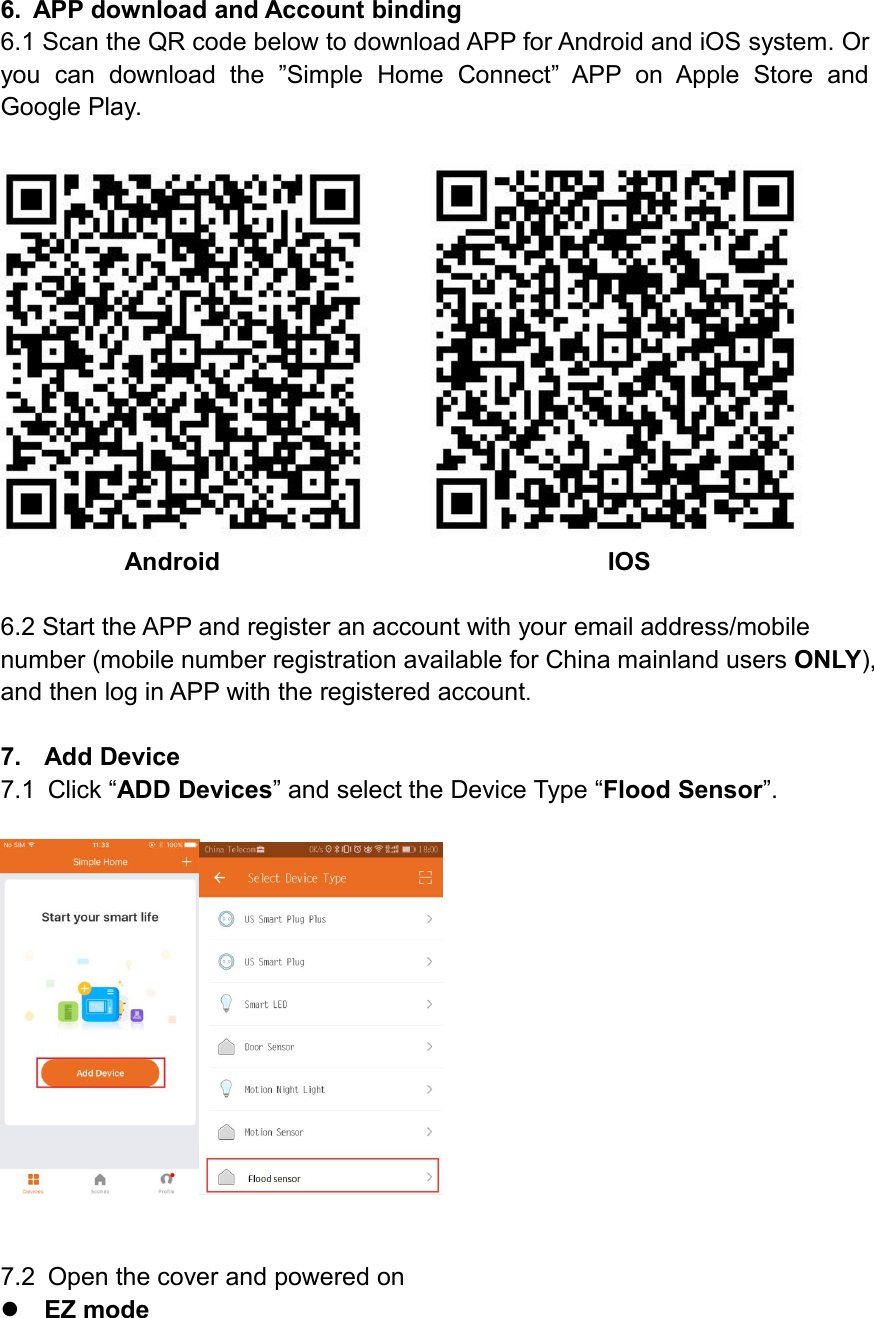

6. APP download and Account binding6.1 Scan the QR code below to download APP for Android and iOS system. Oryou can download the ”Simple Home Connect” APP on Apple Store andGoogle Play.Android IOS6.2 Start the APP and register an account with your email address/mobilenumber (mobile number registration available for China mainland users ONLY),and then log in APP with the registered account.7. Add Device7.1 Click “ADD Devices” and select the Device Type “Flood Sensor”.7.2 Open the cover and powered onEZ mode

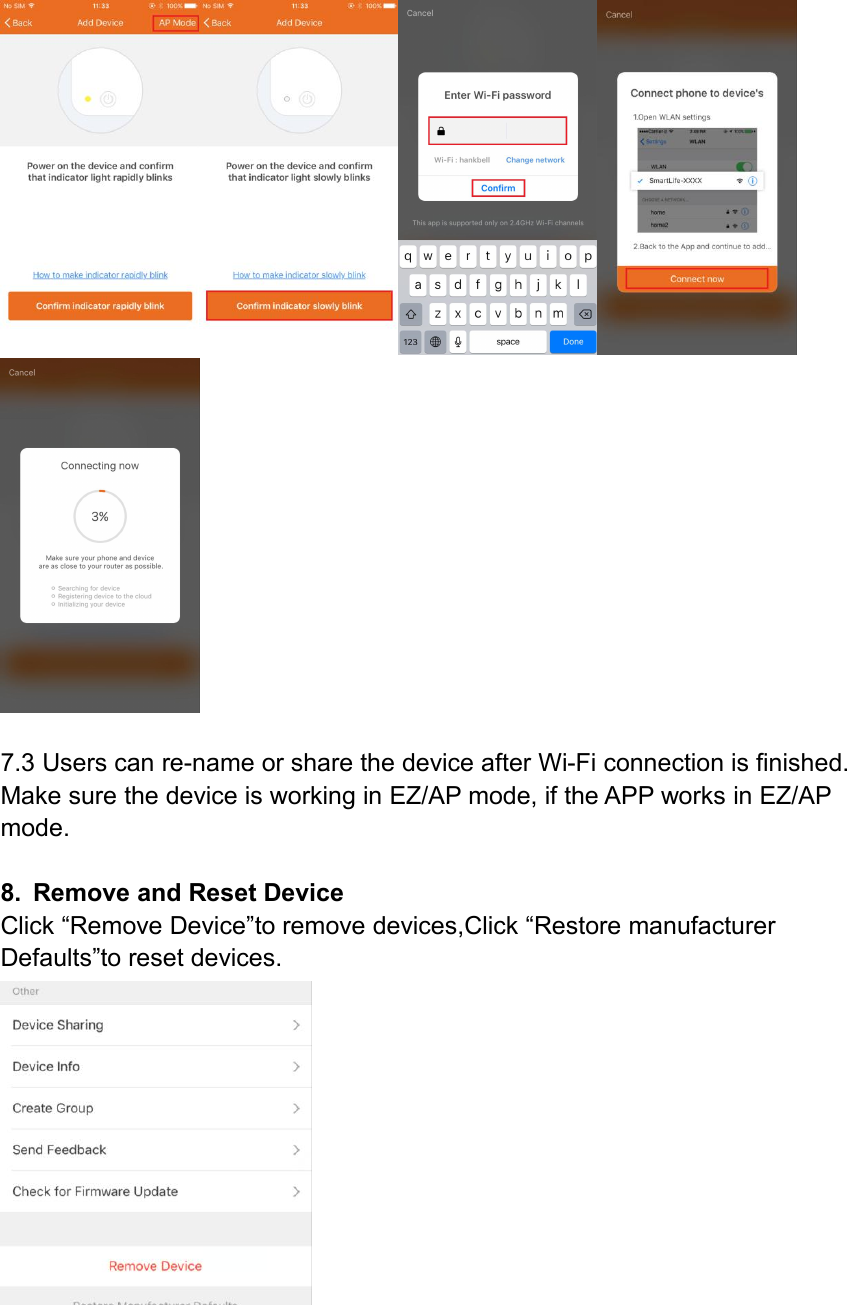

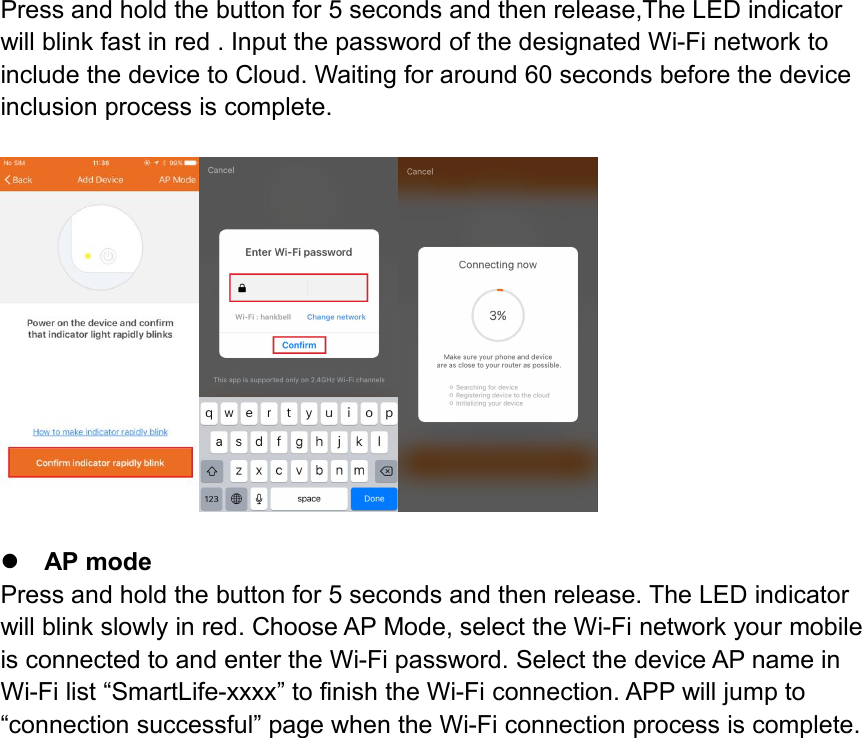

Press and hold the button for 5 seconds and then release,The LED indicatorwill blink fast in red . Input the password of the designated Wi-Fi network toinclude the device to Cloud. Waiting for around 60 seconds before the deviceinclusion process is complete.AP modePress and hold the button for 5 seconds and then release. The LED indicatorwill blink slowly in red. Choose AP Mode, select the Wi-Fi network your mobileis connected to and enter the Wi-Fi password. Select the device AP name inWi-Fi list “SmartLife-xxxx” to finish the Wi-Fi connection. APP will jump to“connection successful” page when the Wi-Fi connection process is complete.
7.3 Users can re-name or share the device after Wi-Fi connection is finished.Make sure the device is working in EZ/AP mode, if the APP works in EZ/APmode.8. Remove and Reset DeviceClick “Remove Device”to remove devices,Click “Restore manufacturerDefaults”to reset devices.

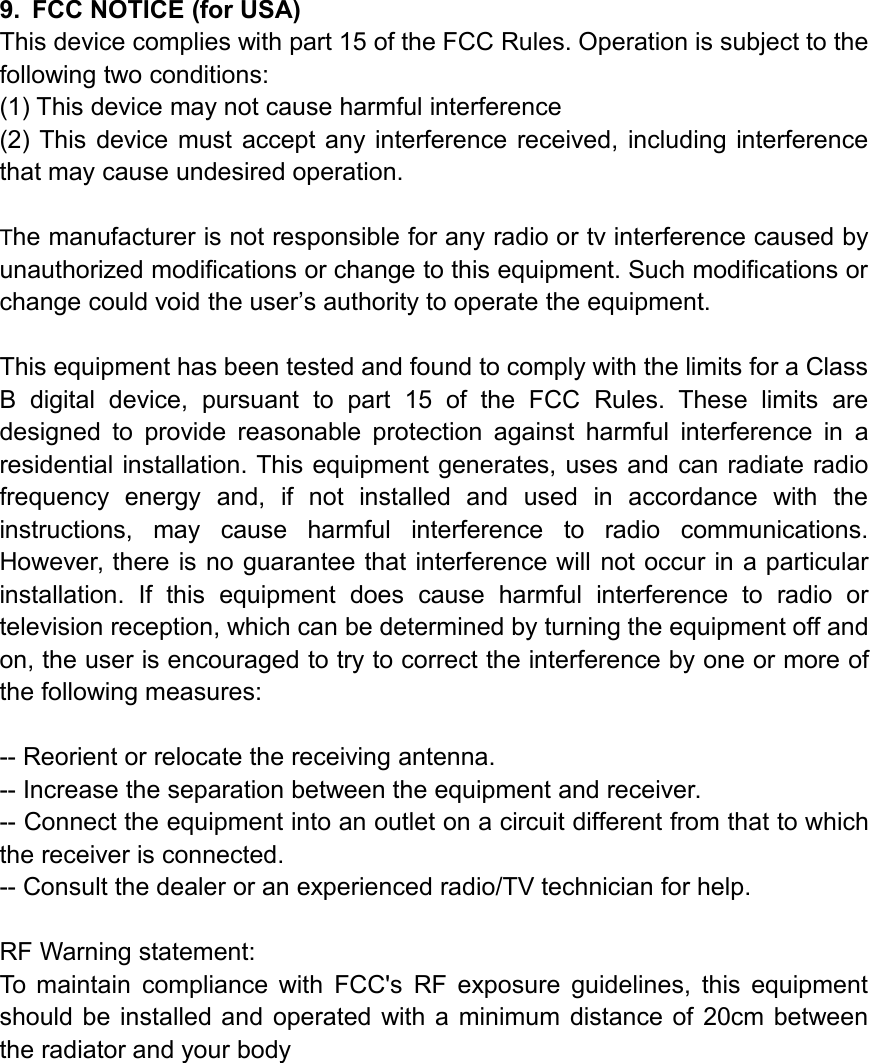

9. FCC NOTICE (for USA)This device complies with part 15 of the FCC Rules. Operation is subject to thefollowing two conditions:(1) This device may not cause harmful interference(2) This device must accept any interference received, including interferencethat may cause undesired operation.The manufacturer is not responsible for any radio or tv interference caused byunauthorized modifications or change to this equipment. Such modifications orchange could void the user’s authority to operate the equipment.This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particularinstallation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off andon, the user is encouraged to try to correct the interference by one or more ofthe following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.RF Warning statement:To maintain compliance with FCC's RF exposure guidelines, this equipmentshould be installed and operated with a minimum distance of 20cm betweenthe radiator and your body
