Manual 2

Operator’s Manual

MM23772

Sept-05

P7200 Series

Portable Radios

MANUAL REVISION HISTORY

REV DATE DESCRIPTION

- Sept. 2005 Initial release.

M/A-COM Technical Publications would particularly appreciate feedback on any errors found in this

document and suggestions on how the document could be improved. Submit your comments and

suggestions to:

Wireless Systems Business Unit

M/A-COM, Inc. fax your comments to: (434) 455-6851

Technical Publications or

221 Jefferson Ridge Parkway e-mail us at: techpubs@tycoelectronics.com

Lynchburg, VA 24501

NOTICE!

The software contained in this device is copyrighted by M/A-COM, Inc. Unpublished rights are

reserved under the copyright laws of the United States.

This device is made under license under one or more of the following U.S. Patents: 4,590,473;

4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497;

5,164,986; 5,185,795.

The voice coding technology embodied in this product is protected by intellectual property rights

including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this

technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the

Object Code, or in any other way convert the Object Code into human-readable form.

NOTICE!

Repairs to this equipment should be made only by an authorized service technician or facility designated

by the supplier. Any repairs, alterations, or substitution of recommended parts made by the user to this

equipment not approved by the manufacturer could void the user’s authority to operate the equipment in

addition to the manufacturer’s warranty.

NOTICE!

EDACS is a registered trademark and ProScan, ProSound, and Failsoft are trademarks of M/A-COM,

Inc.

All other product and brand names are trademarks, registered trademarks, or service marks of their

respective holders.

This manual is published by M/A-COM, Inc., without any warranty. Improvements and changes to this manual

necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or

equipment, may be made by M/A-COM, Inc., at any time and without notice. Such changes will be

incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any

form or by any means, electronic or mechanical, including photocopying and recording, for any purpose,

without the express written permission of M/A-COM, Inc.

TABLE OF CONTENTS Page

SAFETY TRAINING INFORMATION............................................ 4

SAFETY CONVENTIONS ...............................................................6

OPERATING TIPS............................................................................ 7

BATTERIES ...................................................................................... 9

SCOPE ............................................................................................. 12

INTRODUCTION............................................................................ 13

OPTIONS AND ACCESSORIES.................................................... 14

USER INTERFACE......................................................................... 16

OPENSKY OPERATION................................................................ 26

BASIC OPERATION ......................................................................28

TRUNKED OPERATION ............................................................... 39

PROJECT 25 (P25) CONVENTIONAL OPERATION .................. 55

OPERATION FOLLOWING WATER CONTACT........................ 58

IMMERSIBLE P7200 PREVENTIVE MAINTENANCE .............. 59

BATTERY WARRANTY ............................................................... 62

WARRANTY................................................................................... 63

SAFETY TRAINING INFORMATION

WARNING

The M/A-COM P7200 portable radio generates RF

electromagnetic energy during transmit mode. This

radio is designed for and classified as “Occupational

Use Only,” meaning it must be used only during the

course of employment by individuals aware of the

hazards and the ways to minimize such hazards. This

radio is NOT intended for use by the “General

Population” in an uncontrolled environment.

The P7200 portable radio has been tested and complies with the FCC RF

exposure limits for “Occupational Use Only.” In addition, this M/A-COM

radio complies with the following Standards and Guidelines with regard to RF

energy and electromagnetic energy levels and evaluation of such levels for

exposure to humans:

• FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating

Compliance with FCC Guidelines for Human Exposure to Radio

Frequency Electromagnetic Fields.

• American National Standards Institute (C95.1 – 1992), IEEE Standard for

Safety Levels with Respect to Human Exposure to Radio Frequency

Electromagnetic Fields, 3 kHz to 300 GHz.

• American National Standards Institute (C95.3 – 1992), IEEE

Recommended Practice for the Measurement of Potentially Hazardous

Electromagnetic Fields – RF and Microwave.

RF EXPOSURE GUIDELINES

CAUTION

To ensure that exposure to RF electromagnetic energy is

within the FCC allowable limits for occupational use,

always adhere to the following guidelines:

• DO NOT operate the radio without a proper antenna attached, as this may

damage the radio and may also cause the FCC RF exposure limits to be

exceeded. A proper antenna is the antenna supplied with this radio by

M/A-COM or an antenna specifically authorized by M/A-COM for use

with this radio. (Refer to Table 2.)

• DO NOT transmit for more than 50% of total radio use time (“50% duty

cycle”). Transmitting more than 50% of the time can cause FCC RF

exposure compliance requirements to be exceeded. The radio is

transmitting when the “TX” indicator appears in the display. The radio

will transmit by pressing the “PTT” (Push-To-Talk) button.

• Always transmit using low power when possible (refer to the section

“High/Low Power Adjustment”). In addition to conserving battery

charge, low power can reduce RF exposure.

• ALWAYS use M/A-COM authorized accessories (antennas, batteries,

belt clips, speaker/mics, etc). Use of unauthorized accessories may cause

the FCC Occupational/Controlled Exposure RF compliance requirements

to be exceeded. (Refer to Table 2.)

• As noted in Table 1, ALWAYS keep the device and its antenna AT

LEAST 1.1 cm (0.43 inches) from the body and at least 2.5 cm (1.00

inch) from the face when transmitting to ensure FCC RF exposure

compliance requirements are not exceeded. However, to provide the best

sound quality to the recipients of your transmission, M/A-COM

recommends you hold the microphone at least 5 cm (2 inches) from

mouth, and slightly off to one side.

Table 1: RF Exposure Compliance Testing Distances

TESTED DISTANCES

(worst case scenario)

RADIO FREQUENCY

Body Face

700/800 MHz 1.1 cm 2.5 cm

The information in this section provides the information needed to make the

user aware of a RF exposure, and what to do to assure that this radio operates

within the FCC RF exposure limits of this radio.

ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY

During transmissions, this M/A-COM radio generates RF energy that can

possibly cause interference with other devices or systems. To avoid such

interference, turn off the radio in areas where signs are posted to do so. DO

NOT operate the transmitter in areas that are sensitive to electromagnetic

radiation such as hospitals, aircraft, and blasting sites.

SAFETY CONVENTIONS

The following conventions are used throughout this manual to alert the user to

general safety precautions that must be observed during all phases of

operation, service, and repair of this product. Failure to comply with these

precautions or with specific warning elsewhere in this manual violates safety

standards of design, manufacture, and intended use of the product.

M/A-COM, Inc. assumes no liability for the customer’s failure to comply with

these standards.

WARNING

The WARNING symbol calls attention to a procedure,

practice, or the like, which, if not correctly performed or

adhered to, could result in personal injury. Do not proceed

beyond a WARNING symbol until the conditions identified

are fully understood or met.

CAUTION

The CAUTION symbol calls attention to an operating

procedure, practice, or the like, which, if not performed

correctly or adhered to, could result in damage to the

equipment or severely degrade the equipment performance.

NOTE

The NOTE symbol calls attention to supplemental

information, which may improve system performance or

clarify a process or procedure.

The ESD symbol calls attention to procedures, practices, or

the like, which could expose equipment to the effects of

Electro-Static Discharge. Proper precautions must be taken

to prevent ESD when handling circuit modules.

OPERATING TIPS

Antenna location and condition are important when operating a portable radio.

Operating the radio in low lying areas or terrain, under power lines or bridges,

inside of a vehicle or in a metal framed building can severely reduce the range

of the unit. Mountains can also reduce the range of the unit.

In areas where transmission or reception is poor, some improvement may be

obtained by ensuring that the antenna is vertical. Moving a few yards in

another direction or moving to a higher elevation may also improve

communications. Vehicular operation can be aided with the use of an

externally mounted antenna.

Battery condition is another important factor in the trouble free operation of a

portable radio. Always properly charge the batteries.

EFFICIENT RADIO OPERATION

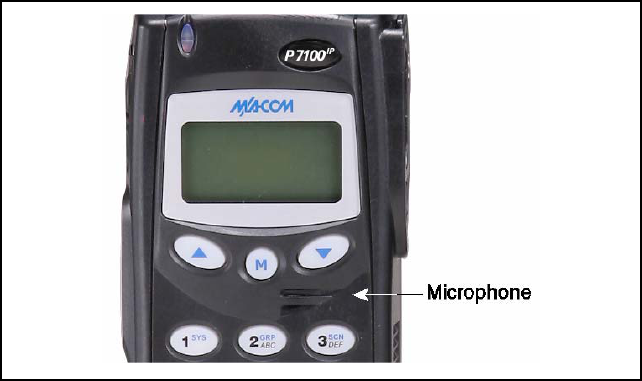

For optimum audio clarity at the receiving radio(s), hold the portable radio

approximately three inches from your mouth and speak into the microphone at

a normal voice level.

Keep the antenna in a vertical position when receiving or transmitting a

message.

Do not hold the antenna when receiving a message and, especially, do not

hold when transmitting a message.

WARNING

Do NOT hold onto the antenna when transmitting!

Antenna Care and Replacement

WARNING

ALWAYS keep the device and its antenna AT LEAST 1.1 cm

(0.43 inches) from the body and at least 2.5 cm (1.00 inch) from

the face when transmitting to ensure FCC RF exposure

compliance requirements are not exceeded.

WARNING

Do not use the portable radio with a damaged or missing

antenna. A minor burn may result if a damaged antenna comes

into contact with the skin. Replace a damaged antenna

immediately. Operating a portable radio with the antenna

missing could cause personal injury, damage the radio, and may

violate FCC regulations.

WARNING

Use only the supplied or approved antenna. Unauthorized

antennas, modifications or attachments could cause damage to

the radio unit and may violate FCC regulations. (Refer to Table

2.)

Electronic Devices

CAUTION

RF energy from portable radios may affect some electronic

equipment. Most modern electronic equipment in cars,

hospitals, homes, etc. are shielded from RF energy. However, in

areas in which you are instructed to turn off two-way radio

equipment, always observe the rules. If in doubt, turn it off!

Aircraft

WARNING

Always turn off a portable radio before boarding any aircraft!

• Use it on the ground only with crew permission.

• DO NOT use while in-flight!!

Electric Blasting Caps

WARNING

To prevent accidental detonation of electric blasting caps, DO

NOT use two-way radios within 1000 feet of blasting

operations. Always obey the "Turn Off Two-Way Radios"

signs posted where electric blasting caps are being used.

(OSHA Standard: 1926.900)

Potentially Explosive Atmospheres

WARNING

Areas with potentially explosive atmospheres are often, but not

always, clearly marked. These may be fuelling areas, such as

gas stations, fuel or chemical transfer or storage facilities, and

areas where the air contains chemicals or particles, such as

grain, dust, or metal powders.

Sparks in such areas could cause an explosion or fire resulting in

bodily injury or even death.

Turn OFF two-way radios when in any area with a potentially

explosive atmosphere. It is rare, but not impossible that a radio

or its accessories could generate sparks.

BATTERIES

The P7200 series portable radios use rechargeable, recyclable Nickel

Cadmium (NiCd) or Nickel Metal Hydride (NiMH) batteries.

BATTERY CHARGING/CONDITIONING

After receiving a new rechargeable battery pack, it should be fully charged

before placing it into service (see “CONDITIONING NEW BATTERIES”

caution below). This also applies to rechargeable batteries that have been

stored for long periods (weeks, months, or longer). When the battery pack

requires charging, the radio will signal the operator with an alert tone and the

“low battery” icon will appear in the LCD.

Chargers are available with nominal charge times of one hour. Combinations

include single and multi-position, rapid charge units. When charging a battery

pack that is attached to a radio, always power the radio OFF to ensure a full

charge. For specific instructions, refer to the applicable charger Operator’s

Manual. Charging in non-M/A-COM equipment may lead to battery damage

and void the battery warranty.

CAUTION

CONDITIONING NEW BATTERIES

When charging new batteries or batteries that have been in

storage for long periods (weeks, months, or longer), the

charger may stop early in the recharging cycle. Though the

charger will indicate a “ready” status, the battery may

actually have reduced capacity. This phenomenon is

related to battery chemistry and is more pronounced on

NiMH batteries. Charging and discharging the battery

several times will alleviate this condition. This may be

performed using the charger and radio or by using one of

the many battery conditioning products on the market.

After 3-5 cycles this phenomenon should no longer occur

in regularly used and well maintained batteries.

Improvements in the manufacturing of present generation NiCd rechargeable

batteries minimize the probability of M/A-COM batteries developing memory.

If memory is suspected, then it can be easily canceled by charging and

discharging the problem battery two or three times. The battery should be

charged using a M/A-COM rapid charger and discharged on the radio until

low battery is indicated.

BATTERY DISPOSAL

Nickel Cadmium Battery

At the end of its useful life, under various state and local

laws, it may be illegal to dispose of Nickel Cadmium

atteries into the municipal waste stream. Check with local

solid waste officials for recycling options and proper

disposal. Call Toll Free 1-800-8BATTERY for information

and/or procedures for returning rechargeable batteries in

your state.

Nickel Metal Hydride Battery

There are no special requirements concerning the disposal of NiMH batteries.

Batteries can be recycled. Call Toll Free 1-800-8BATTERY for information.

CHANGING THE BATTERY PACK

Removing the Battery Pack

Make sure the power to the radio is turned OFF.

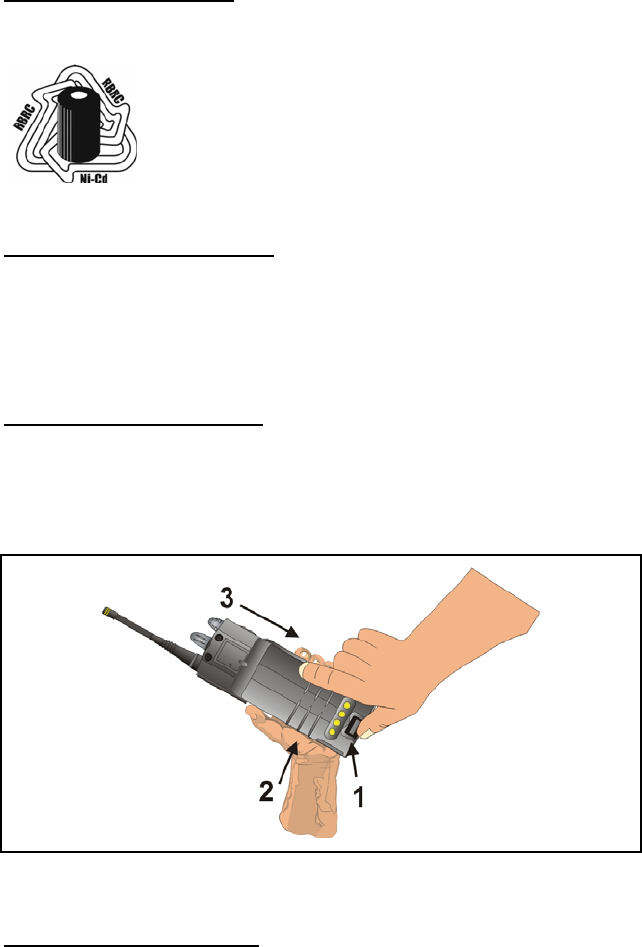

1. Press the latch at the bottom of the battery pack.

2. Lift the battery pack from the bottom.

3. Remove the battery pack from the radio.

Figure 1: Removing the Battery Pack

Attaching the Battery Pack

Make sure the power to the radio is turned OFF.

1. Align the tab on the top of the battery pack with the slot at the top of the

battery cavity.

2. Push the battery pack down to attach the battery to the radio.

3. Verify that the battery pack is properly latched to the radio.

Figure 2: Attaching the Battery Pack

SCOPE

This manual will first introduce the user to the P7200 product line in general,

identifying Regulatory and Safety requirements, Options and Accessories, the

user interface, and other common components in the first few sections of the

manual. The balance of this manual will then be devoted to functionality.

It is not the intent of this manual to cover all modes of operation. As other

modes of operation become available the operation will be covered in

additional manuals.

INTRODUCTION

The P7200 series radios are dual-band multi-mode portable radios. The dual-

band (700/800 MHz) P7200 portable radio delivers end-to-end encrypted

digital voice and IP data communications. It is designed to support multiple

operating modes including:

• OpenSky® Trunked mode

• EDACS® or ProVoice™ Trunked mode

• P25 Trunked mode

• P25 Digital Conventional mode

• Conventional Analog mode

The P7200 portables can include all of these modes or just one. Additional

modes of operation can be added later with software updates.

The P7200 supports a full range of advanced digital trunking features,

including voice group calls, priority scanning, pre-emptive emergency calls,

late call entry, and dynamic reconfiguration. It performs autonomous roaming

for wide area applications. High quality voice coding and robust audio

components assure speech clarity.

In the trunked modes, the user selects a communications system and group.

While communicating in a trunked mode, channel selection is transparent to

the user and is controlled via digital communication with the system

controller. This provides advanced programmable features and fast access to

communication channels.

In Conventional Analog mode, the user selects a channel and communicates

directly on that channel. In this mode, a system refers to a set of channels. A

channel is a transmit/receive radio frequency pair.

The exact operation of the radio will depend on the operating mode, the

radio’s programming, and the particular radio system. Most features

described in this manual can be enabled through programming. Consult your

System Administrator for the particular features programmed into your P7200.

For further detail about features and operation refer to the appropriate

maintenance manual or contact your System Administrator.

WATER RESISTANCE

The P7200 series portable radios operate reliably even under adverse

conditions. These radios meet MIL-STD-810F specifications for driven rain,

humidity, and salt fog.

OPTIONS AND ACCESSORIES

Table 2 lists the Options and Accessories tested for use with the P7200 series

portable radios.

Refer to the maintenance manual or to M/A-COM’s Products and Services

Catalog for a complete list of options and accessories, including those items

that do not adversely affect the RF energy exposure.

WARNING

Always use M/A-COM authorized accessories (antennas,

batteries, belt clips, speaker/mics, etc). Use of unauthorized

accessories may cause the FCC Occupational/Controlled

Exposure RF compliance requirements to be exceeded. (Refer

to Table 2.)

CAUTION

Always use the correct options and accessories (battery, antenna,

speaker/mic, etc.) for the radio. Immersion rated options must

be used with an immersion rated radio. Intrinsically safe

options must be used with intrinsically safe radios. (Refer to

Table 2.)

Table 2: Options and Accessories

DESCRIPTION PART NUMBER

ANTENNAS

Flexible Gain Antenna (800 MHz) KRE 101 1506/1

Whip Antenna (800MHz) KRE 101 1506/2

BATTERIES (IMMERSION-RATED)

7.5V Nickel Cadmium (NiCd) Battery BKB 191 210/33

7.5V Nickel Metal Hydride (NiMH) Battery BKB 191 210/34

7.5V NiCd Battery-Intrinsically Safe <IS> BKB 191 210/35

7.5V NiMH Battery-Intrinsically Safe <IS> BKB 191 210/36

BATTERIES (WIND DRIVEN RAIN)

7.5V NiCd Battery BKB 191 210/43

7.5V NiMH Battery BKB 191 210/44

MISCELLANEOUS ACCESSORIES

Speaker Mic <IS> KRY 101 1617/183

Speaker Mic Antenna Version Plus <IS> KRY 101 1617/184

Speaker Mic, Charger Compatible <IS> KRY 101 1617/185

Speaker Mic, Ant. Version, Charger Comp. <IS> KRY 101 1617/186

Speaker Mic, Immersible <IS> KRY 101 1617/283

Speaker Mic, Ant. Version, Immersible <IS> KRY 101 1617/284

Speaker Mic, Ant. Version, Immersible, Charger Comp. <IS> KRY 101 1617/287

DESCRIPTION PART NUMBER

Speaker Mic, Ruggedized <IS> KRY 101 1617/383

Speaker Mic, Antenna Version, Ruggedized KRY 101 1617/384

Speaker Mic, Ruggedized, Charger Comp., <IS> KRY 101 1617/385

Speaker Mic, Ant. Version, Ruggedized, Charger Comp <IS> KRY 101 1617/387

Metal Belt Clip KRY 101 1647/1

Belt Loop with Swivel KRY 101 1609/1

Swivel (part of KRY 101 1639 and 1648) KRY 101 1608/2

Leather Case (Belt Loop type) KRY 101 1638/1

Leather Case Kit (with Leather Case P/N: KRY 101 1639/1) KRY 101 1639/2

Leather Case Kit, including:

Leather Case: KRY 101 1639/3

Swivel Mount: KRY 101 1608/2

Elastic Retaining Strap: CC102546V1

Shoulder Strap: CC103333V1

KRY 101 1639/4

Nylon Case (Black) with Swivel & Belt Loop KRY 101 1648/1

Nylon T-Strap KRY 101 1656/1

Nylon Case (Orange) with Belt Loop KRY 101 1649/1

Swivel Mount Clip KRY 101 1608/3

Speaker Mic, Industrial OT-V2-10121

Speaker Mic, Industrial PLUS OT-V2-10122

Earpiece Kit <IS> for use with Speaker Mic Antenna Version OT-V1-10234

Ultra-Lite Headset with Inline PTT OT-V4-10314

Liteweight Headset with Single Speaker OT-V4-10315

Over-the-Head Headset OT-V4-10316

Behind-the-Head Headset OT-V4-10317

Ranger Headset OT-V4-10421

Skull Microphone OT-V4-10428

Behind-the-Head Headset OT-V4-10450

Earphone Kit, Black OT-V1-10520

Earphone Kit, Beige OT-V1-10521

Earphone Kit, Black OT-V1-10522

Earphone Kit, Beige OT-V1-10523

3-Wire Mini-Lapel (Beige) OT-V1-10524

3-Wire Mini-Lapel (Black) OT-V1-10525

Throat Microphone OT-V4-10656

USER INTERFACE

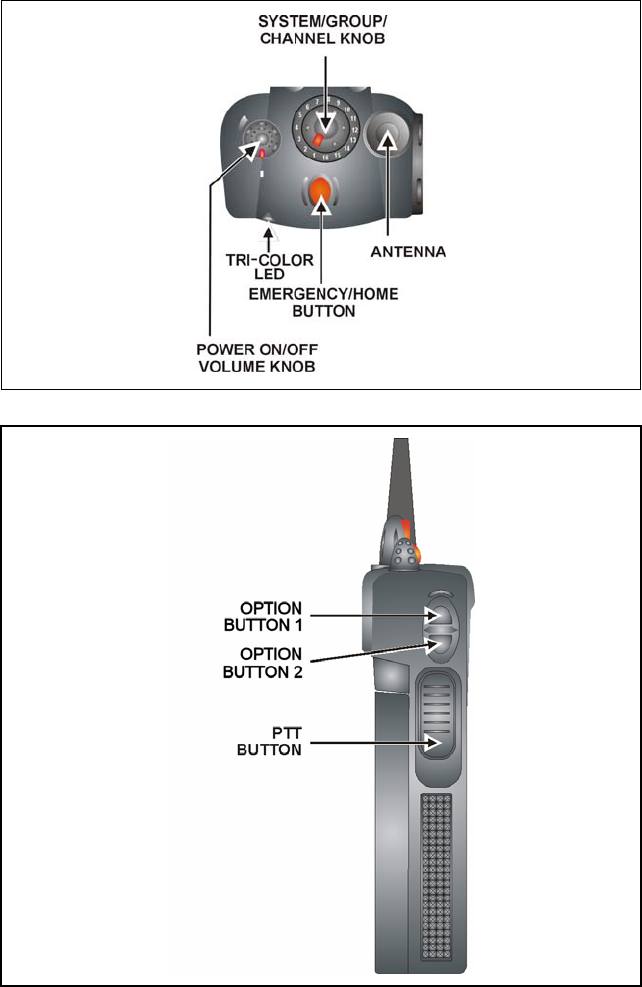

Figure 3: Top View

Figure 4: Side View

Figure 5: System Model

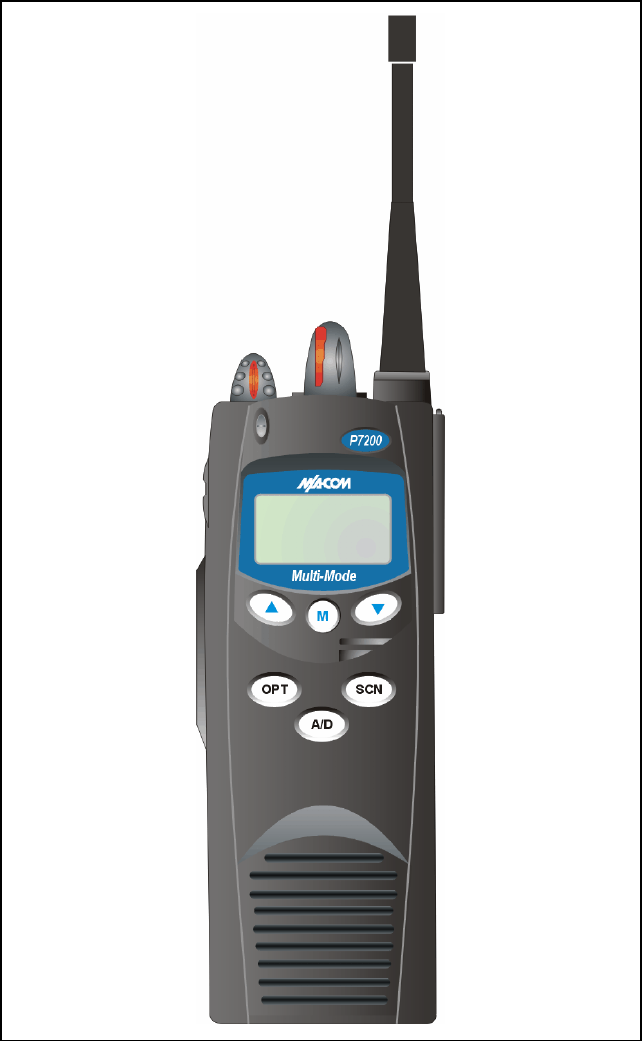

Figure 6: Scan Model

CONTROLS

The radio features two rotary control knobs and an emergency button mounted

on the top of the radio. Push-To-Talk, option, and monitor buttons are

mounted on the side. The front mounted keypad has six buttons on the P7250

Scan model and 15 buttons on the P7270 System Radio. The P7230 Select

model radio has no front keypad.

Buttons and Knobs

The function of the button and knob controls will vary with mode of

operation. This manual will deal primarily with OpenSky functionality. The

primary functions of the button and knob controls when in the OpenSky mode

of operation are listed in the paragraphs below. Other functions associated

with these controls are detailed in later sections.

POWER ON-OFF

VOLUME KNOB Applies power to and adjusts the receiver’s volume. Rotating

the control clockwise applies power to the radio. A single alert

tone (if enabled through programming) indicates the radio is

operational.

Rotating the control clockwise increases the volume level.

Minimum volume levels may be programmed into the radio to

revent missed calls due to a low volume setting. While

adjusting the volume the display will momentarily indicate the

volume level (i.e. VOL=31). The volume range is from a

minimum programmed level of zero (displayed as OFF in the

display) up to 31, which is the loudest level.

CONTROL KNOB Selects systems or groups*/channels (depending on pro-

gramming). This is a 16-position rotary knob.

Note: A mechanical stop, which can limit the positions

accessed, is shipped with the radio but must be installed. To

install the mechanical stop, remove the channel knob, loosen the

set screw on the channel knob metal base (using a 1.27mm hex

wrench), and remove the channel knob metal base. Replace the

16 channel ring with the channel stop ring located at the desired

channel. Reinstall the channel knob metal base, tighten the set

screw, and reinstall the channel knob.

EMERGENCY/

HOME BUTTON Automatically selects a pre-

rogrammed “designated”

Group/System by pressing and holding for a programmed

duration. It can also be used to declare an emergency by

ressing and holding for a programmed duration. The button

must be pre-programmed for either operation, but not both.

PTT BUTTON Push-To-Talk must be pressed before voice transmission begins.

In trunked mode the radio’s ID is transmitted upon depression of

the PTT button. (Refer to Figure 4.)

OPTION

BUTTON 1 Used to scroll UP through available items within a selected

menu.

OPTION

BUTTON 2 Used to scroll DOWN through available items within a selected

menu.

Keypad

The keys on the Keypad have special functions and are labeled using a symbol

or abbreviated word describing its primary function. Numeric entry is a

secondary function of the keys. Each key is described in the following

subsections.

Figure 7: Scan Radio Front Panel

KEY FUNCTION



Primary Function: Allows the user to select system,

groups, or channels, depending on personality

programming. The buttons act as STEP UP or STEP

DOWN. Pressing one of these buttons displays the next

or previous stored system, group, or channel.

Secondary Function: Scrolls UP or DOWN through

available menus.

Primary Function: Accesses the pre-stored menu. The

menu can include high/low power setting, keypad lock,

LCD contrast, LCD and keypad backlighting.

Secondary Function: Activates a selected item within a

list. After a menu list is accessed using the  or 

keys, scroll through the available items within the menu

using the OPT1 or OPT2 buttons and then activate

specific items with the  key. This is similar to an

“Enter” key.



(Scan only)

Adds/Deletes selected groups or channels from the Scan

list of the currently selected system.



(Scan only) Turns the Scan operation ON and OFF.



(Scan only)

Activates one of a number of programmable software

options.

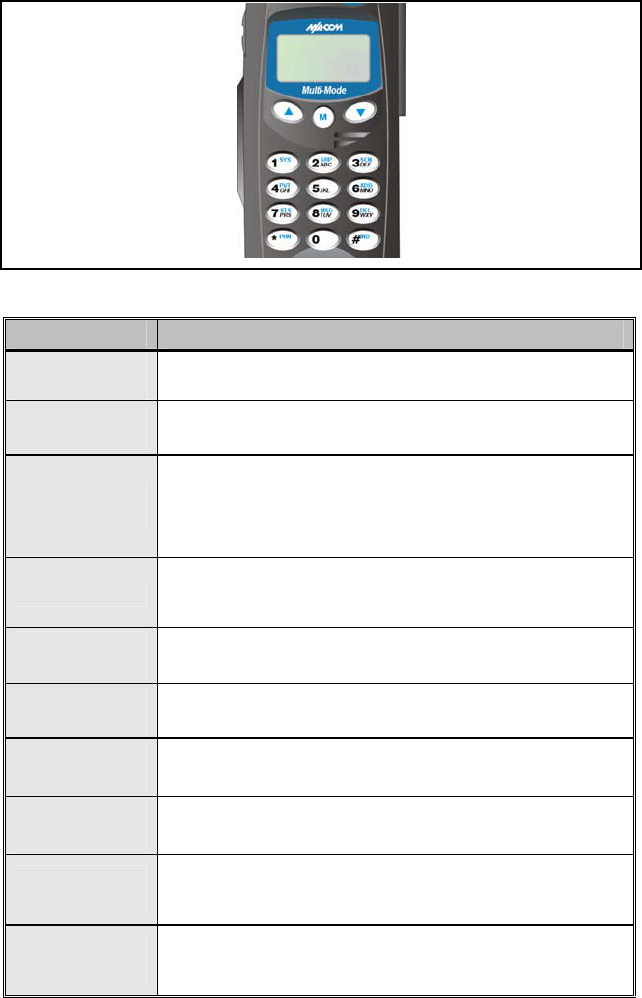

Figure 8: System Radio Front Panel

KEY FUNCTION

Same as Scan Model

Same as Scan Model



Selects a specific system. If the rotary knob is used to

select the system and more than 16 systems are

programmed in the radio, the  key is used to select

additional banks (groupings) of systems.

1-9, *, 0, # These keys are used to place telephone interconnect and

individual (unit-to-unit) calls. The keys operate like a

normal telephone keypad.

Selects a specific group.

Turns the Scan operation ON and OFF.



Enables or disables Private Mode for the

system/group/channel displayed.



Adds groups or channels from the currently selected

system to the Scan list.



Status. Access to the status list (0-9). The Status key

permits the transmission of a pre-programmed status

message.



Message. Access to the message list (0-9). The

Message key permits the transmission of a pre-

programmed message.

continued

KEY FUNCTION



Deletes selected groups or channels of the currently

selected system from the Scan list.

Places telephone interconnect calls.

Initiates individual calls.

DISPLAY

The P7200 display is made up of 3 lines. Lines 1 and 2 contain twelve

alphanumeric character blocks each. The 3rd line also contains twelve blocks,

each used primarily to display radio status icons. All three lines are used to

display menu options when in the menu mode. If programmed, the display

backlighting will illuminate upon power up or when radio controls are

operated. Specific display characteristics will be discussed in the operation

section of this manual.

Figure 9: Blank Radio Display

Radio Status Icons

Status Icons indicate the various operating characteristics of the radio. The

icons show operating modes and conditions and appear on the third line of the

display (see Table 3).

Table 3: Display Descriptions

Steady – “Busy” transmitting or receiving, Network connectivity

Flashing – call queued

Steady – Special call mode (individual or telephone)

Steady – Stealth mode is enabled (all tones and other displays are off,

voice is still heard).

Steady – Battery charge indicator (refer to Figure 10)

Flashing – Low battery indicator (refer to Figure 10)

Steady – Transmit in encrypt mode

Flashing – Receiving an encrypted call

Steady – Indicates operation in VTAC mode.

Signal Strength Indicator – Indicating weaker signal (refer to Figure

11)

Signal Strength Indicator – Indicating stronger signal (refer to

Figure 11)

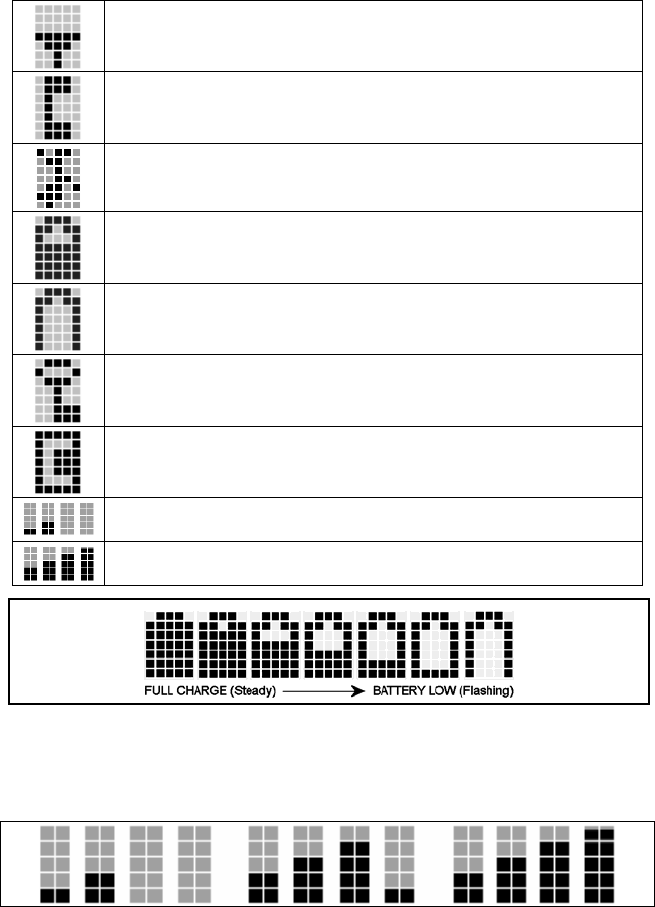

Figure 10: Battery Charge Indicator (Full Cycle)

The battery charge indicators (see Figure 10) illustrate approximate level only,

based on battery voltage.

Figure 11: Signal Strength Indicators

The signal strength indicators (see Figure 11) illustrate relative signal strength

only.

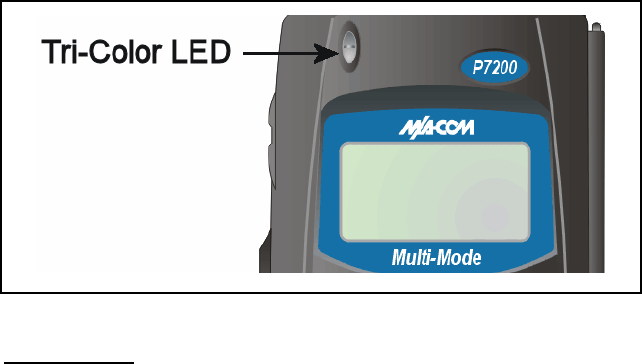

Figure 12: Tri-Color LED

Tri-Color LED

The Tri-Color LED changes color to indicate radio status and is visible from

both the front and top of the radio (see Figure 12). The three colors of the

LED and the status they represent are:

Green: Receiving

Red: Unencrypted transmission

Orange: Encrypted transmission

ALERT TONES

The P7200 radio provides audible Alert Tones or “beeps” to indicate the

various operating conditions (see Table 4).

Table 4: Alert Tones

NAME TONE DESCRIPTION

Call

Originate (B) one short mid-

pitched OK to talk after pressing the push-to-talk

button

Call

Queued (T) one high-pitched Call queued for processing

Autokey (T) one mid-pitched Queued call received channel assignment

System

Busy (T) three low-pitched System busy or unable to complete call

Call Denied (T) one low-pitched Radio is not authorized on the system or

group

Carrier

Control

Timer

(B) five high-pitched /

one long low-pitched PTT depressed for maximum length of time

Low

Battery (B) one low-pitched/

one short mid-

pitched

Low battery

TX Low

Battery

Alert

(B) one low-pitched After PTT - battery too low to transmit

(T) = trunked mode only (B) = both trunked and conventional modes

UNIVERSAL DEVICE CONNECTOR (UDC)

The Universal Device Connector (UDC) provides connections for external

accessories such as a headset or a speaker-microphone and for programming

cables. The UDC is located on the right side of the radio (opposite the PTT

Button). When the radio is locked in a vehicular charger the UDC provides

the audio and control connections between the radio and the vehicular charger.

The UDC facilitates programming and testing the radio. The UDC pins

perform different functions depending on the accessory attached to the UDC.

OPENSKY OPERATION

Once an OpenSky system has been selected from the available systems on

your P7200 series portable radio, the characteristics described in the following

sections will govern operation.

PERSONALITY

As illustrated in Figure 13, a personality defines the profiles and talk groups

available to the user. It is the structuring of a collection of profiles and

privileges established by the OpenSky network administrator to provide the

user with a comprehensive set of profiles to communicate effectively with the

necessary talk groups or individuals.

Personalities are stored on the network and downloaded over-the-air to the

radio. This process is called “provisioning.” Provisioning occurs at radio

power-up and at user log-in. Each personality can contain up to sixteen (16)

profiles and each profile can contain up to sixteen talk groups.

Profiles

As stated above, each profile can contain up to sixteen (16) talk groups. A

profile also defines the radio’s emergency behavior. All transmissions are

made on the selected talk group (displayed on the top line of the dwell

display). The user can change the selected talk group to any of the other talk

groups within the profile.

TG a

TG b

TG c

TG x

TG y

TG z

TG d

TG e

TG f

TG a

TG d

TG g

TG h

TG i

TG = Talk Group

Profile 1 Profile 2 Profile 3

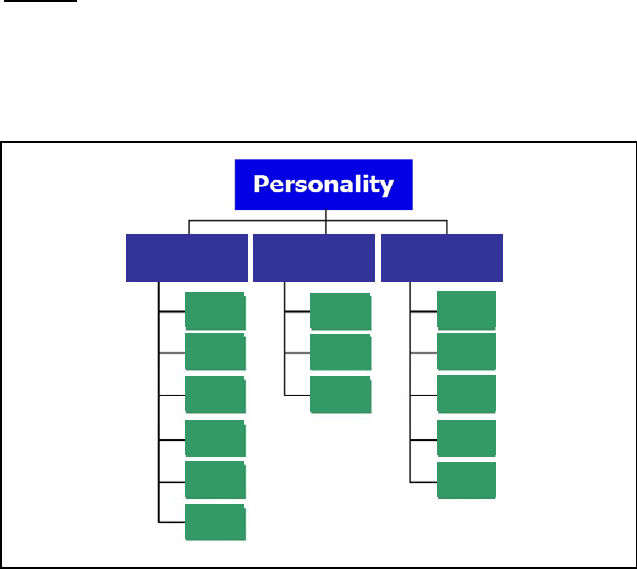

Figure 13: Personality Structure Example

Talk Groups

A talk group represents a set of users that regularly need to communicate with

one another. There can be any number of authorized users assigned to a talk

group. Talk groups are established and organized by the OpenSky network

administrator. An OpenSky talk group is similar to a channel within a

conventional FM radio system.

BASIC OPERATION

TURNING ON THE RADIO

1. Power ON the radio by rotating the POWER ON-OFF/VOLUME knob

clockwise. A short alert signal (if enabled through programming)

indicates the radio is ready to use. Refer to Figure 3 for location of the

POWER ON-OFF/VOLUME KNOB.

2. The display shows the last selected system and group or a default system

and group (depending on programming).

3. Adjust the POWER ON-OFF/VOLUME knob to the desired volume

level.

4. Select the desired system and group. The display indicates the current

system and group names.

5. The radio is now ready to transmit and receive calls.

NOTE

In the trunked environment, CC SCAN will be displayed if

communication with the system's control channel cannot be

established. This may occur if, for example, the radio is out

of range of the trunking site. It may be necessary to move to

another location or select another trunking system to re-

establish the control channel link for trunked mode

operations. CC SCAN is displayed on the group line until

a control channel is accessed.

SYSTEM SELECTION

Method 1 (System Model)

1. Press  to access system list.

2. Press the numeric key, which is mapped to the desired system.

3. Press . The radio will move to the selected system.

Method 2

1. Rotate System/Group/Channel knob to desired system number position,

2. Press the   buttons to change systems. The display registers the

new system name on line one.

GROUP SELECTION

Method 1 (System Model)

1. Press  to access group list.

2. Press   to scroll through the list of groups or the numeric key

mapped to the desired group list.

3. Press  to select desired group. The radio will move to the selected

group.

Method 2

Rotate System/Group/Channel knob, or

If this knob is not programmed for groups, press the   buttons to

change groups. The display registers the new system name on line two.

CHANNEL SELECTION

Rotate System/Group/Channel knob, or

If this knob is not programmed for channels, press the   buttons to

change channels.

MODIFY SCAN LIST

System Model

1. Press  to toggle scan OFF and verify is not displayed.

2. Select group or channel.

3. Press  once to remove group or channel from list.

4. Press  once to add as a normal group or channel.

Press  twice to add as a Priority 2 group.

Press  three times to add as a Priority 1 group.

5. Press  to re-start scanning.

Scan Model

1. Press  to toggle scan OFF and verify is not displayed.

2. Select group or channel.

3. Press  once to remove group or channel from the list.

4. Press  once to add as a normal group or channel.

Press  twice to add as a Priority 2 group.

Press  three times to add as a Priority 1 group.

5. Press  to re-start scanning.

NUISANCE DELETE (SYSTEM MODEL)

A channel can temporarily be deleted from the scan list if it is not the

currently selected channel.

1. Turn Scan ON.

2. When the radio receives a call on the channel, press the . The

channel is removed from the scan list until the radio is power cycled.

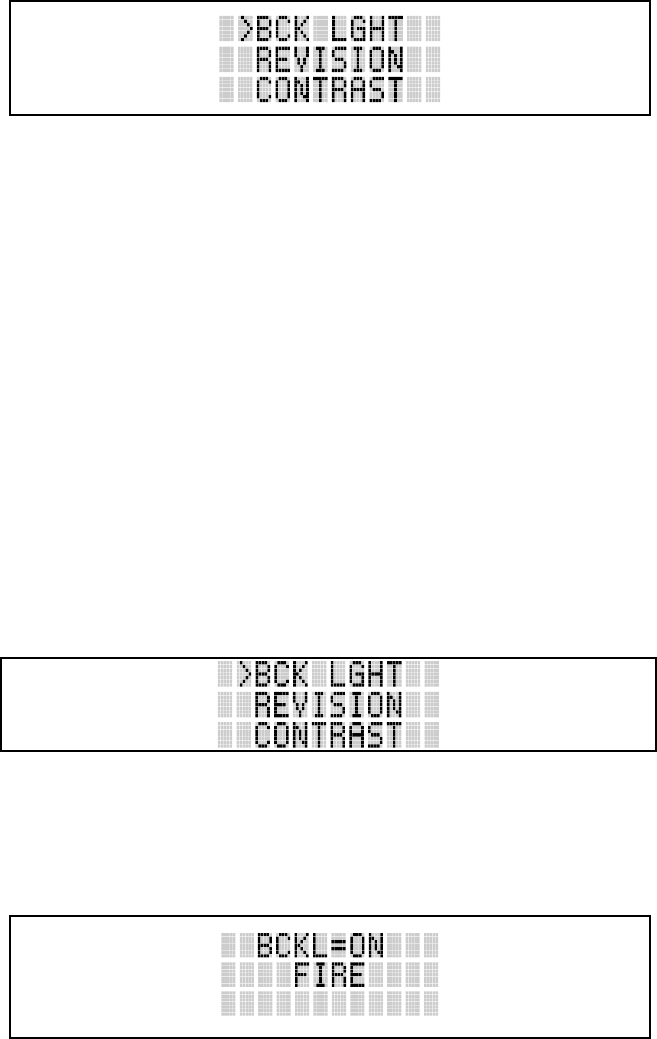

BACKLIGHT ON/OFF

1. Press  to access the menu.

2. Press   to scroll through menu until “BCKLGHT” appears.

3. Press  to select Backlight menu.

4. Press   to toggle backlight ON and OFF.

5. Press  to select new backlight setting.

CONTRAST ADJUST

1. Press  to access the menu.

2. Press   to scroll through menu until CONTRAST appears.

3. Press  to select Contrast menu.

4. Press   to adjust contrast setting from 1 - 4.

5. Press  to select new contrast setting.

DECLARING AN EMERGENCY

1. Press and hold the red Emergency/Home button (the length of time is

programmable; check with the system administrator).

2. *TXEMER* will flash in the display, plus and will be displayed.

After 2-3 seconds the transmit icon will turn off.

3. *TXEMER* and will remain until the emergency is cleared.

4. Press the PTT and will reappear.

5. Release PTT when the transmission is complete.

LOCKING/UNLOCKING KEYPAD

1. Press  button.

2. Within 1 second, press the Option button on the side of the radio.

HIGH/LOW POWER ADJUSTMENT

Transmit power adjustment is possible if enabled through programming.

Within conventional systems, transmit power is adjustable on a per channel

basis. Within EDACS trunking systems, transmit power is adjustable on a per

system basis.

There are two ways to toggle between high and low power:

Using the Menu Button:

1. Press .

2. Using the  and  keys, scroll until the cursor (>) appears to the left

of “TX POWER” in the display.

3. Press  again to toggle between High and Low power.

4. “POWER = HIGH” or “POWER = LOW” will appear momentarily on

the top line of the display.

Using the Pre-Programmed Option Button:

Press the Option button. “POWER = HIGH” or “POWER = LOW” will

appear momentarily on the top line of the display.

The Menu function accesses features that are not available directly from the

keypad. The order and actual menu items available is configurable through

programming. Upon radio power up, the menu item that is at the top of the

menu list will always be displayed first. Subsequent access to the menu

function will return the last menu item that was shown in the display and

cursor position.

1. To enter the menu mode, press .

2. Upon entering the menu selection mode, Menu options will appear on the

display (see Figure 14).

Figure 14: Menu Display

3. The radio will continue to receive and transmit normally while in the

menu function.

4. To scroll through the menu options use the  or  keys. When the

required menu item has been found align the cursor with the option then

press  to select it. The menu item's parameter setting shown in the

display can now be changed by using  or  to scroll through the

list of parameter values. Once the desired setting is reached press  to

store the value and return the menu option selection level. For menu items

that display radio information, pressing  or  will scroll through a

list of informational displays. The possible menu items are in Table 5.

An example of the menu item selection process and menu item parameter

change is detailed below for the backlight menu item.

1. PRESS: 

The menu mode is entered.

2. PRESS:  or  until the display shows (see Figure 15):

Figure 15: Backlight Menu Item

3. PRESS: 

The backlight menu item is activated. Line one shows the active menu

item and its current parameter setting. Line two shows the currently

selected system or group name (see Figure 16).

Figure 16: Backlight Menu Display

4. The menu item's parameter setting shown in the display can now be

changed by using  or .

5. Once the desired setting is reached press  to store the value and return

the menu option selection level.

For menu items that display radio information pressing  or  will scroll

through a list of informational displays. An example of information displays is

shown in Figure 17.

NOTE

The TX POWER menu item, when selected, toggles

LOW/HIGH power. It does not use  or  to scroll nor is

an additional press of the  button required.

Table 5: Menu Item Information

FEATURE DISPLAY PARAMETER

SETTING COMMENT

Keypad Lock Menu Item:

KEY LOCK

Once Selected:

LOCKED

Locked

Unlocked

Locks the keypad. To

unlock; press and release

“M” then within 1 second

press the option button

(NOTE: this sequence is

also a short cut to locking

the keypad.)

Backlight Adjust Menu Item:

BCK LIGHT

Once Selected:

BCKL=

OFF/ON Selects the light level for

backlighting.

Contrast Adjust Menu Item:

CONTRAST

Once Selected:

CNTRST=

1, 2, 3, 4 Selects the display contrast

level.

Transmit Power

Select Menu Item:

TX POWER

Once Selected:

POWER=

HIGH or LOW Selects radio output power

mode.

Radio Revision

Information Menu Item:

REVISION N/A Selects the information

display to view.

Informational display only

(see Figure 17). No user

selectable settings.

Toggle Scan On/Off SCAN ON/OFF Toggles Scan operation

ON/OFF.

Toggle Private

Mode PRIVATE ON/OFF Toggles Private Mode

ON/OFF.

Display Current

Encryption Key DISP KEY N/A Displays current encryption

key. Informational display

only. No selectable settings.

FEATURE DISPLAY PARAMETER

SETTING COMMENT

Display Current

Home

Group/Channel

HOME N/A Selects Home

Group/Channel

Select Desired

System SYS SEL N/A Selects a new system.

Add Group/Channel

to Scan List SCAN ADD N/A Adds to Scan List.

Delete

Group/Channel SCAN DEL N/A Deletes Group or Channel

from Scan List.

Add/Delete Scan

List SCAN A/D N/A Add or Delete from Scan

List.

Select Telephone

Numbers From

Phone List

PHN CALL N/A Trunked Only.

Data Operation NO DATA ON/OFF Trunked Only. Toggles

Data Operation ON/OFF.

Select Individual

Call from IC List IND CALL N/A Trunked Only.

Select Group GRP SEL N/A Trunked Only.

Talkaround TALKARND ON/OFF Conventional Only. Toggles

Talkaround feature

ON/OFF.

Select Channel CHN SEL N/A Conventional Only.

Feature Encryption

Display Menu Item:

FEATURES

Once Selected:

(See Feature

Encryption Display

Section)

N/A Indicates current features

programmed into the radio

as well as certain

information required to add

features to the radio.

Informational display only.

No user selectable settings.

System Scan

Enable Menu Item:

SYS SCAN

Once Selected:

SYSC ON or

SYSC OFF

ON/OFF Toggles System Scan

feature ON/OFF.

PRS - NAME

XXXXXXXX Personality Name

EEPR SIZ EEPROM Size

RAM SIZ RAM Size

FLSH SIZ Flash Size

RF BAND Frequency Band

HSD RATE Data Transfer Rate

PRS VER Software Version

DSP_ _RAM DSP Software Version

FLSH - VER FLASH Software

r - released, 01A - revision state

M/A-COM

Figure 17: Information Display

DIGITAL VOICE OPERATION

Digital voice programmed systems have three (3) different voice modes: clear

(analog), digital, and private (encrypted). The voice modes are programmed

on a per-group basis within each trunked system and on a per-channel basis

within each conventional system.

Clear Mode

The Clear Mode is a voice mode in which the radio transmits and receives

only clear (analog) voice signals. These analog signals are non-digitized and

non-encrypted. Clear mode transmissions can be monitored easily by

unauthorized persons.

NOTE

Groups or channels programmed for clear operation cannot

transmit or receive digital or private messages.

Digital Mode

The Digital Mode allows the radio to transmit and receive digitized voice

signals. Digital signals provide improved weak signal performance and cannot

be easily monitored with a standard receiver. Groups and channels

programmed for digital operation transmit only digital signals. Message

trunked group calls and individual phone calls (I-Calls) are answered back in

the mode in which they were received assuming the call or hang time is still

active. Individual phone, all call, and emergency calls are transmitted clear if

the digital mode is disabled or inoperative.

1. If receiving an analog message trunked call, the radio responds in the

analog mode during the hang time on the working channel.

2. If receiving an analog I-Call, the radio responds in the analog mode

during the hang time.

3. When using the *WHC* feature to respond to an I-Call (after the hang

time has expired), the call is transmitted in the mode defined by the

system mode as programmed for the current system if the ID being called

is not in the I-Call list. If the ID is in the I-Call list, then the call is

transmitted as defined by the I-Call mode programmed in the list for that

ID.

The overdial DTMF tones are not available while in the Digital Mode.

Private Mode

The Private Mode allows the radio to transmit encrypted messages and receive

clear or private transmissions. The radio transmits private if the group/channel

is programmed for private operation and forced operation is pre-programmed.

If autoselect operation is pre-programmed and the radio is in the Private

Mode, the radio transmits in the mode of the received call if the hang time is

active. If no hang time is active, the radio transmits private.

Cryptographic keys are transferred to the radio using a cryptographic

Keyloader. Up to seven (7) different cryptographic keys, numbered 1-7, can

be transferred from a Keyloader and stored in the radio. An individual key is

automatically selected on a per-group/channel basis according to the radio

programming. Groups and channels within the digital system can be

programmed for keys 1-7 (private). Up to 8 banks of 7 keys can be stored for

private systems. The bank is specified per system.

When operating on a group or channel programmed for Private Mode, all

transmissions are private transmissions and the radio receives clear and

private signals. The status icon is displayed when the Private Mode is

enabled. If the selected group or channel is programmed for auto-select

capability, the mode may be toggled between private and clear with the 

key, then following the selection mode rules. Radios programmed for forced

private operation do not allow a change of the transmit mode.

Displaying the Currently Used Cryptographic Key Number

To Display the Currently Used Cryptographic Key Number for either the

system encryption key (for special call such as individual, phone, all, agency

or fleet) or the group/channel key (for group or conventional calls), perform

the following procedure:

1. Press the  button.

2. Use the  or  button to select "DISP KEY."

3. Then use the  or  button to toggle between displaying the system

key or the group/channel key.

System Encryption Key

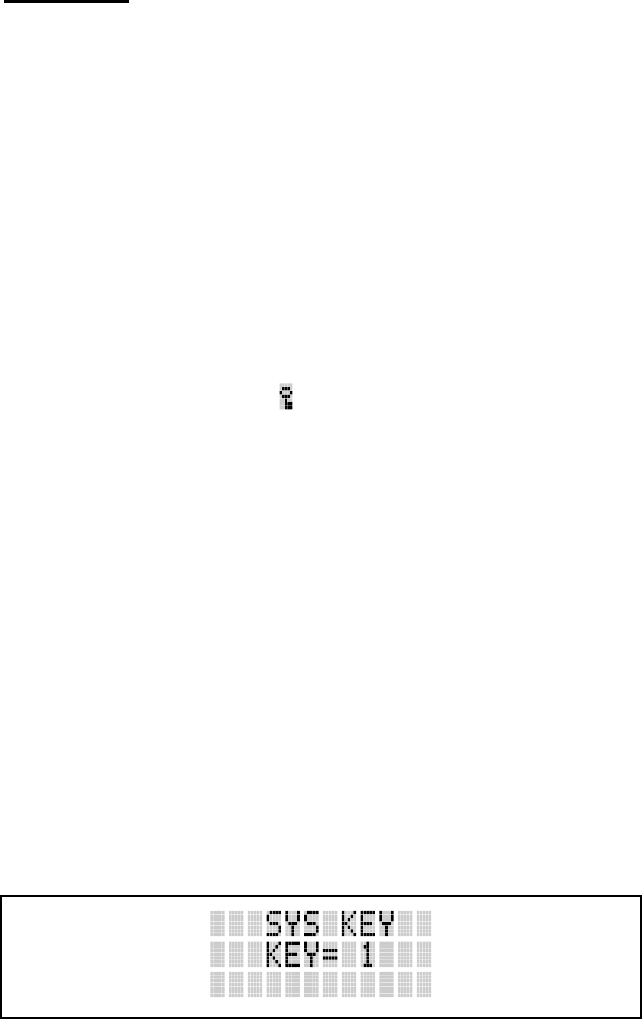

Figure 18: System Encryption Key Display

Group/Channel Encryption Key

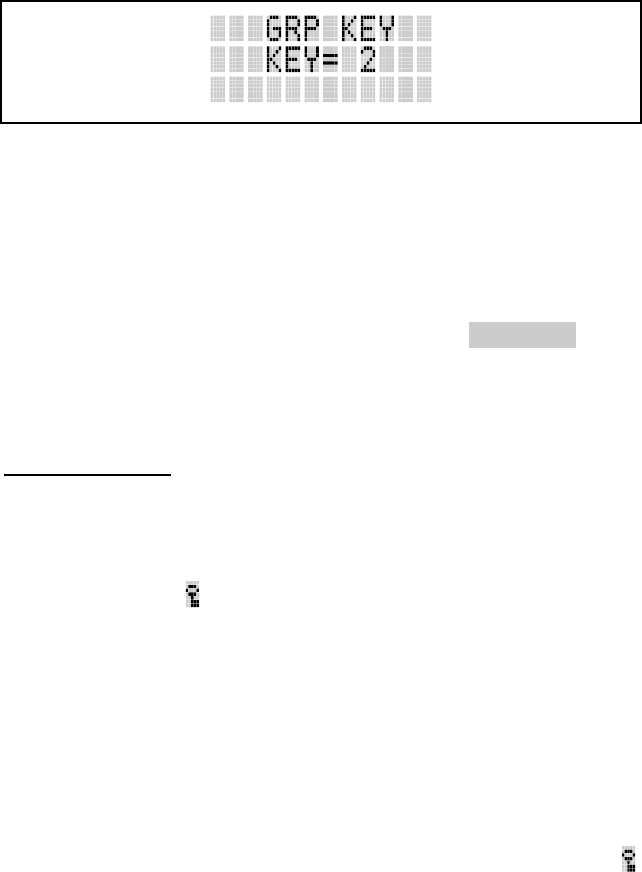

Figure 19: Group/Channel Encryption Key Display

Key Zero

All cryptographic keys can be zeroed (erased from radio memory) by pressing

the MONITOR/CLEAR button and while still pressing this button, press and

hold the OPTION button. Press both buttons for 2 seconds. A series of beeps

will begin at the start of the 2 second period and then switch to a solid tone

after the keys have been zeroed. The display will indicate KEY ZERO.

If the cryptographic key(s) are zeroed, one or more keys must be transferred

from the Keyloader into the radio before private communications may

continue.

Private Operation

Receiving an Encrypted Call

When receiving, the radio automatically switches between clear or private

operation. If the transmission being received is an encrypted transmission, it

will be decrypted, the icon is displayed, the receiver will unsquelch and the

message will be heard in the speaker. For this to occur the selected group or

channel must be programmed for private operation and the correct

cryptographic key must be loaded into the radio.

Transmitting an Encrypted Call

1. Select the desired group or channel

2. Place the radio in Private Mode by pressing  key, then follow the

selection mode rules. On a System radio, the  key can be used to

toggle the Private Mode ON/OFF. When Private Mode is enabled, the

icon is displayed.

If the last state of the radio was Private Mode, the Private Mode will be

enabled on power up. Also, the Private Mode will be enabled if forced

operation has been programmed in the radio.

If a group or channel is not programmed for Private Mode operation,

PVT DIS will be displayed if an attempt is made to enable private

transmit mode. It is not possible to operate on this group/channel in

Private Mode.

If the radio does not have the correct encryption key loaded, NO KEY#

will be displayed and the call will not be transmitted.

3. Continue with standard transmission procedures. A Private Mode access

tone will be heard when the PTT button is pressed.

Scanned Group Calls

Receiving a Scanned Group Call is the same as receiving a selected group

call. During the scan hang time, if the radio was programmed for autoselect, it

will transmit back in the same mode it received the call. For example, if a

clear group is entered in the scan list, it will only receive clear calls. If the

same group was available in private and entered in the scan list, it can receive

clear and private calls, provided autoselect was programmed in the radio. The

user can select transmitting on the scanned or selected group. If a group is

entered in the scan list more than once and in different modes (clear, digital,

private), only the first occurrence of the group will be used.

Table 6: Transmit/Receive Mode Compatibility for

Digital Voice Operation

GROUP/CHANNEL

PROGRAMMING

(TRANSMIT)

CLEAR

RECEIVE DIGITAL

RECEIVE PRIVATE

RECEIVE

CLEAR Yes No No

DIGITAL Yes Yes No

PRIVATE Yes No Yes*

*assumes the proper cryptographic key is loaded

NOTE

Conventional Digital or encrypted channels require Channel

Guard on the channel to operate correctly. The voice coding

technology embodied in this product is protected by

intellectual property rights including patent rights, copyrights,

and trade secrets of Digital Voice Systems, Inc. The user of

this technology is explicitly prohibited from attempting to de-

compile, reverse engineer, or to disassemble the Object Code,

or in any other way convert the Object Code into a human-

readable form.

TRUNKED OPERATION

SCANNING TRUNKED GROUPS

Groups that have been previously added to the scan list on a per system basis

may be scanned. Each system's group scan list is retained in memory when the

radio is powered OFF or when the battery pack is removed.

The following procedures outline scan operations for trunked groups. See the

conventional mode operating procedures for specific procedures on

conventional channel scanning.

Turning Scan On and Off

1. Toggle Scan operation ON by pressing  (Scan model) or  (System

model). icon rotates clockwise to indicate radio is scanning.

2. Toggle Scan operation OFF by again pressing  (Scan model) or 

(System model). will disappear.

• If the radio scans to a group other than the selected group then

receives a call on the selected group, the radio will switch to the

selected group. However, if the “scanned-to” group is programmed

at a higher priority the radio will remain on the “scanned-to” group.

• The radio will continue scanning if a new group is selected when

scan is ON.

Pressing the PTT button when scan is ON will cause the radio to transmit on

the displayed group or to the currently selected group (depending on

programming).

Adding Groups to a Scan List

Scan Model

1. Scan must be OFF to add/delete groups to/from the scan list. If the Scan

icon is ON, press the  key to turn Scan OFF.

2. Select the desired group using the SYSTEM/GROUP/CHANNEL knob

and/or the  or  keys. If the selected group is currently on the list,

pressing  will display on line three.

3. If the scan list status icon is blank ( ), the group can be added to the scan

list by pressing the  key. will be displayed on line three.

4. Press the  key a second time to set the group to Priority 2. A is

displayed on line three.

Press  a third time to set the group to Priority 1. A is displayed on line

three. The priority level section sequence only advances the group to the next

high priority level and stops at priority level 1. To select a lower priority level,

the group must be deleted from the scan list and then added back to the scan

list. Each new group added to the scan list starts at the lowest priority. If the

Priority 1 and Priority 2 groups are already set and a new group is assigned as

Priority 1 or Priority 2, the previously assigned group will change to non-

priority scanning. One of the following messages may be momentarily

displayed:

SCAN DIS The radio is not programmed to scan.

FIXED P1 A Priority 1 group has been pre-

rogrammed into the radio. A

new Priority 1 group cannot be selected.

FIXD LST A fixed scan list has been pre-

rogrammed into the radio. It is

not possible to change the list without reprogramming the radio.

NOTE

To quickly view multiple group scan status, press  then

slowly but consistently rotate the group knob. Each group

status will appear on the display.

System Model

1. With scan operation turned OFF, select the desired group to add to the

selected trunked system group scan list.

2. Press . The current priority status of the group will be displayed in

column 10 of line three for a time-out period. If the group is not part of

the scan list the status will be blank.

3. While the status is displayed, press  to add the group to the scan list.

is displayed on line three.

4. Press  a second time to set the group to Priority 2. A is displayed on

line three.

Press  a third time to set the group to Priority 1. A is displayed on line

three. The priority level selection sequence only advances the group to next

higher priority level and stops at priority level 1. To select a lower priority

level, the group must be deleted from the scan list and then added back to the

scan list. Each new group added to the scan list starts at the lowest priority. If

the Priority 1 and Priority 2 groups are already set and a new group is assigned

as Priority 1 or Priority 2, the previously assigned group will change to non-

priority scanning. One of the following messages may be momentarily

displayed:

SCAN DIS The radio is not programmed to scan.

FIXED P1 A Priority 1 group has been pre-

rogrammed into the radio. A

new Priority 1 group cannot be selected.

FIXD LST A fixed scan list has been pre-

rogrammed into the radio. It is

not possible to change the list without reprogramming the radio.

NOTE

To quickly view multiple group scan status, press either  or

the  key. Then slowly but consistently rotate the group

knob. Each group status will appear on the display.

Deleting Groups from a Scan List

Scan Model

1. With scan operation turned OFF, select the desired group to delete from

the selected trunked system group scan list.

2. Press . The current status of the group is displayed for a time-out

period.

While the current status is displayed, press . until the group from the scan

list is "blank". The sequence is "blank", , , ,"blank". Any group that is

not in a trunked system group scan list will show a "blank" for the time-out

period when it is the selected channel.

System Model

1. With scan operation turned OFF, select the desired group to delete from

the selected trunked system's group scan list.

2. Press . The current status of the group is displayed for a time-out

period.

While the status is displayed, press to delete the group from the scan list.

, ,or turns OFF. Any group that is not in a trunked system group scan

list will show a "blank" for the time out period when it is the selected channel.

Nuisance Delete

A group can also be deleted from the scan list, if it is not the currently selected

group, by pressing the  key (Scan model) or the  key (System model)

during scan operation while the radio is displaying the unwanted group. The

group will be deleted from the system's group scan list in the same manner as

if done using the steps above. Deletions done in this manner will not remain

deleted if the radio is powered OFF and then powered ON.

SCANNING TRUNKED SYSTEMS

The radio can be programmed with the following System Scan features. These

features are automatically enabled when the radio is powered ON. A key or

menu option is also defined to allow the System Scan features to be toggled

during radio operation. This is covered in the Menu Selection and Pre-

Programmed Keypad Key sections. The System Scan state will be maintained

through system changes but will default to ON when the radio is powered ON.

Wide Area System Scanning

The P7200 series radios can be programmed for Wide Area System Scan

operation for roaming across mobile systems. Upon the loss of the currently

selected system's control channel, radios can be programmed to automatically

scan the control channels of other systems. If a new control channel is found,

the radio will switch to the new system and sound an alert tone.

Priority System Scan

The radio can also be programmed for Priority System Scan. The priority

system is the desired or preferred system. While receiving the control channel

of the selected system, the radio will periodically leave the selected system

and search for the control channel of the priority system. This is done at a

programmable rate defined by the value in the Priority Scan Time control

(unless the ProScan™ algorithm is enabled, as explained in the following

sections). This priority scan timer is reset each time the PTT button is pressed

or when the call is received. If the priority system control channel is found, (or

meets the predefined criteria <ProScan>), the radio will automatically switch

to the priority system.

Enabling the Wide Area System Scan Function

If the radio cannot find the control channel of the selected system and begins

to wide area system scan, the radio will only scan for the priority system

control channel if the priority system is in the wide area scan list.

When ProScan is Enabled

The radio monitors the priority system and will switch to the priority system if

the criteria defined by the controls in the ProScan Options dialog box are met.

If ProScan is enabled, the rate at which the radio will scan for the priority

system is defined by the System Sample Time control, located in the ProScan

Options dialog box.

ProScan

The radio may be programmed for ProScan system scan operation for multi-

site applications depending on the version of radio flash code. ProScan is an

improved multi-site system scanning algorithm designed to replace

ProSound™ scanning. ProScan provides the radio with the ability to select a

new system for the radio to communicate on, when the selected system drops

below a predefined level. This is accomplished by enabling each radio to

analyze the signal quality of its current control channel and compares it with

the signal quality of the control channel for each site in its adjacent scan list.

(The signal quality metric used for the ProScan algorithm is based on a

combination of both Received Signal Strength Indicator (RSSI) and Control

Channel Verification (CCV) measurements.) When the selected system

degrades to a pre-programmed level, the radio will begin to look for a better

control channel. Once a control channel that exceeds the pre-programmed

parameters is found, the radio will change to the new system and emit a tone

(if enabled through programming). If the control channel is completely lost,

the radio will enter Wide Area System scanning and search the programmed

adjacent systems until a suitable control channel is found.

Menu Selection

Press  and then use the  or  buttons to scroll through the selections

until SYS SCAN is displayed. Then press  to toggle the System Scan

state. The SYSC ON or SYSC OFF display message is displayed for two

seconds to show the new state.

Pre-Programmed Keypad Key

Press the key pre-programmed to toggle System Scan and the SYSC ON or

SYSC OFF display message is displayed for two seconds to show the new

state.

EMERGENCY OPERATION

The radio's ability to declare an emergency, clear an emergency, remain

locked on an emergency system and group, and the emergency audio and

display freeze can each be enabled or disabled through programming. When

an emergency is declared scanning will stop and restarts only after the

emergency has been cleared.

Receiving an Emergency Call

When receiving an Emergency Call on the selected group and system, an alert

beep is heard and is displayed. The message *RXEMER* flashes in the

display on line two until the emergency condition is cleared.

Declaring an Emergency Call

To send an emergency call to a selected system and group (or on an optionally

pre-programmed group), proceed as follows:

1. Press and hold the red EMERGENCY button that is on top of the radio in

front of the antenna for approximately one second (this time is

programmable and therefore could be longer or shorter; check with the

system administrator). The radio will transmit an emergency call request

with the radio ID until an emergency channel assignment is received.

2. When the working channel assignment is received, the radio sounds a

single beep indicating the radio has auto keyed (see Table 4) and is ready

for voice transmission. *TXEMER* flashes on line two in the display

until the emergency is cleared.

3. Press PTT and speak into the microphone in a normal voice. and

momentarily turn ON.

4. Release PTT when the transmission is complete.

To clear the emergency first press and hold the CLEAR/MONITOR button.

While continuing to hold the CLEAR/MONITOR button, press the

EMERGENCY button. (This will work if the radio is programmed to clear

emergencies.)

INDIVIDUAL CALLS

Receiving and Responding to an Individual Call (Trunked Mode

Only)

When the radio receives an individual call (a call directed only to the user's

radio), it un-mutes on the assigned working channel and displays . The first

line on the display shows the logical ID number of the unit sending the

message, or the associated name if the ID number is found in the individual

call list. The radio can be programmed to ring when an individual call is

received. If enabled, the ring begins five seconds after the caller un-keys and

will continue until the PTT button, the CLEAR/MONITOR button or the

individual call mode is entered.

NOTE

The volume of the ring is adjustable through the volume control

levels.

If a response is made by pressing the PTT to the call prior to the programmed

call-back time-out, the call will automatically be directed to the originating

unit. If a response is not made before the call-back time-out, the radio will

return to normal receive display, and *WHC* will appear on the first line of

the LCD.

To respond after the call-back time-out, press the  key. The radio's display

will show the callers ID on the first line and WHCI=1 on the second line.

Pressing the PTT button at this point will initiate an individual call back to the

original caller.

The radio stores the IDs of the last 10 callers in the Calls Received List as

shown. Individual calls are stored in the top half of the list (1-10) and Group

calls are stored in the bottom half of the list (1-10). The most recent call is

stored in position 1, the second most recent call is stored in position 2, etc.

Figure 20: Calls Received Lists

To access this list, press the  key twice. Use the  or  buttons 

or  buttons to scroll through the list. Pressing the  key will display the

time elapsed since the call was received. After pressing  an example of the

display is as follows:

Figure 21: WHC Individual Call Display

Pressing PTT will initiate an individual call to the displayed logical ID.

Powering the radio OFF and ON will clear this list.

Sending an Individual Call (Trunked Mode Only)

Pre-Stored Individual Calls

The following procedures describe how to initiate and complete a Pre-Stored

Individual Call.

System Model

1. To select a pre-stored individual phone number, enter the individual call

mode using the  key. is displayed. Then scroll through the list of

stored numbers using the  or  key.

2. Press the PTT button; when the radio is clear to transmit, turns ON,

turns OFF and the channel access tone sounds. Line one shows the called

individual's name if found in the list of stored individuals or LID

followed by the logical ID number of the unit being called. The message

*INDV* displays on line two.

Scan Model

1. To select a pre-stored individual number, enter the menu mode by using

the  key. Scroll through the mode list using the  or  key.

2. Press . is displayed. Scroll through the list of stored phone numbers

using the  or  key until the desired number is displayed. Press .

3. Press the PTT button; when the radio is clear to transmit turns ON,

turns OFF and the channel access tone sounds. Line one shows the called

individual's name or LID. The message *INDV* displays on line two.

Direct Dial Individual Calls (System Mode Only)

The following procedures describe how to initiate and complete a Direct Dial

Individual Call.

1. The individual call ID is not stored in the pre-stored list of call IDs but

the individual unit ID is known, it can be entered directly from the

keypad.

2. Press and hold the PTT button to transmit. will turn ON, will turn

OFF, and the channel access tone will sound. Line one shows the called

individual's ID followed by the logical ID number of the unit being

called. The message *INDV* displays on line two. Proceed talking into

the microphone.

Call Storage Lists

There are two lists available for call storage in the P7200 series radios, the

calls received list (1 - 10) and the personality list (1 - 99 as defined by the

user). When the individual call mode is entered by pressing , the calls

received list is available. The user can toggle to the personality list by

selecting any index other than 0 or toggle between the two lists by pressing

the  key. If wrap is enabled, the calls received list wraps on itself and not

into the other list.

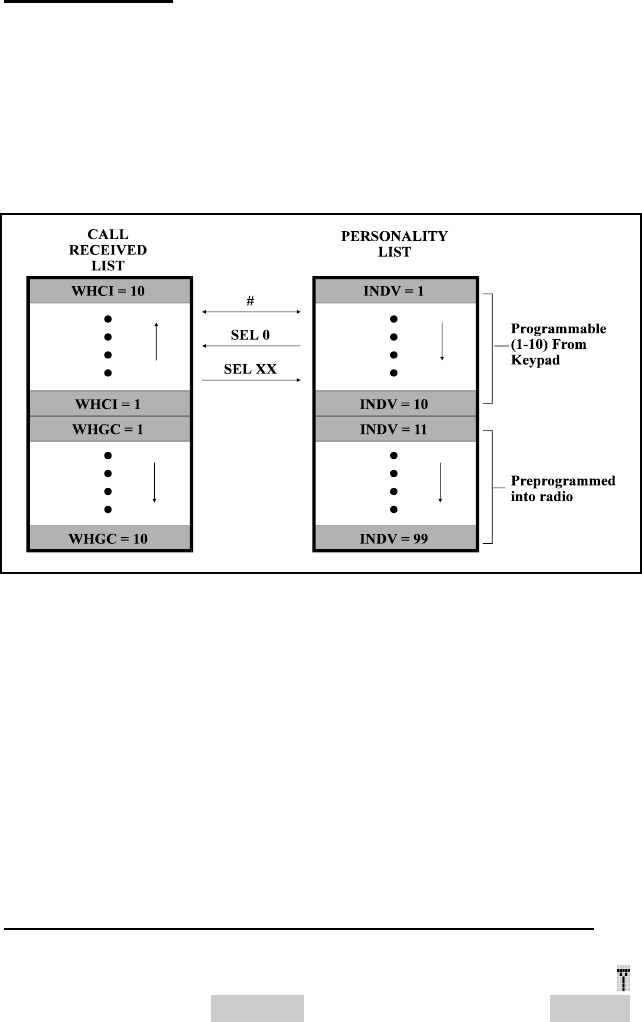

Figure 22: Calls Received and Personality Lists

The saved call list shows all ten storage locations. If no calls have been

received, the saved call list will be empty and the pre-stored list will be

available upon entering the individual call mode.

When in the saved call list, pressing the  key toggles the time stamp ON

and OFF. The time stamp indicates how long ago the call was received. When

in the pre-stored list pressing the  key toggles the Logical IDentification

(LID) ON and OFF.

TELEPHONE INTERCONNECT CALLS

Receiving a Telephone Interconnect Call (Trunked Mode Only)

When the radio receives a telephone interconnect call (a call directed only to

the user's radio), it un-mutes on the assigned working channel and displays .

The first line displays *PHONE*. The second line displays *INDV*.

Proceed with the call. Press PTT to talk, release PTT to listen.

Sending a Telephone Interconnect Call (Trunked Mode Only)

Pre-Stored Number

Use the following procedures to initiate and complete a Telephone

Interconnect call:

1. System Model: To select a previously stored phone number, press .

Use the or  keys to scroll through the list of stored numbers.

Scan Model: To select a previously stored phone number, press . Use

the or  keys to select the menu option PHN CALL. Press the 

key again then use the  or  keys to scroll through the list of pre-

stored numbers.

2. Press and release the PTT button. When the radio is clear to transmit,

turns ON, turns OFF and the channel access tone sounds. Line one

shows the accompanying name selected from the list of stored numbers.

The message *PHONE* displays on line two. The radio then

automatically transmits the programmed number stored in the special call

queue.

3. A telephone ring will be heard from the speaker. When someone answers

the phone, press the PTT button and speak into the microphone. Release

the PTT button to listen to the callee. Unsuccessful interconnect signaling

returns the radio to the normal receive mode and the number remains

displayed until the special call is cleared or the time-out expires or

another group or system is selected. Terminate a call by pressing the

CLEAR/MONITOR button.

NOTE

In half-duplex mode, only one person may talk at a time. The

radio PTT button needs to be pressed in order to communicate

to the individual called and released for the individual called to

be heard.

Direct Dialing of Phone Calls (System Mode Only)

1. If the phone number is not stored in the pre-stored list of phone numbers,

but the phone number is known, it can be entered directly from the

keypad. Start by pressing the . Then enter the required number from

the keypad.

NOTE

The last number directly entered can be recalled by first

pressing  then pressing the PTT button.

2. If the phone number is not stored in the pre-stored list of phone numbers,

but the phone number is known, it can be entered directly from the

keypad. Start by pressing the . Then enter the required number from

the keypad.

3. A telephone ring can be heard from the speaker. When someone answers

the phone, press the PTT button and speak into the microphone. Release

the PTT button to listen to the individual called. Unsuccessful

interconnect signaling returns the radio to the normal receive mode and

the number remains displayed until the special call is cleared or the time-

out expires or another group or system is selected.

NOTE

In half-duplex mode, only one person may talk at a time. The

radio PTT button needs to be pressed in order to communicate

to the individual called and released for the individual called to

be heard.

4. To terminate the call, momentarily press the CLEAR/MONITOR button.

Dual-Tone Multi-Frequency: Overdial/Conventional Mode

Once the radio has established a connection to the public telephone system, it

may be necessary to “over-dial” more digits to access banking services,

answering machines, credit card calls, or other types of systems that require

Dual-Tone Multi-Frequency (DTMF) access digits.

Overdial operation can also be used to initiate a telephone interconnect call

via DTMF signalling if a dial tone has already been accessed on the system.

This method makes a telephone interconnect call while operating in the

conventional mode but will also function in trunked mode if a dial tone is

directly accessible.

Telephone numbers and other number sequences for overdialing can be stored

in the phone list when programming the radio. These numbers are accessed

by pressing , then following the selection mode rules. The following steps

are required to dial these numbers:

Scan Model

1. Follow the procedure in Sending A Telephone Interconnect Call

(Trunked Mode Only) to establish a connection to the telephone system

or consult the system administrator for the procedure to access a dial tone

on the trunked or conventional system.

2. Overdial numbers are transmitted by entering the phone mode using the

 button.

Press  to enter the overdial select/entry mode and follow the selection mode

rules to call up a stored number from the phone list. is displayed. Press PTT

to send the overdial sequence once. If the number needs to be transmitted

again it must be selected or entered again (this prevents unwanted numbers

from being sent the next time the PTT button is pressed during the call). This

overdial select/entry mode remains active until the call is dropped, cleared, or

 is pressed. The overdial select/entry mode can be re-entered if the call is

still active by pressing .

System Model

1. Follow the procedure in Sending A Telephone Interconnect Call

(Trunked Mode Only) to establish a connection to the telephone system

or consult the system administrator for the procedure to access a dial tone

on the trunked or conventional system.

2. Overdial numbers are transmitted using either method as follows:

This overdial select/entry mode remains active until dropped, cleared, or  is

pressed. The overdial select/entry mode can be re-entered if the call is still

active by pressing .

PROGRAMMABLE ENTRIES

Pre-Storing Individual and Telephone Interconnect Calls from the

Keypad (System Mode Only)

Individual Call ID numbers, telephone numbers and other number sequences

for overdialing are stored in the special calls lists when programming the

radio. The first ten entry locations of these lists can be changed by the radio

operator. The keypad is used when adding, changing, and storing numbers in

these entry locations.

Use the following procedure to store a number in one of the first ten entries of

a special call list:

1. Press  or  to enter the individual call list or the phone call list.

is displayed.

2. Scroll through the list using the  or  until one of the first ten

entries is reached. NO ENTRY is displayed if the location is empty.

3. Enter the desired number. If necessary, a pause can be entered by pressing

and holding 0-9, , or  until an underscore appears in the display

(telephone interconnect only). The individual call list entries will accept

up to 5 digits. The phone call list entries accept a combination of up to 31

digits and pauses.

4. Press and hold  until the display changes indicating that the number

has been stored.

Repeat steps 1-4 above if the number stored in an entry location needs to be

changed.

STATUS/MESSAGE OPERATION

Status operation permits the transmission of a pre-programmed status

condition to the EDACS site. Message operation permits the transmission of a

pre-programmed message text to an EDACS site.

Status Operation

To send a status condition, press the  key followed by  or  key to

select the pre-programmed status. STATUS and 0 through 9 pre-programmed

status selections are available from the menu. If STATUS is selected you need

to enter the number of the status message you intend to transmit. If no status

has been programmed for the selected number key, the radio will display

NO ENTRY. A valid selection will permit the status text to appear in the

display for a pre-programmed time. After the time-out expires or the  key

has been pressed (the  key will override the time-out period), the status is

selected and will be transmitted to the site or stored in the radio memory

where it can be polled by the site at a future time. Status messages can also be

programmed for single key operation so that a single press of a key assigned

to a status message automatically transmits that message. If the site does not

receive the status properly, the radio will sound a low pitched tone.

The status selection can also be canceled by pressing the CLEAR button prior

to the time-out period.

To view the currently selected status after it has been transmitted, press the 

key and then the  key to ramp to STS, re-press the  key again and then

the CLEAR button prior to the time-out period. If the status was not sent

successfully to the site, the text associated with the status will flash in the

display.

Message Operation

Message Operation is performed in the same manner as status operation in the

previous section.

Dynamic Regroup Operation

Dynamic Regroup Operation permits multiple talk groups (up to eight) to be

added to a radio via the system manager. The radio must be pre-programmed

to respond to regrouping. Dynamic regrouping will not be activated in a radio

until the system manager sends an activation message. Each radio that

receives and acknowledges the regrouping instructions is successfully

regrouped.

Pressing and holding the CLEAR/MONITOR button for 2.5 seconds toggles

the user into and out of the dynamic regroup groupset. A double beep will

sound for entry or exit. The display will indicate REGRP_0x where "x" is a

digit of 1 to 8 indicating the group (when dynamic regroup has been enabled

by the user). If the radio is in dynamic regroup and the user selects a group

that has not been regrouped, the display will show NO ENTRY. The radio

will be prevented from transmitting and receiving calls in this condition

except for scanned groups.

Emergency Operation

If the pre-programmed groupset on the currently selected system contains an

EMER/HOME group and the radio is in dynamic regroup, the radio will

declare the emergency on the currently selected dynamic group.

Macro Key Operation

Macro key operation permits the user to accomplish a series of keystrokes

with a single "macro" keystroke. Each Macro Key is capable of executing up

to twenty (20) keystrokes, to any push button input (i.e., keypad keys,

OPTION button, etc.). Each macro key can be pre-programmed to activate

when pressed or when released.

A macro key may also be pre-programmed to change the key stroke sequence

the next time the macro key is activated.

For detail operation and assignment of macro keys, contact your

communications supervisor or administrator.

PORTABLE DATA

The P7200 series portable radios, when operating in the EDACS

configuration, permit either voice or data calls to be transmitted or received.

The radio can handle only one type of call at a time; however, either data or

voice is selected transparently by the operator through normal usage of the

radio. Data communications is not supported in the conventional mode.

The radios can be connected to Mobile Data Terminals (MDT) or to a host

computer. Any RS-232 compatible device that supports the Radio Data

Interface (RDI) protocol (Version 1.91 or greater) may be connected to the

radio. Support for MDTs or host computers is a programmable option per

radio. Additionally, radios may also be programmed for data only operation

(no voice calls transmitted or received).

Displays

The following will be displayed during the various states of data mode of

operation:

TX DATA Appears on top line of display when the radio is transmitting

a data call.

RX DATA Appears on top line of display when the radio is receiving a

data call.

DATA OFF Appears on top line of display when the radio is in the data

disabled state.

DATA ON Appears for two seconds on top line of display when the

radio is toggled to the data enabled state.

Data Off Operation

The radio can be placed in the data disabled state by any of the following

methods. When the data state is disabled, DATA OFF appears on the top line

of the display.

• Declaring an emergency (not to be used unless an actual emergency

condition exists). Alert tone will sound.

• Pressing the OPTION button (if pre-programmed for “no data” key).

Alert tone will sound.

• Pressing the “no data” (ND) key (pre-programmed).

Data On Operation

The data state is enabled by one of the following (depending on how it was

disabled). DATA ON will appear on the top line in the display for two

seconds then the display will return to normal.

• Pressing the “no data” (ND) key toggles data state ON or OFF.

• Clearing an emergency. (Valid only if the emergency caused “Data OFF”

operation.)

Exiting Data Cells

Under normal conditions, the radio enters the scan lockout mode and returns

to the control channel after completion of a data call (transmit or receive). If,

during a data call, one of the following conditions occurs, the data call is

immediately terminated and the radio performs the desired function:

• PTT is activated.

• Emergency is declared by pressing the pre-programmed emergency

button.

• A group or system is changed.

Scan Lockout Mode

Following the transmission or reception of a data call, if scan is enabled,

scanning will stop temporarily (two independent pre-programmed times; after

a receive data call and after a transmit data call). During this time the scan

indicator will flash to indicate that scan is enabled but temporarily suspended.

This mode is normally exited when the pre-programmed time expires;

however, the following actions will terminate the scan lockout mode before

the timeout is completed:

• The CLEAR button is pressed. The PTT is pressed.

• The group or system is changed.

• Phone call mode is entered.

• Individual call mode is entered.

• A new emergency assignment has been received.

• An emergency is declared or cleared.

• An individual or phone call is received.

• An Agency, Fleet or System All Call is received.

•  or  is pressed to toggle Scan ON or OFF.

Data Lockout Mode

During the voice call scan hang time (pre-programmed) the radio will not

receive data calls.

PROJECT 25 (P25)

CONVENTIONAL OPERATION

GROUP CALLS IN P25 MODE

Transmitting a Group Call

1. Select the desired P25 system. (P25 icon will appear in display.)

2. Select the Talk Group/Conventional Channel. (Selected simultaneously

using either the system/group/channel knob or the group key.)

3. Press and hold the PTT.

4. When a grant tone is received (if enabled through programming) speak

into the microphone.

5. Release PTT and wait for response.

Receiving a Group Call

The radio will unmute according to the squelch mode defined in the radio

personality (monitor, normal, selective).

1. Select the desired P25 system and Talk Group/Channel or turn scan on

and make sure the desired channel is in the scan list.

2. When the radio receives a P25 call, the radio will unmute and the channel

name will appear in the display.

3. Press the PTT button to respond.

INDIVIDUAL CALLS IN P25 MODE

Transmitting an Individual Call

1. Select the desired P25 system. (The P25 icon will appear in the display.)

2. Select the radio unit to call (callee source ID) from the pre-programmed

individual call list or enter the ID number on the radio keypad.

3. Press and hold the PTT.

4. When grant tone is received (if enabled through programming) speak into

the microphone.

5. Release the PTT.

Receiving an Individual Call

The radio will unmute according to the squelch mode defined in the radio

personality (monitor, normal, selective).

1. Select the desired P25 system and Talk Group/Channel or turn scan on

and make sure the desired channel is in the scan list.

2. When the radio receives a P25 call, the radio will unmute and the ID of

the transmitting radio will appear in the display.

3. Press the PTT button to respond.

Unanswered calls will appear in the Who Has Called (WHC) list.

EMERGENCY GROUP CALLS IN P25 MODE

NOTE

There is no method available for a system-wide Emergency

clear. An emergency group call must be cleared on each

individual radio.

Declaring an Emergency Group Call

1. Select the desired P25 system and Talk Group/Channel.

2. Press the red emergency button on the top of the radio. The radio will

broadcast a short emergency transmission with the emergency bit set.

“TXEMER” will appear in the display of the transmitting radio.

3. While the PTT is NOT pressed, the mic will be open and the radio will

broadcast an approximately 2 second transmission (e.g., background

noise) which will be repeated at 10-30 second intervals.

4. Press the PTT to stop the short transmissions.

5. To send a voice message, press the PTT and speak into the microphone.

6. To clear an emergency from the transmitting radio, perform one of the

following steps:

a. Change systems.

b. Change channels (if not prohibited by programming).

c. Cycle power by turning radio off and then back on.

d. Press the Clear and Emergency buttons simultaneously, providing the

Clear Emergency option is enabled in the Supervisory Options in the

personality.

Receiving an Emergency Group Call

1. Select the desired P25 System and Talk Group/Channel.

2. When the radio detects an incoming Emergency Group Call, the radio

will sound an alert tone and “RXEMER” will appear in the display.

3. Voice or emergency transmissions will be heard at the receiving radio.

4. To clear an emergency from the receiving radio, perform one of the

following steps:

a. Change systems.

b. Change channels (if not prohibited by programming).

c. Cycle power by turning radio off and then back on.

d. Press the Clear and Emergency buttons simultaneously, providing the

Clear Emergency option is enabled in the Supervisory Options in the

personality.

OPERATION FOLLOWING WATER CONTACT

If the P7200 model radio has been immersed in water or if the microphone air

path or speaker grill become clogged with water, follow instructions under

“Radio Microphone” and “Radio Speaker” sections to assure the highest

quality transmitted and received messages.

RADIO MICROPHONE

In the event the P7200 microphone air path becomes clogged with water, blow

two quick successive breaths of air directly into the radio microphone air hole.

Refer to Figure 23. This will help to clear any water trapped in the

microphone air path and allow the microphone to function properly.

Figure 23: Radio Microphone

RADIO SPEAKER

To assure the user receives the highest quality receive audio possible after the

radio has contacted water or been immersed, it may be necessary to clear

excess water from the speaker cavity and grill. The speaker grill has been

designed for easy drainage. To facilitate maximum drainage and the highest

quality speaker output, shake the radio vigorously with speaker grill face

down.

IMMERSIBLE P7200 PREVENTIVE

MAINTENANCE

Those P7200 radios labeled “immersible” (see Figure 24) require periodic

testing using specialized equipment to verify the radio’s watertight integrity.

Preventive Maintenance for Immersion-Rated Radios

CAUTION

P7200 model radios with Immersion Option HTMR must

be serviced by a service center authorized and certified by

M/A-COM to perform the necessary tests to verify

watertight integrity. As part of a thorough preventive

maintenance plan, M/A-COM recommends Immersion-

Rated P7200 portable radios be, at a minimum, tested and

re-certified on an annual basis. M/A-COM further

recommends that the radios be tested on or close to the

anniversary of the ship date printed on the Model Number

label on the back of the radio (see Figure 24).

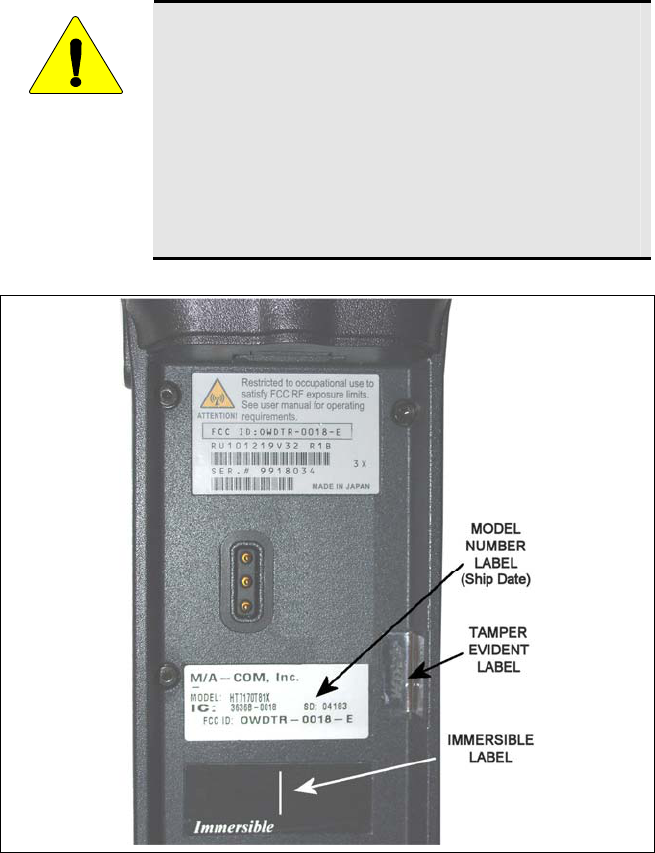

Figure 24: Labels

TECHNICAL ASSISTANCE – IMMERSIBLE P7200

To preserve the watertight integrity of the P7200 portable radio, the radio

must be serviced by a service center authorized and certified by M/A-COM to

perform the necessary tests to verify the watertight integrity. Use one of the

following methods to locate the nearest service center authorized to service

the radios warranted under Option HTMR.

• Contact M/A-COM’s Technical Assistance Center (TAC) at 1-800-

528-7711 (in the U.S. and Canada) or at 434-385-2400 (worldwide)

for a listing of service centers authorized by M/A-COM to service

P7200 radios with Option HTMR

• If a TECH-LINK subscriber, access M/A-COM’s TECH-LINK web

site for a list of Customer Service Managers (CSM) or Regional

Service Managers (RSM) that will provide a list of the nearest

service shops authorized by M/A-COM to service P7200 radios with

Option HTMR.

NOTES

BATTERY WARRANTY

A. M/A-COM, Inc. (hereinafter "Seller") warrants to the original purchaser for use (hereinafter "Buyer")

that nickel-cadmium and nickel-metal hydride batteries supplied by Seller shall be free from defects

in material and workmanship, and shall conform to its published specifications for a period of

twelve (12) months from the date of purchase.

B. For purposes of this warranty, batteries shall be deemed defective if (1) the battery capacity is less

than 80% rated capacity, or (2) the battery develops leakage.

C. If any battery fails to meet the foregoing warranty, Seller shall correct the failure by issuing a

replacement battery upon receipt of the defective battery at an Authorized Service Center (ASC) or

M/A-COM factory (for OpenSky® Equipment only).

D. Replacement batteries shall be warranted only for the remaining unexpired warranty period of the

original battery. This warranty becomes void if:

1. The battery has been subjected to any kind of misuse, detrimental exposure, or has been

involved in an accident.

2. The battery is used in equipment or service other than the radio equipment for which it is

specified.

E. The preceding paragraphs set forth the exclusive remedies for claims based upon defects in or

non-conformity of any battery, whether the claim is in contract, warranty, tort (including

negligence), strict liability or otherwise, and however instituted. Upon the expiration of the warranty

period, all such liability shall terminate. The foregoing warranties are exclusive and in lieu of all

other warranties, whether oral, written, expressed, implied or statutory. NO IMPLIED OR

STATUTORY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR

PURPOSE SHALL APPLY. IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY

INCIDENTAL, CONSEQUENTIAL, SPECIAL, INDIRECT OR EXEMPLARY DAMAGES.

This warranty applies only within the United States.

M/A-COM, Inc. M/A-COM, Inc.

1011 Pawtucket Blvd. 221 Jefferson Ridge Parkway

Lowell, MA 01853 Lynchburg, VA 24501

1-877-OPENSKY 1-800-528-7711

ECR-7048B

WARRANTY

A. M/A-COM, Inc. (hereinafter "Seller") warrants to the original purchaser for use (hereinafter "Buyer")

that Equipment manufactured by or for the Seller shall be free from defects in material and

workmanship, and shall conform to its published specifications. With respect to all non-M/A-COM

Equipment, Seller gives no warranty, and only the warranty, if any, given by the manufacturer shall

apply. Rechargeable batteries are excluded from this warranty but are warranted under a separate

Rechargeable Battery Warranty (ECR-7048).

B. Seller’s obligations set forth in Paragraph C below shall apply only to failures to meet the above

warranties occurring within the following periods of time from date of sale to the Buyer and are

conditioned on Buyer’s giving written notice to Seller within thirty (30) days of such occurrence:

1. for fuses and non-rechargeable batteries, operable on arrival only.

2. for parts and accessories (except as noted in B.1) sold by Seller’s Service Parts Operation,

ninety (90) days.

3. for PANTHER™ Series handportable and mobile radios, two (2) years.

4. for all other equipment of Seller’s manufacture, one (1) year.

C. If any Equipment fails to meet the foregoing warranties, Seller shall correct the failure at its option

(i) by repairing any defective or damaged part or parts thereof, (ii) by making available at Seller’s

factory any necessary repaired or replacement parts, or (iii) by replacing the failed Equipment with

equivalent new or refurbished Equipment. Any repaired or replacement part furnished hereunder

shall be warranted for the remainder of the warranty period of the Equipment in which it is installed.

Where such failure cannot be corrected by Seller’s reasonable efforts, the parties will negotiate an

equitable adjustment in price. Labor to perform warranty service will be provided at no charge

during the warranty period only for the Equipment covered under Paragraph B.3 and B.4. To be

eligible for no-charge labor, service must be performed at a M/A-COM factory, by an Authorized

Service Center (ASC) or other Servicer approved for these purposes either at its place of business

during normal business hours, for mobile or personal equipment, or at the Buyer’s location, for

fixed location equipment. Service on fixed location equipment more than thirty (30) miles from the

Service Center or other approved Servicer’s place of business will include a charge for

transportation.

D. Seller’s obligations under Paragraph C shall not apply to any Equipment, or part thereof, which (i)

has been modified or otherwise altered other than pursuant to Seller’s written instructions or written

approval or, (ii) is normally consumed in operation or, (iii) has a normal life inherently shorter than

the warranty periods specified in Paragraph B, or (iv) is not properly stored, installed, used,

maintained or repaired, or, (v) has been subjected to any other kind of misuse or detrimental

exposure, or has been involved in an accident.

E. The preceding paragraphs set forth the exclusive remedies for claims based upon defects in or

nonconformity of the Equipment, whether the claim is in contract, warranty, tort (including

negligence), strict liability or otherwise, and however instituted. Upon the expiration of the warranty

period, all such liability shall terminate. The foregoing warranties are exclusive and in lieu of all

other warranties, whether oral, written, expressed, implied or statutory. NO IMPLIED OR

STATUTORY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR

PURPOSE SHALL APPLY. IN NO EVENT SHALL THE SELLER BE LIABLE FOR ANY

INCIDENTAL, CONSEQUENTIAL, SPECIAL, INDIRECT OR EXEMPLARY DAMAGES.

This warranty applies only within the United States.

M/A-COM, Inc. M/A-COM, Inc.

1011 Pawtucket Blvd. 221 Jefferson Ridge Parkway

Lowell, MA 01853 Lynchburg, VA 24501

1-877-OPENSKY 1-800-528-7711

ECR-7047C

M/A-COM Wireless Systems

221 Jefferson Ridge Parkway

Lynchburg, Virginia 24501

(Outside USA, 434-385-2400) Toll Free 800-528-7711

HARRIS P7200 P7200 700/800 MHz Portable Radio User Manual MM23772 p2A

Harris Corporation P7200 700/800 MHz Portable Radio MM23772 p2A

Contents

Manual 2

Navigation menu

Namespaces

Views

Navigation
