To use the Ignition Sense line in any application, the option cable
must be wired accordingly, see the section Connect To Ignition
Sense on page 18.
There are three parameters that define how the Ignition Sense feature
will operate - a jumper on the radio (as described above), and two
programmable parameters in the personality.
The programmable parameters enable/disable Transmission and/or
Horn Alert with respect to the vehicle ignition switch. For more
information on the personality parameters, see the On-Line Help in
Conventional ProGrammer (TQ-3389 R9A or later) or ProGrammer
(TQ-3385 R9A or later).

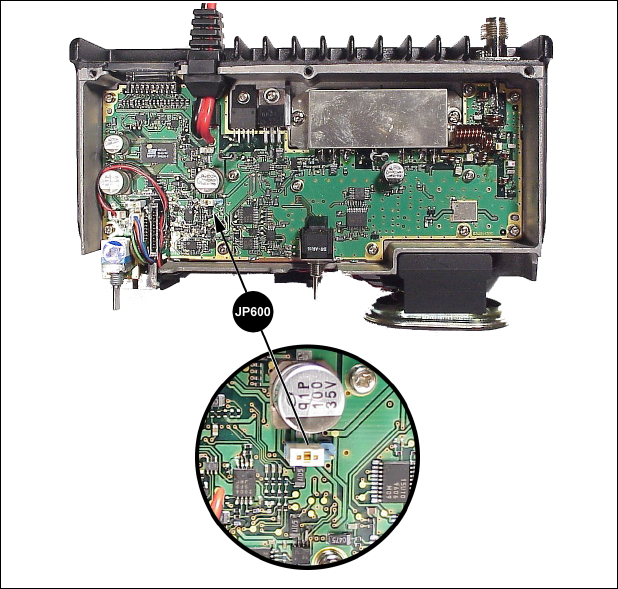

Figure 4 – Factory Default Settings For Jumper JP600
