Operator’s Manual

MM101332V1 R1A

JAGUAR 725P & JAGUAR 725Pi

System/Scan

Portable Radio

TABLE OF CONTENTS

Page

SAFETY TRAINING INFORMATION............................................ 3

OPERATING RULES AND REGULATIONS ................................. 6

OPERATING TIPS............................................................................ 8

BATTERY DISPOSAL ..................................................................... 9

USER INTERFACE ........................................................................ 10

BASIC OPERATION ...................................................................... 16

ALERT TONES............................................................................... 21

TRANSMITTING A CALL IN TRUNKED MODE ....................... 22

RECEIVING A CALL IN TRUNKED MODE ............................... 23

CONVENTIONAL OPERATION................................................... 24

OPERATION FOLLOWING WATER CONTACT........................ 25

CHANGING THE BATTERY PACK............................................. 27

BATTERY WARRANTY ............................................................... 29

WARRANTY .................................................................................. 30

The software contained in this device is copyrighted by M/A-

COM Private Radio Systems, Inc. Unpublished rights are

reserved under the copyright laws of the United States.

NOTICE!

This manual is published by M/A-COM Private Radio Systems, Inc., without any

warranty. Improvements and changes to this manual necessitated by typographical

errors, inaccuracies of current information, or improvements to programs and/or

equipment, may be made by M/A-COM Private Radio Systems, Inc., at any time and

without notice. Such changes will be incorporated into new editions of this manual. No

part of this manual may be reproduced or transmitted in any form or by any means,

electronic or mechanical, including photocopying and recording, for any purpose, without

the express written permission of M/A-COM Private Radio Systems, Inc.

SAFETY TRAINING INFORMATION

WARNING

Your M/A-COM radio generates RF

electromagnetic energy during transmit

mode. This radio is designed for and

classified as “Occupational Use Only”

meaning it must be used only during

the course of employment by individuals aware of the

hazards and the ways to minimize such hazards. This

radio is NOT intended for use by the “General

Population” in an uncontrolled environment.

This radio has been tested and complies with the FCC RF

exposure limits for “Occupational Use Only.” In addition,

your M/A-COM radio complies with the following Standards

and Guidelines with regard to RF energy and

electromagnetic energy levels and evaluation of such

levels for exposure to humans:

• FCC OET Bulletin 65 Edition 97-01 Supplement C,

Evaluating Compliance with FCC Guidelines for Human

Exposure to Radio Frequency Electromagnetic Fields.

• American National Standards Institute (C95.1 – 1992),

IEEE Standard for Safety Levels with Respect to Human

Exposure to Radio Frequency Electromagnetic Fields, 3

kHz to 300 GHz.

• American National Standards Institute (C95.3 – 1992),

IEEE Recommended Practice for the Measurement of

Potentially Hazardous Electromagnetic Fields – RF and

Microwave.

CAUTION

To ensure that your exposure to RF

electromagnetic energy is within the

FCC allowable limits for occupational

use, always adhere to the following

guidelines:

• DO NOT operate the radio without a proper antenna

attached, as this may damage the radio and may also

cause you to exceed FCC RF exposure limits. A

proper antenna is the antenna supplied with this radio

by M/A-COM or an antenna specifically authorized by

M/A-COM for use with this radio.

• DO NOT transmit for more than 50% of total radio use

time (“50% duty cycle”). Transmitting more than 50%

of the time can cause FCC RF exposure compliance

requirements to be exceeded. The radio is

transmitting when the “TX” indicator appears in the

display. You can cause the radio to transmit by

pressing the “PTT” button.

• ALWAYS use M/A-COM authorized accessories

(antennas, batteries, belt clips, speaker/mics, etc).

Use of unauthorized accessories may cause the FCC

Occupational/Controlled Exposure RF compliance

requirements to be exceeded.

• ALWAYS keep the device and its antenna at least 2

cm (0.8 inches) from the body and at least 5 cm (2

inches) from the face when transmitting to ensure FCC

RF exposure compliance requirements are not

exceeded. This radio has been tested for RF

exposure compliance at a distance of 1.1 cm from the

body and 2.5 cm from the face for a worst-case

scenario. However, to provide the recipients of your

transmission the best sound quality, hold the antenna

at least 5 cm (2 inches) from mouth, and slightly off to

one side.

The information listed above provides the user with the

information needed to make him or her aware of a RF

exposure, and what to do to assure that this radio operates

within the FCC RF exposure limits of this radio.

Electromagnetic Interference/Compatibility

During transmissions, your M/A-COM radio generates RF

energy that can possibly cause interference with other

devices or systems. To avoid such interference, turn off

the radio in areas where signs are posted to do so. DO

NOT operate the transmitter in areas that are sensitive to

electromagnetic radiation such as hospitals, aircraft, and

blasting sites.

OPERATING RULES AND REGULATIONS

Two-way FM radio systems must be operated in

accordance with the rules and regulations of the Federal

Communications Commission (FCC). As an operator of

two-way radio equipment, you must be thoroughly familiar

with the rules that apply to your particular type of radio

operation. Following these rules will help eliminate

confusion and will assure the most efficient use of existing

radio channels. This will provide a smooth operating radio

network.

When using the radio, remember these rules:

1. It is a violation of FCC rules to interrupt any distress or

emergency message. As the radio operates in much

the same way as a telephone "party line" when in

conventional mode, always listen and/or observe the

absence of the “busy” display (refer to Table 1 – Three

Line Display for display character) to make sure that

the line is clear before sending any messages. If

someone is sending an emergency message, such as

reporting a fire or asking for help in an accident, KEEP

OFF THE AIR! Emergency calls have priority over all

other messages.

2. Use of profane or obscene language is prohibited by

Federal Law.

3. It is against the law to send false call letters or a false

distress or emergency message.

4. The FCC requires that conversations be brief and

confined to business. To save time, use coded

messages whenever possible.

5. Using the radio to send personal messages (except in

an emergency) is a violation of FCC rules. Send only

those messages essential for the business operation.

6. It is against Federal Law to repeat or otherwise make

known anything overheard on the radio. Conversations

between others sharing your channel must be

regarded as confidential.

OPERATING TIPS

The following conditions tend to reduce the effective

range of two-way radios and should be avoided whenever

possible.

• Operating the radio in low terrain areas or while under

power lines or bridges.

•Operating the radio inside of a vehicle or inside metal

or steel framed building unless using an outside

antenna.

BATTERY DISPOSAL

The JAGUAR 725P and Pi portable radios use

rechargeable, recyclable Nickel Cadmium (NiCd) or Nickel

Metal Hydride (NiMH) batteries.

Nickel Cadmium Battery Pack Disposal

At the end of its useful life, under

various state and local laws, it may

be illegal to dispose of the Nickel

Cadmium batteries into the

municipal waste stream. Check with

local solid waste officials for details

of recycling options or proper disposal. Call Toll Free 1-

800-8BATTERY for information and/or procedures for

returning rechargeable batteries in your state.

Nickel Metal Hydride Battery Pack Disposal

There are no special requirements concerning the

disposal of NiMH batteries. Batteries can be recycled. Call

Toll Free 1-800-8BATTERY for information.

USER INTERFACE

This manual describes the basic functions and

operation of the 725P & 725Pi System/Scan portable

radios. For more detailed information about the features

and operation refer to the appropriate Maintenance Manual

or contact your System Administrator.

Water Resistance

The Jaguar 725P and Pi portable radios operate

reliably even under adverse conditions. These radios meet

MIL-STD-810E specifications for driven rain, humidity, and

salt fog. In addition, the Pi model radio is guaranteed for

operation after immersion in 1 foot of water for up to 2

hours. It is important to note that in order to help preserve

the water-resistant integrity of this radio, unauthorized

tampering or disassembly of the Pi model radio may

damage the radio and will void the immersion warranty.

NOTE

The “i” in JAGUAR 725Pi denotes the

radio model is resistant to damage due

to water immersion. For more precise

specifications refer to the appropriate

specifications sheet or contact your

system administrator.

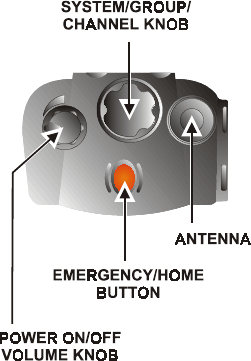

Figure 1 – Top View

Figure 2 – Side View

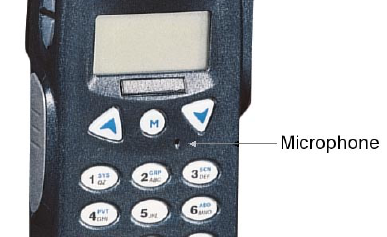

Figure 3 System Keypad

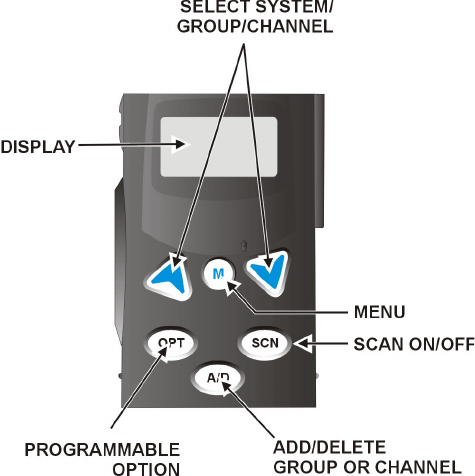

Figure 4 – Scan Keypad

Table 1 – Three Line Display

Icon Descriptions

Steady – “Busy”

transmitting or

receiving

Flashing – call queued

On – special call mode

(individual or

telephone)

Steady – during all

radio transmissions

Steady – transmit at

low power

Off – transmit at high

power

Steady – low battery On – group or channel

in scan list

Steady – trunked

system in Failsoft

mode

On – priority 2 group or

channel

Steady – transmit in

encrypt mode

Flashing – receiving

an encrypted call

On – priority 1 group or

channel

On – scan mode

(rotates clockwise)

Off – scan disabled

On – Channel Guard

enabled

Off – Channel Guard

disabled

BASIC OPERATION

System Select – Method 1 (System)

1. Press

! to access system list.

2. Enter system ID number from keypad.

3. Press

" to select desired system.

System Select – Method 2

1. Rotate System/Group/Channel knob.

If this knob is not programmed for systems:

2. Press the

# $ buttons to change systems.

Group Select – Method 1 (System)

1. Press

% to access group list.

2. Press # $ to scroll through the list of groups.

3. Press

" to select desired group.

Group Select – Method 2

1. Rotate System/Group/Channel knob.

If this knob is not programmed for groups:

2. Press the

# $ buttons to change groups.

Channel Select

1. Rotate System/Group/Channel knob.

If this knob is not programmed for channels:

2. Press the # $ buttons to change channels.

Modify Scan List (System)

1. Press

& to toggle scan OFF and verify is not

displayed.

2. Select group or channel.

3. Press

' once to remove group or channel from list.

4. Press

( once to add as a normal group or channel.

Press ( twice to add as a Priority 2 group.

Press ( three times to add as a Priority 1 group.

5. Press & to re-start scanning.

Nuisance Delete

A channel can temporarily be deleted from the scan list

if it is not the currently selected channel.

1. Turn Scan ON.

2. When the radio receives a call on the channel, press

the '. The channel is removed from the scan list

until the radio is power cycled.

Modify Scan List (Scan)

1. Press

) to toggle scan OFF and verify is not

displayed.

2. Select group or channel.

3. Press

* once to remove group or channel from the

list.

4. Press * once to add as a normal group or

channel.

Press * twice to add as a Priority 2 group.

Press * three times to add as a Priority 1 group.

5. Press ) to re-start scanning.

Backlight On/Off

1. Press

" to access the menu.

2. Press

# $ to scroll through menu until “BCKLGHT”

appears.

3. Press " to select Backlight menu.

4. Press

# $ to toggle backlight ON and OFF.

5. Press " to select new backlight setting.

Contrast Adjust

1. Press

" to access the menu.

2. Press # $ to scroll through menu until

“CONTRAST” appears.

3. Press

" to select Contrast menu.

4. Press

# $ to adjust contrast setting from 1 - 4.

5. Press " to select new contrast setting.

Declaring an Emergency

1. Press and hold the red Emergency/Home button (the

length of time is programmable; check with the system

administrator).

2. *TXEMER* will flash in the display, plus and will

be displayed. After 2-3 seconds the transmit icon

will turn off.

3. *TXEMER* and will remain until the emergency is

cleared.

4. Press the PTT and will reappear.

5. Release PTT when the transmission is complete.

Locking/Unlocking Keypad

1. Press

" button.

2. Within 1 second, press the Option button on the side

of the radio.

ALERT TONES

Name Tone Description

Call

Originate

(B) one short

mid-

pitched

OK to talk after pressing the push-

to-talk button

Call

Queued

(T) one high-

pitched

call in a queue for processing

Autokey (T) one mid-

pitched

queued call received channel

assignment

System

Busy

(T) three low-

pitched

system busy or unable to

complete call

Call Denied (T) one low-

pitched

radio is not authorized on the

system or group

Carrier

Control

Timer

(B) five high-

pitched /

one long

low-

pitched

PTT depressed for maximum

length of time

Low

Battery

(B) one low-

pitched /

one short

mid-

pitched

low battery

TX Low

Battery

Alert

(B) one low-

pitched

after PTT - battery too low to

transmit

(T) = trunked mode only (B) = both trunked and conventional modes

TRANSMITTING A CALL IN TRUNKED MODE

Group Call

1. Select desired group.

2. Press Push-To-Talk button.

3. The and icons will appear.

Individual Call (System)

1. Press

+ to access the individual call list.

2. The icon will appear.

3. Press # $ to scroll through individual call list or

Enter LID from keypad.

4. When the desired ID appears in the display press the

Push-To-Talk button.

5. The and icons will appear.

Phone Call (System)

1. Press

, to access the phone call list.

2. The icon will appear.

3. Press

# $ to scroll through phone call list or Enter

number from keypad.

4. When the desired phone number appears in the

display press the Push-To-Talk button.

5. The and icons will appear.

RECEIVING A CALL IN TRUNKED MODE

Group Calls

1. Select a group or turn scan ON and make sure group

is in scan list.

2. The group name or “GR xxxxx” will appear to indicate

a call.

Phone Calls

1. When the call is received, the receive audio sounds

and the display reads: *PHONE*

2. Respond by pressing PTT. If you do not respond,

radio will continue to ring to indicate an incoming call.

Individual Calls

1. When the call is received, the receive audio sounds

and the display reads : ID xxxxx

*INDV*

2. Respond by pressing PTT. If you do not respond,

radio will continue to ring to indicate an incoming call.

3. If the call is cleared with no response, the radio will

store Who Has Called and display:

*WHC*

4. Press the

+ key to display the ID.

5. Press the Push-To-Talk button to return the call or

press the Clear/Monitor button to clear the *WHC*.

CONVENTIONAL OPERATION

Receiving A Call

1. Select desired conventional system and channel or

turn scan ON and make sure desired channel is in

scan list.

2. When the radio receives a call, the radio will unmute

and the channel name will appear in the display.

Sending A Call

1. Select desired system and channel.

2. Ensure the channel is not busy by pressing the

Monitor/Clear button momentarily. If you hear audio

or if the icon is on, the channel is busy.

3. When you are sure the channel is not busy, press the

Push-To-Talk button and speak into the microphone.

OPERATION FOLLOWING WATER CONTACT

If the JAGUAR 725Pi model radio has been submerged

in water or if the microphone air path or speaker grill

become clogged with water, perform the following steps to

assure the highest quality transmitted and received

messages. These steps are recommended for the JAGUAR

725P as well, in the event it should become submerged in

water and still be functional.

NOTE

The “i” in JAGUAR 725Pi denotes the

radio model is resistant to damage due

to water immersion. For more precise

specifications refer to the appropriate

specifications sheet or contact your

system administrator.

Radio Microphone

In the event the JAGUAR 725P/Pi microphone air path

becomes clogged with water, blow two quick successive

breaths of air directly into the radio microphone air hole.

Refer to Figure 5. This will help to clear any water trapped

in the microphone air path and allow the microphone to

function properly.

Figure 5 – Radio Microphone

Radio Speaker

To assure the user receives the highest quality receive

audio possible after the radio has contacted water or been

immersed, it may be necessary to clear excess water from

the speaker cavity and grill. The speaker grill has been

designed for easy drainage. To facilitate maximum

drainage and the highest quality speaker output, hold the

radio with speaker grill face down and lightly shake.

CHANGING THE BATTERY PACK

Removing the Battery Pack

Make sure the power to the radio is turned OFF.

1. Press the latch at the bottom of the battery pack.

2. Lift the battery pack from the bottom.

3. Remove the battery pack from the radio.

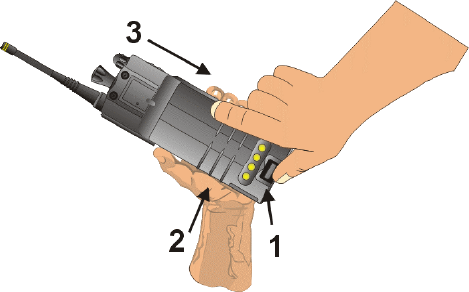

Figure 6 – Removing the Battery Pack

Attaching the Battery Pack

Make sure the power to the radio is turned OFF.

1. Align the tab on the top of the battery pack with the

slot at the top of the battery cavity.

2. Push the battery pack down to attach the battery to the

radio.

3. Verify that the battery pack is properly latched to the

radio.

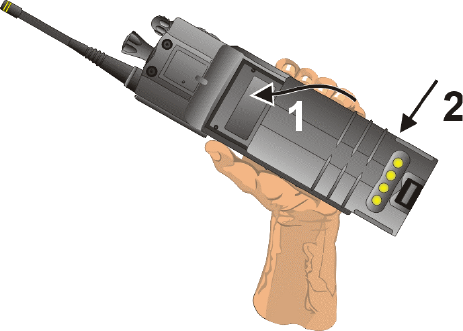

Figure 7 – Attaching the Battery Pack

BATTERY WARRANTY

A. M/A-COM Private Radio Systems, Inc. (hereinafter "Seller") warrants to the

original purchaser for use (hereinafter "Buyer") that nickel-cadmium and nickel-

metal hydride batteries supplied by Seller shall be free from defects in material

and workmanship, and shall conform to its published specifications for a period

of twelve (12) months from the date of purchase.

B. For purposes of this warranty, batteries shall be deemed defective if (1) the

battery capacity is less than 80% rated capacity, or (2) the battery develops

leakage.

C. If any battery fails to meet the foregoing warranty, Seller shall correct the

failure by issuing a replacement battery upon receipt of the defective battery at

an Authorized Service Center (ASC). To obtain the name and address of an

ASC, ask your salesperson, consult the Yellow Pages, or call the number

printed at the bottom of this page.

D. Replacement batteries shall be warranted only for the remaining unexpired

warranty period of the original battery. This warranty becomes void if:

1. The battery has been subjected to any kind of misuse, detrimental

exposure, or has been involved in an accident.

2. The battery is used in equipment or service other than the radio

equipment for which it is specified.

E. The preceding paragraphs set forth the exclusive remedies for claims (except

as to title) based upon defects in or non-conformity of any battery, whether the

claim is in contract, warranty, tort (including negligence), strict liability or

otherwise, and however instituted. Upon the expiration of the warranty period,

all such liability shall terminate. The foregoing warranties are exclusive and in

lieu of all other warranties, whether oral, written, expressed, implied or

statutory. NO IMPLIED OR STATUTORY WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE SHALL

APPLY. IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY

INCIDENTAL, CONSEQUENTIAL, SPECIAL, INDIRECT OR EXEMPLARY

DAMAGES.

This warranty applies only within the United States.

M/A-COM Private Radio Systems

3315 Old Forest Road

Lynchburg, Virginia 24501

1-800-528-7711 AE/LZT 123 3248/2 R4A

WARRANTY

A. M/A-COM Private Radio Systems, Inc. (hereinafter "Seller") warrants to

the original purchaser for use (hereinafter "Buyer") that Equipment

manufactured by or for the Seller shall be free from defects in material,

workmanship and title, and shall conform to its published

specifications. With respect to any Equipment not manufactured by or

for the Seller (except for integral parts of Seller's Equipment to which

the warranties set forth above shall apply), Seller gives no warranty,

and only the warranty, if any, given by the manufacturer shall apply.

Batteries are excluded from this warranty but are warranted under a

separate Battery Warranty.

B. Seller’s obligations set forth in Paragraph C below shall apply only to

failures to meet the above warranties (except as to title) occurring

within the following periods of time from date of sale to the Buyer and

are conditioned on Buyer’s giving written notice to Seller within thirty

(30) days of such occurrence:

1. for fuses and non-rechargeable batteries, operable on arrival

only.

2. for parts and accessories (except as noted in B.1) sold by

Seller’s Service Parts Operation, ninety (90) days.

3. for PANTHER Series handportable and mobile radios, two (2)

years.

4. for Cougar Series handportable and mobile radios, two (2)

years.

5. for all other Equipment of Seller’s manufacture, one (1) year.

C. If any Equipment fails to meet the foregoing warranties, Seller shall

correct the failure at its option (i) by repairing any defective or

damaged part or parts thereof, (ii) by making available at Seller’s

factory any necessary repaired or replacement parts, or (iii) by

replacing the failed Equipment with equivalent new or refurbished

Equipment. Any repaired or replacement part furnished hereunder shall

be warranted for the remainder of the warranty period of the Equipment

in which it is installed. Where such failure cannot be corrected by

Seller’s reasonable efforts, the parties will negotiate an equitable

adjustment in price. Labor to perform warranty service will be provided

at no charge during the warranty period only for the Equipment

covered under Paragraph B.3. To be eligible for no-charge labor,

service must be performed by an Authorized Service Center (ASC) or

other Servicer approved for these purposes either at its place of

business during normal business hours, for mobile or personal

equipment, or at the Buyer’s location, for fixed location equipment.

Service on fixed location equipment more than thirty (30) miles from

the Service Center or other approved Servicer’s place of business will

include a charge for transportation.

D. Seller’s obligations under Paragraph C shall not apply to any

Equipment, or part thereof, which (i) has been modified or otherwise

altered other than pursuant to Seller’s written instructions or written

approval or, (ii) is normally consumed in operation or, (iii) has a normal

life inherently shorter than the warranty periods specified in Paragraph

B, or (iv) is not properly stored, installed, used, maintained or repaired,

or, (v) has been subjected to any other kind of misuse or detrimental

exposure, or has been involved in an accident.

E. The preceding paragraphs set forth the exclusive remedies for claims

(except as to title) based upon defects in or nonconformity of the

Equipment, whether the claim is in contract, warranty, tort (including

negligence), strict liability or otherwise, and however instituted. Upon

the expiration of the warranty period, all such liability shall terminate.

The foregoing warranties are exclusive and in lieu of all other

warranties, whether oral, written, expressed, implied or statutory. NO

IMPLIED OR STATUTORY WARRANTIES OF MERCHANTABILITY

OR FITNESS FOR PARTICULAR PURPOSE SHALL APPLY. IN NO

EVENT SHALL THE SELLER BE LIABLE FOR ANY INCIDENTAL,

CONSEQUENTIAL, SPECIAL, INDIRECT OR EXEMPLARY

DAMAGES.

This warranty applies only within the United States.

M/A-COM Private Radio Systems

3315 Old Forest Road

Lynchburg, VA 24501

1-800-528-7711 AE/LZT 123 3248/1 R5A

M/A-COM Wireless Systems

3315 Old Forest Road

Lynchburg, Virginia 24501

(Outside USA, 434-385-2400) Toll Free 800-528-7711

HARRIS TR-0014-E 725P User Manual Operator s Manual

HARRIS CORPORATION 725P Operator s Manual

112901 Manual

Navigation menu

Namespaces

Views

Navigation
