Installation Manual

MM102343V1

Rev. Ap1, Mar-04

M7100IP

Mobile Radio & Control Unit

Motorcycle Installation

REVISION HISTORY

REV DATE SUMMARY OF CHANGES

A Mar. 2004 Initial release

CREDITS

EDACS is a registered trademark and PANTHER, M-PA, M-PD, MTL,

TPX, PCS, M-RK, LPE-200, and Prism are trademarks of M/A-COM,

Inc.

All other brand and product names are trademarks, registered trademarks,

or service marks of their respective holders.

NOTICE

The voice coding technology embodied in this product is protected by

intellectual property rights including patent rights, copyrights, and trade

secrets of Digital Voice Systems, Inc. The user of this technology is

explicitly prohibited from attempting to decompile, reverse engineer, or

disassemble the Object Code, or in any way convert the Object Code into

human-readable form.

NOTICE

Repairs to this equipment should be made only by an authorized service

technician or at a facility designated by the supplier. Any repairs, alterations

or substitutions of recommended parts made by the user to this equipment not

approved by the manufacturer could void the user’s authority to operate the

equipment in addition to the manufacturers warranty.

The software contained in this device is copyrighted by M/A-COM, Inc.

Unpublished rights are reserved under the copyright laws of the United

States.

This manual is published by M/A-COM, Inc., without any warranty. Improvements and changes

to this manual necessitated by typographical errors, inaccuracies of current information, or

improvements to programs and/or equipment, may be made by M/A-COM, Inc., at any time and

without notice. Such changes will be incorporated into new editions of this manual. No part of this

manual may be reproduced or transmitted in any form or by any means,. electronic or mechanical,

including photocopying and recording, for any purpose, without the express written permission of

M/A-COM, Inc.

TABLE OF CONTENTS Page

1 SAFETY SYMBOL CONVENTIONS ................................................... 4

2 RF ENERGY EXPOSURE INFORMATION ....................................... 5

2.1 RF ENERGY EXPOSURE INFORMATION....................................... 5

2.1.1 Federal Communications Commission Regulations ................ 6

2.2 COMPLIANCE WITH RF EXPOSURE STANDARDS...................... 6

2.2.1 Mobile Antennas...................................................................... 7

2.2.2 Approved Accessories ............................................................. 7

2.2.3 Contact Information................................................................. 8

3 OPERATION SAFETY RECOMMENDATIONS................................ 9

3.1 TRANSMITTER HAZARDS ............................................................... 9

3.2 SAFE DRIVING RECOMMENDATIONS ........................................ 10

4 GENERAL INFORMATION ............................................................... 12

4.1 RELATED DOCUMENTATION....................................................... 12

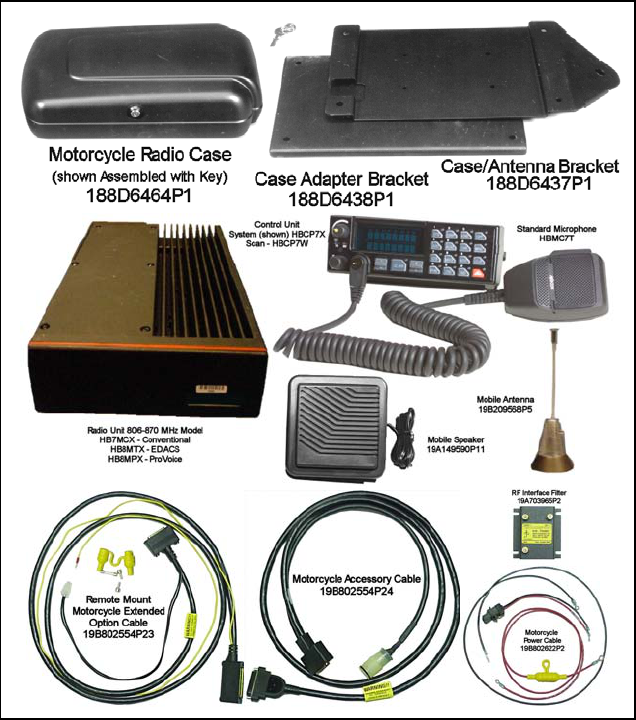

5 OPTIONS AND ACCESSORIES ......................................................... 13

5.1 VENDOR DROP SHIP OPTIONS ..................................................... 15

5.1.1 External Headset Options...................................................... 15

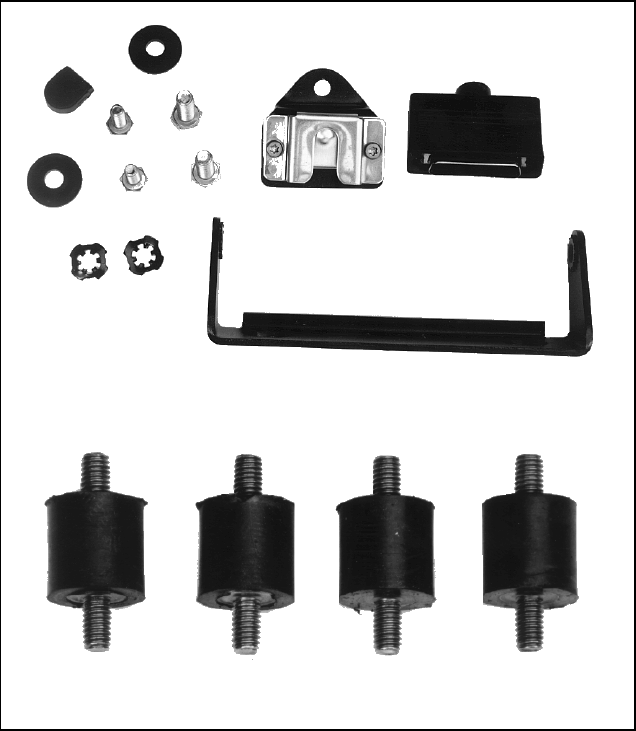

5.2 HARDWARE KITS............................................................................ 16

5.3 USER SUPPLIED EQUIPMENT ....................................................... 20

5.4 POWER CONSIDERATIONS............................................................ 20

5.4.1 RF Power Adjustments.......................................................... 20

6 INSTALLATION................................................................................... 22

6.1 TOOLS REQUIRED........................................................................... 22

6.2 EQUIPMENT INSTALLATION........................................................ 22

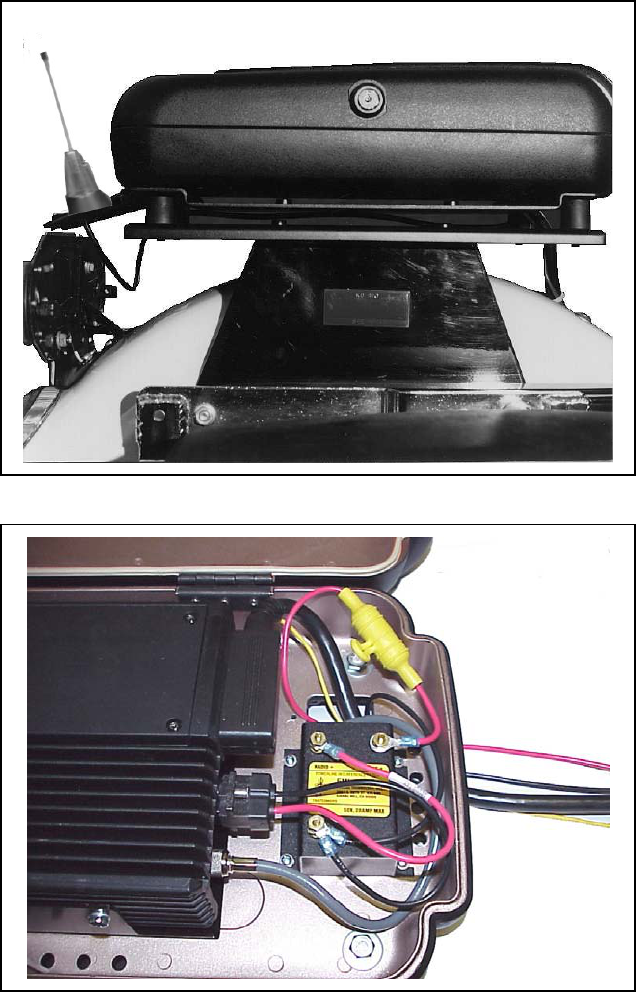

6.2.1 Weather Resistant Case Assembly and Installation............... 22

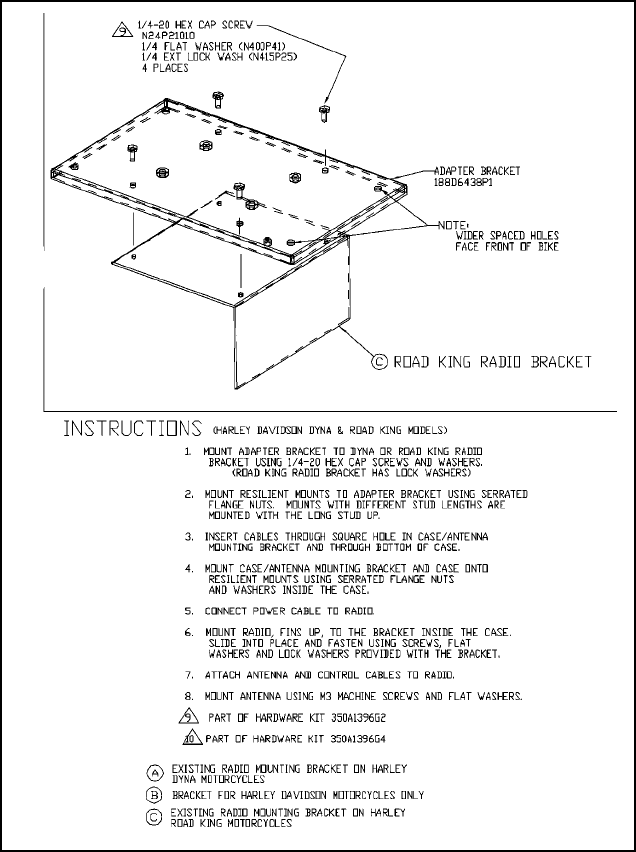

6.2.2 Harley-Davidson Installation................................................. 25

6.3 RADIO MOUNTING BRACKETS.................................................... 25

7 CONTROL UNIT MOUNTING........................................................... 27

7.1.1 Control Unit And Mic Hanger Installation ............................ 27

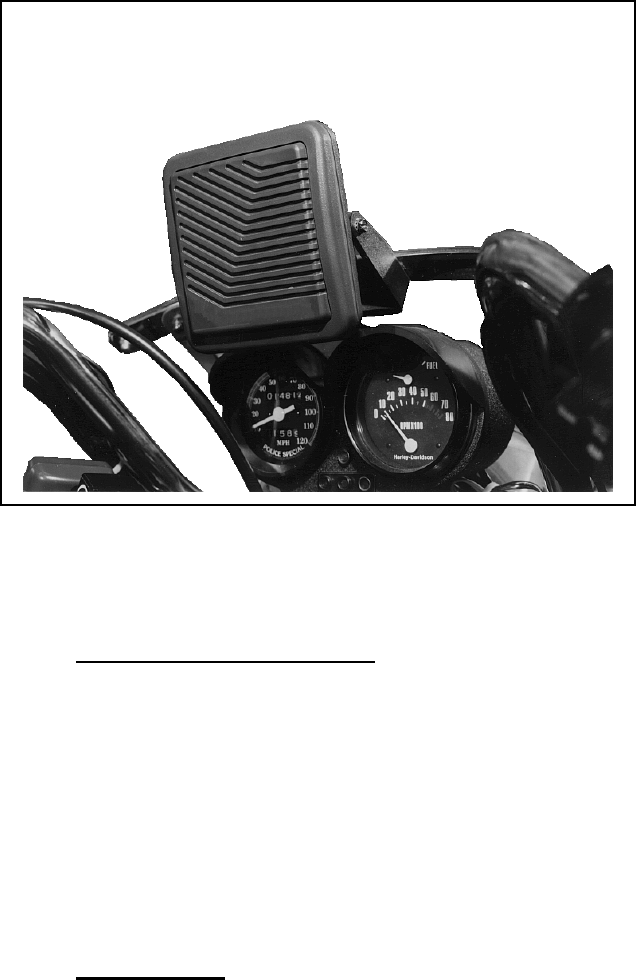

7.2 SPEAKER MOUNTING..................................................................... 28

7.3 CABLE ROUTING............................................................................. 30

7.3.1 Power and Control Cables ..................................................... 30

7.3.2 Option Cable.......................................................................... 30

7.3.3 Typical Harley-Davidson Installation.................................... 31

7.4 CABLE CONNECTIONS................................................................... 34

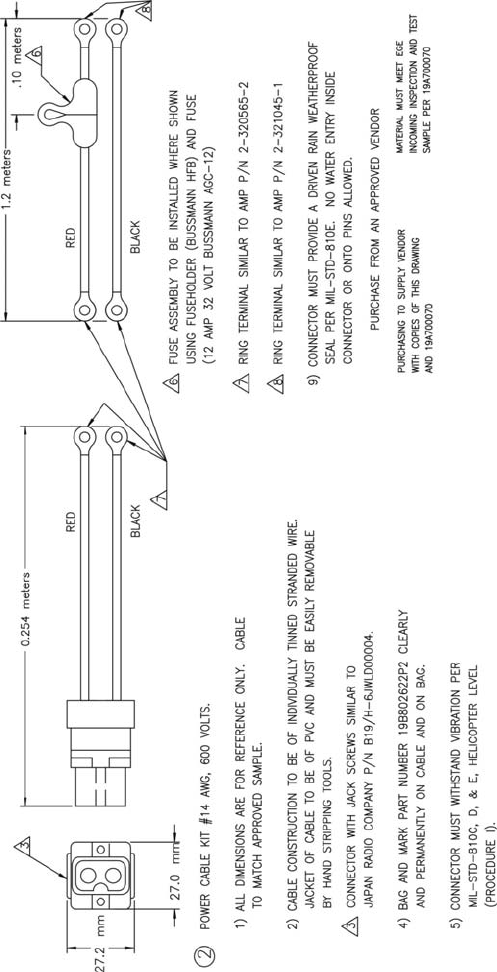

7.4.1 Power Cable........................................................................... 35

7.4.2 Control Cable......................................................................... 35

7.4.3 Ignition Switch Option .......................................................... 35

7.4.4 Accessory Cable .................................................................... 36

7.5 ANTENNA INSTALLATION............................................................ 36

7.5.1 General .................................................................................. 36

7.5.2 Typical Motorcycle Mount Antenna Installation................... 37

8 FINAL CHECKS AND CONNECTIONS............................................ 38

8.1 HEADSET INSTALLATION (OPTION)........................................... 38

8.1.1 Dual Radio Application......................................................... 38

8.1.2 Headset Operation ................................................................. 39

1 SAFETY SYMBOL CONVENTIONS

The following conventions are used throughout this manual to alert the user to

general safety precautions that must be observed during all phases of

operation, service, and repair of this product. Failure to comply with these

precautions or with specific warnings elsewhere in this manual violates safety

standards of design, manufacture, and intended use of the product. M/A-

COM, Inc. assumes no liability for the customer’s failure to comply with

these standards.

WARNING

The WARNING symbol calls attention to a procedure,

practice, or the like, which, if not correctly performed or

adhered to, could result in personal injury. Do not proceed

beyond a WARNING symbol until the conditions identified

are fully understood or met.

CAUTION

The CAUTION symbol calls attention to an operating

procedure, practice, or the like, which, if not performed

correctly or adhered to, could result in damage to the

equipment or severely degrade the equipment performance.

NOTE

The NOTE symbol calls attention to supplemental

information, which may improve system performance or

clarify a process or procedure.

The ESD symbol calls attention to procedures, practices, or

the like, which could expose equipment to the effects of

Electro-Static Discharge. Proper precautions must be taken to

prevent ESD when handling circuit modules.

2 RF ENERGY EXPOSURE INFORMATION

2.1 RF ENERGY EXPOSURE AWARENESS,

CONTROL INFORMATION, AND OPERATION

INSTRUCTIONS FOR FCC OCCUPATIONAL USE

REQUIREMENTS

BEFORE USING YOUR MOBILE TWO-WAY RADIO, READ THIS

IMPORTANT RF ENERGY AWARENESS AND CONTROL

INFORMATION AND OPERATIONAL INSTRUCTIONS TO

ENSURE COMPLIANCE WITH THE FCC’S RF EXPOSURE

GUIDELINES.

NOTICE: This radio is intended for use in occupational/controlled

conditions, where users have full knowledge of their exposure and can

exercise control over their exposure to meet FCC limits. This radio

device is NOT authorized for general population, consumer, or any other

use.

This two-way radio uses electromagnetic energy in the radio frequency (RF)

spectrum to provide communications between two or more users over a

distance. It uses RF energy or radio waves to send and receive calls. RF

energy is one form of electromagnetic energy. Other forms include, but are

not limited to, electric power, sunlight, and x-rays. RF energy, however,

should not be confused with these other forms of electromagnetic energy,

which, when used improperly, can cause biological damage. Very high levels

of x-rays, for example, can damage tissues and genetic material.

Experts in science, engineering, medicine, health, and industry work with

organizations to develop standards for exposure to RF energy. These

standards provide recommended levels of RF exposure for both workers and

the general public. These recommended RF exposure levels include

substantial margins of protection. All two-way radios marketed in North

America are designed, manufactured, and tested to ensure they meet

government established RF exposure levels. In addition, manufacturers also

recommend specific operating instructions to users of two-way radios. These

instructions are important because they inform users about RF energy

exposure and provide simple procedures on how to control it. Please refer to

the following websites for more information on what RF energy exposure is

and how to control your exposure to assure compliance with established RF

exposure limits.

http://www.fcc.gov/oet/rfsafety/rf-faqs.html

http://www.osha.gov./SLTC/radiofrequencyradiation/index.html

2.1.1 Federal Communications Commission

Regulations

Your M/A-COM, Inc. M7100IP mobile two-way radio is designed and tested

to comply with the FCC RF energy exposure limits for mobile two-way radios

before it can be marketed in the United States. When two-way radios are

used as a consequence of employment, the FCC requires users to be fully

aware of and able to control their exposure to meet occupational

requirements. Exposure awareness can be facilitated by the use of a label

directing users to specific user awareness information. Your M/A-COM, Inc.

M7100IP two-way radio has an RF exposure product label. Also, your

M7100IP Installation and Operator’s Manuals include information and

operating instructions required to control your RF exposure and to satisfy

compliance requirements.

2.2 COMPLIANCE WITH RF EXPOSURE

STANDARDS

Your M/A-COM, Inc. M7100IP mobile two-way radio is designed and tested

to comply with a number of national and international standards and

guidelines (listed below) regarding human exposure to RF electromagnetic

energy. This radio complies with the IEEE and ICNIRP exposure limits for

occupational/controlled RF exposure environment at duty factors of up to

50% talk-50% listen and is authorized by the FCC for occupational use. In

terms of measuring RF energy for compliance with the FCC exposure

guidelines, your radio antenna radiates measurable RF energy only while it is

transmitting (talking), not when it is receiving (listening) or in standby mode.

Your M/A-COM, Inc. M7100IP mobile two-way radio complies with the

following RF energy exposure standards and guidelines:

• United States Federal Communications Commission (FCC), Code of

Federal Regulations; 47 CFR §§ 2 sub-part J.

• American National Standards Institute (ANSI)/Institute of Electrical

and Electronic Engineers (IEEE) C95.1-1992.

• Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999.

NOTE – Table 1 lists the recommended minimum lateral distance for

bystanders in an uncontrolled and controlled environment, from transmitting

types of antennas (i.e., monopoles over a ground plane, or dipoles) at rated

radio power for mobile radios installed on a motorcycle.

Table 1: Rated Power and Recommended Minimum Lateral Distance

RECOMMENDED

MINIMUM LATERAL

DISTANCE FROM

TRANSMITTING

ANTENNA

MOBILE

RADIO

FREQUENCY

SPLIT

RATED POWER OF

MOTORCYCLE-

INSTALLED MOBILE

TWO-WAY RADIO

Controlled Uncontrolled

UHF–L

@378 MHz 50 Watts

(Antenna P/N:

LE-OM406BKTNC)

74.87 cm 167.4 cm

UHF–L

@420 MHz 50 Watts

(Antenna P/N:

LE-OM420BKTNC)

71.03 cm 158.8 cm

2.2.1 Mobile Antennas

Install the radio’s antenna (part number LE-OM406BKTNC for UHF-L

(378MHz) radios or LE-OM420BKTNC for UHF-L (420 MHz)) on the end

of the motorcycle case farthest away from the driver. These mobile antenna

installation guidelines are limited to motorcycles fit with the motorcycle radio

case with integral antenna grounding plane. The antenna installation should

additionally be in accordance with the following.

1. The requirements of the antenna manufacturer/supplier included with the

antenna.

2. Instructions in the M7100IP Radio and Control Unit Motorcycle

Installation Manual, including minimum antenna cable lengths.

3. The installation manual providing specific information of how to install

the antennas to facilitate recommended operating distances to all

potentially exposed persons.

Use only the M/A-COM approved/supplied antenna(s) or approved

replacement antenna. Unauthorized antennas, modifications, or attachments

could damage the radio and may violate FCC regulations.

2.2.2 Approved Accessories

This radio has been tested and meets the FCC RF exposure guidelines when

used with the M/A-COM accessories supplied or designated for use with this

product. Use of other accessories may not ensure compliance with the FCC’s

RF exposure guidelines, and may violate FCC regulations.

For a list of M/A-COM approved accessories refer to the product manuals,

M/A-COM’s Products and Services Catalog, or contact M/A-COM at 1-800-

528-7711.

2.2.3 Contact Information

For additional information on exposure requirements or other information,

contact M/A-COM, Inc. at 1-800-528-7711 or at http://www.macom-

wireless.com.

3 OPERATION SAFETY RECOMMENDATIONS

3.1 TRANSMITTER HAZARDS

WARNING

The operator of any mobile radio should be aware of

certain hazards common to the operation of radio

transmitters. A list of several possible hazards is given:

• Explosive Atmospheres – Just as it is dangerous to fuel a vehicle with

the motor running, similar hazards exist when operating a mobile radio.

Be sure to turn the radio off while fueling the motorcycle. Do not

transport containers of fuel.

Areas with potentially explosive atmosphere are often, but not

always, clearly marked. Turn OFF your radio when in any area with

a potentially explosive atmosphere. It is rare, but not impossible that

the radio or its accessories could generate sparks.

• Interference to Vehicular Electronics Systems – Electronic fuel

injection systems, electronic anti-skid braking systems, electronic cruise

control systems, etc., are typical electronic systems that may malfunction

due to the lack of protection from radio frequency energy present when

transmitting. If the vehicle contains such equipment, consult the dealer

and enlist their aid in determining the expected performance of electronic

circuits when the radio is transmitting.

• Electric Blasting Caps – To prevent accidental detonation of electric

blasting caps, DO NOT use two-way radios within 1000 feet of blasting

operations. Always obey the “Turn Off Two-Way Radios” signs posted

where electric blasting caps are being used. (OSHA Standard: 1926-900)

• Liquefied Petroleum (LP) Gas Powered Vehicles – Mobile radio

installations in vehicles powered by liquefied petroleum gas with the LP

gas container in the trunk or other sealed-off space within the interior of

the vehicle must conform to the National Fire Protection Association

standard NFPA 58 requiring:

 The space containing the radio equipment shall be isolated by a seal

from the space containing the LP gas container and its fittings.

 Outside filling connections shall be used for the LP gas container.

 The LP gas container shall be vented to the outside of the vehicle.

3.2 SAFE DRIVING RECOMMENDATIONS

(Recommended by AAA)

• Read the literature on the safe operation of the radio.

• Use both hands to steer and keep the microphone in its hanger whenever

the vehicle is in motion.

• Place calls only when the vehicle is stopped.

• When talking from a moving vehicle is unavoidable, drive in the slower

lane. Keep conversations brief.

• If a conversation requires taking notes or complex thought, stop the

vehicle in a safe place and continue the call.

• Whenever using a mobile radio, exercise caution.

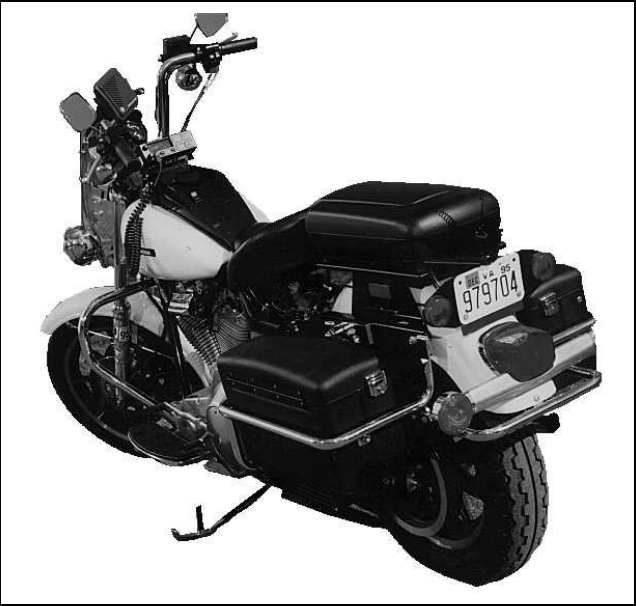

Figure 3-1: Typical M7100IP Motorcycle Installation

4 GENERAL INFORMATION

This manual contains instructions for installing the M7100IP mobile radio,

M7100IP control unit, and associated hardware on a motorcycle. The

instructions in this manual are typical installation instructions, and are not

intended to cover all makes and models of motorcycles.

Final installation of the radio equipment is left to the discretion of the radio

installer.

To simplify installation and minimize difficulties, it is suggested that the

installer read the entire manual prior to installation. Figure 3-1 shows a

typical motorcycle installation.

NOTE

M/A-COM, Inc. does not assume liability for possible

degradation of the radio or motorcycle

erformance due to

mounting procedures.

4.1 RELATED DOCUMENTATION

M7100IP Mobile Radio Operator’s Manual,

Scan & System................................................................. MM102341V1

M7100IP Mobile Radio Installation Manual,

Scan & System................................................................. MM102342V1

M7100IP Mobile Radio Motorcycle Installation Manual,

(50W TX and Below) ...................................................... MM102343V1

M7100IP Mobile Radio Maintenance Manual

UHF (378-430 MHz and 450-512 MHz).........................MM102346V1

VHF (136-174 MHz).......................................................MM102345V1

800 MHz (806-870 MHz)................................................MM102345V1

5 OPTIONS AND ACCESSORIES

Available options and accessories applicable to motorcycle installations are

defined below. NOTE: The M7100IP mobile radio, control unit, accessory

kits and microphone are ordered separately, then modified for motorcycle

applications. Applicable hardware is included with each option.

Table 2: M7100IP Motorcycle Mounted Option and Accessory Kits

OPTION DESCRIPTION

ANTENNAS

LE-OM406BKTNC Antenna, ¼ Wave, Vertical, TNC, 378-430 MHz

LE-OM420BKTNC Antenna, ¼ Wave, Vertical, TNC, 378-430 MHz

REMOTE MOUNT ACCESSORIES, MOTORCYCLE

MAHG-ZN6D Includes remote mount radio front cover, front cover logo label,

motorcycle accessory cable, motorcycle control cable, motorcycle power

cable, microphone hanger kit, motorcycle radio mounting kit, motorcycle

control unit mounting kit (includes special mic hanger), motorcycle radio

case, power filter, motorcycle radio case bracket, antenna mounting

bracket, 3 hardware kits, TX power turn down label, and motorcycle

installation manual.

REMOTE MOUNT ACCESSORIES, MOTORCYCLE W/O ACCESSORY CABLE

MAHG-ZN6E Same as MAHG-ZN6D above except omit the motorcycle accessory

cable.

HAND HELD CONTROLLER (WITHOUT SIREN) ACCESSORIES, REMOTE MOUNT

MOTORCYCLE

MAHG-ZN6F Includes Hand Held Controller (HHC) with mounting bracket, HHC

interface cable, remote radio front cover, front cover logo label,

motorcycle accessory cable, motorcycle control cable, motorcycle power

cable, motorcycle radio mounting kit, mobile speaker, motorcycle radio

case, power filter, motorcycle radio case bracket, antenna mounting

bracket, 3 hardware kits, TX power turn down label, accessory connector

cover, motorcycle installation manual, and HHC operator and installation

manuals.

HAND HELD CONTROLLER (WITHOUT SIREN) ACCESSORIES, REMOTE MOUNT

MOTORCYCLE WITH NO ACCESSORY CABLE

MAHG-ZN6G Same as MAHG-ZN6F above without the motorcycle accessory cable.

HAND HELD CONTROLLER (WITH SIREN) ACCESSORIES, REMOTE MOUNT

MOTORCYCLE

MAHG-ZN6H Includes Hand Held Controller (HHC) with mounting bracket, HHC

interface cable (for siren), remote radio front cover, front cover logo label,

motorcycle accessory cable, motorcycle control cable, motorcycle power

cable, motorcycle radio mounting kit, mobile speaker, motorcycle radio

case, power filter, motorcycle radio case bracket, antenna mounting

bracket, 3 hardware kits, TX power turn down label, accessory connector

cover, motorcycle installation manual, and HHC operator and installation

manuals.

FIELD UPGRADE OPTION: MOTORCYCLE CONVERSION, FIELD UPGRADE, REMOTE MOUNT

RADIO

MAHG-ZN6R Includes motorcycle accessory cable, motorcycle control cable,

motorcycle power cable, motorcycle radio mounting kit, motorcycle

control unit mounting kit (includes special mic hanger), motorcycle radio

case, power filter, motorcycle radio case bracket, antenna mounting

bracket, 3 hardware kits, and motorcycle installation manual.

Refer to M/A-COM’s Products and Services Catalog for the full line of options and accessories

available for use with the M7100IP mobile radio.

5.1 VENDOR DROP SHIP OPTIONS

The following is a list of available Vendor drop-ship options.

5.1.1 External Headset Options

There are two different applications for the Headset. One is for use with just

the M7100IP mobile radio and the other is for use with the M7100IP mobile

radio and a portable radio.

KA-13 Helmet Kit: Bell BT400 with speaker and noise canceling

microphone

KA-23 Helmet Kit: Bell BT400 with dual speakers and noise

canceling microphone (see NOTE on page 36)

KA-13 Helmet Kit: SHOE1 TJ101 with speaker and noise

canceling microphone

KA-23 Helmet Kit: SHOE1 TJ101 with dual speakers and noise

canceling microphone (see NOTE on page 36)

MCH-71GT Helmet Kit Interface Cable (pushbutton switch with PTT

function; interfaces with KA-13 and KA-23 helmet kits;

Harley-Davidson)

MCH-72GT Helmet Kit Interface Cable (rocker switch with PTT and

CG decode disable functions; interfaces with KA-13 and

KA-23 helmet kits; Harley-Davidson)

25-694 Extender Cable Assembly Interface.

The following Belt Box Assembly Interfaces are for use with the dual

application that allows the headset to be used with the M7100IP mobile radio

and a portable radio:

CA-3G3: Dual Radio Belt Box for PANTHER™ 400P, 600P, 625P.

CA-3G5: Dual Radio Belt Box for JAGUAR 700P.

CA-3GK: Dual Radio Belt Box for M-PA™, M-PD™, MTL™,

TPX™.

CA-3GP: Dual Radio Belt Box for PCS™.

CA-3GV: Dual Radio Belt Box for M-RK™.

CA-3GY: Dual Radio Belt Box for LPE-200™, Prism™.

5.2 HARDWARE KITS

The typical motorcycle mount application requirements are shown in Figure

5-1 (radio, control unit, microphone, and antenna are all ordered separately).

Hardware Kits 350A1396G1-G4 are shown in Figure 5-2 and Figure 5-3.

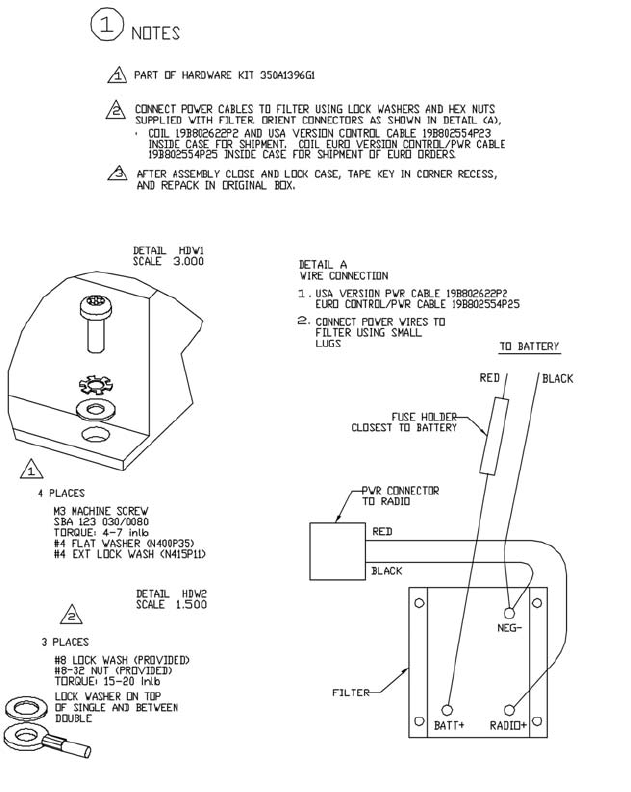

Hardware kit 350A1396G1 is used to factory-install the radio mounting

bracket and alternator whine reject filter to the weather-resistant case.

Hardware kits, 350A1396G2-G4, are used by the customer in the field to

mount the case and control head to the motorcycle (and may require the

optional Harley-Davidson adapter bracket).

• MIL-STD weather-resistant locking M7100IP radio case with integral

antenna ground plane

• Motorcycle Case hardware kit

• Motorcycle Radio Mounting bracket and hardware

• Case/Antenna bracket

• Case/Antenna Mount hardware kit

• Control Unit Mount hardware kit

• Case Adapter bracket (for Harley-Davidson motorcycles)

• Case Adapter Mount hardware kit

• RF Interface filter

• MIL-STD weatherproof speaker

• Radio-to-Control Unit Motorcycle cable

• Motorcycle Accessory cable

• Power/Control cable

Figure 5-1: Typical Motorcycle Kit

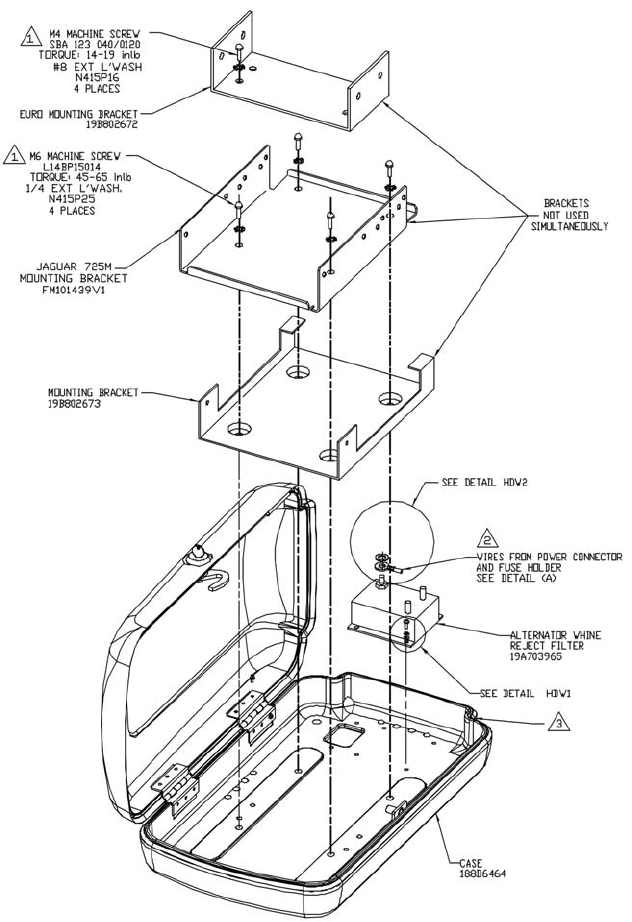

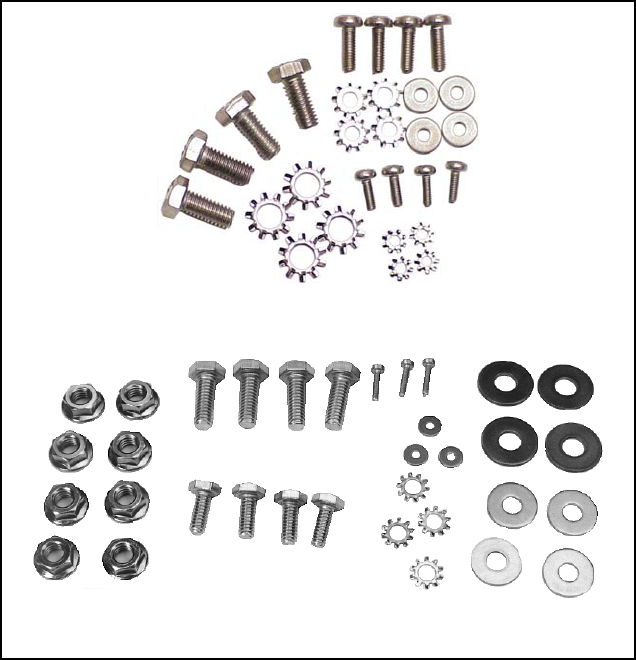

Hardware Application Kit 350A1396G1

Case/Antenna Assembly Hardware Kit 350A1396G2

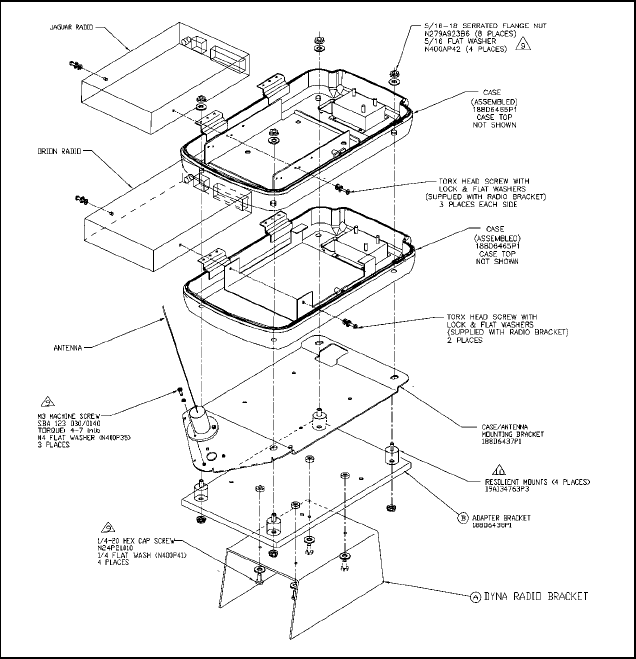

Figure 5-2: Hardware Installation Kits for Harley-Davidson Motorcycles

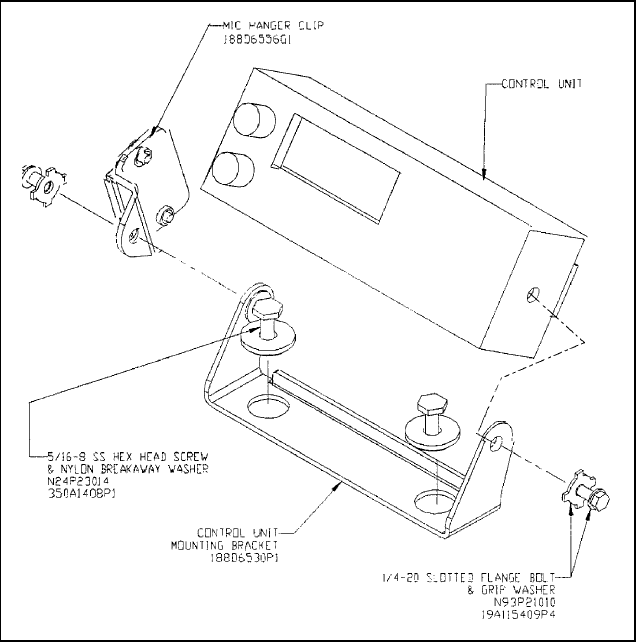

Control Unit/Microphone Hardware Kit 350A1396G3

Motorcycle Adapter Mounting Kit 350A1396G4

Figure 5-3: Hardware Kits for Harley-Davidson Motorcycles

5.3 USER SUPPLIED EQUIPMENT

• Motorcycle Bracket (Motorcycle’s interface with this Motorcycle Radio

Case and associated hardware. Refer to  and  in Figure 6-1 and

Figure 6-2.)

5.4 POWER CONSIDERATIONS

The motorcycle may be equipped with additional lights, light flashers, sirens,

PA systems, etc. Therefore, consideration must be given to the total system

current drain. It is recommended that the radios be set to not exceed the

applicable rated RF power output and current drain shown in Table 5-3 for all

M7100IP motorcycle applications.

CAUTION

Do NOT use a M7100IP mobile radio with power exceeding

the power limits shown in Table 5-3 for motorcycle

applications. To do so will result in damage to the

motorcycle alternator, battery, and all circuits. Also, the

possibility of interference is increased if the proper RF

power level is not used. As a final note, RF power may not

be set to exceed the maximum regulatory RF power

specified by that country’s regulatory agency.

5.4.1 RF Power Adjustments

For factory installed options the maximum RF power levels are factory preset

and should only require verification in the field. See Table 5-3.

For field installed options, the RF power of previously purchased M7100IP

mobile radios in the field must be appropriately set via modification of the

maximum RF power tracking data fields. The tracking data numbers are

adjusted to produce RF power as specified in the actual “M7100IP Motorcycle

Radio RF Power” column in Table 5-3.

5.4.1.1 Setting RF Power in the Field

800 MHz Band:

• Adjust the RF Power Level Tracking Data

1. Using ProGrammer, read the personality from the radio. (Refer to

ProGrammer On-Line Help for detailed instructions.)

2. Click on the “Systems” tab, then double click on “System Setup.”

3. Select the “General” tab and choose the System Name that needs to

be adjusted.

4. Enter “20” (for 20 watts rated power) in the “Power Level” control

box. Click OK. In addition, an RF Power of 10 or 15 watts can be

set by entering “10” or “15” respectively, in the “Power Level”

control field (refer to Table 5-3).

5. Write the new personality to radio.

The 800 MHz RF power tracking data settings are listed in the M7100IP

Mobile Radio Maintenance Manual ?? under the sections for TRACKING

DATA, TEST FREQUENCIES, & SETTING TRACKING DATA.

Table 5-3: RF Power Versus Current Setting

STANDARD M7100IP

MOBILE RADIO RF

POWER

M7100IP MOBILE RADIO RF

POWER (MOTORCYCLE

INSTALLATION)

RF PWR

(Rated)

CURRENT

(Typical)

RF PWR

(Rated)

RF POWER

SETTING

(Typical)

CURRENT

(Typical)

Repeater Input Band

806-825 MHz 806-825 MHz

35W 15A 20W 20W 9A

N/A N/A 15W 14.7W 8A

10W 7A 10W 10.2W 7A

Talkaround Band

851-870 MHz 851-870 MHz

30W 15A 20W 20W 8A

N/A N/A 15W 14W 7A

10W 7A 10W 10W 6A

6 INSTALLATION

Installation of the M7100IP mobile radio and control unit consists of:

• Assembling and installing the weather resistant motorcycle case

assembly, including the adapter bracket, case/antenna mounting bracket,

and bottom case (previously assembled) to the existing interfacing

bracket on the motorcycle (user supplied).

• Installing the radio in the radio mounting bracket located inside the

weather-resistant case.

• Installing the control unit, microphone, and speaker.

• Installing the antenna.

• Routing the power, control, and option cables.

• Connecting all cables, including power, control, and option cables.

• Installing the Headset Option.

• Performing an operational check

All mounting hardware consists of stainless steel screws, locknuts, nuts, and

lockwashers to resist corrosion.

6.1 TOOLS REQUIRED

• Socket wrench set U.S./metric with 3" extender

• Open end wrench, adjustable

• Wire clippers

• TORX® BIT set, small metric

6.2 EQUIPMENT INSTALLATION

6.2.1 Weather Resistant Case Assembly and

Installation

The motorcycle Weather Resistant Case Assembly may be installed on almost

any motorcycle. Installation instructions provided here include information

for the Harley-Davidson Dyna and Road King models. Figure 6-1 and Figure

6-2 illustrate installation on Harley-Davidson motorcycles. Refer to these

diagrams during installation. Installation on other motorcycles is at the

discretion of the installer.

Figure 6-1: Radio Installation

(188D6803, Sh. 1A, Rev. 3)

Figure 6-2: Radio Installation

(188D6803, Sh. 1B, Rev. 3)

6.2.2 Harley-Davidson Installation

1. Unpack the weather resistant motorcycle case, remove the key taped to

the top cover and open the case.

2. Refer to Figure 6-1 and Figure 6-2 and verify all components shown in

the diagrams are available.

3. Mount the adapter bracket to the existing Dyna or Road King (interface)

bracket on the motorcycle (user supplied) using the 1/4-20 x 5/8 screws

provided.

NOTE

The interface radio mounting bracket (user supplied) for the

Dyna and Road King models are different and require a

different mounting hole configuration. See Figure 6-1 and

Figure 6-2.

4. Insert the power, control, and antenna cables through the square hole in

the case/antenna mounting bracket and then through the bottom case

assembly.

5. Mount the case mounting bracket and bottom case assembly onto the 4

resilient mounts using the serrated flange nuts and flat washers included

inside the case. Refer to Figure 6-3.

6. Refer to Figure 6-4and connect the power cable to the radio. (Refer to

Cable Connections.)

7. Position the radio, fins up, inside the bracket in the bottom case assembly

and slide onto the arms. Lock in place using the TORX head screws and

lock washers (taped to the radio bracket).

8. Refer to Figure 6-4: Radio Connections and connect the antenna and

control cables to the radio. (Refer to Antenna Installation.)

9. Mount the antenna to the case/antenna mounting bracket using the M3 x

16 mm pan head screws provided. Refer to Figure 6-3.

6.3 RADIO MOUNTING BRACKETS

Radio mounting brackets are not available from M/A-COM for all models of

bikes. Should a special application arise for a custom-made radio mounting

bracket, it must be made using 0.125" steel (minimum). When designing and

mounting the bracket, corners/edges should be rounded to the maximum

extent possible.

Figure 6-3: Case Mounting Bracket and Case Assembly

Figure 6-4: Radio Connections

7 CONTROL UNIT MOUNTING

Mount the control unit within convenient reach of the operator, and where it

will not interfere with the safe operation of the motorcycle. Figure 7-1 shows

a typical installation of the control unit and microphone. Note also, the

location of the option switch for the Headset Option.

Due to the large number of different makes and models of motorcycles, it is

up to the installer to decide how to mount the control unit and optional

equipment. Mounting brackets for all makes and models are not available

from the factory, making it necessary to obtain a custom made bracket.

When designing and mounting the control unit bracket, the following

guidelines should be considered.

• The installation must NOT interfere with steering or operation of the

motorcycle.

• Mounting locations must NOT interfere with the driver or with

instrument visibility.

• The installation should provide easy access to the radio operating

controls.

• Rounded corners/edges should be employed to the maximum extent

possible.

CAUTION

Be careful to avoid damaging some vital part of the

motorcycle if it becomes necessary to drill mounting holes.

Also, always check to see how far the mounting screws will

extend below the mounting surface before installing.

Caution must be exercised to not drill through the gasoline

tank.

7.1.1 Control Unit And Mic Hanger Installation

Refer to Figure 7-2 for a detailed mechanical drawing of the control unit and

microphone mounting assembly. The mounting bracket shown mates with the

Harley-Davidson Road King hardware. For all other models, an additional

adapter bracket is required.

1. Using the hardware supplied, (part of Hardware Kit 350A1396G3) mount

the control unit bracket to the motorcycle.

NOTE

A special spacer may be required between the control unit

bracket and the motorcycle to raise the level of the control unit

bracket. This spacer, if needed, must be constructed locally.

2. Mount the control unit and mic hanger to the mounting bracket.

After installing the control unit, do not make any cable connections until all

cables have been run and secured. Speaker and option connectors are shown

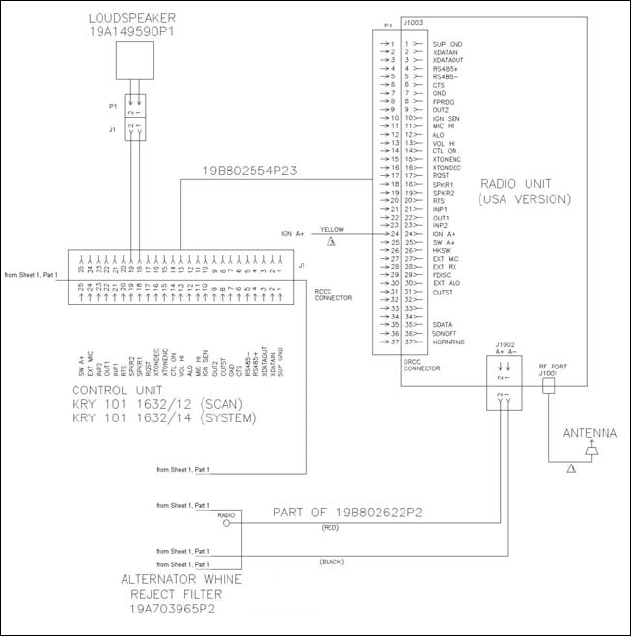

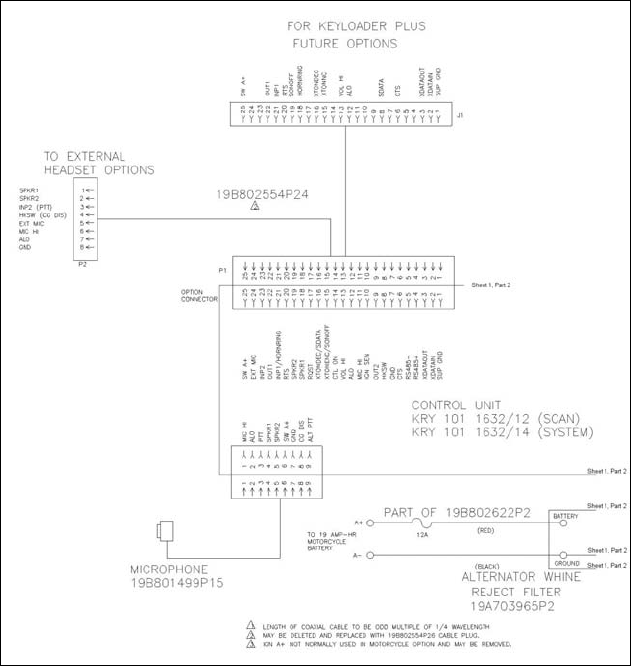

on the Interconnection Diagrams listed in the Table of Contents.

7.2 SPEAKER MOUNTING

Mount the speaker where the operator can hear it, and where it does not

interfere with the safe operation of the motorcycle. On some motorcycles, the

speaker can be attached to the windshield bracket using existing bolts to

secure the speaker mounting bracket (see Figure 7-3).

Figure 7-1: Typical Control Unit Installation

Figure 7-2: Control Unit Mounting Assembly

(188D6804, Sh. 1, Rev. 2)

Figure 7-3: Typical Speaker Mounting

7.3 CABLE ROUTING

7.3.1 Power and Control Cables

Cable routing consists of planning and routing the cable runs between the

radio, control unit, and battery. The cables should be routed away from

exhaust pipes, mufflers, and moving parts, or where mechanical damage may

result. Secure all cables with black cable ties to provide a clean installation.

The power and control cables, red and black, exit the radio case assembly

through the square hole in the front of the box and are routed to the area

beneath the saddle. The fused power cables (19B802622P2 or

19B802554P25) from the radio terminate here and are connected to the

battery. The control cable is routed through the triangular frame assembly to

the rear of the control unit.

7.3.2 Option Cable

The option cable is routed from the option connector on the rear of the control

unit CG/PTT disable switch mounted on the left handlebar.

7.3.3 Typical Harley-Davidson Installation

1. Disconnect gas line from tank and drain gas into an approved container.

2. Remove cowling, gas tank, and fairing, if required, to gain access to the

triangular frame assembly, beneath the gas tank, to permit cable routing.

3. Push saddle support springs forward to release the saddle and tilt it

forward to gain access to the area beneath the saddle.

NOTE

The power cable is designed for negative ground systems

only. The power and control cable consists of three separate

cables: RED (positive), BLACK (negative), and a control

cable.

4. Pass the power and control cables through the square hole in the bottom

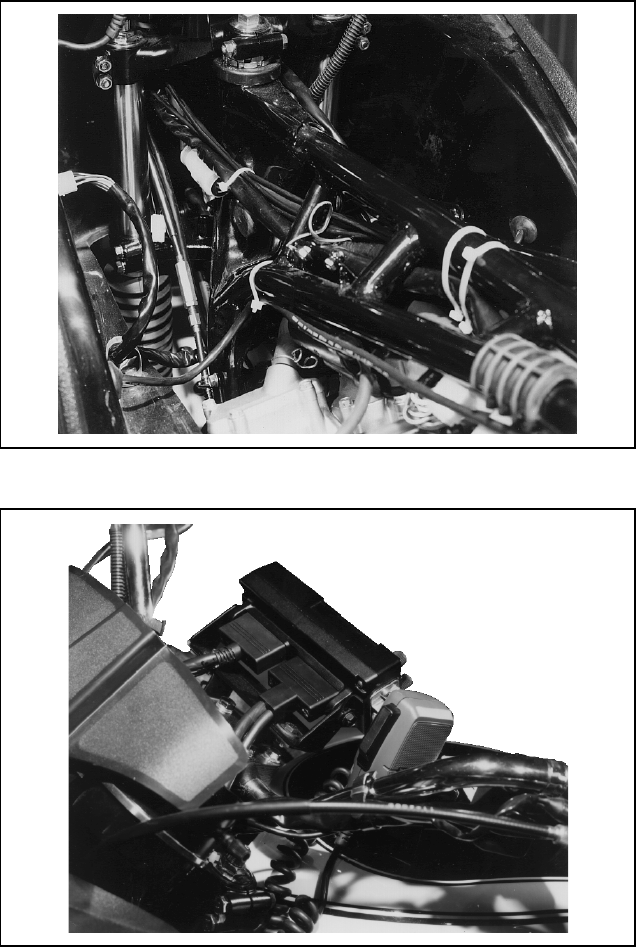

of the radio case assembly to the area beneath the saddle. See Figure 6-4

which shows cable routing under the center of the case assembly. Figure

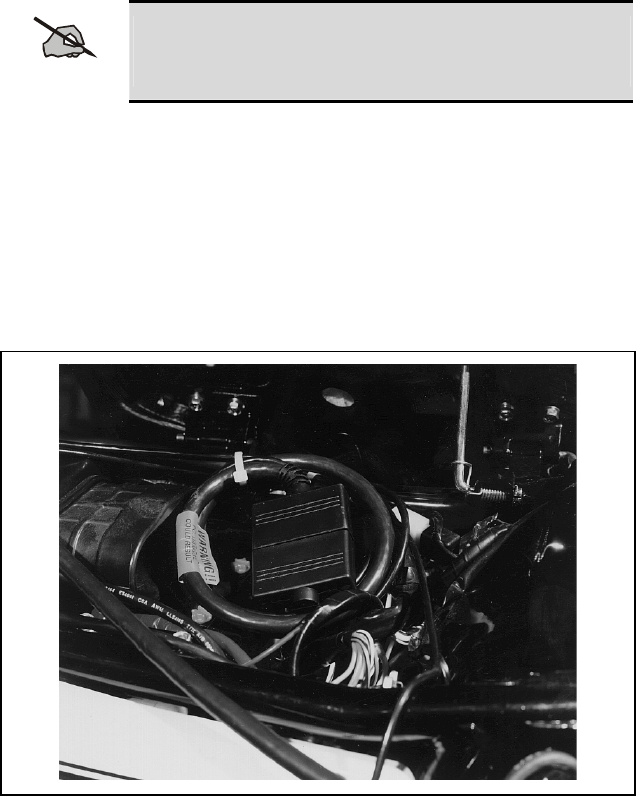

7-4 shows the cabling underneath the saddle area. (Note the location of

the option cable and connector, not being used.)

5. Refer to Figure 7-5 and route the cables through the center of the

triangular frame assembly to the area at the rear of the control unit. The

cable may be routed along side existing cables and secured to them with

cable ties.

NOTE

It may be necessary to notch a portion of the cowling at the

control unit end and at the saddle area to provide entrance

and exit holes for the cable. The entrance and exit cutaway

holes are required to permit the cowling to be remounted

flush to the gas tank.

6. Route the control cable to the rear of the control unit and make the

connection to the right rear of the control unit as shown in Figure 7-6.

Any excess cable will reside beneath the saddle area. (The option and

accessory cable is shown connected to the left rear of the control unit).

7. Re-examine cable routing and be sure that all cables are neatly routed and

secured with cable ties.

8. Install a cable clamp on saddle mounting bracket (left side) and secure

the power and control cables from the radio case assembly.

9. Route speaker leads from the control cable underneath the handlebar to

the rear of the instrument panel assembly in the vicinity of the speaker.

Secure to headlight cabling with cable ties. Excess cable should be

bundled and secured with cable ties behind the instrument panel

assembly.

NOTE

Refer to HEADSET INSTALLATION (OPTION) for

accessory cable routing instructions.

10. Connect speaker leads from accessory cable to speaker cable.

11. Connect negative power lead to the battery negative (-) terminal.

12. Connect positive power lead to the battery positive (+) terminal.

13. Reinstall gas tank, cowling, and secure saddle.

14. Verify all electrical connections: radio, control unit, antenna, option

switch, speaker, and battery.

15. Close and lock radio case assembly.

Figure 7-4: Option Cable Stored Beneath Saddle Area

Figure 7-5: Triangular Frame Assembly

Figure 7-6: Control Unit Connections

7.3.3.1 For Motorcycle Models Equipped with Gas Tank Fairing

The cable may be routed from the saddle area, under the fairing, around the

left side of the gas tank filler pipe, and up to the area of the control unit. The

fairing may have to be notched to provide entrance and exit space. Run the

control cable as directed in Steps 1 through 3.

1. Remove all the screws securing the fairing. Next, unscrew and remove

the gas tank cap and lift off the fairing. Replace the gas cap immediately.

WARNING

Always replace the gas cap as soon as the fairing is

replaced/removed. This is necessary to reduce the

possibility of an explosion as well as to prevent drill

shavings or other debris from getting into the gas tank.

2. Run the cables from the saddle area up the left side of the gas tank to the

area of the control unit.

NOTE

It may be necessary to notch a portion of the fairing at the

control unit end and at the saddle area to provide entrance

and exit holes for the cable. The entrance and exit cutaway

holes are required to permit the fairing to be remounted

flush to the gas tank.

3. Before replacing the fairing, the control cable and any option cables may

be run under the fairing also. Replace the fairing by removing the gas

cap, repositioning the fairing, then replacing the gas cap and the screws

that secure the fairing.

7.3.3.2 For Motorcycles Not Equipped With A Gas Tank Fairing

After making power connections, run the control cables up the left side of the

motorcycle to the control unit and secure the cables with the cable ties. Note:

All cables connect to the back of the control unit.

7.4 CABLE CONNECTIONS

Cable connections consist of connecting the power and control cables

(individual red + and black -), the radio control cable, and the antenna cable.

Verify that all cables have been connected and are secure.

Refer to control cable assembly drawings 19B802554 and Interconnection

Drawings (188D6783) for electrical and mechanical application details.

7.4.1 Power Cable

As shipped from the factory, the power cable (19B802622P2) is equipped

with a 12 amp in-line fuse (installed) and ring terminals. The power cable

supplies power from the battery to the radio. Refer to Figure 6-4.

1. Connect the red lead (+) to the battery terminal on the alternator whine

filter and the black lead (-) to ground on the alternator whine filter.

2. Route the cables to the battery and then connect the black (-) and the red

lead (+) to the battery terminals.

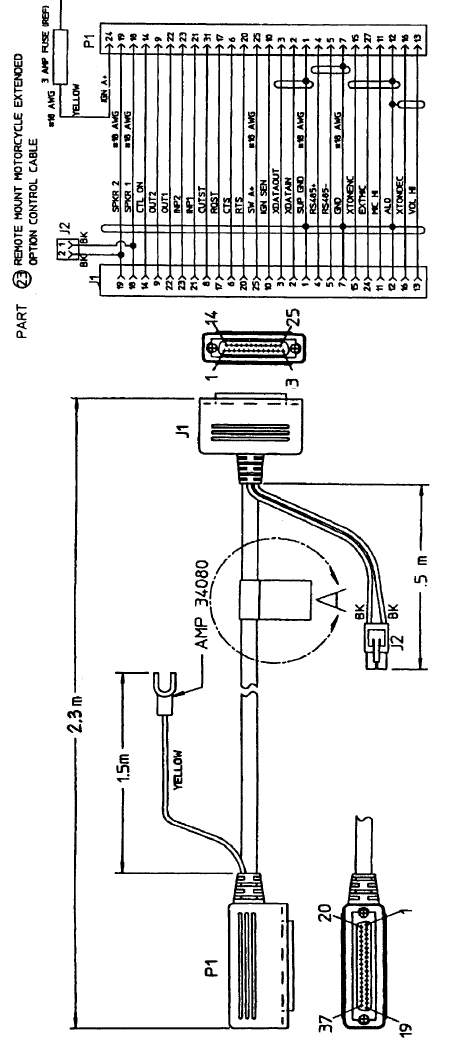

7.4.2 Control Cable

The control cable (remote mount, extended option) is routed between the

control unit and the motorcycle radio case. In addition to the main cable, the

cable assembly contains a pair of black speaker leads and a single yellow wire

for ignition switch standby control. Normally, the ignition switch standby

control feature is not used in motorcycle applications and the yellow fuse

assembly provided is discarded and the wire terminated. However, at the

customer’s discretion, the ignition switch standby control feature may be

used.

The plug connections include the microphone, speaker, option cable, and the

control cable. Refer to the interconnection diagram 188D6783 and to diagram

19B802554P23 for cable identification.

1. Plug the black speaker leads from the control cable into the speaker

cable.

2. Plug the control cable into the right rear receptacle of the control unit.

7.4.3 Ignition Switch Option

NOTE

The M7100IP radio, as shipped from the factory, has the

“ignition sense” feature disabled. As such, the radio is

powered ON or OFF as determined by the front panel ON-

OFF/VOLUME control only (assuming A+ and A- are

connected). If the “ignition sense” feature is to be enabled,

open the top cover of the radio and remove the shield from

the logic PWB. Slide switch SW601 from position 3-2 to 1-

2. Replace shield and top cover. Be sure to apply the correct

torque to the screws holding the top cover in place. Refer to

the M7100IP Maintenance Manual for installation

instructions.

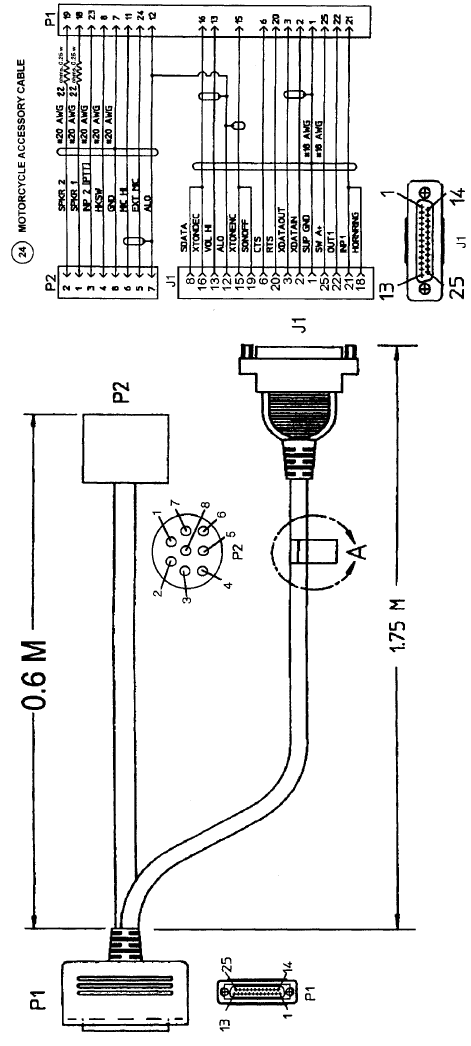

7.4.4 Accessory Cable

The accessory cable (19B802554P24) provides connections for the external

headset, DES keyloader, and other options (i.e., data terminal, external

encoder/decoder, etc). Refer to “HEADSET INSTALLATION (OPTION).”

7.5 ANTENNA INSTALLATION

7.5.1 General

The M/A-COM M7100IP motorcycle options for the UHF (378-430 MHz)

land mobile radio band are designed for use with two antennas (part number

LE-OM406BKTNC for 378-420 MHz or LE-OM420BKTNC for 420-430

MHz). With this antenna, a ground plane is no longer necessary. This antenna

is an end-fed high-impedance antenna that provides the proper VSWR and

radiation pattern without the use of a ground plane. Typical antenna gain

without a ground plane is 0 dB.

The case/antenna mounting plate (188D6437P1) was designed to fit the hole

mounting pattern for either of the two antenna mounts.

CAUTION

Since the two antennas are high impedance, voltage fed

antennas, the length of the coaxial cable from the antennas

to the M7100IP RF port is critical. It cannot be just any

arbitrary length. To prevent possible extraneous radiation,

RFI feedback from the antenna to the radio, high VSWR, or

antenna ground currents, select an antenna coaxial cable

length that is close to a multiple of an odd quarter-

wavelength.

To properly use a thru-line wattmeter, one of the following two conditions

must be met:

• If the wattmeter is installed right at the M7100IP RF port and the odd

multiple of a quarter-wavelength of coax to the antenna is used, correct

readings will result. Any other length of coax will result in improper

readings.

• If a length of coax equal to a multiple of a half-wave length is installed

between the M7100IP RF port and the thru-line wattmeter and an odd

multiple of a quarter-wavelength of coax to the antenna is used, correct

readings will also result. Any other length of coax will result in improper

readings.

To calculate the proper cable length of the antenna coaxial cable, proceed as

follows:

1. Determine the center frequency of the majority of programmed transmit

channel frequencies.

2. Use the formula: ¼λ in = 2805

F(MHz)

Example 1: Assume the customer has an 800 MHz M7100IP with most of the

transmit frequencies between 816-821 MHz. Therefore, center frequency is

818.5 MHz. Applying the above formula results in:

¼λ in = 2805 = 3.43 inches

818.5

½λ wavelength (in inches)= 6.85 inches

The cable length should be 3.43 + n x 6.85 inches. Since the installer will

need a length of the coax from the antenna to the radio to be at least 22 inches

long to physically connect the antenna to the radio, he must calculate a length

of coax that will meet the odd quarter-wavelength requirement and be greater

than 22 inches.

Choose n=3. Coaxial cable length is 3.43 + 3 x 6.85= 23.99 inches.

Example 2: Assume the center frequency is 155 MHz. Applying the formula:

¼λ = 18.10 inches; ½ wavelength = 36.19 inches; n=1.

Coaxial cable length is 18.10 + 1 x 36.19= 54.29 inches.

7.5.2 Typical Motorcycle Mount Antenna Installation

The typical motorcycle mounting of an antenna is only applicable when the

installation provides at least 20 centimeters (8 inches) between the antenna

and operators/bystanders. This distance recommendation is made using a 50%

duty cycle.

1. After the proper length of coax cable has been calculated, cut the coax

cable so that when the TNC crimp style connector is installed the overall

length will equal the calculated length.

2. Route the assembled proper length coax from the antenna, under the

antenna bracket, and into the weather-resistant case.

3. Connect the antenna cable to the RF port on the M7100IP radio.

WARNING

See the “RF ENERGY EXPOSURE INFORMATION”

section at the beginning of this manual for further

information regarding Maximum Permissible Exposure

(MPE) limits of RF radiation absorption set by the FCC.

8 FINAL CHECKS AND CONNECTIONS

After the weather resistant case is installed, all cables run, and the radio,

control unit, speaker, and microphone installed, refer to the interconnection

diagrams and verify that all connections have been made and the equipment is

properly grounded. Make a final check of all cables to make sure they are

properly connected and dressed away from all moving parts and exhaust

pipes, and secured with cable ties. Then recheck all electrical connections and

radio mounting hardware.

8.1 HEADSET INSTALLATION (OPTION)

NOTE

To enable the PTT switch on the handlebar switch for

external headset options, the M7100IP mobile radio must be

programmed so that INP2 is defined to be “PTT” or

“EXTPTT”. Without this software addition, the headset

options will not transmit.

8.1.1 Dual Radio (i.e., M7100IP Mobile and Portable

Radio) Application

The Headset Option includes the helmet-mounted noise canceling microphone

with single (or dual) speakers, the belt box assembly (with internal amplifier),

and the Helmet Kit Interface Cable.

1. Install the noise-canceling microphone and single (or dual) speakers in

the helmet per instructions provided by the vendor.

2. Remove the plug 19B802554P26 from the option connector on the back

of the M7100IP radio control unit. Connect the accessory cable

19B802554P24 to the option connector.

3. Install the Helmet Kit Interface Cable (MCH-71GT, etc.) containing the

PTT only pushbutton switch or the PTT/CG disable switch to the left

handlebar, insuring that freedom of motion is not compromised. Route

the eight pin waterproof connector over to and mate it with the eight pin

waterproof connector that is part of accessory cable 19B802554P24.

4. Route the long end of the Helmet Kit Interface Cable containing the four

position quick disconnect plug along the bike and bring it out near the

location of the driver’s hip.

5. The long end of the accessory cable 19B802554P24 which contains the

25 pin D-subminiature receptacle connector is to also be routed along the

bike and any excess is to be coiled up and left under the seat.

6. The driver takes the belt boxes (listed on page 10) and attaches it to his

belt. The helmet kit quick disconnect plug is mated to the belt box quick

disconnect connector.

7. Finally, the other quick disconnect connector of the belt box is mated to

the Helmet Kit Interface Cable quick disconnect connector.

Orion Mobile Radio Only Appllication

This Headset Option includes the helmet-mounted noise canceling

microphone with single (or dual) speakers, the extender cable assembly, and

the Helmet Kit Interface Cable.

1. Follow steps 1-5 of the “Dual Radio Application.”

2. The helmet kit quick disconnect plug is mated to the extender cable

25-0694 (no need for a belt box).

3. Finally, the other quick disconnect connector of the extender cable is

mated to the Helmet Kit Interface Cable quick disconnect connector.

NOTE

The headset option speakers are a nominal 24 ohms. Use of

other impedance vale speakers will result in non-optimum

sound performance from the speaker(s). The KA-23 dual

speaker helmet kit has the two speakers wired in parallel.

They must be re-wired in series to perform properly.

NOTE

The Helmet Kit Interface Cables MCH-71GT and MCK-

71GT have a pushbutton switch that only supports the PTT

function. The Interface Cables MCH-72GT and MCK-

72GT have a three-position rocker switch that supports both

the PTT and CG Decode Disable functions.

8.1.2 Headset Operation

1. If the motorcycle is equipped with the MCH-71GT or MCK-71GT

Motorcycle Interface cable, simply press and hold the PTT button (and

talk into the noise-canceling mic) to transmit. Release the PTT button to

receive. Adjust the volume switch on the control head for the desired

level.

2. If the motorcycle is equipped with the MCH-72GT or MCK-72GT

Motorcycle Interface cable, press and hold the three position toggle

switch to the momentary (PTT) position (and talk into the noise-

canceling mic) to transmit. Release the toggle switch to its center

position to receive. In this center position, the user is in MONITOR

mode because any programmed decoder has been deactivated. To be in

receive mode with any programmed decoders activated, press the toggle

switch to the latched position. Adjust the volume control on the control

head for the desired level.

Interconnection Diagram

(188D6783, Sh. 1, Rev. 3)

Interconnection Diagram

(188D6783, Sh. 1, Rev. 3)

Remote Mount, Motorcycle Extended

(19B802554P23, Sh. 23, Rev. 25)

Motorcycle Accessory Cable

(19B802554P24, Sh. 24, Rev. 25)

Power Control Cable

(19B802622P2, Sh. 2, Rev. 6)

Motorcycle Radio Case Assembly

(188D6465, Rev.4, Part 1)

Motorcycle Radio Case Assembly

(188D6465, Rev.4, Part 2)

PARTS LISTS

Option HBCP7W: Scan Control Unit, KRY 101 1632/12

PART NUMBER DESCRIPTION

NP101411V1 Nameplate

KRY 101 1632/12 M7100IP Control Unit, Scan model

Option HBCP7X: System Control Unit, KRY 101 1632/14

PART NUMBER DESCRIPTION

NP101411V1 Nameplate

KRY 101 1632/14 M7100IP Control Unit, Scan model

Option MAHG-ZN6R: Motorcycle Field Upgrade Kit

(M7100IP Radio Conversion)

PART NUMBER DESCRIPTION

19A703965P2 Alternator Filter

19B802554P23 Control Cable

19B802554P24 Accessory Cable

19B802622P2 Power Cable

188D6464P1 Motorcycle Case (Black)

188D6437P1 Case/Antenna Bracket

KT101533V4 Motorcycle Radio Mounting Bracket and Hardware Kit

188D6438P1 Adapter Bracket (for Harley-Davidson Motorcycles)

350A1396G1 Hardware Kit For Motorcycle Case

350A1396G2 Hardware Kit For Case/Antenna Bracket

350A1396G3 Hardware Kit For Control Unit Mounting Bracket

350A1396G4 Hardware Kit For Adapter Bracket (For Harley-Davidson

Motorcycles)

Option MAHG-ZN6D: Motorcycle Accessories (Remote Mount)

Option MAHG-ZN6E: Motorcycle Accessories (Remote Mount) w/o

Motorcycle Accessory Cable

PART NUMBER DESCRIPTION

19B802671P1 Front Cover, Remote Radio

344A3723P11 Label, Power Set

350A1396G1 Motorcycle Case Hardware Kit

350A1396G2 Case/Antenna Mount Hardware Kit

350A1396G3 Control Unit Mounting Hardware Kit

350A1396G4 Case Adapter Mounting Hardware Kit

188D6437P1 Case/Antenna Bracket

188D6438P1 Case Adapter Bracket

188D6464P1 Radio Mount (Black) Case

LS102824V1 Mobile Speaker, MIL STD, 4 ohm

19A703965P2 RF Interface Filter

19B802554P23 Remote Mount Motorcycle Extended Option Cable

19B802554P24 Motorcycle Accessory Cable (not included with Option MAHG-

ZN6E)

19B802622P2 Motorcycle Power Cable

KT101533V14 Motorcycle Radio Mounting Bracket and Hardware Kit

19B235310P6 Nameplate; Blank

NP101410V2 Nameplate, M7100IP Mobile

Motorcycle Radio Mount Case and Hardware

DESCRIPTION

Motorcycle Radio Case – 188D6464P1

188D6215P1 Case Top

188D6221P1 Case Bottom

19B804433P1 Hinge (top & bottom)

350A1341P1 Gasket

19B804263P1 Catch Assembly

EMKA 1048-U14 Lock Assembly (lock, tumbler, mounting nut, bolt and key)

19B804711P1 Lock Stop

EMKA 1109-SU10 Key; unmolded

EMKA 1108-U35 or

19B804717P2 Key

19B804715P2 Friction Washer

19B804429P2 Hooked Cam

SBA 123 030/0060 Cap screw (used to secure hinge)

19A149819P1 Thread Locker (Loctite® 425)

19A115204P1 Cam Lubricant (Lubriplate® 130A)

344A1396G1 Motorcycle Case Hardware Kit

L14BP15014 Screw, Hex Head, Mach (Qty. 4)

Control Unit/Microphone Mounting Bracket and Hardware Kit

PART NO. DESCRIPTION

188D6530P1 Control Unit Bracket (Qty. 1)

350A1408P1 Washer, Breakaway (Qty. 2)

19B802554P26 Plug, DB25 (Qty. 1)

19B802871P2 Cover, Microphone, Connector (Qty. 1)

19A115409P4 Washer, Lock (Qty. 2)

N24P21010 Screw, Cap Hex head, SS (Qty. 2)

N24P23014 Screw, Hex head HD, 5-16x7 - 8 (Qty. 2)

Microphone Hanger Kit (188D6556G1)

4031458G2 Spring

SBA123040/0080 Screw, Mach., SS

4031457G1 Bracket, Mounting with holes

19B804356P1 Bracket, Microphone Hanger

Motorcycle Radio Case Adapter Bracket Mounting Kit

PART NO. DESCRIPTION

188D6438P1 Bracket, Case Adapter

Case Adapter Bracket Mounting Hardware Kit 350A1396G4

19A134763P3 Mount, Rubber

Motorcycle Case Hardware Kit 350A1396G1

PART NO. DESCRIPTION

N415P25 Washer, Lock (Qty. 4)

N400P35 Washer, Flat (Qty. 4)

SBA123030/0080 Screw, SS (Qty. 4)

SBA123040/0120 Screw, Pan Head, Torx SS (Qty. 4)

N415P11 Washer, Metal, Lock (Qty. 4)

N415P16 Washer, Lock, SS (Qty. 4)

L14BP15014 Screw, Hex Head, Mach (Qty. 4)

Option MAHG-ZN6F: Hand Held Controller (without Siren)

Option MAHG-ZN6G: Hand Held Controller (without Siren and no

accessory cable)

Option MAHG-ZN6H: Hand Held Controller (with Siren)

Mounting Hardware Kit (Less Bracket) 350A1396G2 & G4

PART NO. DESCRIPTION

N400AP42 Washer, Metal, Lock (Qty. 4)

N415P25 Washer, Metal, Lock (Qty. 4)

N400P35 Washer, Metal, Lock (Qty. 3)

SBA123030/0140 Screw, Mach, Torx, SS (Qty. 3)

N279AP23B6 Nut, Serrated, 5/16” (Qty. 8)

N400P41 Washer, Flat (Qty. 4)

N24P21010 Screw, Cap, Hex Head, SS (Qty. 4)

N24P23014 Screw, Hex Head, Mach, SS (Qty. 4)

CA101619V1* Hand Held Controller Interface cable (without Siren Interface)

CA101619V5** Hand Held Controller Interface cable (with Siren Interface)

CU101239V1 Control Unit

*Only for Options MAHG-ZN6F and MAHG-ZN6G.

**Only for Option MAHG-ZN6H

Motorcycle Radio Mounting Bracket (KT101533V4)

PART NO. DESCRIPTION

Photo not available.

N402P9B17 Washer, Flat, 0.203ID/0.406OD, Black

FM102906V1 Bracket, Motorcycle Radio Mount

L14P14010B17 Screw, Hex, M5x10, Black

L401P25B17 Washer, Lock, Split, M5, Black

9 WARRANTY

A. M/A-COM, Inc. (hereinafter "Seller") warrants to the original purchaser for use (hereinafter "Buyer") that

Equipment manufactured by or for the Seller shall be free from defects in material and workmanship,

and shall conform to its published specifications. With respect to all non-M/A-COM Equipment, Seller

gives no warranty, and only the warranty, if any, given by the manufacturer shall apply. Rechargeable

batteries are excluded from this warranty but are warranted under a separate Rechargeable Battery

Warranty (ECR-7048).

B. Seller’s obligations set forth in Paragraph C below shall apply only to failures to meet the above

warranties occurring within the following periods of time from date of sale to the Buyer and are

conditioned on Buyer’s giving written notice to Seller within thirty (30) days of such occurrence:

1. for fuses and non-rechargeable batteries, operable on arrival only.

2. for parts and accessories (except as noted in B.1) sold by Seller’s Service Parts Operation, ninety

(90) days.

3. for PANTHER™ series handportable and mobile radios, two (2) years.

4. for all other equipment of Seller’s manufacture, one (1) year.

C. If any Equipment fails to meet the foregoing warranties, Seller shall correct the failure at its option (i) by

repairing any defective or damaged part or parts thereof, (ii) by making available at Seller’s factory any

necessary repaired or replacement parts, or (iii) by replacing the failed Equipment with equivalent new

or refurbished Equipment. Any repaired or replacement part furnished hereunder shall be warranted for

the remainder of the warranty period of the Equipment in which it is installed. Where such failure cannot

be corrected by Seller’s reasonable efforts, the parties will negotiate an equitable adjustment in price.

Labor to perform warranty service will be provided at no charge during the warranty period only for the

Equipment covered under Paragraph B.3 and B.4. To be eligible for no-charge labor, service must be

performed at a M/A-COM factory, by an Authorized Service Center (ASC) or other Servicer approved

for these purposes either at its place of business during normal business hours, for mobile or personal

equipment, or at the Buyer’s location, for fixed location equipment. Service on fixed location equipment

more than thirty (30) miles from the Service Center or other approved Servicer’s place of business will

include a charge for transportation.

D. Seller’s obligations under Paragraph C shall not apply to any Equipment, or part thereof, which (i) has

been modified or otherwise altered other than pursuant to Seller’s written instructions or written

approval or, (ii) is normally consumed in operation or, (iii) has a normal life inherently shorter than the

warranty periods specified in Paragraph B, or (iv) is not properly stored, installed, used, maintained or

repaired, or, (v) has been subjected to any other kind of misuse or detrimental exposure, or has been

involved in an accident.

E. The preceding paragraphs set forth the exclusive remedies for claims based upon defects in or

nonconformity of the Equipment, whether the claim is in contract, warranty, tort (including negligence),

strict liability or otherwise, and however instituted. Upon the expiration of the warranty period, all such

liability shall terminate. The foregoing warranties are exclusive and in lieu of all other warranties,

whether oral, written, expressed, implied or statutory. NO IMPLIED OR STATUTORY WARRANTIES

OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE SHALL APPLY. IN NO EVENT

SHALL THE SELLER BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, INDIRECT

OR EXEMPLARY DAMAGES.

This warranty applies only within the United States.

M/A-COM, Inc. M/A-COM, Inc.

1011 Pawtucket Blvd. 221 Jefferson Ridge Parkway

Lowell, MA 01853 Lynchburg, VA 24501

1-877-OPENSKY 1-800-528-7711

ECR-7047C

NOTES

M/A-COM Wireless Systems

221 Jefferson Ridge Parkway

Lynchburg, Virginia 24501

(Outside USA, 434-385-2400) Toll Free 800-528-7711

HARRIS TR-0020-E M7100 UHF-L Mobile Radio User Manual MM102343V1 Ap1

HARRIS CORPORATION M7100 UHF-L Mobile Radio MM102343V1 Ap1

Contents

Manual motorcycle installation

Navigation menu

Namespaces

Views

Navigation
