HARRIS TR-0067-E P5500 VHF User Manual

HARRIS CORPORATION P5500 VHF

User Manual

Rhein Tech Laboratories, Inc. Client: Harris Corporation
360 Herndon Parkway Model: P5500 VHF
Suite 1400 IDs: OWDTR-0067-E/3636B-0067
Herndon, VA 20170 Standards: FCC Part 90/80/IC RSS-119
http://www.rheintech.com Report #: 2011135
84 of 98
Appendix M: Manual
Please refer to the following pages.

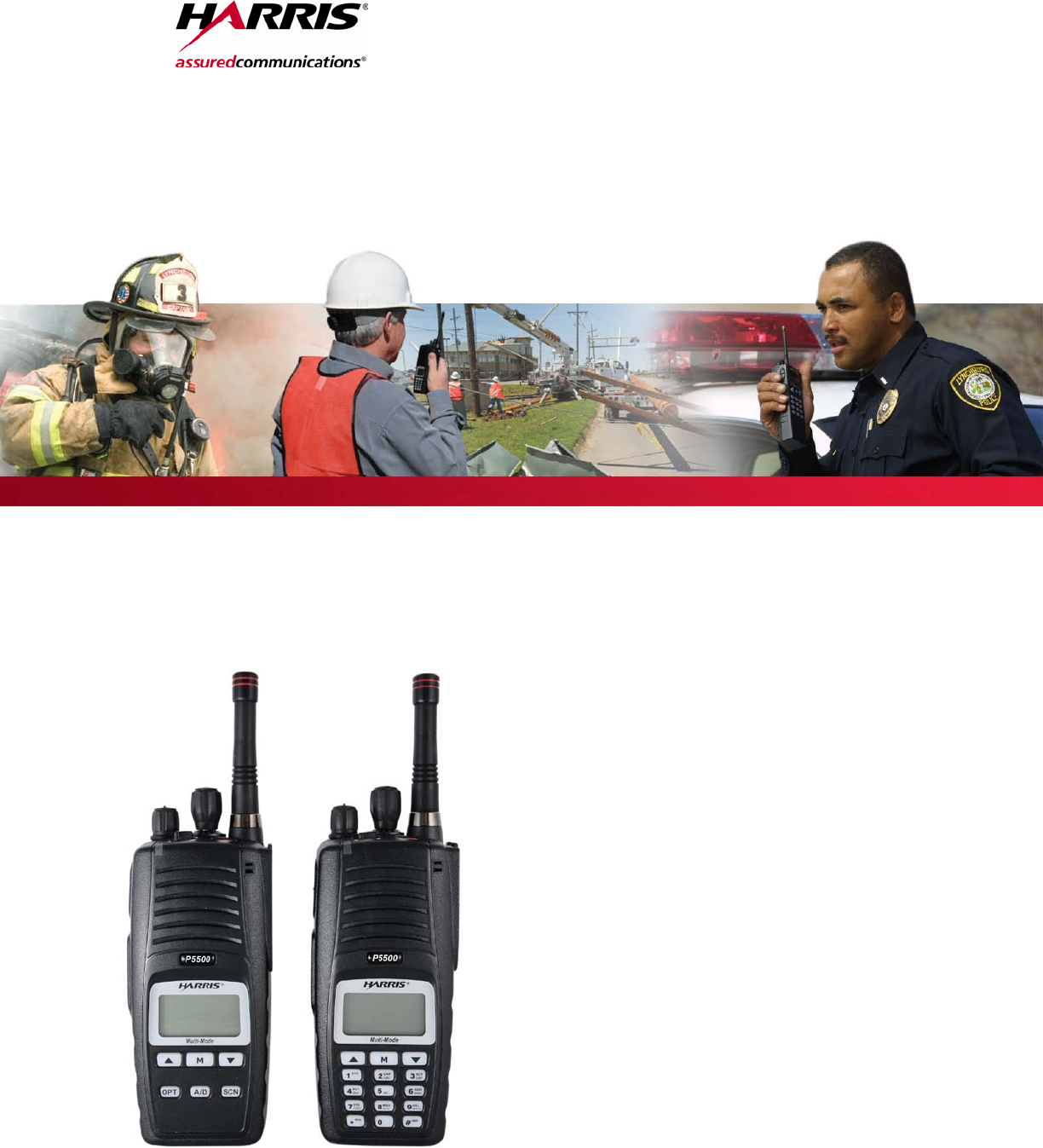

Operator’s Manual
14221-1400-2000
Sep/11

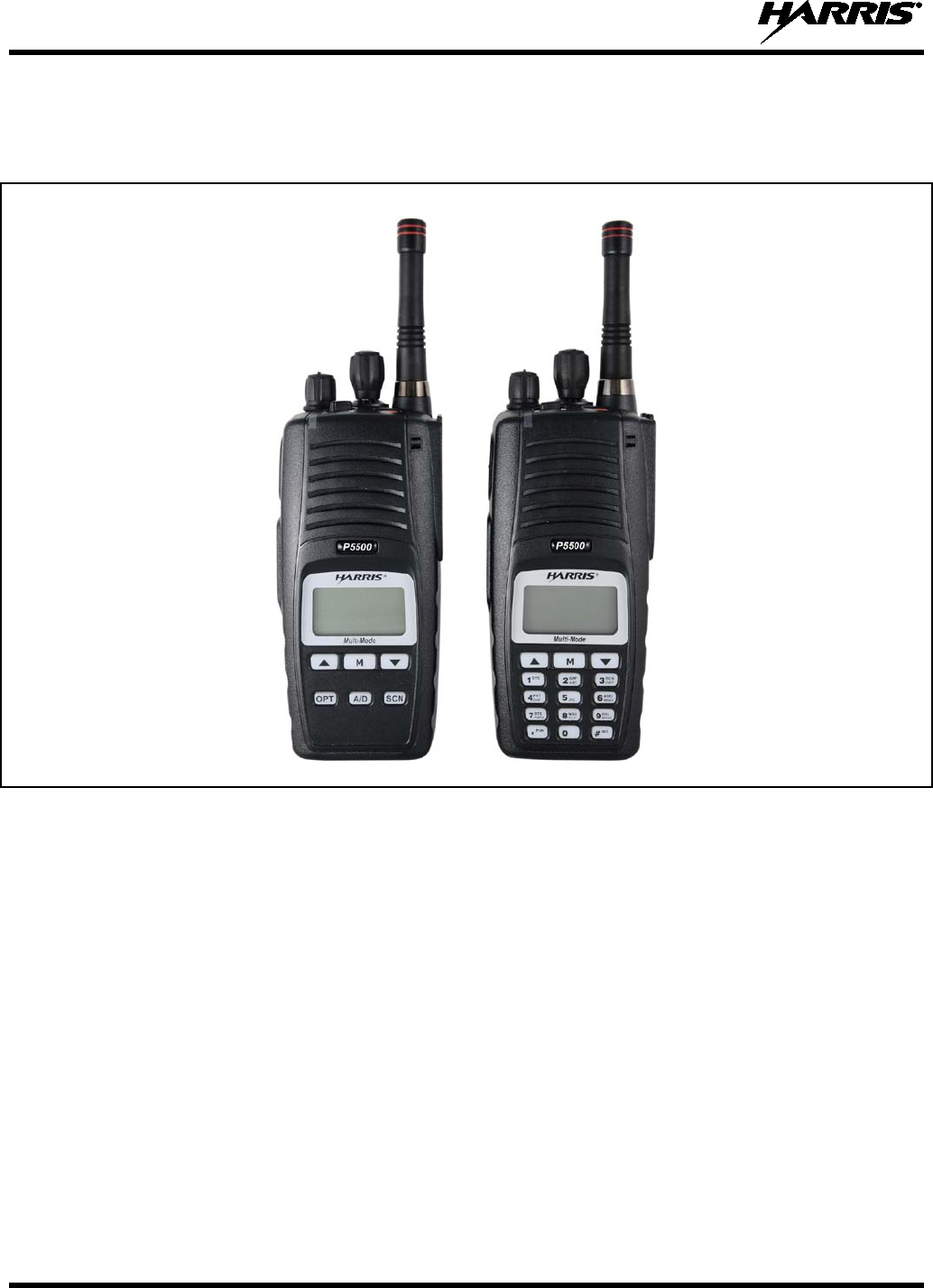

P5500 Series
Portable Radio
14221-1400-2000
2
REV
DATE
REASON FOR REVISION
- Sep/11 Initial release.
Harris Corporation, Public Safety and Professional Communications (PSPC) Business continually evaluates its technical publications for
completeness, technical accuracy, and organization. You can assist in this process by submitting your comments and suggestions to the
following:
Harris Corporation fax your comments to: 1-434-455-6851
PSPC Business or
Technical Publications e-mail us at: PSPC_TechPubs@harris.com
221 Jefferson Ridge Parkway
Lynchburg, VA 24501
ACKNOWLEDGEMENTS
The software contained in this device is copyrighted by Harris Corporation Unpublished rights are reserved under the copyright laws of the
United States.
This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017;
5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795; 5,226,084; 5,247,579; ; 5,491,772; 5,517,511; 5,630,011;
5,649,050; 5,701,390; 5,715,365; 5,754,974; 5,826,222; 5,870,405; 6,161,089; and 6,199,037 B1. DVSI claims certain rights, including
patent rights under aforementioned U.S. patents, and under other U.S. and foreign patents and patents pending. Any use of this software or
technology requires a separate written license from DVSI. CREDITS!
Harris Corporation, assuredcommunications, EDACS, VIDA, and OpenSky are registered trademarks and ProScan and Failsoft are
trademarks of Harris Corporation.
RBRC and 1-800-8-BATTERY are registered trademarks of Rechargeable Battery Recycling Corporation.
AMBE is a registered trademark and IMBE, AMBE+, and AMBE+2 are trademarks of Digital Voice Systems, Inc.
TORX is a registered trademark of CAMCAR division of TEXTRON, Inc.
All other product and brand names are trademarks, registered trademarks, or service marks of their respective holders.
NOTICE!
The material contained herein is subject to U.S. export approval. No export or re-export is permitted without written approval from the U.S.
Government. Rated: EAR99; in accordance with U.S. Dept. of Commerce regulations 15CFR774, Export Administration Regulations.
Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied
or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, PSPC
Business, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501.
This manual covers Harris Corporation products manufactured and sold by Harris Corporation.

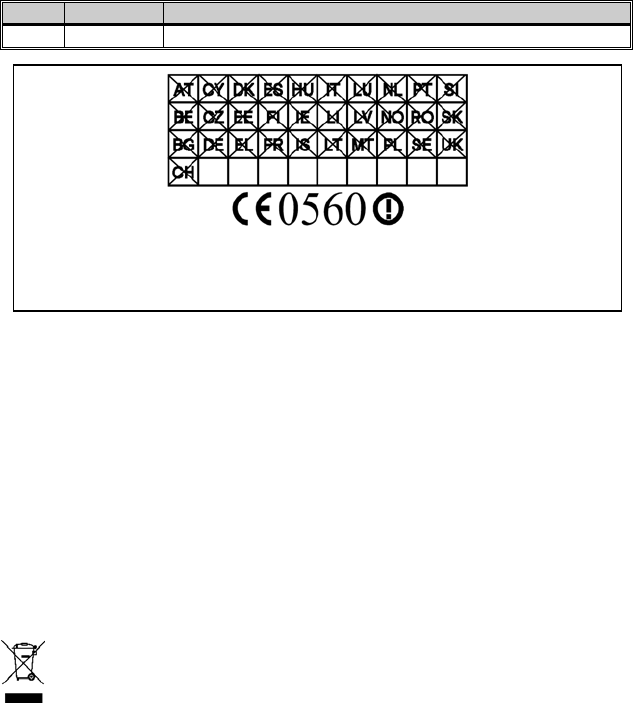

This product conforms to the European Union WEEE Directive 2002/96/EC. Do not dispose of this product in a public landfill. Take it to a
recycling center at the end of its life.
The voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and
trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from attempting to decompile, reverse
engineer, or disassemble the Object Code, or in any other way convert the Object Code into human-readable form.
Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Changes or
modifications not expressly approved by Harris Corporation could void the user’s authority to operate the equipment.
This manual is published by Harris Corporation, without any warranty. Improvements and changes to this manual necessitated by
typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris
Corporation, at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual
may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any
purpose, without the express written permission of Harris Corporation.
Copyright © 2011 Harris Corporation. All rights reserved.
14221-1400-2000
3
TABLE OF CONTENTS
Page
1. SAFETY CONVENTIONS .................................................................................................................................... 8
2. SAFETY TRAINING INFORMATION .............................................................................................................. 9
2.1 RF EXPOSURE GUIDELINES .................................................................................................................. 9
2.2 ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY .............................................................. 10
2.3 REGULATORY APPROVALS ................................................................................................................ 10
2.3.1 Part 15 ......................................................................................................................................... 10
2.3.2 Industry Canada .......................................................................................................................... 11
3. OPERATING TIPS .............................................................................................................................................. 12
3.1 EFFICIENT RADIO OPERATION .......................................................................................................... 12
3.1.1 Antenna Care and Replacement .................................................................................................. 12
3.1.2 Electronic Devices ...................................................................................................................... 12
3.1.3 Aircraft ........................................................................................................................................ 13
3.1.4 Electric Blasting Caps ................................................................................................................. 13
3.1.5 Potentially Explosive Atmospheres ............................................................................................ 13
4. BATTERIES ......................................................................................................................................................... 14
4.1 CONDITIONING BATTERY PACKS ..................................................................................................... 14
4.1.1 Conditioning NiMH Battery Packs ............................................................................................. 14
4.1.2 Additional Information ............................................................................................................... 14
4.2 CHARGING BATTERY PACKS ............................................................................................................. 14
4.3 BATTERY PACK USAGE ....................................................................................................................... 15
4.4 CHANGING THE BATTERY PACK ...................................................................................................... 15

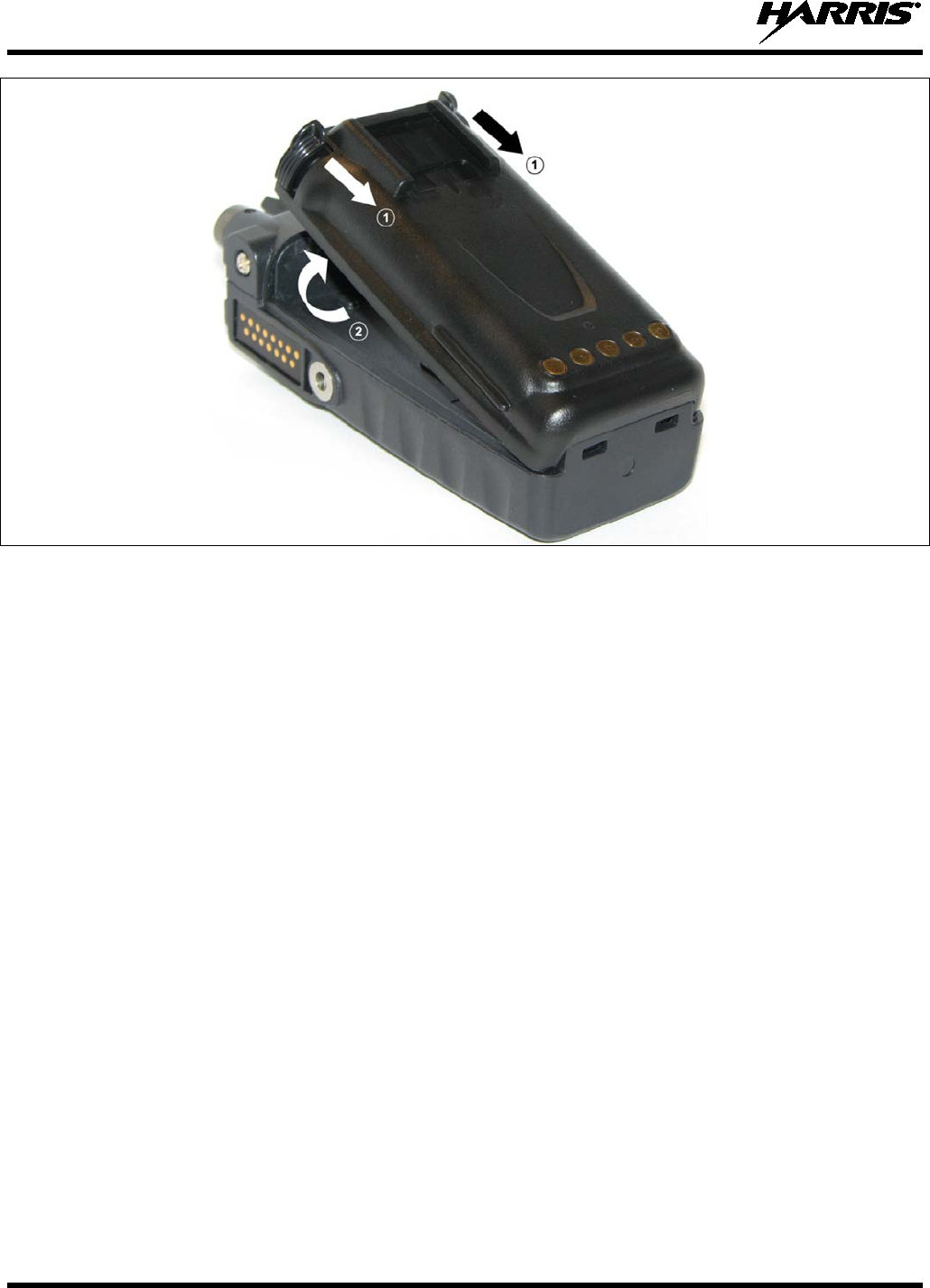

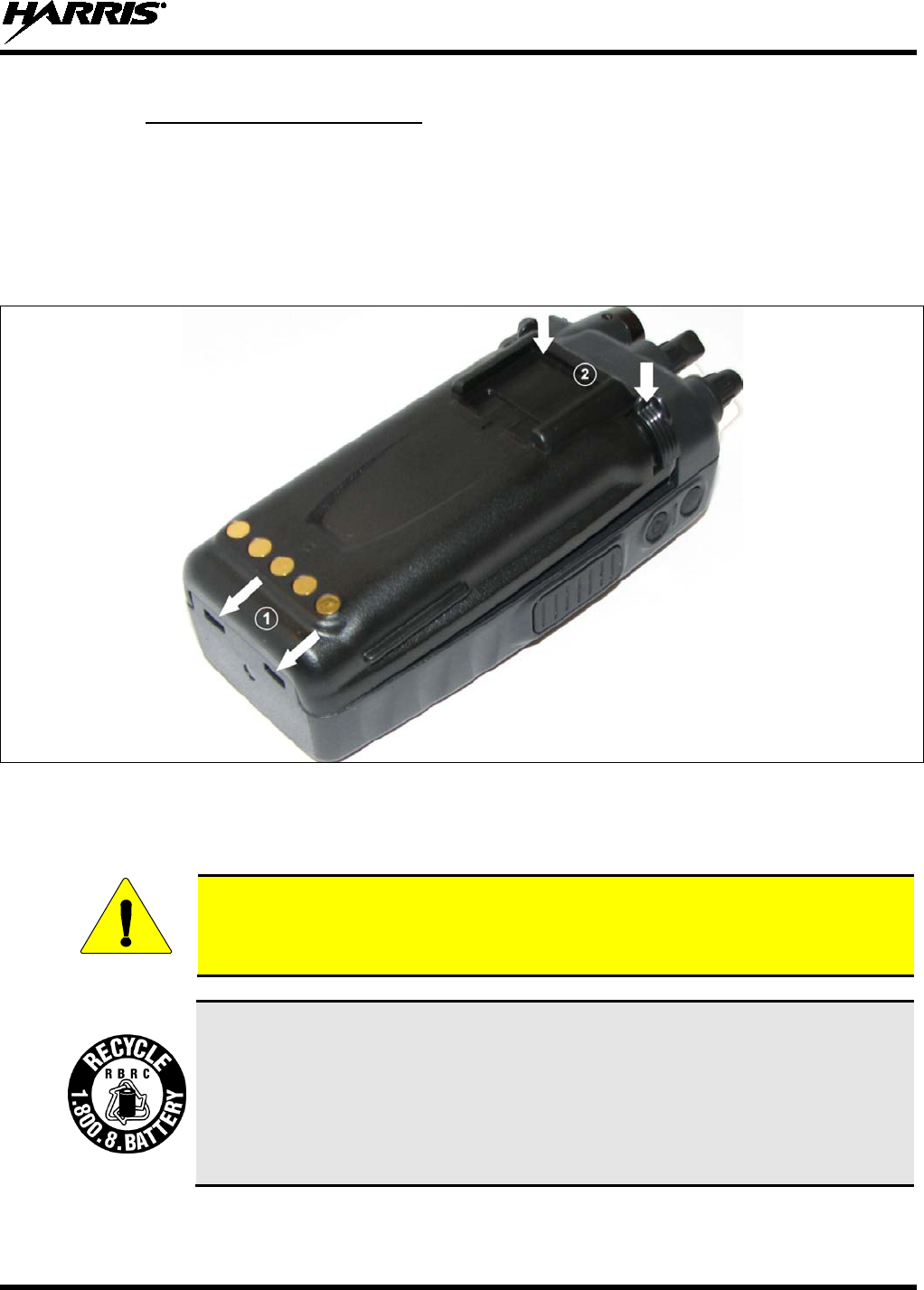

4.4.1 Removing the Battery Pack ......................................................................................................... 15
4.4.2 Attaching the Battery Pack.......................................................................................................... 17
4.5 BATTERY DISPOSAL ............................................................................................................................ 17
5. INTRODUCTION ................................................................................................................................................ 18
5.1 WATER RESISTANCE ............................................................................................................................ 19

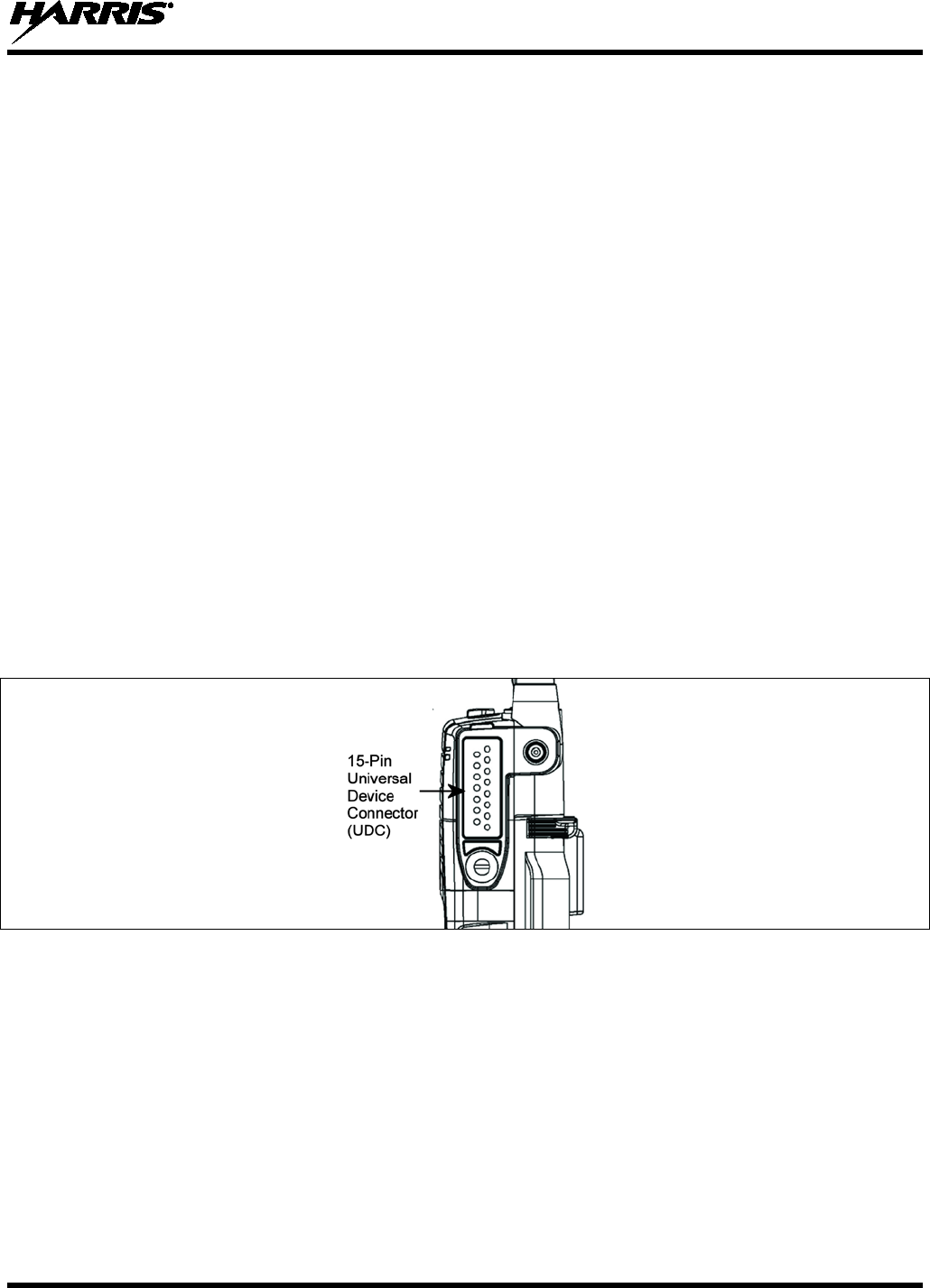

5.2 UNIVERSAL DEVICE CONNECTOR ................................................................................................... 19
6. OPTIONS AND ACCESSORIES ....................................................................................................................... 20
7. CHANGE OPERATING MODE ........................................................................................................................ 22
7.1 CHANGE FROM OTP MODE ................................................................................................................. 22
7.2 CHANGE TO OTP MODE ....................................................................................................................... 22
8. OPENSKY OPERATION .................................................................................................................................... 23
8.1 CONTROLS .............................................................................................................................................. 23

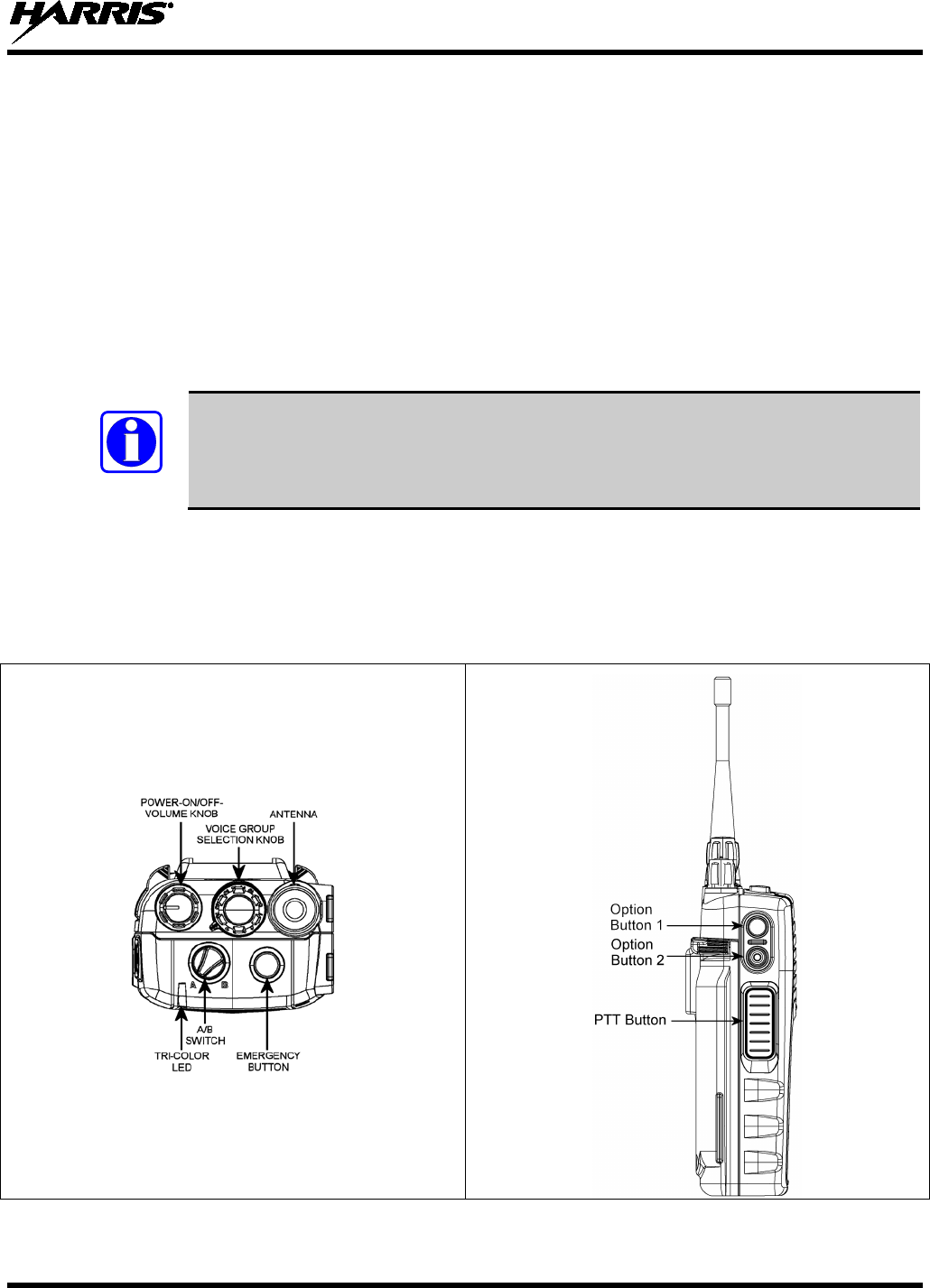

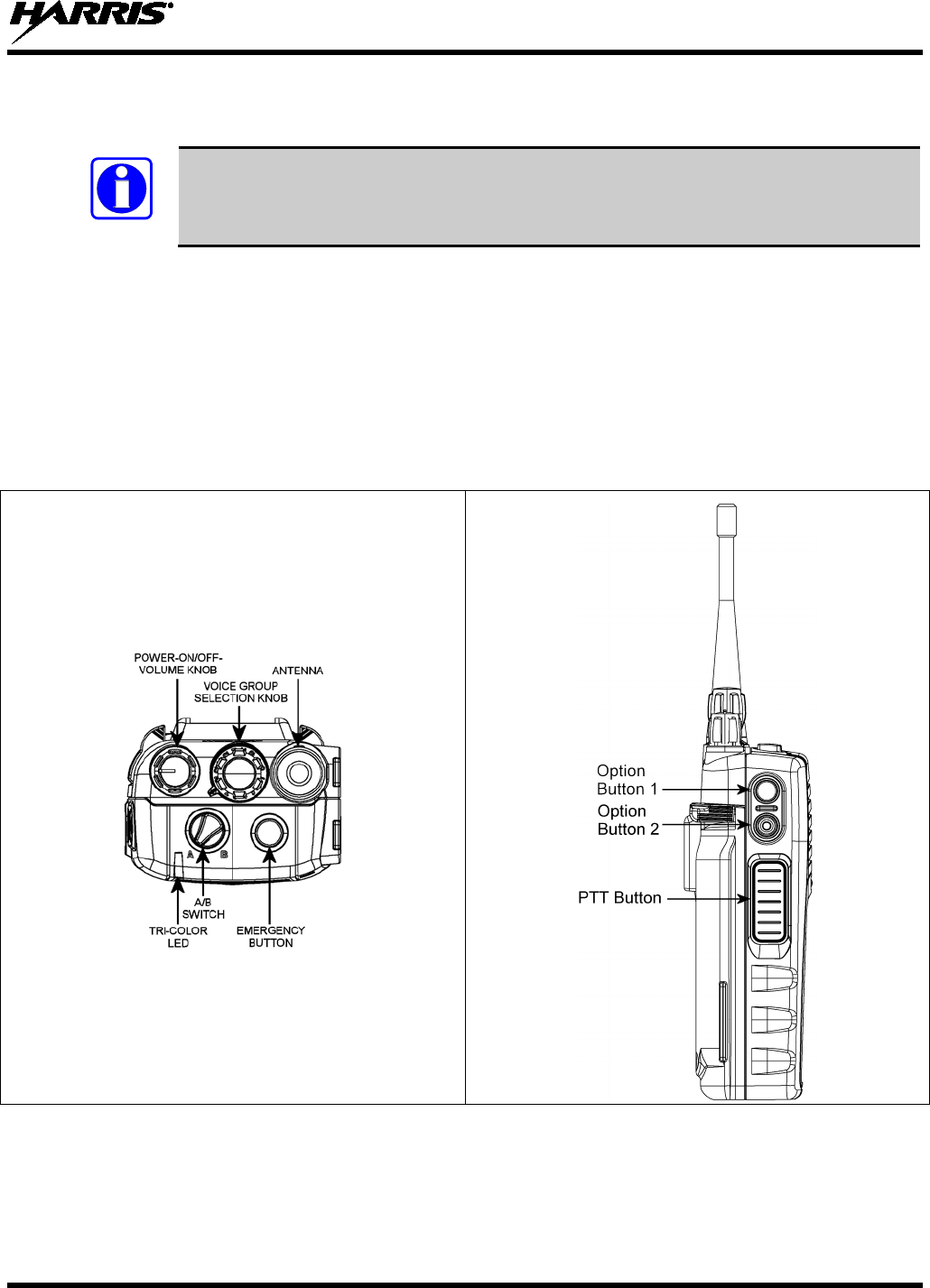

8.1.1 Buttons, Knobs, and Switch ........................................................................................................ 24

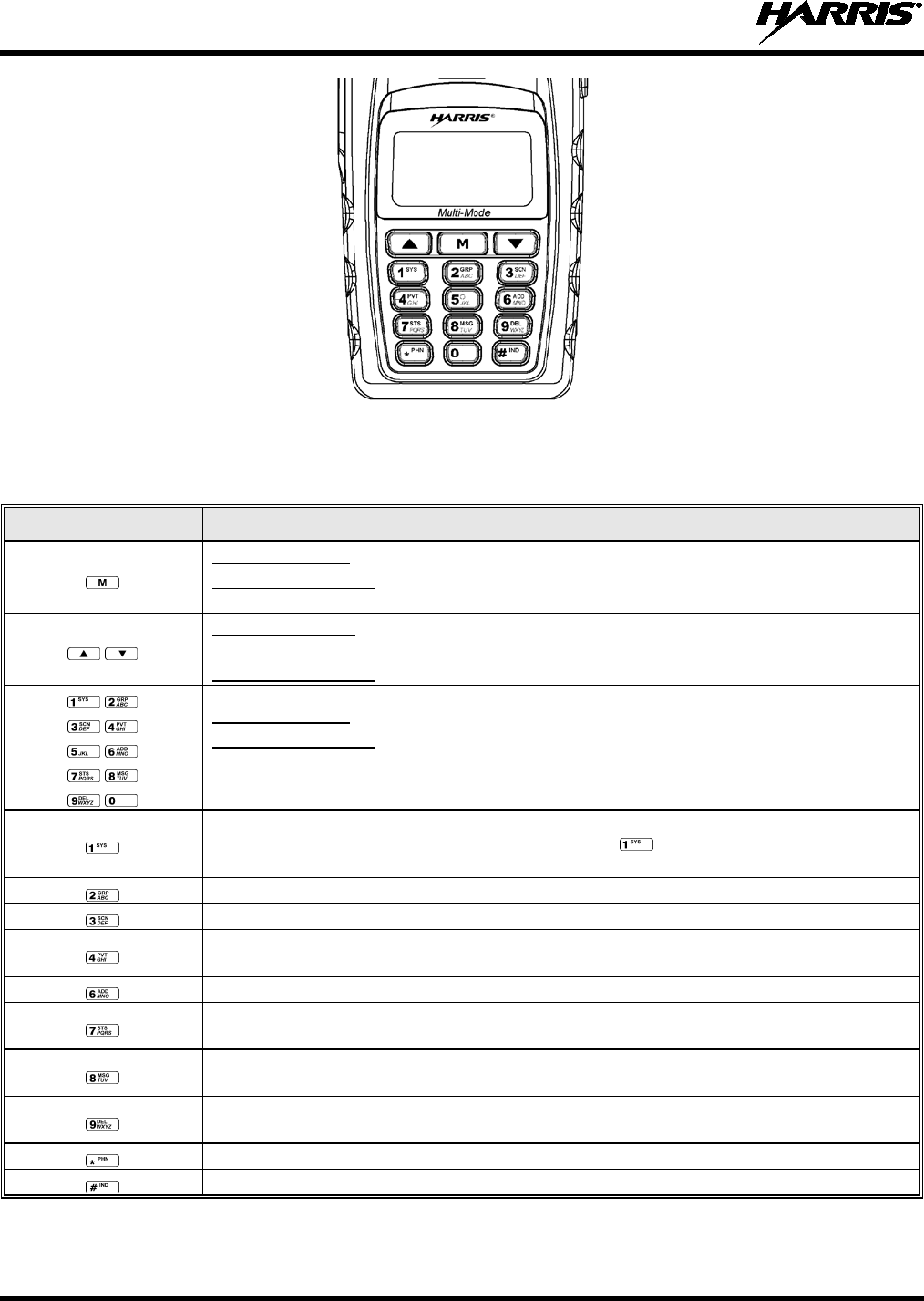

8.1.2 Keypad ........................................................................................................................................ 25
8.1.3 Display ........................................................................................................................................ 26

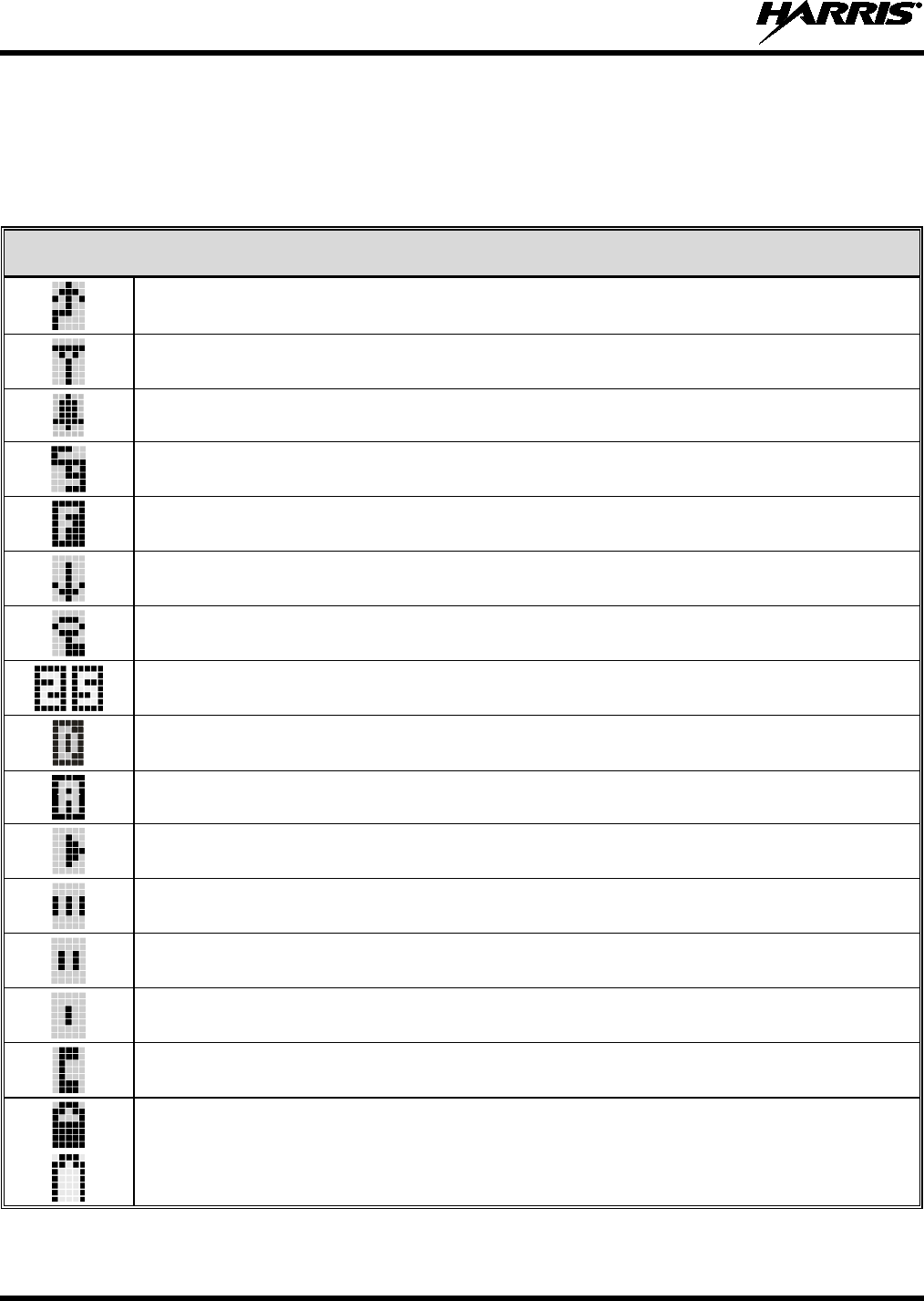

8.1.4 Radio Status Icons ....................................................................................................................... 26

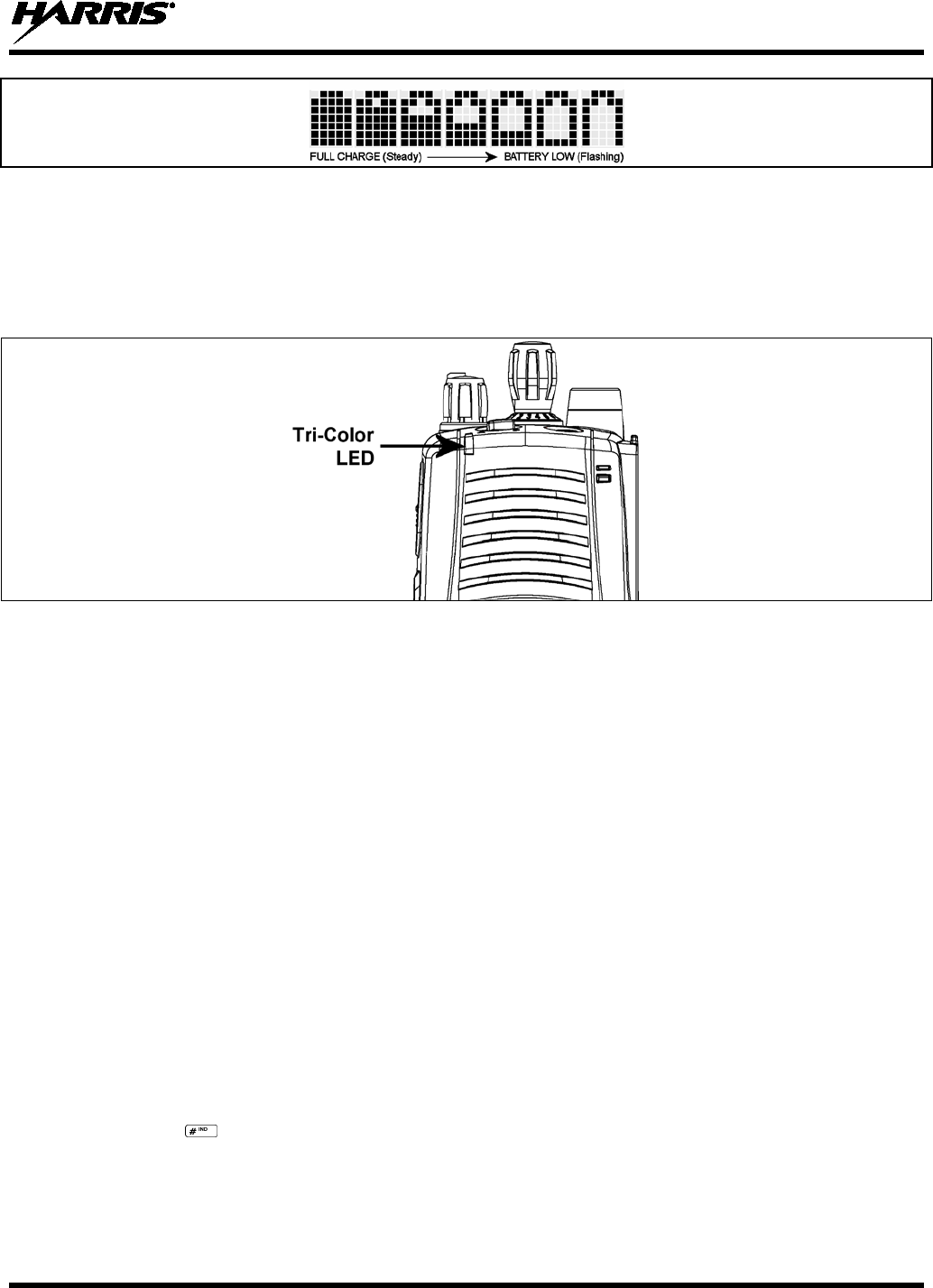

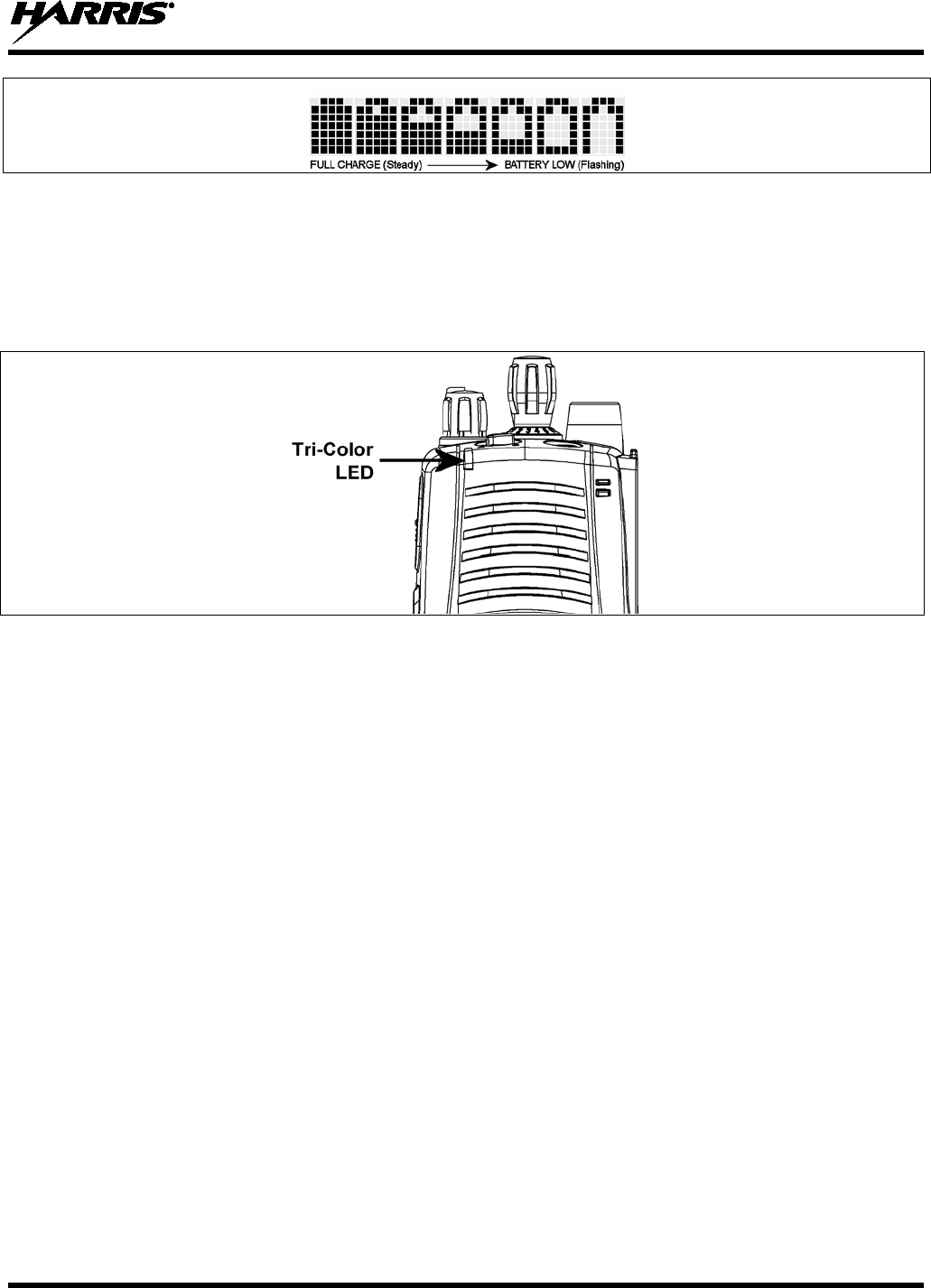

8.2 TRI-COLOR LED ..................................................................................................................................... 27
8.3 LOG IN TO THE NETWORK .................................................................................................................. 27
8.4 LOG OFF THE NETWORK ..................................................................................................................... 28

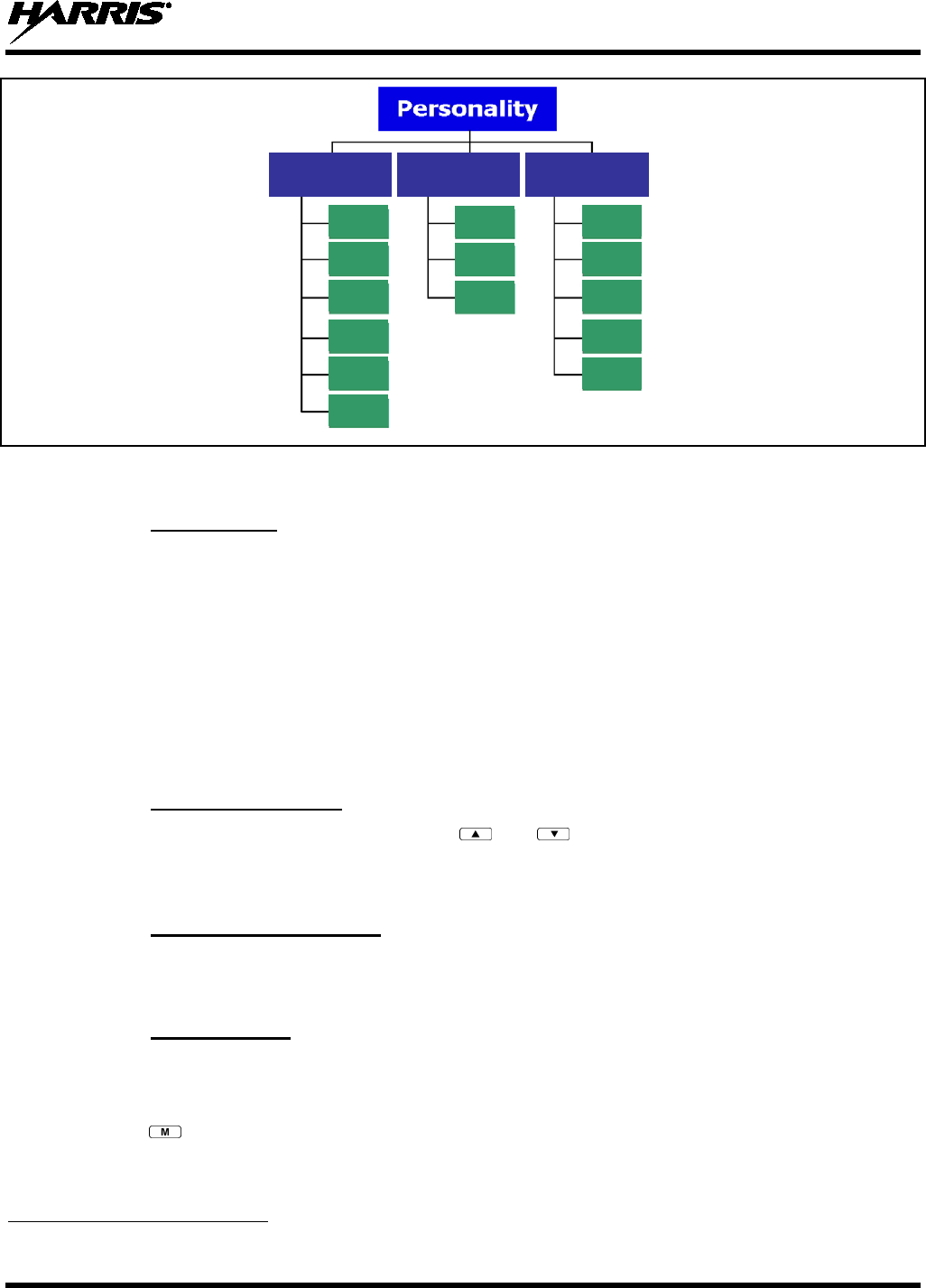

8.5 PERSONALITY ........................................................................................................................................ 28
8.5.1 Profiles ........................................................................................................................................ 28
8.5.2 Talk Groups ................................................................................................................................ 29
8.6 OPENSKY DISPLAY OVERVIEW ......................................................................................................... 29

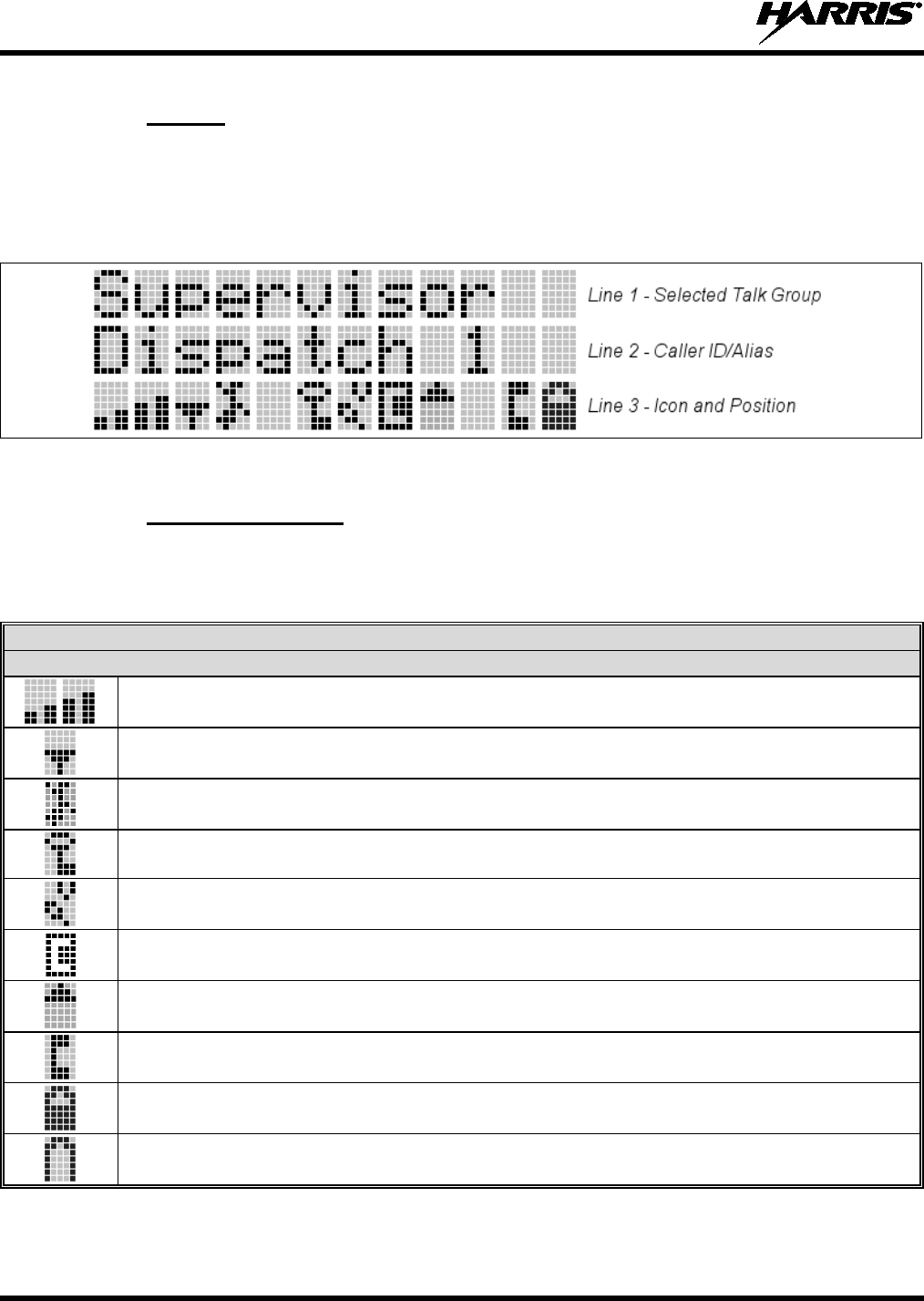

8.6.1 Display’s Top Line...................................................................................................................... 29
8.6.2 Display’s Second Line ................................................................................................................ 29
8.6.3 Dwell Display ............................................................................................................................. 29
8.7
ALERT TONES ........................................................................................................................................ 30
14221-1400-2000
4
TABLE OF CONTENTS
Page
8.8 BASIC MENU STRUCTURE................................................................................................................... 31
8.9 ERROR MESSAGES ................................................................................................................................ 33
8.10 KEYPAD FUNCTION COMMANDS (P5570 ONLY) ............................................................................ 35
8.11 QUICK KEYS (P5570 ONLY) ................................................................................................................. 35
8.12 LOCK/UNLOCK THE KEYPAD ............................................................................................................. 36
8.13 DUAL-TONE MULTI-FREQUENCY (P5570 ONLY) ............................................................................ 36
8.14 CHANGING THE ACTIVE PROFILE ..................................................................................................... 36
8.15 CHANGING THE SELECTED TALK GROUP ...................................................................................... 36
8.16 ADJUSTING DISPLAY AND BUTTON BACKLIGHT BRIGHTNESS ............................................... 37
8.17 STEALTH MODE ..................................................................................................................................... 37
8.17.1 Enabling Stealth Mode ................................................................................................................ 37
8.17.2 Disabling Stealth Mode ............................................................................................................... 37
8.18 ADJUSTING SIDE TONE AUDIO LEVEL ............................................................................................ 37
8.19 CHANGE OPERATING MODE .............................................................................................................. 38
8.19.1 From OTP to ECP Mode ............................................................................................................. 38
8.19.2 From ECP to OTP Mode ............................................................................................................. 38
8.20 RECEIVING AND TRANSMITTING VOICE CALLS ........................................................................... 38
8.20.1 Receiving a Voice Call ................................................................................................................ 38
8.20.2 Transmitting a Voice Call ........................................................................................................... 39
8.21 ADJUSTING AUDIO TREBLE LEVEL .................................................................................................. 39
8.22 TALK GROUP LOCK OUT ..................................................................................................................... 39
8.22.1 Lock Out a Talk Group ............................................................................................................... 40
8.22.2 Unlock a Talk Group ................................................................................................................... 40
8.23 SCANNING............................................................................................................................................... 40
8.23.1 Selecting Scan Modes ................................................................................................................. 40
8.23.2 Changing Active Scan Mode ....................................................................................................... 41
8.23.3 Scanning Priority ......................................................................................................................... 41
8.23.4 Scan Mode Quick Key (P5570 Only) .......................................................................................... 42
8.24 MAKING SELECTIVE CALLS ............................................................................................................... 42
8.24.1 Manually Dialing a Selective Call (P5570 Only) ........................................................................ 42
8.24.2 Selective Call Using Speed Dial.................................................................................................. 43
8.24.3 Accepting a Selective Call .......................................................................................................... 44
8.24.4 Rejecting a Selective Call ............................................................................................................ 44
8.24.5 Terminating a Selective Call ....................................................................................................... 44
8.25 SELECTIVE ALERTS .............................................................................................................................. 44
8.25.1 Defining Messages ...................................................................................................................... 44
8.25.2 Sending a Message ...................................................................................................................... 45
8.25.3 Receiving a Message ................................................................................................................... 45
8.25.4 Deleting a Selective Alert Message ............................................................................................. 46
8.26 MAKING INTERCONNECT CALLS (P5570 ONLY) ............................................................................ 46
8.27 EMERGENCY COMMUNICATIONS..................................................................................................... 46
8.27.1 Declaring an Emergency Call or Alert ........................................................................................ 47
8.27.2 Receiving an Emergency Call ..................................................................................................... 47
8.27.3 Dismissing an Emergency ........................................................................................................... 47
8.27.4 Clearing an Emergency Call or Alert .......................................................................................... 48
8.28 OPENSKY ENCRYPTION ....................................................................................................................... 48
8.28.1 Automatic Encryption ................................................................................................................. 48
8.28.2 Manual Encryption (P5570 Only) ............................................................................................... 49
8.29 DYNAMIC REGROUPING ..................................................................................................................... 50
8.30 STATUS MESSAGES .............................................................................................................................. 50
8.30.1 Send Status Message via the Keypad (System Model Radios Only)........................................... 50
8.30.2 Send Status Message via the Menu ............................................................................................. 50
8.31
REQUEST TO TALK (RTT) MESSAGES .............................................................................................. 50
14221-1400-2000
5
TABLE OF CONTENTS
Page
8.31.1 Send RTT Message via the Keypad (System Model Radios Only) ............................................ 51
8.31.2 Send RTT Message via the Menu ............................................................................................... 51
8.32 GPS COORDINATES .............................................................................................................................. 51
8.33 V-TAC OPERATION ............................................................................................................................... 51
8.33.1 Extended Coverage Modes (XCOV, XCOV-TG, and XCOV-PROF) ....................................... 51
8.33.2 Change Between Extended Coverage Modes ............................................................................. 52
8.33.3 Radio Limitations Using Extended Coverage Modes ................................................................. 52
8.33.4 Use XCOV Mode ........................................................................................................................ 52
8.33.5 Use XCOV-TG Mode ................................................................................................................. 53
8.33.6 Using XCOV-PROF Mode ......................................................................................................... 54
8.33.7 Use Scene-of-Incident Mode ....................................................................................................... 54
9. EDACS, CONVENTIONAL, P25 (ECP) OPERATION ................................................................................... 57
9.1 TURNING ON THE RADIO .................................................................................................................... 57
9.2 CONTROLS .............................................................................................................................................. 57
9.2.1 Buttons, Knobs, and Switch ........................................................................................................ 58
9.2.2 Keypad ........................................................................................................................................ 59
9.3 DISPLAY .................................................................................................................................................. 61
9.4 RADIO STATUS ICONS ......................................................................................................................... 62
9.5 TRI-COLOR LED ..................................................................................................................................... 63
9.6 RADIO STATUS MESSAGES ................................................................................................................ 64
9.7 ERROR MESSAGES ................................................................................................................................ 65
9.8 ALERT TONES ........................................................................................................................................ 65
9.9 SYSTEM SELECTION ............................................................................................................................ 66
9.10 GROUP/CHANNEL SELECTION ........................................................................................................... 66
9.11 MODIFY SCAN LIST .............................................................................................................................. 67
9.11.1 P5570 Model ............................................................................................................................... 67
9.11.2 P5550 Model ............................................................................................................................... 67
9.12 MENU ....................................................................................................................................................... 67
9.12.1 Menu Item Selection Process ...................................................................................................... 68
9.13 BACKLIGHT ON/OFF ............................................................................................................................. 70
9.14 CONTRAST ADJUST .............................................................................................................................. 70
9.15 DECLARING AN EMERGENCY ........................................................................................................... 71
9.16 LOCKING/UNLOCKING KEYPAD ....................................................................................................... 71
9.17 HIGH/LOW POWER ADJUSTMENT ..................................................................................................... 71
9.17.1 Using the Menu Button ............................................................................................................... 71
9.17.2 Using the Pre-Programmed Option Button ................................................................................. 71
9.18 ENCRYPTION .......................................................................................................................................... 71
9.18.1 Displaying the Currently Used Cryptographic Key Number ...................................................... 72
9.18.2 Key Zero ..................................................................................................................................... 72
9.18.3 Receiving an Encrypted Call ....................................................................................................... 72
9.18.4 Transmitting an Encrypted Call .................................................................................................. 72
9.19 SCAN OPERATION ................................................................................................................................. 73
9.19.1 Turning Scan On and Off ............................................................................................................ 73
9.19.2 Add Groups and Channels to a Scan List .................................................................................... 73
9.19.3 Deleting Groups from a Scan List ............................................................................................... 74
9.19.4 Nuisance Delete .......................................................................................................................... 75
9.20 SYSTEM SCAN (EDACS AND P25 TRUNKED) .................................................................................. 75
9.20.1 Wide Area System Scanning ....................................................................................................... 75
9.20.2 Priority System Scan ................................................................................................................... 75
9.20.3 ProScan ....................................................................................................................................... 76
9.21 EMERGENCY OPERATION ................................................................................................................... 76
9.21.1
Receiving an Emergency Call ..................................................................................................... 76
14221-1400-2000
6
TABLE OF CONTENTS
Page
9.21.2 Declaring an Emergency Call ...................................................................................................... 76
9.22 INDIVIDUAL CALLS (EDACS AND P25 MODES) .............................................................................. 77
9.22.1 Receiving and Responding to an Individual Call ........................................................................ 77
9.22.2 Sending an Individual Call .......................................................................................................... 78
9.22.3 Call Storage Lists ........................................................................................................................ 79
9.23 TELEPHONE INTERCONNECT CALLS (EDACS AND P25 TRUNKED) .......................................... 79
9.23.1 Receiving a Telephone Interconnect Call .................................................................................... 79
9.23.2 Sending a Telephone Interconnect Call ....................................................................................... 79
9.23.3 Dual-Tone Multi-Frequency: Overdial ........................................................................................ 80
9.24 PRE-STORING INDIVIDUAL AND TELEPHONE INTERCONNECT CALLS FROM THE KEYPAD81
9.25 STATUS/MESSAGE OPERATION (EDACS AND P25 MODES) ......................................................... 82
9.25.1 Status Operation .......................................................................................................................... 82
9.25.2 Message Operation ...................................................................................................................... 83
9.26 DYNAMIC REGROUP OPERATION (EDACS) .................................................................................... 83
9.26.1 Emergency Operation .................................................................................................................. 83
9.27 MACRO KEY OPERATION .................................................................................................................... 83
9.28 PORTABLE DATA (EDACS AND P25 MODES) .................................................................................. 83
9.28.1 Displays ....................................................................................................................................... 84
9.28.2 DATA OFF Operation................................................................................................................. 84
9.28.3 DATA ON Operation .................................................................................................................. 84
9.28.4 Exiting Data Calls ....................................................................................................................... 84
9.28.5 Scan Lockout Mode .................................................................................................................... 84
9.28.6 Data Lockout Mode ..................................................................................................................... 85
9.29 TYPE 99 OPERATION (ANALOG CONVENTIONAL) ........................................................................ 85
9.29.1 Type 99 with or without Channel Guard ..................................................................................... 85
9.29.2 Resetting Type 99 after a Call ..................................................................................................... 86
9.29.3 Type 99 Disable after PTT .......................................................................................................... 86
10. CUSTOMER SERVICE....................................................................................................................................... 87
10.1 CUSTOMER CARE .................................................................................................................................. 87
10.2 TECHNICAL ASSISTANCE.................................................................................................................... 87
11. BASIC TROUBLESHOOTING .......................................................................................................................... 88
FIGURES
Page
Figure 4-1: Removing the Battery Pack .......................................................................................................................... 16
Figure 4-2: Attaching the Battery Pack .......................................................................................................................... 17
Figure 5-1: P5550 Scan and P5570 System Models ....................................................................................................... 18
Figure 5-2: P5500 15-Pin Universal Device Connector ................................................................................................. 19
Figure 8-1: Top View ..................................................................................................................................................... 23
Figure 8-2: Side View ..................................................................................................................................................... 23
Figure 8-3: P5550 “Scan” Model Front Panel ................................................................................................................ 25
Figure 8-4: P5570 “System” Model Front Panel ............................................................................................................ 25
Figure 8-5: Radio Display OpenSky Mode ..................................................................................................................... 26
Figure 8-6: Full Cycle Battery Charge Indicator ............................................................................................................ 27
Figure 8-7: Tri-Color LED ............................................................................................................................................. 27
Figure 8-8: Personality Structure Example ..................................................................................................................... 29
Figure 9-1: Top View ..................................................................................................................................................... 57
Figure 9-2: Side View ..................................................................................................................................................... 57
Figure 9-3: P5550 “Scan” Model Front Panel
................................................................................................................ 59
14221-1400-2000
7
Figure 9-4: P5570 “System” Model Front Panel ............................................................................................................ 60

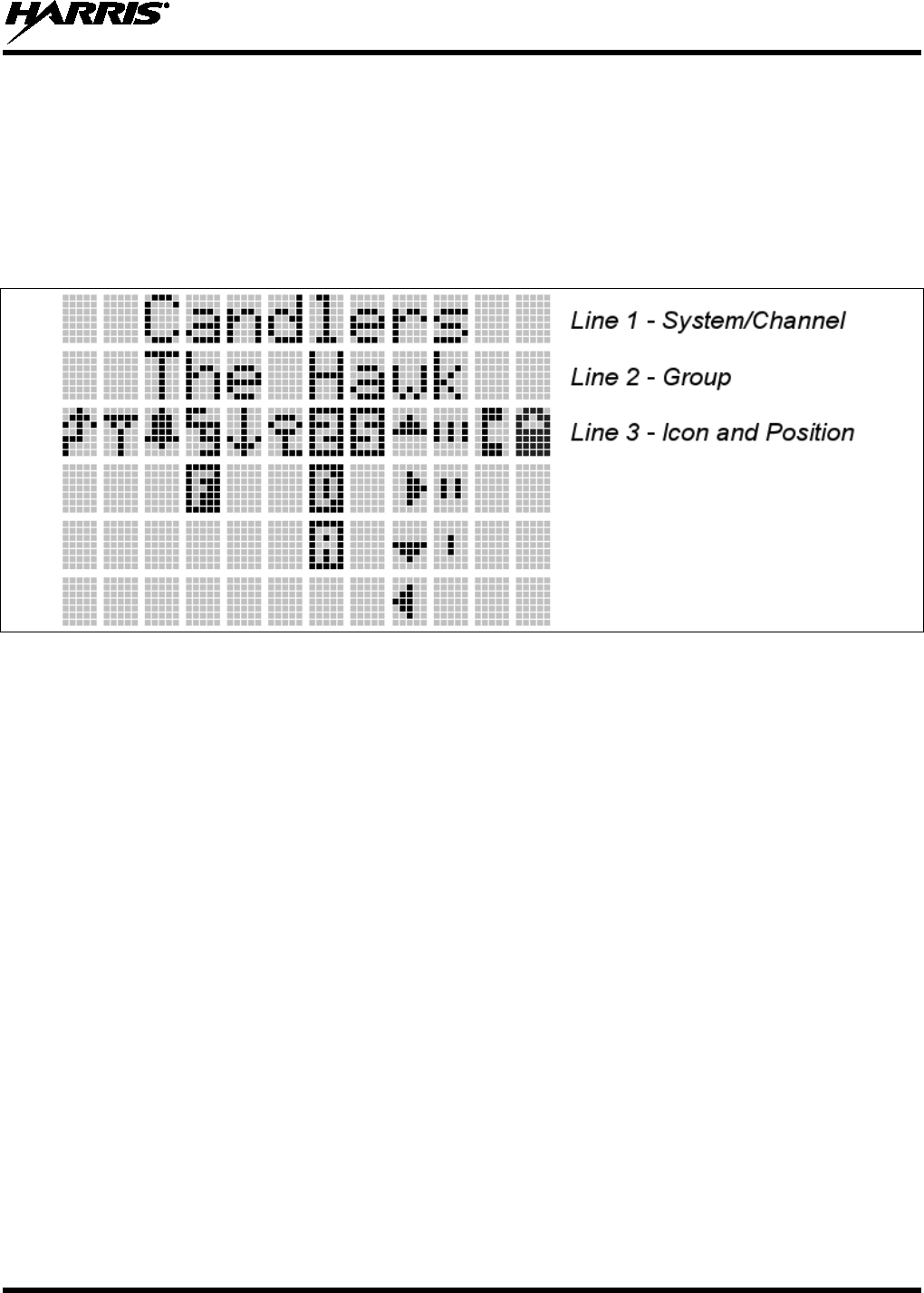

Figure 9-5: Radio Display .............................................................................................................................................. 61
Figure 9-6: Full Cycle Battery Charge Indicator ............................................................................................................ 63
Figure 9-7: Tri-Color LED ............................................................................................................................................. 63
Figure 9-8: Menu Display .............................................................................................................................................. 67
Figure 9-9: Backlight Menu Item Selection Parameter .................................................................................................. 68
Figure 9-10: Backlight Menu Display ............................................................................................................................ 68
Figure 9-11: System Encryption Key Display ................................................................................................................ 72
Figure 9-12: Group/Channel Encryption Key Display ................................................................................................... 72

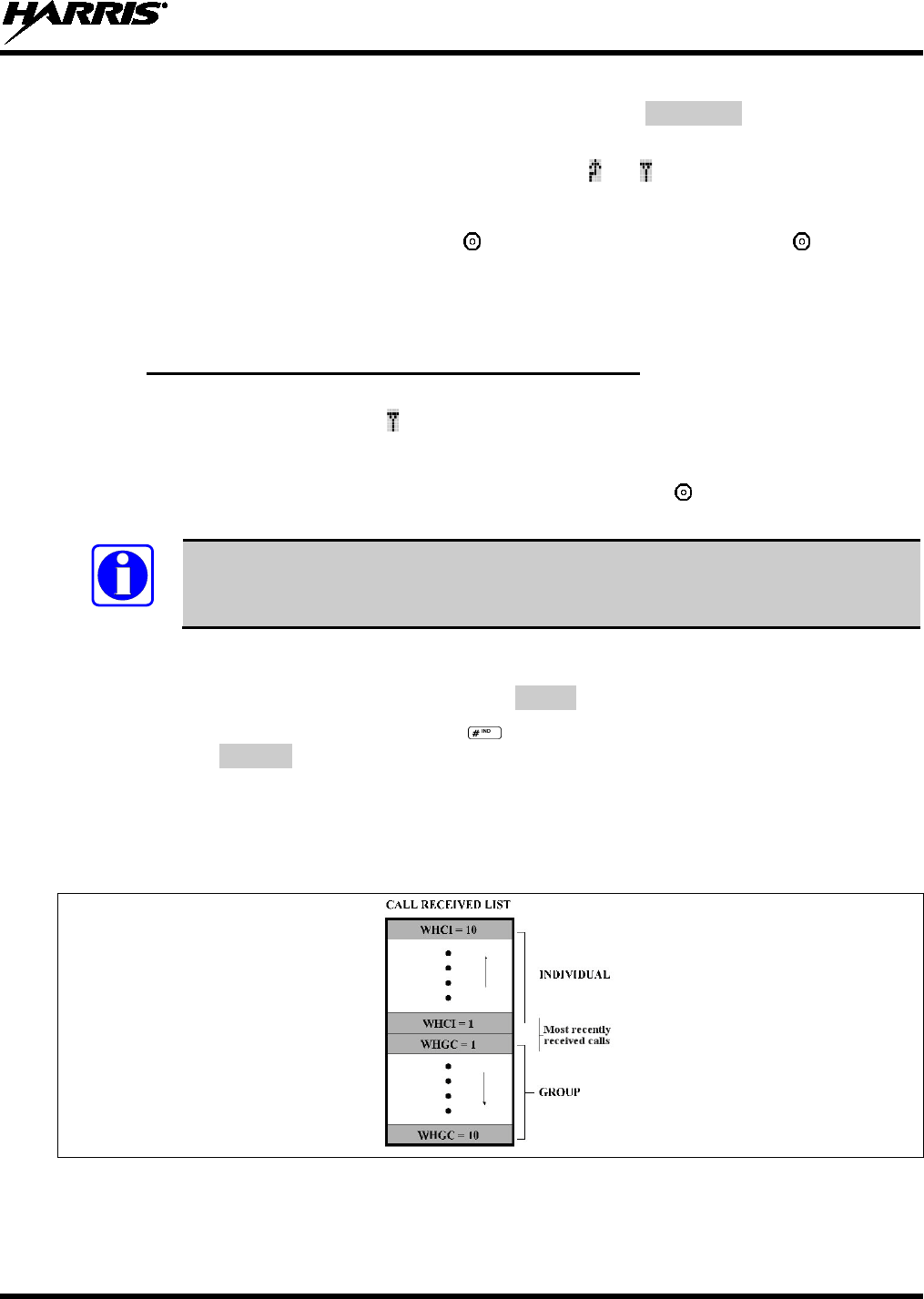

Figure 9-13: Calls Received Lists .................................................................................................................................. 77
Figure 9-14: WHC Individual Call Display .................................................................................................................... 78

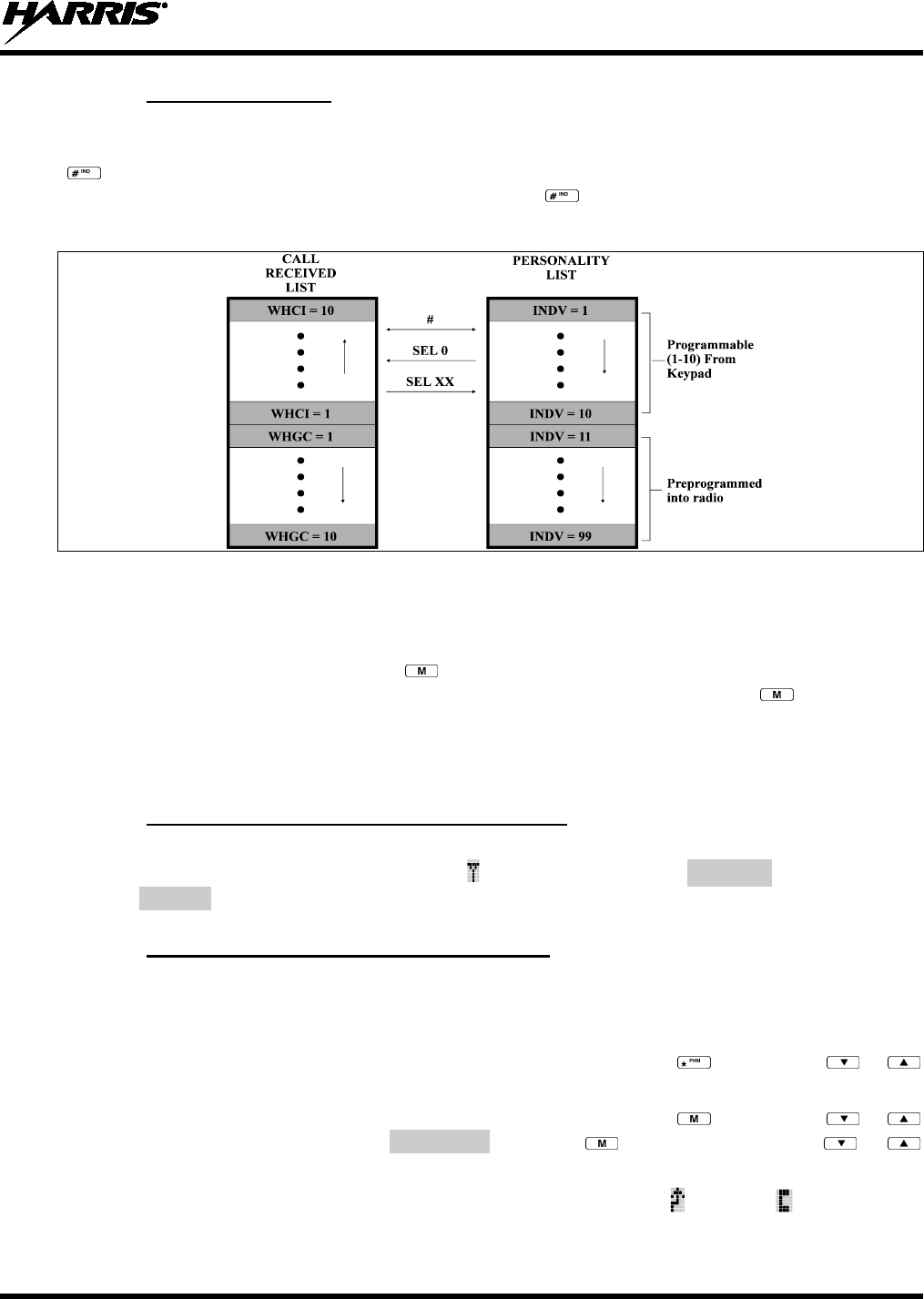

Figure 9-15: Calls Received and Personality Lists ......................................................................................................... 79
TABLES
Page
Table 2-1: RF Exposure Compliance Testing Distances ................................................................................................ 10
Table 6-1: Options and Accessories ............................................................................................................................... 20
Table 8-1: Buttons, Knobs, and Switch Functions ......................................................................................................... 24
Table 8-2: Keypad Functions ......................................................................................................................................... 25
Table 8-3: Status Icons Descriptions .............................................................................................................................. 26
Table 8-4: Alert Tones .................................................................................................................................................... 30
Table 8-5: Basic P5500 OpenSky Menu Structure ......................................................................................................... 31
Table 8-6: Keypad Function Commands ........................................................................................................................ 35
Table 8-7: Quick Key Sequence ..................................................................................................................................... 35
Table 8-8: Scan Modes ................................................................................................................................................... 41
Table 8-9: Status of Selective Call ................................................................................................................................. 43
Table 8-10: Status of Selective Alert Messages ............................................................................................................. 44
Table 8-11: Emergency Calls vs. Emergency Alerts ...................................................................................................... 46
Table 8-12: Band Definitions ......................................................................................................................................... 56
Table 9-1: Buttons, Knobs, and Switch Functions ......................................................................................................... 58
Table 9-2: P5550 Keypad Functions .............................................................................................................................. 59
Table 9-3: P5570 Keypad Functions .............................................................................................................................. 60
Table 9-4: Status Icon Descriptions ................................................................................................................................ 62
Table 9-5: Alert Tones .................................................................................................................................................... 65
Table 9-6: Menu Item Information ................................................................................................................................. 69
Table 9-7: Information Display ...................................................................................................................................... 70
Table 11-1: Troubleshooting .......................................................................................................................................... 88
14221-1400-2000
8
1. SAFETY CONVENTIONS
The following conventions are used throughout this manual to alert the user to general safety precautions
that must be observed during all phases of operation, service, and repair of this product. Failure to comply
with these precautions or with specific warning elsewhere in this manual violates safety standards of
design, manufacture, and intended use of the product. Harris Corporation assumes no liability for the
customer’s failure to comply with these standards.
The WARNING symbol calls attention to a procedure, practice, or the like, which, if
not correctly performed or adhered to, could result in personal injury. Do not
proceed beyond a WARNING symbol until the conditions identified are fully
understood or met.
CAUTION
The CAUTION symbol calls attention to an operating procedure, practice, or the like,
which, if not performed correctly or adhered to, could result in damage to the equipment
or severely degrade the equipment performance.
NOTE
The NOTE symbol calls attention to supplemental information, which may improve
system performance or clarify a process or procedure.
The ESD symbol calls attention to procedures, practices, or the like, which could expose
equipment to the effects of Electro-Static Discharge. Proper precautions must be taken to
prevent ESD when handling circuit modules.
WARNING - The electrical hazard symbol indicates there is an electrical hazard
present.
14221-1400-2000
9
2. SAFETY TRAINING INFORMATION
WARNING
The Harris P5500 portable radio generates RF electromagnetic energy during
transmit mode. This radio is designed for and classified as “Occupational Use
Only,” meaning it must be used only during the course of employment by
individuals aware of the hazards and the ways to minimize such hazards. This
radio is NOT intended for use by the “General Population” in an uncontrolled
environment.
The P5500 portable radio has been tested and complies with the FCC RF exposure limits for
“Occupational Use Only.” In addition, this Harris radio complies with the following Standards and
Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for
exposure to humans:
• FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for
Human Exposure to Radio Frequency Electromagnetic Fields.
• American National Standards Institute (C95.1 – 1992), IEEE Standard for Safety Levels with Respect
to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
• American National Standards Institute (C95.3 – 1992), IEEE Recommended Practice for the
Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave.
2.1 RF EXPOSURE GUIDELINES
CAUTION
To ensure that exposure to RF electromagnetic energy is within the FCC allowable
limits for occupational use, always adhere to the following guidelines:
• DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may
also cause the FCC RF exposure limits to be exceeded. A proper antenna is the antenna supplied with
this radio by Harris Corporation or an antenna specifically authorized by Harris for use with this
radio. (Refer to Table 6-1.)
• DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more
than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio
is transmitting when the “TX” indicator appears in the display. The radio will transmit by pressing the
“PTT” (Push-To-Talk) button.
• ALWAYS transmit using low power when possible. In addition to conserving battery charge, low
power can reduce RF exposure.
• ALWAYS use Harris authorized accessories (antennas, batteries, belt clips, speaker/mics, etc). Use of
unauthorized accessories may cause the FCC Occupational/Controlled Exposure RF compliance
requirements to be exceeded. (Refer to Table 2-1.)
14221-1400-2000
10
• As noted in Table 2-1, ALWAYS keep the device and its antenna AT LEAST 1.1 cm (0.43 inches)
from the body and at least 2.5 cm (1.0 inch) from the face when transmitting to ensure FCC RF
exposure compliance requirements are not exceeded. However, to provide the best sound quality to
the recipients of your transmission, Harris Corporation recommends you hold the microphone at least
5 cm (2 inches) from mouth, and slightly off to one side.
Table 2-1: RF Exposure Compliance Testing Distances
RADIO FREQUENCY
TESTED DISTANCES
(worst case scenario)
Body Face
800 MHz 1.1 cm 2.5 cm
VHF (136 - 174 MHz) 1.1 cm 2.5 cm
Table 2-2: Distance from Body for Different Carrying Options
CARRYING CONFIGURATION TESTED DISTANCES
(worst case from body)
Belt Loop 3.0 cm
Belt Clip 1.1 cm
Leather Case with Belt Loop 4.0 cm
Nylon Case with Belt Loop 4.4 cm
Shoulder Strap with D-clip 1.2 cm
Speaker-microphone with antenna 1.1 cm
The information in this section provides the information needed to make the user aware of RF exposure,
and what to do to assure that this radio operates within the FCC RF exposure limits of this radio.
2.2 ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY
During transmissions, this Harris radio generates RF energy that can possibly cause interference with
other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to
do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as
hospitals, aircraft, and blasting sites.
2.3 REGULATORY APPROVALS
2.3.1
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
Part 15
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
14221-1400-2000
11
2.3.2
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Industry Canada
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
14221-1400-2000
12
3. OPERATING TIPS
Antenna location and condition are important when operating a portable radio. Operating the radio in low
lying areas or terrain, under power lines or bridges, inside of a vehicle or in a metal framed building can
severely reduce the range of the unit. Mountains can also reduce the range of the unit.
In areas where transmission or reception is poor, some improvement may be obtained by ensuring that the
antenna is vertical. Moving a few yards in another direction or moving to a higher elevation may also
improve communications. Vehicular operation can be aided with the use of an externally mounted
antenna.
Battery condition is another important factor in the trouble free operation of a portable radio. Always
properly charge the batteries.
3.1 EFFICIENT RADIO OPERATION
For optimum audio clarity at the receiving radio(s), hold the portable radio approximately two (2) inches
from your mouth and speak into the microphone at a normal voice level.
Keep the antenna in a vertical position when receiving or transmitting a message.
Do not hold the antenna when receiving a message and, especially, do not hold when transmitting a
message.
WARNING
Do NOT hold onto the antenna when the radio is powered on!
3.1.1
Antenna Care and Replacement
WARNING
Do not use the portable radio with a damaged or missing antenna. A minor burn
may result if a damaged antenna comes into contact with the skin. Replace a
damaged antenna immediately. Operating a portable radio with the antenna missing
could cause personal injury, damage the radio, and may violate FCC regulations.
WARNING
Use only the supplied or approved antenna. Unauthorized antennas, modifications,
or attachments could cause damage to the radio unit and may violate FCC
regulations. Refer to Table 6-1.
3.1.2
Electronic Devices
CAUTION
RF energy from portable radios may affect some electronic equipment. Most modern
electronic equipment in cars, hospitals, homes, etc. is shielded from RF energy. However,
in areas in which you are instructed to turn off two-way radio equipment, always observe
the rules. If in doubt, turn it off!
14221-1400-2000
13
3.1.3
Aircraft
WARNING
• Always turn off a portable radio before boarding any aircraft!
• Use it on the ground only with crew permission.
• DO NOT use while in-flight!
3.1.4
Electric Blasting Caps
WARNING
To prevent accidental detonation of electric blasting caps, DO NOT use two-way
radios within 1000 feet of blasting operations. Always obey the "Turn Off Two-Way
Radios" signs posted where electric blasting caps are being used. (OSHA Standard:
1926.900)
3.1.5
Potentially Explosive Atmospheres
WARNING
Areas with potentially explosive atmospheres are often, but not always, clearly
marked. These may be fuelling areas, such as gas stations, fuel or chemical transfer
or storage facilities, and areas where the air contains chemicals or particles, such as
grain, dust, or metal powders.
Sparks in such areas could cause an explosion or fire resulting in bodily injury or
even death.
Turn OFF two-way radios when in any area with a potentially explosive atmosphere.
It is rare, but not impossible that a radio or its accessories could generate sparks.
14221-1400-2000
14
4. BATTERIES
The P5500 series portable radios use rechargeable, recyclable Nickel Metal Hydride (NiMH), Lithium-
Ion (Li-Ion), or Lithium Polymer (Li-Poly) batteries. Please follow the directions below to maximize the
useful life of each type of battery.
WARNING
Do not disassemble or modify Lithium battery packs. The Lithium battery packs
are equipped with built-in safety and protection features. Should these features be
disabled or tampered with in any way, the battery pack can leak electrolyte,
overheat, emit smoke, burst, and/or, ignite.
WARNING
If the battery is ruptured or is leaking electrolyte that results in skin or eye contact
with the electrolyte, immediately flush the affected area with water. If the battery
electrolyte gets in the eyes, flush with water for 15 minutes and consult a physician
immediately.
4.1 CONDITIONING BATTERY PACKS
4.1.1
Condition a new NiMH battery before putting into use. This also applies to rechargeable NiMH batteries
that have been stored for long periods (weeks, months, or longer). Conditioning requires fully charging
and fully discharging the battery three (3) times using the tri-chemistry charger. The first time the battery
is put into the charger, this unit will condition Nickel-based battery packs by automatically charging and
discharging (cycling) the battery. Refer to the appropriate charger manual for details.
Conditioning NiMH Battery Packs
CAUTION
Failure to properly condition NiMH battery packs before initial use will result in
shortened performance by the battery.
4.1.2
For more information regarding the proper care of portable radio batteries or establishing a battery
maintenance program, refer to ECR-7367 which may be ordered by calling toll free 1-800-368-3277, then
select option 7.
Additional Information
4.2 CHARGING BATTERY PACKS
Battery chargers are available from Harris with nominal charge times. Combinations include single and
multi-position charge units.
Harris chargers are specifically designed for charging nickel-based and Lithium battery packs. The
chargers are chemistry-specific for the battery packs and automatically adjust the charging profiles
accordingly. Refer to the appropriate charger manual for specific operating instructions.
Observe the following guidelines when charging a battery pack:
• Avoid high temperature during charging.
14221-1400-2000
15
• Discontinue use if the charger is overheating.
• Only charge Harris battery packs using a charger approved for use by Harris Corporation.
• Do not leave batteries in the charger indefinitely. For best results leave the battery in the charger for
two to six hours after the Green Ready LED comes on. Then place the battery pack into service and
fully discharge (as indicated by the radio low battery warning) before re-charging.
If any faults are encountered while charging the battery pack, consult the charger’s manual to determine
the cause and possible corrective action.
4.3 BATTERY PACK USAGE
NiMH, Lithium-ion, and Lithium Polymer batteries vary in capacity and life cycle. NiMH, Lithium-ion,
and Lithium Polymer batteries require basic usage guidelines be followed in order to optimize the battery
runtime or shift life.
The following guidelines will help optimize the battery runtime or shift life:
• Ensure Nickel-based battery packs are fully discharged (as indicated by the radio low battery
warning) before re-charging. Full discharge is not required for Lithium battery packs.
• Periodically condition Nickel-based battery packs. The frequency should be determined based on
usage patterns (refer to ECR-7367). If the battery is fully discharged (to radio Low Battery warning)
during routine use, the frequency of conditioning may be reduced. Lithium-ion and Lithium Polymer
batteries do not suffer from memory-effect and therefore do not require conditioning.
Do not leave any Harris rechargeable batteries in a charger for more than a few days.
4.4 CHANGING THE BATTERY PACK
4.4.1
Make sure the power to the radio is turned OFF.
Removing the Battery Pack
CAUTION
Although the P5500 has been designed to tolerate changing the batte
ry pack without
turning power off, Harris Corporation recommends turning the radio off before changing
battery packs to ensure safety and best operation.
1. Press or pull both latches on either side of the battery pack toward the bottom of the radio
simultaneously.
2. Pull the battery away from the radio.
3. Remove the battery pack from the radio.
14221-1400-2000
16
Figure 4-1: Removing the Battery Pack
14221-1400-2000
17
4.4.2
Make sure the power to the radio is turned OFF.
Attaching the Battery Pack
1. Align the tabs at each side on the bottom of the battery pack with the slots at the bottom of the battery
cavity .
2. Push the top of the battery pack down until the latches click to attach the battery to the radio.
3. Tug gently to verify that the latches are secure and the battery pack is properly attached to the radio.
Figure 4-2: Attaching the Battery Pack
4.5 BATTERY DISPOSAL
CAUTION
In no instance should a battery be incinerated. Disposing of a battery by burning will
cause an explosion.
RECHARGEABLE BATTERY PACK DISPOSAL – The product
you have
purchased contains a rechargeable battery. The battery is recyclable. At the end of its
useful life, under various state and local laws, it may be illegal to dispose of this
battery into the municipal waste stream. Check with your local solid waste officials for
details in your area for recycling options or proper disposal. Canadian and U.S. users
may call Toll Free 1-800-8-BATTERY®
for information and/or procedures for
returning rechargeable batteries in your locality.
14221-1400-2000
18
5. INTRODUCTION
The P5500 series portable radio is available in two models: the P5550 Scan model with a limited 6-button
front-mounted keypad and the P5570 System model with a 15-button DTMF front-mounted keypad.

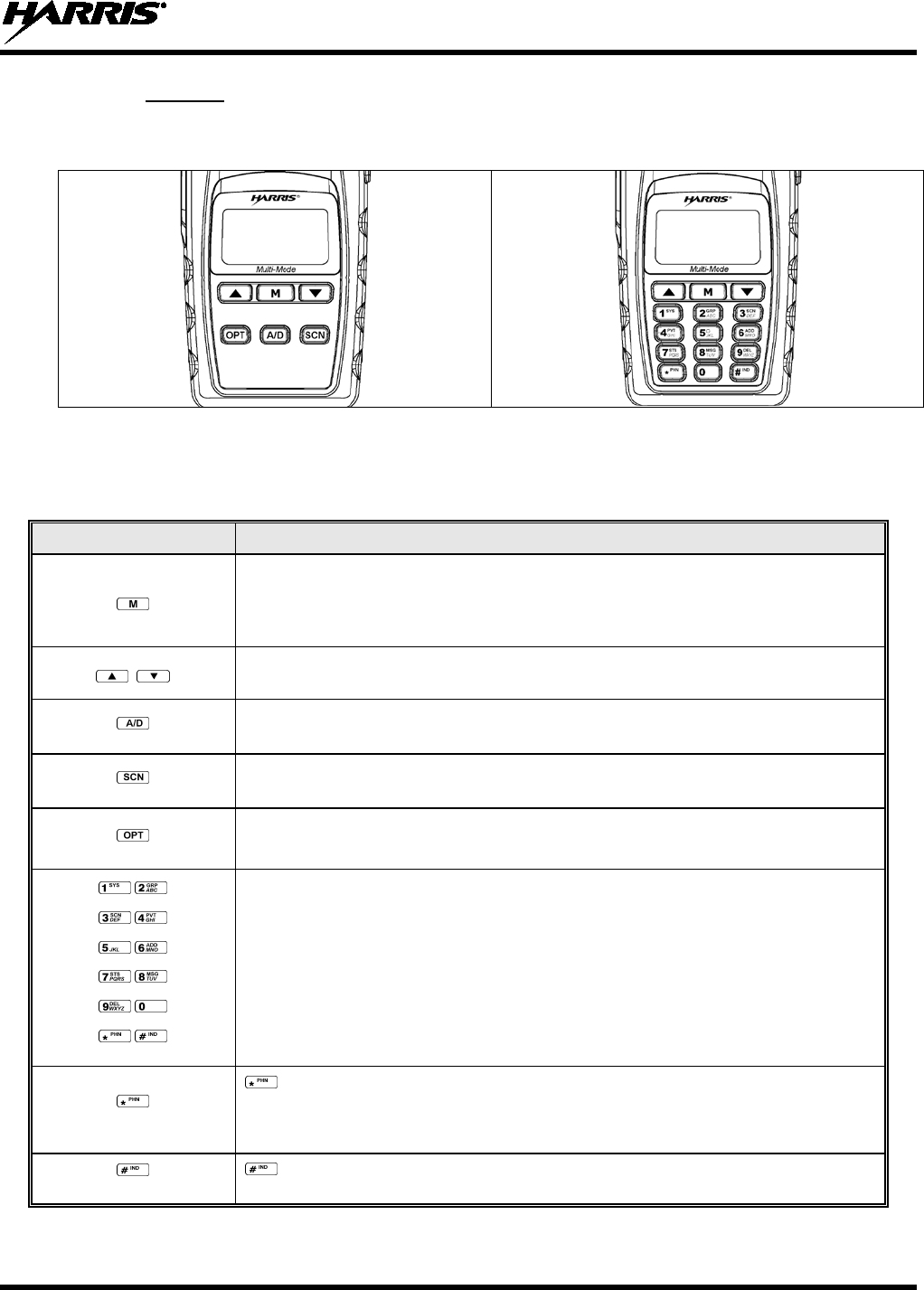

Figure 5-1: P5550 Scan and P5570 System Models
The P5500 portable radio delivers end-to-end encrypted digital voice and IP data communications. It is
designed to support multiple operating modes including:
• EDACS® (Enhanced Digital Access Communications System)
• ProVoice™ Trunked Mode
• OpenSky® Trunked Protocol
• P25 Trunked Mode
• P25 Digital Conventional Mode
• Conventional Analog Mode
The P5500 portables can include all of these modes or just one. Additional modes of operation can be
added with software updates.
The P5500 supports a full range of advanced digital trunking features, including voice group calls,
priority scanning, emergency calls, late call entry, and dynamic reconfiguration. It performs autonomous
14221-1400-2000
19
roaming for wide area applications. High quality voice coding and robust audio components assure
speech clarity.
In the trunked modes, the user selects a communications “operating” system (i.e., EDACS, OpenSky,
ProVoice, or P25) and group. While communicating in a trunked mode, channel selection is transparent to
the user and is controlled via digital communication with the system controller (e.g., a CSD in an EDACS
system). This provides advanced programmable features and fast access to communication channels.
In Conventional Analog mode, the user selects a channel and communicates directly on that channel. A
channel is a transmit/receive radio frequency pair.
The exact operation of the radio will depend on the operating mode, the radio’s programming, and the
particular radio system. Most features described in this manual can be enabled through programming.
Consult your System Administrator for the particular features programmed into your P5500. Then refer
to the corresponding section(s) within this manual for feature and operation information.
5.1 WATER RESISTANCE
The P5500 series portable radios operate reliably even under adverse conditions. These radios meet MIL-
STD-810F specifications for wind driven rain, humidity, and salt fog.
5.2 UNIVERSAL DEVICE CONNECTOR
The Universal Device Connector (UDC) provides connections for external accessories such as a headset,
a speaker-microphone, audio test box, audio test cables, and programming cables. The UDC is located on
the right side of the radio, opposite the PTT Button. The UDC facilitates programming and testing the
radio. The UDC pins perform different functions depending on the accessory attached to the UDC.
Figure 5-2: P5500 15-Pin Universal Device Connector
14221-1400-2000
20
6. OPTIONS AND ACCESSORIES
Table 6-1 lists the Options and Accessories tested for use with the P5500 series portable radios. Refer to
the maintenance manual or to Harris Corporation’s Products and Services Catalog for a complete list of
options and accessories, including those items that do not adversely affect the RF energy exposure.
WARNING
Always use Harris authorized accessories (antennas, batteries, belt clips,
speaker/mics, etc). Use of unauthorized accessories may
cause the FCC
Occupational/Controlled Exposure RF compliance requirement
s to be exceeded.
Refer to Table 2-1.
CAUTION
Always use the correct options and accessories (battery, antenna, speaker/mic, etc.) for the
radio. Intrinsically safe options must be used with intrinsically safe radios. See Table 6-1.
Table 6-1: Options and Accessories
DESCRIPTION PART NUMBER
ANTE NNAS
Helical Coil 136-151 MHz KRE 101 1219/1
Helical Coil 150-162 MHz KRE 101 1219/2
Helical Coil 162-174 MHz KRE 101 1219/3
Helical Coil 150-174 MHz KRE 101 1219/21
Helical Coil 378-403 MHz KRE 101 1219/9
Helical Coil 403-430 MHz KRE 101 1219/10
¼ Wave Whip 378-430 MHz KRE 101 1223/10
Helical Stub 440-494 MHz KRE 101 1219/12
Helical Stub 470-512 MHz KRE 101 1219/14
¼ Wave Whip 440-512 MHz KRE 101 1223/12
¼ Wave Whip 800 MHz KRE 101 1223/01
High Gain, Flexible Construction, 800 MHz KRE 101 1506/1
¼ Wave Whip, Wide Bandwidth, 800 MHz KRE 101 1506/2
¼ Wave Whip, 900 MHz KRE 101 1223/02
B ATTE R IE S (IMME R S ION-R ATE D)
NiMH, immersible, non-IS
BT-023406-003
NiMH, immersible, <IS>
BT-023406-004
Li Ion, immersible, non-IS
BT-023406-005
NiMH, immersible, Goldpeak cells, non-IS
BT-023406-103
Lithium Polymer, Immersible
BT-023436-001
CHARGERS
Sleeve, Desktop Charger Sleeve, Desktop Charger
Single Charger, Tri-Chemistry Single Charger, Tri-Chemistry
6-bay Charger, Tri-Chemistry 6-bay Charger, Tri-Chemistry
MISCELLANEOUS ACCESSORIES
Speaker Mic without Antenna (cc) provision, <IS> MC-023933-001
Speaker Mic with Antenna (cc) provision, <IS> MC-023933-002
Earphone for Speaker Mic <IS> LS103239V1
GPS, non-IS MC-009104-002
Ruggedized Speaker Mic, Coil Cord MC-011617-601
Standard Speaker Mic, Non-Antenna MC-011617-701
DR OP S HIP AUDIO AC CE S S OR IE S
Earphone Kit, Black EA-009580-001
Earphone Kit, Beige EA-009580-002
14221-1400-2000
21
DESCRIPTION PART NUMBER
2-Wire Kit, Palm Mic, Black EA-009580-003
2-Wire Kit, Palm Mic, Beige EA-009580-004
3-Wire Kit, Mini-Lapel Mic, Black EA-009580-005
3-Wire Kit, Mini-Lapel Mic, Beige EA-009580-006
Explorer Headset with PTT EA-009580-007
Lightweight Headset Single Speaker with PTT EA-009580-008
Breeze Headset with PTT EA-009580-009
Headset, Heavy Duty, N/C Behind-the-Head, with PTT EA-009580-010
Ranger Headset with PTT EA-009580-011
Skull Mic with Body PTT and Earcup EA-009580-012
Headset, Heavy Duty, N/C Over-the-Head, with PTT EA-009580-013
Throat Mic with Acoustic Tube and Body PTT EA-009580-014
Throat Mic with Acoustic Tube, Body PTT, and Ring PTT EA-009580-015
Breeze Headset with PTT and Pigtail Jack EA-009580-016
Hurricane Headset with PTT EA-009580-017
Hurricane Headset with PTT and Pigtail Jack EA-009580-018
CARRYING CASE ACCESSORIES
Leather Carrying Case without D-Rings Kit, consists of:
Leather Case without D-rings
Elastic Strap
Swivel Mount,
used with Belt Loop
Kit: CC-023931-003, incl:
CC-023931-001
FM-011820
KRY 101 1608/2
used with: KRY 101 1609/1
Leather Carrying Case with D-Rings Kit, consists of:
Leather Case with D-rings
Elastic Strap
Swivel Mount
used with Belt Loop
Kit: CC-023931-004, incl:
CC-023931-002
FM-011820
KRY 101 1608/2
used with: KRY 101 1609/1
Leather Carrying Case with D-rings used with
Elastic Strap
and Shoulder Strap
CC-023931-002
FM-011820
CC103333V1
Swivel Mount and Belt Loop KRY 101 1608/2
KRY 101 1609/1
Nylon Case (black) with Belt Loop CC-023932-001
KRY 101 1609/1
Nylon Case (orange) with Belt Loop CC-023932-002
KRY 101 1609/1
Standard Leather Case with Shoulder Strap Kit, consists of:
Standard Leather Case with D-Rings
Shoulder Strap with Loop for Speaker/Mic
used with Swivel Mount
Kit: CC-014528-004, incl:
CC-014528-002
CC-014524-001
KRY 101 1608/2
Standard Leather Case with Belt Loop Kit, consists of:
Standard Leather case without D-Rings
Standard Leather Belt Loop
used with Swivel Mount
Kit: CC-014528-003, incl:
CC-014528-001
CC-014527
KRY 101 1608/2
Standard Black Nylon Case with Belt Loop Kit, consists of:
Standard Black Nylon Case
Standard Leather Belt Loop
Kit: CC-014534-002, incl:
CC-014534-001
CC-014527
Standard Restraining Strap
used with Shoulder Strap with Loop for Speaker/Mic CC-014524-002
Standard Leather Belt Loop CC-014527
Shoulder Strap with Loop for Speaker/Mic CC-014524-001
Metal Belt Clip (standard CC23894
Metal Belt Clip (alternate) CC-011318
“T” Strap Holder KRY 101 1656/1
14221-1400-2000
22
7. CHANGE OPERATING MODE
7.1 CHANGE FROM OTP MODE
To change from OTP operating mode to EDACS/P25/Conventional (ECP):
1. Use or to cycle through the menu until “App Mode” is displayed.
2. Use or to choose an available mode. Press and or to confirm (Y/N).
3. Press the button to confirm.
Or
With a system model radio, press 1# to transition to ECP.
7.2 CHANGE TO OTP MODE
1. Use or to scroll through available systems until OpenSky is displayed and wait.
2. The radio transitions to OTP mode.
14221-1400-2000
23
8. OPENSKY OPERATION
NOTE
OpenSky is only available in the 800 MHz model of the P5500 series portable radios.
Once an OpenSky system has been selected from the available systems on your P5500 series portable
radio, the characteristics described in the following sections will govern operation.
8.1 CONTROLS
The P5500 portable radio features two rotary control knobs, an emergency button, and a dual-position
A/B switch, all located on the top of the radio. Refer to Figure 8-1. The Push-To-Talk (PTT) button and
two option buttons are located to the left side of the radio keypad, see Figure 8-2. The front mounted
keypad of the P5570 “System” model has 15 buttons and the P5550 “Scan” model has six buttons. Refer
to Figure 8-3 and Figure 8-4.
Figure 8-1: Top View Figure 8-2: Side View
14221-1400-2000
24
8.1.1
The functions of the buttons, knob controls, and dual position A/B Switch vary depending on the mode of
operation. Their functions while in the OpenSky mode of operation are discussed in the following
paragraphs.
Buttons, Knobs, and Switch
Table 8-1: Buttons, Knobs, and Switch Functions
POWER
ON-OFF
VOLUME KNOB
The Power On-Off/Volume Knob is rotated to apply power to the radio and adjust audio volume up and
down.
Rotating the control clockwise applies power to the radio. A single alert tone (if enabled through
programming) indicates the radio is operational.
Rotating the control clockwise increases the volume level. Minimum volume levels may be programmed
into the radio to prevent missed calls due to a low volume setting. While adjusting the volume, the display
will momentarily indicate the volume level (e.g., VOL=40
). The volume range is from a minimum
programmed level of zero (displayed as OFF in the display) up to 40, which is the maximum level.
VOICE GROUP
SELECTION
KNOB
Used to select voice groups when operating within an OpenSky system. This is a 16-po
sition rotary
knob.
A mechanical stop, which can limit the number of positions accessed, is shipped with the radio but must
be installed. To install the mechanical stop, remove the voice group selection knob, loosen the set screw
on the voice group selec
tion knob metal base (using a 1.27 mm hex wrench), and remove the voice
group selection knob metal base. Replace the 16 channel ring with the channel stop ring located at the
desired channel. Re-install the voice group selection knob metal base, tighten the set screw, and re-
install the voice group selection knob.
EMERGENCY
BUTTON
Press the emergency button to declare an emergency. To clear an emergency, press and hold the
Option 2 button . While holding ,
press the emergency button. Release both buttons when the
“emergency cleared” tone sounds.
PTT BUTTON The Push-To-Talk button must be pressed before voice transmission begins.
SIDE OPTION
BUTTON 1 Scrolls UP or DOWN thru available items within a sub-menu, such as available talk groups, pre-
programmed speed dial numbers, canned alert messages, etc.
SIDE OPTION
BUTTON 2
A/B SWITCH Currently undefined in OTP mode.
14221-1400-2000
25
8.1.2
The front mounted keypad of the P5550 “Scan” model has six buttons and P5570 “System” model has 15
buttons. Refer to
Keypad
Figure 8-5 and Figure 8-6, respectively.

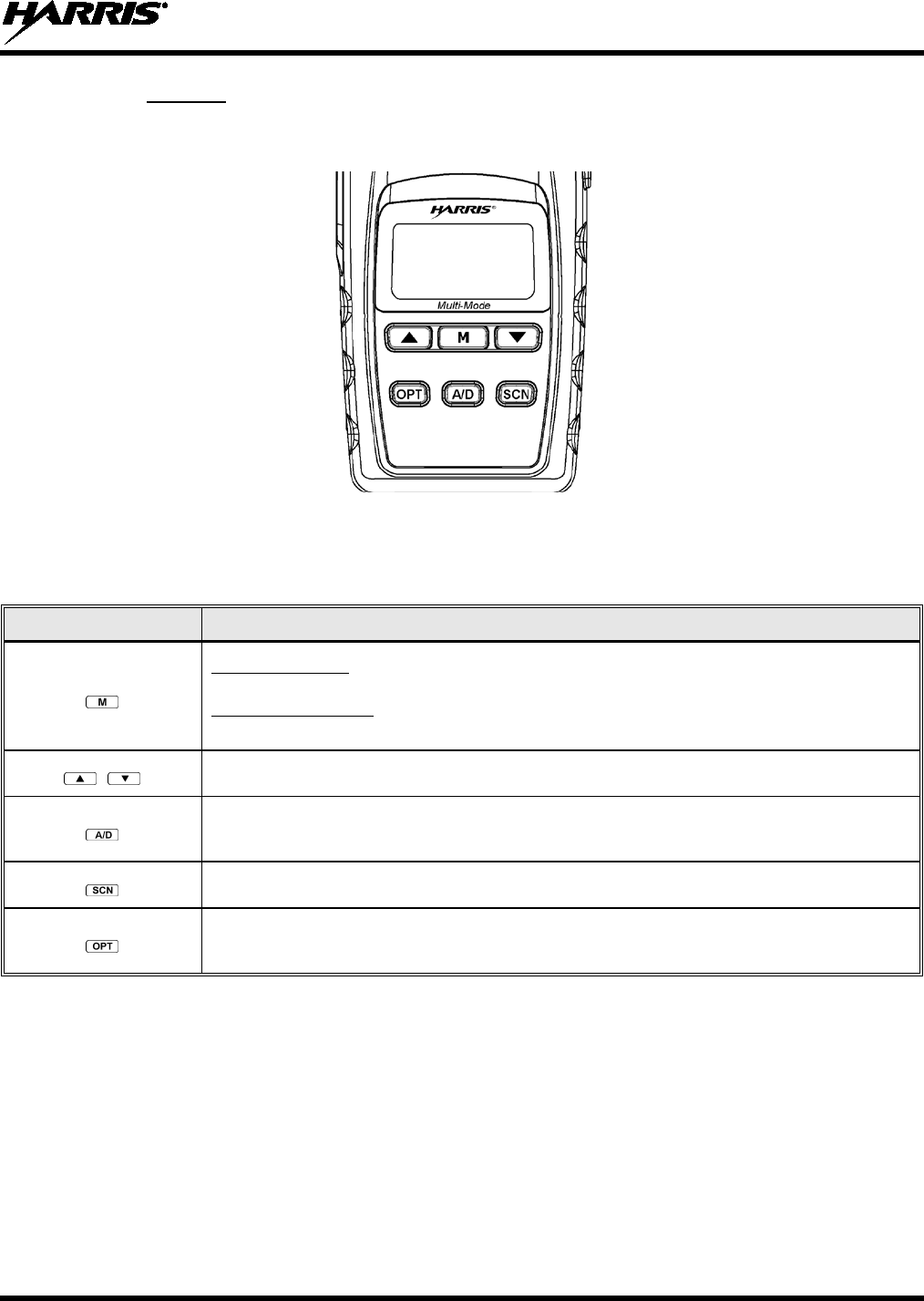

Figure 8-3: P5550 “Scan” Model Front Panel Figure 8-4: P5570 “System” Model Front Panel
In OTP mode, numeric entry is the primary function of the keys. Each key is described in Table 8-2.
Table 8-2: Keypad Functions
KEY FUNCTION
Primary function: Acts much as an “enter” button to activate a selection.
Secondary function: While in the “dwell display,” press repeatedly to scroll through and
view status display (on 2nd line) for current profile, caller, received talk group, and
channel.
Scrolls thru available menu items (see Table 8-5).
(P5550 only) Currently undefined in OpenSky mode.
(P5550 only) Toggles scan mode On/Off.
(P5550 only) Currently undefined in OpenSky mode.
(P5570 Only)
The alpha-numeric keys are used to place telephone interconnect and individual (unit-
to-unit) calls, operating like a normal telephone keypad.
Also used to enter alpha-numeric passwords for logging into the OpenSky network, if
not pre-configured for automatic registration at power-up.
(P5570 Only)
Initiates OpenSky functions (log in, log out, selective call, telephone interconnect
call, etc.). See page 31 for additional information. It is also used as an escape or to
clear an entry (something like backspace, but it clears everything, not only the last
digit/character).
(P5570 Only)
Used in conjunction with alpha-
numeric keys for passwords and OpenSky
functions. See page 31 for additional information.
14221-1400-2000
26
8.1.3
The P5500 display is made up of 3 lines. Lines 1 and 2 contain twelve alpha-numeric character blocks
each. The 3rd line also contains twelve blocks, each used to display radio status icons. If programmed, the
display backlighting will illuminate upon power up or when radio controls are operated. Specific display
characteristics will be discussed in following sub-sections.
Display
Figure 8-5: Radio Display OpenSky Mode
8.1.4
Status Icons indicate the various operating characteristics of the radio. The icons show operating modes
and conditions and appear on the third line of the display (see
Radio Status Icons
Table 8-3).
Table 8-3: Status Icons Descriptions
STATUS ICON DESCRIPTIONS
OPENSKY ICONS
Steady – Received Signal Strength Indicator (RSSI). Appears in the 1st and 2nd positions of the display.
Steady – Radio is data registered. Appears in the 3rd position of the display.
Steady – Stealth mode is enabled, all tones and the display backlight are disabled, voice is still heard. Appears in the 4th
position of the display.
Steady - Radio is transmitting or receiving an encrypted voice call. Appears in the 6th position of the display.
Animated – The radio is scanning for a VTAC. Once the radio has attached to a VTAC, the icon will turn off. The icon
appears in the 7th position of the display.
VTAC Connection Indicator – Indicates the client is connected to a VTAC. Appears in the 8th position of the display.
Steady – Indicates Scan mode is Normal or Fixed. Is not displayed when Scan mode is None. Appears in the 9th
position of the display.
Steady – Indicates Selective Call mode. Appears in the 11th position of the display.
Steady – Battery charge indicator. Appears in the 12th position of the display.
Flashing – Low battery indicator.
14221-1400-2000
27
Figure 8-6: Full Cycle Battery Charge Indicator
The battery charge indicator illustrates approximate charge only, based on battery voltage. Refer to
Figure 8-6.
8.2 TRI-COLOR LED
Figure 8-7: Tri-Color LED
The Tri-Color LED changes color to indicate radio status and is visible from both the front and top of the
radio (see Figure 8-7).
In OpenSky mode the following radio states are reflected by the LED and the status they represent are:
Green: Receiving
Red: Transmitting
Orange: If the LED is flashing rapidly, the radio is receiving an emergency call. If the
LED is flashing every ½ second, the selected talk group is in the emergency state
(although not transmitting). If the selected talk group is in the emergency state,
an asterisk will be displayed next to the talk group name.
8.3 LOG IN TO THE NETWORK
Login occurs either automatically (auto registration) if the radio has a valid registration or, if enabled,
requires the user to enter a User ID and password.
The user will be prompted to “Pls Login” with the *1 login command, a User ID, and password.
1. Press *1 keys (Login command).
2. Enter the full 10-digit User ID.
3. Press the key.
4. Enter the password.
14221-1400-2000
28
• If the radio is configured for alpha-numeric passwords and the password has consecutive
duplicate numbers (“MES33” for example), enter #, the key, between the consecutive
duplicate numbers so the radio will not
• If the radio is configured for numeric-only passwords, do not press the
interpret the entry as a letter (“D” in this example).
key between
duplicated numbers.
5. Press the key twice.
The User ID may be remembered from the previous log-in. (Refer to Section 8.4 for further details
regarding log-off commands.) The password will be established before the radio is put into operation.
Contact the local OpenSky network administrator for more information.
NOTE
If necessary, contact radio system administration personnel for log-in assistance and/or
radio-specific log-in instructions.
8.4 LOG OFF THE NETWORK
The *0## command de-registers the radio. Typically, this is automatically performed when powering
down the radio. Using this method, the User ID is remembered by the radio, so only the password is
needed at next log-in. If a user is logged in, it is necessary to log-off.
8.5 PERSONALITY
As illustrated in Figure 8-8, a personality defines the profiles and talk groups available to the user. It is
the structuring of a collection of profiles and privileges established by the OpenSky network administrator
to provide the user with a comprehensive set of profiles to communicate effectively with the necessary
talk groups or individuals.
Personalities are stored on the network and downloaded over-the-air to the radio. This process is called
“provisioning.” Provisioning occurs at radio power-up (if the personality is not already stored in the
radio’s memory) and at user log-in. When changes are made to the personality, the radio is automatically
re-provisioned. Each personality can contain up to sixteen (16) profiles and each profile can contain up to
sixteen talk groups.
8.5.1
As stated above, each profile can contain up to sixteen (16) talk groups. A profile also defines the radio’s
emergency behavior. All transmissions are made on the selected talk group (displayed on the top line of
the dwell display). The user can change the selected talk group to any of the other talk groups within the
profile.
Profiles
14221-1400-2000
29
TG a
TG b
TG c
TG x
TG y
TG z
TG d
TG e
TG f
TG a
TG d
TG g
TG h
TG i
TG = Talk Group
Profile 1
Profile 2
Profile 3
Figure 8-8: Personality Structure Example
8.5.2
A talk group represents a set of users that regularly need to communicate with one another. There can be
any number of authorized users assigned to a talk group. Talk groups are established and organized by the
OpenSky network administrator. An OpenSky talk group is similar to a channel within a conventional
FM radio system.
Talk Groups
8.6 OPENSKY DISPLAY OVERVIEW
The 12-character x 3-line display shows the radio status. The first two lines of the display are text lines
that change in response to user interaction with the menu buttons. Status icons appear in the bottom line
(line 3) of the display (see Table 8-3).
8.6.1
The display’s top line of text changes as the
Display’s Top Line
and buttons are pressed to scroll through the
available menu options (see Table 8-5). When the dwell display is present, the selected talk group will be
displayed. Other information, such as alert messages will scroll across the top line of the display.
8.6.2
The second line will display information such as active menu, login prompt, emergency status, and dwell
display messages as described in the following section.
Display’s Second Line
8.6.3
When not engaged in menu selection, the first two lines of the display default to the user-defined display,
known as the “dwell display.” The top line indicates the currently selected talk group. The second line
will display the currently selected profile, caller ID/alias
Dwell Display
1, received talk group, and current channel name.
Press the button repeatedly to scroll through and view one of these second line options.
1 Alias is a logical ID name such as “J_Smith.” The name corresponds to a user ID such as 003-542-0001.
14221-1400-2000
30
8.7 ALERT TONES
The P5500 radio also provides audible Alert Tones or “beeps” to indicate the various operating conditions
(see Table 8-4).
Table 8-4: Alert Tones
NAME TONE DESCRIPTION
Call Queued one low tone/two high tones Call is queued for processing.
Call Denied three short beeps
Radio is out of coverage area or requested talk group is
active.
Grant (or Go-Ahead) single short beep
Sounded when resources become available for a call
request placed in the queue (if enabled) upon channel
access.
If the radio roams to another site while transmitting, then
it will auto rekey and begin transmitting on that tower. It
gives a second grant
tone to let the user know they have
roamed.
Call Removed single long low-pitched tone
Notifies the user access to the channel has been lost
(out of coverage area or pre-empted by higher-
priority
call).
Low Battery one low-pitched/one short
mid-pitched Low battery
Selective Alert
Received four short tones
Only played once to indicate a selective alert has been
receive.
Emergency Alert Tone three long beeps Sounds when an emergency alert is declared.
Emergency Cleared
Tone one long low-pitched tone Sounds when an emergency is cleared.
Selective Call Ring
Tone a ringing tone similar to a
telephone
Ringing is repeated every four (4) seconds until the call
is accepted or rejected by the radio being called or until
the network drops the call if
unanswered after one (1)
minute.
Roam Tone two short tones, one high-
pitched and one low-pitched
Sounds when the radio transitions from one radio base
station site to another.
Out of Range Tone three brief tones
If enabled via programming, sounds at a programmable
interval while the radio is in a state of persistent
deactivation.
14221-1400-2000
31
8.8 BASIC MENU STRUCTURE
Table 8-5 illustrates the basic P5500 OpenSky menu structure. Menu items will vary depending upon
system programming, radio hardware, and optional configurations. All menus except the dwell display
menu can be turned off by network administration personnel.
Table 8-5: Basic P5500 OpenSky Menu Structure
MENU NAME RADIO DISPLAYS USAGE NOTES
To/From Dwell
Display
Engineering
Display bit-error rates
and RSSI data Displays radio system connection data. For engineering use.
Silent
Emergency “SilentEmerg” Use or to toggle between OFF/ON. Press to enable.
Operating Mode “App Mode” Use or to choose an available mode (OTP, OCF, or ECP). Press
and
confirm (Y/N) with or and again.
GPS Fix “GPS” GPS latitude and longitude position of currently tuned-
to base station [“GPS (Site)”] or
V-
TAC (“GPS”) scrolls across top line of the display. “GPS (Aged)” indicates VTAC
coordinates haven’t been updated for more that 2 minutes.
User ID “User ID” User’s identification/name scrolls across top line of the display (if programmed).
IP Address “IP Address” Radio’s Internet Protocol (IP) address scrolls across top line of the display.
Station
Identification
“Station ID” Station’s identification/name scrolls across top line of the display (if programmed).
Stealth Mode
(display backlight
is disabled)
“StealthMenu” Use or to turn Stealth Mode “On” or “Off.”
Treble Level “Treble Menu” Use or to choose speaker treble level (LOW, MEDIUM, MEDHIGH, or HIGH)
.
Press to return to dwell display.
Display
Brightness “Bright Menu” Use or to brighten or dim backlighting. Press to return to dwell display.
Side Tone Level “Side Menu” Use or to choose side tone level (OFF, LOW, MED, or HIGH). Press
to
return to dwell display.
See Next Page
14221-1400-2000
32
MENU NAME RADIO DISPLAYS USAGE NOTES
See Previous Page
Selected
Channel “ChannelMenu” Displays the current channel. Press to return to dwell display.
Scan Mode “ScnModeMenu”
Use or to scroll through available scan modes (Normal, No Scan, or Fixed)
.
Press to return to dwell display.
Talk group
Lock Out “LockOutMenu” Use or to choose a talk group for locking/unlocking. Press to toggle “<
” on
(locked out) and off.
Priority 2
Talk group “Priority2” Use or to choose Priority 2 talk group. Press to return to dwell display.
Priority 1
Talk group “Priority1” Use or to choose Priority 1 talk group. Press to return to dwell display.
Alerts Received “Alerts Rcvd”
or oldest message “No alerts” or alert message text scrolls in display. Use or to scroll through
all
messages.
Alert Destination “Alert Dest” Use or to choose a speed-dial number. Press
to go to the “Alert Msg” menu.
Use or to scroll through “canned messages.” Press
to send message and
return to dwell display.
Speed Dial “Speed Dial” Use or to choose a speed-dial number and press PTT to place call.
Profile Selection “ProfileMenu” Use or to choose an available profile. Press to return to dwell display.
Talk group
Selection “TalkGrpMenu” Use or to choose a talk group in current profile. Press
to return to dwell
display.
Status LED “Status LED” Use or to
toggle status led “On” or “Off.” When On, the LED flashes red when
the radio transmits, green when receiving, and amber when in emergency. When Off,
the LED will not light at all.
Status Message
“Status Msg”
Use or to scroll through available messages.
Request to Talk
Message “RTT Msg” Use or to scroll through available messages.
VTAC Client
Mode “Client Mode” Use or to choose Client Mode (Network, XCOV, XCOV-TG, or SOI).
Emergency
Dismiss “EmgDismiss” Use or to choose emergency talk group. Press
to toggle “<” on (dismiss)
and off.
Use and to scroll through menus.
14221-1400-2000
33
8.9 ERROR MESSAGES
This section lists and describes the error messages that may be displayed by the radio during OpenSky
operation.
MESSAGE
NOAUT01
DESCRIPTION
Unspecified MDIS error. If condition persists in strong signal conditions, contact
your system administrator.
MDENIED Unspecified MDIS error. If condition persists in strong signal conditions, contact
your system administrator.
UNAUTH3
Unauthorized IP. The radio network ID has not been added to network.
UNAUTH4 Bad authentication. If condition persists in strong signal conditions, contact your
system administrator.
UNAUTH5 Unsupported authentication. If condition persists in strong signal conditions, contact
your system administrator.
MDISBSY The MDIS is busy. If condition persists in strong signal conditions, contact your
system administrator.
DUP IP
Duplicate IP.
BADIKEY
Invalid infrastructure public key sequence number (IPKSN).
BADEKEY
Invalid end-system public key sequence number (EPKSN).
UNK MES Unknown mobile end system (MES). If condition persists in strong signal conditions,
contact your system administrator.
NOAUT05 MDIS failed mutual authentication. If condition persists in strong signal conditions,
contact your system administrator.
BADMDIS MDIS failed mutual authentication. If condition persists in strong signal conditions,
contact your system administrator.
MDS BSY
MDIS busy – retry.
UNK DOM Unknown home domain. If condition persists in strong signal conditions, contact
your system administrator.
KEYSYNC
Mismatched key sequence number.
UNK ALG
Unknown/unsupported encryption algorithm.
BADSIZE
Unsupported MDIS key size.
NOAUT11 MES failed data mutual authentication.
If condition persists in strong signal
conditions, contact your system administrator.
NOAUT12 No response from MDIS. If condition persists in strong signal conditions, contact
your system administrator.
NOREPLY No SME response from MDIS.
If condition persists in strong signal conditions,
contact your system administrator.
VDENIED Unspecified VNIC error. If condition persists in strong signal conditions, contact
your system administrator.
14221-1400-2000
34
MESSAGE
BAD VID
DESCRIPTION
Invalid voice user ID. Check User ID. If correct, contact your system administrator.
HOM DWN The Home VNIC is down.
Retry. If error continues, contact your system
administrator.
SRV BSY
The serving VNIC is busy (congested).
MAX USR The maximum number of users are already registered with the specified user ID.
OpenSky allows one User ID to log onto the network using up to three different
radios. Use *0## command or power down one of the other radios to de-register the
radio.
NAS BSY
The system cannot provision MES because of an administrative process.
NOAUTHM The MES failed voice mutual authentication. If a valid radio displays this error,
contact TAC (see Section 10.2).
NOSUPRT The MES cannot support the required provision. If condition persists in strong signal
conditions, contact your system administrator.
NOAUTHV VNIC does not support or failed mutual authentication. If condition persists in strong
signal conditions, contact your system administrator.
PLS LOGIN
Login with keypad.
BAD PWD
An invalid password has been entered. Verify the password and re-enter.
OVER_TEMP The radio may be too hot. The
radio will cease transmitting if it exceeds an
operational temperature threshold. Let the radio cool before attempting to transmit.
Report this failure to authorized technician.
No App
ECP mode is unavailable (not programmed).
NO PRIV
Missing required privilege.
NO SYNC No forward-channel sync (weak or no coverage). If condition persists in strong signal
conditions, contact your system administrator.
Dead battery
Radio must shutdown because battery charge is critically low.
NO REG
Not registered with MDIS, VNIC, or both.
DISABLED
Function disabled (e.g., function invalid in current context).
14221-1400-2000
35
8.10 KEYPAD FUNCTION COMMANDS (P5570 ONLY)
To perform a command from the keypad, use the keypad commands in Table 8-6.
Table 8-6: Keypad Function Commands
COMMANDS FUNCTION
*0
Log-off command:
*0## (logs the user off the system). See Section 8.4 for additional information.
*1 Log-in command: *1<User ID> # <Password> ## (required for encryption). See Section 8.1.3 for
additional information.
*2
Status Message: *2 <0...9> #.
*4
Enter Scene of Incident Mode (SOI) on specified channel and band: *4<LC>#<Band># where
LC is the channel number that is being used as a SOI repeater and band is the number assigned
to each frequency band. For example, if LC 25 800 MHz (band 0) is being used for SOI, then
enter *4,25,#,0,#.
Exit SOI Mode with *40#
*5
RTT Message: *5 <0...9> #.
*7 Initiate Selective Alert command: *7<Target ID>#[Choose Message]#. See Section 8.25 for
additional information.
*8
Radio-to-Radio Call command: *8<Selective call number>#(PTT to dial).
*9 Public Switched Telephone Network (PSTN) Call command: *9 <telephone number>#(PTT to
dial) See Section 8.26 for additional information.
*32 Begin Manual Encryption command: *32<Pre-determined Encryption Key>#
1-16 digit encryption key for 128 bit encryption; 17-32 digit encryption key for 256 bit encryption.
*33
End Manual Encryption command: *33#
*61
Initiate XCOV Mode: Extended coverage for individual users.
*62
Initiate XCOV-TG Mode: Extended coverage for talk groups.
*63
Initiate XCOV-PROF Mode command:
*63#.
*60
Exit XCOV or XCOV-TG Mode: Returns to the normal mode.
8.11 QUICK KEYS (P5570 ONLY)
Quick Keys are a two-button sequence that provides the user with quick access to certain menu items.
Quick Keys function as a toggle for these menu items.
Table 8-7: Quick Key Sequence
QUICK
KEYS
FUNCTION
1#
Transition to ECP Mode
If ECP code is not loaded in the radio, “No App” appears in the display.
2#
Toggles Stealth Mode On/Off
3#
Toggles Scan Mode On/Off (Normal/Fixed, see details below)
• If the Scan Mode is Normal when the Scan Mode is toggled Off, the Scan Mode will be Normal when
toggled On again.
• If the Scan Mode is Fixed when the Scan Mode is toggled Off, the Scan Mode will be Fixed when
scan mode is toggled On again.
• If the Scan Mode is Off when the radio boots up, the Scan Mode will be Normal when Scan Mode is
toggled On.
14221-1400-2000
36
QUICK
KEYS
FUNCTION
4#
Lights/Tones On/Off
Pressing 4# turns the TX/RX LEDs, Backlight, and Side Tones On/Off.
If any of the TX/RX LEDs, Backlight, and/or Side Tones are On, and this quick key sequence is used,
then all of the TX/RX LEDs, Backlight, and Side Tones are turned Off.
If the radio is in Stealth mode, this quick key is disabled since the user is not able to turn on the
light/tones in stealth mode.
6#
XCOV and XCOV-TG Attach/Detach
This quick key sequence is used to manually connect to a V-TAC. When attaching to a V-TAC, the
radio’s programming determines whether to attach to the V-TAC in XCOV or XCOV-TG mode.
• If the user attaches to a V-TAC manually, using the *61# or *62# command sequence, the radio is
understood to be attached and this quick key sequence will detach the radio from the VTAC.
• If the user detaches manually from a V-TAC using the *60# command sequence, the radio is
understood to be detached and this quick key sequence will attach the radio to a VTAC.
• At bootup, the radio is understood to be detached from a VTAC. If a radio automatically attaches to
a VTAC, the radio is still understood to be detached from a VTAC and will attempt to attach to a
VTAC.
• If a radio manually attaches to a VTAC and then is automatically detached from a VTAC, the radio is
still understood to be attached to a VTAC and will attempt to detach from a VTAC.
8.12 LOCK/UNLOCK THE KEYPAD
1. Press and hold the button.
2. While holding the button, press the button on the side of the radio.
8.13 DUAL-TONE MULTI-FREQUENCY (P5570 ONLY)
Dual-Tone Multi-Frequency (DTMF) is the system used by touch-tone telephones. DTMF assigns a
specific tone frequency to each key so a microprocessor can easily identify its activation. This allows for
specific tasks such as entering a user ID and password, or selective calling.
When a key on the DTMF keypad is pressed, the DTMF tone is played through the radio’s speaker.
8.14 CHANGING THE ACTIVE PROFILE
The radio can store up to sixteen (16) standard profiles, one of which is the currently active profile. To
change the currently active profile:
1. Press the or buttons until “ProfileMenu” is displayed.
2. Use or to scroll through the list of available profiles.
3. Profile becomes active when selected for longer than 2 seconds, when the is pressed, or when the
menu is changed using the or button. Press to activate the selected profile.
8.15 CHANGING THE SELECTED TALK GROUP
Each profile stored in the radio can have up to sixteen (16) talk groups. One talk group within the
currently active profile is set as the “selected talk group.” To change the selected talk group, turn the
Group Selection knob on top of the radio.
14221-1400-2000
37
8.16 ADJUSTING DISPLAY AND BUTTON BACKLIGHT BRIGHTNESS
1. Press the or buttons until Bright Menu is displayed.
2. Use or to brighten or dim the display and button backlighting.
8.17 STEALTH MODE
For some users, it is important to be able to turn off the radio’s display lights and side tones, but not the
radio traffic. For example, in covert operations, lights and sounds could inadvertently expose an
otherwise unobservable radio user. For this purpose, the radio has a Stealth feature that disables the radio
display lights, indicator lights, and audible alert and side tones.
When Stealth Mode is on, the radio continues to scan the programmed list of talk groups and the user can
key-up on the selected talk group.
8.17.1 Enabling Stealth Mode
P5570 only: Quick Key combination 2# toggles Stealth Mode on and off.
Both models: Press the or buttons to scroll through menus until “StealthMenu” appears in the
display. To immediately activate Stealth Mode press the or button once. This activates Stealth
Mode, exits the Stealth Menu, and returns to the Dwell Display.
The display lights, indicator lights, and side tones are disabled. The stealth mode icon is displayed.
8.17.2 Disabling Stealth Mode
P5570 only:
To re-enable all lighting, side tones and exit Stealth Mode, press Quick Key combination 2#
again. The radio returns to the Dwell Display.
NOTE
Stealth Mode can also be disabled by using the Stealth Menu.
P5550 only:
The display lights, indicator lights, and side tones are re-enabled. The stealth mode icon disappears.
To re-enable all lighting, side tones and exit Stealth Mode, press any key other than PTT or
Emergency. The radio returns to the Dwell Display.
8.18 ADJUSTING SIDE TONE AUDIO LEVEL
The radio sounds confirming tones called “side tones” when its buttons are pressed. Most users find this
audible confirmation helpful when navigating the menus. Side tone audio level can be adjusted or turned
completely off using the “Side Menu” or the Quick Key combination #4.
NOTE
Quick Key combination #4 turns off the backlight in addition to the side tones. Unlike
Stealth Mode, alert tones can still be heard.
For covert operations, it may be necessary to turn off side tones. For safety’s sake, turning off the radio
during covert operations is not recommended.
14221-1400-2000
38
If the radio is operating properly but side tones are not heard when the menu buttons are pressed, the side
tones are probably turned off. To turn them back on, access the “Side Tone” menu and select a setting
other than “off.”
Use the following procedure set side tone level:
1. Press the or buttons to cycle through the menu until “Side Menu” is displayed.
2. Press or to change to the desired level (Off, Low, Medium, and High). To turn side tones off
completely, use the “Off” setting.
8.19 CHANGE OPERATING MODE
8.19.1 From OTP to ECP Mode
Press 1#. If ECP is not loaded in the radio, the radio displays “No App.”
Method 1 (Quick Key, P5570 only):
1. Press the
Method 2:
or buttons to cycle through the menu until “App Mode” is displayed.
2. Press or to select the desired operation mode.
3. Press and use or to select Y or N.
4. Press to make selection and return to the dwell display.
5. “Restart Please Wait” appears in the display as the radio switches modes.
8.19.2
Press the
From ECP to OTP Mode
or buttons to cycle through available systems until “OPEN SKY” appears in the
display. Pause briefly and the radio will switch automatically from ECP to OTP operation.
8.20 RECEIVING AND TRANSMITTING VOICE CALLS
As soon as the radio completes the initialization sequence and registers on the OpenSky network, the user
will begin to hear calls from the talk groups in the active profile, if available.
8.20.1
No action is required to receive a voice call. The display responds to incoming voice calls as follows:
Receiving a Voice Call
• When the dwell display is set to received talk group and the scan mode is Normal or Fixed:
a. If the received talk group matches the selected talk group, then the alias (if available) or user ID
of the incoming caller is displayed.
b. If the received talk group does not match the selected talk group, then the received talk group
name is displayed.
• When the dwell display is set to received talk group and the Scan Mode is None, the radio only
receives voice on its selected talk group. When the call is received, the alias (if available) or the user
ID of the incoming caller is displayed.
• When the dwell display is not set to received talk group, then there is no display indication of an
incoming call.
14221-1400-2000
39
NOTE
A radio receiving a System All Call, Regency All Call, or an Agency All Call displays
“All Call” instead of the alias. A radio not transmitting on a talk group in emergency
status will drop all other calls to scan into an All Call.
8.20.2
1. Select the desired talk group.
Transmitting a Voice Call
2. Depress and hold the PTT button, wait a couple of seconds. If programmed by the administrator, a
grant tone will be sounded.
3. Begin speaking into the microphone in a normal voice.
4. For maximum clarity, hold the radio approximately 2 inches from your mouth. Take care not to cover
up the microphone while speaking.
5. Release the PTT button to terminate an outgoing voice call.
8.21 ADJUSTING AUDIO TREBLE LEVEL
The tone of received signals can be adjusted using the radio’s “Treble Menu.”
1. Press the or buttons to cycle through the menu until “Treble Menu” is displayed.
2. Press or to increase or decrease level. There are four levels available: low, medium, medium-
high, and high.
3. Press or wait a few seconds to return to the dwell display.
8.22 TALK GROUP LOCK OUT
There are two ways to focus voice communications by suppressing calls from talk groups in the active
profile.
• No Scan. By changing the Scanning Mode to “No Scan” only the selected talk group is scanned.
• Lock Out. By locking out selected talk groups, background noise or chatter can be eliminated and
scanning resources can be focused on just those groups whose calls you wish to monitor.
NOTE
Lock out is a listening (receive) function and only blocks received calls on locked out talk
groups. Lock out does not affect transmit capability. “No Scan” and “Lock Out” do not
apply to recent emergency lock outs.
Only talk groups in the active profile can be locked out, since they are the only talk groups whose voice
calls can be heard on the radio. Talk group lock out is a scan-related feature. With lock out, one or more
talk groups in the active profile can be temporarily disabled from being scanned. Calls are not received
on locked-out talk groups. Lock out settings are not retained between profile changes or when the radio is
power cycled.
NOTE
P1 and P2 groups CANNOT be locked out.
The default emergency and emergency-capable talk groups can be locked out if they are NOT in an
emergency state. If a talk group is locked out and is subsequently changed to the currently selected talk
14221-1400-2000
40
group, it will automatically be unlocked by the radio so the user can hear calls on the talk group. The
radio may be configured so all talk groups are automatically locked out by default. In this case, they must
be manually unlocked, if desired.
8.22.1
1. Use the
Lock Out a Talk Group
or buttons to scroll through the menu choices until “LockOutMenu” appears in the
display.
2. Use the or keys to scroll through the list of talk groups, if any, until the user group you want to
lock out appears in the display.
3. Press the key to select the lockable talk group.
4. “<” appears next to the locked out talk group.
8.22.2
1. Use the
Unlock a Talk Group
or buttons to scroll through the menu choices until “LockOutMenu” appears in the
display.
2. Use the or keys to scroll through the list of talk groups, if any, until the user group you want to
unlock appears in the display.
3. Use the key to unlock the displayed talk group.
NOTE
• Changing the active profile removes any lockouts you have made.
• Turning off the radio removes any lockouts you have made.
8.23 SCANNING
8.23.1
Three scanning modes are available for the radio, but only one can be active at any time. Changing the
scanning mode changes the way the radio scans voice calls for all of the profiles in the radio personality,
no matter which profile is or becomes active.
Selecting Scan Modes
The choice of scanning mode broadens or narrows the span of communications with all the groups in
profiles you listen to, but does not affect your interaction with those groups you talk with. The scanning
modes available for selection may be limited to a subset of the three scanning modes by the administrator.
14221-1400-2000
41
Table 8-8: Scan Modes
SCAN
MODE EXPLANATION
No Scan
Eliminates distractions.
Full communications (listen and talk) with the active talk group.
No calls received from other talk groups.
Normal
(Default)
The user can scan all talk groups in the active profile that are not locked out as long as there is demand on
the site.
Priority (P1 and P2) groups are user selectable.
Receive calls from more than one talk group, if available from the current site.
Allows dragging of the selected talk group, P1, P2, and default emergency talk groups to the site on which the
radio is registered. (If other calls are available at the site, they also can be heard but they will not be actively
dragged.)
The default emergency talk group, as well as any emergency-enabled talk groups, is only dragged if it is in
emergency mode.
Fixed Functions the same as Normal Scan Mode, except the priority groups are fixed to the selected profile’s pre-
defined P1 and P2 groups (configured via the UAS).
The scanning mode choice remains in effect until it is changed. Even if the radio is turned off, the current
scanning mode selection is saved for the next use.
8.23.2
8.23.2.1 Setting the Scan Mode
Changing Active Scan Mode
1. Press the or buttons until “ScnModeMenu” appears in the display.
2. Use the or keys to scroll through the list of modes until your choice appears: Normal, None, or
Fixed.
3. Press the key to activate the scan mode selection and return to the dwell display.
8.23.2.2 Duration of Scanning Mode Selections
Scanning Mode selections survive power down. At startup, the radio defaults to the scanning mode of set
during last use. The last selection made remains in effect until a new selection is made from the Scan
Mode menu.
8.23.3
The following lists the scanning priority order (from highest to lowest):
Scanning Priority
• Selected talk group in emergency state.
• Default emergency group in emergency state.
• Selected talk group.
• Emergency capable group in emergency state.
• Priority 1 talk group.
• Priority 2 talk group.
• Other (non-priority).
14221-1400-2000
42
8.23.3.1 Changing Scan Priority
1. Press the or keys until “Priority1” or “Priority2” appears in the display (Priority1 group has
higher priority than the Priorty2 group).
2. Press the or button until the desired talk group is displayed.
3. Press the key to select and activate the selection. The radio automatically returns to the Dwell
Display.
NOTE
• Changing the priority of a listen group does not change your talk group.
• Priority can be set for two talk groups (Priority1 and Priority2), but only in the selected
profile.
• The scanning priority settings are reset to the default values when the radio is turned
off.
8.23.4
Pres 3# to toggle Scan mode on and off.
Scan Mode Quick Key (P5570 Only)
If the Scan mode icon (see Table 8-3) is On; either the Normal or Fixed Scan modes are enabled,
depending on programming. If the Scan mode icon is not displayed, Scan mode is set to No Scan.
8.24 MAKING SELECTIVE CALLS
Selective calling is the capability for two voice radio units to obtain and use an independent talk path for a
unit-to-unit call. A properly equipped radio can initiate a selective call to any radio in the system that is
also programmed for selective calls.
In the OpenSky system, a radio can be configured to initiate selective calls through a pre-programmed list
in memory called a speed dial list. Alternatively, a properly equipped radio can initiate a selective call to
any radio in the system by entering the ten-digit User ID (similar to a telephone number) of the target
radio. Some radios are configured to only receive (not initiate) selective calls.
NOTE
Selective calls are terminated if an emergency is declared. The network limits selective
calls to ten (10) minutes maximum.
NOTE
If a Selective Call is attempted without registration, “No Priv” is displayed.
8.24.1
1. Enter *8, the User ID number of the user being called, and the # key (no dashes or spaces). Note that
this feature must be enabled by the administrator.
Manually Dialing a Selective Call (P5570 Only)
*8<destination user id>#
A shortened User ID number can be dialed using the following guidelines:
• If the radio being called is in the same region and agency – enter only the last four digits.
• If the radio being called is in the same region, but a different agency – enter the last seven digits.
14221-1400-2000
43
• If the radio being called is in another region or if the area is unknown – enter all ten digits.
2. Press the PTT (and release) to ring the other user.
The ring tone is sounded.
If the other user accepts the call, the called user’s alias will appear in initiating caller’s display. The
two are now in a unit-to-unit call until one ends the call, the call is terminated due to an initiated
emergency, or the maximum time limit of ten (10) minutes is reached.
If the called radio is busy “BUSY” will appear in the second line of the display.
Table 8-8 lists and defines the messages that are displayed by the radio during a selective call.
Table 8-9: Status of Selective Call
STATUS
MESSAGE DEFINITION
Busy Peer is involved in another selective/PSTN call.
Disconnect Selective/PSTN call was terminated for unknown reason.
Network Err Selective/PSTN call cannot continue because of an unspecified network error.
Reject Peer or this user declined request to establish selective/PSTN call.
Unavailable Peer cannot be reached for selective/PSTN call.
Calling Calling peer (i.e., for selective or PSTN calls).
Connecting Establishing selective/PSTN call with peer.
Hangup Peer or this user terminated selective/PSTN call.
Lim 10 min Selective/PSTN call limited to 10 minutes.
Timing Out Selective/PSTN call has 10 seconds remaining before limit is reached (shown for 5 seconds).
Sel Call Selective call is active.
8.24.2
Selective Call Using Speed Dial
NOTE
Speed dial numbers are defined and provisioned by the OpenSky network administrator and
cannot be manually entered into the radio by the user. Contact the administrator if changes
to the speed dial list are required.
• Scroll through the Menu options using the or button until “Speed Dial” appears in the second
line of the display. Using the or keys, scroll through the pre-programmed speed-dial numbers
until the desired number appears in the display and press the PTT button.
OR
• Press and hold a key associated with a given number for more than three seconds. For example, press
and hold the to open the Speed Dial Menu and display the number assigned to that key in the
speed dial list. Press the PTT button.
A ring tone is sounded.
If the other user accepts the call, the called user’s alias will appear in initiating caller’s display. The two
are now in a unit-to-unit call until one ends the call, or the call is terminated due to an initiated
emergency.
If the called radio is involved in another selective call, “BUSY” will appear on the second line of the
display. “Unavailable” is displayed when the call has not been answered after a 1 minute timeout or
when the other party is not registered on the network.
14221-1400-2000
44
8.24.3
1. The radio will ring (like a telephone), indicating you are receiving a Selective Call.
Accepting a Selective Call
2. Press , , or buttons to accept the incoming Selective Call.
3. “CONNECT” appears in the display, followed by “Lim 10 Min.,” “SEL CALL,” and the alias of the
caller, once the call is established.
8.24.4
When a Selective Call is received (the radio is ringing), you can reject the call by pressing
Rejecting a Selective Call
or . The
call is rejected and “Reject” appears on the callers display.
8.24.5
Terminate a Selective Call (call must be active) by pressing the
Terminating a Selective Call
or button. “HANGUP” will
appear in the display followed by the active talk group.
8.25 SELECTIVE ALERTS
Selective alert messaging is an OTP feature that allows one of up to eight (8) pre-programmed (canned)
text messages to be sent from one radio to another. The sender specifies a destination (receiving) radio,
selects one of the pre-programmed text messages, and then transmits it to the destination radio. The
message delivery system adds sender and time-of-day information and forwards the message to the
destination (receiving) radio. The sending radio receives a brief message noting the status of the
transmission.
Received messages are stored in the radio until deleted or until the radio is rebooted. Received messages
do not survive a reboot.
8.25.1
All selective alert messages are pre-defined. The messages are programmed and provisioned remotely by
your OpenSky system administrator. The radio user cannot create selective alert message content. The
entire selective alert message, including the abbreviation, can be up to 99 characters long.
Defining Messages
Table 8-9 lists and defines the messages that may be displayed by the radio during a Selective Alert.
Table 8-10: Status of Selective Alert Messages
STATUS
MESSAGE DEFINITION
Alert Sent Alert message successfully sent to target.
Delivered Alert message passed to network.
Delivering Delivering alert message to target.
New alert New alert message received.
No alerts No alerts are available.
Busy VNIC congested and cannot deliver message at the current time.
Dest Down Destination home VNIC down.
Ignored Destination is either non-responsive or does not care to respond.
Inv Option Distribution option is invalid.
Not Reg Destination is not registered.
Partial Not all destination ESN instances reachable.
Unauth Alrt Unauthorized service function; initiator is not authorized to send the selected service message.
Unknown Msg Unknown status received from VNIC.
14221-1400-2000
45
STATUS
MESSAGE DEFINITION
Unreachable Alert destination cannot be reached.
8.25.2
The sending process has three steps. First select the destination radio’s User ID, then select the alert
message, and finally send the message. Refer to the procedures in subsections
Sending a Message
8.25.2.1 or 8.25.2.2 for
instructions on selecting a destination for a Selective Alert Message.
8.25.2.1 Selecting a Destination Using the Keypad (P5570 Only)
1. Using the keypad, enter *7.
At the “AlertDst” prompt, enter the full User ID of the unit to send the message. A shortened User
ID number can be dialed using the following guidelines:
• If the radio being called is in the same region and agency – enter only the last four digits.
• If the radio being called is in the same region, but a different agency – enter the last seven digits.
• If the radio being called is in another region or if the area is unknown – enter all ten digits.
2. Press the key to activate the selection.
3. Use the and buttons, or the and buttons to scroll through the available messages until
the desired message is displayed.
4. Press the or key to send the message.
5. Observe Status Messages (Table 8-10) to ensure proper delivery.
8.25.2.2 Selecting a Destination Using the Menu
1. Using the or key, scroll through the menu until “AlertDst” (Alert Destination) appears.
2. Use the or button to scroll through the list of User IDs until the desired destination is displayed
and press the key.
3. Use the or buttons to scroll through the available messages until the desired message is
displayed.
4. Press the key to send the message.
5. Observe Status Messages (Table 8-10) to ensure proper delivery.
8.25.3
When a selective alert message is received by a radio, a four-beep tone is heard. The tone is heard only
once, but the message “NEWALRT” alternates with the talk group on the main display. Up to 8 received
messages can be stored. If a ninth message is received, the first (oldest) message is automatically deleted
to make room for the new message.
Receiving a Message
Received messages are displayed with the time and source information.
To display a Selective Alert Message:
1. Using the or button, scroll through the menu items until “Alerts Rcvd” appears. The oldest
message is displayed and scrolls across the top line of the display.
14221-1400-2000
46
2. The message includes the time, the User ID, and alias of the sender along with the message.
3. To view the next message, press the or button to go forward or backwards.
8.25.4
1. Display the message.
Deleting a Selective Alert Message
2. Press the key and or to select Y or N.
3. At the “Delete? Y” prompt, press the key. The message will be deleted.
NOTE
Received messages cannot be saved.
8.26 MAKING INTERCONNECT CALLS (P5570 ONLY)
1. Using the keypad, enter *9, followed by the telephone number being called, and the # key (no dashes
or spaces).
*9<telephone number>#
Wait a couple of seconds and press and release the PTT button to initiate the call. An initial ring tone
will sound to indicate signal call initiation. Once the gateway picks up the call, the ring tone will
change. Press and hold the PTT and talk normally then release the PTT to listen.
2. To hang up the call, press the button or the key.
8.27 EMERGENCY COMMUNICATIONS
The P5500 portable radio is capable of sending an emergency alert and making emergency calls on the
network. The OpenSky system handles emergency calls with the highest priority, allowing you or the
people you serve to get needed help.
Emergency call and alert capability for a profile is configured by the system administrator.
NOTE
The radio that initiates an emergency alert emits a signal of 3 distinct beeps that only goes
to the dispatch console.
Table 8-11: Emergency Calls vs. Emergency Alerts
EMERGENCY ALERT EMERGENCY CALL
An Emergency Alert message is sent to
the dispatcher
console. The dispatch
console plays an emergency tone when it
receives the message.
An Emergency Alert message is sent to the dispatcher console. All peers
(radios and consoles) and the dispatch console play the emergency tone
whenever an emergency call is detected. An emergency tone plays for each
new emergency, or when a profile is changed, (assuming there is an
emergency on one of the talk groups for the new profile).
If the orange LED is flashing rapidly, the radio is receiving an emergency
call. If the LED is flashing every ½ second, the selected talk group is in the
emergency state (although not transmitting). If the selected talk group is in
the emergency state, an asterisk displays next to the talk group name.
14221-1400-2000
47
EMERGENCY ALERT EMERGENCY CALL
No emergency audio (voice) transmission
(hot-
mic) capability available (per
programming by system administrator)
In addition to the Emergency Alert signal, the microphone goes hot for a
predetermined length of time to allow for emergency audio (voice)
transmission. The radio declaring the emergency has channel access
priority. Note that the User can also use the PTT after the pre-determined
hot-mic audio transmission, or during to extend the initial hot-mic audio
transmission.
8.27.1
1. Press the red emergency button on the radio to enter emergency mode.
Declaring an Emergency Call or Alert
NOTE
The emergency behavior for the selected profile is configured by the network
administrator.
This determines whether pressing the Emergency button sends an
Emergency Call or just an Emergency Alert. An Emergency Alert is always part of and
sent with an Emergency Call.
If the active profile of the unit initiating the emergency is configured to Emergency Alert, the three-
beep emergency alert signal is sent only to the dispatcher console.
If the active profile of the unit initiating the emergency is configured to Emergency Call, the three-
beep emergency alert signal is sent to the dispatcher console and to all other radios within the selected
talk group. The default emergency talk group becomes the selected talk group. The display will
alternate between the emergency talk group name and “EMERGENCY” to indicate that the
emergency has been initiated.
2. The microphone is hot (open mic) for a programmed amount of time in order to send your voice out
on the emergency talk group.
If the attempt is unsuccessful, “E-PEND” flashes periodically and a retry is queued for 10 seconds. If
unsuccessful because of lost sync, retry occurs immediately upon reacquiring sync. On each retry attempt,
the radio temporarily displays “E-RETRY.” This process repeats until the emergency is successfully
declared.
8.27.2
When receiving an emergency call, the radio sounds the emergency tone (three short high-pitched tones).
Receiving an Emergency Call
The radio will flash “EMERGENCY” and display the alias of the user that triggered the emergency or the
alias of the talk group (if the incoming talk group is the selected talk group of the receiving radio).
With “No Scan,” only the emergency tone is heard, not the initial open mic transmission.
To dismiss or ignore the emergency, refer to Section 8.27.3.
8.27.3
The “Dismissing an Emergency” function allows you to “ignore” an emergency declared by another user.
Dismissing an Emergency
NOTE
An emergency is dismissed for a configurable amount of time (default = 5 minutes).
1. After receiving an emergency call, press the or button until you see “EmgDismiss.”
14221-1400-2000
48
2. Press the to toggle “<” on (dismiss) and off. This works in similar fashion to the lock out menu.
NOTE
The emergency dismiss timer is cleared when the emergency is cleared.
8.27.4
Clearing an Emergency Call or Alert
NOTE
Check with your system administrator to ensure that your radio is configured with the
ability to clear an emergency.
1. To clear an emergency, press and hold . While holding , press the emergency button. Release
both buttons when the “emergency cleared” tone sounds.
2. The radio returns to your default selected talk group. The “EMERGENCY” display is removed from
the main screen.
NOTE
If the radio is in stealth mode, clearing the emergency will cause the radio to exit stealth
mode.
8.28 OPENSKY ENCRYPTION
In the OpenSky network, both data and voice use a 128-bit or 256-bit key encryption standard published
by the Federal Information Processing Service (FIPS), called Advanced Encryption Standard (AES).
AES is approved by the U.S. Department of Commerce for encryption of classified materials.
When encryption is enabled on the network, data is encrypted from the MDIS to the Mobile End System
(MES) (e.g., P5500 portable radio). This form of encryption provides airlink security.
Voice encryption is handled either automatically or manually. Automatic encryption is initiated through
the Unified Administration Server (UAS) for a specific talk group and requires nothing from the user.
Manual encryption is initiated by two or more radio users. Both methods of encryption are discussed in
the following sections.
NOTE
When a user transmits encrypted voice, any listening users with different encryption keys
hear distorted voice and “No Access” appears in the radio display.
8.28.1
For automatic encryption, a system administrator will select the talk group to be encrypted at the interface
to the UAS. Once the talk groups have been selected and identified as secure, credentials for key
generation are generated automatically by the system and provisioned to authorized users. This process
requires that authorized users login to the network and be authenticated. Encryption keys require no
manual handling and are never sent “in the clear” over any network interface or airlink.
Automatic Encryption
14221-1400-2000
49
8.28.1.1 Using Automatic Encryption
1. Locate the talk group that has been encrypted at the system administrator level.
2. “Pls Login” appears in the display (unless the keypad was used to log in).
3. Log in normally by entering your User ID and Password.
If a user is engaged in a call on a talk group encrypted at the network administrator level, “Secure Call”
will appear in the second line of the dwell display if the user is logged in to that talk group.
If a secure call is in progress elsewhere and the user has not logged in, the bottom of the dwell display
will alternate between “No Access” and the alias of the radio that is currently engaged in the secure call.
NOTE
If enabled via programming, a radio can automatically login at voice registration and enable
voice encryption.
8.28.2
Two or more users can manually encrypt a call, if enabled, without an established encrypted talk group.
A pre-determined “key or code” is required. Note that while a user is engaged in an encrypted call, users
within the talk group that are not encrypted can still make standard voice calls on that talk group. The
encrypted user can hear the standard unencrypted calls, but cannot respond while still manually
encrypted.
Manual Encryption (P5570 Only)
Manual key entry only affects the currently selected talk group. All available talk groups within the
current profile may be independently encrypted.
NOTE
The key must be pre-determined by the users prior to making a manually encrypted call on
a talk group and is entered into the radio using the keypad. For 128 bit encryption, this
key is between 1 and 16 digits. For 256 bit encryption, this key is between 17 and 32
digits.
8.28.2.1 Using Manual Encryption
1. Press *32 on the keypad.
2. Enter the key (1 – 16 digits for 128 bit encryption; 17 – 32 digits for 256 bit encryption).
3. Press #.
4. To end manual encryption, press *33.
If a user is engaged in a call on a talk group that has been manually encrypted at the radio level, the user
will see “Secure Call” on the bottom of the dwell display.
If a secure (encrypted) call is in progress, and the user has not entered the key, the bottom of the dwell
display will alternate between “No Access” and the alias of the radio that is currently engaged in the
secure call.
Once the user has terminated manual encryption, “UnSecure” appears temporarily in the bottom line of
the dwell display.
14221-1400-2000
50
8.29 DYNAMIC REGROUPING
Dynamic regrouping requires that the network administrator determine which radio users should be
formed into an impromptu talk group to respond to particular emergency conditions.
The administrator will edit the personalities of the affected radios to include an emergency profile and
then page the affected radios to re-register with the network to receive their edited personalities.
In response, affected radios automatically re-register to receive their edited personalities. During re-
registration, subscriber equipment will default to the emergency profile selected by the administrator.
8.30 STATUS MESSAGES
If enabled via programming, the radio can transmit a pre-programmed status message. Section 8.30.1
describes how to send a status message via the keypad and Section 8.30.2 describes how to send a status
message via the menu.
8.30.1
1. Press *2 <0…9> # on the keypad.
Send Status Message via the Keypad (System Model Radios Only)
2. A Status message can be associated with each key (0 – 9). This text is displayed on the first line of the
display when the key is pressed until another key is pressed.
• If no messages have been configured, “No Messages” is displayed.
• If a message is not assigned to a key, “No Entry” is displayed for the keypad sequence.
• You can press multiple keys to select the desired Status message.
3. The # key terminates the keypad sequence and sends the currently selected status message. If no
messages have been configured or no message is associated with the key, no message is sent and an
error tone is played.
Press the * key to cancel the keypad sequence.
8.30.2
1. Press
Send Status Message via the Menu
or until “Status Msg” appears and press . If no messages have been configured,
“No Messages” is displayed.
2. Scroll through the available messages using or . The configured Status message is displayed on
the 1st line of the display.
3. Press the button to send the currently selected message. If no messages have been configured, no
message is sent and an error tone sounds.
Press or to cancel status message selection.
8.31 REQUEST TO TALK (RTT) MESSAGES
If enabled via programming, the RTT message feature allows you to send either a short service message
to the VNIC. Section 8.31.1 describes how to send an RTT message via the keypad and Section 8.31.2
describes how to send an RTT message via the menu. Note that only one RTT message can be
programmed into the radio.
14221-1400-2000
51
8.31.1
1. Press *5 <0…9> # on the keypad. The key associated with the RTT message (0-9) is configured via
programming.
Send RTT Message via the Keypad (System Model Radios Only)
2. This message is displayed on the first line of the display when the key is pressed until another key is
pressed.
• If no message has been configured, “No Message” is displayed.
• If a message is not assigned to the key, “No Entry” is displayed for the keypad sequence.
3. The # key terminates the keypad sequence and sends the currently selected RTT message. If no
message has been configured or no message is associated with the key, no message is sent and an
error tone is played.
Press the * key to cancel the keypad sequence.
8.31.2
1. Press
Send RTT Message via the Menu
or until “RTT Msg” appears and press . If no message has been configured, “No
Message” is displayed.
2. Use or to select the message. The configured RTT message is displayed on the 1st line of the
display.
3. Press the button to send the selected message. If no message has been configured, no message is
sent and an error tone sounds.
Press or to cancel RTT message selection.
8.32 GPS COORDINATES
The radio’s current latitude and longitude coordinates may be displayed using the “GPS” menu. The
following procedure assumes a GPS antenna is connected to the radio and it is receiving adequate signals
from GPS satellites.
1. Press or until the “GPS” menu appears in the display. Current GPS coordinate latitude and
longitude data continuously scrolls in the top line of the display in a degrees:minutes:seconds format.
2. Press or to change to another menu.
NOTE
If the internal GPS receiver’s data is expired (30 minutes or more) or unavailable, the
radio uses the serving base station’s coordinates [GPS (Site) is displayed]. The GPS
Menu will also indicate if the data is aged (2 minutes or more) [GPS (Aged) is displayed].
8.33 V-TAC OPERATION
8.33.1
In addition to all standard portable radio operating capabilities, Extended Coverage adds the V-TAC’s
bridging (vehicular repeat) functionality for accessing the OpenSky radio network. Each portable radio
connected to the V-TAC using Extended Coverage is considered a “client” on the V-TAC. Extended
Coverage benefits portable radio users since it allows them to get network connectivity using the
V-TAC’s higher transmit output power and better antenna system.
Extended Coverage Modes (XCOV, XCOV-TG, and XCOV-PROF)
14221-1400-2000
52
The V-TAC supports three Extended Coverage modes: Extended Coverage for individual users (XCOV),
Extended Coverage for a talk group (XCOV-TG), Profile Extended Coverage (XCOV-PROF). Typically,
Extended Coverage is used after the vehicle’s operator has exited the vehicle with a portable radio unit
and the portable unit requires this bridging functionality to access the OpenSky radio network.
The V-TAC takes advantage of OpenSky’s TDMA capability to eliminate interference between its local
and network radio links when operating in an Extended Coverage mode, an undesirable characteristic of
many traditional vehicular repeater systems. Because the V-TAC employs this technology, interference
on the network and local radio links is minimized.
A V-TAC in Extended Coverage mode sends its alias to clients. The alias is displayed in the second line
of the dwell menu of the client, (“VA <alias>”). The client must be connected to a V-TAC running
version OTP14.4 or for the V-TAC to provide the alias to the client. If the client is connected to a V-TAC
running version OTP14.3.1 or earlier, the client displays “VA None.”
8.33.2
By default, the specific Extended Coverage mode utilized is determined by commands sent to the V-TAC
and portable radios from the system administrator or radio installation personnel. These commands
determine which Extended Coverage mode the V-TAC and radios normally use and determine the access
method employed by a portable radio to connect to the V-TAC. After these commands are sent to the
V-TAC and portable radios, each must be rebooted (powered off and then back on) before the change
takes effect.
Change Between Extended Coverage Modes
See the following sections for instructions on how to override this command manually. Note that the
override is only successful if the V-TAC operating mode matches the manually selected portable V-TAC
mode.
8.33.3
Connecting a portable radio to a V-TAC introduces minor functional limitations. See the following
sections for a listing.
Radio Limitations Using Extended Coverage Modes
8.33.3.1 Limitations Using Both XCOV and XCOV-TG
Portable radios connected to the V-TAC using either of the Extended Coverage Modes, XCOV or
XCOV-TG, will not channel-scan unless they lose radio frequency contact with the V-TAC. If manually
enabled, radios will not scan network channels.
8.33.3.2 Limitations Using XCOV-TG
The following portable radio keypad functions are disabled when the radio is connected to the V-TAC
using the XCOV-TG mode: log-off, manual log-in, alerts, selective calls, PSTN calls, and speed dial
calls.
The following portable radio menus are disabled when the radio is connected to the V-TAC using the
XCOV-TG mode: alert destination, alert message, alert received, priority talk group, and scan mode. In
addition, the user cannot change talk group or profile.
8.33.4
The Extended Coverage for individual users (XCOV) mode allows up to eight (8) client radios to connect
to the V-TAC. The radios have full radio functionality including selective calling and mobile data.
Use XCOV Mode
With the Extended Coverage for individual users’ (XCOV) mode, V-TAC configuration defines which
portable radios are permitted V-TAC access. The radio will automatically connect to a V-TAC if it
14221-1400-2000
53
cannot find a network channel. The radio can also be manually connected to a V-TAC as indicated with
the *61# and *62# commands, each determined by the system administrator in the radio configuration.
8.33.4.1 Manually Accessing the XCOV Mode
1. Press *61# to manually access XCOV mode.
P5570 Model Radios
2. Press *60# to disconnect from XCOV mode.
1. Press
All P5500 Model Radios
or until the Client Mode menu appears.
2. Press or until XCOV is displayed.
3. Press to confirm mode selection. The radio reverts to the dwell display and the V-TAC icon is
displayed.
8.33.5
When using the XCOV-TG mode, up to thirty (30) client radios can connect to the V-TAC. However,
unlike XCOV, radios connected using XCOV-TG are limited to communicating only on the XCOV-TG
talk group and emergency communications. Advanced features such as selective calling and mobile data
operations are not available to the XCOV-TG connected clients.
Use XCOV-TG Mode
The talk group used for XCOV-TG communications is the talk group that was selected at the V-TAC
when it entered XCOV-TG mode. Before a radio can connect to the V-TAC, the talk group must be
selected on the P5500. If this talk group is not provisioned in the radio’s personality, the radio cannot
connect to the V-TAC via the XCOV-TG mode. While connected to the V-TAC via XCOV-TG, a
different talk group or profile cannot be selected.
When a portable radio is connected to the V-TAC via XCOV-TG, the V-TAC forwards only the network
voice traffic on the XCOV-TG talk groups.
8.33.5.1 Manually Accessing the XCOV-TG Mode
For the Extended Coverage for a talk group mode (XCOV-TG), a portable radio user is granted access
and connects to the V-TAC by simply selecting the same Talk Group that the V-TAC had selected when
it entered the XCOV-TG mode. Contact the system administrator for questions regarding these aspects.
During XCOV-TG mode operations, the V-TAC will not disconnect portable radios connected to it. A
portable radio user must manually disconnect from the V-TAC by pressing *60 # on the radio’s keypad.
However, if the V-TAC is switched out of the XCOV-TG mode, all portable radios will be automatically
disconnected from the V-TAC. The radios will continue to look for another V-TAC until manually
disconnected (*60#).
• Press *62# to manually access XCOV-TG mode.
P5570 Model Radios
• Press *60# to manually disconnect XCOV-TG mode.
1. Press
All P5500 Model Radios
or until the Client Mode menu appears.
2. Press or until XCOV-TG is displayed.
14221-1400-2000
54
3. Press to confirm mode selection. The radio reverts to the dwell display and the V-TAC icon is
displayed.
8.33.6
In XCOV-PROF mode, client attachment to a VTAC is based on profile rather than talk group.
XCOV-PROF mode allows the transmission and receipt of voice calls on any talk group in the profile as
opposed to only one talk group. XCOV-PROF allows emergencies on a non-selected talk group based on
the emergency behaviors of the profile. XCOV-PROF minimizes data traffic between the client and
VTAC while allowing flexibility of voice functionality. As a result, data services between the client and
VTAC are disabled.
Using XCOV-PROF Mode
Note the following regarding XCOV-PROF mode:
• The client profile must match the VTAC.
• The client profile used to connect to the VTAC must have been previously provisioned to the client
prior to connection. If the profile is not in the client’s personality, the client cannot connect to the
VTAC.
• Neither the VTAC nor a client can change the profile once it has entered XCOV-PROF mode. The
Profile menu will be disabled.
• Client global profiles are disabled.
8.33.6.1 Access XCOV-PROF Mode
P5570 Model Radios Only
• Enter the command *63 # to set the radio to use the XCOV-PROF mode.
:
• Press *60 # to disconnect from the XCOV-PROF mode.
All P5500 Model Radios
1. Press
:
or until the Client Mode menu appears.
2. Press or until XCOV-PROF is displayed.
3. Press to confirm mode selection. The radio reverts to the dwell display and the V-TAC icon is
displayed.
8.33.7
The Scene-of-Incident mode (SOI) is user-selectable. The SOI mode provides a local repeater function
(V-TAC) with no network connection.
Use Scene-of-Incident Mode
CAUTION
When operating in the SOI mode, the radio is disconnected from the OpenSky network.
Therefore, communications with radios and dispatch personnel on the network is not
possible.
1. Press *4#.
SOI Mode, Manual Channel Entry (P5570 Model Only)
2. The radio prompts for the channel. Enter the channel number and press to confirm channel.
3. The radio prompts for the band. Table 8-12 lists valid bands and their definitions. Enter the number
assigned for the desired frequency band and press to confirm.
14221-1400-2000
55
4. The radio reverts to the dwell display. If accepted, you will be switched off the network, and be
communicating locally through the V-TAC.
Press *40# or use the Client Mode menu to return to normal operation (Network Mode). The personality
and profile in use at the time the radio entered SOI mode is restored.
1. Press
SOI Mode, Manual Channel Entry (All P5500 Models)
or until the Client Mode menu appears.
2. Press or until SOI is displayed.
3. Press to confirm mode selection.
4. Press or until “Manual Select Chan” is displayed and press .
5. Press or to edit the right-most digit and press to advance to the next digit. Repeat until the
desired channel is entered.
6. The radio then prompts the user to edit the band. Table 8-12 lists valid bands and their definitions.
Press or to edit the number assigned to the frequency band and press to confirm and enter
the SOI mode.
Use the Client Mode menu to return to normal operation (Network Mode). The personality and profile in
use at the time the radio entered SOI mode is restored.
1. Press
SOI Mode, Pre-Programmed Channel Selection (All P5500 Models)
or until the Client Mode menu appears.
2. Press or until SOI is displayed.
3. Press to confirm mode selection.
4. Press or scroll through a list of pre-programmed channels.
5. Press to confirm channel and enter SOI mode.
Use the Client Mode menu to return to normal operation (Network Mode). The personality and profile in
use at the time the radio entered SOI mode is restored.
14221-1400-2000
56
Table 8-12: Band Definitions
RF BAND
RF CHANNEL NUMBER
0 = SMR
Band 0: 1-830
1 = AMPS
Band 1: 1-600
2 = BORDER
Band 2: 1-600
3 = 700 MHz Band 1
Band 3: 1-477
4 = 700 MHz Band 2
Band 4: 481-957
5 = 700 MHz Band 3
Band 5: 1-477
6 = 700 MHz Band 4
Band 6: 481-957
7 = 900 MHz
Band 7: 1-399
8 = 800 MHz Rebanded
Band 8: 1-830
9 = 400 MHz T band WB
Band 9: 1-6718
(Independent Separation Between TX and RX)
10 = 400 MHz T band NB
Band 10: 1-6718
(Independent Separation Between TX and RX)
11 = 400 MHz T band Temp (NYPD only)
Band 11: 1-120
14 = 700 MHz reband WB
Band 14: 1-957
15 = 700 MHz reband NB
Band 15: 1-959
14221-1400-2000
57
9. EDACS, CONVENTIONAL, P25 (ECP) OPERATION
9.1 TURNING ON THE RADIO
1. Power ON the radio by rotating the POWER ON-OFF/VOLUME knob clockwise. A short alert
signal (if enabled through programming) indicates the radio is ready to use.
2. The display shows the last selected system and group or a default system and group (depending on
programming).
3. Adjust the POWER ON-OFF/VOLUME knob to the desired volume level.
4. Select the desired system and group. The display indicates the current system and group names.
5. The radio is now ready to transmit and receive calls.
NOTE
In the trunked environment, CC SCAN will be displayed if communication with the
system's control channel cannot be established. This may occur if, for example, the radio
is out of range of the trunking site. It may be necessary to move to another location or
select another trunking system to re-establish the control channel link for trunked mode
operations. CC SCAN is displayed on the group line until a control channel is accessed.
9.2 CONTROLS
The radio features two rotary control knobs, an emergency button, and a dual position A/B switch
mounted on the top of the radio. The Push-To-Talk and two option buttons are located on the side. The
front mounted keypad has six buttons on the P5550 Scan model and 15 buttons on the P5570 System
Model Radio.
Figure 9-1: Top View Figure 9-2: Side View
14221-1400-2000
58
9.2.1
The functions of the buttons, knob controls, and dual position A/B Switch vary depending on the mode of
operation. Their functions while in EDACS (ECP) mode are discussed in the following paragraphs.
Refer to
Buttons, Knobs, and Switch
Figure 9-1 and Figure 9-2.
Table 9-1: Buttons, Knobs, and Switch Functions
POWER ON-
OFF/VOLUME KNOB Applies power to and adjusts the receiver’s
volume. Rotating the control clockwise
applies power to the radio. A single alert tone (if enabled through programming)
indicates the radio is operational.
Rotating the control clockwise increases the volume level. Minimum volume levels may
be programme
d into the radio to prevent missed calls due to a low volume setting.
While adjusting the volume the display will momentarily indicate the volume level (
i.e.,
VOL=31
). The volume range is from a minimum programmed level of zero (displayed
as OFF in the display) up to 40, which is the loudest level.
VOICE GROUP
SELECTION
CONTROL KNOB
Selects systems or group/channels (depending on programming). This is a 16-
position
rotary knob.
Note: A mechanical stop, which can limit the positions accessed, i
s shipped with the
radio but must be installed. To install the mechanical stop, remove the Voice Group
Selection control knob, loosen the set screw on the Voice Group Selection control knob
metal base (using a 1.27 mm hex wrench), and remove the Voice Gro
up Selection
control knob metal base. Replace the 16 channel ring with the channel stop ring located
at the desired channel. Reinstall the Voice Group Selection control knob metal base,
tighten the set screw, and reinstall the Voice Group Selection control knob.
EMERGENCY/
HOME BUTTON Automatically selects the pre-
programmed Group/System by pressing and holding for a
programmed duration. It can also be used to declare an emergency by pressing and
holding for a programmed duration. The button must be pre-
programmed for either
operation, but not both.
PTT BUTTON Push-To-
Talk must be pressed before voice transmission begins. In trunked mode the
radio’s ID is transmitted upon depression of the PTT button.
SIDE OPTION
BUTTON 1 Activates one of a numb
er of programmable software options selected during PC
programming. Programmable options include hi/low power settings, keypad lock, LCD
contrast, and LCD and keypad back lighting.
SIDE OPTION
BUTTON 2 Exits the current operation (removing all displays
associated with it) and returns the
radio to the selected talk group. Terminates individual and telephone interconnect calls.
A/B SWITCH In ECP mode, can be pre-
programmed to switch between two available software
options.
14221-1400-2000
59
9.2.2
The front mounted keypad of the P5550 “Scan” model has six buttons and P5570 “System” model has 15
buttons. Refer to
Keypad
Figure 9-3 and Figure 9-4, respectively.
Figure 9-3: P5550 “Scan” Model Front Panel
Table 9-2: P5550 Keypad Functions
KEY FUNCTION
Primary Function: Accesses the pre-stored menu.
Secondary Function: Activates a selected item within the menu. This is similar to an
“Enter” key.
Scrolls thru available menu items.
Adds/Deletes selected groups or channels from SCAN list of the currently selected
system.
Toggles SCAN operation ON and OFF.
Activates one of any programmable software options selected during the PC
programming, including: high/low TX power and talkaround.
14221-1400-2000
60
Figure 9-4: P5570 “System” Model Front Panel
Table 9-3: P5570 Keypad Functions
KEY FUNCTION
Primary Function: Accesses the pre-stored menu.
Secondary Function: Activates a selected item within the menu. This is similar to an
“Enter” key.
Primary Function: Allows the user to scroll through available systems, groups, or
channels, depending on personality programming.
Secondary Function: Changes the selection for an item within a list.
Primary Function: Refer to the separate key definitions within this table.
Secondary Function: These keys function much as a typical DTMF telephone pad 0-9,
*, and # keys; and are used to place telephone interconnect and individual (unit-to-
unit) calls.
Selects a specific system. If the rotary knob is used to select the system and more
than 16 systems are programmed in the radio, the key is used to select additional
banks (groupings) of systems.
Selects a specific group.
Turns the Scan operation ON and OFF.
Enables or disables Private Mode (encryption) for the system/group/channel
displayed.
Adds groups or channels from the currently selected system to the Scan list.
Status. Access to the status list (0-9). The Status key permits the transmission of a
pre-programmed status message to an EDACS site.
Message. Access to the message list (0-9). The Message key permits the
transmission of a pre-programmed message to an EDACS site.
Deletes selected groups or channels of the currently selected system from the Scan
list.
Initiates telephone interconnect calls.
Initiates individual unit-to-unit calls.
14221-1400-2000
61
9.3 DISPLAY
The radio display is made up of 3 lines (see Figure 9-5). Lines 1 and 2 contain eight alphanumeric
character blocks and are used primarily to display system and group names. Line 1 also displays radio
status messages. The 3rd line is used primarily to display radio status icons. All three lines are used to
display menu options when in the menu mode. If programmed, the display backlighting will illuminate
upon power up or when radio controls are operated.
Figure 9-5: Radio Display
14221-1400-2000
62
9.4 RADIO STATUS ICONS
Status Icons indicate the various operating characteristics of the radio. The icons show operating modes
and conditions and appear on the third line of the display (see Table 9-4).
Table 9-4: Status Icon Descriptions
STATUS ICON DESCRIPTIONS
Steady – During all radio transmissions. Appears in the 1st position of the display.
Steady – “Busy” transmitting or receiving. Appears in the 2nd position of the display.
Flashing – Call is queued.
Steady – T99 Mode enabled. Appears in the 3rd position of the display.
Steady – Channel Guard enabled. Appears in the 4th position of the display. If icon is not visible – Channel Guard is
disabled.
Steady – Trunked system in Failsoft™ mode. Appears in the 4th position of the display.
Steady – Transmit at low power. Appears in the 5th position of the display.
If icon is not visible – Transmit at high power.
Steady – Transmit in encrypt mode. Appears in the 6th position of the display.
Flashing – Receiving an encrypted call.
Steady – Indicates the current channel is set up as a Project 25 (P25) channel. Appears in the 7th and 8th positions of
the display.
Steady – Indicates the current channel is set up as a ProVoice channel. Appears in the 7th position of the display.
Steady – Indicates the current channel is set up as an analog channel. Appears in the 7th position of the display.
Animated (rotates clockwise) – Scan mode enabled. Appears in the 9th position of the display.
If icon is not visible – Scan is disabled.
Steady – Group or channel in scan list. Appears in the 10th position of the display.
Steady – Priority 2 group or channel. Appears in the 10th position of the display.
Steady – Priority 1 group or channel. Appears in the 10th position of the display.
Steady – Special call mode (individual or telephone). Appears in the 11th position of the display.
Steady – Battery charge indicator. Appears in the 12th position of the display.
Flashing – Low battery indicator.
14221-1400-2000
63
Figure 9-6: Full Cycle Battery Charge Indicator
The battery charge indicator illustrates approximate charge only, based on battery voltage. Refer to
Figure 9-6.
9.5 TRI-COLOR LED
Figure 9-7: Tri-Color LED
The Tri-Color LED changes color to indicate radio status and is visible from both the front and top of the
radio (see Figure 9-7). The colors of the LED and the status they represent while operating in EDACS,
P25, and Conventional (ECP) modes are defined below.
Green: Receiving
Red: Unencrypted transmission
Orange: Encrypted transmission
14221-1400-2000
64
9.6 RADIO STATUS MESSAGES
During radio operation, various radio Status Messages can be displayed. The messages are described
below.
MESSAGE
NAME
QUEUED
DESCRIPTION
Call Queued Indicates the system has placed the call in a request queue.
SYS BUSY
System Busy Indicates the system is busy, no channels are currently available, the queue
is full, or an individual call is being attempted to a radio that is currently
transmitting.
DENIED
Call Denied
Indicates the radio or talkgroup is not authorized to operate on the selected
system and/or talkgroup.
CC SCAN
Control
Channel Scan
Indicates the control channel is lost and the radio has entered the Control
Channel Scan mode to search for the control channel (usually out of range
indication).
WA SCAN
Wide Area
Scan Indicates the radio has entered the Wide Area Scan mode to search for a
new system (if enabled through programming).
SYSC ON
System Scan
Features On Indicates the System Scan features are enabled.
SYSC OFF
System Scan
Features Off Indicates the System Scan features are disabled.
LOW BATT
Low Battery Battery
voltage has dropped to the point to where the radio is no longer
able to transmit. The radio will still receive calls until the battery is
discharged beyond the point of operation at which time the radio
automatically shuts down.
RXEMER
Receive
Emergency
Indicates an emergency call is being received. This message will be
flashing on line two.
TXEMER
Transmit
Emergency
Indicates an emergency call has been transmitted on this radio. This
message will be flashing on line two.
VOL=31
Volume Level Indicates the current volume level. The volume level display ranges from
OFF
(muted) to
40
(loudest).
WHC
Who Has
Called Indicates an individual call has been received, but not responded to. The
indicator turns OFF if the individual call mode is entered, the system is
changed, or the radio is turned off and then on again.
UNKNOWN
Unknown ID Indicates an individual call is being received from an unknown ID.
14221-1400-2000
65
9.7 ERROR MESSAGES
If either of the Error Messages shown below is displayed, the radio is programmed incorrectly or needs
servicing.
DSP ERR
ERR=XXXX
(PowerUp only)
or DIG V x
ERR x
Where xxxx is the error code and DSP ERR or DIG V ERR is the message.
9.8 ALERT TONES
The P5500 radio provides audible Alert Tones or “beeps” to indicate the various operating conditions (see
Table 9-5).
Table 9-5: Alert Tones
NAME TONE DESCRIPTION
Call Originate one short mid-pitched OK to talk after pressing the push-to-talk button
Call Queued one high-pitched Call queued for processing
Autokey one mid-pitched Queued call received channel assignment
System Busy three low-pitched System busy or unable to complete call
Call Denied one low-pitched Radio is not authorized on the system or group
Carrier Control Timer
five high-pitched/one long
low-pitched PTT depressed for maximum length of time
Low Battery one low-pitched/one short
mid-pitched Low battery
TX Low Battery Alert one low-pitched After PTT - battery too low to transmit
14221-1400-2000
66
9.9 SYSTEM SELECTION
METHOD 1: From the control knob: If system selection is programmed to the
Voice Group
Selection control knob
, select a system by turning the knob to the desired system
number position (1-16). The display registers the new system name on line one.
The
button can be programmed to provide access to a “2nd
bank” of 16 system number
positions (17-32).
METHOD 2: From the keypad: If system selection is programmed as the primary function of
and select a system by pressing or to scroll through the system list.
The
display registers the new system name on line one.
METHOD 3: (P5570 model radios only) Direct Access: Press
to enter the system select mode.
Press the numeric key, which is mapped to the desired system. Press .
The radio
will move to the selected system.
NOTE
If system selection is programmed to the Voice Group Selection control knob, direct
access to systems will not be available. Pressing or will scroll through
different sets of 16 systems each (banks) if more than 16 systems are programmed into
the radio. The systems within each bank are then selectable via the Voice Group
Selection control knob as described previously in METHOD 1.
Example:
System: 1 = North Group: 1 = Group 1
2 = South 2 = Group 2
3 = East 3 = Group 3
4 = West 4 = Group 4
1. Press . (South is the currently selected system.)
2. Press . (Press 4 to select “West” system.)
3. Press . (West is the newly selected system.)
9.10 GROUP/CHANNEL SELECTION
Several methods can be used to select a new group or channel.
METHOD 1: From the Control knob: If group selection is programmed to the Voice Group Selectio
n
control knob, select a group by turning the Voice Group Selection control knob
to the
desired group number position. The display registers the new group name on line two.
If the knob is moved to a position greater than the number of programmed groups, th
e
highest programmed group will remain selected. The
button can be programmed to
provide access to a “2
nd
bank” of 16 group number positions (17-32).
METHOD 2: From keypad: If group selection is programmed as the primary function of and
select a group by pressing or
to scroll through the group list. The display
registers the new group name on line two.
METHOD 3: (P5570 model radios only) Direct Access: Press
to enter the group select mode.
Press the numeric key mapped to the desired group. Press .
The radio will move to
the selected group.
14221-1400-2000
67
9.11 MODIFY SCAN LIST
9.11.1
1. Press
P5570 Model
to toggle scan OFF and verify is not displayed.
2. Select group or channel.
3. Press once to remove group or channel from list.
4. Press once to add as a normal group or channel.
5. Press twice to add as a Priority 2 group.
6. Press three times to add as a Priority 1 group.
7. Press to re-start scanning.
9.11.2
1. Press
P5550 Model
to toggle scan OFF and verify is not displayed.
2. Select group or channel.
3. Press once to remove group or channel from the list.
4. Press once to add as a normal group or channel.
5. Press twice to add as a Priority 2 group.
6. Press three times to add as a Priority 1 group.
7. Press to re-start scanning.
9.12 MENU
The Menu function accesses features that are not available directly from the keypad. The order and actual
menu items available is configurable through programming. Upon radio power up, the menu item that is
at the top of the menu list will always be displayed first. Subsequent access to the menu function will
return the last menu item that was shown in the display and cursor position.
1. To enter the menu mode, then press .
2. Upon entering the menu selection mode, Menu options will appear in the display (see Figure 9-8).
Figure 9-8: Menu Display
3. The radio will continue to receive and transmit normally while in the menu function.
4. To scroll through the menu options use the or keys. When the required menu item has been
found align the cursor with the option then press to select it. The menu item's parameter setting
shown in the display can now be changed by using or to scroll through the list of parameter
values.
14221-1400-2000
68
5. Once the desired setting is reached press to store the value and return the menu option selection
level.
For menu items that display radio information, pressing or will scroll through a list of
informational displays. Possible menu items are listed in Table 9-6.

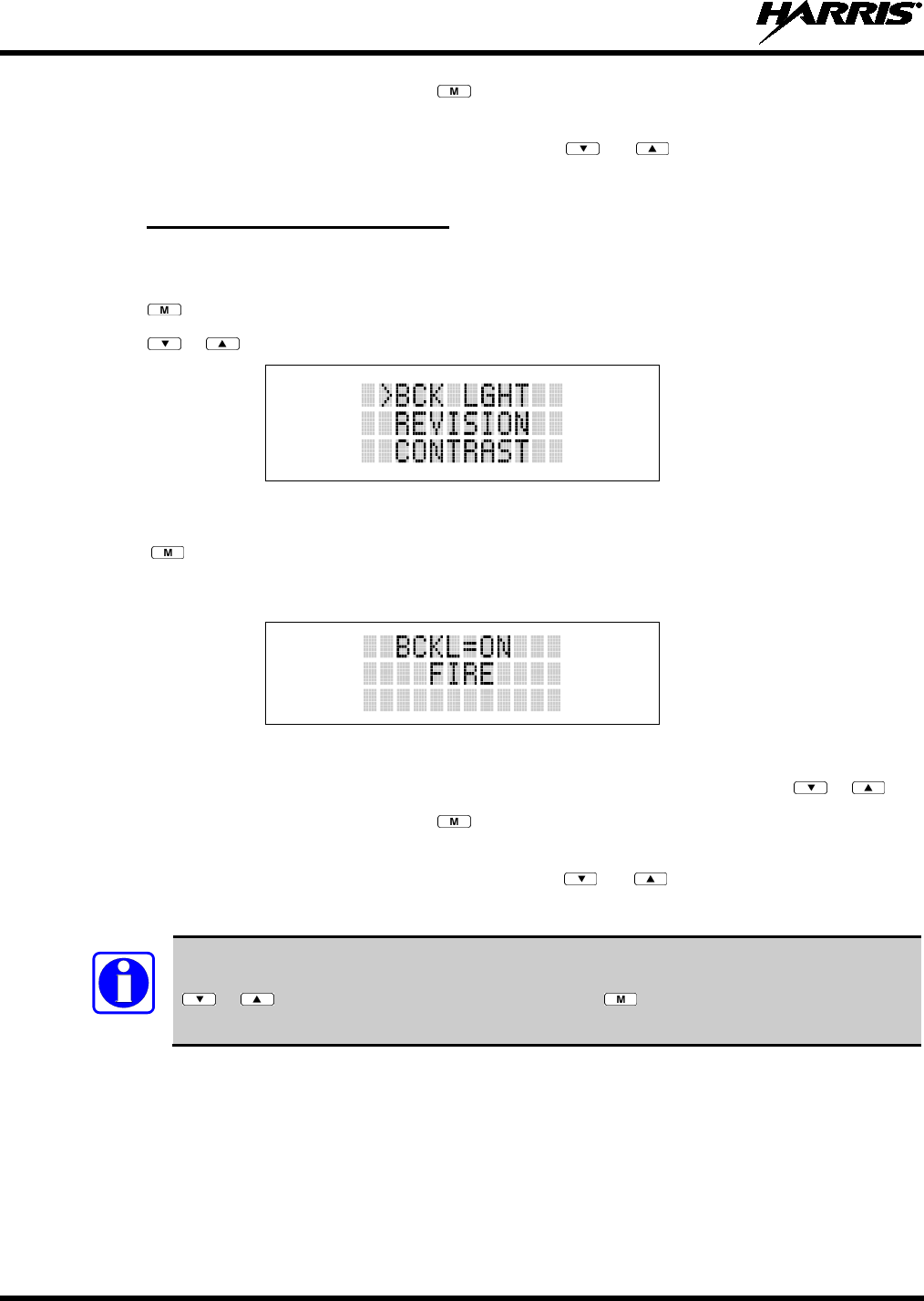

9.12.1
An example of the backlight menu item selection process and menu item parameter change is shown in
Menu Item Selection Process
Figure 9-9.
1. Press . The menu mode is entered.
2. Press or until the display shows:
Figure 9-9: Backlight Menu Item Selection Parameter
3. Press . The backlight menu item is activated. Line one shows the active menu item and its
current parameter setting. Line two shows the currently selected system or group name (see Figure
9-10).
Figure 9-10: Backlight Menu Display
4. The menu item's parameter setting shown in the display can now be changed by using or .
5. Once the desired setting is reached press to store the value and return the menu option selection
level.
For menu items that display radio information pressing or will scroll through a list of
informational displays. An example of information displays is shown in Table 9-6.
NOTE
The TX POWER menu item, when selected, toggles LOW/HIGH power. It does not use
or to scroll nor is an additional press of the button required.
14221-1400-2000
69
Table 9-6: Menu Item Information
FEATURE DISPLAY PARAMETER
SETTING COMMENT
Keypad Lock KEY LOCK Locked
Unlocked
Locks the keypad. To unlock; press and release “M” then
within 1 second press the option button (NOTE: this
sequence is also a short cut to locking the keypad.)
Backlight Adjust BACKLGHT OFF, 1 thru 6 Selects the light level for backlighting.
Contrast Adjust CONTRAST 1, 2, 3, 4 Selects the display contrast level.
Transmit Power Select TX POWER HIGH or LOW Selects radio output power mode.
Radio Revision
Information REVISION N/A Selects the information display to view. Informational display
only. No user selectable settings.
Toggle Scan On/Off SCAN ON/OFF Toggles Scan operation ON/OFF.
Toggle Private Mode PRIVATE ON/OFF Toggles Private Mode ON/OFF.
Display Current
Encryption Key DISP KEY N/A Displays current encryption key. Informational display only.
No selectable settings.
Home Group/Channel. HOME Returns the radio to the home system/ channel on
conventional systems and to the home group on trunked
systems.
Select Desired System SYS SEL N/A Selects a new system.
Add Group/Channel to
Scan List SCAN ADD N/A Adds to Scan List.
Delete Group/Channel SCAN DEL N/A Deletes Group or Channel from Scan List.
Add/Delete Scan List SCAN A/D N/A Add or Delete from Scan List.
Select OpenSky mode MODE Allows you to activate OpenSky mode.
Message MSG Permits the transmission of a preprogrammed message to a
P25 or EDACS site.
ProFile PROFILE ON/OFF Toggles ProFile On/Off.
Talkaround TALKARND ON/OFF Conventional Only. Toggles Talkaround feature ON/OFF.
Select Telephone
Numbers From Phone
List PHONE N/A EDACS and P25 trunked.
Data Operation NO DATA ON/OFF EDACS and P25 trunked. Toggles Data Operation ON/OFF.
Select Individual Call
from IC List INDV N/A EDACS and P25 modes.
Select Group GRP N/A EDACS and P25 modes.
Feature Encryption
Display FEATURES N/A Indicates current features programmed into the radio as well
as certain information required to add features to the radio.
Informational display only. No user selectable settings.
System Scan Enable SYS SCAN ON/OFF Toggles System Scan feature ON/OFF.
Talk-around TALK Toggles Talk-Around ON/OFF.
Type 99 Enable T99 EN ON/OFF Toggles Type 99 Decode ON/OFF.
14221-1400-2000
70
Table 9-7: Information Display
RADIO ID
XXXXXXXX LID in EDACS/EA. In CONV it has no
meaning.
RAM SIZ RAM Size
FLSH SIZ Flash Size
RF BAND Frequency Band
PERS VER Software Version
DSP DATE Date DSP code was built.
DSP TIME Time DSP code was built.
DSP FEAT The DSP Features supported by the
DSP code, in Hexadecimal.
Bit mapped (see IPC spec for details):
• 0x0001 – Conventional
• 0x0002 – EDACS
• 0x0010 – AMPF
•
0x0020 – undefined
DSP VER DSP Software Version
FLSH VER FLASH Software
ex: P54U0102
P=portable, 54=5400 radio,
U=unencrypted, 01=major revision (>50
means unreleased code), 02=minor
revision
HARRIS CORPORATION
(C) 2007 Copyright
PERSNLTY Personality Name
BLD DATE Date host (ARM) code was built.
BLD TIME Time host (ARM) code was built.
9.13 BACKLIGHT ON/OFF
1. Press to access the menu.
2. Press or to scroll through menu until “BCKLGHT” appears.
3. Press to select Backlight menu.
4. Press or to toggle backlight ON and OFF.
5. Press to select new backlight setting.
9.14 CONTRAST ADJUST
1. Press to access the menu.
2. Press or to scroll through menu until “CONTRAST” appears.
3. Press to select Contrast menu.
4. Press or to adjust contrast setting from 1 - 4.
5. Press to select new contrast setting.
14221-1400-2000
71
9.15 DECLARING AN EMERGENCY
1. Press and hold the red Emergency/Home button (the length of time is programmable; check with the
system administrator).
2. *TXEMER* will flash in the display, plus and will be displayed. After 2-3 seconds the
transmit icon will turn off.
3. *TXEMER* and will remain until the emergency is cleared. See Section 9.21 for additional
emergency operation.
4. Press the PTT and will reappear.
5. Release PTT when the transmission is complete.
9.16 LOCKING/UNLOCKING KEYPAD
1. Press button.
2. Within 1 second, press the button on the side of the radio.
9.17 HIGH/LOW POWER ADJUSTMENT
Transmit power adjustment is possible if enabled through programming. Within conventional systems,
transmit power is adjustable on a per channel basis. Within EDACS trunking systems, transmit power is
adjustable on a per system basis.
There are two ways to toggle between high and low power, described in Sections 9.17.1 and 9.17.2.
9.17.1
1. Press
Using the Menu Button
.
2. Using the or keys, scroll until the cursor (>) appears to the left of “TX POWER” in the
display.
3. Press again to toggle between High and Low power.
4. “POWER = HIGH” or “POWER = LOW” will appear momentarily on the top line of the display.
9.17.2
Press the
Using the Pre-Programmed Option Button
button. “POWER = HIGH” or “POWER = LOW” will appear momentarily on the top line of
the display.
9.18 ENCRYPTION
The P5500 portable radio supports AES and DES encryption. When operating on a group or channel
programmed for encryption, all transmissions are private and the radio receives clear and private signals.
is displayed when the encryption is enabled. If the selected group or channel is programmed for auto-
select capability, the mode may be toggled between encrypted and unencrypted by pressing the key,
and then selecting the PRIVATE menu option. Radios programmed for forced encryption do not allow a
change of the transmit mode.
14221-1400-2000
72
9.18.1
To display the Currently Used Cryptographic Key Number for either the system encryption key (for
special call such as individual, phone, all, agency or fleet) or the group/channel key (for group or
conventional calls), perform the following procedure:
Displaying the Currently Used Cryptographic Key Number
1. Press the button.
2. Use the or button to select "DISP KEY."
3. Use the or button to toggle between displaying the system key (Figure 9-11) or the
group/channel key (Figure 9-12).
Figure 9-11: System Encryption Key Display
Figure 9-12: Group/Channel Encryption Key Display
9.18.2
All cryptographic keys can be zeroed (erased from radio memory) by pressing the
Key Zero
button and while
still pressing this button, press and hold the OPTION button. Press both buttons for 2 seconds. A series
of beeps will begin at the start of the 2 second period and then switch to a solid tone after the keys have
been zeroed. The display will indicate KEY ZERO.
If the cryptographic key(s) are zeroed, one or more keys must be transferred from the Keyloader into the
radio before private communications may continue.
9.18.3
When receiving, the radio automatically switches between clear or private operation. If the transmission
being received is an encrypted transmission, it will be decrypted, the
Receiving an Encrypted Call
icon will be displayed, the receiver
will unsquelch, and the message will be heard in the speaker. For this to occur, the selected group or
channel must be programmed for private operation and the correct cryptographic key must be loaded into
the radio.
9.18.4
1. Select the desired group or channel.
Transmitting an Encrypted Call
2. Place the radio in Private Mode by pressing key; then follow the selection mode rules. On a
System radio, the key can be used to toggle the Private Mode ON/OFF. When Private Mode is
enabled, the icon is displayed.
3. If the last state of the radio was Private Mode, the Private Mode will be enabled on power up. Also,
the Private Mode will be enabled if forced operation has been programmed in the radio.
14221-1400-2000
73
If a group or channel is not programmed for Private Mode operation, PVT DIS will be displayed if
an attempt is made to enable private transmit mode. It is not possible to operate on this group/channel
in Private Mode.
If the radio does not have the correct encryption key loaded, NO KEY# will be displayed and the call
will not be transmitted.
4. Continue with standard transmission procedures. A Private Mode access tone will be heard when the
PTT button is pressed.
9.19 SCAN OPERATION
Groups/channels that have been previously added to the scan list on a per system basis may be scanned.
Each system's scan list is retained in memory when the radio is powered OFF or when the battery pack is
removed.
9.19.1
1. Toggle Scan operation ON by pressing
Turning Scan On and Off
(P5550 model) or (P5570 model). icon rotates
clockwise to indicate radio is scanning.
2. Toggle Scan operation OFF by again pressing (P5550 model) or (P5570 model). will
disappear.
• If the radio scans to a group/channel other than the one selected and then receives a call on the
selected group, the radio switches to the selected group/channel. However, if the “scanned-to”
group/channel is programmed at a higher priority the radio remains on the “scanned-to”
group/channel.
• The radio continues scanning if a new group/channel is selected when scan is ON.
3. Pressing the PTT button when scan is ON will cause the radio to transmit on the displayed
group/channel or to the currently selected group (depending on programming).
9.19.2
P5550 Model Radio
Add Groups and Channels to a Scan List
1. Scan must be OFF to add groups/channels to the scan list. If the Scan icon is ON, press the key
to turn Scan OFF.
2. Select the desired group/channel using the System/Group/Channel control knob and/or the or
keys. If the selected group/channel is currently on the list, pressing will display on line
three.
3. If the scan list status icon is blank ( ), the group/channel can be added to the scan list by pressing the
key. will be displayed on line three.
4. Press the key a second time to set the group/channel to Priority 2. A is displayed on line three.
5. Press a third time to set the group to Priority 1. A is displayed on line three. The priority level
section sequence only advances the group/channel to the next high priority level and stops at priority
level 1. To select a lower priority level, the group/channel must be deleted from the scan list and then
added back to the scan list. Each new group added to the scan list starts at the lowest priority. If the
Priority 1 and Priority 2 group/channel are already set and a new group is assigned as Priority 1 or
14221-1400-2000
74
Priority 2, the previously assigned group/channel will change to non-priority scanning. One of the
following messages may be momentarily displayed.
SCAN DIS
The radio is not programmed to scan.
FIXED P1
A Priority 1 group has been pre-
programmed into the radio. A new Priority 1 group
cannot be selected.
FIXD LST
A fixed scan list has been pre-
programmed into the radio. It is not possible to change
the list without reprogramming the radio.
NOTE
To quickly view multiple group scan status, press then slowly rotate the group knob.
Each group status will appear on the display.
P5570 Model Radio
1. With scan operation turned OFF, select the desired group/channel to add to the selected scan list.
2. Press . The current priority status of the group/channel will be displayed in column 10 of line
three for a time-out period. If the group is not part of the scan list, the status will be blank.
3. While the status is displayed, press to add the group/channel to the scan list. The icon is
displayed on line three.
4. Press a second time to set the group to Priority 2. The icon is displayed on line three.
5. Press a third time to set the group/channel to Priority 1. The icon is displayed on line three. The
priority level selection sequence only advances the group/channel to next higher priority level and
stops at priority level 1. To select a lower priority level, the group/channel must be deleted from the
scan list and then added back to the scan list. Each new group/channel added to the scan list starts at
the lowest priority. If the Priority 1 and Priority 2 group/channel are already set and a new
group/channel is assigned as Priority 1 or Priority 2, the previously assigned group/channel will
change to non-priority scanning. One of the following messages may be momentarily displayed.
SCAN DIS
The radio is not programmed to scan.
FIXED P1
A Priority 1 group/channel has been pre-
programmed into the radio. A new Priority 1
group cannot be selected.
FIXD LST
A fixed scan list has been pre-
programmed into the radio. It is not possible to change
the list without reprogramming the radio.
NOTE
To quickly view multiple group scan status, press either or the key. Then slowly
rotate the group knob. Each group/channel status will appear on the display.
9.19.3
P5550 Model Radio
Deleting Groups from a Scan List
1. With scan operation turned OFF, select the desired group/channel to delete from the selected scan list.
14221-1400-2000
75
2. Press . The current status of the group/channel is displayed for a time-out period.
3. While the current status is displayed, press until the group/channel from the scan list is "blank."
The sequence is "blank," , , , "blank." Any group that is not in a scan list will show a "blank"
for the time-out period when it is the selected channel.
P5570 Model Radio
1. With scan operation turned OFF, select the desired group/channel to delete from the selected scan list.
2. Press . The current status of the group/channel is displayed for a time-out period.
3. While the status is displayed, press to delete the group/channel from the scan list. , ,or
turns OFF. Any group/channel that is not in a scan list will show a "blank" for the time out period
when it is the selected group/channel.
9.19.4
A group/channel can also be deleted from the scan list, if it is not the currently selected group/channel, by
pressing the
Nuisance Delete
key (P5550 model) or the key (P5570 model) during scan operation while the radio
is displaying the unwanted group/channel. The group/channel will be deleted from the scan list in the
same manner as if done using the steps above. Deletions done in this manner will not remain deleted if the
radio is powered OFF and then powered ON.
9.20 SYSTEM SCAN (EDACS AND P25 TRUNKED)
The radio can be programmed using Radio Personality Manager (RPM) with the following System Scan
features. Then these features are automatically enabled when the radio is powered ON. A key or menu
option is also defined to allow the System Scan features to be toggled during radio operation. The System
Scan state will be maintained through system changes but will default to ON when the radio is powered
ON.
Enable/Disable via Menu Selection
Press and then use the or buttons to scroll through the selections until SYS SCAN is
displayed. Then press to toggle the System Scan state. The SYSC ON or SYSC OFF display
message is displayed for two seconds to show the new state.
Enable/Disable via Pre-Programmed Keypad Key
Press the key pre-programmed to toggle System Scan and the SYSC ON or SYSC OFF display message
is displayed for two seconds to show the new state.
9.20.1
The P5500 series radio can be pre-programmed through RPM for Wide Area System Scan operation for
roaming across mobile systems. EDACS radio systems manage the radios assigned to the system via a
control channel (CC). Upon the loss of the currently selected system's control channel, radios can be
programmed to automatically scan the control channels of other systems. If a new control channel is
found, the radio will switch to the new system and sound an alert tone.
Wide Area System Scanning
9.20.2
The radio can also be pre-programmed for Priority System Scan. The priority system is the desired or
preferred system. While receiving the control channel of the selected system, the radio will periodically
leave the selected system and search for the control channel of the priority system. This is done at a pre-
programmed rate defined by the value in the Priority Scan Time control, unless the ProScan™ algorithm is
Priority System Scan
14221-1400-2000
76
enabled, as explained in the following sections. This priority scan timer is reset each time the PTT button
is pressed or when the call is received. If the priority system control channel is found, or meets the
predefined criteria (ProScan), the radio will automatically switch to the priority system.
9.20.2.1 Enabling the Wide Area System Scan Function
If the radio cannot find the control channel of the selected system and begins to wide area system scan,
the radio will only scan for the priority system control channel if the priority system is in the wide area
scan list.
9.20.2.2 When ProScan is Enabled
The radio monitors the priority system and will switch to the priority system if the pre-preogrammed
criteria ProScan options are met. If ProScan is enabled, the rate at which the radio will scan for the
priority system is defined by the System Sample Time control, set in RPM, (refer to RPM On-Line Help).
See Section 9.20.3 for more information on ProScan.
9.20.3
The radio may be programmed for ProScan system scan operation for multi-site applications. ProScan is
a multi-site system scanning algorithm. ProScan provides the radio with the ability to select a new
system for the radio to communicate on, when the selected system drops below a predefined level. This
algorithm enables each radio to analyze the signal quality of its current control channel and compare it
with the signal quality of the control channel for each site in its adjacent scan list. The signal quality
metric used for the ProScan algorithm is based on a combination of both Received Signal Strength
Indicator (RSSI) and Control Channel Verification (CCV) measurements. When the selected system
degrades to a pre-programmed level, the radio will begin to look for a better control channel. Once a
control channel that exceeds the pre-programmed parameters is found, the radio will change to the new
system and emit a tone (if enabled through programming). If the control channel is completely lost, the
radio will enter Wide Area System scanning and search the programmed adjacent systems until a suitable
control channel is found.
ProScan
9.21 EMERGENCY OPERATION
The radio's ability to declare an emergency, clear an emergency, remain locked on an emergency system
and group, and the emergency audio and display freeze can each be enabled or disabled through
programming. When an emergency is declared scanning will stop and restarts only after the emergency
has been cleared.
9.21.1
When receiving an Emergency Call on the selected group and system, an alert beep is heard and
Receiving an Emergency Call
is
displayed. The message *RXEMER* flashes in the display on line two until the emergency condition is
cleared.
9.21.2
Perform the following steps to send an emergency call to a selected system and group (or on an optionally
pre-programmed group).
Declaring an Emergency Call
1. Press and hold the red EMERGENCY button that is on top of the radio in front of the antenna for
approximately one second (this time is programmable and therefore could be longer or shorter; check
with the system administrator). The radio will transmit an emergency call request with the radio ID
until an emergency channel assignment is received.
14221-1400-2000
77
2. When the working channel assignment is received, the radio sounds a single beep indicating the radio
has auto keyed (see Table 9-5) and is ready for voice transmission. *TXEMER* flashes on line two in
the display until the emergency is cleared.
3. Press PTT and speak into the microphone in a normal voice. and momentarily turn ON.
4. Release PTT when the transmission is complete.
To clear the emergency first press and hold the button. While continuing to hold the button, press
the EMERGENCY button. (This will work if the radio is programmed to clear emergencies.)
9.22 INDIVIDUAL CALLS (EDACS AND P25 MODES)
9.22.1
When the radio receives an individual call (a call directed only to the user's radio), it un-mutes on the
assigned working channel and displays
Receiving and Responding to an Individual Call
. The first line on the display shows the logical ID number of the
unit sending the message, or the associated name if the ID number is found in the individual call list. The
radio can be programmed to ring when an individual call is received. If enabled, the ring begins five
seconds after the caller un-keys and will continue until the PTT button, the button or the individual call
mode is entered.
NOTE
The volume of the ring is adjustable through the volume control levels.
If a response is made by pressing the PTT to the call prior to the programmed call-back time-out, the call
will automatically be directed to the originating unit. If a response is not made before the call-back time-
out, the radio will return to normal receive display, and *WHC* will appear on the first line of the LCD.
To respond after the call-back time-out, press the key. The radio's display will show the callers ID on
the first line and WHCI=1 on the second line. Pressing the PTT button at this point will initiate an
individual call back to the original caller.
The radio stores the IDs of the last 10 callers in the Calls Received List as shown. Individual calls are
stored in the top half of the list (1-10) and Group calls are stored in the bottom half of the list (1-10). The
most recent call is stored in position 1, the second most recent call is stored in position 2, etc.
Figure 9-13: Calls Received Lists
14221-1400-2000
78
To access the Calls Received List, press the key twice. Use the or buttons to scroll through
the list. Pressing the key will display the time elapsed since the call was received. After pressing
the display will appear similar to Figure 9-14.
Figure 9-14: WHC Individual Call Display
Pressing the PTT will initiate an individual call to the displayed logical ID. Powering the radio OFF and
ON will clear this list.
9.22.2
9.22.2.1 Pre-Stored Individual Calls
Sending an Individual Call
The following procedures describe how to initiate and complete a Pre-Stored Individual Call.
P5570 Model Radio
1. To select a pre-stored individual phone number, enter the individual call mode using the key. is
displayed. Then scroll through the list of stored numbers using the or keys.
2. Press the PTT button; when the radio is clear to transmit, turns ON, turns OFF and the channel
access tone sounds. Line one shows the called individual's name if found in the list of stored
individuals or LID followed by the logical ID number of the unit being called. The message *INDV*
displays on line two.
P5550 Model Radio
1. To select a pre-stored individual number, enter the menu mode by pressing the key. Scroll
through the mode list using the or buttons.
2. Press . is displayed. Scroll through the list of stored phone numbers using the or
buttons until the desired number is displayed. Press .
3. Press the PTT button; when the radio is clear to transmit turns ON, turns OFF and the channel
access tone sounds. Line one shows the called individual's name or LID. The message *INDV*
displays on line two.
9.22.2.2 Direct Dial Individual Calls (P5570 Model Only)
1. The following procedure describes how to initiate and complete a Direct Dial Individual Call.
2. The individual call ID is not stored in the pre-stored list of call IDs but the individual unit ID is
known, it can be entered directly from the keypad.
3. Press and hold the PTT button to transmit. will turn ON, will turn OFF, and the channel access
tone will sound. Line one shows the called individual's ID followed by the logical ID number of the
unit being called. The message *INDV* displays on line two. Proceed talking into the microphone.
14221-1400-2000
79
9.22.3
There are two lists available for call storage in the P5500 series radios, the calls received list (1 - 10) and
the personality list (1 - 99 as defined by the user). When the individual call mode is entered by pressing
Call Storage Lists
, the calls received list is available. The user can toggle to the personality list by selecting any index
other than 0 or toggle between the two lists by pressing the key. If wrap is enabled, the calls received
list wraps on itself and not into the other list.
Figure 9-15: Calls Received and Personality Lists
The saved call list shows all ten storage locations. If no calls have been received, the saved call list will be
empty and the pre-stored list will be available upon entering the individual call mode.
When in the saved call list, pressing the key toggles the time stamp ON and OFF. The time stamp
indicates how long ago the call was received. When in the pre-stored list pressing the key toggles the
Logical IDentification (LID) ON and OFF.
9.23 TELEPHONE INTERCONNECT CALLS (EDACS AND P25 TRUNKED)
9.23.1
When the radio receives a telephone interconnect call (a call directed only to the user's radio), it un-mutes
on the assigned working channel and displays
Receiving a Telephone Interconnect Call
. The first line displays *PHONE*. The second line
displays *INDV*. Proceed with the call. Press the PTT to talk, release the PTT to listen.
9.23.2
9.23.2.1 Pre-Stored Number
Sending a Telephone Interconnect Call
Use the following procedures to initiate and complete a Telephone Interconnect call.
1. P5570 Model: To select a previously stored phone number, press the key. Use the or
buttons to scroll through the list of stored numbers.
P5550 Model: To select a previously stored phone number, press the key. Use the or
buttons to select the menu option PHN CALL. Press the key again then use the or
buttons to scroll through the list of pre-stored numbers.
2. Press and release the PTT button. When the radio is clear to transmit, turns ON, turns OFF, and
the channel access tone sounds. Line one shows the accompanying name selected from the list of
14221-1400-2000
80
stored numbers. The message *PHONE* appears on line two of the display. The radio then
automatically transmits the programmed number stored in the special call queue.
3. A telephone ring will be heard from the speaker. When someone answers the phone, press the PTT
button and speak into the microphone. Release the PTT button to listen to the callee. Unsuccessful
interconnect signaling returns the radio to the normal receive mode and the number remains displayed
until the special call is cleared or the time-out expires or another group or system is selected.
Terminate a call by pressing the button.
NOTE
In half-duplex mode, only one person may talk at a time. The radio PTT button needs
to be pressed in order to communicate to the individual called and released for the
individual called to be heard.
9.23.2.2 Direct Dialing of Phone Calls (P5570 Model Only)
1. If the phone number is not stored in the pre-stored list of phone numbers, but the phone number is
known, it can be entered directly from the keypad. Start by pressing the key, then enter the
required number from the keypad. Press and release the PTT button.
NOTE
The last number directly entered can be recalled by first pressing then pressing the
PTT button.
2. A telephone ring can be heard from the speaker. When someone answers the phone, press and hold
the PTT button and speak into the microphone. Release the PTT button to listen to the individual
called. Unsuccessful interconnect signaling returns the radio to the normal receive mode and the
number remains displayed until the special call is cleared or the time-out expires or another group or
system is selected.
3. To terminate the call, momentarily press the button.
9.23.3
Once the radio has established a connection to the public telephone system, it may be necessary to “over-
dial” more digits to access banking services, answering machines, credit card calls, or other types of
systems that require Dual-Tone Multi-Frequency (DTMF) access digits.
Dual-Tone Multi-Frequency: Overdial
Overdial operation can also be used to initiate a telephone interconnect call via DTMF signaling if a dial
tone has already been accessed on the system. This method makes a telephone interconnect call while
operating in the conventional mode but will also function in trunked mode if a dial tone is directly
accessible.
Telephone numbers and other number sequences for overdialing can be stored in the phone list when
programming the radio. These numbers are accessed by pressing the key, then following the selection
mode rules. Perform the following procedures to access and dial these stored numbers.
P5550 Model Radio
1. Follow the procedure in Section 9.23.2 to establish a connection to the telephone system or consult
the system administrator for the procedure to access a dial tone on the trunked or conventional
system.
2. Enter selection mode first to enable entry of Overdial numbers by pressing the button.
14221-1400-2000
81
3. Follow the selection mode rules to call up a stored number from the phone list: Use the or
buttons to scroll through the list of stored numbers. is displayed. Press the PTT to send the overdial
sequence once. If the number needs to be transmitted again it must be selected or entered again (this
prevents unwanted numbers from being sent the next time the PTT button is pressed during the call).
Overdial select/entry mode remains active until the call is dropped, cleared, or is pressed. The
overdial select/entry mode can be re-entered if the call is still active by pressing .
P5570 Model Radio
1. Follow the procedure in Section 9.23.2 to establish a connection to the telephone system or consult
the system administrator for the procedure to access a dial tone on the trunked or conventional
system.
2. Overdial numbers are transmitted using one of the following methods:
METHOD 1: 1. Enter the overdial selection mode by pressing the button.
2. Use the or buttons to scroll through the list of stored numbers.
is
displayed. Press the PTT to send the overdial sequence once. If the number needs to
be transmitted again it must be selected or entered again (this prevents unwanted
numbers from being sent the next time the PTT button is pressed during the call).
Overdial select/entry mode remains active until the call is dropped, cleared, or
is
pressed. The overdial select/entry mode can be re-
entered if the call is still active by
pressing .
METHOD 2: (P5570 model radios only)
1. Enter the overdial selection mode by pressing the button.
2. Press and hold the PTT button
while entering the overdial number sequence from the
keypad. This method sends DTMF tones during individual, telephone interconnect,
trunked group, or conventional channel calls. Pr
ess the PTT to send the overdial
sequence once. If the number needs to be transmitted again it must be selected or
entered again (this prevents unwanted numbers from being sent the next time the PTT
button is pressed during the call). Note: Anytime the PT
T button is pressed and
held, the keypad is enabled for DTMF entry.
Overdial select/entry mode remains active until the call is dropped, cleared, or
is
pressed. The overdial select/entry mode can be re-
entered if the call is still active by
pressing .
This overdial select/entry mode remains active until dropped, cleared, or is pressed. The overdial
select/entry mode can be re-entered if the call is still active by pressing the button.
9.24 PRE-STORING INDIVIDUAL AND TELEPHONE INTERCONNECT
CALLS FROM THE KEYPAD
Individual Call ID numbers, telephone numbers, and other number sequences for overdialing are stored in
the special calls lists when programming the radio. The first ten entry locations of these lists can be
changed by the radio operator. The keypad is used when adding, changing, and storing numbers in these
entry locations.
Use the following procedure to store a number in one of the first ten entries of a special call list:
1. Press the or button to enter the individual call list or the phone call list. is displayed.
2. Scroll through the list using the or keys until one of the first ten entries is reached. NO
ENTRY is displayed if the location is empty.
14221-1400-2000
82
3. Enter the desired number. If necessary, a pause can be entered by pressing and holding 0-9, , or
until an underscore appears in the display (telephone interconnect only). The individual call list
entries will accept up to 5 digits. The phone call list entries accept a combination of up to 31 digits
and pauses.
4. Press and hold the key until the display changes indicating that the number has been stored.
Repeat steps 1-4 to store additional numbers, to change numbers already stored, or to change the storage
location of a number.
9.25 STATUS/MESSAGE OPERATION (EDACS AND P25 MODES)
The Status and Message operations allow for the transmission of a pre-programmed status or a pre-
programmed message to an EDACS site. Each Status and Message is assigned an ID then cross-
referenced with the representative status condition (“Off Duty,” for example) or a message (“Call home”).
In addition, Status conditions can also be associated with a programmable Menu entry (required for
second method of transmitting a Status condition (see Section 9.25.1).
9.25.1
P5570 Model Radio
Status Operation
One of two methods can be used to transmit a status condition.
METHOD 1: 1. Press the key, then use the or buttons to scroll to the pre-
programmed
status condition. STATUS and 0 through 9 pre-
programmed status selections are
available from the menu.
2.
If STATUS is selected, you need to enter the number of the status condition you
intend to transmit. If no status has been programmed for the selected number key, the
radio will display
NO ENTRY
. A valid selection will display the status for a pre-
programmed time.
After the time-out expires or the key has been pressed (the
key will override the
time-
out period), the status is selected and will be transmitted to the site or stored in the
radio memory where it can be polled by the site at a future time.
METHOD 2: 1. Press the key.
2. Press the corresponding pre-programmed 0 through 9 status condition key.
If no
status has been programmed for the selected number key, the radio will display
NO ENTRY
. A valid selection will permit the status condition to appear in the
top
line of the display and the status ID to appear in the second line of the
display for a
pre-programmed time.
After the time-out expires or the key has been pressed (the
key will override the
time-out period), the status is select
ed and will be transmitted to the site or stored in the
radio memory where it can be polled by the site at a future time.
View the currently selected status after it has been transmitted by pressing the key and then the
key and then the button prior to the time-out period. If the status was not sent successfully to the site,
the text associated with the status condition will flash in the display.
The status selection can be changed by pressing a different status key 0 through 9, or the status operation
can be cancelled by pressing Option Button 2 . Both operations must be carried out prior to the time-
out period.
14221-1400-2000
83
9.25.2
The following method can be used to transmit a Message using the Message Operation.
Message Operation
1. Press the key.
2. Press the corresponding pre-programmed 0 through 9 pre-programmed “message” key. If no message
has been programmed for the selected number key, the radio will display NO ENTRY. A valid
selection will permit the message to appear in the top line of the display and the message ID to appear
in the second line of the display for a pre-programmed time.
The message selection can be changed by pressing a different message key 0 through 9, or the message
operation can be cancelled by pressing Option Button 2 . Both operations must be carried out prior to
the pre-programmed time-out period.
9.26 DYNAMIC REGROUP OPERATION (EDACS)
Dynamic Regroup Operation permits multiple talk groups (up to eight) to be added to a radio via the
system manager. The radio must be pre-programmed to respond to regrouping. Dynamic regrouping will
not be activated in a radio until the system manager sends an activation message. Each radio that receives
and acknowledges the regrouping instructions is successfully regrouped.
Pressing and holding the button for 2.5 seconds toggles the user into and out of the dynamic regroup
groupset. A double beep will sound for entry or exit. The display will indicate REGRP_0x where "x" is a
digit of 1 to 8 indicating the group (when dynamic regroup has been enabled by the user). If the radio is in
dynamic regroup and the user selects a group that has not been regrouped, the display will show NO
ENTRY. The radio will be prevented from transmitting and receiving calls in this condition except for
scanned groups.
After the time-out expires or the key has been pressed (the key will override the time-out
period), the status is selected and will be transmitted to the site or stored in the radio memory where it can
be polled by the site at a future time.
9.26.1
If the pre-programmed groupset on the currently selected system contains an EMER/HOME group and
the radio is in dynamic regroup, the radio will declare the emergency on the currently selected dynamic
group.
Emergency Operation
9.27 MACRO KEY OPERATION
Macro key operation permits the user to accomplish a series of keystrokes with a single "macro"
keystroke. Each Macro Key is capable of executing up to twenty (20) keystrokes, to any push button input
(i.e., keypad keys, OPTION buttons, etc.). Each macro key can be pre-programmed to activate when
pressed or when released.
A macro key may also be pre-programmed to change the key stroke sequence the next time the macro key
is activated.
For detailed operation and assignment of macro keys, contact your communications supervisor or
administrator.
9.28 PORTABLE DATA (EDACS AND P25 MODES)
The P5500 series portable radios, when operating in the EDACS Trunked configuration, permit both
voice and data calls to be transmitted and received. The radio can handle only one type of call at a time;
14221-1400-2000
84
however, either data or voice is selected transparently by the operator through normal usage of the radio.
Data communications is not supported in conventional mode.
The radios can be connected to a Mobile Data Terminal (MDT) or to a host computer. Any RS-232
compatible device that supports the Radio Data Interface (RDI) protocol (Version 1.91 or greater) may be
connected to the radio. Support for an MDT or a host computer is a programmable option per radio.
Additionally, radios may also be programmed for data only operation (no voice calls transmitted or
received).
9.28.1
The following will be displayed during the various states of data mode of operation:
Displays
TX DATA
Appears on top line of display when the radio is transmitting a data call.
RX DATA
Appears on top line of display when the radio is receiving a data call.
DATA OFF
Appears on top line of display when the radio is in the data disabled state.
DATA ON
Appears for two seconds on top line of display when the radio is toggled to the data
enabled state.
9.28.2
The radio can be placed in the data disabled state by any of the following methods. When the data state is
disabled, DATA OFF appears on the top line of the display.
DATA OFF Operation
• Declaring an emergency (not to be used unless an actual emergency condition exists). Alert tone will
sound.
• Pressing Option Button 1 (if pre-programmed as “no data” key). Alert tone will sound.
• Pressing the pre-programmed “no data” (ND) key. Refer to previous bullet.
9.28.3
The data state is enabled by one of the following (depending on how it was disabled). DATA ON will
appear on the top line in the display for two seconds then the display will return to normal.
DATA ON Operation
• Pressing the pre-programmed “no data” (ND) key toggles data state ON or OFF.
• Clearing an emergency. This is valid only if the emergency caused “DATA OFF” operation.
9.28.4
Under normal conditions, the radio enters the scan lockout mode and returns to the control channel after
completion of a data call (transmit or receive). If, during a data call, one of the following operations
occurs, the data call is immediately terminated and the radio performs the desired function:
Exiting Data Calls
• If the PTT is activated.
• If an Emergency is declared by pressing the pre-programmed emergency button.
• If a group or system is changed.
9.28.5
Following the transmission or reception of a data call, if scan is enabled, scanning will stop temporarily.
There are two independent pre-programmed times associated with this mode; one after a received data
Scan Lockout Mode
14221-1400-2000
85
call and one after a transmitted data call. During this time the scan indicator will flash to indicate that scan
is enabled but temporarily suspended. This condition typically returns to normal scan operation when the
pre-programmed time expires; however, the following operations and conditions will terminate the scan
lockout mode before the timeout has expired.
• Press the button.
• Press the PTT.
• Change a group or system.
• Enter Telephone Interconnect mode.
• Enter Individual call mode.
• Receive a new emergency assignment.
• Declare or clear an emergency.
• Receive an individual or phone call.
• Receive an Agency, Fleet, or System All Call.
• Press (P5550 model) or (P5570 model) to toggle Scan ON or OFF.
9.28.6
During the voice call scan hang time (pre-programmed) the radio will not receive data calls.
Data Lockout Mode
9.29 TYPE 99 OPERATION (ANALOG CONVENTIONAL)
Type 99 is a conventional in-band, two-tone sequential signaling method. This conventional signaling
protocol controls the muting and unmuting of a radio. Type 99 encoded base stations, mobiles, or
portables can selectively call individual units or groups of units in a conventional system. Type 99 is
used in paging operations providing a dispatcher with the ability to selectively call a radio or a group of
radios. If Type 99 is enabled in the radio personality, the radio can decode Individual, Group, and
Supergroup Type 99 calls.
In a selective signaling environment, the P5500 portable radios operate in one of two states, Monitor
mode or Selective Call mode.
• In Monitor mode, Type 99 “OFF,” the decoder is disabled and all calls are heard by the user.
• In Selective Call mode, Type 99 “ON,” the decoder is enabled and only calls intended for the user
will be heard.
9.29.1
Selective signaling operates with or without Channel Guard. If Channel Guard is enabled, the radio can
be programmed with an "And" or an "Or" option, determined by programming with T99 Mute Control.
Type 99 with or without Channel Guard
• If the "And" option is programmed, T99 calls require the correct selective signaling (T99 tone
sequence) AND the correct Channel Guard tones are heard by the user.
• If the "Or" option is programmed, calls with the correct Channel Guard tones OR calls with the
correct T99 tone sequence and Channel Guard tones are heard by the user.
A radio operating in Selective Call mode that receives a selective call switches to the Monitor mode (after
decoding the T99 call) and the TX/RX LED flashes green. The TX/RX LED indicates whether the
channel has a carrier signal.
14221-1400-2000
86
9.29.2
After decoding a Type 99 call, the radio operates in Monitor mode and all traffic on the channel is
audible. If the channel has Channel Guard, only the traffic with the radio's Channel Guard tone will be
heard. To reset Type 99 operation, use one of the following methods:
Resetting Type 99 after a Call
• Press the button.
• Press the button, if enabled through programming to toggle Type 99 ON/OFF.
• Allow the "Auto-Reset" timer, if enabled through programming, to reset the Type 99 decoder.
9.29.3
The radio may be programmed with the Type 99 Disable after PTT feature, which automatically disables
the Type 99 decoder after a transmission. Use one of the methods outlined in Section
Type 99 Disable after PTT
9.29.2 section to
reset Type 99 operation.
14221-1400-2000
87
10. CUSTOMER SERVICE
10.1 CUSTOMER CARE
If any part of the system equipment is damaged on arrival, contact the shipper to conduct an inspection
and prepare a damage report. Save the shipping container and all packing materials until the inspection
and the damage report are completed. In addition, contact the Customer Care center to make
arrangements for replacement equipment. Do not return any part of the shipment until you receive
detailed instructions from a Harris representative.
Contact the Customer Care center at http://www.pspc.harris.com/CustomerService or:
Phone Number: 1-800-368-3277
North America:
Fax Number: 1-321-409-4393
E-mail: PSPC_CustomerFocus@harris.com
Phone Number: 1-434-455-6403
International:
Fax Number: 1-321-409-4394
E-mail: PSPC_InternationalCustomerFocus@harris.com
10.2 TECHNICAL ASSISTANCE
The Technical Assistance Center's (TAC) resources are available to help with overall system operation,
maintenance, upgrades and product support. TAC is the point of contact when answers are needed to
technical questions.
Product specialists, with detailed knowledge of product operation, maintenance and repair provide
technical support via a toll-free (in North America) telephone number. Support is also available through
mail, fax and e-mail.
For more information about technical assistance services, contact your sales representative, or call the
Technical Assistance Center at:
North America: 1-800-528-7711
International: 1-434-385-2400
Fax: 1-434-455-6712
E-mail: PSPC_tac@harris.com
14221-1400-2000
88
11. BASIC TROUBLESHOOTING
Use the contents of Table 11-1 as a troubleshooting guide if the radio is not functioning properly. If
additional assistance is required, contact a qualified service technician or call TAC support at
1-800-528-7711.
Table 11-1: Troubleshooting
SYMPTOM POSSIBLE CAUSE POSSIBLE SOLUTION
Radio will not turn on. Low battery charge. Change the battery pack to a fully charged pack.
No Audio Speaker volume is muted. Increase the volume level.
Poor Audio
User is in a poor coverage
area or not on the network. Move to a better coverage area.
Radio powers off for
no apparent reason.
Radio may be experiencing
very low voltage. Have the battery checked by an authorized technician.
Radio will not
transmit.
Radio may be out of
coverage area or may be
overheated.
Return to coverage area if possible. If overheated, let
radio cool before retrying transmission. Report this failure
to an authorized technician.
14221-1400-2000
89
RECHARGEABLE BATTERY WARRANTY
A. Harris Corporation, a Delaware Corporation, through its RF Communications Division (hereinafter "Seller") warrants to
the original purchaser for use (hereinafter "Buyer") that nickel-cadmium, nickel-metal hydride, lithium-ion, and lithium-
polymer batteries supplied by Seller shall be free from defects in material and workmanship, and shall conform to its
published specifications for a period of twelve (12) months from the date of purchase.
B. For purposes of this warranty, batteries shall be deemed defective if (1) the battery capacity is less than 80% rated
capacity, or (2) the battery develops leakage.
C. If any battery fails to meet the foregoing warranty, Seller shall correct the failure by issuing a replacement battery upon
receipt of the defective battery at an Authorized Service Center (ASC) or Seller factory (for OpenSky® Equipment only).
D. Replacement batteries shall be warranted only for the remaining unexpired warranty period of the original battery. This
warranty becomes void if:
1. The battery has been subjected to any kind of misuse, detrimental exposure, or has been involved in an accident.
2. The battery is used in equipment or service other than the radio equipment for which it is specified.
E. The preceding paragraphs set forth the exclusive remedies for claims based upon defects in or non-conformity of any
battery, whether the claim is in contract, warranty, tort (including negligence), strict liability or otherwise, and however
instituted. Upon the expiration of the warranty period, all such liability shall terminate. The foregoing warranties are
exclusive and in lieu of all other warranties, whether oral, written, expressed, implied or statutory. NO IMPLIED OR
STATUTORY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE SHALL APPLY.
IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL,
INDIRECT OR EXEMPLARY DAMAGES.
This warranty applies only within the United States.
To obtain the name and address of an Authorized Service Center (ASC), ask your salesperson, or call one of the factory
number(s) printed at the bottom of this page.
Harris Corporation Harris Corporation
RF Communications Division RF Communications Division
221 Jefferson Ridge Parkway 1680 University Avenue
Lynchburg, VA 24501 Rochester, NY 14610
1-800-528-7711 1-585-244-5830
ECR-7048D
14221-1400-2000
90
WARRANTY
Please register this product within 10 days of purchase. Registration validates the warranty coverage, and enables Harris to
contact you in case of any safety notifications issued for this product.
Registration can be made on-line at www.pspc.harris.com/CustomerService or by contacting Harris Warranty Administration at
the following:
Phone Number: 1-800-368-3277, Option 4 (toll free)
U.S. and Canada:
Fax Number: 1-434-455-6821
E-mail: mailto:WarrantyClaims@Harris.com
Phone Number: 1-434-455-6403
International:
Fax Number: 1-434-455-6676
E-mail: mailto:WarrantyClaims@Harris.com
A. Harris Corporation, a Delaware Corporation, through its RF Communications Division (hereinafter "Seller") warrants to the
original purchaser for use (hereinafter "Buyer") that Equipment manufactured by or for the Seller shall be free from defects
in material and workmanship, and shall conform to its published specifications. With respect to all non-Seller Equipment,
Seller gives no warranty, and only the warranty, if any, given by the manufacturer shall apply. Rechargeable batteries are
excluded from this warranty but are warranted under a separate Rechargeable Battery Warranty (ECR-7048).
B. Seller’s obligations set forth in Paragraph C below shall apply only to failures to meet the above warranties occurring within
the following periods of time from date of sale to the Buyer and are conditioned on Buyer’s giving written notice to Seller
within thirty (30) days of such occurrence:
1. for fuses and non-rechargeable batteries, operable on arrival only.
2. for parts and accessories (except as noted in B.1), ninety (90) days.
3. for P7300, P7200, P7100IP, P5400, P5300, P5200, P5100, P3300, M7300, M7200 (including V-TAC), M7100IP,
M5300 and M3300 radios, two (2) years, effective 10/01/2007.
4. for Unity® XG-100P, three (3) years.
5. for all other equipment of Seller’s manufacture, one (1) year.
C. If any Equipment fails to meet the foregoing warranties, Seller shall correct the failure at its option (i) by repairing any
defective or damaged part or parts thereof, (ii) by making available at Seller’s factory any necessary repaired or
replacement parts, or (iii) by replacing the failed Equipment with equivalent new or refurbished Equipment. Any repaired or
replacement part furnished hereunder shall be warranted for the remainder of the warranty period of the Equipment in
which it is installed. Where such failure cannot be corrected by Seller’s reasonable efforts, the parties will negotiate an
equitable adjustment in price. Labor to perform warranty service will be provided at no charge during the warranty period
only for the Equipment covered under Paragraph B.3 and B.4. To be eligible for no-charge labor, service must be
performed at Seller’s factory, by an Authorized Service Center (ASC) or other Servicer approved for these purposes either
at its place of business during normal business hours, for mobile or personal equipment, or at the Buyer’s location, for
fixed location equipment. Service on fixed location equipment more than thirty (30) miles from the Service Center or other
approved Servicer’s place of business will include a charge for transportation.
D. Seller’s obligations under Paragraph C shall not apply to any Equipment, or part thereof, which (i) has been modified or
otherwise altered other than pursuant to Seller’s written instructions or written approval or, (ii) is normally consumed in
operation or, (iii) has a normal life inherently shorter than the warranty periods specified in Paragraph B, or (iv) is not
properly stored, installed, used, maintained or repaired, or, (v) has been subjected to any other kind of misuse or
detrimental exposure, or has been involved in an accident.
E. The preceding paragraphs set forth the exclusive remedies for claims based upon defects in or nonconformity of the
Equipment, whether the claim is in contract, warranty, tort (including negligence), strict liability or otherwise, and however
instituted. Upon the expirat
ion of the warranty period, all such liability shall terminate. The foregoing warranties are
exclusive and in lieu of all other warranties, whether oral, written, expressed, implied or statutory. NO IMPLIED OR
STATUTORY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE SHALL APPLY. IN
NO EVENT SHALL THE SELLER BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, INDIRECT OR
EXEMPLARY DAMAGES.
This warranty applies only within the United States.
Harris Corporation Harris Corporation
RF Communications Division RF Communications Division
221 Jefferson Ridge Parkway 1680 University Avenue
Lynchburg, VA 24501 Rochester, NY 14610
1-800-528-7711 1-585-244-5830
ECR-7047L
Public Safety and Professional Communications | www.pspc.harris.com
221 Jefferson Ridge Parkway | Lynchburg, VA USA 24501 | 1-800-528-
7711
Product Safety Manual
14221-1400-2010
Sep/11
This booklet contains important safety information regarding
specific absorption rate (SAR) and RF exposure limits included in
United States and international standards. Read the information
in this booklet before operating your radio.
P5500 Series
Portable Radios
2
14221-1400-2010
REV
DATE
DESCRIPTION
-
Sep/11
Initial release
CREDITS
OpenSky is a registered trademark of Harris Corporation.
RBRC and 1-800-8-BATTERY are registered trademarks of Rechargeable Battery Recycling
Corporation.
AMBE is a registered trademark and IMBE, AMBE+, and AMBE+2 are trademarks of Digital
Voice Systems, Inc.
All other product and brand names are trademarks, registered trademarks, or service marks of
their respective holders. NOTICE
The material contained herein is subject to U.S. export approval. No export or re-export is
permitted without written approval from the U.S. Government. Rated: EAR99; in accordance with
U.S. Dept. of Commerce regulations 15CFR774, Export Administration Regulations.
Information and descriptions contained herein are the property of Harris Corporation. Such
information and descriptions may not be copied or reproduced by any means, or disseminated or
distributed without the express prior written permission of Harris Corporation, RF
Communications Division, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501.
This product conforms to the European Union WEEE Directive 2002/96/EC. Do not
dispose of this product in a public landfill. This product should be taken to a recycling
center at the end of its life.
Repairs to this equipment should be made only by an authorized service technician or facility
designated by the supplier. Changes or modifications not expressly approved by Harris
Corporation could void the user’s authority to operate the equipment.
The voice coding technology embodied in this product is protected by intellectual property rights
including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of
this technology is explicitly prohibited from attempting to decompile, reverse engineer, or
disassemble the Object Code, or in any other way convert the Object Code into human-readable
form.
This manual is published by Harris Corporation, without any warranty. Improvements and changes to this
manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs
and/or equipment, may be made by Harris Corporation, at any time and without notice. Such changes will be
incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any
form or by any means, electronic or mechanical, including photocopying and recording, for any purpose,
without the express written permission of Harris Corporation.
Copyright © 2011 Harris Corporation. All rights reserved.
NOTICE!
This device is a RF transceiver intended for land mobile radio applications. The device may have
use restrictions, which require that the national authority be contacted for any system licensing
requirements, frequency use, allowable power level, etc.
14221-1400-2010
3
Insert Declaration of
Conformity.
4
14221-1400-2010
TABLE OF CONTENTS
1. SAFETY SYMBOL CONVENTIONS ...........................................
Page
5
2. SAFETY TRAINING INFORMATION ........................................ 6
2.1 RF EXPOSURE GUIDELINES ..................................................... 6
2.2 ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY ... 7
2.3 REGULATORY APPROVALS ..................................................... 8
3. OPERATING TIPS .......................................................................... 9
3.1 EFFICIENT RADIO OPERATION ............................................... 9
4. OPTIONS AND ACCESSORIES ................................................. 11
5. BATTERY PACKS ........................................................................ 12
5.1 CONDITIONING NIMH BATTERY PACKS ............................. 12
5.2 CONDITIONING LI-ION OR LI-POLY BATTERY PACKS .... 12
5.3 ADDITIONAL INFORMATION ................................................. 13
5.4 BATTERY DISPOSAL ................................................................ 13
6. TECHNICAL ASSISTANCE........................................................ 13
7. WARRANTY.................................................................................. 13
Harris Corporation, Public Safety and Professional Communications (PSPC) Business continually
evaluates its technical publications for completeness, technical accuracy, and organization. You
can assist in this process by submitting your comments and suggestions to the following:
Harris Corporation
PSPC Business or fax your comments to: 1-434-455-6851
Technical Publications
221 Jefferson Ridge Parkway or e-mail us at:
Lynchburg, VA 24501 PSPC_techpubs@harris.com
14221-1400-2010
5
1. SAFETY SYMBOL CONVENTIONS
The following conventions are used to alert the user to general safety
precautions that must be observed during all phases of operation, service, and
repair of this product. Failure to comply with these precautions or with
specific warnings elsewhere violates safety standards of design, manufacture,
and intended use of the product. Harris Corporation assumes no liability for
the customer's failure to comply with these standards.
WARNING
The WARNING symbol calls attention to a procedure,
practice, or the like, which, if not correctly performed or
adhered to, could result in personal injury. Do not proceed
beyond a WARNING symbol until the conditions identified
are fully understood or met.
CAUTION
The CAUTION
symbol calls attention to an operating
procedure, practice, or the like, which, if not performed
correctly or adhered to, could result in a risk of danger, damage
to the equipment, or severely degrade the equipment
performance.
NOTE
The NOTE
symbol calls attention to supplemental
information, which may improve system performance or
clarify a process or procedure.
The ESD symbol calls attention to procedures, practices, or the
like, which could expose equipment to the effects of Electro-
Static Discharge. Proper precautions must be taken to prevent
ESD when handling circuit modules.
6
14221-1400-2010
2. SAFETY TRAINING INFORMATION
WARNING
The Harris Corporation P5500 portable radio generates
RF electromagnetic energy during transmit mode. This
radio is designed for and classified as “Occupational Use
Only,” meaning it must be used only during the course of
employment by individuals aware of the hazards and the
ways t
o minimize such hazards. This radio is NOT
intended for use by the “General Population” in an
uncontrolled environment.
The P5500 portable radio has been tested and complies with the FCC RF
exposure limits for “Occupational Use Only.” In addition, this radio complies
with the following Standards and Guidelines with regard to RF energy and
electromagnetic energy levels and evaluation of such levels for exposure to
humans:
• FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating
Compliance with FCC Guidelines for Human Exposure to Radio
Frequency Electromagnetic Fields.
• American National Standards Institute (C95.1 – 1992), IEEE Standard for
Safety Levels with Respect to Human Exposure to Radio Frequency
Electromagnetic Fields, 3 kHz to 300 GHz.
• American National Standards Institute (C95.3 – 1992), IEEE
Recommended Practice for the Measurement of Potentially Hazardous
Electromagnetic Fields – RF and Microwave.
2.1 RF EXPOSURE GUIDELINES
CAUTION
To ensure that exposure to RF electromagnetic energy is
within the FCC
allowable limits for occupational use,
always adhere to the following guidelines:
• DO NOT operate the radio without a proper antenna attached, as this may
damage the radio and may also cause the FCC RF exposure limits to be
exceeded. A proper antenna is the antenna supplied with this radio by
Harris or an antenna specifically authorized by Harris Corporation for use
with this radio.
• DO NOT transmit for more than 50% of total radio use time (“50% duty
cycle”). Transmitting more than 50% of the time can cause FCC RF
exposure compliance requirements to be exceeded. The radio is
transmitting when the “TX” indicator appears in the display. The radio
will transmit by pressing the “PTT” (Push-To-Talk) button.
• ALWAYS transmit using low power when possible. In addition to
conserving battery charge, low power can reduce RF exposure.
14221-1400-2010
7
• ALWAYS use Harris authorized accessories (antennas, batteries, belt
clips, speaker/mics, etc). Use of unauthorized accessories may cause the
FCC Occupational/Controlled Exposure RF compliance requirements to
be exceeded.
• As noted in Table 2-1, ALWAYS keep the device and its antenna AT
LEAST 1.1 cm (0.43 inches) from the body and at least 2.5 cm (1.00
inch) from the face when transmitting to ensure FCC RF exposure
compliance requirements are not exceeded. However, to provide the best
sound quality to the recipients of your transmission, Harris Corporation
recommends you hold the microphone at least 5 cm (2 inches) from your
mouth, and slightly off to one side.
Table 2-1: RF Exposure Compliance Testing Distances
RADIO FREQUENCY
TESTED DISTANCES
(worst case scenario)
Body Face
800 MHz 1.1 cm 2.5 cm
VHF (136 - 174 MHz) 1.1 cm 2.5 cm
Table 2-2: Distance from Body for Different Carrying Options
CARRYING CONFIGURATION TESTED DISTANCES
(worst case from body)
Belt Loop 3.0 cm
Belt Clip 1.1 cm
Leather Case with Belt Loop 4.0 cm
Nylon Case with Belt Loop 4.4 cm
Shoulder Strap with D-clip 1.2 cm
Speaker-microphone with antenna 1.1 cm
The information in this section provides the information needed to make the
user aware of a RF exposure, and what to do to assure that this radio operates
within the FCC RF exposure limits of this radio.
2.2 ELECTROMAGNETIC
INTERFERENCE/COMPATIBILITY
During transmissions, Harris radios generate RF energy that can possibly
cause interference with other devices or systems. To avoid such interference,
turn off the radios in areas where signs are posted to do so. DO NOT operate
the transmitter in areas that are sensitive to electromagnetic radiation such as
hospitals, aircraft, and blasting sites.
8
14221-1400-2010
2.3 REGULATORY APPROVALS
2.3.1
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
Part 15
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference
that may cause undesired operation.
2.3.2
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Industry Canada
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
14221-1400-2010
9
3. OPERATING TIPS
Antenna location and condition are important when operating a portable radio.
Operating the radio in low lying areas or terrain, under power lines or bridges,
inside of a vehicle or in a metal framed building can severely reduce the range
of the unit. Mountains can also reduce the range of the unit.
In areas where transmission or reception is poor, some improvement may be
obtained by ensuring the antenna is vertical. Moving a few yards in another
direction or moving to a higher elevation may also improve communications.
Vehicular operation can be aided with the use of an externally mounted
antenna.
Face receiving antenna in weak coverage.
Battery condition is another important factor in the trouble free operation of a
portable radio. Always properly charge the batteries.
3.1 EFFICIENT RADIO OPERATION
Keep the antenna in a vertical position when receiving or transmitting a
message.
WARNING
Do NOT hold onto the antenna when the radio is powered
on.
3.1.1
WARNING
Antenna Care and Replacement
Always keep the antenna at least 0.43 inches (1.1 cm) away
from the body and 1.0 inch (2.5 cm) from the face when
transmitting to ensure FCC RF exposure compliance
requirements are not exceeded.
WARNING
Do not use the portable radio with a damaged or missing
antenna. A minor burn may result if skin comes into
contact with a da
maged antenna. Replace a damaged
antenna immediately. Operating a portable radio with the
antenna missing could cause personal injury, damage the
radio, and may violate FCC regulations.
WARNING
Use only supplied or approved antennas. Use of
unauthorized antennas, modifications,
or attachments
could cause damage to the radio unit and may violate FCC
regulations.
10
14221-1400-2010
3.1.2
CAUTION
Electronic Devices
RF energy from portable radios may affect some electronic
equipment. Most modern electronic equipment in cars,
hospitals, homes, etc., are shielded from RF energy. However,
in areas in which you are instructed to turn off two-way radio
equipment, always observe the rules. If in doubt, turn it off!
3.1.3
WARNING
Aircraft
Always turn off a portable radio before boarding any
aircraft!
• Use it on the ground only with crew permission.
•
3.1.4
DO NOT use while in-flight!!
WARNING
Electric Blasting Caps
To prevent accidental detonation of electric blasting caps,
DO NOT use two-way radios within 1000 feet of blasting
operations. Always obey the "Turn Off Two-Way Radios"
signs posted where electric blasting caps are being used.
(OSHA Standard: 1926.900)
3.1.5
WARNING
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often,
but not always, clearly marked. These may be fuelling
areas, such as gas stations, fuel or chemical transfer or
storage facilities, and areas where the air contains
chemicals or particles, such as grain, dust, or metal
powders.
Sparks in such areas could cause an explosion or fire
resulting in bodily injury or even death.
Turn OFF two-
way radios when in any area with a
potentially explosive atmosphere. It is rare, but not
impossible that a radio or its accessories could generate
sparks.
14221-1400-2010
11
4. OPTIONS AND ACCESSORIES
A list of Options and Accessories approved for use with the P5500 portable
radio can be found in the Operator’s Manual 14221-1100-2010, available
online at www.pspc.harris.co . Also reference the maintenance manual or
Harris Corporation’s Products and Services Catalog for all available options
and accessories, including those items that do not adversely affect the RF
energy exposure.
m
WARNING
Always
use Harris authorized accessories (antennas,
batteries, belt clips, speaker/mics, etc). Use of unauthorized
accessories may cause the FCC Occupational/Controlled
Exposure RF compliance requirements to be exceeded.
CAUTION
Always
use the correct options and accessories (battery,
antenna, speaker/mic, etc.) for the
radio. Immersion rated
options must be used with an immersion rated radio.
Intrinsically safe options must be used with intrinsically safe
radios.
12
14221-1400-2010
5. BATTERY PACKS
The P5500 series portable radios use rechargeable, recyclable Nickel Metal
Hydride (NiMH), Lithium-Ion (Li-Ion), or Lithium Polymer (Li-Poly) battery
packs. Please follow the directions below to maximize the useful life of each
type of battery pack.
WARNING
Do not disassemble or modify Lithium battery packs. The
Lithium battery packs are equipped with built-in safety
and protection features. Should these features be disabled
or tampered with in any way, the battery pack can leak
electrolyte, overheat, emit smoke, burst, and/or ignite.
WARNING
If the battery pack is ruptured or is leaking electrolyte
that results in skin or eye contact with the electrolyte,
immediately flush the affected area with water. If the
battery electrolyte gets in the eyes, flush with water for 15
minutes and consult a physician immediately.
5.1 CONDITIONING NIMH BATTERY PACKS
Condition a new NiMH battery pack before putting into use. This also applies
to rechargeable NiMH battery packs that have been stored for long periods
(weeks, months, or longer). Conditioning requires fully charging and fully
discharging the battery pack three (3) times using the tri-chemistry charger.
The first time the battery pack is put into the charger, this unit will condition
Nickel-based battery packs by automatically charging and discharging
(cycling) the battery. Refer to the appropriate charger manual for details.
CAUTION
Failure to properly condition NiMH battery packs before initial
use will result in shortened performance by the battery.
5.2 CONDITIONING LI-ION OR LI-POLY BATTERY
PACKS
Lithium-Ion and Lithium Polymer battery packs do not suffer from memory
effect and do not require conditioning.
CAUTION
Always use Harris authorized chargers and conditioners. Use
of unauthorized chargers and conditioners may void the
warranty.
14221-1400-2010
13
5.3 ADDITIONAL INFORMATION
For more information regarding the proper care of portable radio battery packs
or establishing a battery maintenance program, refer to ECR-7367 which may
be ordered by calling toll free 1-800-368-3277, then select option 7.
5.4 BATTERY DISPOSAL
CAUTION
In no instance should a battery pack be incinerated. Disposing
of a battery pack by burning will cause an explosion.
RECHARGEABLE BATTERY PACK DISPOSAL – The
product you have purchased contains a rechargeable battery
pack. The battery pack is recyclable. At the end of its useful
life, under various state and local laws, it may be illegal to
dispose of this battery pack into the municipal waste stream.
Check with your local solid waste officials for details in your
area for recycling options or proper disposal. Canadian and
U.S. users may call Toll Free 1-800-8-BATTERY® for
information and/or procedures for returning rechargeable
batteries in your locality.
6. TECHNICAL ASSISTANCE
The Technical Assistance Center's (TAC’s) resources are available to help
with overall system operation, maintenance, upgrades and product support.
TAC is your point of contact when answers are needed to technical questions.
Product specialists, with detailed knowledge of product operation,
maintenance, and repair, provide technical support via a toll-free (in North
America) telephone number. Support is also available through mail, fax and
e-mail. For more information about technical assistance services, contact your
sales representative, or call the Technical Assistance Center directly at:
North America: 1-800-528-7711
International: 1-434-385-2400
Fax: 1-434-455-6712
E-mail:
7. WARRANTY
PSPC_tac@harris.com
Please register this product within 10 days of purchase. Registration validates
the warranty coverage, and enables Harris to contact you in case of any safety
notifications issued for this product.
Registration can be made on-line at www.pspc.harris.com/CustomerService.
14
14221-1400-2010
RECHARGEABLE BATTERY WARRANTY
A. Harris Corporation, a Delaware Corporation, through its RF
Communications Division (hereinafter "Seller") warrants to the original
purchaser for use (hereinafter "Buyer") that nickel-cadmium, nickel-
metal hydride, lithium-ion, and lithium-polymer batteries supplied by
Seller shall be free from defects in material and workmanship, and
shall conform to its published specifications for a period of twelve (12)
months from the date of purchase.
B. For purposes of this warranty, batteries shall be deemed defective if (1)
the battery capacity is less than 80% rated capacity, or (2) the battery
develops leakage.
C. If any battery fails to meet the foregoing warranty, Seller shall correct
the failure by issuing a replacement battery upon receipt of the
defective battery at an Authorized Service Center (ASC) or Seller
factory (for OpenSky® Equipment only).
D. Replacement batteries shall be warranted only for the remaining
unexpired warranty period of the original battery. This warranty
becomes void if:
1. The battery has been subjected to any kind of misuse, detrimental
exposure, or has been involved in an accident.
2. The battery is used in equipment or service other than the radio
equipment for which it is specified.
E. The preceding paragraphs set forth the exclusive remedies for claims
based upon defects in or non-conformity of any battery, whether the
claim is in contract, warranty, tort (including negligence), strict liability
or otherwise, and however instituted. Upon the expiration of the
warranty period, all such liability shall terminate. The foregoing
warranties are exclusive and in lieu of all other warranties, whether
oral, written, expressed, implied or statutory. NO IMPLIED OR
STATUTORY WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR PARTICULAR PURPOSE SHALL APPLY. IN NO EVENT SHALL
THE COMPANY BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL, SPECIA
L, INDIRECT OR EXEMPLARY
DAMAGES.
This warranty applies only within the United States.
To obtain the name and address of an Authorized Service Center (ASC),
ask your salesperson, or call one of the factory number(s) printed at the
bottom of this page.
Harris Corporation Harris Corporation
RF Communications Division RF Communications Division
221 Jefferson Ridge Parkway 1680 University Avenue
Lynchburg, VA 24501 Rochester, NY 14610
1-800-528-7711 1-585-244-5830
ECR-7048D
14221-1400-2010
15
WARRANTY
A. Harris Corporation, a Delaware Corporation, through its RF Communications Division
(hereinafter "Seller") warrants to the original purchaser for use (hereinafter "Buyer")
that Equipment manufactured by or for the Seller shall be free from defects in material
and workmanship, and shall conform to its published specifications. With respect to all
non-
Seller Equipment, Seller gives no warranty, and only the warranty, if any, given by
the manufacturer shall apply. Rechargeable batteries are excluded from this warranty
but are warranted under a separate Rechargeable Battery Warranty (ECR-7048).
B.
Seller’s obligations set forth in Paragraph C below shall apply only to failures to meet
the above warranties occurring within the following periods of time from date of sale to
the Buyer and are conditioned on Buyer’s giving written notice to Seller within thirty
(30) days of such occurrence:
1. for fuses and non-rechargeable batteries, operable on arrival only.
3. for parts and accessories (except as noted in B.1), ninety (90) days.
4. for P7300, P7200, P7100IP
, P5400, P5300, P5200, P5100, P3300, M7300,
M7200 (including V-TAC), M7100IP
, M5300 and M3300 radios, two (2) years,
effective 10/01/2007.
5. for Unity® XG-100P, three (3) years.
6. for all other equipment of Seller’s manufacture, one (1) year.
C.
If any Equipment fails to meet the foregoing warranties, Seller shall correct the failure
at its option (i) by repairing any defective or damaged part or parts thereof, (ii) by
making available
at Seller’s factory any necessary repaired or replacement parts, or
(iii) by replacing the failed Equipment with equivalent new or refurbished Equipment.
Any repaired or replacement part furnished hereunder shall be warranted for the
remainder of the warr
anty period of the Equipment in which it is installed. Where such
failure cannot be corrected by Seller’s reasonable efforts, the parties will negotiate an
equitable adjustment in price. Labor to perform warranty service will be provided at no
charge durin
g the warranty period only for the Equipment covered under Paragraph
B.3 and B.4. To be eligible for no-
charge labor, service must be performed at Seller’s
factory, by an Authorized Service Center (ASC) or other Servicer approved for these
purposes either
at its place of business during normal business hours, for mobile or
personal equipment, or at the Buyer’s location, for fixed location equipment. Service on
fixed location equipment more than thirty (30) miles from the Service Center or other
approved Servicer’s place of business will include a charge for transportation.
D.
Seller’s obligations under Paragraph C shall not apply to any Equipment, or part
thereof, which (i) has been modified or otherwise altered other than pursuant to
Seller’s written instru
ctions or written approval or, (ii) is normally consumed in
operation or, (iii) has a normal life inherently shorter than the warranty periods
specified in Paragraph B, or (iv) is not properly stored, installed, used, maintained or
repaired, or, (v) has be
en subjected to any other kind of misuse or detrimental
exposure, or has been involved in an accident.
E.
The preceding paragraphs set forth the exclusive remedies for claims based upon
defects in or nonconformity of the Equipment, whether the claim is in contract,
warranty, tort (including negligence), strict liability or otherwise, and however instituted.
Upon the expiration of the warranty period, all such liability shall terminate. The
foregoing warranties are exclusive and in lieu of all other warranti
es, whether oral,
written, expressed, implied or statutory. NO IMPLIED OR STATUTORY WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE SHALL
APPLY. IN NO EVENT SHALL THE SELLER BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL, SPECIAL, INDIRECT OR EXEMPLARY DAMAGES.
This warranty applies only within the United States.
Harris Corporation Harris Corporation
RF Communications Division RF Communications Division
221 Jefferson Ridge Parkway 1680 University Avenue
Lynchburg, VA 24501 Rochester, NY 14610
1-800-528-7711 1-585-244-5830
ECR-7047L
Public Safety and Professional Communications
221 Jefferson Ridge Parkway | Lynchburg, VA USA 24501
www.pspc.harris.com | 1-800-528-7711
