HARRIS TR-0093-E Digital Portable Radio User Manual

HARRIS CORPORATION Digital Portable Radio

User Manual

HDP100
DMR Portable Radio
Operator’s Manual
14222-1100-2000
Rev. A, Jul/12
Public Safety and Professional Communications
221 Jefferson Ridge Parkway | Lynchburg, VA USA 24501
www.pspc.harris.com | 1-800-528-
7711
Rear Cover of Manual
Front Cover of Manual
Publication 14222-1100-2000, Rev. A iii
MANUAL REVISION HISTORY
REV. DATE REASON FOR CHANGE
Nov/11 Initial release.
A Jul/12
Revised attachment procedure for accessory/programming cable and accessory
model numbers. Added Equipment and Rechargeable Battery Warranty.
Harris Corporation, Public Safety and Professional Communications (PSPC) Business continually evaluates its technical
publications for completeness, technical accuracy, and organization. You can assist in this process by submitting your
comments and suggestions to the following:
Harris Corporation fax your comments to: 1-434-455-6851
PSPC Business or email us at:
Technical Publications PSPC_TechPubs@harris.com
221 Jefferson Ridge Parkway
Lynchburg, VA 24501
ACKNOWLEDGEMENT
This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482;
5,185,796; 5,195,166; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795; 5,226,084;
5,247,579; 5,491,772; 5,517,511; 5,581,656; 5,630,011; 5,649,050; 5,701,390; 5,715,365; 5,754,974; 5,826,222; 5,870,405;
6,161,089; 6,199,037 B1 and 6,912,495 B2. DVSI claims certain rights, including patent rights under aforementioned U.S.
patents, and under other U.S. and foreign patents and patents pending. Any use of this software or technology requires a
separate written license from DVSI. CREDITS
Harris and assuredcommunications are registered trademarks of and Momentum is a trademark of Harris Corporation.
NOTICE!
The material contained herein is subject to U.S. export approval. No export or re-export is permitted without written
approval from the U.S. Government. Rated: EAR99 in accordance with U.S. Dept. of Commerce regulations 15CFR774,
Export Administration Regulations.
iv
NOTICE!
Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions
may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission
of Harris Corporation, PSPC Business, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501.
The voice coding technology embodied in this product is protected by intellectual property rights including patent rights,
copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from
attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code
into human-readable form.
Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier.
Any repairs, alterations or substitutions of recommended parts made by the user to this equipment not approved by the
manufacturer could void the user's authority to operate the equipment in addition to the manufacturer's warranty.
This product conforms to the European Union WEEE Directive 2002/96/EC. Do not dispose of this product in
a public landfill. Take it to a recycling center at the end of its life.
This manual is published by Harris Corporation without any warranty. Improvements and changes to this manual necessitated by typographical errors,
inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris Corporation
at any time and without notice.
Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted i
n any form or by any means,
electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Harris Corporation.
Copyright© 20112012, Harris Corporation
TABLE OF CONTENTS
Publication 14222-1100-2000, Rev. A v
Section Page
SYMBOLS USED IN THIS MANUAL .................................................................................................................. 1
CAUTION AND NOTE SYMBOLS ................................................................................................................. 1
SYMBOLS FOR ANALOG AND DIGITAL CHANNEL FEATURES/FUNCTIONS .................................... 1
REGULATORY INFORMATION ........................................................................................................................ 2
PRODUCT SAFETY BOOKLET ..................................................................................................................... 2
RF EXPOSURE GUIDELINES ......................................................................................................................... 2
ELECTROMAGNETIC INTERFERENCE ...................................................................................................... 3
FCC Part 15 Statement ............................................................................................................................... 4
Industry Canada Statement ......................................................................................................................... 4
EU REGULATORY CONFORMANCE ........................................................................................................... 4

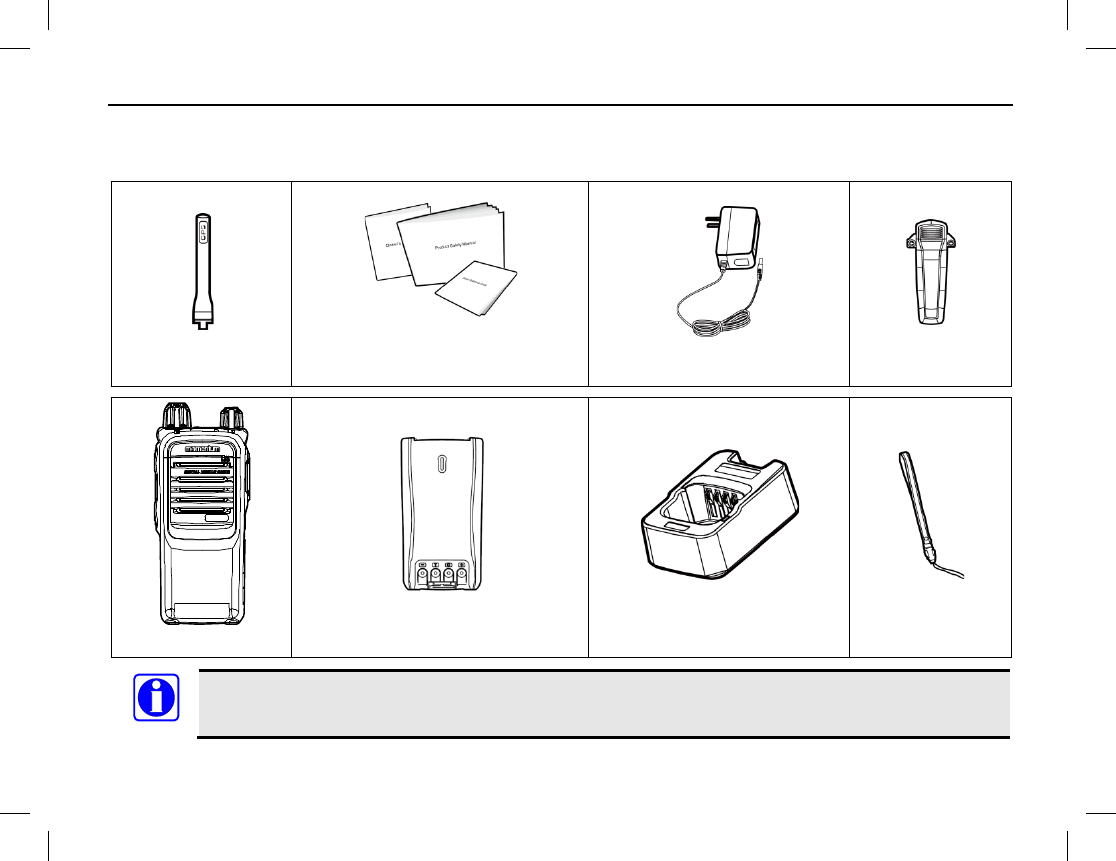

CHECKING ITEMS IN THE PACKAGE ............................................................................................................ 5
RADIO OVERVIEW ............................................................................................................................................... 6

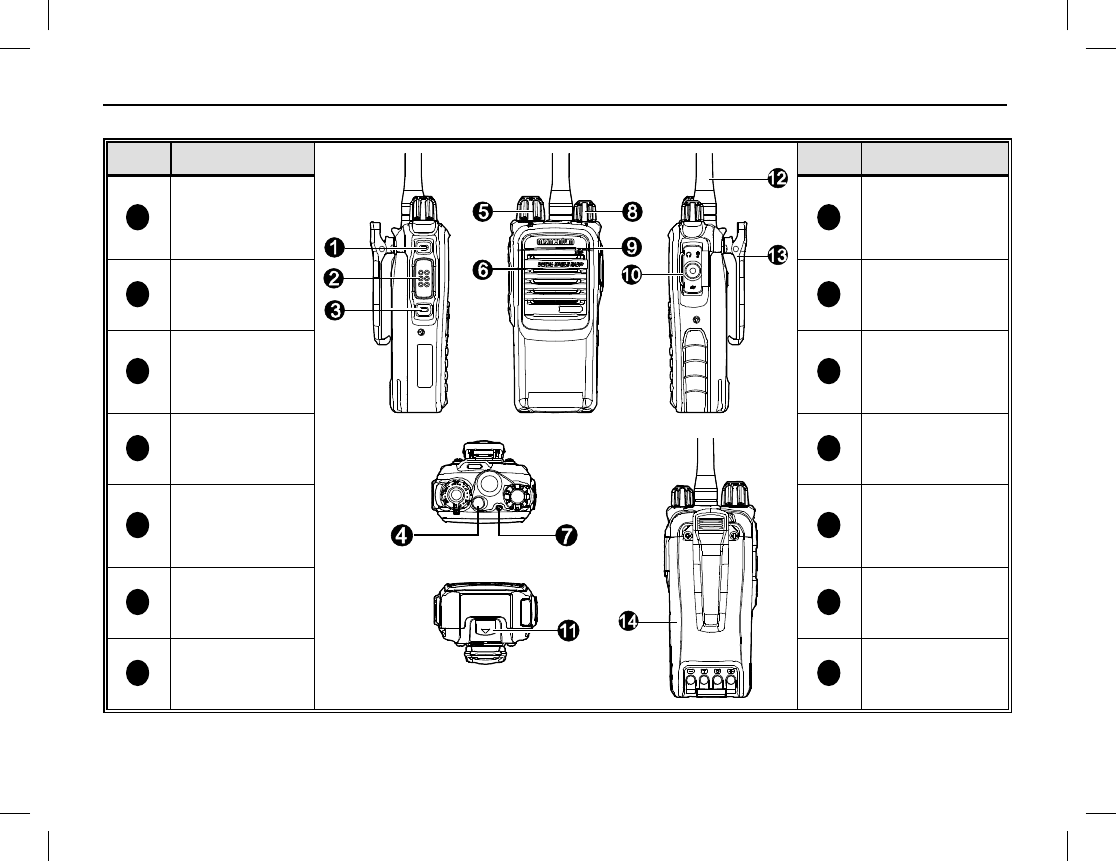

RADIO CONTROLS AND OTHER ITEMS .................................................................................................... 6
PROGRAMMABLE SHORTCUT KEYS ......................................................................................................... 7
BEFORE USING THE RADIO .............................................................................................................................. 9

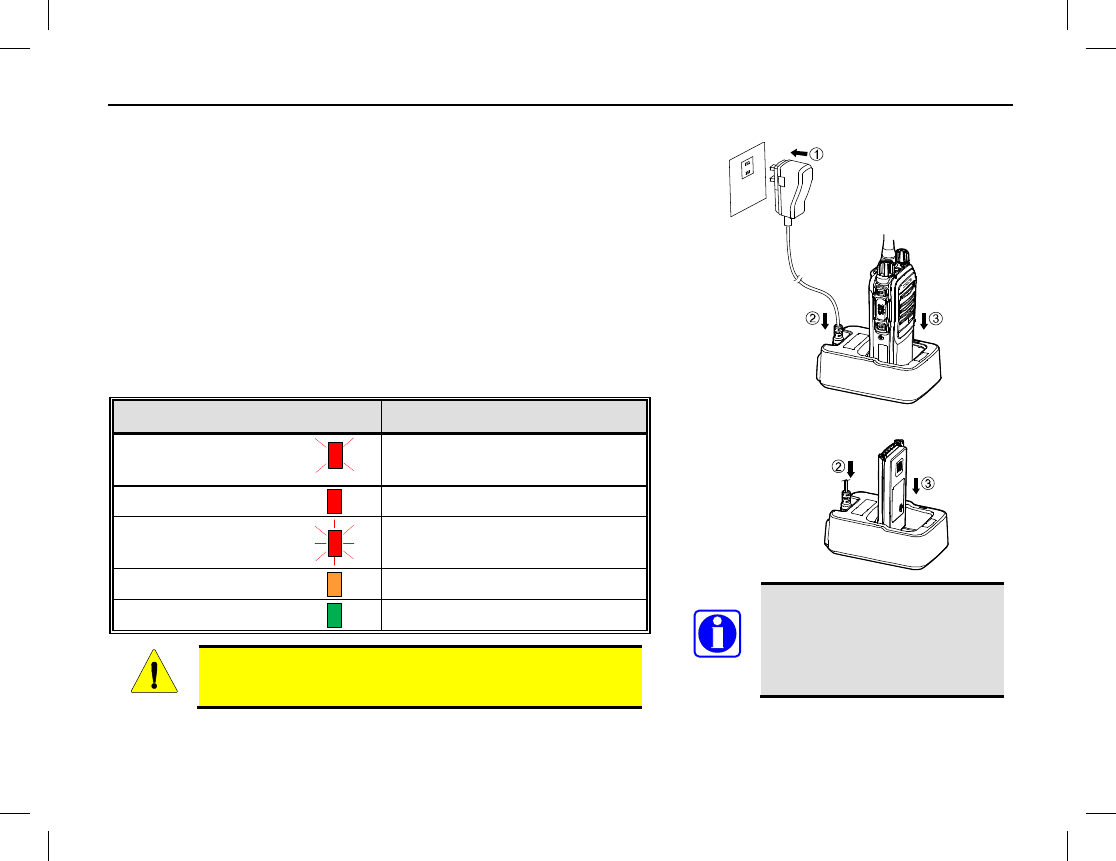

CHARGING THE BATTERY........................................................................................................................... 9
ASSEMBLY AND DISASSEMBLY .............................................................................................................. 10
Attaching and Removing the Antenna ...................................................................................................... 10
Attaching the Battery ................................................................................................................................ 10
Removing the Battery ............................................................................................................................... 10

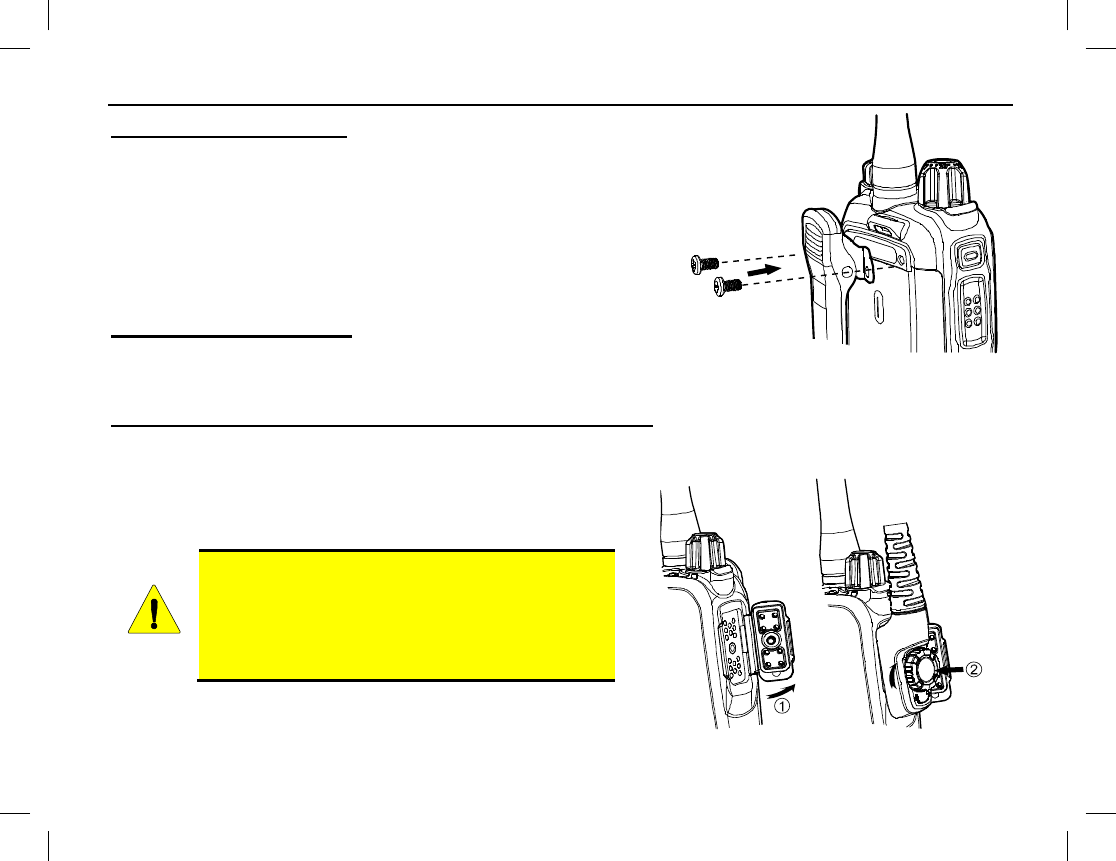

Attaching the Belt Clip ............................................................................................................................. 11
Removing the Belt Clip ............................................................................................................................ 11
Attaching the Audio Accessory/Programming Cable ............................................................................... 11
Removing an Accessory/Programming Cable .......................................................................................... 12
BASIC OPERATIONS .......................................................................................................................................... 13
TURNING THE RADIO ON AND OFF ......................................................................................................... 13
ADJUSTING THE VOLUME ......................................................................................................................... 13
TABLE OF CONTENTS
vi
Section Page
LED INDICATOR .......................................................................................................................................... 13
SELECTING A ZONE .................................................................................................................................... 13
SELECTING A CHANNEL ........................................................................................................................... 14
SWITCHING THE CHANNEL MODE BETWEEN ANALOG AND DIGITAL ......................................... 14
PRIVATE CALLS .................................................................................................................................. 14
Transmitting a Private Call ...................................................................................................................... 14
Receiving and Responding to a Private Call ............................................................................................ 15
GROUP CALLS ..................................................................................................................................... 15
Transmitting a Group Call ....................................................................................................................... 15
Receiving and Responding to a Group Call ............................................................................................. 15
ALL CALLS ........................................................................................................................................... 15
Transmitting an All Call .......................................................................................................................... 16
Receiving an All Call ............................................................................................................................... 16
TALK-AROUND (DIRECT MODE) ............................................................................................................. 16
CALLS ON ANALOG CHANNELS ..................................................................................................... 16
Transmitting a Call on an Analog Channel .............................................................................................. 16
Receiving a Call on an Analog Channel .................................................................................................. 17
Monitor .................................................................................................................................................... 17
Squelch Off .............................................................................................................................................. 17
Adjust Squelch Level ............................................................................................................................... 18
BATTERY STRENGTH INDICATOR .......................................................................................................... 18
TRANSMIT POWER LEVEL ........................................................................................................................ 18
SCANNING CHANNELS .................................................................................................................................... 20
GENERAL INFORMATION ......................................................................................................................... 20
OPERATION .................................................................................................................................................. 20
Turning Scan On and Off ......................................................................................................................... 20
Pausing Scan ................................................................................................................................... 20
Nuisance Temporary Delete .................................................................................................................... 21
TABLE OF CONTENTS
Publication 14222-1100-2000, Rev. A vii
Section Page
EMERGENCY COMMUNICATIONS ............................................................................................................... 22
GENERAL INFORMATION .......................................................................................................................... 22
Emergency Mode ..................................................................................................................................... 22
Emergency Type ....................................................................................................................................... 23
Emergency ID Type ......................................................................................................................... 23
Emergency Operations on Analog Channels ................................................................................... 24
Emergency Operations on Digital Channels .................................................................................... 26
LONE WORKER ............................................................................................................................................. 27
Using Lone Worker .................................................................................................................................. 28
MAN DOWN (OPTIONAL) ........................................................................................................................... 29
Using Man Down ..................................................................................................................................... 29
HDC1200 SIGNALING ......................................................................................................................................... 30
GENERAL INFORMATION .......................................................................................................................... 30
TRANSMISSION (ENCODE) ........................................................................................................................ 30
PTT ID Transmission ............................................................................................................................... 30
SECURE COMMUNICATIONS ......................................................................................................................... 31
GENERAL INFORMATION .......................................................................................................................... 31
OPERATION ................................................................................................................................................... 31
Manually Enabling and Disabling Scrambler/Encrypt ............................................................................. 31
MISCELLANEOUS FEATURES ........................................................................................................................ 32
CHANNEL BUSY LOCKOUT ....................................................................................................................... 32
TIME-OUT TIMER (TOT) .............................................................................................................................. 32
PSEUDO TRUNKING ............................................................................................................................ 32
MIC AGC ........................................................................................................................................................ 32
RADIO REGISTRATION SERVICE ..................................................................................................... 33
GPS REVERT ......................................................................................................................................... 33
ONE TOUCH CALL ....................................................................................................................................... 33
TABLE OF CONTENTS
viii
Section Page
One Touch Call Operation ....................................................................................................................... 34
TELEMETRY ......................................................................................................................................... 34
Supervise a Device via Another/Remote Radio ....................................................................................... 35
Supervise a Device via Third-Party Software .......................................................................................... 35
ROAM .................................................................................................................................................... 35
TROUBLESHOOTING AND TECHNICAL ASSISTANCE ........................................................................... 36
TROUBLESHOOTING TABLE .................................................................................................................... 36
TECHNICAL ASSISTANCE ......................................................................................................................... 38
CARE AND CLEANING ..................................................................................................................................... 39
RADIO CARE ................................................................................................................................................ 39
RADIO CLEANING ....................................................................................................................................... 39
MODEL NUMBERS ............................................................................................................................................. 40
RADIO PACKAGES ...................................................................................................................................... 40
ANTENNAS ................................................................................................................................................... 41
BATTERIES AND BATTERY CHARGERS ................................................................................................ 42
CARRYING ACCESSORIES ......................................................................................................................... 42
AUDIO ACCESSORIES ................................................................................................................................ 43
WARRANTY REGISTRATION AND WARRANTY ....................................................................................... 44
WARRANTY REGISTRATION .................................................................................................................... 44
EQUIPMENT AND RECHARGEABLE BATTERY WARRANTY ............................................................. 44
SYMBOLS USED IN THIS MANUAL
Publication 14222-1100-2000, Rev. A 1
The following tables lists symbols used in this manual.
CAUTION AND NOTE SYMBOLS
SYMBOL DESCRIPTION
The WARNING
symbol calls attention to a procedure, practice, or the like, which, if not
correctly performed or adhered to, could result in personal injury. Do not proceed beyond a
WARNING symbol until the conditions identified are fully understood or met.
The CAUTION
symbol calls attention to an operating procedure, practice, or the like, which, if
not performed correctly or adhered to, could result in damage to the equipment or severely
degrade equipment performance.
The NOTE
symbol calls attention to supplemental information, which may improve system
performance or clarify a process or procedure. It may also be used to flag tips that can help you
make better use of the radio.
SYMBOLS FOR ANALOG AND DIGITAL CHANNEL FEATURES/FUNCTIONS
SYMBOL DESCRIPTION
The DIGITAL CHANNEL symbol indicates the particular feature or function applies
to digital
channels only.
The ANALOG CHANNEL symbol indicates the particular feature or function applies to
analog
channels only.
If no digital channel or analog channel symbol appears, the function/feature applies to both analog channels and
digital channels.
WARNING
CAUTION
NOTE
REGULATORY INFORMATION
2
PRODUCT SAFETY BOOKLET
Before operating the HDP100 portable radio, read the safety and RF exposure guidelines
contained in Product Safety Booklet included with the radio.
RF EXPOSURE GUIDELINES
The HDP100 portable radio generates RF electromagnetic energy during transmit mode.
This radio is designed for and classified as “Occupational Use Only,” meaning it must be
used only during the course of employment by individuals aware of the hazards and the
ways to minimize
such hazards. This radio is NOT intended for use by the “General
Population” in an uncontrolled environment.
The HDP100 radio has been tested and complies with the Federal Communications Commission (FCC) RF
exposure limits for “Occupational Use Only.” In addition, this radio complies with the following Standards and
Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for
exposure to humans:
FCC Office of Engineering and Technology (OET) Bulletin 65 Edition 97-01 Supplement C, Evaluating
Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields.
American National Standards Institute (C95.1 1992), IEEE Standard for Safety Levels with Respect to
Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
American National Standards Institute (C95.3 1992), IEEE Recommended Practice for the Measurement
of Potentially Hazardous Electromagnetic Fields RF and Microwave.
WARNING
WARNING
REGULATORY INFORMATION
Publication 14222-1100-2000, Rev. A 3
To ensure exposure to RF electromagnetic energy is within the FCC allowable limits for
occupational use, always adhere to the following guidelines:
DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also
cause the FCC RF exposure limits to be exceeded. A proper antenna is the antenna supplied with this radio
by Harris or an antenna specifically authorized by Harris for use with this radio. These antennas are listed
on page 41.
DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than
50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is
transmitting when the LED indicator on the top of the radio lights red in color. The radio transmits when its
“PTT” (Push-To-Talk) key is pressed.
Always transmit using low power when possible. In addition to conserving battery charge, low power can
reduce RF exposure.
ALWAYS use Harris authorized accessories (antennas, batteries, belt clips, speaker/mics, etc). Use of
unauthorized accessories may cause the FCC Occupational/Controlled Exposure RF compliance
requirements to be exceeded.
ALWAYS keep the device and its antenna at least 1 inch (2.5 centimeters) from the body and face when
transmitting to ensure FCC RF exposure compliance requirements are not exceeded. To provide the best
sound quality to the recipients of your transmission, Harris recommends holding the front of the radio at
between 1 and 2 inches (2.5 to 5.0 centimeters) from your mouth when transmitting into the radio’s
microphone.
ELECTROMAGNETIC INTERFERENCE
During transmissions, this radio generates RF energy that can possibly cause interference with other devices or
systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT
CAUTION
REGULATORY INFORMATION
4
operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and
blasting sites.
FCC Part 15 Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
Industry Canada Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
EU REGULATORY CONFORMANCE
As certified by the qualified laboratory, the product is in compliance with the essential requirements and other
relevant provisions of the Directive 1999/5/EC. Please note that the above information is applicable to EU
countries only.
CHECKING ITEMS IN THE PACKAGE
Publication 14222-1100-2000, Rev. A 5
Carefully unpack and check that all items listed below are received. If any item is missing or damaged, please
immediately contact your dealer.
Antenna
Operator’s Manual, Product
Safety Booklet, Quick Guide
Power Adapter
Belt Clip
Radio
Battery
Battery Charger
Wrist Strap
The antenna may vary with different frequency bands. The frequency band is marked on the label
of antenna. If not, refer to the label on the radio unit for frequency band information.
NOTE
RADIO OVERVIEW
6
RADIO CONTROLS AND OTHER ITEMS
ITEM NAME
ITEM NAME
1
Side Key 1
(SK1)
8
On/Off/Volume
Control Knob
2
PTT Key
9
Microphone
3
Side Key 2
(SK2)
10
Accessory
Jack
4
Top Key (TK)
11
Battery Latch
5
Channel
Selector Knob
12
Antenna
6
Speaker
13
Belt Clip
7
LED Indicator
14
Battery
RADIO OVERVIEW
Publication 14222-1100-2000, Rev. A 7
PROGRAMMABLE SHORTCUT KEYS
For enhanced convenience, you may request your dealer pre-program keys SK1, SK2, and TK as shortcuts to
any of the functions listed in this table:
NO. SHORTCUT NAME SHORTCUT KEY FUNCTION
1 Zone Up Change to another zone. See page 13.
2 Zone Down
3 Adjust Power Level Quickly change the radio’s transmitting power level. See page 18.
4 Talk-Around Directly communicate with other radios. See page 16.
5 Monitor Toggle receiver muting on and off. See page 17.
6 Monitor
Momentary Momentarily turn receiver muting off. See page 17.
7 Squelch Off Toggle squelch on and off. When off, the radio always unmutes so if
no radio carrier is present on the channel, receiver noise is heard.
See page 17.
8 Squelch Off
Momentary Momentarily turn squelch off. Otherwise, same as above. See page
17.
9 Scan Enable and disable scanning. See page 20.
10 Nuisance Temporary
Delete Temporarily skip unwanted channel activity during scanning. See
page 21.
11 Emergency On Turn on the emergency mode and transmit emergency call/signaling.
See page 22.
12 Emergency Off Turn off the emergency call/signaling, exiting emergency mode. See
page 22.
RADIO OVERVIEW
8
NO. SHORTCUT NAME SHORTCUT KEY FUNCTION
13 Lone Worker Toggle the Lone Worker feature on and off. See page 27.
14 Adjust Squelch Level
Temporarily adjust the receiver squelch threshold. See page 18.
15 Battery Strength
Indicator Indicate remaining battery strength by the LED indicator. See page
18.
16 Man Down
(Optional Feature)
Activate this emergency feature so if the radio is positioned at an
angle for a preset period of time, it will begin emergency
transmissions. See page 29.
17 Scrambler /
Encrypt
Scrambler: Encrypt voice transmissions for secure communications.
Encrypt: Encrypt voice and message transmissions for secure
communications. See page 30.
18 One Touch Call
(1 though 5) Quickly make calls or send messages. See page 33.
19 Telemetry To supervise remote devices. See page 34.
20 Roam To enable and disable the Roam feature. See page 35.
Long and short presses of a key can be programmed with different functions by your dealer.
The Top Key (TK) is programmed as the emergency key by default. It may be reprogrammed by
your dealer.
NOTE
BEFORE USING THE RADIO
Publication 14222-1100-2000, Rev. A 9
To achieve optimal battery
performance, charge the
battery five (5) hours
before its initial use.
NOTE
CHARGING THE BATTERY
Follow this procedure to charge the radio’s battery:
1. Connect the AC power adapter to an AC power source. See
arrow .
2. Plug the small plug of the power adapter into the jack at the
rear of the charger. See arrow .
3. Place the radio with the battery attached, or just the battery
alone, into the slot in the top of the charger. See arrow .
4. Refer to the following table for charge status, as indicated by
the charger’s status indicator.
STATUS INDICATOR CHARGE STATUS
Flashes Red
Slowly Standby
(No Load/No Battery)
Glows Red
Battery Charging
Flashes Red
Rapidly
Battery or Charger Failure
Glows Orange
Battery 90% Charged
Glows Green
Battery Fully Charged
Read the radio’s Product Safety Booklet for related
information.
CAUTION
BEFORE USING THE RADIO
10
Attach
Remove
ASSEMBLY AND DISASSEMBLY
Attaching and Removing the Antenna
To attach the antenna to the radio, place its base into the antenna
jack on the top of the radio and turn the antenna in a clockwise
direction.
To remove the antenna from the radio, simply turn the antenna in
a counter-clockwise direction until it is free from the radio.
Attaching the Battery
To attach the battery to the radio:
1. Slide the top of the battery completely into the cavity
at the rear of the radio. See arrow .
2. Gently press on the bottom of the battery until a click
is heard. See arrow . This locks the battery to the
radio.
Removing the Battery
To remove the battery from the radio:
1. Turn off the radio by rotating it’s on/off/volume
control to the full counter-clockwise position.
2. Grasp the radio firmly in one hand in a bottoms-up
position.
3. Using the other hand, slide the battery latch up to
unlatch the battery, and remove the battery from the
radio.
BEFORE USING THE RADIO
Publication 14222-1100-2000, Rev. A 11
Attaching the Belt Clip
To attach the belt clip to the radio:
1. Remove the two (2) screws on the rear of the radio.
2. As illustrated, align the screw holes on the belt clip with those
on the radio and re-install the two screws into the holes.
3. Using a small screwdriver, tighten the two screws securely. Do
not over-tighten them.
Removing the Belt Clip
To remove the belt clip, use a small screwdriver to loosen and
remove the two (2) screws that secure the clip to the radio, and then remove it from the radio.
Attaching the Audio Accessory/Programming Cable
To attach an audio accessory or a programming cable to the radio:
1. Open the accessory jack cover, as illustrated by arrow .
2. Align the threaded portion of the cable’s screw with the
threaded hole in the center of the jack.
Do not scrape the silicon rubber on the accessory
jack. Scrapes/Scratches in this area could perma-
nently affect the waterproof performance of the
radio. Correct and incorrect alignment is
shown in the illustration on the next page.
3. Join the screw to the thread hole and tighten the screw by
the knob on the cable’s plug. See arrow .
CAUTION
BEFORE USING THE RADIO
12
CORRECT INCORRECT INCORRECT
ALIGNMENT ALIGNMENT ALIGNMENT
When an external accessory is attached to the radio’s accessory jack, waterproof performance of
the radio may be affected.
Removing an Accessory/Programming Cable
To remove a cable from the radio’s accessory jack, simply loosen its screw and detach the cable from the jack.
CAUTION
BASIC OPERATIONS
Publication 14222-1100-2000, Rev. A 13
TURNING THE RADIO ON AND OFF
To turn on the radio, rotate its On/Off Volume Control knob clockwise out of the detent position. A click
will be sensed. The radio flashes its LED status indicator green. This knob is item 8 on page 6.
To turn the radio off, rotate this knob fully counter-clockwise until the detent click is sensed.
ADJUSTING THE VOLUME
After turning the radio on, rotate the On/Off Volume Control knob clockwise to increase the volume or
counter-clockwise to decrease it. Volume adjustment can be made at anytime later in the same manner.
LED INDICATOR
A light-emitting diode (LED)
type status indicator is located on
the top of the radio, near the
On/Off/Volume Control Knob.
This indicator can be quickly
viewed to determine the basic
operational status of the radio.
Each status indication is
described in the table at the right.
SELECTING A ZONE
A zone is a group of pre-
programmed radio channels
exhibiting similar properties. The
radio supports up to three (3) zones and each zone can have up to 16 channels. Zones and channels are pre-
programmed into the radio by your dealer. Select a zone by pressing the programmed Zone Up or Zone
LED INDICATOR RADIO STATUS
Flashing Green
Powering on
Glowing Red
Transmitting
Glowing Green
Receiving
Flashing Orange Slowly
(approximately once every 2 sec.)
Scanning
Flashing Orange Rapidly
(approximately twice every 1 sec.)
Emergency
Glowing Orange
OK to transmit voice audio by
pressing the PTT key and
speaking into the microphone.
BASIC OPERATIONS
14
Down shortcut key. When zone 1 is selected, the radio beeps once. When zone 2 is selected, the radio beeps
twice. When zone 3 is selected, the radio beeps three times. Keys SK1, SK2, and TK may be pre-programmed
by your dealer as Zone Up and Zone Down shortcut keys. The SK1, SK2, and TK keys are illustrated on page
6.
SELECTING A CHANNEL
The radio’s Channel Selector knob is located on the top of the radio. It is item 5 on page 6. Rotate this knob
to select the desired channel within the currently selected zone.
This knob has 16 positions, for a total of 16 channels per zone. Some knob positions may not be programmed
with a channel.
SWITCHING THE CHANNEL MODE BETWEEN ANALOG AND DIGITAL
Each channel can be pre-programmed as either an analog channel or a digital channel. If the currently selected
zone includes both analog and digital channels, the Channel Selector knob can be used to quickly switch
between analog and digital channels. Select the desired channel by rotating the knob to the respective position.
PRIVATE CALLS
A private call is a call initiated by a radio user to another radio user.
Transmitting a Private Call
When the channel is clear (i.e., when not receiving a signal), hold down the radio’s PTT key to transmit a
private call to the Private Call contact preset for the currently selected channel. Release the PTT key to stop
transmitting, and listen for a reply.
BASIC OPERATIONS
Publication 14222-1100-2000, Rev. A 15
Whenever transmitting (i.e., PTT key depressed), hold the front of the radio between 1 to 2 inches
from your mou
th and speak into the microphone at a normal voice level. This will ensure optimal
reception at the receiving radio unit(s). Never shout or whisper when transmitting. As illustrated
on page 6, the radio’s microphone is located near the top of the radio.
Each digital channel may be pre-programmed with a preset contact by your dealer. The preset
contact can be a Private Call contact, a Group Call contact, or an All Call contact.
Receiving and Responding to a Private Call
When a private call is received, listen to the call and adjust the volume as necessary. To respond to the call,
hold down the PTT key within the preset time period, and speak into the microphone at a normal voice level.
GROUP CALLS
A group call is a call initiated by a radio user to a group of radio users.
Transmitting a Group Call
When the channel is clear (i.e., when not receiving a signal), hold down the radio’s PTT key to transmit a group
call to the Group Call contact preset for the currently selected channel. Release the PTT key to stop
transmitting, and listen for a reply. See Receiving and Responding to a Group Call for additional information.
Receiving and Responding to a Group Call
When a group call is received, listen to the call and adjust the volume as necessary. To respond to the call, hold
down the PTT key within the preset time period, and speak into the microphone at a normal voice level.
ALL CALLS
An all call is a call initiated by a radio user to all radio users on the channel.
NOTE
NOTE
BASIC OPERATIONS
16
Transmitting an All Call
When the channel is clear (i.e., when not receiving a signal), hold down the radio’s PTT key to transmit an all
call to the All Call contact preset for the currently selected channel. Release the PTT key to stop transmitting,
and listen for a reply.
All calls can only be transmitted if enabled by your dealer via radio pre-programming.
Receiving an All Call
When an all call is received, the call’s audio is heard in the
radio’s speaker.
It is not possible to respond to
an all call.
TALK-AROUND (DIRECT MODE)
The talk-around feature provides direct radio-to-radio communications. With talk-around, a radio repeater
system is not required for radio communications. This type of operation is sometimes called “direct mode.”
Talk-around is beneficial when, for example, a radio repeater system malfunction has occurred, or when the
radio is out-of-range of a radio repeater system, but other radios are nearby that can communicate on the same
pre-programmed radio channels.
To toggle radio operation between normal communications mode (repeater mode) and talk-around, simple press
the pre-configured Talk-Around shortcut key.
CALLS ON ANALOG CHANNELS
Transmitting a Call on an Analog Channel
1. If not already, select the desired analog channel.
NOTE
NOTE
BASIC OPERATIONS
Publication 14222-1100-2000, Rev. A 17
2. Listen for a clear channel. In other words, if another person is using the channel, wait for them to finish
transmitting/speaking. If pre-programmed, a monitor or squelch off shortcut key should be used to verify
the channel is clear. See the following sections for additional information on these functions.
3. Hold down the radio’s PTT key and speak into the microphone at a normal voice level.
4. Release the PTT key to stop transmitting and listen for a reply.
Receiving a Call on an Analog Channel
1. If not already, select the desired analog channel. Do not press the PTT key.
2. When an incoming call is received on the channel, rotate the On/Off Volume Control knob as necessary
to adjust the volume.
If pre-programmed, a monitor or squelch off shortcut key can be used to verify there is no signal on the
channel. Also, the Squelch Off shortcut key can be used in weak signal conditions.
Monitor
Monitor is a function for analog channels that allows any pre-programmed receiver decoding to be disabled so
calls (or other activity) on the selected channel without the correct code can be monitored.
This does not disable receiver squelch. When the Monitor function is enabled, any calls on the channel will be
heard in the radio’s speaker.
To enable and disable the Monitor function, press the pre-programmed Monitor shortcut key, or the Monitor
Momentary shortcut key. The Monitor shortcut key provides a toggle on/off type function, whereas the
Monitor Momentary shortcut key temporarily enables the function only while the shortcut key is depressed.
Squelch Off
Squelch Off is an analog channel function that, when enabled, keeps the receiver unsquelched (i.e., not muted)
even when there is no signal on the selected channel. When enabled, call audio on the channel (or receiver
noise) is routed to the radio’s speaker.
BASIC OPERATIONS
18
To toggle squelch between enabled and disabled, press the pre-configured Squelch Off shortcut key.
To momentarily turn squelch off, depress the pre-configured Squelch Off Momentary key. When this key is
released, squelch turns back on.
Adjust Squelch Level
If programmed, the Adjust Squelch Level shortcut key can be used to select one of three receiver squelch
levels: Tight, Normal, and Open. The default squelch level is Normal, which is often used in a low radio
frequency noise environment. Generally, the Tight level should be used in a high radio frequency noise
environment; it requires a stronger received radio signal to unmute the receiver. Using Open will keep the
speaker unmuted, regardless of the noise level or the decode settings.
When switching from Tight to Open, a low-pitched tone sounds and received noise or call audio is heard from
the speaker. When switching from Open to Normal, a high-pitched tone sounds and the background sounds
disappear. When switching from Normal to Tight, a high-pitched tone sounds.
BATTERY STRENGTH INDICATOR
If the Battery Strength Indicator shortcut key is
pre-programmed, this function can be used to quickly
check the remaining battery strength via the LED
indicator on the top of the radio. Simply press and hold
this pre-programmed shortcut key and view the LED
indicator on the top of the radio.
TRANSMIT POWER LEVEL
With this feature, the radio’s transmit power level can
be quickly changed between a low and a high power level. Use the low power level whenever possible to
increase battery operating time and to reduce the possibility of radio communications interference. However, if
LED INDICATOR BATTERY
STRENGTH
Glowing Green
High
Glowing Orange
Medium
Glowing Red
Low
Glowing Red
(and Low Battery Alert Tone Sounds)
Insufficient
BASIC OPERATIONS
Publication 14222-1100-2000, Rev. A 19
communications with other radios is not possible on the currently selected channel at the low power level,
select and use the high power level.
Press the programmed Adjust Power Level shortcut key to toggle between the low and high power levels.
When switching to the high power level, a high-pitched tone sounds. When switching the low power level, a
low-pitched tone sounds.
SCANNING CHANNELS
20
GENERAL INFORMATION
The radio’s scan feature allows scanning of radio channels pre-programmed into the radio for call activity. Scan
lists can be pre-programmed for each channel. Each scan list may contain 32 digital or analog channels. When
the radio is scanning channels:
The LED indicator on the top of the radio flashes orange slowly.
The radio scans the channels currently on the scan list for calls (or other activity).
When a call (or other activity) is received/detected on a channel in the scan list:
o The call’s audio is routed to the radio’s speaker.
o The LED indicator glows green.
o The radio remains on the channel (i.e., scan operation automatically pauses) until the call (or other
activity) ends.
OPERATION
Turning Scan On and Off
Scan can be turned on and off by pressing the Scan shortcut key. When scan turns on, a high-pitched tone
sounds.
The radio can be pre-programmed with the Auto Scan feature on a per-channel basis. If so, the radio will
automatically begin scanning the channel’s scan list when the channel is selected. In this case, to turn scan off,
press the Scan shortcut key once.
Pausing Scan
If a call is received on an analog channel and staying on the channel (i.e., pausing scan) is desired so additional
transmissions can be heard on it, press the pre-programmed Monitor or Squelch Off shortcut key when a call
is on the channel. When the Monitor function is on, if present, call audio on the channel is heard in the radio’s
SCANNING CHANNELS
Publication 14222-1100-2000, Rev. A 21
speaker. When the Squelch Off function is on or when a call is on the channel, call audio on the channel (or
receiver noise) is heard in the radio’s speaker. Press the shortcut key again or the Scan shortcut key to unpause
scan.
Nuisance Temporary Delete
To temporarily remove a channel from a channel’s scan list so calls on it will not pause scanning, press the pre-
programmed Nuisance Temporary Delete shortcut key when a call is on the channel. In this case, the
channel will not be scanned again until after the channel or zone is changed, the radio is power-cycled, or scan
is turned off and back on.
EMERGENCY COMMUNICATIONS
22
GENERAL INFORMATION
The radio’s emergency feature can be used to summon help from another radio operator(s) and/or via a radio
dispatch/control center. The emergency process has the highest call priority throughout the radio communica-
tions system. Emergency operations can be performed when the radio is transmitting or receiving. The radio
can be pre-programmed with different emergency modes, emergency types, and emergency ID types. These are
described in the following subsections. Each channel can be pre-programmed with different emergency system
operation. Consult your radio dealer for specific information on how your radio is pre-programmed:
Emergency Mode
The radio supports three (3) emergency modes, as defined in the following table. Two (2) of the three modes
apply only to analog channels (see symbol). To select a different mode, consult with your radio dealer:
EMERGENCY MODE DESCRIPTION
Alarm
With this mode, you can send alarm information to
another radio operator
or to a dispatch/control center, but you cannot transmit voice audio. Initiate
by pressing the pre-programmed Emergency shortcut key.
Alarm with Call
With this mode, you can send alarm information by pressing the pre-
programmed Emergency shortcut key. Next,
when the LED indicator
glows steady, speak into the microphone to transmit your voice. P
ressing
the radio’s PTT key is not necessary when speaking in the mic.
This is
commonly referred to as a “hot-mic” condition.
Call Only
With this mode, you can send alarm information by pressing the pre-
programmed Emergency shortcut key. Next,
when the LED indicator
glows steady, speak into the microphone to transmit your voice. P
ressing
the radio’s PTT key is not necessary when speaking in the mic (i.e., a hot-
mic condition).
EMERGENCY COMMUNICATIONS
Publication 14222-1100-2000, Rev. A 23
Emergency Type
The radio supports four (4) emergency types, as defined in the following table. To select a different type,
consult with your radio dealer:
EMERGENCY TYPE DESCRIPTION
Siren Only When an emergency occurs, the radio sounds a shrill alarm tone.
Regular When an emergency occurs, the radio gives an audible indication.
Silent
When an emergency occurs, the radio does not give any indication,
audible or visual. This type is typically employed in covert operations.
Silent with Voice
When an emergency occurs, the radio does not give any
audible or visual
indication, but it will receive voice audio response(s) from other radios or a
dispatch/control center transmitting on the emergency channel.
This type
is typically employed in covert operations.
Emergency ID Type
The radio supports two (2) emergency ID types on analog channels, as defined in the following table. To select
a different ID type, consult with your radio dealer:
EMERGENCY TYPE DESCRIPTION
None No signaling is used when the radio transmits alarm information.
HDC1200 HDC1200 signaling is used when the radio transmits alarm information.
EMERGENCY COMMUNICATIONS
24
Emergency Operations on Analog Channels
Alarm Emergency Mode
If the radio is pre-programmed for Alarm emergency mode operations on the selected analog channel, press the
pre-programmed Emergency shortcut key transmit an alarm. When an alarm is transmitted, the LED indicator
on the top of the radio rapidly flashes orange then glows red to indicate the alarm transmission. The radio may
also be pre-programmed to sound an audible alarm.
The alarm will be transmitted until the pre-programmed number of alarm cycles completes, or it can be ended
early by simply long-pressing the pre-programmed Emergency shortcut key.
Alarm with Call Emergency Mode
If the radio is pre-programmed for Alarm with Call emergency mode operations on the selected analog channel,
use this feature as follows:
1. Press the pre-programmed Emergency shortcut key. The LED indicator on the top of the radio rapidly
flashes orange then glows red to indicate the alarm transmission. The radio may also be pre-programmed to
sound an audible alarm.
2. The radio is in a hot-mic condition for a pre-programmed period of time. Speak into the microphone to
transmit voice audio on the selected analog channel. Pressing the radio’s PTT key is not necessary during
this time. The LED indicator glows red during this time.
3. After the pre-programmed hot-mic time ends, the radio enters a receive period. Listen for a reply during
this period of time.
4. If the radio is pre-programmed with more than one voice cycle, it will repeat the transmit (with hot-mic)
and receive periods for the number of pre-programmed cycles.
5. After the voice cycle(s) expires, additional voice calls can be made by pressing the radio’s PTT key. The
the LED indicator glows red. Release the PTT key to end the voice call (transmission) on the emergency
channel. The LED indicator flashes orange rapidly.
EMERGENCY COMMUNICATIONS
Publication 14222-1100-2000, Rev. A 25
The Alarm with Call emergency mode transmission will continue until the pre-programmed number of alarm
cycles and voice cycles completes. Alternately, it can be ended early by simply long-pressing the pre-
programmed Emergency shortcut key.
Call Only Emergency Mode (HDC1200 Signaling Only)
If the radio is pre-programmed for Call Only emergency mode operations on the selected analog channel, use
this feature as follows:
1. Press the pre-programmed Emergency shortcut key. The radio switches to the dedicated/revert channel
for the emergency call. Also, the LED indicator on the top of the radio rapidly flashes orange then glows
red to indicate the alarm transmission. The radio may also be pre-programmed to sound an audible alarm.
2. If the feature “Alarm with Call to Follow” is enabled, voice audio can be transmitted by speaking into the
microphone.
3. After the voice cycle(s) expires, additional voice calls can be made by pressing the radio’s PTT key. The
LED indicator glows red. Release the PTT key to end the voice call (transmission) on the emergency
channel. The radio LED indicator flashes orange rapidly.
To exit the emergency mode early, long-press the pre-programmed Emergency shortcut key.
The following parameters are pre-programmed by your radio dealer:
Number of voice cycles;
Duration of each transmission;
Transmission interval;
If without HDC1200 signaling:
Number of alarm cycles; and,
Alarm duration.
If with HDC1200 signaling:
Number of polite retries; and
Number of impolite retries.
NOTE
EMERGENCY COMMUNICATIONS
26
Emergency Operations on Digital Channels
Alarm Emergency Mode
If the radio is programmed for Alarm (only) emergency mode operations on the selected digital channel, use
this mode as follows:
1. Press the programmed Emergency shortcut key. The LED indicator glows red to indicate the alarm
transmission.
2. Once the emergency cycles expire, the radio exits the emergency mode automatically.
To exit the emergency mode early, long-press the programmed Emergency shortcut key.
Alarm with Call Emergency Mode
If the radio is programmed for Alarm with Call emergency mode operations on the selected digital channel, use
this mode as follows:
1. Press the programmed Emergency shortcut key. The LED indicator glows red to indicate the alarm
transmission.
2. Speak into the microphone to transmit voice audio.
3. After the voice cycle(s) expires, additional voice calls can be made by pressing the microphone’s PTT key.
When doing so, the LED indicator glows red. Release the PTT key to end the voice call (transmission) on
the emergency channel. The LED indicator flashes orange rapidly. If a call is received, the LED indicator
glows green.
To exit the emergency mode early, long-press the programmed Emergency shortcut key.
The following parameters are programmed by your radio dealer for the above mode:
Number of voice cycles;
Duration of each transmission; and,
Transmission interval.
NOTE
EMERGENCY COMMUNICATIONS
Publication 14222-1100-2000, Rev. A 27
Call Only Emergency Mode
If the radio is programmed for Call Only emergency mode operations on the selected digital channel, use this
mode as follows:
1. Press the programmed Emergency shortcut key. The radio switches to the dedicated/revert channel for
the emergency call.
2. If the “Alarm with Call to Follow” feature is enabled, voice audio can be transmitted by speaking into the
microphone when the LED indicator glows red.
3. After the voice cycle(s) expires, additional voice calls can be made by pressing the microphone’s PTT key.
When doing so, the LED indicator glows red. Release the PTT key to end the voice call (transmission) on
the emergency channel. The LED indicator flashes orange rapidly. When a call is received, the LED
indicator glows green.
To exit the emergency mode early, long-press the programmed Emergency shortcut key.
The following parameters are programmed by your radio dealer for the above mode:
Number of voice cycles;
Duration of each transmission;
Transmission interval;
Number of polite retires; and,
Number of impolite retires.
LONE WORKER
The Lone Worker feature, when enabled, causes the radio to automatically transmit an alarm if the radio
user/operator does not react to reminder beeps which the radio periodically generates. Before this feature will
function, it must be programmed by your radio dealer and it must be enabled.
User/Operator reaction is accomplished by simply pressing any radio key or by rotating a radio knob before a
programmed reminder timer expires. Either reaction will reset the programmed reminder and response timers,
NOTE
EMERGENCY COMMUNICATIONS
28
thus starting a new response period of time. The response timer is typically programmed for many minutes or
hours (255 minutes maximum), and the reminder timer is typically programmed for several seconds to a minute
(255 seconds maximum).
If no reaction is taken when the radio begins beeping and the response timer is allowed to expire, the radio
automatically enters the programmed emergency mode. Then, if the selected channel is programmed for Alarm
or Alarm with Call emergency mode operations, it immediately begins alarm transmissions on the selected
channel, or on a channel pre-assign for emergency communications. However, the radio does not transmit if the
selected channel is not programmed for Alarm or Alarm with Call emergency mode operations.
Using Lone Worker
1. Enable (i.e., turn on) the Lone Worker feature if it is not already by pressing the programmed Lone
Worker shortcut key. A high-pitched tone sounds to indicate the feature is enabled.
2. Select a channel programmed for Alarm or Alarm with Call emergency mode signaling. Consult with radio
system administration personnel as necessary.
3. When the radio begins sounding reminder beeps, press any radio key to reset the response timer. If this
timer is not reset before it times-out, the radio will begin alarm transmissions per radio programming.
When transmitting, the LED indicator on the top of the radio lights red.
4. If the programmed emergency mode is Alarm with Call, the radio beeps once and enters a hot-mic period.
The LED indicator lights red. During this time, speak into the radio’s microphone to transmit voice audio
on the channel. Pressing the PTT key is not necessary.
5. Next, the radio enters a receive period. During this time, listen for a voice reply to the alarm and/or voice
transmission. Adjust volume as necessary.
The hot-mic and receive periods may be programmed to repeat one or more times.
EMERGENCY COMMUNICATIONS
Publication 14222-1100-2000, Rev. A 29
6. To exit the emergency mode, thus ending alarm and voice transmissions early, press the Emergency Off
shortcut key. If this shortcut key is not programmed, select another channel or cycle radio power to exit the
emergency mode.
To disable (i.e., turn off) the Lone Worker feature, press the programmed Lone Worker shortcut key. A low-
pitched tone sounds to indicate the feature is disabled.
If the Lone Worker feature is not disabled before the radio is powered off, it will remain enabled
when the radio is powered on again.
MAN DOWN (OPTIONAL)
If installed in the radio, the Man Down feature can be used to automatically initiate an emergency when the
radio is positioned aslant for a programmed period of time.
If the radio has this optional feature, the radio may be programmed to automatically enable the feature upon
radio power-up. If a man down-capable radio is not programmed in this manner, the Man Down feature must be
manually enabled before the feature will function.
Using Man Down
1. Enable the Man Down feature if it is not already by pressing the pre-programmed Man Down shortcut
key. A high-pitched tone sounds to indicate the feature is enabled. A low-pitched tone sounds to indicate
the feature is disabled. Refer to the previous section as necessary.
2. After the radio is positioned aslant for the preset period of time, it first sounds an alert tone. If it is not soon
returned to a near vertical/upright position, it enters the emergency mode and automatically begins
transmitting emergency alarm(s), as programmed.
3. To exit the emergency mode, thus ending the alarm transmission(s), return the radio to a (near)
vertical/upright position.
NOTE
HDC1200 SIGNALING
30
GENERAL INFORMATION
The HDC100 radio supports HDC1200 signaling. This signaling is compatible with MDC1200 signaling. It
supports functions such as PTT ID signaling, emergency signaling, and signaling via selective call. These
functions are supported in both encode and decode modes.
TRANSMISSION (ENCODE)
PTT ID Transmission
Along with voice audio, the radio can transmit an HDC1200-encoded identification (ID) number on the selected
channel with each press of the radio’s PTT key. This is commonly referred to a PTT ID. Per radio
programming, the ID number can be sent when the PTT key is pressed (before voice audio is transmitted),
when the PTT key is released (after voice audio is transmitted), or both at press and release of the PTT key.
The radio can be programmed to either sound a tone when it is transmitting the encoded signal or sound beeps
after it has transmitted the encoded signal.
SECURE COMMUNICATIONS
Publication 14222-1100-2000, Rev. A 31
GENERAL INFORMATION
The radio’s Scrambler feature for analog channels can be used to reduce the likelihood of someone
“eavesdropping” via analog radio channels. This feature employs analog voice inversion technology. This
feature can be enabled and disabled on a per-channel basis.
The radio’s Encrypt feature for digital channels can be used to prevent “eavesdropping” via the digital radio
channel. This feature employs 256-bit digital AES encryption technology. This feature ensures the best
guarantee of communication privacy. This feature can be enabled and disabled on a per-channel basis.
OPERATION
The Scrambler/Encrypt feature may be programmed to automatically enable when a channel is selected, or it
may be manually enabled.
Manually Enabling and Disabling Scrambler/Encrypt
If the Scrambler or Encrypt shortcut key is programmed to a key, press this key to enable or disable the
feature. A high-pitched tone sounds to indicate the feature is enabled. A low-pitched tone sounds to indicate the
feature is disabled.
MISCELLANEOUS FEATURES
32
CHANNEL BUSY LOCKOUT
If enabled via the programming software, this feature can prevent the radio interfering with other transmitting
radios on the same channel. If the PTT key is held down while the channel is in use, the radio will keep
beeping, alerting of the transmission prohibition. To stop the beeping, release the PTT key. When the channel is
free, press and hold down the PTT key to transmit.
TIME-OUT TIMER (TOT)
The purpose of Time-Out-Timer (TOT) is to prevent any user from occupying a channel for an extended period.
If the preset time expires, the radio will automatically terminate transmission and keep beeping. To stop the
beeping, release the PTT key. You must wait for a certain time period (preset by your dealer) to initiate another
transmission. If the pre-alert function is set by your dealer, the radio will alert you to the TOT expiration in
advance.
This feature does not function when the radio is in an emergency mode.
PSEUDO TRUNKING
This feature can be enabled via the programming software. If the radio operates on a digital channel with this
feature enabled and one digital time slot is already occupied, the radio can transmit and receive on the other free
digital time slot. This feature allows communications to continue during busy periods.
MIC AGC
If enabled via the programming software, the radio will process the audio signals during transmission,
providing improved audio for the receiving radio.
NOTE
MISCELLANEOUS FEATURES
Publication 14222-1100-2000, Rev. A 33
RADIO REGISTRATION SERVICE
If enabled by your dealer, the radio will automatically register in the system within a certain period after power-
on. When registered, the radio can acquire online information about other radios by accessing specific servers
within the valid registration period.
GPS REVERT
If enabled by your dealer, a registered radio will transmit GPS positioning information to the radio system when
the system requests it.
ONE TOUCH CALL
The radio can be programmed by your radio dealer with the One Touch Call feature. This feature allows any
one of the following pre-programmed calls via a programmed shortcut key:
On an analog channel, send 5-tone signaling call to a contact.
On an analog channel, send 2-tone signaling call to a contact.
On a digital channel, send group calls or messages to the Group Call contact.
On a digital channel, send private calls, messages or make control services to the Private Call contact.
Control services include:
Alert Call Use the Alert Call command to send an alert call to a Private Call contact. The
called party will see the alert and can then call you back.
Radio Check The Radio Check command is used to check a remote radio on the Private
Call contact list, while not disturbing the contact/radio operator. This command can be used to
confirm whether the called radio is powered on and on your selected channel.
MISCELLANEOUS FEATURES
34
Remote Monitor Use this Remote Monitor command to enable the microphone of a
remote Private Call contact’s radio. This can be used to remotely monitor voices and background
sounds near the contact radio’s microphone.
Radio Enable Use this Radio Enable command to enable the radio of a remote Private Call
contact for normal use.
Radio Disable Use this Radio Disable command to disable the radio of a remote Private
Call contact from normal use.
One Touch Call Operation
Consult with your radio dealer as necessary to determine specific programming and operation details specific to
your radio. Basic operations include:
To send a private call or a group call on a digital channel, select the channel, press the programmed One
Touch Call shortcut key, and then hold down the PTT key and speak into the microphone to transmit
voice audio. Release the PTT key when you finish speaking.
To send a call on an analog channel, select the channel and then press the programmed One Touch Call
shortcut key.
To send a message on a digital channel, select the channel and then press the programmed One Touch
Call shortcut key.
To send control service commands on a digital channel, select the channel and then press the programmed
One Touch Call shortcut key.
TELEMETRY
The Telemetry feature allows you to remotely supervise a device connected to a radio. With this feature, you
can control the device and view its status remotely. The method for supervising the device is programmable by
your dealer. These methods are described in the following subsections.
MISCELLANEOUS FEATURES
Publication 14222-1100-2000, Rev. A 35
Supervise a Device via Another/Remote Radio
If a device is connected to a radio, you can use another/remote radio to supervise the device. All the radios
involved should be configured with the Telemetry feature. For example, the dealer enables the Telemetry
feature for both Radio A and Radio B, and assigns the Telemetry feature to the SK1 key on Radio A. To
supervise the device C, connect it with Radio B, and press the SK1 key on Radio A.
Supervise a Device via Third-Party Software
If the Telemetry feature is enabled for the radio by your radio dealer, you can supervise the device connected
with the radio via third-party software.
ROAM
This feature allows the radio to communicate between sites in the IP multisite-connected radio system. If
enabled, the radio can communicate via any site in the multisite system, thus ensuring seamless radio
communication in the system. Press the programmed Roam shortcut key to toggle roaming on or off.
TROUBLESHOOTING AND TECHNICAL ASSISTANCE
36
TROUBLESHOOTING TABLE
SYMPTOM POSSIBLE PROBLEMS SOLUTIONS
Radio will not turn on.
Battery is dead. Charge or replace the battery. See page 9
and 10 for instructions.
Battery is not properly attached to the
radio. Remove and then re-attach the battery to the
radio. See page 10 for instructions.
Battery is defective/bad. Replace the battery with a fully-
charged
battery.
When receiving, voice
audio is weak, erratic,
or not present at all.
Volume is set too low. Increase the volume with the On/Off Volume
Control knob. See page 13.
Antenna is not properly connected to
the radio. Turn the radio off, re-
connect the antenna
cable to the radio, and turn the radio back on.
Antenna is damaged or not present. Have your
radio dealer repair/replace the
antenna.
Speaker may be blocked or damaged.
Clean surface of the speaker. If the problem
cannot be solved, contact your dealer or
an
authorized service center for inspection and
repair.
On an analog
channel, you cannot
communicate with
others.
The frequency or signaling may not be
the same as the other radios.
Verify selected channel is correct and/or
consult with your radio dealer to verify the
programming of the channel’s frequency and
signaling.
Out-of-range (too
far away) from other
radios, or from the channel’s respective
repeater/base station.
Change your location. Moving a few
yards/meters in one direction can sometimes
greatly improve communications range.
TROUBLESHOOTING AND TECHNICAL ASSISTANCE
Publication 14222-1100-2000, Rev. A 37
SYMPTOM POSSIBLE PROBLEMS SOLUTIONS
On an analog
channel, irrelevant
communications
and/or noises are
heard.
Other radios may be using the same
radio frequency.
Adjust the squelch and/or consult with your
radio dealer as necessary.
The radio may be programmed without
signaling, but signaling is needed. Consult with your radio dealer as necessary.
On a digital channel,
you cannot
communicate with
others but there is a
receive indication.
The ID may be inconsistent with other
members. (The digital signal is being
received but not fully demodulated.)
Set the ID to the same as the other member’s
radios. Consult with your radio dealer as
necessary.
Noisy
communications.
Out-of-
range (too far away from) of
others, or from the channel’s repeater/-
base station.
Change your location. Moving a few
yards/meters in one direction or moving to a
higher elevation can sometimes greatly
improve communications range.
A nearby device, such as an electric
motor or light bulb, is causing interfe-
rence on the radio frequency/channel.
Change your location. Moving a few
yards/meters in one direction can sometimes
greatly improve communications.
Keypad does not
operate. The keypad has temporarily failed.
Restart the radio by turning it off and back
on.
GPS cannot
determine
location/position.
The GPS antenna is improperly con-
nected to the radio, or the
antenna is
damaged/missing.
Connect the antenna and/or consult with your
radio dealer as necessary.
No GPS signal is being received. Change your location and re-
check for a
signal.
TROUBLESHOOTING AND TECHNICAL ASSISTANCE
38
TECHNICAL ASSISTANCE
When technical issues arise that cannot be resolved using the troubleshooting table, contact your radio
equipment dealer for solution assistance. Also contact your radio equipment dealer for specific information
about how the radio is programmed.
CARE AND CLEANING
Publication 14222-1100-2000, Rev. A 39
To ensure optimal radio performance as well as a long radio service life, follow these care and cleaning tips:
RADIO CARE
Review and follow all precautions described in the radio’s Product Safety Booklet.
Do not hold the radio by its antenna or by a cable connected to its accessory connector.
Do not pierce or scrape the surface of the radio or its accessories.
Always replace the accessory connector’s cover when an accessory cable is not connected to the radio.
Do not place the radio or any radio accessories in corrosive agents, solutions, gas mixers, or water.
RADIO CLEANING
Turn the radio off before cleaning it.
On a regular basis, clean dust and fine particles from the radio and any accessories with a clean, dry, lint-
free cloth or a fine brush.
After long periods of use, gently clean the radio’s keys, control knobs, and jacks/connectors with a non-
woven fabric and a neutral-base cleanser or mild soap. Do not use chemical preparations such as stain
removers, alcohol, sprays, or oils.
Always allow the radio and its accessories to dry completely before turning the radio back on.
CAUTION
MODEL NUMBERS
40
RADIO PACKAGES
MODEL NUMBER DESCRIPTION
HD-PBV1B Momentum HDP100 Portable Radio, 136 to 174 MHz, with GPS and Standard
Accessories
HD-PBV1B-MD Momentum HDP100 Portable Radio, 136 to 174 MHz, with GPS, Man Down,
and Standard Accessories
HD-PBV1B-TXR Momentum HDP100 Portable Radio, 136 to 174 MHz, with GPS (radio only)
HD-PBV1B-MD-
TXR Momentum HDP100 Portable Radio, 136 to 174 MHz, with GPS, Man Down
(radio only)
HD-PBU1B Momentum HDP100 Portable Radio, 400 to 470 MHz, with GPS and Standard
Accessories
HD-PBU1B-MD Momentum HDP100 Portable Radio, 400 to 470 MHz, with GPS, Man Down
and Standard Accessories
HD-PBU1B-TXR Momentum HDP100 Portable Radio, 400 to 470 MHz, with GPS (radio only)
HD-PBU1B-MD-
TXR Momentum HDP100 Portable Radio, 400 to 470 MHz, with GPS, Man Down
(radio only)
HD-PBU2B Momentum HDP100 Portable Radio, 450 to 520 MHz, with GPS and Standard
Accessories
HD-PBU2B-MD Momentum HDP100 Portable Radio, 450 to 520 MHz, with GPS, Man Down
and Standard Accessories
HD-PBU2B-TXR Momentum HDP100 Portable Radio, 450 to 520 MHz (radio only)
HD-PBU2B-MD-
TXR Momentum HDP100 Portable Radio, 450 to 520 MHz, with GPS, Man Down
(radio only)
MODEL NUMBERS
Publication 14222-1100-2000, Rev. A 41
Standard accessories include one of each item pictured on page 5 (less the radio). Respective part
numbers ar
e listed in the tables that follow. Each radio is supplied with one (1) standard antenna,
one (1) standard battery, one (1) standard battery charger with power adapter, and various
carrying accessories as pictured on page 5.
ANTENNAS
MODEL NUMBER DESCRIPTION STANDARD/OPTIONAL
HD-AN6K-01 Antenna, 136 to 147 MHz, Long Standard
HD-AN6K-02 Antenna, 136 to 174 MHz, Long Standard
HD-AN6K-03 Antenna, 147 to 160 MHz, Long Standard
HD-AN6K-04 Antenna, 160 to 174 MHz, Long Standard
HD-AN6L-03 Antenna, 400 to 470 MHz, Stub Standard
HD-AN6L-04 Antenna, 450 to 520 MHz, Stub Standard
NOTE
MODEL NUMBERS
42
BATTERIES AND BATTERY CHARGERS
MODEL NUMBER DESCRIPTION STANDARD/OPTIONAL
HD-PA2V Battery, Lithium-Ion 2000 mAH Standard
HD-PA2Y Battery, Lithium-Ion 2500 mAH Optional
HD-CH4D Charger, Battery: 1-Bay with Power Adapter Standard
HD-CH4F Charger, Battery: 6-Bay Optional
HD-PS2V Power Supply, 6-Unit, Switching Optional
HD-PS2T Adapter, AC Power, 100 to 240 Vac at 50/60 Hz
Input, 12 Vdc Output Optional
CARRYING ACCESSORIES
MODEL NUMBER DESCRIPTION STANDARD/OPTIONAL
HD-HC3M Clip, Belt Standard
HD-HC3R Strap, Wrist Standard
HD-CL3N Case, Leather with Swivel Optional
MODEL NUMBERS
Publication 14222-1100-2000, Rev. A 43
AUDIO ACCESSORIES
MODEL NUMBER DESCRIPTION STANDARD/OPTIONAL
HD-AE6P Earpiece with On-Mic PTT Optional
HD-AE6R Earpiece with 3-Wire Surveillance Kit Optional
HD-AE6S D-Earset with In-Line Mic and PTT Optional
HD-AE6U Earbud with On-Mic PTT Optional
HD-AE6V Earbud, Receive-Only Optional
HD-AE6W Speaker-Mic, Waterproof Optional
HD-AE6Y Earpiece, Receive-Only Optional
HD-AE6Z Earpiece, 2-Wire, Wireless Earphone/Neck Optional
WARRANTY REGISTRATION AND WARRANTY
44
WARRANTY REGISTRATION
Please register this product within ten (10) days of purchase. Registration validates the warranty coverage, and
enables Harris to contact you in case of any safety notifications issued for this product.
Registration can be made on-line at http://www.pspc.harris.com/Service/WarrantySupport.asp.
EQUIPMENT AND RECHARGEABLE BATTERY WARRANTY
A. Harris Corporation, a Delaware Corporation, acting through its RF Communications Division (hereinafter
"Seller") warrants to the original purchaser for use (hereinafter "Buyer") that Momentum™ Equipment
manufactured by or for the Seller shall (i) be free from all defects in material, workmanship and title; and (ii)
comply with all of the Momentum™ Equipment Product Specifications. For purposes of this warranty,
batteries shall be deemed defective if: (1) the battery capacity is less than 80% rated capacity, or (2) the
battery develops leakage.
B. Seller’s obligations set forth in Paragraph C below shall apply only to Momentum™ Equipment failures to
meet the above warranties occurring within the following periods of time from the date of sale to the Buyer
and are conditioned on Buyer’s giving written notice to Seller within thirty (30) days of such occurrence:
1. for portable radios, mobile radios, repeaters and base stations, thirty-six (36) months (except as noted
in paragraph B.2 and B.3);
2. rechargeable batteries and accessories, twelve (12) months; and,
3. all other parts, ninety (90) days.
C. If any Momentum™ Equipment fails to meet the foregoing warranties, Seller shall correct the failure at its
option (i) by repairing any defective or damaged part or parts thereof, or (ii) by replacing the failed
Momentum™ Equipment with equivalent new or refurbished Equipment. Any repaired or replacement
products or parts furnished hereunder shall be warranted for the balance of the original applicable Product
Warranty Period or one hundred eighty (180) days for Products (other than batteries, accessories and parts)
and ninety (90) days for batteries and accessories, whichever ends later. Where such failure cannot be
corrected by Seller’s reasonable efforts, the parties will negotiate an equitable adjustment in price. Labor to
perform warranty service will be provided at no charge during the warranty period only for the Equipment
WARRANTY REGISTRATION AND WARRANTY
Publication 14222-1100-2000, Rev. A 45
covered under Paragraph B. To be eligible for no-charge labor, service must be performed at Seller’s
location or other Servicer approved by Seller in writing to make the specific repairs at its place of business
during normal business hours. Seller shall pay all freight charges relating to the return and shipment of the
defective Products and the repaired or replacement Products to and from the Seller designated location. If it
is determined that the Products are not under warranty, Buyer shall pay all freight charges related to the
return and shipment of the Products and the repaired or replacement Products to and from the Seller
designated location.
D. Seller’s obligations under Paragraph C shall not apply to any Equipment or part thereof, which:
1. has a defect that is not reported during the Product Warranty Period;
2. is disassembled, modified, altered or repaired other than pursuant to Seller’s written instructions or
other written approval by Seller;
3. is not installed, operated or maintained in accordance with written instructions provided by Seller;
4. has its serial number removed or altered;
5. is not properly stored or suffers detrimental exposure or is treated with abuse, negligence or other
improper treatment; or,
6. is damaged in an accident or in a natural disaster (earthquake, storm, flood, fire or other natural
disaster).
E. The preceding paragraphs set forth the exclusive remedies for claims based upon defects in or
nonconformity of the Momentum™ Equipment, whether the claim is in contract, warranty, tort (including
negligence), strict liability or otherwise and however instituted. Upon the expiration of the warranty period, all
such liability shall terminate. The foregoing warranties are exclusive and in lieu of all other warranties,
whether oral, written, expressed, implied or statutory. NO IMPLIED OR STATUTORY WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE SHALL APPLY. IN NO EVENT SHALL
THE SELLER BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, INDIRECT OR
EXEMPLARY DAMAGES.
This warranty applies only within the United States.
Contact your local Harris Dealer to request warranty service. ECR-7931
