HARXON HX-DU8608D Wireless Data Transceiver User Manual

HARXON CORPORATION Wireless Data Transceiver Users Manual

Users Manual

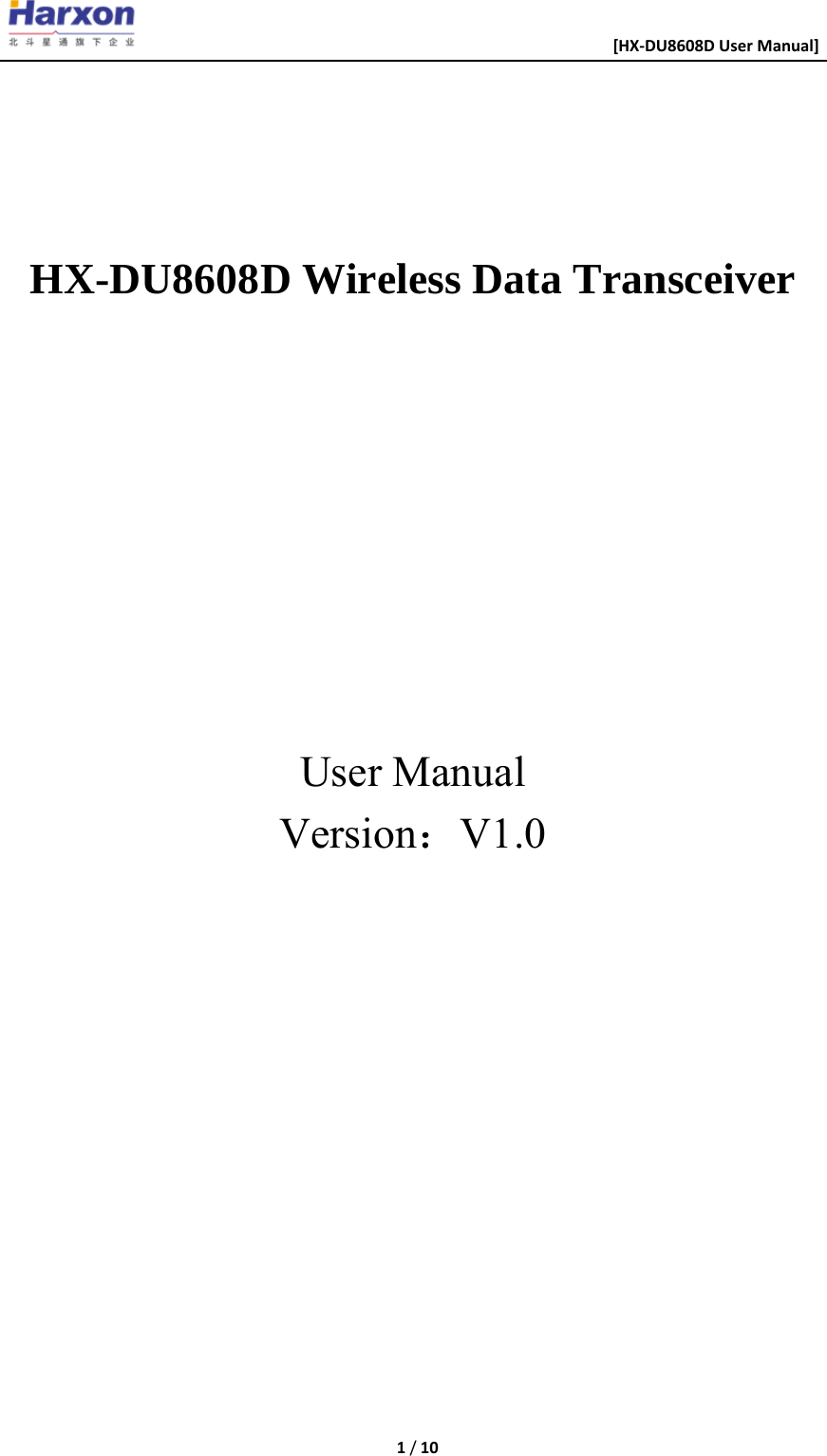

[HX-DU8608D User Manual] 1 / 10 HX-DU8608D Wireless Data Transceiver User Manual Version：V1.0

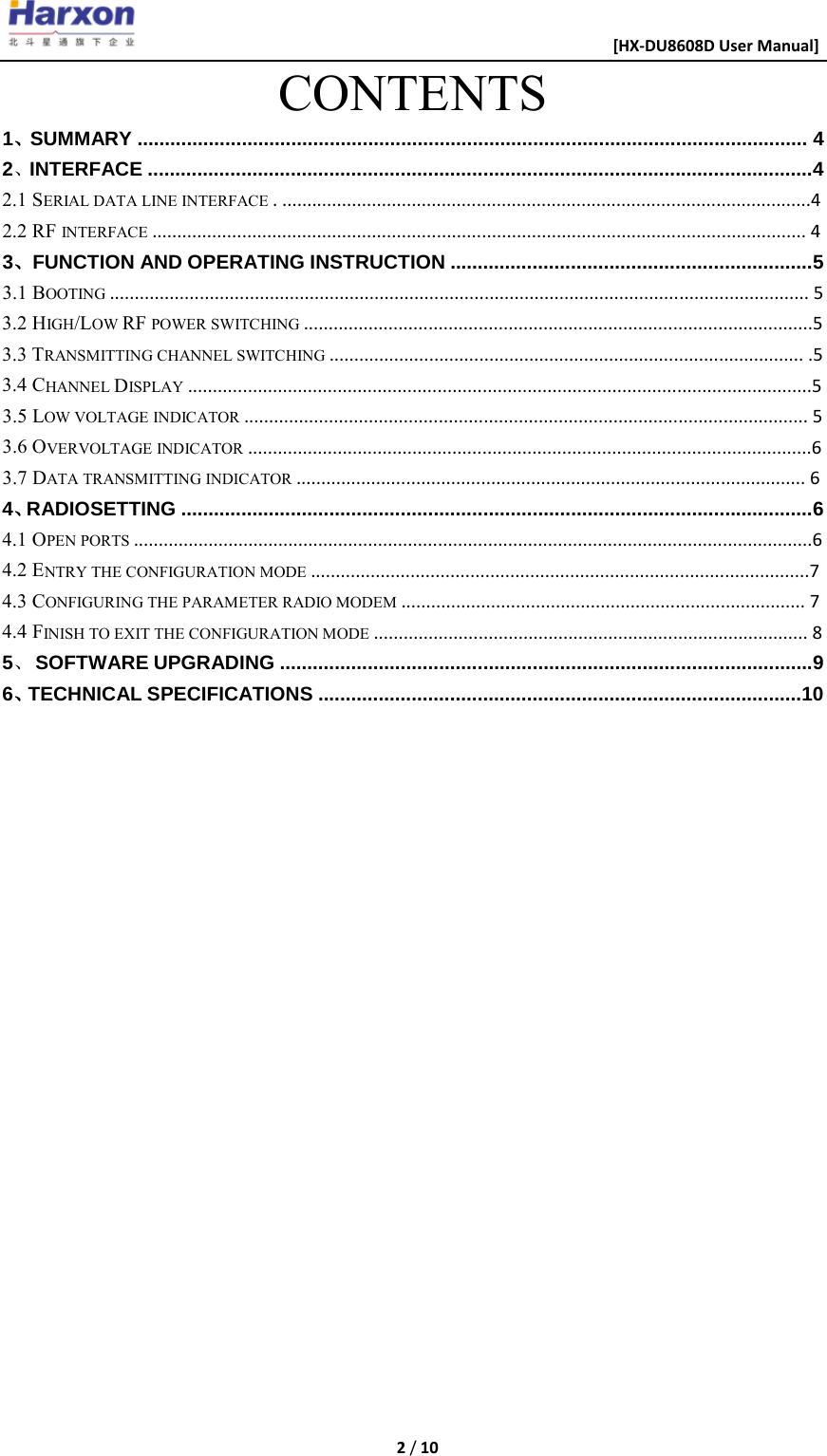

[HX-DU8608D User Manual] 2 / 10 CONTENTS 1、SUMMARY .......................................................................................................................... 4 2、INTERFACE .........................................................................................................................4 2.1 SERIAL DATA LINE INTERFACE . ..........................................................................................................4 2.2 RF INTERFACE ................................................................................................................................... 4 3、FUNCTION AND OPERATING INSTRUCTION ..................................................................5 3.1 BOOTING ............................................................................................................................................ 5 3.2 HIGH/LOW RF POWER SWITCHING ......................................................................................................5 3.3 TRANSMITTING CHANNEL SWITCHING ............................................................................................... .5 3.4 CHANNEL DISPLAY .............................................................................................................................5 3.5 LOW VOLTAGE INDICATOR ................................................................................................................. 5 3.6 OVERVOLTAGE INDICATOR .................................................................................................................6 3.7 DATA TRANSMITTING INDICATOR ...................................................................................................... 6 4、RADIOSETTING ...................................................................................................................6 4.1 OPEN PORTS ........................................................................................................................................6 4.2 ENTRY THE CONFIGURATION MODE ....................................................................................................7 4.3 CONFIGURING THE PARAMETER RADIO MODEM ................................................................................. 7 4.4 FINISH TO EXIT THE CONFIGURATION MODE ....................................................................................... 8 5、 SOFTWARE UPGRADING .................................................................................................9 6、TECHNICAL SPECIFICATIONS ........................................................................................10

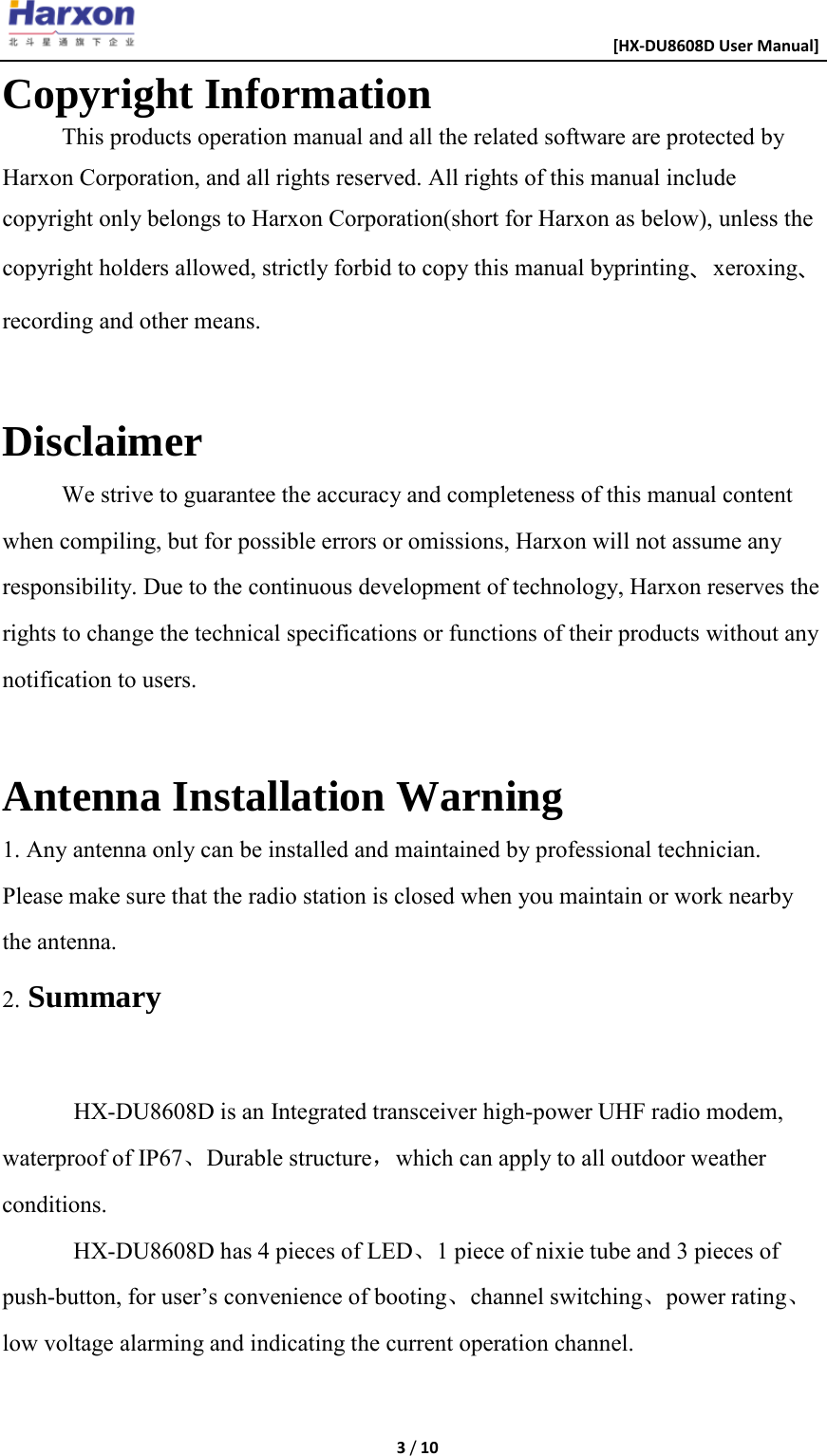

[HX-DU8608D User Manual] 3 / 10 Copyright Information This products operation manual and all the related software are protected by Harxon Corporation, and all rights reserved. All rights of this manual include copyright only belongs to Harxon Corporation(short for Harxon as below), unless the copyright holders allowed, strictly forbid to copy this manual byprinting、xeroxing、recording and other means. Disclaimer We strive to guarantee the accuracy and completeness of this manual content when compiling, but for possible errors or omissions, Harxon will not assume any responsibility. Due to the continuous development of technology, Harxon reserves the rights to change the technical specifications or functions of their products without any notification to users. Antenna Installation Warning 1. Any antenna only can be installed and maintained by professional technician. Please make sure that the radio station is closed when you maintain or work nearby the antenna. 2. Summary HX-DU8608D is an Integrated transceiver high-power UHF radio modem, waterproof of IP67、Durable structure，which can apply to all outdoor weather conditions. HX-DU8608D has 4 pieces of LED、1 piece of nixie tube and 3 pieces of push-button, for user’s convenience of booting、channel switching、power rating、 low voltage alarming and indicating the current operation channel.

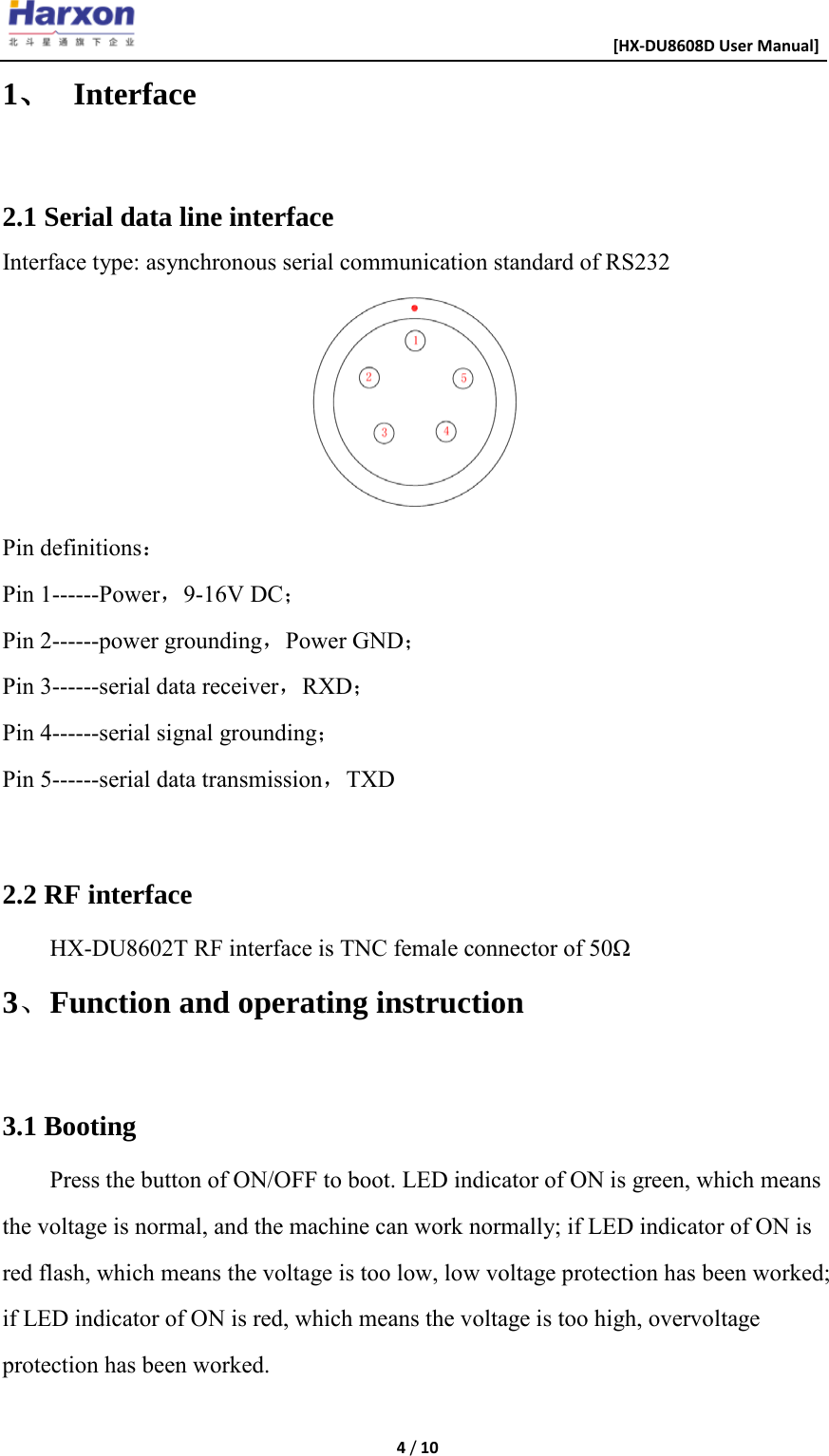

[HX-DU8608D User Manual] 4 / 10 1、 Interface 2.1 Serial data line interface Interface type: asynchronous serial communication standard of RS232 Pin definitions： Pin 1------Power，9-16V DC； Pin 2------power grounding，Power GND； Pin 3------serial data receiver，RXD； Pin 4------serial signal grounding； Pin 5------serial data transmission，TXD 2.2 RF interface HX-DU8602T RF interface is TNC female connector of 50Ω 3、Function and operating instruction 3.1 Booting Press the button of ON/OFF to boot. LED indicator of ON is green, which means the voltage is normal, and the machine can work normally; if LED indicator of ON is red flash, which means the voltage is too low, low voltage protection has been worked; if LED indicator of ON is red, which means the voltage is too high, overvoltage protection has been worked.

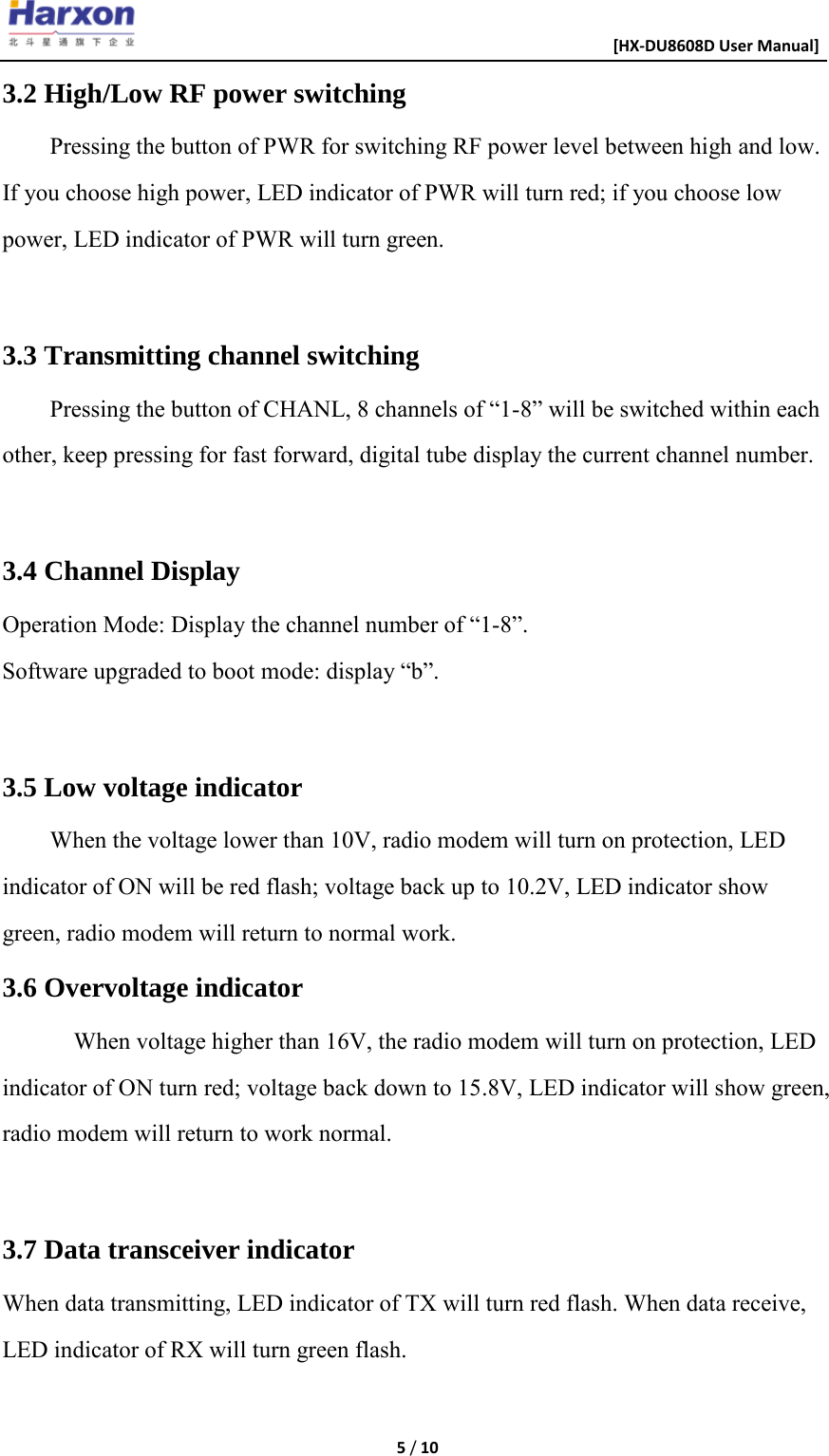

[HX-DU8608D User Manual] 5 / 10 3.2 High/Low RF power switching Pressing the button of PWR for switching RF power level between high and low. If you choose high power, LED indicator of PWR will turn red; if you choose low power, LED indicator of PWR will turn green. 3.3 Transmitting channel switching Pressing the button of CHANL, 8 channels of “1-8” will be switched within each other, keep pressing for fast forward, digital tube display the current channel number. 3.4 Channel Display Operation Mode: Display the channel number of “1-8”. Software upgraded to boot mode: display “b”. 3.5 Low voltage indicator When the voltage lower than 10V, radio modem will turn on protection, LED indicator of ON will be red flash; voltage back up to 10.2V, LED indicator show green, radio modem will return to normal work. 3.6 Overvoltage indicator When voltage higher than 16V, the radio modem will turn on protection, LED indicator of ON turn red; voltage back down to 15.8V, LED indicator will show green, radio modem will return to work normal. 3.7 Data transceiver indicator When data transmitting, LED indicator of TX will turn red flash. When data receive, LED indicator of RX will turn green flash.

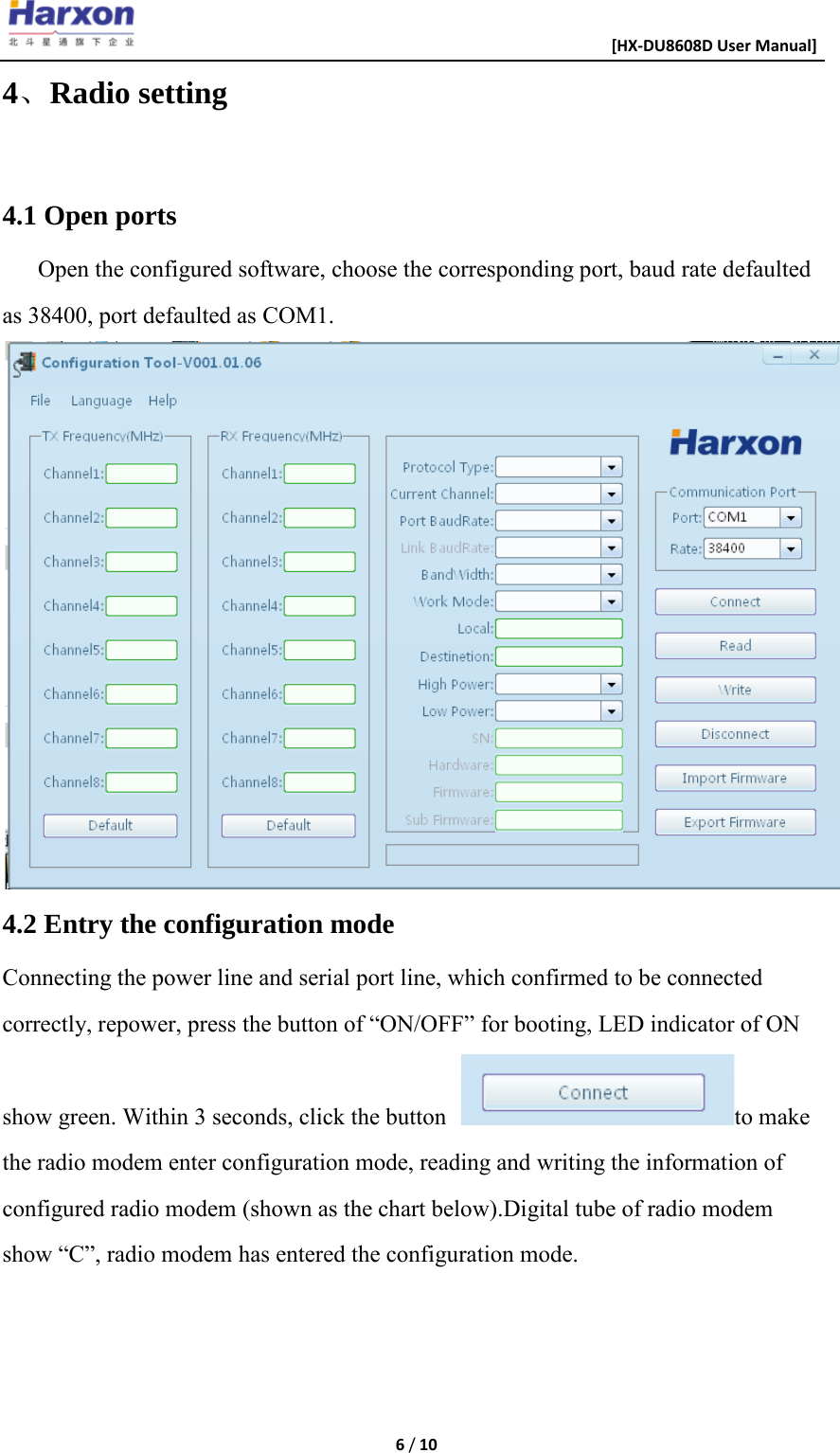

[HX-DU8608D User Manual] 6 / 10 4、Radio setting 4.1 Open ports Open the configured software, choose the corresponding port, baud rate defaulted as 38400, port defaulted as COM1. 4.2 Entry the configuration mode Connecting the power line and serial port line, which confirmed to be connected correctly, repower, press the button of “ON/OFF” for booting, LED indicator of ON show green. Within 3 seconds, click the button to make the radio modem enter configuration mode, reading and writing the information of configured radio modem (shown as the chart below).Digital tube of radio modem show “C”, radio modem has entered the configuration mode.

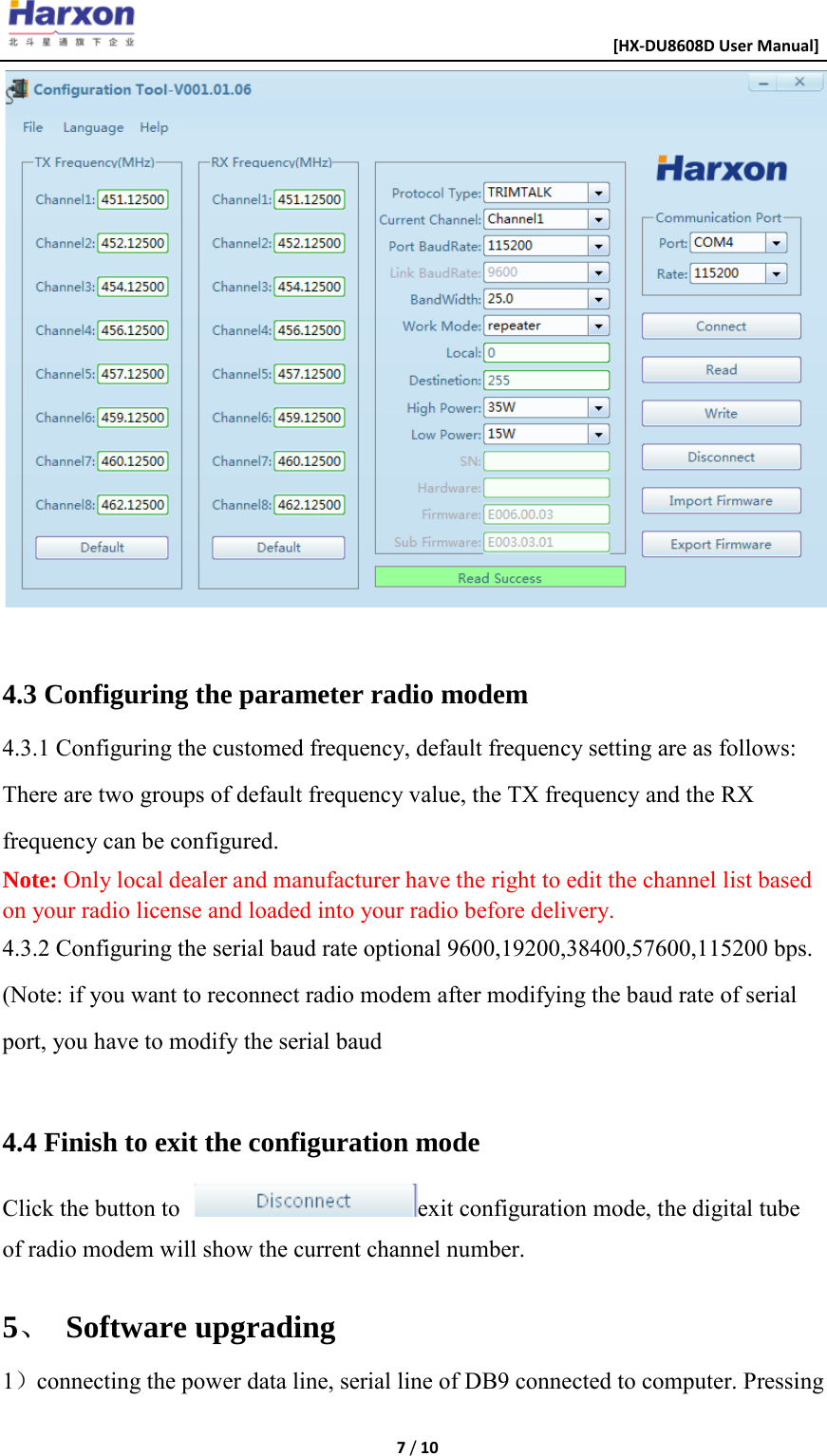

[HX-DU8608D User Manual] 7 / 10 4.3 Configuring the parameter radio modem 4.3.1 Configuring the customed frequency, default frequency setting are as follows: There are two groups of default frequency value, the TX frequency and the RX frequency can be configured. Note: Only local dealer and manufacturer have the right to edit the channel list based on your radio license and loaded into your radio before delivery. 4.3.2 Configuring the serial baud rate optional 9600,19200,38400,57600,115200 bps. (Note: if you want to reconnect radio modem after modifying the baud rate of serial port, you have to modify the serial baud 4.4 Finish to exit the configuration mode Click the button to exit configuration mode, the digital tube of radio modem will show the current channel number. 5、 Software upgrading 1）connecting the power data line, serial line of DB9 connected to computer. Pressing

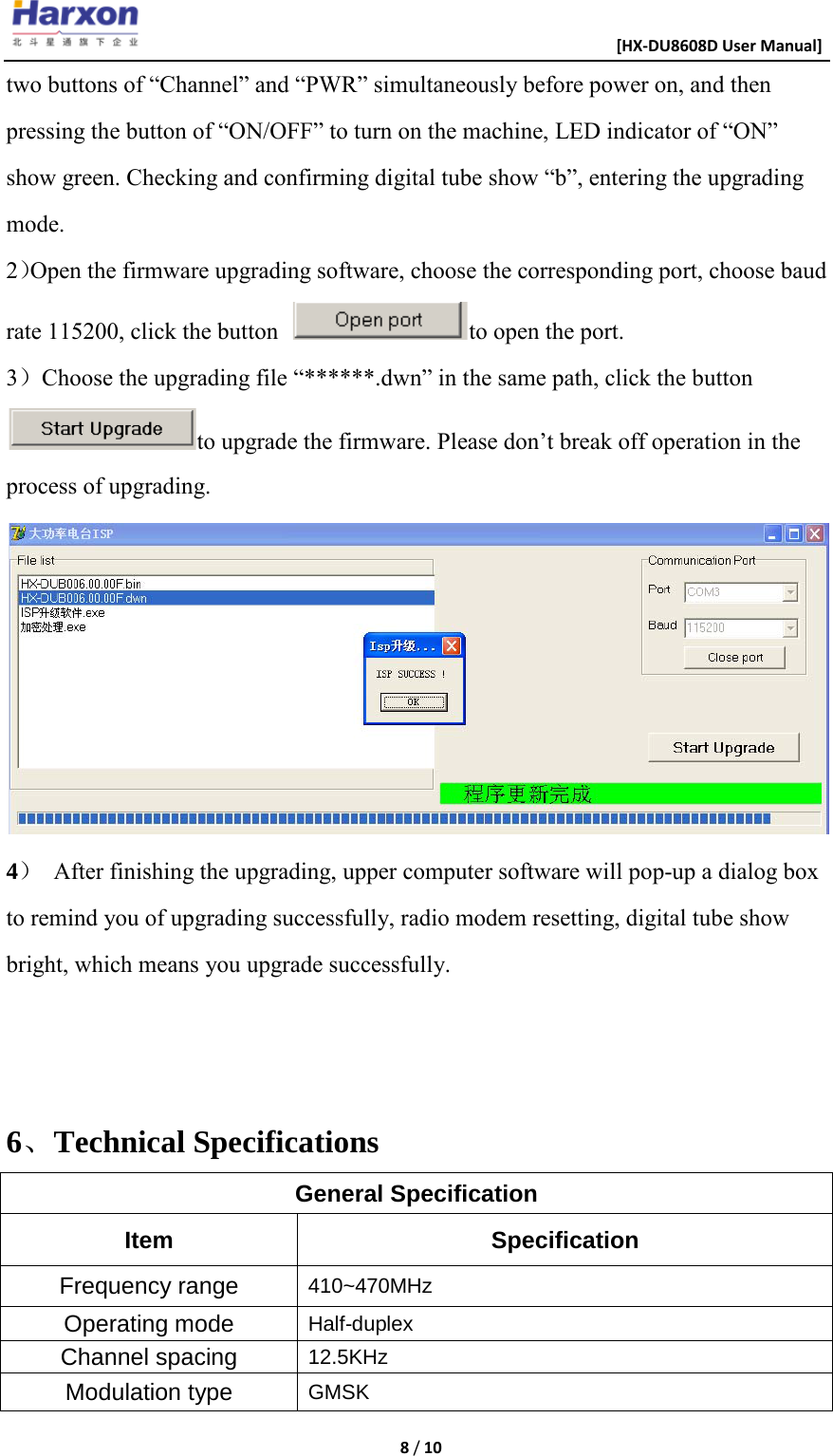

[HX-DU8608D User Manual] 8 / 10 two buttons of “Channel” and “PWR” simultaneously before power on, and then pressing the button of “ON/OFF” to turn on the machine, LED indicator of “ON” show green. Checking and confirming digital tube show “b”, entering the upgrading mode. 2）Open the firmware upgrading software, choose the corresponding port, choose baud rate 115200, click the button to open the port. 3）Choose the upgrading file “******.dwn” in the same path, click the buttonto upgrade the firmware. Please don’t break off operation in the process of upgrading. 4） After finishing the upgrading, upper computer software will pop-up a dialog box to remind you of upgrading successfully, radio modem resetting, digital tube show bright, which means you upgrade successfully. 6、Technical Specifications General Specification Item Specification Frequency range 410~470MHz Operating mode Half-duplex Channel spacing 12.5KHz Modulation type GMSK

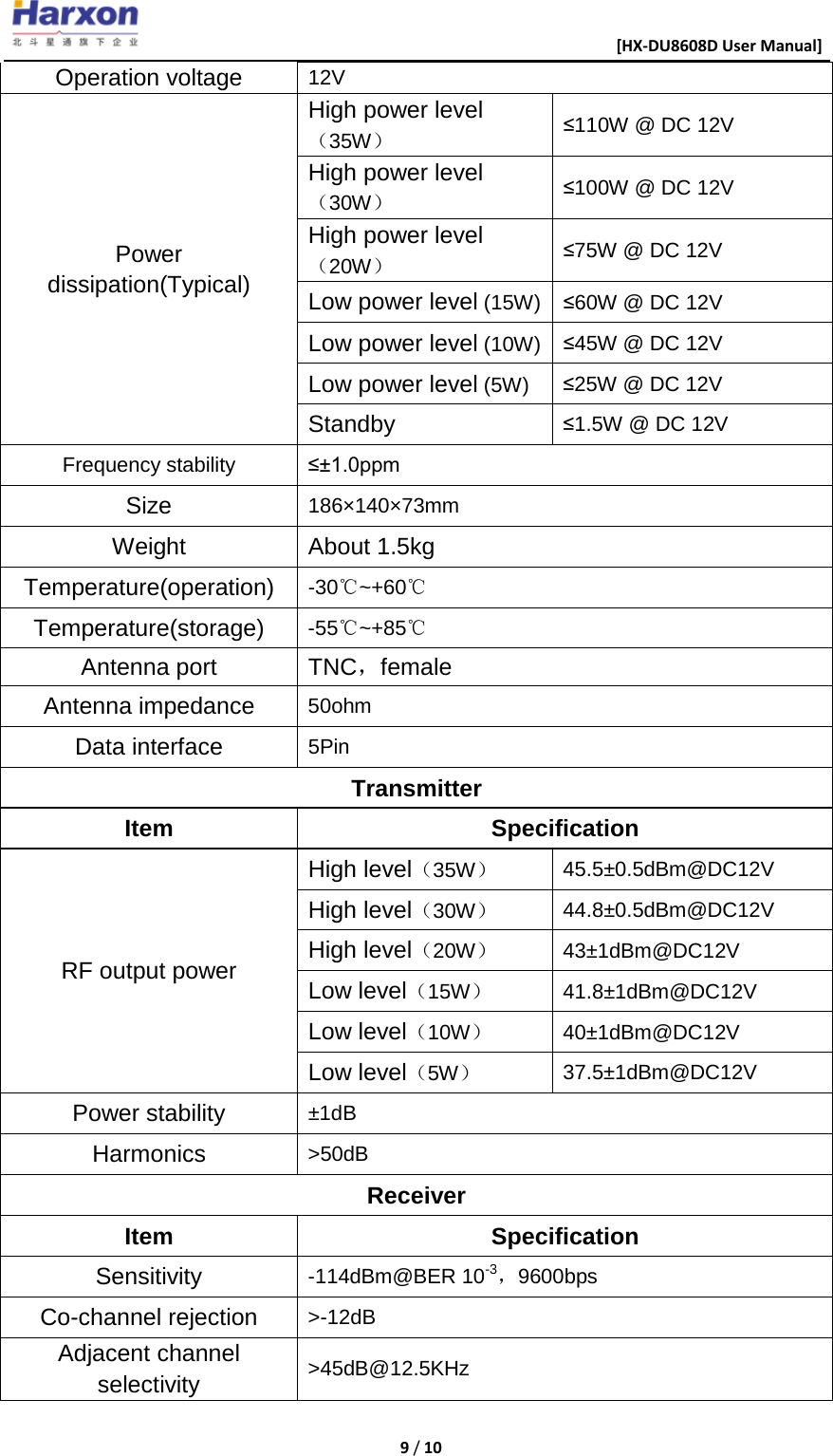

[HX-DU8608D User Manual] 9 / 10 Operation voltage 12V Power dissipation(Typical) High power level（35W） ≤110W @ DC 12V High power level（30W） ≤100W @ DC 12V High power level（20W） ≤75W @ DC 12V Low power level (15W) ≤60W @ DC 12V Low power level (10W) ≤45W @ DC 12V Low power level (5W) ≤25W @ DC 12V Standby ≤1.5W @ DC 12V Frequency stability ≤±1.0ppm Size 186×140×73mm Weight About 1.5kg Temperature(operation) -30℃~+60℃ Temperature(storage) -55℃~+85℃ Antenna port TNC，female Antenna impedance 50ohm Data interface 5Pin Transmitter Item Specification RF output power High level（35W） 45.5±0.5dBm@DC12V High level（30W） 44.8±0.5dBm@DC12V High level（20W） 43±1dBm@DC12V Low level（15W） 41.8±1dBm@DC12V Low level（10W） 40±1dBm@DC12V Low level（5W） 37.5±1dBm@DC12V Power stability ±1dB Harmonics >50dB Receiver Item Specification Sensitivity -114dBm@BER 10-3，9600bps Co-channel rejection >-12dB Adjacent channel selectivity >45dB@12.5KHz

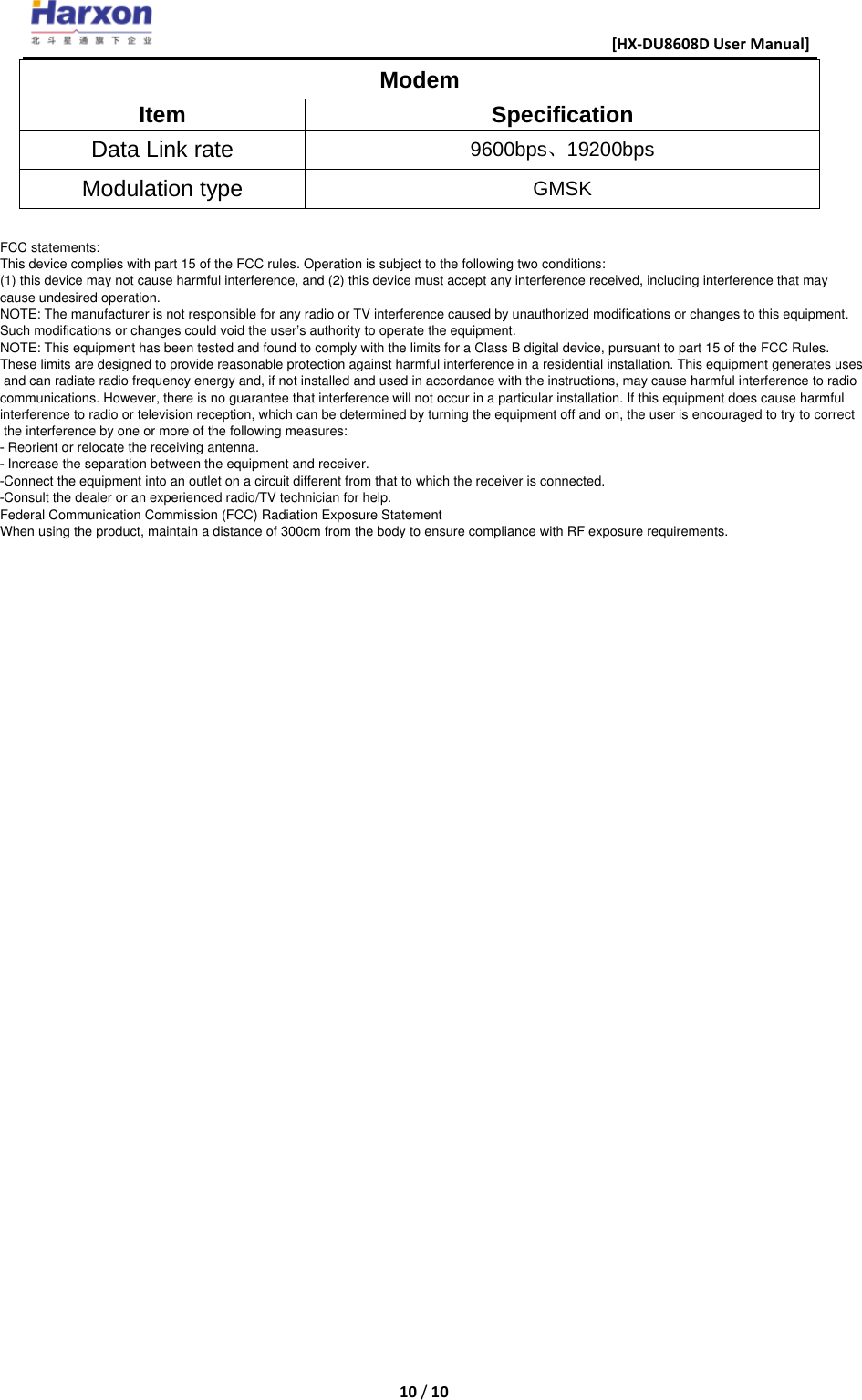

[HX-DU8608D User Manual] 10 / 10 Modem Item Specification Data Link rate 9600bps、19200bps Modulation type GMSK FCC statements: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help. Federal Communication Commission (FCC) Radiation Exposure Statement When using the product, maintain a distance of 300cm from the body to ensure compliance with RF exposure requirements.
