HBC radiomatic TC241 Bluetooth Module User Manual

HBC-radiomatic GmbH Bluetooth Module

user manual

Transceiver module TC241
-
Pos: 1 /Technisch e Dokumentati on/Betriebsanl eitungen/Allge mein/----- Seitenumbruch ------ @ 1\mod_1 21967232623 4_0.docx @ 29509 @ @ 1
User manual
Pos: 2 /Technisch e Dokumentati on/Betriebsanl eitungen/Allge mein/1. Seite M L @ 3\mod_1 24360935522 2_48.docx @ 4490 5 @ @ 1
Table of Contents
FCC notes
IC notes
Intended use
Shielding provision of the RF part
Installation guidelines
Technical data
Antenna
Labelling
/Technische Do kumentation/Betrie bsanleitung en/Allgemein/----- Seitenu mbruch ------ @ 1\mod_1219 672326234_0.d oc @ 29508
Pos: 3 /Technisch e Dokumentati on/Betriebsanl eitungen/Allge mein/----- Seitenumbruc h ------ @ 1\mod_121967232623 4_0.docx @ 29509 @ @ 1
Manufacturer:
HBC-radiomatic GmbH • Haller Straße 45 – 53 • 74564 Crailsheim • Germany • Tel. +49 7951 393-0 • info@radiomati c.com.
HBC.radiomatic GmbH is not liable for any misprints or errors! – Specifications and design subject to change without notice.
® radiomatic and radiobus are registered German trademarks.
© 26 / 2012, HBC-radiomatic GmbH, 74564 Crailsheim, Germany
No part of this document may be reproduced in any manner whatsoever without the expressed written permission of
HBC-radiomatic GmbH.
Pos: 4 /Technisch e Dokumentati on/Betriebsanl eitungen/Allge mein/FCC_TC2 40 @ 8\mod_ 1340972119078_ 48.docx @ 972 48 @ 244424 @ 1
FCC notes
Part 15.21 Statement
Changes or modifications made to this equipment not expressly approved by HBC-radiomatic GmbH may
void the FCC authorization to operate this equipment.
Part 15.105 Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference will not occur in a particular installation. If this equipment does c ause harmful
interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Statement
Radiofrequency radiation exposure information
The radiated output power of the device is far below the FCC radio frequency exposure limits.
Nevertheless, the device shall be used in such a manner that the potential for human contact during
normal operation is minimized.
The modular approved transmitter complies with the RF Exposure requirements for fixed or mobile
installations / categorised host devices where a minimum separation distance of at least 20 cm between
the radiating part and any human body can be assured under normal operating conditions.
IC notes
RSS-GEN – User Manual Statements (English/French)
Licence exempt
This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
1. this device may not cause interference, and
2. this device must accept any interference received, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
1. l'appareil ne doit pas produire de brouillage, et
2. l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
Note:
The Industry Canada label identifies certified equipment. This certification means that the
equipment meets certain telecommunications network, protective, operational and safety
requirements as prescribed in the appropriate Terminal Equipment Technical Requirements
document(s). The Department does not guarantee the equipment will operate to the user’s
satisfaction. Repairs to certified equipment should be coordinated by a representative designated
by the supplier. Users should ensure for their own protection that the electrical ground
connections of the power utility, telephone lines and internal metallic water pipe system, if
present, are connected together.
This precaution may be particularly important in rural areas.
Note:
Users should not attempt to make such connections themselves, but should contact
the appropriate electric inspection authority, or electrician, as appropriate. This product meets the
applicable Industry Canada technical specifications.
Safety Instructions
In customer related documents of the end product like instruction manuals, installation guides etc.
appropriate safety instructions have to be included. The supplier of the complete system is responsible
for these safety instructions.
Pos: 5 /Technisch e Dokumentati on/Betriebsanl eitungen/Allge mein/----- Seitenumbruc h ------ @ 1\mod_121967232623 4_0.docx @ 29509 @ @ 1
Pos: 6 /Technisch e Dokumentati on/Betriebsanl eitungen/Sonstig es/TC240 @ 7\ mod_132765 5574965_48.doc x @ 91463 @ 1 11 @ 1
Intended use
The TC241 is a SHF transceiver for data transfer with fast transmit-receive switchover. The frequency
range is 2402 – 2480 MHz, according to the hardware version for USA.
This module is not sold separately, but is exclusively used for own HBC systems.
Shielding provision of the RF part
The RF component has been designed in this way that the user cannot have easy access.
Efficient shielding of RF part is achieved by means of metal shielding.
The metal shielding is soldered up with the circuit board.
Installation guidelines
Align module with connector and insert it with care.
Affix module with fixing screw.
Check proper installation.

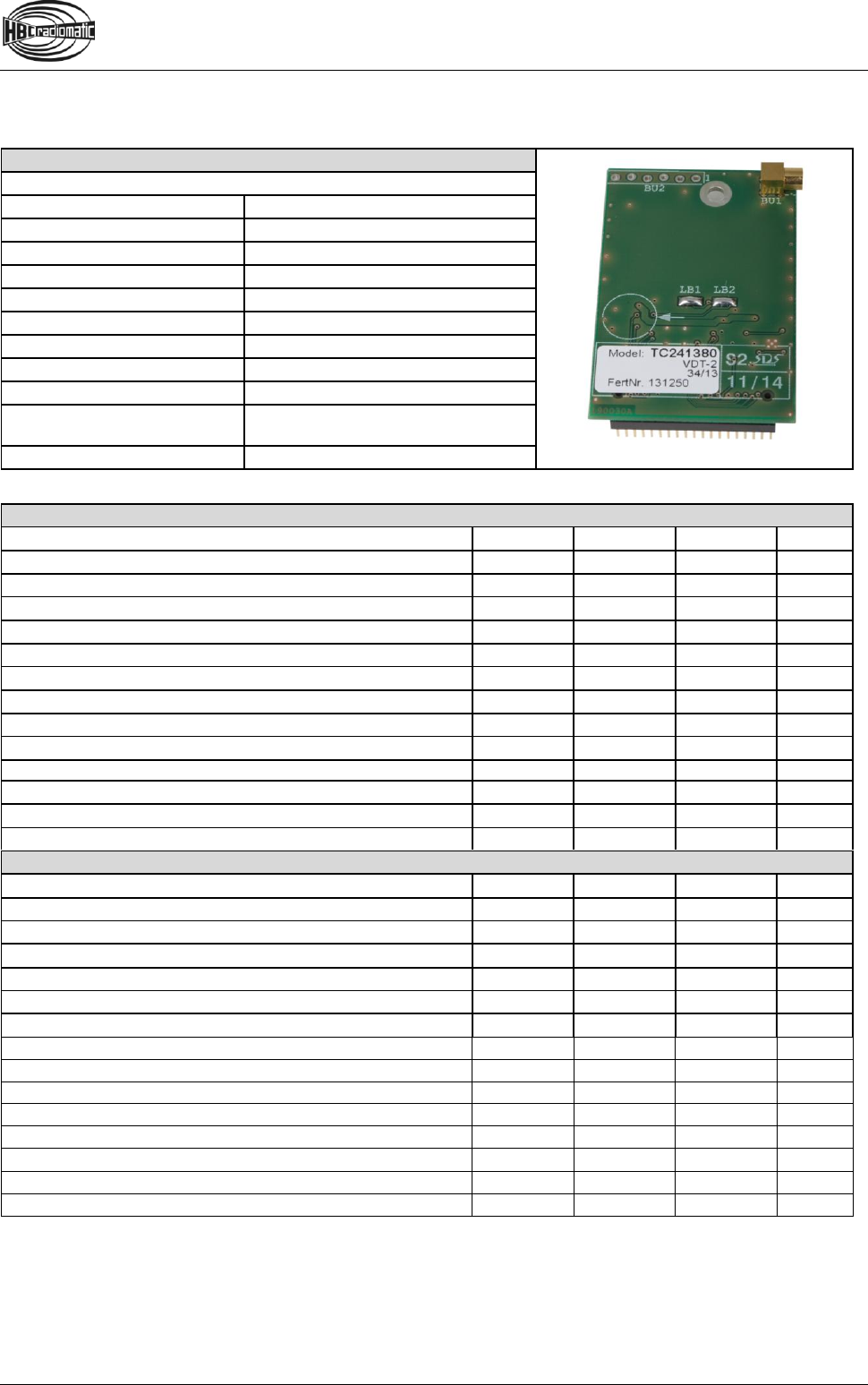

Technical data
Technical Specification
Common data
Module code
TC241
Country identity
---
Label
CE, FCC, IC, GOST-R, ARIB
Antenna
MMCX socket
Number of RF channels
79
Frequency range
2402 – 2480 MHz
Channel spacing
1 MHz
Operating temperature range
-30 °C … +80 °C
Modulation
GFSK, π/4 DQPSK, 8DPSK
Dimensions
(40 x 30 x 12) mm (TC20)
(40 x 30 x 16) mm (TC38)
Weight
8 g
Transmitter specific data (@ 25 °C)
Min.
Typ.
Max.
Unit
3.3
4.2
4.6
V
Min.
Typ.
Max.
Unit
-
< 18
-
dBm
-
900
-
kHz
-
-
-20
dBm
-
-
-40
dBm
-
-
-40
dBm
-20
-
20
kHz
-36
-
-
dBm
-30
-
-
dBm
-47
-
-
dBm
-47
-
-
dBm
15
45
76
mA
Receiver specific data (@ 25 °C)
Min.
Typ.
Max.
Unit
3.3
4.2
4.6
V
-
-90
-
dBm
-
0
-
dB
-
0
-
dB
-
-20
-
dB
-
-30
-
dB
Adjacent channel selectivity at 0.1% BER / F = fo - 3 MHz
-
-40
-
dB
Adjacent channel selectivity at 0.1% BER / F = fo + 5 MHz
-
-40
-
dB
Maximum input level (0.1% BER)
-20
-
-
dBm
Blocking 0.030 – 2.000 GHz
-10
-
-
dBm
Blocking 2.000 – 2.400 GHz
-27
-
-
dBm
Blocking 2.500 – 3.000 GHz
-27
-
-
dBm
Blocking 3.000 – 12.750 GHz
-10
-
-
dBm
Supply current
15
-
18
mA
Antenna
The antenna is an omnidirectional straight dipole which has a gain of 2,14 dBi and an impedance of 50 Ω
and is supplied with the module.
Other antennas with less gain are possible to use as well, e.g. a directly mounted λ/4-antenna with a
length of 32 mm.
The module should be used in “mobile” hosts with a distance of 20 cm from the user to the antenna only.

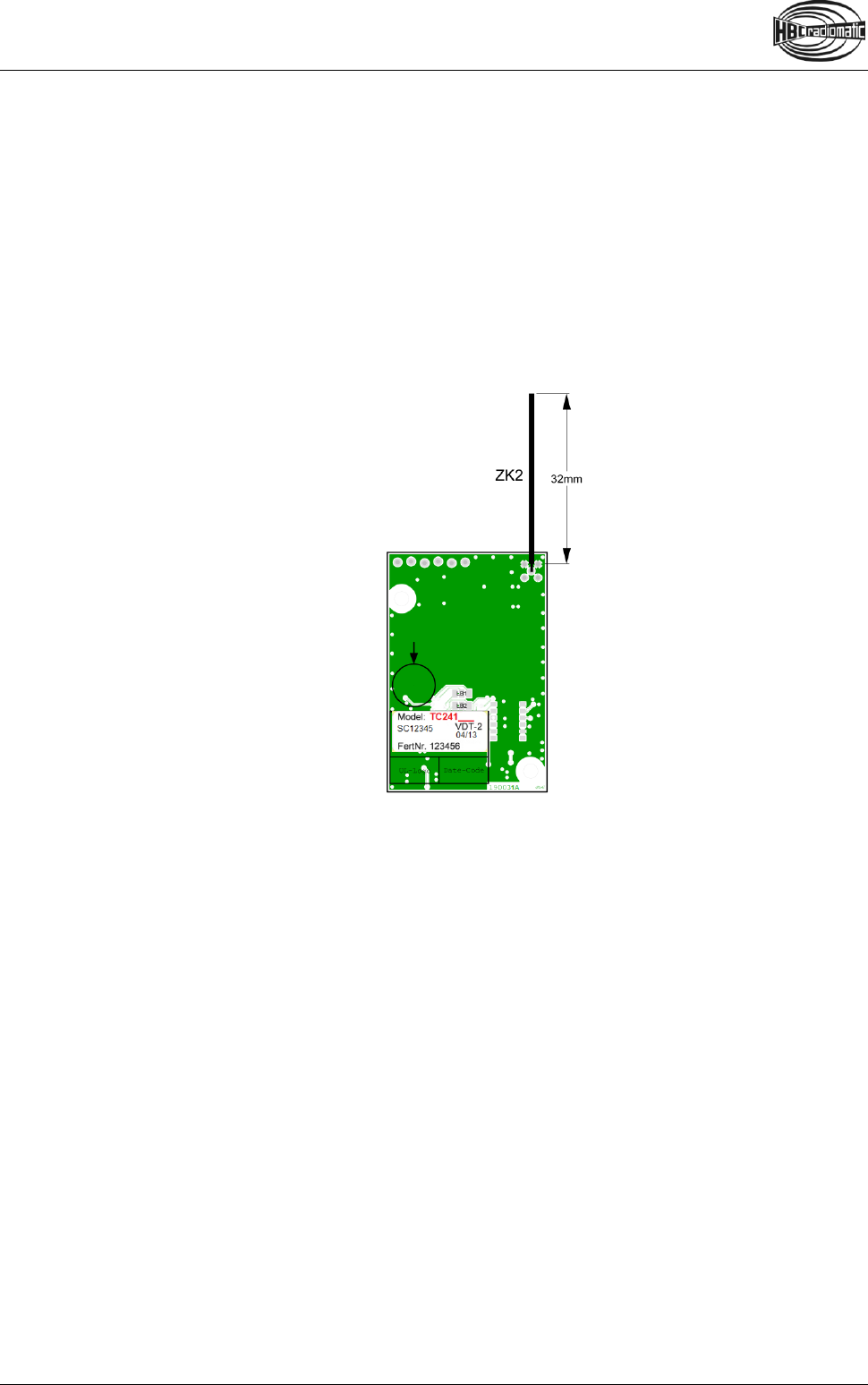

The following picture shows the directly mounted λ/4-antenna on the TC241-Module instead of the
omnidirectional straight dipole, which has more gain:
TC20-version of TC241 with λ/4-antenna

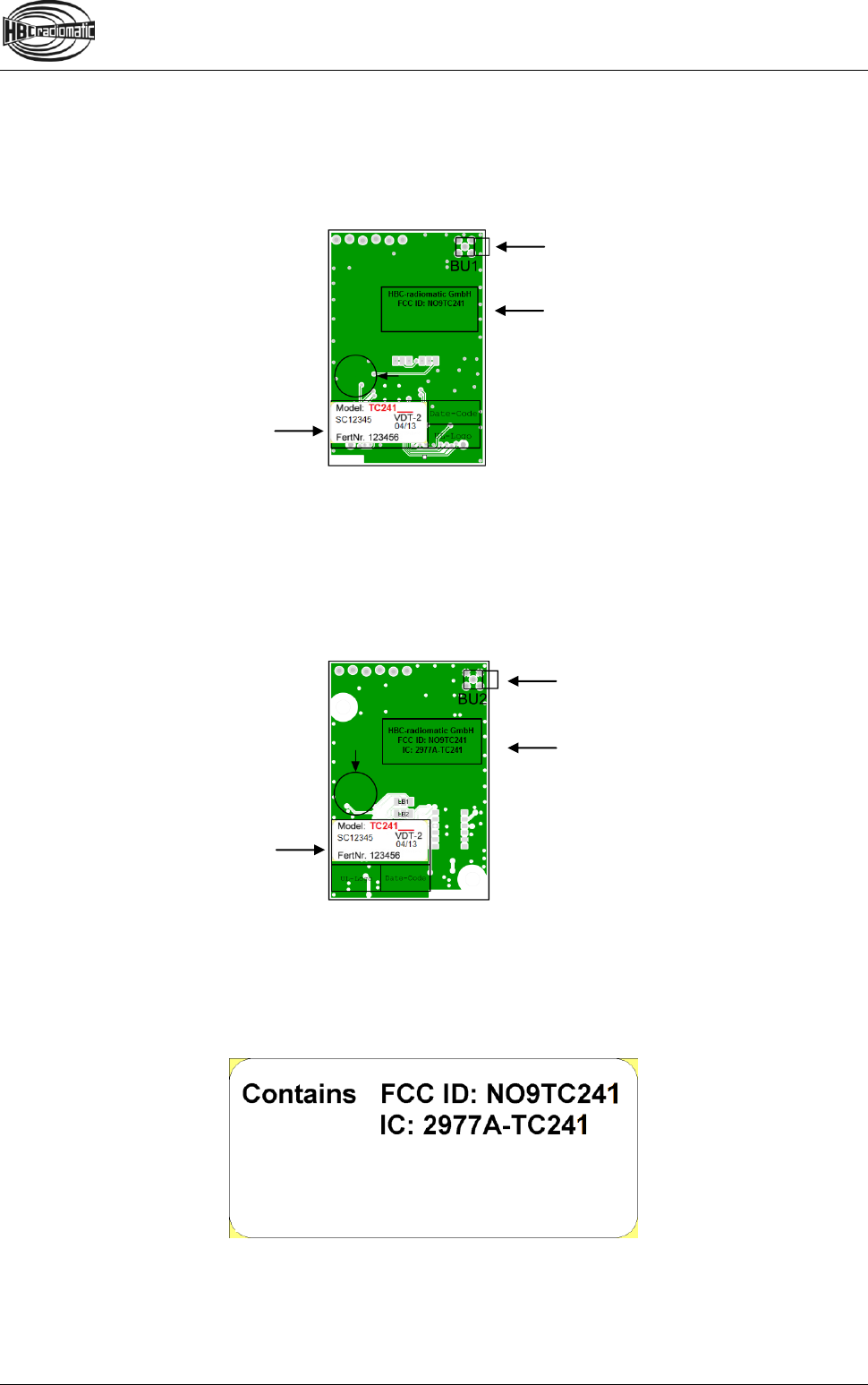

Labelling
HBC label
Labelling version 1 (TC38)
Labelling version 2 (TC20)
===== Ende der Stückliste =====
Labelling for installing the module in another device
Antenna plug
FCC-Label
HBC label
Antenna plug
FCC-Label &
IC-Cert. No
The end product (host) with the module built inside must be marked as follows:
Contains Transmitter Module FCC ID: NO9TC241 / IC: 2977A-TC241
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Module transmetteur ID IC: 2977A-TC241.
Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas causer d’interférences
nuisibles et (2) appareil doit accepter toute interference recue, y compris les interferences qui peuvent pertuber le
fontionnement.
The following regulatory statements shall be printed in the user manual for the end product.
This device complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and
should be installed/operated with minimum distance 20 cm between the radiator & your body.
FCC Information:
Changes or modifications to the equipment not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment. This equipment has been tested and found to comply with the
limits for Class B digital device, pursuant to Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference that may cause undesired operation.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the system off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the end product and receiver.
3. Connect the end product into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio TV technician for help.
Industry Canada Information:
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the device.
NOTICE: The Industry Canada label identifies certified equipment. This certification means that the equipment
meets certain telecommunications network, protective, operational and safety requirements as prescribed in the
appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the
equipment will operate to the user’s satisfaction. Repairs to certified equipment should be coordinated by a
representative designated by the supplier. Users should ensure for their own protection that the electrical ground
connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected
together.
This precaution may be particularly important in rural areas.
NOTE: Users should not attempt to make such connections themselves, but should contact
the appropriate electric inspection authority, or electrician, as appropriate. This product meets the applicable
Industry Canada technical specifications.
Safety Instructions
In customer related documents of the end product like instruction manuals, installation guides etc.
appropriate safety instructions have to be included. The supplier of the complete system is responsible
for these safety instructions.
=== Ende der List e für Textmar ke Inhalt ===
