HCS RC1534059 Remote Control User Manual SRS
Home Control Singapore Pte Ltd Remote Control SRS
HCS >
User Manual
![](/img.php?id=2372555&img=bg1.png)
DocID:
Date:
2014-07-11
Version:
0.1
Status:
Model:
Draft
RC1534059/01B
Remote Control User Manual
![](/img.php?id=2372555&img=bg2.png)
Confidential Google Remote Control User Manual
2/5 0.1, RC1534059/01B
DRAFT
Table of contents
1. Battery Installation 3
2. Remote Features Overview 4
3. General Product Description 5
3.1 Input devices 5
3.2 Output devices 5
4. Functional Requirements 6
4.1 LED indication 6
4.2 Backlight 6
4.3 TV input key 7
4.4 IR mode 7
4.5 Database function & learn function 7
4.6 Pairing with TV Box 8
4.7 BT Link disconnected 10
4.8 Wake to listen 10
4.9 Factory reset 10
4.10 Power management 10
5. TV Box Communication 11
6. Firmware updates 12
7. Certification Information 13
8. FCC Statement 14
![](/img.php?id=2372555&img=bg3.png)
Confidential Google Remote Control User Manual
3/5 0.1, RC1534059/01B
DRAFT
1. Battery Installation
Battery installation
Open battery cover at bottom side of remote control. Insert 2 x AA batteries.
Ensure batteries are properly installed. Install back the battery cover. The remote
control is ready to be used.
![](/img.php?id=2372555&img=bg4.png)
Confidential Google Remote Control User Manual
4/5 0.1, RC1534059/01B
DRAFT

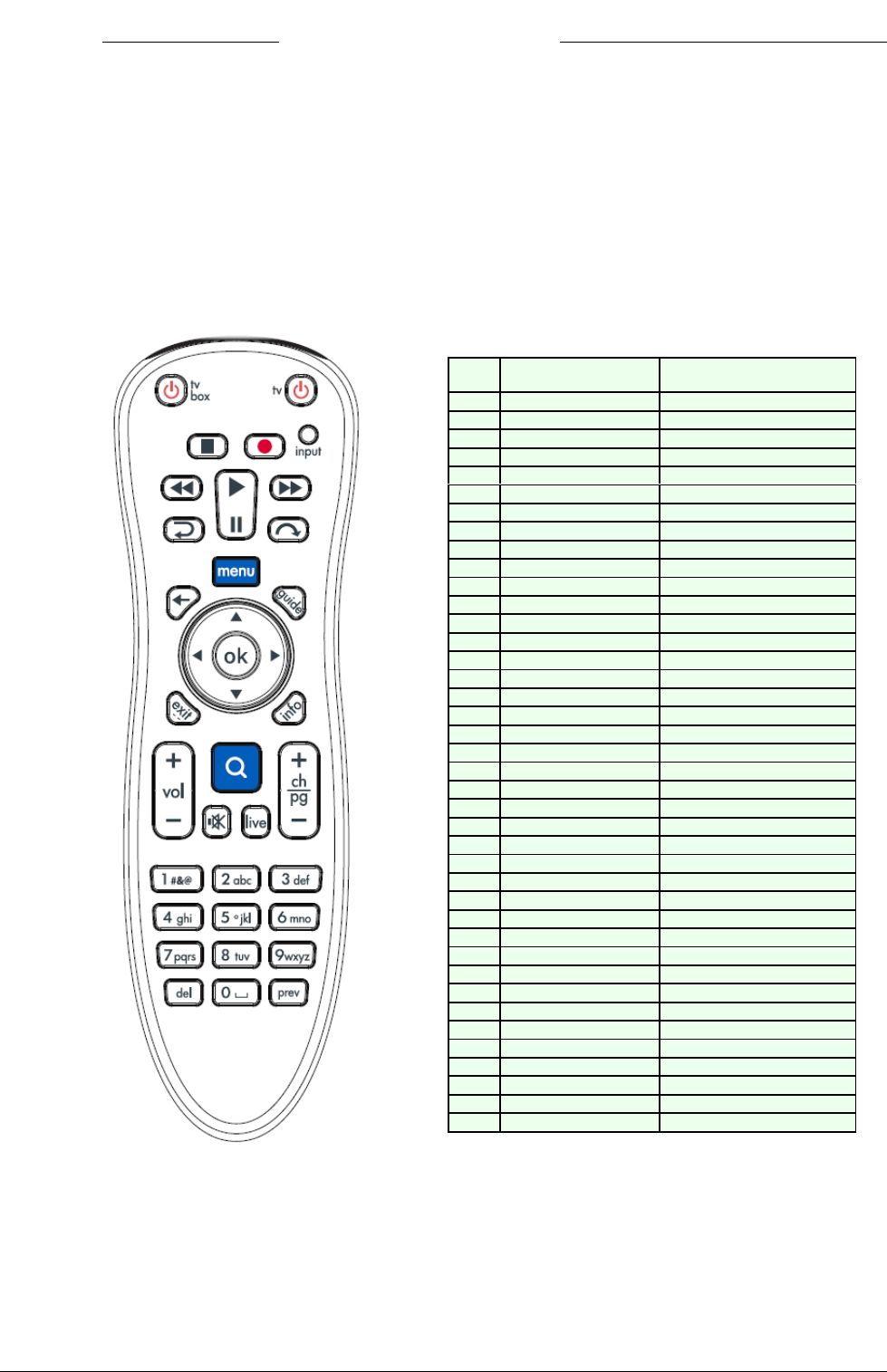

2. Remote Features Overview
Remote control functions
Key
No
Key Name
Key Function
1
TV_BOX_POWER
Power On/Off -- TV_BOX
2
TV_POWER
Power On/Off -- TV
3
INPUT
TV input sources
4
STOP
Stop
5
RECORD
Record
6
REWIND
Rewind
7
PLAY
Play
8
FAST_FORWARD
Fast Forward
9
SKIP_BACKWARD
Skip Backward
10
PAUSE
Pause
11
SKIP_FORWARD
Skip Forward
12
MENU
Menu
13
BACK
BACK
14
Guide
Guide
15
UP
Up
16
LEFT
Left
17
OK
OK
18
RIGHT
Right
19
DOWN
Down
20
Exit
Exit
21
Info
Info
22
Vol+
Volume Up
23
Search
Search
24
CH+
Channel Up
25
Vol-
Volume Down
26
MUTE
Mute
27
Live
Live
28
CH-
Channel Down
29
DIGIT_1
Numeric key 1
30
DIGIT_2
Numeric key 2
31
DIGIT_3
Numeric key 3
32
DIGIT_4
Numeric key 4
33
DIGIT_5
Numeric key 5
34
DIGIT_6
Numeric key 6
35
DIGIT_7
Numeric key 7
36
DIGIT_8
Numeric key 8
37
DIGIT_9
Numeric key 9
38
DEL
DEL
39
DIGIT_0
Numeric key 0
40
Prev
Previous
![](/img.php?id=2372555&img=bg5.png)
Confidential Google Remote Control User Manual
5/5 0.1, RC1534059/01B
DRAFT
3. General product description
3.1 Input devices
Key Buttons
3.2 Output devices
IR LED: It is used to transmit the selected codes and protocols via
IR.
RF: It is used to send data over Bluetooth Low Energy
Indicator LED: “TV” Led Indicator – For IR related operation.
“TV Box” Led Indicator – For BLE related operation.
![](/img.php?id=2372555&img=bg6.png)
Confidential Google Remote Control User Manual
6/5 0.1, RC1534059/01B
DRAFT
4. Functional requirements
4.1 LED Indication
RC
Before TV Setup/ Learn
After TV Setup / Learn
TV LED
TV Box LED
TV LED
TV Box LED
Unpaired RC
IR keys send IR
(except <Input>) for
TV Box. TV Box Led
blinks continuously
for IR key*.
<TV> key send IR
code (TV Power) for
TV Box. TV Box Led
does not blink.
BT keys send IR for TV
Box. TV Box LED
blinks continuously for
BT key.
TV Led does not blink
for all keys.
IR keys send IR for
TV.
TV Led blinks
continuously for IR
key*.
BT keys send IR for
TV Box.
TV Box Led blinks
continuously for BT
key.
Paired RC
IR keys send BT
code. TV Led blink
once for IR keys.
.TV Led does not
blink for all keys.
BT keys send BT code.
TV Box Led blinks
once for BT key.
IR keys send IR
code for TV.
TV Led blinks
continuously for IR
key*
BT keys send BT
code.
TV Box Led blinks
once for BT key.
*IR key : <TV>, <Input>, <Vol+>, <Vol->, <Mute>, Navigation Keys
*BT key: All keys except IR key
Location
Indication purpose
Status description
Bluetooth status indication
TV_BOX LED
Blink continuously while key is pressed
and held down. (same as TV LED)
New RC
RC is unpaired.
When BT link is broken.
TV_BOX LED
Blink 1 time (250ms) on keypress. Or turn
off LED immediately after key release
(whichever is shorter)
After RC is paired.
Power status indication
TV_BOX + TV
LED
Blinks 5 times at 50ms interval
Whenever any key is released and the
Battery is low, RC is still operable.
TV_BOX + TV
LED
IR and BT LED does not turn on.
When RC is inoperable at voltage below
2V. RC does not respond to any key
4.2 Backlight
When the RC is picked up, the pickup sensor will wakeup the RC. The RC will turn on the
backlight after a delay (See 5.1). The backlight will remain ON for a configurable timeout (See
5.1).
The timeout will restart if any valid key is pressed while the backlight remains on.
![](/img.php?id=2372555&img=bg7.png)
Confidential Google Remote Control User Manual
7/5 0.1, RC1534059/01B
DRAFT
When the remote is stationary, and no keys are pressed (timeout from the last key pressed), the
backlight will turn OFF.
4.3 TV Input Key
When the TV Input Key is pressed, the navigation keys (UP, DOWN, LEFT, RIGHT, OK) will
switch to IR mode for 5s (this value is configurable).
If any other key (such as MENU) is pressed before the 5s timeout, this will cancel the IR mode.
The navigation keys will revert to its previously operating mode.
4.4 IR Mode
The host can configure the Remote to enable / disable IR mode). This is meant to be used in
cases where the TV box can use CEC to control the TV; hence IR control is not needed for the
TV.
In the factory default state, the RCU should generate IR codes for the TV until/unless the TV box
sends a command to ‘Disable TV IR’.
4.5 Database Function & Learn Function
4.5.1 The Database key table
The RC has Database for TV device. The keys supporting the Database are described as below.
All the other keys will act the same as the RC in TV_BOX mode.
Key Name
TV
TV_POWER
YES
INPUT
YES
VOL+
YES
VOL-
YES
MUTE
YES
UP
YES
LEFT
YES
OK
YES
RIGHT
YES
DOWN
YES
YES: This key is available in the current mode.
4.5.2 Set Features for Learn
The RC also supports learn function for keys working in TV mode.
![](/img.php?id=2372555&img=bg8.png)
Confidential Google Remote Control User Manual
8/5 0.1, RC1534059/01B
DRAFT
Feature
Key sequence
Learn
<<1+5>>, <learnable key>, <Exit>
Learnable key: TV_POWER, INPUT, VOL+, VOL-, MUTE, UP, LEFT, OK, RIGHT and DOWN.
The procedure is as following.
1. Press Digit 1 and Digit 5 simultaneously for 3 seconds. After 3 seconds the TV Power
key LED will blink twice and remain on. Release all keys.
2. Enter a learnable key, the TV Power key LED gives a short inverse blink. After the key
is released, the LED will start blinking.
3. Hold the source RC (in of sight) at an optimum distance (3cm to 6cm) and
continuously transmit the signal by pressing and holding the key from source RC that
you want to learn into the RC.
4. The LED gives 2 blinks and stays on if learning is successful and the new learnt codes
will replace the previous one. Release the key from the source RC.
The LED will give an error blink and stays on if the learning is failed. The previous key
code is kept.
5. User can learn other keys or retry learning on the same key by following step 2 to 5.
6. Press the <Exit> key to exit to the use-mode. After pressing the OK key, the LED will
turn off and return to use-mode.
Notes:
If no key is pressed within 30s after enter into the learn setup mode, the RC will
return to use-mode with an error blink to indicate time out.
If no signal for the RC to learn within 30s after pressing a learnable key, the RC will
return to use-mode with an error blink to indicate time out.
If the learnable key has been pressed for 30s, the RC will enter into Stuck Key Time-
out.
4.6 Pairing with TV Box
BT Pairing of RC with TV Box will take place in following 3 situations:
when RC and TV Box are out of the box and install for the 1st time
when existing RC is lost or broken and a new replacement RC is added
when TV Box is being replaced or reset, and added to work with existing RC
The RC interacts with the TV Box UI via IR, or BT.
By factory default or after a master reset, the RC does not contain any BT pairing information.
The RC will default to be in TV_BOX Mode. The RC will send TV_BOX IR Code.
In BT mode, the TV_BOX Power key will start to use RF until the BT link is disconnected (either
due to TV Box out of range or TV Box is off or TV Box is being replaced). BT pairing is described
in more detail at section BT Pairing.
![](/img.php?id=2372555&img=bg9.png)
Confidential Google Remote Control User Manual
9/5 0.1, RC1534059/01B
DRAFT
Each RC should pair with 1 TV Box. When trying to pair a previously paired RC to a TV Box, the
previously paired information will be replaced on both the TV Box and RC.
Before pairing, the TV_BOX Power key will only send IR code.
After Pairing the TV_BOX power key will send both IR and BT.
All other keys will send BT codes.
4.6.1 BT Pairing (Out-of-the-box / Replacement RC)
When the batteries are inserted for the first time, the RC is not paired to any TV Box. To start
pairing, the following procedure applies.
1) If any key is pressed in TV_BOX mode (except <TV Power> and <Input>), the TV_BOX
IR codes will be sent. When there are no key presses for more than 1sec, the RC will
starts the Pairing Process.
2) The RC starts the pairing process by sending an IR Pairing Code to the TV Box
according to IR Pairing Code Format (See Appendix)
3) If the key press is the TV_BOX Power key, the RC will send the TV_BOX Power key IR
code. When the TV_BOX Power key is released, the RC will then send the IR Pairing
code.
4) The TV Box will start the pairing process on receiving the IR Pairing code.
5) If the pairing fails, the RC will goes to sleep mode.
6) If the pairing is ok, the TV_BOX will then send a Device ID (using RF) to the RC. The
RC can now control this TV Box only.
7) Subsequently, when the TV_BOX Power key is pressed, the IR code will contain the
Device ID and Command Code information (See Appendix).
The pairing process will timeout after 30 seconds. After 30 seconds, the RC will goes to sleep
mode. The RC will remain in an “unpaired” state.
4.6.2 BT Pairing (Replacement of TV Box or TV Box Reset)
1. The RC needs to be setup again in order to work with a new TV Box or TV Box is
resetted.
2. The user will need to press “OK” and Digit “2” key simultaneously for 3 seconds to start
the pairing process manually as below.
3. The RC starts the pairing process by sending an IR Pairing Code to the TV Box
according to IR Pairing Code Format (See Appendix).
4. The TV Box must check and confirm the data are correct with the Checksum.
5. The TV Box will then start the pairing process.
6. If the pairing fails, the RC will goes to sleep mode.
7. If the pairing is ok, the TV_BOX will then send a Device ID (using RF) to the RC. The
RC can now control this TV Box only.
![](/img.php?id=2372555&img=bga.png)
Confidential Google Remote Control User Manual
10/5 0.1, RC1534059/01B
DRAFT
8. Subsequently, when the TV_BOX Power Key is pressed, the IR code will contain the
Device ID and IR Command Code information (See Appendix).
9. The pairing will timeout after 30 seconds. After 30 seconds, the RC will goes to sleep
mode. The RC will remain in the “unpaired” state.
If the pairing fails, or pairing timeout, the RC will fall back to IR mode only. The user needs to do
re-pair by pressing and releasing any key or pressing <OK>and <2> keys (repeat step 2) with the
TV Box.
4.7 BT Link Disconnected
The BT Link could be disconnected, due to RF interference, RC out of range, or TV Box is off.
The RC can only detect a BT Link disconnection in Active or Standby Mode.
The RC may delete the pairing info, depending on the Configuration item (See 5.1). If the pairing
info is deleted, the RC will switch to IR mode, until the BT Link is reconnected again.
4.8 Wake To Listen
When the remote is paired, and RC is in sleep mode, the RC will wake up every 15 minutes
briefly to listen for any RF data from the host. If there is no RF data, the RC will return to sleep
for another 15 minutes.
4.9 Factory Reset
Pressing the key “DEL” and “TV BOX” together for 3 sec will erase the BT pairing information.
The “TV BOX” LED will blink to indicate successful reset.
Pressing the key “DEL” and “TV” together for 3 sec will erase all learn data, and Database
codeset. The “TV” LED will blink to indicate successful reset.
4.10 Power Management
The RC has 3 operating modes.
4.10.1 Active mode
In the active mode, the RC is either sending IR or RF code (depending on the Configuration).
4.10.2 Standby mode
RC idle but maintain BT link connection in low power sniff mode.
During STANDBY mode, BT link is still maintained with TV Box. Any keypress will set the RC
back to ACTIVE mode almost immediately. Once back to ACTIVE mode, the RC will execute the
key events.
4.10.3 Sleep mode
After remain in STANDBY for 60s, the RC will enter SLEEP.
Press any key or pickup up the remote will WAKE UP the RC to ACTIVE mode. When RC wakes
up from SLEEP, the Remote will attempt to reconnect to the host. There will be re-connection
latency depending on the BT link condition and RF interference of the surrounding. Once the BT
link has been established, the RC will execute the key events.
![](/img.php?id=2372555&img=bgb.png)
Confidential Google Remote Control User Manual
11/5 0.1, RC1534059/01B
DRAFT
5. TV Box Communication
When the RC is paired, Remote will use the HOGP profile for communication to the TV Box.
RC to TV Box
Report ID
Send Condition
0x02
User press a remote key which has a HID keyboard code
0x03
User press a remote key which has a HID consumer control code
TV Box to RC
Report ID
Send Condition
*Note :
After pairing, the TV_BOX keys will send BT only. Only the TV_BOX Power key will send IR
and BT.
In TV Mode, only the 10 TV keys (TV Power, Input, Mute, Vol+, Vol-, Navigation keys) will
send IR.
![](/img.php?id=2372555&img=bgc.png)
Confidential Google Remote Control User Manual
12/5 0.1, RC1534059/01B
DRAFT
6. Firmware Updates (OAD)
When there is a new firmware available for the RC, the TV Box will check if the current RC
requires a firmware update. If the RC firmware is older, the TV Box will initiate the OAD process
by sending the Start OAD process command.
![](/img.php?id=2372555&img=bgd.png)
Confidential Google Remote Control User Manual
13/5 0.1, RC1534059/01B
DRAFT
7. Certification information
FCC
Bluetooth QD ID
Place of Origin: Made in Indonesia.
![](/img.php?id=2372555&img=bge.png)
Confidential Google Remote Control User Manual
14/5 0.1, RC1534059/01B
DRAFT
FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
End of Document
