User Manual
User guide for Remote Control RC3544407/01BR
The remote control has been programmed to control your set-top box and can be programmed
to control your TV.
Installing Batteries
The remote requires 2xAAA batteries. A diagram inside the battery compartment of the remote
indicates proper placement of the batteries. When batteries are properly installed, the light on
the remote blinks each time a key is pressed

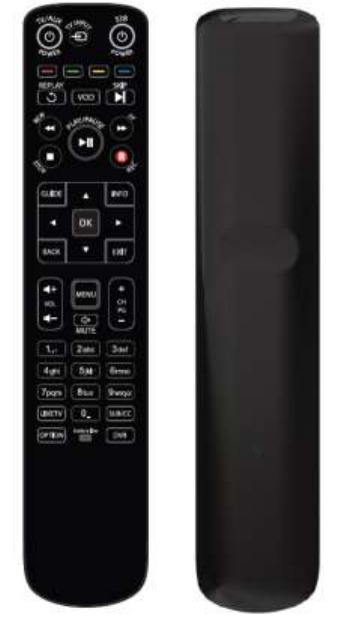

Know your Remote

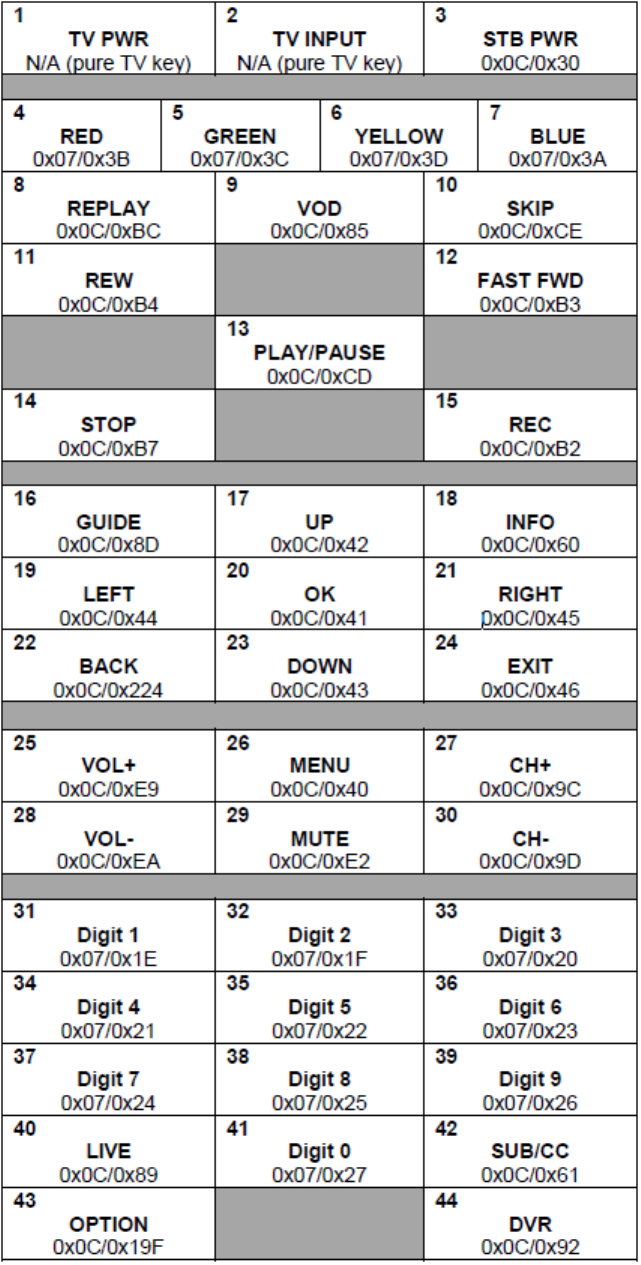

The diagram below describes each key on your remote control. Functions may vary between
different services. Refer to the user guide for your set-top box for descriptions of specific
functions.
Product Introduction
1) As default, LED will give a confirmation blink when batteries insert.
2) As default, STB control medium is set as STB-RF mode.
3) As default, volume keys (“VOL+/VOL-/MUTE”) are in STB-RF mode.
4) The default TV DB code-set ID for TV IR keys is 1150, the most common code-set for
Samsung TV. The default TV brand ID for blink-out is empty.
5) IR learning data is empty (not learned).
6) The RC is not paired and the BLE pairing table is empty.
Set STB Control Medium
1) Set to IR Mode:
Press <<MENU + 1>> simultaneously for 3 seconds.
2) Set to RF Mode:
Press <<MENU + 2>> simultaneously for 3 seconds;
3) Set Volume Keys Mode
On RCU, the 3 volume keys (VOL+ / VOL- / MUTE) can work as either TV-IR keys or STB (IR/RF)
keys.
4). Set Volume Keys as TV Keys:
Press <<MENU + 3>> simultaneously for 3 seconds.
5). Set Volume Keys as STB Keys:
Press <<MENU + 4>> simultaneously for 3 seconds.
Brand-Search / Auto-Search Setup
Brand Search: <<1 + 3>>, <1st digit>, <2nd digit>, <3rd digit>, <4th digit>, <<TV-
PWR>>or<<MUTE>>, <test keys…>, <STB-PWR>;
Auto Search: <<1 + 3>>, <<TV-PWR>>|<<MUTE>>, <test keys…>, <STB-PWR>;
Manual Code-set ID Setup
<<2 + 6>>, <1st digit>, <2nd digit>, <3rd digit>, <4th digit>
1. Press <<2 + 6>> simultaneously for 3 seconds.
2. Enter a 4 digits code-set ID code from load list.
IR Learning
<<4 + 6>>, <target key>
The <target key> is the key that will get the learned IR-code assigned to it. It can only be one of
the 5 TV keys (TV-PWR / TV-INPUT / VOL+ / VOL- / MUTE)
Clear Learning Data
<<4 + 6>>, <target key>, <target key>
1. Press <<4 + 6>> simultaneously for 3 seconds.
2. Press the target key twice to clear existing stored learned codes (if any).
Reset TV configuration
<<1 + 6>>, <9>, <9>, <6>
1. Press <<1 + 6>> simultaneously for 3 seconds.
2. Enter digit sequence <9>, <9>, <6>;
3. After a valid key press sequence, the RCU deletes the full TV configuration;
Clear Pairing Table
<<1 + 6>>, <9>, <8>, <2>
1. Press <<1 + 6>> simultaneously for 3 seconds.
2. Enter digit sequence <9>, <8>, <2>;
3. After the valid key press sequence, the RCU erases its pairing data, and the STB control
medium automatically restores to STB-IR mode
Factory Reset
<<1 + 6>>, <9>, <8>, <1>
1. Press <<1 + 6>> simultaneously for 3 seconds.
2. Enter digit sequence <9>, <8>, <1>.
3. After a valid key press sequence, the RCU deletes all settings and returns to factory default
Mode. After this the TV-LED turns off and STB-LED performs a confirmation blink, then RCU
returns to user mode.
Battery Voltage Monitor
LVD check will be triggered after a signal key is released in user mode.
1.When the LVD is detected (battery voltage<2.3V);
2. While RCU works in BLE mode, it supports Bluetooth standard service of battery level
notification. The paired host is then able to get battery level of the RCU.
Sleeping Mode
When no any activity need to do, the RC enters sleeping for power saving purpose. The sleeping
mode behaves as below:
1) All LEDs are off.
2) IR and RF communications are stopped.
3) Any key press will wake up the RC.
FCC information:
FCC ID: 2AGOFRC354A
This device complies with Part 15 of the FCC Rules. Its operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Note: This product has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This product generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this product does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Please take attention that changes or modification not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
