Queue Wireless Calling System User Manual
The diagram of the call button keypad
Product introduction
1
Thanks for using our company's wireless calling system, it adopts RF wireless technology with millions
of different learning codes. The system consists of 1 call button keypad and 20 portable receivers, the
receiving pager supports 999-channel extensions, the call button keypad has 20 battery charging slots.
Each receiver is rechargeable and labeled with a number, in standby status, it is plugged into the
charging slots, while the guest places an order, he(she) will be dispatched one receiver with a number,
when the order is ready, the waiter will press the keypad to call the number, the guest will get it through
the buzzer/vibration/LED indications.
The queue system greatly improves the work efficiency and avoid the guest waiting in a long queue. It
is widely used in fast food restaurant, church, dessert shop, auto 4S shop, food truck or other queue
occasions.

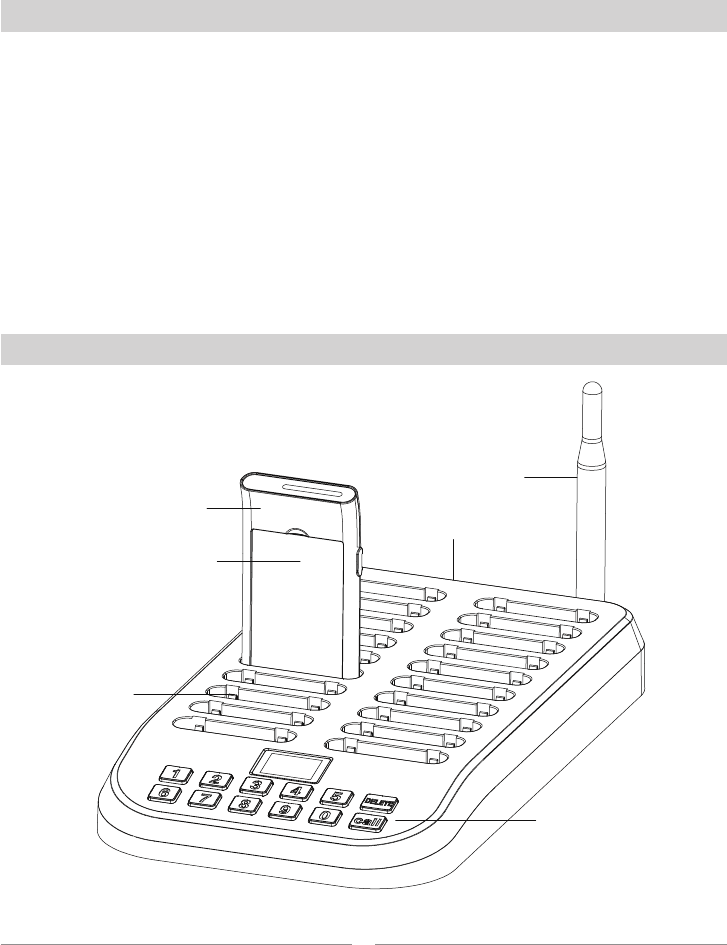

Receiver
Stickers
Charging slot
Keypad area
Power in
Antenna
The diagram of the receiver
2
Technical data
Working voltage
Charging voltage
Receive sensitivity
Battery capacity
Decoder
Dimmension
Working frequency
Standby current
Working current
Receiver
DC 3.7V (Rechargeable battery)
DC 5V
-107±2dBm
360mAh
Learning code (AM)
104*50*8mm
433.92MHz
10±5mA
100±20mA (Max.)
Working voltage
Working frequency
Standby current
Transmit current
Encoder
Dimmension
Keypad call button
DC 5V/6A
433.92MHz
24±5mA
100±30mA
Learning code (AM)
280*158*34mm

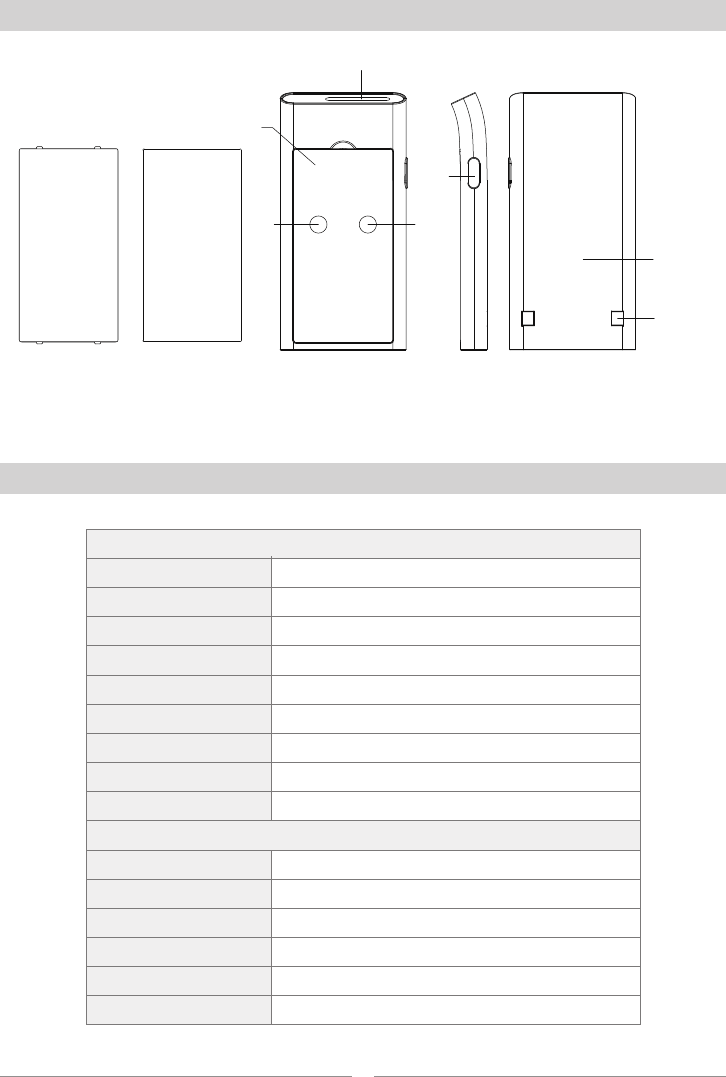

Transparent cover Stickers Front Side Back
Pair
LED
Paper slot
Reset
Mode
Charging
pins
Built-in
battery
3
1. Open the package, connect the call button keypad to power, it executes the self-testing procedure,
then power icon turns on.
2. When guest places an order, the service people give one receiver to him(her) and note down the
number.
3. While the order is ready, the waiter press keypad to call the guest (number), the corresponding
receiver gets the information and prompts vibration/buzzer/light for 5 min, remind the guest to
complete the order.
4. At last, the guest returns the pager to the waiter and the service is completed.
Operation instruction
1. The keypad call button is connected to the power supply through the power adapter, host digital
screen display “000”, the pager is inserted into the charging slot of the host, the pager is opened
and charged, and the red light of the pager indicator is often lit.
2. After the charge of the pager is full, the indicator light is shown to be a green light.
3. After the pager is taken out, the pager enters the waiting call state, indicating that the light blue light
flashes once every 3 sec.
4. When the host is called, the pager receives the call information. It flashes every 0.3 sec by vibrant,
buzzing and blue lights for reminding.
5. The pager reminding time is 30 sec, can short press the side button of the pager to close the reminder,
or insert the host charging slot to close the reminder.
6. The pager in the charging process, when the host call, the light blue light of reception indicator
flashes every 0.3 sec for a reminder.
7. When the power of the pager is low, the red light of the indicator is flicker once every 1sec.
8. When the pager is inserted into the host charging slot, press 999 on the keypad call button and then
press the call key, the pager in all the charging slots can be turned off.
Function Description
1. Pairing - The pager is in standby state, short press the “Set” button, the blue indicator light of the
receiving pager is always bright, then press the call number on the keypad, the pager gets the signal
and blue lamp turns off and accompanied by buzz and vibration reminding, which represents the
success of the code.
2. Deleting - The pager is in standby state, press and holds on the “Set” button for 3 sec, the receiving
indicator light goes from blue to extinguish, then release the button, all the paired call buttons will
be deleted.
Pairing method
The receiving pager is in the standby state, short press the mode button on the pager, change the
reminder mode. There are four kinds of modes, the default is the vibration, the buzzing, and the LED
lights, the other three are Vibration and buzz; Vibration plus light; Beep and lamplight.
Reminder mode switching
4
Four mode cycle switching, when switching to the corresponding mode, the receiving card shall remind
the time 5 sec according to the corresponding reminder mode.

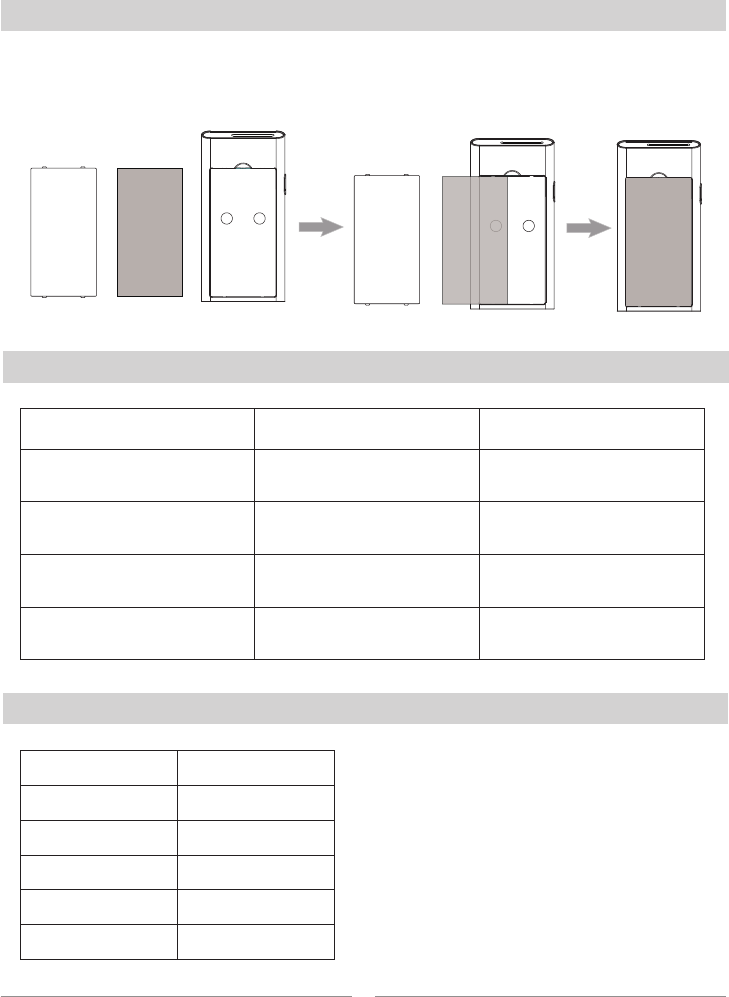

Take out the transparent plexiglass cover in the front of the pager, then put a Sticker inside the paper
slot, and then put back the cover.
Note: While doing the pairing operation, take out the cover and paper firstly.
Change Stickers
Packing List
FAQ
Name Quantity
Call button keypad
pager
Power adaptor
User manual
1 pc
20 pcs
1 pc
1 pc
Problems Reasons Solutions
While power on, the number
display on keypad is not on. The power adaptor is broken. Change the power adaptor.
The distance of some pager
gets near. The power of battery is low. Charge the battery in time.
Pager cannot get any signal
from keypad call button.
The pairing is deleted;
The number is not correct.
Pair the pager again to the
keypad.
Forget the number of pager. Delete the pairing first, then
pair it again.
Warranty card 1 pc
