HES | Securitron Product Catalog

Electronic Security

Hardware

When we come together,

great things happen.

In 2018 HES and Securitron, the world’s premier

suppliers of electric strikes, electronic locking systems

and access control components, united as ASSA ABLOY

Electronic Security Hardware. This exciting combination

accentuates the best of both brands: the innovation,

strength and service of HES harmonizing with the

durability, quality and no-fault warranty of Securitron.

Industry Leaders

With more than 40 years of experience shaping the access control

industry while innovating electric strikes and electromagnetic

locks and accessories, ASSA ABLOY Electronic Security

Hardware continues to offer the same high quality products

of the legacy HES and Securitron brands that you have come

to rely upon. By combining the brands, ASSA ABLOY Electronic

Security Hardware provides a solution offering that is more

comprehensive than either one brand could have provided alone.

Customers Come First

ASSA ABLOY Electronic Security Hardware is proud to extend

the most comprehensive no-fault, no questions asked warranty

coverage to all of our products and solutions. The MagnaCare®

warranty continues to be called MagnaCare and applies to

select products under the over-arching strength and assurance

of the ASSA ABLOY brand. Knowledgeable Customer Care and

Tech Support teams are ready to assist with anything from the

smallest detail to the most difficult application questions.

A Brighter Future…Together

The unification of these two legacies creates immense opportunity

for innovation, provides a more solutions-focused product

offering, and supports superior customer experiences.

Our success could not be achieved without you, our customers.

We thank you for your business and partnership, and appreciate

your continued support. We look forward to working with you…

together as ASSA ABLOY Electronic Security Hardware.

For more information, visit assaabloyesh.com.

Table of Contents

Electric Strikes

HES 1006 ••••••••••••••••••••••••••••••••••••••••••••••••••••••• 3

HES 1500, 1600 ••••••••••••••••••••••••••••••••••••••••••••••••• 13

HES 4500 •••••••••••••••••••••••••••••••••••••••••••••••••••••• 21

HES 5000, 5200 ••••••••••••••••••••••••••••••••••••••••••••••••• 23

HES 7000, 7501 ••••••••••••••••••••••••••••••••••••••••••••••••• 29

HES 8000, 8300, 8500 •••••••••••••••••••••••••••••••••••••••••••• 35

Securitron UNL, MUNL ••••••••••••••••••••••••••••••••••••••••••• 45

HES 9400, 9500, 9600, 9700, 9800 ••••••••••••••••••••••••••••••••• 49

HES Folger Adam 310 Series ••••••••••••••••••••••••••••••••••••••• 59

HES Folger Adam 310-4 Series ••••••••••••••••••••••••••••••••••••• 63

HES Folger Adam 310-4-X Series ••••••••••••••••••••••••••••••••••• 65

HES Folger Adam 310-6-X Series ••••••••••••••••••••••••••••••••••• 67

HES Folger Adam 700 Series ••••••••••••••••••••••••••••••••••••••• 69

HES Folger Adam 742 Series ••••••••••••••••••••••••••••••••••••••• 71

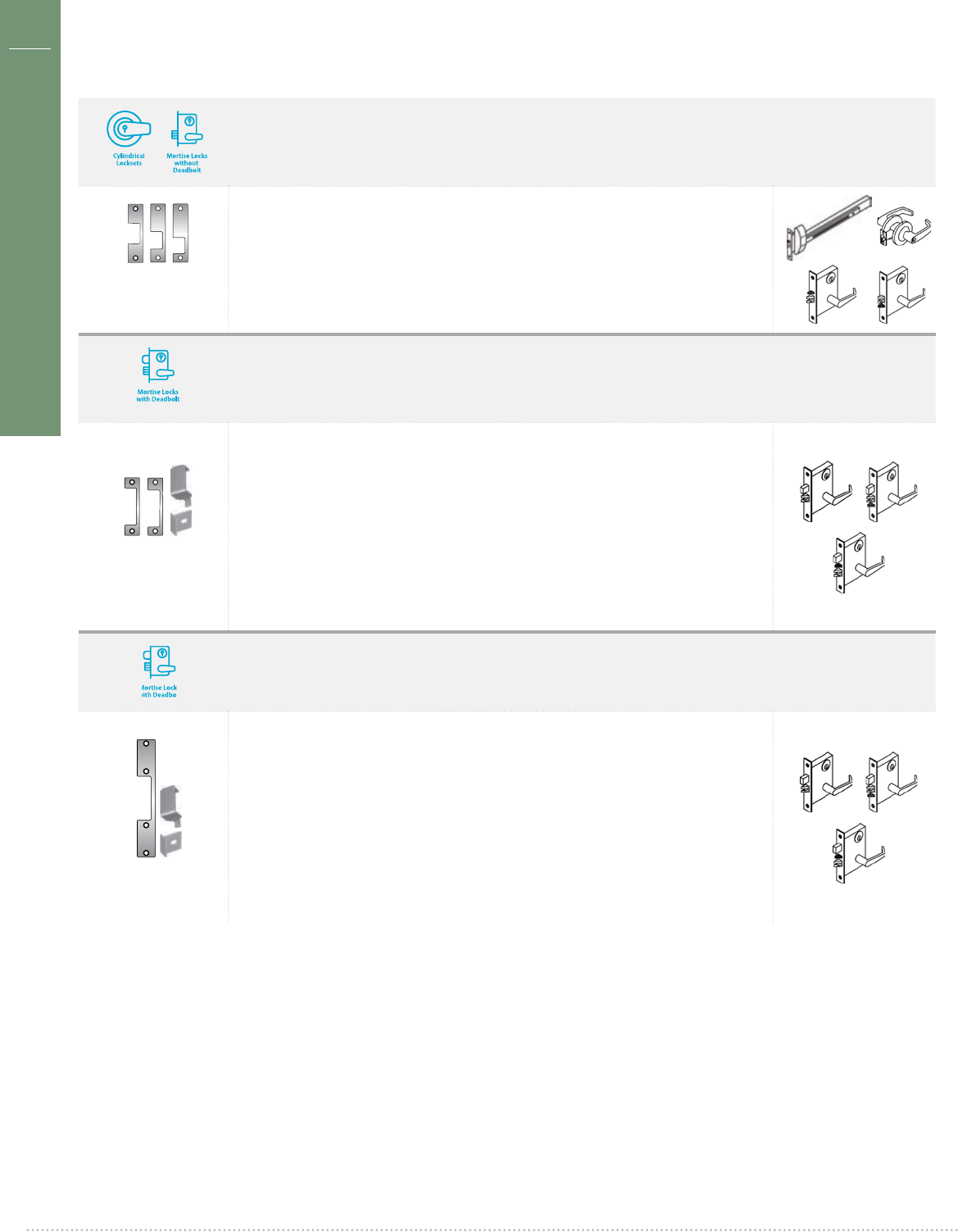

Electric Strike Accessories •••••••••••••••••••••••••••••••••••••••• 73

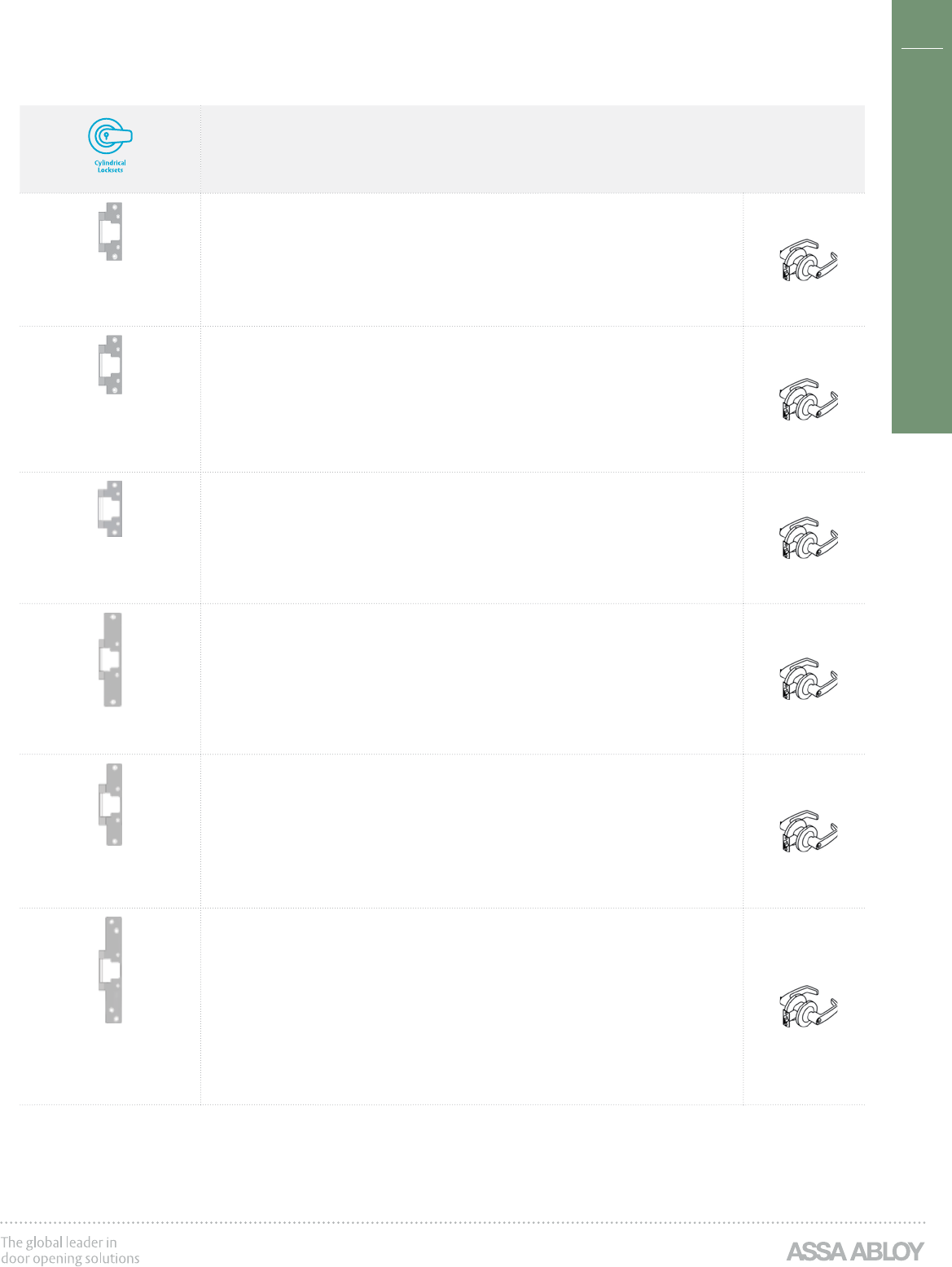

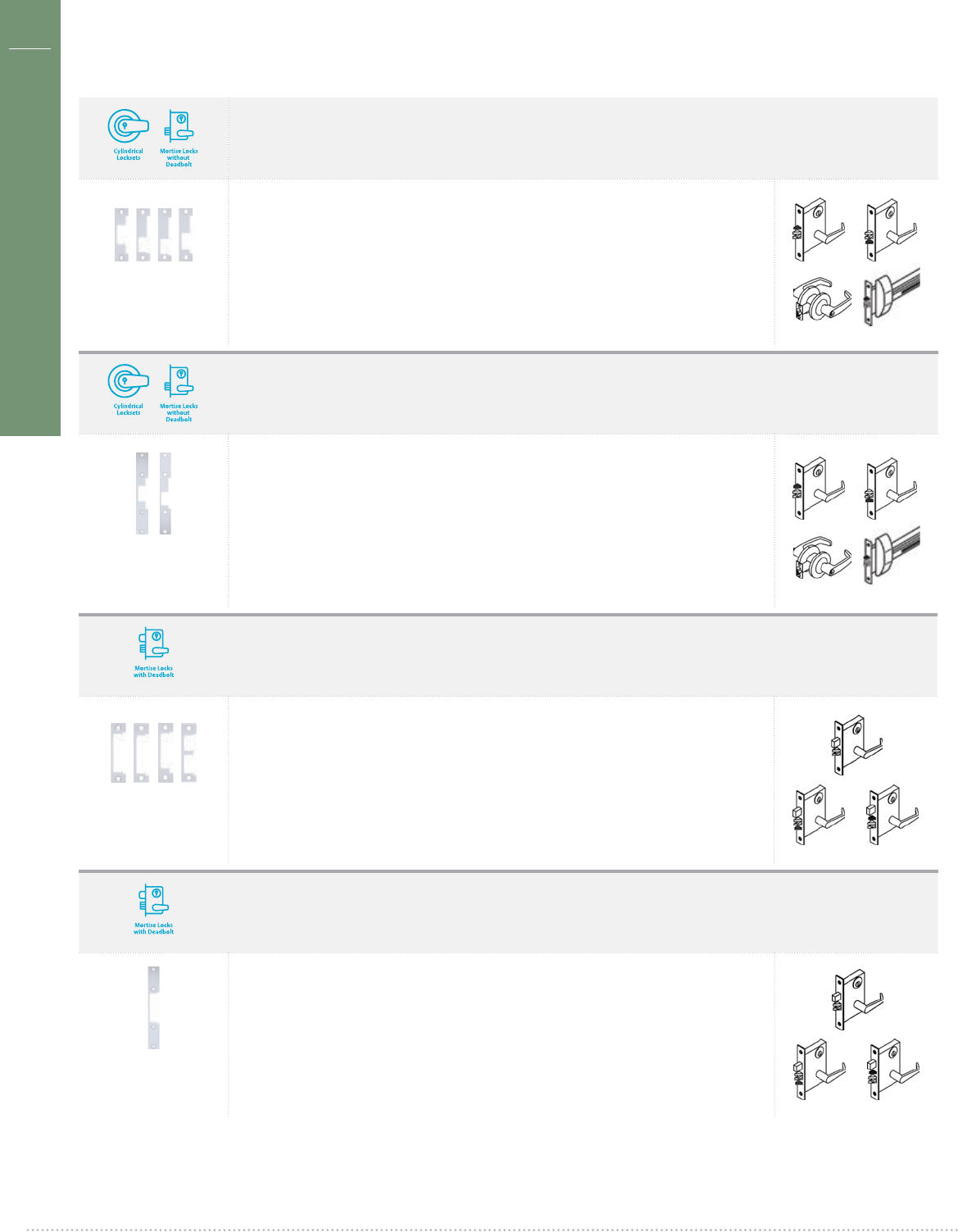

Electric Strike Compatibility Chart ••••••••••••••••••••••••••••••••• 75

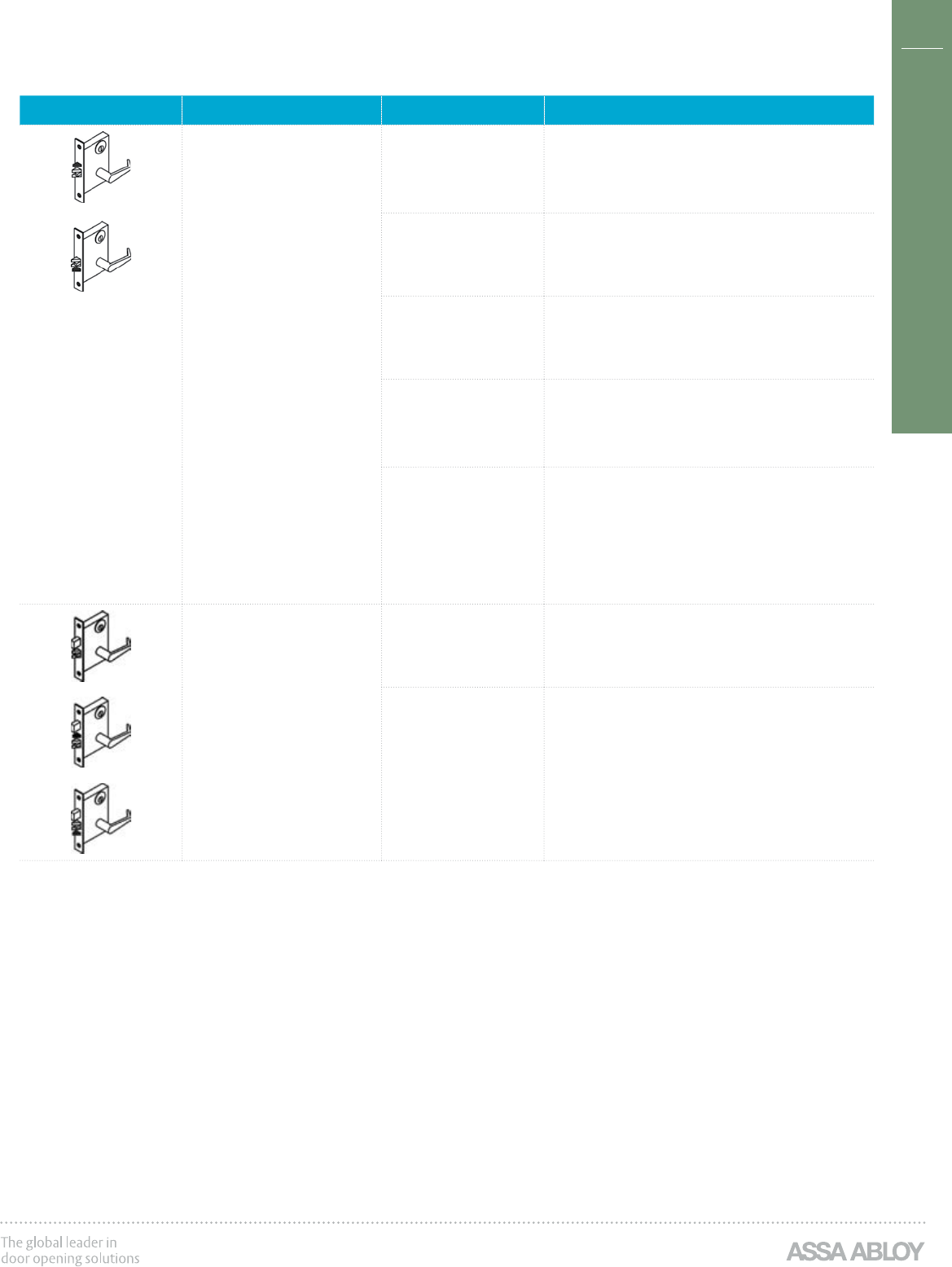

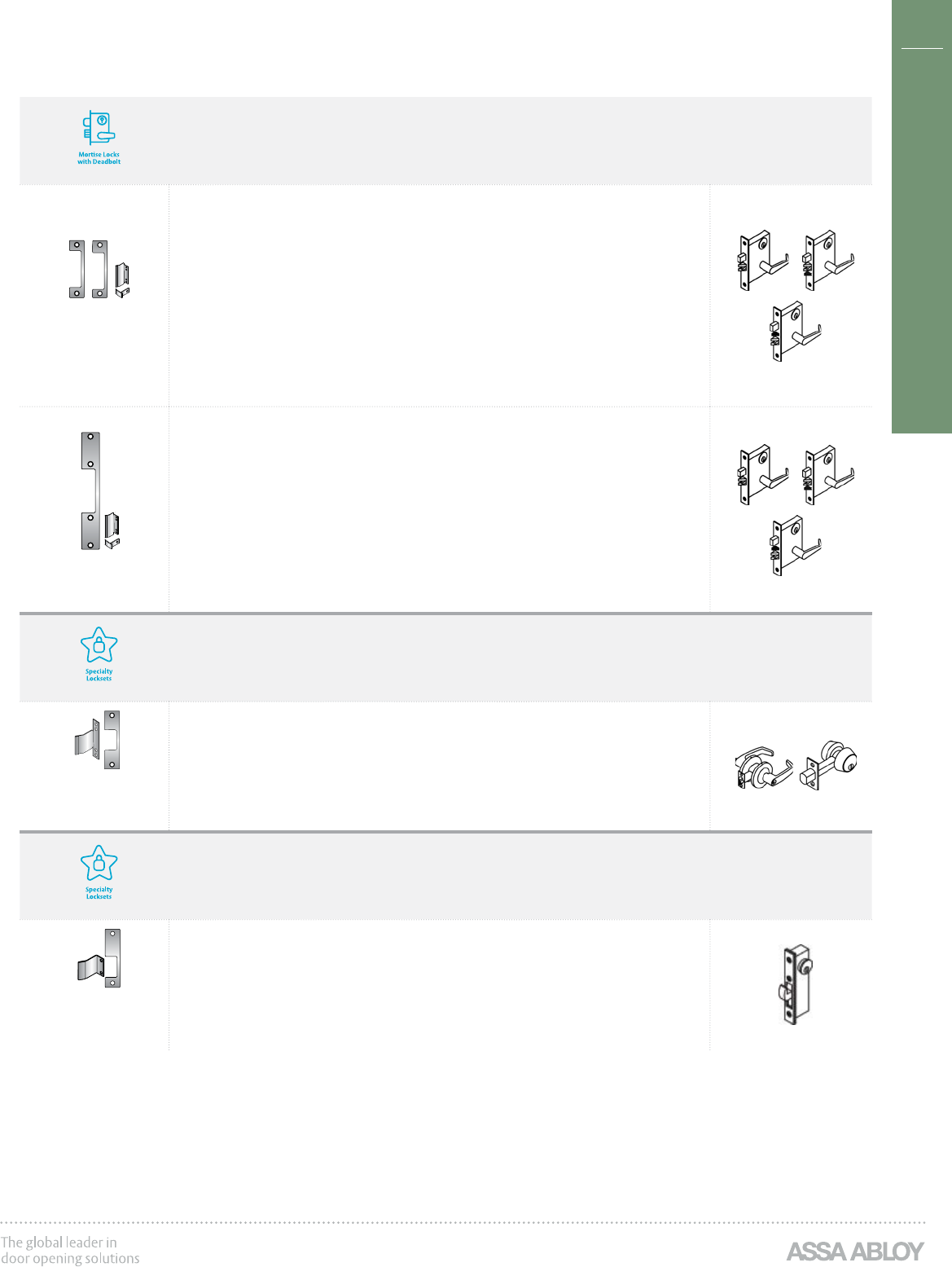

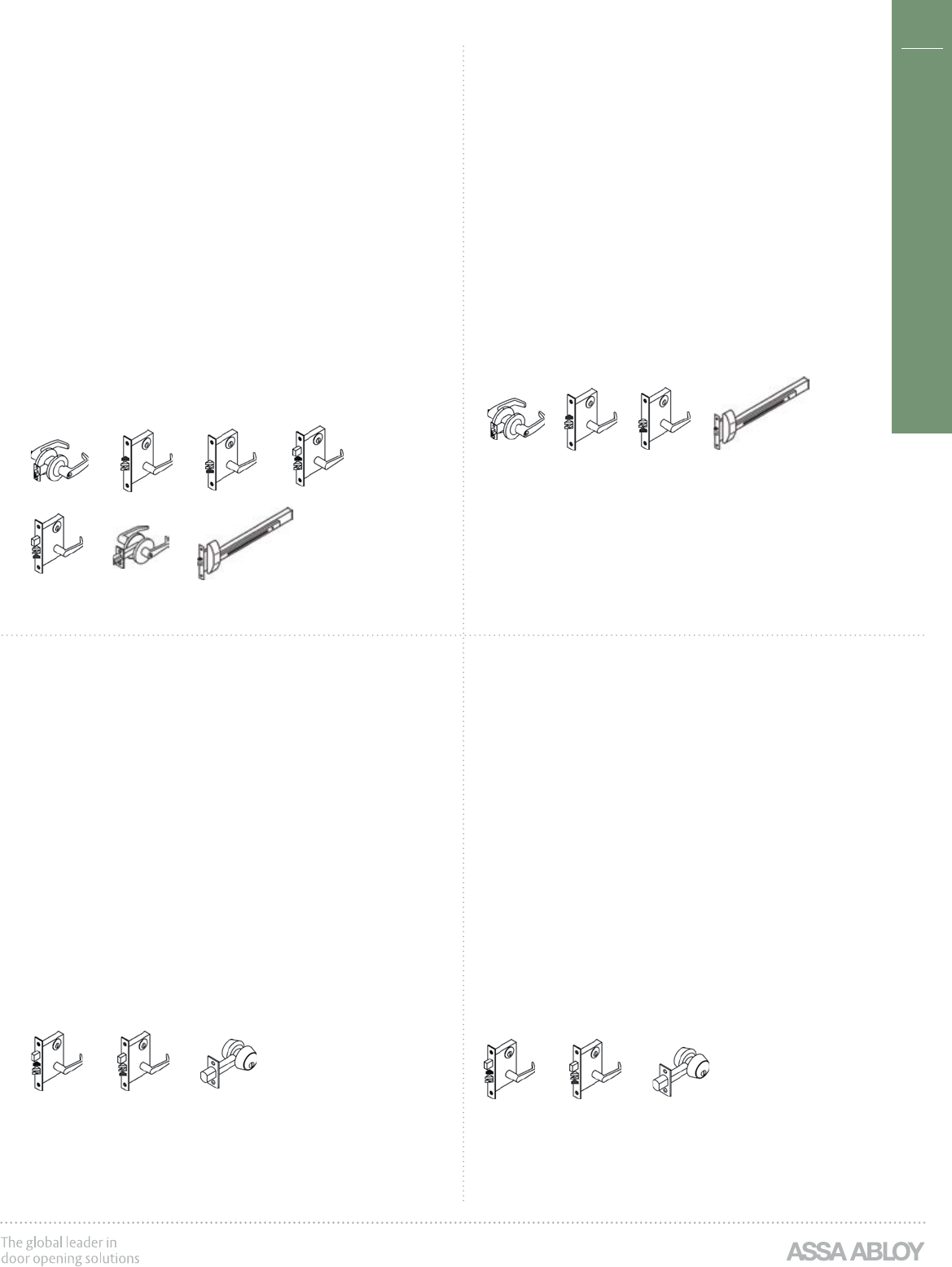

Lock Cross Reference •••••••••••••••••••••••••••••••••••••••••••• 77

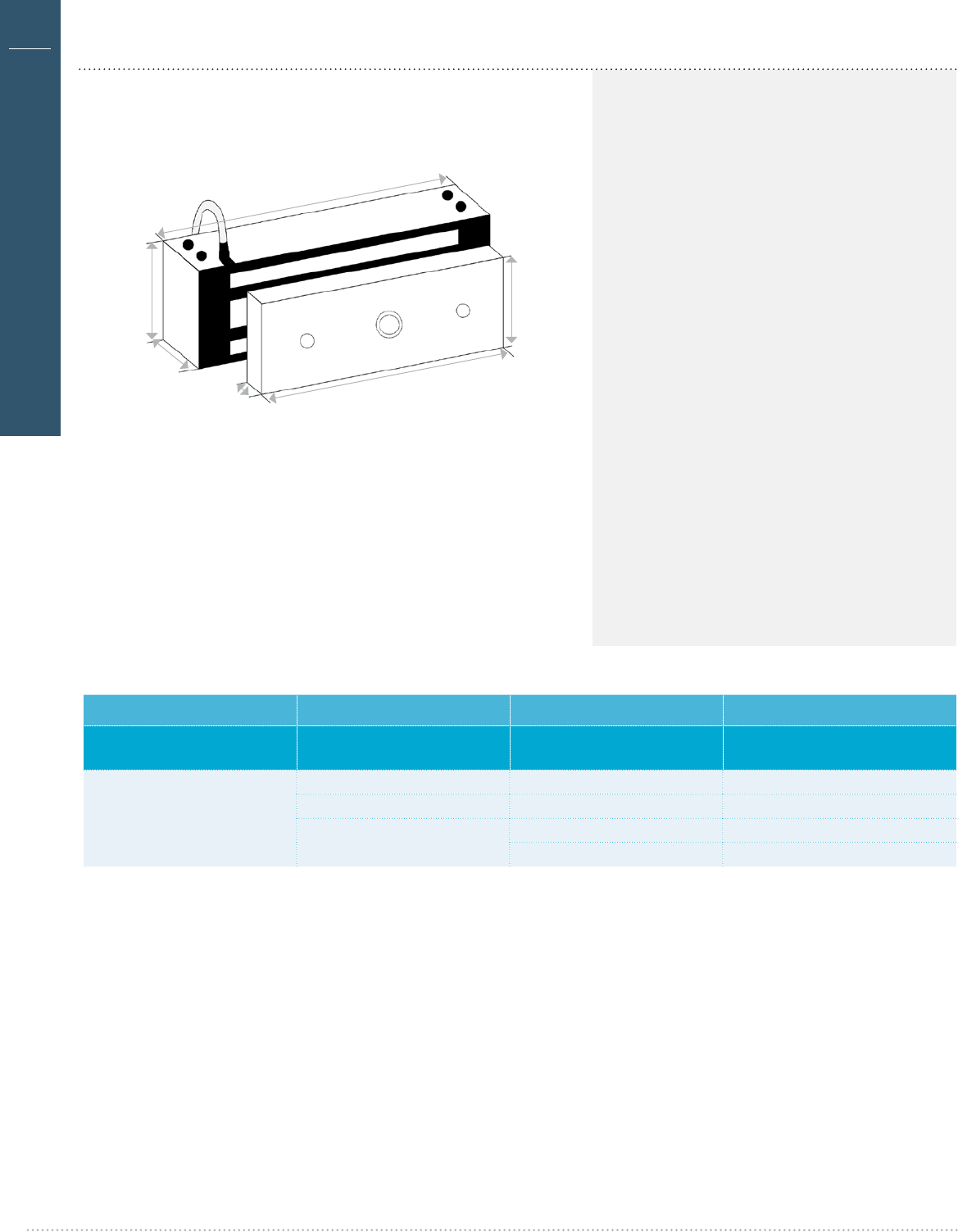

Electromagnetic Locks

Intelligent Magnalocks

Securitron M380 •••••••••••••••••••••••••••••••••••••••••••••••• 81

Securitron M680E EcoMag •••••••••••••••••••••••••••••••••••••••• 83

Delayed Egress Magnalocks

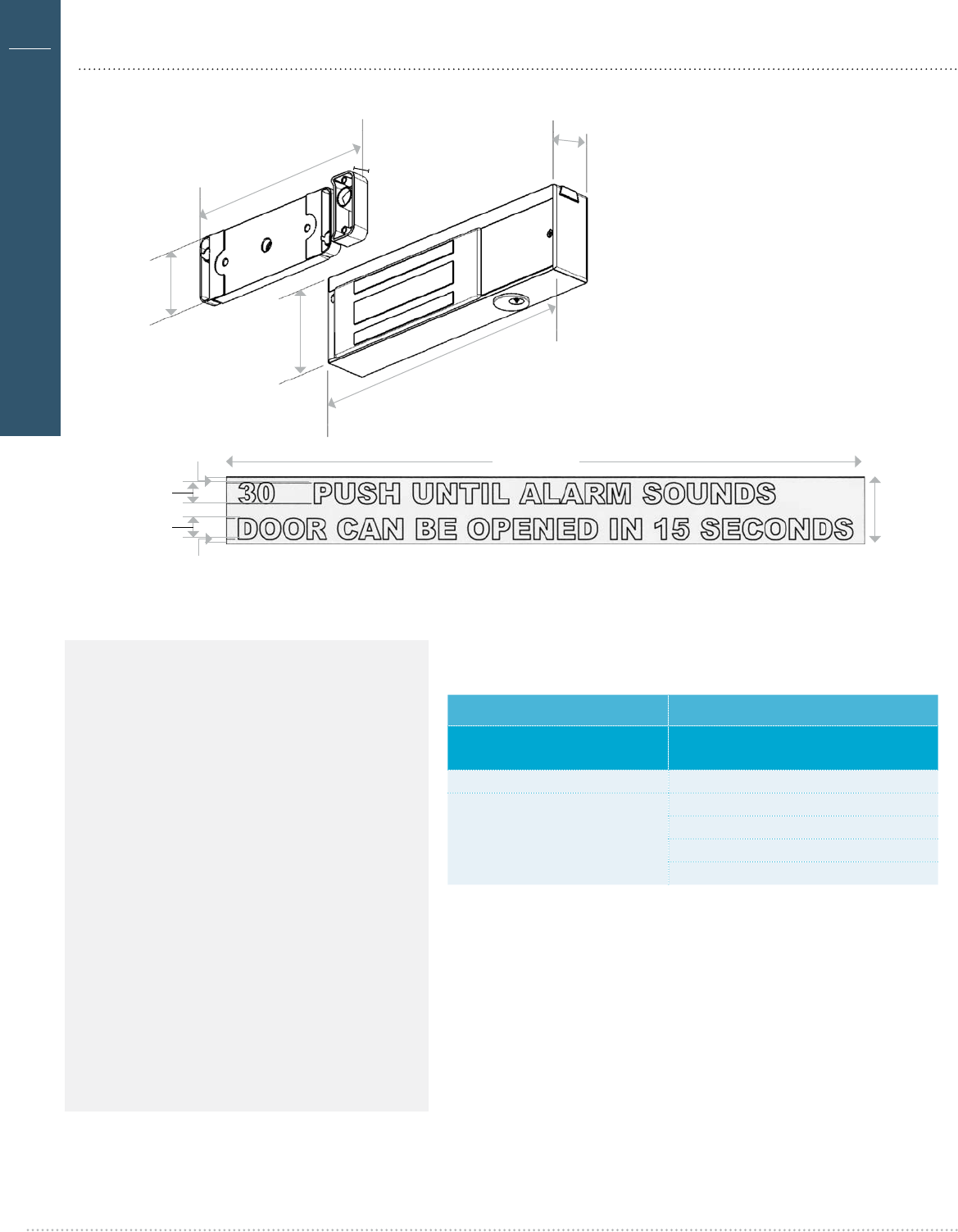

Securitron iMXDa ••••••••••••••••••••••••••••••••••••••••••••••• 85

Modular Exit Delay System •••••••••••••••••••••••••••••••••••••••• 87

Securitron XDT, SB-MXD •••••••••••••••••••••••••••••••••••••••••• 88

Durable Magnalocks

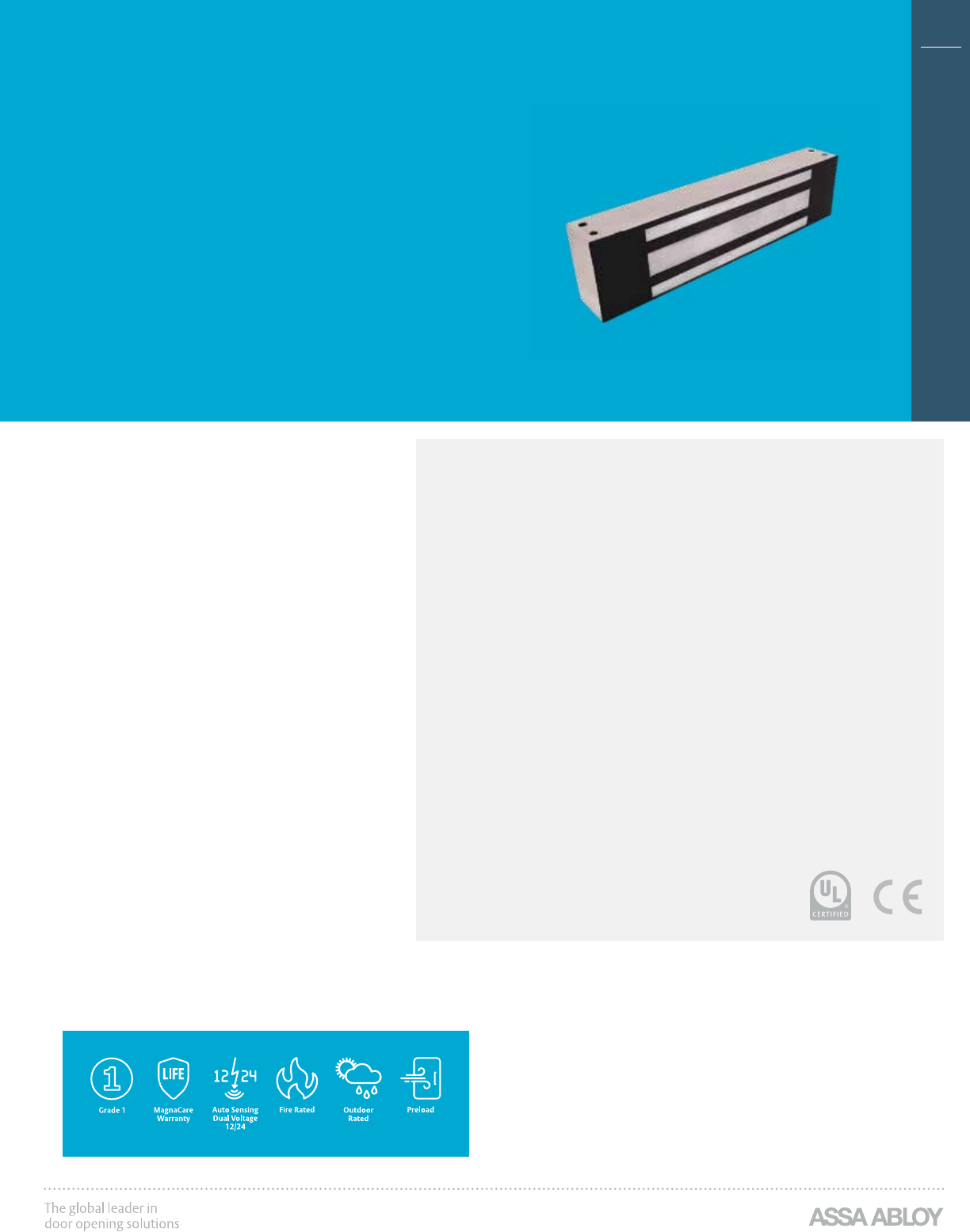

Securitron M32 ••••••••••••••••••••••••••••••••••••••••••••••••• 91

Securitron M62 ••••••••••••••••••••••••••••••••••••••••••••••••• 93

Securitron M82 ••••••••••••••••••••••••••••••••••••••••••••••••• 95

Securitron M32, M62 M82 Accessories •••••••••••••••••••••••••••••• 97

Securitron M38, M68 ••••••••••••••••••••••••••••••••••••••••••• 102

Securitron M38, M68 Accessories ••••••••••••••••••••••••••••••••• 106

Securitron Universal Magnalock Accessories ••••••••••••••••••••••• 107

Securitron DM62 ••••••••••••••••••••••••••••••••••••••••••••••• 110

Shear Magnalocks

Securitron SAM, M34R, SAM2-24 ••••••••••••••••••••••••••••••••• 112

Securitron SAM Accessories •••••••••••••••••••••••••••••••••••••• 118

Securitron Magnalock Selection Guide & Options ••••••••••••••••••• 119

Specialty Magnets

Securitron MM15 ••••••••••••••••••••••••••••••••••See Specialty Locks

Securitron M62FG-SASM •••••••••••••••••••••••••••See Specialty Locks

Securitron M32-SS •••••••••••••••••••••••••••••••••See Cabinet Locks

Securitron MCL ••••••••••••••••••••••••••••••••••••See Cabinet Locks

Cabinet Locks

HES 610 ••••••••••••••••••••••••••••••••••••••••••••••••••••••• 123

HES 660 ••••••••••••••••••••••••••••••••••••••••••••••••••••••• 125

HES KP20, K20 •••••••••••••••••••••••••••••••••••••••••••••••••• 127

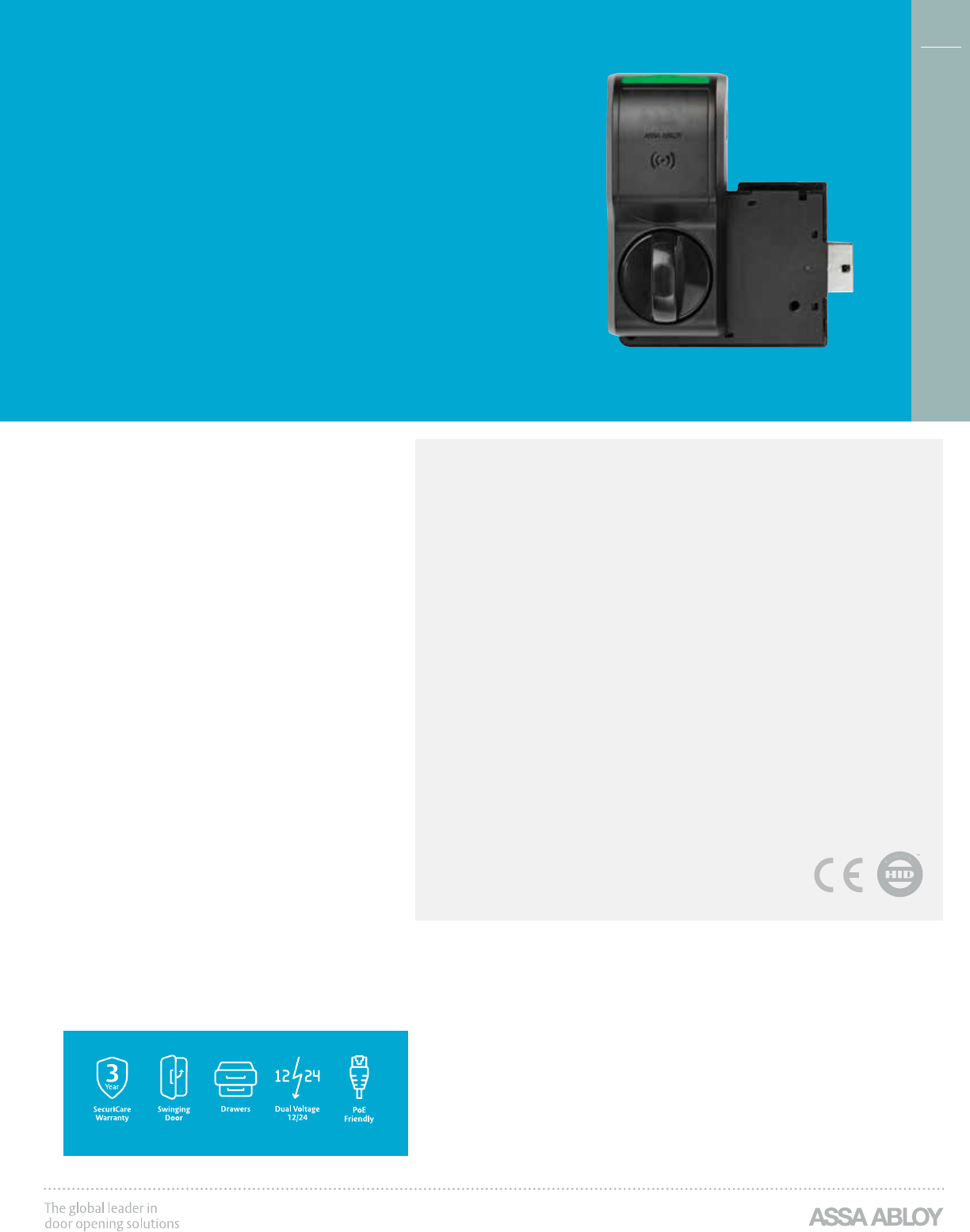

HES K100 Wireless •••••••••••••••••••••••••••••••••••••••••••••• 131

HES K200 •••••••••••••••••••••••••••••••••••••••••••••••••••••• 133

HES KS200 Server •••••••••••••••••••••••••••••••••••••••••••••• 135

Securitron MCL •••••••••••••••••••••••••••••••••••••••••••••••• 137

Securitron M32-SS •••••••••••••••••••••••••••••••••••••••••••••• 139

Specialty Locks

Securitron GL1 Gate Lock •••••••••••••••••••••••••••••••••••••••• 143

Securitron FMK Bracket Kits •••••••••••••••••••••••••••••••••••••• 145

Securitron MM15 MEMLOCK •••••••••••••••••••••••••••••••••••••• 147

Securitron MM15 MEMLOCK Accessories ••••••••••••••••••••••••••• 149

Securitron M62FG-SASM •••••••••••••••••••••••••••••••••••••••• 153

Keypads & Card Readers

Stand Alone Keypads

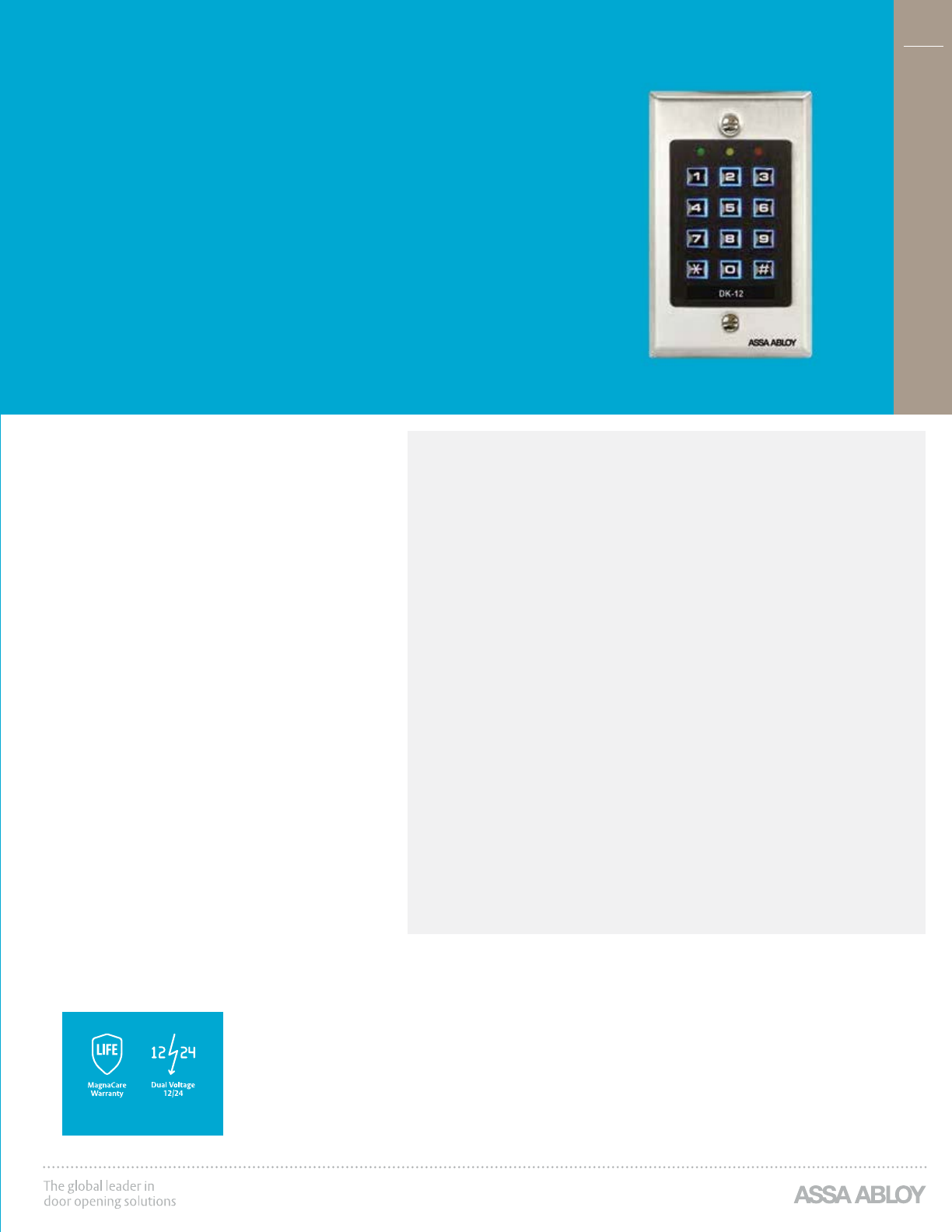

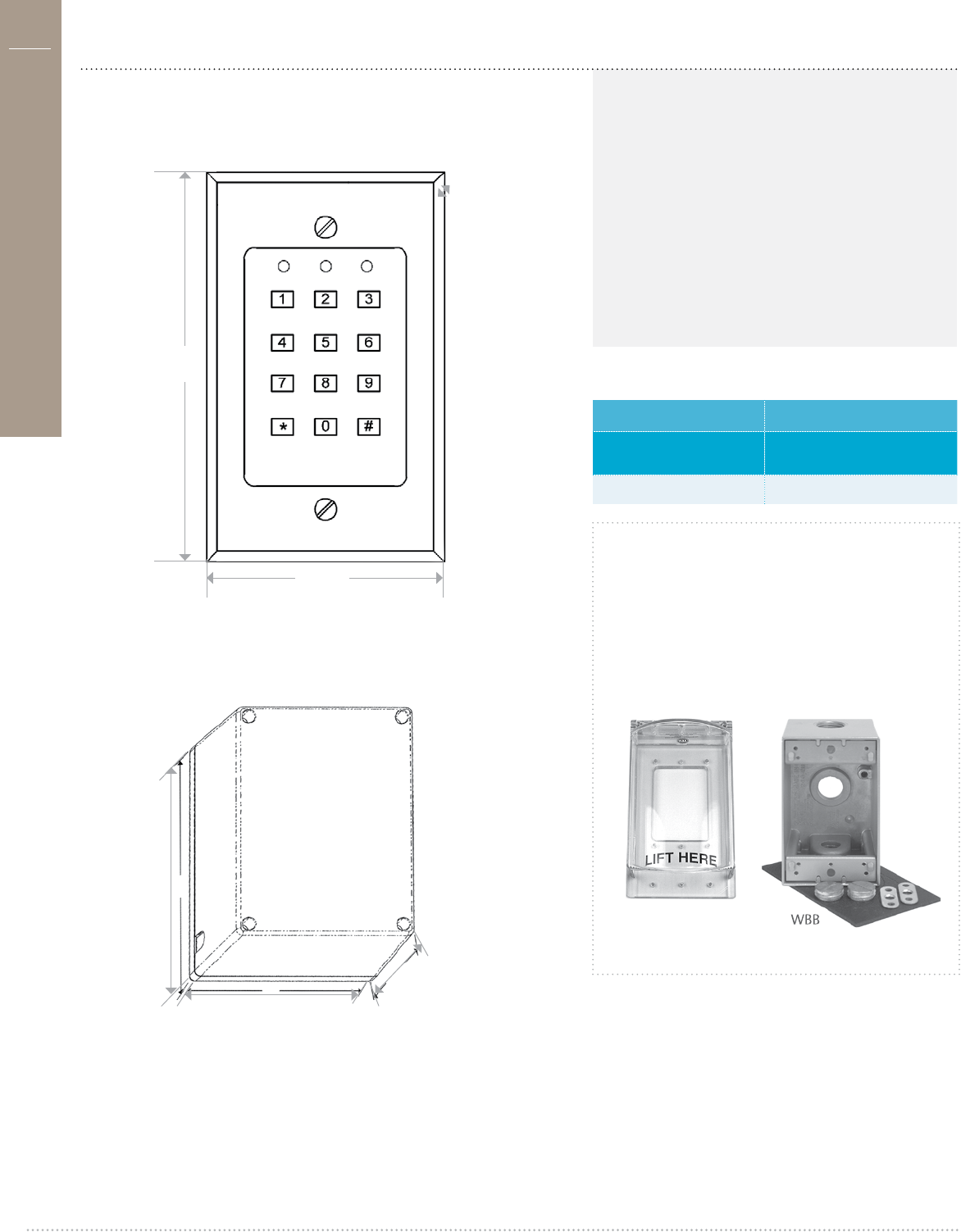

Securitron DK-12 ••••••••••••••••••••••••••••••••••••••••••••••• 155

Keypad System

Securitron DK-16 ••••••••••••••••••••••••••••••••••••••••••••••• 157

Securitron DK-26 ••••••••••••••••••••••••••••••••••••••••••••••• 159

Wiegand Keypads

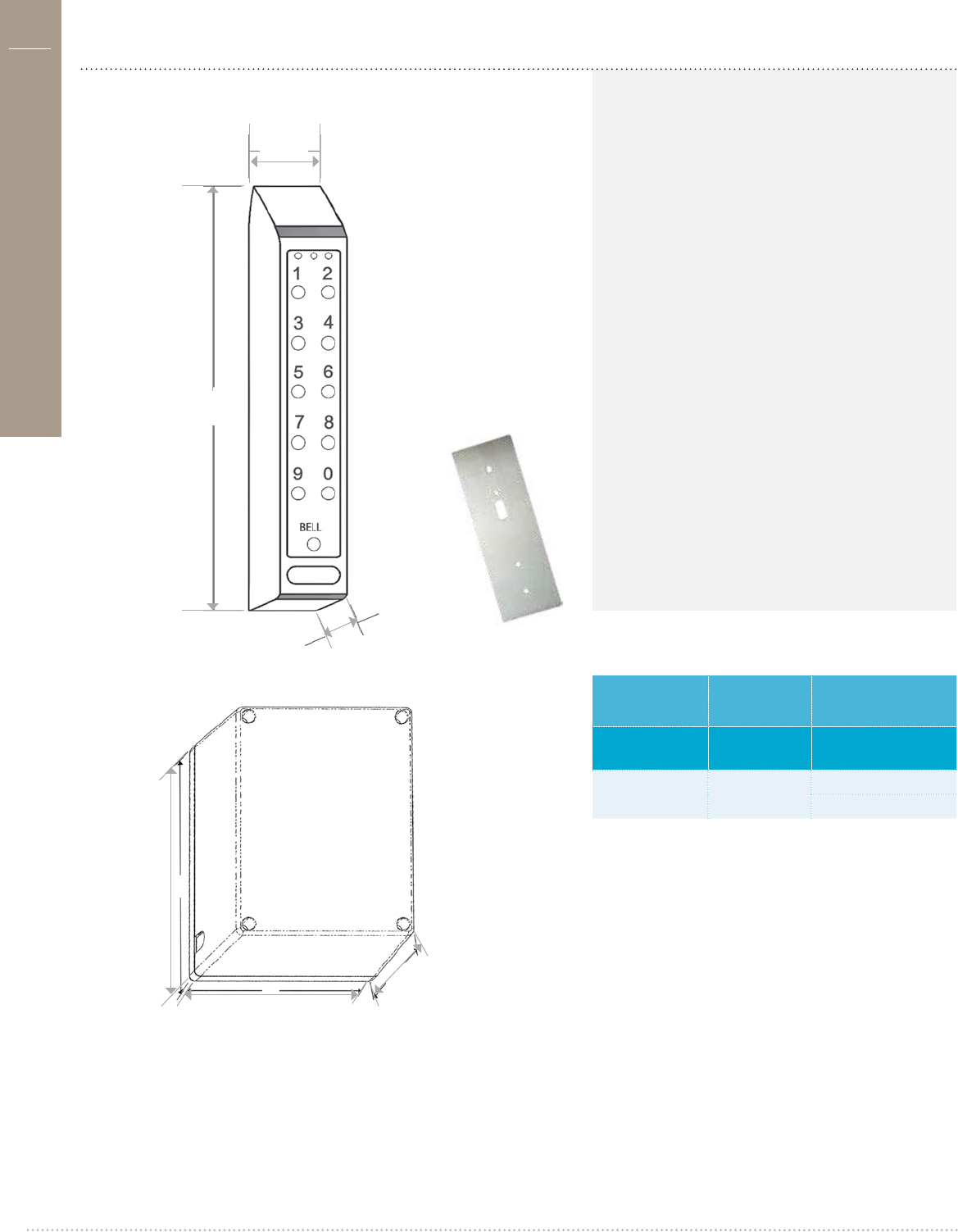

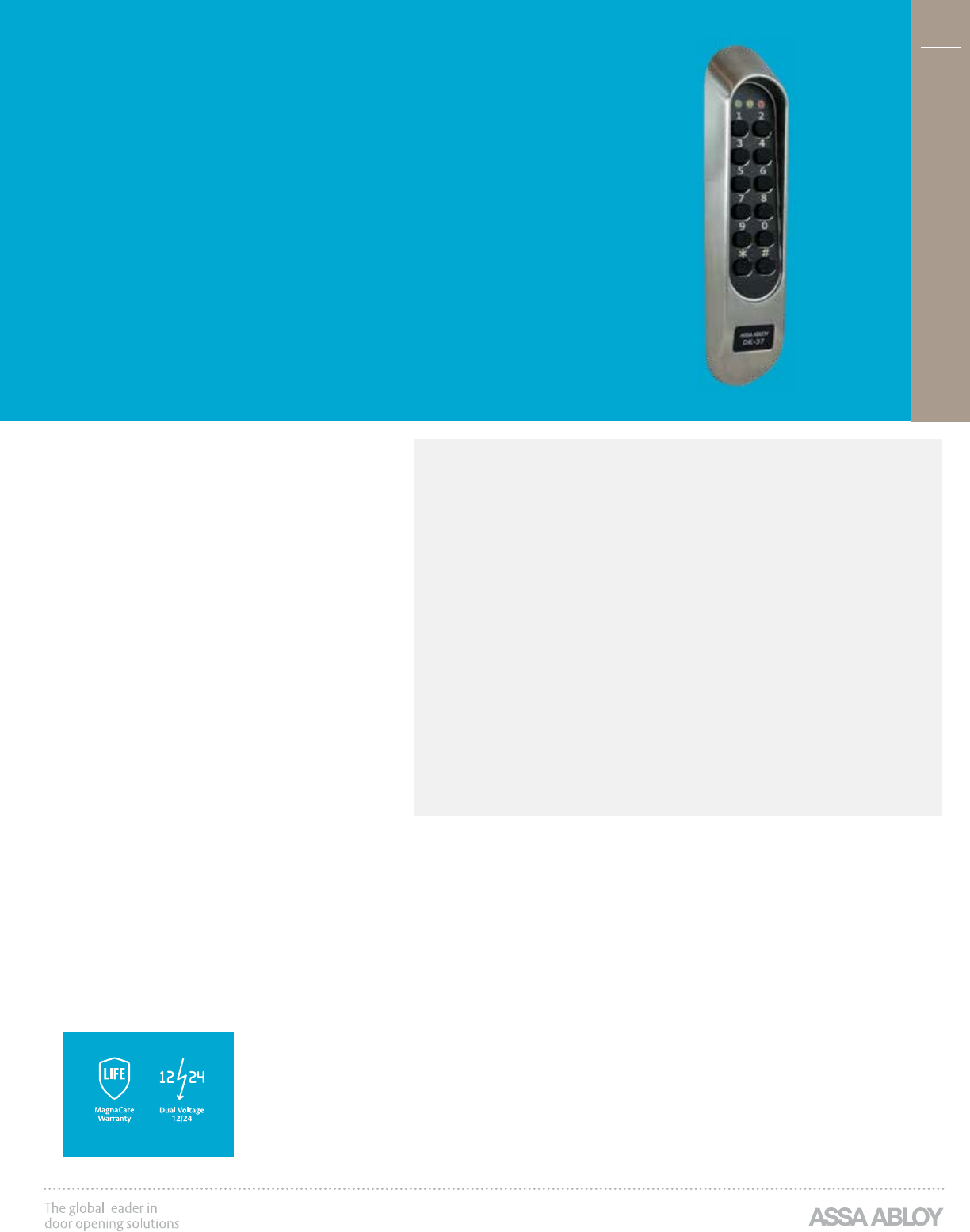

Securitron DK-37 ••••••••••••••••••••••••••••••••••••••••••••••• 161

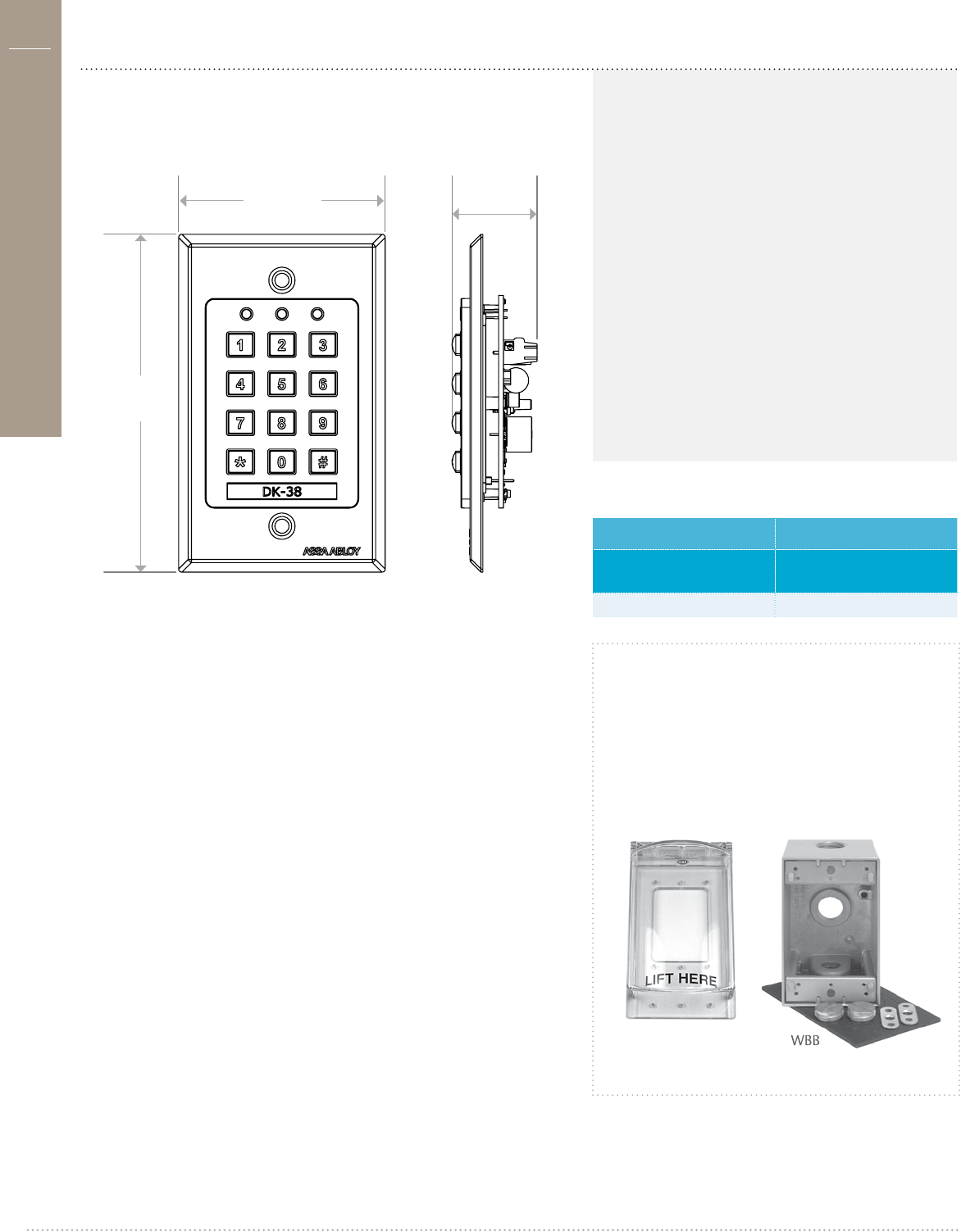

Securitron DK-38 ••••••••••••••••••••••••••••••••••••••••••••••• 163

Wireless Card Readers

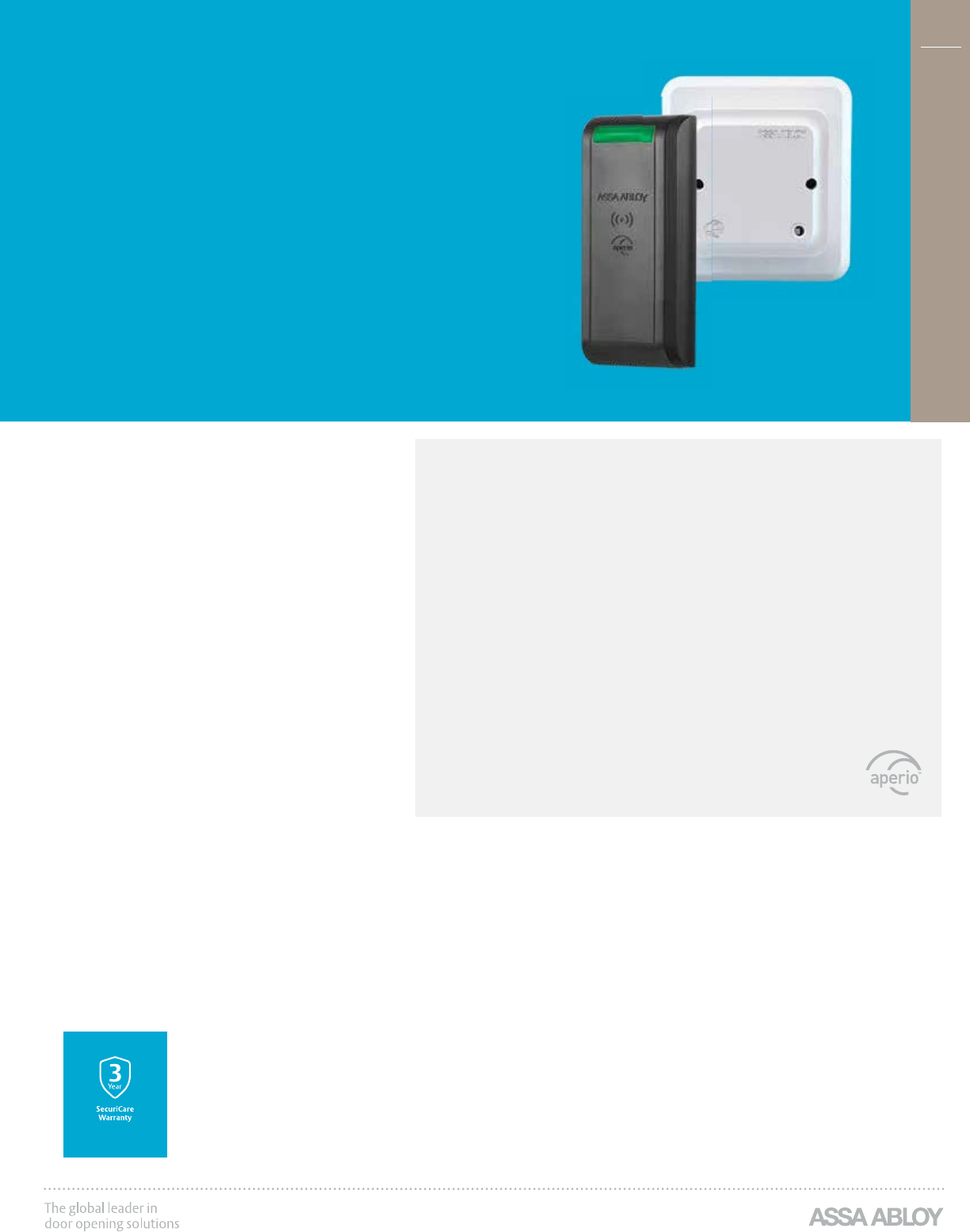

Securitron R100-1H Aperio® Wireless Card Reader ••••••••••••••••••• 165

Push Buttons & Egress Devices

Exit Motion Sensor

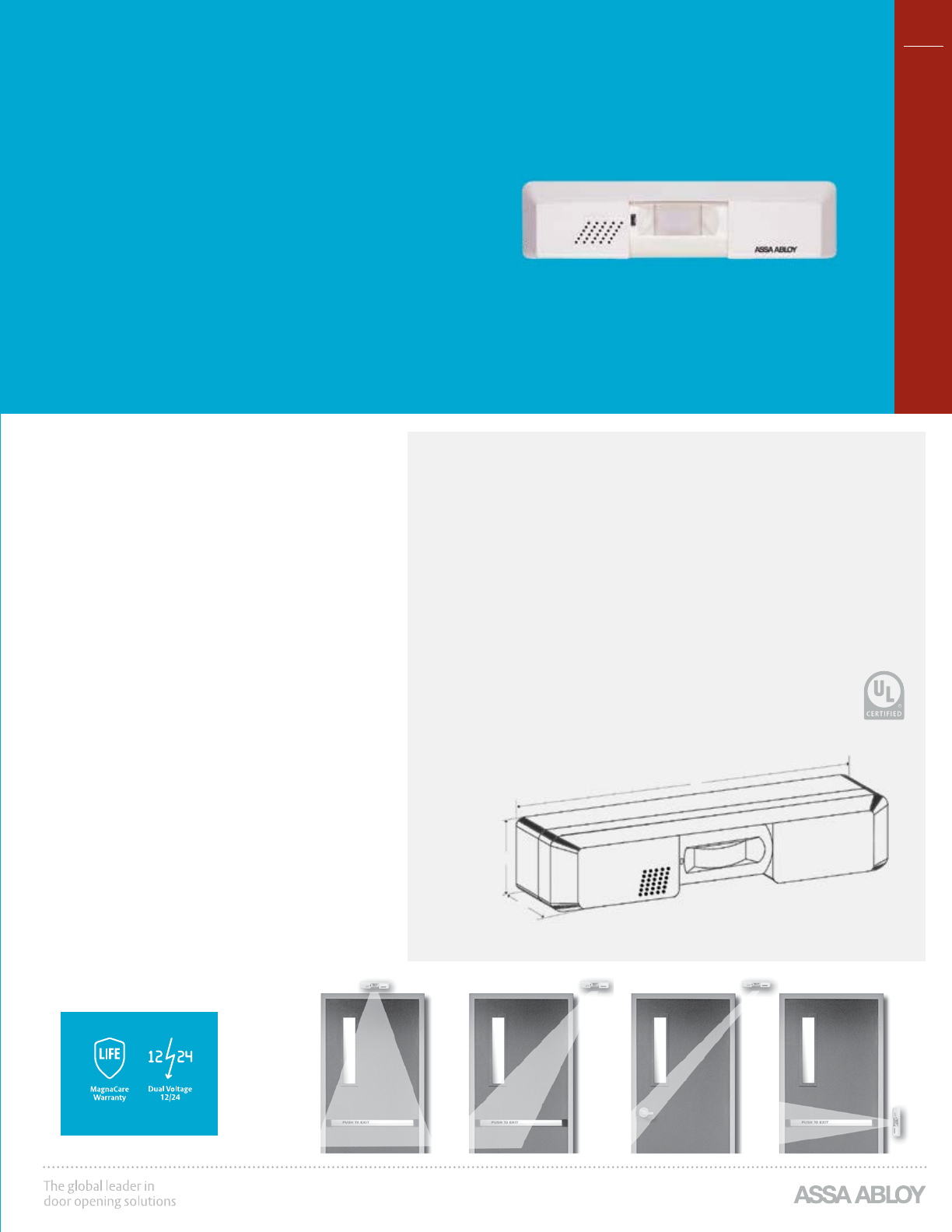

Securitron XMS •••••••••••••••••••••••••••••••••••••••••••••••• 169

Emergency Exit Buttons

Securitron EEB Series ••••••••••••••••••••••••••••••••••••••••••• 170

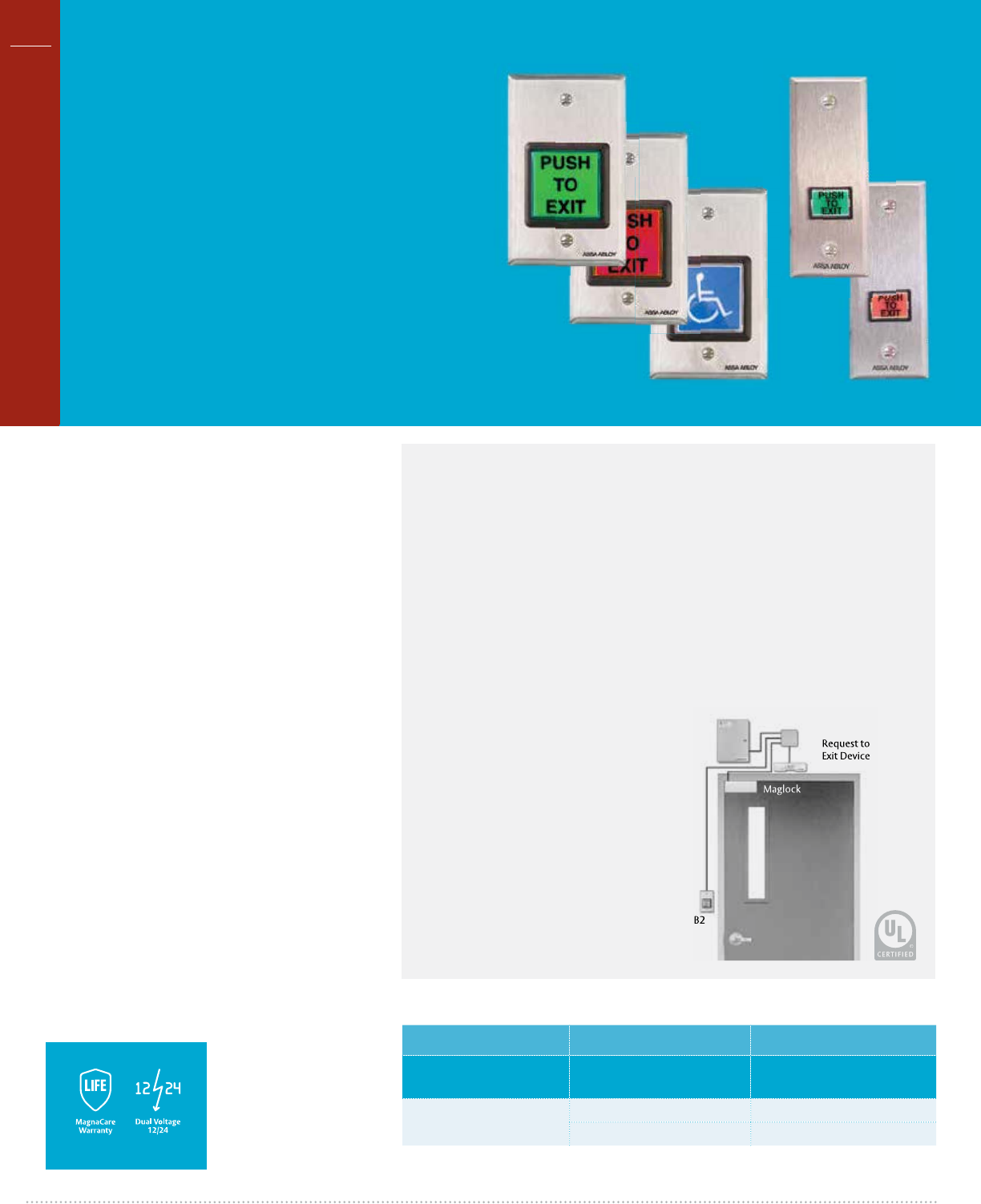

Push Buttons

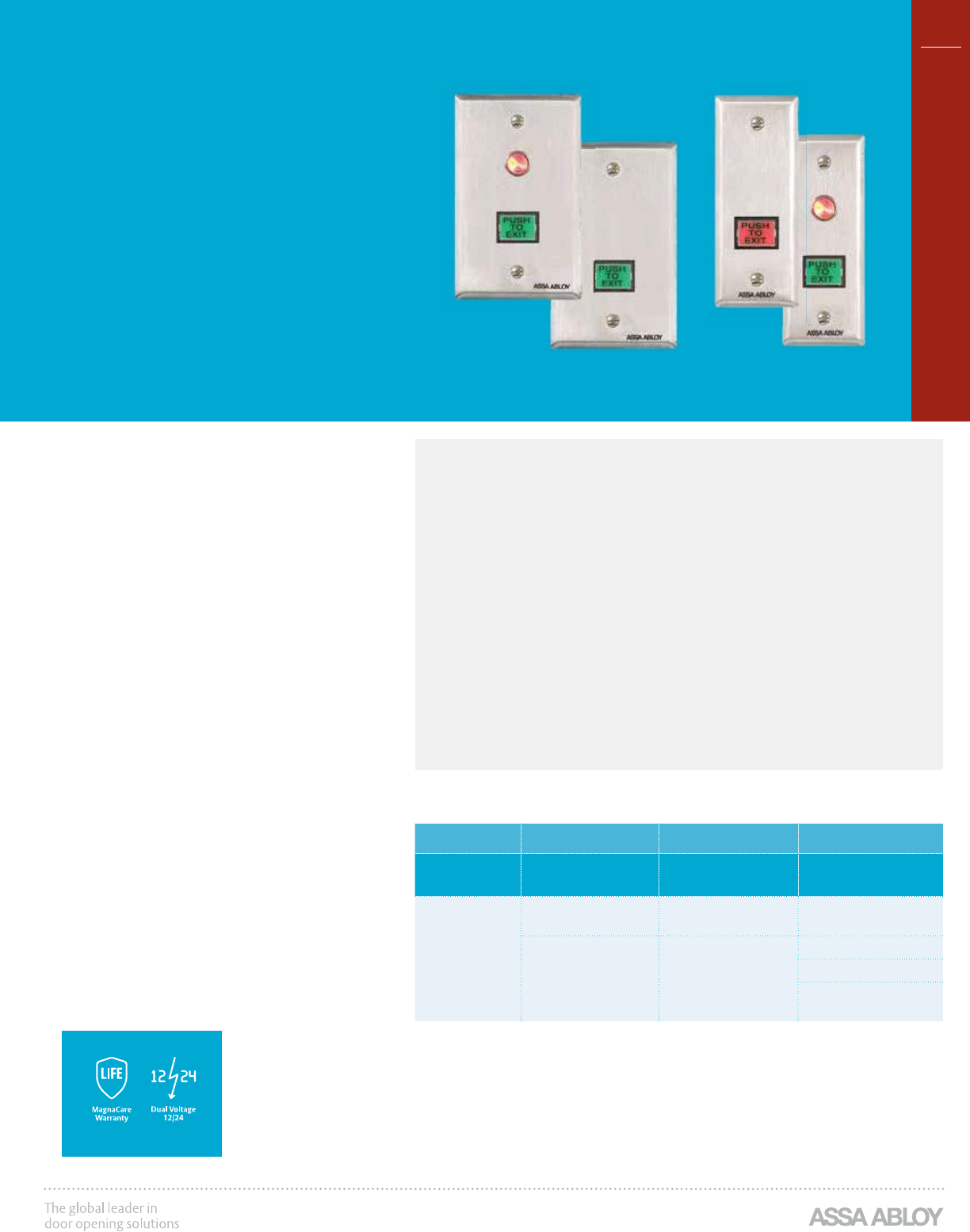

Securitron PB, BP2, PB3, PB4L, PB5 Series ••••••••••••••••••••••••••• 171

Push Button Selector Chart •••••••••••••••••••••••••••••••••••••• 176

Keyswitches

Keyswitch Selector Guide ••••••••••••••••••••••••••••••••••••••• 177

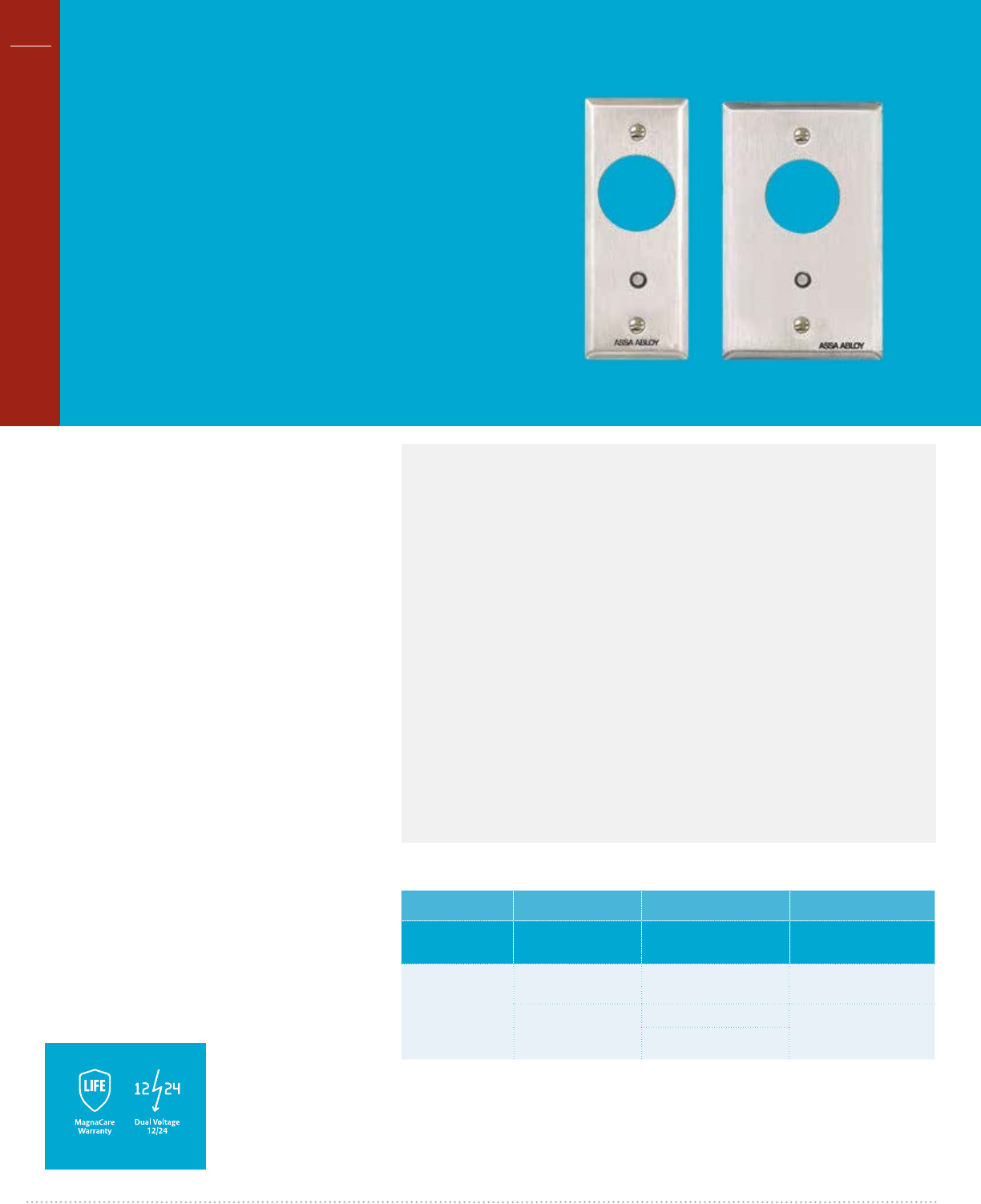

Securitron MK ••••••••••••••••••••••••••••••••••••••••••••••••• 178

Securitron KP-1 •••••••••••••••••••••••••••••••••••••••••••••••• 179

Wave Switch

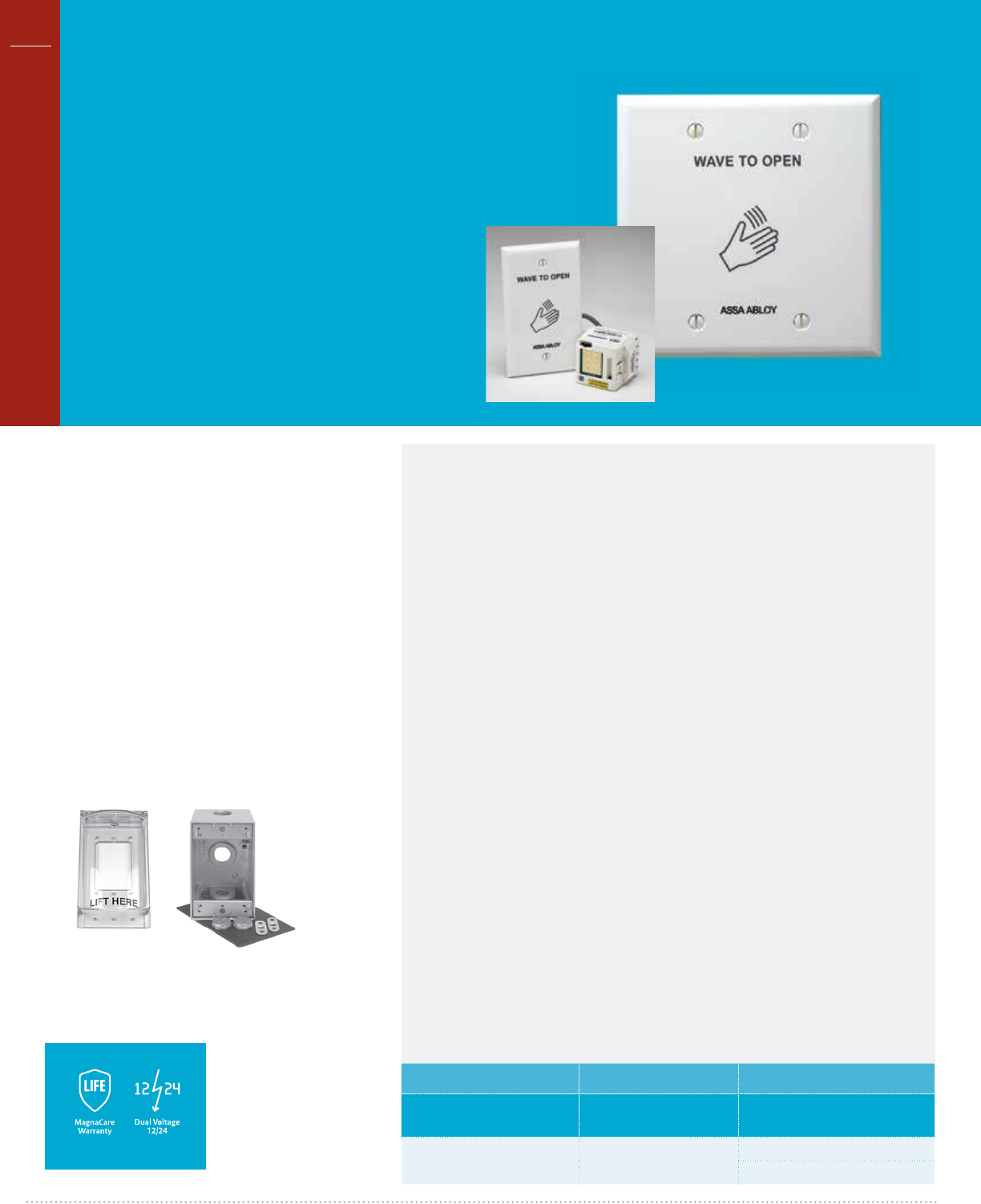

Securitron WSS •••••••••••••••••••••••••••••••••••••••••••••••• 180

Capacitive Plate

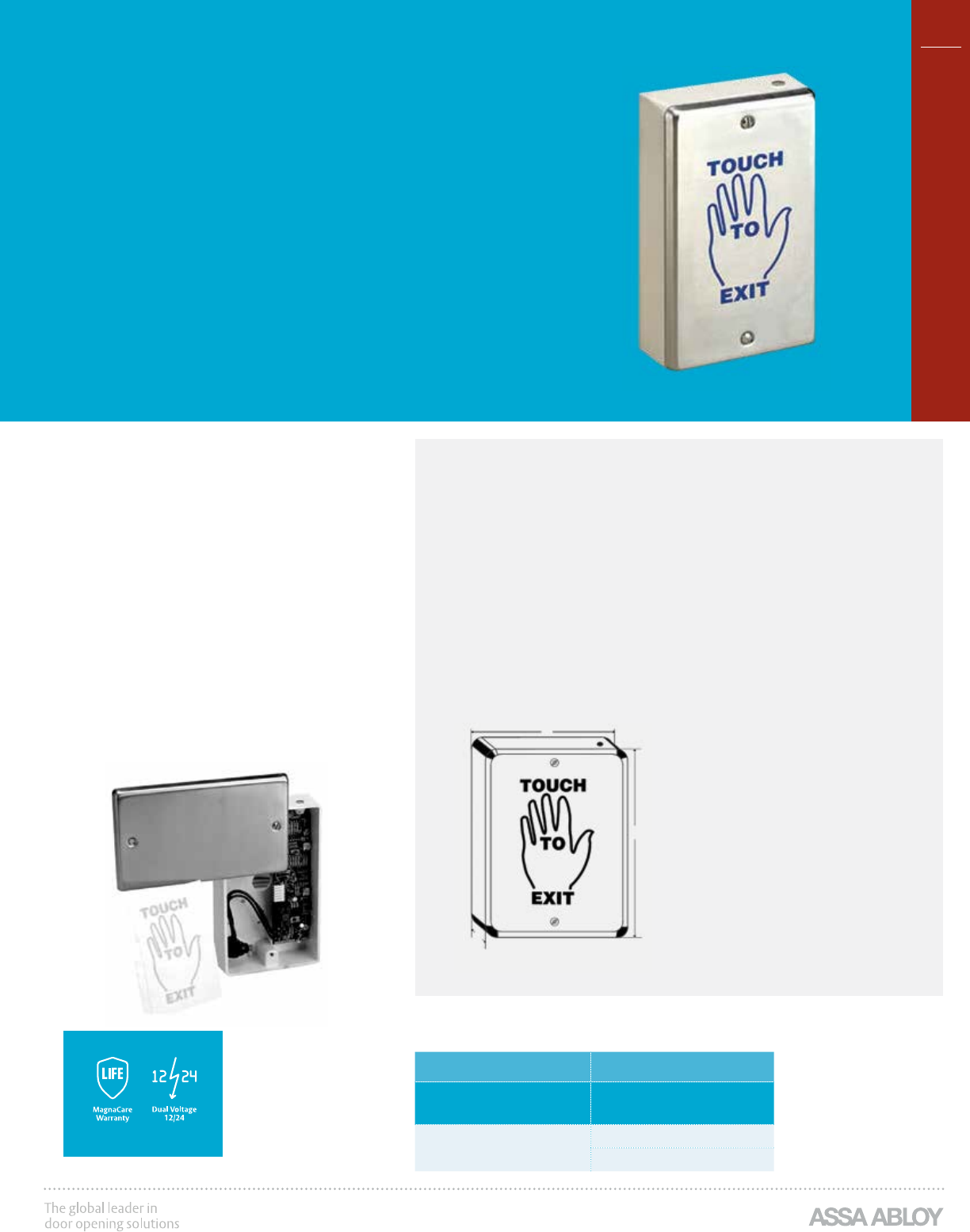

Securitron SP1 ••••••••••••••••••••••••••••••••••••••••••••••••• 181

Egress Bars

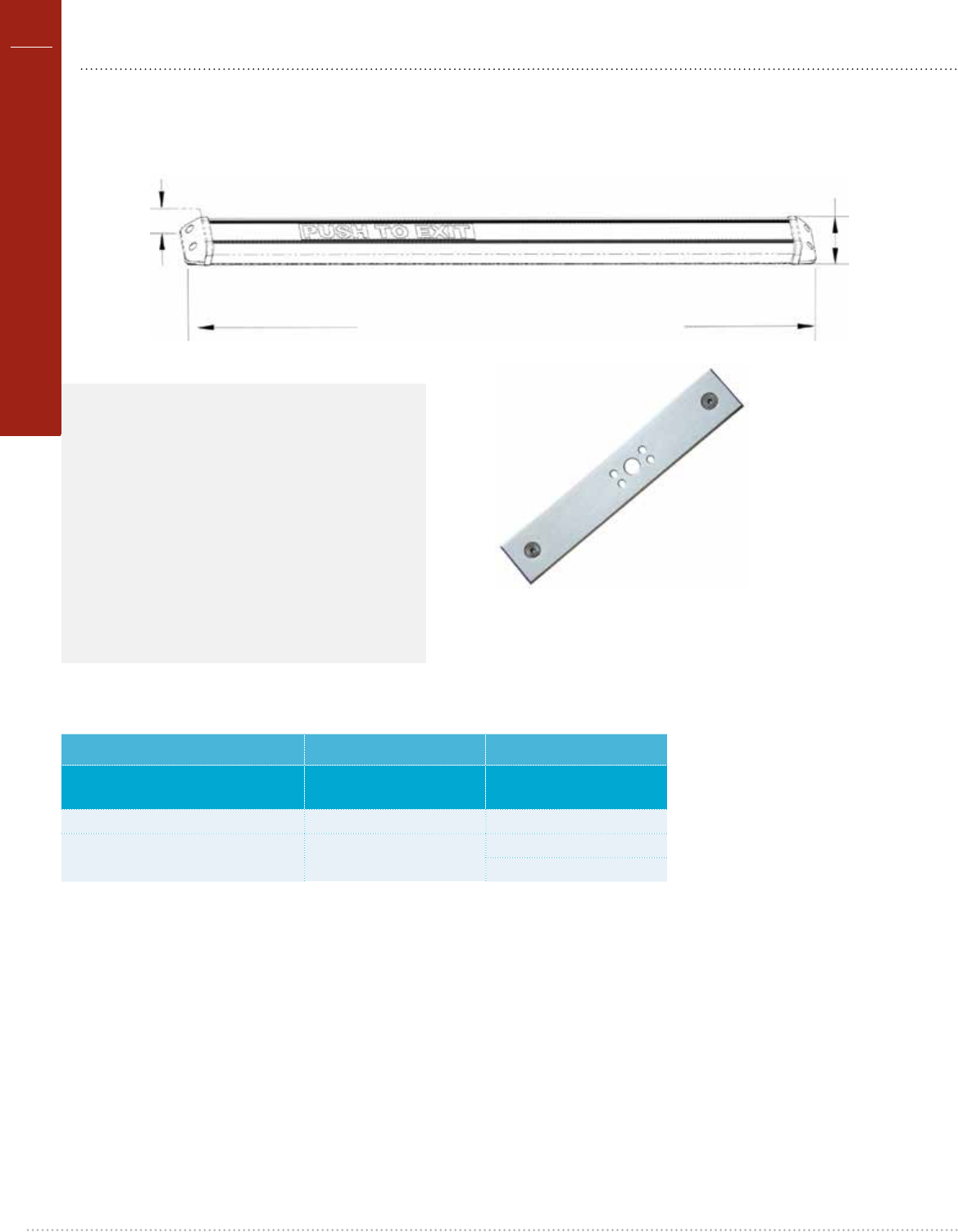

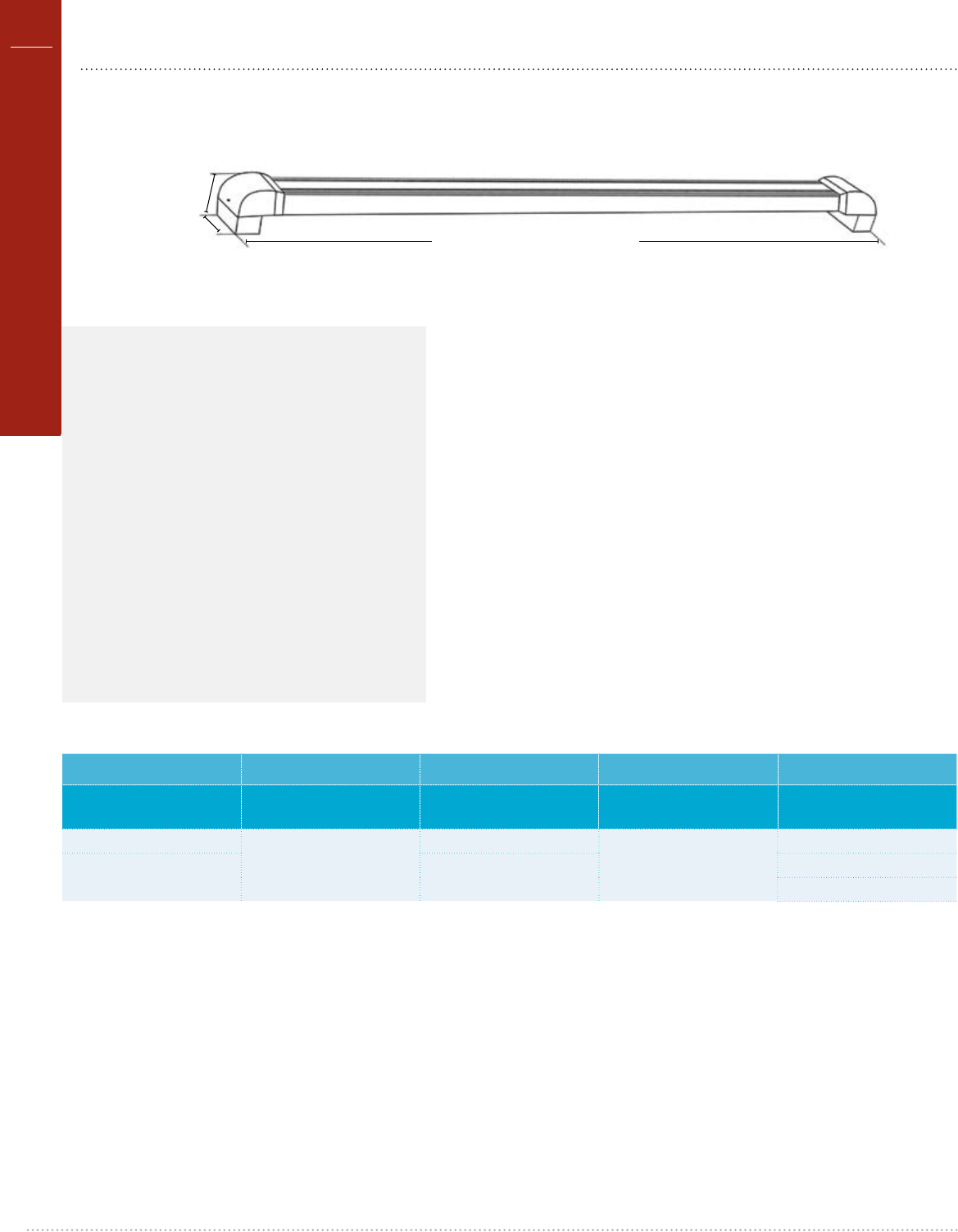

Securitron DSB ••••••••••••••••••••••••••••••••••••••••••••••••• 183

Securitron TSB ••••••••••••••••••••••••••••••••••••••••••••••••• 185

Securitron EMB •••••••••••••••••••••••••••••••••••••••••••••••• 187

Egress Handles

Securitron TSH ••••••••••••••••••••••••••••••••••••••••••••••••• 189

Securitron EMH •••••••••••••••••••••••••••••••••••••••••••••••• 190

Aperio® Wireless

HES K100-622H •••••••••••••••••••••••••••••••••••• See Cabinet Locks

HES KS100-640H •••••••••••••••••••••••••••••••••••See Cabinet Locks

Securitron R100-1H •••••••••••••••••••••••••••• See Keypads & Readers

Integrated Wiegand

Securitron DK-37, DK-38 •••••••••••••••••••••••• See Keypads & Readers

HES K200-622 •••••••••••••••••••••••••••••••••••••See Cabinet Locks

HES KS200-640 ••••••••••••••••••••••••••••••••••••See Cabinet Locks

HES | Securitron Product Catalog

Electronic Security Hardware

Table of Contents

Updated 2/11/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

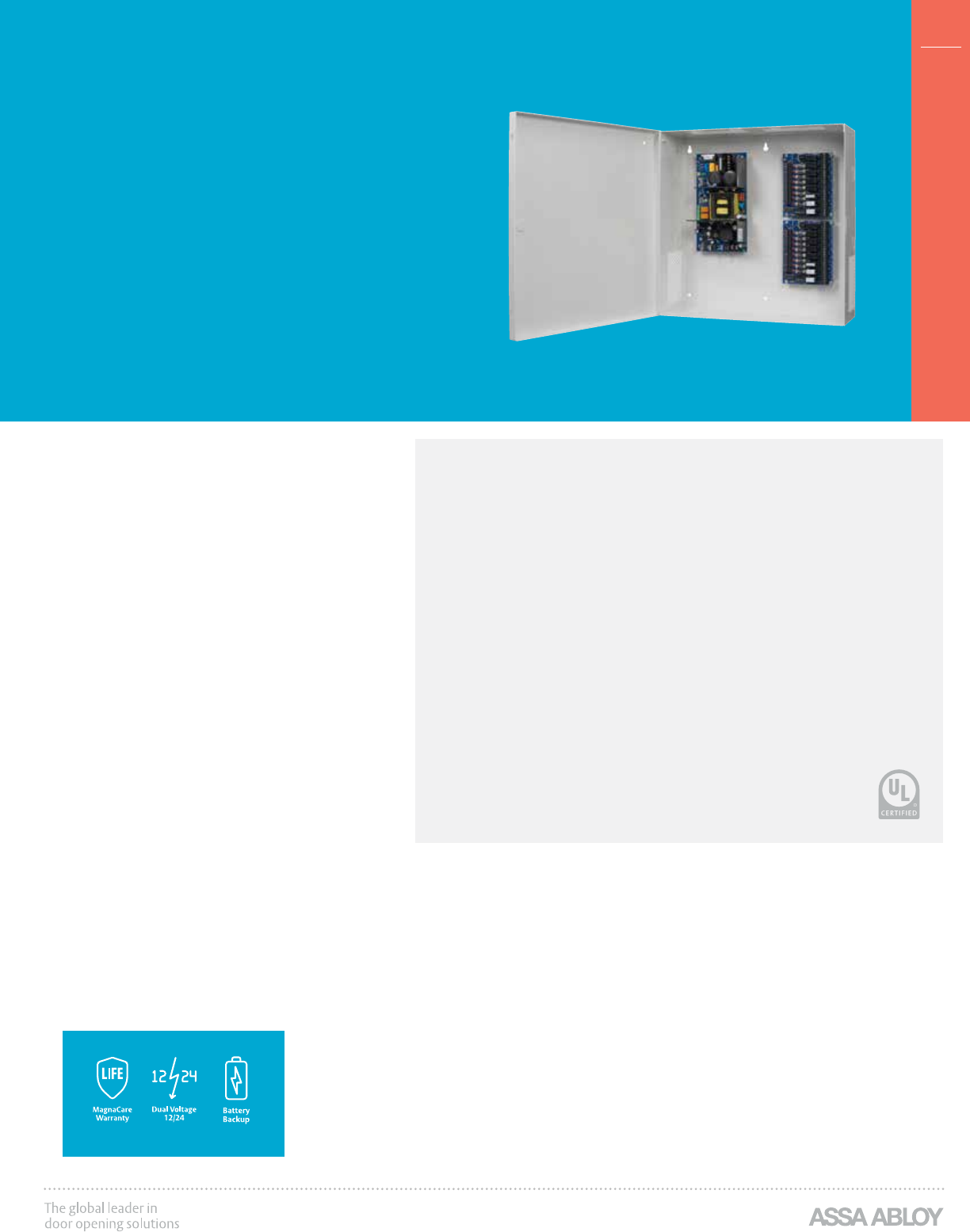

Power

Linear Power Supplies

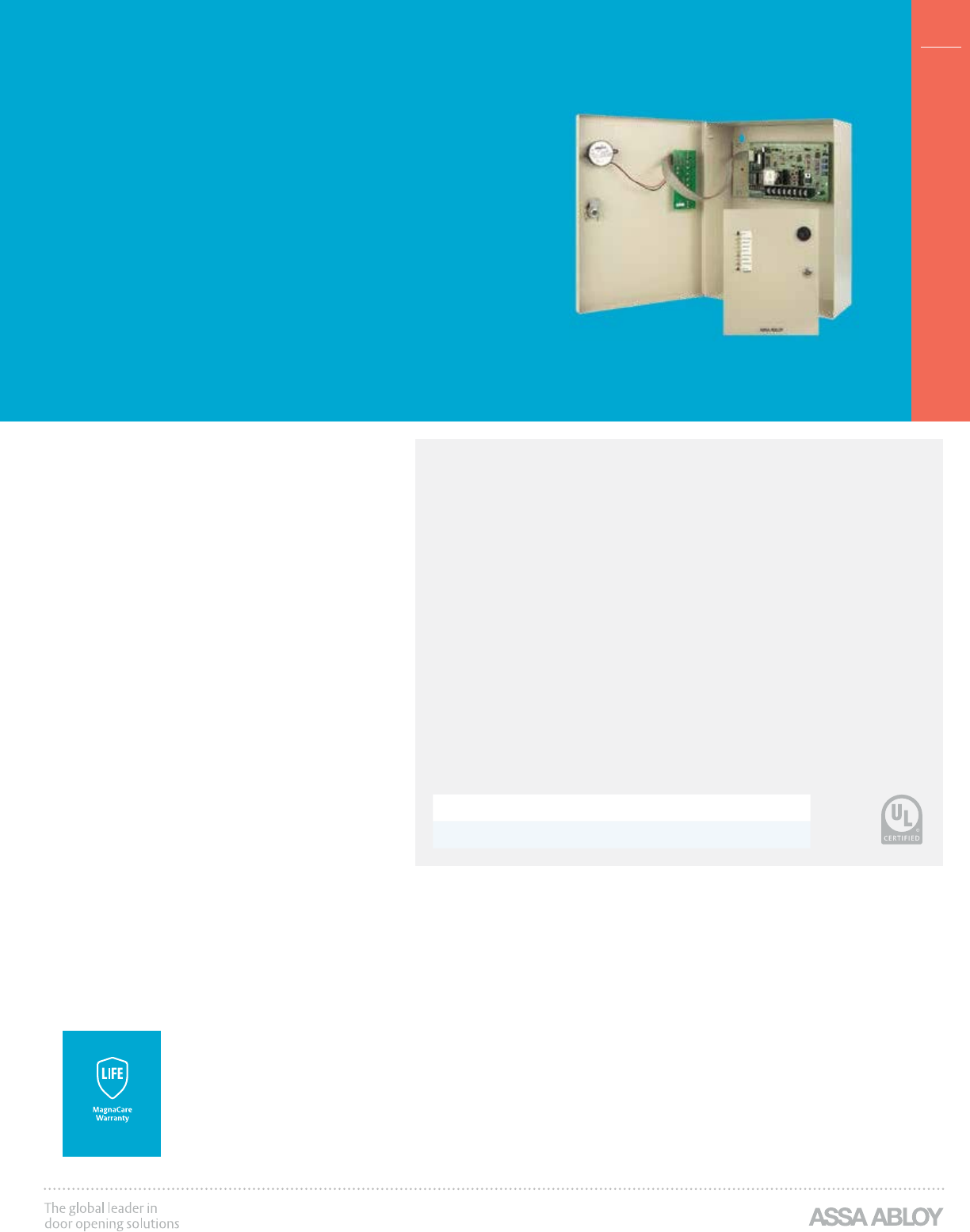

Securitron BPS Series ••••••••••••••••••••••••••••••••••••••••••• 193

Securitron BPSM Series ••••••••••••••••••••••••••••••••••••••••• 197

Securitron PSM Series ••••••••••••••••••••••••••••••••••••••••••• 199

Securitron FAR Fire Alarm Reset •••••••••••••••••••••••••••••••••• 201

BPS Linear Power Supply and Plug-In Power Supply Selection Guide •••• 200

Switching Power Supplies

Securitron AQD Series ••••••••••••••••••••••••••••••••••••••••••• 203

Securitron AQS Series ••••••••••••••••••••••••••••••••••••••••••• 205

Securitron AQ Power Distribution Series ••••••••••••••••••••••••••• 207

Eco-Friendly Power Supplies

Securitron EcoPower® ••••••••••••••••••••••••••••••••••••••••••• 212

Solar Power Supplies

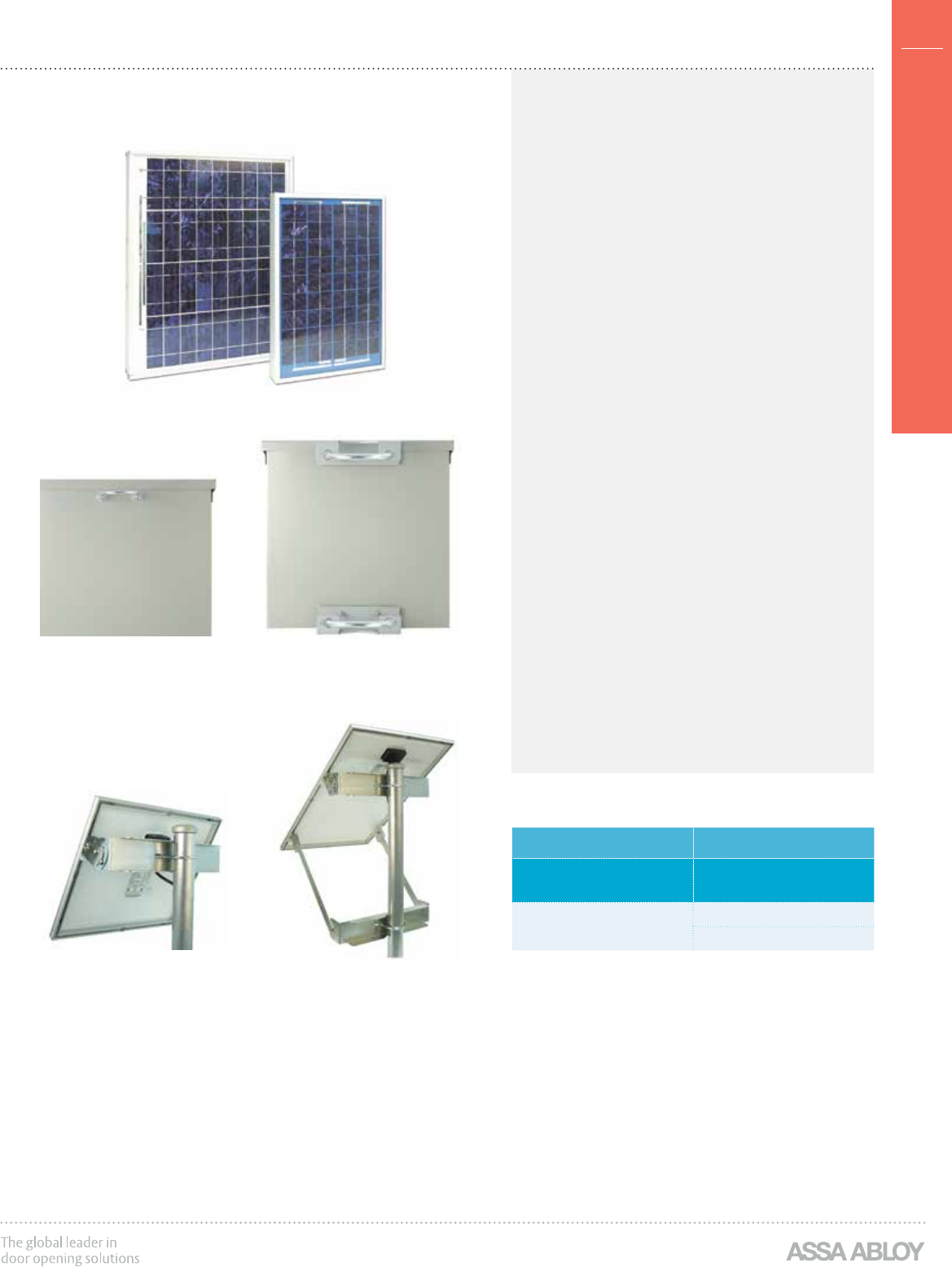

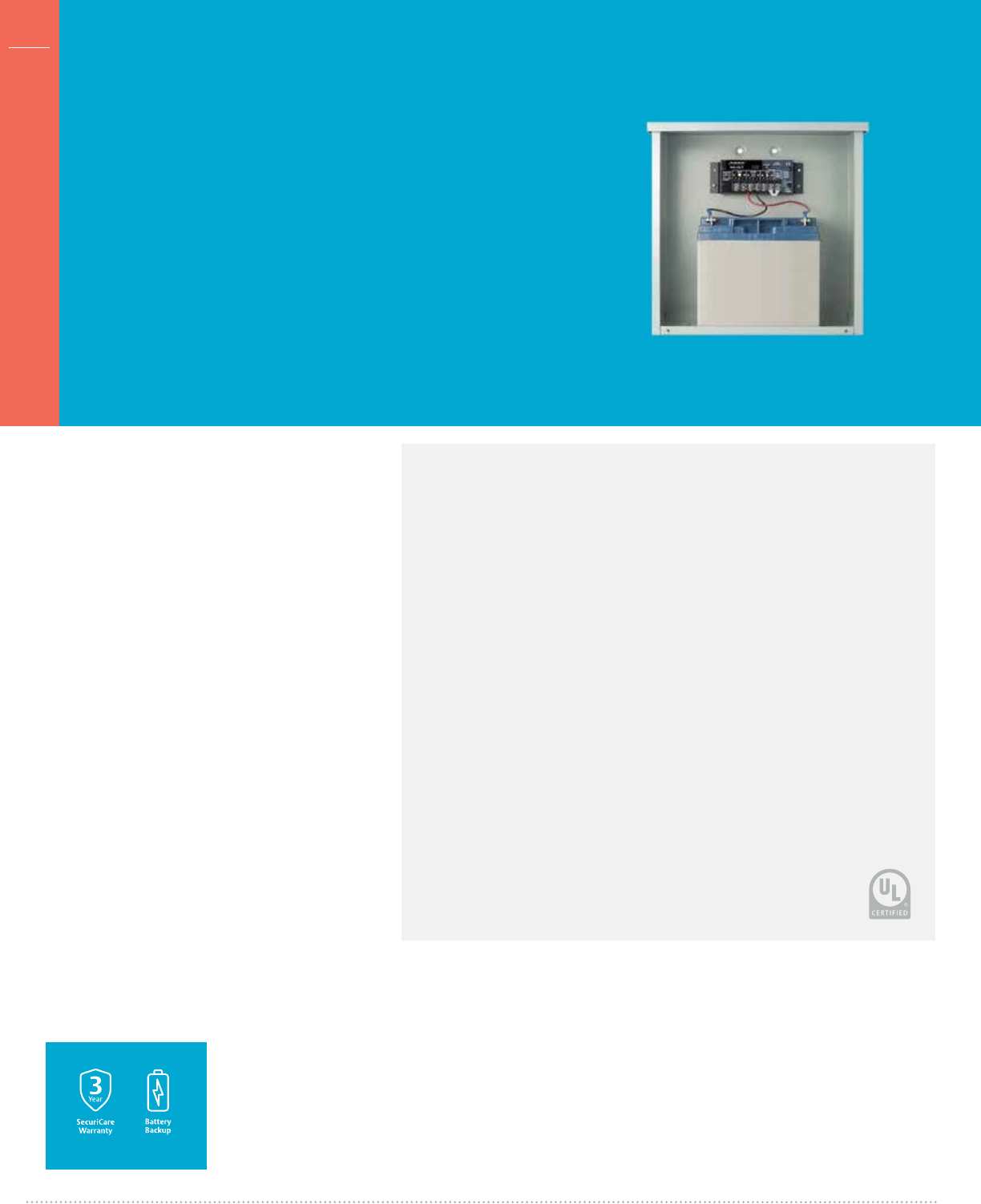

Securitron BPSS Series •••••••••••••••••••••••••••••••••••••••••• 214

PoE Power Supplies

Securitron AQE Injectors & Extractors ••••••••••••••••••••••••••••• 216

Plug-In Power Supplies

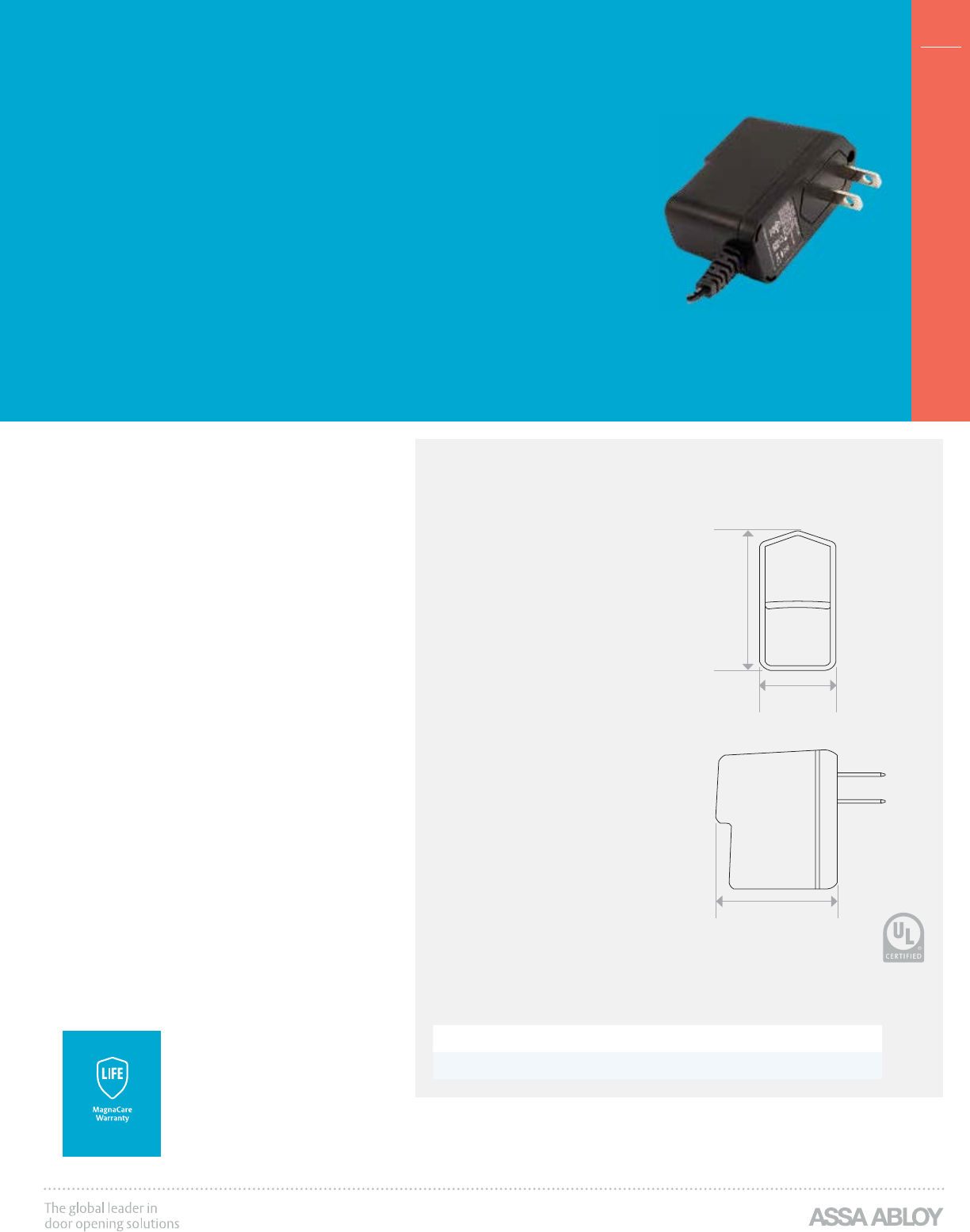

Securitron PSP Series •••••••••••••••••••••••••••••••••••••••••••• 220

Power Supply Accessories ••••••••••••••••••••••••••••••••••••••• 222

Power Transfers

Concealed Power Transfers

Securitron ICPT, CEPT, SEPT, EPT ••••••••••••••••••••••••••••••••••• 224

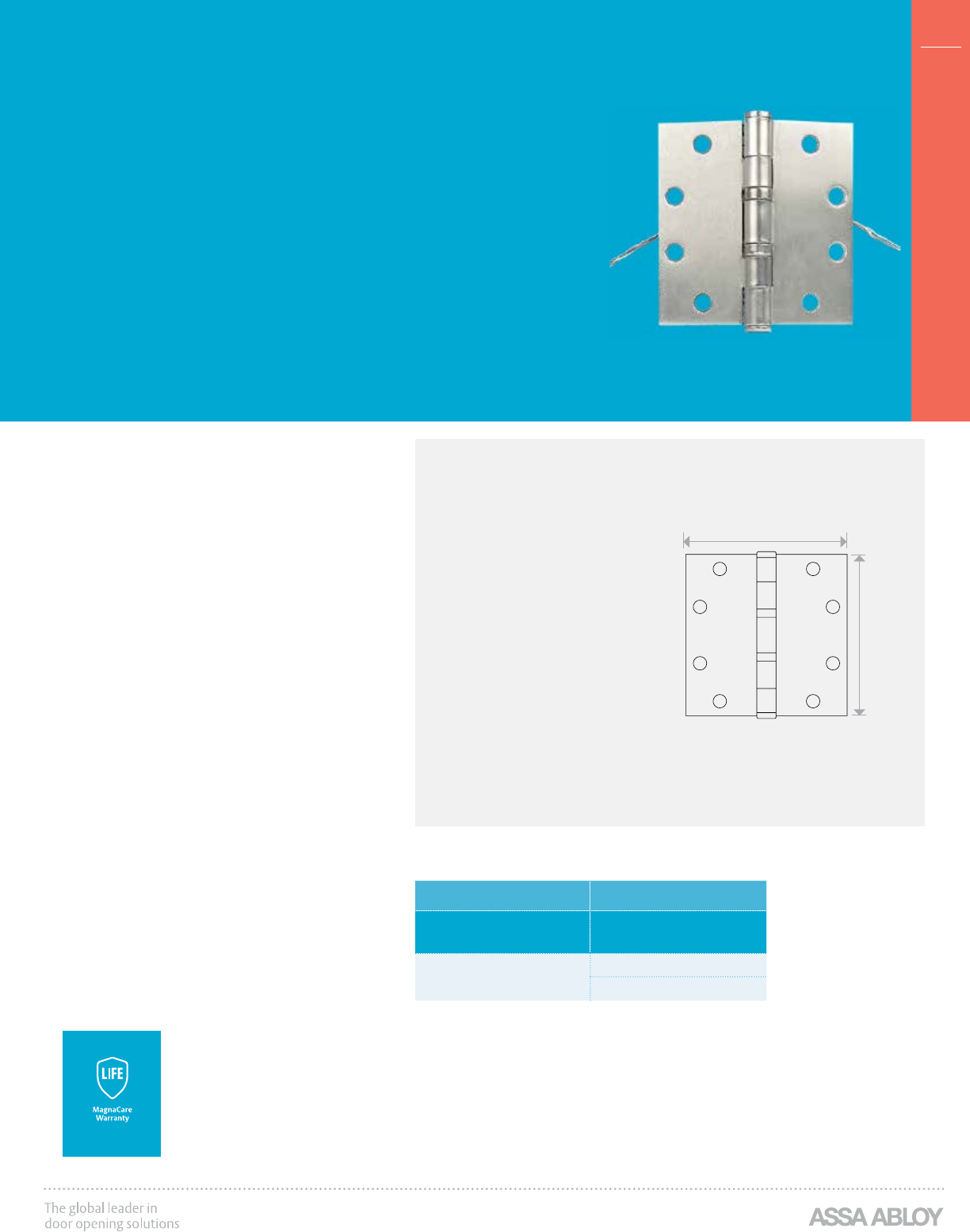

Electric Hinges

Securitron EH •••••••••••••••••••••••••••••••••••••••••••••••••• 231

Door Cords

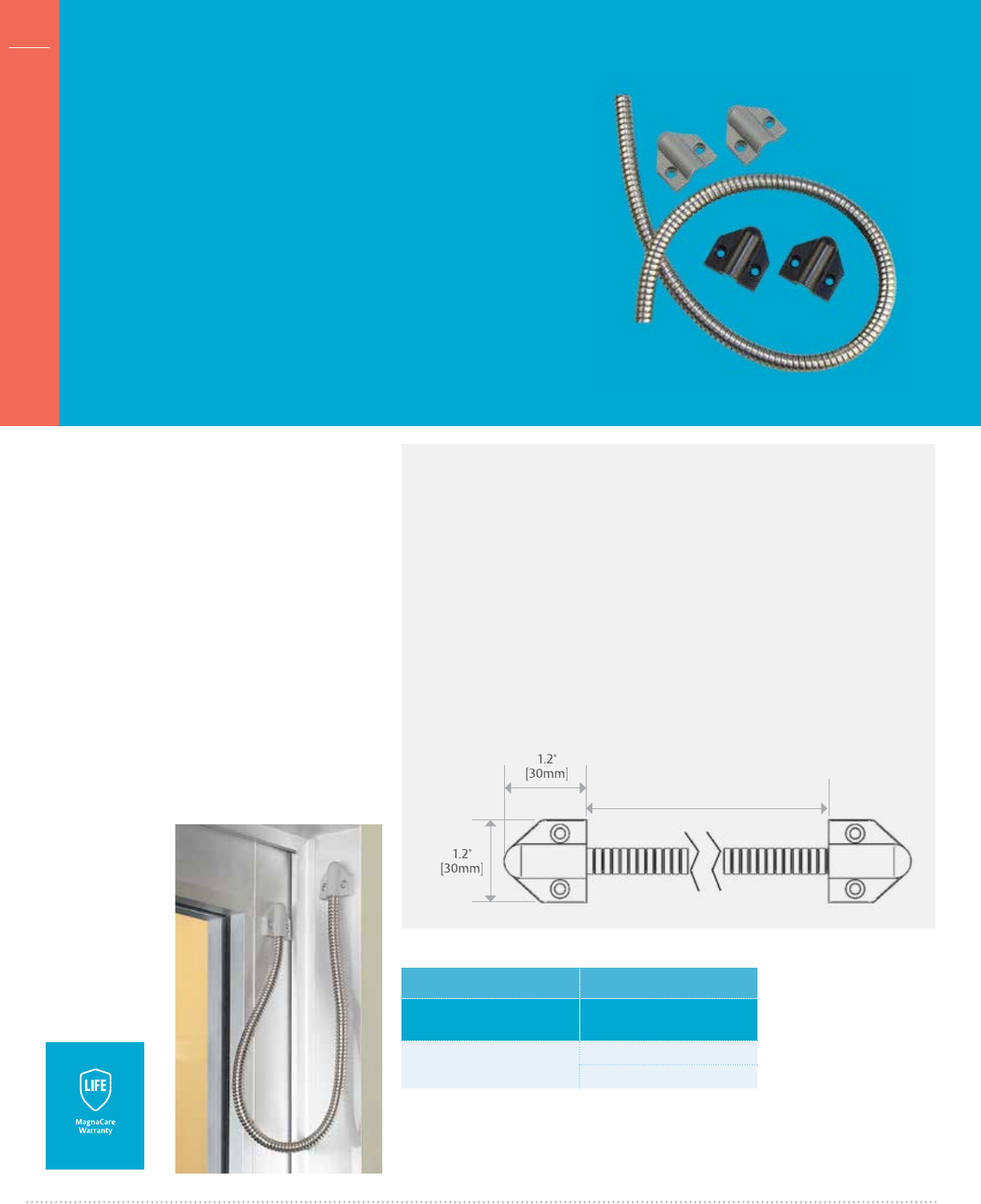

Securitron TSB-C ••••••••••••••••••••••••••••••••••••••••••••••• 232

Accessories

Timers & Alarms

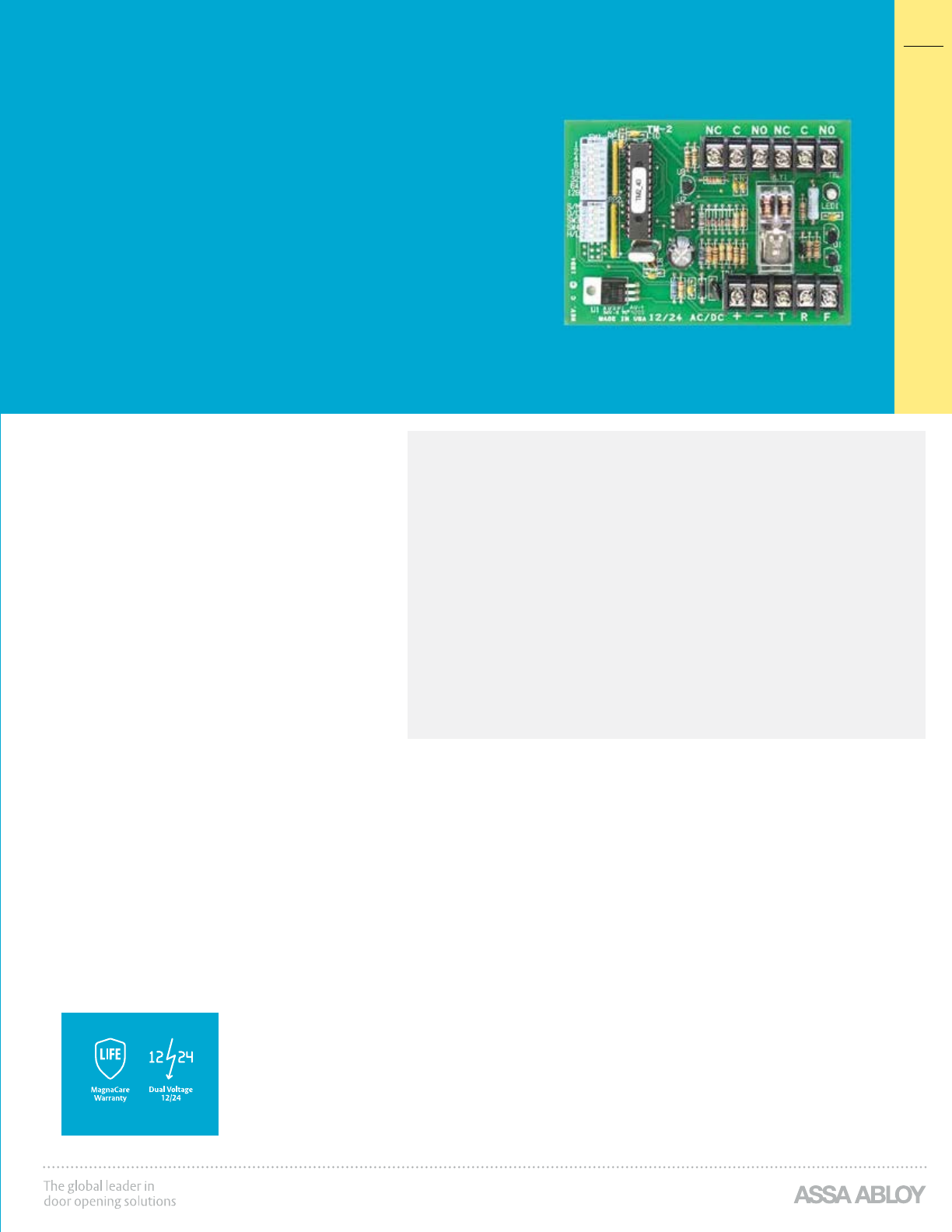

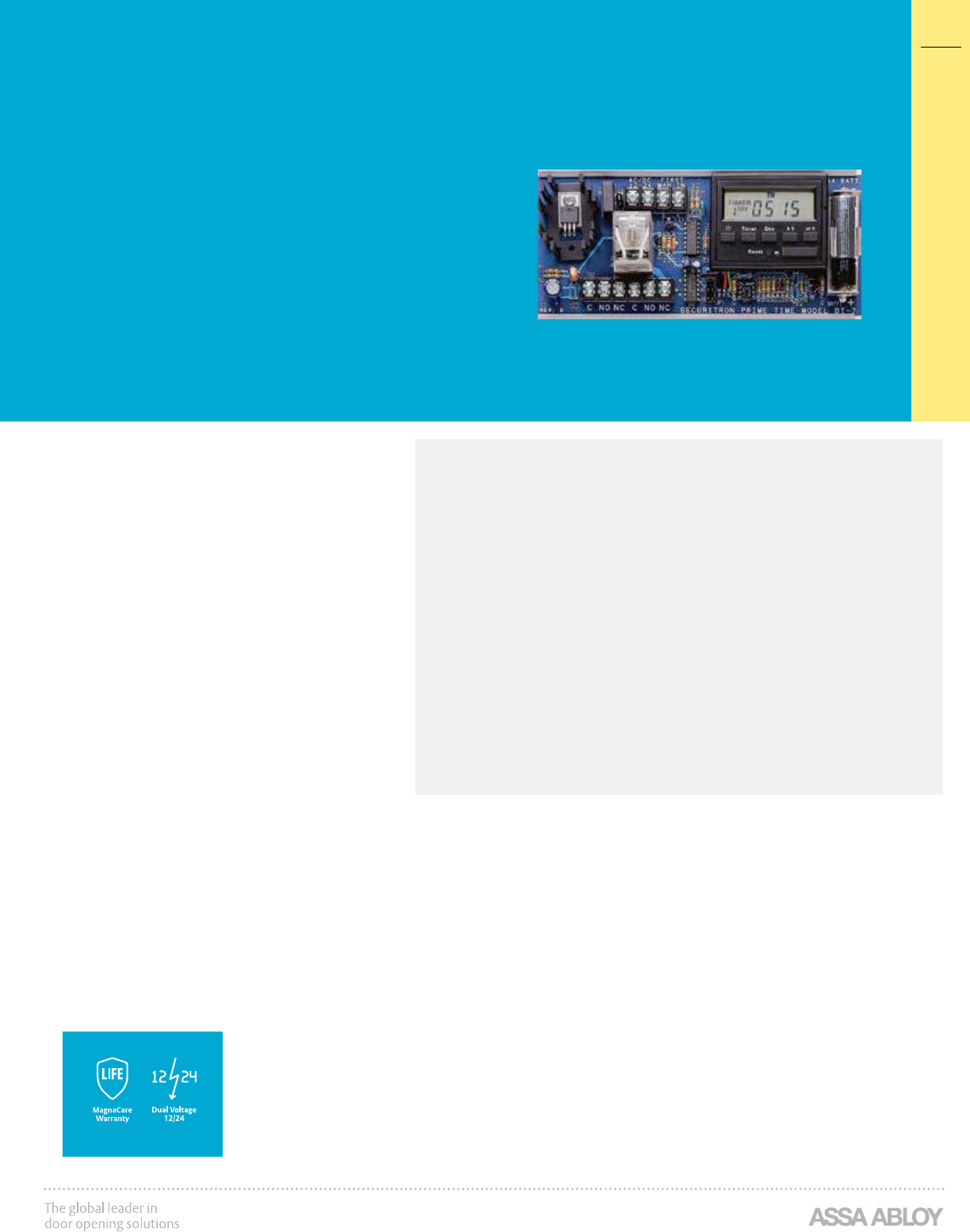

Securitron TM-2, TM-9, DT-7 & PZ1 •••••••••••••••••••••••••••••••• 235

Door Position Monitoring

Securitron DPA Series ••••••••••••••••••••••••••••••••••••••••••• 239

Securitron DPS Series ••••••••••••••••••••••••••••••••••••••••••• 240

Securitron MSS •••••••••••••••••••••••••••••••••••••••••••••••• 241

Securitron LM •••••••••••••••••••••••••••••••••••••••••••••••••• 242

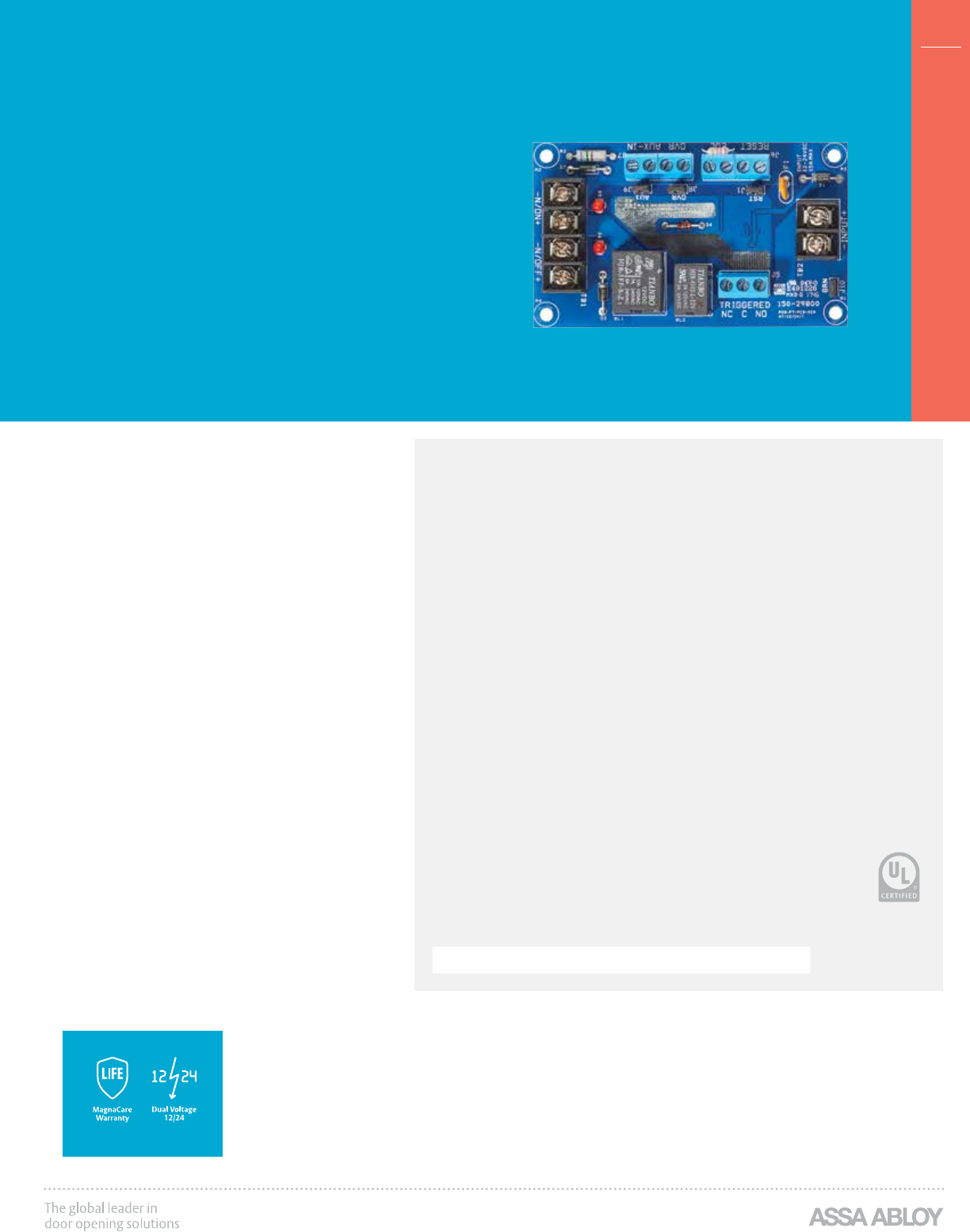

Relays

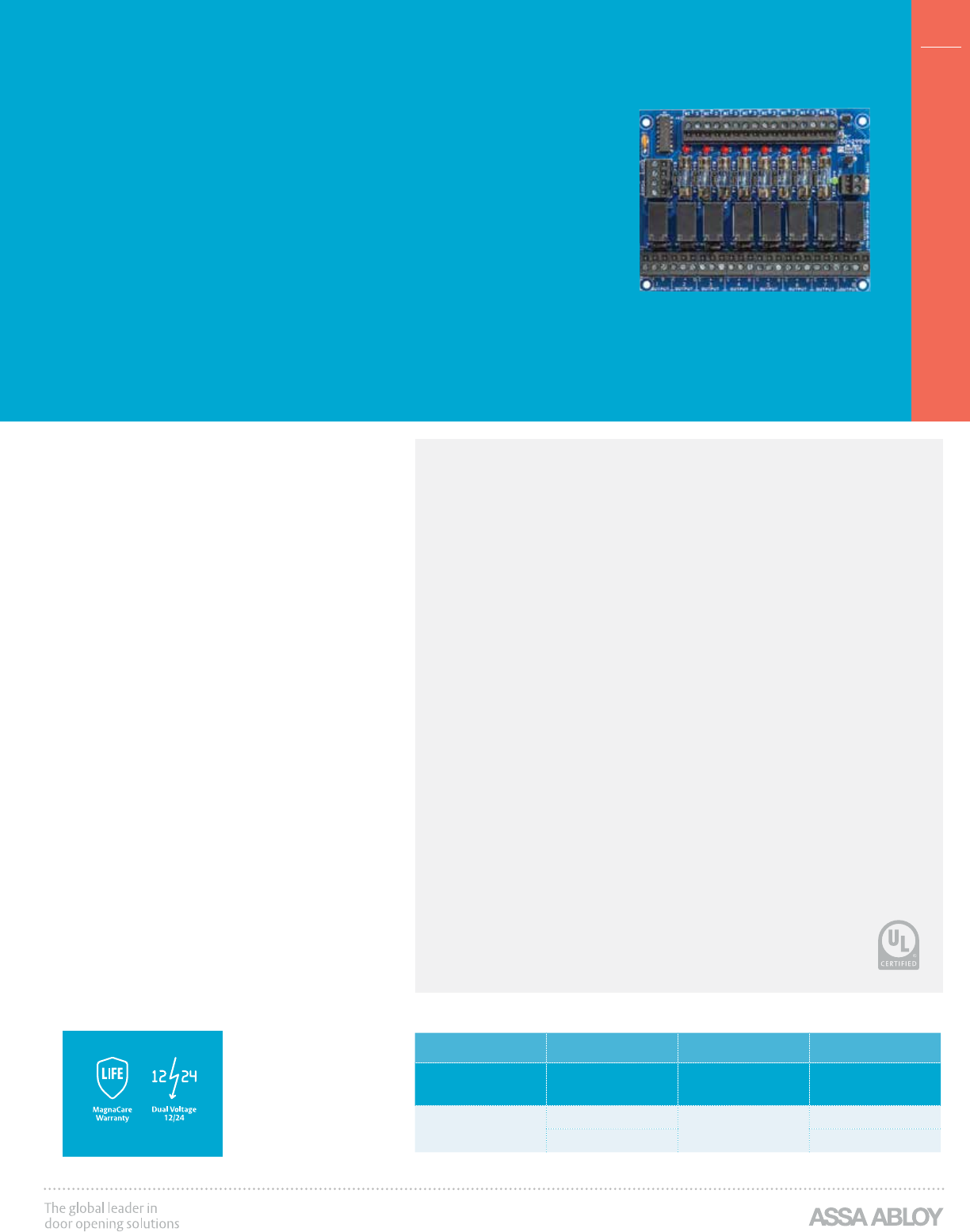

Securitron RB4 Series ••••••••••••••••••••••••••••••••••••••••••• 243

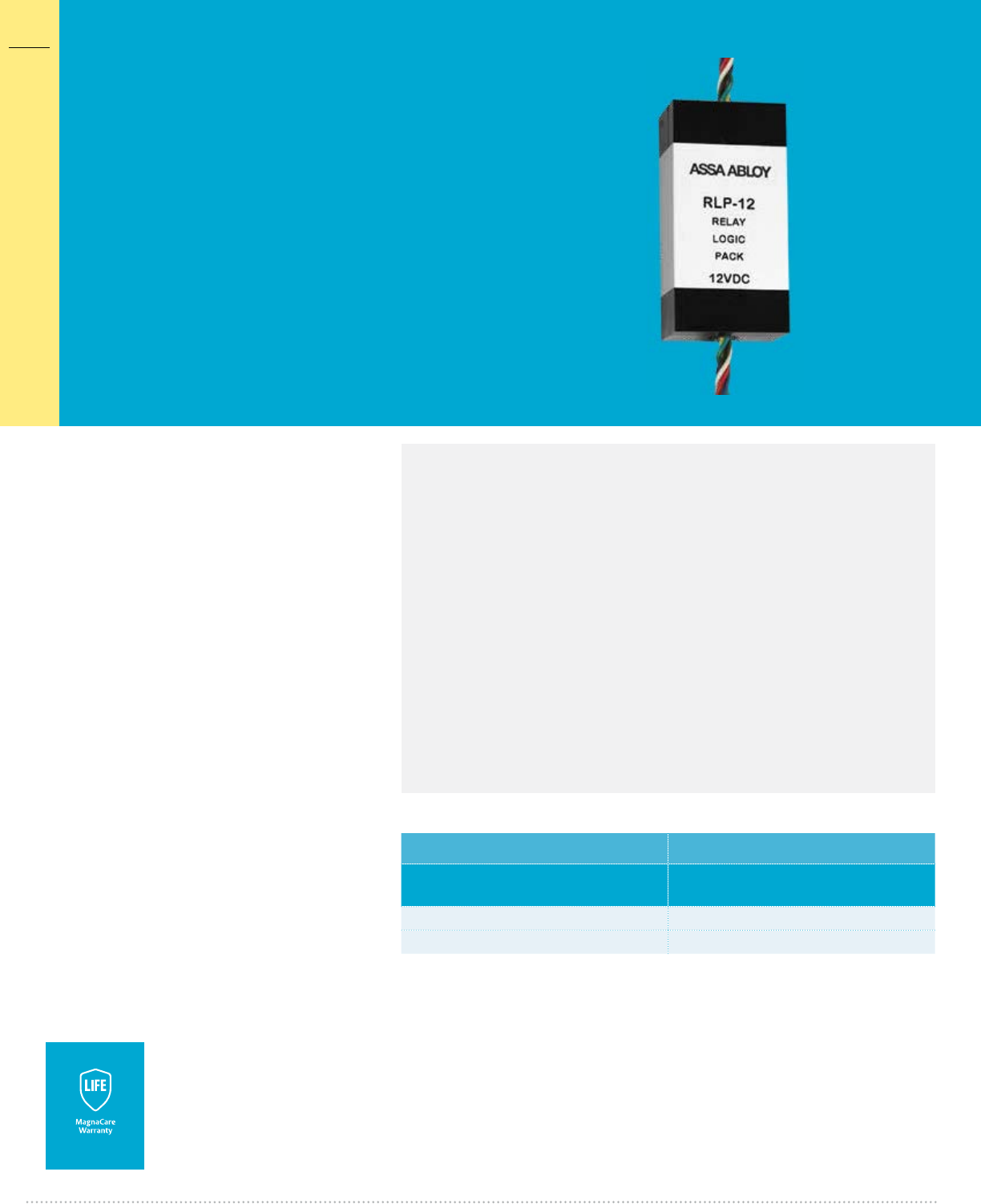

Securitron RLP Series •••••••••••••••••••••••••••••••••••••••••••• 244

Resources

Glossary of Terms & Icons

Terms •••••••••••••••••••••••••••••••••••••••••••••••••••••••• 247

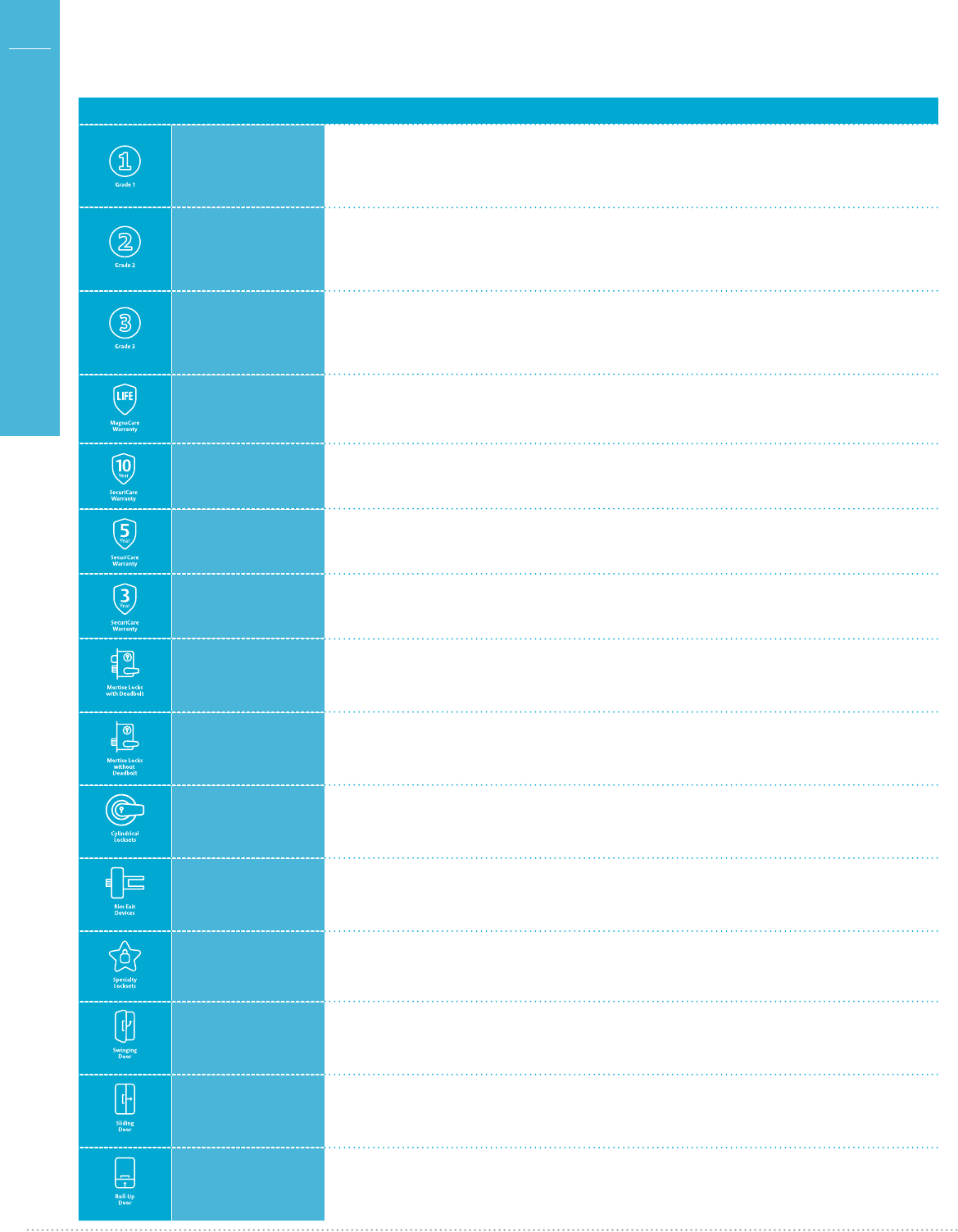

Icons ••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 248

Locking Systems

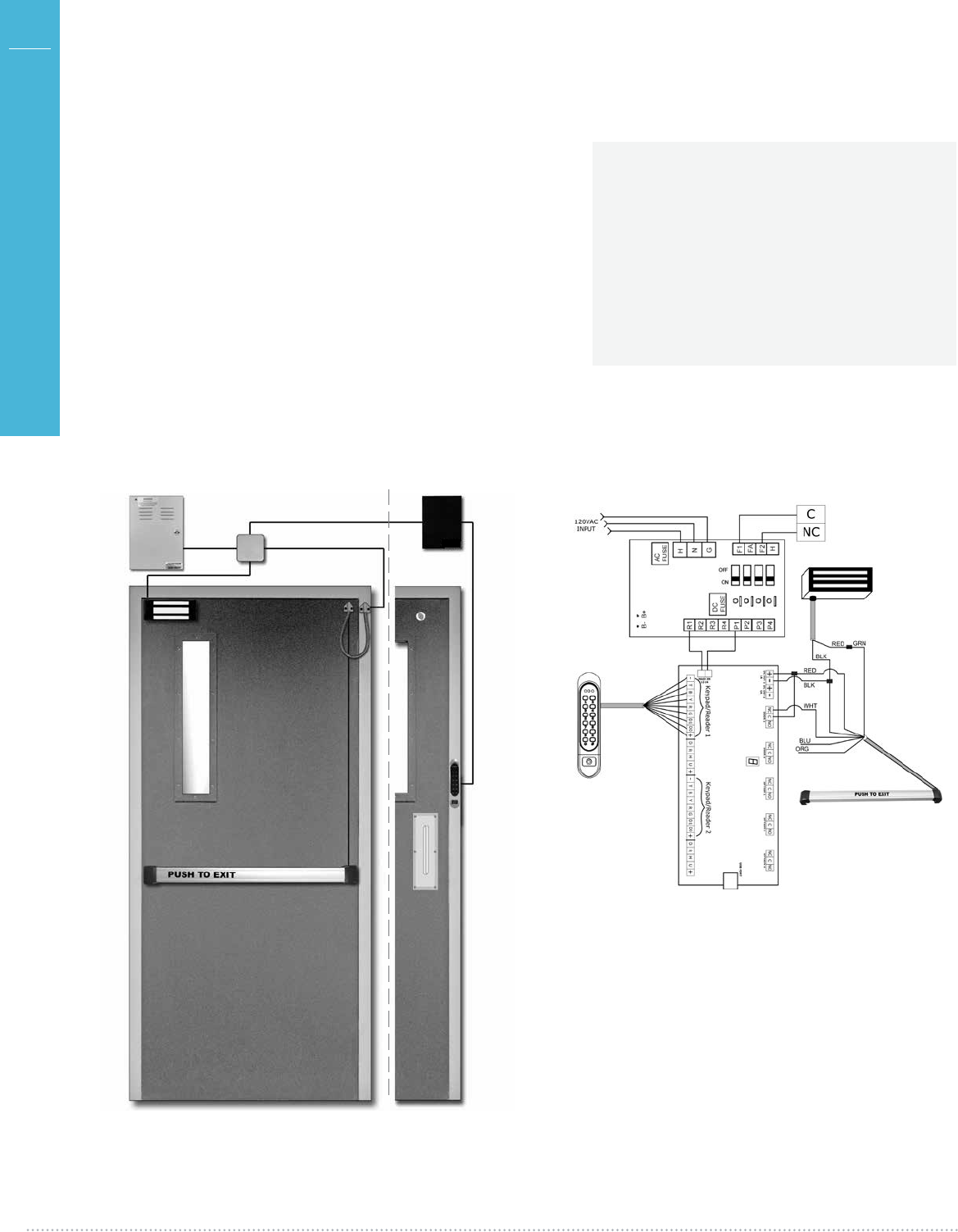

Basic Magnetic Locking System ••••••••••••••••••••••••••••••••••• 250

Delayed Egress Magnetic Locking System •••••••••••••••••••••••••• 251

Store Front Locking System••••••••••••••••••••••••••••••••••••••• 252

Motion Activated Locking System ••••••••••••••••••••••••••••••••• 253

Glass Door Locking System ••••••••••••••••••••••••••••••••••••••• 254

Gate Locking System •••••••••••••••••••••••••••••••••••••••••••• 255

Terms and Conditions, Warranty ••••••••••••••••••••••••••••••••• 256

Table of Contentss

Electric

Strikes

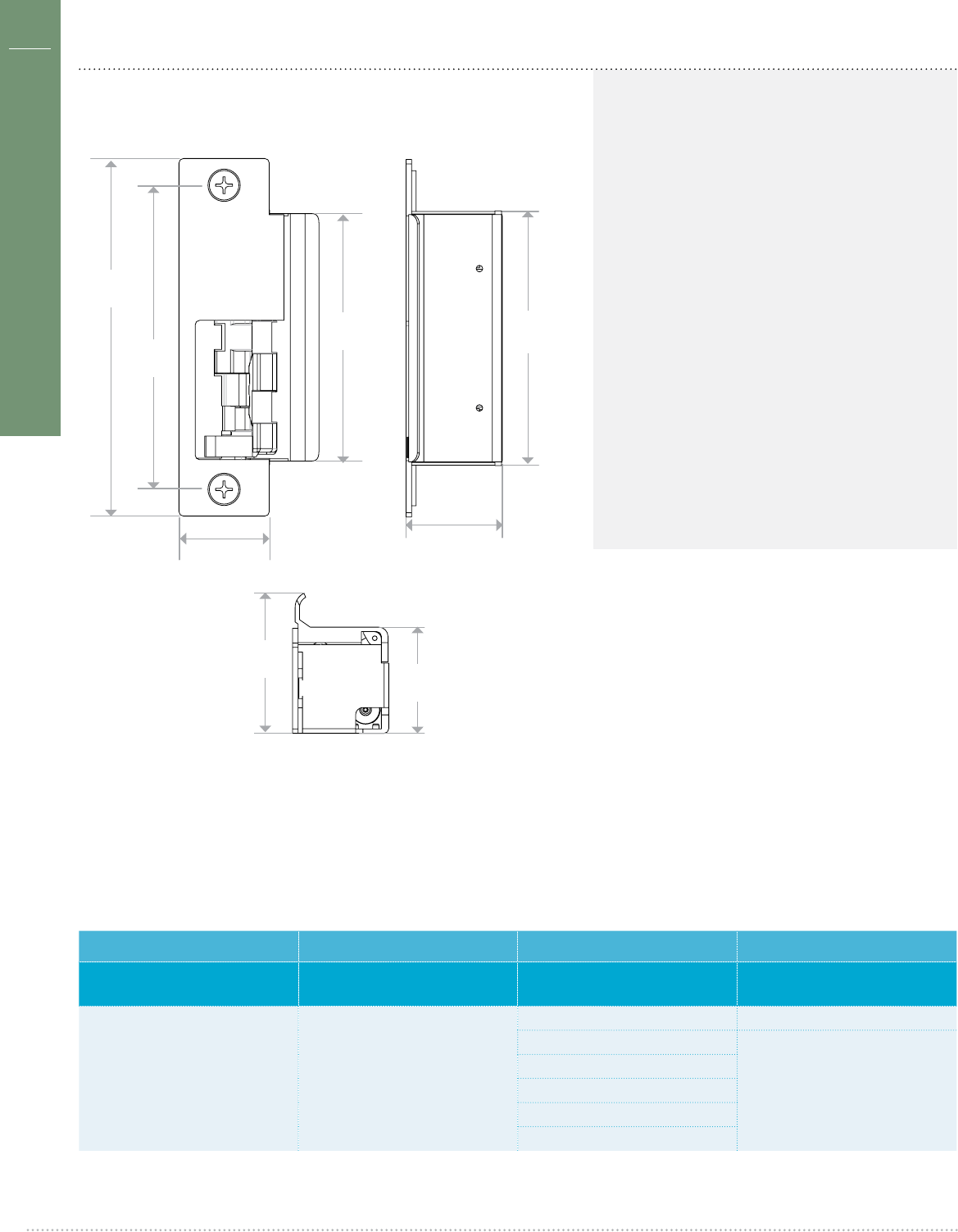

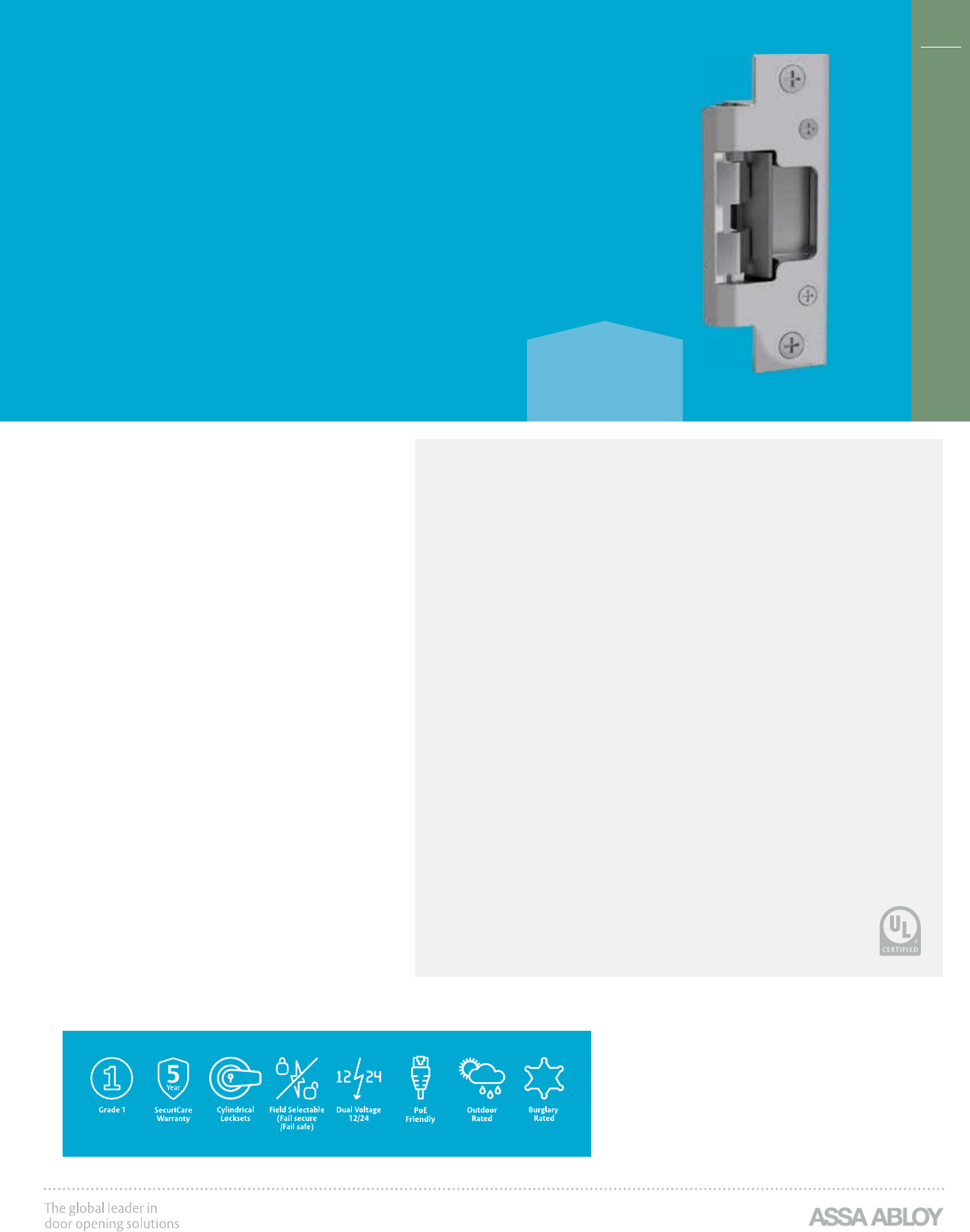

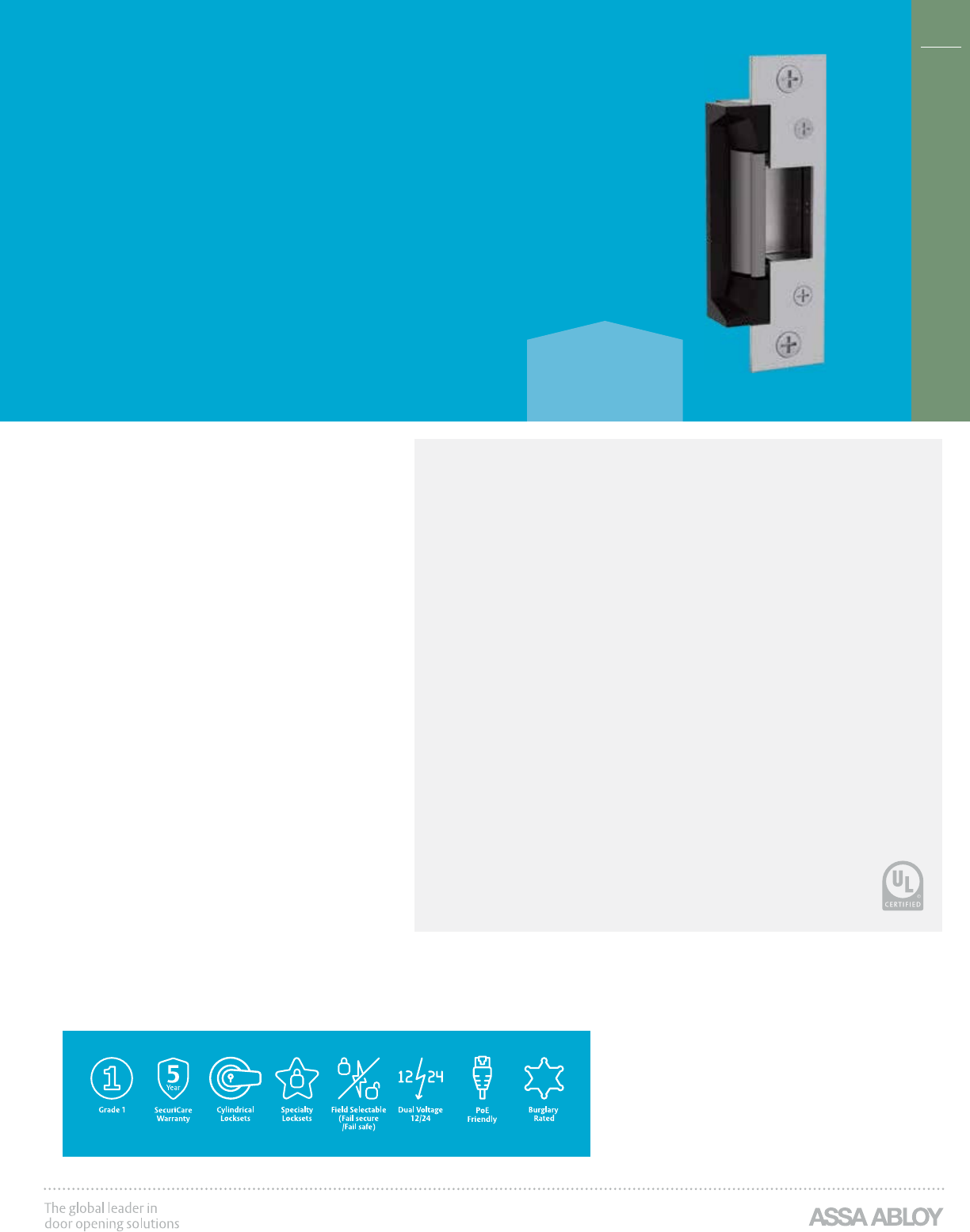

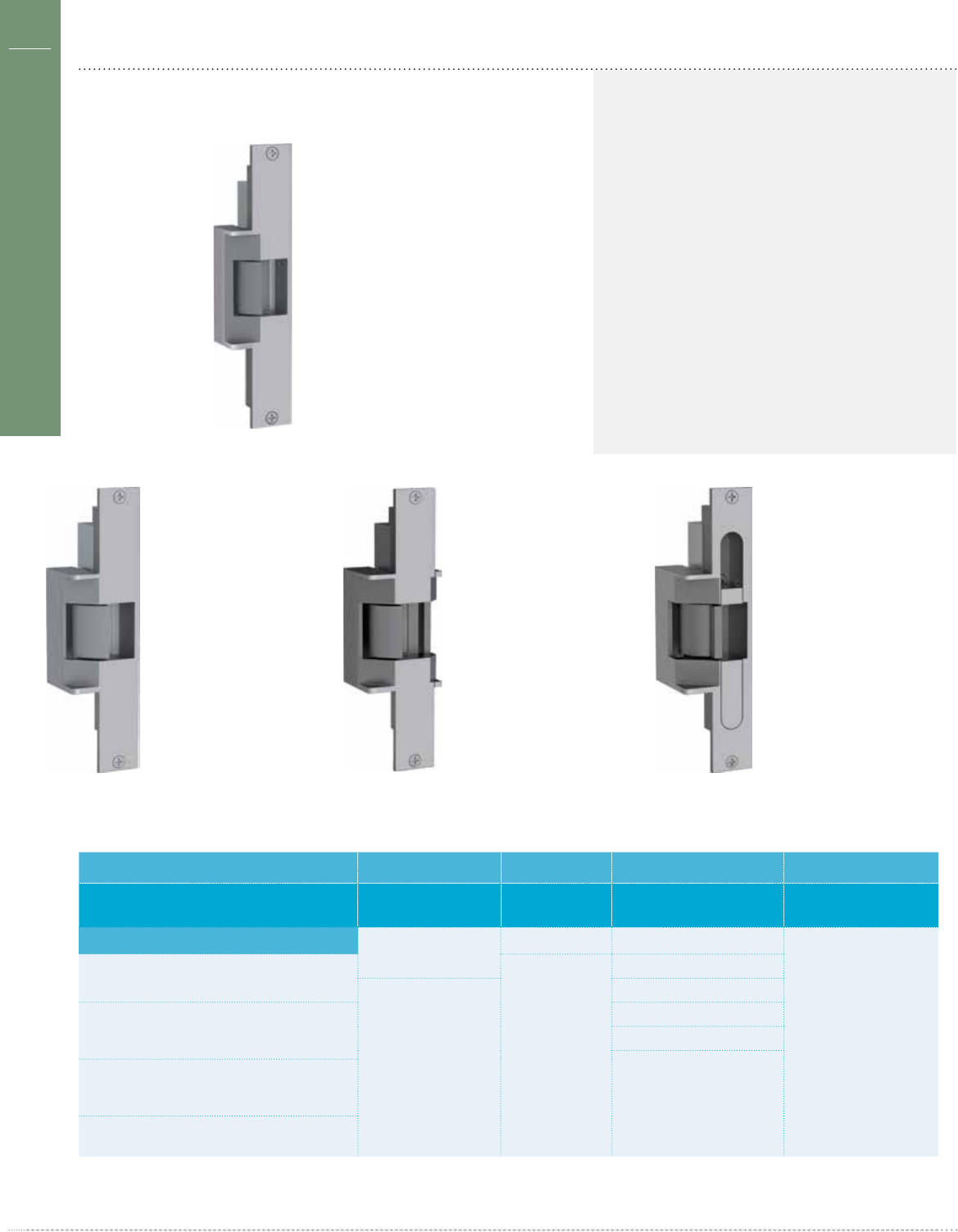

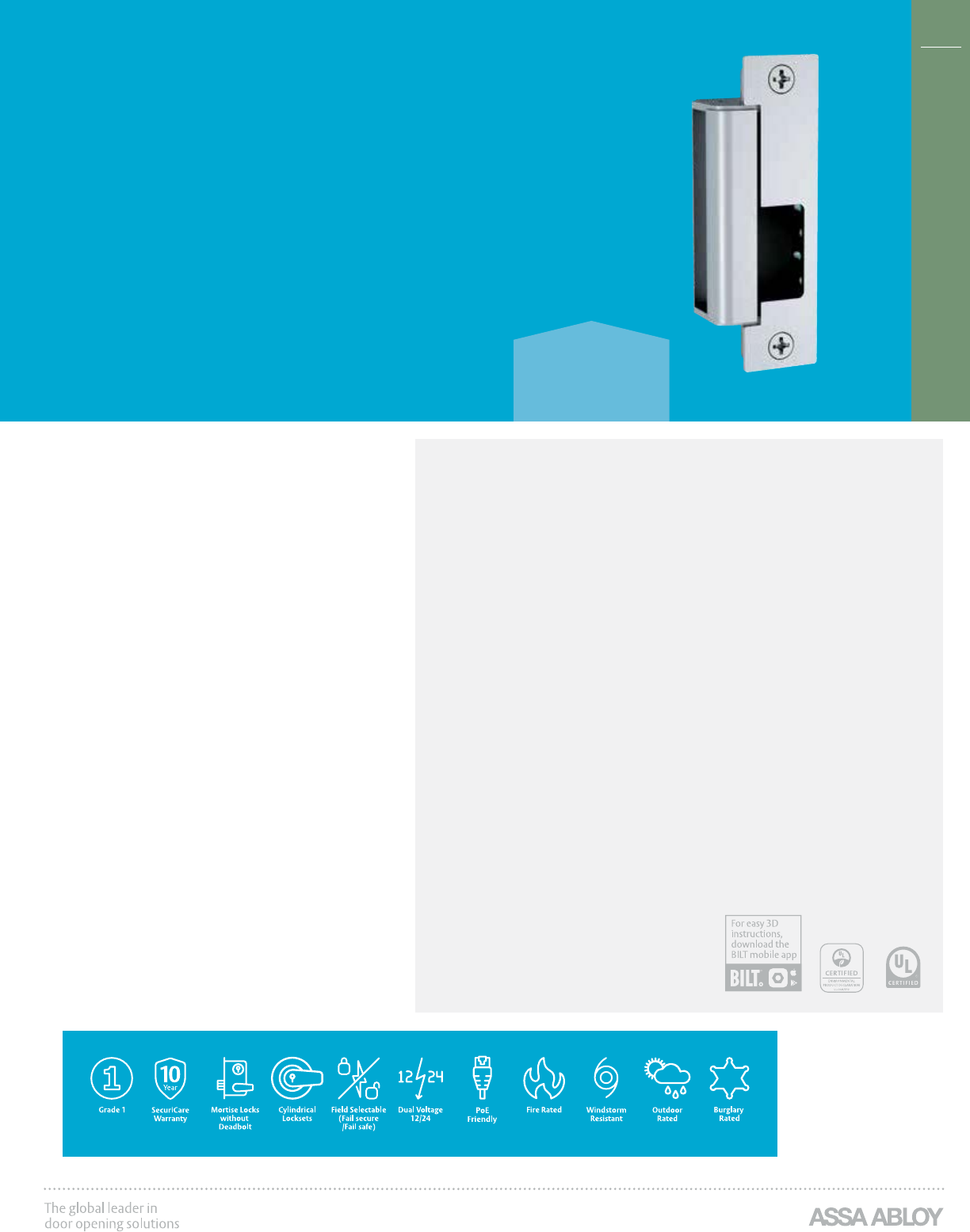

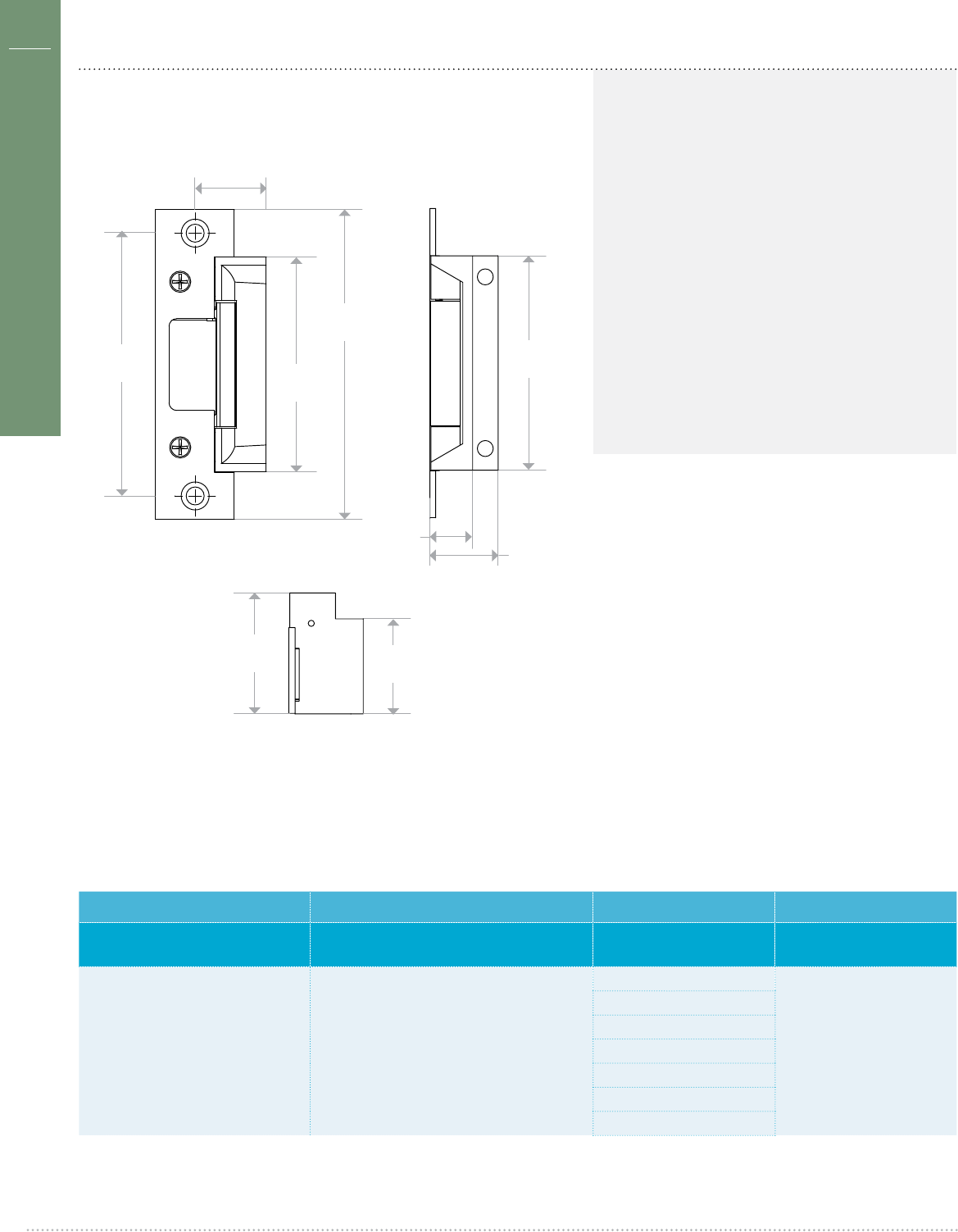

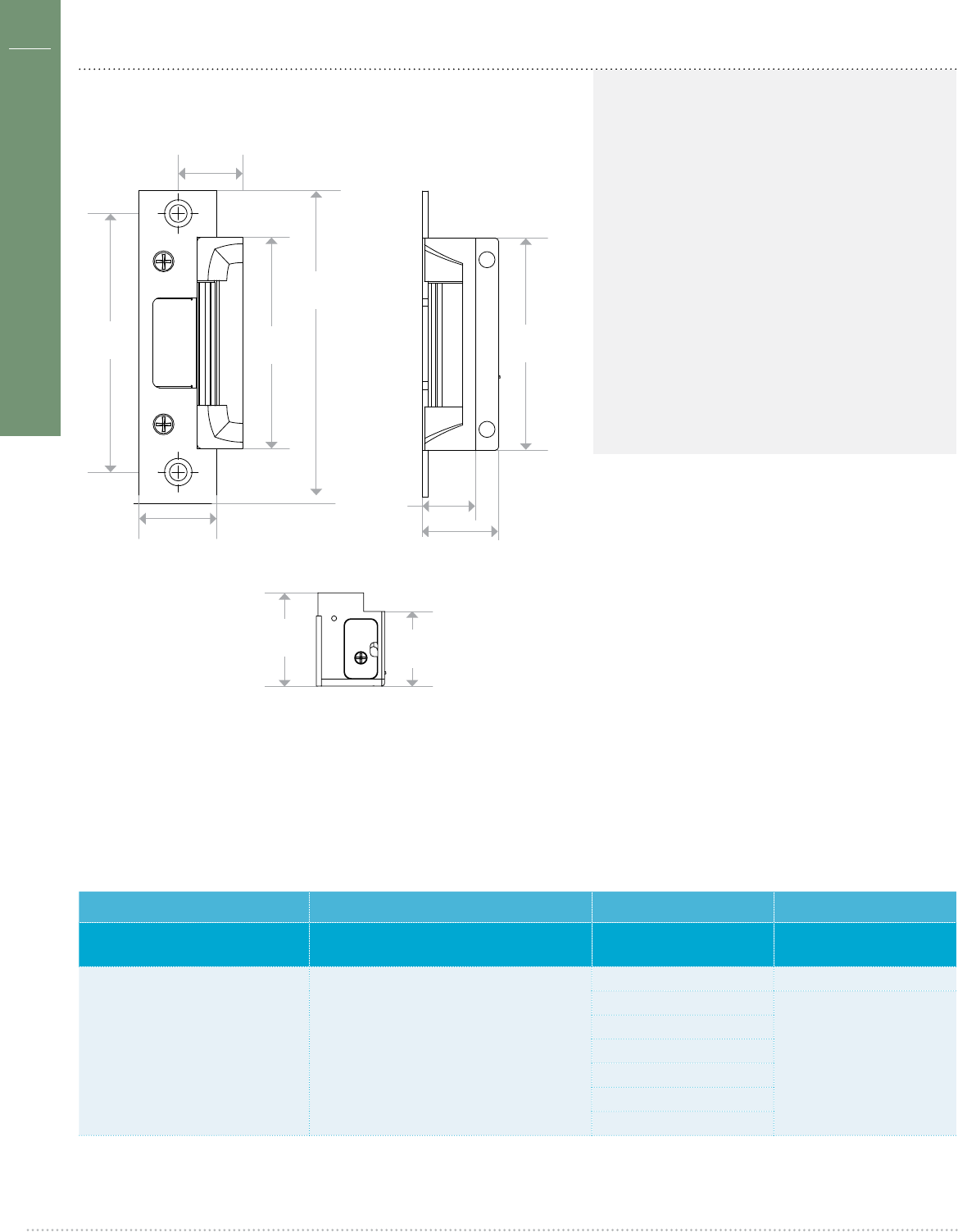

Electric Strikes

Features

Standard Features

• Stainless steel construction

• Tamper resistant

• Static strength 2,500 lbs

• Dynamic strength 350

ft-lbs (fail secure)

• Endurance 1 million cycles

• Fail secure (standard)

• Non-handed

• Accommodates up to

1" [25.4mm] deadbolt

• Plug-in connector

• Full keeper shims for

horizontal adjustment

• Trim enhancer

• Strike body depth 1-11/16" [43mm]

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• LBM Latchbolt monitor

• LBSM Latchbolt strike monitor

• Fail safe

• Interchangeable faceplates

• Monitor switches may not work

with all faceplate options

Accessories

• HESCUT-MTK Metal template kit

• 2005M3 SMART Pac® III

• 1000-102 Rain guard

• 1006-103 Full keeper shims

• 1000-104 Lip extension trim adapter

• 1006-105 Trim enhancer BLK

(goof plate)

• 1006-109 Trim adapter

• 1000-110 Replacement strike plate

• 1000-130 KD filler plate

• 150 Strike latch guard

The strongest,

most versatile electric

strike available.

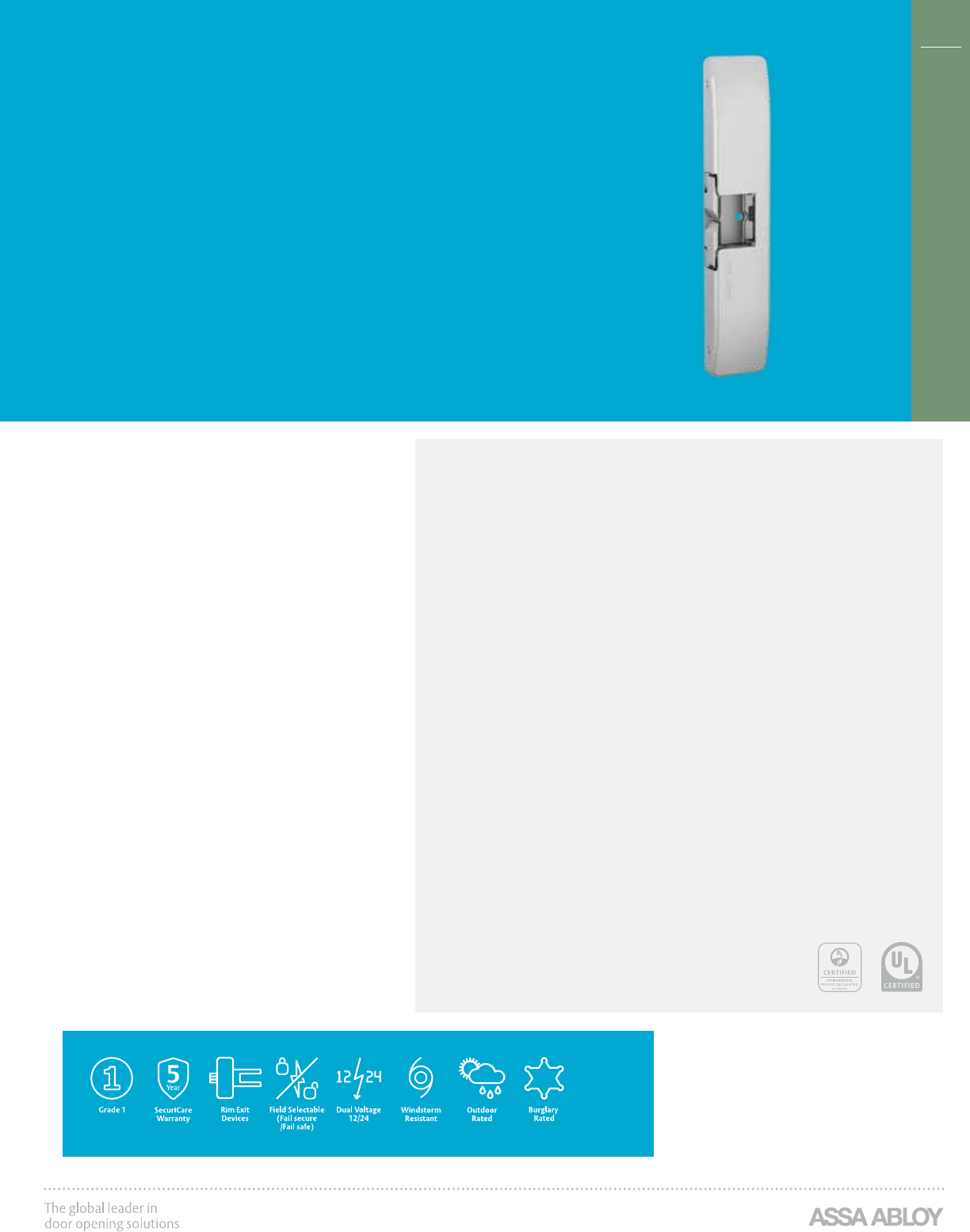

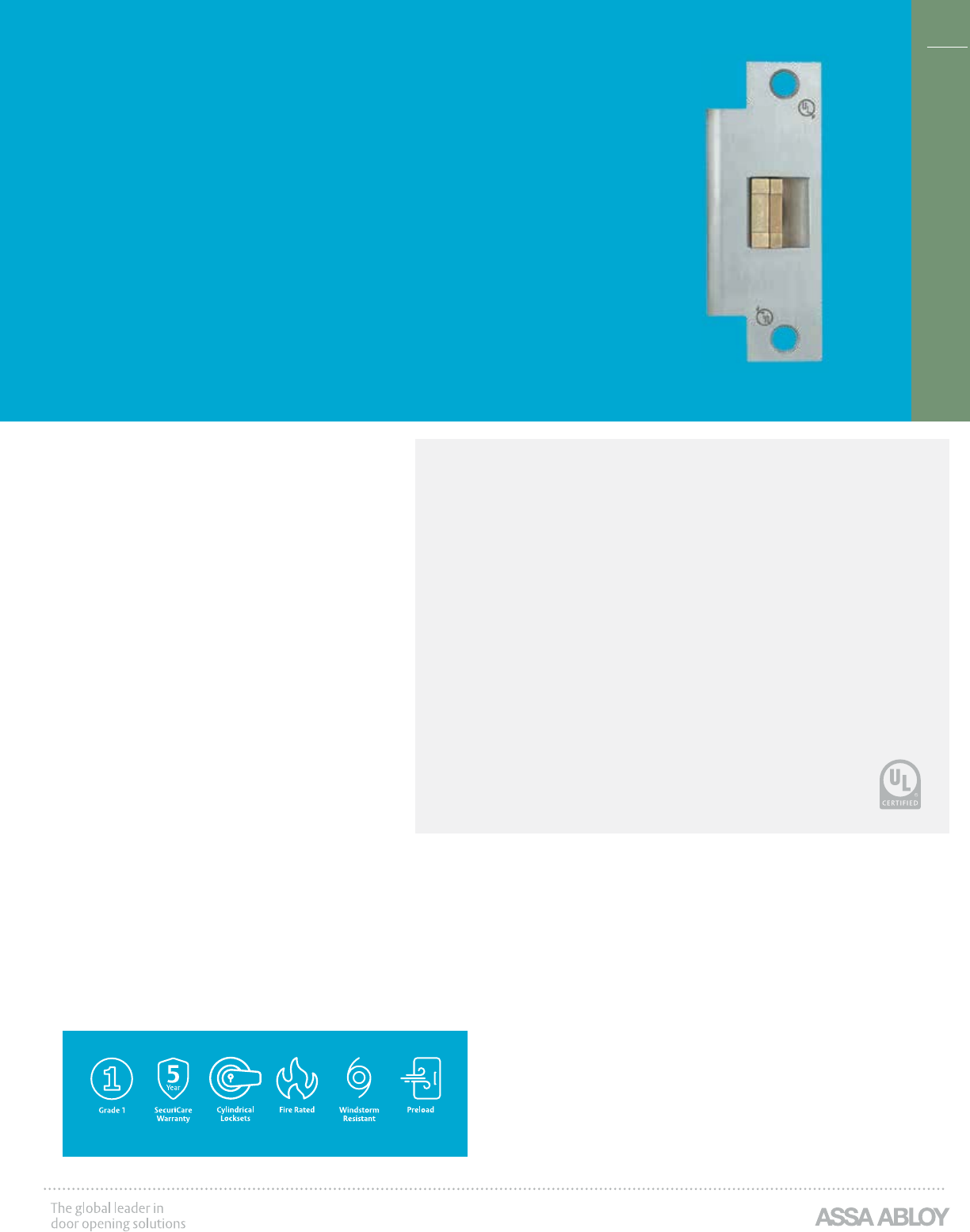

The HES 1006 Series Electric Strike is the

strongest and most versatile electric strike

available. The dual interlocking plunger

design and heavy duty stainless steel

construction enables it to exceed every

standard developed for electric strikes. With

multiple faceplate options, the HES 1006

will fully accommodate every lock designed

to work within an ANSI 4-7/8" strike plate.

Tested to exceed 3,000 lbs of static strength,

350 ft-lbs of dynamic strength and factory

tested to exceed 1 million cycles of operation,

the HES 1006 is in a class of its own.

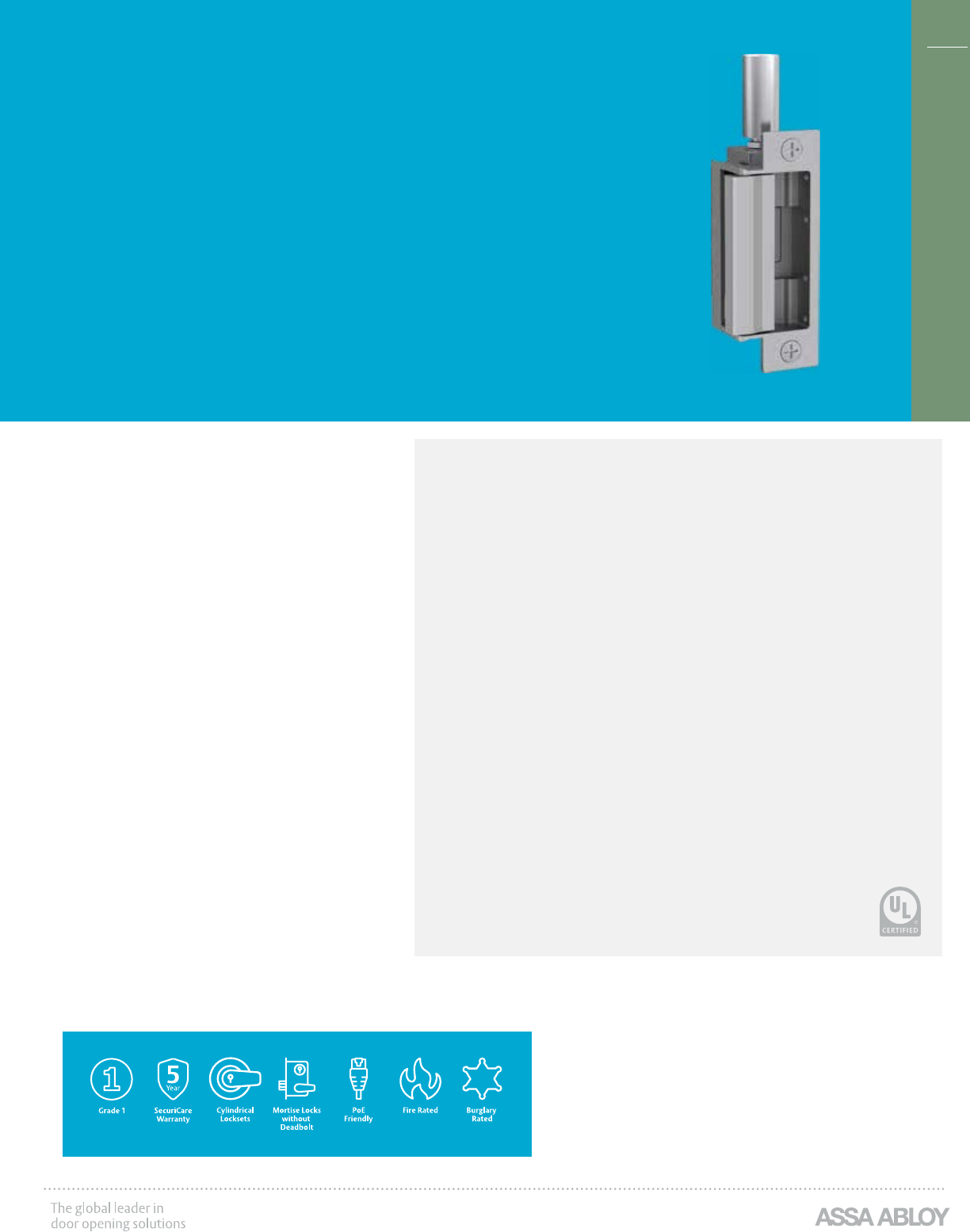

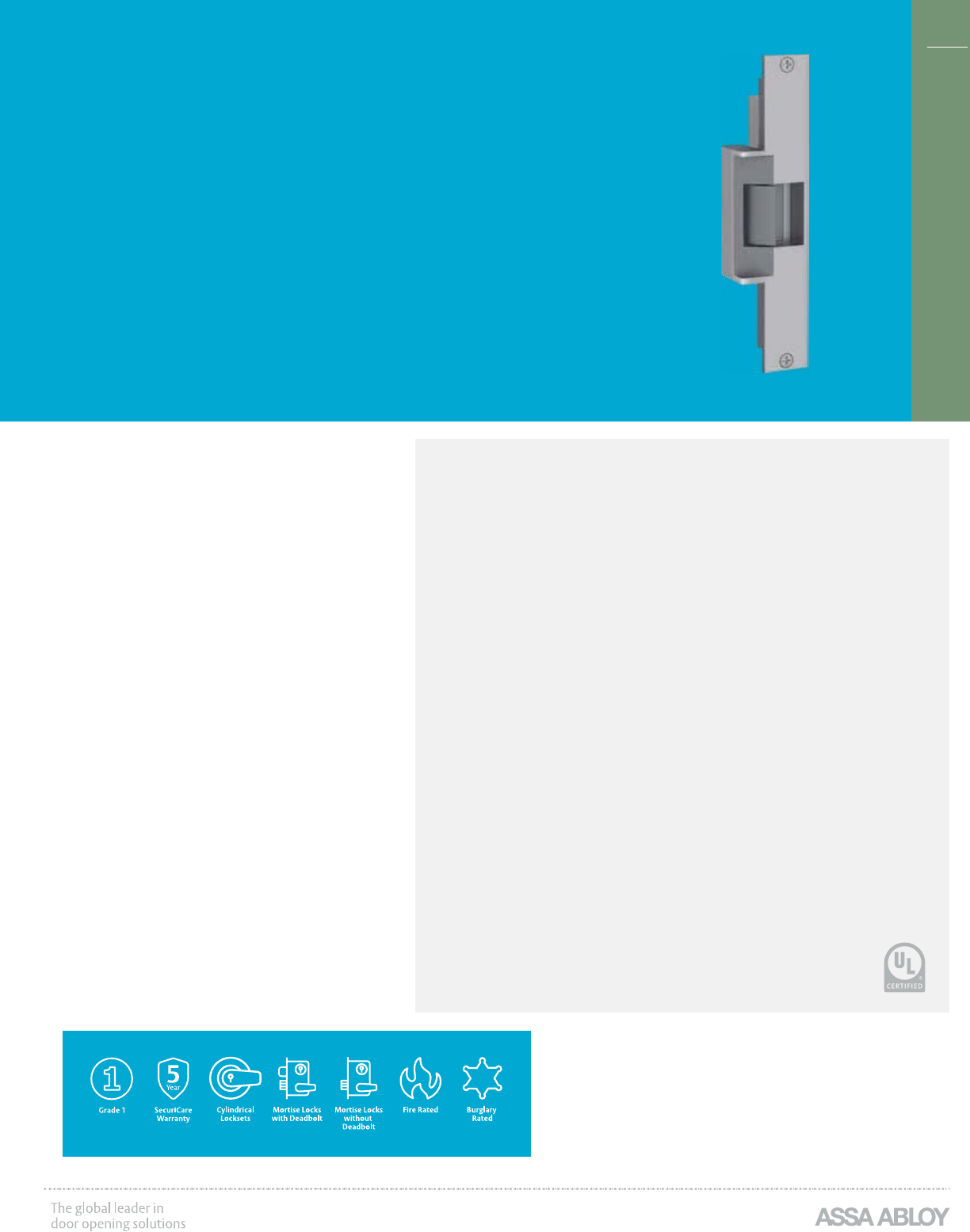

HES® 1006

Electric Strike

Works with all cylindrical

and mortise locksets with

or without a deadbolt Also available in

a Complete One

Box Solution

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

HES 1006 Electric Strike

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 listed

• RoHS compliant

• UL 10C fire rated, 3-hour single door

(fail secure only)

• UL 10C fire rated, 1-1/2 hour double door

(fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• ANSI/SDI A250.13 windstorm resistant

• Florida Building Code approved TAS 201, 202, 203

• ANSI-ASTM E330

• Sustainability documentation

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual Voltage 12/24 VDC

• 450 mA at 12 VDC / 250 mA at 24 VDC

Dimensions

NOTE: DC must be well filtered with ripple less than 1 volt 12ms.

How to Order

Series Model Fail Secure / Safe Finish* Option (s)

1006 — – F – 630 – LBM

1006 Universal

Electric Strike;

faceplates

ordered

separately

CS* Complete Electric Strike;

includes the SMART Pac III

and J, KD, KM, HM, ND

faceplates and brackets

(blank) Fail Secure

(standard)

605 Bright Brass LBM Latchbolt Monitor**

606 Satin Brass LBSM Latchbolt Strike

Monitor**

F Fail Safe 612 Satin Bronze

CLB* Complete Electric Strike for

latchbolt locks; includes J,

K, KD and KM faceplates

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

CDB* Complete Electric Strike for

Deadbolt Locks; includes

the ND and HM faceplates

BLK Black

CAS* Complete Electric Strike for

Deadbolt Locks; includes the

N, ND and NM faceplates

*Complete Pacs are only available in the 630 finish. ** Not available with CS, CDB, or CAS

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

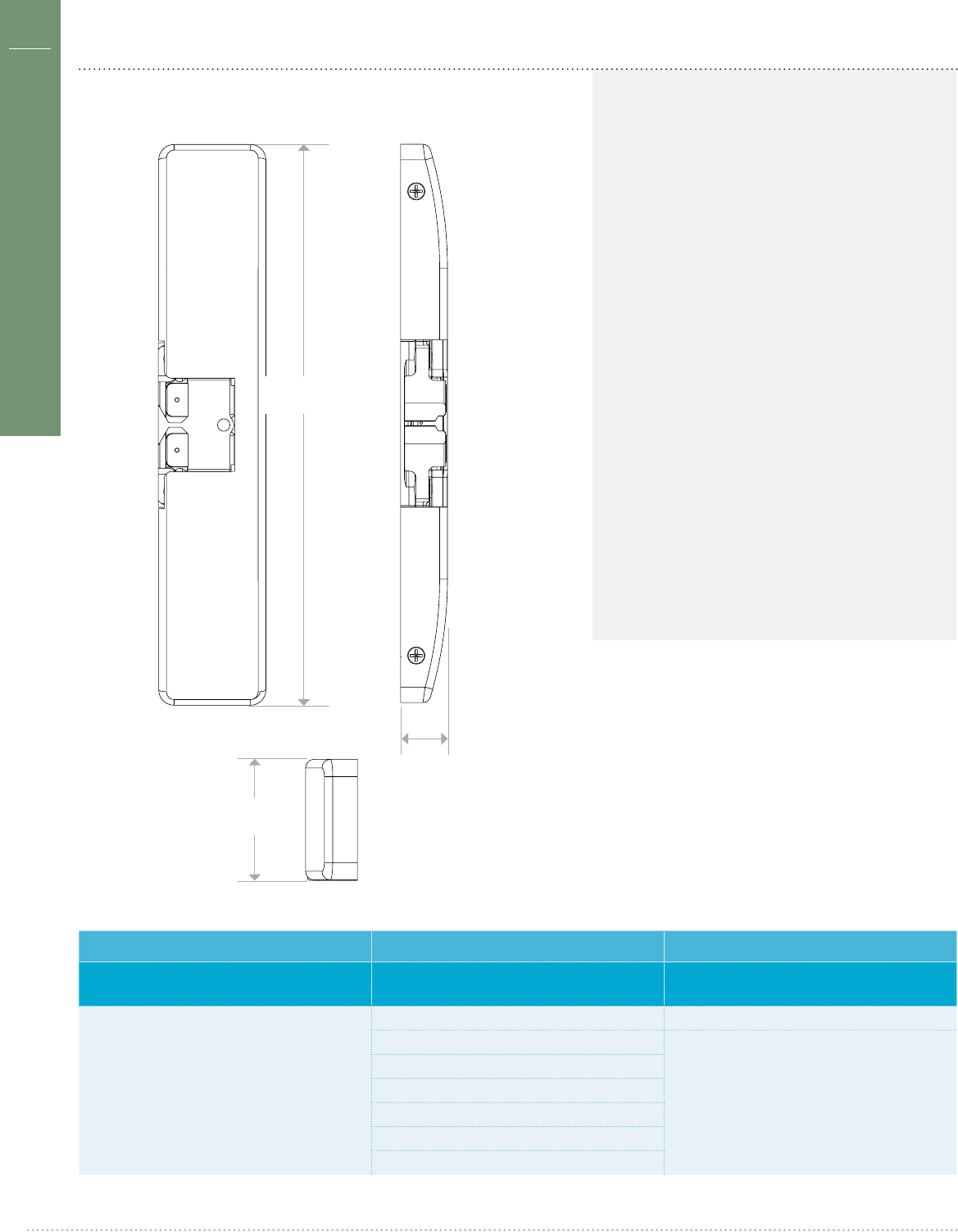

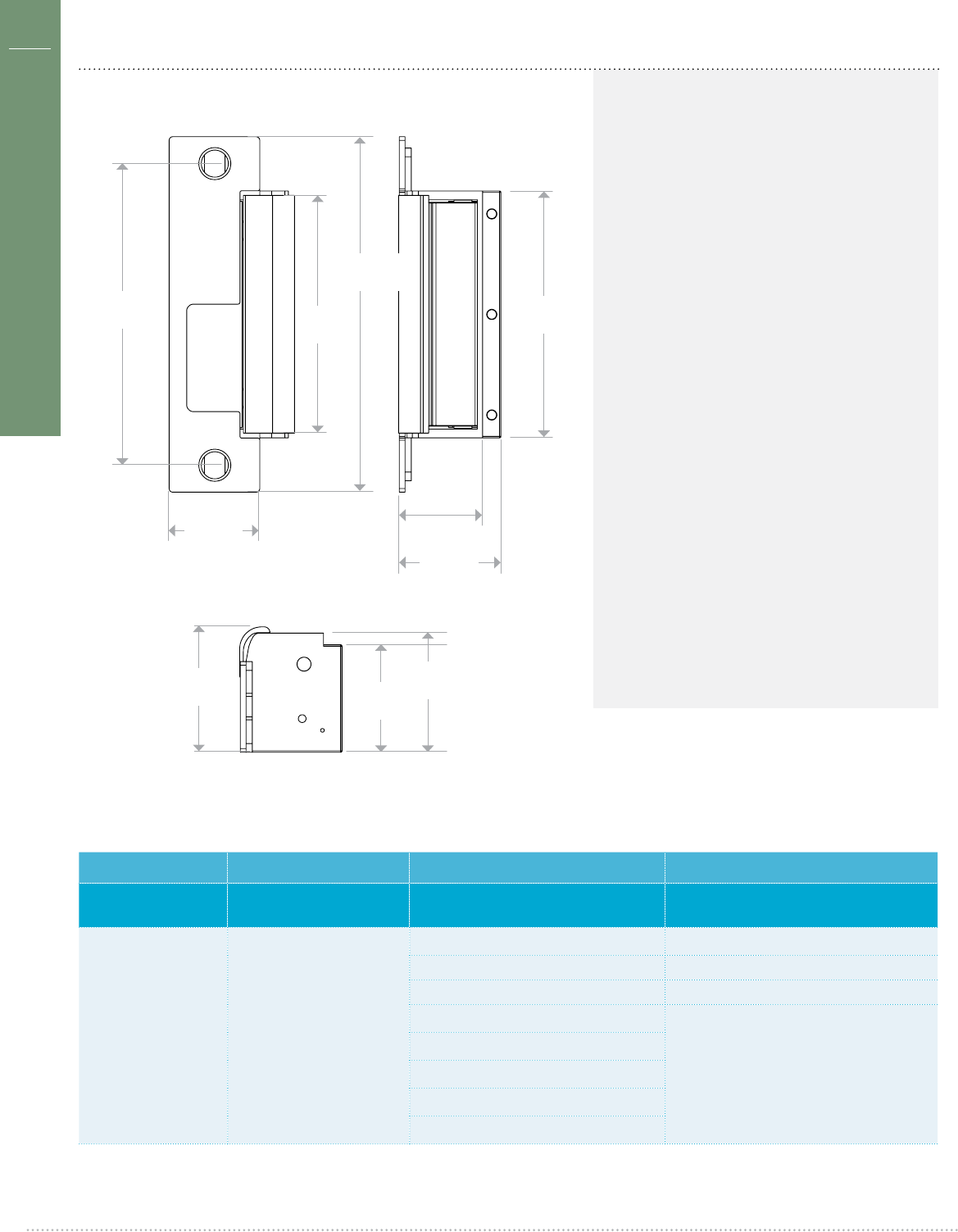

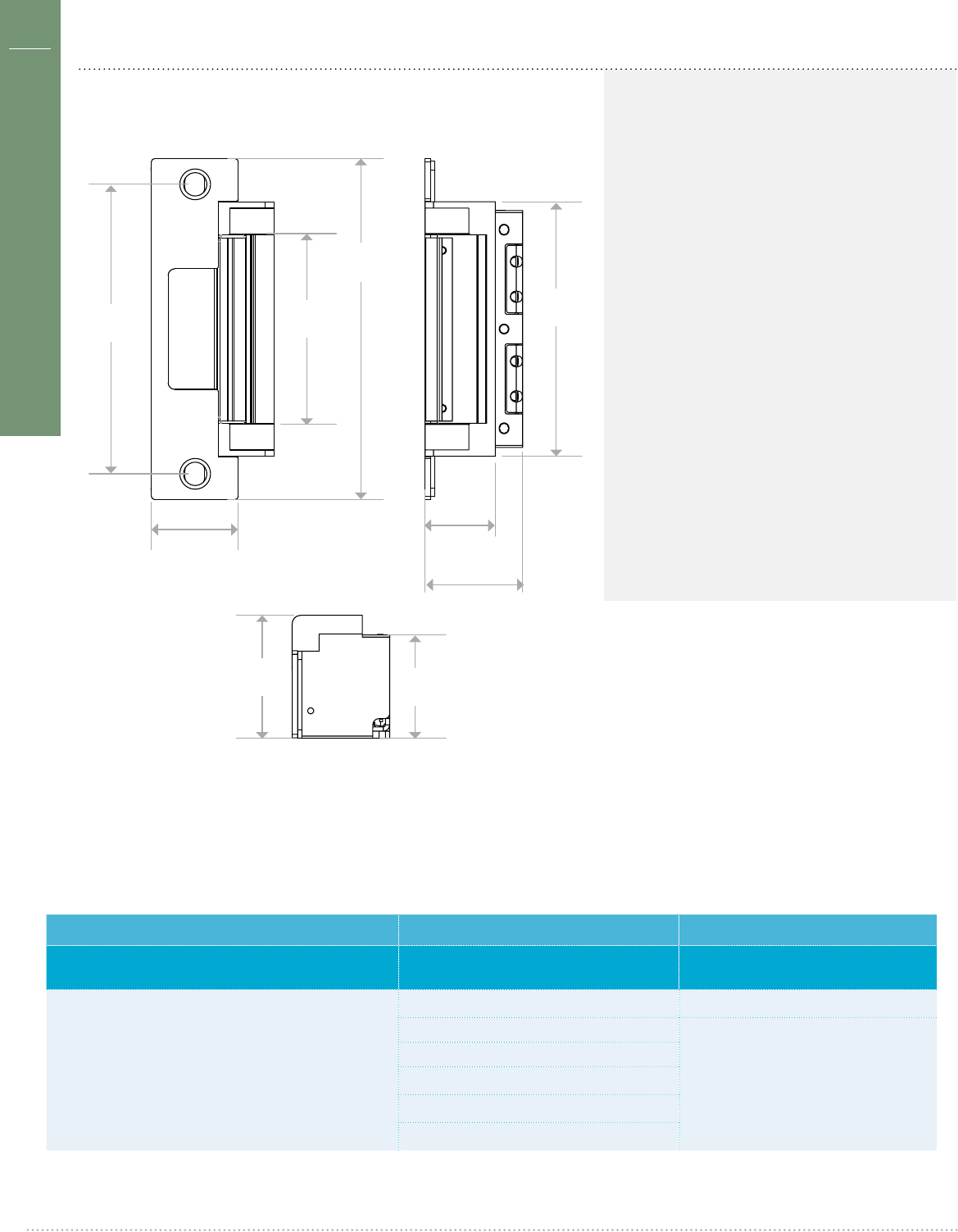

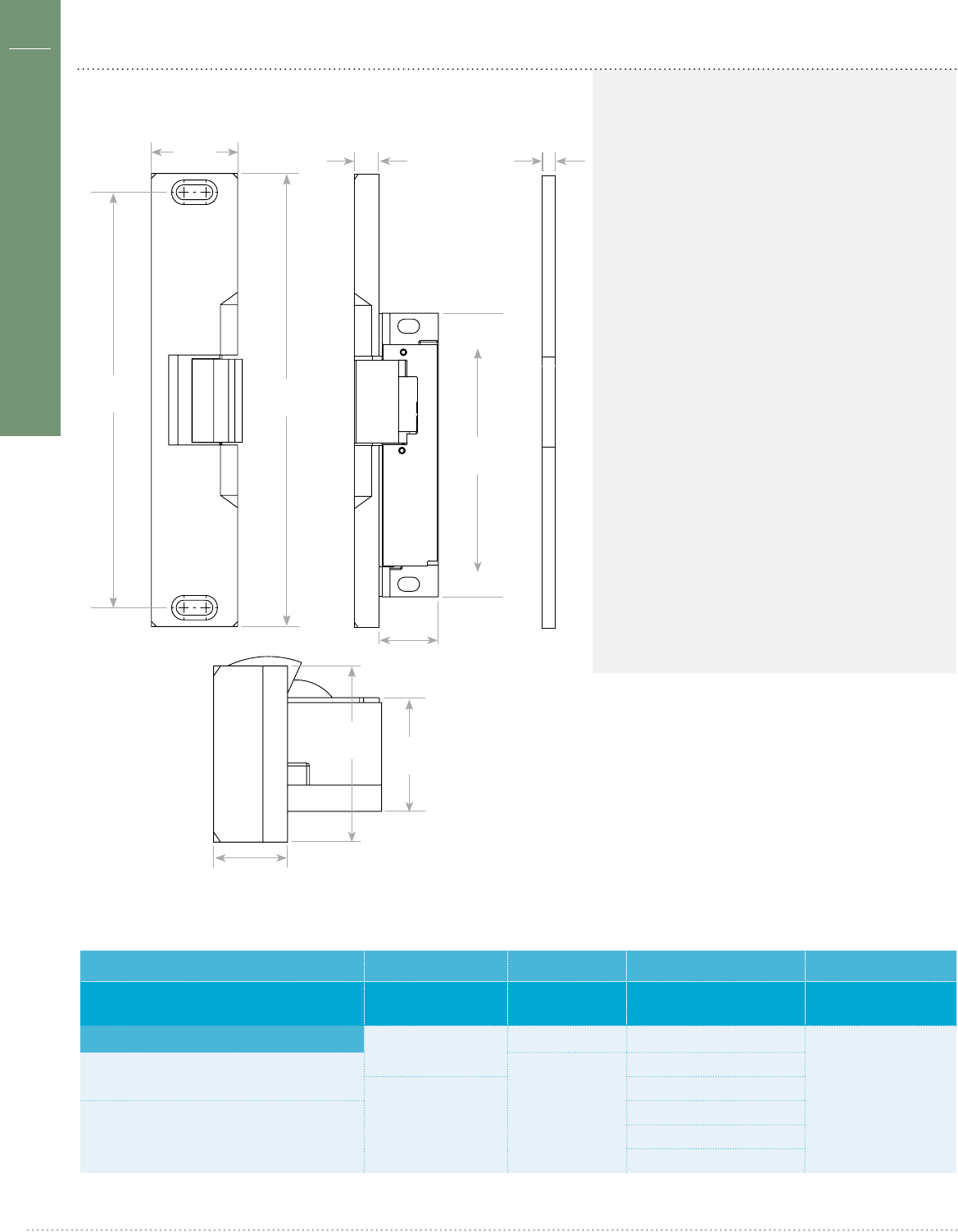

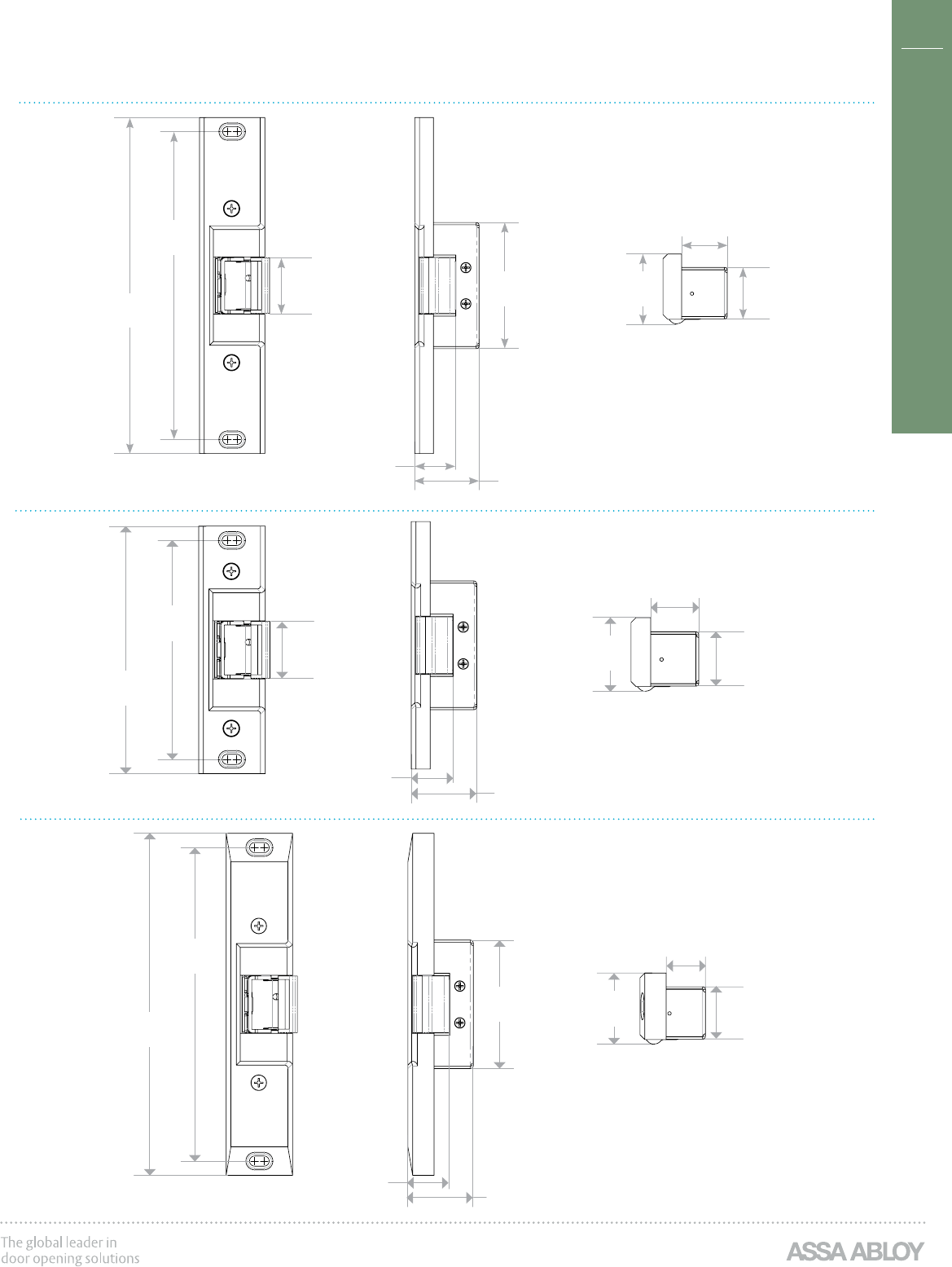

4-7/8"

[123.8mm]

4-1/8"

[105mm]

3-3/8"

[85mm]

1-11/16"

[42.7mm]

3-3/8"

[85mm]

2-1/16"

[52.4mm] 1-3/4"

[44.5mm]

Diagram shown with DB faceplate

Electric Strikes

HES 1006CS Smart Strike™

The Complete One Box Solution for all cylindrical

and mortise locksets, with or without a 1" deadbolt

The HES 1006CS Smart Strike includes a HES 1006 electric strike

body and SMART Pac® III plus faceplates and brackets that can

provide the same function as any of the following options:

J Option

K Option

KD Option

KM Option

H Option

HD Option

HM Option

HT Option

HTD Option

N Option

ND Option

NM Option

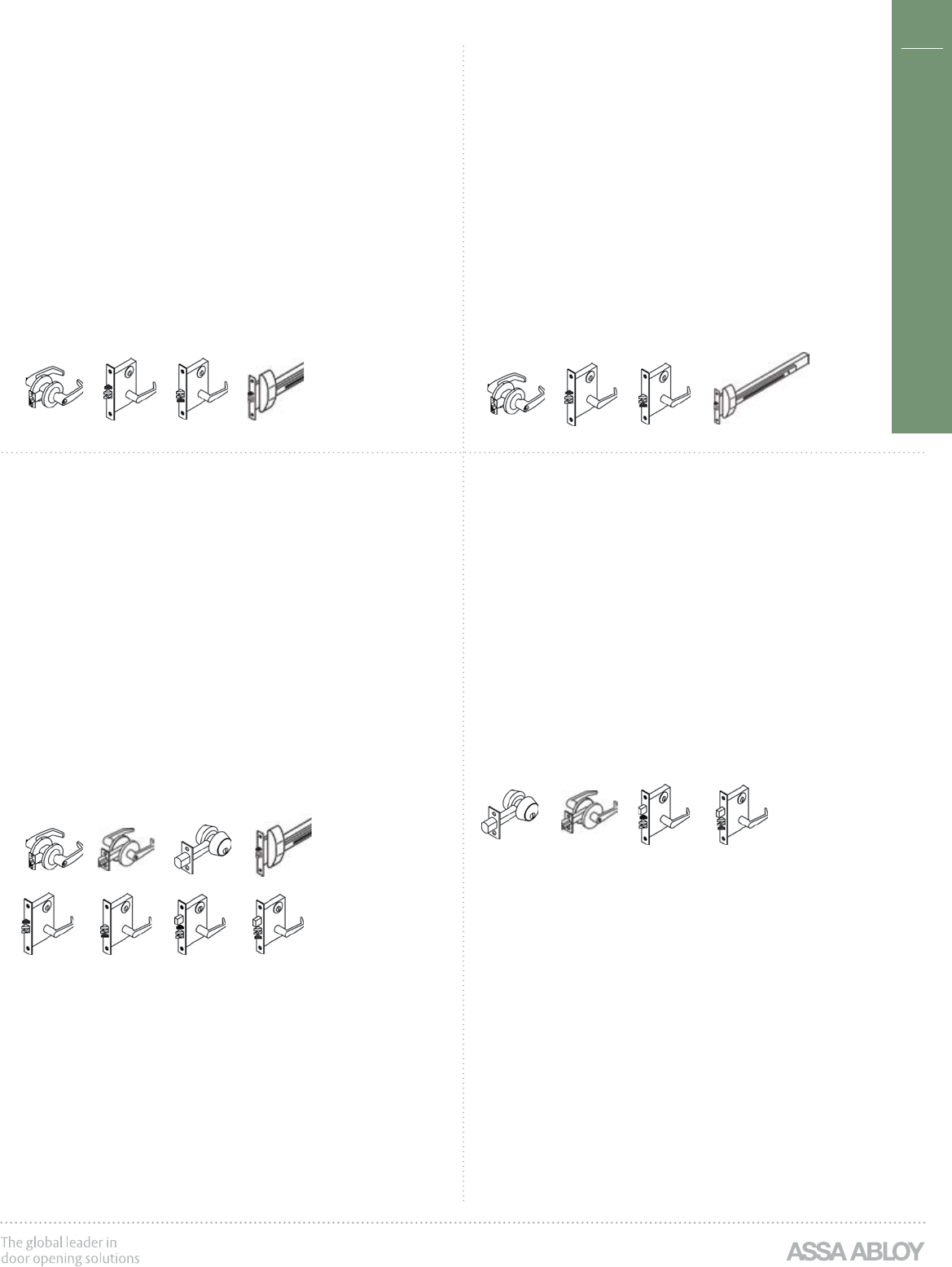

Compatible Locksets

HES 1006CAS Complete

for Recapture

The Complete One Box Solution

for deadbolt recapture

The HES 1006CAS Smart Strike includes a HES 1006 electric

strike body plus faceplates and brackets that can provide

the same function as any of the following options:

A Option

AD Option

AM Option

N Option

ND Option

NM Option

T Option

TD Option

Compatible Locksets

HES 1006CDB Complete

for Deadbolt Locks

The Complete One Box Solution for

all locksets with a 1" deadbolt

The HES 1006CDB includes the HES 1006 electric strike

body plus faceplates and brackets that provide the

same function as any of the following options:

H Option

HD Option

HM Option

HT Option

HTD Option

N Option

ND Option

NM Option

Compatible Locksets

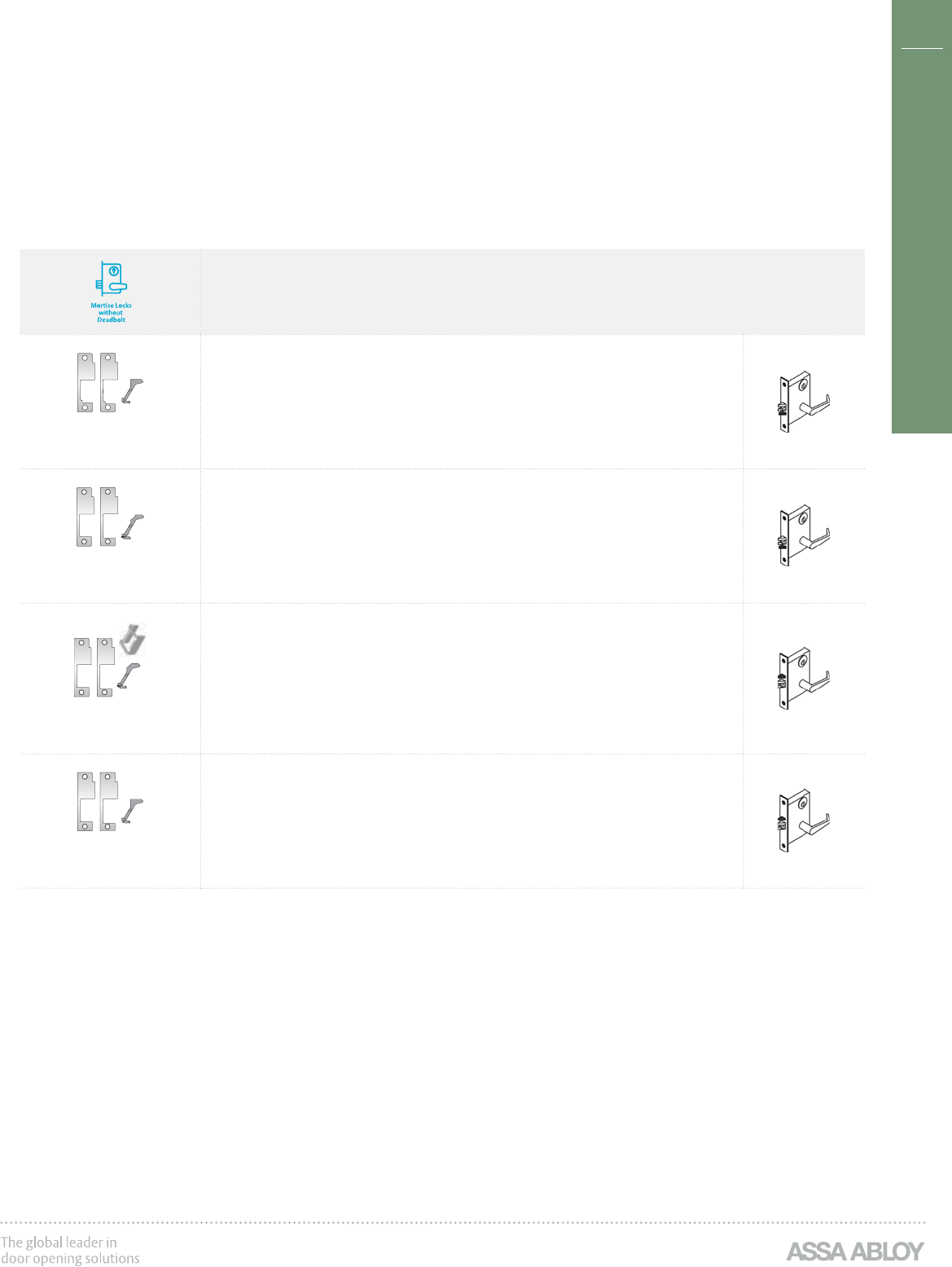

HES 1006CLB Complete

for Latchbolt Locks

The Complete One Box Solution for all

cylindrical and mortise locksets

The HES 1006CLB includes the HES 1006 electric strike

body plus faceplates and brackets that provide the

same function as any of the following options:

J Option

K Option

KD Option

KM Option

Compatible Locksets

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

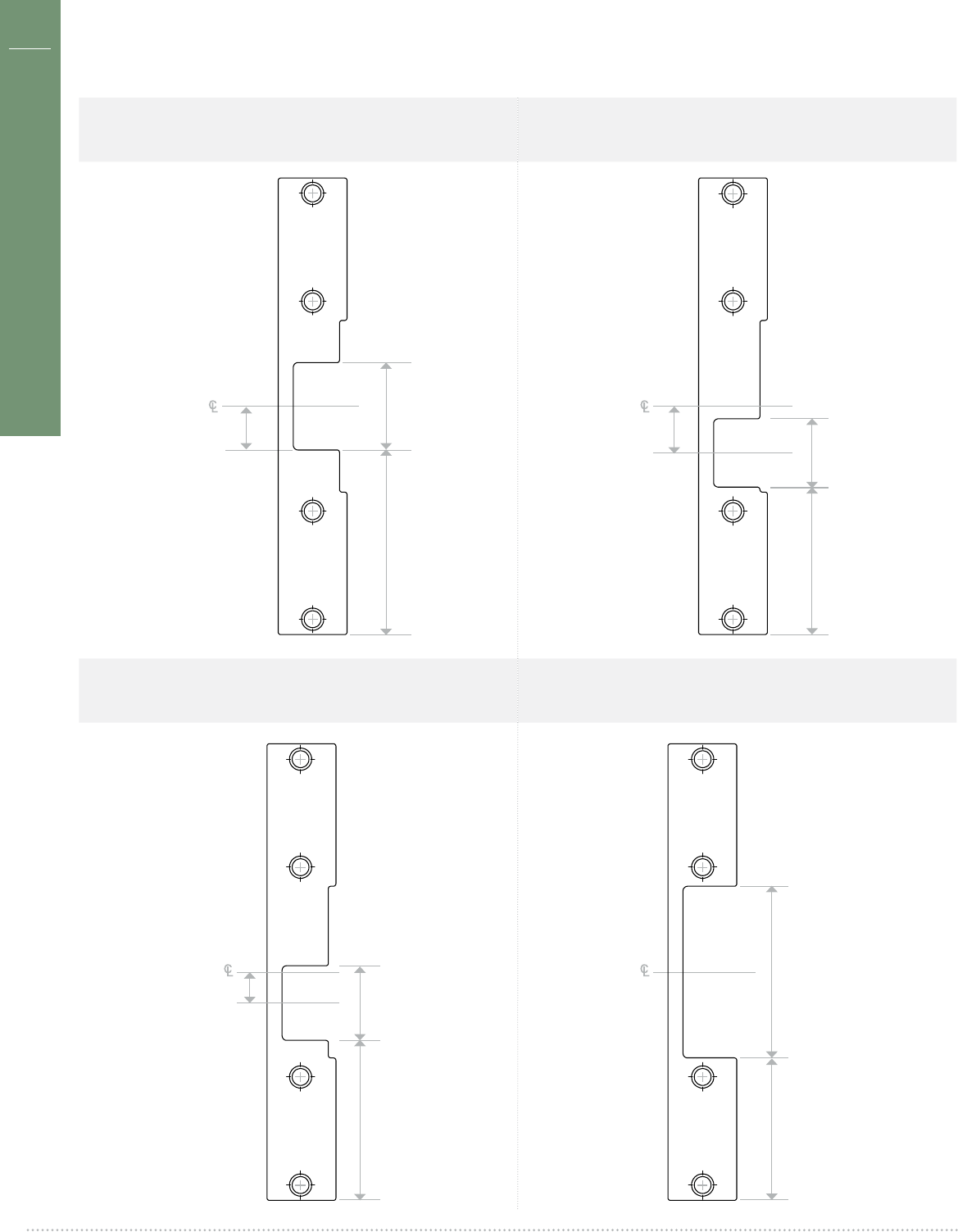

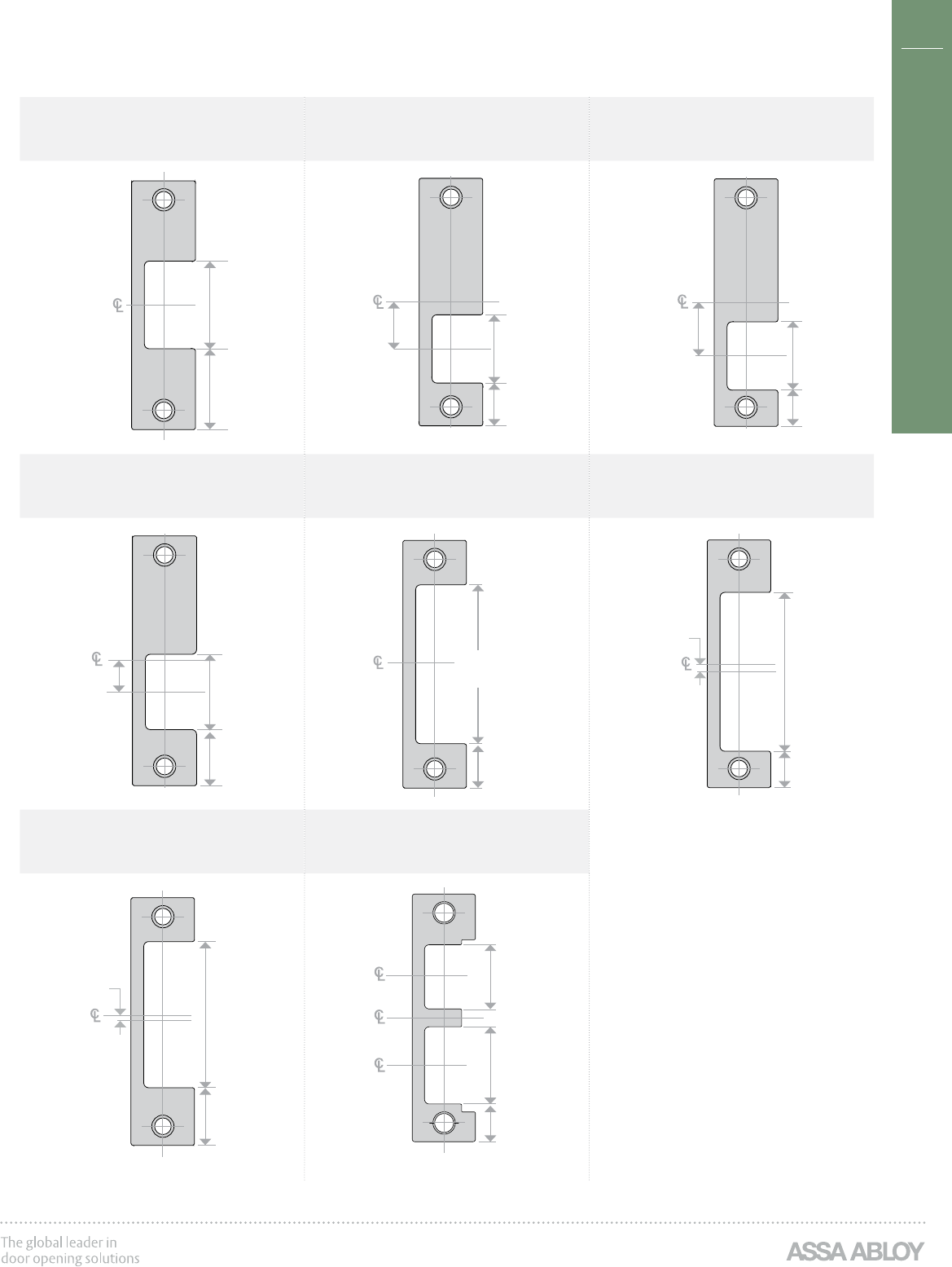

HES 1006 Series Faceplate Options

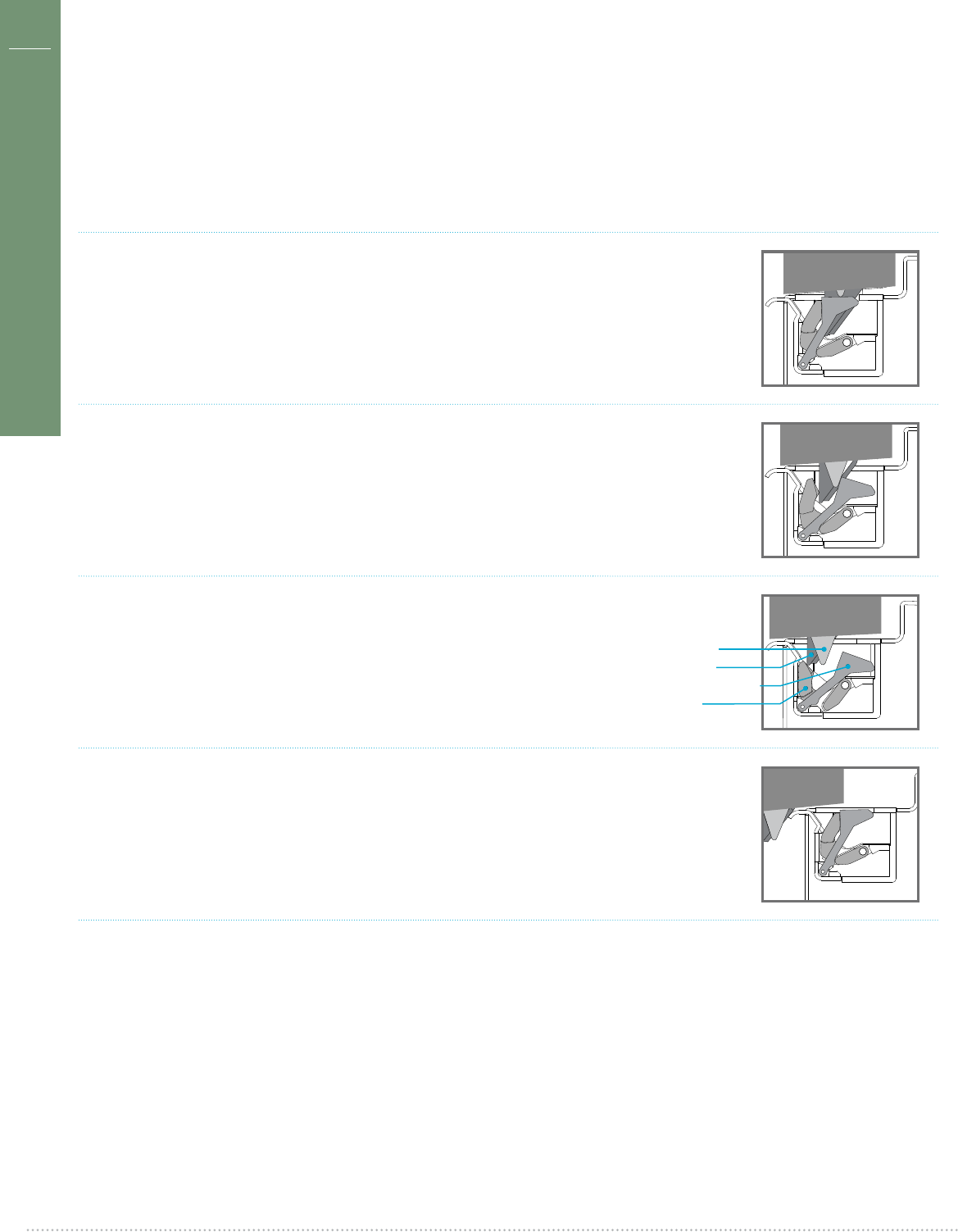

Operation: After releasing the latchbolt, the keeper returns to the locked position.

4-7/8" × 1-1/4"

[123.8mm x

31.75mm]

LB Option

The Latchbolt Solution: Includes all hardware to accommodate every

cylindrical and mortise lock up to a 3/4" [19mm] latchbolt

Replaces function of the J, K, KM and KD Options.

ANSI/BHMA Numbers: E09321, E09322, E09323

Operation: This deadbolt solution offers two modes of functionality; night

latch and lockout. (Functional operation modes described below.)

4-7/8" × 1-1/4"

[123.8mm x

31.75mm]

DB Option

The Deadbolt Solution: Includes all hardware to retain and release

all mortise and cylindrical locks with up to a 1" deadbolt

Mode 1: Night latch function. The deadbolt is retracted during traffic hours. The

latchbolt is released by the keeper and keeper returns to the locked position.

Mode 2: Lockout function. The electric strike will not release if the deadbolt is extended.

Replaces function of the N, ND, NM, H, HD, HM, HT, and HTD options

ANSI/BHMA Numbers: E09391, E09392, E09393, E09331, E09332, E09333

Operation: This deadbolt solution offers two modes of functionality;

night latch and lockout. (functional operation modes described below.)

9" × 1-3/8"

[123.8mm x 34.9mm]

DB-2 Option

The Deadbolt Solution: Includes all hardware to retain and release all mortise

and cylindrical locks with up to a 1" deadbolt. Wood applications.

Mode 1: Night latch function. The deadbolt is retracted during traffic hours.

The latchbolt is released by the keeper and keeper returns to the locked position.

Mode 2: Lockout function. The electric strike will not release if the deadbolt is extended.

Replaces the N-2 and H-2 options

ANSI/BHMA Numbers: E09391, E09392, E09393, E09331, E09332, E09333

Electric Strikes

HES 1006 Series Faceplate Options

Operation: Latchbolt and deadbolt are released by a single keeper. The keeper is

held open to recapture the latchbolt and deadbolt when the door is closed.

4-7/8" × 1-1/4"

[123.8mm x

31.75mm]

CAS Option

The Continuous Deadbolt Recapture Solution: Includes all

hardware to retain, release and recapture all mortise locks

and tubular E Option locks with up to a 1" deadbolt.

Mode: Normally extended deadbolt. Latchbolt and deadbolt are

released by a single keeper. The keeper is held open to recapture

the latchbolt and deadbolt when the door is closed.

Replaces the N, ND, NM, A, AM, AD, T and TD options

ANSI/BHMA Numbers: E09391, E09392, E09393, E09331, E09332, E09333

9" × 1-3/8"

[123.8mm x 34.9mm]

CAS-2 Option

The Deadbolt Solution: Includes all hardware to retain, release and recapture all

mortise locks and tubular locks with up to a 1" deadbolt. Wood applications.

Mode: Normally extended deadbolt. Latchbolt and deadbolt are

released by a single keeper. The keeper is held open to recapture

the latchbolt and deadbolt when the door is closed.

Replaces the N-2, A-2 and T-2 options

ANSI/BHMA Numbers: E09391, E09392, E09393, E09331, E09332, E09333

Operation: After releasing the latchbolt or deadbolt,

the keeper returns to the locked position.

4-7/8" × 1-1/4"

[123.8mm x

31.75mm]

E Option

For use with: Corbin Russwin Security Bolt, Weiserbolt

and normally extended 1" tubular deadbolts

ANSI/BHMA Numbers: E09391, E09392, E09393

Operation: The hookbolt is released by a single keeper. The keeper is held

open to recapture the latchbolt and hookbolt when the door is closed.

4-7/8" × 1-1/4"

[123.8mm x

31.75mm]

R Option

For use with: Adams Rite style hookbolt up to 1" throw

ANSI/BHMA Numbers: E09391, E09392, E09393, E09332, E09333

“For use with” information is offered as a recommendation only. Reference should be made to the lockset manufacturer

for proper installation instructions necessary to meet compatibility requirements.

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

HES 1006 Series Faceplate Options

“For use with” information is offered as a recommendation only. Reference should be made to the lockset manufacturer

for proper installation instructions necessary to meet compatibility requirements.

Operation: After releasing the latchbolt, the keeper returns to the locked position.

4-7/8" × 1-1/4"

[123.8mm x

31.75mm]

Z Option

For use with: Unit and Mono locks

ANSI/BHMA Numbers: E09321, E09322, E09323

Operation: After releasing the latchbolt, the keeper returns to the locked position.

9" × 1-3/8"

[123.8mm x 34.9mm]

J-2 Option

For use with: All cylindrical locks up to a 3/4" [19mm] latchbolt. Wood applications.

ANSI/BHMA Numbers: E09321, E09322, E09323

Operation: After releasing the latchbolt, the keeper returns to the locked position.

9" × 1-3/8"

[123.8mm x 34.9mm]

KM-2 Option

For use with: Mortise locksets up to a 3/4" [19mm] latchbolt. Wood applications.

ANSI/BHMA Numbers: E09321, E09322, E09323

Operation: After releasing the latchbolt, the keeper returns to the locked position.

4-7/8" × 1-1/4"

[123.8mm x

31.75mm]

J Option

For use with: Cylindrical locksets up to 3/4" [19mm] throw

and all locksets with center-lined bolts.

Compatible locksets: All brands of cylindrical latchbolts

ANSI/BHMA Numbers: E09321, E09322, E09323

Electric Strikes

HES 1006 Series Faceplate Options

“For use with” information is offered as a recommendation only. Reference should be made to the lockset manufacturer

for proper installation instructions necessary to meet compatibility requirements.

Operation: After releasing the latchbolt, the keeper returns to the locked position.

4-7/8" × 1-1/4"

[123.8mm x

31.75mm]

KD Option

For use with: Mortise locksets up to 3/4" [19mm] throw latchbolt.

Compatible locksets: Dorma 9500, Jackson, Sargent (7700 & 8100), Schlage, Yale (8700)

ANSI/BHMA Numbers: E09321, E09322, E09323

4-7/8" × 1-1/4"

[123.8mm x

31.75mm]

KM Option

For use with: Mortise locksets up to 3/4" [19mm] throw latchbolt.

Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin,

Falcon, Marks, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)

ANSI/BHMA Numbers: E09321, E09322, E09323

Operation: Lockout function. The electric strike will not release if the deadbolt

is extended. The deadbolt is retracted during traffic hours. The latchbolt

is released by the keeper. The keeper returns to the locked position.

4-7/8" × 1-1/4"

[123.8mm x

31.75mm]

HM Option

For use with: Mortise locksets with a 1" deadbolt.

Strike will not release when deadbolt is extended.

Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon

(45H, 47H, 34H & 37H), Marks, Omnia, PDQ , Sargent (7800, 8200 & 9200), Yale (8800)

ANSI/BHMA Numbers: 09391, E09392, E09393, E09331, E09332, E09333

4-7/8" × 1-1/4"

[123.8mm x

31.75mm]

HTD Option

For use with: Mortise locksets with a 1" deadbolt and no deadlatch or a center

positioned deadlatch. Strike will not release when deadbolt is extended.

Compatible locksets: Sargent (7700 & 8100), Schlage, Yale (8700)

ANSI/BHMA Numbers: E09391, E09392, E09393, E09331, E09332, E09333

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

HES 1006 Series Faceplate Options

For use with” information is offered as a recommendation only. Reference should be made to the lockset manufacturer

for proper installation instructions necessary to meet compatibility requirements.

Operation: Night latch function. The deadbolt is retracted during traffic hours.

The latchbolt is released by the keeper and keeper returns to the locked position.

4-7/8" × 1-1/4"

[123.8mm x

31.75mm]

ND Option

For use with: Mortise locksets with a deadbolt used for night latch function only.

Compatible locksets: Sargent (7700 & 8100), Schlage, Yale (8700)

ANSI/BHMA Numbers: E09391, E09392, E09393, E09331, E09332, E09333

4-7/8" × 1-1/4"

[123.8mm x

31.75mm]

NM Option

For use with: Mortise locksets with a deadbolt used for night latch function only.

Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H,

47H, 34H & 37H), Marks, Omnia, PDQ , Sargent (7800, 8200 & 9200), Yale (8800)

ANSI/BHMA Numbers: E09391, E09392, E09393, E09331, E09332, E09333

The following legacy faceplate options remain available for order.

Suggestions are provided below for more versatile options.

H Option replaced by HM Option

HD Option replaced by HTD Option

HT Option replaced by HTD Option

K Option replaced by KM Option

K-2 Option combined into KM-2 Option

A-2 Option replaced by CAS-2 Option

H-2 Option replaced by DB-2 Option

N-2 Option replaced by DB-2 Option

T-2 Option replaced by CAS-2 Option

Electric Strikes

HES 1006 Series Faceplate Dimensions

J, E

Faceplate Option K

Faceplate Option KD

Faceplate Option

Faceplate Option H, HT, N

Faceplate Option HD, ND

Faceplate Option

HM, NM

Faceplate Option R

Faceplate Option Z

Faceplate Option

7/8"

[22.23mm]

3-1/8"

[79.37mm]

5/32"

[3.97mm]

23/32"

[18.26mm]

3-1/8"

[79.37mm]

29/32"

[23.39mm]

27/32"

[21.46mm]

1-11/32"

[34.11mm]

1-1/16"

[27.3mm]

[18.22]

23/32"

1-11/32"

[34.11mm]

19/32"

[15.46mm]

1-3/32"

[27.81mm]

1-15/32"

[37. 29 mm]

1-23/32"

[43.64mm]

1-37/64"

[40.08mm]

1/8"

[3.17mm]

1-9/64"

[28.83mm]

2-7/8"

[73.02mm] 23/32"

[18.22mm]

27/32"

[21.46mm]

1-3/4"

[44.45mm]

5/16"

[7.79mm]

1-25/64"

[35.48mm]

1-15/32"

[37. 29 mm]

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

J-2

Faceplate Option K-2

Faceplate Option

KM-2

Faceplate Option N-2, H-2

Faceplate Option

HES 1006 Series Faceplate Dimensions

19/32"

[15.46mm]

3-1/8"

[79.37mm]

1-15/32"

[37. 29 mm]

2-25/32"

[71mm]

3-1/8"

[79.37mm]

29/32"

[23.39mm]

2-8/9"

[74.4mm]

1-11/32"

[34.11mm]

55/64"

[21.8mm]

3-5/8"

[92.22mm]

1-23/32"

[43.63mm]

Electric Strikes

The most advanced,

modular electric strike

that works with every

brand of cylindrical

or mortise locks

designed to work with

a 4-7/8" strike plate.

The HES 1500 Series Electric Strike sets a

new standard in the industry by offering

dynamic integrated adjustability and field

configurable options compatible with any

cylindrical or mortise lock. The modular design

of the platform makes stocking and installing

easier with interchangeable faceplates and

accessories. For the first time, the aesthetics

of an electric strike are complementary

to other surrounding door hardware and

blend in with the opening due to the fully

finished design, available in seven finishes.

Features

Standard Features

• Stainless steel construction

• Tamper resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail safe/fail secure

• Non-handed

• Interchangeable faceplates

and accessories

• Field replaceable components

• Fully finished faceplate,

keeper, case and trim

• Field adjustable integrated shim

• Strike body depth 1-3/8" [34.9mm]

• SecuriCare ten-year, no-fault,

no questions asked warranty

Optional Features

• LM Lock monitor

• DLM Dual lock monitors

• LMS Lock monitor and strike monitor

• DLMS Dual lock monitors

and strike monitor

Accessories

• 157 Torx screws

• HESCUT-MTK Metal template kit

• 1500-104-xxx Lip extension

trim adapter (finish to match)

• 1500-106-xxx 4500 adapter and

trim enhancer kit (finish to match)

• OPT-1SRK Spring replacement kit

• OPT-1LM Single lock monitor

• OPT-1DLM Dual lock monitors

• MOD-1SOL Solenoid

replacement module

HES® 1500

Electric Strike

Works with all brands of

cylindrical and mortise

locksets without a deadbolt Also available in

a Complete One

Box Solution

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 listed

• RoHS compliant

• UL 10C fire rated, 3-hour single

door (fail secure only)

• UL 10C fire rated, 1-1/2 hour double

door (fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• California Fire Marshal listed

• ANSI/SDI A250.13 windstorm resistant

• Florida Building Code approved

TAS 201, 202, 203

• ANSI-ASTM E330

• Sustainability documentation

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

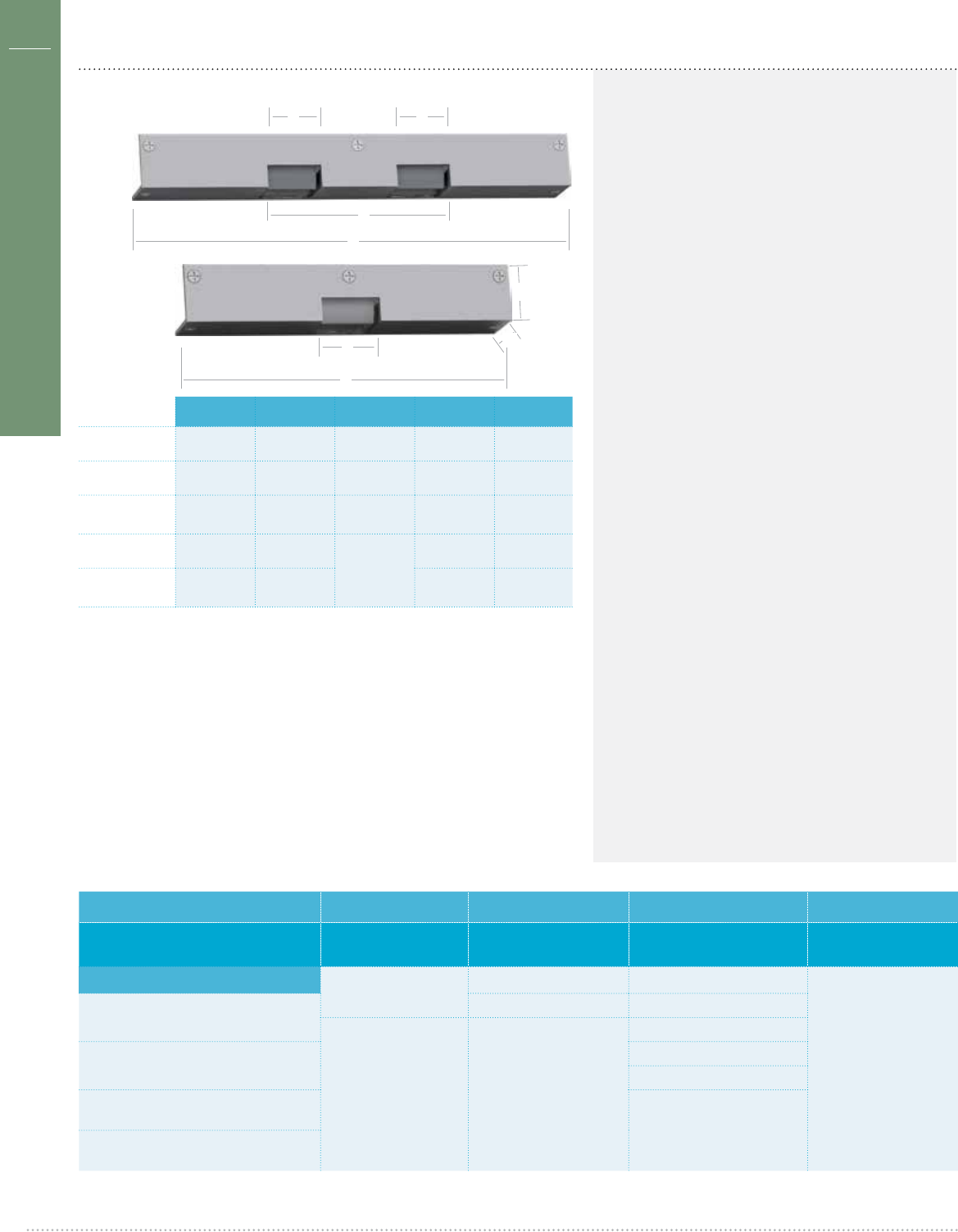

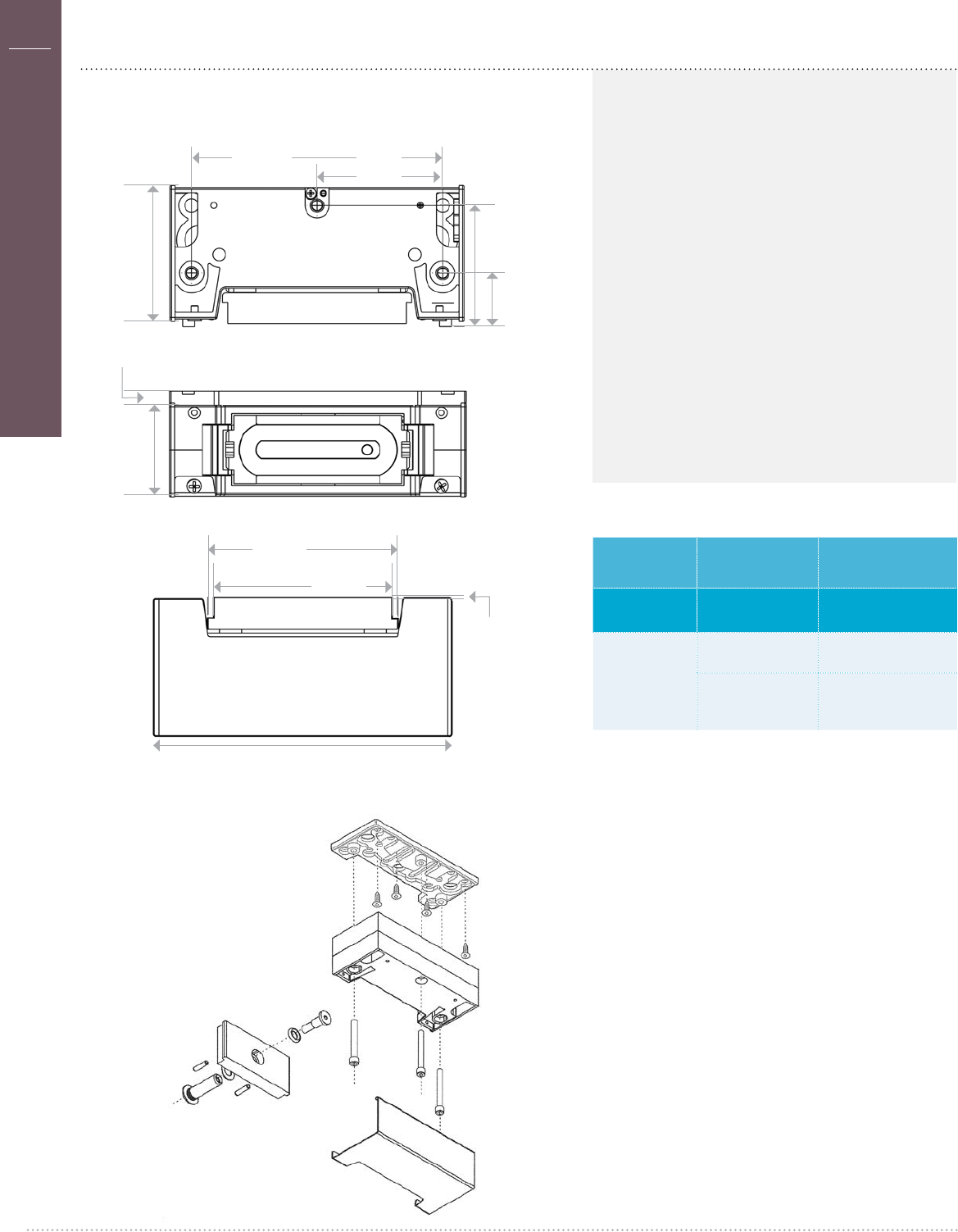

Dimensions

How to Order

Series Model Finish* Option (s)

1500 – – 630 – LM

1500 Universal

Electric Strike;

faceplate

option kits

ordered

separately

C* Complete Electric Strike;

includes 1LB faceplate

kit for latchbolts

605 Bright Brass LM Lock Monitor

606 Satin Brass DLM Dual Lock Monitor

612 Satin Bronze LMS Lock Monitor and Strike Monitor

613 Bronze Toned DLMS Dual Lock Monitors and Strike Monitor

613E Dark Oxidized Satin Bronze Powder

629 Bright Stainless Steel

630 Satin Stainless Steel

BSP Black Suede Powder

*Complete Pacs are only available in the 630 finish

HES 1500 Electric Strike

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

1-1/4"

[32mm]

4-7/8"

[123.8mm]

4-1/8"

[105mm] 3-1/4"

[82mm]

3-3/8"

[95mm]

1-3/4"

[44mm]

1-5/8"

[41mm]

1-1/2"

[38mm]

1-1/8"

[29mm]

1-3/8"

[35mm]

Electric Strikes

The HES 1600

Series electric strike

accommodates up

to a 1" deadbolt with

enhanced vertical

cavity spacing.

The HES 1600 Series Electric Strike sets a new

standard in the industry by offering dynamic

integrated adjustability and field configurable

options compatible with any cylindrical or

mortise lock. The modular design of the

platform makes stocking and installing

easier with interchangeable faceplates and

accessories. For the first time, the aesthetics

of an electric strike are complementary

to other surrounding door hardware and

blend in with the opening due to the fully

finished design, available in seven finishes.

Features

Standard Features

• Stainless steel construction

• Tamper resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail safe/fail secure

• Non-handed

• Interchangeable faceplates

and accessories

• Field replaceable components

• Fully finished faceplate,

keeper, case and trim

• Field adjustable integrated shim

• Strike body depth 1-5/8" [41.3mm]

• SecuriCare ten-year, no-fault,

no questions asked warranty

Optional Features

• LM Lock monitor

• DLM Dual lock monitors

• LMS Lock monitor and strike monitor

• DLMS Dual lock monitors

and strike monitor

Accessories

• 157 Torx screws

• HESCUT-MTK Metal template kit

• 1600-104-xxx Lip extension

trim adapter (finish to match)

• 1600-106-xxx 1006 adapter and

trim enhancer kit (finish to match)

• OPT-1SRK Spring replacement kit

• OPT-1LM Single lock monitor

• OPT-1DLM Dual lock monitors

• MOD-1SOL Solenoid

replacement module

HES® 1600

Electric Strike

Works with all brands of

cylindrical and mortise locksets,

with or without a deadbolt Also available in

a Complete One

Box Solution

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

HES 1600 Electric Strike

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 listed

• RoHS compliant

• UL 10C fire rated, 3-hour single door

(fail secure only)

• UL 10C fire rated, 1-1/2 hour double door

(fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• California Fire Marshal listed

• ANSI/SDI A250.13 windstorm resistant

• Florida Building Code approved TAS 201, 202, 203

• ANSI-ASTM E330

Frame Application

• Metal

• Wood

Electrical (DC Continous Duty)

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

1-1/4"

[32mm]

4-7/8"

[124mm]

4-1/8"

[105mm] 3-1/4"

[82mm] 3-3/8"

[95mm]

1-3/8"

[35mm]

1-5/8"

[41mm]

How to Order

Series Model Finish* Option (s)

1600 – CS – 630 – LM

1600 Universal Electric

Strike; Faceplate

option kits ordered

separately

CS* Complete Electric Strike;

includes 1LB faceplate kit

for latchbolts and 1DB

faceplate kit for deadbolts

605 Bright Brass LM Lock Monitor

606 Satin Brass DLM Dual Lock Monitor

612 Satin Bronze LMS Lock Monitor and

Strike Monitor

613 Bronze Toned

CLB* Complete Electric Strike for

Latchbolt Locks; includes 1LB

faceplate kit for latchbolts

613E Dark Oxidized Satin Bronze Powder DLMS Dual Lock Monitors

and Strike Monitor

629 Bright Stainless Steel

630 Satin Stainless Steel OPT-1LM Single Lock Monitor

BSP Black Suede Powder OPT-1DLM Dual Lock Monitors

CDB* Complete Electric Strike for

Deadbolt Locks; includes 1DB

faceplate kit for deadbolts

*Complete Pacs are only available in the 630 finish

Dimensions

1-3/4"

[44mm]

1-5/8"

[41mm]

1-1/2"

[38mm]

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

Electric Strikes

HES 1600CDB Complete

for Deadbolt Locks

The Complete One Box Solution for

all locksets with a 1" deadbolt.

The HES 1600CDB includes a HES 1600 electric strike

body and the 1DB faceplate kit for deadbolts.

1N Option

1NM Option

1ND Option

1NTD Option

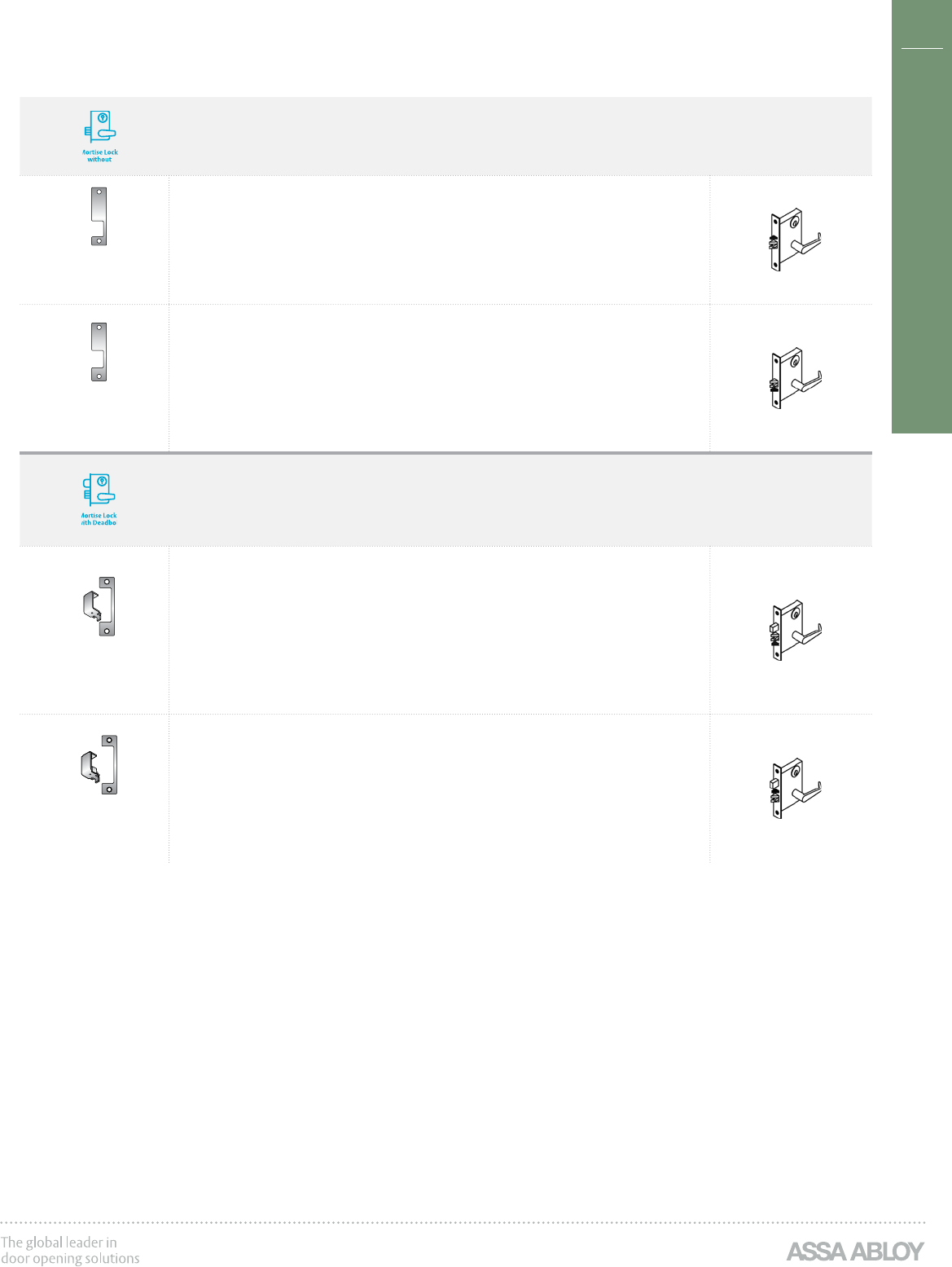

Compatible Locksets

HES 1500C Complete

Electric Strike

For all cylindrical and mortise

locksets with 3/4" latchbolt.

The HES 1500C includes a HES 1500 electric strike

body and the 1LB faceplate kit for latchbolts.

1J Option

1K Option

1KM Option

1KD Option

Compatible Locksets

HES 1600CS Complete

Electric Strike

The Complete One Box Solution for all cylindrical

and mortise locksets, with or without a 1" deadbolt.

The HES 1600CS includes a HES 1600 electric strike body, the 1LB

faceplate kit for latchbolts and the 1DB faceplate kit for deadbolts.

1J Option

1K Option

1KM Option

1KD Option

1N Option

1NM Option

1ND Option

1NTD Option

Compatible Locksets

HES 1600CLB Complete

for Latchbolt Locks

The Complete One Box Solution for all

cylindrical and mortise locksets.

The HES 1600CLB includes a HES 1600 electric strike

body and the 1LB faceplate kit for latchbolts.

1J Option

1K Option

1KM Option

1KD Option

Compatible Locksets

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

HES 1500 & 1600 Series Faceplate Options

Operation: After releasing the latchbolt, the keeper returns to the locked position.

4-7/8" × 1-1/4"

[123.8mm x

31.75mm]

1LB Option

The Latchbolt Solution: Includes the hardware to accommodate every cylindrical

and mortise lock up to a 3/4" [19mm] latchbolt. For metal frame applications.

Operation: After releasing the latchbolt, the keeper returns to the locked position.

9" × 1-3/8"

[123.8mm x

34.9mm]

1LB-2 Option

The Latchbolt Solution: Includes the hardware to accommodate every cylindrical

and mortise lock up to a 3/4" [19mm] latchbolt. For wood frame applications.

Operation: This deadbolt solution offers two modes of functionality; night

latch and lockout. (Functional operation modes described below.)

4-7/8" × 1-1/4"

[123.8mm x

31.75mm]

1DB Option (HES 1600 Only)

The Deadbolt Solution: Includes all hardware to retain, and release all mortise

locks, and tubular deadbolts up to a 1" latchbolt. For metal frame applications.

Mode 1: Night latch function. The deadbolt is retracted during traffic hours.

The latchbolt is released by the keeper and keeper returns to the locked position.

Mode 2: Lockout function. The electric strike will not release if the deadbolt is extended.

Operation: This deadbolt solution offers two modes of functionality; night latch

and normally extended deadbolt. (Functional operation modes described below.)

9" × 1-3/8"

[123.8mm x

34.9mm]

1DB-2 Option (HES 1600 Only)

The Deadbolt Solution: Includes all hardware to retain, and release all mortise

locks, and tubular deadbolts up to a 1" latchbolt. For wood frame applications.

Mode 1: Night latch function. The deadbolt is retracted during traffic hours.

The latchbolt is released by the keeper and keeper returns to the locked position.

Mode 2: Lockout function. The electric strike will not release if the deadbolt is extended.

Electric Strikes

1-9/64"

[28.83mm]

2-7/8"

[73.02mm] 15/16"

[23.8mm]

13/16"

[20.5mm]

1/8"

[3.17mm]

23/32"

[18.22mm]

1-1/2"

[38.1mm]

1-1/4"

[32mm]

9/32"

[15.46mm]

29/32"

[23.39mm] 1-1/16"

[27.3mm]

HES 1500 & 1600 Series Faceplate Dimensions

Faceplate Option 1K

Faceplate Option 1KD

Faceplate Option

1KM

Faceplate Option 1N

Faceplate Option 1ND

Faceplate Option

1NM

Faceplate Option 1NTD

Faceplate Option

1-23/32"

[43.64mm]

1-11/32"

[34.11mm] 1-11/32"

[34.11mm]

1-37/64"

[40.08mm] 27/32"

[21.46mm] 23/32"

[18.22mm]

23/32"

[18.22mm]

3/18"

[79.37mm]

1-15/32"

[37. 29 mm]

1-3/32"

[27.81mm]

5/32"

[3.97mm]

7/8"

[22.23mm]

3/18"

[79.37mm]

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

HES 1500 & 1600 Series Faceplate Dimensions

1J-2

Faceplate Option 1KM-2

Faceplate Option

1N-2

Faceplate Option

55/64"

[21.8mm]

19/32"

[15.46mm]

3-53/64"

[97. 2mm] 3-1/8"

[79.37mm]

2-25/32"

[71mm]

1-23/32"

[43.7mm]

1-15/32"

[37. 29 mm]

3-1/8"

[79.37mm]

Electric Strikes

The low profile,

heavy-duty,

fire rated solution.

The HES 4500C Series Electric Strike

is designed to maintain 1/2" drywall

penetration even in a 2" UL 10C fire rated

frame. The HES 4500C features a low profile

1-3/8" depth and heavy-duty stainless steel

construction. Its strength is derived from a

unique keeper pin locking design, enabling

the HES 4500C to exceed the ratings of the

frame, door and locking hardware. The HES

4500C includes two faceplates designed to

accommodate either cylindrical or mortise

locksets up to a 3/4" throw latchbolt.

Features

Standard Features

• Stainless steel construction

• Tamper resistant

• Static strength 1,500 lbs

• Dynamic strength 100 ft-lbs

• Endurance 1 million cycles

• Field selectable fail safe/fail secure

• Two faceplates provided to

accommodate a variety of locksets

• Non-handed

• Internally mounted solenoid

• Accommodates up to a

3/4" [19mm] latchbolt

• Strike body depth 1-3/8" [34.9mm]

• Plug-in connector

• Trim enhancer

• Full keeper shims for

horizontal adjustment

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• LBM Latchbolt monitor

• LBSM Latchbolt strike monitor

Accessories

• 4500-105 Trim enhancer - black

• 4500 -110 Replacement strike plate

• 4500-131 Filler block – 7/16" [11mm]

• 150 Strike latch guard

• HESCUT-MTK Metal template kit

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

• 4501-1/2 1/2" [12.7mm]

stackable lip extension

• 4501-1 1" [25.4mm]

stackable lip extension

HES® 4500C

Electric Strike

Complete Pac

Works with cylindrical and mortise

locksets up to a 3/4" throw latchbolt

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

HES 4500C Electric Strike Complete Pac

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

• UL 294 listed

• UL 10C fire rated, 3-hour (fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• California Fire Marshal listed

Frame Application

• Metal

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

Dimensions

How to Order

Series Finish Option (s)

4500C – 630 – LBM

4500C Complete Electric Strike; includes faceplates

for cylindrical and mortise locks

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass LBSM Latchbolt Strike Monitor

612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

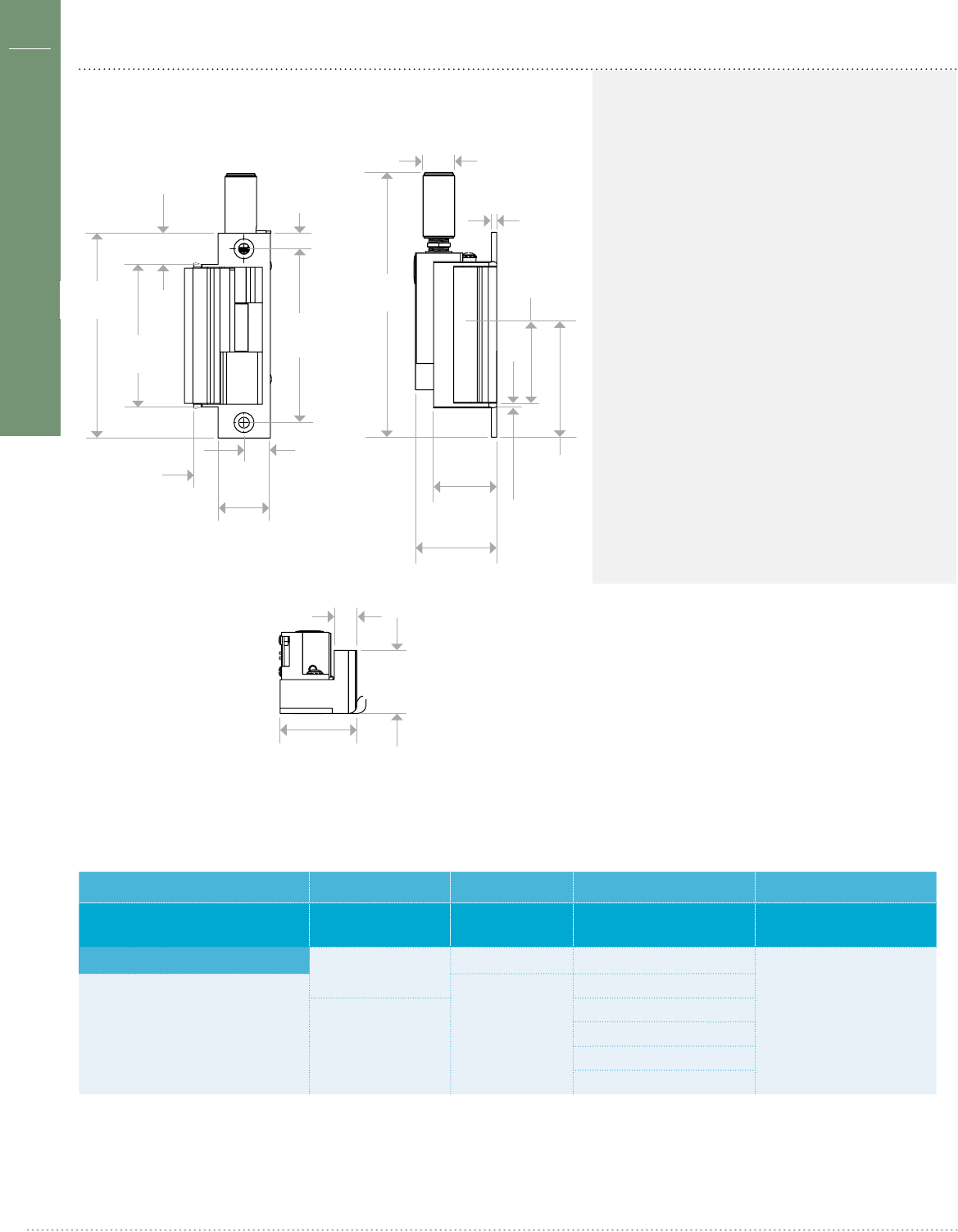

Diagram shown with cylindrical faceplate

1-1/4"

[32mm]

4-7/8"

[123mm]

2-11/16"

[69mm]

4-1/8"

[105mm]

[25.4mm]

3-5/8"

[92mm]

1-3/8"

[35mm]

1-3/4"

[44mm] 1-1/2"

[37mm]

Electric Strikes

The Grade 1,

low-profile solution for

cylindrical locksets.

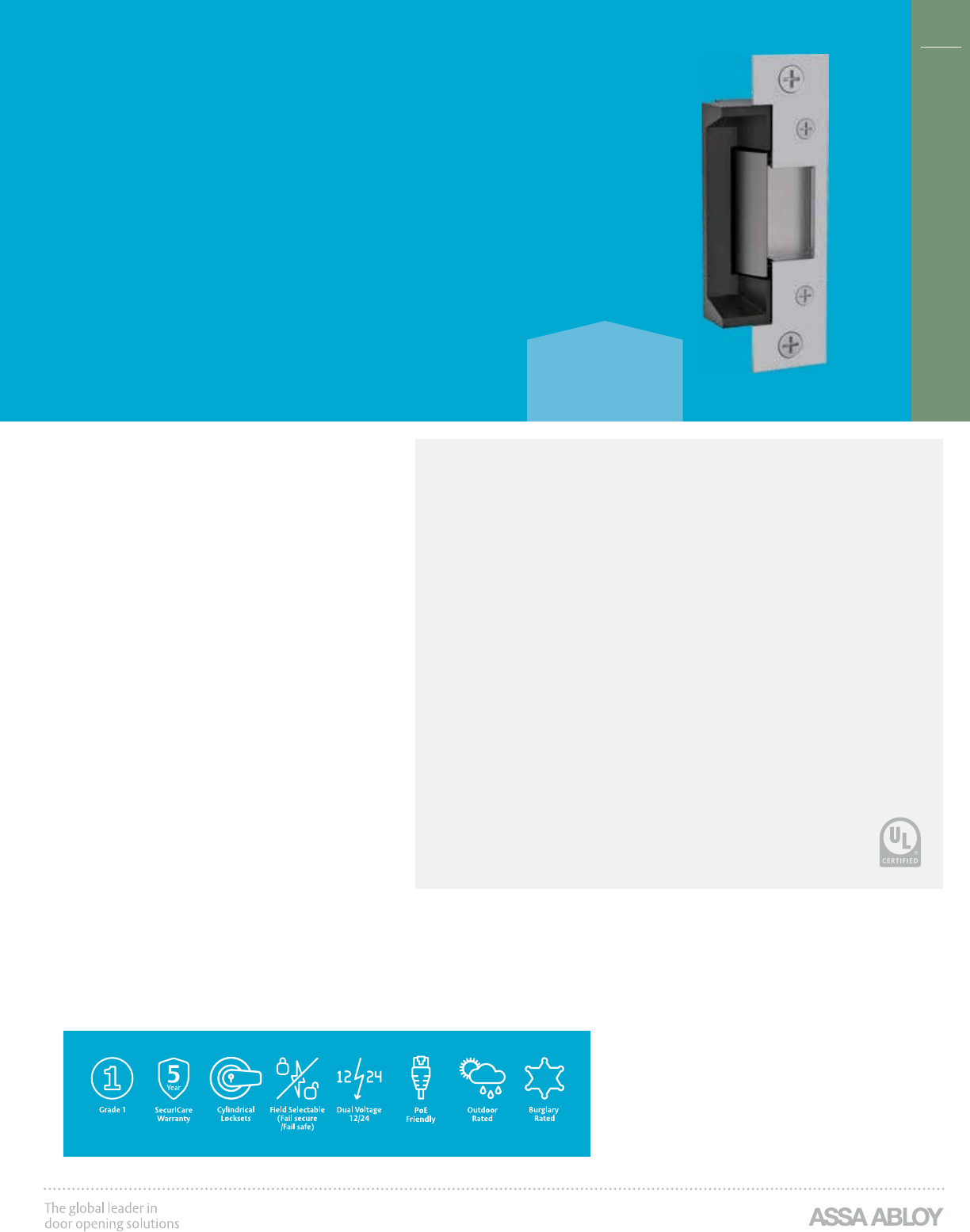

The HES 5000 Series Electric Strike is a

compact, high performance electric strike

designed for low profile openings where

there is limited space behind the jamb. Its

strength is derived from a unique keeper

pin locking design, enabling the HES 5000

to exceed the ratings of the frame, door

and locking hardware. This field selectable

fail safe/fail secure unit is easy to install and

accommodates latchbolts up to 5/8" throw.

Features

Standard Features

• Tamper resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail safe/fail secure

• Non-handed

• Internally mounted solenoid

• Accommodates 1/2" – 5/8"

[12.7mm – 15.9mm] latchbolt

(5/8" [15.9mm] with

1/8" [3.2mm] door gap)

• Strike body depth 1-1/16" [27.3mm]

• Plug-in connector

• Trim enhancer included

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• LBM Latchbolt monitor

Accessories

• 150 Strike latch guard

• HESCUT-MTK Metal template kit

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

• 5104-1/2 1/2" [12.7mm]

stackable lip extension

• 5104-1 1" [25.4mm]

stackable lip extension

• 5104-1-1/4 1-1/4" [32mm]

stackable lip extension

HES® 5000

Electric Strike

Works with cylindrical locksets

up to a 5/8" throw latchbolt

Also available in

a Complete One

Box Solution

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 listed

• RoHS compliant

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

Dimensions

HES 5000 Electric Strike

How to Order

Series Model Finish Option (s)

5000 – – 630 – LBM

5000 Universal Electric Strike;

faceplates ordered separately

C* Complete Electric Strike; includes

the 501 and 501A faceplates

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass

612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

BLK Black

*Complete Pacs are only available in the 630 finish

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

Diagram shown with 501 Option

1-1/32"

[26mm]

4-1/8"

[104.8mm] 3-3/8"

[85.5mm]

4-7/8"

[123.4mm]

11/16"

[17.1mm] 1-1/16"

[27.3mm]

3-3/8"

[85.5mm]

1-3/4"

[44.5mm] 1-3/8"

[34.9mm]

Electric Strikes

The Grade 1 solution

with horizontal

adjustability.

The HES 5200 Series Electric Strike features

an in-frame horizontal adjustable design

to simplify the installation process. This

feature allows the installer to easily adjust the

electric strike opening to accommodate the

horizontal position of the latchbolt after the

strike has been installed. This field selectable

fail safe/fail secure unit is easy to install and

accommodates latchbolts up to 3/4" throw.

Features

Standard Features

• Tamper resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail safe/fail secure

• In-frame horizontal adjustment

• Non-handed

• Internally mounted solenoid

• Accommodates 5/8" – 3/4"

[15.9mm – 19mm] latchbolt

(3/4" [19mm] with 1/8" [3.2mm] door gap)

• Strike body depth 1-3/16" [30.2mm]

• Plug-in connector

• Trim enhancer included

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• LBM Latchbolt monitor

• LBSM Latchbolt strike monitor

Accessories

• 5200-500 Filler block for

retrofit applications

• 150 Strike latch guard

• HESCUT-MTK Metal template kit

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

• 5204-1/2 1/2" [12.7mm]

stackable lip extension

• 5204 -1 1" [25.4mm]

stackable lip extension

• 5204 -1-1/4 1-1/4" [31.8mm]

stackable lip extension

HES® 5200

Electric Strike

Works with cylindrical locksets

up to a 3/4" throw latchbolt

Also available in

a Complete One

Box Solution

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

HES 5200 Electric Strike

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

• UL 294 listed

• RoHS compliant

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

Dimensions

How to Order

Series Model Finish Option (s)

5200 – – 630 – LBM

5200 Universal Electric Strike;

Faceplates ordered separately

C* Complete Electric Strike; includes

the 501 and 501A faceplates

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass LBSM Latchbolt Strike

Monitor

612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

BLK Black

*Complete Pacs are only available in the 630 finish

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

Diagram shown with 501 Option

1-5/16"

[33.5mm]

1-21/32"

[41.9mm]

27/32"

[21.46mm]

3-3/8"

[85.5mm]

1-3/16"

[30.16mm]

1-1/16"

[27.3mm]

1-1/4"

[31.75mm]

4-1/8"

[104.8mm]

4-7/8"

[123.83mm]

3-3/8"

[85.5mm]

Electric Strikes

HES 5000/5200 Series Faceplate Options

Operation: After releasing the latchbolt, the keeper returns to the locked position.

4-7/8" × 1-1/4"

[123.8mm × 31.75mm]

Square corners and

flat faceplate

501 Option

For use with: Cylindrical locksets in ANSI metal jambs

ANSI/BHMA Numbers: E09321, E09322, E09323

4-7/8" × 1-1/4"

[123.8mm × 31.75mm]

Radius corners and

flat faceplate

501A Option

For use with: Cylindrical locksets or spring latches in

aluminum frames. Includes universal mounting tabs.

ANSI/BHMA Numbers: E09321, E09322, E09323

7-15/16" × 1-7/16"

[201.6mm × 36.5mm]

Radius corners and flat faceplate

502 Option

For use with: Cylindrical locksets or spring latches in

aluminum frames. Includes universal mounting tabs.

ANSI/BHMA Numbers: E09321, E09322, E09323

6-7/8" × 1-1/4"

[174.6mm × 31.75mm]

Radius corners and flat faceplate

503 Option

For use with: Cylindrical locksets or spring latches in

aluminum frames. Includes universal mounting tabs.

ANSI/BHMA Numbers: E09321, E09322, E09323

10" × 1-3/8"

[254mm × 34.9mm]

Radius corners and flat faceplate

504 Option

For use with: Cylindrical locksets. Four-point mounting

for wood installations

ANSI/BHMA Numbers: E09321, E09322, E09323

“For use with” information is offered as a recommendation only. Reference should be made to the lockset manufacturer

for proper installation instructions necessary to meet compatibility requirements.

Electric Strikes

What is Preload?

When pressure is applied to some models of electric strikes, the

solenoid may not have the ability to mechanically release the keeper

because the pressure binds it against the latch. Even a small amount

of this preload can cause problems in the functioning of some electric

strikes. Door preload can prevent the smooth unlocking of the electric

strike or even disable a strike – preventing a door from being opened.

Preload and Building Security

An electric strike failing to release when energized

is not the only problem preload can cause.

If the power to the electric strike is interrupted, either by

accidental or deliberate means, strong preload pressure

can cause a strike in fail safe mode not to function.

If a serious preload condition is present when the strike is activated,

the pressure will move the door slightly into an open position,

leaving the door unlocked and the building vulnerable.

Some of the underlying problems that cause door preload, such as

pressure from air conditioning, are not practically or easily corrected.

What Causes Preload?

A number of conditions can cause door preload including:

— Stack pressure caused by HVAC systems

— Misaligned strike and lockset

— Warped wood doors; damaged or bent metal doors

— Thick door seals or heavy weatherstripping

A strike that does not open or opens only intermittently could be showing

signs of a preload problem. If preload pressure causes a strike or multiple

strikes to malfunction, many access and security issues may arise.

Electric Strikes

The dual, preload

solution for cylindrical

latchbolts and rim

exit devices.

The HES 7000 Series Electric Strike offers

two solutions to address preloaded doors.

The in-frame adjustable feature allows the

installer to easily adjust the electric strike

opening to accommodate the horizontal

position of the latchbolt after installation.

The preload release function allows

the electric strike to operate smoothly

throughout the year under varying loads

on the door caused by air conditioning

pressure, changes in the weather,

warped doors or doors with weather

stripping that may often bind standard

electric strikes. This unit accommodates

cylindrical latchbolts up to 5/8" throw and

rim exit latchbolts up to 3/4" throw.

Features

Standard Features

• Stainless steel construction

• Tamper resistant

• Static strength 1,500 lbs

(791 and 792 options)

• Dynamic strength 70 ft-lbs

(791 and 792 options)

• Static strength 1,000 lbs

(783S, 786S, and 789S options)

• Dynamic strength 50 ft-lbs

(783S, 786S, and 789S options)

• Endurance 1 million cycles

• Field selectable fail safe/fail secure

• Accommodates preload

(up to 15 lbs: fail secure only)

• Horizontal adjustment

• Non-handed

• Internally mounted solenoid

• Strike body depth 1-11/16" [42.9mm]

• Plug-in connector

• Trim enhancer (791 and 792 options)

• Pocket adapter

(786S and 789S options)

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• LBM Latchbolt monitor

Accessories

• 7000-SMB Surface mounting box

(783S and 789S options)

• 7000-104 Lip extension trim adapter

• 7000-105 Trim enhancer (goof plate)

• 7000-106 Keeper pocket adapter

• 7000-107 Full keeper shim pack

• 7000-108 1/8" [3.2mm] spacer plate

(783S and 789S options, black finish only)

• 7000-110 Replacement strike plate

(791 and 792 option)

• 150 Strike latch guard

• HESCUT-MTK Metal template kit

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

• 791-XXX, 792-XXX

Available in all finishes

• 783S-XXX, 786S-XXX, 789S-XXX

Available in 630, 613E

HES® 7000

Electric Strike

Works with cylindrical latchbolts

up to 5/8" throw and rim exit

devices up to a 3/4" throw Also available in

a Complete One

Box Solution

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

(791 & 792 options)

• ANSI/BHMA A156.31, Grade 2

(783S, 786S & 789S options)

• UL 1034 burglary-resistant listed

• UL 294 listed

Frame Application

• Metal

• Wood

• Aluminum

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC

• 450 mA at 12 VDC/250 mA at 24 VDC

Dimensions

How to Order

Series Model Finish Option (s)

7000 – – 630 – LBM

7000 Universal Electric Strike;

Faceplates ordered separately

C* Complete Electric Strike; includes

the 791 and 792 faceplates

630 Satin Stainless Steel LBM Latchbolt Monitor

*Complete Pacs are only available in the 630 finish

HES 7000 Electric Strike

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

1-3/16"

[29.9mm]

3-3/8"

[85.9mm]

1-3/4"

[44.3mm]

1-3/8"

[35mm]

4-1/8"

[104.8mm] 3-3/8"

[85.7mm]

4-7/8"

[123.4mm]

1-1/8"

[28.5mm]

1-11/16"

[42.7mm]

Electric Strikes

1-7/8"

[47.6mm]

HES 7000 Series Rim Exit Device Options

786S Option

789S Option

6-1/2"

[165.1mm]

5-3/4"

[146.1mm]

1-1/2"

[38.9mm]

1-3/4"

[43.7mm]

1-1/8"

[28mm]

[228.6mm]

8-1/4"

[209.6mm]

3-3/8"

[85.9mm]

1-3/4"

[43.7mm]

1-1/8"

[28mm]

783S Option

1-3/8"

[35mm]

1-1/4"

[31mm]

1-7/8"

[47.6mm] 1-3/8"

[35mm]

1-1/32"

[26.3mm]

8-1/4"

[209.6mm]

1-1/2"

[38.9mm]

3-3/8"

[85.9mm]

1-3/4"

[43.7mm]

1-1/8"

[28mm]

1-7/8"

[47.4mm] 1-3/8"

[35mm]

1-1/4"

[31mm]

[228.6mm]

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

HES 7000 Series Faceplate Options

Operation: After releasing the latchbolt, the keeper returns to the locked position.

4-7/8" × 1-1/4"

[123.8mm x 31.75mm]

791 Option

For use with: Cylindrical locksets up to 5/8" [15.9mm] throw

ANSI/BHMA Numbers: E09321, E09322, E09323

7-15/16" × 1-7/16"

[201.6mm × 36.5mm]

792 Option

For use with: Cylindrical locksets up to 5/8" [15.9mm] throw

ANSI/BHMA Numbers: E09321, E09322, E09323

Operation: After releasing Pullman latch, the keeper returns to the locked position.

9" × 1-3/4" × 11/16"

[228.6mm × 44.5mm

× 17. 5m m]

783S Option

For use with: Rim exit devices in metal jambs with up to a 3/4" [19mm] Pullman latch

Compatible locksets: American Device, Arrow,

Dor-O-Matic, Monarch, Precision, Sargent, Von Duprin, Yale

ANSI/BHMA Numbers: E09311, E09312, E09313

6-1/2" × 1-3/4" × 1/2"

[165.1mm × 44.5mm

× 12.7mm]

786S Option

For use with: Rim exit devices in aluminum jambs and surface mounted vertical rod

exit devices with up to a 3/4" [19mm] Pullman latch. Includes keeper pocket adapter.

Compatible locksets: American Device, Arrow, Dor-O-Matic,

Jackson, Monarch, Precision, Sargent, Von Duprin, Yale

ANSI/BHMA Numbers: E09311, E09312, E09313

9" × 1-3/4" × 1/2"

[228.6mm × 44.5mm

× 12.7mm]

789S Option

For use with: Rim exit devices in aluminum jambs with up to a 3/4" [19mm]

Pullman latch. Includes keeper pocket adapter.

Compatible locksets: American Device, Arrow, Dor-O-Matic,

Jackson, Monarch, Precision, Sargent, Von Duprin, Yale

ANSI/BHMA Numbers: E09311, E09312, E09313

“For use with” information is offered as a recommendation only. Reference should be made to the lockset manufacturer

for proper installation instructions necessary to meet compatibility requirements.

Electric Strikes

The Grade 1, fire rated,

preload solution.

The HES 7501 Series Electric Strike is ideal

for fire rated applications with preload

conditions caused by a warped or misaligned

door, weather stripping, a smoke seal

or any other condition that could cause

door bind. The heavy duty stainless steel

construction provides the strength and

durability required to accommodate

fire rated latchbolts up to 3/4" throw.

Features

Standard Features

• Stainless steel construction

• Tamper resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail safe/fail secure

• Accommodates preload

(up to 15lbs: fail secure only)

• Non-handed

• Internally mounted solenoid

• Strike body depth 1-11/16" [42.86mm]

• Plug-in connector

• Trim enhancer

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• LBM Latchbolt monitor

Accessories

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

• 150 Strike latch guard

• HESCUT-MTK Metal Template Kit

HES® 7501

Electric Strike

Complete Pac

Works with cylindrical locksets

up to a 3/4" throw latchbolt Also available in

a Complete One

Box Solution

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

• UL 10C fire rated, 3-hour (fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• UL 294 listed

Frame Application

• Metal

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC

• 450 mA at 12 VDC/250 mA at 24 VDC

Operation: After releasing the latchbolt, the keeper returns to the locked position.

4-7/8" × 1-1/4" x 1-11/16"

[123.8mm x 31.75mm x

42.9mm]

HES 7501

For use with: Cylindrical locksets up to a 3/4" [19mm] throw

ANSI/BHMA Numbers: E09321, E09322, E09323

Dimensions

How to Order

Series Finish Option (s)

7501 – 630 – LBM

7501 Universal Electric Strike; includes

faceplate for cylindrical locksets

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass

612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

HES 7501 Electric Strike Complete Pac

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

1-1/2"

[38.1mm]

3-3/8"

[85.3mm]

1-11/16"

[42.6mm]

3-3/8"

[85.1mm]

4-7/8"

[123.6mm]

1-1/4"

[31.5mm]

4-1/8"

[104.8mm]

1-13/16"

[46.7mm] 1-3/8"

[34.5mm]

Electric Strikes

The concealed electric

strike solution for

cylindrical locksets.

The HES 8000 Series Electrical Strike is a

compact, high performance electric strike

featuring a unique concealed design for use

with cylindrical locksets. No cutting on the

frame is required. Simply remove the existing

strike plate, adjust the vertical alignment

feature to the latchbolt centerline and install.

Its strength is derived from a unique keeper

pin locking design, enabling the HES 8000

to exceed the ratings of the frame, door

and locking hardware. This field selectable

fail safe/fail secure unit is easy to install and

accommodates latchbolts up to 5/8" throw.

Features

Standard Features

• No cutting on frame required

• Vertical adjustability to

accommodate door sag

and misalignment

• Tamper resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail safe/fail secure

• Non-handed

• Internally mounted solenoid

• Accommodates 1/2" – 5/8"

[12.7mm – 15.9mm]

cylindrical latchbolt

(5/8" [15.9mm] with

1/8" [3.175mm] door gap)

• Strike body depth 1-1/16" [27.3mm]

• Strike body width 1-7/16" [36.5mm]

• Plug-in Connector

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• LBM Latchbolt monitor

Accessories

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

HES® 8000

Electric Strike

Works with cylindrical

locksets and accommodates

latchbolts up to 5/8" throw Also available in

a Complete One

Box Solution

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 listed

• RoHS compliant

Frame Application

• Metal

• Wood

• Aluminum

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

Dimensions

How to Order

Series Model Finish Option (s)

8000 – – 630 – LBM

8000 Universal Electric

Strike; faceplates

ordered separately

C* Complete Electric Strike;

includes the 801 and

5801A faceplates

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass

612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

BLK Black

*Complete Pacs are only available in the 630 finish

HES 8000 Electric Strike

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

Diagram shown with 801 Option

1-7/16"

[36.5mm]

1-1/16"

[27.3mm]

3-3/8"

[85.5mm]

4-1/8"

[104.8mm]

4-7/8"

[123.4mm]

Electric Strikes

The fire rated,

concealed solution for

cylindrical locksets.

The HES 8300 Series Electric Strike is a fire

rated, compact, high performance electric

strike featuring a unique concealed design

for use with cylindrical locksets. No cutting

on the frame is required. Simply remove

the existing ANSI strike plate, adjust the

vertical alignment feature to the latchbolt

centerline and install. Its strength is derived

from a unique keeper pin locking design,

enabling the HES 8300 to exceed the ratings

of the frame, door and locking hardware.

This unique electric strike is easy to install

and complies with NFPA 80-07 guidelines for

retrofit into fire rated frames. The HES 8300

accommodates latchbolts up to 5/8" throw.

Features

Standard Features

• Complies with the guidelines for

retrofit into fire rated frames

• No cutting on frame required

for 4-7/8" ANSI prep

• Vertical adjustability to

accommodate door sag

and misalignment

• Tamper resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail safe/fail secure

• Non-handed

• Accommodates 1/2" – 5/8"

[12.7mm – 15.9mm] cylindrical

latchbolt

(5/8" [15.9mm] with

1/8" [3.175] door gap)

• Strike body depth 1-1/16" [27.3mm]

• Plug-in connector

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• LBM Latchbolt monitor

Accessories

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

HES® 8300

Electric Strike

Works with cylindrical

locksets and accommodates

latchbolts up to 5/8" throw Also available in

a Complete One

Box Solution

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 listed

• RoHS compliant

• UL 10C fire rated, 3-hour single door

(fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• NFPA 80-07 compliant

Frame Application

• Metal

• Wood

• Aluminum

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

Dimensions

How to Order

Series Model Finish Option (s)

8300 – – 630 – LBM

8300 Universal Electric

Strike; faceplates

ordered separately

C* Complete Electric Strike;

includes the 801 and

801A faceplates

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass

612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

BLK Black

*Complete Pacs are only available in the 630 finish

HES 8300 Electric Strike

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

Diagram shown with 801 Option

1-1/16"

[27.3mm]

3-3/8"

[85.5mm]

1-7/16"

[36.5mm]

4-1/8"

[104.8mm]

4-7/8"

[123.4mm]

Electric Strikes

HES 8000/8300 Series Faceplate Options

Operation: After releasing the latchbolt, the keeper returns to the locked position.

4-7/8" × 1-1/4"

[123.8mm x 31.75mm]

Square corners

801 Option

For use with: Cylindrical locksets in ANSI metal jambs,

with latchbolts up to 5/8" [15.9mm] throw.

ANSI/BHMA Numbers: E05031, E09321, E09322, E09323

4-7/8" × 1-1/4"

[123.8mm x 31.75mm]

Radius corners and

flat faceplate

801A Option

For use with: Cylindrical locksets with latchbolts up to 5/8" [15.9mm]

throw. Includes universal mounting tabs. Aluminum frames.

ANSI/BHMA Numbers: E05031, E09321, E09322, E09323

4-7/8" × 1-1/4"

[123.8mm x 31.75mm]

1/4" extended lip

801E Option

For use with: Extended lip for ‘knock-down’ style frame installations.

For use with cylindrical latchbolts up to 5/8" [15.9mm] throw.

ANSI/BHMA Numbers: E05031, E09321, E09322, E09323

7-15/16" × 1-7/16"

[201.6mm x 36.5mm]

802 Option

For use with: Cylindrical locksets with latchbolts up to 5/8" [15.9mm]

throw. Includes universal mounting tabs. Aluminum frames.

ANSI/BHMA Numbers: E05031, #E09321, E09322, E09323

6-7/8" × 1-1/4"

Radius corners and

flat faceplate

803 Option

For use with: Cylindrical locksets with latchbolts up to 5/8" [15.9mm]

throw. Includes universal mounting tabs. Aluminum frames.

ANSI/BHMA Numbers: E05031, E09321, E09322, E09323

9" × 1-3/8"

[123.8mm x 34.9mm]

Radius corners and

flat faceplate

805 Option

For use with: Cylindrical locksets. Latchbolts up to 5/8" [15.9mm]

throw. Four point mounting for wood installations.

ANSI/BHMA Numbers: #E05031, #E09321, #E09322, #E09323

“For use with” information is offered as a recommendation only. Reference should be made to the lockset manufacturer

for proper installation instructions necessary to meet compatibility requirements.

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Reduce your install

time by evaluating

your opening

The HES 8000/8300 Electric Strikes can be adjusted

to compensate for frame and door irregularities.

Sometimes, adjusting the frame and door back

to industry standards is not an option. Here are

some tips to quickly compensate for frame twist

and determine the condition of the latchbolt.

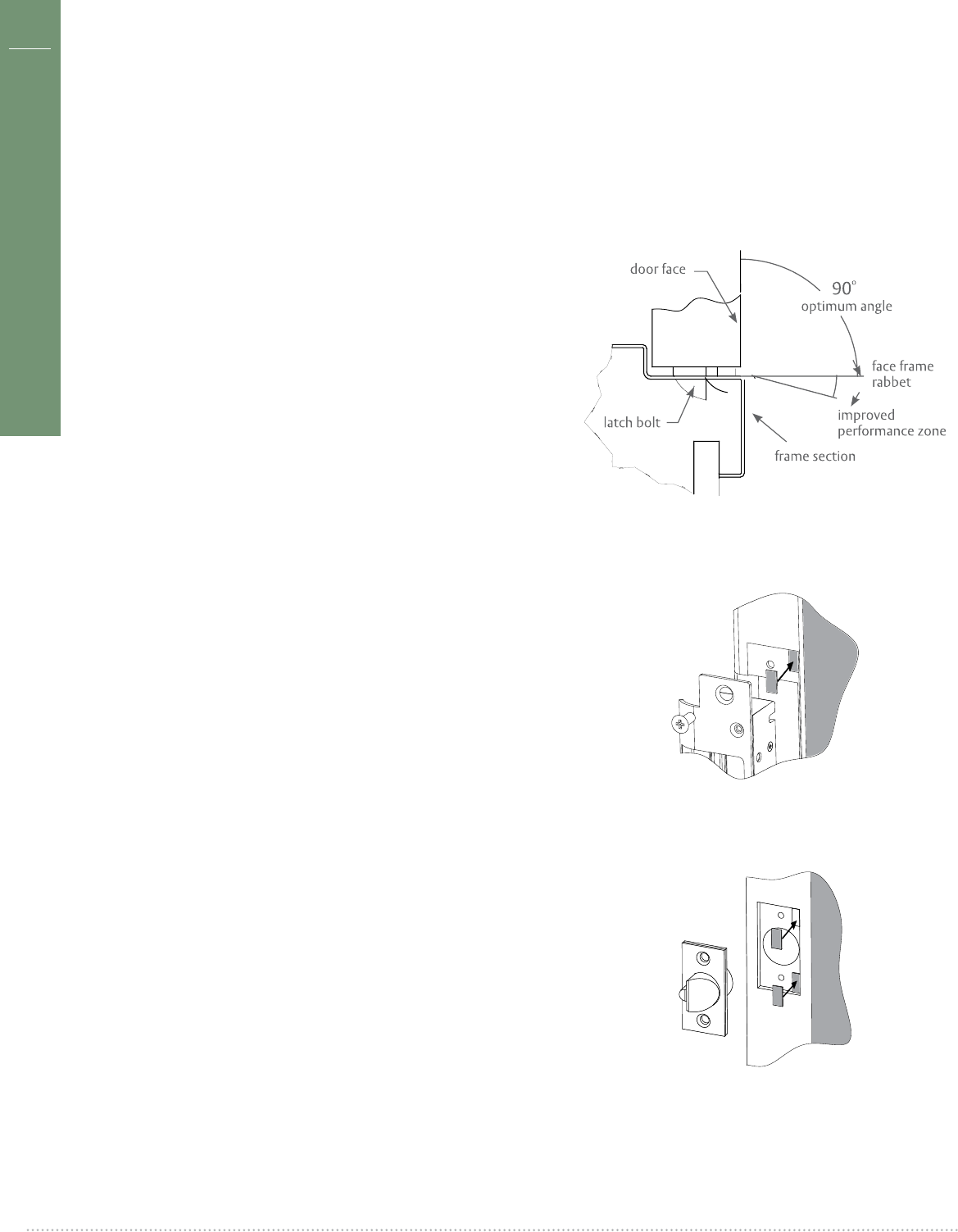

Measure Frame Twist

One way to measure frame twist is to place a carpenter square

on the stop and the face of the door. If the angle is less than 90

degrees, the 45 degree ramp angle of the HES 8000/8300 is

steepened and may need to be corrected as shown (Figure 1).

We recommend you check the condition of the latchbolt prior

to installing the 8000/8300. Poorly constructed, worn out or

damaged latchbolts may not slide along a ramp at any angle. To

check the condition of your latchbolt, we recommend applying a

slight force to the tip of the latchbolt (about 45 degrees to the door

face). Make sure the latchbolt can be pushed up into the door.

Compensate for Frame Twist

When a frame is twisted, the relationship between the face of a

closed door and of the inside face of the frame (i.e., rabbet) may

not meet the 90 degree industry standard. Untrue frames and

doors impact latchbolt wear and the force required to exit, so we

recommend you ensure that the angle is between 90–95 degrees.

If manipulating the frame is not possible, we recommend

placing several shims included under the top and bottom (stop

side) of the faceplate (Figure 2). This effectively increases the

8000/8300 ramp angle and compensates for frame twist. You

can also compensate for frame twist by placing shims under

the top and bottom (bevel side) of the latchbolt (Figure 3).

Figure 2

Figure 3

Figure 1

Electric Strikes

The fire rated,

concealed electric

strike solution for

mortise locksets.

The HES 8500 Series Electric Strike is a fire

rated, compact, high performance electric

strike featuring a unique concealed design

for use with mortise locksets without a

deadbolt. Designed for fast, convenient

installation, the HES 8500 installs with little or

no modification to the frame. Simply remove

the existing strike plate, remove the dust

box, and install. Its strength is derived from

a unique keeper pin locking design, enabling

the HES 8500 to exceed Grade 1 ratings.

This unique electric strike complies with

NFPA 80-07 guidelines for retrofit into fire

rated frames. The HES 8500 accommodates

mortise latchbolts up to 3/4" throw.

Features

Standard Features

• No cutting to the face of the frame

• Stainless steel construction

• Tamper resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail safe/fail secure

• Non-handed

• Metal frame

• Internally mounted solenoid

• Accommodates 3/4" [19mm]

mortise latchbolts

• Strike body depth 1-5/16" [33.3mm]

• Plug-in connector

• Full pocket shims for

horizontal adjustment

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• LBM Latchbolt monitor

• LBSM Latchbolt strike monitor

• 4 faceplate option kits to

work with most mortise

locksets (sold separately)

Accessories

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

• 150 Strike latch guard

HES® 8500

Electric Strike

Works with mortise locksets

without a deadbolt up to

a 3/4" throw latchbolt Also available in

a Complete One

Box Solution

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 listed

• RoHS compliant

• UL 10C fire rated, 3-hour single door

(fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• NFPA 80-07 compliant

Frame Application

• Metal

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC/VAC

• 240 mA at 12 VDC/120 mA at 24 VDC

• PoE friendly

Dimensions

How to Order

Series Model Finish Option (s)

8500 – – 630 – LBM

8500 Universal Electric

Strike; faceplates

ordered separately

C* Complete Electric Strike;

includes the 801 and

801A faceplates

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass LBSM Latchbolt Strike Monitor

612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

*Complete Pacs are only available in the 630 finish

HES 8500 Electric Strike

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

Removal of the dustbox required for use

with ANSI/BHMA A156.115 prep

4-7/8"

[124mm]

3-7/16"

[87mm]

4-1/8"

[105mm]

1-1/4"

[32mm]

3-7/16"

[87mm]

1-5/16"

[33.3mm]

1-7/16"

[37m]

1-7/8"

[48mm]

Electric Strikes

HES 8500 Series Faceplate Option Kits

Operation: After release, the keeper returns to the locked position.

4-7/8" × 1-1/4"

[123.8mm x 31.75mm]

851M Option

For use with: Mortise locksets

Compatible locksets: Sargent 8100, 8200, 9200

ANSI/BHMA Numbers: E05031, E09321, E09322, E09323

4-7/8" × 1-1/4"

[123.8mm x 31.75mm]

852K Option

For use with: Mortise locksets

Compatible locksets: Corbin Russwin ML 2000

ANSI/BHMA Numbers: E05031, E09321, E09322, E09323

4-7/8" × 1-1/4"

[123.8mm x 31.75mm]

852L Option

For use with: Mortise locksets

Compatible locksets: Schlage L9000

ANSI/BHMA Numbers: E05031, E09321, E09322, E09323

4-7/8" × 1-1/4"

[123.8mm x 31.75mm]

852M Option

For use with: Mortise locksets

Compatible locksets: Yale 8700 (manufactured after 2005)

& 8800, Accurate, Falcon, Kaba Ilco/Unican

ANSI/BHMA Numbers: E05031, E09321, E09322, E09323

The HES 8500 faceplate option kits combine two different faceplate pocket

styles with three different deadlatch platform profiles for compatibility with a

wide variety of mortise locksets. HES 8500 faceplate option kits are lock specific.

There are two faceplates included in each kit: a standard faceplate and a faceplate

with a wider pocket to address less-than-ideal sagging door conditions.

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

When the door is closed, the mortise latchbolt is held secure by the

HES 8500 keeper. A 'deadlatch platform' insert holds the deadlatch

in its locked state. Place the deadlatch platform into one of three

locations in the strike as appropriate for the type of mortise lockset.

DOOR

When the electric strike is energized, the keeper begins to rotate

and the deadlatch platform falls away, allowing the deadlatch

to drop and the latchbolt to become locked.

DOOR

As the door moves forward, the latchbolt slides first along the

keeper and then up the internal ramp.

DOOR

Deadlatch Platform

Latchbolt

Deadlatch

Keeper

As the door continues along its arc away from the frame, the latchbolt and

deadlatch exit the HES 8500, which quickly returns to its locked state.

DOOR

Get to Know the HES 8500

The HES 8500 concealed electric strike for mortise locksets builds on the

tradition of ground-breaking design you’ve come to know in the HES 8000

Series concealed electric strike family. It has a unique design unlike any electric

strike on the market today. It’s important to understand the extraordinary

design of the HES 8500 so that you can correctly install and operate it.

Electric Strikes

Features

Standard Features

• No cutting required

• Preload capable

• Accomodates 1/2" – 5/8"

[12.7mm – 15.875mm] lacthbolt

(5/8" [12.7mm] with

1/8" [3.175mm] door gap)

• Lock Monitor (Standard -SPDT)

• Fail secure (standard)

• Supports deadlatch function

• Strike body depth 1-1/2" [38.1mm]

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• 12 VDC

• 24 VDC

• FSUNL for field-selectable fail safe

operation (ordered separately)

The universal compact,

high performance, no

cut electromechanical

motorized electric

strike for use with

cylindrical locksets.

Designed for easy installation, the Securitron

UNL is capable of releasing under preload

conditions and accommodates latchbolts up

to 5/8" throw. Strong enough to withstand

windstorm conditions, the Securitron UNL

is the UL listed, fire rated electric strike that

includes lock monitoring standard and

provides ANSI/BHMA Grade 1 holding power.

Securitron® UNL

UnLatch® Strike

Works with most cylindrical

locksets up to 5/8" throw latchbolt

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Dimensions Specifications

Certifications

• UL 10C Listed, 3-hour single door

• CAN4-S104, CAN/ULC Listed

• NFPA-252 fire door compliant

• UL listed to ANSI/ SDI-BHMA A250.13

(60PSI) Windstorm

• ANSI/BHMA A156.31, Grade 1;

E09321, E09322, E09323

• ASTM-E152 fire door compliant

Electrical

• 12 VDC (continuous duty)

– Inrush – 3 Amps

– Standby Current – 300 mA

• 24 VDC (continuous duty)

– Inrush – 1.5 Amps

– Standby Current – 200 mA

Holding Force

• 1500 lbs [680kg] static

Operating Temperature

• -20˚ to 125˚ F [-29˚ to 52˚ C]

Shipping Weight

• 1.6 lbs [0.73kg]

How to Order

Series Fail Secure / Safe Voltage Finish

UNL — – 24 – 10B

UNL Cylindrical (blank) Fail Secure (standard)

NOTE: FSUNL for field-selectable fail

safe operation ordered separately

12 12 Volt (blank) US26D/626—Stainless Steel

24 24 Volt 10B US10B/613—Oil Rubbed Bronze

Part Number | Description

FSUNL-12 Fail Secure/Fail Safe Unlatch

Module, 12 VDC, .90 mA

FSUNL-24 Fail Secure/Fail Safe Unlatch

Module, 24 VDC, 1.4 mA

Securitron FSUNL Fail

Safe Unlatch® Module

Allows Fail Safe Configuration

of UNL and MUNL

The FSUNL is used with a Securitron UNL

or MUNL installation to provide selectable

fail safe or fail secure behavior. Removal of

power initiates a full unlatch or latch cycle

depending on which mode is selected.

FSUNL

4.12"

[104.6mm]

1.33"

[33.8mm]

1.5"

[38.1mm]

3.37"

[85.6mm]

3.37"

[85.6mm]

Securitron UNL UnLatch Strike

4.87"

[123.7mm]

1.25"

[31.75mm]

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

Electric Strikes

Features

Standard Features

• No cutting required

• Preload capable

• Accomodates up to

3/4" [19mm] latchbolt

(with 1/8" [3.175mm] door gap)

• Lock Monitor (Standard – SPDT)

• Fail secure (standard)

• Maintains dead latch

function at all times

• Strike body depth 1-7/8" [47.6mm]

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• 12 VDC

• 24 VDC

• FSUNL for field selectable

fail safe operation

• One model works with most

North American Mortise

Locks (Sargent 7800 and 8200

require tab kit model #STK-1

for retrofit installations)

The universal compact,

high performance, no

cut electromechanical

motorized strike for

use with mortise

locksets without

deadbolts.

Designed for easy installation, the Securitron

MUNL is capable of releasing under preload

conditions and accommodates latchbolts

up to 3/4" [19mm] throw. Strong enough

to withstand windstorm conditions, the

Securitron MUNL is the UL listed, fire rated

electric strike that includes lock monitoring

standard, provides ANSI/BHMA Grade 1

holding power and includes field adjustability

for latch and deadlatch positions.

Securitron MUNL

Works with Mortise locksets

without deadbolts up to a

3/4" throw latchbolt

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

1.25"

[31.75mm]

3.38"

[85.9mm]

1.88"

[47.75mm]

4.88"

[124mm]

Part Number | Description

FSUNL-12 Fail Secure/Fail Safe Unlatch

Module, 12 VDC, .90 mA

FSUNL-24 Fail Secure/Fail Safe Unlatch

Module, 24 VDC, 1.4 mA

FSUNL Fail Safe

Unlatch Module

Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ULC Listed

• NFPA-252 fire door compliant

• UL listed to ANSI/ SDI-BHMA A250.13

(60PSI) Windstorm

• ANSI/BHMA A156.31, Grade 1;

E09321, E09322, E09323

• ASTM-E152 fire door compliant

Electrical

• 12 VDC (continuous duty)

– Inrush – 4 Amps

– Standby Current – 600 mA

• 24 VDC (continuous duty)

– Inrush – 2 Amps

– Standby Current – 300 mA

Holding Force

• 1500 lbs [680kg] static

Operating Temperature

• -20˚ to 125˚ F [-29˚ to 52˚ C]

Shipping Weight

• 2 lbs [0.91kg]

Dimensions

How to Order

Series Fail Secure / Safe Voltage Finish

MUNL — – 24 – 10B

MUNL Mortise (blank) Fail Secure (standard) 12 12 Volt (blank) US26D/626—Stainless Steel

24 24 Volt 10B US10B/613—Oil Rubbed Bronze

Securitron FSUNL Fail

Safe Unlatch® Module

Allows Fail Safe Configuration

of UNL and MUNL

The FSUNL is used with a Securitron UNL

or MUNL installation to provide selectable

fail safe or fail secure behavior. Removal of

power initiates a full unlatch or latch cycle

depending on which mode is selected.

FSUNL

Securitron MUNL

1.25"

[31.75mm]

3.5"

[88.9mm]

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

Electric Strikes

The slim-line, surface

mounted solution.

The HES 9400 Series Electric Strike is a slim-

line, surface mounted electric strike designed

to accommodate rim exit devices with a 1/2"

throw Pullman latchbolt. All components

are completely encased within its 1/2" thick

stainless steel housing, so no cutting on the

frame is required for installation. Simply place

the electric strike on the surface of the frame,

align it with the exit latchbolt, and install.

An 1/8" spacer plate is provided to

accommodate varying door gaps. The HES

9400 exceeds Grade 1 standards for strength

and performance. It is field selectable for

fail safe/fail secure operation, and for 12 or

24 VDC. The HES 9400 features a smooth

cover to conceal the mounting screws and

provide a sleek surface for superior looks.

Features

Standard Features

• Installs in metal and wood frames

• Wood screws not provided

• One 1/8" [3.2mm] spacer

plate included

• Decorative cover for sleek look

• Stainless steel construction

• Tamper resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail safe/fail secure

• Horizontal adjustability

• Non-handed

• Internally mounted solenoid

• Accommodates up to 1/2" [12.7mm]

Pullman latch

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• LBM Latchbolt monitor

• LBSM Latchbolt strike monitor

Accessories

• 9000-116-XXX 1/16" Spacer plate

(Available in 613E, 628E,

630 & BSP finishes)

• 9000-108-XXX 1/8" Spacer plate

(Available in 613E, 628E,

630 & BSP finishes)

• 9000-MTK Metal template kit

• SMB Surface mounting box

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

• 9000-ASB-XXX Aluminum

Spacer Bracket (availible 613E,

628E, 630 & BSP finishes )

• BN-250 1/4-20 Blind Nuts

HES® 9400

Surface Mounted

Electric Strike

Works with rim exit devices

up to 1/2" throw latchbolt

Spacer Plate Included

The HES 9400 ships with one 1/8" [3.2mm] spacer

plate included in the box. Units ordered in a 630

finish are stainless steel. All other finishes have a

black suede powder stainless steel spacer. Additional

black spacer plates can be ordered as an accessory.

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 listed

• RoHS compliant

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC

• 450 mA at 12 VDC/250 mA at 24 VDC

Dimensions

How to Order

Series Finish Option (s)

9400 – 630 – LBM

9400 Surface-Mounted Electric Strike

for 1/2" Pullman Rim Exit Devices;

no faceplates required

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass LBSM Latchbolt Strike Monitor

612 Satin Bronze

613 Bronze Toned

613E Dark Oxidized Satin Bronze Powder

629 Bright Stainless Steel

630 Satin Stainless Steel

BSP Black Suede Powder

HES 9400 Surface Mounted Electric Strike

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

[228.6mm]

1-3/4"

[44.5mm]

9/16"

[14mm]

Electric Strikes

The durable,

fire rated surface

mounted solution.

The HES 9500 Series Electric Strike is a three

hour fire rated, surface mounted electric

strike designed to accommodate rim exit

devices with a 3/4" throw Pullman latchbolt. All

components are completely encased within its

3/4" thick stainless steel housing, so no cutting

on the frame is required for installation. Simply

place the electric strike on the surface of the

frame, align it with the exit latchbolt and

install. Adjustments have never been easier

as the base is now separate from the cover.

The HES 9500 exceeds Grade 1 standards

for strength and performance. It is field

selectable for fail safe / fail secure operation,

and for 12 or 24 VDC. This unique electric

strike complies with NFPA 80-07 guidelines

for retrofit into fire rated frames.

Features

Standard Features

• Installs in metal or wood frames

(wood screws not included)

• Separate base and decorative

cover for easy adjustments

• Stainless steel construction

• Tamper resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail safe/fail secure

• Horizontal adjustability

• Non-handed

• Internally mounted solenoid

• Accommodates up to 3/4" [19mm]

Pullman latch

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• LBM Latchbolt monitor

• LBSM Latchbolt strike monitor

Accessories

• 9000-116-XXX 1/16" Spacer plate

(Available in 613E, 628E,

630 & BSP finishes)

• 9000-108-XXX 1/8" Spacer plate

(Available in 613E, 628E,

630 & BSP finishes)

• 9000-MTK Metal template kit

• SMB Surface mounting box

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

HES® 9500

Surface Mounted

Electric Strike

Works with rim exit devices up

to 3/4" throw Pullman latchbolt

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 listed

• RoHS compliant

• UL 10C fire rated, 3-hour single door

(fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• California Fire Marshal listed

• NFPA 80-07 compliant

• WHI fire door listed

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC

• 450 mA at 12 VDC/250 mA at 24 VDC

Dimensions

How to Order

Series Finish Option (s)

9500 – 630 – LBM

9500 Surface-Mounted Electric Strike for

3/4" Pullman Rim Exit Devices, fire

rated; no faceplates required

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass LBSM Latchbolt Strike Monitor

612 Satin Bronze

613 Bronze Toned

613E Dark Oxidized Satin Bronze Powder

629 Bright Stainless Steel

630 Satin Stainless Steel

HES 9500 Surface Mounted Electric Strike

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

3/4"

[19mm]

[228.6mm]

1-3/4"

[44.5mm]

Electric Strikes

The stylish

windstorm resistant,

surface mounted

solution.

The HES 9600 Series Electric Strike is a

windstorm resistant, surface mounted electric

strike designed to accommodate rim exit

devices with a 3/4" throw Pullman latchbolt.

All components are completely encased

within its 3/4" thick stainless steel housing,

so no cutting on the frame is required for

installation. Simply place the electric strike on

the surface of the frame, align it with the exit

latchbolt and install. Adjustments have never

been easier as the base is now separate from

the cover. It is field selectable for fail secure

or fail safe operation, and for 12 or 24 VDC.

The HES 9600 is a surface mounted electric

strike designed with the strength and

durability required to exceed the severe

forces of ANSI Windstorm testing.

Features

Standard Features

• Installs in metal or wood frames

(wood screws not included)

• Separate base and decorative

cover for easy adjustments

• Stainless steel construction

• Tamper resistant

• Static strength 2,000 lbs

• Dynamic strength 120 ft-lbs

• Endurance 1 million cycles

• Field selectable fail safe/fail secure

• Horizontal adjustment

• Non-handed

• Internally mounted solenoid

• Accommodates up to 3/4" [19mm]

Pullman latch

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• LBM Latchbolt monitor

• LBSM Latchbolt strike monitor

Accessories

• 9000-116-XXX 1/16" Spacer plate

(Available in 613E, 628E,

630 & BSP finishes)

• 9000-108-XXX 1/8" Spacer plate

(Available in 613E, 628E,

630 & BSP finishes)

• 9000-MTK Metal template kit

• SMB Surface mounting box

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx adapter

• 2005M3 SMART Pac III

• 2006M Plug-in buzzer

• 9000-ASB-XXX Aluminum

Spacer Bracket (availible 613E,

628E, 630 & BSP finishes )

HES® 9600

Surface Mounted

Electric Strike

Works with rim exit devices up to

a 3/4" throw Pullman latchbolt

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 listed

• RoHS compliant

• ANSI/SDI A250.13 windstorm resistant

• Florida Building Code approved TAS 201, 202, 203

• ANSI-ASTM E330

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC

• 450 mA at 12 VDC/250 mA at 24 VDC

Dimensions

How to Order

Series Finish Option (s)

9600 – 630 – LBM

9600 Surface-Mounted Electric Strike for

3/4" Pullman Rim Exit Devices,

non-fire rated; no faceplates required

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass LBSM Latchbolt Strike Monitor

612 Satin Bronze

613 Bronze Toned

613E Dark Oxidized Satin Bronze Powder

629 Bright Stainless Steel

630 Satin Stainless Steel

BSP Black Suede Powder

HES 9600 Surface Mounted Electric Strike

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

[228.6mm]

1-3/4"

[44.5mm]

3/4"

[19mm]

Electric Strikes

The stylish

windstorm resistant

and fire rated,

squarebolt solution.

The HES 9700 Series Electric Strike is a

heavy duty, surface mounted electric strike

designed to accommodate Corbin Russwin

SecureBolt® and Yale SquareBolt® exit devices.

All components are completely encased

within its 3/4" thick stainless steel housing,

so no cutting on the frame is required for

installation. It is field selectable for fail secure

or fail safe operation, and for 12 or 24 VDC.

The HES 9700 is designed with the strength

and durability required to exceed the severe

forces of ANSI Windstorm testing. This unique

electric strike also complies with NFPA 80-07

guidelines for retrofit into fire rated frames.

Features

Standard Features

• Installs in metal or wood

(wood screws not included)

• Separate base and decorative

cover for easy adjustments

• Stainless steel construction

• Tamper resistant

• Static strength to 2,000 lbs

• Dynamic strength to 120 ft-lbs

• Endurance 1 million cycles

• Field selectable fail safe/fail secure

• Horizontal adjustment

• Non-handed

• Internally mounted solenoid

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• LBM Latchbolt monitor

• LBSM Latchbolt strike monitor

Accessories

• 9000-116-XXX 1/16" Spacer plate

(Available in 613E, 628E,

630 & BSP finishes)

• 9000-108-XXX Spacer plate

(BSP, 613E, 630, 628E)

• 9000-MTK Metal template kit

• SMB Surface mounting box

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

HES® 9700

Surface Mounted

Electric Strike

Works with Corbin Russwin

SecureBolt® and Yale

SquareBolt® exit devices

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 listed

• RoHS compliant

• UL 10C fire rated, 3-hour single door

(fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• California Fire Marshal listed

• NFPA 80-07 compliant

• ANSI/SDI A250.13 windstorm resistant

• Florida Building Code approved TAS 201, 202, 203

• ANSI-ASTM E330

Frame Application

• Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC

• 450 mA at 12 VDC/250 mA at 24 VDC

Dimensions

How to Order

Series Finish Option (s)

9700 – 630 – LBM

9700 Surface Mounted Electric Strike

for Corbin Russwin SecureBolt®

and Yale SquareBolt® Rim Exit

Devices; no faceplates required

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass LBSM Latchbolt Strike Monitor

612 Satin Bronze

613 Bronze Toned

613E Dark Oxidized Satin Bronze Powder

629 Bright Stainless Steel

630 Satin Stainless Steel

HES 9700 Surface Mounted Electric Strike

3/4"

[19mm]

[228.6mm]

1-3/4"

[44.5mm]

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

Electric Strikes

The low-profile, surface

mounted electric

strike designed to

accommodate the

Adams Rite 8700,

8800 and EX88 Series

Rim Exit Devices.

The HES 9800 Series Electric Strike exceeds

Grade 1 standards for strength and performance.

All functions are performed within the 1/2" thick

strike body, which is protected by a sleek stainless

steel cover to conceal the mounting screws

and provide the most aesthetic appearance. All

while being field selectable for fail secure or fail

safe operation, and dual voltage, 12 or 24 VDC.

1/16" and 1/8" spacer plates are provided to

accommodate varying door gaps. Simply

place the electric strike on the surface

of the frame, align it with the Starwheel

or Interlocking latchbolt, and install.

Features

Standard Features

• Compatible with Adams

Rite 8700, 8800 and EX88

Series Rim Exit Devices

• Installs on aluminum, hollow metal

and wood frames

(wood screws not provided)

• One 1/16" [1.6mm]

spacer plate included

• One 1/8" [3.2mm]

spacer plate included

• Decorative cover for sleek look

• Stainless steel construction

• Tamper-resistant

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Field selectable fail safe/fail secure

• Horizontal adjustment

• Non-handed

• Internally mounted solenoid

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• LBM Latchbolt monitor

• LBSM Latchbolt strike monitor

Accessories

• 9000-116-XXX 1/16" Spacer plate

(Available in 613E, 628E,

630 & BSP finishes)

• 9000-108-XXX 1/8" Spacer plate

(Available in 613E, 628E,

630 & BSP finishes)

• 9000-MTK Metal template kit

• SMB Surface mounting box

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

• 9000-ASB-XXX Aluminum

Spacer Bracket (Available in 613E,

628E, 630 & BSP finishes)

• BN-250 1/4-20 Blind Nuts

HES® 9800

Surface Mounted

Electric Strike

Works with Adams Rite®

Starwheel and Interlocking

rim exit devices

Spacer Plates Included

The HES 9800 ships standard with one 1/16" [1.6mm]

and one 1/8" [3.2mm] spacer plate included in the box.

Units ordered in 613E, 628E, 630 & BSP finishes will

be made of stainless steel and finished to match. All

other finishes will receive black stainless steel spacers.

Additional spacer plates can be ordered separately.

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Specifications

Certifications

• ANSI/BHMA A156.31, Grade 1

• UL 1034 burglary-resistant listed

and suitable for outdoor use

• UL 294 listed

• RoHS compliant

Holding Force

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

Frame Application

• Aluminum

• Hollow Metal

• Wood

Electrical (DC Continuous Duty)

• Dual voltage 12/24 VDC

• 450 mA at 12 VDC/250 mA at 24 VDC

Product NOTE: this product is also available

as the Adams Rite 7800 Electric Strike.

Dimensions

How to Order

Series Finish Option (s)

9800 – 630 – LBM

9800 Surface Mounted Electric Strike for

Adams Rite® Starwheel and Interlocking

Rim Exit Devices; no faceplates required

605 Bright Brass LBM Latchbolt Monitor

606 Satin Brass LBSM Latchbolt Strike Monitor

613E Dark Oxidized Satin Bronze Powder

628E Satin Aluminum, Clear Anodized Powder

629 Bright Stainless Steel

630 Satin Stainless Steel

BSP Black Suede Powder

HES 9800 Surface Mounted Electric Strike

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

9/16"

[14mm]

9-1/64"

[229.1mm]

1-3/4"

[44.5mm]

Electric Strikes

Features

Standard Features

• Tamper resistant

(heavy duty construction)

• Constructed entirely of stainless steel

for strength and corrosion resistance

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance rating 1 million cycles

• Horizontally adjustable keeper allows

for door and frame misalignment

• 1/2" [12.7mm] keeper depth (310-2)

• 3/4" [19mm] keeper depth

(310-2 3/4 and 310-2 3/4OB)

• 1" [25.4mm] keeper depth (310-3-1)

• Non-handed

• Fail secure (standard)

• Plug-in connector

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• Fail Safe

• LCBMA Latchbolt & Locking Cam

Monitor with Auxiliary Switch

(all except 310-2-3/4OB)

Accessories

• 152 Universal mounting tabs

• 310-2-3 Strike latch guard (astragal)

• 2001-1 Wire-in bridge rectifier

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

The 310 series is a

3-hour fire rated,

industrial grade

electric strike designed

for extreme heavy

duty applications.

The all stainless steel construction

of this device makes it ideal for

high abuse applications that would

disable other electric strikes.

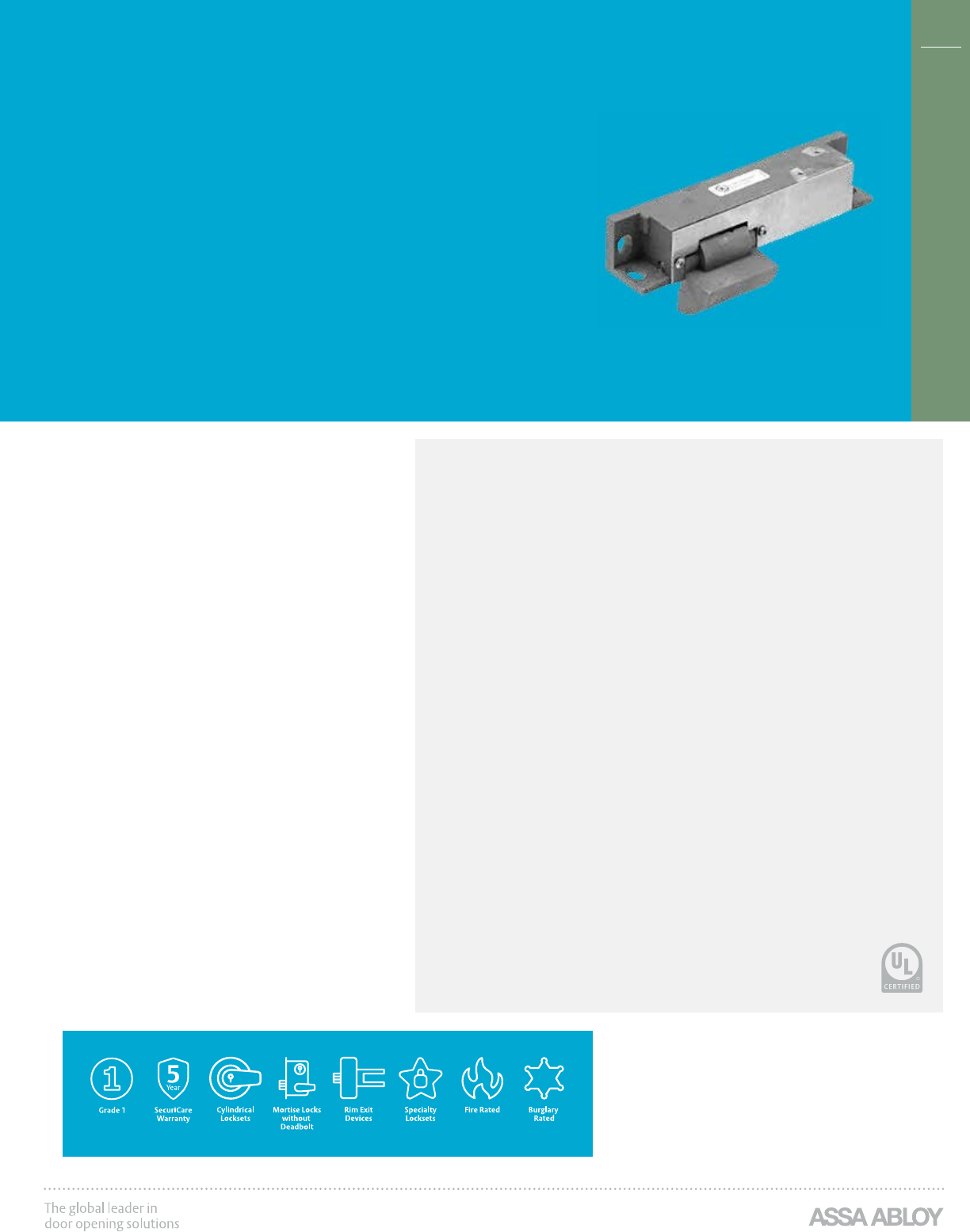

HES® Folger Adam

310 Electric Strike

Works with cylindrical and

mortise locksets with 1/2", 5/8"

or 3/4" throw latchbolts

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

HES Folger Adam 310 Electric Strike

Electric Strikes

Specifications

Certifications

• UL 10C fire rated, 3-hour single door

(fail secure only)

• UL 10C fire rated, 3-hour double door

(fail secure only)

• CAN4-S104 (ULC-S104) fire door conformant

• UL 1034, burglary-resistant listed

• UL 294 listed

• ANSI/BHMA A156.31, Grade 1

• NFPA-252 fire door conformant

• ASTM-E152 fire door conformant

• RoHS compliant

Electrical (DC Continuous Duty)

• 510 mA at 12 VDC/250 mA at 24 VDC

How to Order

Series Fail Secure / Safe Voltage Finish* Option (s)

310-2 – F – 24D – 630 – LCBMA

Complete Pacs (blank) Fail Secure

(standard)

12D 12 Volt 605 Bright Brass LCBMA* Latchbolt &

locking cam

monitor with

auxiliary

switch

310-2 1/2" keeper standard; For up

to a 5/8" throw latchbolt

24D 24 Volt 606 Satin Brass

F Fail Safe 612 Satin Bronze

310-2 3/4 3/4" keeper standard; For

up to a 3/4" [19mm] throw

latchbolt without deadbolt

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

310-2 3/4OB 3/4" keeper standard; For

a pair of doors without

a door coordinator

310-3-1 1" keeper standard; For up to a 3/4"

throw latchbolt and a 1" deadbolt

*LCBMA not available with 310-2 3/4OB

310-2

For a 1/2" [12.7mm] or 5/8"

[15.875mm] throw latchbolt

(without deadbolt) on single

doors and pairs of doors.

1/2" [12.7mm] keeper standard

310-2-3/4

For a 3/4" [19mm] throw

latchbolt (without

deadbolt) on single doors

and pairs of doors.

3/4" [19mm] keeper standard

310-2 3/4OB

For a pair of doors, without

a door coordinator,

which is equipped with

a lock having a 3/4"

[19mm] throw latchbolt

(without deadbolt).

3/4" [19mm] keeper standard

310-3-1

For a lockset with both

a 3/4" [19mm] throw

latchbolt and a 1" [25.4mm]

throw deadbolt.

• Deadbolt must be

retracted manually

• Position of block within

cavity is adjustable for

RH and LH applications

1" [25.4mm] keeper standard

Dimensions

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

Electric Strikes

Features

Standard Features

• Tamper resistant, heavy

duty construction

• Constructed entirely of stainless steel

for strength and corrosion resistance

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Adjustable keeper allows for door and

frame alignment 1/2", 3/4" [19mm]

and1" [25.4mm] keeper depths

• Non-handed

• Fail secure (standard)

• Plug-in connector

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• Fail Safe

• LCBMA Latchbolt & Locking Cam

Monitor with Auxiliary Switch

Accessories

• 152 Universal mounting tabs

• 310-2-3 Strike latch guard (astragal)

• 2001-1 Wire-in bridge rectifier

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

The 310 series is a

3-hour fire rated,

industrial grade

electric strike designed

for extreme heavy

duty applications.

The all stainless steel construction of

this device makes it ideal for strength

and corrosion resistance.

HES® Folger Adam

310-1(X) Electric

Strike Body Only

Works with cylindrical and

mortise locksets with 1/2", 5/8"

or 3/4" throw latchbolts

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Specifications

Certifications

• UL 10C fire rated, 3-hour single door

(fail secure only)

• UL 10C fire rated, 3-hour double door

(fail secure only)

• CAN4-S104 (ULC-S104) fire door conformant

• UL 1034, burglary-resistant listed

• UL 294 listed

• ANSI/BHMA A156.31, Grade 1

• NFPA-252 fire door conformant

• ASTM-E152 fire door conformant

• RoHS compliant

Electrical (Continuous Duty)

• 510 mA at 12 VDC/250 mA at 24 VDC

310-1(1/2)

For use with up to 5/8" throw latchbolts (without deadbolt)

1/2" keeper standard

310-1(3/4)

For use with 3/4" [19mm] throw latchbolts (without deadbolt) on single and

double glass door applications with the addition of a third party faceplate.

• Works with Rockwood PDU8000 and CR Laurence PA100 Series

panic devices when used with ESK Series stop/strike

3/4" [19mm] keeper standard

310-1(1)

For use with both a 3/4" [19mm] throw latchbolt and a 1" [25.4mm] throw deadbolt

1" [25.4mm] keeper standard

310-1(PK)

For up to 3/4" [19mm] Pullman style latchbolts

PK keeper standard

310-1(SK)

For Squarebolt® style rim exit devices

• Works with Corbin Russwin® ED4200S, ED5200S and ED5200SA

Securebolt® or Yale® 7150(F), 7250, 7270M(F) Squarebolt® Exit Devices.

SK keeper standard

How to Order

Series Keeper Style Fail Secure / Safe Voltage Option (s)

-310-1 (3/4) – F – 24D – LCBMA

Strike Body Only (1/2) 1/2" keeper (blank) Fail Secure

(standard)

12D 12 Volt LCBMA Latchbolt &

locking cam

monitor with

auxiliary switch

SB-310-1 (3/4) 3/4" keeper 24D 24 Volt

(1) 1" keeper F Fail Safe

(PK) For use with 3/4" Pullman style latchbolts

(SK) For use with Squarebolt®

style rim exit devices

Dimensions

HES Folger Adam 310-1(X) Electric Strike Body Only

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

Electric Strikes

Features

Standard Features

• Integrated shim for quick

customization of faceplate

thickness (1/2" to 3/4" [19mm])

• Tamper resistant, heavy

duty construction

• Constructed entirely of stainless steel

for strength and corrosion resistance

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance rating 1 million cycles

• Integrated ramps for better

deadlatch handling

• Set screws for horizontal lockdown

• In-frame horizontal adjustability

• Wider faceplate for greater versatility

• Non-handed

• Fail secure (standard)

• Plug-in connector

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• Fail Safe

• LCBMA Latchbolt & Locking Cam

Monitor with Auxiliary Switch

Accessories

• 7000-SMB Surface mounting box

• 2001-1 Wire-in bridge rectifier

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

The 310-4 is a 3-hour

fire rated, industrial

grade electric

strike designed

for extreme heavy

duty applications.

The all stainless steel construction of

this device makes it ideal for high abuse

applications that would disable other electric

strikes. The HES Folger Adam 310-4

Series has a unique 3/4" face plate with

an integrated 1/4" base shim that can be

removed in the field to accommodate rim exit

devices with a 1/2" or 3/4" throw latchbolt.

HES® Folger Adam

310-4 Electric Strike

Works with Pullman style latchbolts

up to 3/4" and Squarebolt®

style rim exit devices

310-4 310-4S

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Specifications

Certifications

• UL 10C, 3-hour fire rated (fail secure only)

• CAN4-S104 (ULC-S104) fire door conformant

• UL 1034, burglary-resistant listed

• UL 294 listed

• ANSI/BHMA A156.31, Grade 1

• NFPA-252 fire door conformant

• ASTM-E152 fire door conformant

• RoHS compliant

Electrical (Continuous Duty)

• 510 mA at 12 VDC/250 mA at 24 VDC

310-4

For up to 3/4" [19mm] Pullman style

latchbolts on single doors

PK keeper standard

310-4S

For Squarebolt® style rim exit devices such as;

• Corbin Russwin® ED4200S, ED5200S

and ED5200SA SecureBolt®

• Yale® 7150(F), 7250, 7270M(F)

Squarebolt® Exit Devices

SK keeper standard

How to Order

Series Fail Secure / Safe Voltage Finish* Option (s)

310-4 (S) – F – 12D – 605 – LCBMA

Complete Pacs (blank) Fail Secure

(standard)

12D 12 Volt 605 Bright Brass LCBMA Latchbolt &

locking cam

monitor with

auxiliary

switch

310-4 PK keeper standard; For use with

3/4" Pullman style latchbolts

24D 24 Volt 606 Satin Brass

F Fail Safe 612 Satin Bronze

310-4(S) SK keeper standard; For use with

Squarebolt® style rim exit devices

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

Dimensions

HES Folger Adam 310-4 Electric Strike

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

Model 310-4 shown

3/4"

[19mm]

1-3/4"

[44.4mm] 1-1/8"

[28.5mm]

1-3/4"

[44.5mm]

[228.6mm]

8-1/4"

[209.6mm]

1-13/64"

[30.5mm]

1/2"

[12.7mm]

1/4"

[6.3mm]

5-5/8"

[142.9mm]

Electric Strikes

Features

Standard Features

• Tamper resistant, heavy

duty construction

• Constructed entirely of stainless steel

for strength and corrosion resistance

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Adjustable keeper to allow for

door and frame misalignment

• Pullman keeper

• Non-handed

• Fail secure (standard)

• Plug-in connector

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• Fail Safe

• LCBMA Latchbolt & Locking Cam

Monitor with Auxiliary Switch

Accessories

• 2001-1 Wire-in bridge rectifier

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

The 310-4-X vertical

surface mounted series

is designed for heavy

duty applications on

single or double doors.

The all stainless steel construction of

this device makes it ideal for high abuse

applications. This line of electric strikes

will accommodate rim exit devices with

a swinging Pullman style latchbolt.

HES® Folger Adam

310-4-X

Electric Strike

Works with surface

vertical rod exit devices

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Specifications

Certifications

• UL 1034, burglary-resistant listed

• UL 294 listed

• ANSI/BHMA A156.31, Grade 1

• RoHS compliant

Electrical (Continuous Duty)

• 510 mA at 12 VDC/250 mA at 24 VDC

310-4-1

For both leaves of a pair of doors when spacing of the

vertical rod is between 4" [101.6mm] and 4-3/4" [120.65mm]

PK keeper standard

310-4-2

For both leaves of a pair of doors when spacing of the vertical

rods is between 4-5/8" [111.125mm] and 5-3/8" [136.5mm]

PK keeper standard

310-4-3

For both leaves of a pair of doors when spacing of the

vertical rods is between 5-1/4" [133.35mm] and 6" [152.4mm]

PK keeper standard

310-4-30

For both leaves of a pair of doors when spacing of the vertical

rods is between 2-5/8" [66.675mm] and 3-3/8" [85.725mm]

PK keeper standard

How to Order

Series Keeper Style Fail Secure / Safe Voltage Finish Option (s)

310-4-X F – 24D – 612 – LCBMA

Complete Pacs (PK) For use

with 3/4"

Pullman style

latchbolts

(blank) Fail Secure

(standard) 12D 12 Volt 605 Bright Brass LCBMA Latchbolt &

locking cam

monitor

with

auxiliary

switch

606 Satin Brass

1 For use with vertical

rod spacing between

4" and 4-3/4"

F Fail Safe 24D 24 Volt 612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

2 For use with vertical

rod spacing between

4-5/8" and 5-3/8"

3 For use with vertical

rod spacing between

5-1/4" and 6"

30 For use with vertical

rod spacing between

2-5/8"and 3-3/8

Dimensions

HES Folger Adam 310-4-X Electric Strike

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

A B C D E

310-4-1 13-3/8"

[339.7mm]

4-3/8"

[111.125mm]

1-13/16"

[46mm]

1-1/2"

[38.1mm]

3/4"

[19mm]

310-4-2 14"

[355.6mm]

[127mm]

1-13/16"

[46mm]

1-1/2"

[38.1mm]

3/4"

[19mm]

310-4-3 14-5/8"

[371.5mm]

5-5/8"

[142.8mm]

1-13/16"

[46mm]

1-1/2"

[38.1mm]

3/4"

[19mm]

310-4-30 12"

[304.8mm]

[76.2mm]

1-13/16"

[46mm]

1-1/2"

[38.1mm]

3/4"

[19mm]

NOTE: Double-door models are available with four different center-

to-center dimensions between latchbolt keepers. Keepers are wide

enough to compensate for vertical-rod exit bolts, which may be as

much as 3/8" (10mm) off center-to-center dimension, either way.

NOTE: When using an electric strike in conjunction with a vertical-rod exit device:

1. The bottom rod of the exit device must be removed or made inoperative.

2. The latchbolt of the exit device must be the Pullman or beveled type.

3. The latchbolt must be free-latching and remain projected while

the door is open. Mechanisms that hold the latchbolt retracted

while the door is open, and automatically release it when the

door is closed, must be removed or made inoperative.

Electric Strikes

Features

Standard Features

• Tamper resistant, heavy

duty construction

• Constructed entirely of stainless steel

for strength and corrosion resistance

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Adjustable keeper allows for

door and frame misalignment

• Non-handed

• Fail secure (standard)

• Plug-in connector

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• Fail Safe

• LCBMA Latchbolt & Locking Cam

Monitor with Auxiliary Switch

Accessories

• 2001-1 Wire-in bridge rectifier

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

The 310-6-X vertical

mounted series is

designed for heavy

duty applications on

single or double doors.

The all stainless steel construction of

this device makes it ideal for high abuse

applications. This line of electric strikes

will accommodate rim exit devices with

a swinging Pullman style latchbolt.

HES® Folger Adam

310-6-X

Electric Strike

Works with concealed

vertical rod exit devices

310-6-X

310-6-8

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Specifications

Certifications

• UL 1034, burglary-resistant listed

• UL 294 listed

• ANSI/BHMA A156.31, Grade 1

• RoHS compliant

Electrical (Continuous Duty)

• 510 mA at 12 VDC/250 mA at 24 VDC

310-6-1

For both leaves of a pair of doors when spacing of the vertical

rods is between 4" [101.6mm] and 4-3/4" [120.65mm]

PK keeper standard

310-6-2

For both leaves of a pair of doors when spacing of the vertical

rods is between 4-5/8" [117.475mm] and 5-3/8" [136.525mm]

PK keeper standard

310-6-3

For both leaves of a pair of doors when spacing of the

vertical rods is between 5-1/4" [133.35mm] and 6" [152.4mm]

PK keeper standard

310-6-8

For only the active leaf of a pair

PK keeper standard

310-6-30

For both leaves of a pair of doors when spacing of the

vertical rods is between 2-5/8" [66.7mm] and 3-3/8" [85.7mm]

PK keeper standard

How to Order

Series Fail Secure / Safe Voltage Finish Option (s)

310-6-X F – 24D – 612 –LCBMA

Complete Pacs (blank) Fail Secure

(standard)

12D 12 Volt 605 Bright Brass LCBMA Latchbolt &

locking cam

monitor with

auxiliary

switch

1 For use with vertical rod spacing

between 4" and 4-3/4"

24D 24 Volt 606 Satin Brass

F Fail Safe 612 Satin Bronze

2 For use with vertical rod spacing

between 4-5/8" and 5-3/8"

613 Bronze Toned

629 Bright Stainless Steel

3 For use with vertical rod spacing

between 5-1/4" and 6"

630 Satin Stainless Steel

30 For use with vertical rod spacing

between 2-5/8"and 3-3/8

Dimensions

HES Folger Adam 310-6-X Electric Strike

310-6-8 E

310-

6-X

NOTE: Double-door models are available with four different center-to-center dimensions

between latchbolt keepers. Keepers are wide enough to compensate for vertical-rod exit

bolts, which may be as much as 3/8" (10mm) off center-to-center dimension, either way.

NOTE: When using an electric strike in conjunction with a vertical-rod exit device:

1. The bottom rod of the exit device must be removed or made inoperative.

2. The latchbolt of the exit device must be the Pullman or beveled type.

3. The latchbolt must be free-latching and remain projected while

the door is open. Mechanisms that hold the latchbolt retracted

while the door is open, and automatically release it when the

door is closed, must be removed or made inoperative.

NOTE: The electric strike will not operate with a deadbolt style vertical rod.

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

A B C D E

310-6-1 14-1/2"

[368.3mm]

4-3/8"

[111.125mm]

1-13/16"

[46mm]

1-3/4"

[44.45mm]

1-3/4"

[44.45mm]

310-6-2 15 -1/8"

[384.2mm]

[127mm]

1-13/16"

[46mm]

1-3/4"

[44.45mm]

1-3/4"

[44.45mm]

310-6-3 15-3/4"

[400.05mm]

5-5/8"

[142.8mm]

1-13/16"

[46mm]

1-3/4"

[44.45mm]

1-3/4"

[44.45mm]

310-6-30 13-1/8"

[333.4mm]

[76.2mm]

1-13/16"

[46mm]

1-3/4"

[44.45mm]

1-3/4"

[44.45mm]

310-6-8 10-7/8"

[276.3mm] –1-13/16"

[46.mm]

1-3/4"

[44.45mm]

1-3/4"

[44.45mm]

Electric Strikes

The HES Folger

Adam 700 series is

a 3-hour fire rated,

industrial grade

electric strike designed

for extreme heavy

duty applications.

The all stainless steel construction of

this device makes it ideal for high abuse

applications. The HES Folger Adam 700 Series

is designed to accommodate 1/2" throw

latchbolts, and the HES Folger Adam 712-75 is

designed to accommodate 3/4" latchbolts.*

*NOTE: These products will require relocation of the

center line when used with moritse locks. Consult

customer support regarding use with the Best 40 series.

Features

Standard Features

• Tamper resistant, heavy

duty construction

• Constructed entirely of stainless steel

for strength and corrosion resistance

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Horizontally adjustable keeper allows

for door and frame misalignment

• 1/2" [12.7mm] keeper

depth (712 and 732)

• 3/4" [19mm] keeper depth

(712-75 and 732-75)

• Non-handed

• Fail secure (standard)

• Plug-in connector

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• Fail Safe

• LBMLCM Latchbolt &

Locking Cam Monitor

Accessories

• 150 Strike latch guard

• 152 Universal mounting tabs

• 2001-1 Wire-in bridge rectifier

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

HES® Folger Adam

700 Electric Strike

Works with cylindrical and mortise

locksets without a deadbolt

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Specifications

Certifications

• UL 10C fire rated, 3-hour single door

(fail secure only)

• UL 10C fire rated, 3-hour double door

(fail secure only)

• CAN4-S104 (ULC-S104) fire door confomant

• UL 1034, burglary-resistant listed

• UL 294 listed

• ANSI/BHMA A156.31, Grade 1

• NFPA-252 fire door conformant

• ASTM-E152 fire door conformant

• RoHS compliant

Electrical (Continuous Duty)

• 290 mA at 12 VDC/150 mA at 24 VDC

• PoE friendly

Dimensions

How to Order

Series Fail Secure / Safe Voltage Finish Option (s)

712 – F – 24D – 630 – LBMLCM

Complete Pacs (blank) Fail Secure

(standard)

12D 12 Volt 605 Bright Brass LBMLCM Latchbolt & locking

cam monitor

712 1/2" keeper standard; hollow metal

frames, for up to a 5/8" throw latchbolt

24D 24 Volt 606 Satin Brass

F Fail Safe 612 Satin Bronze

712-75 3/4" keeper standard; hollow metal

frames, for up to a 3/4" throw

latchbolt without deadbolt

613 Bronze Toned

629 Bright Stainless Steel

732 1/2" keeper standard; wood frames,

for up to a 5/8" throw latchbolt

630 Satin Stainless Steel

732-75 3/4" keeper standard; wood

frames, for up to a 3/4" throw

latchbolt without deadbolt

*LCBMA not available with 310-2 3/4OB

712

For use with 1/2" [12.7mm]

to 5/8" [15.9mm] throw

latchbolts in hollow metal

frame applications.

1/2" [12.7mm]

Keeper standard

712-75

For use with

1/2" [12.7mm]*,

5/8" [15.9mm]*

or 3/4" [19mm]

throw latchbolts

in hollow-metal

frame applications.

3/4" [19mm]

Keeper standard

732

For use with

1/2" [12.7mm]* to

5/8" [15.9mm]* throw

latchbolts in wood

frame applications.

Features an offset

solenoid.

1/2" [12.7mm]

Keeper standard

732-75

For use with 1/2" [12.7mm]*,

5/8" [15.9mm]* or

3/4" [19mm] throw

latchbolts in wood frame

applications. Features

an offset solenoid.

3/4" [19mm]

Keeper standard

*NOTE: When using LBMLCM with a 1/2" [12.7mm] or 5/8" [15.9mm]

keeper latchbolt, detection may be dependent on the door gap.

HES Folger Adam 712 Electric Strike

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

Electric Strikes

Features

Standard Features

• Tamper resistant, heavy

duty construction

• Constructed entirely of stainless steel

for strength and corrosion resistance

• Static strength 1,500 lbs

• Dynamic strength 70 ft-lbs

• Endurance 1 million cycles

• Horizontally adjustable

keeper to allow for door and

frame misalignment

• Deadlatch tabs included

• 3/4" [19mm] keeper depth

• Non-handed

• Fail secure (standard)

• Plug-in connector

• Full keeper shim

• SecuriCare five-year, no-fault,

no questions asked warranty

(Addition of HES SMART Pac® III

extends the warranty to 10 years)

Optional Features

• Fail Safe

• LBMLCM Latchbolt &

Locking Cam Monitor

Accessories

• 150 Strike latch guard

• 152 Universal mounting tabs

• 2001-1 Wire-in bridge rectifier

• 2001M Plug-in bridge rectifier

• 2004M ElectroLynx® adapter

• 2005M3 SMART Pac® III

• 2006M Plug-in buzzer

The 742-75 series is

a 3-hour fire rated,

industrial grade

electric strike designed

for extreme heavy

duty applications.

The all stainless steel construction of

this device makes it ideal for high abuse

applications. The HES Folger Adam 742-75

Series comes standard with a variety of

brackets to accommodate all major mortise

and cylindrical locks with up to a 3/4"

throw latchbolts.* This is the one electric

strike to choose when you are uncertain

of which lockset you may encounter.

*NOTE: HES Folger Adam 742-75 is designed to work

with a variety of mortise locks without deadbolts,

including the Schlage L9000 and Yale 8800 without

relocating the strike prep in the frame. Consult customer

support regarding use with the Best 40 series.

HES® Folger Adam

742 Electric Strike

Works with all major mortise

and cylindrical locksets with

up to 3/4" throw latchbolt

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

HES Folger Adam 742 Electric Strike

Electric Strikes

Dimensions Specifications

Certifications

• UL 10C fire rated, 3-hour single door

(fail secure only)

• UL 10C fire rated, 1-1/2 hour double door

(fail secure only)

• CAN4-S104 (ULC-S104) fire door conformant

• UL 1034, burglary-resistant listed

• UL 294 listed

• ANSI/BHMA A156.31, Grade 1

• NFPA-252 fire door conformant

• ASTM-E152 fire door conformant

Electrical (Continuous Duty)

• 290 mA at 12 VDC/150 mA at 24 VDC

• PoE friendly

742-75

For use with 1/2" [12.7mm]*, 5/8" [15.9mm]* or 3/4" [19mm]

throw latchbolts in hollow metal frame applications

* NOTE: When using LBMLCM with a 1/2" [12.7mm] or 5/8" [15.9mm]

keeper latchbolt detection may be dependent on the door gap.

How to Order

Series Fail Secure / Safe Voltage Finish Option (s)

742-75 – F – 12D – 613 – LBMLCM

Complete Pacs (blank) Fail Secure

(standard)

12D 12 Volt 605 Bright Brass LBMLCM Latchbolt &

locking cam

monitor

742-75 Hollow metal frames, for

up to a 3/4" throw latchbolt

without deadboltt

24D 24 Volt 606 Satin Brass

F Fail Safe 612 Satin Bronze

613 Bronze Toned

629 Bright Stainless Steel

630 Satin Stainless Steel

NOTE: Electric strike compatibility is determined at time of electric strike product release. ASSA ABLOY is not responsible for incompatibility of products that have

changed in design or craftsmanship by their respective manufacturers. When compatibility is a concern, contact Customer Support for application assistance.

1-13/16"

[46.3mm]

9/16"

[13.6mm]

1-1/2"

[38.1mm]

1-15/16"

[49mm]

11/16"

[17.6mm]

1-1/2"

[38.1mm] 2-7/16"

[61.7mm]

1-5/8"

[41.3mm]

1/8"

[3.2mm]

3/4"

[19mm]

1-1/4"

[31.5mm]

5/8"

[15.9mm]

9/16"

[14.8mm]

3/8"

[9.3mm]

3/4"

[19mm]

6-5/16"

[159.9mm]

4-1/8"

[104.8mm]

3-38"

[85.7mm]

4-7/8"

[123.4mm]

Electric Strikes

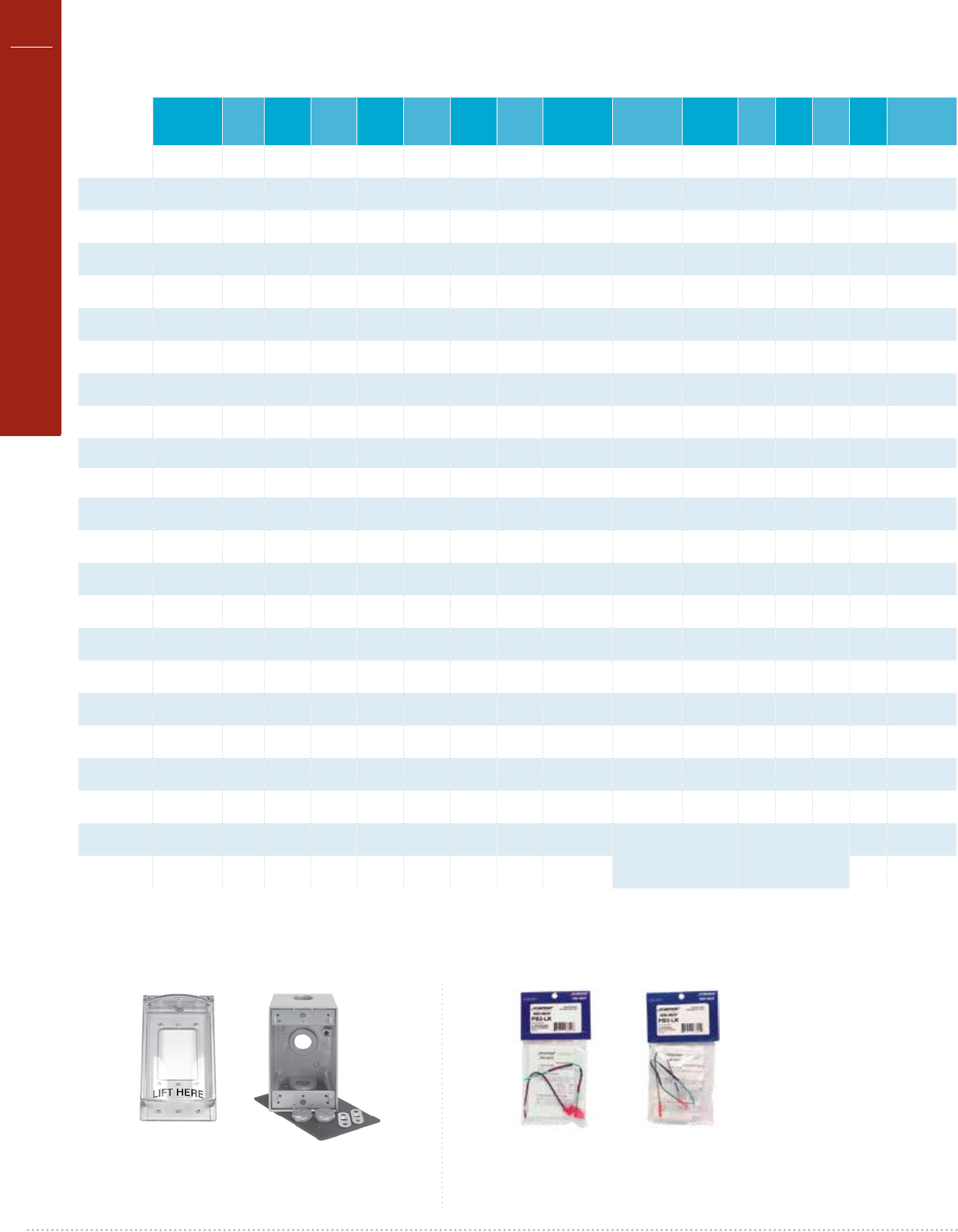

Accessories

ITEM ACCESSORY DESCRIPTION

HESCUT-MTK

Metal template kit

• For installing the HES 1006, 1500, 1600, 4500,

5000, 5200, 7000 and 7501 electric strikes.

• 4-7/8" [123.8mm] ANSI jamb preparation only.

9000-MTK

Metal template kit

• For installing the HES 9400, 9500, 9600, 9700, and

9800 surface mounted electric strikes.

• Magnetic backing.

SMB

Surface mounting box

• Installs on inactive door of pair of doors to accommodate rim-

exit devices. To be used with the HES 7000 (783S and 789S),

9400, 9500, 9600, 9700 and 9800electric strikes series.

• Available in black finish only.

150

Strike latch guard

• Stainless steel. Installed at the edge of the door

to cover the lock and electric strike.

152

Universal mounting tabs • Mount inside hollow metal and aluminum jambs.

157

Tor x® screws

• Two (2) 12-24 UNC x 3/4" [19mm] FH Tamper

resistant Pin-in-Torx® screws.

157D

Tor x® security bit • Tamper resistant Torx® R20 insert bit.

310-2-3

Astragal strike latch guard

• Designed to prevent tampering with the latchbolt, and the latchbolt

keeper. Prevents one door from being opened before the other.

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Accessories

ITEM ACCESSORY DESCRIPTION

2001-1

Wire-in bridge rectifier

• Converts AC to unfiltered DC. Rated 35 V, 2 Amp.

• Not recommended for HES 1006 Electric Strike.

2001M

Plug-in bridge rectifier

• Converts AC to unfiltered DC. Rated 35 V, 1 Amp.

• Includes MOV and self-resettable fuse

Not recommended for HES 1006 Electric Strike.

2004M

ElectroLynx® adapter

• Adapter between existing HES electric strikes

and ElectroLynx® connectors.

2005M3

SMART Pac® III

Addition of Smart Pac to any

electric strike extends the 5

year no-fault warranty to a

10 year no-fault warranty.

• In-line power controller able to receive input voltages from

12- 32V AC or DC. Built-in bridge rectifier. Reduces initial

voltage by 25% to extend the life of the electric strike.

• Includes built-in resettable fuse, MOV, voltage regulation

and input voltage level indicating and unit status.

• For use with 1006, input voltage must be DC.

2006M

Plug-in buzzer • Audible operation indicator at 24 VDC, 75db at 11-3/4".

2007M

Plug-in pigtail connectors • With 4" wire leads.

Electric Strikes

Compatibility Chart

ASSA ABLOY Electronic Security Hardware Adams Rite Von Duprin RCI Trine SDC

HES Complete One

Box Solutions

HES Standard

Models

Securitron Complete

One Box Solutions

HES Folger

Adam Models

1006CS, 1006CLB 1006J 712-75, 732-75 VD3140, 6211

6400 F2164 4100 55

1006CS,

1006CLB

1006K, 1006KD,

1006KM 742-75 6210

6400 F2164 4100

1006CAS 1006A, 1006AD,

1006AM

1006CS, 1006CDB 1006N, 1006ND,

1006NM 6210 F2164

1006CAS 1006T, 1006TD

1006CS, 1006CDB 1006H, 1006HD,

1006HM F2164

1006CS, 1006CDB 1006E

1006CS 1006Z

1006R

1006J2 310-2,

310-2 3/4

6215, 6224,

6226

1006CDB 1006H-2 310-3-1 6216

4500C 742-75 6210 F2164 4100

5000C 5000-501 7140, 7440 4200, 5100 L6514 25-4U

5000C 5000-501A 7100, 7160,

7400 4200, 5100 L6504 25-4U

5000-502 7110, 7410 5100 L6508

5000-503 7130, 7430 L6507

5000-504 7111, 7411

5200C 5200-501 5100

S6514,

7114,

7314

2012 45-4S

5200C 5200-501A 5100

S6504,

7104,

7304

45-4R

5200-502 5100

S6508,

7108,

7308

2002 45-7R

5200-503

S6507,

7107,

7307

2678 145-6R

5200-504

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electric Strikes

Compatibility Chart

ASSA ABLOY Electronic Security Hardware Adams Rite Von Duprin RCI Trine SDC

HES Complete One

Box Solutions

HES Standard

Models

Securitron Complete

One Box Solutions

HES Folger Adam

Models

7000C 7000-791 712, 732 7400, 7401,

7440

7000C 7000-792 7410, 7411

74R1

74A

74R 2

7501 7501

8000C

8000-801,

8000-801A,

8300-801,

8300-801A

UNL

8000-801E,

8000-802,

8000-803,

8300-801E,

8300-802,

8300-803

UNL

8500-851M,

8500-852K,

8500-852L,

8500-852M

MUNL

9400 9400 310-4 74R2 0563 4850

9500 9500 6300 F0162 4800F

9600 9600 74R1 0162 4800

310-2OB 6222, 6225

310-4 6212,

VD3146

9700 9700 310-4S 4801

310-4-1,

310-4-2,

310-4-3,

310-4-30

310-6-1,

310-6-2,

310-6-3,

301-6-8,

310-6-30

9800 7800

NOTE: This chart is offered as a convenience only. Reference should be made to the individual manufacturer’s catalogs for complete data as to exact equivalents.

There may be some variation in physical size, electrical characteristics and durability between strikes of different manufacturers. ASSA ABLOY Electronic Security

Hardware assumes no liability for differences between items compared. When compatibility is a concern, contact Customer Support at 800-626-7590 for application

assistance. NOTE: The 109 trim adapter may be required for a neater appearance in retrofit applications where the strike lip dimensions exceed 3-3/8" [85.725mm].

NOTE: This chart details the HES and Folger Adam products that can replace competitors products but not necessarily the reverse.

Electric Strikes

ANSI Lock Description Manufacturer Electric Strikes

Mortise locksets

Mortise lockset

without a deadbolt

Arrow, Baldwin, Best,

Marks, Omnia, PDQ

HES 1006CS, 1600CS, 1006CLB, 1600CLB, 1006KM,

16001LB, 1500C, 4500C, Securitron MUNL

Corbin Russwin

ML2000 and Arrow

HES 1006CS, 1600-CS, 1006CLB, 1600-CLB,

1006-KM, 1600-1LB, 1500C, 4500C, 8500-852K,

HES Folger Adam 742-75, Securitron MUNL

Sargent 7700 and

8100 Schlage L9000

HES 1006CS, 1600-CS, 1006CLB, 1600-CLB,

1006-KD, 1600-1LB, 1500C, 4500C, 8500-851M,

(Sargent 8100 only), 8500-852L, HES Folger

Adam 742-75, Securitron MUNL

Sargent 7900,

8200, and 9200

HES 1006CS, 1600-CS, 1006CLB, 1600-CLB,

1006-KM, 1600-1LB, 1500C, 4500C, 8500-851M,

8500-852L, HES Folger Adam 742-75,

Securitron MUNL (requires STK-1 tab kit)

Accurate, Falcon, Kaba

Ilco/Unican, Yale 8700

(manufactured after

2005), Yale 8800

HES 1006CS, 1600-CS, 1006CLB, 1600-CLB,

1006-KD, 1600-1LB, 1500C, 4500C,

8500-852M, Securitron MUNL

Mortise locksets

Mortise lockset with a

1" [25.4mm] deadbolt

Accurate, Almet, Arrow,

Baldwin, Best, Marks,

Corbin Russwin, Falcon,

Omnia, PDQ , Schlage

HES 1006CS*, 1600-CS*, 1006CDB*, 1600-CDB*

1006-HD*, 1006-ND*, 1006CAS

Sargent, Yale HES 1006CS*, 1600-CS*, 1006CDB*, 1600-CDB*

1006-HD*, 1006-ND*, 1006CAS

*Not intended for continuous recapture of a 1" [25.4mm] deadbolt - use 1006CAS

NOTE: This chart is offered as a resource only. Electric strike compatibility is determined at time of electric strike product release.

ASSA ABLOY is not responsible for incompatibility of products that have changed in design or craftsmanship by their respective

manufacturers. When compatibility is a concern, contact Customer Support at 800-626-7590 for application assistance.

Lock Cross Reference

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

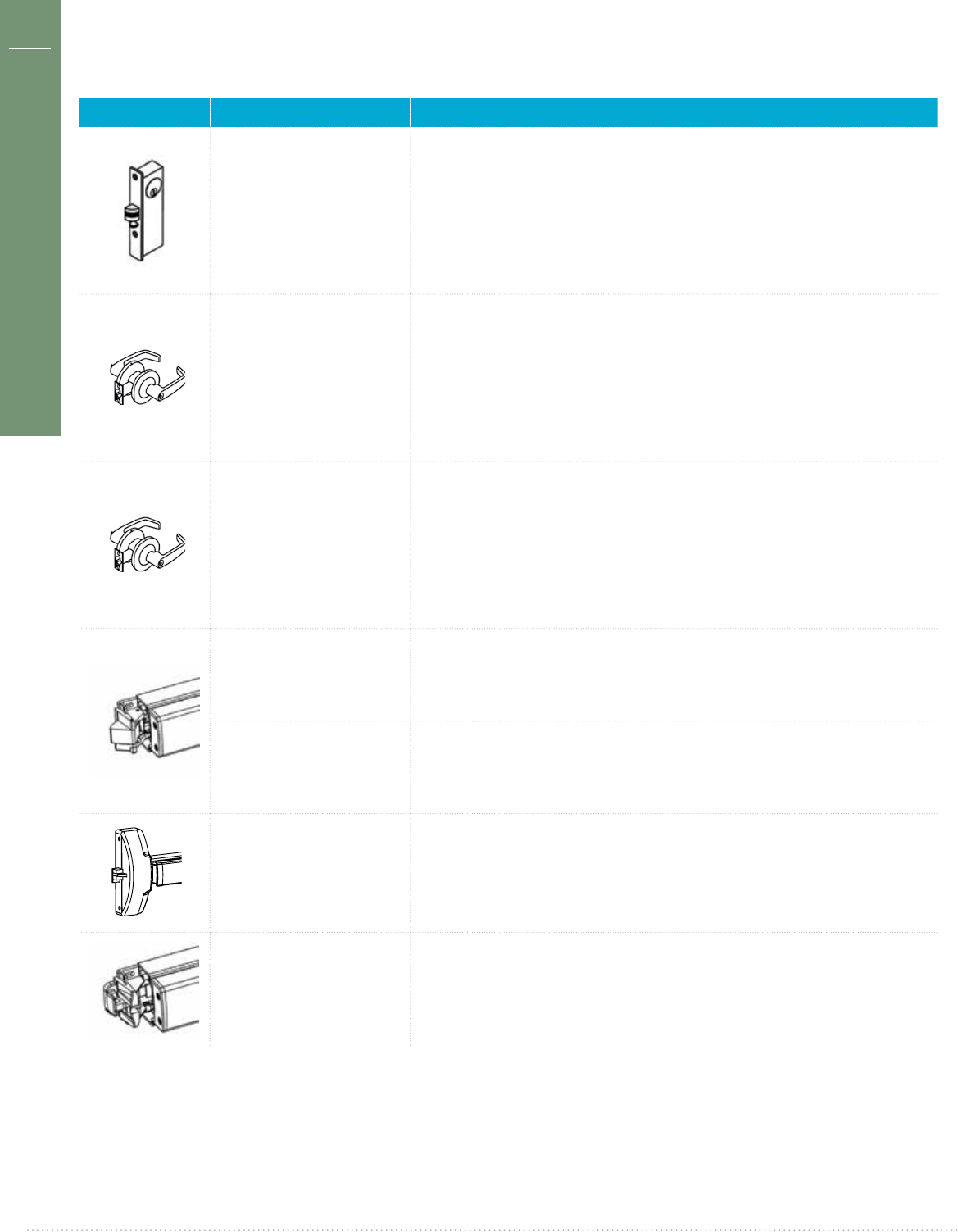

Electric Strikes

Lock Cross Reference

ANSI Lock Description Manufacturer Electric Strikes

Cylindrical lockset

Latchbolt for aluminum

stile doors

All manufacturers HES 5000C, 5200C, 1500C, 7000C,

1006-J, 1600-1LB, Securitron UNL

Cylindrical lockset

Cylindrical lockset up to

5/8" [15.875mm] throw

All manufacturers

HES 1006CS, 1600-CS, 1006CLB, 1600-CLB, 1006-J,

1600-1LB, 1500C, 4500C, 5000C, 7000C, 8000C,

8300C, HES Folger Adam 712, 310-2, Securitron

UNL, Vista V3 (now Alarm Controls AES300)

Cylindrical lockset

Cylindrical lockset up to

3/4" [19mm] throw

All manufacturers

HES 1006CS, 1600-CS, 1006CLB, 1600-CLB,

1006-J, 1600-1LB, 1500C, 4500C, 5200C,

7501, HES Folger Adam 310-75, 712-75

Rim mounted

Pullman rim mounted

exit device up to 1/2"

[12.7mm] throw

All manufacturers HES 9400, 7000-789S

Rim mounted

Pullman rim mounted

exit device up to 3/4"

[19mm] throw

All manufacturers HES 9500, 9600, 7000-783S, 7000-786S,

HES Folger Adam 310-4

Rim mounted

Squarebolt® style rim

mounted exit devices

Corbin Russwin

(SecureBolt®),

Yale (SquareBolt®)

HES 9700, HES Folger Adam 310-4S

Rim mounted

Adams Rite Starwheel and

Interlocking Rim Exit Devices

Adams Rite®HES 9800

• HES and HES Folger Adam electric strikes are designed to be installed in accordance with the ANSI/BHMA A156.31 4-7/8" [123.8mm] jam preparation.

• When accommodating a cylindrical lock, the electric strike is to be installed centerline to centerline.

• When accommodating a mortise lock, the centerline of the electric strike is to be installed 3/8" [9.525mm] above the centerline of the mortise lock,

except as noted for individual strikes. HES Folger Adam 712 Series and 310 Series will need special alignment with used with a mortise lock.

• HES electric strikes are all non-handed and designed for installation in hollow metal, concrete filled metal, aluminum and wood jambs.

• HES Folger Adam electric strikes are all non-handed and designed for installation in hollow metal, aluminum and wood jambs.

Electromagnetic Locks

Electromagnetic

Locks

Electromagnetic Locks

ASSA ABLOY Electronic

Security Hardware

The premier supplier of

electromagnetic locking solutions.

When you choose a genuine Securitron® Magnalock®, you get quality solutions for high traffic

and high security applications plus MagnaCare® Lifetime Replacement No-fault Warranty.

All Securitron Magnalocks Include

• Automatic dual-voltage uses 12 or 24 volt power supply and protects Magnalock

• World-class technical support experts, ready to assist you in selecting hardware, wiring and troubleshooting your opening

• Collapsing blind nuts, securely anchor Magnalocks to the frame with 1,000 lbs of tensile strength

• Excellent product quality—Magnalocks are manufactured in an ISO9001 and ISO14001 certified factory in Phoenix, AZ

• MagnaCare®, the best warranty in the industry – lifetime replacement, no-fault, no questions asked

Intelligent & Sustainable

Magnalocks

• • Available with PIR REX, BondSTAT® and

DPS reduce the number of devices

to buy and install at the door.

• • Sleek, low profile and refined lines for

aesthetically demanding applications.

• • Patent-pending template and bracket mounting

system enable accurate alignment of magnet

and armature plate for maximum holding

force, installs in less than 22 minutes.

• • Reduces energy consumption by up to 80%.

Durable Magnalocks

• • Lower power usage than competitor locks.

At three watts (less wattage than a typical

nightlight), a Securitron Magnalock operates

efficiently with a smaller power supply, thinner

wiring and longer battery backup. Securitron

Magnalocks consume less energy, generate

less heat and outlast the competition.

• • 100% waterproof design, shock absorbing

polyurethane, stainless steel casing and plated

lock face that is impervious to corrosion

operate from -40˚F to 140˚F [-40˚C to 60˚C].

• • Instant release circuit with no residual

magnetism and no inductive kickback.

Electromagnetic Locks

Features

Standard Features

• PoE friendly

• Sustainability documentation

• Tamper resistant

• Efficient, low power usage

• Automatic dual-voltage

—no field adjustment required

• Bracket mounting provides the

easiest install for out-swing doors

• Size optimized for use

with door closers

• Rust resistant—all ferrous metal

surfaces plated for durability

• Instant release circuit

—no residual magnetism

• LED visual locked status with

configurable red/green color output

• Sleek, low profile and refined

lines for improved aesthetics

• Wire chamber with

anti-tamper switch

• Adjustable automatic relock

timer (0 to 30 seconds)

• Ultra-secure collapsing blind

nuts mount to door frame for

strength and reliability

• MagnaCare® lifetime replacement,

no-fault, no questions

asked warranty

Optional Features

• B Patented BondSTAT

magnetic bond sensor

• D Integrated Door

Position Switch (DPS)

• X Integrated passive

infrared request to exit

Intelligent, stylish and

secure with advanced

features and amazingly

easy to install.

The Securitron M380 provides strong hold in a

stylish way. With unsurpassed intelligence, an

integrated optional REX and incredible ease of

installation, it sets a new standard for maglocks.

A built-in, auto voltage-sensing microprocessor

along with patented BondSTAT and door

position monitoring plus advanced options

such as integrated and REX for the most

functional maglock ever. The newest addition

to the aesthetically pleasing line of maglocks

the Securitron M380 look is refined enough

for the most discriminating designer openings

with consolidated features that eliminate

the clutter of multiple devices around

the door. The fastest, easiest, most secure

installation of any bracket mount maglock.

Watch how easy at: bit.ly/2EqGD0L

Securitron® M380

Magnalock®

The 600 lbs holding

force, bracket mounted

intelligent Magnalock

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

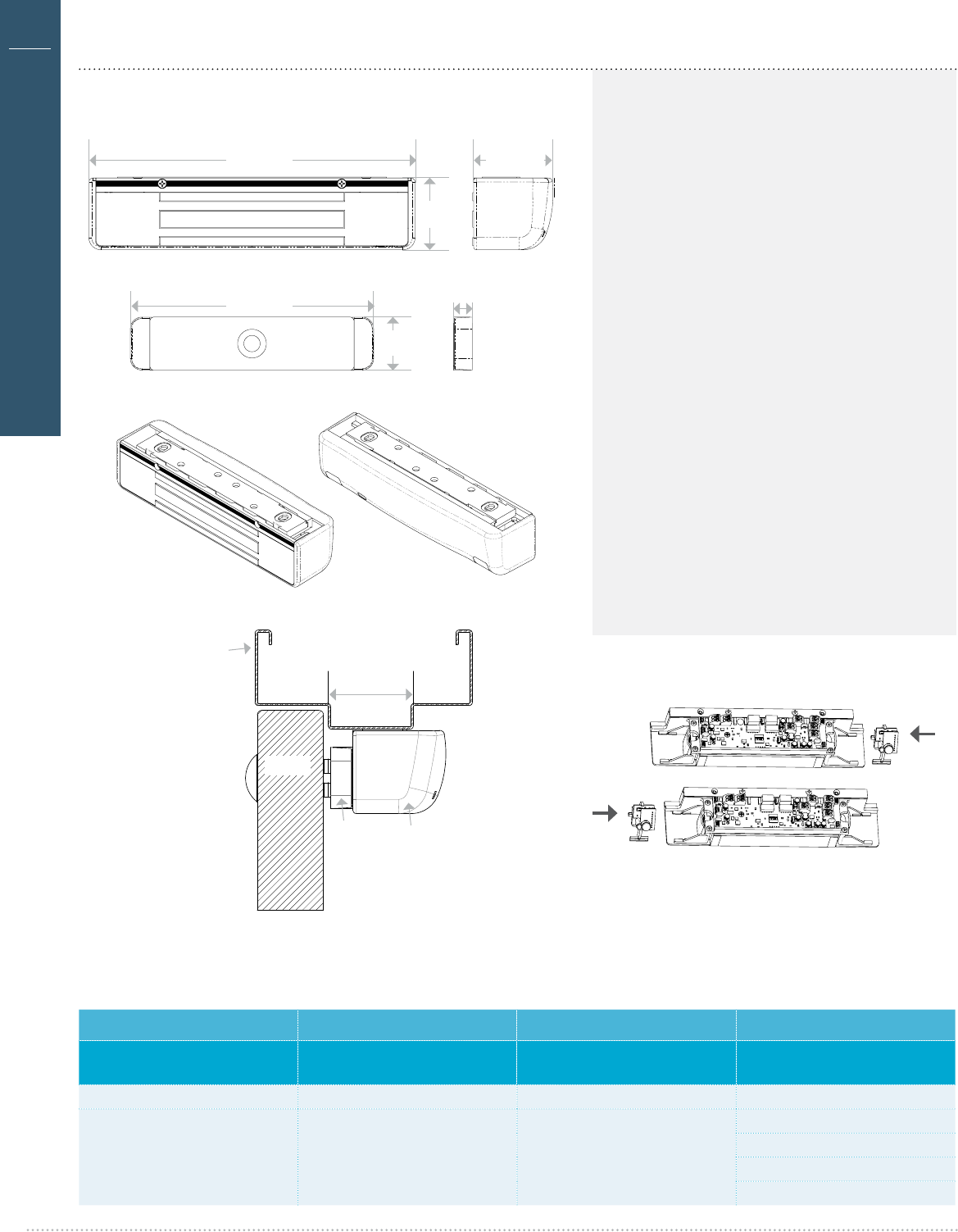

Electromagnetic Locks

Dimensions Specifications

Certifications

• UL 10C Listed

• UL 1034 Listed

• CAN4-S104, CAN/ULC Listed

• ANSI/BHMA A156.23, Grade 3; E18501-

500, E18531-500 Compliant

• CSFM—California State Fire Marshal Approved

Electrical

• 510 mA at 12 VDC

• 270 mA at 24 VDC

Holding Force

• 600 lbs [272kg]

Operating Temperature

• 32˚ to 110˚F [0˚ to 43˚C]

• Indoor use only

Shipping Weight

• 8 lbs [3.6kg]

10"

[254mm]

2-3/16"

[56mm]

9/16"

[14mm]

7-7/16"

[189mm]

2-1/4" [57.15]

DOOR STOP

FRAME

HEADER

MAGNALOCK

Fits in 2-1/4" [57.15mm] of flat mounting space

STRIKE

PLATE

DOOR

2-7/16"

[62mm]

The optional REX is designed as a modular component that

can be installed on either the left side or the right side of

the magnet. The position of the REX module can be easily

field configured for better positioning on the door.

How to Order

Model Series Monitoring Options Accessory Options Finish Options

M380 BD X – 313

M370 600 lbs (blank) No Monitoring (blank) No Accessory Options (blank) Satin Aluminum Clear

M380 600 lbs BD BondSTAT Monitor &

Door Position Switch

X PIR Request to Exit 605 Bright Brass

606 Satin Brass

612 Satin Bronze

313 Satin Brown

1-5/8"

[41mm]

Securitron M380 Magnalock

Electromagnetic Locks

Features

Standard Features

• Strike plate mounting template

provides the easiest install

for out-swing doors

• LED Indicator shows the lock is secure,

open, or has an incomplete bond

• Wire chamber anti-tamper switch

• Tamper Switch sends an alarm

output if the cover is removed

and is selectable to NO or NC

• Available integrated BondSTAT

and Door Position Switch

• Autosensing dual voltage with

microprocessor technology

• Adjustable automatic relock

timer (0 to 30 seconds)

• Energy efficient, low power usage

• Size optimized for use with door closers

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• B Integrated patented BondSTAT

magnetic bond sensor

• D Integrated Door

Position Switch (DPS)

• X Integrated passive

infrared request to exit

The same unsurpassed

intelligence, style and

convenience as the

previous M680 series,

but with 80% reduction

in energy consumption.

The Securitron M680E is intelligent, with

built-in door prop sensing allowing the magnet

to de-energize the coil when the door is held

open for extended periods. The Securitron

M680EBD offers built-in smart voltage sensing,

integrated patented BondSTAT, tamper sensor

as well as door position status monitoring. The

aesthetics and design finishes of the EcoMag

are refined enough for the most discriminating

designer openings. It also offers the fastest,

easiest, most secure installation of any bracket

mount maglock with an updated strike plate

mounting template. The optional integrated

request to exit (REX) provides optimum

coverage for detecting an approaching

person so the door unlocks for egress.

Securitron® M680E EcoMag

Sustainable Magnalock®

1,200 lbs holding force,

bracket mounted,

sustainable Magnalock

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electromagnetic Locks

Specifications

Certifications

• UL 10C Fire Rated, 1 Hour

• CAN/ULC-S104 Fire Door Conformant

• UL 1034 Burglary-Resistant Listed

• UL 294

• ANSI/BHMA A156.23, Grade 2; E18501 Compliant

• California State Fire Marshal Listed

Electrical

• Maglock Average Power Draw (±10%)

— 113mA at 12VDC

— 52mA at 24VDC

• Maglock Maximum Power Draw (±10%)

— 515mA at 12VDC

— 290mA at 24VDC

• REX Power (±10%)

— +25mA at 12VDC

— +10mA at 24VDC

Holding Force

• 1,200 lbs [544kg]

Operating Temperature

• 32˚ to 110˚F [0˚ to 43˚C]

• Indoor use only

Shipping Weight

• 8 lbs [3.6kg]

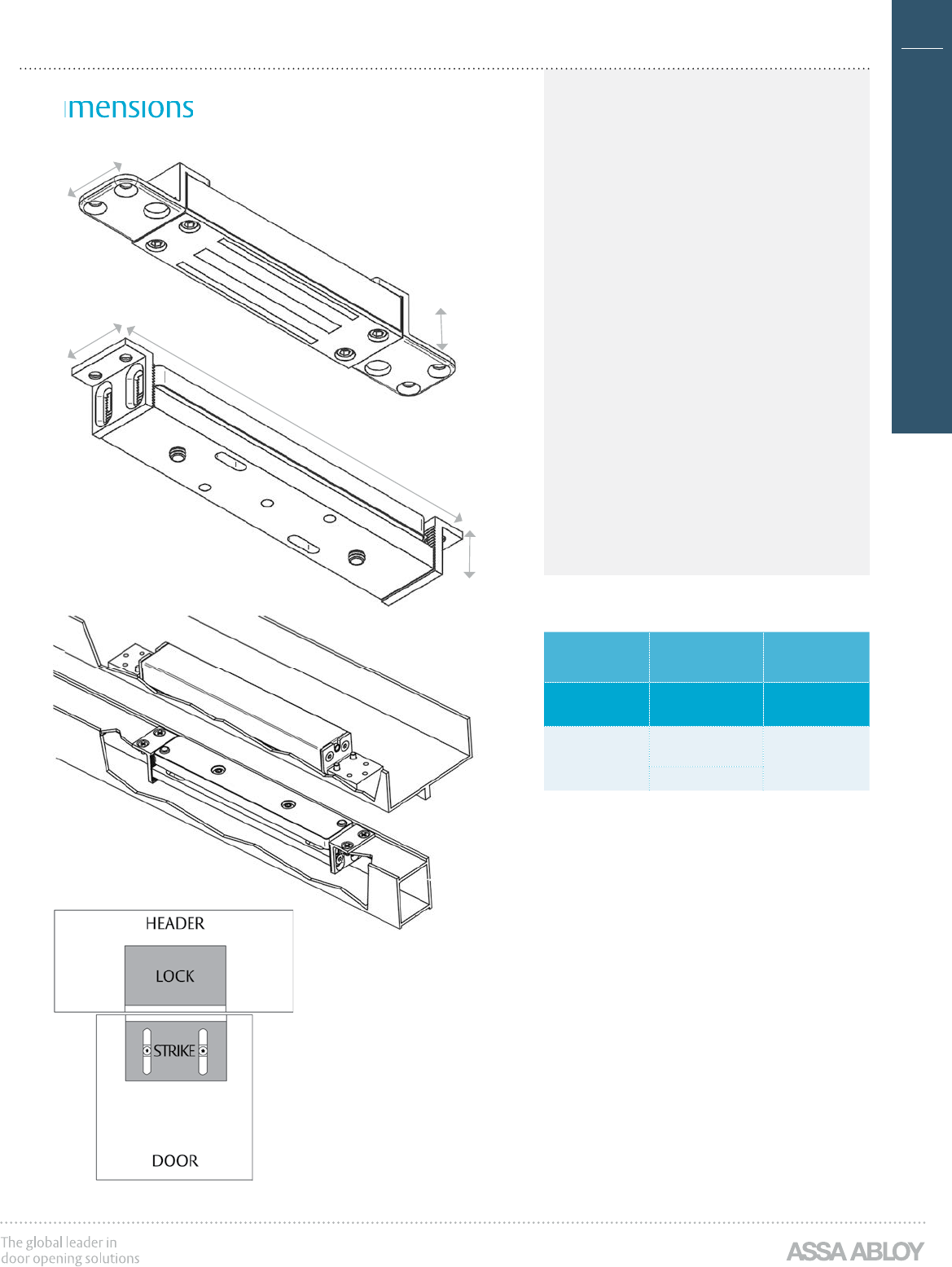

Dimensions

How to Order

Model Series Monitoring Options Accessory Options Finish Options

M680E BD X – 606

M680E 1,200 lbs (blank) No Monitoring (blank) No Accessory Options 628/US28 Satin Aluminum Clear

BD BondSTAT Monitor &

Door Position Switch

X PIR Request to Exit 605/US3 Bright Brass

606/US4 Satin Brass

612/US10 Satin Bronze

613E Dark Oxidized Satin Bronze

629 Bright Stainless Steel

630 Satin Stainless Steel

BSP Black Suede Powder

WSP* White Suede Powder

*Finish option available soon. Please contact your Sales Representative for product details, availability and pricing.

11-1/ 2"

[292.1mm]

11-1/ 2"

[292.1mm]

2-1/2"

[63.5mm]

2-1/2"

[63.5mm]

2-1/4"

[57.15mm]

2-1/2"

[63.5mm]

2-9/16"

[65mm]

2-9/16"

[65mm]

3/4"

[19.05mm]

2-1/8"

[79.5mm]

Securitron M680E EcoMag Sustainable Magnalock

Electromagnetic Locks

Features

Standard Features

• Automatic dual-voltage

—no field adjustment required

• Bracket mounting provides the

easiest install for out-swing doors

• Size optimized for use

with door closers

• Patented BondSTAT lock bond sensor

• Instant release circuit

—no residual magnetism

• Internal wire access chamber

• Easily visible LEDs indicate

status on secure side of door

• Advanced intelligent microprocessors

provide alarm options and trainable

door movement detection

to minimize false alarms

• Permits free egress in

emergency situations

• Fully integrated delay and detection

features for fast installation

of delayed egress system

• Easily adjustable door

movement detection from 1/8"

[3.2 mm] to 1" [25.4 mm]

• External alarm relay isolated

dry contact (1A at 24 VDC)

• External reset

• Keyswitch reset

• Configurable settings include:

− Nuisance alarm times

– 0 to 3 seconds

− Irrevocable delay times

–15 or 30 seconds

− External bypass delay times

– 0, 5, 10, or 15 seconds

− Post alarm reminder

− Bypass expiration alarm

− Manual relock or delayed

automatic relock (BOCA)

• Required sign included

• Ultra-secure collapsing blind

nuts mount to door frame for

strength and reliability

• Rust resistant – all ferrous metal

surfaces plated for durability

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• iEXDa allows alarm initiation

via an external panic device

• iMXDa-CA is CAL Fire BML listed

• iMXDaCH is Chicago compliant

• iMXDaH for HUGs® Infant

Protection System

Integrated movement

exit delay with

all-in-one Magnalock.

Prevent losses at emergency exits with

Securitron iMXDa. An attempted exit initiates

an alarm and intiates a brief delay timer

before the lock releases, giving personnel

time to respond before an exit occurs.

Protect memory care wards, hospitals,

dormitories, airports, child care facilities and

retail or warehouse environments. Used on

out-swing doors, installation requires no

alteration or replacement of existing fire-

rated or non-fire-rated latching hardware.

Securitron® iMXDa

Delayed Egress

Magnalock®

Configurable, 1,200 lbs holding

force, delayed egress Magnalock

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electromagnetic Locks

Dimensions

Specifications

Certifications

• CAN/ULC-S533 Listed

• ANSI/UL 294 Listed

• NFPA 101

• CSFM—California State Fire Marshal

Approved (IMXDA-CA only)

Electrical

• 370 mA max at 12 VDC

• 270 mA max at 24 VDC

Holding Force

• 1,200 lbs [544kg]

Operating Temperature

• 32˚ to 104˚F [0˚ to 40˚C]

• Indoor use only

Shipping Weight

• 15 lbs [6.80kg]

2-3/4"

[70mm]

3-5/8"

[92mm]

12-1/2"

[318mm]

[51mm]

8-15/16"

[226mm] 5/16"

[8.1mm]

29"

[737mm]

5/16"

[8mm]

[76mm]

[25mm]

5/16"

[8mm]

How to Order

Model Series Timing Options

iMXDa CH

iMXDa Integrated Initation (blank) Adjustable Timing

iEXDa External Initation – CA15S California Required 15s Timings

–CA30S California Required 30s Timings

CH Chicago Required Timings

H HUGS Infant Protection Timings

Securitron iMXDa Delayed Egress Magnalock

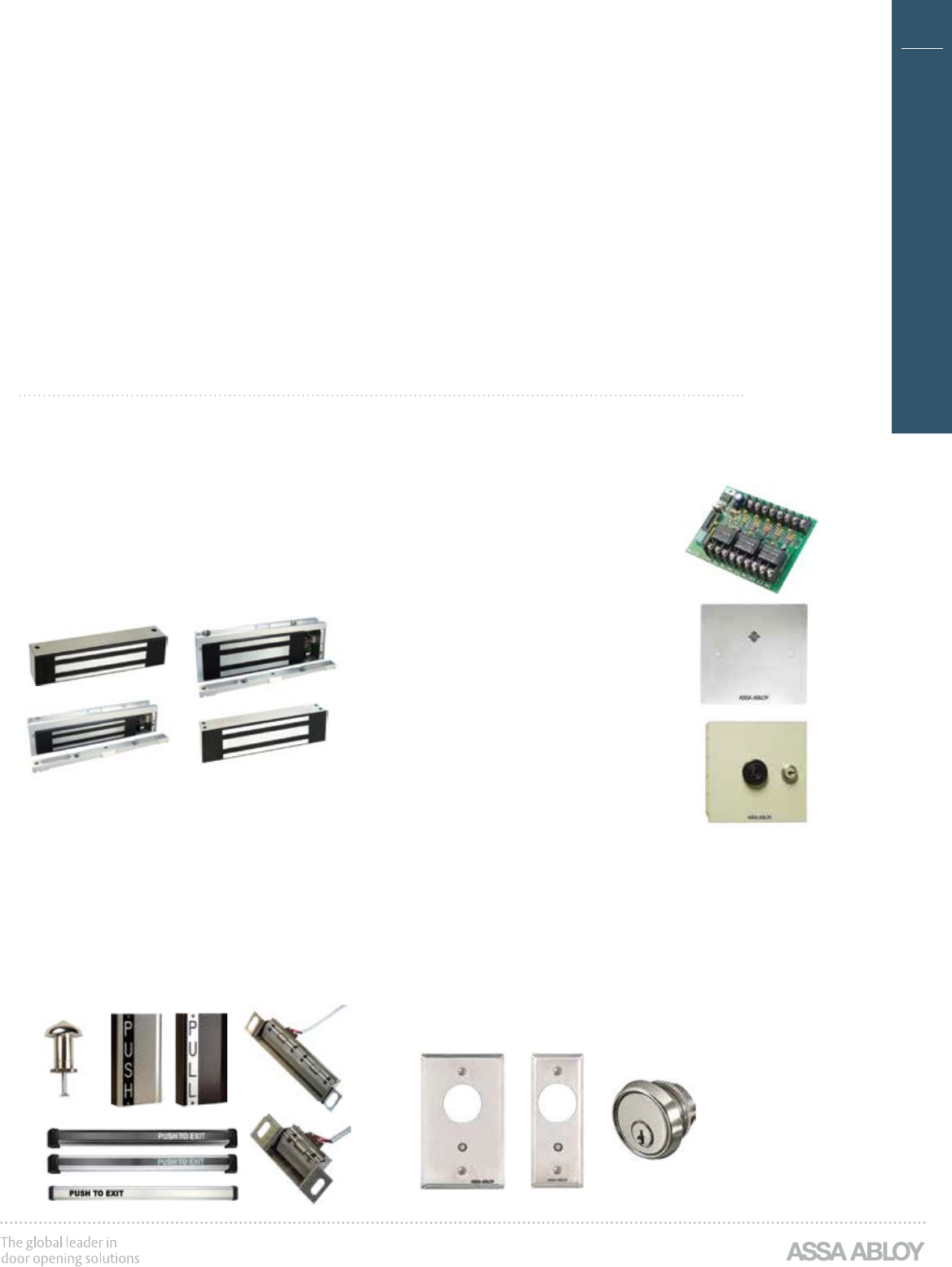

Electromagnetic Locks

With modular upgrades, maintenance and replacement,

Securitron Component EXD evolves with your changing access control needs

1Select a locking device

(one per door)

Choose from

• Magnalock® Series: M32, M38, M62,

M68, M82, M380 or M680E

3Choose an exit

delay timer (one per opening)

Choose from

• XDT, BA-XDT, FA-XDT More than one door requires

purchase of additional EXD-1L Door Label

2Choose an initiating

device (one per door)

Determine type of egress —

Egress Control Only or Egress Control

with Electronic Access Capability

Determine door type —

Fire Rated or Non-Fire Rated

Choose from:

• Securitron®: SB-MXD, LML, LMS,

DSB, TSB, TSH, EMB

• Sargent®: 80 Series w/55 prefix

• Adams Rite®: 3700, 3600, 3300 & 3100, 8099m

4Choose a system reset

(one per opening)

Choose from

• Manual Reset: MK Series w/momentary switch

• Automatic Reset: DPS-W and DPS-M

NOTE: Manual Reset (NBC of Canada, NFPA 101 &

UBC) or Automatic Reset (UBC & BOCA). Please

consult local jurisdiction for specific requirements.

When the demands of your door environment

require specific components, ASSA ABLOY’s

UL/ULC Exit Delay System (EXD) delivers a

system that meets your specific needs.

Modular delayed egress that complies with NFPA

101 Life Safety Code and conforms to BOCA,

UBC, SBC and National Building Code of Canada.

This modular approach suits the specific locking

requirements of all doors, as well as the desired

level of physical security and ease of maintenance.

See individual product pages for complete specifications.

Modular Exit Delay System

Build an exit delay system customized

to your specific application

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

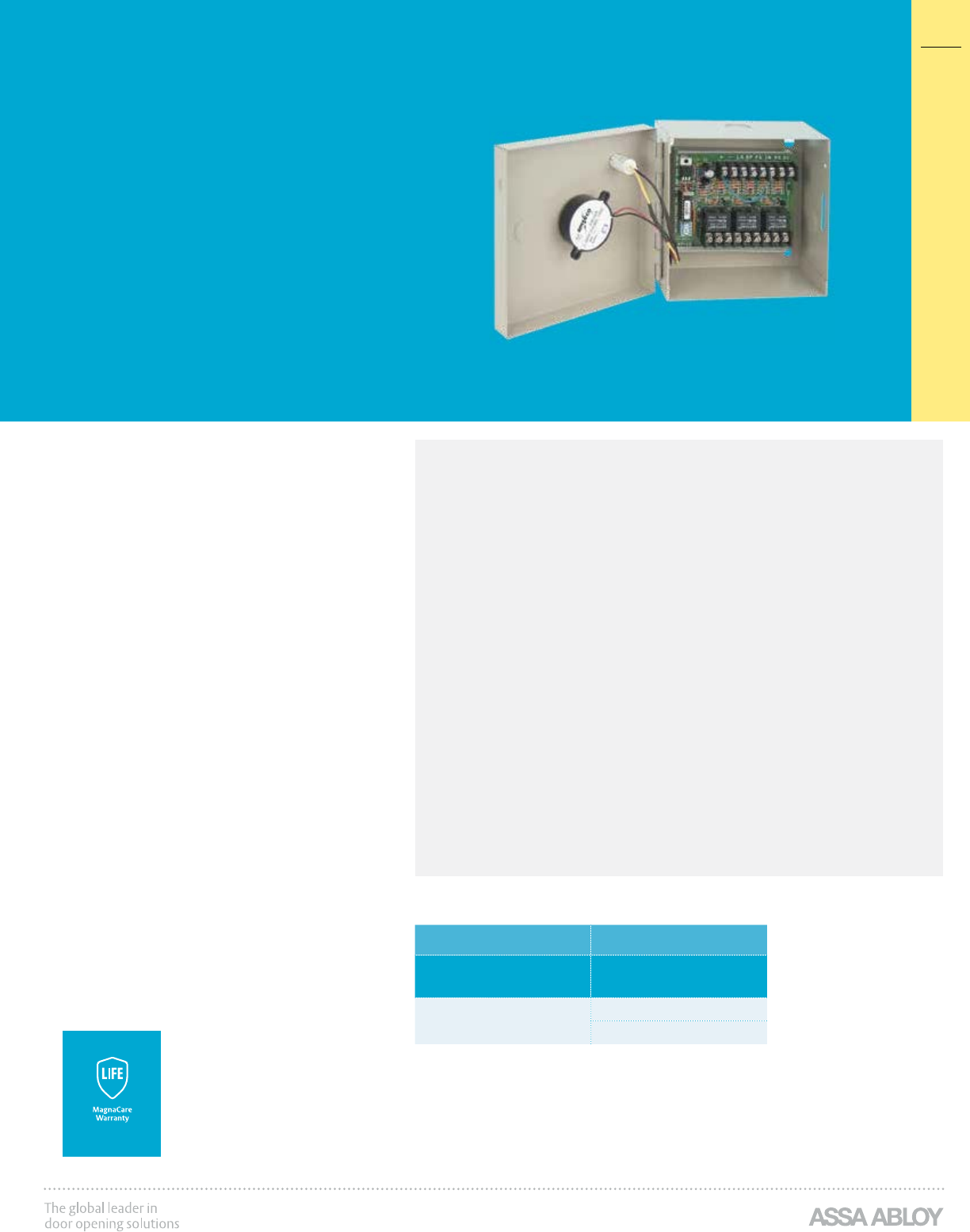

Electromagnetic Locks

Features

Standard Features

• Meets all code requirements

including the BOCA 30

second relock function

• Nuisance delay and release

times are digitally set using

precise DIP switches

• Three 5A SPDT relays for

interface capabilities

• External switches such as time

clocks can put the XDT into

different functions when delayed

exit is not desired at all times

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• XDT is board only

• BA-XDT in surface mount enclosure

with piezo sounder and door label

• FA-XDT is a flush mount

plate enclosure with piezo

sounder and door label

Specifications

Certifications

• ANSI/UL 294 Listed

• CSFM — California State Fire

Marshal Approved

Electrical

• 100 mA at 12 VDC

• 50 mA at 24 VDC

• 5A SPDT relays

Dimensions

Configurable exit delay

is ideal for fail safe

environments that

have varying needs

throughout the day.

Function is compatible with entry control,

door/lock monitoring and authorized

immediate exit. Widely used in healthcare

environments to alert for patient exit and

in retail environments to prevent theft.

Securitron® XDT

Exit Delay Timer

Sophisticated control in an

easy-to-use, modular exit delay timer

How to Order

Mounting Method Model Series Voltage

BA – XDT – 12

(blank) Circuit

Board only

XDT Exit Delay

Timer

12 12 VDC

BA Boxed 24 24 VDC

FA Flush Mount

5-1/4"

[133mm]

5-1/4"

[133mm]

2-1/2"

[63mm]

Electromagnetic Locks

Part Number Description

SB-MXD SB-MXD Sex Bolt Kit—Door Movement

Request additional part # 390-15690 for doors > 2" [50.8mm] thick.

Request additional part # 390-15650 for doors < 1.75" [44.45mm] thick.

The SB-MXD detects

door movement and

initiates a signal for

delayed egress when

used in conjunction

with ASSA ABLOY’s

Securitron XDT

logic timers.

Door movement tolerance ranges from

1/2" – 3/4". Options are available for standard,

thin and thick doors. Backed by our

MagnaCare® lifetime replacement,

no-fault, no questions asked warranty.

Securitron®

SB-MXD Exit

Delay Sex Bolt

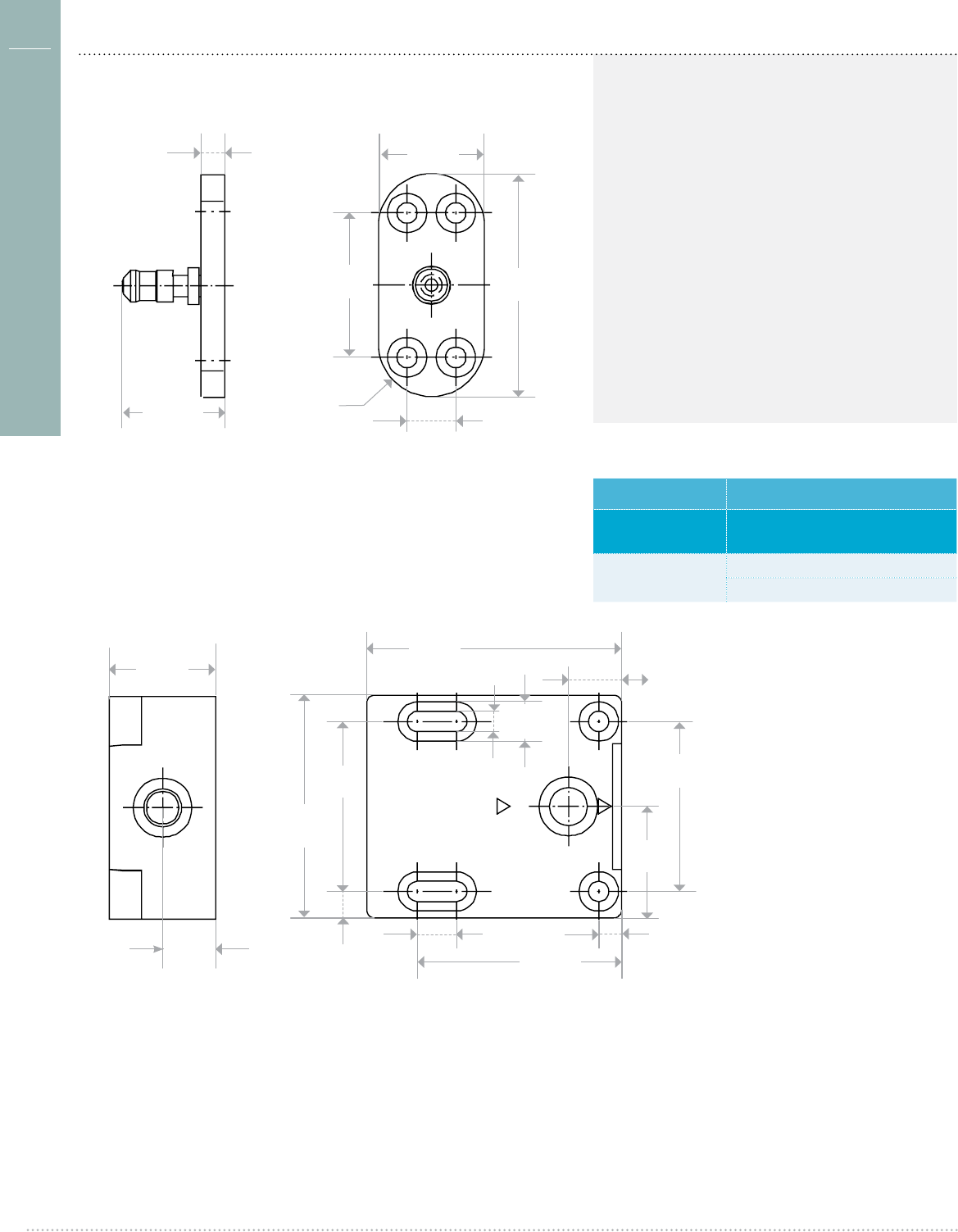

Dimensions

[51mm]

1-3/4"

[44mm]

15/16"

[24mm]

[25mm]

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electromagnetic Locks

Building Codes

Affecting Delayed

Egress in the United

States and Canada

Code Nuisanse

Delay

Release

Delay

Post-delay

Relocking

Upon Fire Alarm

or Loss of Power

to Lock

Signage Special Application

Requirements

NFPA-101-2009

National Fire

Protection

Association

0-3

Seconds

15 Seconds or

30 Seconds

with AHJ

approval

Manual

Means Only

Doors Unlock and

Immediate Egress is

Possible. Emergency

Lighting Required.

PUSH UNTIL ALARM

SOUNDS. Door Can be

Opened in 15 (30) Seconds.

Additional Delayed

Egress Systems

Allowed in an Exit Path.

NBC 2010

National Building

Code of Canada 2010

15 Seconds Manual

Means Only

Doors Unlock

and Immediate

Egress is Possible.

PUSH UNTIL ALARM SOUNDS.

Door Can be Opened in 15

(30) Seconds. Mount within

12" of Releasing Device.

IBC 2009 & 2012

International

Building Codes

1 Second

15 Seconds or

30 Seconds

with AHJ

approval

Manual

Means Only

Doors Unlock and

Immediate Egress is

Possible. Emergency

Lighting Required.

PUSH UNTIL ALARM SOUNDS.

Door Can be Opened in 15

(30) Seconds. Mount within

12" of Releasing Device.

IBC 2015

International

Building Code

0-3

Seconds

15 Seconds or

30 Seconds

with AHJ

approval

Manual

Means Only

Door Releases Upon

Loss of Power.

PUSH UNTIL ALARM SOUNDS.

Door Can be Opened in 15

(30) Seconds. Mount within

12" of Releasing Device.

DOOR Can Remain

Locked From Outside.

I-2 and I-3 Allow Two

15 Second Delays

in One Exit Path.

Exceptions on

Signage in I-1.

The following general information on code

requirements should not be considered

definitive. The information provided

represents ASSA ABLOY Electronic Security

Hardware's best understanding of individual

codes at the time of this catalog’s printing.

Codes, however, may change and are also

subject to local interpretations that may differ

from those provided here. Please consider this

information as a preliminary point of reference

which should be confirmed or altered in

accordance with the direction given by any

local authority having jurisdiction (AHJ).

The following chart describes four individual

building code requirements in five areas

of function: Nuisance Delay, Release Delay,

Post Alarm Relocking, Power Loss and

Special Application Requirements.

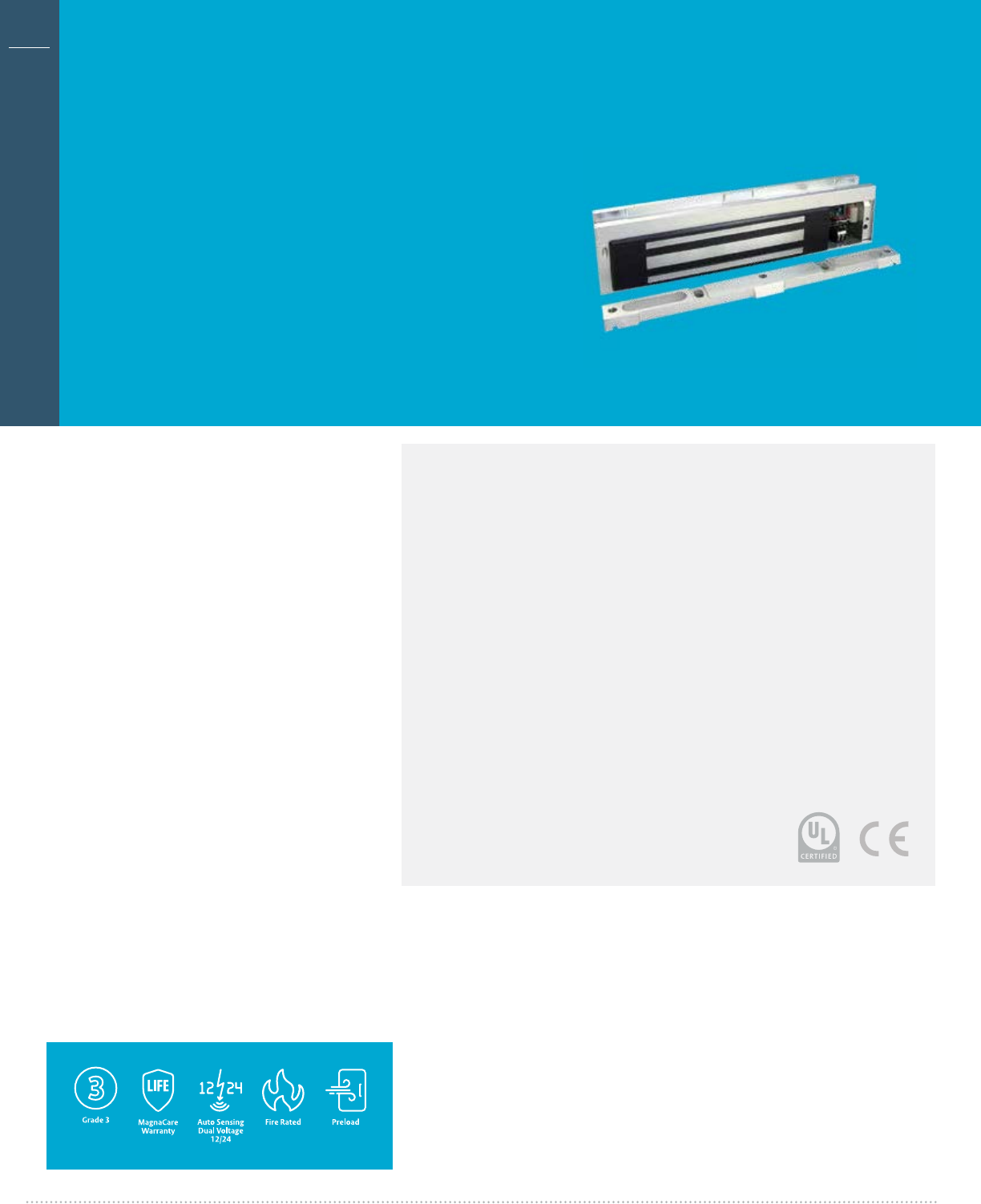

Electromagnetic Locks

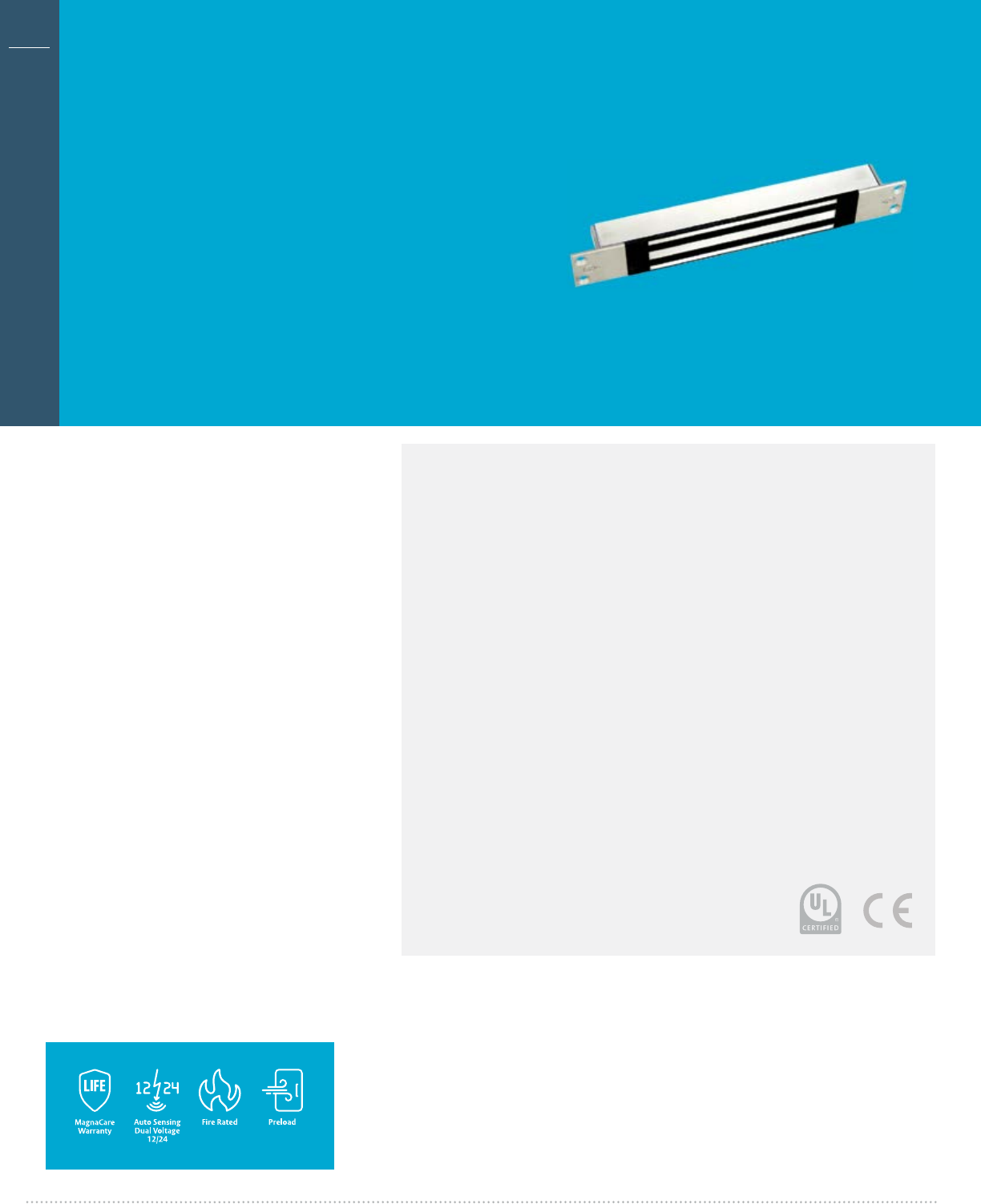

Features

Standard Features

• PoE friendly

• Sustainability documentation

• Efficient, low power usage

• Automatic dual-voltage—

no field adjustment required

• Fully sealed for weatherproof

operations

• Size optimized for use

with door closers

• Rust resistant—all ferrous metal

surfaces plated for durability

• Instant release circuit—

no residual magnetism

• Noise suppression with built-in MOV

• 10 ft [3.05m] of jacketed,

stranded conductor cable

• Ultra-secure collapsing blind

nuts mount to door frame for

strength and reliability

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• F Face drilled

• B Patented BondSTAT

magnetic bond sensor

• D Integrated Door Position

Switch (DPS)

The ultimate in

Magnalock reliability

for indoor/outdoor

traffic control.

The Securitron M32 electromagnetic lock

is ideal for traffic control in high-use areas

within secured or monitored perimeters.

With unsurpassed durability, the Securitron

M32 will last long after most buildings wear

out. Applications include storage areas,

rooms, and hallways where reliability, high

durability and low-maintenance are required.

NOTE: Securitron M32-SS in cabinet

lock section. See page #141.

Securitron® M32

Magnalock®

600 lbs holding force

direct mounted Magnalock

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

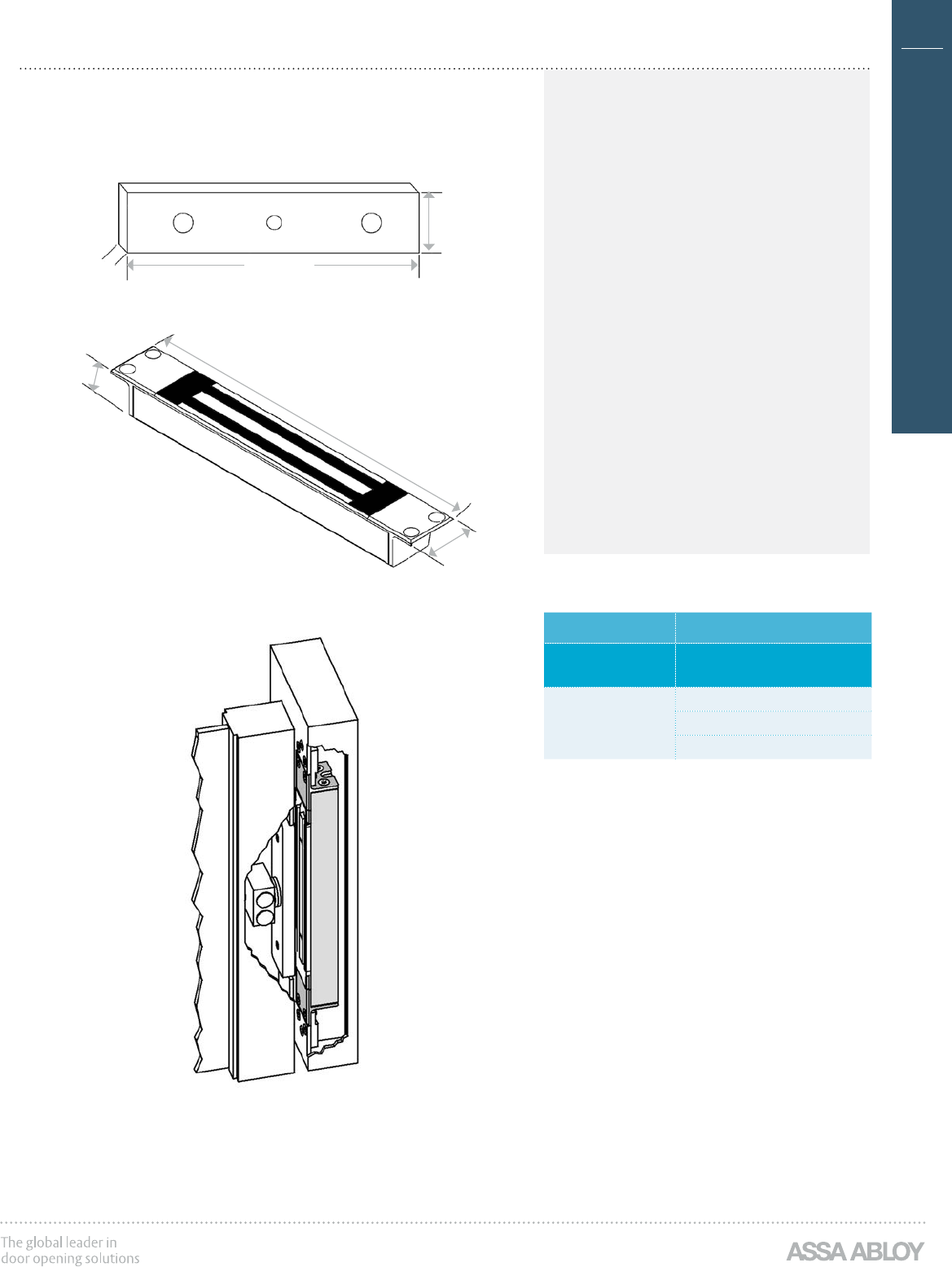

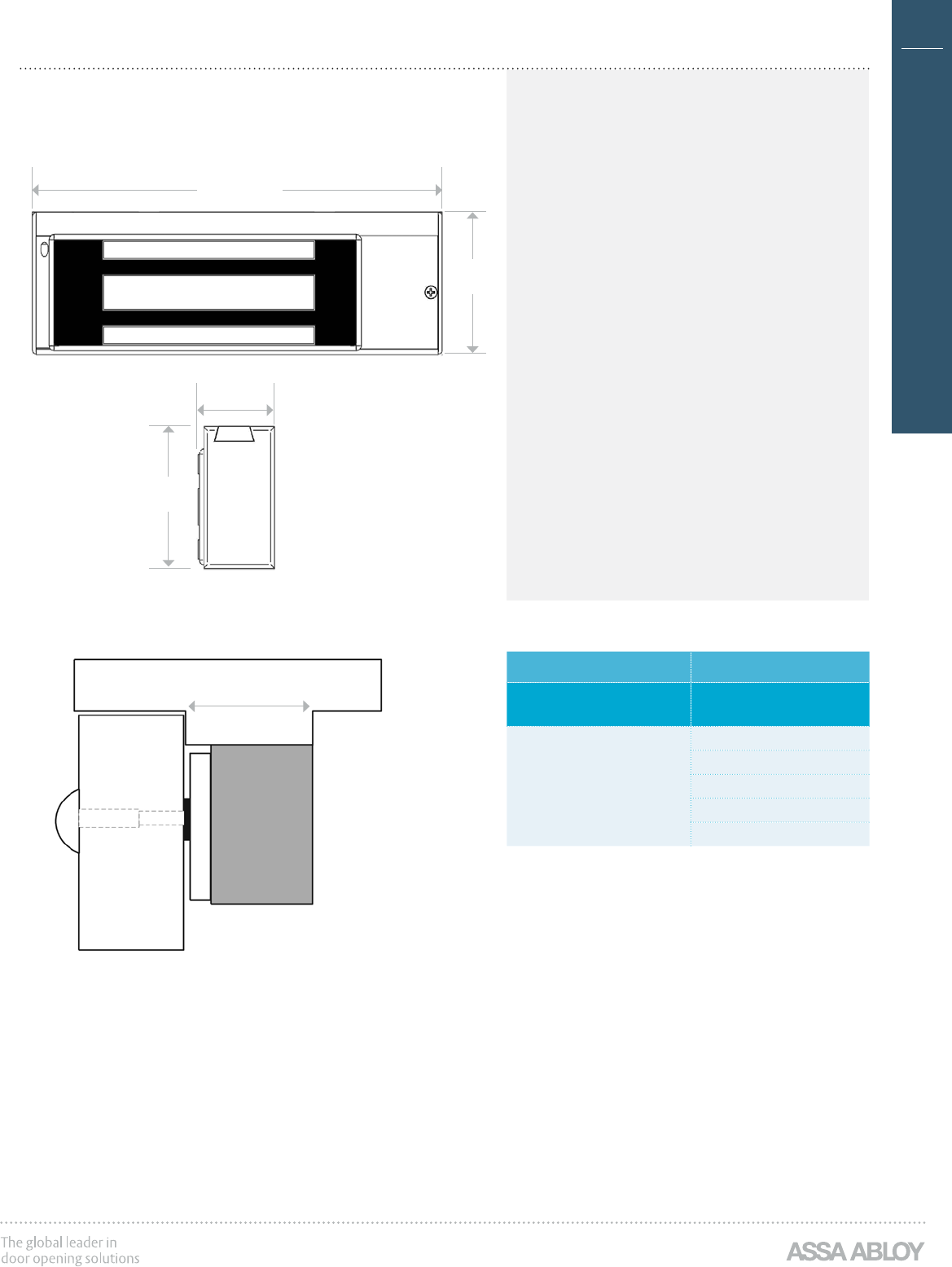

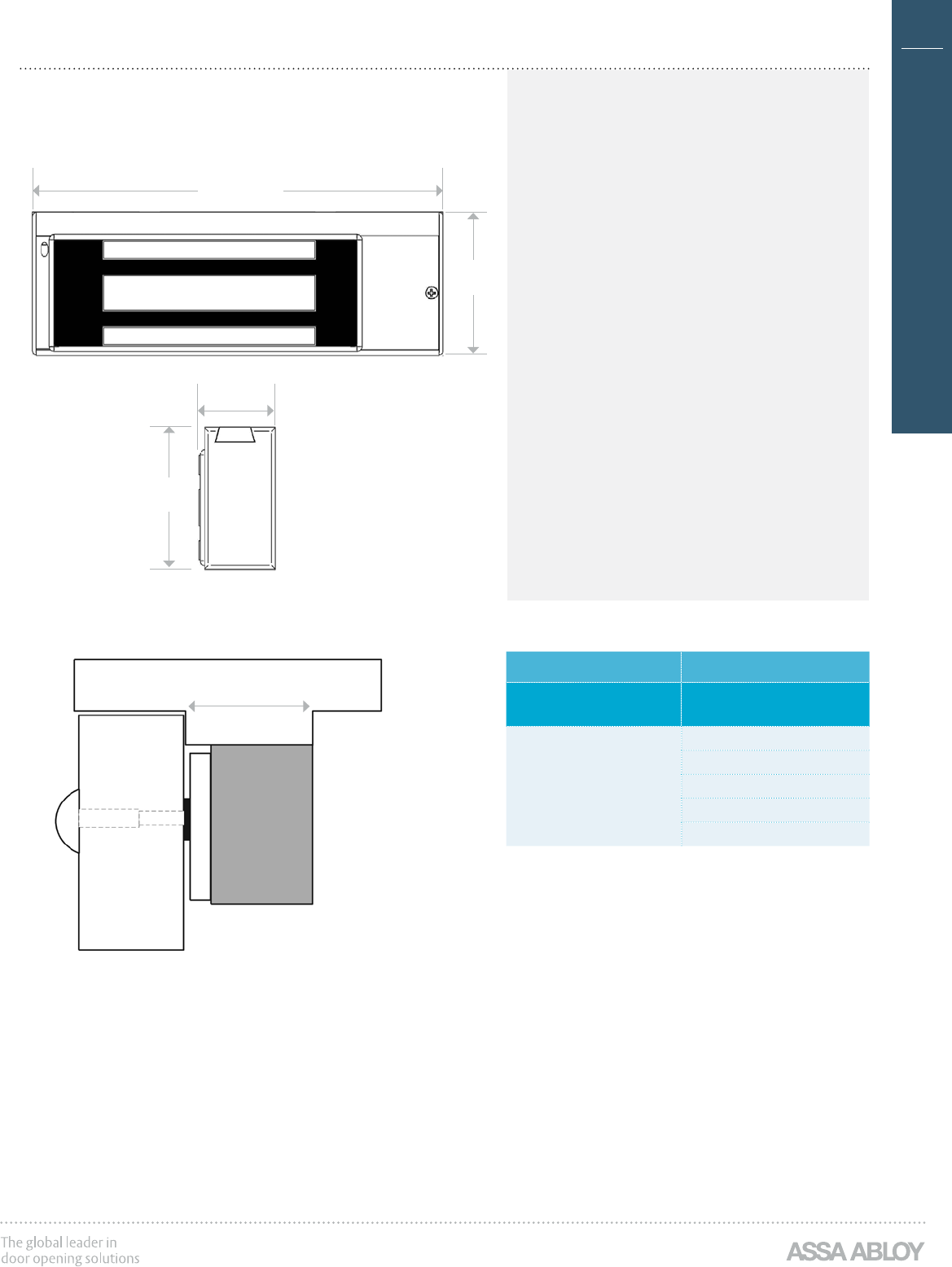

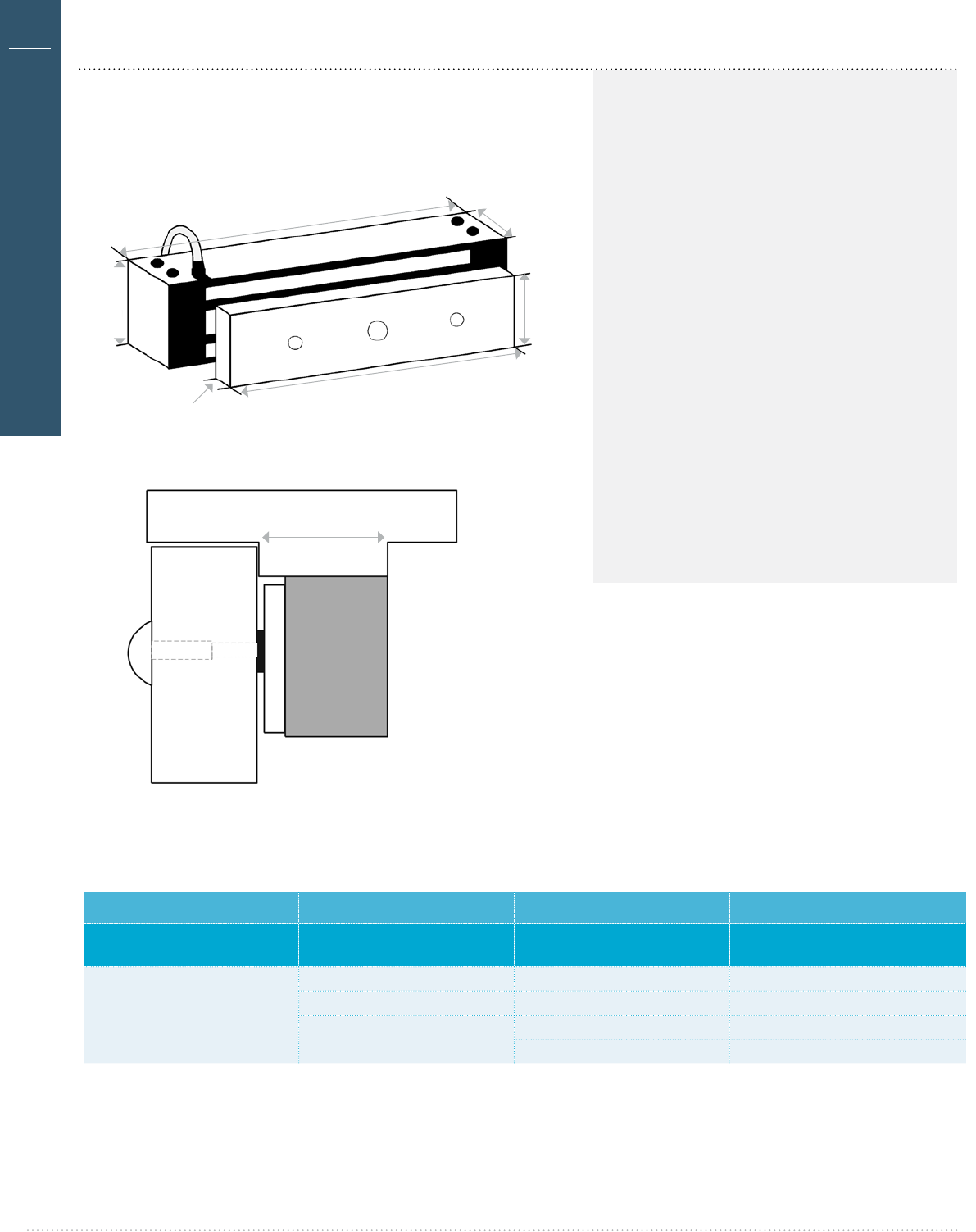

Electromagnetic Locks

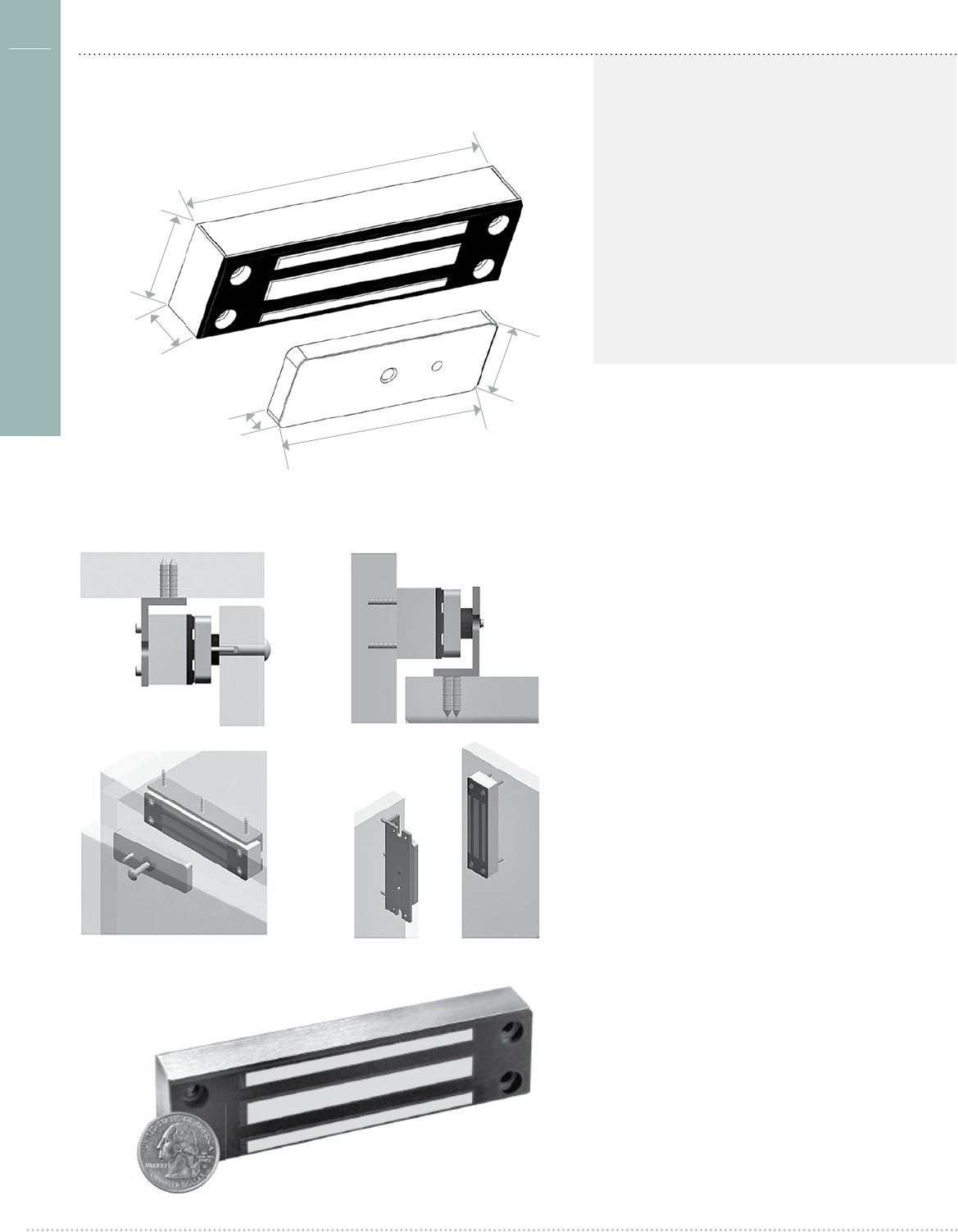

Dimensions

Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ULC-S533 Listed

• ANSI/UL 294 Listed

• CSA-C22.2 No.205 Listed

• ANSI/BHMA A156.23, Grade 3;

E08501-500 Compliant

• CSFM—California State Fire Marshal Approved

• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

• Environmental Product Declaration

• Health Product Declaration

Electrical

• 300 mA at 12 VDC

• 150 mA at 24 VDC

Holding Force

• 600 lbs [272kg]

Operating Temperature

• -40˚ to 140˚F [-40˚ to 60˚C]

• Indoor or Outdoor use

Shipping Weight

• 6 lbs [2.72kg]

How to Order

Model Series Mounting Method Monitoring Options Strike Plate Options

M32 FBD – SS

M32 600 lbs (blank) Direct Mount (blank) No Monitoring (blank) Standard Strike

F Face Drilled B BondSTAT Monitor SS Split Strike

D Door Position Switch SASM Shock Absorbing

Strike Mount

BD BondSTAT and DPS

Securitron M32 Magnalock

1-5/8"

[41mm]

6-1/4"

[153mm]

1/2"

[12mm]

1-5/8"

[41mm]

1-7/8"

[47mm]

[203mm]

2-1/4" [31.75mm]

Fits in 2-1/4"

[31.75mm] of flat

mounting space

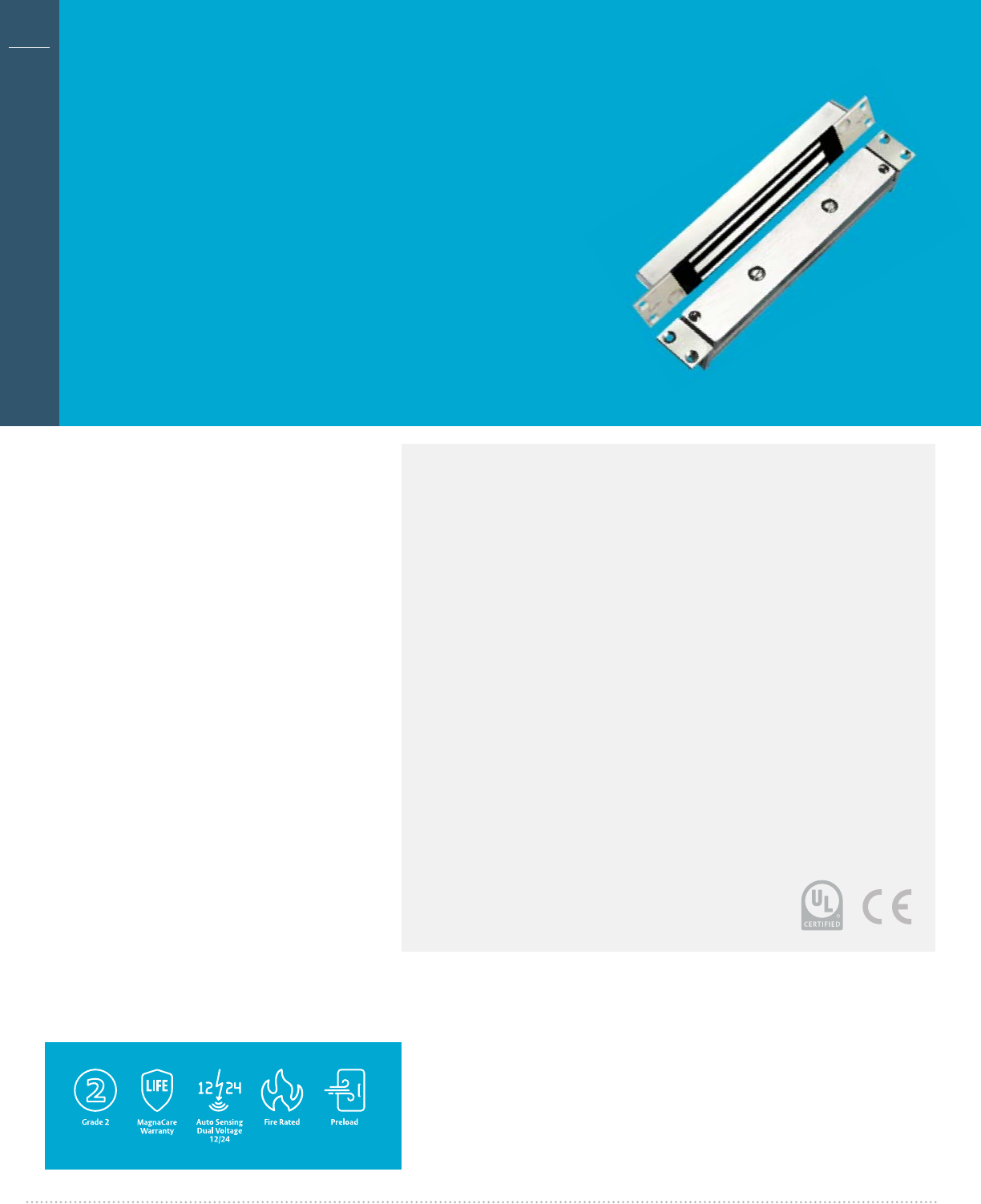

Electromagnetic Locks

Features

Standard Features

• PoE friendly

• Sustainability documentation

• Efficient, low power usage

• Automatic dual-voltage

—no field adjustment required

• Fully sealed for

weatherproof operations

• Size optimized for use

with door closers

• Rust resistant—all ferrous metal

surfaces plated for durability

• Instant release circuit

—no residual magnetism

• Noise suppression with built-in MOV

• 10 ft [3.05m] of jacketed,

stranded conductor cable

• Ultra-secure collapsing blind

nuts mount to door frame for

strength and reliability

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• F Face drilled

• G Gate conduit

• B Patented BondSTAT

magnetic bond sensor

• D Integrated Door

Position Switch (DPS)

• SS Split Strike

• SASM Shock Absorbing

Strike Mount for Gates

• OS Offset Strike

The ultimate in

Magnalock versatility

for indoor/outdoor

higher security.

The Securitron M62 is a strong, easy-to-

maintain solution for interior, perimeter and

exterior access control. With unsurpassed

durability, the Securitron M62 will last long

after most buildings wear out. Flexible

mounting options support applications

for hollow metal, concrete filled metal,

wood, or glass with aluminum frames, and

Herculite doors. Options include single and

double door configurations, or specialty

applications such as gates and fences.

NOTE: Securitron M62FG-SASM in Specialty

Lock section. See page #153.

Securitron® M62

Magnalock®

1,200 lbs holding force

direct mounted Magnalock

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electromagnetic Locks

Dimensions Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ULC-S533 Listed

• ANSI/UL 294 Listed

• CSA-C22.2 No.205 Listed

• ANSI/BHMA A156.23, Grade 2;

E08501-1000 Compliant

• CSFM—California State Fire Marshal Approved

• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

• Environmental Product Declaration

• Health Product Declaration

Electrical

• 250 mA at 12 VDC

• 150 mA at 24 VDC

Holding Force

• 1,200 lbs [544kg]

Operating Temperature

• -40˚ to 140˚F [-40˚ to 60˚C]

• Indoor or Outdoor use

Shipping Weight

• 11 lbs [5kg]

How to Order

Model Series Mounting Method Monitoring Options Strike Plate Options

M62 FG BD – SASM

M62 1,200 lbs (blank) Direct Mount (blank) No Monitoring (blank) Standard Strike

F Face Drilled B BondSTAT Monitor OS Offset Strike

G Gate Conduit D Door Position Switch SS Split Strike

BD BondSTAT and DPS SASM Shock Absorbing Strike Mount

Securitron M62 Magnalock

2-3/4"

[70mm]

[152mm]

1/2"

[12mm]

1-3/4"

[44mm]

[76mm]

[203mm]

Electromagnetic Locks

Securitron®

M82 Magnalock®

1,800 lbs holding force

direct mounted Magnalock

Features

Standard Features

• Efficient, low power usage

• Automatic dual-voltage

—no field adjustment required

• Fully sealed for weatherproof

operations

• Rust resistant—all ferrous metal

surfaces plated for durability

• Instant release circuit

—no residual magnetism

• Noise suppression with built-in MOV

• 10 ft [3.05m] of jacketed,

stranded conductor cable

• Ultra-secure collapsing blind

nuts mount to door frame for

strength and reliability

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• F Face drilled

• G Gate conduit

• B Patented BondSTAT

magnetic bond sensor

• D Integrated Door

Position Switch (DPS)

• SS Split Strike

• OS Offset Strike

Industrial strength

hold for challenging

indoor/outdoor

environments.

The Securitron M82 electromagnetic lock

offers unsurpassed magnetic holding strength,

durability and ease of maintenance for

interior, perimeter and exterior access control

applications in high-risk environments. With

unsurpassed durability, the Securitron M82 will

last long after most buildings wear out. Flexible

mounting options are available for higher

security locations and other environments

where extreme forces may be encountered.

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electromagnetic Locks

Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ULC-S533 Listed

• ANSI/UL 294 Listed

• ANSI/BHMA A156.23, Grade 1;

E08501-1500 Compliant

• CSFM—California State Fire Marshal Approved

• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

Electrical

• 350 mA at 12 VDC

• 200 mA at 24 VDC

Holding Force

• 1,800 lbs [816kg]

Operating Temperature

• -40˚ to 140˚F [-40˚ to 60˚C]

• Indoor or Outdoor use

Shipping Weight

• 16 lbs [7.26kg]

How to Order

Model Series Mounting Method Monitoring Options Strike Plate Options

M82 FG BD – OS

M82 1,800 lbs (blank) Direct Mount (blank) No Monitoring (blank) Standard Strike

F Face Drilled B BondSTAT Monitor OS Offset Strike

G Gate Conduit D Door Position Switch SS Split Strike

BD BondSTAT and DPS SASM Shock Absorbing Strike Mount

Securitron M82 Magnalock

Dimensions

[76mm] 2-3/4"

[70mm]

12"

[305mm] 1-3/4"

[44mm]

[229mm]

1/2"

[12mm]

2-1/2" [63.5 mm]

Fits in 2-1/2"

[63.5mm] of flat

mounting space

DOOR STOP

MAGLOCK

DOOR

HEADER

STRIKE PLATE

Electromagnetic Locks

Securitron®

M32, M62, M82

Magnalock® Accessories

ASB Aluminum Spacer Bracket

• Use when a blade stop requires the Magnalock to be lowered

• Comes pre-drilled for the mounting bolts and wire

• Provides a blind nut for surface installation of strike

• Available in clear aluminum or black anodized

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

CWB Concrete Wood Bracket

• Used on wood or concrete filled metal frames

• Provides a concealed wire chamber

• Available in clear aluminum or black anodized

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Part Number Description Finish

ASB-32BK Aluminum Frame Spacer Bracket – M32 Black Anodized

ASB-32CL Aluminum Frame Spacer Bracket – M32 Clear Anodized

ASB-62BK Aluminum Frame Spacer Bracket – M62 Black Anodized

ASB-62CL Aluminum Frame Spacer Bracket – M62 Clear Anodized

ASB-82BK2 Aluminum Frame Spacer Bracket – M82 Black Anodized

ASB-82CL Aluminum Frame Spacer Bracket – M82 Clear Anodized

ASCWB-DM62CL Aluminum 1-1/2" [38.1mm] Spacer –

Concrete/Wood Bracket, DM62 Clear

Part Number Description Finish

CWB-32BK Concrete/Wood Bracket – M32 Black Anodized

CWB-32CL Concrete/Wood Bracket – M32 Clear Anodized

CWB-62BK Concrete/Wood Bracket – M62 Black Anodized

CWB-62CL Concrete/Wood Bracket – M62 Clear Anodized

CWB-82BK Concrete/Wood Bracket – M82 Black Anodized

CWB-82CL Concrete/Wood Bracket – M82 Clear Anodized

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Electromagnetic Locks

ASS Split Strike/Replacement Strike Plate

• Allows a single M32, M62 or M82 Magnalock to secure a double

door at traffic control holding force level.

• Includes Split Strike Plates only.

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty.

ZA Z Bracket Kits – Adjustable

• Use on in-swing doors with Magnalock "F" options

(8-1/2" [215.9mm] overall length).

• Provides 1-1/4" [31.75mm] of lateral movement to

accommodate most openings and allows for precision adjustments

(2-1/4" to 3-1/2" [57.15mm to 88.9mm] from door/header).

• Includes an oversized dress cover.

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty.

Securitron M32/62/82 Magnalock Accessories

AOS Offset Strike Plate

• Alters the position of the mounting hole by 1/4" [6mm]. This is often

required to clear the glass on aluminum frame store front doors.

• Includes Offset Strike Plate only.

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty.

Part Number Description

AOS-62 Strike Plate – M62, Offset

AOS-62D Strike Plate – M62D, Offset

AOS-82 Strike Plate – M82, Offset

Part Number Description

ASS-32 Strike Plate M32 – Split Set w/ Fasteners & Sex Bolt

ASS-62 Strike Plate M62 – Split Set w/ Fasteners & Sex Bolt

ASS-82 Strike Plate M82 – Split Set w/Fasteners & Sex Bolt

Part Number Description Finish

ZA-32/62BK Adjustable Z-Bracket – M32/62 Black Anodized

ZA-32/62CL Adjustable Z-Bracket – M32/62 Clear Anodized

ZA-32/62SS Adjustable Z-Bracket – M32/62 Satin Stainless

ZA-82BK Adjustable Z-Bracket – M82 Black Anodized

ZA-82CL Adjustable Z-Bracket – M82 Clear Anodized

ZA-82SS Adjustable Z-Bracket – M82 Satin Stainless

Electromagnetic Locks

TDK-1 Accessory for Thick Doors

• Provides replacement screws so armature plates for the M32, M62, M82, M38 and

M68 can be used on doors thicker than 1-3/4" [44.45mm], and up to 3" [76.2mm].

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty.

EASB Energy Absorbing Sex Bolt

The Energy Absorbing Sex Bolt provides additional protection and shock

absorption to augment holding force when a door experiences dynamic

forces such as kicks or repeated blows. Used in mental health care and

detention ancillary or administrative doors, and perimeter doors.

• For high-security applications on inflexible doors.

• Replaces the standard Sex Bolt.

• Contains a powerful internal spring that absorbs and dissipates the force of a blow.

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty.

Securitron M32/62/82 Magnalock Accessories

Part Number Description

EASB-250 Energy Absorbing Bolt – 1/4" [6.35mm] Spacer Kit

EASB-32 Energy Absorbing Sex Bolt – Model 32

EASB-62 Energy Absorbing Sex Bolt – Model 62

EASB-82 Energy Absorbing Sex Bolt – Model 82

Part Number Description Finish

SB-1 Sex Bolt – Replacement Clear

SB-1-03 Sex Bolt – Replacement Polished Brass

SB-1-10B Sex Bolt – Replacement Oil-Rubbed Bronze

Part Number Description

TDK-1 Thick Door Kit

SB-1 Sex Bolt Replacement

• Replaces armature plate sex bolt for M32, M38, M62, M68 and M82B Magnalocks.

• Available in clear, polished brass or oil rubbed bronze finish.

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty.

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

100

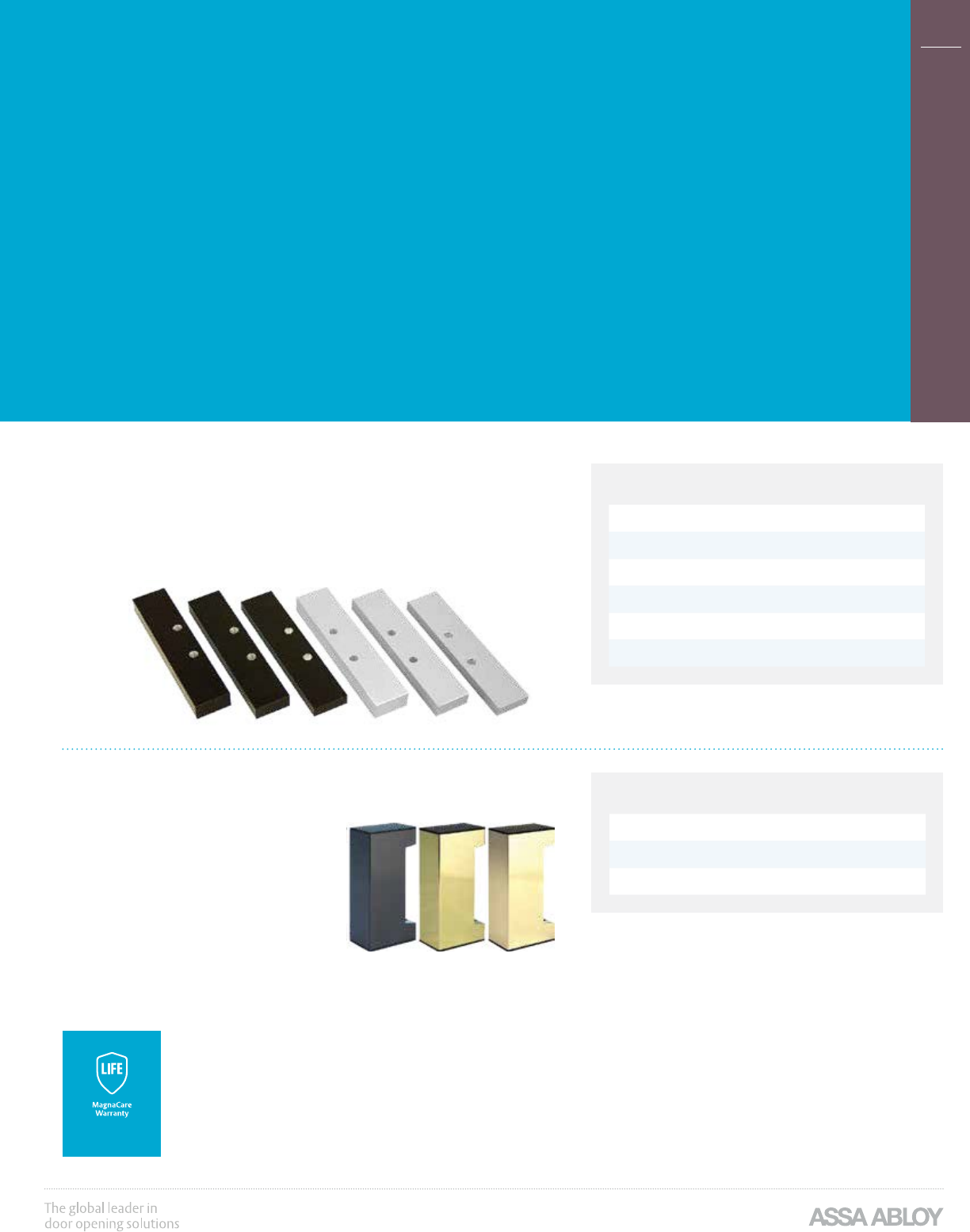

Electromagnetic Locks

Securitron M32/62/82 Magnalock Accessories

DDC Double Dress Covers

• Use with M32.

• Available in clear, black, polished stainless and polished brass finish.

• Will cover a pair of Magnalocks on a double door

(if they are separated by no more than 2").

• Not for use with the DM62 Magnalock.

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty.

DC Dress Covers

• Use with M32, M62, and M82.

• Install using foam adhesive tape.

• Available in clear, black, polished stainless and polished brass finish.

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty.

Part Number Description Color

DC-32BK DC – M32 Black Anodized

DC-32BP DC – M32 Brass Polished

DC-32CL DC – M32 Clear Anodized

DC-32SP DC – M32 Stainless Polished

DC-62BK DC – M62 Black Anodized

DC-62BP DC – M62 Brass Polished

DC-62CL DC – M62 Clear Anodized

DC-62SP DC – M62 Stainless Polished

DC-82BK DC – M82 Black Anodized

DC-82BP DC – M82 Brass Polished

DC-82CL DC – M82 Clear Anodized

DC-82SP DC – M82 Stainless Polished

Part Number Description Color

DC-32BK DC – M32 Black Anodized

DC-32BP DC – M32 Brass Polished

DC-32CL DC – M32 Clear Anodized

DC-32SP DC – M32 Stainless Polished

101

Electromagnetic Locks

How to Order

Specify quantity and the following information. Order related products separately.

Model Series Mounting Method Specify Length

HHD -32 (83")

HHD 32 HHD Max Length 96"

HHSL 62 HHD Max Length 96"

HHSR 82 HHSR Max Length 48"

HVD HVD Max Length 96"

Securitron M32/62/82 Magnalock Accessories

HHD / HHSL / HHSR / HVD Full Length Housings

• Vertical or horizontal configurations

• Fit one or two locks (not included)

• (SLR) Single Left Hand Reverse

• (SRR) Single Right Hand Reverse

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Electromagnetic Locks

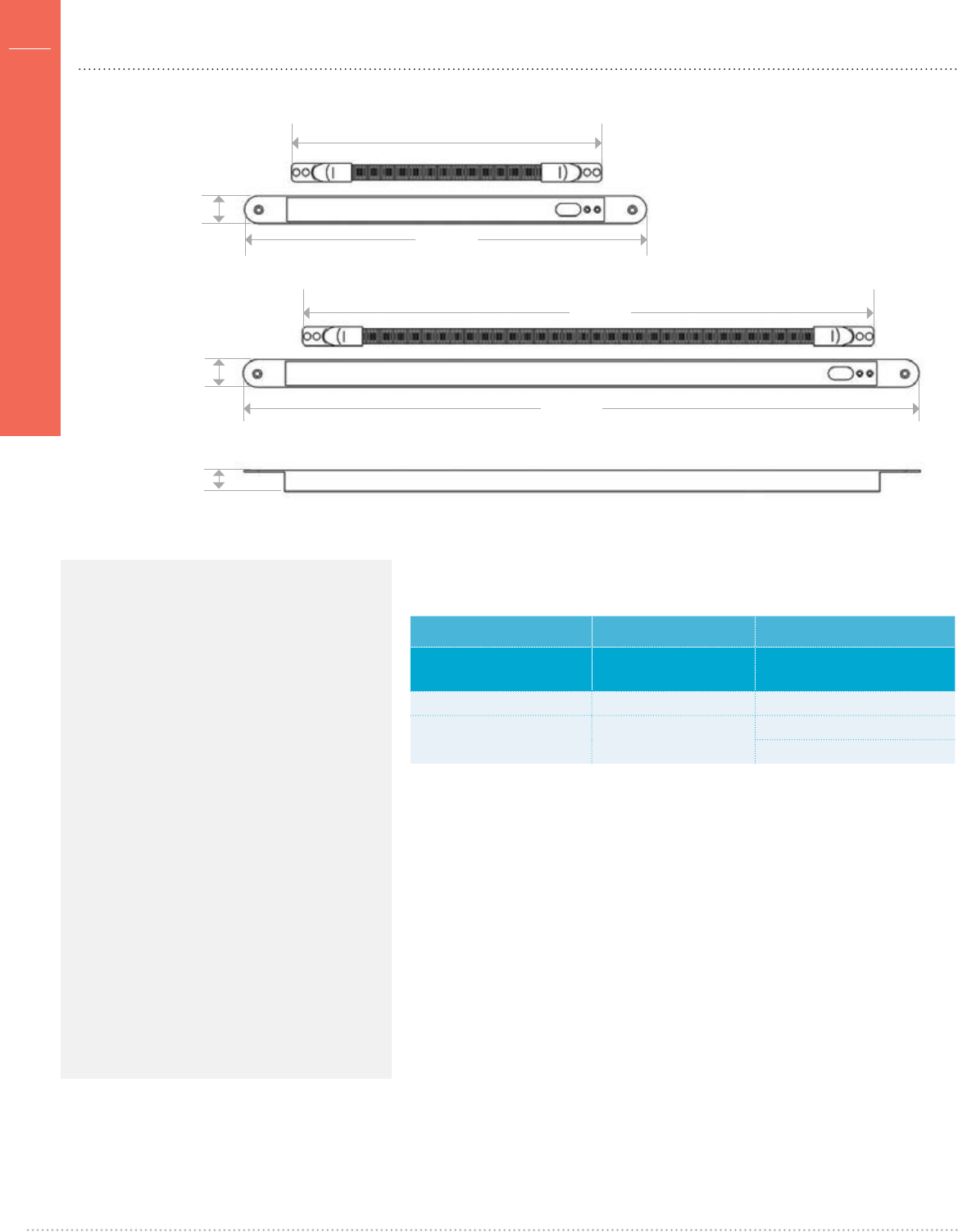

HHD / HHSL / HHSR / HVD Full Length Housings

Model A B C Max Length*

HHD-32 1-3/4" [44.45mm] 2-3/32" [53.34mm] 2-11/32" [59.9mm] 96" [2438.4mm]

HHD-62 2-3/32" [53.34mm] 2-39/64" [66mm] 3-1/2" [88.9mm] 96" [2438.4mm]

HHD-82 2-3/32" [53.34mm] 2-39/64" [66mm] 3-1/2" [88.9mm] 96" [2438.4mm]

HHSL-32 1-3/4" [44.45mm] 2-3/32" [53.34mm] 2-23/64" [59.7mm] 48" [1219.2mm]

HHSL-62 2-3/32" [53.34mm] 2-39/64" [66mm] 3-1/2" [88.9mm] 48" [1219.2mm]

HHSR-32 1-3/4" [44.45mm] 2-3/32" [53.34mm] 2-23/64" [59.7mm] 48" [1219.2mm]

HHSR-62 2-3/32" [53.34mm] 2-39/64" [66mm] 3-1/2" [88.9mm] 48" [1219.2mm]

HVD-32 1-3/4" [44.45mm] 2-3/32" [53.34mm] 2-23/64" [59.7mm] 96" [2438.4mm]

HVD-62 2-3/32" [53.34mm] 2-39/64" [66mm] 3-1/2" [88.9mm] 96" [2438.4mm]

HVD-82 2-3/32" [53.34mm] 2-39/64" [66mm] 3-1/2" [88.9mm] 96" [2438.4mm]

*Full length housings are individually manufactured to custom specifications up to the maximum length shown.

HHD Horizontal Housing Dimensions

Part Number Description

HHD-32 Lock Housing for M32 – Dbl. Horizontal

HHD-62 Lock Housing for M62 – Dbl. Horizontal

HHD-82 Lock Housing for M82 – Dbl. Horizontal

HHSL-32 Lock Housing for M32 – SLR Horizontal

HHSL-62 Lock Housing for M62 – SLR Horizontal

HHSR-32 Lock Housing for M32 – SRR Horizontal

HHSR-62 Lock Housing for M62 – SRR Horizontal

HVD-32 Lock Housing for M32 – Dbl. Vertical

HVD-62 Lock Housing for M62 – Dbl. Vertical

HVD-82 Lock Housing for M82 – Dbl. Vertical

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

102

Electromagnetic Locks

Securitron® M38

Series Magnalock®

600 lbs holding force,

bracket mounted Magnalock

Easily installed,

bracket mounted

Magnalock for interior

applications.

The Securitron M38 electromagnetic lock

is ideal for traffic control in high-use areas

within secured or monitored perimeters.

Offerings include solutions for interior

rooms, closets and hallways where reliability,

high durability and low maintenance are

required. Bracket mounting and wiring

chamber provide quick, accurate installation.

Features

Standard Features

• Automatic dual-voltage

—no field adjustment required

• Bracket mounting provides the

easiest install for out-swing doors

• Rust resistant—all ferrous metal

surfaces plated for durability

• Instant release circuit

—no residual magnetism

• Internal wire access chamber

• Noise suppression with included MOV

• Ultra-secure collapsing blind

nuts mount to door frame for

strength and reliability

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• D Integrated Door

Position Switch (DPS)

• L LED indicator

• S SenSTAT

• T Anti-tamper switch

103

Electromagnetic Locks

Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ULC-S533 Listed

• ANSI/UL 294 Listed

• CSA-C22.2 No.205 Listed

• ANSI/BHMA A156.23, Grade 3;

E18501-500 Compliant

• CSFM—California State Fire Marshal Approved

• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

Electrical

• 350 mA at 12 VDC

• 170 mA at 24 VDC

Holding Force

• 600 lbs [272kg]

Operating Temperature

• 32˚ to 110˚F [0˚ to 43˚C]

• Indoor use only

Shipping Weight

• 8 lbs [3.63kg]

How to Order

Model Series Monitoring Options

M38 DLST

M38 600lbs Magnalock (blank) No Monitoring

D Door Position Switch

L LED Indicator

S SenSTAT Monitor

T Tamper Monitor

Securitron M38 Series Magnalock

Dimensions

10-1/2"

[266.7mm]

2-1/2"

[64mm]

2-1/2"

[64mm]

1-11/16"

[43.3mm]

2-1/4" [57.15 mm]

Fits in 2-1/4"

[57.15 mm] of flat

mounting space

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

104

Electromagnetic Locks

Securitron® M68

Series Magnalock®

1,200 lbs holding force,

bracket mounted Magnalock

Features

Standard Features

• PoE friendly

• Automatic dual-voltage

—no field adjustment required

• Bracket mounting provides the

easiest install for out-swing doors

• Rust resistant—all ferrous metal

surfaces plated for durability

• Instant release circuit

—no residual magnetism

• Internal wire access chamber

• Noise suppression with included MOV

• Ultra-secure collapsing blind

nuts mount to door frame for

strength and reliability

• Strong hold and low maintenance

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• D Integrated Door

Position Switch (DPS)

• L LED indicator

• S SenSTAT

• T Anti-tamper switch

Easily installed,

bracket mounted

Magnalock for higher

security interior

applications.

Ideal for traffic control in high-use areas

where higher security is needed, the

Securitron M68 electromagnetic lock

provides reliability, durability and strength

with low maintenance and efficient power

consumption. Bracket mounting and wiring

chamber provide ease of installation.

105

Electromagnetic Locks

Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ULC-S533 Listed

• ANSI/UL 294 Listed

• CSA-C22.2 No.205 Listed

• ANSI/BHMA A156.23, Grade 2;

E18501-1000 Compliant

• CSFM—California State Fire Marshal Approved

• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

Electrical

• 250 mA at 12 VDC

• 125 mA at 24 VDC

Holding Force

• 1,200 lbs [544kg]

Operating Temperature

• 32˚ to 110˚F [0˚ to 43˚C]

• Indoor use only

Shipping Weight

• 13 lbs [5.44kg]

How to Order

Model Series Monitoring Options

M68 DLST

M68 1,200 lbs Magnalock (blank) No Monitoring

D Door Position Switch

L LED Indicator

S SenSTAT Monitor

T Tamper Monitor

Securitron M68 Series Magnalock

Dimensions

2-1/4" [57.15 mm]

Fits in 2-1/4"

[57.15 mm] of flat

mounting space

10-1/2"

[266.7mm]

3-5/8"

[92mm]

3-5/8"

[92mm]

[50.8mm]

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

106

Electromagnetic Locks

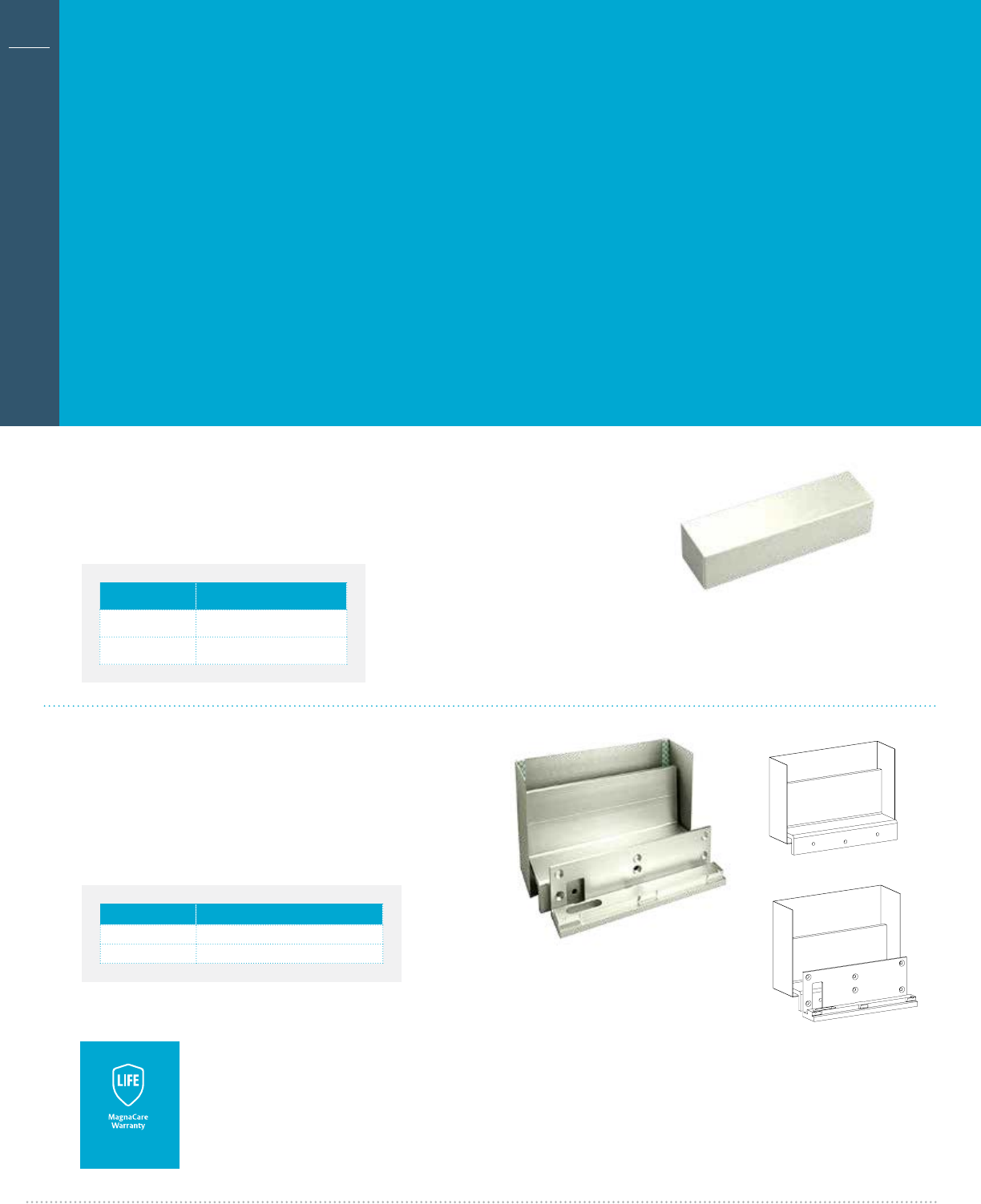

Securitron® M38, M68

Bracket Mounted

Magnalock® Accessories

Part Number Description

DC-38SP DC–M38, Stainless Polished

DC-68SP DC–M68, Stainless Polished

Part Number Description

TJ-38CL In-Swing Door Kit – M38, Clear

TJ-68CL In-Swing Door Kit – M68, Clear

M38

M68

DC Dress Cover

• Available for the M38 and M68

• Install using foam adhesive tape

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

TJ Top Jamb-In-Swing Door Kit

• Available for the M38 and M68

• Used to mount the lock on the secure side of a

door that swings into a secured area

• Includes a Z-Bracket and an oversized Dress Cover

• MagnaCare lifetime replacement,

no-fault, no questions asked warranty

107

Electromagnetic Locks

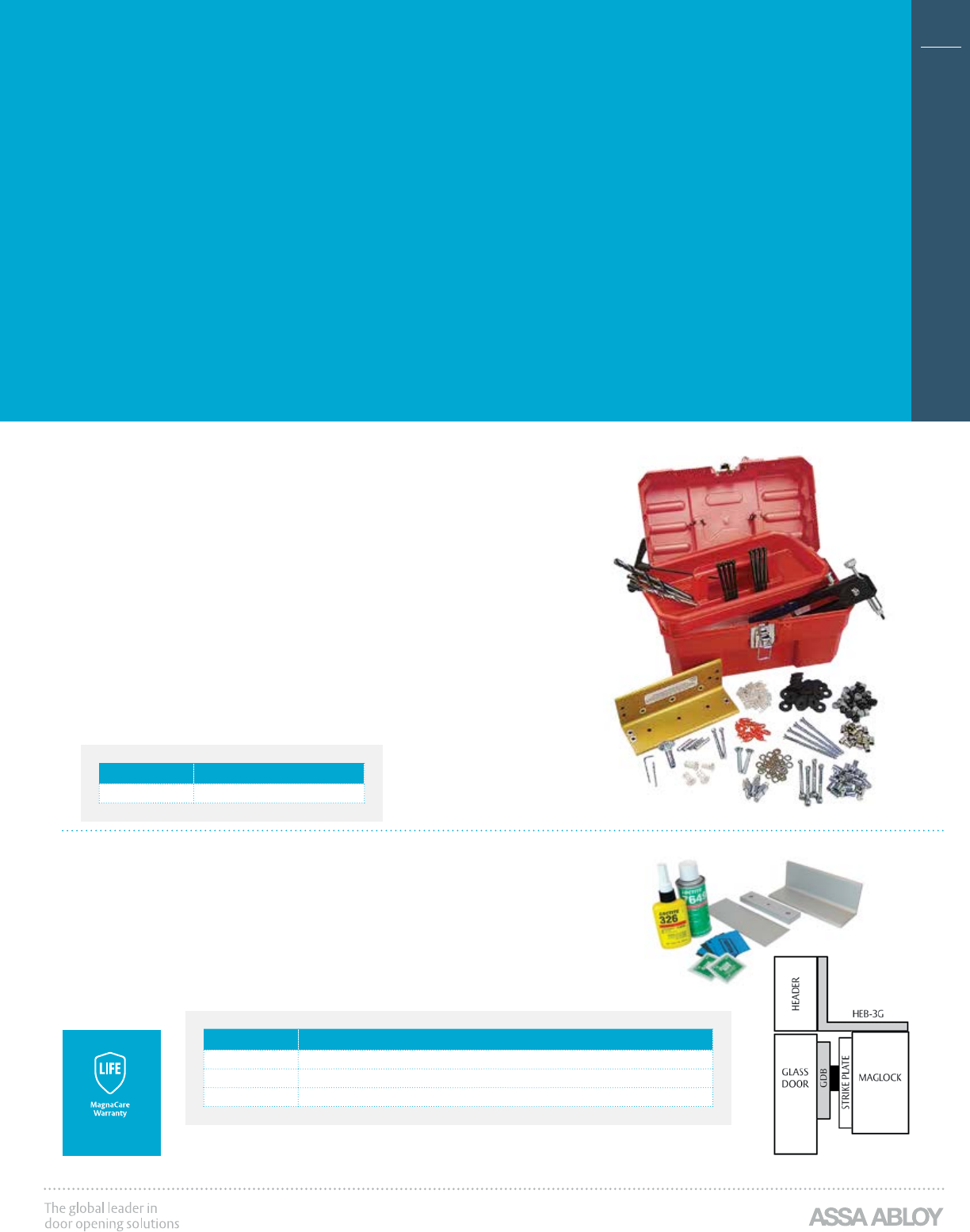

Universal

Magnalock®

Accessories

IK Installation Kit

This convenient, cost effective kit contains everything an installer needs to

achieve professional, high quality Securitron Magnalock® installations. The

IK offers substantial savings over purchasing the same items separately.

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Securitron’s original installation kit includes the following components:

• Tool Box

• Heavy Duty Drill Guide

• Blind Nut Placement Tool

• Sex Bolt – M32/M62/M82

• T-Handle Hex Wrench

• Hardware Packs

• M32/M62/M82

• Rubber Washers

• Flat Washers

• Insulated Crimp

Connectors

• Threadlock

• 1/8" Cobalt Drill Bit

• 3/8" Cobalt Drill Bit

• 3/8" Carbide Drill Bit

• 1/2" High Speed Drill Bit

• Blind Nuts with

Collapsing Tool

• Finish Caps

• Long Screw Pack

Glass Door Accessories

• HEB-3G allows for Magnalock installation on all-glass header when used with AKG

• GDB permits strike plate installation on a solid glass door

• AKG permanently bonds to the glass using a special industrial adhesive

• Strike Plate screws into the bracket, as glass doors cannot be drilled

• Use HEB-3G with M32, M62, 3" x 3" x 8" [76.2mm x 76.2mm x 203.2mm]

with specially milled back

Part Number Description

IK Installation Kit

Part Number Description

AKG Adhesive Kit for GDB

GDB Glass Door Bracket

DCP-12X3 Dress Cover Plate, 12" x 3" [304.8mm x 76.2mm] for larger strikes (M680, M380)

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

108

Electromagnetic Locks

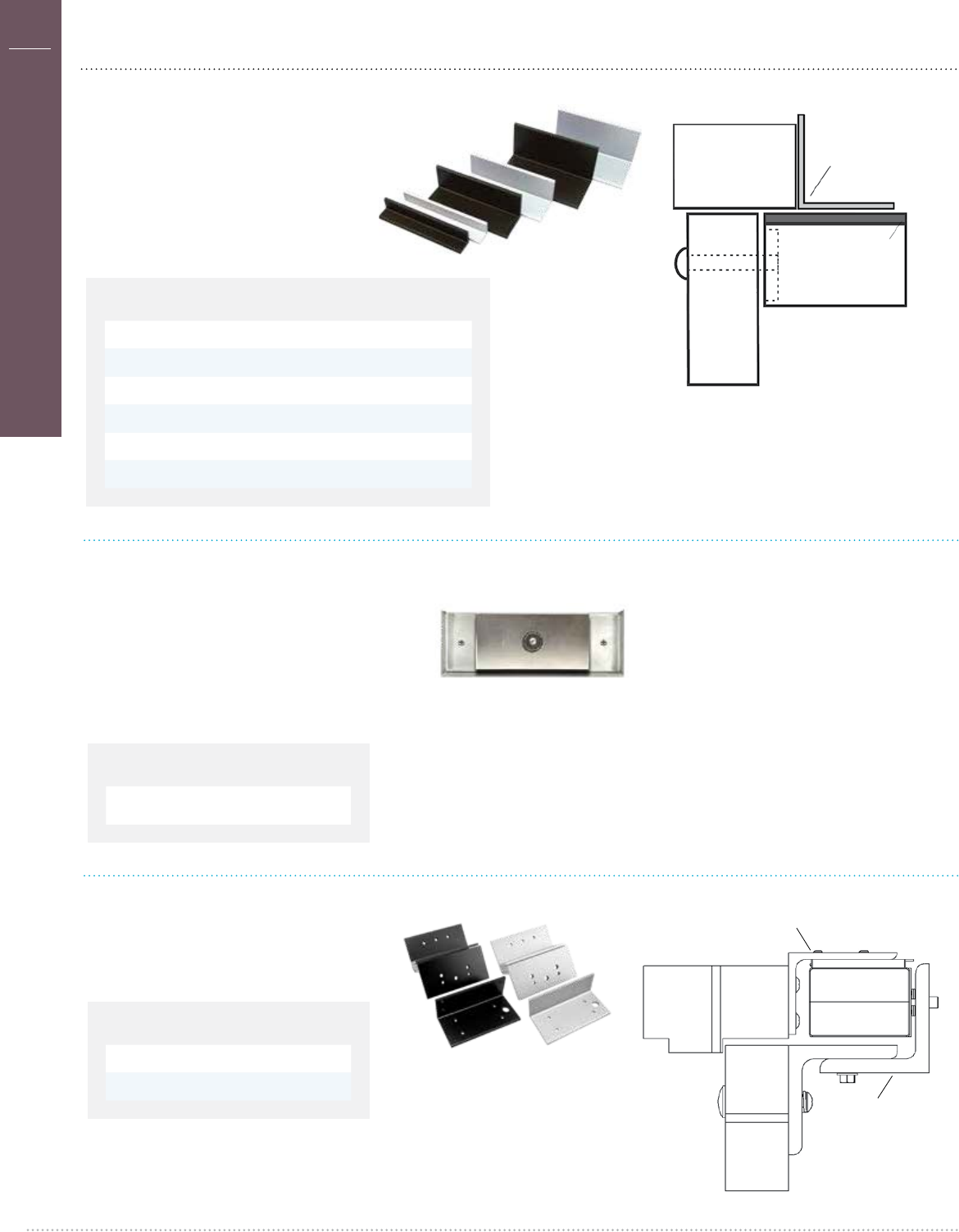

HEB Header Extension Bracket

• 90 degree angle brackets

• Extends narrow headers to permit proper mounting of Magnalocks

• Use with Securitron M32, M62, M82, M38, M68, M370, M380, M680E

• Available in clear aluminum or black anodized

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

UHB Universal Header Bracket

• Used to extend the header 1" [25.4mm] or 1-1/2" [38.1mm]

• Provides a concealed wiring chamber

• Use with Securitron M32, M62, M82, M38, M68, M370, M380, M680E

• Available in clear aluminum or black anodized

• MagnaCare lifetime replacement, no-fault, no questions asked warranty

Universal Magnalock Accessories

Part Number Description Finish

HEB-1BK-12 HEB – 1" x 1" x 12" [25.4mm x 25.4mm x 304.8mm] Black Anodized

HEB-1BK-8 HEB – 1" x 1" x 8" [25.4mm x 25.4mm x 203.2mm] Black Anodized

HEB-1CL-12 HEB – 1" x 1" x 12" [25.4mm x 25.4mm x 304.8mm] Clear Anodized

HEB-1CL-8 HEB – 1" x 1" x 8" [25.4mm x 25.4mm x 203.2mm] Clear Anodized

HEB-2BK-12 HEB – 2" x 2" x 12" [50.8mm x 50.8mm x 304.8mm] Black Anodized

HEB-2BK-8 HEB – 2" x 2" x 8" [50.8mm x 50.8mm x 203.2mm] Black Anodized

HEB-2CL-12 HEB – 2" x 2" x 12" [50.8mm x 50.8mm x 304.8mm] Clear Anodized

HEB-2CL-8 HEB – 2" x 2" x 8" [50.8mm x 50.8mm x 203.2mm] Clear Anodized

HEB-3BK-12 HEB – 3" x 3" x 12" [76.2mm x 76.2mm x 304.8mm] Black Anodized

HEB-3BK-8 HEB – 3" x 3" x 8" [76.2mm x 76.2mm x 203.2mm] Black Anodized

HEB-3CL-12 HEB – 3" x 3" x 12" [76.2mm x 76.2mm x 304.8mm] Clear Anodized

HEB-3CL-8 HEB – 3" x 3" x 8" [76.2mm x 76.2mm x 203.2mm] Clear Anodized

HEB-3G HEB – 3" x 3" x 8" [76.2mm x 76.2mm x 203.2mm]

for Glass Door Clear Anodized

Part Number Description Finish

UHB-BK-12 UHB – 12" [304.8mm] Black Anodized

UHB-BK-8 UHB – 8" [203.2mm] Black Anodized

UHB-CL-12 UHB – 12" [304.8mm] Clear Anodized

UHB-CL-8 UHB – 8" [203.2mm] Clear Anodized

109

Electromagnetic Locks

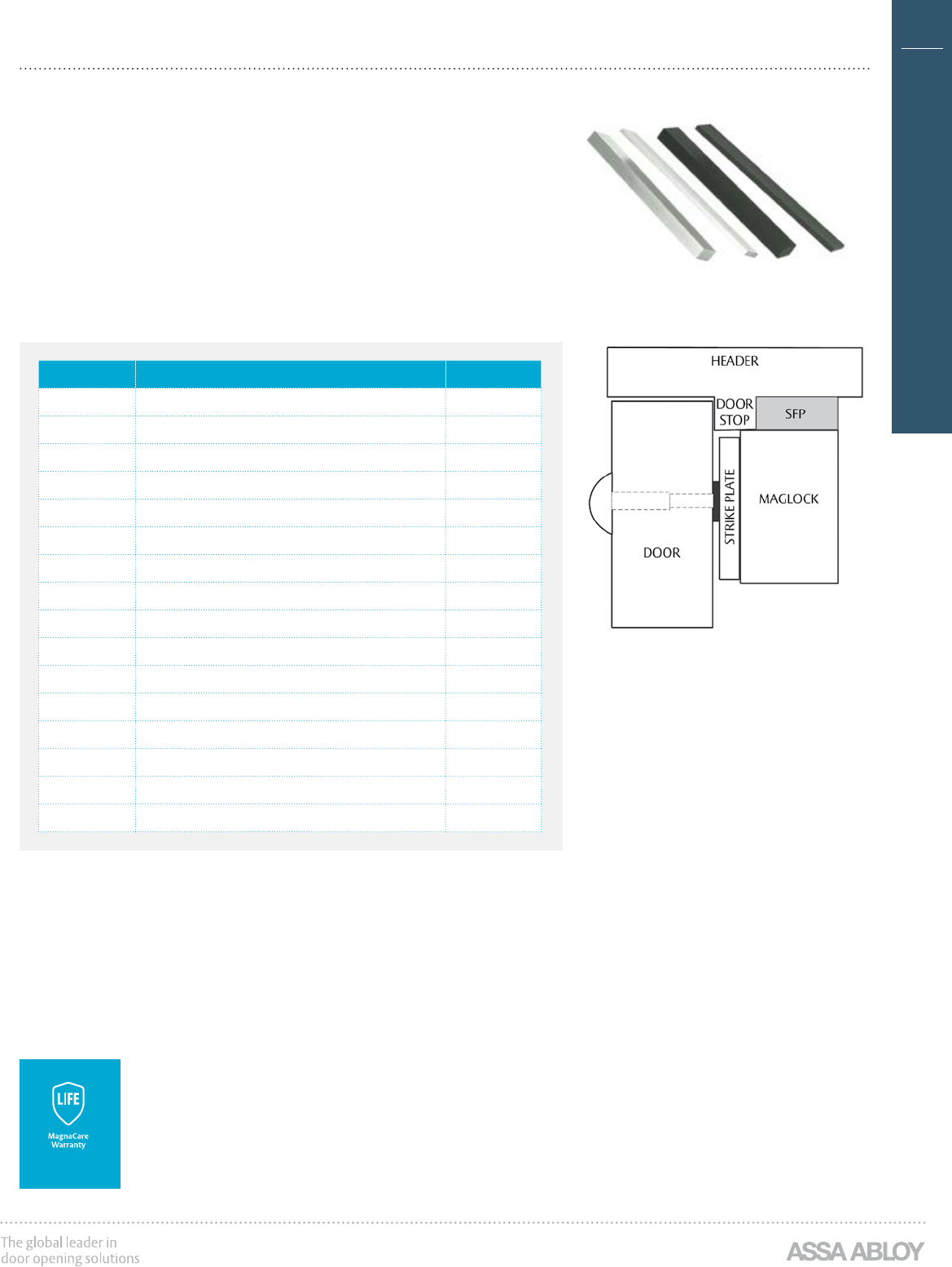

SFP Stop Filler Plate

• Used to fill or extend a door stop

• Creates a flat mounting surface for the Magnalock®

• Available in 1/4" [6mm], 3/8" [8mm],

1/2" [13mm] and 5/8" [16mm] thickness,

all 1-1/4" [32mm] wide

• Use with Securitron M32, M62, M82,

M38, M68, M370, M380, M680E

• Available in clear aluminum or black anodized

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Universal Magnalock Accessories

Part Number Description Finish

SFP-1/2BK-12 SFP – 1/2" x 1-1/4" x 12" [12.7mm x 31.75mm x 304.8mm] Black Anodized

SFP-1/2BK-8 SFP –1/2" x 1-1/4" x 8" [12.7mm x 31.75mm x 203.2mm] Black Anodized

SFP-1/2CL-12 SFP –1/2" x 1-1/4" x 12" [12.7mm x 31.75mm x 304.8mm] Clear Anodized

SFP-1/2CL-8 SFP –1/2" x 1-1/4" x 8" [12.7mm x 31.75mm x 203.2mm] Clear Anodized

SFP-1/4BK-12 SFP – 1/4" x 1-1/4" x 12" [50.8mm x 50.8mm x 304.8mm] Black Anodized

SFP-1/4BK-8 SFP – 1/4" x 1-1/4" x 8" [6.35mm x 31.75mm x 203.2mm] Black Anodized

SFP-1/4CL-12 SFP – 2" x 2" x 12" [50.8mm x 50.8mm x 304.8mm] Clear Anodized

SFP-1/4CL-8 SFP – 1/4" x 1-1/4" x 8" [6.35mm x 31.75mm x 203.2mm] Clear Anodized

SFP-3/8BK-12 SFP – 3/8" x 1-1/4" x 12" [9.5mm x 50.8mm x 304.8mm] Black Anodized

SFP-3/8BK-8 SFP – 3/8" x 1-1/4" x 8" [9.5mm x 50.8mm x 203.2mm] Black Anodized

SFP-3/8CL-12 SFP – 3/8" x 1-1/4" x 12" [9.5mm x 50.8mm x 304.8mm] Clear Anodized

SFP-3/8CL-8 SFP – 3/8" x 1-1/4" x 8" [9.5mm x 50.8mm x 203.2mm] Clear Anodized

SFP-5/8BK-12 SFP – 5/8" x 1-1/4" x 12" [15.875mm x 50.8mm x 304.8mm] Black Anodized

SFP-5/8BK-8 SFP – 5/8" x 1-1/4" x 8" [15.875mm x 50.8mm x 203.2mm] Black Anodized

SFP-5/8CL-12 SFP – 5/8" x 1-1/4" x 12" [15.875mm x 50.8mm x 304.8mm] Clear Anodized

SFP-5/8CL-8 SFP – 5/8" x 1-1/4" x 8" [15.875mm x 50.8mm x 203.2mm] Clear Anodized

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

110

Electromagnetic Locks

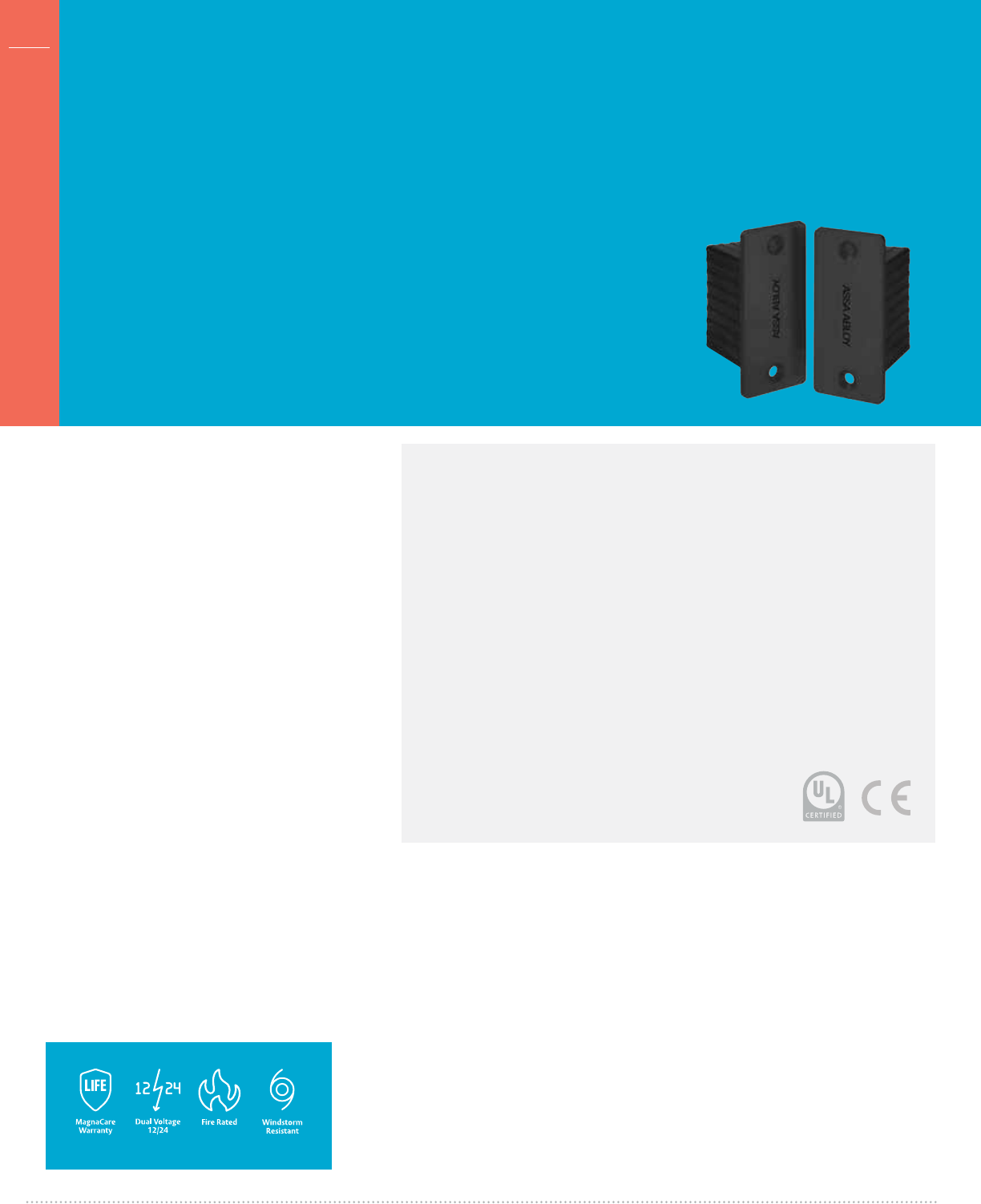

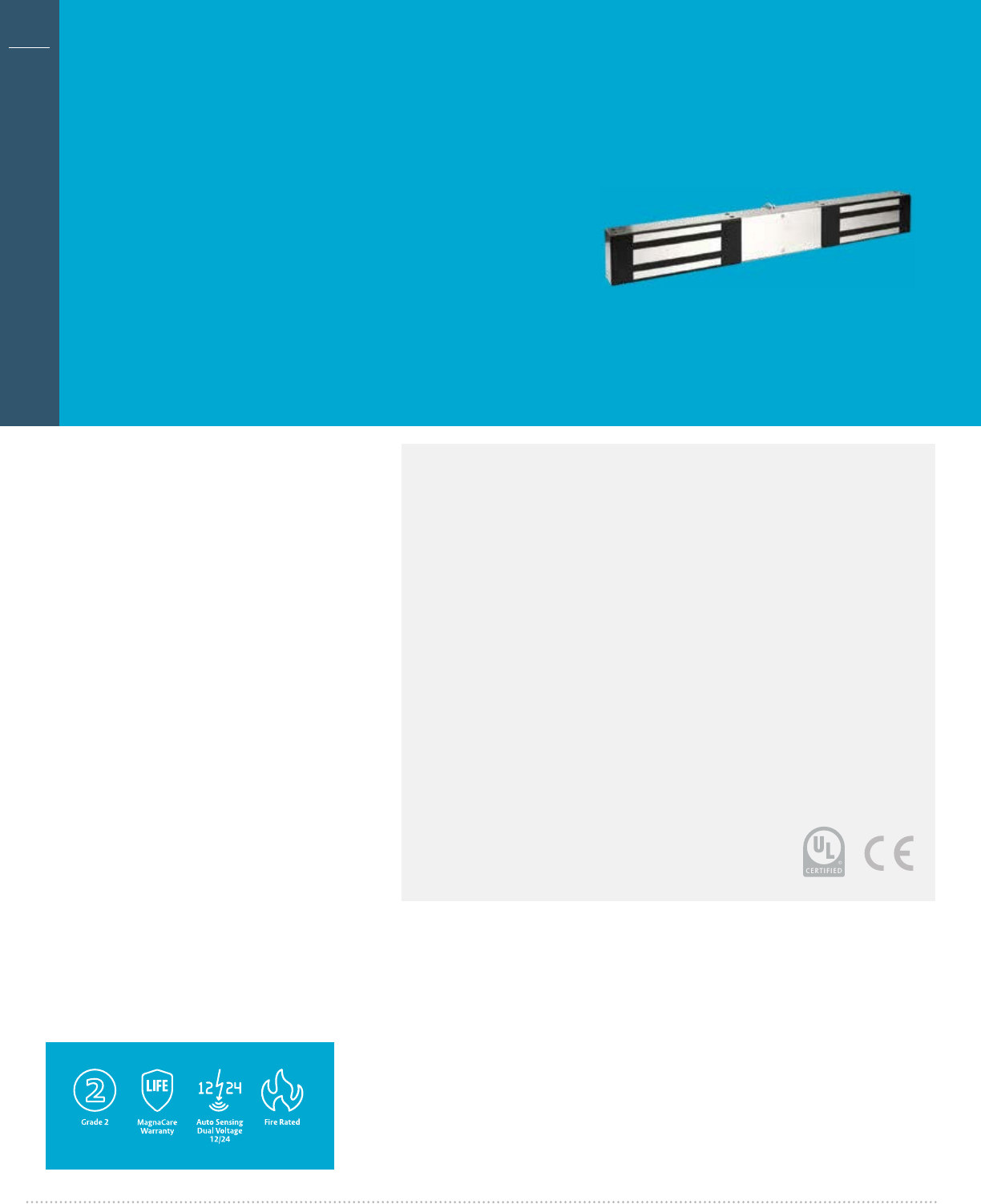

Securitron® DM62

Magnalock®

The ultimate 1,200 lbs holding

force Magnalock double magnet for

indoor/outdoor high security

Features

Standard Features

• Ultra-secure collapsing blind

nuts mount to door frame for

strength and reliability

• Fully sealed for weatherproof

operations

• 3' [1 m] of jacketed, stranded

conductor cable for each lock

• Automatic dual-voltage

—no field adjustment required

• Instant release circuit

—no residual magnetism

• Noise suppression with built-in MOV

• Efficient, low power usage

• Rust resistant — all ferrous metal

surfaces plated for durability

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• B Patented BondSTAT

magnetic bond sensor

• D Integrated door

position switch (DPS)

• OS Offset strike plates

The versatile

Securitron DM62

electromagnetic lock

offers strength and

ease of maintenance

for interior, perimeter

and exterior

access control—

in a compact

double magnet.

This all-in-one unit is designed for double

doors with no mullion. With unsurpassed

durability, the Securitron DM62 will last

long after most buildings wear out.

111

Electromagnetic Locks

[76mm]

22"

[559mm]

1-3/4"

[44mm]

[152mm]

2-3/4"

[70mm]

1/2"

[12mm]

Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ ULC-S533 Listed

• ANSI/BHMA A156.23, Grade 2;

E08511-1000 Compliant

• CSFM- California State Fire Marshal Approved

Electrical (Per Lock)

• 250 mA at 12 VDC

• 150 mA at 24 VDC

Holding Force (Per Lock)

• 1,200 lbs [544kg]

Operating Temperature

• -40˚ to 140˚F [-40˚ to 60˚C]

• Indoor or Outdoor use

Shipping Weight

• 16 lbs [7.26kg]

How to Order

Model Series Monitoring Options Strike Plate Options

DM62 BD – OS

DM62 (blank) No Monitoring (blank) Standard Strike

B BondSTAT Monitor OS Offset Strike

D Door Position Switch

Securitron DM62 Magnalock

Magnalock

Strike

Dimensions

2-1/2" [63.5 mm]

The Securitron DM62 with

Strike fits in 2-1/2" [63.5mm]

of flat mounting space

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

112

Electromagnetic Locks

112

Electromagnetic Locks

Features

Standard Features

• Efficient, low power usage

• Automatic dual-voltage

— no field adjustment required

• Fully sealed for weatherproof

operations

• Rust resistant — all ferrous metal

surfaces plated for durability

• Instant release circuit

— no residual magnetism

• Noise suppression with built-in MOV

• Recessed for aesthetically

appealing finish

• 10 ft [3.05m] of jacketed,

stranded conductor cable

• Direct mount in door frame

for strength and reliability

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• B Patented BondSTAT

magnetic bond sensor

• D Integrated Door

Position Switch (DPS)

Hidden strength for

any application.

This concealed Magnalock is ideal for

traffic control or medium security

and with its flexible mounting options

solutions the most challenging door

control situations. The Securitron SAM

Shear Aligning Magnalock has mounting

options for a single door or each leaf on

a pair of doors and can be on a sliding,

in-swing, out-swing or swing-through

door. It mounts fully concealed into wood,

steel, aluminum or latching in any position:

at the header, door edge or threshold.

Securitron® SAM

Shear Aligning

Magnalock®

1,200 lbs holding force, shear

aligning Magnalock

113

Electromagnetic Locks

Dimensions Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ ULC-S533 Listed

• ANSI/UL 294 Listed

• ANSI/BHMA A156.23, Grade 2;

E08561-1000, E08571-1000, E08581-

1000, E08591-1000 Compliant

• CSFM—California State Fire

Marshal Approved

• CE:EN 50081-1(92), EN 61000-6-2(99)

Approved

Electrical

• 320 mA at 12 VDC

• 170 mA at 24 VDC

Holding Force

• 1,200 lbs [544kg]

Operating Temperature

• -40˚ to 140˚F [-40˚ to 60˚C]

• Indoor or Outdoor use

• Not for use in open channel doors

Shipping Weight

• 6 lbs [2.72kg]

1-3/16"

[30mm]

1-7/16"

[36mm]

10-7/8"

[275mm]

10-7/8"

[275mm]

1-1/2"

[37mm]

1-1/2"

[38mm]

How to Order

Model Series Monitoring Options

SAM BD

SAM 1,200 lbs (blank) No Monitoring

B BondSTAT Monitor

D Door Position Switch

Securitron SAM Magnalock

Magnalock

Strike

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

114

Electromagnetic Locks

Features

Standard Features

• Efficient, low power usage

• Automatic dual-voltage—no

field adjustment required

• Fully sealed for weatherproof

operations

• Rust resistant—all ferrous metal

surfaces plated for durability

• Instant release circuit—no

residual magnetism

• Noise suppression with built-in MOV

• Recessed for aesthetically

appealing finish

• 10 ft [3.05m] of jacketed,

stranded conductor cable

• Direct mount in door frame

for strength and reliability

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• B Patented BondSTAT

magnetic bond sensor

• D Integrated Door

Position Switch (DPS)

Recessed Magnalock

for traffic control

on a sliding door.

The Securitron M34R secures single sliding

doors with Magnalock strength for traffic

control applications within a monitored

perimeter. The recessed design on the

edge of the door that comes against the

frame when the door is closed conceals the

maglock for hidden protection that blends

with the aesthetics of the opening. Ideal on

automatic single sliding doors or on sliding

doors for patios, storage closets and more.

Securitron®

M34R Recessed

Magnalock®

500 lbs holding force,

recessed Magnalock

115

Electromagnetic Locks

Dimensions

1-1/8"

[28mm]

1-1/2"

[38mm]

10-1/2"

[268mm]

1-7/16"

[37mm]

1/2"

[13mm]

6-3/8"

[162mm]

How to Order

Model Series Monitoring Options

M34R BD

M34R (blank) No Monitoring

B BondSTAT Monitor

D Door Position Switch

Specifications

Certifications

• UL 294 listed

• CAN4-S104, CAN/ULC-S533 Listed

• CSFM—California State Fire

Marshal Approved

• CE:EN 50081-1(92), EN 61000-

6-2(99) Approved

Electrical

• 320 mA at 12 VDC

• 170 mA at 24 VDC

Holding Force

• 500 lbs [227kg]

Operating Temperature

• -40˚ to 140˚F [-40˚ to 60˚C]

• Indoor or Outdoor use

Shipping Weight

• 5 lbs [2.23kg]

Securitron M34R Magnalock

Magnalock

Strike

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

116

Electromagnetic Locks

Features

Standard Features

• Efficient, low power usage

• Fully sealed for weatherproof

operations

• Compact design fits tight spaces

• Rust resistant—all ferrous metal

surfaces plated for durability

• Instant release circuit

—no residual magnetism

• Noise suppression with

included MOV

• Recessed for aesthetically

appealing finish

• 6 ft [1.83m] of jacketed,

stranded conductor cable

• Direct mount in door frame

for strength and reliability

• MagnaCare® lifetime replacement,

no-fault, no questions

asked warranty

Optional Features

• C Bond sensor

Hidden strength

at any angle ideal

for traffic control.

The compact and versatile Securitron

SAM2-24 Shear Aligning Magnalock provides

600 lbs. of holding force to swinging or

sliding doors. It is ideal for traffic control

and to secure smaller applications, like

sliding closet doors, atriums, and more.

The Securitron SAM2-24 mounts fully

concealed into wood, steel, aluminum

or Herculite doors in any position: at

the header, door edge or threshold.

Securitron®

SAM2-24 Shear

Aligning Magnalock®

600 lbs holding force,

shear aligning Magnalock

Aligning Magnalock

117

Electromagnetic Locks

Dimensions Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ ULC-S533 Listed

• ANSI/UL 294 Listed

• ANSI/BHMA A156.23, Grade 3; E08571-

1000, E08581-500 Compliant

• CSFM—California State Fire

Marshal Approved

Electrical

• 84 mA at 24 VDC

Holding Force

• 600 lbs [272kg]

Operating Temperature

• -40˚ to 140˚F [-40˚ to 60˚C]

• Indoor or outdoor use

• Not for use in open channel doors

Shipping Weight

• 2.5 lbs [1.13kg]

Dimensions

1-1/8"

[29mm]

7-3/16"

[183mm]

[25mm]

15/16"

[24mm]

1-1/8"

[29mm]

How to Order

Model Series Monitoring

Options Voltage

SAM2 C – 24

SAM2 (blank) No

Monitoring

24 VDC only

C Bond Sensor

Securitron SAM2-24 Magnalock

Magnalock

Strike

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

118

Electromagnetic Locks

1-3/4"

[44mm] 11"

[279mm]

[51mm]

SMSS

Securitron® SAM

Accessories

SWB SAM Wood Bracket

• SAM Wood Door Bracket provides additional strength and

protection for the SAM strike plate in wood door applications

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

SAM Surface Mount Kit

• Available for the M38 and M68

• Used to mount the lock on the secure side of a

door that swings into a secured area

• Includes a Z-Bracket and an oversized Dress Cover

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Dimensions

Part Number Description Finish

SWB-03 SAM Wood Bracket Brass Polished

SWB-10B SAM Wood Bracket Oil Rubbed Bronze

SWB-26D SAM Wood Bracket Satin Stainless

Part Number Description Finish

SMLS Surface Mount Housing Lock Satin Stainless

SMSS Surface Mount Housing Strike Satin Stainless

119

Electromagnetic Locks

In-Swing Door Magnalock Selection Guide

Locks mounted on the secure side of the door and door swings toward secure

side. Dual doors will require two locks (x2), one for each leaf.

Preferred Application = ×

Door Type M32F M38 M62F M68 M82F

Glass Door (w/ Aluminum Frame) × ×

Wood Door (Traffic Control) × ×

Wood Door (High Security) × ×

Metal Door (Traffic Control) ×

Metal Door (High Security) ×××

Sliding Door Magnalock Selection Guide

Preferred Application = ×

Door Type M34R SAM

Double Sliding Doors ×

Single Sliding Doors ×

Genuine Magnalock®

Selection Guide

All Securitron Magnalocks are fail safe electric locking devices

Out-Swing Door Magnalock Selection Guide

Locks mount on the secure side of the door and door swings away from secure side.

Dual doors will require two locks (x2), one for each leaf (except for DM62).

Preferred Application = ×

Door Type M32 M380 M62 M680E M82 SAM

Glass Door (w/ Aluminum Frame) × × ×

Wood Door (Traffic Control) × ×

Wood Door (High Security) ×××

Metal Door (Traffic Control) × ×

Metal Door (High Security) ×××

Herculite Door (w/out Top or Bottom Rail) × ×

Herculite Door (w/Top or Bottom Rail) × ×

Updated1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

120

Electromagnetic Locks

Securitron®

Magnalock® Options

Anti-Tamper Sensor (T)

The Anti-Tamper option provides a Single Pole Double Throw (SPDT) switch

output that indicates if the wire access chamber cover has been tampered with

or removed. When connected to an alarm point on an alarm panel or access

control system, it offers real-time notification of tampering attempts.

Door Position Switch (D)

The Door Position Switch (DPS) provides a signal to an access control system indicating

whether the door is open or closed. When used in conjunction with BondSTAT or SenSTAT,

it provides layered status indication for precise information about the door state. The

DPS may be ordered included with many Securitron Magnalocks — or as an upgrade kit.

SenSTAT (S)

Unlike commonly used door position switches that indicate only that

a door is closed, SenSTAT detects the presence of an armature plate

and notifies the access control or alarm system that the magnet is

engaged. All SenSTAT Magnalocks use Form ‘C’ isolated contacts.

BondSTAT (B)

BondSTAT is the next generation of patented electromagnetic lock monitoring.

BondSTAT delivers unparalleled peace of mind by detecting an armature plate

and notifying access control and/or alarm systems that a door is properly secured.

BondSTAT’s sensitive magnetic field monitors the entire surface of the armature

plate, providing maximum assurance that the lock is engaged. Movement in

the armature’s position beyond the set tolerance alerts the access control

system that the Magnalock may not be generating its full holding force.

Conduit Fitting (G) The conduit fitting option is offered on some Magnalocks that can be used for

gate-mounting applications and features a 3/4" outer diameter and 1/2" inner diameter.

Offset Strike Plate (OS) An Offset Strike Plate may be required for proper installation of

a Magnalock in aluminum frame door applications.

Split Strike Plate (SS) A Split Strike Plate may be used for a double door with no mullion

to provide traffic control using a single Magnalock.

Face Mount (F)

Face Mount Magnalock options provide the holes for the mounting

bolts through the face of the magnet in a front-to back orientation

rather than through the magnet bottom-to-top.

LED (L)

The LED provides a local visual indicator of the status of the lock. On

locks with the SenSTAT option, the LED will be green when the lock is

powered but not secure, and red when the lock is secure. Locks without

the SenSTAT option will only indicate green when powered.

Request to Exit (X)

Some Securitron Magnalock models offer an integrated motion

detector that automatically signals the lock to disengage when it

detects approaching traffic, also known as request to exit (REX).

Cabinet

Locks

121

Cabinet Locks

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

122

Cabinet Locks

123

Cabinet Locks

Features

Standard Features

• Field selectable fail secure/fail safe

• Compact design fits most

drawers and cabinets

• Installation either at the

side or front of cabinets

• SecuriCare three-year, no-fault,

no questions asked warranty

Optional Features

• LM Locked state monitoring

The versatile, compact,

cost effective cabinet

lock to secure

drawers or doors.

The HES 610 Cabinet Lock can be triggered

by a simple relay as part of an access

control system or with a stand-alone

keypad. The HES 610 is available with or

without locked state monitoring and

has over 200 lbs of holding force.

HES® 610

Cabinet Lock

The compact and cost effective

cabinet locking solution

Locking Element Rosette

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

124

Cabinet Locks

Specifications

Electrical

• Dual Voltage 12/24 VDC/VAC

• Monitored contact rating 25V / 1A

• 260mA at 12 VDC / 130mA at 24 VDC

140mA at 12 VAC / 70mA at 24 VAC

Holding Force

• Static Strength 200 lbs

Environmental

• Operational Temperature 14˚ to 104˚ F [-10˚ to 40˚ C]

• IP20 Rated

• Indoor Use

HES 610 Series Cabinet Lock

Dimensions

How to Order

Series Option (s)

610 – LM

(blank) No Monitoring

LM Locked state monitoring

[48mm]

1-1/2"

[38.5mm]

9/32"

[7.4mm]

1/2"

[5mm]

3/16"

[4.3mm]

1-1/4"

[32mm]

1-3/4"

[42mm]

1-1/4"

[32mm]

13/16"

[21mm]

13/32"

[10mm]

9/32"

[7.4mm]

5/32"

[3.8mm]

3/4"

[19.2mm]

3/16"

[4.5mm]

25/32"

[20mm]

1-3/4"

[42mm]

[27. 2mm]

3/8"

[9.2mm]

R10

25/32"

[20mm]

13/32"

[10mm]

125

Cabinet Locks

Features

Standard Features

• All metal construction

• Adjustable mounting brackets

with final lockdown feature

• 6 foot cable lead

• Fail Secure (standard)

• SecuriCare three-year, no-fault,

no questions asked warranty

Optional Features

• Preload (up to 15 lbs)

• LBSM Locked state monitoring

• LBSM Preload Locked state

monitoring with preload

Accessories

• KO Key override

With over 1,000 lbs of

static holding force.

The HES 660 Cabinet Lock is available

with or without locked state monitoring

and a preload release function allowing

for smooth functional operation under

a variety of environmental conditions.

Strong, convenient and flexible, it is ideal

for corporate and government applications

including lockers, cabinets and display cases.

HES® 660

Cabinet Lock

The strongest surface mounted,

multi-purpose locking solution

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

126

Cabinet Locks

Dimensions Specifications

Certifications

• RoHS compliant

Electrical

• 12 or 24 VDC ± 10%

— 240 mA at 12 VDC / 120 mA at 24 VDC

(continuous duty)

700 mA at 12 VDC / 350 mA at 24 VDC

(preload option)

— Monitored contact rating 25V / 1A

Holding Force

• Static strength 1,000 lbs

• Dynamic strength over 100 ft-lbs

Environmental

• Indoor use

How to Order

Series Voltage Option (s)

660 – 12V – LBSM – Preload

12V 12 Volt (blank) No preload, no monitoring

24V 24 Volt Preload Up to 15 lbs

LBSM Locked state monitoring

LBSM–Preload Locked state monitoring with preload

HES 660 Series Cabinet Lock

1-11/16"

[43.1mm]

3/16"

[.5mm]

[25mm]

1-11/16"

[43.1mm]

15/16"

[23.3mm]

2-5/16"

[58.4mm]

3-3/8"

[58.4mm]

2-11/16"

[68.5mm]

1-5/8"

[40.6mm]

[25mm]

1-7/8"

[46.9mm]

1/8"

[3.8mm]

3/16"

[.5mm]

127

Cabinet Locks

Features

Standard Features

• Stand-alone access control

• No audit trail

• Public (one-time) or

Private (continuous) mode

configuration options

• 12 button keypad

• LEDs indicate valid/invalid access

• Supports one (4 – 12 digit) master code

• Supports one (4 – 12 digit) user code

• Aluminum die-cast construction

• Non-handed

• Installs on wood or metal

cabinet drawers or doors

1/16" to 7/8" [1.5 – 22.2 mm] thick

• Micro USB for emergency

override upon loss of power

• SecuriCare three-year, no-fault,

no questions asked warranty

Optional Features

• Supports 3rd party locking

cams (i.e. hook)

The cost effective

solution for

stand-alone keypad

access control to

secure drawers

or doors.

The battery operated HES KP20 Cabinet

Lock is the flexible, low cost cabinet locking

solution for low to medium security

applications with 75 lbs of holding force.

HES® KP20

Cabinet Lock

Stand-Alone Keypad

Cabinet Lock

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

128

Cabinet Locks

Dimensions Specifications

Certifications

• FCC Part 15 & Industry Canada compliant

• EU/CE Mark (EN 300 & 301)

• RoHS compliant

Electrical

• 30,000 cycles

• 3 x AAA alkaline batteries (sold separately)

• External emergency power through micro USB

Holding Force

• Static strength 75 lbs

Environmental

• Operating Temperature: 32˚ to 122˚F [0˚ to 50˚C]

• Humidity: 0 to 90% RH

• Indoor use

Keypad Technology

• 12-Button Keypad

− One master code (4 – 12 digit)

− One user code (4 – 12 digit)

HES KP20 Series Cabinet Lock

6.02"

[153mm]

.68"

[17. 2mm]

1.10"

[28mm]

.71"

[18mm]

2.19"

[55.5mm]

1.38"

[35mm]

129

Cabinet Locks

Features

Standard Features

• Stand-alone access control

• No audit trail

• Public (one-time) or

Private (continuous) mode

configuration options

• 13.56 MHz RFID card technology

(cards sold separately)

• LEDs indicate valid/invalid access

• Supports 1 to 20 master credentials

• Supports 1 to 20 user credentials

• Aluminum die-cast construction

• Non-handed

• Installs on wood or metal

cabinet drawers or doors

1/16” to 7/8” [1.5 – 22.2 mm] thick

• Micro USB for emergency

override upon loss of power

• SecuriCare three-year, no-fault,

no questions asked warranty

Optional Features

• Supports 3rd party locking

cams (i.e. hook)

• 13.56 MHz MIFARE Classic

credentials (sold separately)

The cost effective

solution for

stand-alone RFID

access control to

secure drawers

or doors.

The battery operated HES K20 Cabinet

Lock is the flexible, low cost cabinet locking

solution for low to medium security

applications with 75 lbs of holding force.

HES® K20

Cabinet Lock

Stand-Alone RFID Cabinet Lock

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

130

Cabinet Locks

Specifications

Certifications

• FCC Part 15 & Industry Canada compliant

• EU/CE Mark (EN 300 & 301)

• RoHS compliant

Electrical

• 30,000 cycles

• 3 x AAA alkaline batteries (sold separately)

• External emergency power through micro USB

Holding Force

• Static strength 75 lbs

Environmental

• Operating Temperature: 32˚ to 122˚F [0˚ to 50˚C]

• Humidity: 0 to 90% RH

• Indoor use

Card Technology

• High Frequency (13.56 MHz)

− MIFARE Classic™

− MIFARE Ultralight™

Dimensions

HES K20 Series Cabinet Lock

6.02"

[153mm]

.68"

[17. 2mm]

1.10"

[28mm]

.71"

[18mm]

2.19"

[55.5mm]

1.38"

[35mm]

131

Cabinet Locks

Features

Standard Features

• 2.4 GHz Aperio Wireless technology

• Integrates with existing access

control systems and ID badges

• Audit trail limited by EAC system

• LEDs indicate valid/invalid entries

• Locked State Monitoring (standard)

• Installs on wood or metal

cabinet doors & drawers

• Works with cabinet doors and

lockers with door thickness of

1/16" to 1-1/2" [1.5mm – 38.1mm]

• Non-handed

• SecuriCare three-year, no-fault,

no questions asked warranty

Optional Features

• iCLASS (SE) or Prox (PA)

card technology

• Mechanical key override

(sold separately)

Accessories

• 622-JSP Jump-start battery pack

• OBS-622 Open back strike plate

• EXT-10-ANT Aperio Hub External

Antenna (Omni-directional)

The flexible integrated

solution for extending

access control to

secure lockers,

drawers or doors.

The K100 Cabinet Lock comes standard with

locked state monitoring, optional mechanical

key override and over 150 lbs of holding force.

The HES K100 supports either HID®

125 kHz Prox or 13.56 MHz iCLASS SE®

contactless credentials. It uses local wireless

communication between the lock and

an Aperio hub to bring access control to

cabinets and drawers where audit trail

and monitoring are increasingly critical.

HES® K100

Cabinet Lock

Wireless cabinet lock

with Aperio® technology

NOTE: The HES K100 Cabinet Lock is available as either a pre-paired lock

and hub kit (no certification required) or as a field configurable component

(requires Aperio® Certified Integrator certification). Pre-paired kits

support limited features. Field configured devices are required in order to

support all options. Visit IntelligentOpenings.com to learn more.

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

132

Cabinet Locks

Dimensions Specifications

Certifications

• FCC Part 15 & Industry Canada Compliant

Electrical

• 50,000 cycles

• 2 x AA lithium batteries (included)

• Low battery signaling and reporting

• External emergency power through 3.5mm jack

Holding Force

• Static strength 150 lbs

Environmental

• Operating Temperature: 32˚ to 122˚F [0˚ to 50˚C]

• Indoor use

Card Technology

• Supports 13.56 MHz or 125 kHz credentials

• High Frequency (13.56 MHz)

— HID iCLASS®

— HID iCLASS SE® (SIO-enabled)

— HID iCLASS® Seos®

— ISO 14443b UID

— MIFARE Classic™

— MIFARE Plus™

— MIFARE DESfire™ EV1

— MIFARE DESfire™ SE

• Low Frequency (125 kHz)

— HID® Prox

— EM Prox

— AWID Prox

• NFC-enabled Mobile Phones

How to Order

Series Model Card Technology Color Thumbturn

K100 -622 -PA -B 2

622H Factory Paired* PA HID 125 kHz Prox B Black 2 Pinch

SE HID 13.56 MHz iCLASS SE

*Kit includes integrated lock paired with Wiegand 1:1 wireless hub

HES K100 Series Cabinet Lock

[51mm]

3-31/32"

[101mm]

4-7/16"

[112mm]

1-7/32"

[31mm]

15/16"

[24mm]

7/8"

[21mm]

1/16" – 1-1/2"

[1.6mm – 38.1 mm]

Cabinet

Lock

Reader

Electronic Access

Control System

Secured

Cabinet

Access Control

Panel

Aperio

Hub

Wiegand

1-7/8"

[46mm]

3-3/16"

[81mm]

3-3/16"

[81mm]

3-3/16"

[81mm]

133

Cabinet Locks

Features

Standard Features

• Hardwired Wiegand communication

• Integrates with existing access

control systems and ID badges

• Audit trail limited by EAC system

• HID multiCLASS SE® card technology

• LEDs indicated valid/invalid entries;

Red Amber or Green Amber

• Locked state monitoring (standard)

• Installs on wood or metal

cabinet doors and drawers

• Works with cabinet doors and

lockers with door thickness of 1/16"

to 1-1/2" [1.5mm to 38.1mm]

• Non-handed

• SecuriCare three-year, no-fault,

no questions asked warranty

Optional Features

• Mechanical key override

(sold separately)

Accessories

• OBS-622 Open back strike plate

• CBL6-QC12 K200/KS200 Lock

Side Interface Cable: 6 foot, 12

conductor and Molex both ends

• CBL12-QC12 K200/KS200 Lock

Side System Interface Cable: 12

foot, 12 conductor and Molex

one end, pinned one end

• W T-1 Wiegand Test Box

with LED Indicators

• WT-2 Wiegand Test Box with LCD

Backlit Display and LED Indicators

The flexible integrated

solution for extending

access control to

secure lockers,

drawers or doors.

The hard powered HES K200 Cabinet

Lock comes standard with locked state

monitoring, optional mechanical key

override and over 150 lbs of holding force.

HES® K200

Cabinet Lock

Integrated Wiegand cabinet lock

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

134

Cabinet Locks

Specifications

Certifications

• FCC Part 15 & Industry Canada Compliant

• CE Red

• RoHS Compliant

Electrical

• Dual voltage 12/24 VDC

• 226 mA at 12 VDC / 118 mA at 24 VDC

Holding Force

• Static strength 150 lbs

Environmental

• Operating Temperature: 32˚ to 122˚F [0˚ to 50˚C]

• Indoor Use

Card Technology

• Supports 13.56 MHz & 125 kHz credentials

• High Frequency (13.56 MHz)

— HID iCLASS®

— HID iCLASS SE® (SIO®-enabled)

— HID iCLASS® Seos®

— ISO 14443b UID

— MIFARE Classic™

— MIFARE DESfire™ EV1

— MIFARE DESfire™ SE

— FeliCa™ (IDm)

• Low Frequency (125 kHz)

— HID® Prox

— EM4102

— AWID Prox

NFC-enabled Mobile Phones

Dimensions

HES K200 Series Cabinet Lock

How to Order

Series Model Color Thumbturn

K200 – 622 – B 2

622 Wiegand, multiCLASS SE B Black 2 Pinch

3-31/32"

[101mm]

[51mm]

Electronic Access

Control System

Secured

Cabinet

Access Control

Panel

1-9/32"

[31mm]

4-7/16"

[112mm]

15/16"

[24mm]

1/16" – 1-1/2"

[1.6mm – 38.1 mm]

135

Cabinet Locks

Features

Standard Features

• Hardwired Wiegand communication

• Integrates with existing access

control systems and ID badges

• Audit trail limited by EAC system

• HID multiCLASS SE card technology

• LEDs indicate valid/invalid entries;

Red Amber or Green Amber

• Locked state monitoring (standard)

ands additional optional extended

DPS monitoring to ensure cabinet

is closed, locked and secure

• Designed for standard cam-activated

swing handle applications with

25 mm x 150 mm lock opening

• Non-handed

• SecuriCare three-year, no-fault,

no questions asked warranty

Accessories

• SFIC Mechanical Key Override

(sold separately)

− SFIC MEDECO X4 SFIC Cylinder

& 2 keys (1 control, 1 user)

− SFIC-BC KS SFIC Blank,

Black Plastic Core

• KS-DPS Surface Mount

DPS (external)

• KS-CAM38 CAM: 38MM–1

• KS-CAM45 CAM: 45MM–5

• CBL6-QC12 K200/KS200

Lock Side Interface Cable: 6 foot,

12 conductor and Molex both ends

• CBL12-QC12 K200/KS200

Lock Side System Interface Cable:

12 foot, 12 conductor and Molex

one end, pinned one end

• W T-1 Wiegand Test Box

with LED Indicators

• WT-2 Wiegand Test Box with LCD

Backlit Display and LED Indicators

Designed to integrate

seamlessly with

existing access

control systems and

protect critical assets

from intrusion and

expensive downtime.

Designed to install easily on most swing

handle server cabinet doors, the HES KS200

Server Cabinet Lock comes standard with

lock monitoring and utilizes an SFIC (Small

Format Interchangeable Core) mechanical key

override. An additional optional extended DPS

monitoring sensor can be connected to ensure

that the cabinet is closed, locked and secure.

The hard powered HES KS200 features HID

multiCLASS SE® contactless card technology.

HES® KS200

Server Cabinet Lock

Integrated Wiegand server

cabinet lock

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

136

Cabinet Locks

Dimensions Specifications

Certifications

• FCC Part 15 & Industry Canada Compliant

• CE Red

• RoHS Compliant

Electrical

• Dual voltage 12/24 VDC

• 470 mA at 12 VDC / 245 mA at 24 VDC

Holding Force

• Static strength 250 lbs

Environmental

• Operating Temperature: 32˚ to 122˚F [0˚ to 50˚C]

• Indoor Use

Card Technology

• Supports 13.56 MHz & 125 kHz credentials

• High Frequency (13.56 MHz)

— HID iCLASS®

— HID iCLASS SE® (SIO®-enabled)

— HID iCLASS® Seos®

— ISO 14443b UID

— MIFARE Classic™

— MIFARE DESfire™ EV1

— MIFARE DESfire™ SE

— FeliCa™ (IDm)

• Low Frequency (125 kHz)

— HID® Prox

— EM4102

— AWID Prox

• NFC-enabled Mobile Phones

HES KS200 Series Cabinet Lock

1-21/32"

[41.8mm]

21/32"

[16.8mm]

1–5/16"

[33.5mm]

Door Thickness

1/32" – 3/32"

[1 – 2mm]

Server Cabinet Door

NOTE: All wiring

is located on the

inside of the door

and server cabinet

HES KS200-640

Server Cabinet Lock

Lock Side

Interface Cable

6-foot Door Harness

(Part number CBL6-GC12)

12-foot Door Harness (Part number CBL6-GC12)

to EAC Panel Connection

8-3/4"

[222.3mm]

[152.4mm]

137

Cabinet Locks

The Securitron MCL

is ideal for extending

access control to

all sizes and shapes

of cabinets and

enclosures that require

asset protection.

Typical applications include jewelry cases,

museum cases, gun cabinets, pharmaceutical

storage cabinets, cash drawers and any

swinging or sliding door or drawer that

needs asset control — indoors or out.

Features

Standard Features

• Direct mount or bracket mount with

common tools for easy installation

• Universal bracket included to

support a variety of applications

• Efficient, low power usage

• Fully sealed for weatherproof

operation

• Rust resistant — all ferrous metal

surfaces plated for durability

• Sealed 6 ft. [1.8m] jacketed,

stranded conductor cable

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Securitron® MCL

Cabinet Magnalock®

The compact versatile

asset management cabinet

locking solution

Cabinet Magnalock

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

138

Cabinet Locks

Dimensions Specifications

Electrical

• 84mA at 24 VDC

Holding Force

• Static Strength 170 lbs

Environmental

• Operating Temperature: 40° to 140°F [-40° to 60°C]

• Indoor or outdoor use

Shipping Weight

• 6 lbs [2.72kg]

Securitron MCL Cabinet Lock

1/4"

[6mm]

4-5/8"

[117mm]

1-1/8"

[29mm]

3/4"

[19mm] 1-1/8"

[29mm]

3-1/8"

[79mm]

Swinging Door Sliding Door

139

Cabinet Locks

Features

Standard Features

• Direct mount with common tools

for strength and reliability

• For 5/8" to 7/8" [15.875mm to

22.225mm] thick cabinet doors

• Efficient, low power usage

• Noise suppression with included MOV

• Instant release circuit

— no residual magnetism

• Fully sealed and for

weather-proof operations

• Rust resistant — all ferrous metal

surfaces plated for durability

• 10 ft. [3.05m] of jacketed,

stranded conductor cable

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• B BondSTAT® magnetic bond

sensor — Patented (MBS)

• Use with CWB-32 bracket

for mounting option on

wood or concrete

Now you can add asset

control to your existing

access control system

with the durable,

power-efficient

Securitron M32-SS.

Each strike plate of the Securitron M32-SS

delivers 300 lbs of holding force (600 lbs total).

Ideal for securing large two-door cabinets,

retail cases or double-door, indoor/outdoor

storage applications with out-swinging

doors that share a center latching point.

Securitron®

M32-SS Split Strike

Magnalock®

Double-door cabinet control

M32-SS Split Strike

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

140

Cabinet Locks

Dimensions Specifications

Electrical

• Dual voltage 12/24 VDC

• 300 mA at 12 VDC / 150 mA at 24 VDC

Holding Force

• Static Strength 600 lbs (300 lbs per strike)

Environmental

• Operating Temperature: 40° to 140°F [-40° to 60°C]

• Indoor or outdoor use

Shipping Weight

• 6 lbs [2.72kg]

Securitron M32-SS Split Strike Magnalock®

How to Order

Model

Series

Monitoring

Options

Strike Plate

Options

M32 B-SS

M32 (600 lbs) (blank) No

Monitoring

(blank) Standard

Strike

B BondSTAT

Monitor

SS Split Strike

1-5/8"

[41.275mm]

1/2"

[12.7mm]

[76.2mm]

Includes a shortened sex bolt for use

on typical 3/4" MDF cabinet doors

Split Strike

Sex Bolt

Flat Head

Socket Screw

Washer (s) 5/8" – 7/8"

[15.9mm – 22.2mm]

Cabinet

Door Thickness

Cabinet Mount Quarter View

Split Strike Plate

[203.2mm]

1-5/8"

[41.275mm]

1-7/8"

[47.625mm]

141

Specialty Locks

Specialty

Locks

142

Specialty Locks

Securitron® GL1

Gate Lock

Electromechanical gate solution

offers one ton of holding power

The heavy duty

Securitron GL1

Electromechanical

Gate Lock provides

weather-resistant

access control for a

wide range of gate

applications.

The Securitron GL1 provides 2,000

lbs of holding force for electrical and

manually operated indoor or outdoor

gates where preload is a concern. Ideal

for swinging or sliding vehicle, pedestrian

or stock gate access control.

Mortise Spacer Guide

Cylinder Length Spacer Required

1" [25.4mm] 1/4" [6.35mm]

1-1/8" [28.5mm] 3/8" [9.5mm]

1-1/4" [31.75mm] 1/2" [12.7mm]

Features

Standard Features

• 2,000 lbs holding force

• Operates under preload up to 100 lbs

• Automatic dual-voltage—

no field adjustment required

• Accepts a standard mortise

cylinder with Adams Rite MS cam

for manual key override

(not included, see spacer guide below)

• Self-aligning receiver

(+/- 1/2" [12.7mm] horizontally)

helps compensate for gate

misalignment and sag

• Tamper resistant cast housing

• Optional latch status monitor

• Surface mount

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• FL Fail locked

• FS Fail safe

• M Monitoring option

143

Specialty Locks

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

144

Specialty Locks

Dimensions Specifications

Electrical

• 12 Volts Initial (Peak): (~1.0 sec.)

at 870 mA — Reduced: 290 mA

• 24 Volts Initial (Peak): (~1.0 sec.)

at 720 mA — Reduced: 170 mA

Holding Force

• 2,000 lbs [907kg]

Operating Temperature

• -58˚ to 167˚F [-50˚ to 75˚C]

• Indoor or outdoor use

Shipping Weight

• 6 lbs [2.72kg]

How to Order

Model

Series Lock Fail State Monitoring

Options

GL1 – FS M

GL1 FL Fail Locked

(Fail Secure)

(blank) No

Monitoring

FS Fail Safe M Monitored

Securitron GL1 with

FMK-SL (sold separately)

for sliding gates

Securitron GL1 with

FMK-SW (sold separately)

for swinging gates

2-11/16"

[69mm]

2-1/8"

[54mm]

2-3/4"

[70mm]

Securitron GL1 Gate Lock

7-1/4"

[184mm]

3-3/16"

[81mm]

2-13/16"

[71mm]

145

Specialty Locks

The Securitron FMK

Flex-Mount Bracket

System is an intuitive

set of mounting

brackets designed

exclusively for use

with the Securitron

M62FG Magnalock®

and the Securitron

GL1 Gate Lock.

Pre-formed post channels and plates of

varying lengths make it easy for you to

assemble a professional looking, high-

security gate lock mounting platform

in minutes, without special tools.

Features

Standard Features

• Permits electronics to be mounted

on fence posts or gate posts

• Brackets are reversible

• Bracket kits include brackets,

mounting hardware and post shims

• Post brackets are pre-drilled

• Zinc-plated steel provides

durability and long life

• Bolt on or weld for installation

• Compatible with maximum

3" [76.2mm] round post with minimum

pole separation of 1" [25.4mm]

• Use with post shim brackets

for smaller post sizes

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Securitron® FMK

Flex-Mount Gate

Lock Bracket Kits

Bracket kits extend access control

to gates and fences

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

146

Specialty Locks

Specifications

Shipping Weight

• 13.4 lbs [6.08kg]

Notes

• Securitron M62FG and Securitron GL1 can

be direct mounted on square posts

• To use Securitron FMK-SL with Securitron

M62FG-SASM, post separation should

be 1" to 2-1/4" [25.4mm – 57.15mm]

• To use Securitron FMK-SW with Securitron

M62FG or Securitron GL1, post separation

should be 1" to 2-3/4" [25.4mm – 69.85mm]

• To use Securitron FMK-SL with Securitron

M62FG or Securitron GL1, post separation

should be 1" to 3-3/4" [25.4mm – 95.25mm]

Part Number | Description

FMB9-4 Post shim kit for Flex-Mount

Brackets - (Set of 4)

FMK-SL Flex-Mount Kit for Sliding Gate

FMK-SW Flex-Mount Kit for Swing Gate

FMK Flex-Mount Kits

Sliding Gate

Swinging Gate

Securitron FMK-SL shown

with Securitron M62FG

Securitron FMK-SL shown

with Securitron GL1

Securitron FMK-SW shown

with Securitron M62FG

Securitron FMK-SW shown

with Securitron GL1

Securitron FMK Flex-Mount Gate Lock Bracket Kits

147

Specialty Locks

FMK Flex-Mount Kits

Unique hybrid design,

with two tons of

holding power.

The hybrid design of this magnetic

electromechanical lock includes two

springloaded, hardened steel jaws that

deliver up to 4,000 lbs of ultimate holding

power. In a forced-entry assault, the jaws

of the Securitron MM15 MEMLOCK clamp

down on the armature plate and hold firm,

for an unmatched level of access control.

Features

Standard Features

• Efficient, low power usage

• Ideal for mental healthcare and

auxiliary detention facilities

and other high-risk locations

• Automatic dual-voltage

— no field adjustment required

• Mounting plate for easy,

accurate installation

• Size optimized for use

with door closers

• Accepts AC or DC current

• Ultra-secure collapsing blind

nuts mount to door frame for

strength and reliability

• Fail safe

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• G Gate conduit

• D Integrated Door

Position Switch (DPS)

• T Anti-tamper switch

Accessory

• TS Tamper shield

Securitron® MM15

MEMLOCK® Magnetic

& Mechanical Lock

4,000 lbs holding force,

bracket mounted, magnetic

electromechanical lock

Magnetic

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

148

Specialty Locks

Dimensions Specifications

Certifications

• UL 10C Fire Rated, 1 hour

• CAN/ULC-S533 Listed

Electrical

• AC Current: 130 mA at 12 VAC; 250 mA at 24 VAC

• DC Current: 100 mA at 12 VDC; 200 mA at 24 VDC

Holding Force

• 4,000 lbs [1814 kg]

Operating Temperature

• -40˚ to 140˚F [-40˚ to 60˚C]

• Indoor use only

Shipping Weight

• 6 lbs [2.72kg]

How to Order

Model

Series

Mounting

Method

Monitoring

Options

MM15 GDT

MM15 (blank) Direct

Mount

(blank) No

Monitoring

G Gate Conduit DT Door Position

Switch and

Tamper Switch

Mounting Plate

Armature

Stainless Cover

2-3/4"

[70mm]

1-3/8"

[35mm]

1-1/8"

[28mm]

2-9/16"

[65mm]

5-1/8"

[130mm]

1/4"

[6mm]

1-7/8"

[48mm]

[152mm]

1/16"

[1.6mm]

Securitron MM15 Magnetic and Mechanical Lock

3-5/8"

[92mm]

3-7/8"

[98mm]

149

Specialty Locks

Part Number | Description

SFP-1/2BKMM15 SFP–1/2" for MM15, Black Finish

SFP-1/2CLMM15 SFP–1/2" for MM15, Clear Finish

SFP-3/8BKMM15 SFP–3/8" for MM15, Black Finish

SFP-3/8CLMM15 SFP–3/8" for MM15, Clear Finish

SFP-5/8BKMM15 SFP–5/8" for MM15, Black Finish

SFP-5/8CLMM15 SFP–5/8" for MM15, Clear Finish

Securitron®

MM15 MEMLOCK®

Accessories

SFP-MM15

Stop Filler Plate

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Part Number | Description

DC-MM15BK DC–MM15, Black

DC-MM15BP DC–MM15, Polished Brass

DC-MM15BS DC–MM15, Satin Brass

DC-MM15 Dress Cover

• Available in Black, Polished Brass

or Satin Brass finish

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

150

Specialty Locks

150

Specialty Locks

Part Number | Description

HEB-1BK-MM15 HEB–1" for MM15 Series, Black Finish

HEB-1CL-MM15 HEB–1" for MM15 Series #130, Clear Finish

HEB-2BK-MM15 HEB–2" for MM15 Series, Black Finish

HEB-2CL-MM15 HEB–2" for MM15 Series #130, Clear Finish

HEB-3BK-MM15 HEB–3" for MM15 Series, Black Finish

HEB-3CL-MM15 HEB–3" for MM15 Series #130, Clear Finish

HEB-MM15 Header

Extension Bracket

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

MM15-TS Tamper Shield

The TS Tamper Shield completely encases

the lock face, providing an added layer of

protection against attempts to compromise

or vandalize the magnetic locking mechanism.

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Z-MM15 Z Bracket Kit

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Part Number | Description

MM15-TS Tamper Shield for

MM15 - Stainless Steel

Part Number | Description

Z-MM15BK Z-Bracket—MM15, Black

Z-MM15CL Z-Bracket—MM15, Clear

MM15

Header

Door

Z Bracket

Header Extention Bracket

Header Extention

Bracket

Standard

Mounting Plate

Securitron MM15 MEMLOCK® Accessories

151

Specialty Locks

Features

Standard Features

• Flexible bracket options for

swinging or sliding applications

• Fully sealed for weatherproof

operations

• Includes universal

threaded conduit fitting

1/2" [12.7mm] female – 3/4" [19mm] male

• 10 ft. [3.05m] of jacketed,

stranded conductor cable

• Noise suppression with built-in MOV

• Automatic dual-voltage

—no field adjustment required

• Rust resistant—all ferrous metal

surfaces plated for durability

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• B Patented BondSTAT

magnetic bond sensor

• D Integrated Door

Position Switch (DPS)

• F Face drilled

• G Gate conduit

• SASM Shock absorbing strike

mount—shock absorption

and rebound assistance for

proper gate alignment

The Securitron

M62FG-SASM is the

only heavy duty

Magnalock specifically

designed to secure

and protect gates.

This weatherproof unit delivers 1,200 lbs

of holding force and comes equipped

with conduit fittings and a special shock

absorbing strike mount (SASM). This unique

design dramatically prolongs the life of

the lock, the gate and other hardware by

controlling excessive impact between

the strike plate and the magnet.

The SASM is also available as a separate retrofit

kit and is compatible with Securitron M32,

M62 or M82 Magnalock strike plates for areas

prone to excessive force closures or slamming.

Securitron®

M62FG – SASM

Gate Magnalock®

The shock absorbing 1,200 lbs

Magnalock solution for outdoor gates

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

152

Specialty Locks

M62FG-SASM on Swinging Gate Using

Flex-Mount Bracket Kit FMK-SW

M62FG-SASM on Sliding Gate Using

Flex-Mount Bracket Kit FMK-SL

Specifications

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ ULC-S533 Listed

• ANSI/BHMA A156.23, Grade 2;

E08511-1000 Compliant

• CSFM—California State Fire Marshal Approved

Dimensions

• 8"L x 1-3/4"D x 3"H

[203.2mm L x 44.45mm D x 76.2mm H]

Electrical

• 250 mA at 12 VDC

• 150 mA at 24 VDC

Holding Force

• 1,200 lbs [544kg]

Operating Temperature

• -40˚ to 140˚F [-40˚ to 60˚C]

• Indoor or Outdoor use

Shipping Weight

• 12 lbs [5.44kg]

How to Order

Model Series Mounting Method Strike Plate Options

M62 FG – SASM

M62 1,200 lbs FG Face drilled, gate

conduit

SASM Shock Absorbing

Strike Mount

Dimensions

Securitron M62FG – SASM Gate Magnalock

153

Keypads & Card Readers

Keypads &

Card Readers

154

Keypads & Card Readers

155

Keypads & Card Readers

The Securitron DK-12

standalone keypad is

ideal for lower security

applications such

as traffic control.

Easy to install and to program, the one-piece

Securitron DK-12 supports 99 user codes,

including Passage mode and Lockout mode.

Features

Standard Features

• Single gang, stainless steel plate

with low voltage mounting ring

• 12-key illuminated 3x4 keypad

• True 10-digit operation

(10 digits plus * and # keys)

• 99 user code capability

• Easy programming from the keypad

• Passage mode and Lockout mode

• Configurable audible keystroke echo

• Red, green and yellow LEDs for

status and programming feedback

• Fail secure or fail safe-capable

• Easy to install with simple hand tools

• 5A SPDT timed, control relay output

• Request to exit (REX) input

• Primarily for indoor applications

• US32D/630 Satin Stainless Steel finish

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Accessories

• WCC Weather-resistant cover

• WBB Weather-resistant backbox

Securitron®

DK-12 Digital

Keypad System

All-in-one keypad system

for single door traffic control

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

156

Keypads & Card Readers

Specifications

Electrical

• 100 mA at 12 or 24 VDC

325 mA at 12 or 24 VAC

• Max 30 Volt input

• 5A SPDT Relay

Operating Temperature

• -10˚ to 140˚F [-23˚ to 60˚C]

Shipping Weight

• 1lb [0.45kg]

Dimensions

Securitron DK-12 Digital Keypad System

Need an Outdoor

Solution?

WCC and WBB allow Securitron DK-12

to be mounted in outdoor locations not

directly exposed to rain or snow.

Ordered Separately

WCC

WBB

5/32"

[4mm]

4-1/2"

[114mm]

2-3/4"

[70mm]

157

Keypads & Card Readers

The Securitron DK-16

digital keypad system

provides medium/

high security control of

electric locks in a one-

or two-door application

where both doors have

the same control needs.

The tamper-resistant keypad provides true

ten-key operation for use and programming.

Encased in a separate enclosure for secure

installation in a protected area, the controller

offers REX input and relay output for lock

control, alarm shunt or other interfaces.

Features

Standard Features

• 12-key keypad with engraved

and paint filled numbers

• Stainless steel plate

• Red, green and yellow LEDs for

status and programming feedback

• Audible keystroke echo

• True 10-key operation

(keys are not paired)

• 59 users with multiple entry codes

• User code and hard code

disable feature

• Passage mode and Lockout mode

• Request to exit (REX) input

• 16 ft. [4.8m], 12 conductor,

22 gauge keypad cable

• US32D/630 Satin Stainless Steel finish

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Accessories

• WCC Weather-resistant cover

• WBB Weather-resistant back box

• Keypad available as

system or separately

Securitron®

DK-16 Digital

Keypad System

Secure, easy-to-program,

single-door control system

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

158

Keypads & Card Readers

Specifications

Electrical

• 12 VAC/VDC: 7 mA at rest; 160 mA active

• 24 VAC/VDC: 20 mA at rest; 190 mA active

Operating Temperature

• CPU: 32˚ to 158˚F [0˚ to 70˚C]

• Keypad: 32˚ to 110˚F [0˚ to 43˚C] Indoor use

Shipping Weight

• Keypad and Controller: 2.8lbs [1.25kg]

Dimensions

Securitron DK-16 Digital Keypad System

How to Order

Model Series Special Feature

DK-16 P

DK-16 Keypad System P Replacement Keypad only

Need an Outdoor

Solution?

WCC and WBB allow Securitron DK-16

to be mounted in outdoor locations not

directly exposed to rain or snow.

Ordered Separately

WCC

WBB

Keypad

Enclosure

5/32"

[4mm]

[76mm]

[203mm]

[152mm]

4-1/2"

[114mm]

2-3/4"

[70mm]

159

Keypads & Card Readers

The Securitron DK-26

digital keypad system

provides medium/

high security control of

electric locks in one- or

two-door applications

where doors have the

same control needs.

The fully weatherproof, rugged stainless

steel keypad can be mounted in most

outdoor environments. Encased in a separate

enclosure for secure installation, the full-

featured, easy-to-program, Securitron

DK-26 is ideal for narrow stile applications.

Features

Standard Features

• Cast stainless steel with

11 EPDM rubber keys

• Weatherproof and vandal resistant

• Mounts on a narrow mullion

• Audible keystroke echo

• True 10-key operation

(keys are not paired)

• 59 users with multiple entry codes

• User code and hard code

disable feature

• Passage Mode and Lockout Mode

• Request to exit (REX) input

• 16 ft. [4.8m], 12 conductor,

22 gauge keypad cable

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• Keypad available as

system or separately

Securitron®

DK-26 Digital

Keypad System

Digital control system for narrow

stile outdoor applications

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

160

Keypads & Card Readers

Specifications

Certifications

• CE: EN 50091-1, EN 61000-6-2 Approved

Electrical

• 12 VAC/VDC: 7 mA at rest; 160 mA active

• 24 VAC/VDC: 20 mA at rest; 190 mA active

Operating Temperature

• CPU: 32˚ to 158˚F [0˚ to 70˚C]

• Keypad: -22˚ to 158˚F [-30˚ to 70˚C]

Indoor or Outdoor use

Shipping Weight

• 5 lbs [2.27kg]

Accessories

DK26-CPSS Cover Plate

• Allows Securitron DK-26 and DK-37 to

be mounted over a single gang box

• MagnaCare lifetime replacement,

no-fault warranty

[76mm]

[203mm]

[152mm]

Dimensions

Securitron DK-26 Digital Keypad System

How to Order

Model Series Special

Feature Finish

DK-26 PBK

DK-26 Keypad

System

P Keypad

only

BK Black Anodized

SS Stainless Steel

DK-26 Cover

Plate

1-1/2"

[38mm]

7/8"

[22mm]

Keypad

Enclosure

[178mm]

161

Keypads & Card Readers

The Securitron

DK-37 digital keypad

offers Wiegand

output for universal

compatibility with

access control systems.

The fully weatherproof stainless steel keypad

is designed for narrow stile applications.

Features

Standard Features

• 12-key cast stainless steel 2x6

keypad with silicone rubber keys

• Weatherproof and vandal resistant

• Dual-voltage 12 VDC or 24 VDC

• Mounts on narrow mullion

• Compatible with access control

systems using Wiegand output

• Red, green and yellow LEDs for

status and programming feedback

• Audible keystroke echo

• 16 foot [4.88m] cable included

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Securitron® DK-37

Digital Keypad

Digital keypad for

narrow stile applications

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

162

Keypads & Card Readers

Specifications

Certifications

• FCC Part 15 & Industry Canada Compliant

Electrical

• 12 VDC: 7 mA at rest; 35 mA active

• 24 VDC: 16 mA at rest; 75 mA active

Operating Temperature

• Keypad: -22˚ to 158˚F[-30˚ to 70˚C]

• Indoor or outdoor use

Endurance

• 1 million cycles

Shipping Weight

• 1.75lbs [0.8kg]

Dimensions

Securitron DK-37 Digital Keypad

How to Order

Model Series Output Finish

DK-37 WBK

DK-37 Keypad W Wiegand

Output

BK Black Anodized

SS Stainless Steel

[25.4mm]

[177.8mm]

1-1/2"

[38.1mm]

163

Keypads & Card Readers

The Securitron

DK-38 digital keypad

offers Wiegand

output for universal

compatibility with

access control systems.

The single gang illuminated keypad

features true 10-key operation and a

flush-mount stainless steel faceplate.

Features

Standard Features

• 12-key illuminated 3x4 keypad

• Dual-voltage 12 or 24 VDC

• Compatible with access

control systems using

standard Wiegand output

• Single gang mounting

• Red, green and yellow LEDs for

status and programming feedback

• Tamper detection

• True 10-digit operation

• Audible keystroke echo

• 16 foot [4.88m] cable included

• US32D/630 Satin Stainless Steel finish

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Accessories

• WCC Weather-resistant cover

• WBB Weather-resistant back box

Securitron® DK-38

Digital Keypad

Digital keypad

for indoor applications

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

164

Keypads & Card Readers

Specifications

Certifications

• FCC Part 15 & Industry Canada Compliant

Electrical

• 12 VDC: 24 mA at rest; 52 mA active

• 24 VDC: 50 mA at rest; 110 mA active

Operating Temperature

• 32˚ to 110˚F [0˚ to 43˚C]

• Indoor use

Endurance

• 1 million cycles

Shipping Weight

• 1.5lbs [0.68kg]

Dimensions

Securitron DK-38 Digital Keypad

How to Order

Model Series Output

DK-38 W

DK-38 Keypad W Wiegand Output

Need an Outdoor

Solution?

WCC and WBB allow Securitron DK-38

to be mounted in outdoor locations not

directly exposed to rain or snow.

Ordered Separately

WCC

WBB

4-1/2"

[114. 3mm]

1-1/8"

[28.5mm]

2-3/4"

[69.85 mm]

165

Keypads & Card Readers

The Securitron R100

surface mounted

wireless reader with

Aperio technology

offers an elegant way to

extend access control

to glass, stone, granite

or marble entryways.

Installation is easy, requiring no drilling or

pulling of wires and can adhere in minutes.

A complement to ASSA ABLOY electrified

locking devices, including electromagnetic

locks, electrified strikes, electric locks and

electrified exit devices, glass and other

aesthetically demanding entryways can

now integrate robust access control while

maintaining a clean, wireless appearance.

Features

Standard Features

• Adheres to glass and other surfaces

without any connecting wires

• Online transaction audit

trail capability

• Low battery signaling and reporting

• Green status LED indicator

• Shortened wire pull from

panel to hub provides cost

benefit in installation

• Fully-encrypted AES 128

wireless communication

• SecuriCare three-year, no-fault,

no questions asked warranty

Optional Features

• iCLASS (SE) or Prox (PA)

card technology

Securitron® R100

Wireless Reader

and Aperio® Hub

Surface mounted—no drilling

NOTE: The Securitron R100 card reader is available as either a pre-paired

reader and hub kit (no certification required) or as a field configurable

component (requires Aperio® Certified Integrator certification). Pre-paired

kits support limited features, field configured devices are required in order

to support all options. Visit IntelligentOpenings.com to learn more.

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

166

Keypads & Card Readers

Specifications

Certifications

• FCC Part 15

• IC Compliant

Electrical

• 40,000 cycles

• (1) 3V CR2 lithium battery (included)

• Low battery signaling and reporting

Operating Temperature

• -40˚ to 122˚F [-40˚ to 50˚C]

• Indoor or outdoor use

Shipping Weight

• 2.83oz [80g]

Card Technology

• High Frequency (13.56 MHz)

— HID iCLASS®

— HID iCLASS SE® (SIO-enabled)

— HID iCLASS® Seos®

— ISO 14443b UID

— MIFARE Classic™

— MIFARE Plus™

— MIFARE DESfire™ EV1

— MIFARE DESfire™ SE

• Low Frequency (125 kHz)

— HID® Prox

— EM Prox

— AWID Prox

• NFC-enabled Mobile Phones

Dimensions

Securitron R100 Wireless Reader and Aperio Hub

How to Order

Series Model Card Technology

R100 – 1H – SE

R100 Aperio

Wireless

Reader

1H Factory

Paired*

PA HID 125 KHe

Prox

SE HID 1356 MHz

iClass SE

*Kit includes wireless reader paired with Wiegand 1:1 wireless hub

Local wireless communication eliminates the cost

and inconvenience of wiring in and around the door,

without the hassle of complex site surveys.

Electronic Access

Control System

Access Control

Panel

Aperio Hub

Electro-

magnetic

Lock

IEEE 802.15.4

(2.4GHz)

TCP/IP Wiegand

Typical configuration with

electromagnetic lock

4-7/32"

[107mm]

1-25/32"

[45.25mm]

[25.4mm]

Push Buttons

& Egress Devices PUSH

EXIT

167

Push Buttons & Egress Devices

PUSH

EXIT

168

Push Buttons & Egress Devices

169

Push Buttons & Egress Devices

Features

Standard Features

• Passive infrared (PIR) request

to exit (REX) device

• Automatically and reliably

cuts power to the lock with

no human intervention

• REX output

• Easily adjustable beam pattern

• Adjustable time relock

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Dimensions

Specifications

Operation

• Indoor use only

Electrical

• 20 mA-50 mA (depending on

switching status) at 12 or 24 VDC

Shipping Weight

• 0.5 lbs [0.23kg]

The Securitron XMS

passive infrared (PIR)

motion sensor request

to exit (REX) device

reliably detects

motion near a door

and releases its lock.

Versatile mounting options and an easily

adjustable infrared beam pattern provide

optimal coverage of the egress area for

smooth, hands-free lock release and exit.

SAFETY NOTE: ASSA ABLOY Electronic Security

Hardware recommends that an emergency exit

button, such as the Securitron EEB, be used in

conjunction with the Securitron XMS to meet applicable

building codes and specific life safety issues.

Securitron®

XMS Exit

Motion Sensor

Versatile motion detection

for hands-free exit request

1.87"

[48mm]

[178mm]

1.75"

[44mm]

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

170

Push Buttons & Egress Devices

170

Push Buttons & Egress Devices

Features

Standard Features

• Backup device in case of exit

sensor failure per BOCA,

NFPA, IBC, and VBC code

• Momentarily pressing the button

releases the door for 30-seconds

• Re-triggerable for added

30-second release

• Interchangeable green and red

lenses included standard

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• Single gang

• Narrow stile

• EEB2 includes standard

lenses plus blue ADA lens

• Illumination kits

Specifications

Certifications (EEB2, EEB3N only)

• CSA-C22.2 No.205 Listed

• CSFM—California State Fire Marshal

Electrical

• 226 mA peak at 12 VDC

• 118 mA peak at 24 VDC

• 3A SPDT N/C Relay

Install the Securitron

EEB Emergency Exit

Button next to the

door to provide

additional safety and

redundancy as required

by code when using a

motion detector for a

request to exit device.

Securitron®

EEB Emergency

Exit Button

Redundant backup

ensures safe egress

How to Order

Model Series LED Lens Color Mounting Method

EEB 3 N

EEB Push Buttons 2 Green/ Red/ Handicap (blank) Single Gang

3 Green/Red N Narrow Gang

NOTE: Not every combination above is possible. Please contact the factory

if you need a combination of features not listed on this page

EEB2

Request to

Exit

Device

Maglock

NOTE: ASSA ABLOY Electronic Security Hardware’s

UL294 certification indicates that when the Securitron

EEB is used with the Securitron XMS Motion Sensor,

it meets the NFPA Life Safety Code 101 requirements

for exit of access-controlled egress doors.

171

Push Buttons & Egress Devices

Features

Standard Features

• Includes interchangeable

green and red lenses

• Red LED on plate

• Stainless steel single gang plate:

4-1/2" x 2-3/4" [114mm x 70mm]

• Field selectable 12 or 24VDC

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Specifications

Electrical

• 5 mA at 12 or 24VDC

• 7A rated DPST contacts

High quality Securitron

Push Buttons are

available in a broad

selection of colors,

sizes, switch types

and outputs.

With a wide range of options for

interchangeable lenses and field convertible

outputs, Securitron push buttons can

release any lock, alone or in conjunction

with door closers and other hardware.

Securitron®

PB Series

Push Buttons

Medium round illuminated

push buttons

How to Order

Model Series Switch Type

PB A

PB Push Button (blank) Momentary Switch

A Alternate Switch

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

172

Push Buttons & Egress Devices

172

Push Buttons & Egress Devices

Features

Standard Features

• Easy to read 2" size

• Includes interchangeable green,

red and blue ADA lenses

• Field selectable 12 or 24VDC

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• Standard or Illuminated

• Single Pole-Double Throw

• Double Pole-Double Throw

• Red LED on plate

Specifications

Dimensions

• Stainless steel single gang plate:

4-1/2" x 2-3/4" [114mm x 70mm]

Electrical

• 29 mA at 12 VDC

• 40 mA at 24 VDC

• 5A rated SPDT relay

• PB22 5A rated DPDT relay

High quality

Securitron Push

Buttons are available

in a broad selection

of colors, sizes, switch

types and outputs.

With a wide range of options for

interchangeable lenses and field convertible

outputs, Securitron push buttons can

release any lock, alone or in conjunction

with door closers and other hardware.

Securitron®

PB2 Series

Push Buttons

Large square illuminated

push buttons

How to Order

Model Series Illumination Switch Pull / Throw

PB2 2

PB2 Push Button (blank) Illuminated (blank) Single Pole, Double Throw

E Non-Illuminated 2 DPDT — Double Pole, Double Throw

NOTE: Not every combination above is possible. Please contact the factory

if you need a combination of features not listed on this page.

173

Push Buttons & Egress Devices

Features

Standard Features

• Includes interchangeable

green and red lenses

• Field convertible from DPST to DPDT

• Field selectable 12/24VDC

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• Red LED on plate; for no LED select (E)

• Momentary or for Alternate select (A)

• Illumination Light Kit (LK)

Specifications

Dimensions

• Stainless steel single gang plate:

4-1/2" x 2-3/4" [114mm x 70mm]

• Stainless steel narrow stile plate:

4-1/2" x 1-3/4" [114mm x 44mm]

• Black plastic surface mount:

3-7/8" x 2" [98mm x 51mm]

Electrical

• 29 mA at 12 VDC

• 40 mA at 24 VDC

• 3A rated contacts

High quality Securitron

Push Buttons are

available in a broad

selection of colors,

sizes, switch types

and outputs.

With a wide range of options for

interchangeable lenses and field convertible

outputs, Securitron push buttons can

release any lock, alone or in conjunction

with door closers and other hardware.

Securitron®

PB3 Series

Push Buttons

Assorted sizes and colors

with a uniform look

How to Order

Model Series Illumination Switch Type Mounting Method

PB3 E A N

PB3 Push

Button

(blank) Illuminated (blank) Momentary

Switch

(blank) Single Gang

E Non-Illuminated A Alternate Switch 2 Double Gang

N Narrow Gang

R Remote,

Surface Mount

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

174

Push Buttons & Egress Devices

174

Push Buttons & Egress Devices

Features

Standard Features

• Illuminated green halo-style button

• Bi-color LED

• Tamper resistant

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Specifications

Dimensions

• Stainless steel single gang plate:

4-1/2" x 2-3/4" [114mm x 70mm]

• Stainless steel narrow stile plate:

4-1/2" x 1-3/4" [114mm x 44mm]

Electrical

• 20 mA at 12 VDC

• 40 mA at 24 VDC

• 4A rated contacts

High quality

Securitron Push

Buttons are available

in a broad selection

of colors, sizes, switch

types and outputs.

With a wide range of options for

interchangeable lenses and field convertible

outputs, Securitron push buttons can

release any lock, alone or in conjunction

with door closers and other hardware.

Securitron®

PB4L Series

Push Buttons

Stainless push button

with illuminated halo

How to Order

Model Series Switch Type Mounting Method Switch Pull / Throw

PB4L A N -2

PB4L Push

Button

(blank)

Momentary Switch

(blank) Single Gang 2 DPDT — Double

Pole, Double

Throw

Alternate Switch

N Narrow Gang

175

Push Buttons & Egress Devices

175

Push Buttons & Egress Devices

Features

Standard Features

• Includes interchangeable green,

red and blue ADA lenses

• Field convertible from DPST to DPDT

• Field selectable 12/24VDC

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Specifications

Dimensions

• Stainless steel single gang plate:

4-1/2" x 2-3/4" [114mm x 70mm]

Electrical

• 9 mA at 12 VDC

• 20 mA at 24 VDC

• 5A rated contacts

High quality Securitron

Push Buttons are

available in a broad

selection of colors,

sizes, switch types

and outputs.

With a wide range of options for

interchangeable lenses and field convertible

outputs, Securitron push buttons can

release any lock, alone or in conjunction

with door closers and other hardware.

Securitron®

PB5 Series

Push Buttons

Medium round, illuminated

push button

How to Order

Model Series Illumination

PB5 E

PB5 Push Button (blank) Illuminated

E Non-Illuminated

Medium round, illuminated

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

176

Push Buttons & Egress Devices

Push Button Selector Chart

Waterproof Single

Gang

Narrow

Stile Surface Green

Button

Red

Button

Blue

Button

Steel

Button Illuminated Momentary Alternate DPST DPDT SPDT LED

Color

Required

Box

Clearance

PB l l l l l l l R1-3/4"

[44.5mm]

PBA l l l l l l l R1-3/4”

[44.5mm]

PB2 l l l l l l l R2"

[51mm]

PB22 l l l l l l l R2"

[51mm]

PB2E l l l l l l 2"

[51mm]

PB3 l l l l l l *R1-1/2"

[38mm]

PB3A l l l l l l *R1-1/2"

[38mm]

PB3AN l l l l l l *R1-1/2"

[38mm]

PB3E l l l l l *1-3/8"

[35mm]

PB3ER l l l l l *SURFACE

MOUNT

PB3EAR lll ll*SURFACE

MOUNT

PB3EA l l l l l *1-3/8"

[35mm]

PB3EAN l l l l l *1-3/8"

[35mm]

PB3EN l l l l l *1-3/8"

[35mm]

PB3N l l l l l l *R1-3/8"

[35mm]

PB4L-2 l l l l l BI-C 1-3/4"

[44.5mm]

PB4LA-2 l l l l l BI-C 1-3/4"

[44.5mm]

PB4LN-2 l l l l l BI-C 1-3/4"

[44.5mm]

PB4LAN-2 l l l l l BI-C 1-3/4"

[44.5mm]

PB5 l l l l l l l *2"

[51mm]

PB5E l l l l l l *2"

[51mm]

EEB2 l l l l

30-SECONDS

TIMED RELEASE HOLD

TIMER

[51mm]

EEB3N l l l 1-1/2"

[38mm]

*All PB3 and PB5 Series can be field converted from DPST to DPDT. PB4 Series feature bi-colored LEDs.

Push Button Accessories

PB2-LK PB3-LK

WCC WBB

WCC and WBB weatherize any single gang

push button to permit mounting in outdoor

locations not directly exposed to rain or snow

PB2-LK - Illumination kit for PB2E, PB5E & EEB2

PB3-LK - Illumination kit for PB3E,

PB3EN & EEB3N Series

177

Push Buttons & Egress Devices

Keyswitch Selection Guide

Single Gang Narrow

Stile Double Gang Tubular Key Momentary Alternate SPDT DPDT

KP1 l l l l

KP1A l l l l

MK l l l

MK2 l l l

MKA l l l

MKA2 l l l l

MKAN l l l

MKAN2 l l l

MKN l l l

MKN2 l l l

MKPZ lll

MKAPZ l l l

MK ACCESSORIES

MKS l l

MKS2 l l

MKSA l l

MKSA2 l l

MKC lll

MKC-KA lll

Single Pole –

Single Throw (SPST)

Switches that have one input

and one output (NO or NC)

and turn on or off in response

to the switch action

Single Pole –

Double Throw (SPDT)

Switches with one input and

two outputs. When the switch

operation occurs, the connection

shifts from output A to output B

Double Pole –

Single Throw (DPST)

Two SPST switches that operate

in tandem using one switch

operation so that two outputs

turn on or off simultaneously in

reaction to the switch operation

Double Pole –

Double Throw (DPDT)

Two SPDT switches that operate in

tandem using one switch operation

so that each connection shifts

simultaneously from its primary

output to its secondary output

Momentary Switch

A momentary switch changes state

during activation and reverts to its

original state upon deactivation.

A doorbell is a common example

of a momentary switch. A timer

can be used to extend the effect

of the switch operation for a

specific amount of time.

Alternate Switch

An alternate switch changes state

upon activation and does not

change back until reactivated.

A light switch is a common

example of an alternate switch.

Alternate switches are also called

maintained or latching switches

Normally Open

Contacts (NO)

A normally open contact provides

an open circuit where no current

is flowing in its usual state.

Wired in parallel for fail secure

type electric locks (i.e. electric

strike). Activating any switch will

apply power, releasing the lock.

Normally Closed

Contacts (NC)

A normally closed contact provides

a closed circuit where current

is flowing in its usual state.

Wired in Series for fail safe type

electric locks (i.e. Securitron

Magnalocks). Activating any switch

will break power, releasing the lock.

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

178

Push Buttons & Egress Devices

178

Push Buttons & Egress Devices

Features

Standard Features

• 12 or 24 VDC

• Bi-color LED

• Backing bracket permits integration

with any 1-1/4" [32mm] or 1-1/8" [28mm]

mortise cylinder (not included)

• Support for 1-1/2" [38mm] cylinder

using spacer ring and backset

• Additional switch position on

backing bracket allows another

switch to be activated by turning

the key in the opposite direction

• 5A rated plunger switch

• Includes anti-tamper screws

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• Momentary or Alternate

• SPDT or DPDT relay

• Narrow Stile, Single- or Double-Gang

• Local annunciation via Piezo sounder

• Additional switch add on

• 1-1/8" [28.5mm] Key Cylinder,

26D Finish, SC keyway

The Securitron MK

Mortise Keyswitch

supports electric

lock control, alarm

panel arming, reset

and override when

paired with any

mortise cylinder

1-1/8" to 1-1/2".

Securitron®

MK Mortise

Keyswitch

Turns standard mortise cylinder

into full featured keyswitch

How to Order

Model Series Switch Type Mounting Method Switch/Sounder

MK A N 2

MK Mortise

Key Switch

(blank)

Momentary Switch

(blank) Single Gang P Piezo Sounder

Alternate Switch

2 Double Gang 2 DPDT — Double

Pole, Double

Throw

N Narrow Gang

NOTE: Not every combination above is possible. Please contact the factory

if you need a combination of features not listed on this page.

179

Push Buttons & Egress Devices

179

Push Buttons & Egress Devices

Features

Standard Features

• Stainless steel face plates

• 12/24 VD bi-color LED tubular

style keyswitches

• Momentarily turning the key

changes the state of the contacts

• Includes anti-tamper screws

• Includes two keys

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• Momentary or Alternate

Specifications

Electrical

• 7A rated SPDT switch

• 40mA at 12 or 24VDC

The Securitron KP1

Keyswitch supports

electric lock control;

alarm panel arming,

reset and override

when paired with

any tubular cylinder

1-1/8" to 1-1/2".

Securitron®

KP1 Tubular

Keyswitch

Simple solution for exit, door

release, manual override or reset

How to Order

Model Series Switch Type

KP1 A

KP1 Tubular Key Switch (blank) Momentary Switch

A Alternate Switch

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

180

Push Buttons & Egress Devices

180

Push Buttons & Egress Devices

Features

Standard Features

• Active microwave motion sensing

using Doppler radar that is more

reliable than infrared sensors

• Adjustable sensing zone from

4" to 24" (102mm to 610mm) helps

screen out incidental traffic

• FCC certified for use in general

and medical environments

• Touchless activation for

hands-free operation, reduces

transmission of germs

• Pulse mode to initiate action or

toggle mode to provide on/off switch

• Mounting ring included or install in

standard plastic or metal gang box

• Water-resistant foam gasket included

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• Weather-resistant cover

• Weather-resistant backbox

• Offered in a single-gang

or double-gang model

Specifications

Certifications

• Electromagnetic compatibility

to 2004/108/EC

• FCC: G9B-MS08 and IC: 4680A-MS08

Dimensions

• Single gang faceplate

4-1/2" x 2-3/4" [114mm x 70mm]

• Double gang faceplate

4-1/2" x 4-1/2" [114mm x 114mm]

Electrical

• Self-sensing 12 or 24V DC

or AC input (± 10%)

Maximum Power Consumption

• Less than 1.5W (125 mA at 12 VDC)

1A SPDT contact can be operated

in toggle or pulse mode

• Pulse output: 0.5 seconds

Environmental

• Operating Temperature:

-4˚ to 131˚F [-20˚ to 55˚C]

• Indoor use

Shipping Weight

• 0.5 lbs

A new class of

motion sensing

technology for hands-

free, contactless

switch activation.

Use for request to exit (REX), activation

or on/off switching to trigger a variety

of access control devices in place

of a push plate or push button.

Securitron®

WSS Wave

Sense® Switch

No-touch switch for

hands-free activation

How to Order

Model Series Finish Plate Size

WSS – W 1

WSS Wave Sense Switch W White 1 Single Gang

2 Double Gang

Need an Outdoor Solution?

WCC WBB

WCC and WBB allow the Securitron Wave Sense

Switch to be mounted in outdoor locations

not directly exposed to rain or snow

181

Push Buttons & Egress Devices

181

Push Buttons & Egress Devices

Features

Standard Features

• Internal 0-25 second timer

• Backup push button

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Dimensions

Specifications

Electrical

• 40 mA at rest; 25 mA

releasing at 12 or 24 VDC

Environmental

• Operating Temperature:

32˚ to 110˚F [0˚ to 43˚C]

• Indoor use only

Shipping Weight

• 1.5 lbs [0.68kg]

The Securitron SP-1

uses touch sensing

technology to create

a push plate with

no moving parts.

For indoor use only, the unit is oversized to

cover a single gang cutout. Ideal to assist

with ADA compliance, the unit includes a

three-part vinyl “Touch to Exit” decal. A red

LED is incorporated into the backbox.

Securitron® SP-1

Touch Sense® Plate

Touch Sense technology in a

wall-mount request to exit plate

How to Order

Model Series Label

SP-1

SP-1 Touch Sense Plate L Touch To Exit Label

LH Handicap Label

1-1/2"

[38mm]

5-3/4"

[146mm]

3-3/16"

[81mm]

182

Push Buttons & Egress Devices

MagnaCare®

Lifetime

Replacement

Warranty

The Industry’s Best Warranty

• Lifetime — We guarantee our products, and since we’ve been

making Magnalocks for over 35 years that’s a promise you can trust

• No-Fault — For any reason, including but not limited

to installation error, vandalism or act of God

• Tomorrow — Replacement product is shipped at

Securitron’s expense, next day air if needed

• Hassle Free — No product registration is required

At ASSA ABLOY, we pay special attention to the needs of our customers.

Our 1.800.MAGLOCK sales and service support line puts you in

touch with our knowledgeable and friendly team to assist you with

the smallest detail, or the most difficult application, including free

wiring diagrams. In 1999, Securitron introduced the first “no strings

attached” warranty program called MagnaCare, because we believe

quality products and quality service should be the expectation, not

the exception. ASSA ABLOY Electronic Security Hardware continues

this tradition on all Securitron Maglocks and many other products.

Select products are covered under ASSA ABLOY Electronic Security Hardware’s

other warranty programs. Full details are available at assaabloyesh.com.

183

Push Buttons & Egress Devices

183

Push Buttons & Egress Devices

Features

Standard Features

• Redundant switches

• Release triggered by either 1/8"

[3mm] mechanical movement or

reliable touch sense technology

• Resistant to interference from

radio frequency or electromagnetic

frequency and external

impact/ bounce attempts

• All metal construction

• Can be field cut to fit

non-standard door widths

• 16 ft. [4.8m] 22 AWG 6 conductor

cable and armored door cord included

• Resists electrostatic discharge

up to 27,000 volts

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• 36 36" [914mm] Length

• 42 42" [1,067mm] Length

• 48 48" [1,219mm] Length

• EL ElectroLynx® ready

• I Illuminated via fiber optics

• Through-bolt kit for doors

1-3/4" to 2-1/4" [44.5mm to 57mm] thick

• Cover plates per Securitron DSB

The dependable

Securitron DSB Dual

Sense Bar is the

most reliable exit

device available for

electronically locked,

non-fire-rated doors.

Its unique design delivers superior fault

tolerance with two independent, redundant

switch circuits for releasing the lock.

The Securitron DSB can be installed on

all types of interior metal, aluminum or

wood doors. Meets “no special tools or

knowledge” criteria required by code.

Securitron® DSB

Dual Sense® Bar

Dependable touch and

mechanical release for superior

safety and redundancy

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

184

Push Buttons & Egress Devices

Dimensions

Specifications

Certifications

• CAN/ULC-S533 Listed

• UL 294 Listed

• CSA-C22.2 No. 205 Listed

• NFPA 101

Electrical

• Dual Sense Bar Only—

24 mA at 12 or 24 VDC

• Dual Sense Bar with Illumination—

44 mA at 12 or 24 VDC

Environmental

• Operating Temperature: 32˚ to 120˚F [0˚ to 49˚C]

• Indoor use only

Shipping Weight

• 6 lbs [2.72kg] to 8 lbs [3.63kg]

depending on length

How to Order

Connector Style Model Series Finish Illumination Bar Length

EL – DSB – CL I42

(blank) None DSB Dual Sense Bar BK Black Anodized (blank) Non Illuminated (blank) 36" Length

EL ElectroLynx CL Clear Anodized I Illuminated 42" 42" Length

48" 48" Length

NOTE: Not every combination above is possible. Please contact the factory if you need a combination of features not listed on this page.

Securitron DSB Dual Sense® Bar

34-13/16", 40-13/16", 46-13/16"

[868mm, 1021mm, 1173mm]

[76mm]

185

Push Buttons & Egress Devices

Features

Standard Features

• Can be field cut to accommodate

non-standard openings

up to 48" [1219mm]

• Activates a 2A DPST rated relay

when touched (no mechanical

movement) which will allow

free egress, or initiates the

delay on an exit delay timer

• Backup push button included

• 16 ft. [4.8m] 22AWG 6

conductor cable and armored

door cord included

• Available ElectroLynx® ready

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• 36 36" [914mm] Length

• 42 42" [1,067mm] Length

• 48 48" [1,219mm] Length

• EL ElectroLynx® connectors

• D Dummy bar with no

release function

• Through-bolt kit for doors up to

2-1/4" [57mm] thick (TSB-TDM)

• Cover plates for retrofit of

competitor products (TCP-BK)

• Trailing edge timer

The Securitron TSB

Touch Sense Bar

provides touch-

triggered release of

electronically locked,

non-fire-rated doors.

Touching the bar, even through light

gloves or clothing, triggers an electronic

sensor that releases the lock. For indoor

use only, the Securitron TSB installs easily

on all types of metal, aluminum or wood

frame doors. Meets "no special tools or

knowledge" criteria in code requirements.

Securitron® TSB

Touch Sense® Bar

Touch-triggered release

for reliable egress

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

186

Push Buttons & Egress Devices

Dimensions

Specifications

Certifications

• UL 294 Listed

• CSA-C22.2 No. 205 Listed

• CSFM—California State Fire Marshal Approved

• CE: EN 50091-1, EN 61000-6-2 Approved

Electrical

• 40 mA at rest; 25 mA releasing at 12 VDC or 24 VDC

Environmental

• Operating Temperature: 32˚ to 110˚F [0˚ to 43˚C]

• Indoor use

Shipping Weight

• 7 lbs [3.18kg] to 9 lbs [4.08kg] depending on length

How to Order

Connector Style Model Series Finish Special Features Bar Length

EL – TSB – CL T – 42

(blank) None TSB Touch Sense Bar BK Black Anodized T Trailing Edge Timer (blank) 36" Length

EL ElectroLynx CL Clear Anodized 42" 42" Length

48" 48" Length

NOTE: Not every combination above is possible. Please contact the factory if you need a combination of features not listed on this page.

Securitron TSB Touch Sense Bar

[76mm]

2-3/4"

[70mm]

34-1/2", 40-1/2", 46-1/2"

[870mm, 1022mm,1175mm]

187

Push Buttons & Egress Devices

Features

Standard Features

• Low profile design requires only 1/4"

[6.35mm] movement for activation

• Can be field cut to accommodate non-

standard openings up to 48" [1219mm]

• Uses same mounting pattern as

the Securitron TSB and DSB

• Direct retrofit for some

competitor footprints

• Mechanical action

activates a DPDT relay

• 5A rated output to allow free egress

or initiate an exit delay timer

• Redundant switches ensure

reliable, fault-tolerant operation

• All metal construction

• 16 ft. [4.8m] 22 AWG 6

conductor cable and armored

door cord included

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• 36 36" [914mm] Length

• 42 42" [1,067mm] Length

• 48 48" [1,219mm] Length

• W Weather-resistant upgrade

• Cover plates for retrofit

of competitor products (TCB-BK-CL)

Use the Securitron

Electromechanical Bar

(EMB) on electronically

locked, non-fire-

rated doors or as an

initiate device for a

delayed egress timer.

Pressing the bar activates internal mechanical

switches that release the lock. Optional

waterproof switches are available, which allow

the Securitron EMB to function in protected

outdoor applications. Meets "no special tools

or knowledge" criteria for code requirements.

Securitron® EMB

Electromechanical

Bar

Mechanical activation for

electronic lock release in a

reliable, durable exit bar

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

188

Push Buttons & Egress Devices

Dimensions

Specifications

Electrical

• Max current 1.5A at 30VDC

Environmental

• Operating Temperature: -4˚ to 185˚F [-20˚ to 85˚C]

• Indoor operation

• Optional weather-resistant switches

Shipping Weight

• 7 lbs [3.18kg] to 9 lbs [4.08kg] depending on length

How to Order

Connector Style Finish Bar Length

EMB – CL – 42

EMB Electromechanical Bar BK Black Anodized (blank) 36" Length

WEMB Weather Resistant

Electromechanical Bar

CL Clear Anodized 42" 42" Length

48" 48" Length

NOTE: Not every combination above is possible. Please contact the factory

if you need a combination of features not listed on this page.

Securitron EMB Electromechanical Bar

1.6"

[41mm]

2.6"

[66mm]

34.5, 40.5, 46.5"

[876mm, 1029mm, 1181mm]

TCP covers unwanted holes from previously

installed exit bars, strengthens the mounting

area and provides a clean look.

189

Push Buttons & Egress Devices

Features

Standard Features

• For use on any push, pull

or swing-through door

• Activates electronic release

via 2A DPST rated relay when

touched to allow free egress

• Backup push button

• 16 ft. [4.8m] 22AWG 6 conductor

cable and armored door cord included

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• (EL) ElectroLynx® connectors

Dimensions

Specifications

Certifications

• UL 294 Listed

• CSA-C22.2 No.205 Listed

• CSFM—California State Fire

Marshal Approved

• CE: EN 50091-1,

EN 61000-6-2 Approved

Electrical

• 40 mA at rest; 25 mA releasing

at 12 VDC or 24 VDC

Environmental

• Operating Temperature:

32˚ to 110˚F [0˚ to 43˚C]

• Indoor use only

Shipping Weight

• 3 lbs [1.36kg]

Sized to conceal existing

mounting holes, the

Securitron TSH Touch

Sense Handle replaces

standard pulls on

aluminum doors to

allow electronic lock

release for egress.

With flexible options, it works equally

well on in-swing doors or as a push-open

device for out-swing doors, offering a clean

look on aluminum frame glass doors.

Securitron®

TSH Touch

Sense® Handle

Compact push or pull

egress alternative for

electronic lock release

How to Order

Connector Style Model Series Finish

EL – TSH – CL

(blank) None TSH Touch Sense Handle BK Black Anodized

EL ElectroLynx CL Clear Anodized

2-1/8"

[54mm]

[127mm]

[229mm]

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

190

Push Buttons & Egress Devices

190

Push Buttons & Egress Devices

Securitron® EMH

Electromechanical

Handle

Mechanical activation for

electronic lock release in

a compact handle

Features

Standard Features

• Activates a 2A DPDT rated output

when pushed or pulled, to allow free

egress or initiate an exit delay timer

• 16 ft. [4.8m] 22AWG 3

conductor cable and armored

door cord included

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• (EL) ElectroLynx® connectors

Dimensions

Specifications

Certifications

• UL 294 Listed

• CSA-C22.2 No.205 Listed

• CSFM—California State Fire

Marshal Approved

• CE: EN 50091-1,

EN 61000-6-2 Approved

Electrical

• 40 mA at rest; 25 mA

releasing at 12 or 24 VDC

Environmental

• Operating Temperature:

32˚ to 110˚F [0˚ to 43˚C]

• Indoor use only

Shipping Weight

• 3 lbs [1.36kg]

The Securitron EMH

Electromechanical

Handle works on

any push, pull or

swing-through door,

and is designed for

specialized outdoor

applications.

Pressing the handle activates internal

mechanical switches that release the lock.

Meets "no special tools or knowledge"

criteria for code requirements.

How to Order

Connector Style Model Series Finish

EL – EMH – CL

(blank) None EMH Electromechanical Handle BK Black Anodized

EL ElectroLynx CL Clear Anodized

Pull

EMH Movement

Push

2-1/8"

[54mm]

[127mm]

[229mm]

Power

191

Power

Updated 1/23/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

192

Power

193

Power

Features

Standard Features

• Dual voltage, field selectable 12 or 24

VDC via clearly marked toggle switch

• Supplies 1 full amp continuous

current output, even while

charging back-up batteries

• Linear regulated power supply

provides the cleanest power available

• UL Class 2 power limited output

• SPDT AC monitoring output allows

for remote monitoring of the

power supply’s 110 VAC input

• External LED indicator (AC and DC)

easily determines power status

• UL Listed, low-current fire alarm

disconnect requires only a minimum

size fire alarm relay and wire gauge

• Polyswitch 2A breaker allows

for large short duration inrush

current if batteries are installed

(approx. 20A for 1 second)

• Line voltage and DC fuses

• Sealed lead acid or gel

battery charging capability

(battery sold separately)

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

The Securitron BPS

series of power

supplies delivers

linear technology

recommended by

most manufacturers

of sensitive electronic

access control and

security components.

Safe for use with readers, electric strikes, and

maglocks, these units interface to fire alarm

systems and provide battery backup. The

Securitron BPS-12/24-1 is UL Class 2 listed.

Securitron®

BPS 12/24-1 Dual

Voltage Linear

Power Supply

Linear power for sensitive electronics

Updated 1/23/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

194

Power

Dimensions Specifications

Certifications

• UL Listed

Electrical

• 12V/24V selector switch

• Input Voltage: 120 VAC

• Output Current: 1A at 12 VDC or 24 VDC

Operating Temperature

• 32˚ to 105˚F [0 to 40˚C]

Shipping Weight

• 9 lbs [4.08kg]

Part Number | Description

BPS-12/24-1 Dual Voltage Power

Supply—12/24 VDC, 1A

Securitron BPS 12/24-1 Dual Voltage Linear Power Supply

[102mm]

12"

[305mm]

[229mm]

195

Power

Features

Standard Features

• 1, 4 or 8 outputs protected with

polyswitch (PTC) 2A circuit breakers

• LEDs provide an easy-to-read

voltage indicator for output zone

status (voltage, no voltage)

• Slide switches connect or disconnect

load from power (excludes 1A)

• Battery charging and backup

capability (battery sold separately)

• Rugged steel enclosure

• Fire alarm relay connection

for release of all devices upon

fire alarm activation

• Clean linear power for flawless

operation with all sensitive

active electronic components

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

The Securitron BPS

series single voltage

power supplies deliver

linear technology

recommended by

most manufacturers

of sensitive electronic

access control and

security components.

Safe for use with readers, electric strikes, and

maglocks, these units interface to fire alarm

systems and provide battery backup. The

Securitron BPS power supplies provide 12

VDC or 24 VDC output with a variety of amp

sizes that support small or large power needs.

Securitron®

BPS Linear

Power Supply

12 VDC or 24 VDC linear output

for high performance

Updated 1/23/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

196

Power

Dimensions Specifications

Certifications

• UL 294 Listed

• CSA-C22.2 No.205 Listed

• MEA—City of New York Approved

Electrical

• Input Voltage: 120 VAC

Environmental

• Operating Temperature: 32˚ to 105˚F [0 to 40˚C]

Shipping Weight

• BPS-12-1, BPS-24-1: 9 lbs [4.08kg]

• BPS-12-3, BPS-24-2: 15 lbs [6.80kg]

• BPS-12-45, BPS-24-3: 18 lbs [8.16kg]

• BPS-12-6, BPS-24-4: 24 lbs [10.89kg]

• BPS-12-9, BPS-24-6: 28 lbs [12.70kg]

• BPS-12-15, BPS-24-10: 33 lbs [14.97kg]

12 VDC Capacity 24 VDC Capacity Cabinet Size Outputs

BPS-12-1 1A BPS-24-1 1A 12" x 9" x 4"

[305mm x 229mm x 102mm] 1

BPS-12-3 3A BPS-24-2 2A 14" x 14" x 4"

[305mm x 356mm x 102mm] 4

BPS-12-45 4.5A BPS-24-3 3A 14" x 14" x 4"

[305mm x 356mm x 102mm] 4

BPS-12-6 6A BPS-24-4 4A 15" x 18" x 6"

[381mm x 457mm x 152mm] 8

BPS-12-9 9A BPS-24-6 6A 15" x 18" x 6"

[381mm x 457mm x 152mm] 8

BPS-12-15 15A BPS-24 -10 10A 15" x 18" x 6"

[381mm x 457mm x 152mm] 8

Securitron BPS Linear Power Supply

How to Order

Model Series Monitoring Options Voltage Output Power

BPS M – 24 – X

BPS (blank) No Monitoring 12 12VDC X Output in Amps

M PSM Monitoring 24 24VDC

197

Power

Features

Standard Features

• Polyswitch (PTC) 2A output

breakers protect 8 outputs

• Easy-to-use slide switches connect

or disconnect load from power

• LED indicators (AC and DC)

provide easy-to-read visual

status of power supply

• Emergency low-current,

fire-release terminals

• AC status output terminals provide

real time status information, SPDT, 3A

• Battery status output terminals

supply real time information,

Form “C” SPDT, 3A

• Line voltage and DC fuses

• Sealed lead acid or gel

battery charging capability

(battery sold separately)

• Automatic battery disconnect

to prevents deep discharge

• Clean linear power delivers flawless

operation with all sensitive

active electronic components

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• Output Current

— 6A at 12 VDC

— 9A at 12 VDC

— 15A at 12 VDC

— 4A at 24 VDC

— 6A at 24 VDC

The Securitron BPSM

self-monitoring power

supply delivers all

the benefits of linear

technology with

battery supervision

for real-time power

status information.

This unit is the right choice when interfacing

to fire alarm systems with auxiliary

relays that can’t handle the full current

potential of the power supply, or when

monitoring power systems for AC failure

or DC battery failure. Securitron BPSM

status LED indicators and status output

terminals offer advanced protection.

Securitron® BPSM

Self-Monitoring

Power Supply

Clean linear output with

built-in supervision

Updated 1/23/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

198

Power

Dimensions Specifications

Certifications

• ANSI/UL 294 Listed

• CSA-C22.2 No.205 Listed

Electrical

• Input Voltage: 120 VAC

• Voltage and Capacity

— 12 VDC - 6A, 9A, 15A

— 24 VDC - 4A, 6A, 10A

• Monitoring: 110 VAC Status, Battery Status

Environmental

• Operating Temperature: 32˚ to 105˚F [0 to 40˚C]

Shipping Weight

• BPSM-12-6, BPS-24-4: 24 lbs [10.89kg]

• BPSM-12-9, BPS-24-6: 28 lbs [12.70kg]

• BPSM-12-15, BPS-24-10: 33 lbs [14.97kg]

Securitron BPSM Self Monitoring Power Supply

How to Order

Model Series Monitoring Options Voltage Output Power

BPS M – 24 – X

BPS (blank) No Monitoring 12 12VDC X Output in Amps

M PSM Monitoring 24 24VDC

[152mm]

15"

[381mm]

18"

[457mm]

199

Power

Features

Standard Features

• Monitors and reports the status of the

power supply system’s output voltage

• Load tests and reports on the

battery pack every 8 hours

• Audio and visual alarm

• Monitors/tests DC output

of power supply load

• Available for both 12V

and 24 VDC systems

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• PSM-12: 3A or greater at 12 VDC

— BPS-12-3

— BPS-12-45

— BPS-12-6

— BPS-12-9

— BPS-12-15

• PSM-24: 2A or greater at 24 VDC

— BPS-24-2

— BPS-24-3

— BPS-24-4

— BPS-24-6

— BPS-24-10

The Securitron PSM

Series works with

most Securitron BPS

power supplies when

real-time power

and battery status

information is critical.

Compatible with all Securitron BPS supplies of

two amps or more, the securitron PSM acts as

a power supply alarm system, monitoring all

key functions and reporting any trouble. This

unit constantly monitors its output voltage

to ensure it remains within tight limits for

proper float charging of the battery pack.

Securitron®

PSM Power

Supply Monitor

Add-on monitoring for BPS

Part Number | Description

PSM-12 Power Supply Monitor—12 VDC

PSM-24 Power Supply Monitor—24 VDC

Updated 1/23/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

200

Power

Dimensions Specifications

Electrical

• Voltage: VDC power from

corresponding power supply

• Current Draw

— 250 mA at 12 VDC

— 200 mA at 24 VDC

Environmental

• Operating Temperature: 32˚ to 105˚F [0 to 40˚C]

Shipping Weight

• 5 lbs [2.27kg]

Securitron PSM Power Supply Monitor

[102mm]

12"

[305mm]

[229mm]

201

Power

Features

Standard Features

• Key switch for manual reset

capability where required by code

• Enables manual cut-off of

power for testing and other

emergency situations

• Simple bi-color, LED status indicator

for easy-to-read power status

• Easy-to-mount metal enclosure

equipped with security cam lock

• CFAR version available to meet

Canadian fire release requirements

• Select 12 VDC unit or 24 VDC unit to

match power supply output voltage

• 5A-rated SPDT plunger switches

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Dimensions

Specifications

Certifications

• UL 634 Listed

• ULC/ORD—C634 Listed

Dimensions

• Contact: 3/4"H x 4-1/4"L x 3/4"D

[19mm H x 101mm L x 19mm D]

• Switch: 1-1/2"H x 4-1/4"L x 3/4"D

[38mm H x 108mm L x 19mm D]

Electrical

• Main Output: SPDT at max of

125 mA at 24 VDC; 250 mA at 12 VDC

• Tamper Output: Closed when secure;

open to alarm—1A max current

Environmental

• Operating Temperature:

-40˚ to 150˚F [-40˚ to 65˚C]

Shipping Weight

• 1.5 lbs [0.68 kg]

Provides functionality

beyond a standard fire

trigger relay when local

code requires manual

reset after a fire alarm.

This self-contained unit interfaces to a fire alarm

unit to cut power to devices downstream of the

power supply in an alarm situation. The power

stays off until the Securitron FAR’s Keyswitch

is manually reset. This feature is required by

some jurisdictions to prevent the unintentional

re-arming of doors until the fire alarm is reset

and power is restored to the access control

system during an ongoing emergency.

Securitron® FAR

Fire Alarm Reset

Manual door lock power reset

for code compliance

Part Number | Description

FAR-12 Fire Alarm Reset Control—12 VDC

FAR-24 Fire Alarm Reset Control—24 VDC

Securitron FAR shown with BPS and Fire Alarm

BPS Power

Supply

FAR-12,24

Terminal

Strip

Fire alarm

interface

(latching

auxiliary

relay)

2.5"

[63mm]

5.25"

[133mm]

5.25"

[133mm]

Updated 1/23/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

202

Power

Securitron BPS Linear Power Supply Selection Guide

Securitron Plug-In Power Supply Selection Guide

Model Input

Voltage

Output

Voltage

Output

Current

Battery

Charger UL Listed # of

Outputs

AC Loss

and Low

Battery

Status

Fire Alarm

Reset

Option

BPS-12/24-1 120 VAC 12/24 VDC 1A l l 1 AC LOSS ONLY W/FAR

BPS-12-1 120 VAC 12 VDC 1A l l 1 – W/FAR-12

BPS-12-3 120 VAC 12 VDC 3A l l 4 W/PSM-12 W/FAR-12

BPS-12-45 120 VAC 12 VDC 4.5A l l 4 W/PSM-12 W/FAR-12

BPS-12-6 120 VAC 12 VDC 6A l l 8 W/PSM-12 W/FAR-12

BPS-12-9 120 VAC 12 VDC 9A l l 8 W/PSM-12 W/FAR-12

BPS-12-15 120 VAC 12 VDC 15A l l 8 W/PSM-12 W/FAR-12

BPS-24-1 120 VAC 24 VDC 1A l l 1 – W/FAR-24

BPS-24-2 120 VAC 24 VDC 2A l l 4 W/PSM-24 W/FAR-24

BPS-24-3 120 VAC 24 VDC 3A l l 4 W/PSM-24 W/FAR-24

BPS-24-4 120 VAC 24 VDC 4A l l 8 W/PSM-24 W/FAR-24

BPS-24-6 120 VAC 24 VDC 6A l l 8 W/PSM-24 W/FAR-24

BPS-24-10 120 VAC 24 VDC 10A l l 8 W/PSM-24 W/FAR-24

BPSM-12-6 120 VAC 12 VDC 6A l l 8lW/FAR-12

BPSM-12-9 120 VAC 12 VDC 9A l l 8lW/FAR-12

BPSM-12-15 120 VAC 12 VDC 15A l l 8lW/FAR-12

BPSM-24-4 120 VAC 24 VDC 4A l l 8lW/FAR-24

BPSM-24-6 120 VAC 24 VDC 6A l l 8lW/FAR-24

BPSM-24-10 120 VAC 24 VDC 10A l l 8lW/FAR-24

Connection to AC power is hard wired.

Model Input

Voltage

Output

Voltage

Output

Current

Battery

Charger UL Listed # of

Outputs

AC Loss and

Low Battery

Status

Manual

Reset

Option

PSP-12 120 VAC 12 VDC 700 mA – – 1– –

PSP-24 120 VAC 24 VDC 350 mA – – 1– –

PSP-12-3 120-220 VAC 12 VDC 3A – – 1– –

PSP-24-1.5 120-220 VAC 24 VDC 1.5A – – 1– –

203

Power

Features

Standard Features

• Dual voltage 12 or 24 VDC field

selectable continuous output

• Tolerates brownout or overvoltage

input ± 15% of nominal voltage

• Thermal shutdown protection

with auto restart

• Circuit breaker protects against

overcurrent and reverse battery

faults (batteries sold separately)

• Dedicated battery charging

circuit prevents overvoltage on

locking devices (except AQD1)

• Expandable up to 16 outputs

in the standard enclosure

• Outputs are Class 2 limited

when used with PTC Polyswitch

output distribution boards

• Available with a single relay

fire trigger or individually fire

trigger relayed outputs

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

• Low noise design provides better

than linear performance

• Mix and match configuration allows

for UL compliance even when used

in other UL Listed enclosures

A full line of highly

efficient power

supplies that

protect devices

from over voltage.

The Securitron AQD Series of switching power

supplies are dual voltage supervised units with

a battery charger designed to power magnetic

locks, electric strikes, card readers, sensors,

access control boards and other devices

in access control systems. The Securitron

AQD Series can also be used to power DC

cameras and other DC locking equipment.

These units provide field selectable 12

or 24 VDC with up to 16 independently

controlled power limited outputs.

Securitron®

AQD Series

Dual-voltage

switching power supplies

Updated 1/23/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

204

Power

Specifications

Certifications

• UL 294 Listed

• UL 603 Listed

• ULC-S318 Listed

• ULC-S533 Listed

• RoHS Compliant

• REACH Compliant

Dimensions

• Enclosure: 14" x 14" x 4-3/4"

[356mm L x 356mm W x 121mm D]

Electrical

• 12 VDC or 24 VDC field selectable output

• 115 or 230 VAC input*

• Supports up to two (2) sealed gel,

AGM or wet lead acid batteries

• Up to 90% efficiency

• Low voltage ripple design as low as 240mV p-p

Environmental

• Operating Temperature: -4˚ to 122˚F [-20˚ to 50˚C]

Shipping Weight

• 12.7 lbs [5.76kg]

*AQD1 115VDC only

Models

Model Amperage Rated Voltage

(12 or 24 VDC) Input Voltage Typical Voltage Class 2 Outputs Replaces

AQD1 1 12 or 24 VDC 115 13.7 / 27.4 Yes AQD3

AQD2 2 12 or 24 VDC 115/230 12.5 / 25.0 Yes AQD3

AQD4 4 12 or 24 VDC 115/230 12.5 / 25.0 Yes AQD5

AQD6 6 12 or 24 VDC 115/230 12.5 / 25.0 Available* AQD6

* Outputs are class 2 limited when used with 4 or 8 output PTC distribution boards

Securitron AQD Series

205

Power

Features

Standard Features

• Single voltage 12 or 24 VDC

continuous output

• Tolerates brownout or overvoltage

input ± 15% of nominal voltage

• Thermal shutdown protection

with auto restart

• Circuit breaker protects against

overcurrent and reverse battery faults

• Dedicated battery charging

circuit prevents overvoltage

on locking devices

• Expandable up to 16 outputs

in the standard enclosure

• Outputs are Class 2 limited

when used with PTC Polyswitch

output distribution boards

• Available with a single relay

fire trigger or individually fire

trigger relayed outputs

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

• Low noise design provides better

than linear performance

• Mix and match configuration allows

for UL compliance even when used

in other UL Listed enclosures

A full line of highly

efficient power

supplies that

protect devices

from over voltage.

The Securitron AQS Series of switching

power supplies are single voltage supervised

units with a battery charger designed to

power magnetic locks, electric strikes, card

readers, sensors, access control boards and

other devices in access control systems. The

Securitron AQS Series can also be used to

power DC cameras and other DC locking

equipment. These units provide stable 12

or 24 VDC with up to 16 independently

controlled power limited outputs.

Securitron®

AQS Series

Single voltage

switching power supplies

Updated 1/23/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

206

Power

Specifications

Certifications

• UL 294 Listed

• UL 603 Listed

• ULC-S318 Listed

• ULC-S533 Listed

• RoHS Compliant

• REACH Compliant

Dimensions

• Enclosure: 14"L x 14"W x 4-3/4"D

[356mm L x 356mm W x 121mm D]

Electrical

• 12 VDC or 24 VDC output

• 115 or 230 VAC input

• Supports up to two (2) sealed gel,

AGM or wet lead acid batteries

Environmental

• Operating Temperature: -4˚ to 122˚F [-20˚ to 50˚C]

Shipping Weight

• 12.7 lbs [5.76kg]

Models

Model Amperage Rated Voltage

(12 or 24 VDC) Input Voltage Typical Voltage Class 2

Outputs Replaces

AQS1210 10 12 115/230 12.5 / 25.0 Available* AQU128

AQS2410 10 24 115/230 12.5 / 25.0 Available* AQM20

AQS1216 16 12 115/230 12.5 / 25.0 Available* AQM20

* Outputs are class 2 limited when used with 4 or 8 output PTC distribution boards.

Securitron AQS Series

207

Power

Features

Standard Features

• Eight power outputs

• Eight individually configurable

relays with status LEDs

• End-of-Line resistor master

trigger for Fire System interface

• LED indicator for trigger status

• Removable terminal blocks

for easy connection

• Each output individually

configurable for:

— Fire trigger enabled or disabled

— Normally Open or

Normally Closed

— Continuous output

• 8F8R can provide dry contacts

by removing fuses

• Relay inputs individually

configurable for:

• Low current open collector

— Normally Closed switch

— Normally Open switch

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

• 8C8R provides class 2 outputs

Specifications

Certifications

• UL 294 Listed

• UL 603 Listed

• ULC-S318 Listed

• ULC-S533 Listed

Electrical

• Available with 1A or 2A Fuses or PTC

• Uses 20 mA per relay

• 7A relays

• 8 fused triggered outputs

Dimensions

• Board: 3-3/4"H x 4-13/16"W x 13/16"D

[95mm H x 106mm W x 5mm D]

• Mounting: 3-7/16"H x 4-1/2"W

[87mm H x 114mm W]

Shipping Weight

• 1 lb [0.45kg]

The Securitron

PDB-8F8R and

PDB-8C8R split a power

supply main output

into eight fused- or

PTC circuit breaker-

protected outputs.

Each output is individually configurable

to respond and react to access control

relay inputs and/or fire trigger.

Securitron® Power

Distribution Board

with Access Control

& Fire Trigger

Power plus interfaces for sophisticated access control

How to Order

Model Series Outputs Relays Fuse Size

PDB -8F 8R 1

PDB 8F Glass fuse 8R 8 Relays 1 Amp

8C PTC 2 Amp

Updated 1/23/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

208

Power

208

Power

Features

Standard Features

• 8 Class 2 power limited outputs

with PTC circuit breakers

• Individual LED output

status indicators

• LED main input power indicator

• Removable terminal blocks

for easy connection

• Two supervised triggers

— End-of-line resistor

— Optically isolated trigger by

voltage or reverse polarity

• LEDs and form C contacts

indicate trigger status

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

• Trouble and Fire alarm

states supervision

Specifications

Certifications

• UL 294 Listed

• UL 603 Listed

• ULC-S318 Listed

• ULC-S533 Listed

Dimensions

• Board: 3-7/8"H x 4-7/8"W x 3/4"D

[98mm H x 124mm W x 19mm D]

• Mounting: 3-7/16"H x 4-1/2"W

[87mm H x 114mm W]

Electrical

• Universal 12-24 VDC input

• 90-160 mA per relay

• Available with 1A or 2A Fuses or PTC’s

• 2A form C contacts

Shipping Weight

• 1 lb [0.45kg]

The Securitron

PDB-8C1R and

PDB-8F1R split a main

DC power source into

eight Class 2 power

limited outputs.

Each output is individually configurable

for “Normally On” or “Normally Off” and

can change state in response to an alarm

condition from either or both supervised

triggers, or can remain in its native state.

Securitron® Power

Distribution Board

with Fire Trigger

Power distribution with

configurable, supervised fire relay

How to Order

Model Series Outputs Fuse Size

PDB -8F1R 1

PDB 8F1R Glass Fuse, Fire Trigger/Relay 1 Amp

8C1R PTC Output, Fire Trigger/Relay 2 Amp

209

Power

Features

Standard Features

• Splits main board output

into multiple outputs

• Each output has a status LED indicator

• Main input has a status LED indicator

• 12V or 24V output (based on

power supply output)

• Accepts AC or DC input/

provides same output

• PDB-4 has an on/off power switch

• PDB-8 has a main power

indicator that indicates AC,

DC or reverse DC input

• Individually fused with 1 Amp

or 2 Amp options available

• PTC variants provide class 2

power limited outputs

• Separate fuse for main input

surge protection–standard

automotive ATO sizes

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Securitron Power

Distribution Boards

split the primary AC

or DC output from

a power supply into

multiple outputs of the

same voltage type to

separate equipment

onto individual circuits.

Securitron® Power

Distribution Board

Creates multiple outputs

for separate circuits

Updated 1/23/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

210

Power

Specifications

Electrical

• PDB-4C, PDB-8C

— PTC circuit breakers rated

holding current at 130° F

— Accepts AC or DC

input up to 32V

— Outputs rated Class

2 power limited

• PDB-4F, PDB-8F

— Fuses for individual

outputs are standard 3AGC

— Accepts AC or DC input

Certifications

• UL 294 Listed

• UL 603 Listed

• ULC-S318 Listed

• ULC-S533 Listed

Dimensions

• PDB-4 Board: 3-3/4"H x 2-1/4"W x 1"D

[95mm H x 57mm W x 25mm D]

• Mounting: 3-7/16"H x 1-7/8"W

[87mm H x 48mm W]

• PDB-8 Board: 4-7/8"H x 4-7/8"W x 1"D

[124mm H x 124mm W x 25mm D]

• Mounting: 3-7/16"H x 4-1/2"W

[87mm H x 124mm W]

Securitron Power Distribution Board

How to Order

Model Series # of Outputs Fuse Type Fuse Size

PDB 4 F 1A

PDB 4 F Glass fuse 1A

8 C PTC 2A

211

Power

Features

Standard Features

• Individual LED indicators show

which output is powered

• Form C contact indicates

trigger status

• Latching or non-latching mode

• Can provide ground supervision

via jumper configuration

• Output triggers include:

— Normally Open or Normally

Closed with supervised

End-of-Line resistor

— Normally Closed override

switch trigger input

— Normally Closed Auxiliary

switch trigger input

— Ground fault detection

— Trigger status reporting

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Specifications

Certifications

• UL 294 Listed

• UL 603 Listed

• ULC-S318 Listed

• ULC-S533 Listed

Dimensions

• Board: 3-3/4"H x 2-1/4"W x 13/16"D

[95mm H x 57mm W x 21mm D]

• Mounting: 3-7/16" H x 1-7/8"W

[87mm H x 48mm W]

Electrical

• 70 mA used for relay control

• Universal 12-24 VDC input

• 1A or 2A outputs

• 4A rate of relay

Shipping Weight

• 0.75 lbs [0.45kg]

The Securitron

PDB-1R uses an

end-of-line resistor

to trigger a form C

contact in response

to a fire system

alarm condition.

In response to the trigger, the unit transfers

power from the “Normally On” output

to the “Normally Off” output. Additional

triggered reactions include status

feedback to fire control or annunciation

systems, ground fault trigger and input

trigger that latches until reset.

Securitron®

Fire Trigger

Fire relay triggers power

transfer in alarm situation

Part Number | Description

PDB-1R Fire Trigger/Relay Interface Board

Updated 1/23/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

212

Power

212

Power

Securitron EcoPower

power supply is

designed to work

with ultra-low-power

electrified access

control devices.

This small, aesthetic power supply reduces

standby power consumption to only 8.5mW,

a 99% energy savings compared to switching

power supplies. When paired with EcoFlex®

and EcoTrim from SARGENT® and Corbin

Russwin®, EcoPower reduces total door

power consumption 99%, from up to 20W to

0.3W or less. EcoPower is the most efficient,

fully featured power supply available today.

Features

Standard Features

• Extremely low power consumption,

only 8.5mW standby power

consumption with a 115V input

• Included battery provides

24+ hours of backup

• Universal input voltage

capabilities (100-240 VAC)

• Multiple mounting options

— Surface mounted

— Recessed into drywall

— Use either the factory box

or an existing UL Listed

double gang junction box

• Sustainability documentation

• Longer wire runs of thinner gauge

wire provides additional cost savings

• Fire alarm input dry

contact (NO or NC)

• Access control input dry

contact (NO or NC)

• Supports fail secure and fail

safe lock configurations

• LED troubleshooting

• Built in battery end-of-life

notification system

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Securitron® EcoPower®

Power Supply

Efficient 0.5A power supply

for low-power locks

213

Power

Specifications

Certifications

• UL 294 Listed

• UL 603 Listed

• ULC S533 Listed

• CE Certified

— EN 60950-1:2006 + A11:2009 +

A1:2010 + A12:2011 + A2:2013

— EN 55022: 2010

— EN 55024: 2010

— EN61000-3-2: 2014

— EN61000-3-3: 2013

• RoHS Compliant

• REACH Compliant

• Environmental Product Declaration

Electrical

• Input voltage: 100-240V

• Output voltage: 12V-14V

• Standby power: <10mW at 115V, <20mW at 230V

• Output current: 0.5A peak, 0.1A continuous

• Includes one (1) 800 mAh sealed

AGM lead acid battery*

Environmental

• Operating Temperature: -4˚ to 122˚F [-20˚ to 50˚C]

Shipping Weight

• 1.7 lbs [0.77kg]

* Battery not covered under MagnaCare warranty.

How to Order

Model Series Output Power Option (s)

EPS – 05 B

EPS 05 0.5 Amps (blank) PS,

enclosure, battery

B Circuit Board

Only

Dimensions

Securitron EcoPower Power Supply

[101.6mm]

3-3/4"

[95.25mm]

Updated 1/23/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

214

Power

214

Power

Features

Standard Features

• Works with most fail

secure electric locks

• Works with most keypads

or card readers

• Operates outdoors

• 100% solid state solar controller

comes with anodized aluminum

case and marine-rated terminals

• Low voltage battery monitor protects

batteries from deep discharge

• High-efficiency photovoltaic

panels use silicon nitride

multicrystalline cells

• Green charging LED indicator

• Comes with mounting brackets

for enclosure and solar panel

• Approved for use in hazardous

locations—Class 1, Division

2, Groups A, B, C, D

• SecuriCare 3-year, no-fault,

no questions asked warranty

Optional Features

• Mounting brackets available

for fence/pole mounting

(to 3" [76.2mm] diameter)

• Wind kit available for high wind areas

• Available in 10W and 20W versions

The Securitron BPSS

is the only out-of-

the-box solution

specifically designed

for remote electric

lock control where

conventional power

is impractical or

not available.

This complete solar power system powers

most single-point access control device

and fail secure lock (intermittent duty

only) by producing sustainable solar

and battery operated power. Select the

Securitron BPSS-10 or BPSS-20 (10 or 20

charging watts respectively), based on

solar activity in the area/region where

the device or product will be installed.

Securitron® BPSS

Boxed Power

Supply Solar

Clean power meets green power

215

Power

Specifications

Solar Panels

• Size

— BPSS-10: 14-1/2" W x 12-3/16" L x 11/16" D

[368mm W x 310mm L x 17.5mm D ]

— BPSS-20: 22" W x 14-3/16" L x 11/16" D

[559mm W x 360mm L x 17.5mm D]

• Rated Power

— BPSS-10: 10 Watts

— BPSS-20: 20 Watts

• Panel Weight

— BPSS-10: 3.3 lbs [1.5kg]

— BPSS-20: 5.5 lbs [2.5kg]

Dimensions

• Outdoor (NEMA-3R)

• Enclosure: 12-1/2" W x 13-5/8" L x 4-7/16" D

[318mm W x 356mm L x 113mm D]

Standard Enclosure Brackets

• Accommodates up to 2" [51mm] diameter pole/post

Electrical

• Output Voltage: 14.4 VDC max

— Maximum 125 mA continuous, 1A maximum

operating the locking device — intermittent

duty only. Number of daily lock operations will

vary due to solar activity and current draw

Environmental

• Operating Temperature: -4˚ to ˚113F [-20˚ to 45˚C]

• Panels: -40˚ to 185˚F [-40˚ to 85˚C]

Shipping Weight

• 15 lbs [6.8kg]

How to Order

Model Series Solar Panel Output

BPSS – 10

BPSS Solar Power Supply 10 10 Watts

20 20 Watts

Securitron BPSS Boxed Power Supply Solar

20W

Panel 10W

Panel

BPSS Standard

2" Pole Mounting Kit

Included Solar Panel

Mounting Kit

PMK-3 – Optional

3" Large Pole Mounting Kit

SWK – Optional Solar Panel

High Wind Kit for 20W Panel

Dimensional Images

Updated 1/23/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

216

Power

216

Power

Features

Standard Features

• Allows powering of PoE devices

from a non-PoE source

• Operates from low voltage

24 VAC or 24VDC input

• Reset feature allows PoE shutdown

• Visual diagnostics via on board LED

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Specifications

Certifications

• UL 294B Listed

• UL/CUL 60950-1

• 15W IEEE 802.3af

• 30W IEEE 802.3at

• CSA C22.2 No.205-M1983,

Signal Equipment

• RoHS Compliant

Electrical

• 24 VAC or 24 VDC ± 15% input

• 1.4 or 2.6A input current

• 50 VDC output

• 300 or 600 mA output current

• 5 to 24 VDC, 10 mA max

shutdown terminals

• 100m (328 feet) max data cable length

• 10/100/1000 data rate

Base-T compliant

Environmental

• Operating Temperature:

32˚ to 120˚F [0˚ to 49˚C]

Gigabit data and

power all-in-one.

Securitron brings power and data together

with our latest innovation. The Securitron

AQE15 and AQE30 are single port Power

over Ethernet (PoE) MidSpan Injectors

designed for access control and security

applications. These modules enable the

powering of PoE devices from a non-PoE

source. Securitron AQE Series Injectors

power PoE cameras, access control door

controllers and other PoE equipment.

Securitron® AQE

Single Port Injector

Power over Ethernet

Product Number AQE15 AQE30

Input Amps 1.4 2.6

Input Voltage 24 VAC or VDC 24 VAC or VDC

Output Current 300 mA 600 mA

Data Rate – BASE T 10/100 10/100/1000

UL 294B Listed Listed

UL/CUL 60950-1 Listed Listed

IEEE 802.3at Listed Listed How to Order

Model Series Power Function Mounting Style

AQE 15

AQE PoE 15 1.4A, Dual Voltage (blank) PoE Injector (blank) Single Port

30 2.6A, Dual Voltage

Items can only be ordered as listed above

217

Power

Product Number AQE30E

Input Amps 0.6

Input Voltage 12 VDC

Output Current 1A/2A (13/25W)

Data Rate – BASE T 10/100/100

UL294B Listed

UL/CUL 60950-1 Listed

IEEE 802.3at Listed

Features

Standard Features

• Allows powering of non-PoE

devices from a PoE source

• 12 VDC output power derived

from PoE source

• Selectable for 13W or 25W output

• Visual diagnostics by on-board LED

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Specifications

Certifications

• UL 294B Listed

• UL/CUL 60950-1

• 30W IEEE 802.3at

• CSA C22.2 No.205-M1983,

Signal Equipment

• RoHS Compliant

Electrical

• 42.5 to 57 VDC PoE Input

• 0.6 A input current

• 12 VDC output, 13 or 25W

• 10/100/1000 data rate

Base-T compliant

Environmental

• Operating Temperature:

32˚ to 120˚F [0˚ to 49˚C]

Gigabit data and

power all-in-one.

The Securitron AQE30E is a single port Power

over Ethernet (PoE) MidSpan Extractor designed

for access control and security applications. This

module provides 12 VDC up to a maximum of

25W output power to a non-PoE device from a PoE

source. The Securitron AQE30E Extractor is used

to power DC, IP and PTZ cameras, access control,

door controllers and other similar equipment.

The AQE Series Extractor provides RJ45 connectors

for data input and output and two terminal strips

for the DC output and power level selection.

Securitron® AQE

Single Port Extractor

Power over Ethernet

How to Order

Model Series Power Function Mounting Style

AQE 30 E

AQE PoE 30 2.6A, Dual Voltage E PoE Extractor (blank) Single Port

Items can only be ordered as listed above

Updated 1/23/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

218

Power

218

Power

Features

Standard Features

• Up to 32W/port IEEE 802.3at, up to

maximum output of 256W or 540W

• Extended temperature range

operation up to 122˚F [50˚C]

• Remote managed system

with browser interface

• Remote PoE shutdown per port

or all ports simultaneously

• Identifies and protects

non-PoE equipment

• Port status LED for easy diagnostics

• Overtemperature, overvoltage,

overcurrent and short

circuit protection

• Illuminated master power

switch with circuit breaker

• 1U 19" [482.5mm] rack mount or

wall mount (with bracket included)

• Accepts AC or DC input power

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Centralize your

PoE with remote

manageability.

The Securitron AQE250R and AQE500R are

16 port, Power over Ethernet (PoE) injectors

that can be monitored and managed online.

This series provides power and data to PoE

devices such as PTZ cameras, video, access

control, door locks and other PoE devices.

These rack mounted power supplies

feature (16) ports at up to 32W per port

with 10/100/1000 Base-T Gigabyte support.

They offer remote power monitoring

and the ability to remotely shut down

individual ports or all ports simultaneously.

They also include a 48V battery charger

for cost effective back-up power.

Securitron®

AQE Rack

Mount Injector

Power over Ethernet

219

Power

Specifications

Certifications

• FCC part 15, Class A

• EN 55022 Class A (Emissions)

• EN55024 (Immunity)

• UL/CUL 60950-1

• IEEE.802.at

• CSA C22.2 No. 60950-1

• RoHS Compliant

Electrical

AQE Series AQE250R

• 16 ports

10/100/1000 Mbps data rate

• Up to 32W per port, IEEE.802at,

up to 256W aggregate power

• AC Input Requirement

— Input voltage: 100-240 VAC

— Input current: 4.5A max

— AC frequency: 47 to 63 Hz

• DC Input Requirement

— Input voltage: 50 VDC ± 10%

— Input current: 7A max

• Battery Back-up Specification

— Input voltage: 48 VDC nominal

• BTU rating: 116 BTU/Hr

AQE Series AQE500R

• 16 ports

10/100/1000 Mbps data rate

• 32W per port, IEEE.802.at, up to

540W aggregate power

• AC Input Requirement

— Input voltage: 100-240 VAC

— Input current: 9A max

— AC frequency: 47 to 63 Hz

• DC Input Requirement

— Input voltage: 50 VDC ± 10%

— Input current: 14A max

• Battery Back-up Specification

— Input voltage: 48 VDC nominal

• BTU rating: 232 BTU/Hr

Environmental

• Operating Temperature:

— AQE250R: -4˚ to 122˚F [-20˚ to 50˚C]

— AQE500R: -4˚ to 122˚F [-20˚ to 50˚C]

Shipping Weight

• AQE250R: 12 lbs [5.44kg]

• AQE500R: 14 lbs [6.35kg]

Product Details

Product Number AQE250R AQE500R

# of Ports 16 16

Output Power 32W/port up to 256W 32W/port up to 540W

Class 2 Power Limited 100- 240 VAC at 4.5A

50 VDC ± 10% 7A

100- 240 VAC at 9A

50 VDC ± 10% 14A

Fuse Rating 10/100/1000 10/100/1000

Fuse Type Listed Listed

# of Relays Listed Listed

How to Order

Model Series Power Function Mounting Style

AQE 250 R

AQE PoE 250 256W (blank) PoE Injector R Rack Mount

Multi-Port

500 540W

Items can only be ordered as listed above

Securitron AQE Rack Mount Injector

Updated 1/23/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

220

Power

220

Power

Features

Standard Features

• 36 watts continuous output

• 6 ft. [1.8m] output cable included

• Folding, two-prong AC connector

• Input voltage 100 VAC to 240 VAC

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Certifications

• UL listed

DimensionsSecuritron PSPs are

ideal for powering

a wide range of DC

devices where power is

available via an outlet.

The Securitron PSP Plug-in DC Power

Supplies are available in 12 volts at

3A maximum capacity or 24 volts

at 1.5A maximum capacity.

Securitron® PSP

Medium Filtered DC

Plug-In Power Supply

Medium capacity plug-in power supply

Part Number | Description

PSP-12-3 Power Supply Plug-In—Switching, Regulated, 12 VDC, 3A

PSP-24-1.5 Power Supply Plug-In—Switching, Regulated, 24 VDC, 1.5A

4-1/8"

[105mm]

1-3/4"

[44mm]

1-1/8"

[29mm]

221

Power

Features

Standard Features

• Internal thermal fuse

• 12 ft. [3.6m] output cable included

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Certifications

• UL listed

Electrical

• 120-240 VAC input

DimensionsSecuritron PSPs are

ideal for powering

a wide range of DC

devices where power is

available via an outlet.

The Securitron PSP Plug-in DC Power Supplies

are available in 12 volts at 700 mA maximum

capacity or 24 volts at 350 mA capacity.

Securitron® PSP

Small Filtered DC

Plug-In Power Supply

Small capacity plug-in power supply

Part Number | Description

PSP-12 Power Supply Plug-In—12 VDC, 700 mA

PSP-24 Power Supply Plug-In—24 VDC, 350 mA

1-1/16"

[27mm]

2-1/2"

[63mm]

1-11/16"

[43mm]

Updated 1/23/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

222

Power

222

Power

Securitron®

Power Supply

Accessories

Sealed Lead Acid Battery

Lead Acid Batteries provide battery back up when used

with linear, switching, or EcoPower power supplies,

ensuring continued operation of access control devices

when the AC source power is compromised.

• Batteries are not covered under warranty

BR-4 Bridge Rectifier

Converts AC input to full wave rectified DC output with

a maximum 4A output capacity.

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

CCB-8 Control Board

Eight (8)-output power distribution board splits a BPS primary

output into eight (8), Class 2 power-limited outputs protected

by 2A polyswitch breakers.

• Slide switches connect or disconnect load from power

• LEDs indicate power status for each output zone

• Compatible with all BPS models larger than 2A output

• MagnaCare lifetime replacement, no-fault, no questions asked warranty

CKL Cabinet Key Lock

Fits the standard knockout on all Securitron power supply enclosures to

protect against tampering and unauthorized access. Includes two (2) keys.

• MagnaCare lifetime replacement, no-fault, no questions asked warranty

B-12-5 / B-24-5 Lead Acid Battery BR-4 Bridge Rectifier

CCB-8 Control Board CKL Cabinet Key Lock

Sealed Battery

B-12-5 Battery– 12VDC, 5Ah

B-24-5 Power Supply Plug-In—24 VDC, 5Ah

Bridge Rectifier

BR-4 Bridge Rectifier – 4A

Control Board

CCB-8-12 Central Control Board –

12VDC,8 fused outputs

CCB-8-24 Central Control Board –

24VDC,8 fused outputs

Cabinet Key Lock

CKL Cabinet key lock

Power

Transfers

223

Power Transfers

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

224

Power Transfers

224

Power Transfers

Features

Standard Features

• Transfers power wirelessly across

door gaps of up to 3/16" [4.7mm]

• Flexible mounting: can be installed on

hinge side, latch side or top of frame

• Dual-voltage output 12 VDC

or 24 VDC field selectable

• Intermittent duty only

• Recommended for fail secure devices

• Use with electrified locks, latches or

other door hardware requiring up to

6 watts (0.5A at 12 VDC) of power

• Adhesive backed templates

for accurate installation

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

The Securitron

PowerJump ICPT

transfers power

contactlessly and

invisibly across the

door gap to run

electrified hardware

on the door.

With flexible installation placement on

the latch side, hinge side or top of the door,

it transfers power without pins or wires,

eliminating points of vulnerability and

wear—and no need to core drill the door.

Securitron® PowerJump®

ICPT Inductive Coupling

Power Transfer

No moving parts, no more broken wires,

no need to core drill the door

225

Power Transfers

Specifications

Certifications

• UL 10C Fire Rated, 3 hour

• CAN4-S101 (ULC-S104) fire door conformant

• ANSI/SDI-BHMA A250.13

(+/- 150 psi) Windstorm Listed

• FCC Part 15 compliant

Endurance

• 2 million cycles

Dimensions

• Send Unit: (Frame Side)

2-3/4"H x 1-1/4"W x 1-3/8"D

[50.8mm H x 25.4mm W x 34.9mm D]

• Receive Unit: (Door Side)

2-3/4"H x 1-1/4"W x 1-5/8"D

[50.8mm H x 25.4mm W x 41.3mm D]

Electrical

• Input: 24 VDC only 500 mA max

• Output: 500 mA at 12 VDC

250 mA at 24 VDC

Environmental

• Operating Temperature:

-40˚ to 120˚F [-40˚ to 49˚C]

Dimensions

2-3/4"

[70mm]

1-5/8"

[40mm]

Door Side Frame Side

1-1/4"

[32mm]

Watch how this power transfer

works at http://bit.ly/2ROl4K9

Securitron Powerjump ICPT Inductive Coupling Power Transfer

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

226

Power Transfers

226

Power Transfers

Features

Standard Features

• Mortises into the edges

of the door and frame

• Direct retrofit for

competitor products

• Tamper resistant

• All metal construction

including back boxes

• 7/8" [22.25mm] knockouts

on back boxes accommodate

EMF-type fittings

• Tested to 1 million cycles

• Compatible with butt hinges up

to 6" [152.4mm] and continuous

hinges with cutout

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• CEPT-10 includes 8–22 AWG

wires plus 2–18 AWG wires

for higher current devices

• CEPT-C5E includes CAT5E compatible

with 9–22 AWG wire stranded

conductor, Molex connectors

• EL-CEPT is ElectroLynx®

compatible with 12-22 AWG

wires, ElectroLynx connectors

The heavy-duty,

tamper-resistant

Concealed Electrical

Power Transfer (CEPT)

securely transfers

power and data from

the hinge side of the

frame to electrified

hardware on the door.

The unit is discreetly concealed between

the frame and door when the door is

closed. Available in three multi-wire

configurations and four finishes, the CEPT

complements any architectural setting.

Securitron® CEPT

Concealed Electrical

Power Transfer

Beautifully crafted, compact,

secure power transfer

227

Power Transfers

Dimensions Specifications

Certifications

• ANSI/UL 10C Listed, 3 hour rated

• ULC-S318 Listed, 3 hour rated

• ANSI/SDI-BHMA A250.13

(+/- 150 psi) Windstorm Listed

• Florida Building Code Approved

Dimensions

• CEPT Housing:

9-1/16"L x 1-3/16"W x 1-7/16"D

[230.2mm L x 30.12mm W x 36.52mm D]

Shipping Weight

• 2.40 lbs [1.09kg]

How to Order

Wire Connectors Shape Number of Wires Finish

EL – CEPT – C5E – 10B

(blank) No Connectors CEPT Concealed Power Transfers (blank) 12 Wires (EL option only) (blank) 630 finish

EL ElectroLynx Connectors 10 10 Wires 04 606 finish

C5E 9 Wires 10 612 finish

NW no Wires 10B 613 finish

1.2"

[30.5mm]

[229mm]

1.03"

[26mm]

Technical note:

• Not for use with center hung or balanced doors,

pocket or offset pivots or swing clear hinges.

• Door swing ranges when installed with butt hinges are:

Hinge Size Swing Range

5" [127mm] or less up to 180˚

5-1/2" [139.7mm] up to 130˚

6" [152.4mm] Butt Hinge up to 110˚

Securitron CEPT Concealed Electrical Power Transfer

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

228

Power Transfers

228

Power Transfers

Features

Standard Features

• Heavy duty design

• Installs in the door and frame edges

• Flexible steel shield protects wires

– 1/4" [6.3mm] inside diameter

• Works with almost any type of

butt hinge or continuous hinge

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• SEPT-10 includes 8–22 AWG

wires plus 2–18 AWG wires

for higher current devices

• SEPT-C5E CAT5E compatible

with 9-22 AWG wire stranded

conductor, Molex connectors

• EL-SEPT ElectroLynx® compatible

with 12-22 AWG Wires,

ElectroLynx connectors

Specifications

Certifications

• UL 10C Listed

• CAN4-S104 Listed

• ANSI A250.13 (+/- 150 psi)

• Windstorm Listed

Shipping Weight

• 0.85 lbs [0.39kg]

Dimensions

• Interior Flex Shield:

1/4" [6.3mm]

Concealed, secure

conduit for power and

data transfer between

a frame and door.

This unit is designed with a stamped steel

housing and spring steel conduit to protect

power and data wires. The square mounting

tabs provide easier installation for recessed

installation. The Securitron SEPT can be used

on swing doors with butt hinges, continuous

hinges or pivots with less than 3/4" offset.

Securitron® SEPT

Square-Cut Electrical

Power Transfer

Square tabs, medium length

for flexible power & data transfer

How to Order

Wire Connectors Shape Number of Wires

EL – SEPT – C5E

(blank) No Connectors SEPT Square Cut

Power Transfer

(blank) 12 Wires

EL ElectroLynx Connectors 10 10 Wires

C5E 9 Wires

[25.4mm]

Dimensions

[25.4mm]

13"

[330mm]

Square mounting

tabs simplify recessed

prep on any door

229

Power

229

Power Transfers

229

Power Transfers

Features

Standard Features

• Installs in the door and frame edges

• Flexible steel shield protects wire

bundles up to 5/16" [8mm] thick

• Works with almost any type

butt hinge, continuous hinges

and some pivot hinges.

• Rounded mounting tabs

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• EPT for standard hinges and pivot

hinges less than 3/4" [19mm] offset

• EPTL for extended length

up to 5" center to center

• EPT-SC for swing-clear hinges or

pivot hinges with larger offset; not

for use with center pivot doors

• EL Models are ElectroLynx®

compatible including 12–22 AWG

wires, ElectroLynx connectors

The Securitron EPT

Electric Power Transfer

provides concealed,

secure power and

data conduit between

a frame and door,

transmitting power

to electrified locks,

exit bars and more.

Its durable stamped steel housing and

flexible spring steel conduit make the

Securitron EPT suitable for most types of

swinging doors with butt or continuous

hinges or pivot hinges up to 3/4" offset.

The Securitron EPT-SC accommodates

swing-clear hinges and most pivot hinges.

Securitron® EPT

Electrical Power

Transfer

Concealed, tamper resistant,

flexible power and data transfer

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

Securitron EPT Electrical Power Transfer

230

Power Transfers

.88"

[22mm]

.88"

[22mm]

.67"

[17mm]

Dimensions

Specifications

Certifications

• UL 10C Listed

• CAN4-S104 Listed

• UL 634 Listed (EL-EPT/ EL-EPTL)

• ULC/ORD-C634 (EL- EPT/EL-EPTL)

• ANSI/SDI-BHMA A250.13

(+/- 60 PSF) Windstorm Listed

Dimensions

• EPT Housing: 12-3/4"L x 7/8" W x 11/16" D

[323.9mm L x 24.8mm W x 17.5mm D]

• EPTL Housing: 21-3/8"L x 7/8" W x 11/16"D

[542.9mm L x 24.8mm W x 17.5mm D]

• Interior Flex Shield: 3/8" [9.5mm]

Shipping Weight

• EPT: 0.75 lbs [0.34kg]

• EPTL: 1.20 lbs [0.54kg]

• EPT-SC: 1.25 lbs [0.57kg]

• EL-EPT: 0.75 lbs [0.34kg]

• EL-EPTL: 1.20 lbs [0.54kg]

• EL-EPT-SC: 1.25 lbs [0.57kg]

How to Order

Wire Connectors Shape Door Swing/Options

EL – EPT – SC

(blank) No Connectors EPT 10" Cord (blank) Standard Swing

EL ElectroLynx®

Connectors

EPTL 18" Cord SC Swing Clear / Pivots

C5E 9 Wires

9.8"

[249mm]

12.72"

[323mm]

18.07"

[459mm]

21.38"

[543mm]

Securitron EPT

Securitron EPTL/

EPT-SC

231

Power Transfers

Features

Standard Features

• Transfer power with the highest

level of concealment

• Produces the most aesthetically

pleasing appearance

• Available in 4-1/2" [114.3mm]

or 4" [101.6mm] hinge length

• 500 mA power capability

• 6 conductor, 28 gauge wire

• 6" [152.4mm] pigtail provided

for connections

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Shipping Weight

• 1.10 lbs [0.50kg]

DimensionsThe Securitron EH is

an efficient, discreet,

concealed solution

that provides secure

power and data transfer

from frame to door

when streamlined

wiring is needed.

Each hinge features concealed plug connectors

that eliminate separate or exposed wiring.

Ultimate concealment for tamper-resistance.

Securitron® EH

Electric Hinge

Double duty hinge for

streamlined power transfer

4-1/2"

[114mm]

4", 4-1/2"

[101.6mm, 114.3mm]

How to Order

Model Series Size

EH – 45

EH Electric Hinge 40 4" Length

45 4.5" Length

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

232

Power Transfers

232

Power Transfers

Features

Standard Features

• Flexible armored stainless steel

cable conduit with plastic end caps

• Maximum flexibility for

installation site on door/frame

• Include both gray and black end caps

• Interior diameter: 1/4" [6mm]

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Dimensions

Optional Features

• Product Options

18 18" [460mm] length

36 36" [920mm] length

Specifications

Shipping Weight

• 0.10 lbs [0.05kg]

The Securitron

TSB–C Door Cord is

the simplest and most

economical solution

for power transfer

between a door

frame and the door.

Designed with an armored

stainless steel cable and mounting

caps for ease of installation.

Securitron® TSB-C

Door Cord

Simple, affordable solution

for durable, tamper resistant

power and data transfer

How to Order

Model Series Size

TSB-C XL

TSB-C Door Cord (blank) 18"

XL 36"

1.2"

[30mm]

1.2"

[30mm]

18", 36"

[460mm, 920mm]

Accessories

233

Accessories

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

234

Accessories

235

Accessories

Features

Standard Features

• Industrial quality multi-function

timer for delay or time sequencing

• DIP switches select delay times

of 1 to 255 seconds or minutes

• Flashing LED provides visual

indication of remaining

time or alert status

• Triggering can be from

a NO or NC switch

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Specifications

Electrical

• 12 or 24 VAC or VDC

• 5A DPDT relay output

Environmental

• Operating Temperature:

32˚ to 149˚F [0˚ to 65˚C]

The Securitron TM-2 is

a premium, industrial

duty, multi-function

timer that provides

precise timing using

stackable increments

in seconds or minutes

and easy-to-use dip

switch settings.

Ideally suited for unusual time sequencing

requests, like bank or ATM vaults.

Securitron® TM-2

Time Master II

Multi-Function

Timer

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

236

Accessories

Features

Standard Features

• Miniature timer extends

momentary switches

• Fits in outlet boxes with push

buttons or keyswitches

• 3A SPDT relay energizes

for 2 to 36 seconds

• Time setting is selected by easy

to configure DIP switches

• Applications include releasing electric

locks and shunting alarm contacts

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Specifications

Electrical

• 12 or 24 VAC or VDC

• 3A SPDT relay output

Environmental

• Operating Temperature:

32˚ to 149˚F [0˚ to 65˚C]

The compact

Securitron TM-9

extends the hold-

open request of a

momentary push

button or keyswitch,

enabling single-hand

operation of the

door or delaying re-

arming of alarms.

Securitron® TM-9

Time Mate Timer

237

Accessories

Features

Standard Features

• 7-day digital timer

• 10A DPDT relay can be operated

in toggle or pulse mode

• 12 programmed on/off times

• Set daily (6 on, 6 off), on selected

days, or on blocks of days

• “First Man In” feature delays

preset action until first access

• AA battery provides backup to

the display module program

memory – battery not included

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Specifications

Electrical

• 170 mA at 12 or 24 VAC or VDC

Environmental

• Operating Temperature:

32˚ to 113˚F [0˚ to 45˚C]

Shipping Weight

• 0.75 lbs [0.34kg]

Control doors

equipped with

electrified hardware—

with or without

access control—

with the Securitron

DT-7 digital timer.

The Securitron DT-7 can be used as a

stand-alone unit or in conjunction with

Securitron DK-26 and other products.

Versatile programming supports timed,

unlocked, locked, or access-control-only

states to turn electric locks or other security

systems on and off at programmed times.

Securitron® DT-7

Prime Time

Digital Timer

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

238

Accessories

Features

Standard Features

• Remote annunciator

• Powerful Piezo sounder — 86 db

• Includes anti-tamper screws

• Stainless steel single gang plate

4-1/2" x 2-3/4" [114mm x 70mm]

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Specifications

Electrical

• Operates on 5 VDC – 28 VDC

• Rated at 20 mA operating

current at 24 VDC

• 103 dB max at 1 ft and 24 VDC

The Securitron PZ1

can be used as a local

or remote alarm

sounder for exit delay

or door prop alarm.

Securitron® PZ1

Piezo Sounder

239

Accessories

Features

Standard Features

• Multi-functional control

timer provides relay action

for alarms and alerts

• Monitors whether a door remains

open after a defined time frame

• Includes three SPDT outputs

providing local and remote signaling

• Digital time settings from

30 to 240 seconds

• Detects attempts to tamper

with lock or door status

• Multiple time ranges for

escalating alerts

• Bypass mode for valid

access/egress needs

• Comes with Piezo sounder and LED

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Specifications

Electrical

• Max draw 100 mA at 12 VDC

Max draw 50 mA at 24 VDC

• 5A SPDT Relays

Environmental

• Operating Temperature:

32˚ to 120˚F [0˚ to 49˚C]

Shipping Weight

• 2.05 lbs [0.93kg]

The Securitron DPA

complements door

position/door state

detection with timed

logic and relays that

provide escalating

alerts when a door

is held, propped

or unsecure after a

defined time period.

This unit promotes safety and loss

prevention at ancillary exits for healthcare,

commercial and retail facilities.

Securitron®

DPA Door

Prop Alarm

How to Order

Model Series Voltage

BA-DPA – 24

BA-DPA Door Prop Alarm

Timer

12 12VDC

24 24VDC

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

240

Accessories

Features

Standard Features

• Mated magnetic switch and

cylindrical magnetic contact

• Recesses into door and frame

• 3/4" [19mm] round installation,

15/16" [23.8125mm] deep

• Provides normally closed SPST switch

• Works with door gap

up to 3/4" [18mm]

• Larger cylindrical magnet counters

shielding effect of steel

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• Available in white, gray or black

Specifications

Electrical

• Switching Current

AC/DC (max): 0.4A

Environmental

• Operating Temperature:

-40˚ to 150˚F [-40˚ to 65˚C]

Securitron DPS-W

and DPS-M door

position switches

enable access control

systems to monitor

the open or closed

state of a door.

These switches can transmit an initiate

signal to Securitron XDT delayed exit logic

timers and DPA door prop logic timers.

Securitron® DPS

Door Position

Switches

How to Order

Model Series Door Type Finish

DPS – M – BK

DPS Door Position Switch M Metal Door BK Black

W Wood Door GY Gray

WH White

241

Accessories

Features

Standard Features

• Interfaces to access control

and alarm systems for remote

indication of open/closed status

• Unique “mated” magnetic

contact for preventing defeat

attempts by foreign magnets

• Can be used to provide

initiate signal to Securitron

XDT delayed egress timer

• Hidden anti-tamper output

(MSS-1 and MSS-1G)

• Layered protection for tamper

detection and reporting

• SPDT Contact

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• MSS-1 includes jacketed cable

for hollow metal applications

• MSS-1G includes a 3-foot

[936mm] stainless steel cable

• RT — Enables remote testing

to confirm function

• C — Concealed

Specifications

Certifications

• UL 634 Listed

• ULC/ORD-C634 Listed

Electrical

• Main Output: SPDT at max of 125

mA at 24 VDC; 250 mA at 12 VDC

• Tamper Output: Closed when secure;

open to alarm — 1A max current

Environmental

• Operating Temperature:

-40˚ to 150˚F [-40˚ to 65˚C]

Shipping Weight

• 1.5 lbs [0.68 kg]

Dimensions

Tamper-resistant

switches provide versatile

door monitoring with

armored cable options

to detect the status of

opened areas in higher

security settings.

With multiple options for different environments,

MSS can be used with access control or alarm

systems to provide peace of mind where

status detection is a critical concern.

Securitron® MSS

Maximum Security

Switches

Maximum security switches

for door position detection

How to Order

Model Series Mounting Method Special Feature

MSS-1 C – RT

MSS Magnetic Security Switch C Concealed RT Remote Test

G Surface Mount

NOTE: No other combinations of model numbers can be ordered.

1-1/2"

[38mm]

4-1/4"

[108mm]

3/4"

[19mm]

3/4"

[19mm]

3/4"

[19mm]

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

242

Accessories

Features

Standard Features

• Electronically detects and reports

mechanical latch and bolt positions

• Provides peace of mind

that the door is secure

• Installs easily, conceals

behind existing hardware

• Requires no jamb or strike

plate modification

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Optional Features

• LML-1 provides SPDT switch, fits

ANS1 4-7/8" [123.825mm] cutout

• LMS-1 provides SPDT

switch, fits ANSI 2-3/4"

[69.85mm] cutout

• LML-2 monitors mortise

latch and deadbolt separately

with two SPDT switches

Specifications

Certifications

• UL 634 Listed

• ULC/ORD-C634 Listed

• ANSI/UL 294 Listed

• CSFM — California State

Fire Marshal Approved

Electrical

• Contact Rating: SPDT 2A at 24V

Environmental

• Operating Temperature:

-40˚ to 160˚F [-40˚ to 71˚C]

Dimensions

The Securitron LM

Series interfaces with

an access control

or alarm system to

indicate the state

of the latchbolt.

Used alone or in conjunction with a door

position switch, the Securitron LM provides

confirmation that the door is secure,

preventing false alarms and unauthorized

access while providing tamper detection. Can

also be used to transmit an initiate signal to

Securitron XDT delayed egress logic timers.

Securitron® LM

Latch Monitors

How to Order

Model Series Strike Size Number of Switches

LM L – 2

LM Latch Monitor L ANSI 4-7/8" Strike 1 Single Switch

S ANSI 2-3/4” Strike 2 Dual Switches

3-7/16", 1-5/16"

[87mm, 33mm]

4-5/8", 2-9/16"

[117mm, 65mm]

7/8"

[23mm]

7/8"

[22mm]

243

Accessories

Features

Standard Features

• 4 DPDT relays with 2A contacts

• Individual coil connections —

common negative or positive

• Replaces socket mount relays

• Dry contact connections

via screw terminals

• Relays have low current coils

(13 mA at 12 VDC; 8 mA at 24 VDC)

• Allows operation from most

LED drive outputs

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Specifications

Dimensions

• 4"W x 3-1/2"H

[101.6mm W x 88.9mm H]

Electrical (Max Draw)

• 32 mA at 12 VDC or 32 mA at 24 VDC

Environmental

• Operating Temperature:

-13˚ to 158˚F [-25˚ to 70˚C]

The relay board

provides normally-

open or normally-

closed relays that can

be interconnected.

Ideal for interlock installations or

wherever a basic relay board is used to

trigger action, shunt alarms or report

status from an access control system.

Securitron® RB

Relay Board

How to Order

Model Series Voltage

RB-4 – 12

RB-4 Relay Board 12 12VDC

24 24VDC

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

244

Accessories

Features

Standard Features

• Provides additional relay to

access control systems requiring

NO or NC dry status signals

• Provides a brief delay to harmonize

door state reporting from

multiple detection points

• Can create a relay interlock circuit

• Use with locks to create an

interlocked trap entry

• Provides time delay of door operator

when electric lock is used

• MagnaCare® lifetime replacement,

no-fault, no questions asked warranty

Specifications

Electrical

• 30 mA at 12 VDC

• 15 mA at 24 VDC

• 1A DPDT relay

Environmental

• Operating Temperature:

-13˚ to 158˚F [-25˚ to 70˚C]

The economical,

multi-function

Securitron RLP logic

circuit can be used

as a DPDT latching

alarm relay.

It can also provide a relay for two-door

interlocks (mantrap), or can initiate a

brief signal delay to eliminate timing

problems among multiple monitoring

points on a door under access control.

Securitron® RLP

Relay Logic Pack

How to Order

Model Series Voltage

RLP – 12

RLP Relay Logic Pack 12 12VDC

RB-4 Relay Board 24 24VDC

Resources

245

Resources

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

246

Resources

247

Resources

Glossary of

Common Electrified

Locking Terms

Access Control

Any person, device or system that qualifies

a request for access. This can include

recognition by others, possession of the

correct key or card, knowledge of the

correct code, or having the biological

features to pass biometric review (facial

recognition, retina scans, fingerprints,

hand geometry, etc.) Failure to qualify

typically results in not gaining entry.

Egress Control

Any person, device or system that qualifies

a request to exit. Such control is commonly

used in institutional occupancies where

elopement presents a danger to oneself

or to others. Failure to qualify typically

results in not being able to exit.

Free Egress

The ability to exit at will.

Free Ingress

The ability to enter at will.

Delayed Egress

A delay between the attempt to exit

and the ability to exit. In door hardware

systems, it is accomplished by the

triggering of a switch within a component

of the door hardware during the course

of an exit attempt. The switch starts an

irrevocable timing sequence, usually

15 seconds, leading to the unlocking of

the door in the direction of egress.

Fail Secure

A term used to describe an electric lock

that has a mechanical state of being

locked and requires power to unlock it.

Also known as electrically unlocked.

Fail Safe

A term used to describe an electric lock

that has a mechanical state of being

unlocked and requires power to lock

it. Also known as electrically locked.

Switch Bar, aka Active

Dummy with Switch

A panic style bar with no latching

mechanism that is designed to switch a

low voltage electrical current. Some are UL

Listed for the purpose of directly breaking

power to an electromagnetic lock.

Door Position Switch (DPS)

A door position switch (DPS) provides a

signal to an access control system indicating

whether the door is open or closed.

Request to Exit (REX)

Some access control hardware offer

integrated motion detectors that auto-

matically signal the lock to disengage

when it detects approaching traffic.

Passive Infrared (PIR)

A passive infrared (PIR) sensor measures

invisible radiant light radiating

from objects in its field of view.

Metal Oxide Varistor (MOV)

Metal Oxide Varistors (MOV) are used

as compensation elements in circuits to

protect against excessive transient voltages.

Lock Function

A term used to describe a selection

from the classification system for the

functional characteristics of locks. Four

functions are commonly used with

electrically controlled access systems:

• Passage Function

Free egress and ingress. No locking controls

are present from either side. Commonly

used with electromagnetic locks to provide

necessary latching for fire-labeled doors.

• Classroom Function

Free egress. Exterior lever can be locked or

unlocked using a key, resulting in a mechanical

function change from passage to storeroom.

Used, but not recommended for electric

locking systems as it introduces the human

error of forgetting to relock the door.

• Storeroom Function

Free egress. Non-functioning exterior lever.

Key retracts latch for entry. Available as

an electrically controllable lock in both

fail secure and fail safe. Application or

removal of electric current temporarily

changes function to passage.

• Asylum Function, aka Institutional Function

Locked from both sides. Key required to

retract latch from either side. Cannot be

left unlocked from either side. Available

as an electrically controllable lock in both

fail secure and fail safe. Application or

removal of electric current temporarily

changes function to passage.

Icon Glossary

Icon Descriptions

Grade 1

Electric Strikes — 1500lbs or greater static holding force, 70 ft lbs of dynamic holding force,

and withstands 500,000 cycles of operation

Electromagnetic Locks — 1500lbs or greater static holding force, 70 ft lbs of dynamic holding force,

and withstands 1 Million cycles of operation

Grade 2

Electric Strikes — 1000lbs or greater static holding force, 50 ft lbs of dynamic holding force,

and withstands 300,000 cycles of operation

Electromagnetic Locks — 1000lbs or greater static holding force, 50 ft lbs of dynamic holding force,

and withstands 1 Million cycles of operation

Grade 3

Electric Strikes — 500lbs or greater static holding force, 33 ft lbs of dynamic holding force,

and withstands 100,000 cycles of operation

Electromagnetic Locks — 1000lbs or greater static holding force, 33 ft lbs of

dynamic holding force, and withstands 1 Million cycles of operation

MagnaCare®

Warranty

ASSA ABLOY Electronic Security Hardware’s exclusive MagnaCare® lifetime

replacement, no-fault, no questions asked warranty

SecuriCare

Warranty (10)

ASSA ABLOY Electronic Security Hardware’s exclusive

SecuriCare ten-year, no-fault, no questions asked warranty

SecuriCare

Warranty (5)

ASSA ABLOY Electronic Security Hardware’s exclusive

SecuriCare five-year, no-fault, no questions asked warranty

SecuriCare

Warranty (3)

ASSA ABLOY Electronic Security Hardware’s exclusive

SecuriCare three-year, no-fault, no questions asked warranty

Mortise Locks

with Deadbolts

A lock case that fits into a prepared rectangular shaped recess in the edge of a door.

Deadbolts are bolts having no spring action, but are operated by a thumb turn or key.

Mortise Locks

without Deadbolt

A lock case that fits into a prepared rectangular shaped recess in the edge of

a door. Latchbolts are a spring actuated bolt, with a beveled surface, which,

when aligned with the strike plate, engages it automatically.

Cylindrical Lockset A lock for a door prepared with one or more cross-bores and one or more edge-bores

Rim Exit Devices A latch mechanism that releases by depressing a cross bar or panel extending across the

width of the door sometimes called a panic bar, panic exit hardware or fire exit bolt

Specialty Locksets Includes specialty locksets including but not limited to cylindrical deadbolt,

hook bolt, unit lock, weiser bolt, and narrow style aluminum lock

Swinging Door For use on swinging doors or cabinets

Sliding Door For use on sliding doors or cabinets

Roll-Up Door For use on roll-up doors or cabinets

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

248

Resources

Icon Descriptions

Drawers For use on cabinet drawers

Field Selectable Fail

Secure/Fail Safe

Product able to be configured in the field to operate in fail safe

(power to lock) or fail secure (power to unlock)

Dual Voltage Product able to be configured in the field to operate on either 12 or 24 volts or provide 12 or 24 volts

Auto Sensing Dual

Voltage Product automatically configures to operate on either 12 or 24 volts

PoE Friendly

An electronic locking device with a standby current draw of less than 300 mA at 12 VDC,

which ensures compatibility with most PoE enabled door controllers with sufficient

capacity to allow for other access control peripherals to be powered around the door

Battery Backup Supports the addition of batteries to provide backup power in case of a primary source power outage

Fire-Rated Products with a Fire Rating have been evaluated and listed to UL10B, “Fire Test of Door Assemblies” and

UL10C, “Positive Pressure Fire Tests with Door Assemblies”. The hourly rating qualification is also noted

Windstorm Resistant

Windstorm resistant products are certified to meet the performance requirements of

windstorm-rated assemblies on exterior swinging door applications

(Products are designed and tested to perform in sustained winds up to 150 miles per hour)

Preload Capable Preload capable products are capable of opening under load as defined applicable ANSI/BHMA standards

Outdoor Rated Product has been tested and shown to comply to UL1034, including the “Outdoor Equipment Use” section

Burglary Rated Product has been tested and shown to comply to UL1034

UL Listed

UL Listed means that UL has tested representative samples of the product and

determined that it meets UL’s requirements. These requirements are based

primarily on UL’s published and nationally recognized Standards for Safety

CE Listed CE listed is a conformity marking for certain products sold within the European Economic Area (EEA)

Environmental Product

Declaration

A UL-certified Environmental Product Declaration (EPD) is a thorough,

internationally harmonized report produced by a manufacturer documenting

the ways a product, throughout its lifecycle, impacts the environment

Icon Glossary

249

Resources

System Components

Securitron M62 Magnalock ••••••••••••••••••••• p. 93

Securitron BPS-24-3 Power Supply ••••••••••••• p. 193

Securitron TSB Touch Sense Bar •••••••••••••••• p. 185

Securitron DK-37 Digital Keypad ••••••••••••••• p. 161

Securitron TSB-C Door Cord* •••••••••••••••••• p. 232

* Door cord is included with the

Securitron TSB Touch Sense Bar

Basic Magnetic Locking System

Use on any exit door where free egress is permitted

Inside Operation

The door is secured via the Magnalock®. Free egress is

accomplished by pushing on the Securitron TSB which

de-energizes the lock. Contact the factory for additional

exit devices necessary for fire-rated installations.

Outside Operation

The door is secured via the Securitron M62

Magnalock. Entry is permitted using an optional

entry device which releases the magnetic lock.

Securitron

DK-37

Securitron

BPS-24-3

Securitron M62

Fire Alarm Relay

Securitron TSB

Door

Controller

Securitron BPS-24-3

Power Supply

Securitron

M32/M62

Armored

Door Cord

J-Box

Securitron TSB

Door

Controller

Securitron

DK-37

Keypad

120 VAC

INPUT

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

250

Resources

Use on exit doors where a 15 to 30 second delay is desirable

before egress is allowed. This exit delay system is typically

used to fight risk of loss by theft in retail sites, museums,

libraries, etc. Exit delay technology is also an important safety

consideration for hospitals and nursing homes as these

facilities are often responsible for preventing unauthorized exit

by patients under their supervision. This system meets NFPA

life safety code 101 and all US/Canada model codes.

Inside Operation

The door is secured via the Magnalock. Egress without

the alarm is accomplished using an optional bypass

device. Emergency egress is accomplished when

the BA-XDT is activated by pushing on the Securitron

TSB bar which will initiate the exit delay cycle.

Outside Operation

The door is secured via the Securitron M62B Magnalock.

Entry is permitted using an optional entry device which

releases the magnetic lock and shunts the exit delay system

as well as the alarm contacts. The Magnalock will release

after the selected delay period has expired, allowing

egress. The Magnalock will not resecure until the door

system is reset using the Securitron MK Key switch.

System Approvals and Listings

Underwriter’s Laboratories: FWAX Special

Locking Arrangements File SA6635

California State Fire Marshal: 3774 -0923:102

System Components

Securitron M62 Magnalock ••••••••••••••••••••• p. 93

Securitron BPS-12/24-1 Power Supply •••••••••• p. 193

Securitron TSB Touch Sense Bar •••••••••••••••• p. 185

Securitron DK-12 Digital Keypad ••••••••••••••• p. 155

Securitron MK Mortise Key switch••••••••••••••• p.178

Securitron BA-XDT Exit Delay Timer ••••••••••••••p.87

Securitron TSB-C Door Cord* •••••••••••••••••• p. 232

*Door cord is included with the TSB Touch Sense Bar

Delayed Egress Magnetic Locking System

Securitron

BA-XDT

Securitron

Securitron BPS-12/24-1

Power Supply

120 VAC

INPUT

Securitron

DK-12

EXIT ENTRY

Securitron TSB

Securitron

M32/M62

Armored

Door Cord

Securitron TSB

Securitron

DK-12

Securitron

BPS-24-3

Securitron M62

Securitron

BA-XDT

Piezo

Sounder

Securitron

251

Resources

System Components

Securitron SAM Shear Magnalock®••••••••••••• p. 112

Securitron BPS-24-3 Power Supply ••••••••••••• p. 197

Securitron TSH Touch Sense Handle•••••••••••• p. 189

Securitron DTSH Dummy Touch Sense Handle •p. 189

Securitron DK-37 Digital Keypad ••••••••••••••• p. 163

Securitron TSB-C Door Cord* •••••••••••••••••• p. 232

*Door cord is included with TSH Touch Sense Handle

Inside Operation

The door is secured via the SAM. Free egress is accomplished

by pushing on the TSH which de-energizes the lock.

Outside Operation

The door is secured via the SAM Magnalock.

Entry is permitted using an optional entry

device which releases the magnetic lock.

Securitron BPS-24-3

Power Supply

Securitron

SAM

Securitron

DK-37

Keypad

Securitron

TSH

Door

Controller

Securitron BPS-24-3

Power Supply

120 VAC

INPUT

Armored

Door Cord

J-Box

Securitron

SAM

Securitron

DK-37

Keypad

Securitron

TSH Securitron

Dummy

TSH

EXIT ENTRY

Door

Controller

Store Front Magnetic Locking System

Use on any bi-directional exit door where free egress is permitted

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

252

Resources

System Components

Securitron M680EBDX EcoMag®•••••••••••••••• p. 83

Securitron BPS-24-3 Power Supply ••••••••••••• p. 197

Securitron EEB Emergency Exit Button•••••••••• p. 170

Securitron DTSH Dummy Touch Sense Handle •p. 187

Securitron DK-38 Digital Keypad ••••••••••••••• p. 163

Securitron DTSB Dummy Touch Sense Bar•••••• p. 185

Inside Operation

The door is secured via the Magnalock. Free egress is

accomplished by activating the motion sensor or by pushing

the emergency exit button. Both will de-energize the lock.

Outside Operation

The door is secured via the Securitron M680EBDX Magnalock.

Entry is permitted using the keypad or optional entry device.

ENTRYEXIT

Securitron BPS-24-3

Power Supply

CCTV DVR System

120 VAC

INPUT

Securitron

EEB2

Securitron

DK-38W

J-Box

Securitron

M680EBDX

Door Controller

Motion Activated Magnetic Locking System

Use on any interior or exterior access controlled egress security door

Securitron

EEB2

Securitron

DK-38W

Securitron

BPS-24-3 Power

Supply

Securitron

M680EBDX

253

Resources

System Components

Securitron M380BDX Magnalock®•••••••••••••• p. 81

Securitron BPS-24-3 Power Supply ••••••••••••• p. 193

Securitron EEB Emergency Exit Button•••••••••• p. 170

Securitron R100-1H•••••••••••••••••••••••••••• p. 165

Securitron Glass Mounting Components ••••••• p. 109

Door

Controller

Aperio

Hub

Securitron

BPS-24-3

Power Supply

Securitron

M380BDX

Magnalock

Securitron

EEB

Securitron

R100

Glass Door Magnetic Locking System

Use on any full glass interior or exterior access controlled

egress security door. The Securitron R100 surface mounted

wireless reader with ASSA ABLOY Aperio® technology

offers an aesthetically appealing way to extend access

control to glass, stone, granite or marble entryways.

Inside Operation

The door is secured via the Securitron M380BDX

Magnalock adhered with Securitron’s accessories for

glass door installations. Free egress is accomplished

by activating the Request to Exit or by pushing the

emergency exit button. Both will de-energize the lock.

Outside Operation

To enter, an RFID credential is presented to the

Securitron R100-H surface mount wireless reader.

The door controller checks the credential and if it is

approved, releases the Securitron M380BDX.

Door

Controller

Aperio

Hub

Securitron BPS-24-3

Power Supply

EXIT ENTRY

Door

Securitron

M380BDX

Magnalock

Securitron

EEB

120 VAC

INPUT

Securitron

R100

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

254

Resources

Gate Lock/

Flex Mount

Kit

Securitron

DK-37

J-Box

Door

Controller

Securitron

AQD3

Securitron

AQD2

Light/

Horn

Maximize your Securitron gate locking system by

pairing it with an Ameristar fence. ASSA ABLOY group

brand Ameristar, based in Tulsa, Oklahoma, focuses on

increasing strength and durability, enhancing the aesthetic

appearance of modern fence products, and promoting

ease of installation. Ameristar is known for producing the

highest quality residential, commercial, industrial and

high-end security fences in today’s market place, including

sites such as the Statue of Liberty, the 9/11 Memorial

in New York City and the Dallas Cowboys Stadium.

Outside Operation

The gate is secured via the Securitron GL1 Gate Lock.

Entry is permitted using the weatherproof keypad.

System Components

Securitron Gate Lock GL1-FS•••••••••••••••••••• p. 143

Securitron AQD2 Power Supply •••••••••••••••• p. 203

Securitron Flex Mounting Kit ••••••••••••••••••• p. 145

Securitron DK-37 Digital Keypad ••••••••••••••• p. 161

Securitron Battery B-24-5•••••••••••••••••••••• p. 214

GL1 with FMK-SL for sliding gates

Gate Locking System

Use on any exterior access controlled security gate

Securitron

B-24-5

Securitron

DK-37

Securitron

GL1

Light/Horn

255

Resources

ASSA ABLOY Electronic Security Hardware

Terms & Conditions

PRICES: All prices are subject to change without notice.

Prices listed on the ASSA ABLOY Electronic Security

Hardware website will serve as the most current list price.

All shipments will be made at prices in effect at the time of

shipment. The customer shall be responsible for payment

of all applicable sales and/or use taxes and freight costs.

MINIMUM ORDER: Minimum product charge per invoice

is $150.00 USD.

PAYMENT TERMS: Net thirty (30) days from date of

invoice. Interest at the rate of up to 1-1/2% per month may

be charged on all past due accounts. An order received

on an account which has not been paid within 45 days

of the date of invoice may not be processed until the

account is current. Custom orders may require a deposit.

DELIVERY TERMS: All prices are Ex-works factory.

Purchaser assumes the risk of loss or damage to the

goods while in transit from the point of shipment. ASSA

ABLOY Electronic Security Hardware reserves the right

to make delivery in installments. Installments shall be

separately invoiced and paid for when due. Delay in

delivery of an installment shall not relieve the purchaser

of its obligation to accept remaining deliveries.

SHORTAGE: Any claim for shortages must be made to

ASSA ABLOY Electronic Security Hardware in writing

within one (1) week of receipt of merchandise.

WARRANTY RETURNS: A Customer Care Form

(CCF) for defective product must be obtained from

ASSA ABLOY Electronic Security Hardware before

any merchandise can be returned. CCF’s are valid for

sixty (60) days from date of issuance Goods returned

under the terms of MagnaCare® and SecuriCare®

Warranties may require a copy of the original invoice.

RETURNS: A Customer Care Form (CCF) must be obtained

from ASSA ABLOY Electronic Security Hardware before

any merchandise can be returned. CCF’s are valid for

sixty (60) days from date of issuance. Items that are not

factory sealed, or that are returned later than 90 days

from the date of receipt are subject to a restocking

charge plus an additional charge for any damage.

CANCELLATIONS: Any order may be subject to a 5%

cancellation charge for catalog items. Cancellation of

non-catalog or custom items will be subject to a 20%

cancellation charge plus all costs (both direct and indirect)

incurred by manufacturing at the point of cancellation

that are properly allocated to the cancelled item(s).

LIMITATION OF LIABILITY: Neither party will be liable

to the other for any delay or failure in performance

arising directly out of war, sabotage, insurrection, riot,

and any other act of civil disobedience, act of public

enemy, fire, explosion, flood, storm, or other act of

God or nature, or similar cause beyond its reasonable

control, including shortage or unavailability of labor or

materials. If, notwithstanding the foregoing limitations,

ASSA ABLOY Electronic Security Hardware has any

liability to the purchaser, the purchaser agrees that the

total liability to the purchaser for all losses, damages,

and causes of action, whether in contract, equity, tort

(including without limitation, negligence and gross

negligence), or otherwise, will not exceed the amount

the purchaser paid to ASSA ABLOY Electronic Security

Hardware for the products (including, without limitation,

incidental or consequential damages, damages for lost

profits or business interruption, and punitive damages).

NO THIRD PARTY LIABILITY: If the purchaser uses the

ASSA ABLOY Electronic Security Hardware Products

on behalf of others or provides to others any products

referenced herein, the ASSA ABLOY Electronic

Security Hardware Parties shall have no liability to

such persons whatsoever, and the purchaser agree

to defend and indemnify the ASSA ABLOY Electronic

Security Hardware Parties from any and all claims and

demands asserted against them, and from any legal

fees, costs and other expenses that the ASSA ABLOY

Electronic Security Hardware Parties incur therewith.

Customers purchasing from Door Security

Solutions Canada can find Canadian terms and

conditions at assaabloydss.ca/terms

Updated 1/17/19 Patent pending and/or patent www.assaabloydss.com/patents

in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited.

US assaabloyesh.com | 800.626.7590 | customerservice.esh@assaabloy.com

Canada assaabloydss.ca | 800.461.3007 | sales.dss.ca@assaabloy.com

256

Resources

ASSA ABLOY Electronic Security Hardware

Warranty Policy

In 1999 Securitron® introduced the first no-fault, no questions asked warranty to the industry,

MagnaCare®. As a part of HES and Securitron’s transition to ASSA ABLOY Electronic Security Hardware,

we believe that the best products in the industry should be supported by our commitment to deliver

the highest quality products and services. ASSA ABLOY Electronic Security Hardware is proud to

now extend the most comprehensive no-fault, no questions asked warranty coverage to all of our

products and solutions. This is our expectation and commitment to you – our valued customer.

MagnaCare

Warranty

Duration: Lifetime

Condition: Any reason,

including, but not limited

to, installation error,

vandalism or force majeure.

Replacement: Replacement product

or equivalent shipped at ASSA ABLOY

Electronic Security Hardware’s expense

via next day air freight in most cases.

Products Covered:

• Electromagnetic and Specialty Magnalocks

• Power Supplies (excluding

BPSS) and Power Transfers

• Push Buttons, Keypads, Keyswitches

and Egress Devices

SecuriCare

10-year Warranty

Duration: Ten years

from date of shipment

Condition: Any reason

including, but not limited

to, installation error,

vandalism or force majeure.

Replacement: Replacement product

or equivalent shipped at ASSA ABLOY

Electronic Security Hardware’s expense

via next day air freight in most cases.

Products Covered:

• HES 1500, 1600 Electric Strikes

• When installed with a HES Smart PAC

III the following electric strikes are

upgraded to the 10 year warranty:

− HES 1006, 4500, 5000, 5200, 7500,

8000, 8300, 8500, 9400, 9500,

9600, 9700, 9800 Electric Strikes

− HES Folger Adam 310, 712, 732, 742

− Integrated Wiegand Electric Strikes

SecuriCare

5-year Warranty

Duration: Five years

from date of shipment

Condition: Any reason

including, but not limited

to, installation error,

vandalism or force majeure.

Replacement: Replacement product

or equivalent shipped at ASSA ABLOY

Electronic Security Hardware’s expense

via next day air freight in most cases.

Products Covered:

• HES 1006, 4500, 5000, 5200, 7500,

8000, 8300, 8500, 9400, 9500, 9600,

9700, 9800 Electric Strikes

• Folger Adam 310, 712, 732,

742 Electric Strikes

• Integrated Wiegand Electric Strikes

• Securitron MUNL, UNL Electric Strikes

SecuriCare

3-year Warranty

Duration: Three years

from date of shipment

Condition: Any reason,

including but not limited

to installation error,

vandalism or force majeure.

Replacement: Replacement product

or equivalent shipped at ASSA ABLOY

Electronic Security Hardware’s expense

via next day air freight in most cases.

Products Covered:

• Aperio® Wireless Products

AS100, K100, KS100, R100

• HES 610, 660, K20, KP20 Cabinet Locks

• Integrated Wiegand Cabinet

Locks HES K200, KS200

• BPSS Solar Power Supplies

• Accessories

ASSA ABLOY Electronic Security

Hardware warranties apply to products

shipped on or before January 1, 2018.

Check your individual product to determine

warranty coverage. Batteries and consumables

are not covered by ASSA ABLOY Electronic

Security Hardware Warranty programs.

Replacement products, at ASSA ABLOY

Electronic Security Hardware’s sole option,

may be the identical item or a unit which

serves as a functional replacement. If the

customer has an account with ASSA ABLOY

Electronic Security Hardware or a valid credit

card, the customer may order an advance

replacement product, whereby ASSA ABLOY

Electronic Security Hardware will charge the

customer’s account for the price of the product

plus next day air freight, and will credit back

to the customer the full amount of the charge,

including outbound freight, upon ASSA ABLOY

Electronic Security Hardware’s receipt of the

original product from the customer. ASSA

ABLOY Electronic Security Hardware’s sole

and exclusive liability, and customer’s sole

remedy, is limited to the replacement of the

ASSA ABLOY Electronic Security Hardware

product when delivered to ASSA ABLOY

Electronic Security Hardware’s facility (freight

and insurance charges prepaid by customer).

Customers purchasing from Door

Security Solutions Canada can find

Canadian terms and conditions at

assaabloy.ca/terms

257

Resources

Notes:
