User manual

1/3



CB18BControlBoxInstructions

1.ProductOverview

ProductName：ControlBox

ProductModelNo.：CB18B

FCCID:2AEQWCB18HHC008



2.Environmentrequirement

Operationtemperature:+10℃~+40℃.

Storagetemperature:－10℃~65℃.

OperatingHumidity：10%~80%RH，non‐condensing.

StorageHumidity：10%~85%RH，non‐condensing.



3.DirectionsforOperation

Tousethecontrolbox,theswitchpowersupplymustbeconnectedasthecontrolboxpower

supply.TheCH10remotecontrolmustalsobepairedtobeused.Detailedusageforeachportis

asfollows:

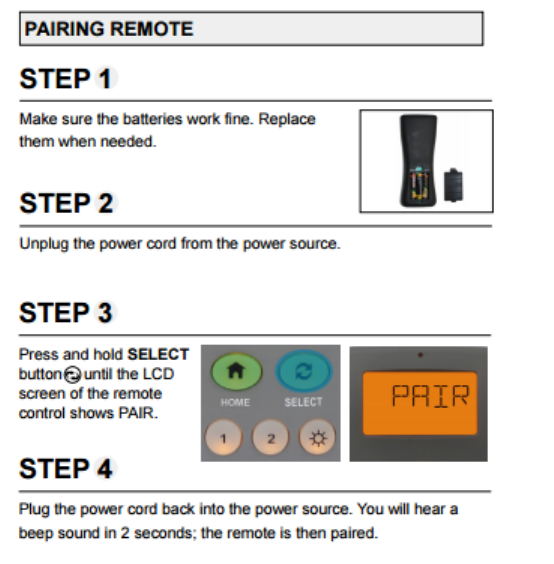

3.1Beforeuse,theCH10remotecontrolandCB18Bcontrolboxmustbepaired:





3.2Then,turnonthecontrolbox'sPower,andafterthebeepsoundthesystemwillwork.

Followtheexamplebelowtoproperlyplugpartsin.



2/3



4.Theportisintroduced

4.1“HDMotor”：ConnectstotheHeadmotor,andlifts/lowersheadsection.

4.2“FTMotor”：ConnectstotheFootmotor,andlifts/lowersfootsection.

4.3“TiltMotor”：ConnectstotheTiltmotor,andadjuststilt.

4.4“Power”：Connectstothepowersupplybox,controlspowersupply.

4.5“USB”：ConnectstotheUSBadapterbox,andUSBadapterboxandUSBsocketconnection.

4.6“LED”：Connectswithlights.。

4.7“SYN”:Samesteps.Connectanothercontrolbox,andtwocontrolboxeswillsynchronize.

4.8“APP”:Connecttheappdevice.

4.9“HDMassage”：ConnectstoHeadmassagemotor,controlsstrengthofheadmassageand

on/off.

4.10“FTMassage”：ConnectstoFootmassagemotor,controlsstrengthoffootmassageand

on/off.



5.Mattersneedingattention：

5.1Thefunctionwillonlyworknormallyinproperworkingpowerconditions.

5.2Controlboxinputvoltagemustbelessthan29.2VDC.

5.3TheCH10remotecontrolisneededforpropercontrol.

5.4Ifproblemsareidentified,theymustbetreatedbyprofessionalpersonnel.



SYNCCord

Connection

APPPortLED

Connection

USB

Connection

PowerInput

connection

HeadMotor

Port

FootMotor

Port

TiltMotor

Port

HeadMassage

MotorPort

FootMassage

MotorPort

3/3



6.Additionalattentionforuser：

6.1ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital

device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable

protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,

usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththe

instructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno

guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes

causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturning

theequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneor

moreofthefollowingmeasures:

—Reorientorrelocatethereceivingantenna.

—Increasetheseparationbetweentheequipmentandreceiver.

—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

6.2Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept

anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.

6.3ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled

environment.



Thistransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyotherantenna

ortransmitter.

6.4For Intentional and unintentional radiators the manual shall caution the user that changes

or modifications not expressly approved by the party responsible for compliance could void the

users authority to operate the equipment
