BATTERY POWERED BLUFI
USER GUIDE
Document Version: 1.2
Product ID: BVBBF
September 2017
Page ii
Copyright
© 2007-2017 Bluvision/HID Global Corporation/ASSA ABLOY AB. All rights reserved.
This document may not be reproduced, disseminated or republished in any form without the prior written
permission of HID Global Corporation.
Trademarks
Bluvision, HID GLOBAL, HID, the HID logo are trademarks or registered trademarks of HID Global Corporation,
or its licensors, in the U.S. and other countries.
Contacts
For additional offices around the world, see www.hidglobal.com corporate offices.
HID Americas and Corporate
Europe, Middle East and Africa (EMEA)
611 Center Ridge Drive
Haverhill Business Park Phoenix Road
Austin, TX 78753
Haverhill, Suffolk CB9 7AE
USA
England
Phone:
866 607 7339
Phone: 44 (0) 1440 711 822
Fax:
949 732 2120
Fax:44 (0) 1440 714 840
Asia Pacific
Bluvision
19/F 625 King’s Road
600 Corporate Dr
Suite 410
North Point, Island East
Fort Lauderdale, FL 33334
Hong Kong
USA
Phone:
852 3160 9833
Fax:
852 3160 4809
Phone: 1-866-777-7210
Bluvision Customer Support: bluvision.com!!HID Global Customer Support: support.hidglobal.com
Links in this Document
Hyper Links are displayed in italic text.
Web Links are in underlined blue.
PLT-01485, Version: 2.3 May
USER
GUIDE
Getting Started
The Bluvision Battery Powered Blufi User Guide covers the basics of the equipment setup and provisioning of
equipment with Bluzone Cloud account and project. For a more in-depth explanation, see Bluvision Developer
web site https://bluvision.atlassian.net/wiki/spaces/PDP/pages/13041816/04.+How-to+Setup+BluFis!!!
!
!
Prerequisites
This equipment requires the steps below be followed prior to provisioning your BluFi device. These prerequisites
are NOT covered within the installation guide below. Please complete the following steps prior to provisioning of
your BluFi device.
• This equipment requires the user to have a registered Bluzone account at the website
o https://bluzone.io
• Bluzone registration instructions are located at
o https://bluvision.atlassian.net/wiki/spaces/PDP/pages/6914122/Getting+Up+And+Running
• This equipment also requires a user have a BluFi WiFi template setup and configured within Bluzone.
Instructions for setting up a BluFi WiFi template are located at:
o https://bluvision.atlassian.net/wiki/spaces/PDP/pages/6914122/Getting+Up+And+Running#Gettin
gUpAndRunning-ConfiguringBluFiWiFiprofiles
!
!
How-to Charge BluFi

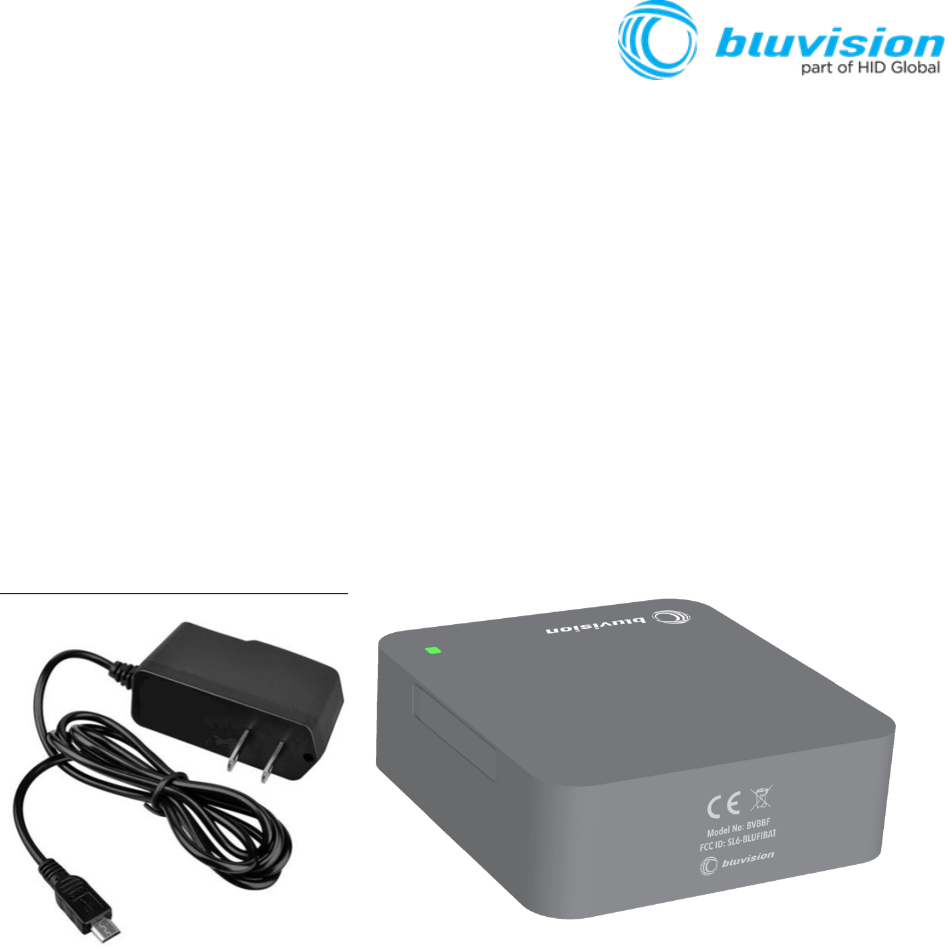

Charge the battery. Connect BluFi to a power outlet using a 5V USB power adapter.
(USB power adapter in not included. Bluvision Battery Blufi is compatible with any 5V USB power adapter with
male connector)
• The BluFi’s female USB connector is located below the rubber protective cover located on side of device.
• Peel back rubber cover and plug male USB socket into female USB connector.
• Please allow 12 Hours for initial charge.
• The Blufi indicator light will turn green after charging is complete.
• Proceed to BluFi provisioning.
(5V USB Adapter Not Included)
!
!
!
!
!
!
!
!
!
How-to Provision BluFis
This will guide you through provisioning your BluFi of your Bluzone Account and assigned
project,
Step-by-step provisioning guide
There are 3 steps to the provisioning process:
1. Download Bluzone Application from Apple App Store.
2. Physically provisioning BluFi using the Bluzone App. This requires BLE be enabled on device.
Provisioning Step 1: Download Bluzone Mobile
Application
You can use the free Bluzone app with any compatible device, including:
Bluzone app (iOS) - iPhone, iPad and iPod touch running iOS 7.0 or later; certain features
may require later versions. Touch the App Store button on your iPhone, iPod touch or iPad to
download the free Bluzone app, or download the application from iTunes®. (If you download
from iTunes, you will need to sync before you see the Bluzone logo display on your device.)
Provisioning Step 2 - Provisioning of a BluFi using
Bluzone Mobile Application
Provisioning Steps

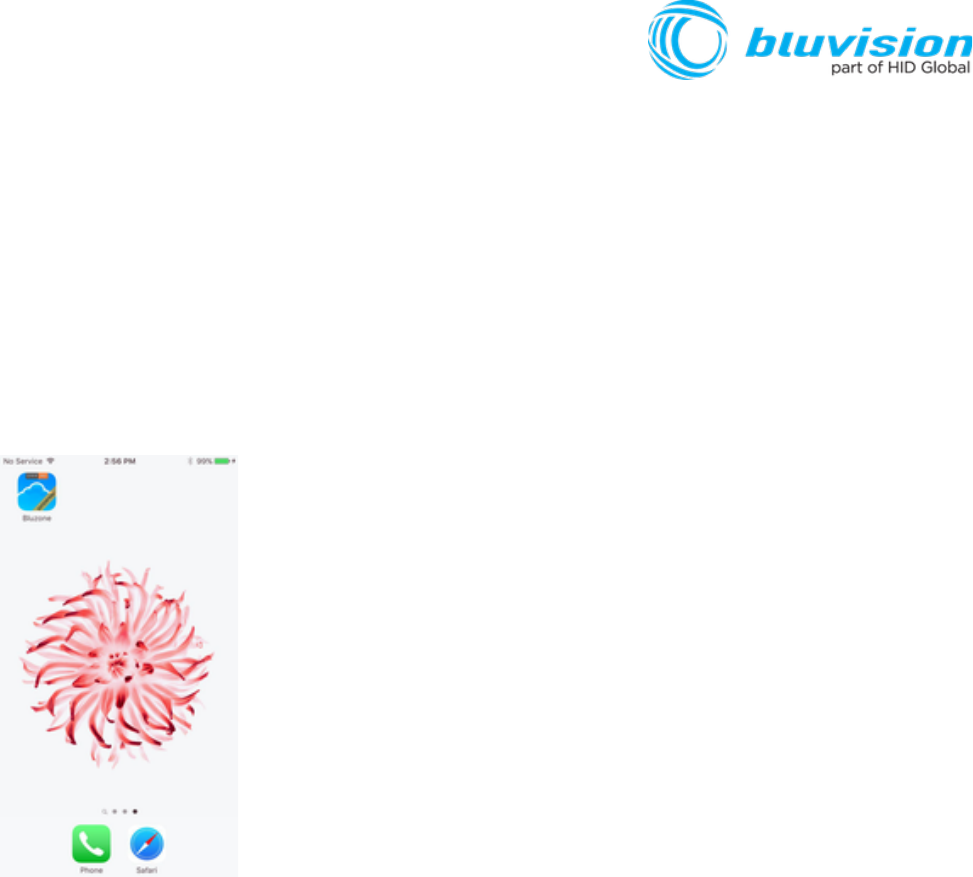

Step 1 - Launch the Bluzone app on your iOS device

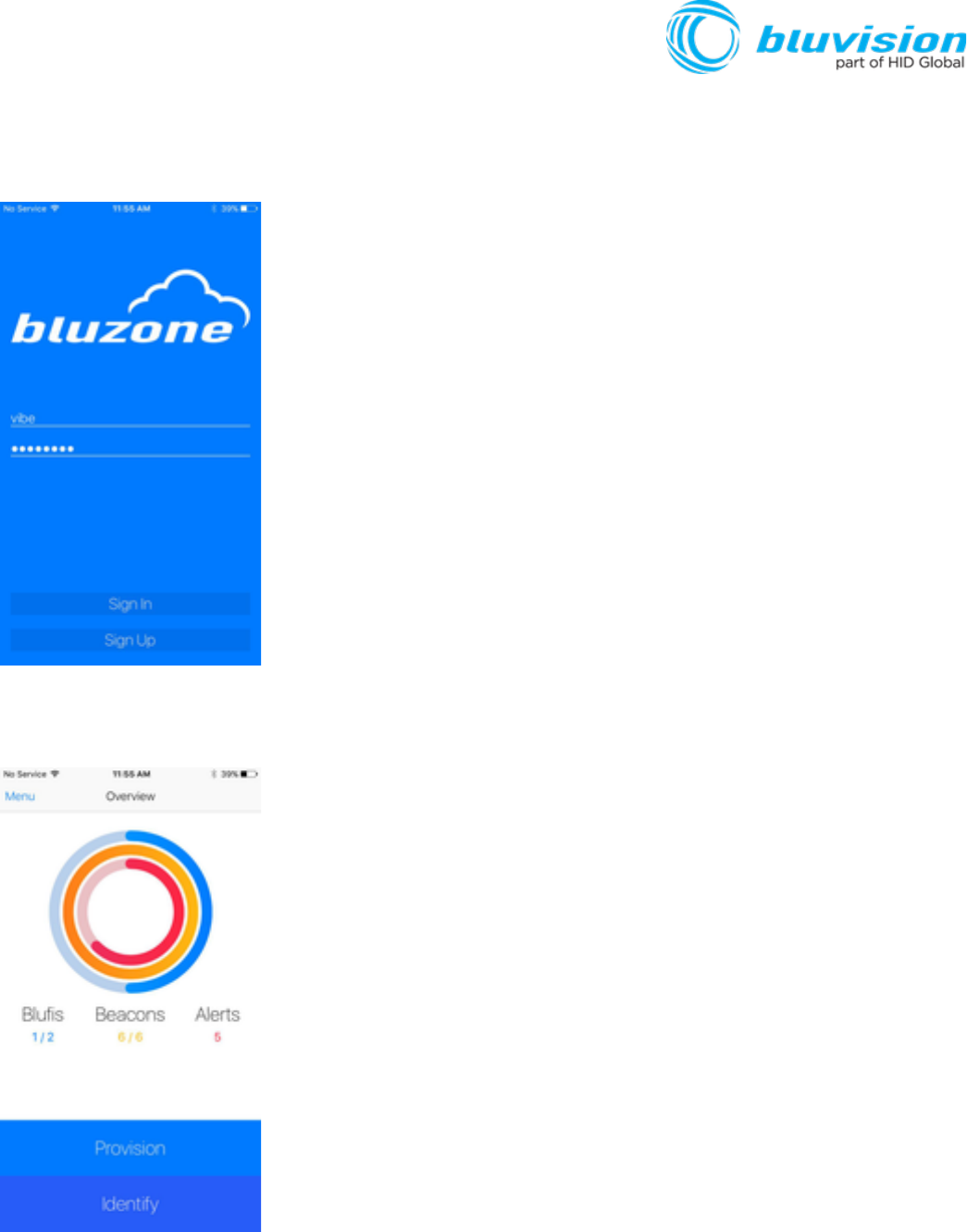

Step 1.1 Sign In - Sign in using your Bluzone account’s registered username and
password
Step 1.2 Select Provision Action – Click “Provision” located at bottom of screen

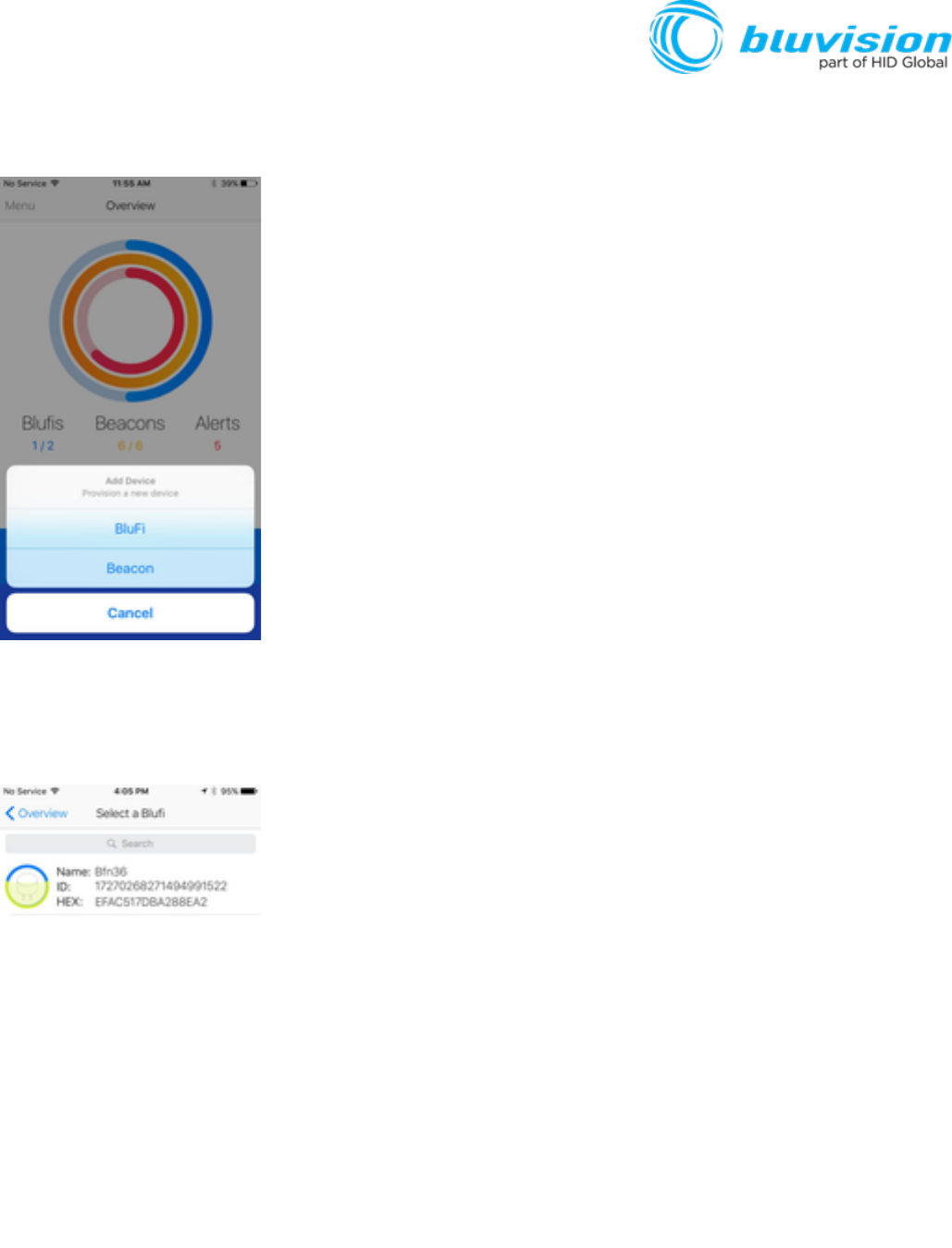

Step 1.3 Select BluFi Provisioning – Click / Select BluFi within option menu.
Step 1.4 Select Your Blufi – Select the closest BluFi device from all BluFi devices in range of mobile
phone. Please make sure you are within 1 meter of device. The Blufi Icon’s green color indicates the relative
proximity to BluFi device. The greener color displayed, the closer you are to BluFi device.

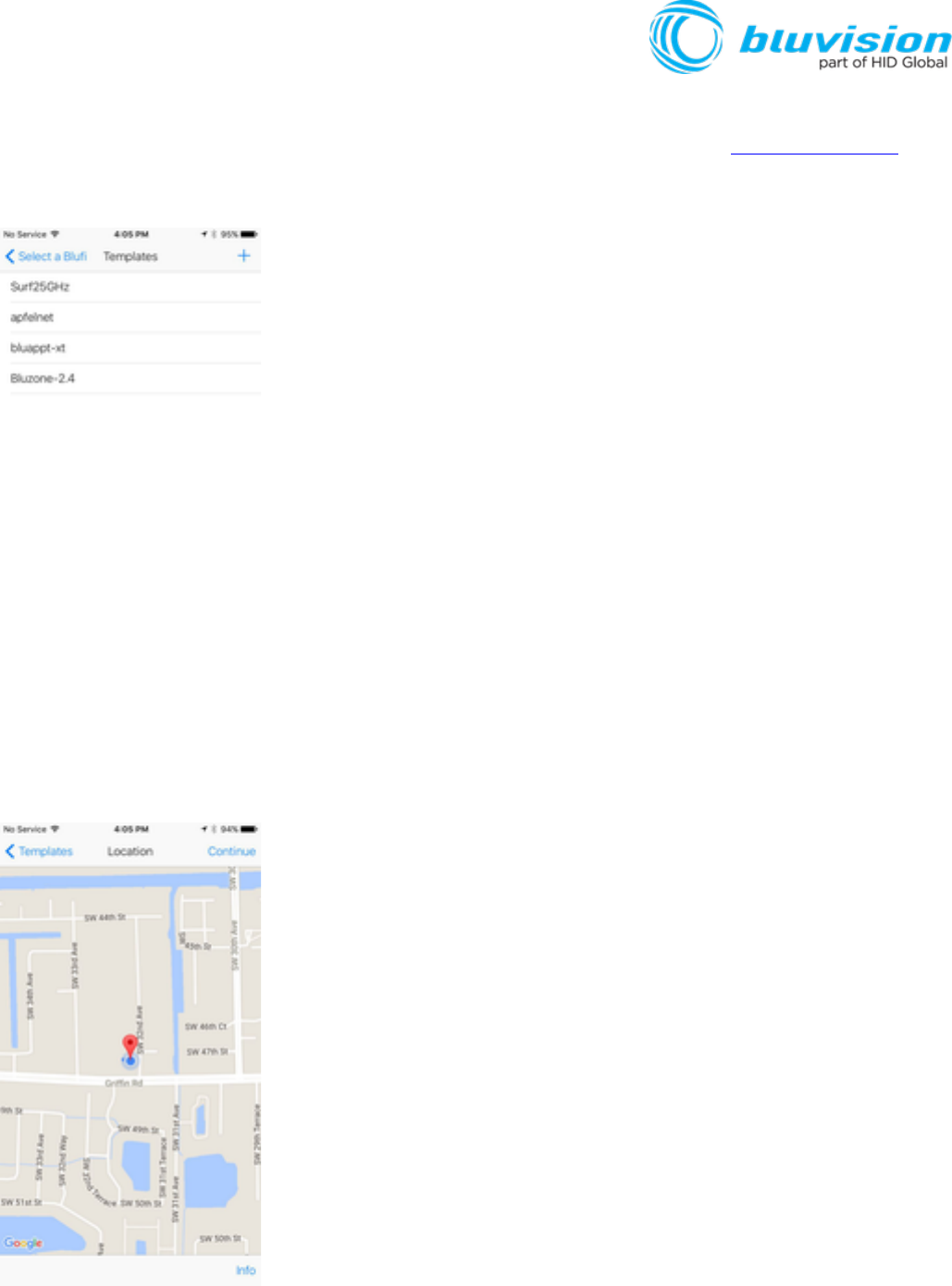

Step 1.5 WiFi Template - Choose appropriate BluFi template. If this list is empty, please
complete the required prerequisite step of creating BluFi WiFi template on https://bluzone.io in
your assigned project.
Step 1.6 BluFi Location - Next you will be prompted to select/assign the physical
geo location of the BluFi where it is being physically installed. Location is assigned by GPS
and can be changed manually by dragging the pin in order to be more accurate. Drag the pin
by holding your finger on pin located in center of screen and dragging to appropriate location.

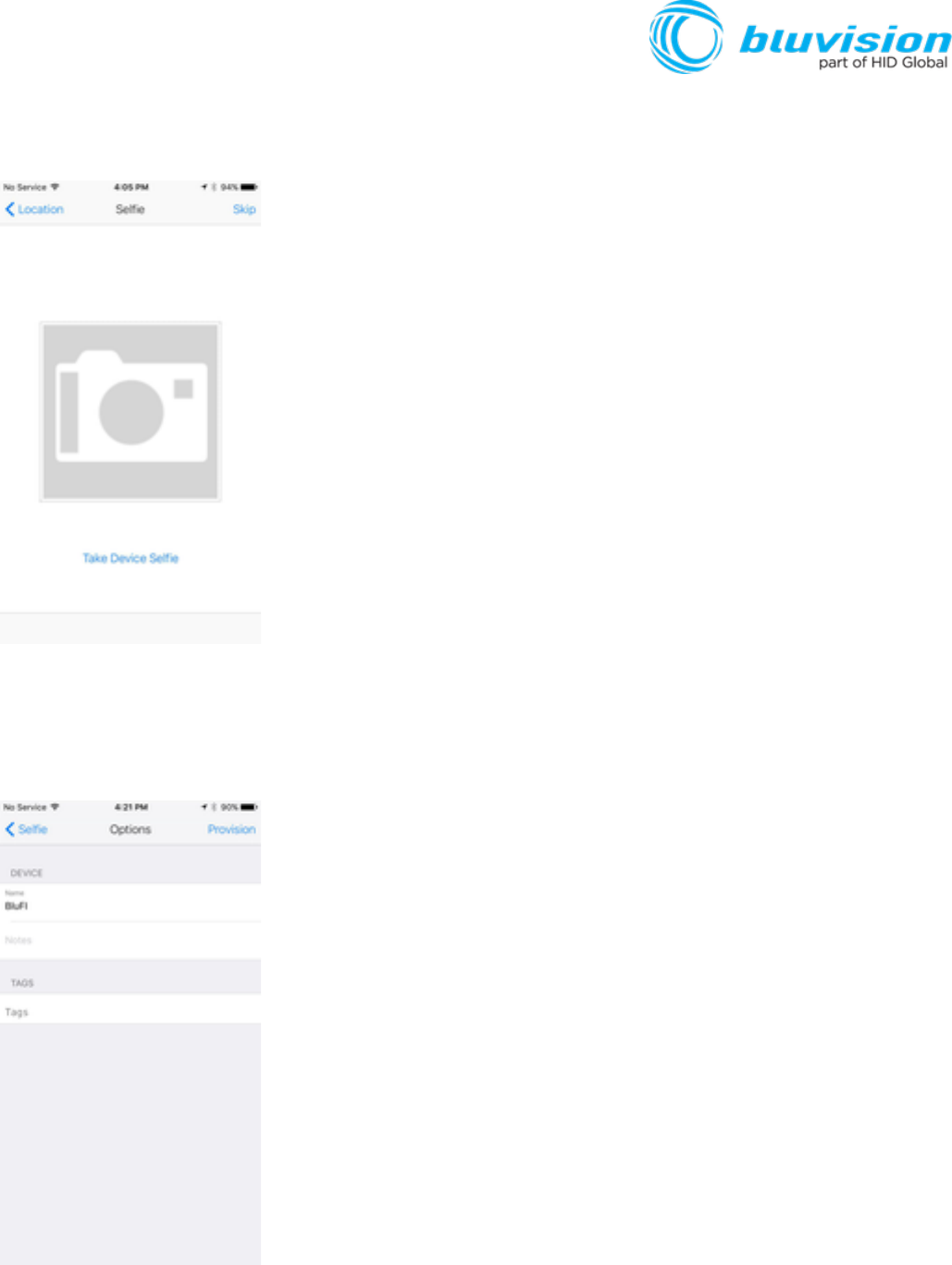

Step 1.7 BluFi Selfie - Next you will be prompted to take a picture of the BluFi. This is
called a “Selfie” within Bluzone application. This is an optional step and is recommended so
that others can easily identify the location of the BluFi after deployment
Step 1.8 BluFi Profile - Next you will be prompted to enter a name for the BluFi. You may
keep the default name but it is recommended to choose a unique name that is meaningful to
you. At this time you may also add Tags from the template, or create new ones if
needed. Important: Click Provision after entering the information will submit provisioning
request to Bluzone Cloud

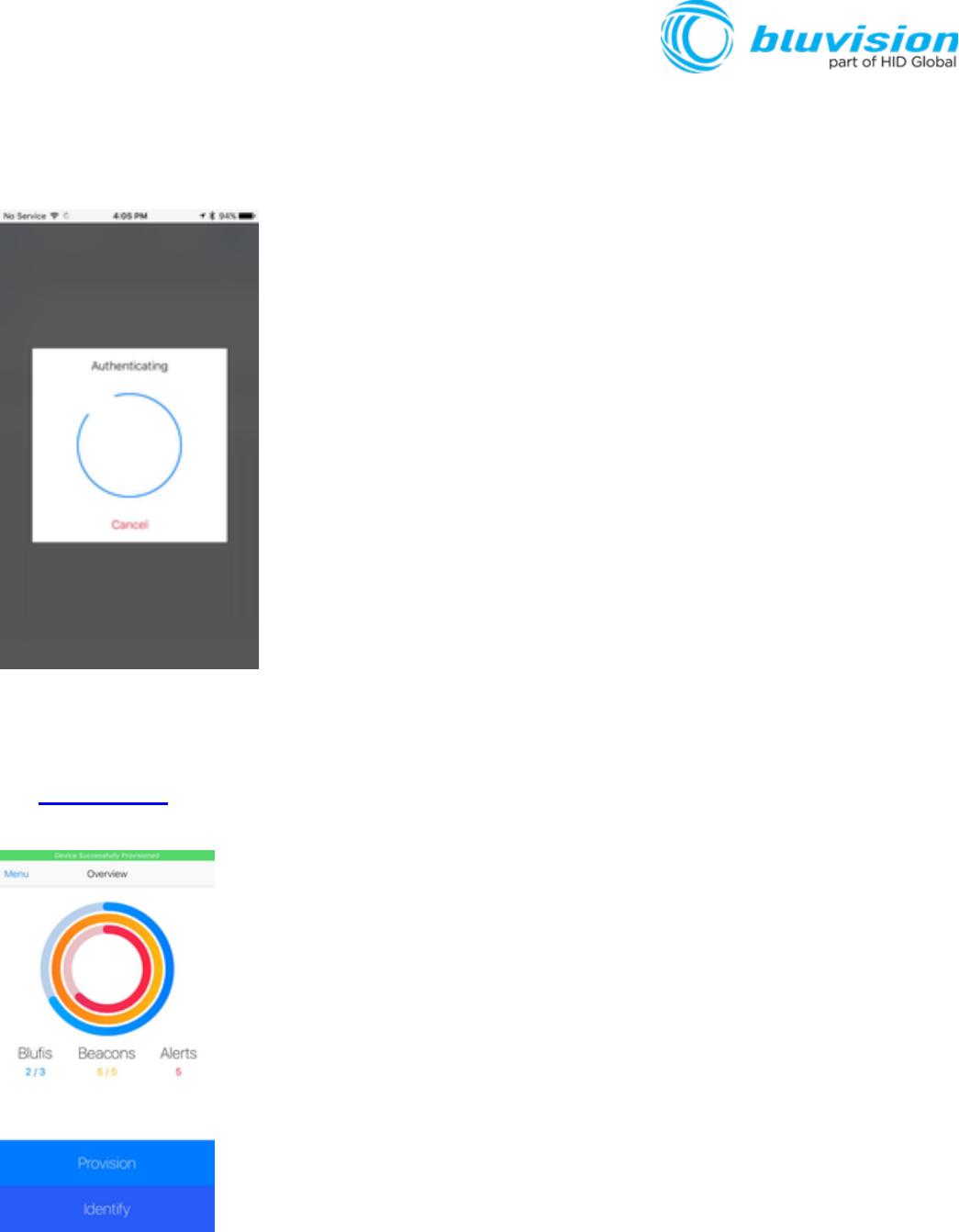

Step 1.9 Provision Request – Please wait for provisioning process to complete. This will
be indicated using progress indicator / spinner located on screen.
Congratulations, you have provisioned you first Bluvision BluFi
on Bluzone.io
FCC statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
