HID Global OFR100 PROXIMITY READER User Manual OFR100 MANUAL 07 04 01
HID Global Corporation PROXIMITY READER OFR100 MANUAL 07 04 01
MANUAL
FlexPass OFR100
K02000-000 - 1 - 06/29/01
OPERATING AND
INSTALLATION MANUAL
FlexPass OFR100
Open Format Reader
FlexPass OFR100
K02000-000 - 2 - 06/29/01
Table of Contents
1. Important Safety Instructions 3
2. Product Description 3
3. Features 4
4. Identifying Supplied Parts 4
5. Specification 4
6. Installation 5
7. Wire Color Coded & Wiring 6
8. Wire Connection to A Host/Controller 6
9. Wire Connection to SDC1000 7
10. Operation 7
11. FCC Registration Information 8
12. Warranty and Service 8
FlexPass OFR100
K02000-000 - 3 - 06/29/01
1. Important Safety Instructions
When using your FlexPass OFR100, basic safety precautions should always be followed to reduce
the risk of fire, electrical shock, and injury to persons. In addition, the following should also be
followed:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. If necessary, use
mild soap.
4. Do not use this product near water, such as bath-tub, wash bowl, kitchen sink, laundry tub, in
a wet basement, or swimming pool.
5. This product should be operated only from the type of power source indicated on the marking
label. If you are not sure of the type of power supplied to your installation site, consult your
dealer or local power company.
6. Never push objects of any kind into this product or through the cabinet slots as they may touch
voltage points or short out parts that could result in fire or electric shock. Never spill liquid of
any kind on the product.
7. To reduce the risk of electric shock, do not disassemble this product by yourself, but take it to
qualified service whenever service or repair is required.
8. Unplug this product from the Direct Current (DC) power source and refer to qualified service
personnel under these conditions:
a. When the power supply cord or plug is damaged or frayed.
b. If liquid has been spilled on the product.
c. If the product does not operate normally after following the operating instructions in this
manual.
d. If the product exhibits a distinct change in performance.
2. Product Description
The FlexPass OFR100 is an elegant looking reader which can be mounted to metal door frame
(mullion) or any flat wall surface. The FlexPass OFR100 uses an electronic module in epoxy
potting that ensures successful operation even in harsh environments. Two-color LED (green and
red) and built-in beeper sound provide accurate and reliable system operations.
FlexPass OFR100
K02000-000 - 4 - 06/29/01
3. Features
- FlexPass Proximity Reader
- Maximum 4”(10cm) reading range with Motorola FlexPass ASC-121T+ card
- Available in 2 colors (charcoal and stone gray)
- External Beeper control input
- External LED control input
- Epoxy potted electronic module
- Built-in 2-color LED (red and green) and beeper sound
- Motorola 26-bit Wiegand or ABA Track II Magstripe output formats available
- Mullion mount or Wall mount
- Operating voltage from 5V to 12VDC
- Light Lens for magnification of the LED indicator
- Easy Mounting to a single gang box
4. Identifying supplied parts
Please unpack and check the contents of the box.
Reader Module OFR100 Bezel Manual
(1 ea) (1 ea) (1 ea)
5. Specification
Read Range/Time Up to 4"(10cm)/300ms with Motorola FlexPass
ASC-121T+ card and minimum read range 3”(7.5cm)
Input Voltage/Current DC 5V ~ 12V, 120mA at standby, max. 150mA
Output Format 26 bit Wiegand or ABA Track II Magstripe
External Beeper control Input Low Active, DC 0 ~ 5V, Max. 50 mA
External LED control Input Low Active, DC 0 ~ 5V, Max. 50 mA
LED/Beeper 2-Color LED (Red and Green) / Beeper
Color Charcoal and Stone Gray
Operating Environment -31℉ ~
149℉(-35℃ ~ +65℃), 0~90% Humidity
Overall Size(WxHxD) 1.77" x 4.63" x 0.81" (45 x 117.5 x 20.5mm)
Weight 0.35lb(160g)
FlexPass OFR100
K02000-000 - 5 - 06/29/01

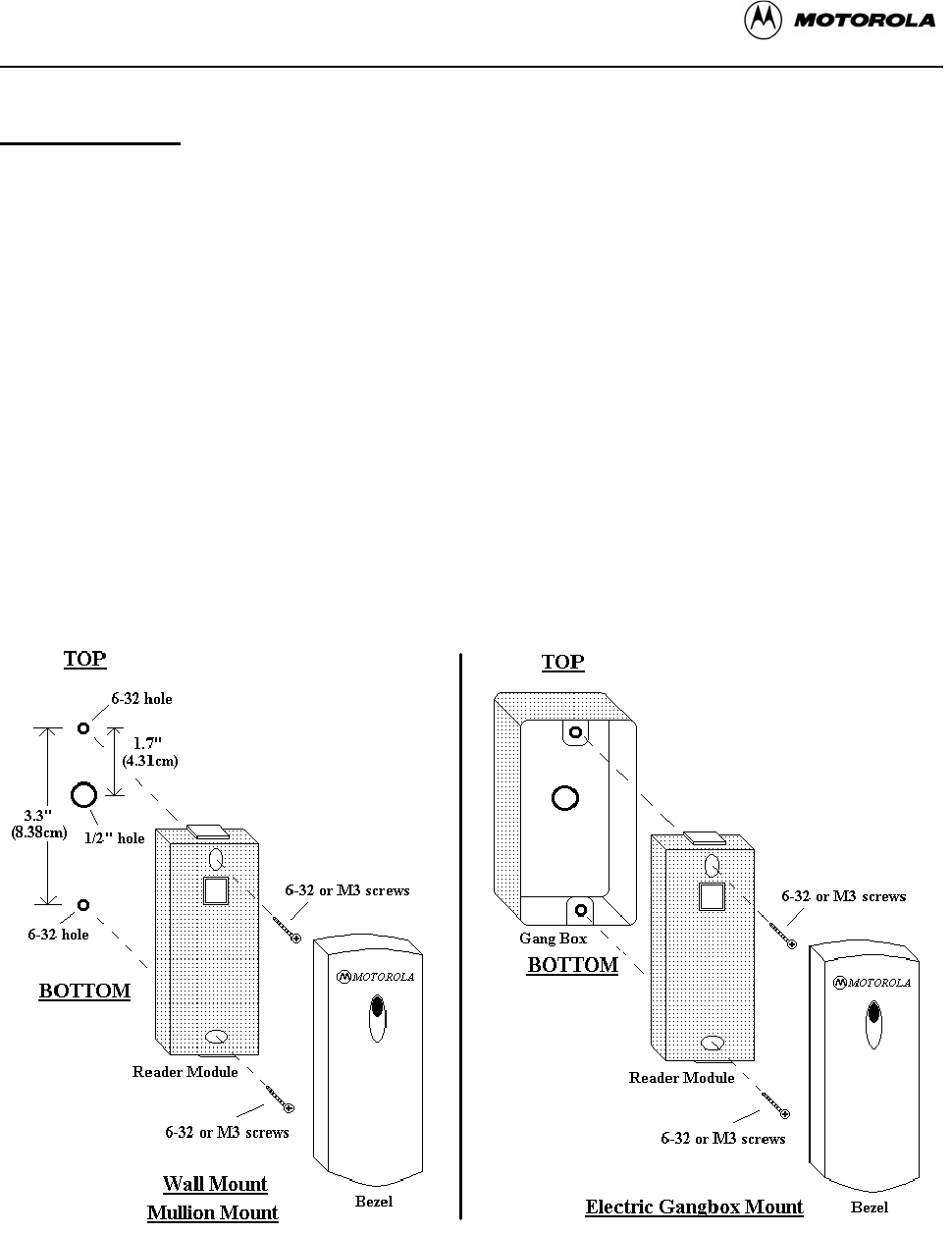

6. Installation
6-1. Mullion/Wall Mount
Drill two 6-32 or M3 holes 3.3"(8.38cm) apart in vertical and drill one 1/2" hole for
the reader cable 1.7"(4.31cm) apart from the top hole.
(If you have installed an electric gang box then skip this step and go to step 6.2.)
6-2. Put reader cable into the center hole and install the reader module by using two
6-32 or M3 screws (Not included).
6-3. Put bezel on to the reader module then push bezel until you hear the locking sound.
6-4. To detach the bezel, hold both sides of the bezel, push the bezel to the bottom, and pull
the bezel forward.
FlexPass OFR100
K02000-000 - 6 - 06/29/01
7. Wire Color Coded & Wiring
I/O Port Name Signal Name Color Coded
POWER
Power (DC +5V ~ +12V) VDC(+) Red wire
Power (Ground) VDC(-)(GND) Black wire
INPUT
Beeper control Beeper Blue wire
LED control LED Brown wire
OUTPUT(Wiegand Format)
Wiegand Data-0 Data-0 Green wire
Wiegand Data-1 Data-1 White wire
OUTPUT(ABA Track II Format)
ABA(Card Present) CP Orange wire
ABA(Clock) CLK White wire
ABA(Data) Data Green wire

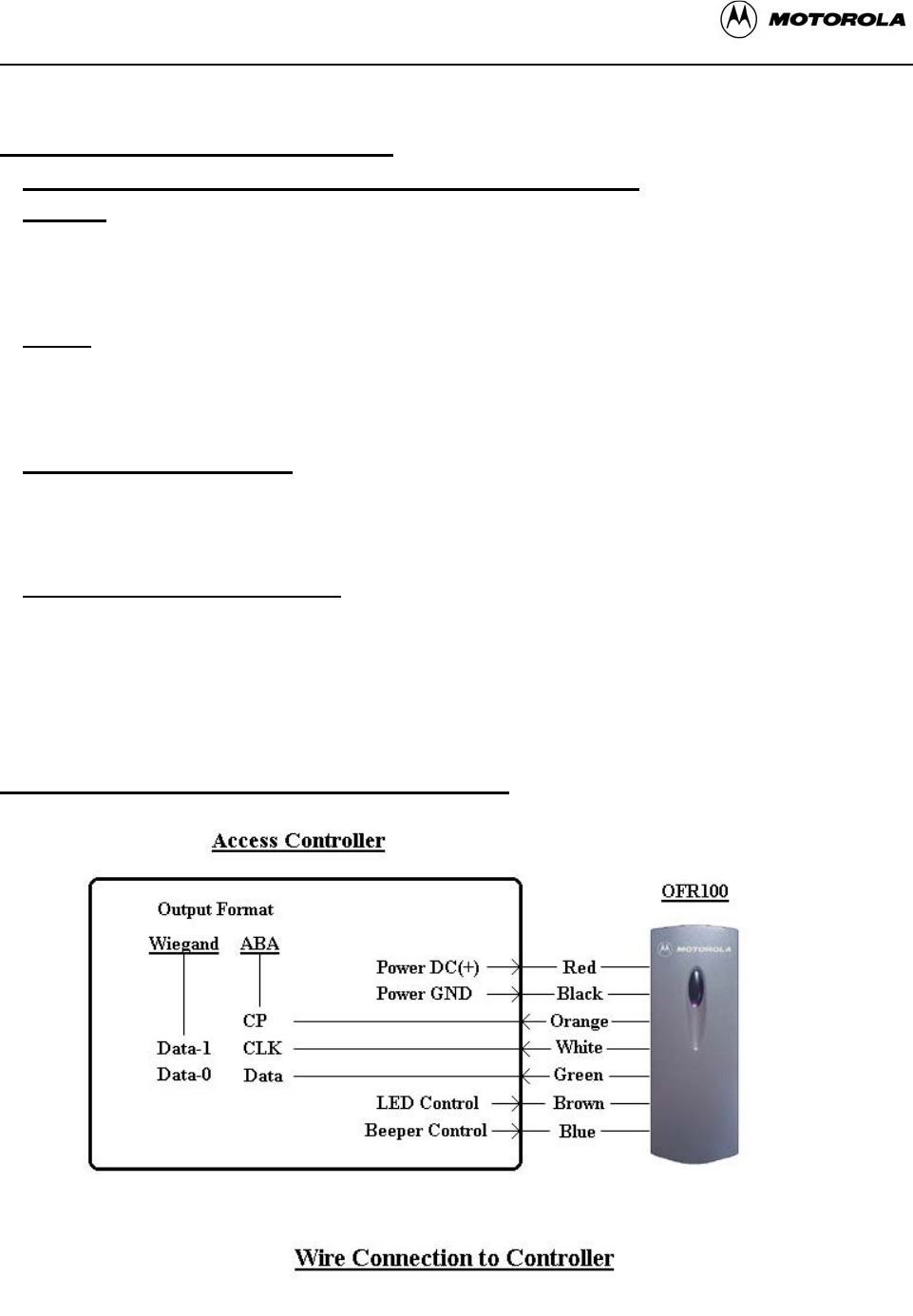

8. Wire Connection to a Host/Controller
FlexPass OFR100
K02000-000 - 7 - 06/29/01

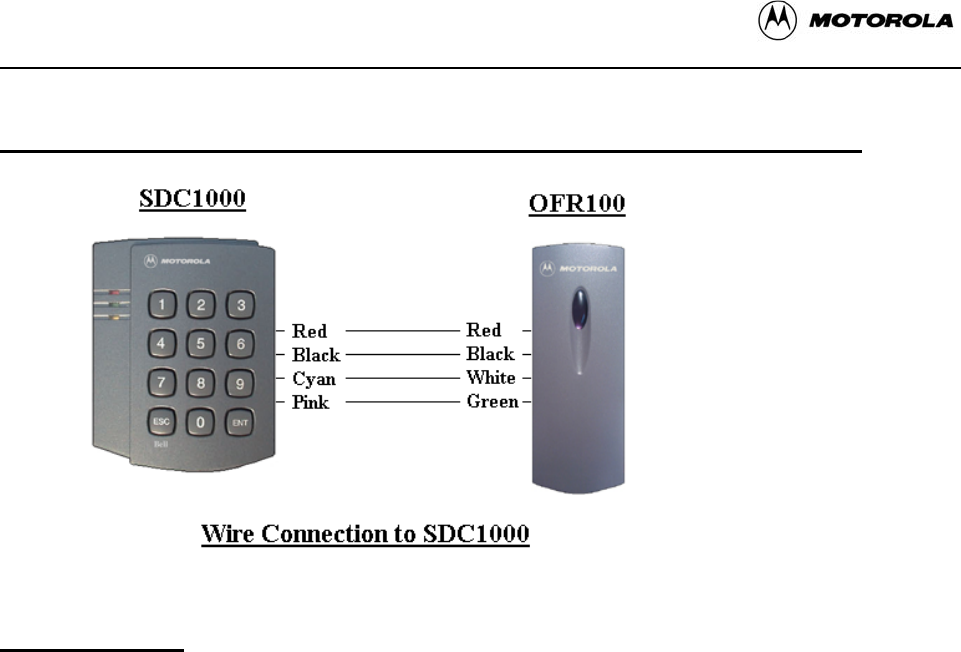

9. Wire Connection to FlexPass SDC1000 Single Door Controller
10. Operation
10-1. Once power is applied, the Red LED should be on and you should hear three beeping
sounds indicating that the reader is in standby mode after a successful initialization and
diagnostics.
10-2. Present proximity card to the reader until you hear the beeping sound and see the LED
changes color to Green. The reader will send the RF card data to the controller then
the LED will change color to Red again for the next reading.
10-3. LED Control:
To change the LED colors, you may connect the LED Control Input (Brown wire) to
ground and the Green LED will turn on indicating that the reader is in standby mode.
Present proximity card and the LED will change color to Red then Green again for the next
reading.
10-4. Beeper Control:
In normal operation, the reader generates one beep when it reads a proximity card,
however additional beeps can be generated to improve indication for access status (granted
or dinied) by forcing the beeper control input, blue wire to system ground level. The beeper
will remain on as long as the blue wire is connected to system ground.
FlexPass OFR100
K02000-000 - 8 - 06/29/01
11. FCC REGISTRATION INFORMATION
FCC REQUIREMENTS PART 15
Caution: Any changes or modifications in construction of this device which are not expressly approved by the
manufacturer for compliance could void the user's authority to operate the equipment.
NOTE: This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interface, and
2. This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of
the FCC Rules. These limits are designed to this equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the radio or television off and on,
the user is encouraged to try to correct interference by one or more of the following measures.
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on another circuit.
4. Consult the dealer or an experienced radio/TV technician for help.
12. Warranty and Service
FlexPass OFR100 warranty is 3 years from the shipped date; returns must have an RMA (Return
Material Authorization) number. The customer is to provide a description of the specific problem. The
customer is to include serial numbers, formats, and model numbers with the items to be returned. If the
exact duplicated of returned cards or tags are requested, the customer must provide Motorola with exact
format and ID numbers needed.
Contact Technical Support
Motorola
3041 Orchard Parkway
San Jose, CA 95134-2017
Tel (408) 383-4000, Main
Tel (800) 646-3252, Technical Support
Fax (408) 434-7057
NOTE: Damage occurring during shipment is deemed the responsibility of the carrier, and claims should be made directly
to the carrier.
