HID Global RPKCL40E iClass Reader User Manual Installation guide
HID Global Corporation iClass Reader Installation guide
Installation guide
INSTALLATION GUIDE
hidglobal.com An ASSA ABLOY Group brand
iCLASS SE® Biometric/
iCLASS SE Display Reader
RKCL40, RPKCL40, RKCLB40
SRD MODEL: RPKCL40E, RKCLB40E
Parts
1 - Reader and base plate assembly
1 - Installation guide
2 - Terminal connector
4 - M3.5 mm x 12 mm Phillips machine screw
4 - #6-32 x .375” Phillips self-tapping machine screw
4 - #6 x 1.5” Phillips sheet metal screw
3 - #6-32 x .4375” Spanner security screw, anti-tamper (black)
3 - #6-32 x .4375 Phillips security screw (black)
1 - Mounting Gasket
Recommended
• Cable, 6 conductor, 22 or 24 AWG [65 mm or 51 mm] Twisted Pair, Over-All Shield (Belden 3108A or equivalent) - RS-485 + power
• Cable, 6 to 9 conductor, 22 or 24 AWG [65 mm or 51 mm] Over-All Shield, (Alpha 1296C or equivalent) - Wiegand + power
• DC power supply
• Metal or plastic double-gang junction box
• Reader spacer when using metal junction boxes - see How to Order Guide
• Security tool (for spanner security screw, anti-tamper) HID 04-0001-03
Specifications
PLT-02738 A.0
PRODUCT BASE PART
NUMBER
INPUT VOLTAGE
(VDC)
CURRENT OPERATING
TEMPERATURE CABLE LENGTH UL REF
NUMBER
SRD
Model
Standby
AVG1
Maximum
AVG2PEAK3
RKCL40 923N
12VDC
150mA 185mA 250mA -4° to 149° F
(-20° to 65° C) Wiegand and RS-485
500 ft - 22 AWG (152 m)
300 ft - 24 AWG (91 m)
RPKCL40Ex1x2x3RPKCL40E
RPKCL40 923P
RKCLB40 924N 165mA 215mA 275mA 14° to 122° F
(-10° to 50° C) RKCLB40Ex1x2x3RKCLB40E
UL Reference Number Deciphering
x1 Reader Colors: K = Black,
x2 Wiring: T = Terminal
x3 Communications: R = Module
1 Standby AVG - RMS current draw without a card in the RF eld.
2 Maximum AVG - RMS current draw during continuous PIV card reads.
Not evaluated by UL.
3 Peak - highest instantaneous current draw during RF communication.
INSTALLATION GUIDE
hidglobal.com An ASSA ABLOY Group brand
© 2016 HID Global Corporation/ASSA ABLOY AB. All rights reserved. HID, the HID logo, and iCLASS are trademarks or registered trademarks of HID Global, or its licensors, in the U.S.
and/or other countries. All other trademarks, service marks, and product or service names are trademarks or registered trademarks of their respective owners.
This Installation Guide is for informational purposes only. HID makes no warranties, expressed or implied, in this summary. Company, product names and data used in sample output
are fictitious. Specifications are subject to change without notice.
RKCL40E, RPKCL40E, RKCLB40E
SRD Model: RPKCL40E, RKCLB40E
iCLASS SE Biometric/iCLASS SE Display

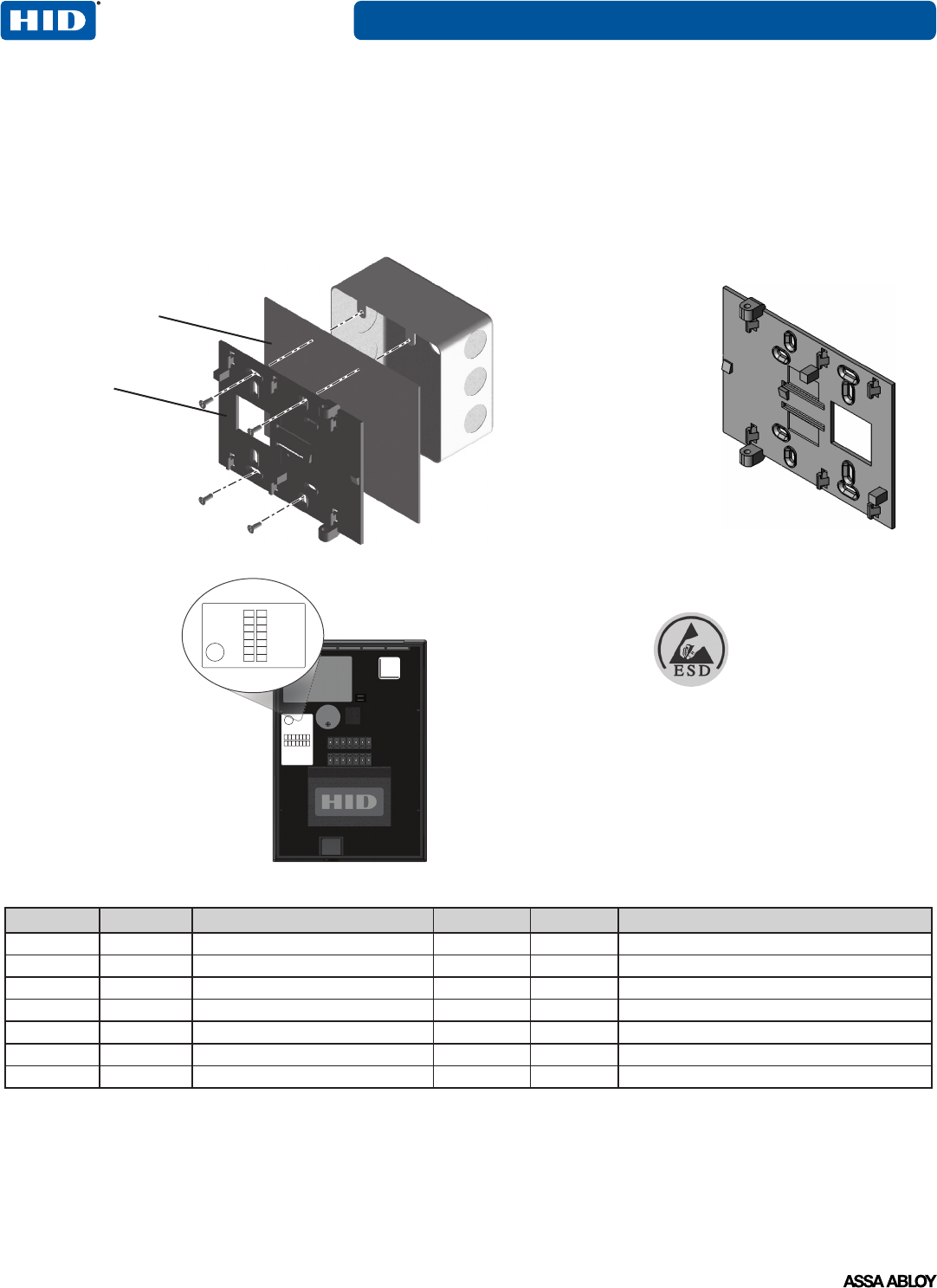

Installation
1 Mounting
Attach Backplate and Mounting Gasket to Junction Box.
2 Wiring
Pigtail Terminal Description Pigtail Terminal Description
Yellow P1-1 Beeper Input Red / Green P2-7 GPIO1 (RS232-T / RS485-FDX/HDX-A)
Orange P1-2 LED Input (GRN) Ta n P2-6 GPIO2 (RS232-R / RS485-FDX/HDX-B)
Black P1-3 Ground (RTN) Violet P2-5 *Open Collector Output / Tamper
Red P1-4 +VDC White P2-4 **Wiegand Data 1 / Clock
Drain P1-5 Unused Green P2-3 **Wiegand Data 0 / Data
Brown P1-6 LED Input (RED) Pink P2-2 GPIO3 (RS485-FDX-Z)
Blue P1-7 Hold Input Gray P2-1 GPIO4 (RS485-FDX-Y)
*Tamper Output - When activated, output synchronizes to ground (default).
**Dependent upon reader conguration. See the HTOG for Wiegand and Clock-in-Data congurations.
Junction box not
included.
Install gasket
Mounting holes for US double-
gang electrical boxes.
Reverse Configuration Rotating the backplate
180° allows for placing the LCD display on left
and the reader on right.
See Section B Alternate Reader Assembly for
instructions, before proceeding to Section 2:
Wiring.
P1
P2
Beeper
GRN LED
GND
+VDC
DRAIN
RED
HOLD
GPIO1
GP102
OC/TMPR
DATA1/CLK
DATA2/DATA
GPIO3
GPIO4
Beeper
GRN LED
GND
+VDC
DRAIN
RED
HOLD
GPIO1
GP102
OC/TMPR
DATA1/CLK
DATA2/DATA
GPIO3
GPIO4
Terminal Reader
(Terminal block and
module position varies)
ATTENTION
Observe precautions for handling
ELECTROSTATIC SENSITIVE DEVICES
Note: Previous iCLASS readers had reversed
RS-485 wiring ( P2-7 & P2-6 - A & B).
When upgrading, ensure proper connections
as dened below.
Wall backplate
INSTALLATION GUIDE
hidglobal.com An ASSA ABLOY Group brand
© 2016 HID Global Corporation/ASSA ABLOY AB. All rights reserved. HID, the HID logo, and iCLASS are trademarks or registered trademarks of HID Global, or its licensors, in the U.S.
and/or other countries. All other trademarks, service marks, and product or service names are trademarks or registered trademarks of their respective owners.
This Installation Guide is for informational purposes only. HID makes no warranties, expressed or implied, in this summary. Company, product names and data used in sample output
are fictitious. Specifications are subject to change without notice.
RKCL40E, RPKCL40E, RKCLB40E
SRD Model: RPKCL40E, RKCLB40E
iCLASS SE Biometric/iCLASS SE Display

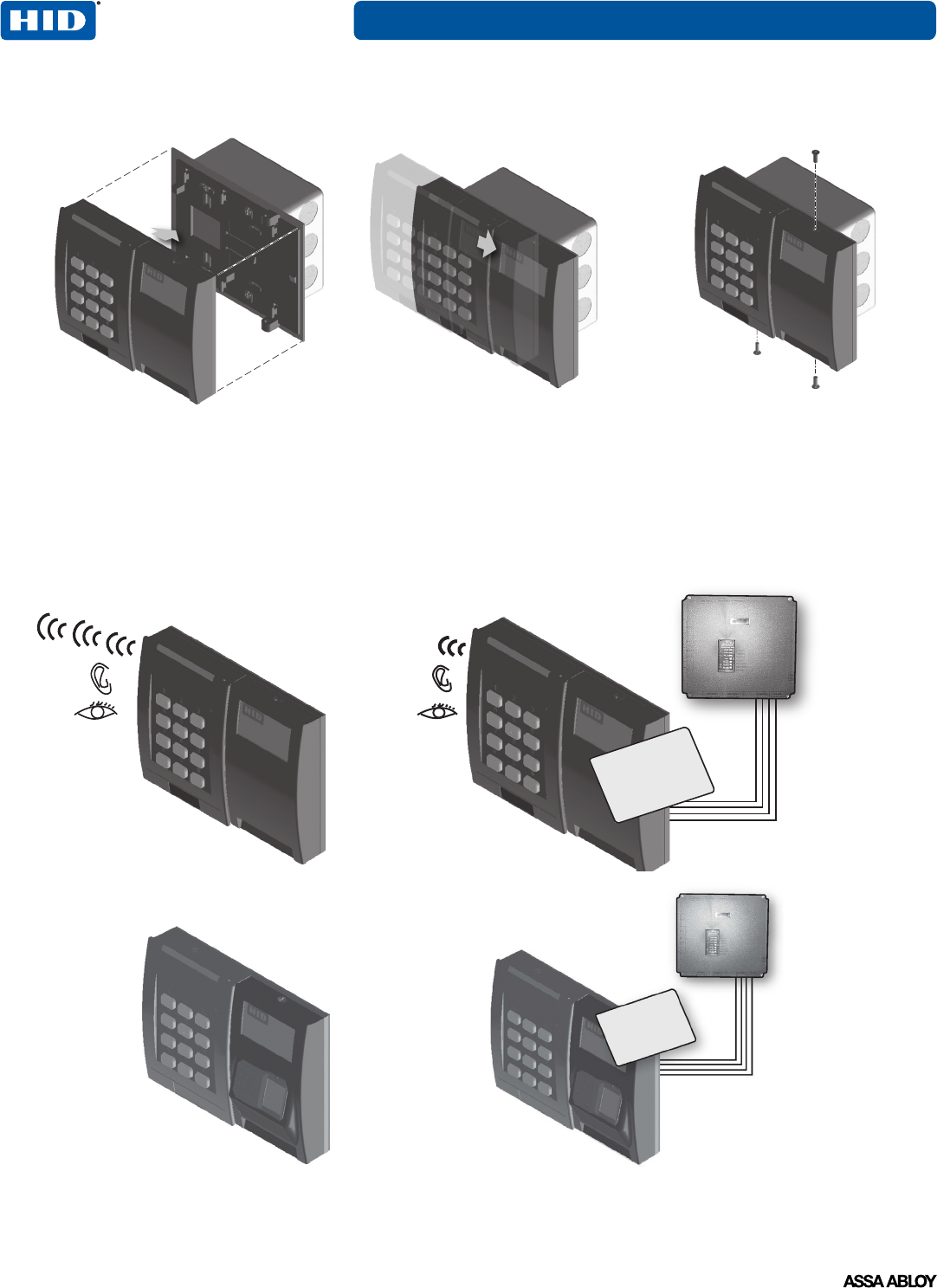

3 Attach to Backplate
4 Power & Testing
Standard Configuration: Slide Reader
Assembly towards the right to lock.
Alternate Configuration: Slide Reader
Assembly to the left to lock.
Mount the Reader Assembly (Reader,
LCD Assembly, and reader backplate)
to the wall backplate.
Install Security screws.
INSTALLATION GUIDE
hidglobal.com An ASSA ABLOY Group brand
© 2016 HID Global Corporation/ASSA ABLOY AB. All rights reserved. HID, the HID logo, and iCLASS are trademarks or registered trademarks of HID Global, or its licensors, in the U.S.
and/or other countries. All other trademarks, service marks, and product or service names are trademarks or registered trademarks of their respective owners.
This Installation Guide is for informational purposes only. HID makes no warranties, expressed or implied, in this summary. Company, product names and data used in sample output
are fictitious. Specifications are subject to change without notice.
RKCL40E, RPKCL40E, RKCLB40E
SRD Model: RPKCL40E, RKCLB40E
iCLASS SE Biometric/iCLASS SE Display

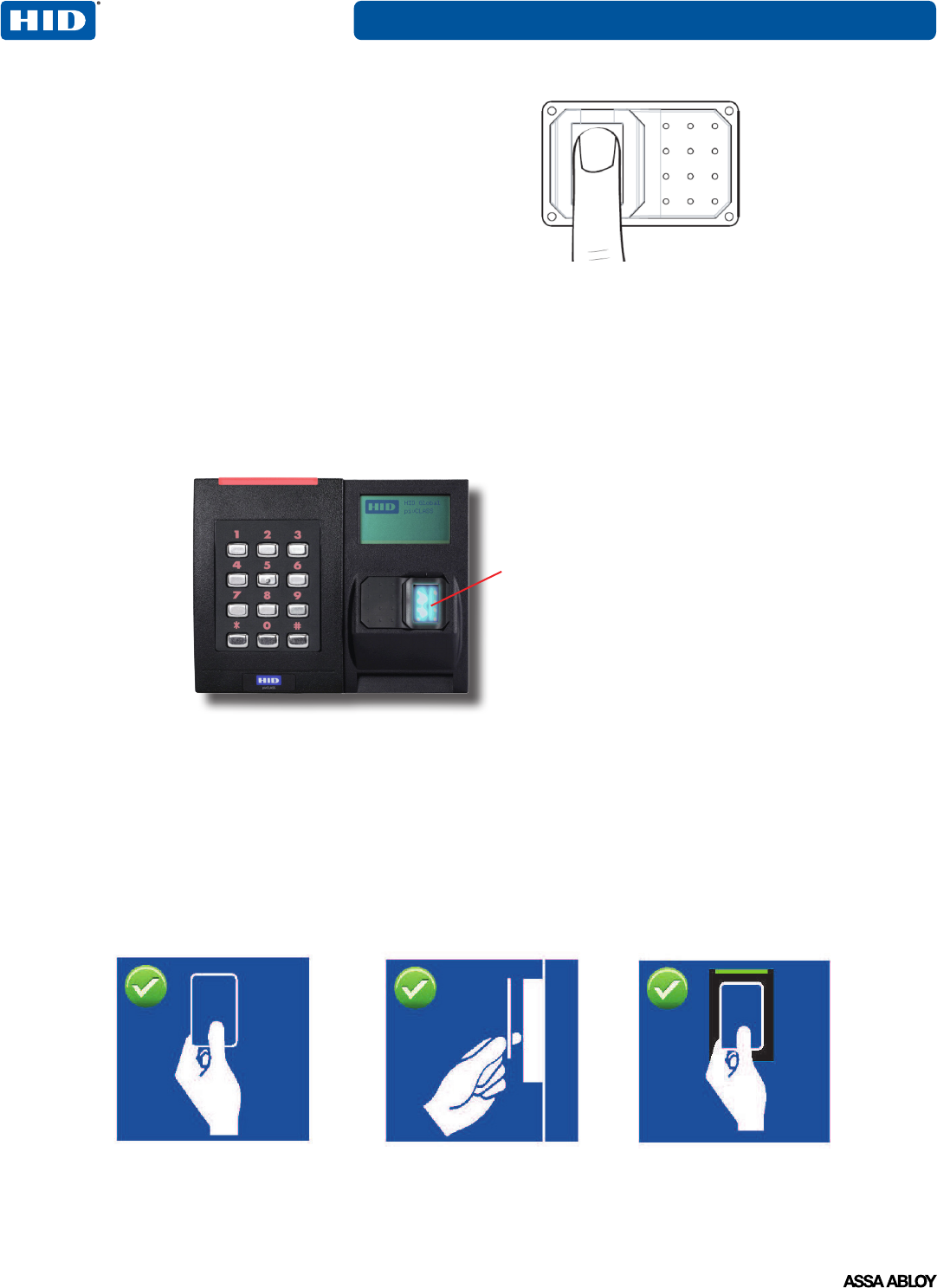

A Biometric Reader
Proper Usage
Ensure a good quality Contact:
• Do not press too hard
• Do not move during image acquisition
• Leave your finger on the sensor at least 2 seconds
• Do not slide or roll your finger across the sensor
Cleaning
For optimum performance, it is recommended that the user clean the bio-reader periodically.
The use of a dry cloth is recommended to clean the acquisition surface.
Caution: Acidic liquids, alcohol or abrasive materials are prohibited.
In order not to scratch the surface, remove all dust and residue with gentle movements.
B Credential Presentation Best Practices
To ensure a successful read of a card:
1. Hold card between the thumb and index finger.
2. Present the card so that the index finger creates a spacing between the card and the reader face.
Do not place the card flat on the reader.
3. Place the card parallel to the reader form factor. Do not angle to the right or left
4. Place the card parallel to the reader face. Do not angle the card up or down from the reader face.
Acquisition Surface
INSTALLATION GUIDE
hidglobal.com An ASSA ABLOY Group brand
© 2016 HID Global Corporation/ASSA ABLOY AB. All rights reserved. HID, the HID logo, and iCLASS are trademarks or registered trademarks of HID Global, or its licensors, in the U.S.
and/or other countries. All other trademarks, service marks, and product or service names are trademarks or registered trademarks of their respective owners.
This Installation Guide is for informational purposes only. HID makes no warranties, expressed or implied, in this summary. Company, product names and data used in sample output
are fictitious. Specifications are subject to change without notice.
RKCL40E, RPKCL40E, RKCLB40E
SRD Model: RPKCL40E, RKCLB40E
iCLASS SE Biometric/iCLASS SE Display

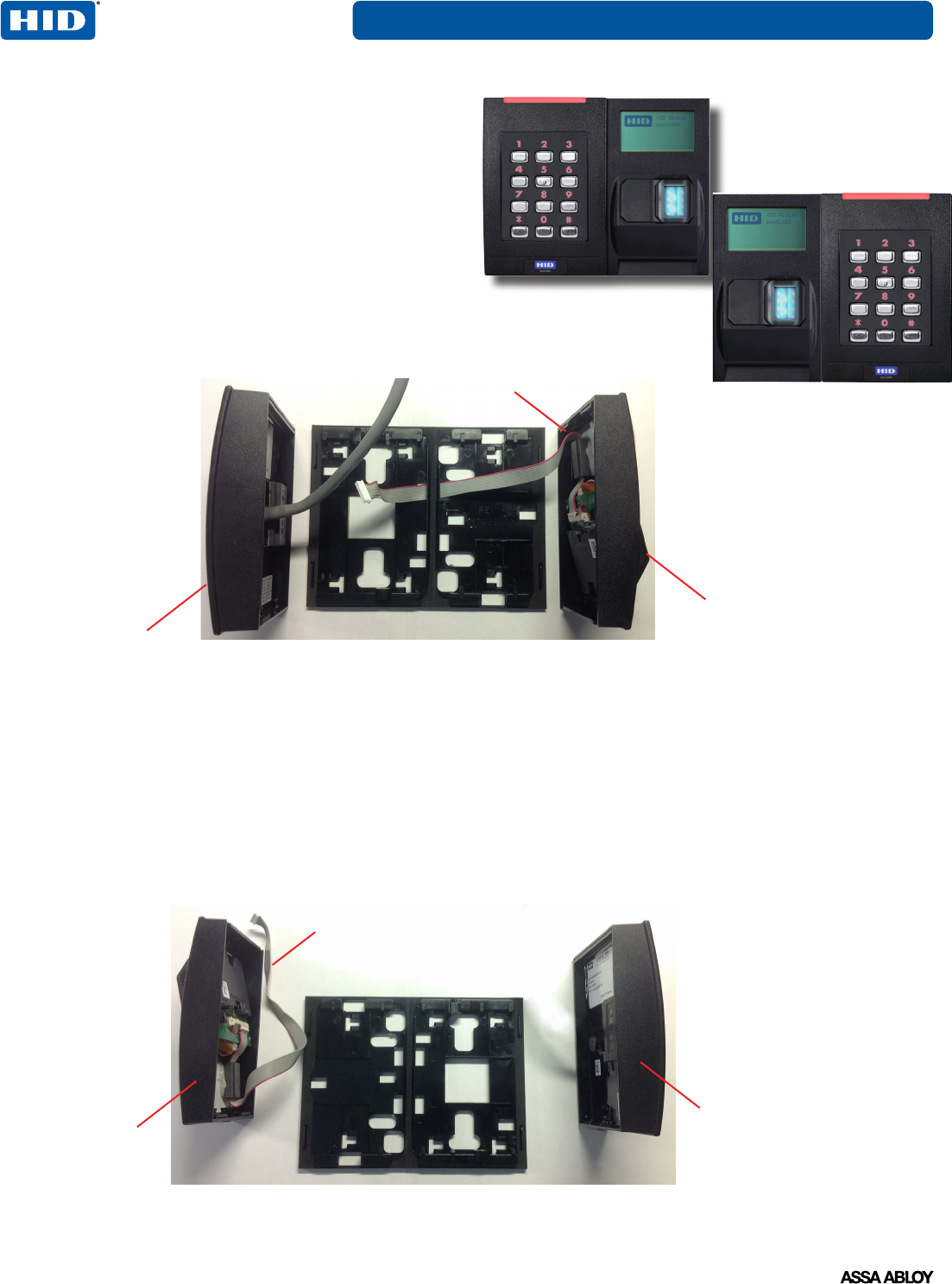

E Alternate Reader Assembly
The following steps reconfigure the reader assembly to
position the LCD Display component on the left side
of theassembly.
1. Disassemble the Reader.
• Remove the Reader from the backplate.
• Carefully unplug the ribbon cable from the module in the
back of the Reader. Caution: Do not pull on the
ribbon cable as this may damage the connection to the Reader LCD Display
connector.
• Remove the LCD Display from the backplate.
• Gently pull the ribbon cable through the backplate.
2. Reassemble with the LCD Display on the left side of the assembly.
• Rotate the backplate so that the large cutout for the power cable is on the left
• Gently route the ribbon cable back through the backplate slots, as shown below
• Plug the ribbon cable back into the module (back of Reader) and ensure module is fully
seated into the reader
• Attach the LCD Display to the backplate (this must be installed first, as the Reader will fit
slightly over the LCD Display)
• Attach the Reader to the backplate (power cable must be threaded through the large
square cutout on the backplate)
• Return to Section 2.
Test card
Standard Configuration
Alternate Configuration
LCD Display Reader
LCD Display Reader
Ribbon cable
Reader Backplate
Reader
LCD Display
Reader Backplate
Ribbon cable
INSTALLATION GUIDE
hidglobal.com An ASSA ABLOY Group brand
© 2016 HID Global Corporation/ASSA ABLOY AB. All rights reserved. HID, the HID logo, and iCLASS are trademarks or registered trademarks of HID Global, or its licensors, in the U.S.
and/or other countries. All other trademarks, service marks, and product or service names are trademarks or registered trademarks of their respective owners.
This Installation Guide is for informational purposes only. HID makes no warranties, expressed or implied, in this summary. Company, product names and data used in sample output
are fictitious. Specifications are subject to change without notice.
RKCL40E, RPKCL40E, RKCLB40E
SRD Model: RPKCL40E, RKCLB40E
iCLASS SE Biometric/iCLASS SE Display
Regulatory
The final product, containing the modular transmitter must be labeled with its own FCC ID and IC ID. If the FCC & IC ID is not visible,
when the module is installed inside another device, then the final assembly label must contain the FCC and IC ID numbers with a
statement such as follows: “Contains Transmitter Module with FCC ID JQ6-ICLASSBTM and IC ID 2236B-ICLASSBTM”.
UL
Connect only to a Listed Access Control / Burglary power-limited power supply. These readers are intended to be used with listed
(UL294) control equipment. Suitable for outdoor use.
Only Wiegand and RS-485 communications have been evaluated by UL.
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
CAUTION: Any changes or modifcations to this device not explicitly approved by the manufacturer could void your authority to
operate this equipment.
Indala Prox products RP10EL, RP15EL, RP30EL, RP40EL and RPK40EL are certified for FCC, Canada Radio Certification and CE Marking
only.
Canada Radio CeRtiFiCation
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Ce MaRking
HID Global hereby declares that these proximity readers are in compliance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.
Por el presente, HID Global declara que estos lectores de proximidad cumplen con los requisitos esenciales y otras disposiciones
relevantes de la Directiva 1999/5/EC.
HID Global déclare par la présente que ces lecteurs à proximité sont conformes aux exigences essentielles et aux autres stipulations
pertinentes de la Directive 1999/5/CE.
A HID Global, por meio deste, declara que estes leitores de proximidade estão em conformidade com as exigências essenciais e outras
condições da diretiva 1999/5/EC.
HID Global bestätigt hiermit, dass die Leser die wesentlichen Anforderungen und anderen relevanten Bestimmungen der Richtlinie
1999/5/EG erfüllen.
HID Global dichiara che i lettori di prossimità sono conformi ai requisiti essenziali e ad altre misure rilevanti come previsto dalla Direttiva
europea 1999/5/EC.
Download copies of the R&TTE Declaration of Conformity (DoC) at http://www.hidglobal.com/certifications.
BRaziL
Compliance Statement
Este produto está homologado pela ANATEL, de acordo com os procedimentos regulamentados pela Resolução 242/2000, e atende
aos requisitos técnicos aplicados. Para maiores informações, consulte o site da ANATEL - www.anatel.gov.br
This product is homologated at ANATEL according to procedure regulated by Resolution 242/2000, and it complies with the applicable
technical requirements. For more information, consult ANATEL website - www.anatel.gov.br
RF Warning Statement
Per Article 6 of Resolution 506, equipment of restricted radiation must carry the following statement in a visible location:
Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações
do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário.
This equipment operates in secondary character, meaning it does not have the right of protection against harmful interference, even
against those the same character, and it cannot cause any interference to systems operating in the primary character.
INSTALLATION GUIDE
hidglobal.com An ASSA ABLOY Group brand
© 2016 HID Global Corporation/ASSA ABLOY AB. All rights reserved. HID, the HID logo, and iCLASS are trademarks or registered trademarks of HID Global, or its licensors, in the U.S.
and/or other countries. All other trademarks, service marks, and product or service names are trademarks or registered trademarks of their respective owners.
This Installation Guide is for informational purposes only. HID makes no warranties, expressed or implied, in this summary. Company, product names and data used in sample output
are fictitious. Specifications are subject to change without notice.
RKCL40E, RPKCL40E, RKCLB40E
SRD Model: RPKCL40E, RKCLB40E
iCLASS SE Biometric/iCLASS SE Display
iCLASS Keypad Readers
FOTO SELO ANATEL
Fabricante: HID Global Corporation
Modelo: iCLASS SE RK40E, multiCLASS RPK40E
Este produto esta aprovada pela Anatel, de acordo com os procedimentos regulamentados pela
Resolução nº 242/2000 e atende aos requisitos técnicos aplicados.
“Este equipamento opera em caráter
secundário, isto é, não tem direito a proteção
contra interferência prejudicial, mesmo de
estações do mesmo tipo, e não pode causar
interferência a sistemas operando em caráter
primário”
iCLASS Non-Keypad Readers
FOTO SELO ANATEL
Fabricante: HID Global Corporation
Modelo: iCLASS SE R10, multiCLASS RP10E, multiCLASS RP30E
iCLASS SE R40E, multiCLASS RP15E, multiCLASS RP40E
Este produto esta aprovada pela Anatel, de acordo com os procedimentos regulamentados pela
Resolução nº 242/2000 e atende aos requisitos técnicos aplicados.
“Este equipamento opera em caráter
secundário, isto é, não tem direito a proteção
contra interferência prejudicial, mesmo de
estações do mesmo tipo, e não pode causar
interferência a sistemas operando em caráter
primário”
hidglobal.com An ASSA ABLOY Group brand
INSTALLATION GUIDE RKCL40E, RPKCL40E, RKCLB40E
SRD Model: RPKCL40E, RKCLB40E
iCLASS SE Biometric/iCLASS SE Display
HID Global
Americas & Corporate
611 Center Ridge Drive
Austin, TX 78758
USA
Support: 866-607-7339
Fax: 949-732-2120
Asia Pacific
19/F 625 King's Road
North Point, Island East
Hong Kong
Support: 852-3160-9833
Fax: 852-3160-4809
Europe, Middle East & Africa
Phoenix Road
Haverhill, Suolk CB9 7AE
England
Support: 55 11 5514-7100
Fax: 55 11 5514-7109
For additional oces around the world, see www.hidglobal.com corporate oces.
HID Global Customer Support: www.hidglobal.com/support
Equipment
8T29
ACC Control Reader
General Signaling
Equipment
taiwan
According to “Administrative Regulations on Low Power Radio Waves Radiated Devices” Without permission granted by the NCC,
any company, enterprise, or user is not allowed to change frequency, enhance transmitting power or alter original characteristic as
well as performance to a approved low power radio-frequency devices. The low power radio-frequency devices shall not influence
aircraft security and interfere legal communications; If found, the user shall cease operating immediately until no interference is
achieved. The said legal communications means radio communications is operated in compliance with the Telecommunications Act.
The low power radio-frequency devices must be susceptible with the interference from legal communications or ISM radio wave
radiated devices.
Japan MiC
“ この装置は総務省の型式指定を受けています。”
(総務省指定番号は第AC-ｘｘｘｘｘ号です)
本製品は電波を使用したRFID 機器の読み取り・書き込み装置です。
そのため使用する用途・場所によっては、医療機器に影響を与える恐れがあります
SingapoRe
koRean kCC
Complies with
IDA Standards
DA103548
R10E, R15E, R30E, and R40E RP10E, RP15E, RP30E and RP40E
RK40E RPK40E
항목 규격
송신주파수 RFID:13.56 MHz RFID:13.5607 MHz,
LPD:125 KHz
수신주파수 RFID:13.56 MHz RFID:13.56 MHz,
LPD:125 KHz
출력 RFID: 10m에서
47.544mv이하
RFID: 10m에서 47.544mv이하.
LPD:3 m 거리에서 500 ㎶/m이하
전원 DC 16.0V
전파형식 A1D
발진방식 X-tal X-tal (13.56MHz)
Resonator(125kHz)
변조방식 AM AM(13.56MHz), FSK(125kHz)
