veriCLASS®
VP3500 Reader Board
P-Series Payment and Ticketing
Embedded Reader Platform
HARDWARE SPECIFICATION
© 2011 HID Global Corporation. All rights reserved.
March 2011
Document Number 3500-906, A.1
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
Trademarks and Disclaimers
HID, HID Global, HID logo, iCLASS and veriCLASS are the trademarks or registered trademarks of
HID Global Corporation in the U.S. and other countries.
The information contained in this document is provided “AS IS” without any warranty.
HID Global hereby disclaims all warranties and conditions with regard to the information contained
herein, including all implied warranties of merchantability, fitness for a particular purpose, title and
non-infringement.
In no event shall HID Global be liable, whether in contract, tort or otherwise for any indirect, special
or consequential damages arising from the use of the information contained in this document.
Contacts
North America
15370 Barranca Parkway
Irvine, CA 92618
USA
Phone: 800 237 7769
Fax: 949 732 2120
Support: support.hidglobal.com
Europe, Middle East and Africa
AM Klingenweg 6a
65396 Walluf
Germany
Phone: +49 6123 7910
Fax: +49 6123 791 199
Support: support.hidglobal.com
Revision History
Date Author Description Document
Version
3/7/11 HP Added FCC, IC and CE statements A.1
2/17/11 HP Initial version A.0
Page 2 of 28 March 2011
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
Regulatory
FCC / Canada Radio Certification
CAUTION: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two
conditions:
(1) This device may not cause interference, and (2) This device must accept any interference, including interference
that may cause undesired operation of the device.
CE Marking
HID Global hereby declares that these proximity readers are in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Por el presente, HID Global declara que estos lectores de proximidad cumplen con los requisitos
esenciales y otras disposiciones relevantes de la Directiva 1999/5/EC.
HID Global déclare par la présente que ces lecteurs à proximité sont conformes aux exigences essentielles et aux
autres stipulations pertinentes de la Directive 1999/5/CE.
A HID Global, por meio deste, declara que estes leitores de proximidade estão em conformidade com as exigências
essenciais e outras condições da diretiva 1999/5/EC.
HID Global bestätigt hiermit, dass die Leser die wesentlichen Anforderungen und anderen relevanten Bestimmungen
der Richtlinie 1999/5/EG erfüllen.
HID Global dichiara che i lettori di prossimità sono conformi ai requisiti essenziali e ad altre misure rilevanti come
previsto dalla Direttiva europea 1999/5/EC.
Download copies of the R&TTE Declaration of Conformity (DoC) at http://certifications.hidglobal.com.
March 2011 Page 3 of 28
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
Reference Documents
3300-901 veriCLASS Quick Start Guide
3300-911 veriCLASS DTK Application Note
3300-905 veriCLASS Antenna Design Guide (*)
3300-906 veriCLASS Hardware Specification
3300-910 veriCLASS Software Developers Guide
EMV 2000 Integrated Circuit Card Specification for Payment Systems Version 4.2
EMV Contactless Contactless Specification for Payment Systems Version 2
FCC 47 CFR Part 15 Radio Frequency Devices
ISO/IEC 10373-6:2011 Identification Cards – Test Methods. – Part6: Proximity Cards
ISO/IEC 14443-1:2008 Proximity Cards: Physical Characteristics
ISO/IEC 14443-2:2001 Proximity Cards: Radio Frequency Power and Signal Interface
ISO/IEC 14443-
2:2001/Amd1:2005 Bit rates of fc64, fc/32 and fc/16
ISO/IEC 14443-2:2001/Amd1:2005/Cor1:2007
ISO/IEC 14443-3:2001 Proximity Cards: Initialization and Anti-collision
ISO/IEC 14443-
3:2001/Amd1:2005 Bit rates of fc/64, fc/32 and fc/16
ISO/IEC 14443-3:2001/Amd1:2005/Cor1:2006
ISO/IEC 14443-
3:2001/Amd3:2006 Handling of reserved field values
ISO/IEC 14443-4:2008 Proximity Cards: Transmission protocol
ISO/IEC 15693-1:2000 Vicinity Cards: Physical Characteristics
ISO/IEC 15693-2:2006 Vicinity Cards: Air Interface and Initialization
ISO/IEC 15693-3:2009 Vicinity Cards: Anti-collision and Transmission protocol
ISO/IEC 7813:2006 Financial transaction cards
ISO/IEC 7816-3:2006 Integrated circuit(s) cards: Electrical Interface and Transmission
Protocols
USB Universal Serial Bus Specification Revision 2.0
(*) Contact HID Global Technical Support for further information.
Page 4 of 28 March 2011
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
Contents
Regulatory....................................................................................................................................................3
FCC / Canada Radio Certification ....................................................................................................3
CE Marking.......................................................................................................................................3
Reference Documents.................................................................................................................................4
1 Introduction.....................................................................................................................................7
1.1 Product Description .............................................................................................................7
1.2 Key Features .......................................................................................................................7
1.3 veriCLASS Platform Products .............................................................................................8
1.4 Product Guide......................................................................................................................9
1.5 Scope/Purpose ....................................................................................................................9
1.6 Terms and Abbreviations...................................................................................................10
2 Overview........................................................................................................................................10
2.1 Features.............................................................................................................................10
2.2 Block Diagram ...................................................................................................................11
2.3 Assembly Drawing.............................................................................................................12
3 Power Considerations..................................................................................................................13
4 Host Interfaces..............................................................................................................................14
4.1 USB Interface P101...........................................................................................................14
4.2 UART Interface P104 ........................................................................................................15
5 RF Interface...................................................................................................................................16
5.1 Operating Field Strength ...................................................................................................16
5.2 Modulation Waveforms......................................................................................................17
6 Contact Interfaces ........................................................................................................................21
6.1 Assembly Drawing.............................................................................................................21
7 Visual /Audio Interface.................................................................................................................22
8 I/O...................................................................................................................................................24
9 VP3500A00 Electrical Characteristics........................................................................................25
9.1 Absolute Maximum Ratings...............................................................................................25
9.2 Power Supply.....................................................................................................................25
9.3 Host Interfaces ..................................................................................................................25
9.4 Contact Interfaces (P102, P103) .......................................................................................26
9.5 Electrical I/O (P105) ..........................................................................................................27
10 VP3500 Mechanical Characteristics ...........................................................................................28
10.1 Mechanical Drawings ........................................................................................................28
March 2011 Page 5 of 28
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
List of Figures

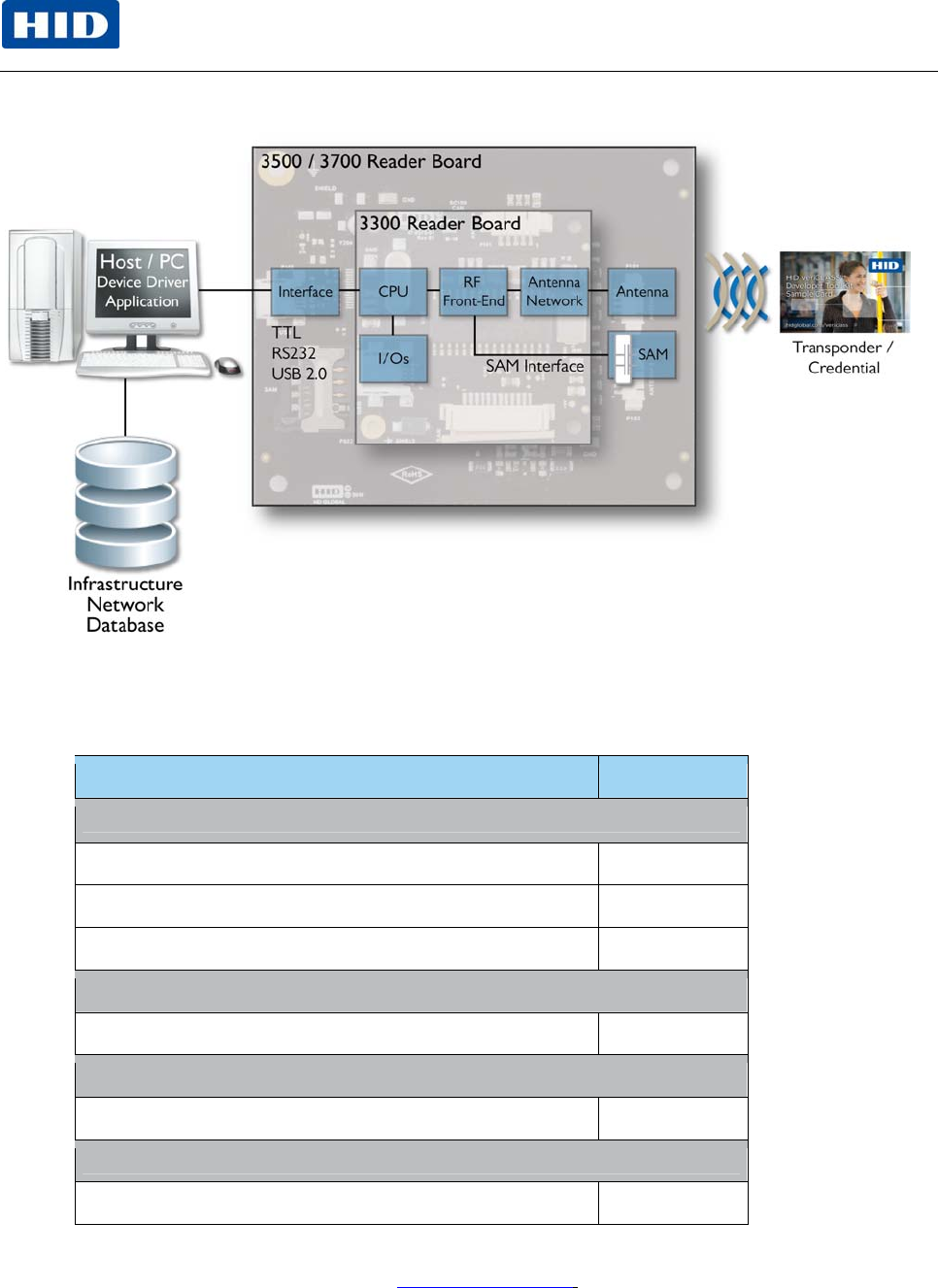

Figure 1: veriCLASS P Series Product Schematic........................................................................................9

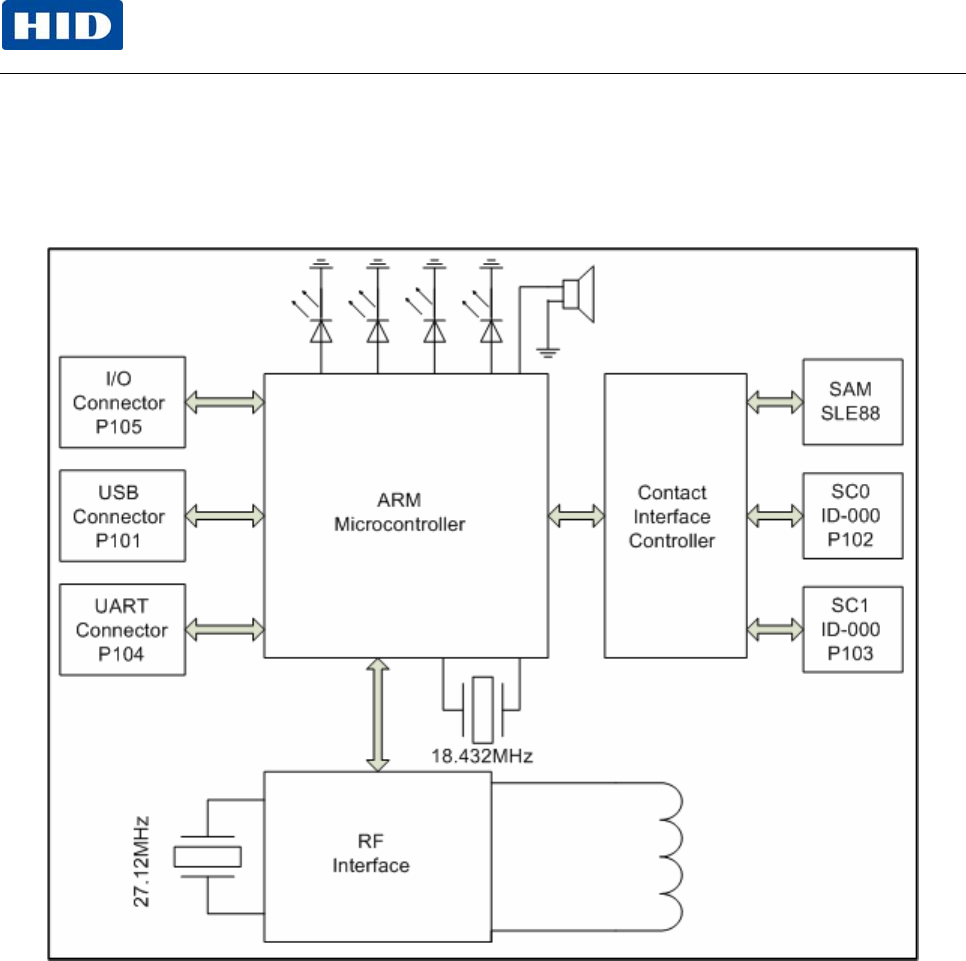

Figure 2: VP3500A00 Block Diagram..........................................................................................................11

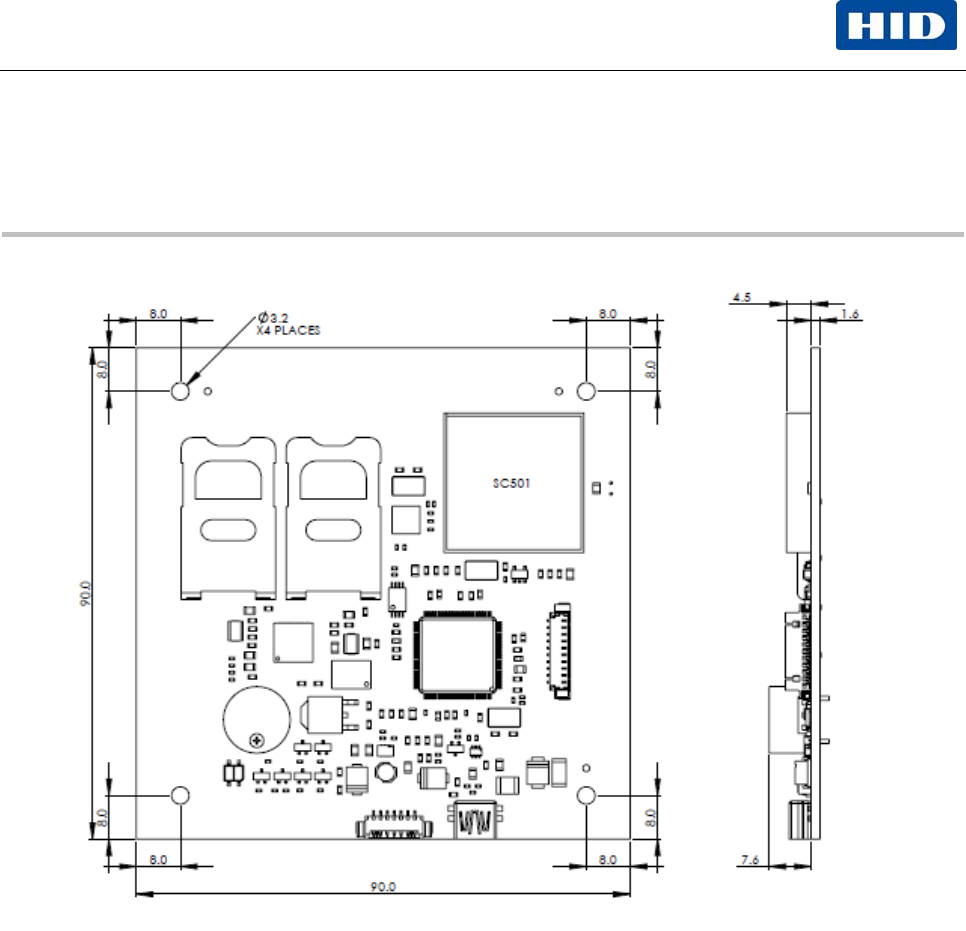

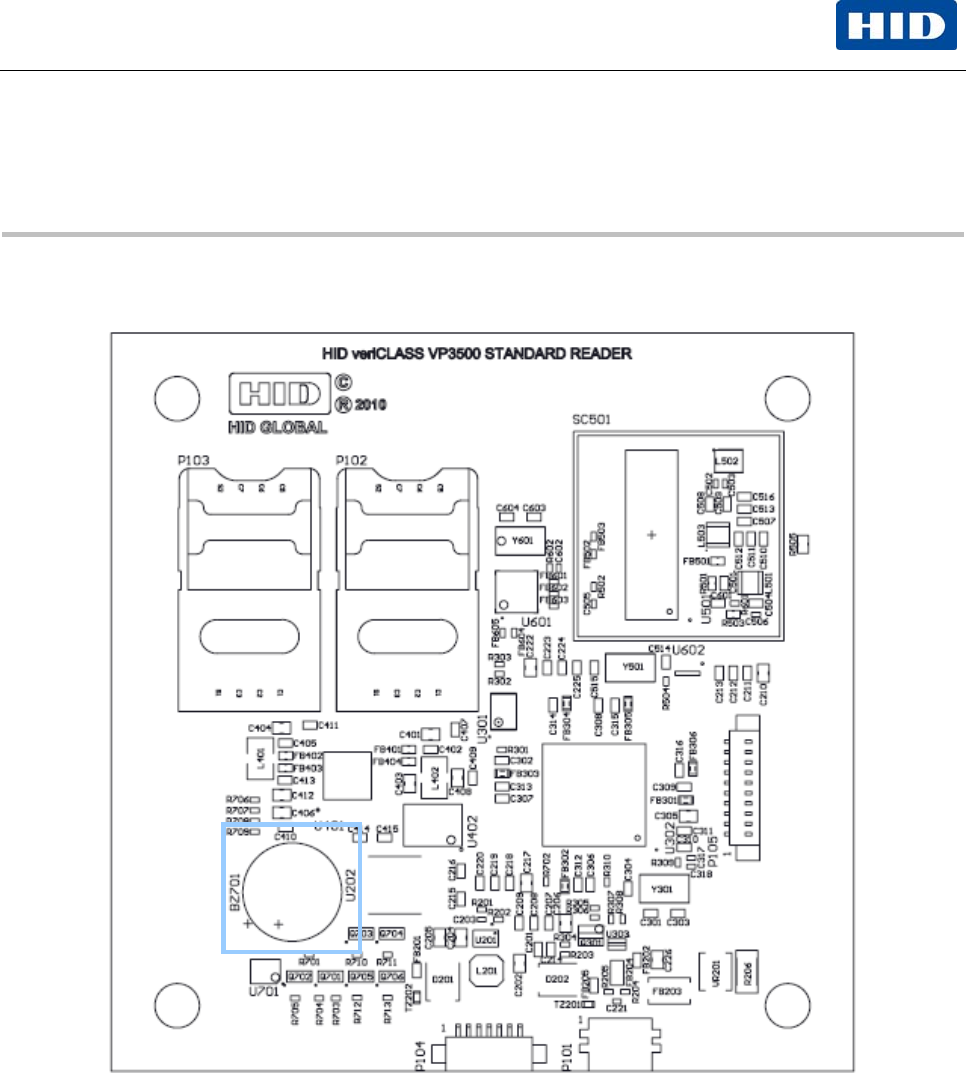

Figure 3: VP3500A00 Reader Board Assembly Drawing............................................................................12
Figure 4: Mechanical Drawing USB Connector...........................................................................................14

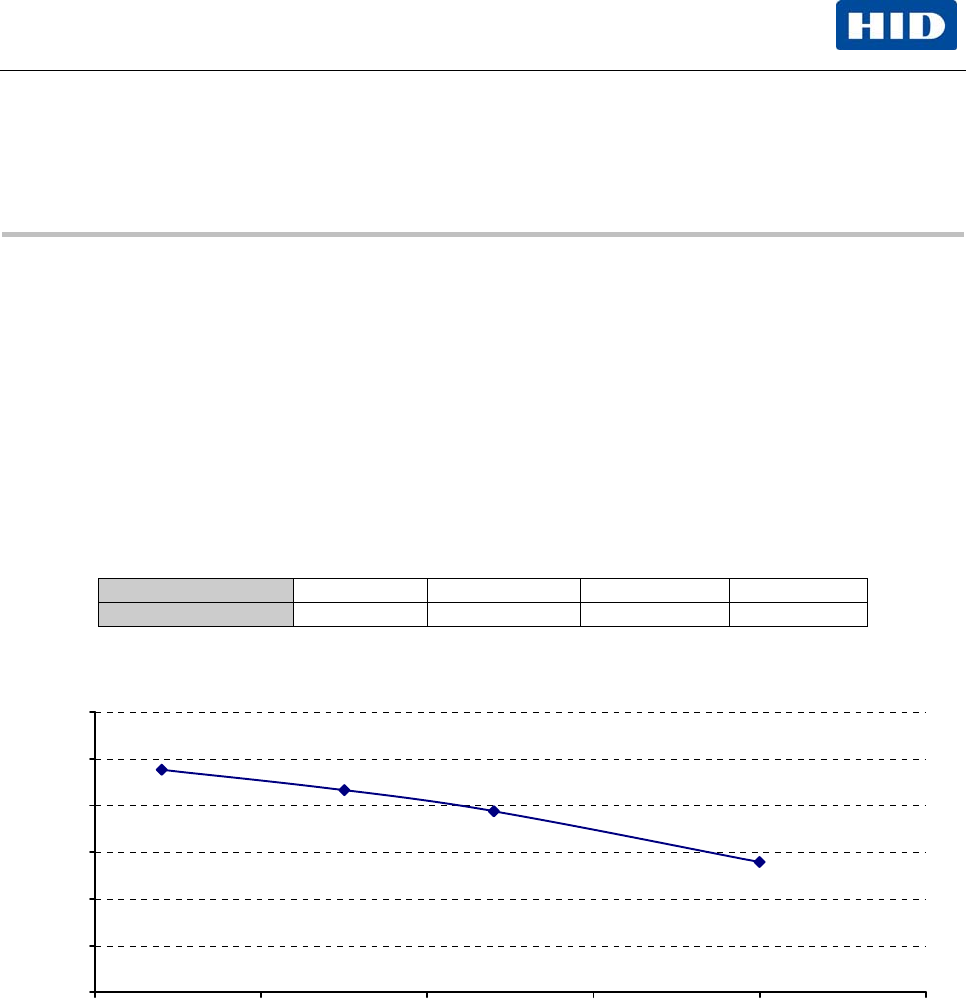

Figure 5: Operating Field Strength ..............................................................................................................16
Figure 6: VP3500A00 Reader Contact Interfaces.......................................................................................21
Figure 7: veriCLASS Buzzer........................................................................................................................22
Figure 8: veriCLASS LEDs (Bottom) ...........................................................................................................23
Figure 9: Mechanical Drawing (Dimensions = mm).....................................................................................28
List of Tables
Table 1: Feature Overview ..........................................................................................................................10
Table 2: Power Consumptions for different Operation Modes ....................................................................13
Table 3: USB Interface ................................................................................................................................14
Table 4: UART Interface..............................................................................................................................15
Table 5: UART Connector ...........................................................................................................................15
Table 6: Field Strength ................................................................................................................................16

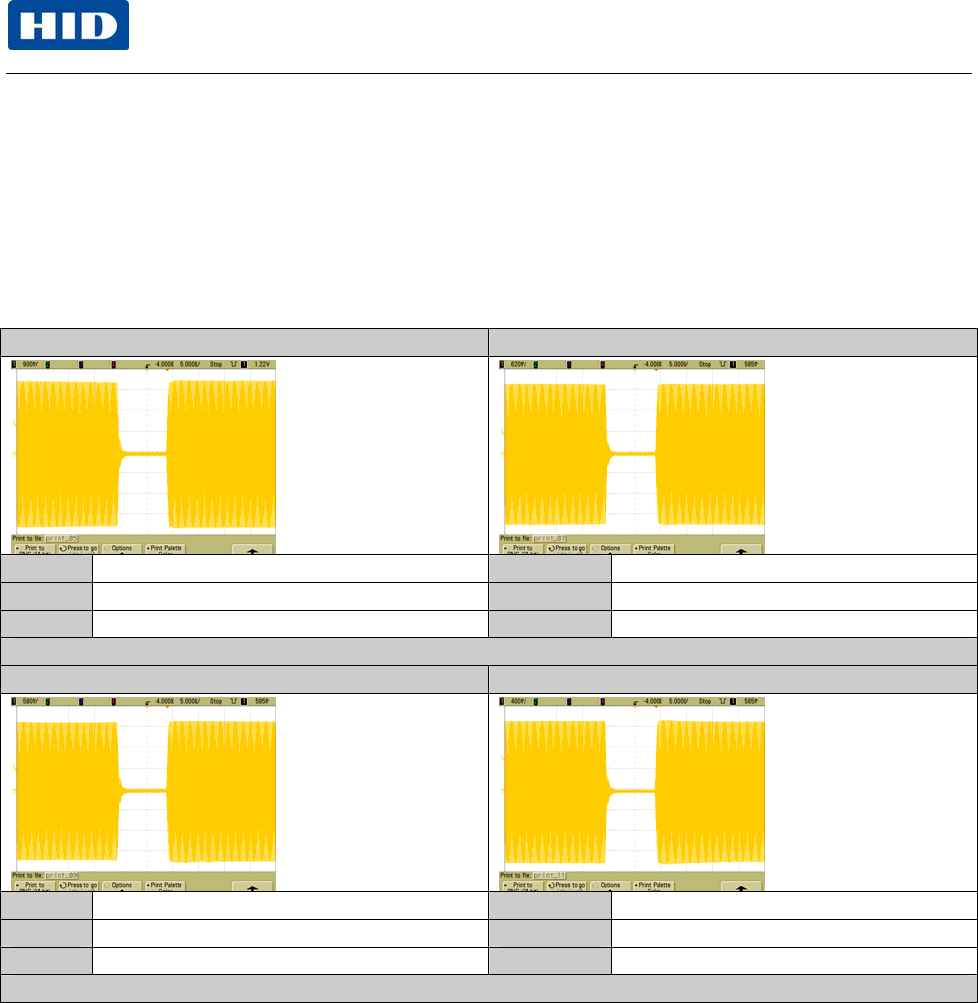

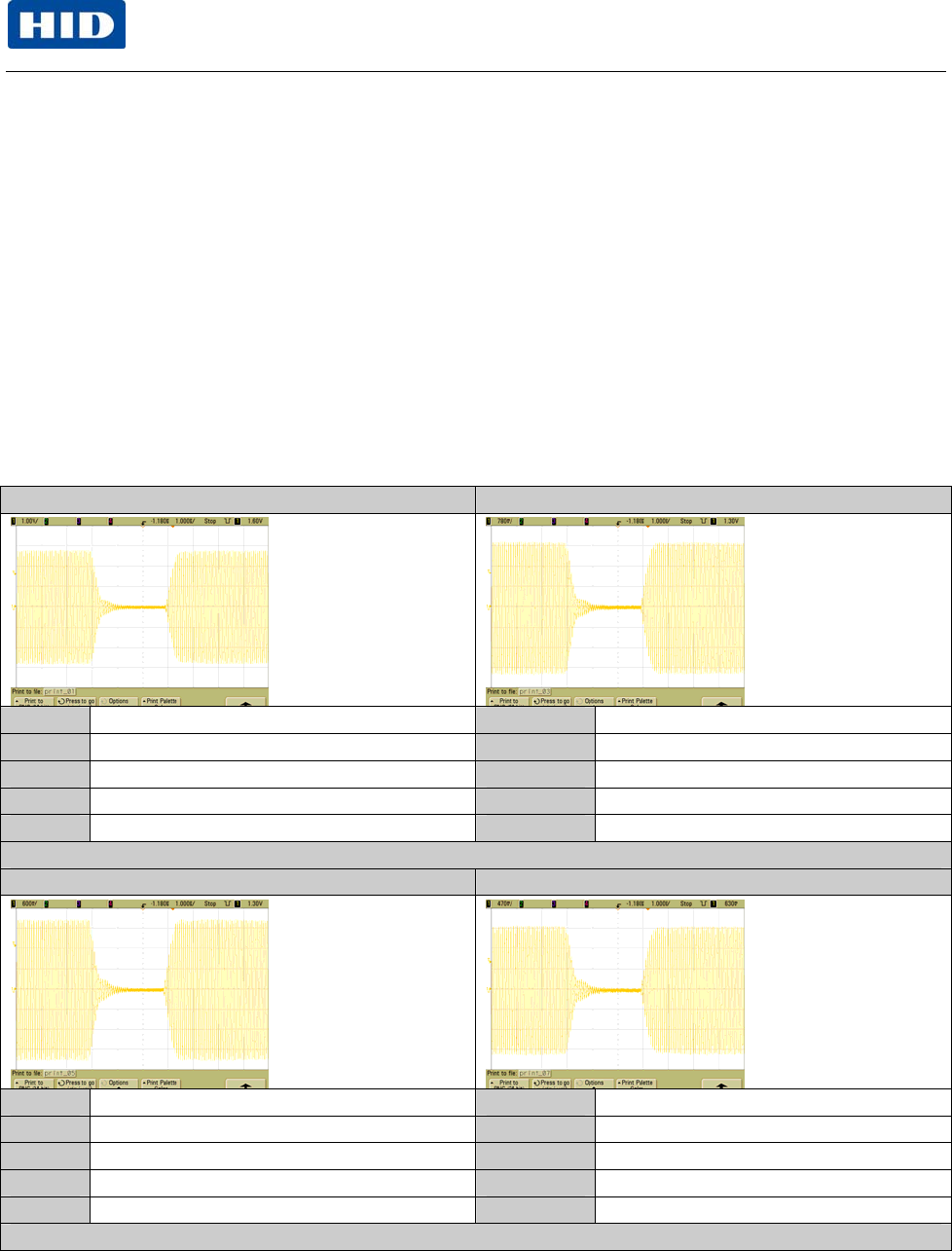

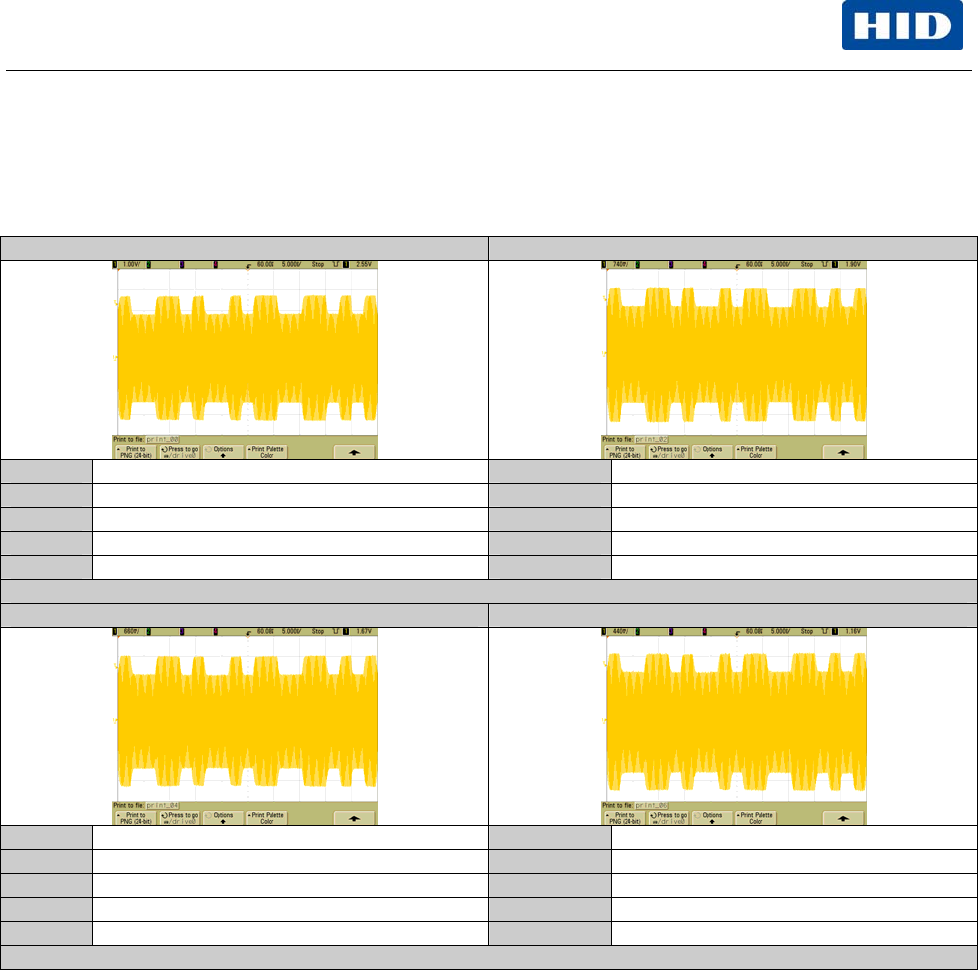

Table 7: ISO/IEC 14443 Type A Waveforms...............................................................................................17
Table 8: ISO/IEC 14443 Type B Waveforms...............................................................................................18
Table 9: ISO/IEC 15693 Waveforms ...........................................................................................................19
Table 10: FeliCa Waveforms.......................................................................................................................20
Table 11: UART Interface............................................................................................................................24
Table 12: I/O Connector ..............................................................................................................................24
Table 13: Absolute Maximum Ratings.........................................................................................................25
Table 14: Electrical Characteristics Power Supply......................................................................................25
Table 15: Electrical Characteristics USB Interface......................................................................................25
Table 16: P104 - Electrical Characteristics UART Interface .......................................................................26
Table 17: P102 - Contact Interface 1 Class A, 5V.......................................................................................26
Table 18: P102 - Contact Interface 1 Class B, 3V.......................................................................................26
Table 19: P102 - Contact Interface 1 Class B, 1.8V....................................................................................26
Table 20: P103- Contact Interface 2 Class A, 5V........................................................................................26
Table 21: P103 - Contact Interface 2 Class B, 3V.......................................................................................26
Table 22: P103 - Contact Interface 2 Class C, 1.8V ...................................................................................27
Table 23: Contact Interface 1, 2 Clock ........................................................................................................27
Table 24: Contact Interface I/Os..................................................................................................................27
Table 25: P105 - Electrical Characteristics I/Os..........................................................................................27
Page 6 of 28 March 2011
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
1 Introduction
1.1 Product Description
The veriCLASS P-Series platform is a fully certified and easy-to-integrate reader product line that
provides simultaneous support for multiple card technologies as well as open and closed loop
payment schemes within one system. veriCLASS is tailored to meet the needs of Payment and
Ticketing manufacturers, such as automated fare collection systems, handheld terminals, ATMs,
vending, kiosk or retail applications. The platform offers ultimate integration flexibility for secure
contactless cashless payment and AFC solutions.
In addition, the veriCLASS platform allows developers without RF design expertise to utilize the
advantages of HID’s support. Provided are integration tools and product pre-certification based on
industry recognized standards to develop market-ready products faster.
1.2 Key Features
Single platform supporting
Multiple contactless card technologies (for example, MIFARE, iCLASS, FeliCa)
Multiple contactless payment protocols (for example, Calypso, EMVCo)
Multiple payment schemes (both open and closed)
A complete flexible product line of reader modules, antennas and accessories.
Developer tools and support. veriCLASS provides a fully featured Development Tool Kit (DTK)
providing web / desktop based tools and documentation.
Development support from HID Global Support Services.
Product pre-certification for industry standard bodies such as modular-FCC, CE and EMVCo.
Field-upgradeability giving the installer the flexibility to implement new features in the field.
March 2011 Page 7 of 28
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906

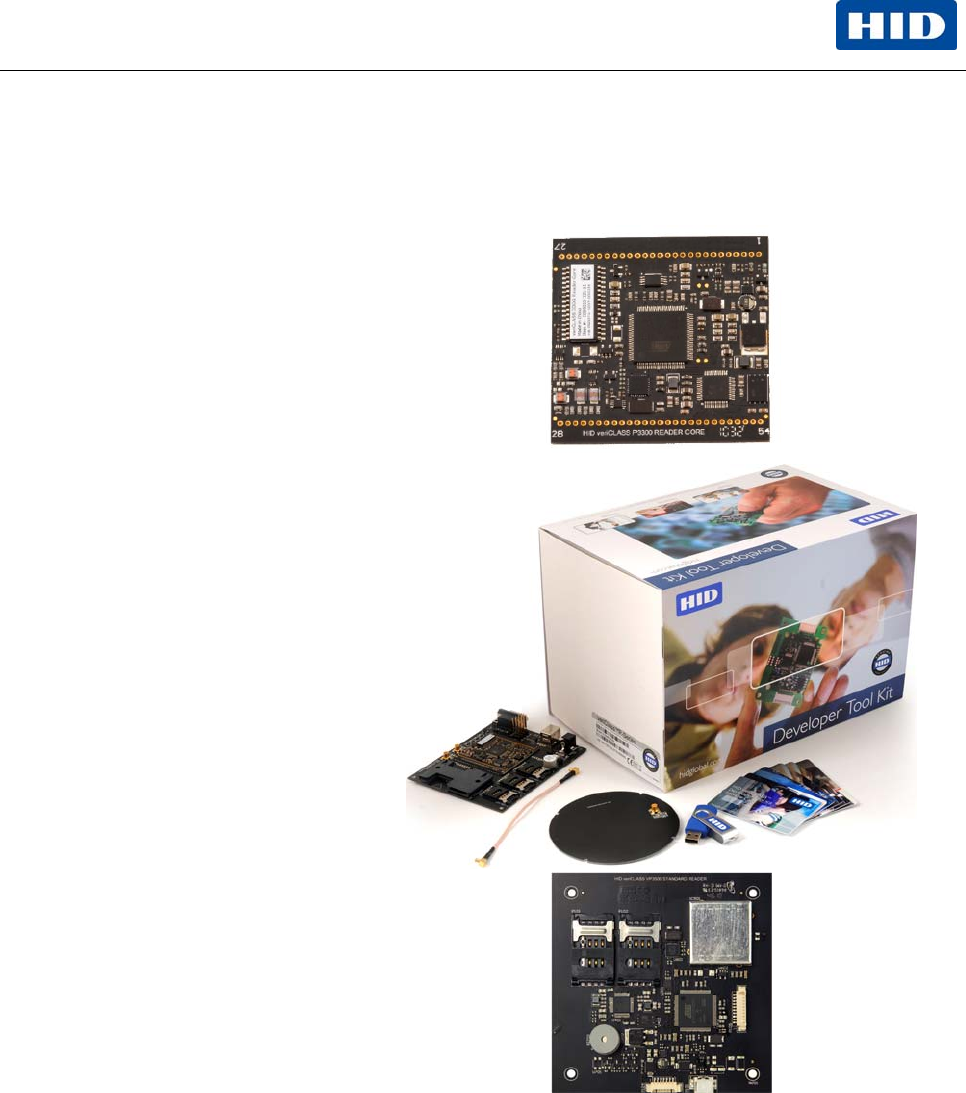

1.3 veriCLASS Platform Products
VP3300 Reader Core
2 RF interfaces for
external 50 ohm
antennas.
4 ISO/IEC 7816
SmartCard Interfaces
USB / UART
Connection
Development Tool Kit
Development Board
(includes VP3300
Reader Core)
2 development board
antennas (50 ohm).
Sample Credentials.
Memory Stick containing
development tools and
documentation.
VP3500 Reader Board
Integrated Antenna
2 ISO/IEC 7816
SmartCard Sockets
(ID000)
USB / UART
Connection
VP3700 Enhanced Reader Board
Integrated Antenna
1 External Antenna plus option for a total of 4 external antennas
4 ISO/IEC 7816 SmartCard Sockets (ID000)
2 External ISO/IEC 7816 SmartCard Sockets (ID000/1)
USB / UART Connection
Page 8 of 28 March 2011
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
Figure 1: veriCLASS P Series Product Schematic
1.4 Product Guide
Description Part Number
Readers
HID veriCLASS P3300 Reader Core VP3300A00
HID veriCLASS P3500 Standard Reader Board VP3500A00
HID veriCLASS P3700 Enhanced Reader Board VP3700A00 *
Antenna
HID veriCLASS Antenna 4090A05 *
Antenna Cable
HID veriCLASS Antenna Cable 4091A01 *
DTK
HID veriCLASS Developer Toolkit 3134ANJ0000
* Available soon.
For further sales information contact AFC@hidglobal.com.
1.5 Scope/Purpose
This document describes the hardware features of the veriCLASS P-series reader board
VP3500A00.
March 2011 Page 9 of 28
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
1.6 Terms and Abbreviations
Abbreviation Description
ANT Antenna
ARM Advanced RISC Machine
DNC Do Not Connect
EMC Electro Magnetic Compatibility
LED Light Emitting Diode
FeliCa Felicity Card
H Magnetic Field Strength
I/O Input / Output
m Modulation index
PCD Proximity Coupling Device
PICC Proximity IC Card
RF Radio Frequency
Ta Ambient Temperature
tf Fall time
TTL Transistor – Transistor Logic
tr Rise time
UART Universal Asynchronous Receiver Transmitter
USB Universal Serial Bus
2 Overview
2.1 Features
Table 1: Feature Overview
Type Feature Comment
ISO/IEC 14443 Type A Up to 848kbps
ISO/IEC 14443 Type B Up to 848kbps
ISO/IEC 15693
HID iCLASS Both ISO/IEC 14443 and ISO/IEC
15693 mode are supported
Sony FeliCa
RF Interface
One integrated antenna EMV Contactless compliant
Contact
Interfaces Two ISO/IEC 7816 contact card
interfaces ID-000 contact card holders
USB Compliant with USB 2.0 Specification
Host Interfaces UART TTL Levels
4 LED controls EMV Contactless indication mode
supported
Digital I/Os Buzzer Control
Storage Temperature -40 to 120C
Operating Temperature -25 to 85C
Environmental
Properties Humidity 0 – 90% Non condensing
Page 10 of 28 March 2011
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
2.2 Block Diagram
Figure 2: VP3500A00 Block Diagram
March 2011 Page 11 of 28
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
2.3 Assembly Drawing
Figure 3: VP3500A00 Reader Board Assembly Drawing
Page 12 of 28 March 2011
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
3 Power Considerations
A single voltage through the USB or serial interface connector supplies the VP3500A00. Supported
is a voltage range from 3VDC to 5VDC (only through serial interface).
Note: Use only one of these two options at a time. If using USB as the host interface, use VUSB to
supply the board to ensure correct enumeration.
The VP3500A00 power consumption depends on the power consumption of the antenna. Metal or
ferrite material within the proximity of the board affects the power consumption.
Table 2: Power Consumptions for different Operation Modes
Operation Mode Vin Typ Unit
3V 450
Reader polling for cards; no contact card inserted 5V 220
mA
3V 750
Constant carrier on; no contact card inserted 5V 370
mA
3V 240
Carrier off; no contact card inserted 5V 125
mA
3V 165
RF Interface turned off; no contact card inserted 5V 100
mA
3V 125
RF interface and contact card interface turned off 5V 75 mA
March 2011 Page 13 of 28
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
4 Host Interfaces
4.1 USB Interface P101
Used is a standard USB Mini-B connector (meeting the USB 2.0 Standard requirements).
Table 3: USB Interface
UART interface
Function Signal Pin Description
VUSB 1 5VDC Bus Voltage
DM 2 Data Minus Line
DP 3 Data Plus Line
ID 4 Not Connected for Type B
GND 5 GND
Figure 4: Mechanical Drawing USB Connector
Page 14 of 28 March 2011
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
4.2 UART Interface P104
Table 4: UART Interface
UART interface
Function Signal Pin Description
Vin Supply Voltage 1 Reader supply 2.5 VDC – 5.5 VDC
RX Receive Signal 2 Receive signal of the VP3500A00 (Input)
TX Transmit Signal 3 Transmit signal of the VP3500A00 (Output)
RTS Ready to Send 4 Signal line that indicates when the VP3300A00 is ready to
receive (output)
CTS Clear to Send 5 Signal line that indicates when the host is ready to receive (input)
nRST – Reset Line 6 Signal line resets the reader (low active)
GND 7 GND
Supported are baud rates between 9600 and 460080 Baud.
As connector a 7 way Molex PicoBlade® is used:
Table 5: UART Connector
UART interface
Manufacturer Molex
Series PicoBlade®
Part Number 53261 0771
Maximum Current 1A
Image is for example only.
March 2011 Page 15 of 28
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
5 RF Interface
The VP3500A00 reader board offers one integrated antenna compliant with the EMV Contactless
requirements. The tuning is optimized for operation with ISO/IEC14443 Type A & B credentials.
5.1 Operating Field Strength
The magnetic field strength was measured in accordance to ISO/IEC10373-6 (16.5MHz resonance
frequency of reference PICC).
The measurements were taken for a concentric arrangement between reference PICC and test PCD
in four different distances.
The field strength may vary slightly between different reader boards due to production tolerances.
Note: Metal or ferrite material in proximity of the antenna will lead to detuning effects, which may
cause major changes in the RF properties.
Table 6: Field Strength
Distance [mm] 2 7.5 12 20
H [A/m] 6.27 5.83 5.38 4.29
1.5
2.5
3.5
4.5
5.5
6.5
7.5
0 5 10 15 20 25
Distance [mm]
H [A/m]
Figure 5: Operating Field Strength
Page 16 of 28 March 2011
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
5.2 Modulation Waveforms
The measurements were taken for a concentric arrangement between reference PICC and test PCD
in four different distances.
The results may vary slightly between different reader boards due to production tolerances.
Note: Metal or ferrite material in proximity of the antenna will lead to detuning effects, which may
cause major changes in the RF properties.
5.2.1 ISO/IEC 14443 Type A Waveforms
The waveforms were measured in accordance to ISO/IEC10373-6 (16.5MHz resonance frequency
of reference PICC).
Table 7: ISO/IEC 14443 Type A Waveforms
Distance 0mm @ 106kbps Distance 7.5mm @ 106kbps
t1 [ns] 2914 t1 [ns] 2913
t2 [ns] 2070 t2 [ns] 2057
t3 [ns] 438 t3 [ns] 436
t4 [ns] 236 t4 [ns] 239
Os [%] 0.35 Os [%] 0.48
Distance 12mm @ 106kbps Distance 20mm @ 106kbps
t1 [ns] 2912 t1 [ns] 2915
t2 [ns] 2018 t2 [ns] 1977
t3 [ns] 442 t3 [ns] 459
t4 [ns] 244 t4 [ns] 248
Os [%] 0.36 Os [%] 0.64
March 2011 Page 17 of 28
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
5.2.2 ISO/IEC 14443 Type B Waveforms
The waveforms were measured in accordance to ISO/IEC10373-6 (16.5MHz resonance frequency
of reference PICC).
Table 8: ISO/IEC 14443 Type B Waveforms
Distance 0mm @ 106kbps Distance 7.5mm @ 106kbps
m [%] 11.01 m [%] 10.68
tr [ns] 389 tr [ns] 379
tf [ns] 384 tf [ns] 392
Os [%] 3.28 Os [%] 4.34
Us [%] 3.14 Us [%] 4.18
Distance 12mm @ 106kbps Distance 20mm @ 106kbps
m [%] 10.55 m [%] 9.70
tr [ns] 395 tr [ns] 386
tf [ns] 427 tf [ns] 423
Os [%] 4.32 Os [%] 4.11
Us [%] 4.11 Us [%] 4.05
Note: Measured with modulation conductance setting of 33Hex (ISO/IEC 14443 Type B register #2).
Page 18 of 28 March 2011
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
5.2.3 ISO/IEC 15693 Waveforms
The waveforms were measured in accordance to ISO/IEC10373-6 (16.5MHz resonance frequency
of reference PICC).
Reader configured for 100% modulation.
Table 9: ISO/IEC 15693 Waveforms
Distance 0mm Distance 7.5mm
tr [ns] 411 tr [ns] 408
tf [ns] 717 tf [ns] 718
Os [%] 1.06 Os [%] 0.28
Distance 12mm Distance 20mm
tr [ns] 391 tr [ns] 411
tf [ns] 746 tf [ns] 781
Os [%] 3.68 Os [%] 1.42
March 2011 Page 19 of 28
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
5.2.4 FeliCa Waveforms
Table 10: FeliCa Waveforms
Distance 0mm Distance 7.5mm
m [%] 17.01 m [%] 16.81
tr [ns] 422 tr [ns] 431
tf [ns] 398 tf [ns] 408
Os [%] 0.00 Os [%] 0.00
Us [%] 0.05 Us [%] 0.25
Distance 12mm Distance 20mm
m [%] 16.31 m [%] 15.34
tr [ns] 413 tr [ns] 411
tf [ns] 424 tf [ns] 436
Os [%] 0.00 Os [%] 0.00
Us [%] 0.70 Us [%] 0.70
Note: Measured with modulation conductance setting of 99Hex (FeliCa register #2).
Page 20 of 28 March 2011
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
6 Contact Interfaces
The reader board provides four ISO/IEC7816 contact interfaces. Both interfaces offer ID-000
cardholders (P102 and P103).
6.1 Assembly Drawing
Figure 6: VP3500A00 Reader Contact Interfaces
March 2011 Page 21 of 28
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
7 Visual /Audio Interface
The veriCLASS reader board offers four LEDs and one buzzer to fulfill the requirements of the EMV
Contactless specification on visual and audio interface. Both LEDs and buzzer are fully configurable
through software (for example, veriCLASS web server).
Figure 7: veriCLASS Buzzer
Page 22 of 28 March 2011
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
Figure 8: veriCLASS LEDs (Bottom)
March 2011 Page 23 of 28
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
8 I/O
The veriCLASS reader board offers four dedicated LED controls and one dedicated buzzer control
line (open collector). The board itself already has all LED’s and the buzzer populated but the control
lines are still available in through connector P105 in case the visual/audio interface needs to be
placed off the board.
Note: The onboard LEDs and buzzer are using the same signal lines provided by the connector.
Table 11: UART Interface
UART interface
Function Signal Pin Description
+5V 1 Regulated 5VDC from the reader board
LED1 2 Control line LED1
LED2 3 Control line LED2
LED3 4 Control line LED3
LED4 5 Control line LED4
Buzzer 6 Control line for Buzzer (open collector)
RFU 7 Reserved for future use
RFU 8 Reserved for future use
RFU 9 Reserved for future use
GND 10 GND

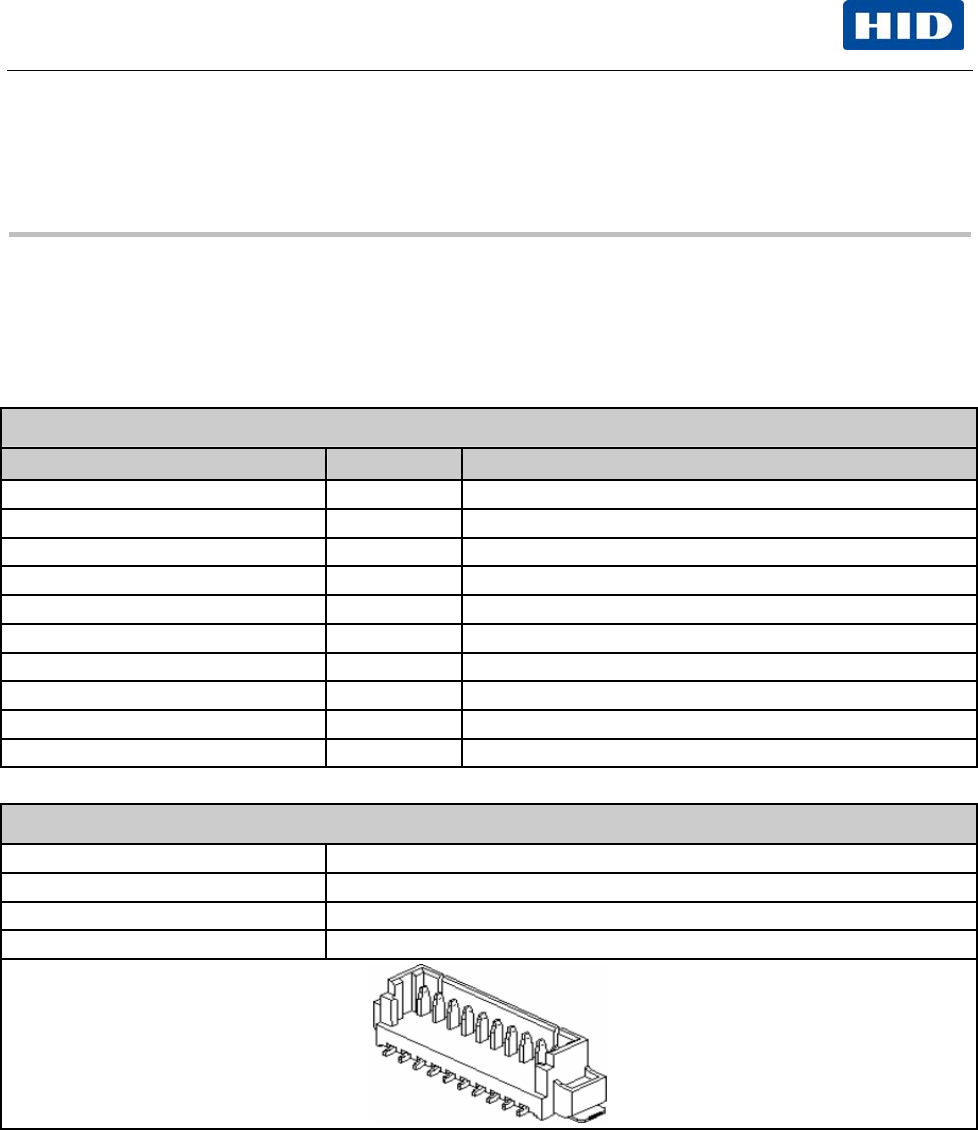

Table 12: I/O Connector
UART interface
Manufacturer Molex
Series PicoBlade®
Part Number 053398 1071
Maximum Current 1A
Example Picture only
Page 24 of 28 March 2011
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
9 VP3500A00 Electrical Characteristics
9.1 Absolute Maximum Ratings
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to
the device. This is a stress rating only and functional operation of the device at these or other
conditions beyond those indicated in the operational sections of this specification are not implied.
Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Table 13: Absolute Maximum Ratings
Operating Temperature -25 to 85˚C
Storage Temperature -40 to 120˚C
Voltage on Input Pins in respect to Ground -0.3V to 5.5V
Maximum Operating Voltage 5.5V
9.2 Power Supply
Table 14: Electrical Characteristics Power Supply
Signal Parameter Min Typ Max Unit
Input Voltage 2.7 5.5 V
Vin (P104) Current
Consumption at
5VDC mA
VUSB (P101) Input Voltage 4.3 5.5 V
Note: The power consumption depends on the operation mode and the supply voltage. For more details
reference 0
Power Considerations.
9.3 Host Interfaces
9.3.1 USB Interface (P101)
Table 15: Electrical Characteristics USB Interface
Signal Parameter Min Typ Max Unit
Input High-level Voltage 4.2 5.5 V
VUSB Input Low-level Voltage -0.3 0.8 V
Input High-level Voltage 2 5.5 V
Input Low-level Voltage -0.3 0.8 V
Output High-level Voltage 2.9 3.3 V
DP, DM
Output Low-level Voltage 0.2 V
March 2011 Page 25 of 28
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
9.3.2 UART Interface (P104)
Table 16: P104 - Electrical Characteristics UART Interface
Signal Parameter Min Typ Max Unit
Input High-level Voltage 2 5.5 V
Input Low-level Voltage -0.3 0.8 V
RX, CTS Input Leakage Current
Typ: Ta=25˚C
Max: Ta=85˚C
40 400 nA
Output High-level Voltage 2.9 3.3 V
TX, RTS Output Low-level Voltage 0.2 V
Input Low-level Voltage -0.15 0.15*CVCC V
Input High-level Voltage 0.7CVCC CVCC+0.5 V
Input Low-level Current 600 uA
nRST
Input Low-level Current -40 40 uA
9.4 Contact Interfaces (P102, P103)
Table 17: P102 - Contact Interface 1 Class A, 5V
Signal Parameter Min Typ Max Unit
Contact Card Voltage
Load = 60mA 4.6 5 5.4 V
CVCC (P102)
Maximum Load Current 75 mA
Table 18: P102 - Contact Interface 1 Class B, 3V
Signal Parameter Min Typ Max Unit
Contact Card Voltage
Load = 60mA 2.76 3 3.24 V
CVCC (P102)
Maximum Load Current 60 mA
Table 19: P102 - Contact Interface 1 Class B, 1.8V
Signal Parameter Min Typ Max Unit
Contact Card Voltage
Load = 35mA 1.656 1.8 1.944 V
CVCC (P102)
Maximum Load Current 75 mA
Table 20: P103- Contact Interface 2 Class A, 5V
Signal Parameter Min Typ Max Unit
Contact Card Voltage
Load = 30mA 4.6 5 5.4 V
CVCC (P103)
Maximum Load Current 70 mA
Table 21: P103 - Contact Interface 2 Class B, 3V
Signal Parameter Min Typ Max Unit
Contact Card Voltage
Load = 30mA 2.76 3 3.24 V
CVCC (P103)
Maximum Load Current 70 mA
Page 26 of 28 March 2011
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
Table 22: P103 - Contact Interface 2 Class C, 1.8V
Signal Parameter Min Typ Max Unit
Contact Card Voltage
Load = 30mA 1.656 1.8 1.944 V
CVCC (P103)
Maximum Load Current 70 mA
Table 23: Contact Interface 1, 2 Clock
Signal Parameter Min Typ Max Unit
Output Low-level Voltage 0.3 V
Output High-level Voltage 0.8*CVCC V
Rise Time
Cl=30pF 16 ns
CCLK1 (P102,
P103)
Fall Time
Cl=30pF 16 Ns
Table 24: Contact Interface I/Os
Signal Parameter Min Typ Max Unit
Output Low-level Voltage 0.3 V
Output High-level Voltage 0.8*CVCC V
Input Low-level Voltage -0.15 0.15*CVCC V
Input High-level Voltage 0.7CVCC CVCC+0.5 V
Input Low-level Current 600 uA
Input Low-level Current -40 40 uA
Rise Time
Cl=30pF 100 ns
CIO (P102,
P103)
CRST (P102,
P103)
Fall Time
Cl=30pF 100 Ns
9.5 Electrical I/O (P105)
Table 25: P105 - Electrical Characteristics I/Os
Signal Parameter Min Typ Max Unit
Output High-level Voltage 2.9 3.3 V
Output Low-level Voltage 0.2 V
LED1-4
Current Draw 8 mA
Buzzer Current Draw
(Open Collector) 60 mA
March 2011 Page 27 of 28
© 2011 HID Global Corporation. All rights reserved.
Page 28 of 28 March 2011
© 2011 HID Global Corporation. All rights reserved.
veriCLASS Hardware Specification VP3500 Reader Board, 3500-906
10 VP3500 Mechanical Characteristics
10.1 Mechanical Drawings
Figure 9: Mechanical Drawing (Dimensions = mm)
Weight: 38Gramm
