![](asset-1.png)
HID Global
Product Catalog
An ASSA ABLOY Group brand
ACCESS SECURE IDENTITY
![](asset-2.png)
THANK YOU
for your continued
support of HID Global access control
products. This catalog contains a wealth of
product information as well as additional
content we are sure you will find useful in your
decision making and purchasing process.
![](asset-3.png)
HID Global Product Catalog
1
HID Global has historically been associated with affordability, quality
and availability. This catalog shows our renewed vision to be the
easiest company to do business with.
Catalog highlights include color-coded product categories to help
ensure compatibility of credentials to readers. The color schemes
carry over to product artwork, product data sheets, the HID Global
website and even product packaging. A helpful “tips” section was
added to answer Frequently Asked Questions (FAQs) and reduce
order confusion.
We are pleased to have this shared business opportunity with you
and we look forward to working together to ensure the success of
your business.
![](asset-4.png)
HID Global Product Catalog 2
Corporate Overview
HID Global is focused on creating
customer value as the trusted source
for products, services and know-how
related to the delivery of secure identity.
HID Global is the trusted leader in providing access and ID management
solutions for the delivery of secure identity. HID Global is focused on
creating customer value worldwide with technology-based access solutions,
issuance solutions, embedded technology solutions and logistics technology
solutions. Headquartered in Irvine, California, HID Global has over 2,000
employees worldwide and operates international offices that support more
than 100 countries. HID Global is an ASSA ABLOY Group brand.
As a leading manufacturer of secure identity solutions and contactless smart
card technology for physical access control, HID Global is selected more
than any other brand in the convergence of physical and logical access
control. A highly recognized brand, HID Global credentials are requested in
more applications for customers worldwide.
In addition, the company develops, manufactures and markets ID
components, products and services typically deployed with national ID and
epassport programs, corporate access control, supply chain management,
animal tagging, financial transactions, transport and various industrial or
manufacturing solutions.
![](asset-5.png)
HID Global Product Catalog
3
Technology
The award-winning product line from HID Global includes iCLASS®
13.56 MHz contactless smart cards and readers, Proximity 125 kHz
proximity, multiCLASS™ multi-technology card readers, High Definition
Printer/Encoders, SecureMark RFID-based card issuance technology,
and Networked Access Solutions that include Edge Solo and EdgeReader

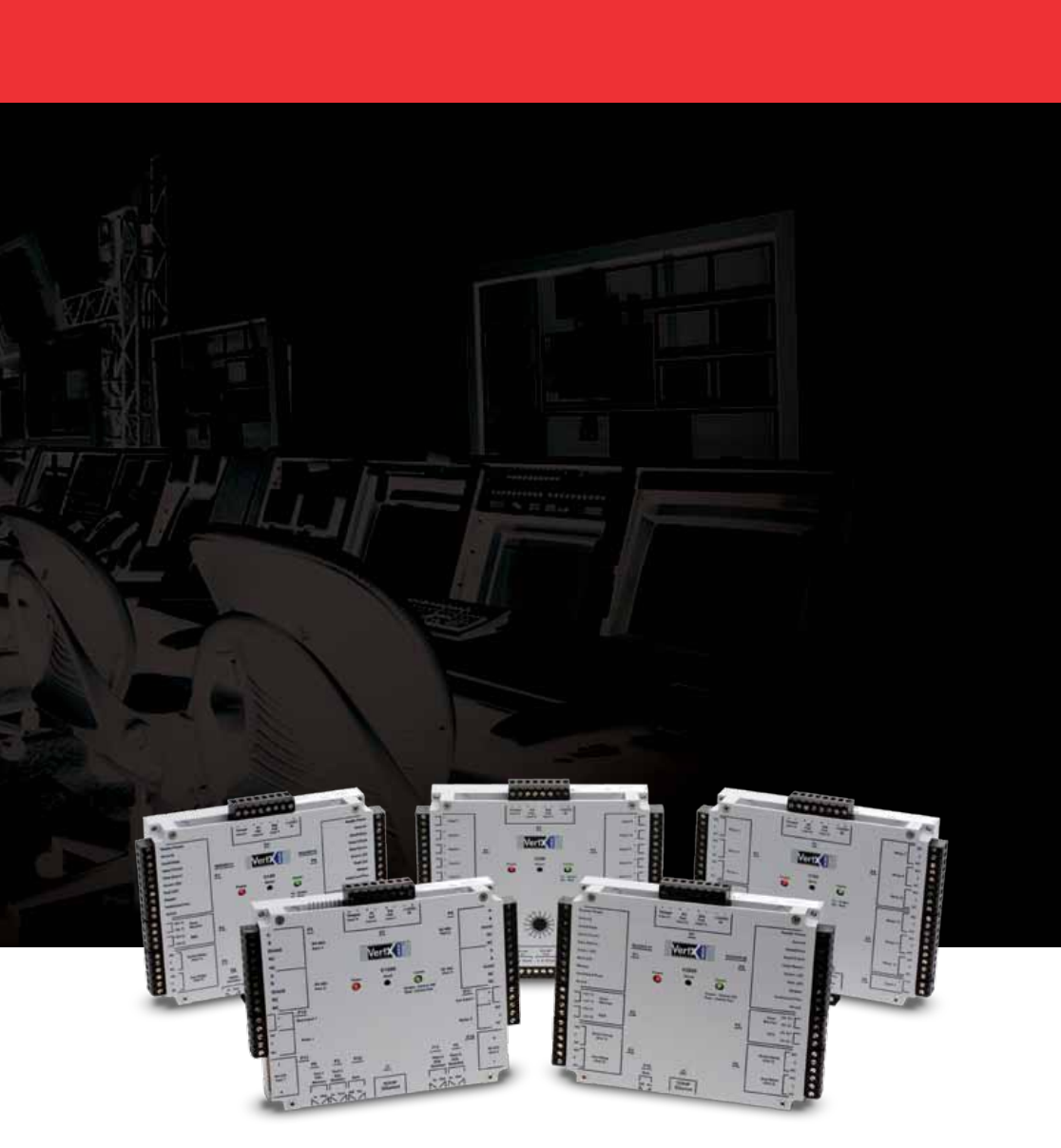

products, and VertX™ managed access controllers.
HID Global is a manufacturer of complete electronic access control
products. The company’s product offerings can provide a broad scope of
security solutions allowing an organization to seamlessly transition from
simple low frequency card and reader proximity installations to highly
integrated contactless smart card solutions.
HID Global expands the flexibility of its products by adding multiple-
technology capabilities to its entire product line. Users of HID Global
products can select the specific technology combination that best suits the
needs of different applications, or they can add yet another level of security
by using multiple technologies at each door.
This provides users the ability to seamlessly upgrade to new technologies
and add new applications. For increased security, users can incorporate a
photo ID or anti-counterfeiting element such as a hologram or ultraviolet
ink on to their credentials.
w Lifetime Warranties
w Dedicated Customer Support
w Online Training
![](asset-6.png)
HID Global Product Catalog 4
HID Global Locations
HID’s corporate offices are located in
Irvine, California. Operations serving the
Americas are also based in Irvine, with
regional headquarters in Haverhill, England
(Europe) and Hong Kong (Asia Pacific).
The company also maintains regional offices
throughout the world for localized assistance.
REGIONAL OFFICES
Americas
6533 Flying Cloud Drive
Eden Prairie, MN 55344
Tel: 1 800 459 5636
Fax: +1 952 941 7836
Argentina
Ferrari 372
C1414EGD
Buenos Aires, Argentina
Tel: (54 11) 4855-5984
Fax: (54 11) 4857-3573
Australia
Level 31, ABN AMRO Tower
88 Phillip Street
Sydney NSW 2000
Tel: +61 2 8211 0587
Fax: +61 2 8211 0555
Brazil
Av Guido Caloi 1985 Prédio 18
São Paulo - SP
CEP : 05802-140
Brazil
Tel: 55 (11) 5514-7100
Fax: 55 (11) 5514-7109
Canada
268 Lakeshore Road East, Suite 620
Oakville, Ontario
Canada L6J 7S4
Tel: 905 842 4860
Fax: 905 842 4846
CORPORATE OFFICES
North America
15370 Barranca Parkway
Irvine, CA 92618
Tel: 1 800 237 7769
Tel: +1 949 732 2000
Fax: +1 949 732 2360
REGIONAL HEADQUARTERS
Asia Pacific
19/F 625 King’s Road
North Point, Island East
Hong Kong
Tel: 852 3160 9800
Fax: 852 3160 4809
Europe, Middle East & Africa
Haverhill Business Park
Phoenix Road
Haverhill, Suffolk
CB9 7AE England
Tel: +44 (0) 1440 714 850
Fax: +44 (0) 1440 714 840
Am Klingenweg 6a
65396 Walluf
Germany
Tel: +49 6123 791 0
Fax: +49 6123 791 199
Latin America
Circunvalacion Ote.
No. 201B Despacho 3
Col. Jardines del Moral
Leon 37160, Mexico
Tel: +52 477 779 1492
Fax: +52 477 779 1493
![](asset-7.png)
HID Global Product Catalog
5
China
Unit 1503,15/F, East Tower,
Chuangxin Science & Technology Plaza Phase Two
Tian An Cyber Park, FuTian District
Shenzhen City, PRC
Postal Code:518040
Tel: (86)755 8835 3190
Fax: (86)755 8835 3185
France
15 rue des Francs Bourgeois
F 67000 Strasbourg France
Tel: +33 (0) 3 90 22 10 66
Fax: +33 (0) 3 88 36 64 45
India
Ground Floor, Tower D Annex,
Millennia Towers
1&2 Murphy Road
Ulsoor, Bangalore
India - 560008
Tel: +91 80 255 43566
Fax: +91 80 255 43567
Japan
Rm 1107, Herios Kannai, 3-21-2,
Motohama-Cho, Naka-Ku,
Yokohama-City, Kanagawa-Pref,
Japan - 231-0004
Tel: (81) 45 222 3438
Fax: (81) 45 222 3439
Korea
21/F Seoul Finance Center
Taepyeogno I-ga, Jung-gu
Seoul 100-768, South Korea
Tel: +82 2 3782 4518
Fax: +82 2 3782 4555
Netherlands
Prins Bernardlaan 16A
2405 VT Alphen a/d Rijn
Netherlands
Tel: +31 (0)172 234797
Fax: +31 (0)172 234877
Singapore
3 Lim Teck Kim Road, #11-02
Singapore Technologies Building
Singapore 088934
Tel: +65 6306 7666
Fax: +65 6305 7677
Thailand
All Seasons Place
87 Wireless Road
23/F, M Thai Tower
Lumpini, Phatumwan
Bangkok 10330 Thailand
Tel: 66 (0) 2 627 9394
Fax: 66 (0) 2 622 3363
![](asset-8.png)
HID Global Product Catalog 6
HID Online Training
HID Global is pleased to announce the following online
training courses.
125 kHz Proximity Technology Basics - To properly order and
implement 125 kHz Proximity products, you first need a working
knowledge of the technology that runs these systems. This course
provides a thorough overview of the technology that runs the
125 Proximity kHz credentials and readers.
Card Data Format Selection - Credentials require a proper
understanding of card data formats and how they affect the
programming performed by HID. This course provides a fundamental
review of card data formats and how they are used by access control
panels.
Contrasting the 125 kHz Proximity vs. iCLASS® - Since 1992, the
125 kHz Proximity line of cards and readers has been the standard
for access control solutions and continues to lead the industry. HID’s
iCLASS 13.56 MHz read/write contactless smart card technology
has been optimized to make physical access control more powerful,
providing versatile interoperability and multiple application support.
How to Order Guide: 125 kHz Proximity - You’re ready to order a
new batch of HID 125 kHz Proximity cards and readers. Now it’s time
to fill out your order.
How to Order Guide: iCLASS - You’re ready to order a new batch of
HID iCLASS cards and readers. Now it’s time to fill out your order.
iCLASS Technology Basics - To properly order and implement iCLASS
products, you must first have a working knowledge of the technology
that runs these systems. This course provides a thorough overview of
the technology that runs the iCLASS credentials and readers.
To register, please use on the following link:
www.hidtraining.com
![](asset-9.png)
HID Global Product Catalog
7

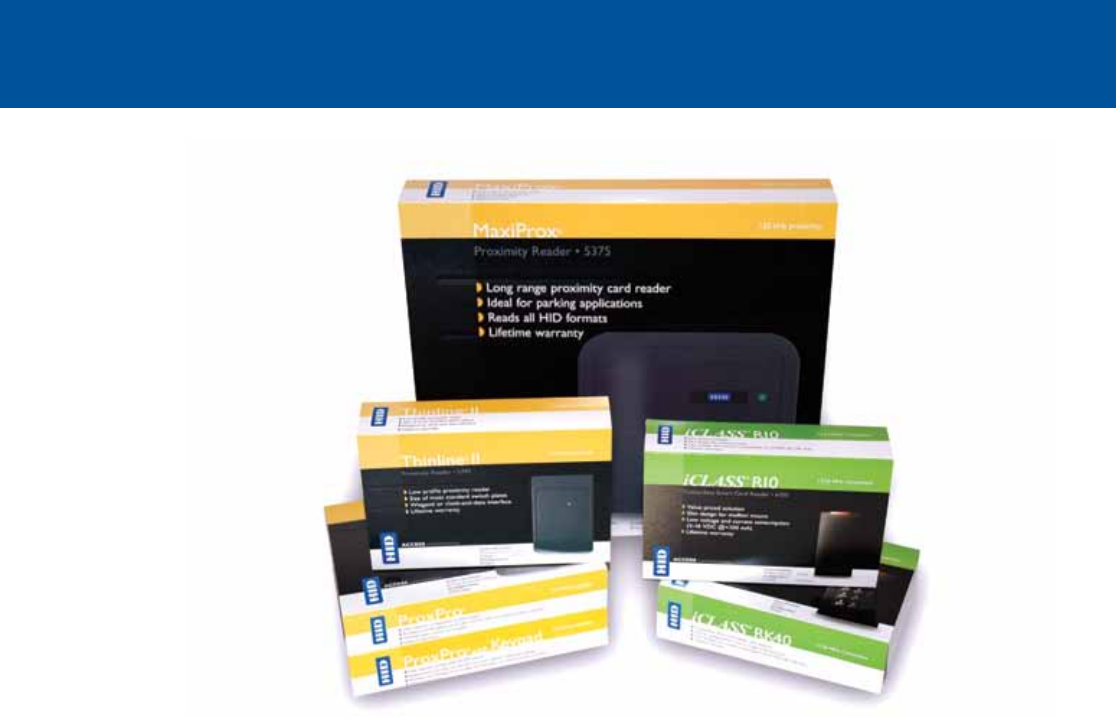

Have you seen HID’s reader packaging?
If not, you will soon.
HID Global’s ADI dedicated sales team has traveled the country adding
packaging to readers in your inventory. HID created the packaging with
you and your customers in mind. We hope it will help improve the sales
order process and answer questions that the “old brown box” never
could.
How does the new packaging help?
The new packaging comes with three basic elements.
1. Photo of the reader
2. Key reader features like color, configuration, and mounting style
3. Specification comparison chart of the reader family
You will also notice that the new box packaging colors correspond with
the pages of this catalog.
With product detail and information on the box, your customers are
sure to pick the right reader for the job. Happy Selling!
Product Packaging
![](asset-a.png)
HID Global Product Catalog 8

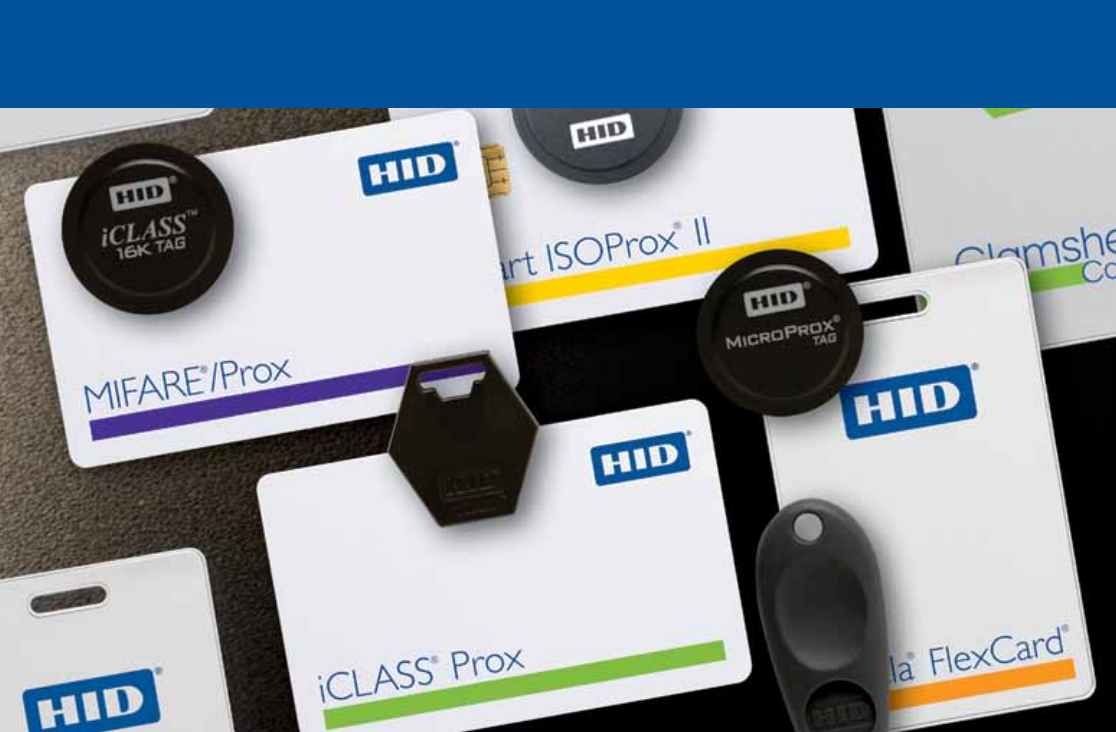

Priority Plus Credential Service
HID is pleased to announce its Priority Plus™ Card Service.
HID Global now offers 48-hour order shipments of standard Prox and
iCLASS technology credentials in quantities between 100 and 1,000
cards. The new Priority Plus Card Service is available for all orders
for customers in North America. Each order will be shipped within
48 hours after receipt of a purchase order, complete card ordering
information and HID Global order acknowledgement*.
w Priority Plus Card Service is free of charge.
w Qualifying orders are automatically included in the service.
w HID’s 24-hour order cancellation/change policy does not apply to
Priority Plus Card Service orders.
HID Priority Plus Card Service standard features include programming
and inkjet card numbering.
For a complete list of cards available in the Priority Plus Card Service,
please use the following link:
www.hidglobal.com/priorityplus
* Please note that an order may take up to 48 hours to enter and
acknowledge.
If you have any questions or need further product-related assistance,
please contact us at 800-872-5359 and we will be happy to assist you.
![](asset-b.png)
HID Global Product Catalog
9
Ordering HID Cards
When ordering HID cards, there are four pieces of information HID
needs to process the order. They are:
1) part number, 2) format, 3) facility code, and 4) number range.
With each card order, HID takes unprogrammed cards and programs
them with a specific HID format that includes a facility code and card
number.
Even if your customer does not need a specific format, facility code or number range,
your order to HID must include this information. Situations where your customer
requests a Corporate 1000 format or an HID proprietary format are exceptions.
Part Number
HID card part numbers are derived from the How To Order Guide for each HID card
base model number. Typical base model numbers are 1326 (ProxCard II clamshell
card) and 1386 (ISOProx II printable card). The digits following the base model number
represent programming (whether the card is to be programmed by HID – most are),
front packaging (what appears on the front of the card), back packaging (what appears
on the back of the card), card numbering and slot punch.
Format
The format is the structure of the data stored in an access control card. Formats
represent a specific number of bits and a specific way those bits are programmed on the
card. The most common HID format is H10301. This is HID’s standard 26-bit format.
Technically, there can be many 26-bit formats because 26 bits can be programmed on
a card in many different ways. Therefore, format numbers are assigned to each HID
format. HID has Corporate 1000 formats for large end-users, HID proprietary formats
for dealers/integrators and end-users and a substantial number of formats for access
control system OEMs.
Facility Code
The term “facility code”, sometimes called “site code”, can be misleading in today’s
access control world. It does not need to refer to a specific facility or site, but it can
if that is how the end user wants to use it. There are two pieces of access control
information on a card. They are the facility code and card number. The facility code is
simply a second identifying number on the card, and each card order must include a
facility code. The facility code is used to provide a second level of security within the
card database. Card number 10,000 with facility code 34 is a different card than card
number 10,000 with facility code 96. The facility code increases the number of card
combinations within an access control system, reducing the possibility of duplicate cards.
Many access control systems allow multiple facility codes within the same cardholder
database.
Number Range
Each HID card has an individual card number. This is the number used by the access
control system database to identify a person. The number range is the set of individual
card numbers needed on the order.
![](asset-c.png)
HID Global Product Catalog 10
1
2
5
k
H
z
M
u
l
t
i
-
T
e
c
h
1
3
.
5
6
M
H
z
M
u
l
t
i
-
T
e
c
h
1
2
5
k
H
z
C
o
n
t
a
c
t
C
h
i
p
C
o
n
t
a
c
t
C
h
i
p
B
a
s
e
C
a
r
d
B
a
s
e
C
a
r
d
W
i
e
g
a
n
d
M
a
g
s
t
r
i
p
e
W
i
e
g
a
n
d
M
a
g
s
t
r
i
p
e
®
M
a
g
s
t
r
i
p
e
W
i
e
g
a
n
d
M
a
g
s
t
r
i
p
e
W
i
e
g
a
n
d
C
o
n
t
a
c
t
C
h
i
p
C
o
n
t
a
c
t
C
h
i
p
B
a
s
e
C
a
r
d
B
a
s
e
C
a
r
d
M
u
l
t
i
-
T
e
c
h
1
3
.
5
6
M
H
z
M
u
l
t
i
-
T
e
c
h
HID & Indala Prox
Works with existing HID
and Indala proximity
readers. Add new
applications to your
proximity card with
a contact smart chip
module.
iCLASS & MIFARE/DESFire
Features 13.56 MHz read/write
contactless smart card technology in
various combinations with magnetic
stripe and contact smart chip module.
Multi-Technology Card
Seamlessly upgrade from existing
magnetic stripe, proximity and/or
Wiegand readers and cards to a
contactless smart card system.
Implement multiple applications
requiring diverse technologies
with a single credential.
Technology Card Guide
HID Global Product Catalog 10
![](asset-d.png)
HID Global Product Catalog
11
1
2
5
k
H
z
M
u
l
t
i
-
T
e
c
h
1
3
.
5
6
M
H
z
M
u
l
t
i
-
T
e
c
h
1
2
5
k
H
z
C
o
n
t
a
c
t
C
h
i
p
C
o
n
t
a
c
t
C
h
i
p
B
a
s
e
C
a
r
d
B
a
s
e
C
a
r
d
W
i
e
g
a
n
d
M
a
g
s
t
r
i
p
e
W
i
e
g
a
n
d
M
a
g
s
t
r
i
p
e
®
M
a
g
s
t
r
i
p
e
W
i
e
g
a
n
d
M
a
g
s
t
r
i
p
e
W
i
e
g
a
n
d
C
o
n
t
a
c
t
C
h
i
p
C
o
n
t
a
c
t
C
h
i
p
B
a
s
e
C
a
r
d
B
a
s
e
C
a
r
d
M
u
l
t
i
-
T
e
c
h
1
3
.
5
6
M
H
z
M
u
l
t
i
-
T
e
c
h
Base Technology
Technology
Options
13.56 MHz
13.56 MHz
iCLASS
MIFARE/
DESFIre
125 kHz
HID
Prox
Indala
Prox 125 kHz
Magnetic
Stripe
Contact
Chip
Wiegand
HID Global Product Catalog
11
![](asset-e.png)
HID Global Product Catalog 12
Additional Services
Go to the HID Global website (www.hidglobal.com) for HID news,
updates and details about products and services. Save HID’s
homepage as a “Favorite” or create a folder of “Favorites” that
includes some or all of the links below.
Product specifications, datasheets, ordering
instructions, installation instructions and technical
bulletins for Proximity and iCLASS Readers and
Credentials:
www.hidglobal.com/products
Document Library offers a wide range of
marketing literature for all product lines and
technologies: www.hidglobal.com/documents/
Details regarding ways to use iCLASS contactless
smart cards with HID’s Application Partners:
www.hidglobal.com/partners
Product Selector Tool:
www.hidglobal.com/selector/
Basic Card Format Information:
www.hidglobal.com/cardformat
Detailed description of the Corporate 1000 Program:
www.hidglobal.com/corp1000
Online Order Status:
www.hidglobal.com/order
Check out HID’s e-Learning website:
www.hidtraining.com
This is just some of the information that can be found at the HID website. Feel free to
explore the site to find out how much information is available at your fingertips.
![](asset-f.png)
HID Global Product Catalog
13
How to Order Guide
To make it easier for our customers to order cards and readers,
HID has updated the How to Order Guides (HTOG) for proximity,
magnetic stripe, and iCLASS® products. The pages of the HTOG
provide a new format that should make it much easier for you to place
orders correctly. These documents can be found here:
How to Order Guide Link:
www.hidglobal.com/htog
Just choose the HTOG you need from the menu. Please be sure to take
a look at this handy new tool!
HID has also implemented a change to the external number location on
our “thin” card offerings. The external number was previously located
on the rear of the card in the upper left-hand corner. This number
has been moved to the lower right-hand corner on the rear of the
card. If your card has a magnetic stripe, the external number is below
the magnetic stripe. In addition, due to the incorporation of an order
identification number, the string of printed external numbers is longer.
Customers will receive the following benefits from these changes:
w The relocation of the card number will provide more “clear area” that
can be used for the printing of a return address or other information
on the rear of the card.
w The order identification number will help us to trace particular card
orders. This will be useful when customers require information about:
1) the format of the card, 2) the type of card numbering (matching,
non-matching, etc.), or 3) the card numbers previously ordered.
![](asset-10.png)
Access Solutions
Logical Access Solutions
Networked Access Solutions
Convergence Solutions
Issuance Solutions
Asure ID® Photo ID Software
Fargo® Card Printers
Embedded
Technology Solutions
HID Partner Solutions
Food and Animal
Government
Logistics
Technology Solutions
Contactless Payment and
Public Transport Solutions
hidglobal.com
For years, you’ve counted on HID to provide innovative
technology and dedicated support. Now, we’ve expanded
our offering to include everything from the design and
production of credentials to IP-based access control to
embedded technologies. We believe the future of security
lies in our open platforms, simple connectivity and rock-
solid reliability. So no matter what secure identity solutions
you need, look to HID. We’re giving you the green light.
The green light always
meant access.
Now it means
access to even more.
HID Global, the worldwide leader in access control,
now offers a full range of solutions for secure identity.
![](asset-11.png)
125 kHz Proximity
Recognized as the industry standard for physical access
control, HID proximity cards and readers provide a
solution for security managers, dealers, integrators and
OEMs. Featuring 125 kHz RF-enabled technology, HID
prox products are robust, aordable and seamlessly
integrate with access control systems. HID Indala 125
kHz Proximity Readers featuring FlexSecur® technology,
provide an added level of access control system security
by screening out unauthorized cards prior to sending
card data to the host system.
![](asset-12.png)
125 kHz Proximity
HID Proximity
Corporate 1000 Program
Indala® Proximity
pages 15-32
pages 33-42
![](asset-13.png)
15 HID Global Product Catalog
For security managers, dealers, integrators and OEMs, HID
proximity cards and readers are recognized as the industry
standard for physical access control. Featuring 125 kHz RFID
technology, HID proximity products are robust, aordable,
and seamlessly integrate with access control systems.
125 kHz Proximity Cards and Readers
HID Proximity
![](asset-14.png)
16
HID Global Product Catalog
ProxPoint® Plus
125 kHz value priced proximity card reader
Base Part Number • 6005, 6008
• SmallsizedreaderfeaturesabeeperandmulticolorLEDwhichcanbe
host and/or locally controlled
• Canmountdirectlyonmetalwithnochangeinreadrangeperformance
• Powerrequirements:5-16VDC
• Dimensions:3.14˝x1.70˝x0.66˝(7.96cmx4.3cmx1.68cm)
• ReadRange:upto3.0˝(7.5cm)*
MiniProx®
125 kHz mullion mount proximity card reader
Base Part Number • 5365, 5368
• Powerrequirements:5-16VDC
• Dimensions:6.0˝x1.7˝x1.0˝(15.2cmx4.3cmx1.91cm)
• ReadRange:upto5.5˝(14.0cm)*
Thinline® II
125 kHz low profile proximity card reader
Base Part Numbers • 5395, 5398
• ThesizeofmoststandardU.S.switchplates
• AvailablewithWiegandorClock-and-Datainterface
• Powerrequirements:5-16VDC
• Dimensions:4.7˝x3.0˝x0.68˝(11.9cmx7.6cmx1.7cm)
• ReadRange:upto5.5˝(14.0cm)*
HID Proximity Readers
(Gray,Black,Beige,White)
(Gray,Black,Beige,White)
(Gray,Black,Beige,White)
* Dependent upon installation conditions and credential type
Did you know?
HID has a multilingual installation
manualforProxPointPlus,ThinLineII,
MiniProx,ProxProIIandProx80with
instructions in English, French, German,
Spanish,Portuguese,Japanese,Chinese,
KoreanandRussian.Themanualcanbe
downloaded from www.hidglobal.com.
![](asset-15.png)
17 HID Global Product Catalog
ProxPro® II
125 kHz new generation proximity card reader
Base Part Numbers • 5455, 5458
• VersatileProximityCardReader
• Optionalglassmountkitavailableformountingthe
reader behind glass
• Powerrequirements:5-16VDC
• Dimensions:5.0˝x5.0˝x1.0˝(12.7cmx12.7cmx2.54cm)
• ReadRange:upto8.0˝(20.5cm)*
MaxiProx®
125 kHz long range proximity card reader
Base Part Number • 5375
• Auto-tuneallowsreadrangetobemaintainedwithin
four inches of metal
• RS-232,RS-422,andRS-485outputmodesare
configurable
• “Parkinghold”featureensuresaccuratedetectionof
vehiclesinparkinglanes
• ReadsallHIDFormats
• Powerrequirements:12or24VDC(congurable)
• Dimensions:12.0˝x12.0˝x1.0˝
(30.5cmx30.5cmx2.54cm)
• AvailableinWiegandorClock-and-DataInterface
• ReadRange:upto24.0˝(61.0cm)*
ProxPro® with keypad
125 kHz keypad proximity card reader with keypad
Base Part Numbers • 5355, 5352, 5358
• Idealformedium-rangeapplications
• AvailablewithWiegand,Serial(RS-232/RS-422)or
Clock-and-Datainterface
• Powerrequirements:10-28.5VDC
• Dimensions:5.0˝x5.0˝x1.0˝(12.7cmx12.7cmx2.54cm)
• ReadRange:upto8.0˝(20.5cm)*
ProxPro®
125 kHz versatile proximity card reader
Base Part Numbers • 5355, 5352, 5358
• Idealformedium-rangeapplications
• AvailablewithWiegand,Serial(RS-232/RS-422)or
Clock-and-Datainterface
• Powerrequirements:10-28.5VDC
• Dimensions:5.0˝x5.0˝x1.0˝(12.7cmx12.7cmx2.54cm)
• ReadRange:upto8.0˝(20.5cm)*
(Gray,Black,Beige,White)
(Black,Beige)
(Gray)
(Black,Beige)
Did you know?
HID’s ProxPass®IIactivevehicletagenablesconvenient,hands-
free parking control when used with the MaxiProx reader.
* Dependent upon installation conditions and credential type
![](asset-16.png)
18
HID Global Product Catalog
HID Proximity Readers
ProxPoint Plus®MiniProx®Thinline® II ProxPro®ProxPro® II ProxPro® with
Keypad EntryProx™MaxiProx®Prox80™
Base Model
Number 6005B/6008B 5365E/5368E 5395C/5398C 5355A/5352A/5358A 5455B/5458B 5355A/5352A/5358A 4045C 5375A 5405A/5408A
Dimensions
3.13˝x1.7˝x.66˝
(8.0cmx4.5cm
x1.5cm)
6.0˝x1.7˝x1.0˝
(15.0cmx4.5cm
x2.0cm)
4.7˝x3.0˝x.68˝
(12.0cmx7.5cm
x1.5cm)
5.0˝x5.0˝x1.0˝
(12.5cmx12.5cmx
2.5cm)
5.0˝x5.0˝x1.0˝
(12.5cmx12.5cmx2.5cm)
5.25˝x2.75˝x1.37˝
(13.5cmx7.0cm
x3.5cm)
12.0˝x12.0˝x1.0˝
(30.5cmx30.5cm
x2.5cm)
3.15˝x3.15˝x0.8˝
(8.0cmx8.0cm
x2.0cm)
Weight 3.6oz(102g) 7.89oz(224g) 7.33oz(208g) 9.62oz(273g) 13.65oz(387g) 9.62oz(273g) 11.76oz(333g) 50.8oz(1440g) 2.2oz(63g)
Read Range Upto3.0˝(7.5cm) Upto5.5˝(14.0cm) Upto8.0˝(20.5cm) Upto8.0˝(20.5cm) Upto3.0˝(7.5cm) Upto24.0˝(61.0cm) Upto5.5˝(14.0cm)
Mounting Mullion Single-gang
electrical box
Single-gangelectrical
box;
Glass Mount Kit
Available
Single-gangelectricalbox;
GlassMountKitAvailable
USorEUsinglegang
box, wall surface, or
on glass with included
adhesivepads
Mountonnon-
metallic surfaces for
optimal read range
performance.
EU/Asian
single-gangbox
Power Supply 5-16VDC 10-28.5VDC 5-16VDC 10-28.5VDC 10-15VDC 12VDCor24VDC 5-16VDC
Current
Requirements 35mA 155mA 40mA 155mA 150mA
200/700mA
@12VDC
260mA/1.2A
@24VDC
35mA
Termination Pigtail Pigtail or
TerminalStrip Pigtail Pigtail TerminalStrip Pigtail
Output Formats Wiegandor
Clock-and-Data
Wiegand,
Clock-and-Data,
RS-232orRS-422
Wiegandor
Clock-and-Data
Wiegand,
Clock-and-Data,
RS-232orRS-422
Wiegand
Wiegand,Clock-and-
Data,RS-232,RS-422
andRS-485
Wiegandor
Clock-and-Data
Tamper No Switch No Switch Switch No
Indoor/Outdoor Both Both
Warranty Lifetime Lifetime
![](asset-17.png)
19 HID Global Product Catalog
Comparison Chart
ProxPoint Plus®MiniProx®Thinline® II ProxPro®ProxPro® II ProxPro® with
Keypad EntryProx™MaxiProx®Prox80™
Base Model
Number 6005B/6008B 5365E/5368E 5395C/5398C 5355A/5352A/5358A 5455B/5458B 5355A/5352A/5358A 4045C 5375A 5405A/5408A
Dimensions
3.13˝x1.7˝x.66˝
(8.0cmx4.5cm
x1.5cm)
6.0˝x1.7˝x1.0˝
(15.0cmx4.5cm
x2.0cm)
4.7˝x3.0˝x.68˝
(12.0cmx7.5cm
x1.5cm)
5.0˝x5.0˝x1.0˝
(12.5cmx12.5cmx
2.5cm)
5.0˝x5.0˝x1.0˝
(12.5cmx12.5cmx2.5cm)
5.25˝x2.75˝x1.37˝
(13.5cmx7.0cm
x3.5cm)
12.0˝x12.0˝x1.0˝
(30.5cmx30.5cm
x2.5cm)
3.15˝x3.15˝x0.8˝
(8.0cmx8.0cm
x2.0cm)
Weight 3.6oz(102g) 7.89oz(224g) 7.33oz(208g) 9.62oz(273g) 13.65oz(387g) 9.62oz(273g) 11.76oz(333g) 50.8oz(1440g) 2.2oz(63g)
Read Range Upto3.0˝(7.5cm) Upto5.5˝(14.0cm) Upto8.0˝(20.5cm) Upto8.0˝(20.5cm) Upto3.0˝(7.5cm) Upto24.0˝(61.0cm) Upto5.5˝(14.0cm)
Mounting Mullion Single-gang
electrical box
Single-gangelectrical
box;
Glass Mount Kit
Available
Single-gangelectricalbox;
GlassMountKitAvailable
USorEUsinglegang
box, wall surface, or
on glass with included
adhesivepads
Mountonnon-
metallic surfaces for
optimal read range
performance.
EU/Asian
single-gangbox
Power Supply 5-16VDC 10-28.5VDC 5-16VDC 10-28.5VDC 10-15VDC 12VDCor24VDC 5-16VDC
Current
Requirements 35mA 155mA 40mA 155mA 150mA
200/700mA
@12VDC
260mA/1.2A
@24VDC
35mA
Termination Pigtail Pigtail or
TerminalStrip Pigtail Pigtail TerminalStrip Pigtail
Output Formats Wiegandor
Clock-and-Data
Wiegand,
Clock-and-Data,
RS-232orRS-422
Wiegandor
Clock-and-Data
Wiegand,
Clock-and-Data,
RS-232orRS-422
Wiegand
Wiegand,Clock-and-
Data,RS-232,RS-422
andRS-485
Wiegandor
Clock-and-Data
Tamper No Switch No Switch Switch No
Indoor/Outdoor Both Both
Warranty Lifetime Lifetime
![](asset-18.png)
20
HID Global Product Catalog
Whatformatdoyouneed?
Thisisthequestionnoonewantstoaskorhear,butitsansweriscriticaltoprogram
and order any credential.
Whatisaformat?
Aformatisthestructureofthedatastoredinanaccesscontrolcredential.Basically
itiscomprisedofasetofbinarydigits–“bits”–puttogetheracertainwaytocreate
abinarynumber,whichisconvertedintoacredentialnumberbyanaccesscontrol
system.Thenumberofonesandzeros,andhowtheyareputtogether,determinesthe
format and ultimately the credential number.
Forexample: A26-bitformat(H10301)iscreatedlikethis
1-11111111-0001011111101100-1 withthefirstsetofones(in red)representing
thesitecodeandthesecondsetofonesandzeros(in blue)representingthe
credentialnumber.Theaccesscontrolsystemseesthisformatascardnumber6124
withasitecode255.The26-bitformatisthemostcommonformatrequestedby
dealersandcanbeusedbymostaccesscontrolsystemsavailabletoday.However,
therearemanyformatsavailableandsomeformatsareuniquetoaccesscontrol
systemsanddonotworkwithotherformatsatthesametime.Thisiswhyitisso
important to know the format when ordering credentials.
Hereissomeadditionalinformationaboutthe26-bitformat(H10301)andother
formatsyoumayhavecomeacross:
HID26-BitFormat:H10301
General:The26-bitformat(FormatnumberH10301)istheindustrystandard
format,andisanopenformat.Thesaleof thisformatisnotlimitedtoanyone
company.Therangeof credential numbersavailableinthisformatislimited,and
therefore, the potential exists for credential numbers to be duplicated. It is important
to understand that HID does not insure that credential numbers will not be
duplicated. HID does not control or restrict the ordering of credentials programmed
withthestandard26-bitformat.Convenienceinorderingcredentialsanduniversal
accesscontrolpanelacceptancearetheprimarybenefitsofusingthestandard26-bit
card format.
Description:The26-bitformatconsistsof255possiblefacilitycodes.Withineach
facilitycode,thereare65,535uniquecardnumbers.
SalesPolicy: Thisformatcanbesoldtoanycustomer.
HIDProprietary37-BitFormat:H10302
General: Inanefforttoprovideanopenformattotheindustry,whilesimultaneously
assuringthatthenumbersareuniqueandwillnotbeduplicated,the37-bitformat
wasdeveloped.Underthisformat,HIDcontrolstheissuingofcredential numbers
and does not duplicate the numbers.
Description:The37-bitformatcanbeusedtoprogramawiderangeofunique
credentialnumbers.Althoughitisavailabletoallcustomers,notallaccesscontrol
systems can handle such a large data length format. In addition, many systems are
unabletohandleaformatthatdoesnothaveafacilitycode.
![](asset-19.png)
21 HID Global Product Catalog
SalesPolicy: Justlikethe26-bitformat,the37-bitformatcanbesoldtoanycustomer.
Althoughitisavailabletoallcustomers,HIDcontrolsthenumbersgeneratedfor
eachorder.Buyersmustconfirmthatthesystemthatthecredentials are to be used
oniscapableofusinga37-bitnumberwithnofacilitycode.
HIDProprietary37-BitFormatwithFacilityCode:H10304
General:The37-bitformatwithfacilitycodediffersfromthe37-bitformatonlyin
thatitalsocontainsafacilitycode.Justlikethe37-bitformatwithoutfacilitycode,
thisformatprovidesthecustomerwithanopenformatinwhichcredential numbers
will not be duplicated because HID tracks the credential manufacturing process to
preventduplication.
Description: This37-bitformathas65,535facilitycodesavailableandover500,000
cardnumberswithineachfacilitycode.Justlikethe37-bitformatwithoutfacility
code,manysystemsarenotcapableofhandlingaformataslargeas37bits.In
addition,manysystemsarenotcapableofhandlingafacilitycodeaslargeas65,535.
SalesPolicy:The37-bitformatwithfacilitycodeisidealfordealerswhowouldlike
tohavetheirownformat.Thisallowsthemtohavethesecurityofnocredential
duplication,withoutdependenceonasystemsupplierforaformat.Thisformatis
reservedforcustomerswitharequirementforalargepopulationof credentials.
Corporate1000Format(seetheCorporate1000pageformoredetails)
General: TheCorporate1000formatisa35-bitformatdesignedtoprovidelarge
end-userswiththeirownproprietaryformat.Thisassuresthemthattheircredentials
willnotbeduplicatedbecauseHIDreservesanexclusiveCorporate1000format
foreachenduser.Thisformatalsoprovidestheend-userthefreedomtoworkwith
anysystemandwithanydealeroftheirchoice.Someaccesssystemsarenotcapable
ofhandlinga35-bitformat,butasaservicetothecustomer,manyOEM’swillmake
enhancementstotheircontrolsystemstoallowtheuseofanHIDCorporate1000
format.Theend-userisofferedthesecurityandflexibilityof selectingandauthorizing
the security dealer of his/her choice and controlling the issuance of credentials for
the organization.
Description:TheCorporate1000formatisa35-bitformatwithauniqueCompany
IDCodeandmorethan1,000,000availablecredential numbers.
SalesPolicy:TheCorporate1000formatofferstheend-useralargequantityof
availablecredentialnumbersandistypicallyreservedforcustomerswiththeneedor
potentialtobadgealargenumberofcardholders.TheCorporate1000formatisalso
availabletolarge,geographicallydiverseorganizationswitharequirementtounify
thestructureoftheiraccesscontrolsystemaroundanexclusiveaccesscontrolcard
format under their control.
Wehopethesebriefexplanationshelpanswersomeofthequestionsyoumayhave
aboutformats.Ifyourequirefurtherinformation,pleasecontactusandwewillwork
to clarify your understanding.
![](asset-1a.png)
22
HID Global Product Catalog
ISOProx® II
125 kHz thin proximity card
Base Part Number • 1386
• Combinesproximitytechnologyandoersphoto
identification capability on a single card
• Graphicsqualitysurfaceforusewithdirectimageprinters
• Samesizeandthicknessasastandardcreditcard
• Verticalorhorizontalslotpunchcapability
DuoProx® II
125 kHz thin proximity card with magnetic stripe
Base Part Number • 1336
• Combinesproximitytechnologyandoersphoto
identification capability on a single card
• Graphicsqualitysurfaceforusewithdirectimage
printers
• Samesizeandthicknessasastandardcreditcard
• Verticalorhorizontalslotpunchcapability
• Magneticstripetechnology
• Thinenoughtobeusedwithstandardswipeorinsert
readers
Smart ISOProx® II
125 kHz ISO-thin proximity card, contact smart
chip embeddable (optional magnetic stripe) 1
Base Part Number • 1397
• Allowsacontactsmartchipmoduletobeembedded
formulti-technologyapplications
• Graphicsqualitysurfaceforusewithdirectimageprinters
• SmartDuoProxIIincludesmagneticstripe
• Samesizeandthicknessasastandardcreditcard
1ISO7816compliantforembeddingoptionalcontactsmartchipmodule.Some
customgraphicscanincreaseoverallcardthickness.
HID Proximity Credentials
ProxCard® II
Value priced 125 kHz proximity card
Base Part Number • 1326
• Pricecompetitivewithallothercardtechnologies
• Thinenoughtocarryinawalletorpurse
![](asset-1b.png)
Smart DuoProx® II
125 kHz ISO-thin proximity card with magnetic
stripe, contact smart chip embeddable *
Base Part Number • 1598
• Allows a contact smart chip module to be embedded for
multi-technology applications
• Graphics quality surface for use with direct image
printers
• Smart DuoProx II includes magnetic stripe
• Same size and thickness as a standard credit card
* ISO 7816 compliant for embedding optional contact smart chip module.
Some custom graphics can increase overall card thickness.
MicroProx® Tag
125 kHz proximity adhesive tag
Base Part Number • 1391
• The size of a coin, the Tag easily attaches to all nonmetallic materials
• The Tag can be programmed in any HID proximity format, and is
compatible with all HID proximity readers
• The Tag is RF-programmable for ease of encoding with HID’s
ProxProgrammer®
ProxPass® II
Long range 125 kHz proximity active vehicle tag *
Base Part Number • 1351
• Active tag for vehicle access control
• Provides up to eight-foot read range
• Solely compatible with the MaxiProx® reader and
all HID card formats
• One year warranty
• Replaceable battery
• Dimensions: 3.61˝ x 2.66˝ x 0.30˝ (91.6 x 67.5 x 7.6 mm)
* ProxPass II features a one-year warranty and has a 2-5 year battery life,
depending on usage.
ProxKey® III
Convenient 125 kHz proximity key fob
Base Part Number • 1346
• Small enough to fit on a key ring
• Universal compatibility with HID proximity readers
• Dimensions: 1.56” x 1.25” x 0.24” (3.95 x 3.18 x 0.60 cm)
• Weight: 0.14 oz (4.0g)
Did you know? You can add a MicroProx Tag
to a cellphone or PDA to create a secondary credential.
![](asset-1c.png)
24
HID Global Product Catalog
ProxCard® Plus
Wiegand and 125 kHz proximity card
Base Part Number • 169
•CombinesWiegandtechnology,proximitytechnologyand
photo identification capability on a single card
•Graphicsqualitysurfaceforusewithdirectimageprinters
ProxProgrammer®
Program proximity cards and tags ON DEMAND!
Base Part Number • 1050
•ProgramsallHIDproximitycardsandtagsexceptfor
ProxPassactivetags
•Customformatsavailable
•Securityfeaturesforcontrolledoperation
•Easeofprogramming
•Dimensions:5.0˝x5.0˝x4.3˝(12.7x12.7x10.9cm)
HID Proximity Credentials
Did you know that most proximity, magnetic stripe and
iCLASS credentials purchased from HID since Sept 1, 2003
have the sales order number printed on them?
Theexamplebelowexplainswheretolookandhowtoidentifythesalesordernumberon
most credentials ordered today.
Thebenefits:Theorderidentificationnumber“SalesOrderNumber”enablesustohelp
traceapastorderplacedwithHID.Thisnumberisusefulwhencustomersneedtoplacean
orderforaparticularcredentialwhichrequiresinformationtheymaynothaveimmediately
on-hand.AcalltotheHIDGlobalCustomerServiceat800-872-5359withthisSalesOrder
Numberallowsusquicklytoidentifythestyleofcredentialincludingnumbering(matching,
non-matching,etc.),format*,sitecodeandmostimportantly,thepreviouslyordered
credentialnumbers.Sojustrememberthislittlebitofinformationthenexttimeacustomer
comes in with a credential or calls you wanting to order something but does not know
exactlywhattheyneed.WiththissimpleprintedSalesOrderNumber,youmayhaveallthe
information you need.
COVER (FRONT) BASE (BACK)
YYYYYYYY-YY=Salesordernumber
12345=CardIDNumber
12345- YYYYYYYY-YY
*Proprietaryformatunavailable
![](asset-1d.png)
25 HID Global Product Catalog
MIFARE®/Prox Card
125 kHz thin proximity & 13.56 MHz MIFARE® card
(optional magnetic stripe)
Base Part Number • 1431
•CombineMIFARE1KandHIDproximitytechnologiestoadd
smartcardapplications,suchascashlessvending,corporate
andcampusapplications,eventticketing,customerloyaltyand
photo ID cards, to access control systems
•Provideshighsecuritywithmutualauthentication,data
encryptionandunique32-bitserialnumberandsupportsall
HIDproximitycardformats,includingCorporate1000
•PhotoIDcompatibilityallowsprintingdirectlytothecard
with a direct image or thermal transfer printer
•Cardscanbeproducedwithvisualsecurityandanti-
counterfeitingfeaturessuchasholograms,ultra-violet
uorescentinks,micro-printingoracustomlogo
•AlsoAvailableinCompositePolyester/PVCandMIFARE
4Kversions
iCLASS® Prox Card
13.56 MHz iCLASS contactless smart card and
125 kHz proximity thin card
Base Part Number • 202
•13.56MHziCLASSread/writetechnologyandHID125kHz
proximitytechnologyinasingleISOstandardthicknesscard
•Enablescontactlesssmartcardapplicationstobeaddedtoan
existing HID proximity technology access control system
•Oerstheabilitytoaddamagneticstripe,barcode,anti-
counterfeiting feature, custom artwork, or photo ID
•MeetsISOstandardsforthicknessforusewithdirectimageand
thermal transfer printers
iCLASS® Read/Write Contactless Smart Chip & Coil
Operating Frequency: 13.56MHzread/writetechnology
Memory Size: 2kbit(256Byte)withtwoapplicationareas,16kbit(2kByte)withtwoor16application
areas,or32kbit(4kBytes)withtwoor16applicationareasplusanadditional16kapplicationarea
Read Range:Upto4.5˝(11.4cm)dependingonlocalinstallationconditionsandcardreaderselection
RFInterface:AssuggestedbyISO/IEC15693
Format: Anyproximitybitformatupto84bits.Formoreinformation,useHID’siCLASSReference
Guideorvisitourwebsiteatwww.hidglobal.com/iclass.
Contact Smart Chip Module Guidelines
Forcustomerswhorequireacontactsmartchipmodule,HIDhasdevelopedpartnershipswith
theleadingprovidersof applicationsoftwareandcontactsmartchipmodules.Dependingonyour
specications,HIDcanembedcontactsmartchipmodulesfromanumberofindustryleaders.When
applicationsoftwareisneeded,turntoHID’spartners.TolearnmoreaboutHID’ssmartcardoerings
andpartners,visitourwebsiteatwww.hidglobal.com/smart.
MIFARE® Contactless Memory Chip and Coil
Operating Frequency: 13.56MHzread/writetechnology
Memory Size: 8kbit(1kByte)
Read Range: Upto1.5˝(3.8cm)dependingonlocalinstallationconditionsandcardreaderselection.
RF Interface: AssuggestedbyISO/IEC14443,TypeA
Fixed Serial Number:Unique32bit.
Formoreinformation,useHID’sMIFAREReferenceGuideorvisitourwebsiteatwww.hidglobal.com.
Multi-TechnologyTransitionCards
![](asset-1e.png)
26
HID Global Product Catalog
HID Proximity Credentials
ProxCard® II ISOProx® II DuoProx® II Smart
ISOProx II™
Smart
DuoProx® II iCLASS® Prox MIFARE®/Prox ProxCard®
Plus ProxKey® II MicroProx®
Tag ProxPass® II
Base Part Number 1326 1386/1586 1336/1536 1397/1597 1398/1598 202X/212X;
203X/213X 1431 169 1346 1391 1351
Read Range: *
ProxPoint® Plus Upto3.0˝(7.5cm) Upto2.5˝(6.5cm) Upto2.5˝(6.5cm) Upto1.0˝(2.5cm) Upto1.5˝(4.0cm) Upto2.0˝(5.0cm) N/A
MiniProx®Upto5.5˝(14.0cm) Upto5.0˝(12.5cm) Upto5.0˝(12.5cm) Upto2.0˝(5.0cm) Upto2.5˝(6.5cm) N/A
Thinline® II Upto5.5˝(14.0cm) Upto5.0˝(12.5cm) Upto5.0˝(12.5cm) Upto1.5˝(4.0cm) Upto2.0˝(5.0cm) Upto3.0˝(7.5cm) N/A
ProxPro®
Upto8.0˝(20.5cm) Upto7.0˝(18.0cm) Upto7.0˝(18.0cm) Upto3.0˝(7.5cm) Upto4.0˝
(10.0cm) N/A
ProxPro® II Upto9.0˝(23.0cm) Upto8.0˝(20.0cm) Upto8.0˝(20.0cm) Upto4.0˝(10.0cm) Upto4.5˝
(11.5cm) N/A
MaxiProx®
Upto29.0˝(74.0cm) Upto20.0˝(51.0cm) Upto20.0˝(51.0cm) Upto13.0˝
(33.0cm)
Upto17.0˝
(43.0cm)
Upto15.0˝
(38.0cm) Upto6.0´(1.8m)
EntryProx™Upto3.0˝(7.5cm) Upto2.5˝(6.5cm) Upto2.5˝(6.5cm) Upto1.0˝(2.5cm) Upto1.5˝(4.0cm) Upto2.0˝(5.0cm) N/A
Prox80™
Upto5.5˝(14.0cm) Upto5.0˝(12.5cm) Up to2.5˝(6.0cm) Upto5.0˝(12.5cm) Upto1.5˝
(3.5cm)
Upto2.0˝
(5.0cm)
Upto2.5˝
(6.0cm) N/A
Memory Size/
Application Area N/A
2k bits with two
application areas;
16kbitswithtwo
applicationareas,16k
bitswith16application
areas;32kbits
(16k/2+16k/1),32k
bits(16k/16+16k/1)
MIFARE1K:1KByte
(8kbits)in1664-byte
Sectors
MIFARE4K:4KByte
(32kbits)in40
Sectors:32sectorsof
64bytes,8sectorsof
256bytes.
N/A
HID Proximity 125 kHz Yes Yes
Contact Smart Chip
Module Embeddable No Yes** Optional** No
Wiegand Strip No No Yes No
Magnetic Stripe No Yes No Yes Optional No
Printable *** Yes Yes No
Standard HID Artwork Optional Optional No Yes N/A
Slot Punch Vertical
(standard) HorizontalorVerticalOptional VerticalOptional VerticalOptional Horizontal or
VerticalOptional Key Ring Hole No
Visual Security Options N/A Yes Yes N/A
Additional Security
Options Corp1000 Corp1000
Warranty Lifetime Lifetime One Year
*Dependantuponinstallationconditions.
**Contactsmartchipmodulenotincluded.AskaboutHID’sSMARTSProgramforo-the-shelfcontactsmartchipembeddedcards.
*** SometypesofprintingprocessescantakethesecredentialsoutofISOcomplianceforthickness.Consultfactoryformoreinformation.
![](asset-1f.png)
Comparison Chart
ProxCard® II ISOProx® II DuoProx® II Smart
ISOProx II™
Smart
DuoProx® II iCLASS® Prox MIFARE®/Prox ProxCard®
Plus ProxKey® III MicroProx®
Tag ProxPass® II
Base Part Number 1326 1386 1336 1597 1598 202X/212X;
203X/213X 1431 169 1346 1391 1351
Read Range: *
ProxPoint® Plus Up to 3.0˝ (7.5 cm) Up to 2.5˝ (6.5 cm) Up to 2.5˝ (6.5 cm) Up to 1.0˝ (2.5 cm) Up to 1.5˝ (4.0 cm) Up to 2.0˝ (5.0 cm) N/A
MiniProx®Up to 5.5˝ (14.0 cm) Up to 5.0˝ (12.5 cm) Up to 5.0˝ (12.5 cm) Up to 2.0˝ (5.0 cm) Up to 2.5˝ (6.5 cm) N/A
Thinline® II Up to 5.5˝ (14.0 cm) Up to 5.0˝ (12.5 cm) Up to 5.0˝ (12.5 cm) Up to 1.5˝ (4.0 cm) Up to 2.0˝ (5.0 cm) Up to 3.0˝ (7.5 cm) N/A
ProxPro®
Up to 8.0˝ (20.5 cm) Up to 7.0˝ (18.0 cm) Up to 7.0˝ (18.0 cm) Up to 3.0˝ (7.5 cm) Up to 4.0˝
(10.0 cm) N/A
ProxPro® II Up to 9.0˝ (23.0 cm) Up to 8.0˝ (20.0 cm) Up to 8.0˝ (20.0 cm) Up to 4.0˝ (10.2 cm) Up to 4.5˝
(11.5 cm) N/A
MaxiProx®
Up to 29.0˝ (74.0 cm) Up to 20.0˝ (51.0 cm) Up to 20.0˝ (51.0 cm) Up to 13.0˝
(33.0 cm)
Up to 12.0˝
(28.0 cm)
Up to 15.0˝
(38.0 cm) Up to 8.0´ (2.5 m)
EntryProx™Up to 3.0˝ (7.5 cm) Up to 2.5˝ (6.5 cm) Up to 2.5˝ (6.5 cm) Up to 1.0˝ (2.5 cm) Up to 1.5˝ (4.0 cm) Up to 2.0˝ (5.0 cm) N/A
Prox80™
Up to 5.5˝ (14.0 cm) Up to 5.0˝ (12.5 cm) Up to 2.5˝ (6.0 cm) Up to 5.0˝ (12.5 cm) Up to 1.5˝
(3.5 cm)
Up to 2.0˝
(5.0 cm)
Up to 2.5˝
(6.0 cm) N/A
Memory Size/
Application Area N/A
2k bits with two
application areas;
16k bits with two
application areas, 16k
bits with 16 application
areas; 32k bits
(16k/2+16k/1), 32k
bits (16k/16+16k/1)
MIFARE 1K: 1K Byte
(8k bits) in 16 64-byte
Sectors
MIFARE 4K: 4K Byte
(32k bits) in 40
Sectors: 32 sectors of
64 bytes, 8 sectors of
256 bytes.
N/A
HID Proximity 125 kHz Yes Yes
Contact Smart Chip
Module Embeddable No Yes** Optional** No
Wiegand Strip No No Yes No
Magnetic Stripe No Yes No Yes Optional No
Printable *** Yes Yes No
Standard HID Artwork Optional Optional Yes Yes N/A
Slot Punch Vertical
(standard) Horizontal or Vertical Optional Vertical Optional Vertical Optional Horizontal or
Vertical Optional Key Ring Hole No
visual Security Options N/A Yes Yes N/A
Additional Security
Options Corporate 1000 Corporate 1000
Warranty Lifetime Lifetime One Year
![](asset-20.png)
28
HID Global Product Catalog
Corporate1000® Program
HID’sCorporate1000Programgivessecurityprofessionalstheabilityto
standardizeona“SingleCardSolution,”providingtimelyandeducational
informationtoend-usersregardingthesecuringofpeople,propertyand
assets.ThisprograminsuresthatadvancedRFIDtechnologicalsolutions
continuetobedevelopedtomeetthedemandsofever-changing
dynamics in the workplace.
HID’sCorporate1000programallowscompaniestostandardizeonone
cardfortheiraccesscontrolsystems.Seebelowforanswerstocommon
questions.
HID Corporate 1000 Program
Frequently Asked Questions
1. What is the HID Corporate 1000 Program?
TheCorporate1000ProgramallowsHIDtoprovideend-usercustomers
witha35-bitcardformatthatisdevelopedspecificallyforeachindividual
end-usercustomer.Withinthisprogram,HIDcanprovidetheend-user
withjustover1,000,000individualcardnumberswithintheassigned
format. Card numbers are tracked in the manufacturing process to
ensure that card numbers are not duplicated.
2. What are the benefits of the Corporate 1000 Program?
•Securityofthecardandassociateddataisincreasedduetothe
customized35-bitformatthatisproprietarytoeachindividual
end-user.
•HIDtrackscardnumbersequencestopreventcardnumber
duplication;theend-userisguaranteedthatthecardcanbeusedon
standardHIDproximitycardreadersthroughouttheworld.Individual
employeescancarryjustonecardtogainaccesstoanyfacilityin
whichtheyhavebeenauthorized.Inaddition,theend-usermayorder
cardsfrommultiplesources(asdesignatedbytheend-user)andbe
guaranteed that card number duplication will not occur.
•Duetothesizeoftheavailablecardpopulation,theend-useris
assuredthatcardsinthedesiredformatwillbeavailableforyears
to come.
•Theend-userisfreetochoosetheaccesscontrolhardware/software
platformthatbestmeetstheneedsofindividualsites,whileinsuring
thatthesameHIDreaderandcardcanbeused.Thisprovidesthe
end-userwithmaximumflexibilityinchoosingtheaccesscontrol
systemandintegrator/dealerthatbestmeetstheirrequirements.
ThecommoncomponentistheHIDreaderandcard.
•Theend-userhastheflexibilitytochoosethevendor(s)thatthey
wishtopurchasecardsfromatanytime.Theend-usermaychoose
tohaveonesourceofsupplyormany.
![](asset-21.png)
29 HID Global Product Catalog
3. Does my company qualify to participate
in the Corporate 1000 Program?
Mostend-userswhorequestaCorporate
1000Formatareacceptedintothe
Program.AlthoughHIDdoesn’thavea
formallistofqualificationstoparticipate
intheCorporate1000Program,HIDwantstoinsurethatProgram
participantswillreceiveahighlevelofvaluefromusingaCorporate1000
Format.
Thosewhoreceivevaluefromthisformatinclude:
•End-userswithmultiplelocationsand/ordecentralizeddecision
making on card purchases.
•End-userswithcardand/orreaderpopulationsthatarelarge(or
areexpectedtogrowovertime).Thelead-timeforcarddelivery
isnotimpactedbyuseoftheCorporate1000Format.Nomatter
which HID format is used, lead times are based on the card to be
purchased.
4. How long does it take to establish a Corporate 1000 Format?
OncethecompletedCorporate1000RequestandAuthorizationForm
isreceivedbyHID,itwilltakeuptofive(5)workingdaystoestablishthe
format.Theend-userandthesponsoringsystemintegrator/dealeror
OEMwillreceivetheassignedformatnumberandacopyoftheformat
viaFedEx® from HID.
5. Are there any costs associated with participating in the
Corporate 1000 Program?
ThereisnochargefordevelopmentoftheCorporate1000Format
andinitialset-upoftheend-userintheProgram.Onceyoudetermine
that you wish to participate in the Program, you will complete the
authorizationformsandreturnthemtoHID.Theend-user’ssystems
integrator/dealer is charged a nominal fee for card management and card
number tracking by HID. Please check with your systems integrator/
dealertodeterminewhatimpact,ifany,thiswillhaveonyourcard
purchase price.
6. How do I enroll to participate in the Corporate 1000 Program?
Toenrollintheprogram,simplycompletetheCorporate1000Format
RequestFormandtheCorporate1000ChangeandAuthorizationForm.
TheseformsareavailableontheHIDwebsiteatwww.hidglobal.com.
If you need assistance completing the form, please contact HID at
(949)598-1600or(866)607-7339.
![](asset-22.png)
7. Can the Corporate 1000 Format be programmed into any HID
proximity card?
The assigned Corporate 1000 Format can be programmed into any
HID card or key fob. Please consult the How To Order Guide on HID’s
website or check with your systems’ integrator/dealer to determine
which proximity credential best meets your needs.
8. Is there a specific part number associated with the use of the
Corporate 1000 Format?
There is no special part number. When ordering cards, order the part
number for the card you want. Then, simply indicate that the cards are
to be programmed in Corporate 1000 Format HXXXXX, using the
next number up. (The Corporate 1000 Format number, HXXXXX, will
be a letter and five numbers. This will be assigned once your individual
Corporate 1000 Format is established.)
The HID direct customer who is ordering the cards will be aware of
the need to put a separate line item on their P.O. that is associated with
programming the cards in the Corporate 1000 Format.
9. The end-user is currently using HID proximity technology but with
another bit format. Will the existing cards be compatible with the
Corporate 1000 Format?
When using HID cards in a bit format other than the 35-bit format,
you have the option of replacing all cards at one time or transitioning
into the program. The existing cards will not be compatible with the
Corporate 1000 Format unless reprogrammed.
If you choose to transition into the program, there are a few
constraints of which you need to be aware:
• At an existing site that is using a card format other than a 35-bit
format, it is important to determine if the existing access control
hardware/software platform has the ability to manage multiple card
formats simultaneously. In other words, can the system manage two
or more bit formats simultaneously? If not, any system users with
access to the site would need to be: (1) re-badged with a card in the
new format; or (2) the access control hardware/software platform
would need to be upgraded to allow for the use of multiple bit
formats simultaneously.
• At any site, it is important to verify that the access control hardware/
software being used or proposed for use can manage a 35-bit card
format. There are some older platforms in use that do not have this
capability. There are also an extremely limited number of newer
platforms with similar limitations.
• If the existing system can handle multiple formats, it is also imperative
that you confirm that the system can handle the same card number
within multiple formats.
Corporate 1000® Program
![](asset-23.png)
31 HID Global Product Catalog
TechnicalOverview
10. With Card Number 100 and a 26-bit format with Card Number 100,
will the system “see” the two cards as different numbers?
Manysystems“see”cardsindifferentformatswiththesamenumber.Ifthis
is the case, identify the highest card number used on the existing system.
HID will then block these numbers from being used to ensure
that the card numbers do not appear to be
duplicates.
11. Why does HID ask me to provide a
card start number? Why would I use any
number other than the number 1?
If you plan to use two or more bit formats
simultaneously on the same access control
hardware/software configuration,
there may be an issue with duplicate
card numbers.
For example, assume that the current
formatinuseisa26-bitformatwith
afacilitycodeof100.Theexistingcardnumbersinuserange
from1to20,000.Theplanistotransitiontoa35-bitformat
overtime.Thismeansthattheexistinghardware/softwareconfiguration
will be reading and managing two bit formats simultaneously.
Twocardsaretobeenteredintothesystem.Theseare:
•A26-bitformatcard,facilitycode100,andcardnumber25
•A35-bitformatcard,companyIDcode150,andcardnumber25
It is possible that the access control hardware/software configuration will
reportbothofthesecardsascardnumber25.Althoughthecardshave
different bit formats and facility/company ID codes, the system may not
differentiate based on the same card number being used.
Forthisreason,manyend-userschoosetostarttheircardnumberingabove
the highest card number currently in use. If you are not sure of the highest
cardnumberinuseanda26-bitformatisinuse,itissafetouseacardstart
numberof66,000.
12. I have other technical questions not answered here. What should I do?
YoumaycallHIDat(866)607-7339andaskforTechnicalSupport.
![](asset-24.png)
hidglobal.com
ACCESS service.
We know that when you order new
credentials, it’s not about stocking up, it’s
about security. That’s why we have HID
Priority Plus Credentials Service guaranteeing
the shipment of 100 to 1,000 standard credentials, Prox or iCLASS®
technology, within 48 hours anywhere in the United States and Canada.
The reason we do it is simple – we can. No one manages more
technologies, makes more credentials or has a longer track record. And,
of course, every credential comes with a lifetime warranty from your
trusted source, HID.
HID Priority Plus™ combines our unrivaled
know-how with our unmatched can-do.
deliver cards in 48 hours.
![](asset-25.png)
33 HID Global Product Catalog
High-qualityIndalaProximityReadersdeliveroutstanding
and consistent performance with intelligent programming
technology, uniform core modules, and a range of stylish
bezeldesigns.IndalaproximityreadersareavailableinWave,
Curve,Arch,andLinearstylesinavarietyofcolorsforthe
ultimate choice.
ExclusiveFlexSecur®SecurityTechnology
AllHIDIndala125kHzProximityReadersfeatureFlexSecur® technology,
whichprovidesanaddedlevelofaccesscontrolsystemsecuritythrougha
verificationprocessatthereader.UniquetotheHIDIndalaproductline,
FlexSecur® screens out unauthorized cards prior to sending card data to the
host system.
125 kHz Proximity Cards and Readers
Indala® Proximity
![](asset-26.png)
34
HID Global Product Catalog
Classic Readers
125 kHz proximity card reader (603 core module)
Base Part Number • FP-0500A
• UniquelydesignedtoreplaceaWiegandReader
• DimensionsarethesameastheClassicWiegandSwipe
reader. Mounting holes match
• IdealfortransitioningexistingWieganduserstoproximity
• Readrangeupto5.0˝(12.5cm)
Wallswitch Readers
125 kHz proximity card reader
(603 core module)
Base Part Number • FP-0500A
• TheWallswitchreaderissimilarinsize
tomostUSswitchplates
• Wallswitchreadercanbemountedon
a single gang box
• Suitableforindoororoutdooruse
• Readrangeupto5.0˝(12.5cm)
Mullion (Slim) Readers
125 kHz proximity card reader (603 core module)
Base Part Number • FP-0500A
• TheMullionReadercanbemountedonanywall
where limited space is an issue or where a slim,
modernlookispreferredtoawallswitch-sizereader
• TheMullionReaderisidealformountingondoorframes
• Suitableforindoororoutdooruse
• Readrangeupto5.0˝(12.5cm)
Black
Curve
Black,Grey,White,Beige
*Linear-Black,Beige
ArchandLinear*
Black,Blue
(DarkGreyBackground)
Wave
Arch,Linear,Curve,Wave
Arch,Linear,Curve,Wave
Linear
Black,Grey,White,Beige
ArchandLinear*
Black,Blue
(DarkGreyBackground)
Wave
Black
Curve
Black
Linear
Indala® Proximity Readers
Did you know?
ExclusiveIndalaFlexSecurpassword-
protected security, between card and
reader, screens out unauthorized cards
before sending card data to the host system.
![](asset-27.png)
35 HID Global Product Catalog
Black,Grey,White,Beige
Arch
Black,Blue
(DarkGreyBackground)
Wave
Mid-Range Readers
125 kHz proximity card reader (610 core module)
Base Part Numbers • FP-0200A and
FP-0200S (Serial)
• TheMid-RangereadercanbemountedonbothUS-
style single and double gang boxes
• Suitableforindoorandoutdooruse
• Thelargersizereadergivesalongerreadrangethan
theMullionorWallswitchreaders,whileoeringthe
same modern design in bezel choices
• Readrangeupto12.0˝(30.5cm)
Long-Range Reader
125 kHz proximity card reader (620 core module)
Base Part Numbers • ASR-620++
• Suitableforbothindoorandoutdooruse
• MatchestheIndala“Arch”design
• CompatiblewithallIndala125kHzcards,tags,and
readers
• Readrangeupto26.0˝(66.0cm)
Arch,Wave
Arch
Heavy-Duty PinProx Keypad Readers
Base Part Numbers • FP5071B Black (8 Bit Burst or Buered)
• FP5077B Beige (8 Bit Burst or Buered)
• Sleek,moderndesign
• Designedtomountonawallboxoraatsurface
• Ruggedconstruction(fullypotted)PC/ABSCopolymermaterialisvirtually
indestructibleandvandalresistant
• Readrangeupto4.0˝(10.0cm)
Membrane Keypad Readers
Base Part Numbers • FP5061B Black (8 Bit Burst or Buered)
• FP5067B Beige (8 Bit Burst or Buered) • FP5061M 3 X 4 Matrix,
Black • FP5067M 3 X 4 Matrix, Beige
• DesignedtomountonastandardUSA-typesinglegangbox
• KeypadtransmitseitherbueredWieganddataora3X4matrixoutput
• FactoryorFieldProgrammable
• Readrangeupto4.0˝(10.0cm)
Black,Beige
Black
Black
Indala® Proximity Readers
![](asset-28.png)
36
HID Global Product Catalog
Indala® Proximity Readers
Wallswitch Readers Classic Readers Mullion (Slim)
Readers Mid-Range Readers Long-Range Reader Heavy-Duty PinProx
Keypad Readers
Membrane Keypad
Readers
Base Model Number 603CoreModule
FP-0500A
610CoreModule
FP-0200AandFP-0200S
(Serial)
620CoreModule
ASR-620XX
FP5071BBlackor
FP5077BBeige
FP5061B-Black,
8-bitburst/buered
FP5067B-Beige,
8-bitburst/buered
FP5061M-Black,3x4matrix
FP5067M-Beige,3x4matrix
Dimensions
Arch
4.5˝x3.0˝x0.8˝
(11.5cmx7.5cmx2.0cm)
Wave
5.5˝x3.3˝x1.1˝
(14.0cmx8.5cmx3.0cm)
Curve
5.0˝x3.8˝x1.1˝
(12.5cmx9.5cmx3.0cm)
Linear
4.6˝x3.0˝x0.9˝
(11.5cmx7.5cmx2.5cm)
2.3˝x5.3˝x0.8˝
(6.0cmx13.5cmx2.0cm)
Arch
4.5˝x1.7˝x0.8˝
(11.5cmx4.5cmx2.0cm)
Wave
5.5˝x1.7˝x1.1˝
(14.0cmx4.5cmx3.0cm)
Curve
4.9˝x1.7˝x1.1˝
(12.5cmx4.5cmx3.0cm)
Linear
5.5˝x1.7˝x0.8˝
(14.0cmx4.5cmx2.0cm)
5.0˝x5.0˝x1.0˝
(12.5cmx12.5cmx2.5cm)
11.2˝x11.2˝x1.8˝
(28.5cmx28.5cmx4.5cm)
4.7˝x2.9˝x1.1˝
(12.0cmx7.5cmx3.0cm)
4.5˝x3.0˝x0.7˝
(11.5cmx7.5cmx1.5cm)
Weight Range 5.05-5.84oz(143-166g) 5.12oz(145g) 4.94-5.84oz(140-166g) 14.16-15.28oz(401-433g) 47.04oz(1.33kg) 13.44oz(381.02g) 7.08oz(200.58g)
Read Range Upto5.0˝(12.5cm) Upto12.0˝(30.5cm) Upto26.0˝(66.0cm) Upto4.0˝(10.0cm)
Mounting Single-gangelectricalbox Replaces HID Classic
WiegandSwipereader Mullion Singleordoublegangbox
Non-ferrouswallsurface
(oruse3.0˝spaceronor
nearferroussurface)
Single-gangelectricalbox
Power Supply 4-16VDC 4-16VDC 12-24VDC 4-16VDC
Current
Requirements 65mA 117mA 1.0A/750mA 75mA
Termination Pigtail Pigtail TerminalStrip Pigtail
Output Formats Wiegand,Clock-and-Data,SerialTTL(requiresuseofBIL232/422Module)
Wiegand,Clock-and-Data,
SerialTTL(requiresuseof
BIL232/422Module)
Wiegand,Clock-and-Data Wiegand,Clock-and-Data,SerialTTL
(requiresuseofBIL232/422Module)
Tamper No No
Indoor/Outdoor Both Both
Warranty Lifetime Lifetime
![](asset-29.png)
37 HID Global Product Catalog
Comparison Chart
Wallswitch Readers Classic Readers Mullion (Slim)
Readers Mid-Range Readers Long-Range Reader Heavy-Duty PinProx
Keypad Readers
Membrane Keypad
Readers
Base Model Number 603CoreModule
FP-0500A
610CoreModule
FP-0200AandFP-0200S
(Serial)
620CoreModule
ASR-620XX
FP5071BBlackor
FP5077BBeige
FP5061B-Black,
8-bitburst/buered
FP5067B-Beige,
8-bitburst/buered
FP5061M-Black,3x4matrix
FP5067M-Beige,3x4matrix
Dimensions
Arch
4.5˝x3.0˝x0.8˝
(11.5cmx7.5cmx2.0cm)
Wave
5.5˝x3.3˝x1.1˝
(14.0cmx8.5cmx3.0cm)
Curve
5.0˝x3.8˝x1.1˝
(12.5cmx9.5cmx3.0cm)
Linear
4.6˝x3.0˝x0.9˝
(11.5cmx7.5cmx2.5cm)
2.3˝x5.3˝x0.8˝
(6.0cmx13.5cmx2.0cm)
Arch
4.5˝x1.7˝x0.8˝
(11.5cmx4.5cmx2.0cm)
Wave
5.5˝x1.7˝x1.1˝
(14.0cmx4.5cmx3.0cm)
Curve
4.9˝x1.7˝x1.1˝
(12.5cmx4.5cmx3.0cm)
Linear
5.5˝x1.7˝x0.8˝
(14.0cmx4.5cmx2.0cm)
5.0˝x5.0˝x1.0˝
(12.5cmx12.5cmx2.5cm)
11.2˝x11.2˝x1.8˝
(28.5cmx28.5cmx4.5cm)
4.7˝x2.9˝x1.1˝
(12.0cmx7.5cmx3.0cm)
4.5˝x3.0˝x0.7˝
(11.5cmx7.5cmx1.5cm)
Weight Range 5.05-5.84oz(143-166g) 5.12oz(145g) 4.94-5.84oz(140-166g) 14.16-15.28oz(401-433g) 47.04oz(1.33kg) 13.44oz(381.02g) 7.08oz(200.58g)
Read Range Upto5.0˝(12.5cm) Upto12.0˝(30.5cm) Upto26.0˝(66.0cm) Upto4.0˝(10.0cm)
Mounting Single-gangelectricalbox Replaces HID Classic
WiegandSwipereader Mullion Singleordoublegangbox
Non-ferrouswallsurface
(oruse3.0˝spaceronor
nearferroussurface)
Single-gangelectricalbox
Power Supply 4-16VDC 4-16VDC 12-24VDC 4-16VDC
Current
Requirements 65mA 117mA 1.0A/750mA 75mA
Termination Pigtail Pigtail TerminalStrip Pigtail
Output Formats Wiegand,Clock-and-Data,SerialTTL(requiresuseofBIL232/422Module)
Wiegand,Clock-and-Data,
SerialTTL(requiresuseof
BIL232/422Module)
Wiegand,Clock-and-Data Wiegand,Clock-and-Data,SerialTTL
(requiresuseofBIL232/422Module)
Tamper No No
Indoor/Outdoor Both Both
Warranty Lifetime Lifetime
![](asset-2a.png)
38
HID Global Product Catalog
Indala® Proximity Credentials
FlexISO® XT Card
FlexISO’s unique composite formulation enhances the
structural integrity of the card, providing additional
protection of the core electronics.
Base Part Number • FPIXT
• ISO7811/7813Compliant
• PVCcardsurfaceoptimizedfordye-sublimation
printing
• Highdurability.Greatforapplicationsthatrequire
magnetic stripe and/or barcode transactions
FlexISO® Card
FlexISO is a credit-card thin access credential that
comes with a graphics-quality surface on both sides.
Base Part Number • FPISO
• ISO7810/7811Compliant
• Canbecombinedwithamagneticstripe,barcode,a
multitudeofsmartchips,andMIFARE
• PVCcardsurfaceoptimizedfordye-sublimationprinting
FlexCard®
Ideal for applications which require a robust card that
is exible and lightweight.
Base Part Number • FPCRD
• Verticaldesignmakesitwell-suitedforabadge
• Canacceptavarietyof IDbadgeoverlays
• Competitivelypriced
FlexTag™
Innovative Indala FlexTag transforms a plastic ID
badge into a proximity credential.
Base Part Number • FPTAG
• Eortlesslyupgradefrommagstripe,oraddprox
to your smart card by simply attaching the small,
circularFlexTagtoyourexistingcard
• TheFlexTagalsoadherestoanynon-metallic
device,suchasacellphoneorPDA,toinstantly
create a proximity badge
FlexKey®
Contemporary design enables the FlexKey to be easily
attached to a key ring, badge clip, or badge lanyard.
Base Part Number • FPKEY
• FlexKey’sruggeddouble-sealedconstructionisbuiltto
withstandharshoperatingenvironments
• Byaddingacompanylogo,theFlexKeycanbe
customizedforvacationresorts,lockerrooms,health
spas, apartment buildings, and club houses, as well as
commercialoceswherephotoIDsarenotrequired
![](asset-2b.png)
39 HID Global Product Catalog
Indala® Proximity Credentials
ProxSmith Programmer System
Base Part Number • AFP – 1000+
• Multipleoutputformatsenableexibilityindesignofhostinterface
protocols
• Encryption,passwordprotection,anduseraccesslevelsfor
uncompromised security in programming
•Lockableblockspreventoverwriteofxeddatastoredon
cards
DESFire®/Prox (Indala) Card
Upgrade to the benets of 13.56 MHz contactless smart card
technology by combining DX DESFire and Indala proximity
technologies in a single card.
Base Part Number • DXISO FlexISO Proximity and DESFire Card
Base Part Number • FPDXI FlexISO Proximity, DESFire and Smart Card
• ISO14443,7810Compliant
• PVCcardsurfaceoptimizedfordye-sublimationprinting
• 4KBytes(32,768bits)ofdynamicmemoryarrangedineasy-to-dene
application folders and data files
• DXDESFiredatacanbeencryptedwiththehighlysecureDataEncryption
Standard(3DES)algorithm,makingitidealforhigh-performance,high-
security applications
iCLASS® Prox Card
Combines the benets of HID iCLASS 13.56 MHz contactless
smart card technology and Indala 125 kHz proximity technology
in a single card.
Base Part Number • 202X-IND FlexISO-iCLASS Card
Base Part Number • 203X-IND FlexISO-iCLASS Embeddable Card
• ISO15693,14443BCompliant
• PVCcardsurfaceoptimizedfordye-sublimationprinting
• 2Kbits(256Bytes)or16Kbits(2KBytes)memoryoptionsMultiple,
securely separated files enable numerous applications, including the
HID standard access control data
• iCLASStechnologyensureshighsecuritywithmutualauthentication,
encrypteddatatransfer,and64-bitdiversiedkeysforread/write
capabilities
MIFARE®/Prox (Indala) Card
The Indala Proximity and MIFARE contactless card combines
smart card technology with the benefits of proven Indala proximity
technology.
Base Part Number • FPMIF FlexISO Proximity and MIFARE Card
Base Part Number • FPMSC FlexISO Proximity, MIFARE, and Smart Card
• ISO14443,7810Compliant
• PVCcardsurfaceoptimizedfordye-sublimationprinting
• Idealforapplicationssuchasaccesscontrol,cashlessvending,public
transportation, airline ticketing, customer loyalty, and photo ID cards
• Sixteensecurely-separateddatasectorsenablemultipleapplicationsand
support future growth
![](asset-2c.png)
40
HID Global Product Catalog
FlexCard®FlexISO®FlexISO® XT FlexISO®
MIFARE®
FlexISO®
DESFire™
FlexISO®
iCLASS®FlexTag™FlexKey®
Base Part Number FPCRD FPISO FPIXT FPMXI FPDXI 202X-IND FPTAG FPKEY
Read Range: *
Wallswitch Reader Upto5.0˝(12.0cm) Upto5.0˝(12.0cm) Upto4.0˝(10.0cm) Upto4.0˝(10.0cm) Upto3.0˝(7.0cm) Upto2.0˝(5.0cm)
Classic Reader Upto5.0˝(12.0cm) Upto5.0˝(12.0cm) Upto3.0˝(7.0cm) Upto2.0˝(5.0cm)
Mullion (Slim) Reader Upto5.0˝(12.0cm) Upto5.0˝(12.0cm) Upto3.0˝(7.0cm) Upto2.0˝(5.0cm)
Mid-Range Reader Upto12.0˝(30.0cm) Upto12.0˝(30.0cm) Upto7.0˝(17.0cm)
Long-Range Reader Upto25.0˝(63.0cm) Upto26.0˝(66.0cm) Upto24.0˝(61.0cm) Upto24.0˝(61.0cm) Upto14.0˝(35.0cm) Upto16.0˝(40.5cm)
Heavy-Duty PinProx
Keypad Reader Upto3.75˝(9.5cm) Upto3.75˝(9.5cm) Upto1.75˝(4.5cm) Upto3.5˝(9.0cm)
Membrane Keypad
Reader Upto4.0˝(10.0cm) Upto4.0˝(10.0cm) Upto3.0˝(7.0cm) Upto3.5˝(9.0cm)
Memory Size/
Application Areas N/A
1kByte (8kbits) or
4kBytes (32kbits)
MIFARE1k: memory
arrangedin1664-byte
Sectors
MIFARE4k: memory
arrangedin40Sectors:
32sectorsof64bytes,
8sectorsof256bytes
4kBytes(32kbits)
2kbit(256Byte)card–
2 application areas
16kbit(2kByte)–
2or16applicationareas
32kbit(4kByte)card–16k
bitin2or16application
areasplus16kbituser
configurable.
N/A
Indala Proximity
125 kHz Yes Yes
Contact Smart Chip
Module Embeddable No Optional** Optional** No
Wiegand Strip No No
Magnetic Stripe No Optional Optional No
Printable *** Yes Yes No
Standard HID Artwork Optional Optional No Yes
Slot Punch Vertical HorizontalorVerticaloptional Verticaloptional Verticaloptional No Keyring
Visual Security Options Yes Yes N/A
Additional Security
Options FlexEnterprise FlexEnterprise
Warranty Lifetime Lifetime
Indala Proximity® Credentials
*Dependantuponinstallationconditions.
**Contactsmartchipmodulenotincluded.AskaboutHID’sSMARTSProgramforo-the-shelfcontactsmartchipembeddedcards.
*** SometypesofprintingprocessescantakethesecredentialsoutofISOcomplianceforthickness.Consultfactoryformoreinformation.
![](asset-2d.png)
41 HID Global Product Catalog
FlexCard®FlexISO®FlexISO® XT FlexISO®
MIFARE®
FlexISO®
DESFire™
FlexISO®
iCLASS®FlexTag™FlexKey®
Base Part Number FPCRD FPISO FPIXT FPMXI FPDXI 202X-IND FPTAG FPKEY
Read Range: *
Wallswitch Reader Upto5.0˝(12.0cm) Upto5.0˝(12.0cm) Upto4.0˝(10.0cm) Upto4.0˝(10.0cm) Upto3.0˝(7.0cm) Upto2.0˝(5.0cm)
Classic Reader Upto5.0˝(12.0cm) Upto5.0˝(12.0cm) Upto3.0˝(7.0cm) Upto2.0˝(5.0cm)
Mullion (Slim) Reader Upto5.0˝(12.0cm) Upto5.0˝(12.0cm) Upto3.0˝(7.0cm) Upto2.0˝(5.0cm)
Mid-Range Reader Upto12.0˝(30.0cm) Upto12.0˝(30.0cm) Upto7.0˝(17.0cm)
Long-Range Reader Upto25.0˝(63.0cm) Upto26.0˝(66.0cm) Upto24.0˝(61.0cm) Upto24.0˝(61.0cm) Upto14.0˝(35.0cm) Upto16.0˝(40.5cm)
Heavy-Duty PinProx
Keypad Reader Upto3.75˝(9.5cm) Upto3.75˝(9.5cm) Upto1.75˝(4.5cm) Upto3.5˝(9.0cm)
Membrane Keypad
Reader Upto4.0˝(10.0cm) Upto4.0˝(10.0cm) Upto3.0˝(7.0cm) Upto3.5˝(9.0cm)
Memory Size/
Application Areas N/A
1kByte (8kbits) or
4kBytes (32kbits)
MIFARE1k: memory
arrangedin1664-byte
Sectors
MIFARE4k: memory
arrangedin40Sectors:
32sectorsof64bytes,
8sectorsof256bytes
4kBytes(32kbits)
2kbit(256Byte)card–
2 application areas
16kbit(2kByte)–
2or16applicationareas
32kbit(4kByte)card–16k
bitin2or16application
areasplus16kbituser
configurable.
N/A
Indala Proximity
125 kHz Yes Yes
Contact Smart Chip
Module Embeddable No Optional** Optional** No
Wiegand Strip No No
Magnetic Stripe No Optional Optional No
Printable *** Yes Yes No
Standard HID Artwork Optional Optional No Yes
Slot Punch Vertical HorizontalorVerticaloptional Verticaloptional Verticaloptional No Keyring
Visual Security Options Yes Yes N/A
Additional Security
Options FlexEnterprise FlexEnterprise
Warranty Lifetime Lifetime
Comparison Chart
![](asset-2e.png)
![](asset-2f.png)
13.56 MHz Contactless
Experience in developing card technologies puts HID
Global in a unique position to play a critical role in the
evolution and adoption of smart card technology. HID’s
market-leading, flexible, high-frequency product lines
demonstrate the company’s commitment to support
13.56 MHz technologies. Our open architecture iCLASS
and SmartID oerings make up the industry’s broadest
range of open standard contactless smart card products,
available from over 40,000 resellers worldwide.
![](asset-30.png)
13.56 MHz Contactless
iCLASS®
HID Connect®
iCLASS Elite
SmartID™
FlexSmart®
MIFARE®/DESFire®
pages 43-62
pages 63-76
![](asset-31.png)
43 HID Global Product Catalog
Optimized to make physical access control more powerful,
iCLASS® 13.56 MHz read/write contactless smart card
technology provides versatile interoperability and supports
multiple applications such as biometric authentication, cashless
payment and PC log-on security.
iCLASS smart cards and readers make access control more powerful
and more versatile, offering enhanced security through encryption
and mutual authentication. At the same time, iCLASS is user-friendly,
delivering the convenience, affordability and reliability of contactless
technology for which HID is known worldwide.
Imagine an affordable, single-card, contactless solution that allows you to
not only read data securely and quickly, but also to securely write data
to the card for many applications. You have imagined iCLASS by HID.
13.56 MHz Contactless Cards and Readers
Did You Know?
w There is an iCLASS Clamshell card at the same price
as the ProxCard II?
w iCLASS Reader installation is identical to Prox?
w iCLASS costs no more than Prox, often even less?
iCLASS®
![](asset-32.png)
44
HID Global Product Catalog
Prox and iCLASS® Comparisons
Many are familiar with HID’s proximity reader and card
technology. However, HID’s iCLASS contactless smart card
technology may not be as well known. In short, iCLASS is
the next generation of proximity.
Establishing the similarities between the two technologies provides a basis
for outlining the differences. The HID access control application information
programmed on an iCLASS chip is the same information that is programmed on
a proximity chip. That information includes a facility code and card number in a
specific HID format. HID proximity readers read HID formats from HID proximity
cards, and iCLASS readers read HID formats from HID iCLASS cards. HID
proximity readers and iCLASS readers produce a Wiegand protocol output to the
access control panel. An HID proximity card with format H10301 (standard 26-bit
format), facility code 20 and card number 1,000 would look the same to an access
control panel as an iCLASS card with the same format, facility code, and card
number. Therefore, the way the two technologies work from a basic access control
standpoint is identical. Both card technologies use HID formats and both reader
technologies produce a Wiegand protocol output.
“In short, iCLASS is
the next generation
of Prox.”
![](asset-33.png)
45 HID Global Product Catalog
The main differences between proximity and iCLASS lie in the
additional capabilities provided by iCLASS. These include:
Encrypted Communication
The communication between an iCLASS reader and card is encrypted using
a secure algorithm so the transaction between the card and reader cannot be
“sniffed” and replayed to a reader. The encryption protocol uses a combination
of diversified keys, unique 64-bit card serial numbers and mutual card and reader
authentication.
Capability to Add Other Applications
The iCLASS chip not only stores HID access control information, it also has
memory space available for other applications. iCLASS cards are currently available
with 2k bit, 16k, and 32k bit memory capacities, and depending on the amount
of memory available and the number of memory areas, iCLASS cards can serve
as multi-application credentials that can be used for many purposes. Since the
memory can securely store any kind of information, applications for iCLASS
include biometrics, secure computer/network authentication, health record
management, time and attendance, digital cash (cafeteria & vending) and many,
many more.
For details regarding smart cards, visit this link:
www.hidglobal.com/documents/HIDsmartcardsForAC_wp_en.pdf
For details regarding HID iCLASS application partners, visit this link:
www.hidconnect.com
![](asset-34.png)
46
HID Global Product Catalog
iCLASS® R10
Contactless Smart Card Reader
Base Part Number • 6100, 6108, 6109
• Slimdesignisperfectformetalmullionsoranyotherspace-limitedinstallation
• ProvidesWiegandorClock-and-Dataoutput
• LowVoltageandCurrentConsumption(5-16VDC@<100mA)
• Reads13.56MHz:HIDiCLASS,ISO15693CSN,ISO14443A(MIFARE)CSN,
ISO14443BCSN,FeliCaIDm*,andFIPS201
• ChoiceofPigtailorTerminalStrip
• Dimensions:4.0˝x1.9˝x0.9˝(10.3cmx4.8cmx2.3cm)
• ReadRange:upto3.25˝(8.25cm)**
iCLASS® R15
Contactless Smart Card Reader
Base Part Number • 6140, 6142, 6148, 6149
• Slimdesignisperfectformetalmullionsoranyotherspace-limitedinstallation
• ProvidesWiegandorClock-and-Dataoutput
• LowVoltageandCurrentConsumption(5-16VDC@<100mA)
• Reads13.56MHz:HIDiCLASS,ISO15693CSN,ISO14443A(MIFARE)
CSN,ISO14443BCSN,FeliCaIDm*,andFIPS201
• ChoiceofPigtailorTerminalStrip
• Dimensions:6.0˝x1.9˝x0.9˝(15.3cmx4.8cmx2.3cm)
• ReadRange:upto3.5˝(8.89cm)**
iCLASS® Readers
(Black, Gray)
(Black, Gray)
iCLASS® R30
Contactless Smart Card Reader
Base Part Number • 6110, 6112, 6118, 6119
• EU/AsianBackBox
• ProvidesWiegandorClock-and-Dataoutput
• ChoiceofPigtailorTerminalStrip
• LowVoltageandCurrentConsumption(5-16VDC@<100mA)
• Reads13.56MHz:HIDiCLASS,ISO15693CSN,ISO14443A(MIFARE)
CSN,ISO14443BCSN,FeliCaIDm*,andFIPS201
• Dimensions:3.3˝x3.3˝x0.9˝(8.4cmx8.4cmx2.3cm)
• ReadRange:upto4.0˝(10.2cm)**
(Black, Gray)
FIPS 201 Readers are designed for government
agencies and contractors. HID’s FIPS 201 readers are GSA
approvedandincludedintheU.S.GeneralServicesAdministration
(GSA) FIPS 201 Approved Products List. Additionally, these readers read all of HID’s
family of iCLASS contactless smart cards. Contact HID for Order Guides.
* FeliCa requires iCLASS Transit Reader.
** Dependent upon installation conditions and credential type
FIPS 201 Approved. Call for
details 800-872-5359
FIPS 201 Approved. Call for
details 800-872-5359
FIPS 201 Approved. Call for
details 800-872-5359
![](asset-35.png)
47 HID Global Product Catalog
iCLASS® R90 Long Range Reader
Contactless Smart Card Reader
Base Part Number • 6150
• Longreadrangedistance(upto18inchesor45centimeters)
• ReadsallHIDiCLASScredentials
• “ParkingHold”featureallowsconnectiontoaloopdetectortoensureaccurate
detection of vehicles in parking lanes
• WithamulticolorLEDandbeeperwhichcanbecontrolledinternallyorathost
• TwoR90unitscanoperateonemeterapartfor“HI-LO”truckandcarinstallations
• 12-24VDC
• TerminalStriponly
• Dimensions:12.0˝x12.0˝x1.25˝(30.48cmx30.48cmx3.175cm)
• ReadRange:upto18.0˝(45.7cm)**
(Black)
iCLASS® RK40
Contactless Smart Card Keypad Reader
Base Part Number • 6130, 6132, 6138, 6139
• Dual-factorauthenticationwithkeypad
• ProvidesWiegandorClock-and-Dataoutput
• LowVoltageandCurrentConsumption(5-16VDC@<100mA)
• Reads13.56MHz:HIDiCLASS,ISO15693CSN,ISO14443A(MIFARE)CSN
CSN,ISO14443BCSN,FeliCaIDm*,andFIPS201
• ChoiceofPigtailorTerminalStrip
• Illuminatedkeypad
• Dimensions:4.8˝x3.3˝x1.1˝(12.2cmx8.5cmx2.8cm)
• ReadRange:upto4.0˝(10.2cm)**
iCLASS® RKL55
Contactless Smart Card LCD Keypad Reader
Base Part Number • 6170, 6172, 6178
• LCDguidesuserthroughreaderusage
• Dualfactorauthenticationwithkeypad
• ProvidesWiegandorClock-and-Dataoutput
• Reads13.56MHz:HIDiCLASS,ISO15693CSN,ISO14443A(MIFARE)CSN
CSN,ISO14443BCSN,FeliCaIDm*,andFIPS201
• Terminalstriponly
• Dimensions:6.1˝x4.2˝x4.5˝(15.6cmx10.6cmx3.7cm)
• ReadRange:upto4.0˝(10.2cm)**
iCLASS® R40
Contactless Smart Card Reader
Base Part Number • 6120, 6122, 6128, 6129
• U.S./EU/AsianBackBox
• ProvidesWiegandorClock-and-Dataoutput
• LowVoltageandCurrentConsumption(5-16VDC@<100mA)
• Reads13.56MHz:HIDiCLASS,ISO15693CSN,ISO14443A(MIFARE)CSN
CSN,ISO14443BCSN,FeliCaIDm*,andFIPS201
• ChoiceofPigtailorTerminalStrip
• Dimensions:4.8˝x3.3˝x1.0˝(12.2cmx8.4cmx2.4cm)
• ReadRange:upto4.25˝(10.8cm)**
(Black, Gray)
(Black, Gray) FIPS 201 Approved. Call for
details 800-872-5359
(Black)
FIPS 201 Approved. Call for
details 800-872-5359
FIPS 201 Approved. Call for
details 800-872-5359
* FeliCa requires iCLASS Transit Reader.
** Dependent upon installation conditions and credential type
![](asset-36.png)
48
HID Global Product Catalog
iCLASS® RW100
Contactless Smart Card Reader/Writer
Base Part Number • 6101
•StoredataremotelyoniCLASScardfortimeandattendance,biometric
applications and much more
•Mullionmount
•Oersread/writeapplicationtoiCLASScredentials
•Providesabi-directionalRS232,RS485,USBorUARTconnection
to a PC or microcontroller
•LowVoltageandCurrentConsumption(5-16VDC@<100mA)
•Dimensions:4.0˝x1.9˝x0.9˝(10.3cmx4.8cmx2.3cm)
•ReadRange:upto3.25˝(8.25cm)*
iCLASS® RW150
Contactless Smart Card Reader/Writer
Base Part Number • 6141
•StoredataremotelyoniCLASScardfortimeandattendance,
biometric applications and much more
•Mullionmount
•Oersread/writeapplicationtoiCLASScredentials
•Providesabi-directionalRS232,RS485,USBorUARTconnection
to a PC or microcontroller
•LowVoltageandCurrentConsumption(5-16VDC@<100mA)
•Dimensions:6.0˝x1.9˝x0.9˝(15.3cmx4.8cmx2.3cm)
•ReadRange:upto3.5˝(8.9cm)*
iCLASS® Readers/Writers
Did You Know?
iCLASS Readers can read
MIFARE and DESFire Card
SerialNumbers(CSN).
(Black, Gray)
(Black, Gray)
(Black, Gray)
iCLASS® RW300
Contactless Smart Card Reader/Writer
Base Part Number • 6111
•StoredataremotelyoniCLASScardfortimeandattendance,
biometric applications and much more
•EU/AsianBackBoxSize
•Oersread/writeapplicationtoiCLASScredentials
•Providesabi-directionalRS232,RS485,USBorUARTconnection
to a PC or microcontroller
•AlsoprovidesastandardWiegandoutput
•LowVoltageandCurrentConsumption(5-16VDC@<100mA)
•Dimensions:3.3˝x3.3˝x0.9˝(8.38cmx8.38cmx2.3cm)
• ReadRange:upto4.0˝(10.2cm)*
* Dependent upon installation conditions and credential type
![](asset-37.png)
49 HID Global Product Catalog
iCLASS® RW400
Contactless Smart Card Reader/Writer
Base Part Number • 6121
•StoredataremotelyoniCLASScardfortimeandattendance,biometricap-
plications and much more
•U.S./EU/AsianBackBox
•Providesabi-directionalRS232,RS485,USBorUARTconnection
to a PC or microcontroller
•OersRead/WriteapplicationtoiCLASScredentials
•Idealforaccesscontrol,healthrecordstimeandattendanceanddigitalcash
•LowVoltageandCurrentConsumption(5-16VDC@<100mA)
•Dimensions:4.8˝x3.3˝x1.0˝(12.2cmx8.4cmx2.4cm)
•ReadRange:upto4.25˝(10.8cm)*
(Black, Gray)
iCLASS® RWK400
Contactless Smart Card Keypad Reader/Writer
Base Part Number • 6131
•StoredataremotelyoniCLASScardfortimeandattendance,biometricap-
plications and much more
• U.S./EU/AsianBackBox
• PresentacardanduseaPINnumberfordualvericationofidentity
•Providesabi-directionalRS232,RS485,USBorUARTconnection
to a PC or microcontroller
• TerminalStriponly
• Dimensions:4.8˝x3.3˝x1.1˝(12.2cmx8.5cmx2.8cm)
•ReadRange:upto4.0˝(10.2cm)*
(Black, Gray)
RWKL550 Smart Card Reader
Contactless Smart Card LCD Keypad Reader/Writer
Base Part Number • 6171
• StoredataremotelyoniCLASScardfortimeandattendance,biometric
applications and much more
• LCDguidesuserthroughreaderusage
• Dual-factorauthenticationwithkeypad
• Providesabi-directionalRS232,RS485,USBorUARTconnectiontoaPC
or microcontroller
• Terminalstriponly
• Dimensions:6.1˝x4.2˝x4.5˝(15.6cmx10.6cmx3.7cm)
• ReadRange:upto4.0˝(10.2cm)*
(Black)
* Dependent upon installation conditions and credential type
![](asset-38.png)
50
HID Global Product Catalog
iCLASS® Biometric Readers
bioCLASS™ is HID’s iCLASS family of biometric products. Using
13.56 MHz contactless smart card technology, bioCLASS products provide
users with new options for supporting multi-authentication of identity.
Combine a contactless card presentation with a fingerprint biometric or use
apersonalidentificationnumber(PIN)numberalongwithacontactless
card presentation.
The bioCLASS products provide three levels of fingerprint verification.
Duringtheenrollmentprocess,theRKLB57willguidetheusertoplace
their finger on the sensor. The fingerprint template is collected at the unit
and immediately transferred to the cards. During the enrollment process, the
fingerprinttemplateisstoredONLYonthecard;itisnevertransmittedto
an external host. During verification at the door, the LCD graphical display will
assist the user with instruction about finger placement on the biometric sensor.
bioCLASS™ BIO500
Fingerprint Biometric Verification Module
Base Part Number • 6190
• FingerprintbiometricmodulefortheRWKLB575
• Centeredngerpadoersease-of-useforright-orlefthandedindividuals
• LocationofpadiscompliantwithADAstandards
• Dimensions:8.2˝ x 4.2˝ x 2.3˝(20.8cmx10.6cmx5.8cm)
(Black)
bioCLASS™ RWKLB575
Contactless Smart Card Biometric Reader/Writer
Base Part Number • 6181
• ReadsngerprinttemplatefromiCLASScardandveriesagainstlivenger
• Allowsdeveloperstoremotelyadministerenrollmentprocessfromenrollmentsoftware
• LCDguidesuserthroughbiometricauthenticationandreaderusage
• Three-factorauthenticationwithngerprintandkeypad
• Providesabi-directionalRS232,RS485,USBorUARTconnectiontoaPCor
microcontroller
• Terminalstriponly
• Dimensions:8.5˝ x 4.2˝ x 2.3˝(21.4cmx10.6cmx5.8cm)
• ReadRange:upto4.0˝ (10.2 cm)
bioCLASS™ RKLB57
Contactless Smart Card Biometric Reader
Base Part Number • 6180, 6188
• ReadsngerprinttemplatefromiCLASScardandveriesagainstlivenger
• Providesngerprintenrollmentfacility
• LCDguidesuserthroughbiometricauthenticationandreaderusage
• Three-factorauthenticationwithngerprintandkeypad
• Providesabi-directionalRS232,RS485,USBorUARTconnectiontoaPCormicrocontroller
• ReadsallHIDiCLASSandISO14443/15693compatible(CSN)credentials
• Terminalstriponly
• Dimensions:8.5˝ x 4.2˝ x 2.3˝(21.4cmx10.6cmx5.8cm)
• ReadRange:upto4.0˝(10.2cm)*
(Black)
(Black)
![](asset-39.png)
51 HID Global Product Catalog
Fort Knox security
with HID reliability
The iCLASS®CP400andCP575ACardProgrammersaredesignedforon-site
programmingofaccesscontroldata,PersonalIdentificationNumber(PIN)codesand
userdataontoHIDiCLASScards.TheyallowHIDproximityformats,keypadPIN
codes and user data fields to be programmed directly into iCLASS contactless smart
cards. This enables the system manager to stock configured cards and program cards
on demand when new cardholders are added to the system. To ensure security of the
format and cards, an iCLASS Card Programmer license is required.
The iCLASS CP400 Card Programmer includes a desktop reader/writer, CD-ROM
with programming software and documentation, personalization diskette, universal
power supply and serial cable.
TheiCLASSCP575ACardProgrammeraddsfingerprinttemplateprogramming
capabilityforusewiththebioCLASSreader.TheiCLASSCP575Aincludesa
desktop reader/writer, CD-ROM with programming software and documentation,
personalizationdiskette,universalpowersupplyandUSBcable.
Card Programmers
CP575 Card Programmer
Contactless Smart Card Programmer
Base Part Number • 6251
•StoresPINcodesonthecardforusewiththeiCLASSRK40,RWK400,
RKL550,RWKL550,RKLB575andRWKLB575
•KeypadreadersconguredforlocalPINverication
•Programsfour,16-characteruserdataeldsonthecard,thatcanlaterbe
read on the programmer
•Createssite-specic,high-securityauthenticationkeysthatareprogrammed
into both readers and cards
•Createsreadercongurationcardstoprogramnewauthenticationkeysinto
readers and change other reader operating parameters
•ReadsanyiCLASScardwhentheauthenticationkeyis
pre-stored in the programmer
•PrintscardnumbersdirectlyontothecardsusingaPVCcardprinteroron
standard Avery labels
•Maintainsasecure,encrypteddatabaseonapersonalcomputer
•Personalizedforindividualcustomers(proprietaryformatsarerestrictedto
authorized users)
•CP575ACardProgrammerprovidesUSBuserinterfacecapability
CP400 Card Programmer
Contactless Smart Card Programmer
Base Part Number • 3150
•StoresPINcodesonthecardforusewiththeiCLASSRK40,RWK400,
RKL550,RWKL550,RKLB575andRWKLB575
•Programsfour,16-characteruserdataeldsonthecard,thatcanlaterbe
read on the programmer
•ReadsanyiCLASScardwhentheauthenticationkeyis
pre-stored in the programmer
•PrintscardnumbersdirectlyontothecardsusingaPVCcardprinteroron
standard Avery labels
•Maintainsasecure,encrypteddatabaseonapersonalcomputer
•Personalizedforindividualcustomers(proprietaryformatsarerestrictedto
authorized users)
![](asset-3a.png)
52
HID Global Product Catalog
iCLASS® Reader Specications
R10/RW100 R15/RW150 R30/RW300 R40/RW400 RK40/RWK400 R90 RKL55/
RWKL550
RKLB57/
RWKLB575
Base Model Number R10: 6100/6108/6109
RW100: 6101
R15: 6140/6142/6148/6149
RW150: 6141
R30: 6110/6112/6118/6119
RW300: 6111
R40:
6120/6122/6128/6129
RW400: 6121
RK40:
6130/6132/6138/6139
RWK400: 6131
6150 RKL55: 6170/6172/6178
RWKL550:6171
RKLB57: 6180/6188
RWKLB575: 6181
Dimensions 4.04˝x1.9˝x.9˝
(10.5 cm x 5.0 cm x 2.5 cm)
6.1˝x1.9˝x0.9˝
(15.5 cm x 5.0 cm x 2.5 cm)
3.3˝x3.3˝x.85˝
(8.5cmx8.5cmx2.0cm)
4.8˝x.3.3˝x95˝
(12.0cmx8.5cmx2.0cm)
4.8˝x3.3˝x1.1˝
(12.0cmx8.5cmx2.5cm)
12.0˝x12.0˝x1.25˝
(30.5 cm x 30.5 cm
x 3.0 cm)
6.14˝x4.17˝x1.48˝
(15.5 cm x 10.5 cm
x 4.0 cm)
8.34˝x4.17˝x2.3˝
(21.0 cm x 10.5 cm
x 4.0 cm)
Weight 3.2oz(91g) 3.2oz(91g) 4.0 oz (113 g) 8.8oz(250g) 10.0oz(283g) 60.0oz(1.86kg) 12.69oz(360g) 17.12oz(485g)
Read Range Upto3.25˝(8.5cm) Upto3.5˝(9.0cm) Upto4.0˝(10.0cm) Upto4.25˝(11.0cm) Upto4.0˝(10.0cm) Upto18.0˝(45.5cm) Upto4.0˝(10.0cm)
Mounting Mullion Mullion, Fits footprint of HID
MiniProx reader. StandardEU/Asianbackboxes U.S./EU/Asianbackbox
Readerbodytsontobase
mountingplate.Coverts
over reader body, secured
with four screws.
U.S./EU/Asianbackbox
Power Supply 5-16VDC,Linearsupplyrecommended 5-16VDC,Linearsupplyrecommended
12-24VDCreversevoltage
protected, Linear supply
recommended
9-12VDC
Current
Requirements 55/116 mA 55/112 mA 55/121 mA R40: 55/121 mA
RW400: 55/132 mA
RK40: 85/116mA
RWK400: 85/132mA
420/1300mA@
12VDC
210/700mA@24VDC
RKL55: 160/250 mA
RWKL550*:
160/250 mA
RKLB57:
270mA/328mA
RWKLB575*:
270mA/328mA
Termination R10: Pigtail or Terminal Strip
RW100: Terminal Strip
R15: Pigtail or Terminal Strip
RW150: Terminal Strip
R30: Pigtail or Terminal Strip
RW300: Terminal Strip
R40: Pigtail or Terminal Strip
RW400: Terminal Strip
RK40: Pigtail or Terminal
Strip
RWK400: Terminal Strip
Terminal Strip
Output
Formats
R10: Wiegand, Clock-and-Data
RW100: Wiegand, RS232,
RS485,USB,UART
R15: Wiegand,
Clock-and-Data
RW150: Wiegand, RS232,
RS485,USB,UART
R30: Wiegand, Clock-and-Data
RW300: Wiegand, RS232,
RS485,USB,UART
R40: Wiegand,
Clock-and-Data
RW400: Wiegand, RS232,
RS485,USB,UART
RK40: Wiegand,
Clock-and-Data
RWK400: Wiegand, RS232,
RS485,USB,UART
Wiegand,
Clock-and-Data
RKL55: Wiegand,
Clock-and-Data
RWKL550: Wiegand,
RS232,RS485,USB,UART
RKLB57: Wiegand,
Clock-and-Data
RWKLB575: Wiegand,
RS232,RS485,USB,UART
FIPS 201
Certification Yes Yes No
Tamper Optical Optical Switch Optical
Indoor/Outdoor Both Both Indoor
Warranty Lifetime Lifetime One Year
![](asset-3b.png)
53 HID Global Product Catalog
*Add40mAcurrentdrawforUSBexpansionmodule.Add10mAcurrentdrawforRS232,RS485orUARTexpansionmodules
R10/RW100 R15/RW150 R30/RW300 R40/RW400 RK40/RWK400 R90 RKL55/
RWKL550
RKLB57/
RWKLB575
Base Model Number R10: 6100/6108/6109
RW100: 6101
R15: 6140/6142/6148/6149
RW150: 6141
R30: 6110/6112/6118/6119
RW300: 6111
R40:
6120/6122/6128/6129
RW400: 6121
RK40:
6130/6132/6138/6139
RWK400: 6131
6150 RKL55: 6170/6172/6178
RWKL550:6171
RKLB57: 6180/6188
RWKLB575: 6181
Dimensions 4.04˝x1.9˝x.9˝
(10.5 cm x 5.0 cm x 2.5 cm)
6.1˝x1.9˝x0.9˝
(15.5 cm x 5.0 cm x 2.5 cm)
3.3˝x3.3˝x.85˝
(8.5cmx8.5cmx2.0cm)
4.8˝x.3.3˝x95˝
(12.0cmx8.5cmx2.0cm)
4.8˝x3.3˝x1.1˝
(12.0cmx8.5cmx2.5cm)
12.0˝x12.0˝x1.25˝
(30.5 cm x 30.5 cm
x 3.0 cm)
6.14˝x4.17˝x1.48˝
(15.5 cm x 10.5 cm
x 4.0 cm)
8.34˝x4.17˝x2.3˝
(21.0 cm x 10.5 cm
x 4.0 cm)
Weight 3.2oz(91g) 3.2oz(91g) 4.0 oz (113 g) 8.8oz(250g) 10.0oz(283g) 60.0oz(1.86kg) 12.69oz(360g) 17.12oz(485g)
Read Range Upto3.25˝(8.5cm) Upto3.5˝(9.0cm) Upto4.0˝(10.0cm) Upto4.25˝(11.0cm) Upto4.0˝(10.0cm) Upto18.0˝(45.5cm) Upto4.0˝(10.0cm)
Mounting Mullion Mullion, Fits footprint of HID
MiniProx reader. StandardEU/Asianbackboxes U.S./EU/Asianbackbox
Readerbodytsontobase
mountingplate.Coverts
over reader body, secured
with four screws.
U.S./EU/Asianbackbox
Power Supply 5-16VDC,Linearsupplyrecommended 5-16VDC,Linearsupplyrecommended
12-24VDCreversevoltage
protected, Linear supply
recommended
9-12VDC
Current
Requirements 55/116 mA 55/112 mA 55/121 mA R40: 55/121 mA
RW400: 55/132 mA
RK40: 85/116mA
RWK400: 85/132mA
420/1300mA@
12VDC
210/700mA@24VDC
RKL55: 160/250 mA
RWKL550*:
160/250 mA
RKLB57:
270mA/328mA
RWKLB575*:
270mA/328mA
Termination R10: Pigtail or Terminal Strip
RW100: Terminal Strip
R15: Pigtail or Terminal Strip
RW150: Terminal Strip
R30: Pigtail or Terminal Strip
RW300: Terminal Strip
R40: Pigtail or Terminal Strip
RW400: Terminal Strip
RK40: Pigtail or Terminal
Strip
RWK400: Terminal Strip
Terminal Strip
Output
Formats
R10: Wiegand, Clock-and-Data
RW100: Wiegand, RS232,
RS485,USB,UART
R15: Wiegand,
Clock-and-Data
RW150: Wiegand, RS232,
RS485,USB,UART
R30: Wiegand, Clock-and-Data
RW300: Wiegand, RS232,
RS485,USB,UART
R40: Wiegand,
Clock-and-Data
RW400: Wiegand, RS232,
RS485,USB,UART
RK40: Wiegand,
Clock-and-Data
RWK400: Wiegand, RS232,
RS485,USB,UART
Wiegand,
Clock-and-Data
RKL55: Wiegand,
Clock-and-Data
RWKL550: Wiegand,
RS232,RS485,USB,UART
RKLB57: Wiegand,
Clock-and-Data
RWKLB575: Wiegand,
RS232,RS485,USB,UART
FIPS 201
Certification Yes Yes No
Tamper Optical Optical Switch Optical
Indoor/Outdoor Both Both Indoor
Warranty Lifetime Lifetime One Year
![](asset-3c.png)
54
HID Global Product Catalog
iCLASS® Prox Card
13.56 MHz Contactless Smart Card and 125 kHz
Proximity Card
Base Part Number • 202
•13.56MHziCLASSread/writetechnologyand125kHz
proximity technology in a single ISO standard thickness card
•Enablescontactlesssmartcardapplicationstobeaddedtoan
existing proximity technology access control system
•Oerstheabilitytoaddamagneticstripe,barcode,anti-
counterfeiting feature, custom artwork, or photo ID
•MeetsISOstandardsforthicknessforusewithdirectimage
and thermal transfer printers
iCLASS® Embeddable Card
13.56 MHz Contactless Smart Card
Base Part Number • 201*
• Designedtobeembeddedwithanoptionalcontactsmart
chip module of your choice
• Enablescontactsmartchipapplicationstobeaddedto
iCLASS cards in a single ISO standard thickness card
• Oerstheabilitytoaddamagneticstripe,barcode,anti-
counterfeiting feature, custom artwork, or photo ID
• MeetsISOstandardsforthicknessforusewithdirectimage
and thermal transfer printers
iCLASS® Card
13.56 MHz Contactless Smart Card
Base Part Number • 200
• Abilitytoaddamagneticstripe,barcode,anti-counterfeiting
feature, custom artwork, or photo ID
• MeetsISOstandardsforthicknessforusewithdirectimage
and thermal transfer printers
• MagneticStripeoptional
* Base part number does not include contact chip
iCLASS® Credentials
All iCLASS Credentials Feature:
•iCLASScredentialscomeascards,tags,andkeys.
•13.56MHzread/writecontactlesssmartcardtechnology,providing
high-speed, reliable communications with superior data integrity.
•Theabilitytostorebiometrictemplatesandusefuldatausing
read/write capabilities.
•Communicationsbetweencardandreaderthatincludehigh
security with mutual authentication, encrypted data transfer,
and 64-bit diversified keys for read/write.
•Advancedkeymanagementsystemstoreducetheriskof
compromised data or duplicated cards.
•SupportsallexistingHIDcardformats,includingCorporate1000.
•Theabilitytofactoryorfield*programanyexistingHIDformatinto
the secure HID access control application area.
•Achoiceof2kbits(256Bytes),16kbits(2kBytes)or32kbits
(4k Bytes) memory capacity.
•LifetimewarrantyprovidedforalliCLASScredentials!
*Consult factory for availability of the iCLASS Card Programmer, CP400
![](asset-3d.png)
iCLASS® Key II
Convenient 13.56 MHz Contactless SmartKey
Base Part Number • 205
• Incorporates iCLASS contactless read/write technology into a convenient
device approximately the size of an automotive key
• Molded plastic enclosure provides durability in harsh environments
• Provides an external number for easy identification and control
• Can be placed on a key ring or clipped to a lanyard for convenient entry
iCLASS® Tag
13.56 MHz Contactless Smart Tag With Adhesive Back
Base Part Number • 206
• Provides the convenience of HID’s iCLASS contactless
read/write technology in a small disk-shaped package
• Seamlessly upgrade from Wiegand, magnetic stripe, barium ferrite, or
proximity technologies by adhering the Tag to an existing access card*
• Allows users to easily and cost-eectively turn a plastic ID badge or
contact smart chip card into a contactless smart card
• Attaches easily to cell phones, PDAs, and other non-metallic objects
iCLASS® Prox Embeddable Card
13.56 MHz Contactless Smart Card With 125 kHz Proximity
Base Part Number • 213
• Designed to be embedded with an optional contact smart chip module of
your choice
• Enables contact smart chip applications to be added to iCLASS cards in a
single ISO standard thickness card
• Oers the ability to add a magnetic stripe, barcode, anti-counterfeiting
feature, custom artwork, or photo ID
• Meets ISO standards for thickness for use with direct image and thermal
transfer printers
• Optional Contact Smart Chip Module
iCLASS® Clamshell Card
Value Price 13.56 MHz Contactless Smart Card
Base Part Number • 208
• Provides contactless smart card technology in a cost-
eective card package
• An ABS shell construction that provides durability in harsh environments
iCLASS® Wiegand Card
13.56 MHz Contactless Smart Card and
Wiegand Technology
Base Part Number • 204
• Oers a one-card solution combining iCLASS and Wiegand technologies
• Ideal for companies transitioning from Wiegand technology to an HID
iCLASS-based system
• Oers the ability to add a magnetic stripe, barcode, anti-counterfeiting
feature, custom artwork, or photo ID
• Card thickness is suitable for use with all Wiegand readers, and most direct
image printers and magnetic stripe readers (nominal thickness .037˝)
• Optional magnetic stripe
(Black, Gray)
* Consult HID for specific guidelines for actual placement. Not for use with cards
used with tractor feed (full insertion) readers.
![](asset-3e.png)
56
HID Global Product Catalog
iCLASS®CredentialSpecications
iCLASS Meets Industry Standards
The development team at the Identification Technology Group of ASSA ABLOY has utilized
advanced semiconductor technology based on the 13.56 MHz frequency to meet numerous
ISO standards. iCLASS readers can read data from cards compliant with the following
standards:
ISO15693-read/write;2kbits(256Bytes),16kbits(2kBytes),and32kbits(4kBytes)
ISO14443,TypeA-readonly;MIFARE®(serialnumber)*
ISO 14443, TypeB2-read/write;2kbits(256Bytes),16kbits(2kBytes),and32kbits(4kBytes)
Meeting the standards above is important in smart card technology because they enable many
equipment and application developers to work with this technology to create a broader range of
uses for the card.
*TheR90isanISO15693readerandwillnotreadMIFAREcards
iCLASS®
Clamshell iCLASS® Card iCLASS® Card
Embeddable iCLASS® Prox iCLASS® Prox
Embeddable
iCLASS®
Wiegand
iCLASS®
Key
iCLASS®
Tag
Base Part Number 2080 200X/210X 201X/211X 202X/212X 203X/213X 204X 205X 206X
Read Range: *
R10/RW100 Upto2.5˝(6.5cm) Upto3.25˝(8.0cm) Upto3.25˝(8.0cm) Upto3.0˝(7.5cm) 1.5˝(4.0cm)
R30/RW300 Upto3.0˝(7.5cm) Upto4.0˝(10.0cm) Upto4.0˝(10.0cm) Upto3.0˝(7.5cm) 2.0˝(5.0cm)
R40/RW400 Upto4.5˝(10.0cm) Upto4.25˝(11.0cm) Upto4.25˝(11.0cm) Upto4.5˝(11.5cm) 2.0˝(5.0cm)
RK40/RK400 Upto4.0˝(9.0cm) Upto3.5˝(9.0cm) Upto3.5˝(9.0cm) Upto2.5˝(6.5cm) 2.0˝(5.0cm)
Memory Size/
Application Areas 2k bits with two areas
2kbitswithtwoapplicationareas;16kbitswithtwoapplication
areas(16k/2);
16kbitswith16applicationareas(16k/16);32kbits
(16k/2+16k/1);32kbits(16k/16+16k/1)
2kbitswithtwoapplicationareas;16kbitswithtwoapplicationareas(16k/2);
16kbitswith16applicationareas(16k/16);32kbits(16k/2+16k/1);32kbits(16k/16+16k/1)
HID Proximity
125 kHz No Yes No
Contact Smart Chip
Module Embeddable No Yes** No Yes** No
Wiegand Strip No No Yes No
Magnetic Stripe No Optional Optional No
Printable *** Yes Yes No
Standard HID
Artwork Optional Optional No Yes
Slot Punch VerticalIncluded VerticalOptional VerticalOptional HorizontalorVertical
Optional
Key Ring
Hole No
Visual Security
Options N/A Yes Yes N/A
Additional Security
Options Corp 1000, iCLASS Elite Corp 1000, iCLASS Elite
Warranty Lifetime Lifetime
*Dependantuponinstallationconditions.
**Contactsmartchipmodulenotincluded.AskaboutHID’sSMARTSProgramforo-the-shelfcontactsmartchipembeddedcards.
*** Some types of printing processes can take these credentials out of ISO compliance for thickness. Consult factory for more information.
![](asset-3f.png)
Did You Know...
...the same card data formats used in
HID Prox are all available in iCLASS?
iCLASS®
Clamshell iCLASS® Card iCLASS® Card
Embeddable iCLASS® Prox iCLASS® Prox
Embeddable
iCLASS®
Wiegand
iCLASS®
Key II
iCLASS®
Tag
Base Part Number 2080 200X/210X 211X 202X/212X 213X 204X 205X 206X
Read Range: *
R10/RW100 Up to 2.5˝ (6.5 cm) Up to 3.25˝ (8.0 cm) Up to 3.25˝ (8.0 cm) Up to 3.0˝ (7.5 cm) 2" (5.1 cm)
R30/RW300 Up to 3.0˝ (7.5 cm) Up to 4.0˝ (10.0 cm) Up to 4.0˝ (10.0 cm) Up to 3.0˝ (7.5 cm) 2.2" (5.9 cm)
R40/RW400 Up to 4.5˝ (10.0 cm) Up to 4.25˝ (11.0 cm) Up to 4.25˝ (11.0 cm) Up to 4.5˝ (11.5 cm) 2.7" (7.0 cm)
RK40/RK400 Up to 4.0˝ (9.0 cm) Up to 3.5˝ (9.0 cm) Up to 3.5˝ (9.0 cm) Up to 2.5˝ (6.5 cm) 2" (5.1 cm)
Memory Size/
Application Areas 2k bits with two areas
2k bits with two application areas; 16k bits with two application
areas (16k/2);
16k bits with 16 application areas (16k/16); 32k bits
(16k/2+16k/1); 32k bits (16k/16+16k/1)
2k bits with two application areas; 16k bits with two application areas (16k/2);
16k bits with 16 application areas (16k/16); 32k bits (16k/2+16k/1); 32k bits (16k/16+16k/1)
HID Proximity
125 kHz No Yes No
Contact Smart Chip
Module Embeddable No Yes** No Yes** No
Wiegand Strip No No Yes No
Magnetic Stripe No Optional Optional No
Printable *** Yes Yes No
Standard HID
Artwork Optional Optional Yes Yes
Slot Punch Vertical Included Vertical Optional Vertical Optional Horizontal or Vertical
Optional
Key Ring
Hole No
Visual Security
Options N/A Yes Yes N/A
Additional Security
Options Corporate 1000, iCLASS Elite Corporate 1000, iCLASS Elite
Warranty Lifetime Lifetime
* Dependant upon installation conditions.
** Contact smart chip module not included. Ask about HID’s SMARTS Program for o-the-shelf contact smart chip embedded cards.
*** Some types of printing processes can take these credentials out of ISO compliance for thickness. Consult factory for more information.
![](asset-40.png)
58
HID Global Product Catalog
HID Connect®
HID Connect® is the hardware and software
partnership arm of HID Global Corporation. Focused
on positioning HID as a platform provider to help
expand and support the new “ecosystem” that requires
a single credential for many day-to-day applications,
HID Connect promotes products, applications and
solutions that use HID 13.56 MHz iCLASS®, MIFARE®
or DESFire® and 125 kHz proximity technologies.
By combining HID Global’s strength in all aspects of
secure credentialing with Partner solutions, HID can
extend the use of a single-secure credential to cost-
eectivelyandconvenientlysolveadditionalbusiness
problems throughout an enterprise. The ultimate goal
of HID Connect is to help end-users “do more than
open the door” with their HID cards.
HIDConnectPartnersoeravarietyof
hardware, software and full solutions that
incorporate proximity, iCLASS or MIFARE
technologies.TondaPartnersolution,simply
“click” on the solution category above. Or, if you need
assistance in location an HID Connect Partner, please
sendane-mailtohidconnect@hidglobal.com.
Help HID Global build a cohesive development
community around HID’s contactless technologies,
creating a network for industry collaboration, future
development, and partnership opportunities. To
become an HID Connect Development Partner, please
contact your local HID representative or send an
e-mailtohidconnect@hidglobal.com.
![](asset-41.png)
59 HID Global Product Catalog
![](asset-42.png)
60
HID Global Product Catalog
Ask the Expert
Q: Is it hard to use a smart card for access control?
A: It depends on what you mean by “smart card”. You see, there are two different
types of smart cards. A “contactless” smart card is very easy to use for access
control. A “contact” smart card is not typically used for that purpose.
Contact Smart Cards:
These are what most people think of
when they hear the term “smart card.”
They have a microchip and a copper
interface leaf imbedded into the surface
of the card. These cards must be inserted
into a thin reader slot to be used, a
process that works well in an office
environment, but is not ideal for outdoor
or industrial applications. Furthermore,
contact smart card readers are a prime
target for vandalism. Once vandalized, the
reader typically must be replaced.
Advantages:
Contact smart cards do have some
very significant advantages compared
to contactless smart cards. They are
available in much greater memory
capacity, up to 2 Mb (2 megabits), and
with more powerful microprocessors.
Large memory files like high-resolution
photographs and complete medical
histories can fit on contact smart cards.
Certain cryptographic processes used
in high-security financial and legal
applications can only be accomplished
by utilizing contact smart cards. But for
access control use, you’ll typically want to
use contactless smart cards.
Contactless Smart Cards:
A contactless smart card is essentially the
same as any regular proximity card. It can
be read (and written to) several inches
from the reader, and it works really fast.
Contactless cards can be programmed
with a conventional card data format like
26-bit Wiegand. A compatible reader
can read that data and send it on to
a controller. The controller can’t tell
any difference compared to data from
a regular proximity (or even Wiegand
swipe) card.
Advantages:
For access control purposes, there is
little comparison. The many benefits of
proximity technology have been widely
acceptedsince1974.Contactlesssmart
cards used for access purposes share all
of the same advantages including great
ease of use, high reliability, and long life of
both cards and readers. In addition, the
contactless smart cards can be used to
carry many types of additional binary data
including the following:
•Biometric(fingerprint,handgeometry,
etc.) templates
•ComplexPCandnetworkpasswords
for logical access security
•Formattedmedicaldataforuniversity,
military and industrial applications.
•Moneyforvending,cafeteriapayment,
laundry and telephone use, etc.
•Buildingsystemandlightingcontrol
•Andmanymore
Different types of contactless cards and
different memory sizes control how
many and which kinds of applications can
be combined on one card. The access
control benefits, however, remain the
same regardless of what other functions
aremanagedbythecard.Noneof
these features can be accomplished by
conventional access cards of any kind.
Choosing a contactless smart card
solution for an access system gives the
end user an almost unlimited range of
future applications that can co-exist on
the same card. The fact that smart card
readers are compatible with virtually all
accesscontrolpanels,justlikeWiegand
or Prox readers, gives them a universal
appeal. For any new or completely
renovated access system, contactless
smart cards are the way to go.
![](asset-43.png)
61 HID Global Product Catalog
As an extension of the HID Corporate 1000 Program, HID
is pleased to introduce the iCLASS Elite Program, offering
end-users the highest level of card-to-reader security
availabletoday!
When using iCLASS contactless smart card technology,
the iCLASS Elite Program provides security professionals the
ability to standardize on a “single credential” solution that can be used for all
applications and locations throughout the enterprise worldwide. The mutual
authentication and encryption features of the technology enhance the “peace
of mind” offered by this solution.
Similar to the Corporate 1000 Program, the iCLASS Elite Program offers end-
users their own proprietary key. This key protects the card number within the
access control application of the card. Cards and readers are programmed in
the HID factory to match. Only matching cards and readers will work together,
further prohibiting cards and readers from foreign populations to enter and
function within the company’s Elite secured population.
Combined with HID’s Corporate 1000 Program, the iCLASS Elite program
offers customers multiple layers of card to reader security.
*Consult factory for availability.
iCLASS Elite
![](asset-44.png)
13.56 MHz smart technology offers an unbeatable combination of enhanced
security along with the ability to support other applications such as time and
attendance, cashless vending and more. That’s why we offer product lines
featuring all of the leading smart solutions – iCLASS®
, MIFARE® and DESFire®
–
as well as multi-technology cards and readers that can help make any
migration smoother and easier. All of the solutions have their strong points,
but we like to think the strongest point of all of them is the expertise
and support of HID.
hidglobal.com
ACCESS technology.
We think 13.56 MHz smart technology is great,
but an open approach is even better.
With HID, there’s more
than one way to be smart.
![](asset-45.png)
63 HID Global Product Catalog
SmartID™ Readers
SmartID Contactless Smart Card Readers are completely
compatible with the requirements of ISO 14443A (MIFARE/
DESFire) and are a perfect choice for access control, data storage
solutions and multiple applications. The open architecture and
highly customizable platform enables adaptation to an assortment
of card population scenarios. Adding to the security and flexibility
of tailored ISO 14443 applications, a wide variety of form factors
and multi-factor authentication product is available, including
keypad and biometric readers. Choose from a full range of HID’s
13.56 MHz offerings encompassing the industry’s broadest range
of open standard contactless smart card products, available from
over 40,000 resellers worldwide.
13.56 MHz MIFARE® and DESFire® Contactless Cards and Readers
![](asset-46.png)
64
HID Global Product Catalog
SmartID™ Readers
SmartID Mullion Keypad - SK10
ISO 14443A Contactless Smart Card Keypad Reader
Base Part Number • 8031
•ReadsdatafromanyISO14443A(MIFARE/DESFire)Contactless
Smart Card
•Canbeconguredforalmostanycustomcardpopulation
•Choosefromavarietyof readeroutputs,includingWiegand,
Clock-and-Data,RS232,RS485andRS422.
•Keypadoersdual-factorauthentication
•Readerrmwareloadedfromsmartcardmakesupgradesand
maintenance painless
•Dimensions:5.59˝x1.81˝x0.98˝(14.2x4.6x2.5cm)
•ReadRange:upto1.5˝(3.8cm)
•Additionalaccessory(p/n8090AS)turnsreaderintosingle-gang
electrical mount
SmartID Mullion - S10
ISO 14443A Contactless Smart Card Reader
Base Part Number • 8030
• ReadsdatafromanySmartCardincludingHIDMIFARE
• Canbeconguredforalmostanycustomcardpopulation
• Choosefromavarietyofreaderoutputs,includingWiegand,Clock-
and-Data,RS232,RS485andRS422.
•Readerrmwareloadedfromsmartcardmakesupgradesand
maintenance painless
• Dimensions:5.59˝x1.81˝x0.98˝(14.2x4.6x2.5cm)
• ReadRange:upto1.5˝(3.8cm)
• Additionalaccessory(p/n8090AS)turnsreaderintosingle-gang
electrical mount
Silver
Silver
FIPS 201 Approved. Call for
details 800-872-5359
FIPS 201 Approved. Call for
details 800-872-5359
Did You Know...
The SmartID reader offers the ultimate choice in
interoperability and programmability. Designed for a wide
variety of applications from entry level access control to
secure ID management, the reader family is completely
configurable for every access control application challenge.
![](asset-47.png)
65 HID Global Product Catalog
FlexSmart Credentials
SmartTOUCH Keypad - SBK10
ISO 14443A Contactless Smart Card Biometric Keypad Reader
Base Part Number • 800-8055*
• BiometricauthenticationinconjunctionwithdatafromanyISO
14443A (MIFARE/DESFire) Contactless Smart Card
• Canbeconguredforalmostanycustomcardpopulation
• Three-factorauthenticationnger+card+pin
• Fieldngerprintenrollmentatthereaderforsimplicityandconvenience
• Dimensions:7.58˝x1.99˝x1.69˝(19.25x5.05x4.3cm)
• ReadRange:upto1.18˝(3.0cm)MIFARE
• Additionalaccessory(p/n500-8095)turnsreaderintosingle-gang
electrical mount
SmartTOUCH - SB10
ISO 14443A Contactless Smart Card Biometric Reader
Base Part Number • 800-8050*
• BiometricauthenticationinconjunctionwithdatafromanyISO14443A
(MIFARE/DESFire) Contactless Smart Card
• Canbeconguredforalmostanyofcustomcardpopulation
• Choosefromavarietyofreaderoutputs,includingWiegand,Clock-and-
Data,RS232,RS485andRS422.
• Fieldngerprintenrollmentatthereaderforsimplicityandconvenience
• Dimensions:7.58˝x1.99˝x1.69˝(19.25x5.05x4.3cm)
• ReadRange:upto1.18˝(3.0cm)MIFARE
• Additionalaccessory(p/n500-8095)turnsreaderintosingle-gang
electrical mount
Silver
Silver
SmartTOUCH™ Biometric Readers
* Multiple base part numbers available depending upon application.
![](asset-48.png)
66
HID Global Product Catalog
SmartID™ Card Programmers
The SmartTOOLS™ desktop card programmer suite is a flexible, highly secure
and stylish Contactless Smart Card programmer, ideal for customers that require
access card programming and/or reader customization for new or existing
installations. The SmartTOOLS software suite offers two software packages:
ProxBurnCP100,partnumber501-7753
ReaderTOOLSCP101,partnumber501-7756
ProxBurn is a card programming suite for MIFARE cards that allows the user to
program 32-bit Wiegand card numbers and flexible Clock-and-Data card formats
up to 10 digits using site specific security keys for MIFARE and DESFire cards.
ReaderTOOLS is a SmartID reader configuration tool. ReaderTOOLS allows
users to create configuration cards that customize the behavior of any SmartID
reader.Usinganexistingkeymanagementprocess,ReaderTOOLSenables
customers to secure readers with site specific keys known only to the site
manager. After creation of configuration cards, site managers configure readers
by placing the configuration card in front of the reader. After configured, SmartID
readers will read, process and output custom programmed MIFARE data.
ProxBurn and ReaderTOOLS are both available for Windows® 2000/XP/2003.
Softwarelicensesand/orNDAsarerequiredforuse.
ProxBurn - CP100
Card Programmer
Base Part Number • 501-7753
• Programs32-bitWiegandcardnumbers
(MIFARE only)
• Programsupto10Clock-and-DataABAdigits
• Programsaccesscardswithsitespecicsecuritykeys
• RS232connectiontocomputer
ReaderTOOLS - CP101
Configuration Card Programmer
Base Part Number • 501-7756
• ProgramsSmartIDReaderCongurationCards
• Allowsuserstosetupsecuresitespecicreaderkeys
• Enablesuserstocongureamultitudeof reader
settings
• CongureanySmartIDreader
• USBconnectiontocomputer
![](asset-49.png)
67 HID Global Product Catalog
SmartID™ReaderSpecications
SmartID™ Mullion
S10
SmartID™ Mullion
Keypad SK10
SmartTOUCH™
SB10
SmartTOUCH™
Keypad SBK10
Base Model
Number* 8030 8031 800-8050 800-8055
Dimensions 5.59˝x1.81˝x0.98˝
(14.0 cm x 4.6 cm x 2.5 cm)
7.58˝x1.99˝x1.69˝
(19.5cmx5.0cmx4.5cm)
Weight 4.3 oz (122 g) 5..5oz(157g)
Read Range Upto1.5˝(3.8cm) Upto1.18˝(3.0cm)
Mounting MullionorSingle-gangelectricalbox**
Power Supply 5-24VDC 8–24VDCregulated
Current
Requirements 68mA/82mA(@12VDC) 208mA/417mA(@12VDC)
Termination Terminal
Output
Formats
Wiegand, Clock-and-Data
RS232,RS485,RS422
Tamper Option
Indoor/
Outdoor Both No
Additional
Technologies N/A Fingerprint Sensor
Warranty Lifetime One Year
*Multiplebasepartnumbersavailabledependinguponapplication
**Single-gangmountingrequirespurchaseofadditionalaccessory
![](asset-4a.png)
68
HID Global Product Catalog
FlexSmart® Readers
HID FlexSmart® MIFARE® and DESFire® Contactless Smart Card
Readers are completely compatible with the requirements of ISO
14443A and are a perfect choice for access control, data storage
solutions and multiple applications.
The open architecture, flexible, highly secure and stylish contactless smart
card reader series augments HID’s market-leading iCLASS® product line
and features three models: FlexSmart MIFARE HID Format Secure Reader
(6075),FlexSmartMIFARECustomReader(6076),andFlexSmartDESFire
CustomReader(6077).ThisHIDfamilyofcontactlesssmartcardproducts
provides options for customers looking for either an out-of-the-box solution
or requiring customizable readers. HID’s 13.56 MHz offerings encompass the
industry’s broadest range of open standard contactless smart card products,
available from over 40,000 resellers worldwide.
![](asset-4b.png)
69 HID Global Product Catalog
MIFARE® Reader/Writer 6055
13.56 MHz Contactless Smart Card Reader
Base Part Number • 6055
• CongurableasaMIFAREMAD,SectororCSNReader
• WiegandorRS-232Outputs
• CompatiblewithallHIDformats
• Mountsonasingle-gangelectricalboxforeasyinstallation
• Dimensions:4.7˝x3.0˝x0.68˝(11.9cmx7.6cmx1.7cm)
• ReadRange:upto2.0˝(5.0cm)*
(Black, Gray, Beige, White)
MIFARE® Custom Reader 6076
ISO 14443A Contactless Smart Card Series
Base Part Number • 6076
• Canbeconguredtoreadanythird-partyformattedcardsorto
develop a custom format for a new application
• ISO14443Acompatibleforcardinteroperability
• CanreaddatafromanyMIFAREsectorofthecard
• Idealforcustomersthatrequireacustomizablereaderfornewor
existing installations
• Dimensions:4.3˝x1.5˝x0.72˝(10.9cmx3.8cmx1.8cm)
• ReadRange:upto2.0˝(5.0cm)*
DESFire® Custom Reader 6077
ISO 14443A Contactless Smart Card Series
Base Part Number • 6077
• HighlysecuredatatransactionswithTripleDESencryption
• ISO14443Acompatibleforcardinteroperability
• ReadsdatafromanyDESFireapplicationleonthecard
• Idealforcustomersthatrequireacustomizablereaderfornew
or existing installations
• Dimensions:4.3˝x1.5˝x0.72˝(10.9cmx3.8cmx1.8cm)
• ReadRange:upto2.0˝(5.0cm)*
MIFARE® HID Format
Secure Reader 6075
ISO 14443A Contactless Smart Card Series
Base Part Number • 6075
• Allkeysandformatsareprecongured,makinginstallationseasy
• ChoosefromavarietyofHIDformats:OEM,Corporate1000or26-Bit
• CompleteexibilitytoreadHIDSectorformatsand/orCSN
• HIDmanagesallreaderandcardsecurityforthecustomer
• Dimensions:4.3˝x1.5˝x0.72˝(10.9cmx3.8cmx1.8cm)
• ReadRange:upto2.0˝(5.0cm)*
Wave (Black, Blue) Arch (Black, Beige)
Wave (Blue) Arch (Black, Beige)
Wave (Blue) Arch (Black, Beige)
* All Read Ranges are dependent on the type of credential used.
![](asset-4c.png)
70
HID Global Product Catalog
FlexSmart® Readers
MIFARE® HID Format Secure Keypad Reader 6071
ISO 14443A Contactless Smart Card Series
Base Part Number • 6071
• Keypadenablesmulti-factorauthentication
• Idealforhightracareas
• Allkeysandformatsareprecongured,makinginstallationseasy
• ChoosefromavarietyofHIDformats:OEM,Corporate1000or26-Bit
• CompleteexibilitytoreadHIDSectorformatsand/orCSN
• HIDmanagesallreaderandcardsecurityforyou
• Dimensions:4.7˝x2.9˝x1.1˝(11.9cmx7.4cmx2.8cm)
• ReadRange:Upto2.0˝(5.0cm)
DESFire® Custom Keypad Reader 6073
ISO 14443A Contactless Smart Card Series
Base Part Number • 6073
• Keypadenablesmulti-factorauthentication
• Thereaderiscompletelycongurableforeveryaccesscontrolapplicationchallenge
• ISO14443Acompatibleforcardinteroperability
• ReadsdatafromanyDESFireapplicationleonthecard
• SecuredatatransactionswithTripleDESencryption
• Dimensions:4.7˝x2.9˝x1.1˝(11.9cmx7.4cmx2.8cm)
• ReadRange:Upto2.0˝(5.0cm)
MIFARE® Custom Keypad Reader 6072
ISO 14443A Contactless Smart Card Series
Base Part Number • 6072
• Keypadenablesmulti-factorauthentication
• Completelycongurableforeveryaccesscontrolapplicationchallenge
• ISO14443Acompatibleforcardinteroperability
• CanreaddatafromanyMIFAREsectorofthecard
• Dimensions:4.7˝x2.9˝x1.1˝(11.9cmx7.4cmx2.8cm)
• ReadRange:Upto2.0˝(5.0cm)
![](asset-4d.png)
71 HID Global Product Catalog
MIFARE® HID Format
Secure Reader MIFARE® Custom Reader DESFire® Custom Reader
Base Model
Number 6075 6076 6077
Dimensions 4.3˝ x 1.5˝x.72˝(10.9cmx3.8cmx1.08cm)
Weight 4.0 oz (113 g)
Read Range Upto2.0˝(5.0cm)
Mounting Mullion base with interchangeable bezels
Power Supply PowerSupply9-16VDC,Linearsupplyrecommended
Current
Requirements 15-75mA
Termination Pigtail
Output Formats Wiegand or Clock-and-Data
Certifications/
Approvals
FCCCertication,CanadaCertication,CEMark(Europe),NewZealand,Australiac-Tick
PendingCertications:Taiwan,Singapore,GermanyVdS,UL294/cUL,
Tamper No
Indoor/Outdoor Both
Warranty Lifetime
MIFARE® HID Format
Secure Keypad Reader MIFARE® Custom Keypad
Reader DESFire® Custom Keypad
Reader
Base Model
Number 6071 6072 6073
Dimensions 4.7˝x2.9˝x1.1˝(11.9cmx7.4cmx2.8cm)
Weight 12.0 oz (340 g)
Read Range Upto2.0˝(5.0cm)
Mounting Single-gang electrical box
Power Supply PowerSupply9-16VDC,Linearsupplyrecommended
Current
Requirements 25mA/100mA@12VDC;Linearpowersupplyrecommended
Termination Pigtail
Output Formats Wiegand or Clock-and-Data
Certifications/
Approvals
FCCCertication,CanadaCertication,CEMark(Europe),NewZealand,Australiac-Tick
PendingCertications:Taiwan,Singapore,GermanyVdS,UL294/cUL,
Tamper No
Indoor/Outdoor Both
Warranty Lifetime
FlexSmart®ReaderSpecications
![](asset-4e.png)
72
HID Global Product Catalog
MIFARE®/DESFire® Credentials
MIFARE® Card
13.56 MHz Contactless Smart Card
Base Part Number • 1430
•Creditcard-thinMIFARE1KISOcardprovideshighsecuritywithmutual
authentication, data encryption and unique 32-bit serial number
•Idealfordiverseapplicationssuchasaccesscontrol,cashlessvending,public
transportation, corporate and campus applications, event ticketing, customer
loyalty and photo ID cards
•PhotoIDcompatibilityallowsprintingdirectlytothecardwithadirectimage
or thermal transfer printer
•Cardscanbeproducedwithvisualsecurityandanti-counterfeitingfeatures
suchasholograms,ultra-violetuorescentinks,micro-printingoracustom
logo
•AlsoAvailableinCompositePolyester/PVC,MIFARE4Kandmagneticstripe
versions
MIFARE®/Prox Combo Card
13.56 MHz Contactless Smart Card
Base Part Number • 1431
•CombineMIFARE1Kandproximitytechnologiestoaddsmartcard
applications, such as cashless vending, corporate and campus applications, event
ticketing, customer loyalty and photo ID cards, to access control systems
•Provideshighsecuritywithmutualauthentication,dataencryptionandunique
32-bit serial number and supports all HID proximity card formats, including
Corporate 1000
•PhotoIDcompatibilityallowsprintingdirectlytothecardwithadirectimageor
thermal transfer printer
•Cardscanbeproducedwithvisualsecurityandanti-counterfeitingfeaturessuch
asholograms,ultra-violetuorescentinks,micro-printingoracustomlogo
•AlsoAvailableinCompositePolyester/PVCandMIFARE4Kversions
DESFire® Card
13.56 MHz Contactless Smart Card
Base Part Number • 1450
•Proven,ReliableTechnology-Oersextremelyconsistentreadrange.Useis
unaectedbybodyshieldingorvariableenvironmentalconditions,evenwhen
close to keys and coins.
•FastProcessingandDataCommunication-Transactiontimesarelessthan
100 milliseconds for a typical secure ticketing transaction.
DESFire®/Prox Combo Card
13.56 MHz Contactless Smart Card
Base Part Number • 1451
•Proven,ReliableTechnology-Oersextremelyconsistentreadrange.Useis
unaectedbybodyshieldingorvariableenvironmentalconditions,evenwhen
close to keys and coins.
•FastProcessingandDataCommunication-Transactiontimesarelessthan
100 milliseconds for a typical secure ticketing transaction.
•TrueCreditCardThickness-Usewithalldirectimageandthermaltransfer
printers.
![](asset-4f.png)
MIFARE® Key fob
13.56 MHz Contactless Smart Card
Base Part Number • 1434
• High Security - MIFARE technology ensures mutual authentication, data encryption
and unique 32-bit serial number.
• Proven, Reliable Technology - Oers extremely consistent read range. Use is
unaected by body shielding or variable environmental conditions, even when close
to keys and coins.
• Fast Processing and Data Communication - Transaction times are less than 100
milliseconds for a typical secure ticketing transaction.
• Multiple Memory Types - Available in MIFARE 1K and 4K.
DESFire® Key fob
13.56 MHz Contactless Smart Card
Base Part Number • 1454
• High Security - DESFire technology includes mutual authentication, DES and triple-
DES data encryption, and unique 56-bit serial number.
• Proven, Reliable Technology - Oers extremely consistent read range. Use is
unaected by body shielding or variable environmental conditions, even when close
to keys and coins.
• Fast Processing and Data Communication - Transaction times are less than 100
milliseconds for a typical secure ticketing transaction.
MIFARE® Adhesive Tag
13.56 MHz Contactless Smart Card
Base Part Number • 1435
• High Security - MIFARE technology ensures mutual authentication, data encryption
and unique 32-bit serial number.
• Proven, Reliable Technology - Oers extremely consistent read range. Use is
unaected by body shielding or variable environmental conditions, even when close
to keys and coins.
• Fast Processing and Data Communication - Transaction times are less than
100 milliseconds for a typical secure ticketing transaction.
• Multiple Memory Types - Available in MIFARE 1K and 4K.
DESFire® Adhesive Tag
13.56 MHz Contactless Smart Card
Base Part Number • 1455
• High Security - DESFire technology includes mutual authentication, DES and triple-
DES data encryption and unique 56-bit serial number.
• Fast Processing and Data Communication - Transaction times are less than
100 milliseconds for a typical secure ticketing transaction.
• Upgrade Tool - Provides the security of DESFire contactless read/write technology
in a small, disk-shaped package.
![](asset-50.png)
74
HID Global Product Catalog
MIFARE®
Card
MIFARE® / HID Prox
Combo Card DESFire® Card DESFire® / HID Prox
Combo Card MIFARE® Keyfob DESFire® Keyfob MIFARE®
Adhesive Tag
DESFire®
Adhesive Tag
Base Part
Number
1430:PVC1kCard
1440:PVC4kCard
1436:CompositePET/PVC
1k Card
1446:CompositePET/PVC
4k Card
1431:PVC1kCard
1441:PVC4kCard
1437:CompositePET/PVC
1k Card
1447:CompositePET/PVC
4k Card
1450:PVCCard
1456:CompositePET/PVCCard
1451:PVCCard
1457:CompositePET/PVCCard
1434: 1k Keyfob
1444: 4k Keyfob
1454 1435: 1k Tag
1445: 4k Tag
1455
Read Range: *
MIFARE Upto4.0˝(10.0cm) N/A Upto2.0˝(5.0cm) N/A Upto2.0˝(5.0cm) N/A
DESFIRE N/A Upto4.0˝(10.0cm) N/A Upto2.0˝(5.0cm) N/A Upto2.0˝(5.0cm)
HID Prox N/A Upto4.5˝(11.5cm) N/A Upto4.5˝(11.5cm) N/A
Indala Prox N/A N/A N/A
Memory Size/
Application Areas
1kByte(8kbits)or
4k Bytes (32k bits)
4k Bytes
(32k bits)
1kByte(8kbits)or
4k Bytes (32k bits)
4k Bytes
(32k bits)
1kByte(8kbits)or
4k Bytes (32k bits)
4k Bytes
(32k bits)
HID Proximity 125
kHz No Yes No Yes No
Contact Smart
Chip Module
Embeddable
Yes** No
Wiegand Strip No No
Magnetic Stripe Optional No
Printable *** Yes No
Standard HID
Artwork Optional Yes
Slot Punch Verticaloptional Key Ring Hole No
Visual Security
Options Yes No
Additional
Security Options Corp 1000 Corp 1000
Warranty Lifetime Lifetime
*Dependantuponinstallationconditions.
**Contactsmartchipmodulenotincluded.AskaboutHID’sSMARTSProgramforo-the-shelfcontactsmartchipembeddedcards.
*** Some types of printing processes can take these credentials out of ISO compliance for thickness. Consult factory for more information.
MIFARE®/DESFire® Credentials
![](asset-51.png)
MIFARE®
Card
MIFARE® / HID Prox
Combo Card DESFire® Card DESFire® / HID Prox
Combo Card MIFARE® Key fob DESFire® Key fob MIFARE®
Adhesive Tag
DESFire®
Adhesive Tag
Base Part
Number
1430: PVC 1k Card
1440: PVC 4k Card
1436: Composite PET/PVC
1k Card
1446: Composite PET/PVC
4k Card
1431: PVC 1k Card
1441: PVC 4k Card
1437: Composite PET/PVC
1k Card
1447: Composite PET/PVC
4k Card
1450: PVC Card
1456: Composite PET/PVC Card
1451: PVC Card
1457: Composite PET/PVC Card
1434: 1k Key fob
1444: 4k Key fob
1454 1435: 1k Tag
1445: 4k Tag
1455
Read Range: *
MIFARE Up to 4.0˝ (10.0 cm) N/A Up to 2.0˝ (5.0 cm) N/A Up to 2.0˝ (5.0 cm) N/A
DESFIRE N/A Up to 4.0˝ (10.0 cm) N/A Up to 2.0˝ (5.0 cm) N/A Up to 2.0˝ (5.0 cm)
HID Prox N/A Up to 4.5˝ (11.5 cm) N/A Up to 4.5˝ (11.5 cm) N/A
Indala Prox N/A N/A N/A
Memory Size/
Application Areas
1k Byte (8k bits) or
4k Bytes (32k bits)
4k Bytes
(32k bits)
1k Byte (8k bits) or
4k Bytes (32k bits)
4k Bytes
(32k bits)
1k Byte (8k bits) or
4k Bytes (32k bits)
4k Bytes
(32k bits)
HID Proximity 125
kHz No Yes No Yes No
Contact Smart
Chip Module
Embeddable
Yes** No
Wiegand Strip No No
Magnetic Stripe Optional No
Printable *** Yes No
Standard HID
Artwork Optional Yes
Slot Punch Vertical optional Key Ring Hole No
Visual Security
Options Yes No
Additional
Security Options Corp 1000 Corp 1000
Warranty Lifetime Lifetime
![](asset-52.png)
iCLASS®
and SmartID®
. In 13.56 MHz technology,
HID is talking choices. HID believes in the enhanced security
and functionality of 13.56 MHz smart technology. Our iCLASS and
SmartID product lines cover all the leading smart technologies, whether
you’re talking iCLASS, MIFARE or DESFire. And our multi-technology
cards and readers are there to help you migrate at your own pace. When
an access control card provides mutual authentication, and supports
applications such as time and attendance, cashless vending and PC log-in
security, that is one smart credential. Best of all, HID offers more than
one way to get one.
We speak 13.56 MHz.
Fluently.
“ ”
hidglobal.com
ACCESS technology.
![](asset-53.png)
Multi-Technology
With multi-technology products from HID Global,
customers have the ability to transition to contactless
smart cards over time while incorporating the use of
multiple card technologies within a single building or
across multiple facilities. Additionally, customers can
transition from disparate proximity technologies to a
unified contactless smart card solution from HID Global.
![](asset-54.png)
multiCLASS™
SmartTRANS™
pages 77-82
pages 83-88
Multi-Technology
![](asset-55.png)
77 HID Global Product Catalog
13.56 MHz Contactless and 125 kHz Proximity Cards and Readers
multiCLASS™
With our unique card technology read selection feature, customers
have endless card management flexibility, with security and
simplicity. The multiCLASS reader is the ultimate migration tool.
multiCLASS multi-technology card readers combine 125 kHz proximity
technology and iCLASS® 13.56 MHz contactless smart card and reader
technologies into a single reader. They are designed for customers who are
upgrading their current card system from from HID Prox, Indala Proximity or
AWID to HID iCLASS credentials or cards. Readers can also read ISO 14443A
MIFARE/DESFire CSN’s, FeliCa IDm’s and FIPS 201 credential formats. The
multiCLASS line provides a clear multi-technology migration path for the large
installed bases of HID, Indala and AWID customers.
All multiCLASS access control readers have been approved by U.S. General
Services Administration (GSA) as Transparent Contactless Readers for their
FIPS 201 Approved Products List, allowing an agency's access control system
to function properly during the transition from current card technology to the
new FIPS 201 card requirements.
Recognized and honored by Access Control & Security Systems magazine
as one of the Top 20 new products for 2006, the RP40 multiCLASS card
reader reflects the highest level technology innovation in the security industry.
multiCLASS comes with a lifetime warranty, and is now available from HID’s
network of distributors, OEMs, and system integrators worldwide. Only
the RP40 provides true iCLASS security, the ease of Prox (HID Prox, Indala
Proximity or AWID), the power of smart cards and the confidence of
choosing HID, the worldwide leader in access control.
![](asset-56.png)
78
HID Global Product Catalog
multiCLASS™ RPK40 Reader
Smart Card Keypad Reader
Base Part Number • 6136, 6133, 6134z
• SimplemigrationfromthemostpopularproximitytechnologiestoiCLASS
• US/EU/AsianBackBoxSize
• Dualfactorauthenticationwithkeypad
• LowVoltageandCurrentConsumption(5-16VDC@<100mA)
• Reads13.56MHz:HIDiCLASS,ISO15693CSN,ISO14443A(MIFARE)
CSN,ISO14443BCSN,FeliCaIDm*,andFIPS201;Reads125KHz:HID
Prox and AWID or Indala Proximity
• Pigtailonly
• Dimensions:4.8˝x3.3˝x1.1˝(12.2x8.4x2.8cm)
• ReadRange:iCLASSupto4.25˝(11.0cm),HIDProxupto4.0˝(10.0cm)**
(Black,Gray)
multiCLASS multi-technology card readers are
designed for customers upgrading their current card system
from HID Prox to iCLASS® credentials. With the multiCLASS
readers, the customer has the ability to transition to smart
cards over time while incorporating the use of multiple card
technologies within a single building or across multiple facilities.
multiCLASS™ RP40 Reader
Smart Card Reader
Base Part Number • 6125, 6123, 6124
• SimplemigrationfromthemostpopularproximitytechnologiestoiCLASS
• US/EU/AsianBackBoxSize
• ProvidesWiegandorClock-and-Dataoutput
• LowVoltageandCurrentConsumption(5-16VDC@<100mA)
• Reads13.56MHz:HIDiCLASS,ISO15693CSN,ISO14443A(MIFARE)
CSN,ISO14443BCSN,FeliCaIDm*,andFIPS201;Reads125KHz:HID
Prox and AWID or Indala Proximity
• Pigtailonly
• Dimensions:4.8˝x3.3˝x1.0˝(12.2x8.4x2.4cm)
• ReadRange:iCLASSupto4.25˝(11.0cm),HIDProxupto4.0˝(10.0cm)**
multiCLASS™ RP15 Reader
Smart Card Reader
Base Part Number • 6145, 6143, 6144
• SimpleMigrationfromthemostpopularproximitytechnologiestoiCLASS®
• Slimdesignisperfectformetalmullionsoranyotherspace-limitedinstallation
• ProvidesWiegandorClock-and-Dataoutput
• LowVoltageandCurrentConsumption(5-16VDC@<100mA)
• Reads13.56MHz:HIDiCLASS,ISO15693CSN,ISO14443A(MIFARE)CSN,
ISO14443BCSN,FeliCaIDm*,andFIPS201;Reads125KHz:HIDProxand
AWID or Indala Proximity
• Pigtailonly
• Dimensions:6.1˝x1.9˝x0.9˝(15.3cmx4.8cmx2.3cm)
• ReadRange:iCLASSupto3.5˝(9.0cm),HIDProxupto4.0˝(10.0cm)**
(Black,Gray)
(Black,Gray)
* FeliCa requires multiCLASS Transit Reader.
** Dependent upon installation conditions and credential type
multiCLASS™ Readers
![](asset-57.png)
79 HID Global Product Catalog
RP15 RP40 RPK40
Base Model Number 6145A/6143A/6144A 6125B/6123B/6124B 6136A/6133A/6134A
Dimensions 6.0˝x1.9˝x0.9˝
(15.3cmx4.8cmx2.3cm)
4.8˝x3.3˝x1.0˝
(12.2cmx8.4cmx2.5cm)
4.8˝x3.3˝x1.1˝
(12.2cmx8.4cmx2.8cm)
Weight 5.9oz(166g) 8.8oz(250g) 9.1oz(258g)
Read Range
iCLASS:Upto3.5˝(9.0cm)
HID Prox:Upto4.0˝(10.0cm)
Indala Prox: Upto2.25˝(5.5cm)
iCLASS: Upto4.25˝(11.0cm)
HID Prox:Upto4.0˝(10.0cm)
Indala Prox: Upto2.25˝(5.5cm)
Mounting Mullion, Fits footprint of HID
MiniProx reader. U.S./EU/Asian back box
Power Supply 5-16VDC,Linearsupplyrecommended
Current
Requirements* 55/93mA 55/123 mA 85/169mA
Termination Pigtail
Output
Formats Wiegand, Clock-and-Data
FIPS 201
Certification Yes
Tamper Optical
Indoor/Outdoor Both
Additional
Technologies Reads HID Prox and AWID or Indala Proximity
Warranty Lifetime
Did You Know?
Simple Upgrade Installation:
Installing HID Prox to iCLASS upgrades
are simple because the multiCLASS
readers have the same wiring connections,
same low-current consumption, and
same 5 or 12 volt operation as Prox.
*Add25mAwhenconguredwithHIDProx.Add40mAwhenconguredwithIndalaProximity.
![](asset-58.png)
80
HID Global Product Catalog
Multi-Technology Credentials
iCLASS® Prox Embeddable Card
13.56 MHz Contactless Smart Card
with 125 kHz Proximity
Base Part Number • 203
•Designedtobeembeddedwithanoptionalcontactsmartchip
module of your choice
•EnablescontactsmartchipapplicationstobeaddedtoiCLASS
cards in a single ISO standard thickness card
•Oerstheabilitytoaddamagneticstripe,barcode,anti-
counterfeiting feature, custom artwork, or photo ID
•MeetsISOstandardsforthicknessforusewithdirectimage
and thermal transfer printers
•OptionalContactSmartChipModule
iCLASS® Wiegand Card
13.56 MHz Contactless Smart Card
and Wiegand Technology
Base Part Number • 204
•Oersaone-cardsolutioncombiningiCLASSandWiegand
technologies
•IdealforcompaniestransitioningfromWiegandtechnologyto
an HID iCLASS-based system
•Oerstheabilitytoaddamagneticstripe,barcode,anti-
counterfeiting feature, custom artwork, or photo ID
•CardthicknessissuitableforusewithallWiegandreaders,
and most direct image printers and magnetic stripe readers
(nominalthickness.037˝)
•Optionalmagneticstripe
iCLASS® Prox Card
13.56 MHz Contactless Smart Card
and 125 kHz Proximity Card
Base Part Number • 202
•13.56MHziCLASSread/writetechnologyand125kHz
proximity technology in a single ISO standard thickness card
•Enablescontactlesssmartcardapplicationstobeaddedtoan
existing proximity technology access control system
•Oerstheabilitytoaddamagneticstripe,barcode,anti-
counterfeiting feature, custom artwork, or photo ID
•MeetsISOstandardsforthicknessforusewithdirectimage
and thermal transfer printers
iCLASS® Embeddable Card
13.56 MHz Contactless Smart Card
Base Part Number • 2011
• Designedtobeembeddedwithanoptionalcontactsmart
chip module of your choice
• Enablescontactsmartchipapplicationstobeaddedto
iCLASS cards in a single ISO standard thickness card
• Oerstheabilitytoaddamagneticstripe,barcode,anti-
counterfeiting feature, custom artwork, or photo ID
• MeetsISOstandardsforthicknessforusewithdirectimage
and thermal transfer printers
![](asset-59.png)
81 HID Global Product Catalog
iCLASS® Card
Embeddable iCLASS® Prox iCLASS® Prox
Embeddable
iCLASS®
Wiegand
Base Part Number 201X/211X 202X/212X 203X/213X 204X
Read Range: *
R10/RW100 Upto3.25˝(8.0cm) Upto3.0˝(7.5cm)
R30/RW300 Upto4.0˝(10.0cm) Upto3.0˝(7.5cm)
R40/RW400 Upto4.25˝(11.0cm) Upto4.5˝(11.5cm)
RK40/RK400 Upto3.5˝(9.0cm) Upto2.5˝(6.5cm)
Memory Size/
Application Areas
2kbitswithtwoapplicationareas;16kbitswithtwoapplicationareas(16k/2);
16kbitswith16applicationareas(16k/16);32kbits(16k/2+16k/1);32kbits(16k/16+16k/1)
HID Proximity
125 kHz No Yes No
Contact Smart Chip
Module Embeddable Yes** No Yes** No
Wiegand Strip No Yes
Magnetic Stripe Optional
Printable *** Yes
Standard HID
Artwork Optional
Slot Punch VerticalOptional HorizontalorVertical
Optional
Visual Security
Options Yes
Additional Security
Options Corp 1000, iCLASS Elite
Warranty Lifetime
*Dependantuponinstallationconditions.
**Contactsmartchipmodulenotincluded.AskaboutHID’sSMARTSProgramforo-the-shelfcontactsmartchipembeddedcards.
*** Some types of printing processes can take these credentials out of ISO compliance for thickness. Consult factory for more information.
![](asset-5a.png)
The HID RP40 multiCLASS Reader reads the most
popular proximity cards and smart cards. It’s the
ultimate migration solution. The RP40 is a multi-technology
card reader that makes it easy to upgrade a proximity card system to
a 13.56MHz contactless smart card technology such as HID iCLASS®.
Whether you’re making the transition in a single building or across
multiple facilities, you can do it at your own pace, employing multiple card
technologies. Unlike other “smart” card readers that only scan the serial
numbers of iCLASS, the RP40 offers the enhanced security of mutual
authentication and data encryption. Convenient. Flexible. Secure. The HID
RP40 multiCLASS Reader brings any migration path into perfect focus.
Reads
everything
20/20.
hidglobal.com
ACCESS flexibility.
![](asset-5b.png)
83 HID Global Product Catalog
SmartTRANS™
13.56 MHz MIFARE® and DESFire® Contactless Cards and Readers
HID Global introduces its new 13.56 MHz ISO 14443 (MIFARE/
DESFire) contactless smart card readers. In response to customer
demand for a greater multitude of smart card reader solutions,
HID Global has increased its product line of multiple-technology
products. SmartID™oerssolutionsinsingletechnology13.56MHz
(SmartID),multi-technology13.56MHz+125kHz(SmartTRANS),
multi-factor 13.56 MHz biometrics (SmartTOUCH™) and keypad
authentication. This new, open architecture and highly customizable
reader line augments HID's market-leading, flexible, open and highly
secure iCLASS product line.
ByproducingtheSmartIDmulti-technologyline,HIDGlobalassertsits
commitmenttosupport13.56MHztechnologies.Thecompany’soerings
encompass the industry’s broadest range of open standard contactless smart
card products, available from over 40,000 resellers worldwide.
![](asset-5c.png)
84
HID Global Product Catalog
SmartTRANS™ Readers
SmartTRANS Mullion Keypad SPK10 Reader
ISO 14443A Secure Reader
Base Part Number • 8101
• Choosefromavarietyofreaderapplications,includingHIDMIFARE,
custom MIFARE, custom DESFire and FIPS 201
• Canbeconguredforalmostanyexistingornewcustomcard
population
• ReadsHIDProx(125kHz)andAWIDCards
• Keypadprovidesdual-factorauthenticationwithavarietykeypadoutput
congurations
• Dimensions:5.59˝x1.81˝x0.98˝(14.2cmx4.6cmx2.5cm)
• ReadRange: MIFARE-Upto1.5˝(3.8cm)*
HIDProx/AWID-Upto1.3˝(3.2cm)*
• Additionalaccessory(p/n8090AS)turnsreaderintosingle-gang
electrical mount
SmartTRANS Mullion SP10 Reader
ISO 14443A Secure Reader
Base Part Number • 8100
• Choosefromavarietyofreaderapplications,includingHIDMIFARE,
custom MIFARE, custom DESFire and FIPS 201
• Canbeconguredforalmostanyexistingornewcustomcardpopulation
• ReadsHIDProx(125kHz)andAWIDCards
• OutputsdataoverWiegand,Clock-and-Data,RS232,RS485orRS422
interface
• Dimensions:5.59˝x1.81˝x0.98˝(14.2x4.6x2.5cm)
• ReadRange: MIFARE-Upto1.5˝(3.8cm)*
HIDProx/AWID-Upto1.3˝(3.2cm)*
• Additionalaccessory(p/n8090AS)turnsreaderintosingle-gangelectrical
mount
Silver
Silver
Did You Know?
SmartTRANS 13.56 MHz and 125 kHz compatibility
allows you to solve any site’s migration issue with a
broad variety of reader and card migration strategies.
* Depends on installation environment and credential type
FIPS 201 Approved. Call for
details 800-872-5359
FIPS 201 Approved. Call for
details 800-872-5359
![](asset-5d.png)
85 HID Global Product Catalog
SmartTRANS™ Mullion
SP10
SmartTRANS™ Mullion
Keypad SPK10
Base Model
Number 8100 8101
Dimensions 5.59˝x1.81˝x0.98˝
(14.0 cm x 4.5 cm x 2.5 cm)
Read Range MIFARE: Upto1.5˝(3.8cm);HID Prox/AWID: Upto1.3˝(3.2cm)
Mounting MullionorSingle-gangelectricalbox*
Power Supply 5-24VDC(reversecurrentprotected);Linearsupplyrecommended
Current
Requirements 79mA/96mA(@12VDC)
Termination Terminal
Output
Formats Wiegand,Clock-and-Data,RS232,RS485,RS422
Tamper Option
Indoor/
Outdoor Both
Warranty Lifetime
SmartTRANS™Specications
*Single-gangmountingrequirespurchaseofadditionalaccessory
![](asset-5e.png)
86
HID Global Product Catalog
MIFARE®/Prox Combo Card
13.56 MHz Contactless Smart Card
Base Part Number • 1431
•CombineMIFARE1Kandproximitytechnologiestoaddsmart
card applications, such as cashless vending, corporate and
campus applications, event ticketing, customer loyalty and photo
ID cards, to access control systems
•Provideshighsecuritywithmutualauthentication,data
encryption and unique 32-bit serial number and supports all
HID proximity card formats, including Corporate 1000
•PhotoIDcompatibilityallowsprintingdirectlytothecardwitha
direct image or thermal transfer printer
•Cardscanbeproducedwithvisualsecurityandanti-
counterfeiting features such as holograms, ultra-violet
fluorescent inks, micro-printing or a custom logo
•AlsoAvailableinCompositePolyester/PVCandMIFARE4K
versions
DESFire®/Prox Combo Card
13.56 MHz Contactless Smart Card
Base Part Number • 1451
•Proven,ReliableTechnology-Oersextremelyconsistent
readrange.Useisunaectedbybodyshieldingorvariable
environmental conditions, even when close to keys and coins.
•FastProcessingandDataCommunication-Transactiontimes
are less than 100 milliseconds for a typical secure ticketing
transaction.
•TrueCreditCardThickness-Usewithalldirectimageand
thermal transfer printers.
Multi-Technology Credentials
![](asset-5f.png)
87 HID Global Product Catalog
MIFARE® / HID Prox Combo Card DESFire® / HID Prox Combo Card
Base Part
Number
1431:PVC1kCard
1441:PVC4kCard
1437:CompositePET/PVC1kCard
1447:CompositePET/PVC4kCard
1451:PVCCard
1457:CompositePET/PVCCard
Read Range: *
MIFARE Upto4.0˝(10.0cm) N/A
DESFIRE N/A Upto4.0˝(10.0cm)
HID Prox Upto4.5˝(11.5cm)
Indala Prox N/A
Memory Size/
Application Areas
1kByte(8kbits)or
4kBytes(32kbits)
4kBytes
(32k bits)
HID Proximity 125
kHz Yes
Contact Smart
Chip Module
Embeddable
Yes**
Wiegand Strip No
Magnetic Stripe Optional
Printable *** Yes
Standard HID
Artwork Optional
Slot Punch Verticaloptional
Visual Security
Options Yes
Additional
Security Options Corp 1000
Warranty Lifetime
*Dependantuponinstallationconditions.
**Contactsmartchipmodulenotincluded.AskaboutHID’sSMARTSProgramforo-the-shelfcontactsmartchipembeddedcards.
*** Some types of printing processes can take these credentials out of ISO compliance for thickness. Consult factory for more information.
![](asset-60.png)
No matter where you start, HID has the flexible products
and technologies to take you where you need to go. More
choices, more possibilities – that’s what HID has to offer. We have credentials in
all shapes, sizes and special composite formulas for maximum durability. We do
specialized printing through HID Identity or our Corporate 1000 program or we can
set you up with a printer and software to do your own. We offer the leading solutions
in 125 kHz proximity and 13.56 MHz smart cards along with multi-technology cards
and readers to let you transition at your own pace. And we’re leading the way with
IP-based solutions linking physical security with IT. In other words, wherever you’re
headed, there’s a simple, affordable and reliable way to get there from HID.
Many Paths.
One Company.
hidglobal.com
ACCESS possibilities.
![](asset-61.png)
Networked Access Solutions
Trends towards open standards and IP convergence
are expanding system capabilities as security system
components and data are used for numerous business
applications. HID Global’s easy-to-use IP-based access
control solutions bring intelligence to the door, enabling
remote management and report generation via standard
web browsers. HID’s innovative solutions ensure
the value of your investment by lowering costs and
increasing your business.
![](asset-62.png)
Edge Solo™
VertX™
pages 89-92
pages 93-98
Networked Access Solutions
![](asset-63.png)
89 HID Global Product Catalog
Edge™ Solo
Edge Solo is HID Global’s cost-eective, stand-alone, single-door IP-based
access control solution. This easy-to-use solution enables remote management
and report generation via standard web browser. Bringing “Intelligence to the
Door”, the flexible design includes an integrated iCLASS® or MultiCLASS™
reader or allows connection to any wiegand or most clock and data readers.
Unlike other stand-alone access control solutions, which are typically disconnected devices
with no remote management or reporting capabilities, Edge Solo allows the end-user to
have stand-alone access control functionality, in addition to remote management and report
capabilities. User information, administration, door configuration and retrieval of events are
done through a user-friendly, instructional web environment.
No other stand-alone access control solution can be converted to a host as quickly and easily.
Customers will appreciate Edge Solo’s high return on investment (ROI) due to its ability to
migrate to a host-based access control system (locally or remotely managed). Through the
web browser, the Edge Solo can be remotely reconfigured from stand-alone operation to a
system reader. There is no need to go to the door.
Simply put, there is no other stand-alone access control solution with the flexibility and long-
term return on investment of Edge Solo.
Stand-alone, single-door IP-based access control solution
![](asset-64.png)
90
HID Global Product Catalog
Edge™ Readers
(Black)
(Black)
(Black)
EdgePlus Solo ES400
Single door IP-based Controller
Base Part Number • 83000
• Smallfootprintsingledoor,IP-basedaccesscontrolsolution
• Providesremotemanagementoverthenetworkviastandardwebbrowser
– No external software required
• LanguagesSupported:English,French,German,Spanish,Russian,Portuguese,
Italian, Korean, Chinese (Simplified), Japanese, Hindi
• BrowserSecuritySSL3.0andTLS3.1
• Usewithanyneworexistingwiegandoutputreader
• 1000users/5000events/8schedules
• StandardizedreportsincludingCSVexport
• TCP/IPandDHCPsupport
• 12VDC,700mApoweravailableforexternalelddevicesandlockinghardware
• Powerrequirements:12VDCexternalpowerorBuilt-in802.3af
Power over Ethernet (PoE)
• Dimensions:3.3˝x4.8˝x1.5˝(8.38cmx12.19cmx3.63cm)
• Interioruseonly
EdgeReader Solo ESR40
Single door IP-based controller with integrated R40 reader
Base Part Number • 83120
• Smallfootprintsingledoor,IP-basedaccesscontrolsolution
• Providesremotemanagementoverthenetworkviastandardwebbrowser
– No external software required
• LanguagesSupported:English,French,German,Spanish,Russian,Portuguese,
Italian, Korean, Chinese (Simplified), Japanese, Hindi
• BrowserSecuritySSL3.0andTLS3.1
• SinglepiecedesignwithintegratedR40iCLASSreader
• 1000users/5000events/8schedules
• StandardizedreportsincludingCSVexport
• TCP/IPandDHCPsupport
• 12VDC,600mApoweravailableforexternalelddevicesandlockinghardware
• Powerrequirements:12VDCexternalpowerorBuilt-in802.3af
Power over Ethernet (PoE)
• Dimensions:3.3˝x4.8˝x2.3˝(8.38cmx12.19cmx5.79cm)
• Interioruseonly
EdgeReader Solo ESRP40
Single door IP-based controller with integrated RP40 reader
Base Part Number • 83125
• Smallfootprintsingledoor,IP-basedaccesscontrolsolution
• Providesremotemanagementoverthenetworkviastandardwebbrowser
– No external software required
• LanguagesSupported:English,French,German,Spanish,Russian,Portuguese,
Italian, Korean, Chinese (Simplified), Japanese, Hindi
• BrowserSecuritySSL3.0andTLS3.1
• SinglepiecedesignwithintegratedRP40multiCLASSreader
• 1000users/5000events/8schedules
• StandardizedreportsincludingCSVexport
• TCP/IPandDHCPsupport
• 12VDC,600mApoweravailableforexternalelddevicesandlockinghardware
• Powerrequirements:12VDCexternalpowerorBuilt-in802.3af
Power over Ethernet (PoE)
• Dimensions:3.3˝x4.8˝x2.3˝(8.38cmx12.19cmx5.79cm)
• Interioruseonly
![](asset-65.png)
91 HID Global Product Catalog
Cable Specifications ESR40 and ESRP40
Ethernet 300feet(100m)
Category5cable
ALPHA9504C
ALPHA9405F
Input Circuits 500feet(150m)
2-conductor,shielded
22AWG
18AWG
ALPHA1292C
ALPHA2421C
Output
Circuits
500feet(150m)
2-conductor
22AWG
18AWG
ALPHA1172C
ALPHA1897C
RS232 50feet(15m)
9-conductor,stranded
22AWG ALPHA1299C
ALPHA58119
Minimum wire gauge depends on cable length and current
requirements.
Cable Specifications ES400
Ethernet 300feet(100m)
Category5cable
ALPHA9504C
ALPHA9405F
Wiegand 500feet(150m)
9-conductor,stranded,
overall shield
22AWG ALPHA1299C
Input Circuits 500feet(150m)
2-conductor,shielded
22AWG
18AWG
ALPHA1292C
ALPHA2421C
Output
Circuits
500feet(150m)
2-conductor
22AWG
18AWG
ALPHA1172C
ALPHA1897C
RS232 50feet(15m)
9-conductor,stranded
22AWG
ALPHA1299C
ALPHA58119
ES400 ESR40 and ESRP40
Base Model Number 83000 83120/83125
Dimensions 4.8˝x3.3˝x1.5˝(12.19cmx8.38cmx3.63cm) 4.8˝x3.3˝x2.3˝(12.19cmx8.38cmx5.79cm)
Weight 6.8oz(.195kg) 14.7oz(.400kg)
Mounting Single-gang style electrical box
Style AttractiveUL94polycarbonateenclosureprotectscomponentsfromdamageand
all connections are fully identified by silk-screened nomenclature.
Card Data
Formats Supportsanycarddataformatupto128bits
Hardware 32-bitRISCCPU,100MHzprocessor
Memory 8MBonboardFlashmemory,32MBSDRAM,256KSRAM
Visual Indicators TwoLEDsindicatepower/networkactivityanddeviceI/Oactivity.
Power Supply
Requirements
1A@12-16VDCmaximum
Recommended:PowerissuppliedusingthePowerover
EthernettechnologyavailablewithPoE(802.3af)enabled
network devices.
Alternate:Supervisedlinearpowersupplywithbattery
backup,inputsurgeprotection,andACFailandbatterylow
contact outputs.
Relays can be configured to supply power as follows:
Available Power:TheES400iscapableofsupplyinga
totalof700mAtoelddevices.Thispowermaybeshared
between a reader and one or two additional field devices.
Unpowered,relaycontactsareratedfor2A@30VDC
1A@12-16VDCmaximum
Recommended:PowerissuppliedusingthePowerover
EthernettechnologyavailablewithPoE(802.3af)enabled
network devices.
Alternate:Supervisedlinearpowersupplywithbattery
backup,inputsurgeprotection,andACFailandbatterylow
contact outputs.
Relays can be configured to supply power as follows:
Available Power:TheEdgeReaderiscapableofsupplying
atotalof600mAtoelddevices.
Unpowered,relaycontactsareratedfor2A@30VDC
Operating Environment TheE400isintendedforuseinindoorenvironmentsthatcomplywiththefollowingspecications:
Operating Temperature 32°to122°F(0°to50°C)
Operating Humidity 5%to95%relative,non-condensing
Maximum Inputs (1)DoorMonitor,(1)RequesttoExit,ACFail,BatteryFail,Tamper
Maximum Outputs (1)Strike,(1)GeneralPurpose
Communication
Ports
Ethernet–10or100Mbps
RS232 – port for Modem or connectivity to other systems.
Reader–Wiegand,HIDClockandData,oriCLASS
RS-232
Ethernet–10or100Mbps
RS232 – port for Modem or connectivity to other systems.
Certifications
UL294ListedAccessControlSystemUnit,CSA205for
Canada,FCCClassBVerication,EMCforCanada,EU(CE
Mark), Australia (C-Tick Mark), New Zealand, Japan
UL294ListedAccessControlSystemUnit,CSA205for
Canada,FCCClassBVerication(FCCClassAVerication
for reader portion only.) EMC for Canada, EU (CE Mark),
Australia (C-Tick Mark), New Zealand, Japan
Warranty 18Months
Edge™ Reader Specifications
![](asset-66.png)
The future of physical access control is in
IP-based systems. And with EDGE™ solutions
from HID Global, the future starts now.
HID’s EDGE access control solutions are designed to fully leverage
your company’s IT infrastructure, eliminating controllers and
connecting easily with a network cable to each door. Easy to install
and manage, and using very little bandwidth, EDGE creates tangible
cost savings while delivering HID’s world-leading security and
reliability. Simple, flexible and secure, EDGE brings intelligence
to the door.
![](asset-67.png)
93 HID Global Product Catalog
An open architecture platform that enables managed access service
security monitoring software providers to fully integrate access
control functions within host software, eliminating the need for
separate access control systems that today are merely co-located
within the managed access service facility. It also provides bi-
directional communications for video-related services in managed
access service facilities without modifying the existing infrastructure.
Access Control for Managed Access Service Providers
VertX™ Access Controllers
![](asset-68.png)
94
HID Global Product Catalog
Frequently Asked Questions
Q: What is VertX™?
A: VertXisthefirstfamilyof access
controllers designed specifically for alarm
dealers for direct connection to managed
accessserviceproviders.VertXworkswith
software from leading managed access
service automation providers.
Q: How is VertX different from the
other access control panels?
A: Fullyfeatured,flexible,andeasytoinstall,
VertXisthehigh-securitysolutiontoany
sizeorganization–fromasingle-doorretail
shoptoalargeenterprise.WithVertX,alarm
dealerscanrealizemanagedaccesscontrol
and provide installation and recurring support
services.VertXisafullyfeaturedaccess
control – not just a hook up to access control
readers through an alarm panel. Compatible with industry standard access control
readers, it eliminates the need for a separate access control system.
Q: I already have access control readers. Will they work with
VertX?
A: MostexistingaccesscontrolreaderswillworkwithVertX.
Q: Does VertX only work when connected to a managed access
service provider?
A: VertXprovidesaccesscontrolatalltimes,notrequiringthatitbeconnectedtoa
managed access service provider because all cardholder records and access schedules
are on board the panel itself.
Q: Does VertX help to reduce false alarms?
A: Yes!Withonemanagedaccessserviceoperationcontrollingaccesscontroland
alarmsystems,falsealarmsareeasilyreduced.Whenaneventoccurs,theoperator
sees all systems on one screen. He can quickly look at alarm information and the
corresponding access control entry information and decide what further steps need to
betaken,ifany.WithVertX,lawenforcementofficialswillonlybedispatchedwhen
absolutely necessary.
Q: What are the benefits to an alarm dealer who promotes VertX?
A: Becauseapproximately85%of commercialalarmmonitoringcustomersdonot
currently have electronic access control, alarm dealers have a significant opportunity
for recurring monthly revenue by providing access control services starting with the
existing alarm account client base. This is a virtually untapped market in addition to
alarm dealers providing installation and recurring support services.
![](asset-69.png)
95 HID Global Product Catalog
V200 - Input Monitor Interface
The V200 connects up to 16 configurable input circuits.
Base Part Number • 70200
•ConnectstotheV1000viaahighspeedRS485network
• Alarminputprocessingforupto16supervisedinputcircuits
• Monitors&reportsnormal,O/Normal&tamperstatus
• Flashmemoryfordownloadingprogramupdates
• Powersupply9-18VDC@100mA
V300 - Output Control Interface
The V300 contains 12 latching Form-C relays, which can connect
up to 12 devices controllable by simple contact closures.
Base Part Number • 70300
•ConnectstotheV1000viaahighspeedRS485network
• Outputcontrolprocessingforupto12devices
• Contains12latchingFormCrelaysconnectingupto12devices
controllable by simple contact closures
• O/Normalstatusprogrammableforeachinputpoint
• Flashmemoryfordownloadingprogramupdates
• Powersupply9-18VDC@100mA
V2000 - Access Controller/Reader Interface
The V2000 Reader Interface/Access Controller is a
combination of a V1000 and a V100.
Base Part Number • 72000
• Completetwodoor/readerunitforinstallationsusingTCP/
IP communications to the central station
• NoEndUserSoftwareInstallationNecessary
• V2000communicatesbyTCP/IPonly
• Idealforsmallinstallations
• Powersupply12-18VDC@210mA
V100 - Door/Reader Interface
The V100 connects two access control card readers by Wiegand.
Base Part Number • 70100
•ConnectstotheV1000viaahighspeedRS485network
• Connects2accesscontrolcardreadersviaWiegandor
Clock-and-Datainterfacecontrolling1or2doors
• Processeso-lineaccesscontroldecisionsbasedonfacilitycode
• Flashmemoryfordownloadingprogramupdates
• Powersupply9-18VDC@100mA
V1000 - Network Controller
V1000 Access Controller for Managed Access Services
Base Part Number • 71000
• Communicatesdirectlywithmanagedaccessserviceprovidersoftware
• Provideson-boardprocessingandmemorytosupportupto32
downstream interface panels
• ControllerhastwoindependentRS485networks,eachhavingtwo
sets of input connection for optimum system topology
• Allowslocalconnectionof alaptopcomputerfordiagnosticsand
configuration
• Reportssupervisedinputs/alarmswith255priorities
• Powersupply12-18VDC@210mA
![](asset-6a.png)
96
HID Global Product Catalog
Genuine HID Value for Managed
Access Service Providers
Quality
• Developed,testedandmanufacturedinISO-certifiedfacilities.
• FrommarketleaderHID,theworld’smosttrustedbrandforhighqualityaccess
control cards and readers.
Partnership
• Developedincollaborationwithmanagedaccessservicemonitoringhost
software leaders like AMT, Brivo, CBord, SNS CRITSEC®,DVTel,Envoy,
GateWorks,Genetec,Imron,MacleaySolutions,MiddlewareAssociates,NFive,
SecuriCo,Vecta.
• OPIN™ API provided free of charge to qualified application developers.
Service
• Dedicatedapplicationengineeringandtechnicalsupportstaff.
• Availablethroughdistributionchannelsworldwide.
• Freetrainingforalarmdealersandsystemintegrators.
Value
• Affordablepurchaseprice.
• Easytobuy,sell,install,andmaintain.
• Eliminatestheneedforaseparateaccesscontrolsystem.
• Generatesopportunityforincrementalservicestoexistingcustomers.
VertX™ Access Controllers
![](asset-6b.png)
97 HID Global Product Catalog
VertX
POTS
Receiver
V100 Door
Interface Panel
TCP/IP
TCP/IPTCP/IP (optional)
POTS Modem
Monitoring
Software
V200 Input
Interface Panel
V300 Output
Interface Panel
(2-door)
Reader,
Door Strike,
REX,
Contact,
etc.
(2-door)
Reader,
Door Strike,
REX,
Contact,
etc.
(16-inputs)
Glass break,
Motion,
Contact,
etc.
(12-outputs)
Alarms
(lights, horns),
Fans,
etc.
V2000
Controller &
Panel
V1000
Controller
Internet
VertX Model Description Function
V1000 Access Controller Host interface and access control processing for up
to32door/readerinterface(V100),inputmonitor
(V200),oroutputcontrol(V300)units.
V100 Door/ReaderInterface
(ConnectstoV1000)
Connects two access control card readers via
WiegandorClock-and-Datainterfacecontrollingone
or two doors.
V200 Input Monitor Interface
(ConnectstoV1000)
Alarminputprocessingforupto16supervisedinput
circuits, monitors and reports normal, off-normal,
and tamper states.
V300 Output Control Interface
(ConnectstoV1000)
Outputcontrolprocessingforupto12devices,
contains12latchingForm-Crelaysconnectingupto
12devicescontrollablebysimplecontactclosures.
V2000 ReaderInterface/Access
Controller
Host interface and access control processing for two
readers/doors.Idealforsmallinstallations.
![](asset-6c.png)
HID Global presents a new RMR
access control business model
for alarm dealers and integrators.
HID’s VertX and Edge hardware enable a new
business model for access control. Partner
with HID to create new recurring monthly
revenue (RMR) access control services to offer your customers. Watch
closing ratios improve and new RMR created by partnering with HID.
Ask us to show you how HID Global will work with you to build equity
in your business.
Integrators and Alarm Dealers:
What is your plan to build equity
in your company?
ACCESS opportunities.
hidglobal.com
![](asset-6d.png)
Wiegand / Magstripe
Widely recognized and field proven for decades,
Wiegand technology cards and readers are low cost and
durable, with a high level of security.
HID Global oers a wide range of magnetic strip
readers fully equipped with both Clock-and-Data and
Wiegand outputs. Combination readers read both
magnetic stripe and proxmity cards, providing a seamless
technology migration path from magnetic stripe to
proximity.
![](asset-6e.png)
Wiegand
Magstripe
pages 99-102
pages 103-106
Wiegand / Magstripe
![](asset-6f.png)
99 HID Global Product Catalog
Wiegand effect is a pulse-generating phenomenon in a special
alloy wire that is processed in such a way as to create two distinct
magnetic regions in the same homogeneous piece of wire,
referred to as a shell and a core. These two magnetic regions react
differently to any applied magnetic field. The shell requires a strong
magnetic field to reverse its magnetic polarity, whereas the core
will revert under weaker field conditions. When the shell and core
change to different polarity orientations, the Wiegand pulse is
generated, and is sensed by a pickup coil (the reader). Due to the
complexity of manufacturing the Wiegand wire, Wiegand cards are
virtually impossible to duplicate and remain one of the most secure
access control.
Wiegand technology is widely recognized
and field proven for over 18 years. The
cards and readers are low cost and
durable, with a high level of security
Wiegand
![](asset-70.png)
100
HID Global Product Catalog
Did You Know?
You can easily transition from Wiegand to Proximity
or iCLASS with combination technology cards like
ProxCard Plus, MicroProx Tag or iCLASS Tag.
Wiegand Credentials
SensorCard II
Wiegand card with magnetic stripe
•CombinesWiegandtechnologyandoersphotoidentication
capability on a single card
•Magneticstripetechnology
•Graphicsqualitysurfaceoptionalforusewithdirectimageprinters
•AvailableinISOthickness-0.03˝(0.076cm)
Pocket Tag
Wiegand access control tag
•Smallenoughtocarryinapocketoronakeyring
•ForusewiththeClassic,Epic,Turnstile,andPinPadreaders
•Dimensions:2.09˝x2.215˝x0.047˝(5.31cmx5.4cmx0.119cm)
Sensor Key
Wiegand access control key
•ConvenientkeystyleWiegandtagforusewithlowprole,
in-the-wall Sensorkey reader
•Dimensions:3.29˝x1.0˝x0.093˝(8.35cmx2.54cmx0.24cm)
SensorCard
Wiegand swipe card for access control
•CombinesWiegandtechnologyandoersphotoidentication
capability on a single card
•Graphicsqualitysurfaceoptionalforusewithdirectimageprinters
•Availableinseveralthicknesses:
Standard-0.037˝(0.094cm)Tu -0.047˝(0.119cm)
ProxCard Plus
Wiegand and 125 kHz Proximity Card
•CombinesWiegandtechnology,proximitytechnologyand
photoidenticationcapabilityonasinglecard
•Graphicsqualitysurfaceforusewithdirectimageprinters
•Two-yearwarranty*
*Seepublishedsalespolicyforwarrantydetails.
![](asset-71.png)
101 HID Global Product Catalog
Insertion Reader
Flush mount Wiegand card reader for access control
•In-wallmountingforlowproleinstallation
•Powerrequirements:5-12VDC
•Dimensions:1.18˝x3.18˝x3.0˝(3.0cmx8.1cmx7.6cm)
•Slotwidth:0.062˝to0.069˝(1.6mmto1.75mm)
•Availableinchrome
PinPad Reader
Keypad Wiegand swipe reader for access control
•CombinesWiegandreadertechnologywithafullyintegratedkeypad
•Keypaddataoutputavailablein8and26-bitformats
•Powerrequirements:5-12VDC
•Dimensions:5.64˝x4.27˝x2.25˝(14.3cmx10.9cmx5.7cm)
•Slotwidth:0.062˝to0.069˝(1.6mmto1.75mm)
•Availableinblack
Sensor Key Reader
Key Token Wiegand Insertion Reader For Access Control
•Lowprole,in-the-wallreaderforusewithSensorkey
•Powerrequirements:5-12VDC
•Dimensions:1.62˝x1.5˝x2.0˝(4.1cmx3.8cmx5.1cm)
•Availableinchrome
Epic Reader
Stylish Wiegand swipe reader for access control
•Ergonomicdesignforeasycardpassthrough
•Powerrequirements:5-12VDC
•Dimensions:2.66˝x5.86˝x1.5˝(6.76cmx14.9cmx3.0cm)
•Slotwidth:0.062˝to0.069˝(1.6mmto1.75mm)
•Availableinblack
Classic Swipe Reader
Most popular Wiegand swipe reader for access control
•RuggedWiegandswipereader
•Powerrequirements:5-12VDC
•Dimensions:2.3˝x5.3˝x1.7˝(5.8cmx13.5cmx4.3cm)
•Slotwidth:0.062˝to0.069˝(1.6mmto1.75mm)
•Availableinblackorbeige
Turnstile Reader
High trac Wiegand swipe reader for access control
•Mountsoneitherhorizontalorverticalsurfaces
•Idealforocelobbiesorotherareaswhereturnstileaccessisrequired
•Powerrequirements:5-12VDC
•Dimensions:1.75˝x7.0˝x1.75˝(4.45cmx17.8cmx4.45cm)
•Slotwidth:0.062˝to0.069˝(1.6mmto1.75mm)
•Availableinblackorchrome(baseinblackonly)
WiegandReaders
![](asset-72.png)
HID Global has the expertise and capacity to provide access control and
secure identity solutions on any scope, anywhere in the world. Nobody
offers more products, supports more technologies or has more credentials
in use. And almost everything we make comes with a lifetime warranty.
But at HID, we built our global business by thinking locally. We have
people on the ground who understand the markets and can provide
solutions and support to meet any conditions. When others say “can’t,”
HID says “when.” And we say it in the language of your choice.
hidglobal.com
ACCESS service.
At HID, our know-how is rivaled only by our can-do.
When everybody
else says “can’t,”
we say “when.”
![](asset-73.png)
103 HID Global Product Catalog
HID offers a wide range of magnetic strip readers fully equipped
with both Clock-and-Data and Wiegand outputs. Combination
readers read both magnetic stripe and proximity cards, providing
a seamless technology migration path from magnetic stripe to
proximity.
Classic magnetic stripe cards and readers
Magstripe
![](asset-74.png)
104
HID Global Product Catalog
MagstripeReaders
Magnetic Stripe/Prox Reader 230
Base Part Number • 230
•Combinesproximityandmagneticstripetechnologiesinonereader
•CompatiblewithEMPIandstandardABA/ANSI/ISOmagneticstripecards
•CompatiblewithHIDandEMPIproximityformats
•Perfectfortransitionfromonetechnologytoanother
•Dimensions:4.56˝x3.0˝x1.14˝(11.5cmx7.5cmx3.0cm)
•ReadRange:upto5.0˝(12.7cm)*
Magnetic Stripe/Prox Reader with Keypad 240
Base Part Number • 240
•Combinesproximityandmagneticstripetechnologiesinonereader
•CompatiblewithEMPIandstandardABA/ANSI/ISOmagneticstripecards
•CompatiblewithHIDandEMPIproximityformats
•Perfectfortransitionfromonetechnologytoanother
•Dimensions:4.56˝x3.0˝x1.14˝(11.5cmx7.5cmx3.0cm)
•ReadRange:upto5.0˝(12.7cm)*
Rugged Keypad Reader Model 780
Base Part Number • 780
•Ruggedconstructionfordicultlocations:airports,schools,outdoors
•Readssecuritybadges,time&attendancebadges,parkingcards,creditcards
•ConnectstoaccesscontrolsystemswithWiegandorClock-and-Data
interface format
•Optionalcardslotheateravailable
•Mountsonstandardelectricalboxeswall
•Dimensions:6.75˝x5.125˝x3.0˝(17.0cmx13.0cmx7.5cm)
Did You Know?
You can upgrade from magstripe technology to
multi-technology card readers with DuoProx
cards, and iCLASS cards with a magstripe feature.
(Black)
(Black)
(Black)
*AllReadRangesaredependentonthetypeofcredentialused.
![](asset-75.png)
105 HID Global Product Catalog
Rugged Reader Model 740
Base Part Number • 740
•Ruggedconstructionfordicultlocations:airports,schools,outdoors
•Readssecuritybadges,time&attendancebadges,
parking cards, credit cards
•ConnectstoaccesscontrolsystemswithWiegandorClock-and-Data
interface format
•Optionalcardslotheateravailable
•Mountsonstandardelectricalboxeswall
•Dimensions:6.75˝x5.125˝x3.0˝(17.0cmx13.0cmx7.5cm)
Magnetic Stripe Reader 544
Base Part Number • 544
•ValuePricedMagneticReader
•Weatherproofdesigninaninsertion-stylereaderwithkeypadfor
increased security
•ConnectstoaccesscontrolsystemswithWiegandorClock-and-Data
interface format
•Readssecuritybadges,timeandattendancebadges,andparkingcards
•Mountsonstandardelectricalboxes
•Dimensions:4.56˝x3.0˝x1.14˝(11.5cmx7.5cmx3.0cm)
Magnetic Stripe Reader 644
Base Part Number • 644
•Pass-throughcardreadingforquickestuse
•ConnectstoaccesscontrolsystemswithWiegandor
Clock-and-Data input
•Readssecuritybadges,time&attendancebadges,parkingcards,
credit cards
•Readheadassemblyeld-adjustabletotracklocation1or2
•Mountsonstandardelectricalboxesordirectlyonadoormullion
•Dimensions:6.0˝x1.75˝x1.49˝(15.0cmx4.5cmx4.0cm)
Magnetic Stripe Reader 584
Base Part Number • 584
•Insertion-stylereaderwithkeypadforincreasedsecurity
•ConnectstoaccesscontrolsystemswithWiegandorClock-and-Data
interface format
•Readssecuritybadges,timeandattendancebadges,andparkingcards
•Readheadassemblyisadjustabletotracklocation1,2,or3
•Mountsonstandardelectricalboxes
•Dimensions:4.56˝x3.0˝x1.14˝(11.5cmx7.5cmx3.0cm)
(Black,White)
(Black)
(Black,White)
(Black,White)
![](asset-76.png)
We’re on the “A” list in Hollywood.
More movie and TV studios use HID,
onscreen and off.
When it comes to security, reliability and flexibility, HID has
always delivered a star performance. That’s why more movie
and TV studios all over Hollywood have given HID the lead role
in secure identity and access control solutions. And if you look
carefully at the sets and props in your favorite TV shows and
movies, you’ll see that HID has done a lot of performing in front
of the camera as well.
hidglobal.com
ACCESS trust.
![](asset-77.png)
Secure Card Identity Solutions
Secure Card Identity Systems from HID Global are
found in installations around the world, providing secure
photo ID cards that help protect people, information,
facilities and operations. Fargo ID card printer/
encoders, software, systems and materials are used in
access control systems, time and attendance tracking,
asset protection, student identification and financial
card transactions. Through a range of applied and
embedded technologies such as smart chips, proximity,
magnetic stripe and bar coding, Fargo ID cards make
organizations more productive.
![](asset-78.png)
Fargo
Card Printers/Encoders
Secure Software
Visual Security Solutions
Integration Services & Accessories
Card Personalization Services
pages 107-120
Secure Card Identity Solutions
![](asset-79.png)
107 HID Global Product Catalog
Ease-of-use, versatility and reliable performance have
made Fargo Card Printer/Encoders the industry leaders
in their class. With options such as encoding modules and
laminators, you can configure Fargo printer/encoders
for a wide range of applications, from basic photo IDs to
biometric smart cards.
Fargo®
Go beyond
unlocking
doors.
Unlock your
organization’s
potential.
![](asset-7a.png)
108
HID Global Product Catalog
Card Printer/Encoders
HDP5000
Produces cards in High Definition, from
basic IDs to multifunction smart cards, for a
new level of ID card production.
• PrintsonthereversesideofHDP® Film that is then
fused to the card, for outstanding print quality over
embedded electronics and greater durability and
security for basic IDs.
• Exceptionallyreliable–becausetheprintheadnever
touches the card during the HDP process, they’re
protected from damage.
• Modulardesignaccommodatesdual-sided
print module, encoding modules, laminator or
simultaneous dual-sided laminator.
• Aordablypriced.
HDP600
Produces high-security smart cards for FIPS
201 and other government and corporate ID
applications.
• Dual-orsingle-sidedHighDenitionPrinting™
(HDP). Prints, encodes and laminates cards with
embedded electronics in one pass.
• Supportsadvancede-cardapplicationsbyencoding
up to three embedded technologies, plus mag
stripe.
• DeterscounterfeitingwithHDPFilmandoptional
holographic overlaminates.
• HDP600CR100printsoversizedIDbadgesfor
greater visual security for events.
• GSAcertied-FIPS201Compliant
Make your ID cards reflect
the people who wear them:
Smart, hard-working, dependable
and completely authentic.
![](asset-7b.png)
109 HID Global Product Catalog
DTC550
The card production workhorse for diverse
applications.
• Canencodeuptothreedierentsmartcard
technologies, plus magnetic stripe, in the same pass
as card printing and lamination.
• Integrateswithyourexistinginfrastructure.
• Allowsforcentralizedordistributedissuance.
• Perfectforhigh-volumecardprintingandencoding.
DTC400
The easy, flexible way to print and encode ID
cards.
• Dual-orsingle-sidedDirect-to-Cardprintingof
photos, bar codes and digital signatures.
• Upgradablewithsmartcard,proximitycard(read
only) and mag stripe encoding options.
• ExclusiveSmartLoad™RibbonCartridge.
Persona® C30
Ensures simple ID card printing from start to
finish.
• Deliverssharp,colorful,durableplasticIDcards.
• Reliableandlow-maintenance,withsimpleset-up,
loading and operation.
• Upgradablewithmagstripeanddual-sidedprinting
modules.
• Alsoavailableinmonochromeonly(M30).
![](asset-7c.png)
110
HID Global Product Catalog
CardPrinter/EncoderSpecications
HDP5000 HDP600 DTC550 DTC400 Persona C30
Print Method HDPDye-Sublimation/ResinThermalTransfer Dye-Sublimation/ResinThermalTransfer
Resolution 300dpi(11.8dots/mm) 300dpi(11.8dots/mm)
Colors Upto16.7million/256shadesperpixel Upto16.7million/256shadesperpixel
Print Speed**
•38secondspercard/95cardsper
hour(YMCwithtransfer)*
•46secondspercard/78cardsper
hour(YMCKwithtransfer)*
•70secondspercard/51cardsper
hour(YMCKKwithtransfer)*
•50secondspercard/72cardsper
hour(YMCKwithtransferanddual-
sided,simultaneouslamination)*
•75secondspercard/48cardsper
hour(YMCKKwithtransferanddual-
sided,simultaneouslamination)*
•44secondspercard/82cardsper
hour(YMCwithtransfer)*
•54secondspercard/66cardsper
hour(YMCKwithtransfer)*
•79secondspercard/45cardsper
hour(YMCKKwithtransfer)*
•55secondspercard/65cardsper
hour(YMCK/lamination)*
•80secondspercard/45cardsper
hour(YMCKK/lamination)*
•7secondspercard/514cardsper
hour(K)*
•12secondspercard/300cardsper
hour(KO)*
•27secondspercard/144cardsper
hour(YMCKO)*
•36secondspercard/109cardsper
hour(YMCKOK)*
•34secondspercard/102cardsper
hour(YMCKK/lamination)*
•7secondspercard(K)*
•12secondspercard(KO)*
•27secondspercard(YMCKO)*
•35secondspercard(YMCKOK)*
**•7secondspercard(K)*
•12secondspercard(KO)*
•27secondspercard(YMCKO)*
•35secondspercard(YMCKOK)*
Accepted Standard Card Sizes CR-80(3.370˝Lx2.125˝W/
85.6mmLx54mmW)
CR-80(3.375˝Lx2.125˝W/85.6mmLx54mmW)
CR-79AdhesiveBack(3.313˝Lx2.063˝W/84.1mmLx52.4mmW)
Accepted Card Thickness
•Printonly:.030˝(30mil)to.050˝(50
mil)/.762mmto1.27mm
•Print/Lamination:.030˝(30mil)to
.050˝(50mil)/.762mmto1.27mm
Printonly:.030˝(30mil)to.070˝(70mil)
/.762mmto1.778mm
Print/Lamination:.030˝(30mil)to.040˝
(40mil)/.762mmto1.02mm
Printonly:.020˝(20mil)to.050˝(50
mil)/.508mmto1.27mm(single-sided
printingonlyfor50milcards)
20milto30mil(.020˝to.030˝/
.51mmto.76mm)
Input Card Cartridge Capacity 100cards(.030˝/.762mm) 200cards(.030˝/.762mm) Dualhoppers,100cardseach
(.030˝/.762mm)
100cards(.030˝/.762mm)
Output Hopper Card Capacity 200cards(.030˝/.762mm) 100cards(.030˝/.762mm) 100cards(.030˝/.762mm) Upto30cards(.030˝/.762mm)
Software Drivers Windows®2000/XP/
Server2003/Vista
Windows®2000/XP Windows®2000/XP/Server2003/Vista Windows®98SE/Me/2000/
XP/Server2003/Vista
Windows®98SE/Me/2000/
XP/Server2003/Vista
Print Area
Over-the-edge CR-80edge-to-edge(3.36˝Lx2.11˝W
/85.3mmLx53.5mmW)
CR-79(3.30˝Lx2.04˝W/83.9mmLx
51.8mmW)
CR-80edge-to-edge(3.36˝Lx2.11˝W/85.3mmLx53.7mmW)
CR-79(3.3˝Lx2.04˝W/83.8mmLx51.8mmW)
Warranty
Printer:Twoyearsincludingoneyearof
freeprinterloanersupport(U.S.only);
optionalExtendedWarrantyProgram
(U.S.only)
Printhead:Lifetime;unlimitedpass
Printer:Oneyear;optionalExtended
WarrantyProgram(U.S.only)
Printhead:Lifetime;unlimitedpasswith
Fargo Certified Cards
Printer:Twoyearsincludingfreeloaner
printerintherstyear(U.S.only);
optionalExtended
WarrantyProgram(U.S.only)
Printhead:Twoyears,unlimitedpasswith
UltraCard™ Cards
Printer:Twoyearsincludingfreeloaner
printerintherstyear(U.S.only);
OptionalExtendedWarrantyProgram
(U.S.only)
Printhead:Twoyears,unlimitedpasswith
UltraCard™ Cards
Printer:Twoyears;
Printhead:Twoyears,unlimitedpass
withUltraCard™ Cards
Options
•Cardlaminationmodule–single-sided
or dual-sided (simultaneous)
•Magneticstripeencoding
•200-cardinputhopper(availablesoon)
•Smartcardencoding(contact/
contactless)
•Dual-sidedprinting
•Doorandcartridgelocks
•Printercleaningkit
•PrinterCleaningKit
•CardLaminationModule
•ExternalPrintServer(Windowsonly;
parallelportonly;requiredforstand-
alonenetworkingofprinter/encoders)
•CardEncodingModule
•CardLaminationModule
•Cardhopperlock
•Printercleaningkit
•Magneticstripeencoding
•Ethernetwithinternalprintserver
•E-cardencoding
•Dual-sidedprinting
•Dual-sidedPrintingModule–
Field-upgradable
•MagneticStripeEncodingModule–
Field-upgradable
•E-cardEncodingModules–
Field-upgradable
•Printercleaningkit
•Ethernetnetworkingwithinternalprint
server(replacesUSBconnection)
•100-cardoutputhopperwithor
without reject tray
•MagneticStripeEncodingModule—
field-upgradable
•Dual-sidedPrinting
•PrinterCleaningKit
* IndicatestheribbontypeandthenumberofribbonpanelsprintedwhereY=Yellow,M=Magenta,C=Cyan,K=ResinBlack,O=Overlay
**Printspeedindicatesanapproximateprintspeedandismeasuredfromthetimeacarddropsintotheoutputhoppertothetimethenextcard
drops into the output hopper. Print speeds do not include encoding time or the time needed for the PC to process the image. Process time is
dependentonthesizeofthele,theCPU,amountofRAMandtheamountofavailableresourcesatthetimeoftheprint.
![](asset-7d.png)
111 HID Global Product Catalog
HDP5000 HDP600 DTC550 DTC400 Persona C30
Print Method HDPDye-Sublimation/ResinThermalTransfer Dye-Sublimation/ResinThermalTransfer
Resolution 300dpi(11.8dots/mm) 300dpi(11.8dots/mm)
Colors Upto16.7million/256shadesperpixel Upto16.7million/256shadesperpixel
Print Speed**
•38secondspercard/95cardsper
hour(YMCwithtransfer)*
•46secondspercard/78cardsper
hour(YMCKwithtransfer)*
•70secondspercard/51cardsper
hour(YMCKKwithtransfer)*
•50secondspercard/72cardsper
hour(YMCKwithtransferanddual-
sided,simultaneouslamination)*
•75secondspercard/48cardsper
hour(YMCKKwithtransferanddual-
sided,simultaneouslamination)*
•44secondspercard/82cardsper
hour(YMCwithtransfer)*
•54secondspercard/66cardsper
hour(YMCKwithtransfer)*
•79secondspercard/45cardsper
hour(YMCKKwithtransfer)*
•55secondspercard/65cardsper
hour(YMCK/lamination)*
•80secondspercard/45cardsper
hour(YMCKK/lamination)*
•7secondspercard/514cardsper
hour(K)*
•12secondspercard/300cardsper
hour(KO)*
•27secondspercard/144cardsper
hour(YMCKO)*
•36secondspercard/109cardsper
hour(YMCKOK)*
•34secondspercard/102cardsper
hour(YMCKK/lamination)*
•7secondspercard(K)*
•12secondspercard(KO)*
•27secondspercard(YMCKO)*
•35secondspercard(YMCKOK)*
**•7secondspercard(K)*
•12secondspercard(KO)*
•27secondspercard(YMCKO)*
•35secondspercard(YMCKOK)*
Accepted Standard Card Sizes CR-80(3.370˝Lx2.125˝W/
85.6mmLx54mmW)
CR-80(3.375˝Lx2.125˝W/85.6mmLx54mmW)
CR-79AdhesiveBack(3.313˝Lx2.063˝W/84.1mmLx52.4mmW)
Accepted Card Thickness
•Printonly:.030˝(30mil)to.050˝(50
mil)/.762mmto1.27mm
•Print/Lamination:.030˝(30mil)to
.050˝(50mil)/.762mmto1.27mm
Printonly:.030˝(30mil)to.070˝(70mil)
/.762mmto1.778mm
Print/Lamination:.030˝(30mil)to.040˝
(40mil)/.762mmto1.02mm
Printonly:.020˝(20mil)to.050˝(50
mil)/.508mmto1.27mm(single-sided
printingonlyfor50milcards)
20milto30mil(.020˝to.030˝/
.51mmto.76mm)
Input Card Cartridge Capacity 100cards(.030˝/.762mm) 200cards(.030˝/.762mm) Dualhoppers,100cardseach
(.030˝/.762mm)
100cards(.030˝/.762mm)
Output Hopper Card Capacity 200cards(.030˝/.762mm) 100cards(.030˝/.762mm) 100cards(.030˝/.762mm) Upto30cards(.030˝/.762mm)
Software Drivers Windows®2000/XP/
Server2003/Vista
Windows®2000/XP Windows®2000/XP/Server2003/Vista Windows®98SE/Me/2000/
XP/Server2003/Vista
Windows®98SE/Me/2000/
XP/Server2003/Vista
Print Area
Over-the-edge CR-80edge-to-edge(3.36˝Lx2.11˝W
/85.3mmLx53.5mmW)
CR-79(3.30˝Lx2.04˝W/83.9mmLx
51.8mmW)
CR-80edge-to-edge(3.36˝Lx2.11˝W/85.3mmLx53.7mmW)
CR-79(3.3˝Lx2.04˝W/83.8mmLx51.8mmW)
Warranty
Printer:Twoyearsincludingoneyearof
freeprinterloanersupport(U.S.only);
optionalExtendedWarrantyProgram
(U.S.only)
Printhead:Lifetime;unlimitedpass
Printer:Oneyear;optionalExtended
WarrantyProgram(U.S.only)
Printhead:Lifetime;unlimitedpasswith
Fargo Certified Cards
Printer:Twoyearsincludingfreeloaner
printerintherstyear(U.S.only);
optionalExtended
WarrantyProgram(U.S.only)
Printhead:Twoyears,unlimitedpasswith
UltraCard™ Cards
Printer:Twoyearsincludingfreeloaner
printerintherstyear(U.S.only);
OptionalExtendedWarrantyProgram
(U.S.only)
Printhead:Twoyears,unlimitedpasswith
UltraCard™ Cards
Printer:Twoyears;
Printhead:Twoyears,unlimitedpass
withUltraCard™ Cards
Options
•Cardlaminationmodule–single-sided
or dual-sided (simultaneous)
•Magneticstripeencoding
•200-cardinputhopper(availablesoon)
•Smartcardencoding(contact/
contactless)
•Dual-sidedprinting
•Doorandcartridgelocks
•Printercleaningkit
•PrinterCleaningKit
•CardLaminationModule
•ExternalPrintServer(Windowsonly;
parallelportonly;requiredforstand-
alonenetworkingofprinter/encoders)
•CardEncodingModule
•CardLaminationModule
•Cardhopperlock
•Printercleaningkit
•Magneticstripeencoding
•Ethernetwithinternalprintserver
•E-cardencoding
•Dual-sidedprinting
•Dual-sidedPrintingModule–
Field-upgradable
•MagneticStripeEncodingModule–
Field-upgradable
•E-cardEncodingModules–
Field-upgradable
•Printercleaningkit
•Ethernetnetworkingwithinternalprint
server(replacesUSBconnection)
•100-cardoutputhopperwithor
without reject tray
•MagneticStripeEncodingModule—
field-upgradable
•Dual-sidedPrinting
•PrinterCleaningKit
![](asset-7e.png)
112
HID Global Product Catalog
SecureSoftware
Asure ID® Exchange™
Design • Print • Manage • Share • Control
• ComprehensiveIDcarddesign,productionandman-
agement.
• Fororganizationswantingintuitivecarddesign,data
managementandadvancedcardpersonalization.
Asure ID Enterprise™
Design • Print • Manage • Share
• IdealphotoIDsoftwareforissuanceovercorporatenetworks.
• ThechoicefororganizationsthatperformIDcardissuanceina
networkedenvironment.
Asure ID Express™
Design • Print • Manage
• PowerfulyetaordablephotoIDsoftware.
• Easy-to-usesoftwarefordesigningandproducing
photo IDs in stand-alone systems.
Asure ID Solo™
Design • Print
• Basicentry-levelphotoIDsoftware.
• Providesquickandeasysingle-sidedcarddesignandprinting.
Powerful ID card software
For organizations that issue thousands of ID
cards per day… or just one card per day.
![](asset-7f.png)
113 HID Global Product Catalog
OnQueue™ Card Production Software
The scalable, centralized solution for credential
issuance.
•Intuitivesoftwaretransformsmultiplecardissuancestations
intoonecentralizedsystem,allowingorganizationstoimprove
eciency
•Scalablesystemallowsexactlythecapacityneeded.Upto1300
clientworkstationPCscansendcardjobstoacentralserver.One
system can manage as few as two printers to more than twenty.
•Patent-pending,smartloadbalancingfeaturedirectsthenextcard
inqueuetothenextavailableprinterforevenjobdistribution.
Thesystemidentiesanyprinterproblemsandredirectsjobs,
eliminatingmanualretracking,reroutingandreprinting.
•Centraldatabasemakesmanagement,back-upandarchivingeasy.
•Idealforanyorganizationwithhigh-volumecardprintingneeds.
Did You Know?
Finding your Fargo Card Identity System
begins with a simple mouse click.
WithsomanyFargoprinter/encoders,softwarepackages
andVisualSecuritySolutions™ to choose from, where do
youstart?OuronlineCreateaSystemtoolgivesyoua
quickandhelpfuloverviewofhowFargosystemcomponents
gotogether,andwhatlevelofsecuritytheyprovide.Visit
fargo.com/SystemBuildertodiscoverwhichFargoCard
IdentitySystemisrightforyou.
![](asset-80.png)
114
HID Global Product Catalog
VisualSecuritySolutions
HOLOGRAPHIC HDP FILM
High Secure holograms on HDP Film — the ultimate in visual security.
Only for Fargo HDP printer/encoders.
HOLOGRAPHIC OVERLAMINATES
Choose from Secure or High Secure holographic lamination.
Only for Fargo HDP or Direct-to-Card lamination modules.
Custom High Secure
HDP Film: Your unique
holographicimage,plusVisual
SecurityElements(VSEs)
such as morphing images
andmicrotext,allintegrated
withinHDPFilm.Extremely
dicult to forge, yet easy to
authenticate.
Standard High Secure
HDP Film: Fargo’s standard
OrbitGlobehologram
featuringmultipleVSEs
imagedontoHDPFilm.Like
the custom film, any attempt
to peel apart the layers
destroys the image for a
tamper-evident solution.
Custom High Secure
Overlaminate: Your
custom holographic design
integrated with a combination
ofVSEsproducesahard-
to-duplicateIDcard.Also
available in a standard design.
Custom Secure Express™
Overlaminate:Thefast
tracktobasic,yetcustomized
holographic protection. Fast
delivery.Lowminimumorder
requirements.Supportsbasic
designsandtext.
Custom Secure
Overlaminate: Acost-
eectivesolutionthatuses
simple,2Dmovementof
yourgraphicortexttocreate
a holographic design.
Standard High Secure
Overlaminate: Our
standardOrbitGlobe
hologram featuring multiple
VSEs.Ano-the-shelf
solution where incremental
security is important.
One look tells counterfeiters
that they’re defeated
...before they even try.
![](asset-81.png)
115 HID Global Product Catalog
HOLOGRAPHIC FOIL CARDS
Cost-eective visual security for organizations without card lamination equipment.
Custom HoloMark™
Card: Yourcustom3D
image in a high-resolution
hologram that’s permanently
embedded onto the card
surface.Virtuallyimpossible
to duplicate, yet easy to
validate.Alsoavailableina
standard design.
Custom Translucent Foil
Card: Asecurehologram
of your custom design in a
translucent2Dfoilembedded
just below the card surface
formaximumsecurityand
durability.
Custom VeriMark™ Card:
Yourcustom2Dgraphichot
stamped in gold onto a silver
metallicfoil.Visualsecurity
with minimum cost and
delivery time.
Custom Metallized Foil
Card: Your custom design
inametallizedhologram
that’s layered just below the
cardsurfaceformaximum
durability and resistance to
counterfeiting or tampering.
Learn how to create dynamic, eective
and secure ID cards.
Fargo’s28-pageCardDesignGuideBookshowsyou
howtocreateIDsthat:
•Reectyourbrandidentity.
•Enhanceyourphysicalandlogicalsecurity.
•ReduceyourvulnerabilitytoIDcounterfeiting.
•Increaseyoureciencyandproductivity.
Alsoincludesabonussection:Agalleryof IDcards
intendedtoprovideacreativesparkforyourowndesigns.
Visitfargo.com/FreeGuide to get your free copy of Fargo’s ID Card Design Guide.
Get your
free guide
to designing
ID cards.
![](asset-82.png)
116
HID Global Product Catalog
IntegrationServices&Accessories
Authorized Fargo Integrators
In corporations, schools and government
agencies, our integrators put the power of Fargo
Card Identity Systems to work.
AuthorizedFargointegratorshaveonecriticalmission:
help you get the most from your Fargo Card Identity
System.Afterinstallingmorethan140,000systemsin
over80countries,Fargointegratorshavethereal-world
experiencetoimplementanythingfromhigh-security
access control to charging a cafeteria lunch with a student
ID.AndFargointegratorskeepuptodatewithongoing
trainingfromFargo.Sowhenyoursecuritydepends
onaFargoCardIdentitySystem,dependrstonyour
authorizedFargointegrator.
Fargo Professional Services
A partnership that helps you successfully
implement or upgrade large-scale card identity
programs.
Workingonalargeprogramcanbetime-consumingand
complex—onethatrequiresspecializedexperience.
That’swhywesupportauthorizedFargointegrators
withourowndedicatedteam:FargoProfessional
Services.Theseexpertsoeraprovenmethodologyfor
optimizingthesecurityandperformanceofsophisticated
andoftencustomizedcardidentitysystems.From
planning through integration and deployment, Fargo
ProfessionalServicesworksintandemwithyour
integrator to ensure a successful program.
Fargo Accessories
Customize and complete your card identity
system with digital cameras, photography
backdrops and other accessories.
Beyondprinter/encoders,softwareandmaterials,weoer
avarietyofaccessoriesspecicallyselectedtoworkwith
FargoCardIdentitySystems.Digitalcamerasareanessential
partofanyphotoIDsystem,andourUSB-connected
cameras deliver the sharp, clear images that today’s high-
qualityphotoIDcardsrequire.Ourbackdropsareeasy
to set up and enhance the appearance of your ID photos.
Fargo’s entire selection of accessories provides a simple,
turnkeywaytocompleteyoursystem.
Don’t think you have
to do this alone.
Fargo has experts all over the world.
![](asset-83.png)
117 HID Global Product Catalog
Your Total Solution
Every Fargo printer/encoder is the central component of a
complete Fargo Card Identity System. We also oer software,
materials, cameras and accessories — everything you need from
one trusted source, for a total solution to your card printing needs.
Software
Fargoprinter/encodersworkwith
AsureID® applications and all other
leading card creation and issuance
management software.
Fargo printer/encoders also come
withFargoWorkbench™, a software
toolkitforsetup,printersecurity,diagnosticsandrmwareupgrades.
Materials
Fargo ribbons, films, overlaminates, and other materials not only ensure
superiorprintqualityforlong-lasting,great-lookingcards,theyadd
features that resist counterfeiting and
increasedurability.Thatmeansfewer
card replacements and lower cost per
card.
Cameras and Accessories
Fargooersaselectionofdigitalcameras,photolighting
equipmentandbackgrounds,pluscardaccessoriessuch
as lanyards and clips.
![](asset-84.png)
118
HID Global Product Catalog
CardPersonalizationServices
HID’s Card Personalization Services:
•Allowthesecuritydepartmenttomanagesecurity,notIDbadge
production.
•ReduceoverallcostsassociatedwithIDbadgeproduction.Wear
andtearonin-housebadgeproductionequipmentisminimized!
•CreateyourIDbadgelayouttomeetallyourrequirements.
Noin-housegraphicscapabilitiesrequired!
•Provideweb-basedserviceusablebyanysizecompany.Take
advantage of technological advances with little or no capital
investment.
Theeasy,secureandeconomicalwaytoissueIDcredentials.
UseHID’sCardPersonalizationServicestocreatecustom
credentials.TurnyourHIDcardintoacredentialbyhavingHID
personalizeeachcardwiththerequiredIDbadgeinformation.
OnlyHIDcanprovideone-stopshoppingforyourcomplete
credential needs.
![](asset-85.png)
119 HID Global Product Catalog
When Should You Use HID’S Card Personalization Service?
•Whenamajorre-badgeofpersonnelisrequiredduetoacompanyname
change, merger, acquisition or logo change.
•Simplifythemanagementandproductionofnewcredentialsbymerging
stored photos into one database.
•Getthebenefitoftop-of-the-lineequipmentatabottom-linelowprice!
Technology Selections
• ContactlessSmartCard
• Proximity
• ContactSmartChip
• MagneticStripe
• Composite Formulations
Visual Enhancements
• LithographicPre-printing
• Hologram
• EmbeddedUV
• MicroText
Card Personalization
Internal Data
• AccessControl
• Vending
• LogicalAccess
• Biometrics
External Data
• Personal Data
• Photo ID Image
• BarCode
• Graphics
1
2
3
![](asset-86.png)
The reliable Fargo
HDP5000 gives you high
def at a cost comparable to conventional card
printers. HID Global, the worldwide leader in secure identity
solutions, brings the latest in premier Fargo High Definition Card
Printers – the Fargo HDP5000. It uses retransfer technology to print
sharp, vibrant High Definition graphics on film that is then fused
to the card, protecting the design from abrasion. The HDP5000 is
ideal for cards with smart chips because the printhead never comes
in contact with the card. This saves both the printhead and chips
from possible damage, and eliminates replacement expenses.
For High Definition quality and durability at an unprecedented
price, think the Fargo HDP5000.
www.hidglobal.com/hdp
ACCESS quality.
For more information, call 1-800-459-5636 or e-mail us at sales@fargo.com
hidglobal.com
![](asset-87.png)
ACCESS
SECURE IDENTITY
![](asset-88.png)
hidglobal.com
©2008 HID Global Corporation. All rights reserved. HID, the HID logo, and
other HID trademarks herein are trademarks or registered trademarks of HID
Global in the U.S. and/or other countries. All other trademarks, service marks,
and product or service names are trademarks or registered trademarks of their
respective owners.
mkt_08dec2008_rg_prodcat_en
An ASSA ABLOY Group brand
ACCESS SECURE IDENTITY
