HITACHI VCR Manual L0110209
VT-FX601A L0110209
User Manual: HITACHI HITACHI VCR Manual HITACHI VCR Owner's Manual, HITACHI VCR installation guides
Open the PDF directly: View PDF
.
Page Count: 51
!

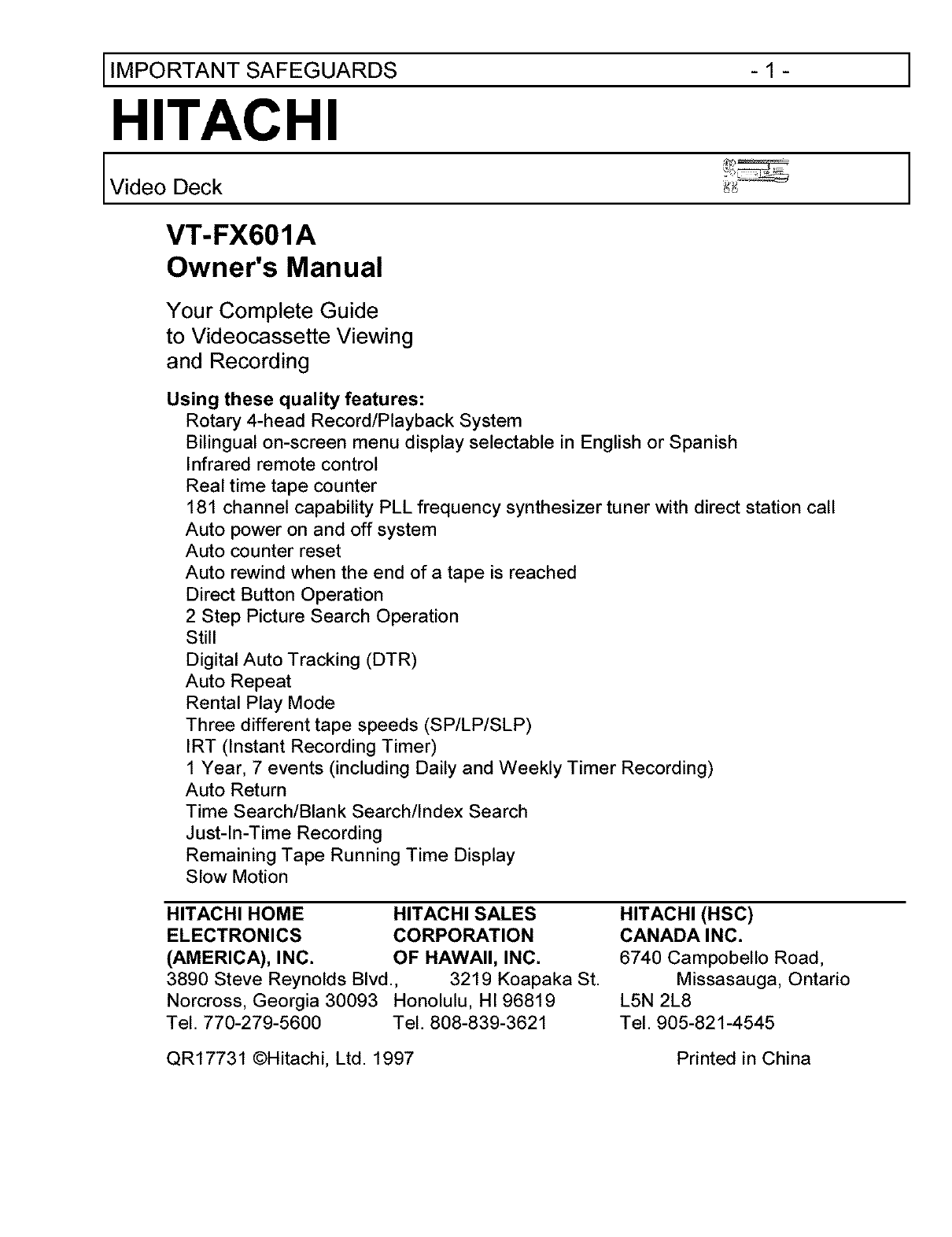

IMPORTANT SAFEGUARDS - 1 - J
HITACHI
Video Deck
VT-FX601A
Owner's Manual
Your Complete Guide
to Videocassette Viewing
and Recording
Using these quality features:
Rotary 4-head Record/Playback System
Bilingual on-screen menu display selectable in English or Spanish
Infrared remote control
Real time tape counter
181 channel capability PLL frequency synthesizer tuner with direct station call
Auto power on and off system
Auto counter reset
Auto rewind when the end of a tape is reached
Direct Button Operation
2 Step Picture Search Operation
Still
Digital Auto Tracking (DTR)
Auto Repeat
Rental Play Mode
Three different tape speeds (SP/LP/SLP)
IRT (Instant Recording Timer)
1 Year, 7 events (including Daily and Weekly Timer Recording)
Auto Return
Time Search/Blank Search/Index Search
Just-In-Time Recording
Remaining Tape Running Time Display
Slow Motion
HITACHI HOME HITACHI SALES
ELECTRONICS CORPORATION
(AMERICA), INC. OF HAWAII, INC.
3890 Steve Reynolds Blvd., 321g Koapaka St.
Norcross, Georgia 30093 Honolulu, HI 96819
Tel. 770-279-5600 Tel. 808-839-3621
HITACHI (HSC)
CANADA INC.
6740 Campobello Road,
Missasauga, Ontario
L5N 2L8
Tel. 905-821-4545
QR17731 @Hitachi, Ltd. 1997 Printed in China
IMPORTANT SAFEGUARDS

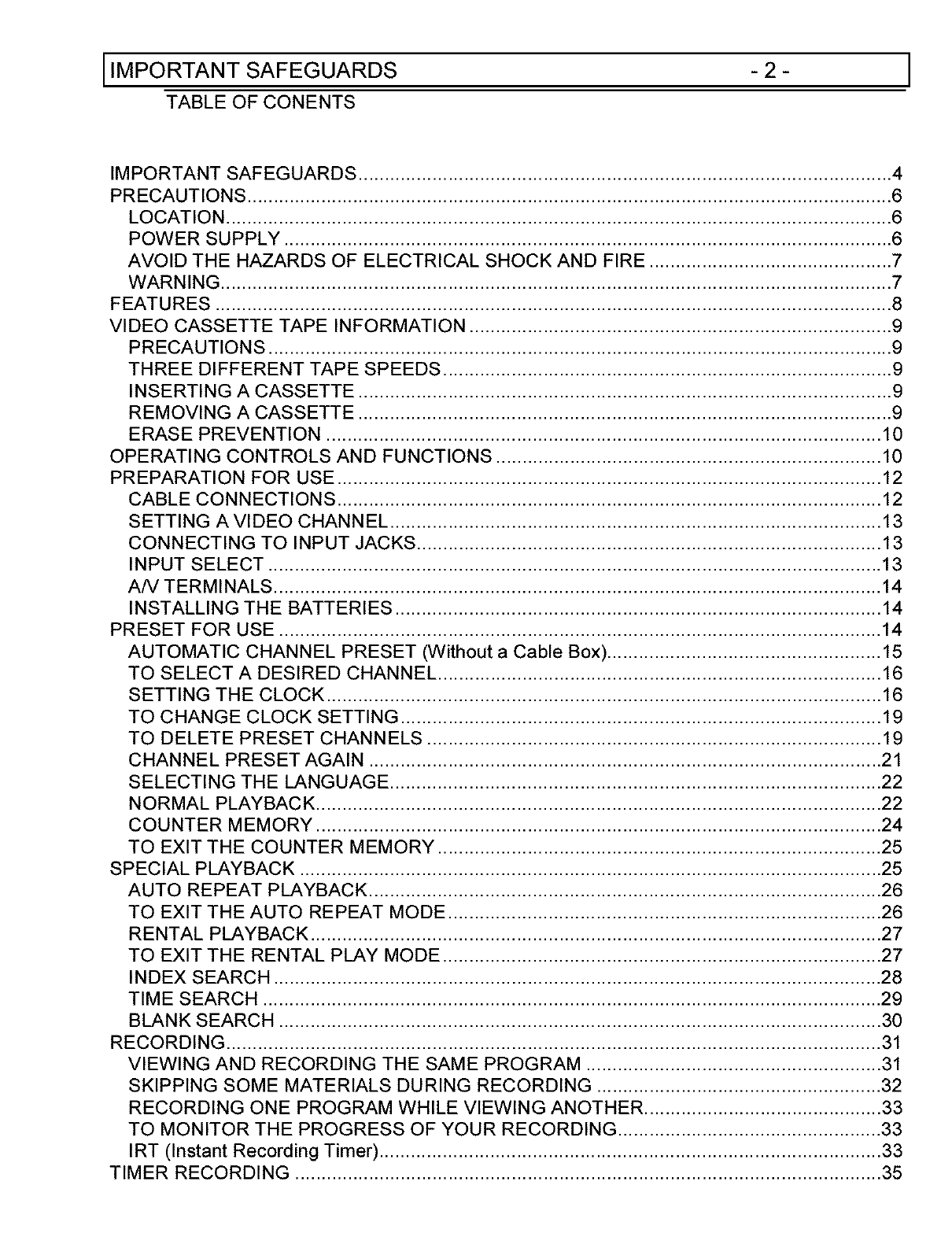

TABLE OF CONENTS
-2- ]
IMPORTANT SAFEGUARDS ..................................................................................................... 4
PRECAUTIONS .......................................................................................................................... 6
LOCATION .............................................................................................................................. 6
POWER SUPPLY ................................................................................................................... 6
AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE .............................................. 7
WARNING ............................................................................................................................... 7
FEATURES ................................................................................................................................ 8
VIDEO CASSETTE TAPE INFORMATION ................................................................................ 9
PRECAUTIONS ...................................................................................................................... 9
THREE DIFFERENT TAPE SPEEDS ..................................................................................... 9
INSERTING A CASSETTE ..................................................................................................... 9
REMOVING A CASSETTE ..................................................................................................... 9
ERASE PREVENTION ......................................................................................................... 10

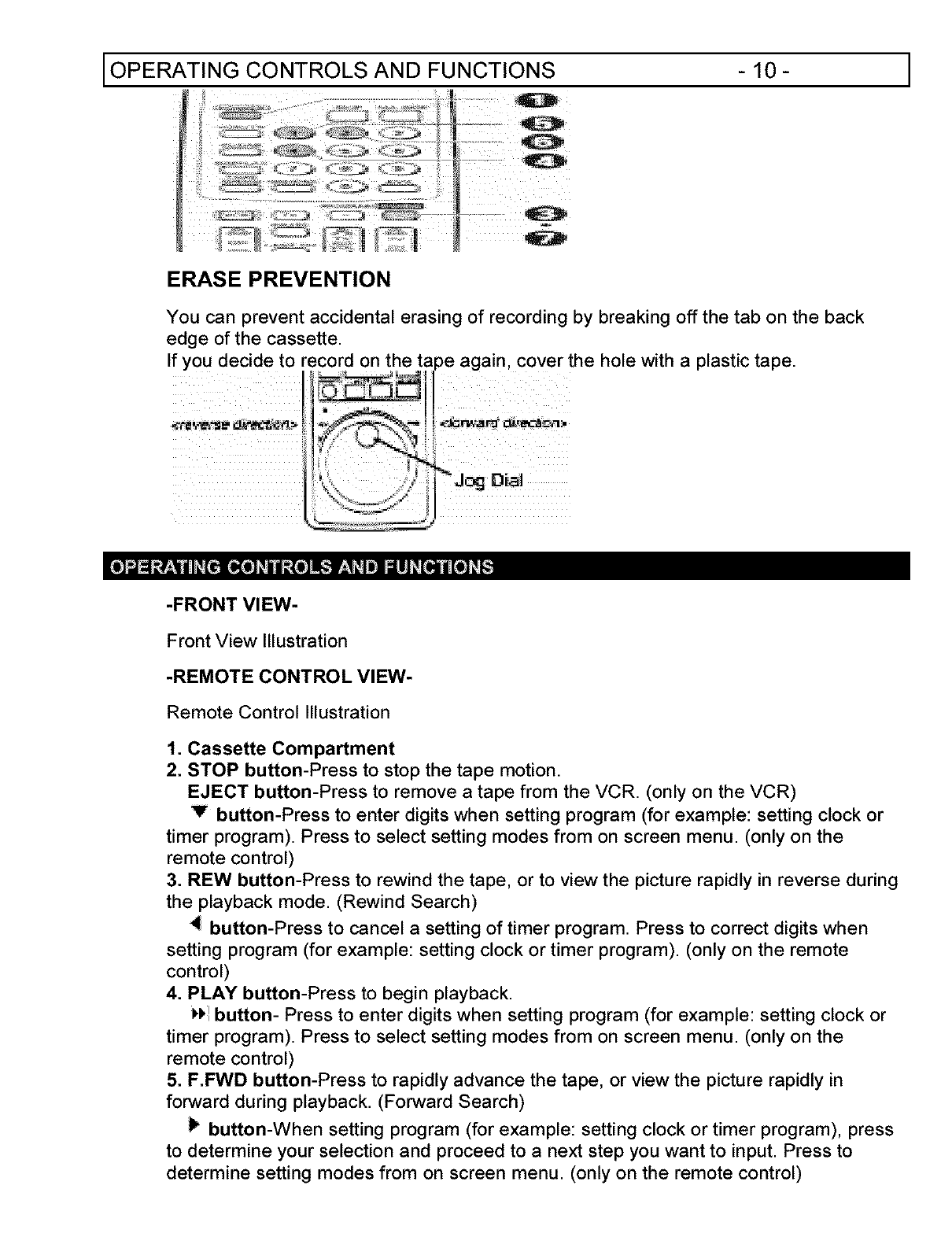

OPERATING CONTROLS AND FUNCTIONS ......................................................................... 10
PREPARATION FOR USE ....................................................................................................... 12

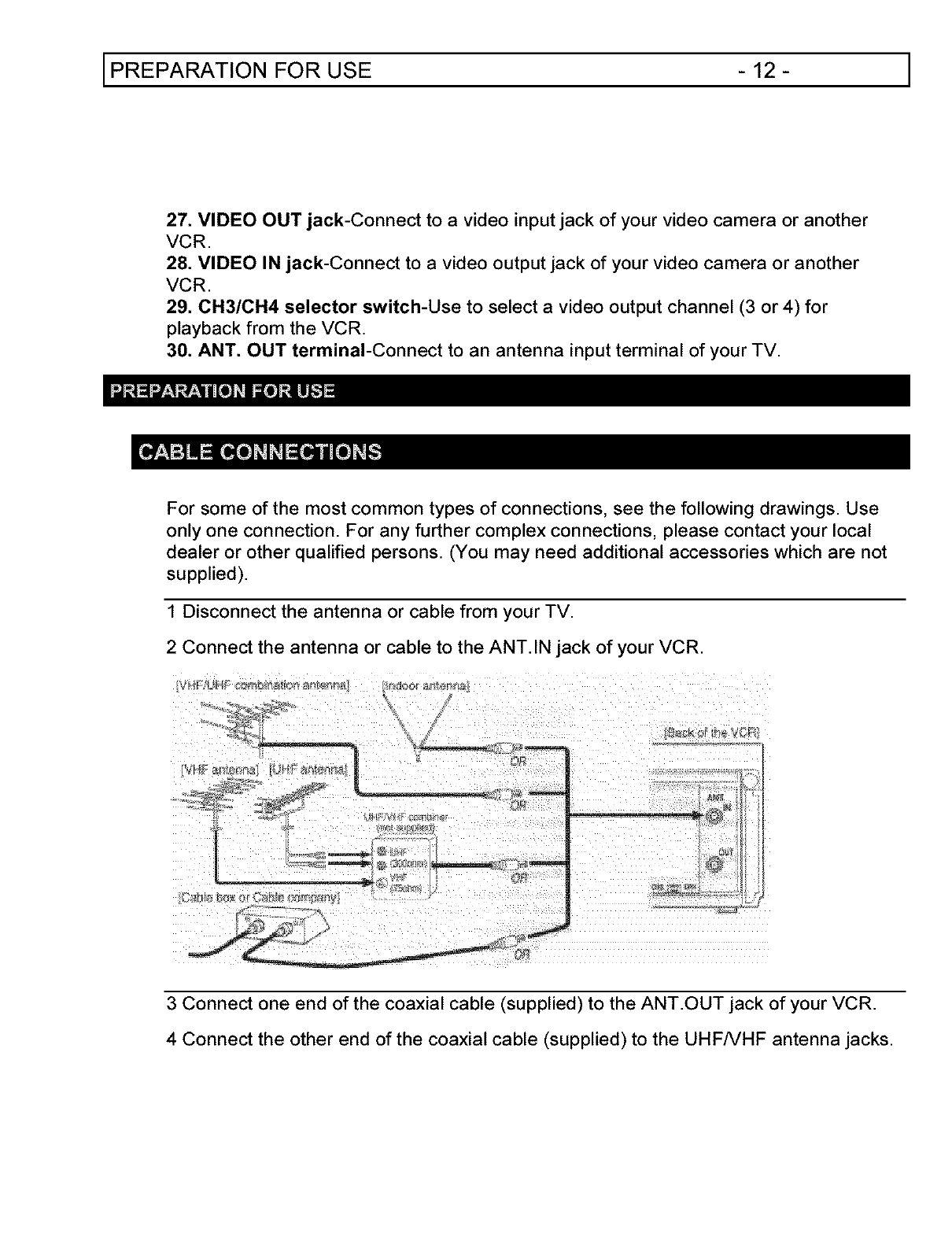

CABLE CONNECTIONS ....................................................................................................... 12

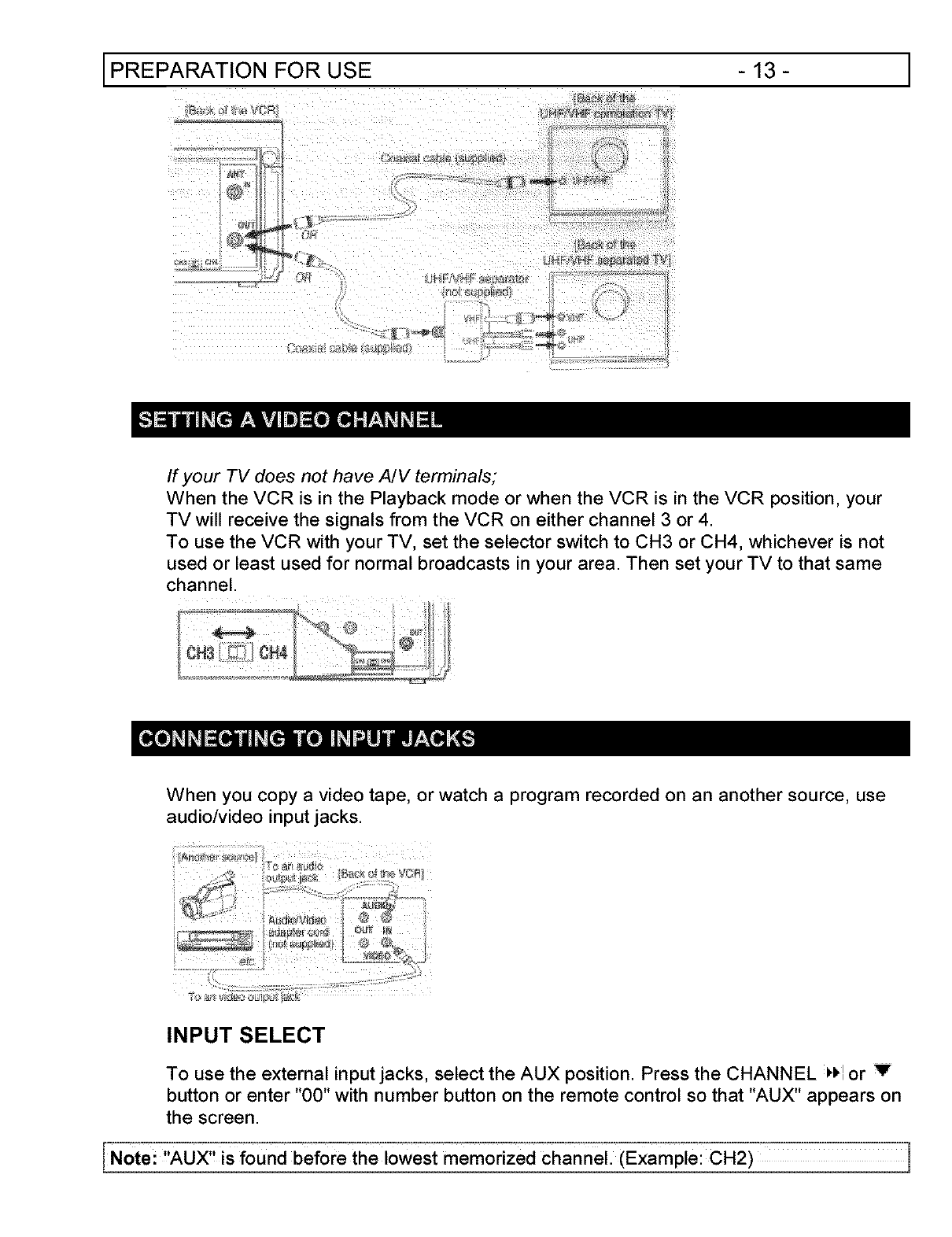

SETTING A VIDEO CHANNEL ............................................................................................. 13
CONNECTING TO INPUT JACKS ........................................................................................ 13
INPUT SELECT .................................................................................................................... 13

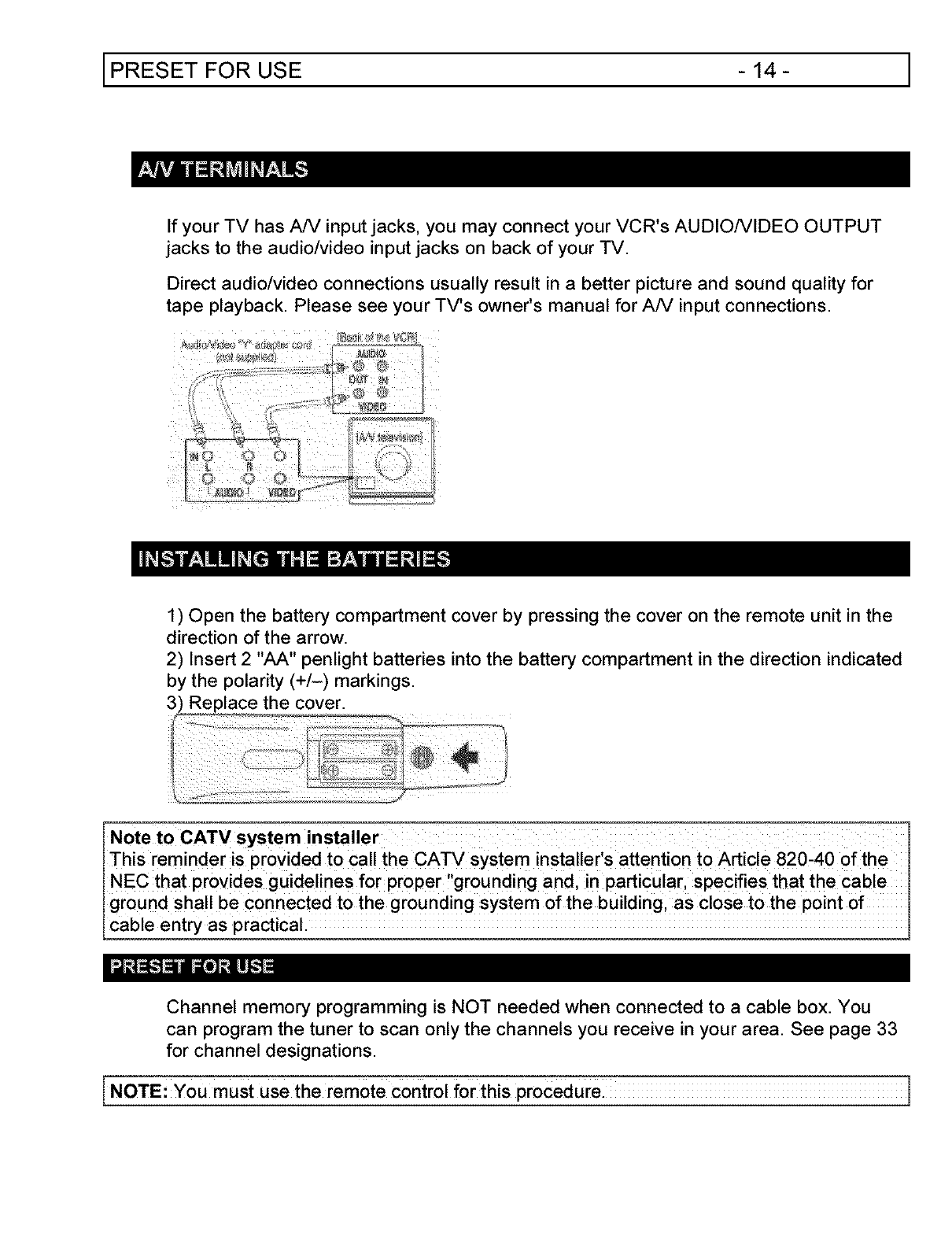

AN TERMINALS ................................................................................................................... 14
INSTALLING THE BATTERIES ............................................................................................ 14
PRESET FOR USE .................................................................................................................. 14
AUTOMATIC CHANNEL PRESET (Without a Cable Box) .................................................... 15

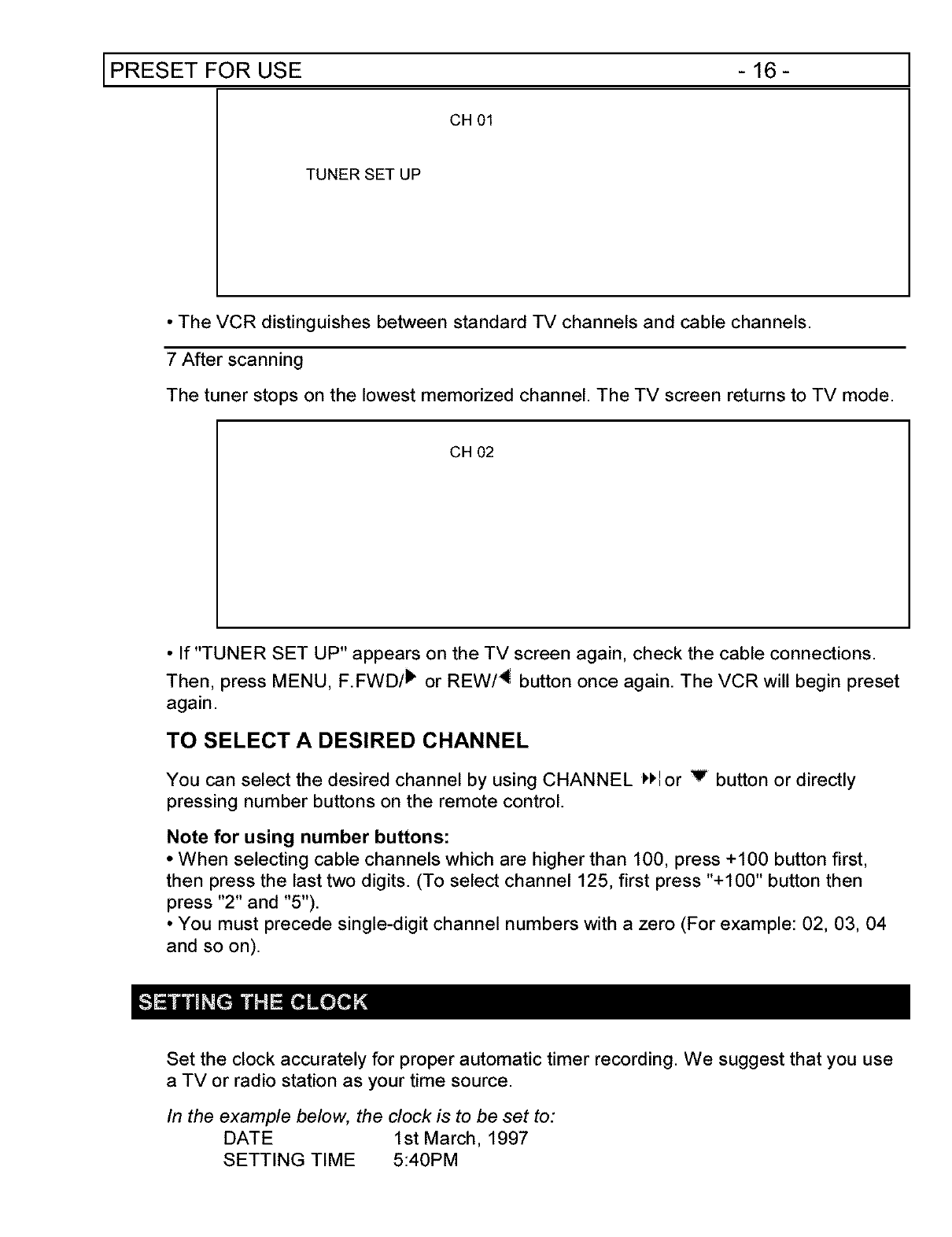

TO SELECT A DESIRED CHANNEL .................................................................................... 16

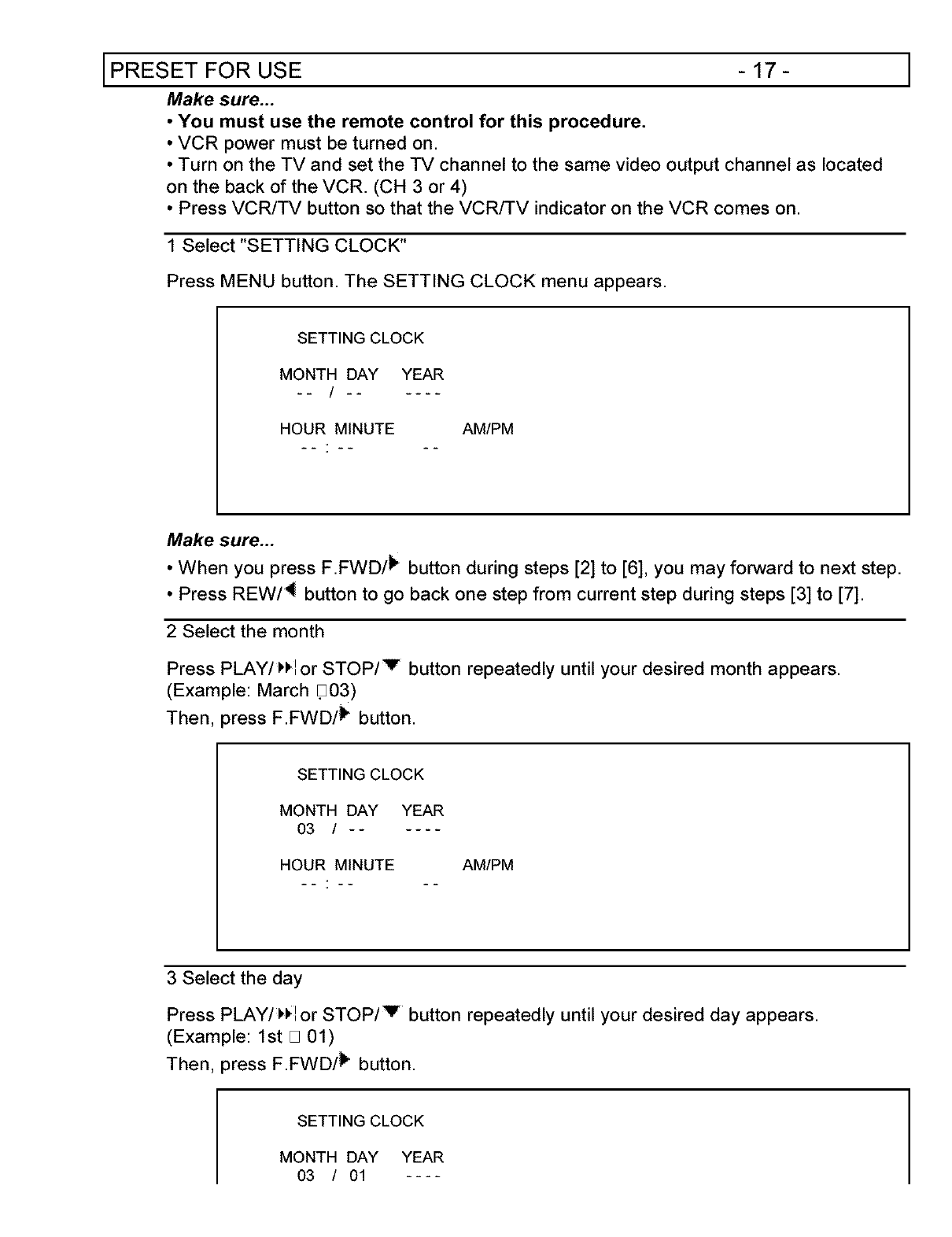

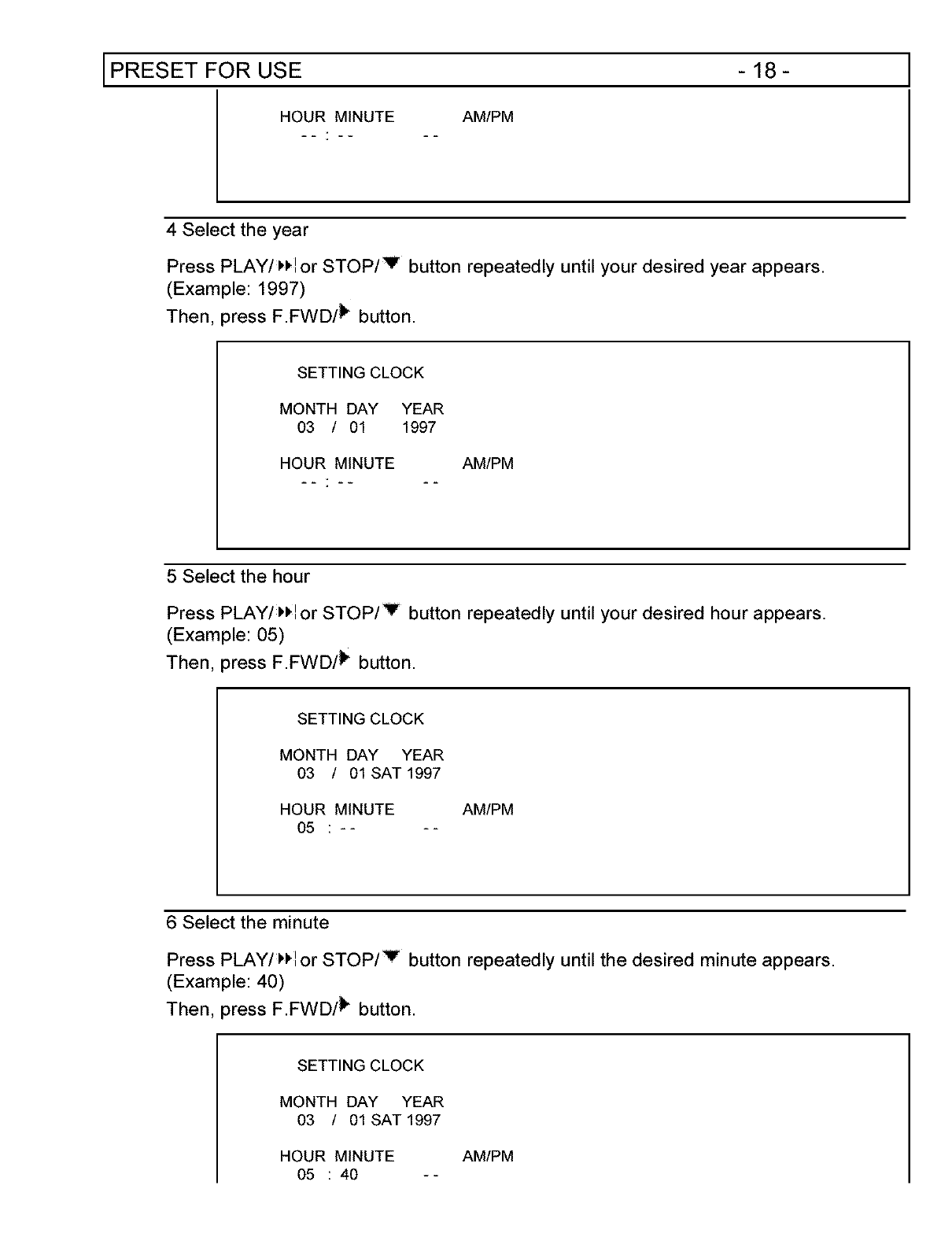

SETTING THE CLOCK ......................................................................................................... 16
TO CHANGE CLOCK SETTING ........................................................................................... 19

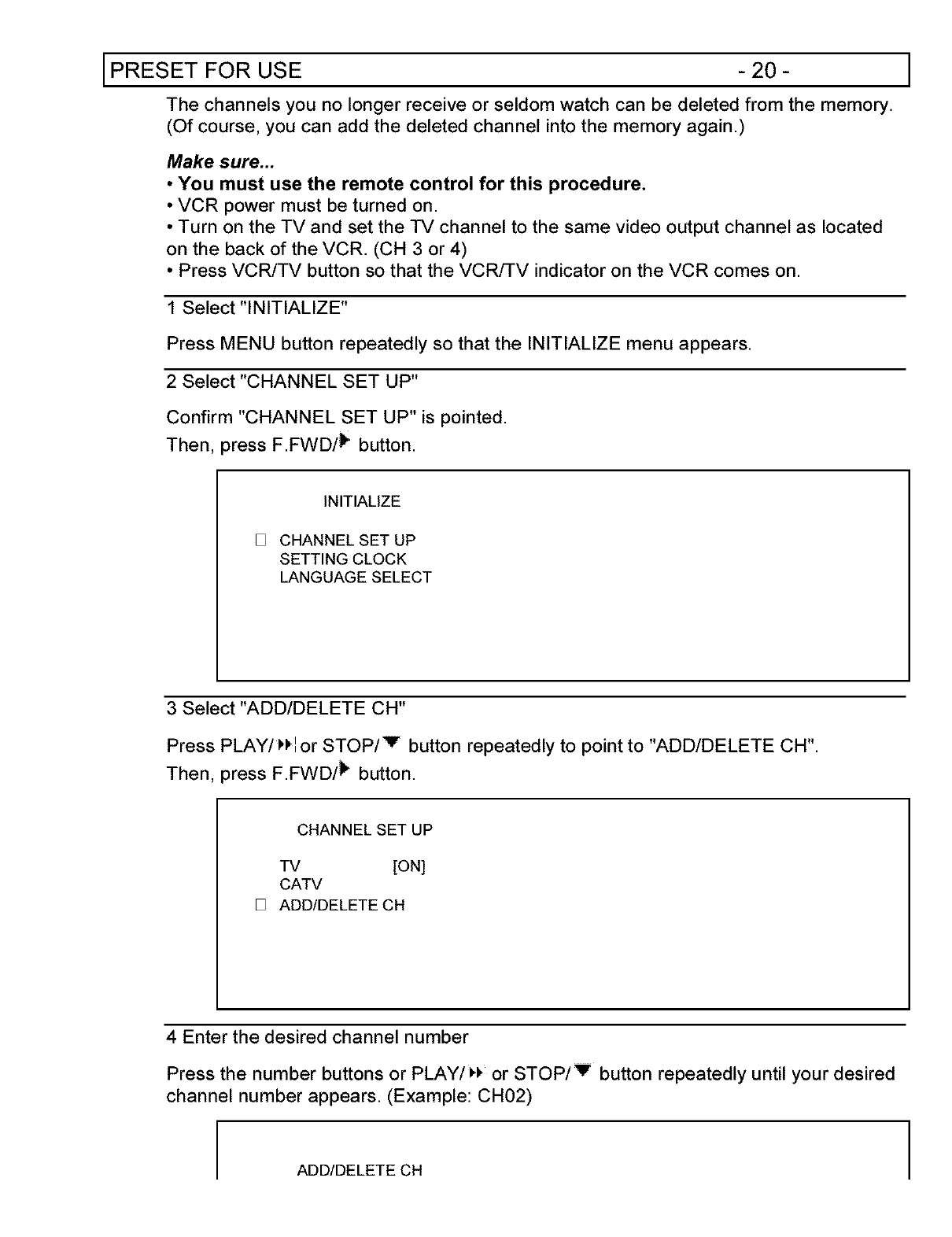

TO DELETE PRESET CHANNELS ...................................................................................... 19
CHANNEL PRESET AGAIN ................................................................................................. 21
SELECTING THE LANGUAGE ............................................................................................. 22

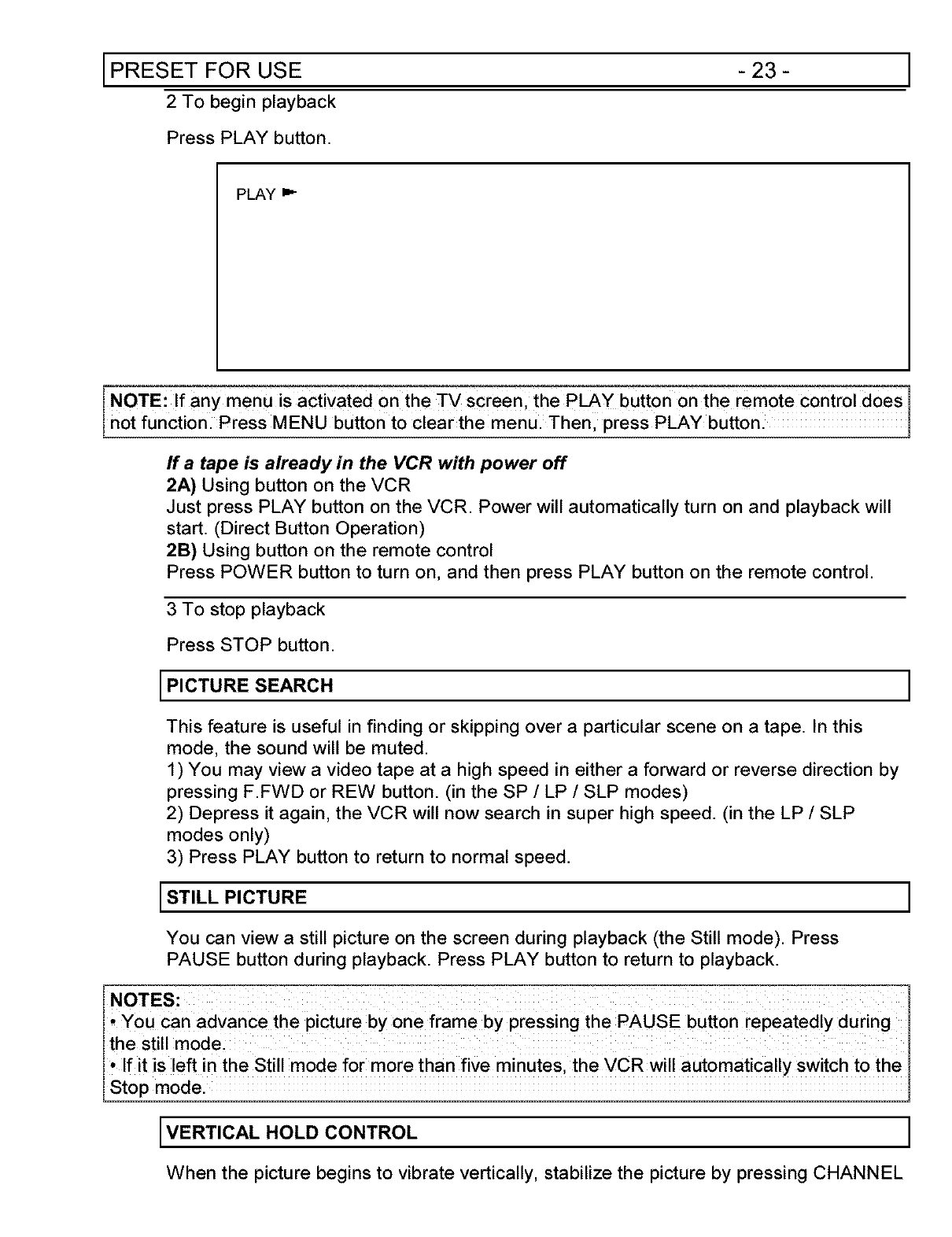

NORMAL PLAYBACK ........................................................................................................... 22

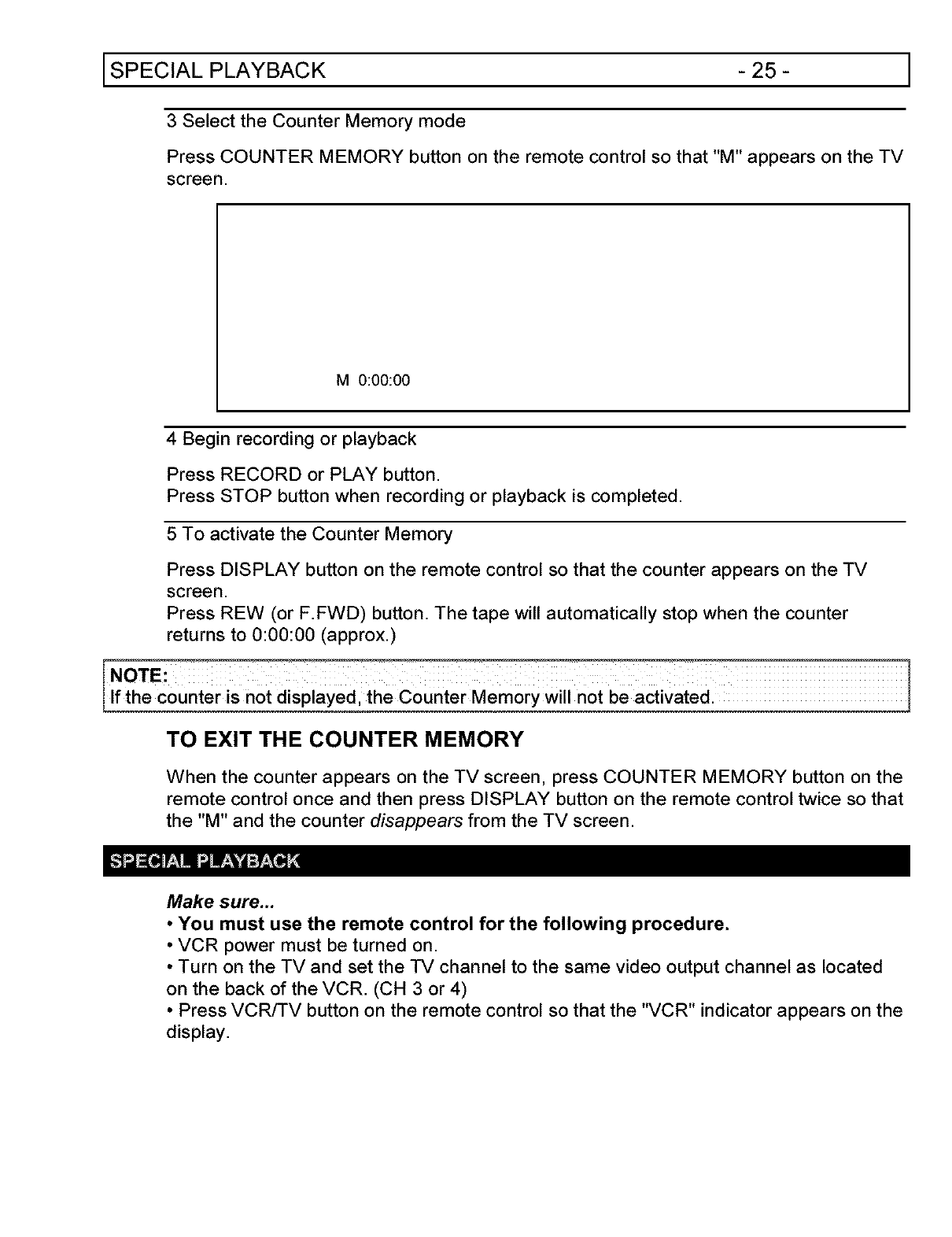

COUNTER MEMORY ........................................................................................................... 24
TO EXIT THE COUNTER MEMORY .................................................................................... 25
SPECIAL PLAYBACK .............................................................................................................. 25

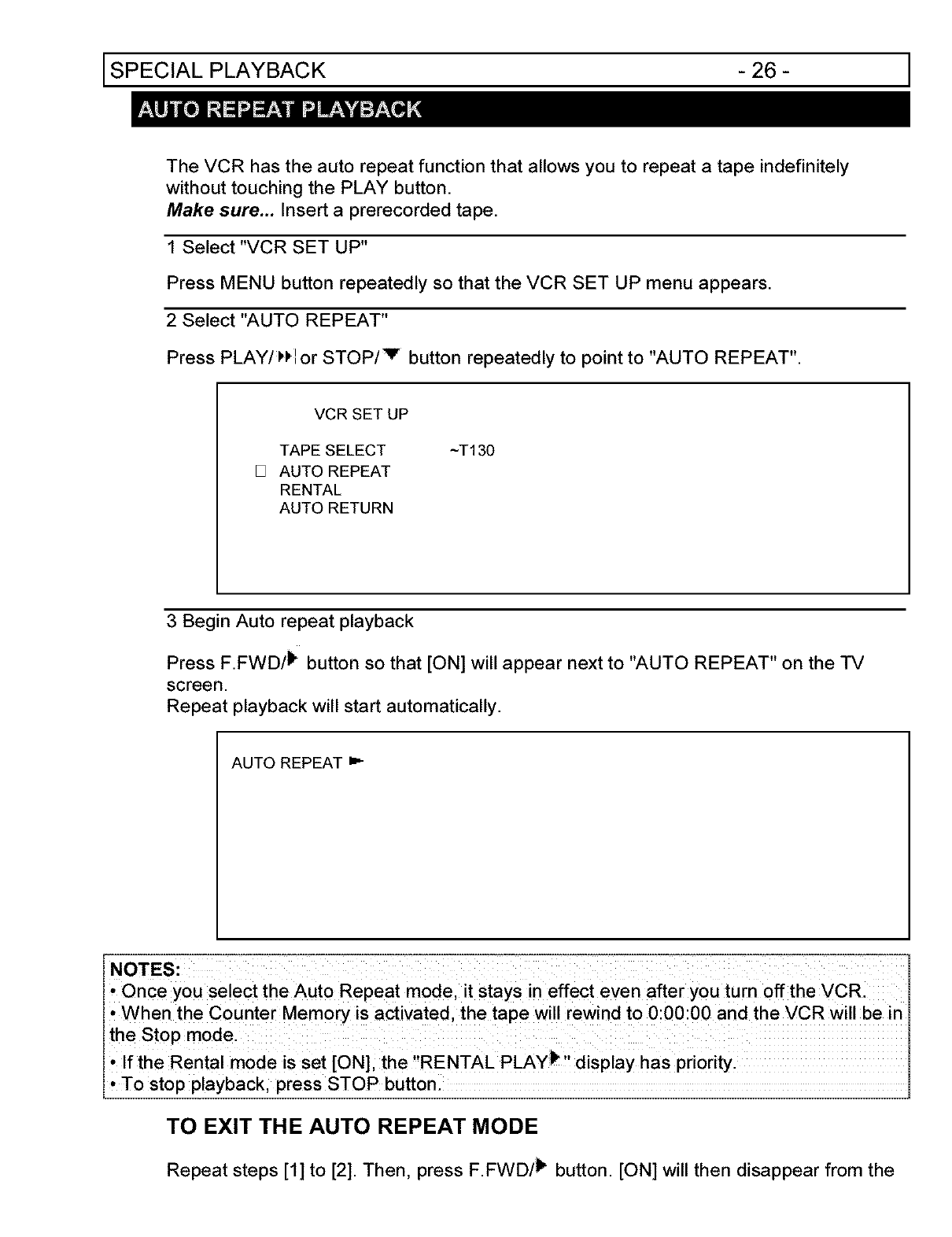

AUTO REPEAT PLAYBACK ................................................................................................. 26
TO EXIT THE AUTO REPEAT MODE .................................................................................. 26

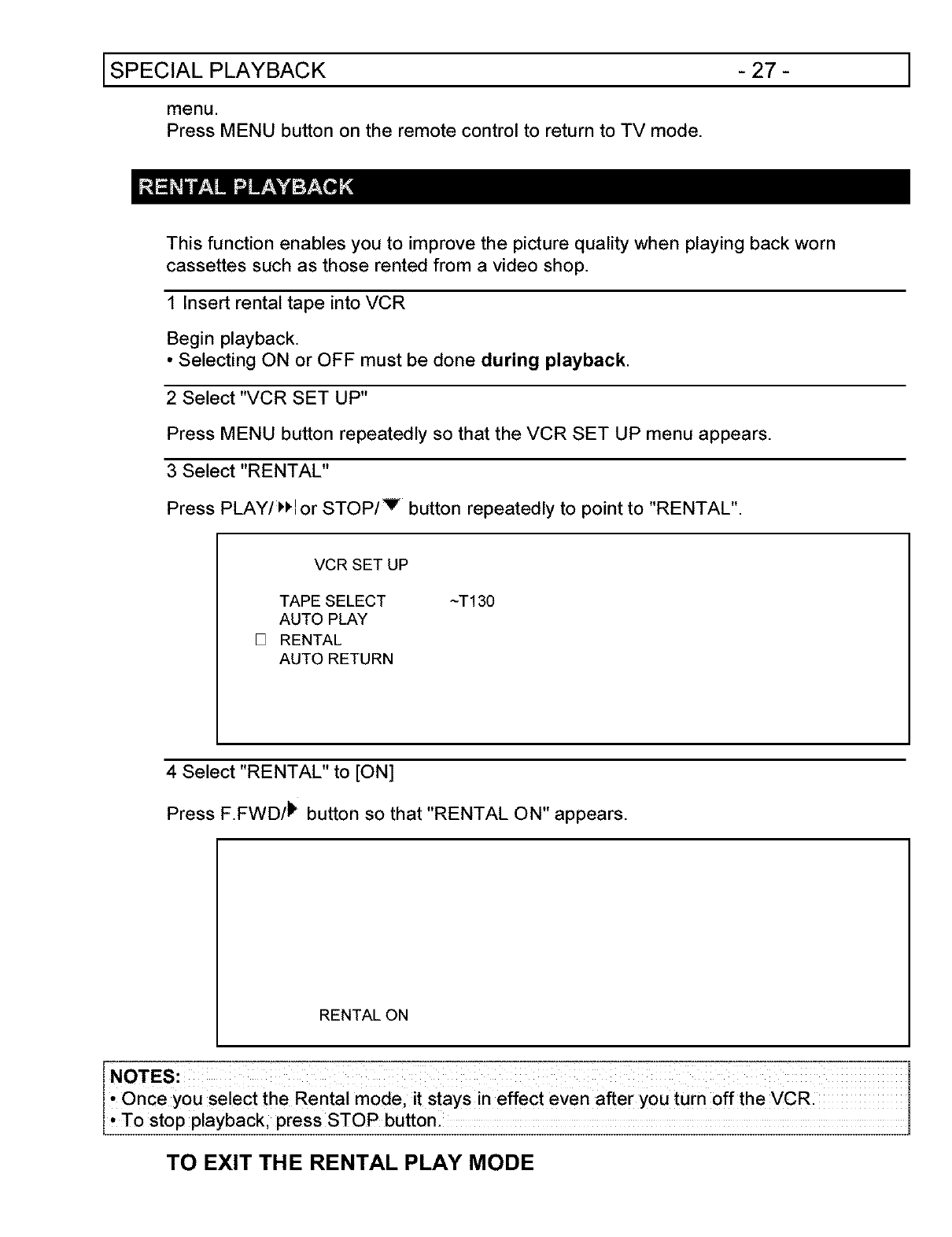

RENTAL PLAYBACK ............................................................................................................ 27
TO EXIT THE RENTAL PLAY MODE ................................................................................... 27

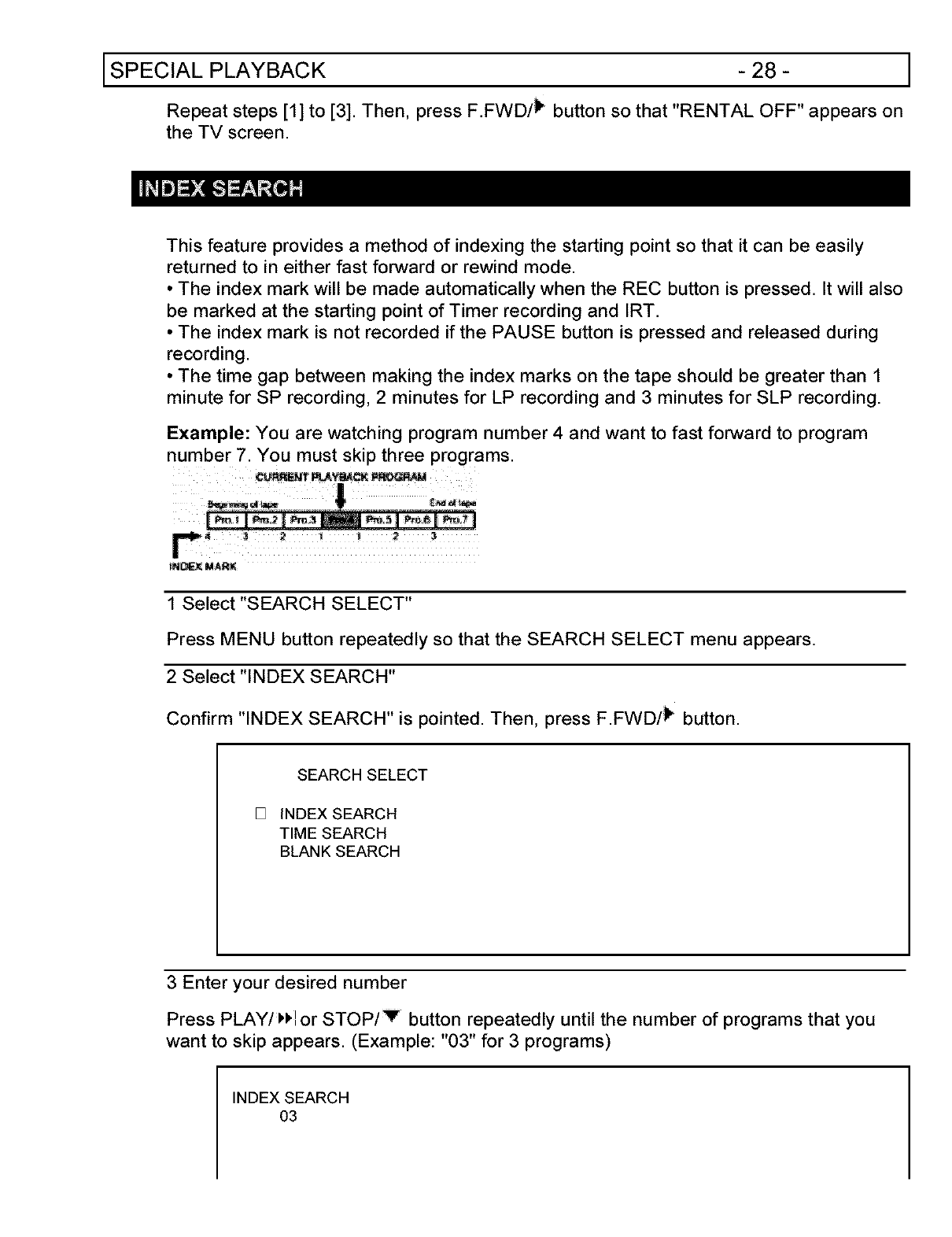

INDEX SEARCH ................................................................................................................... 28

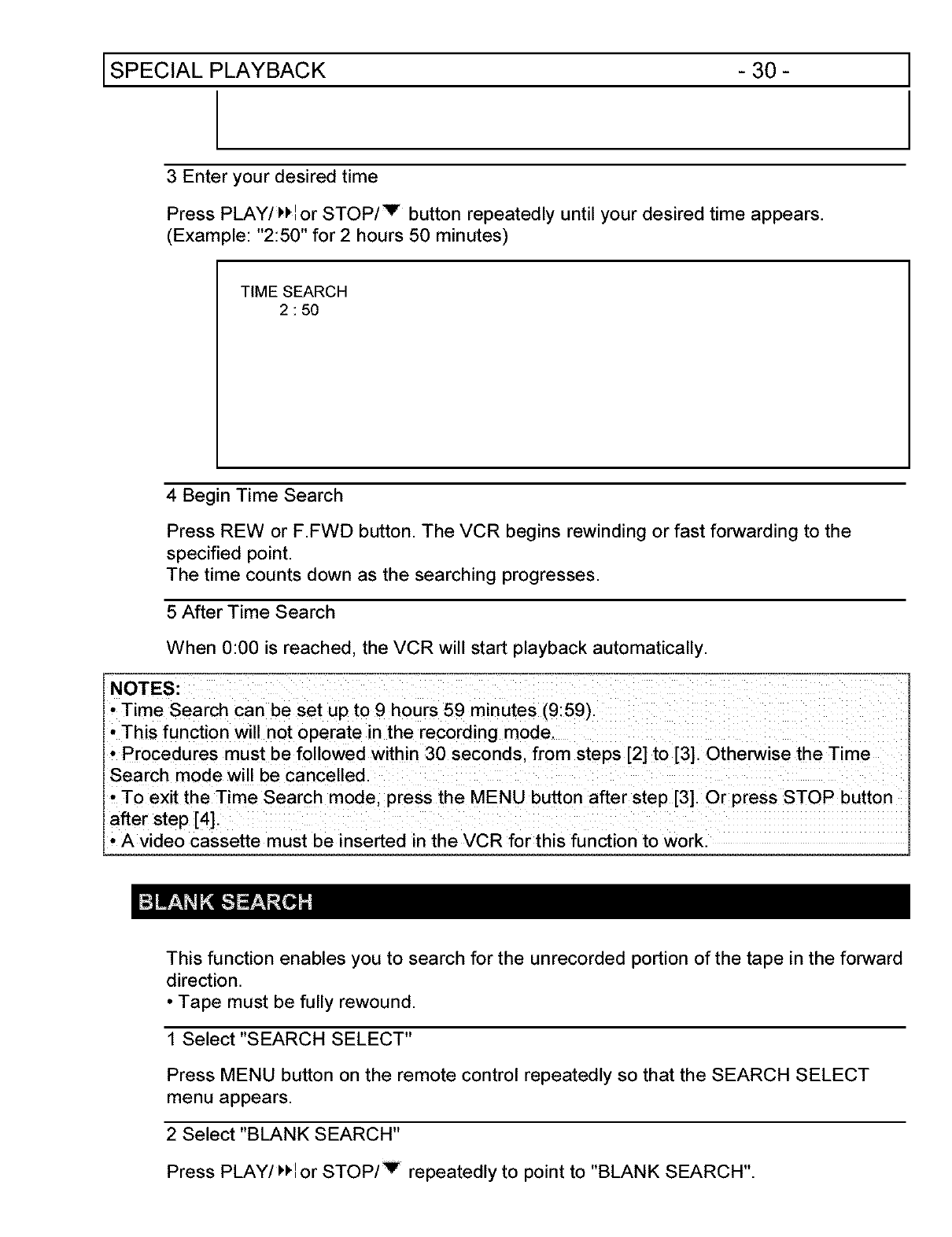

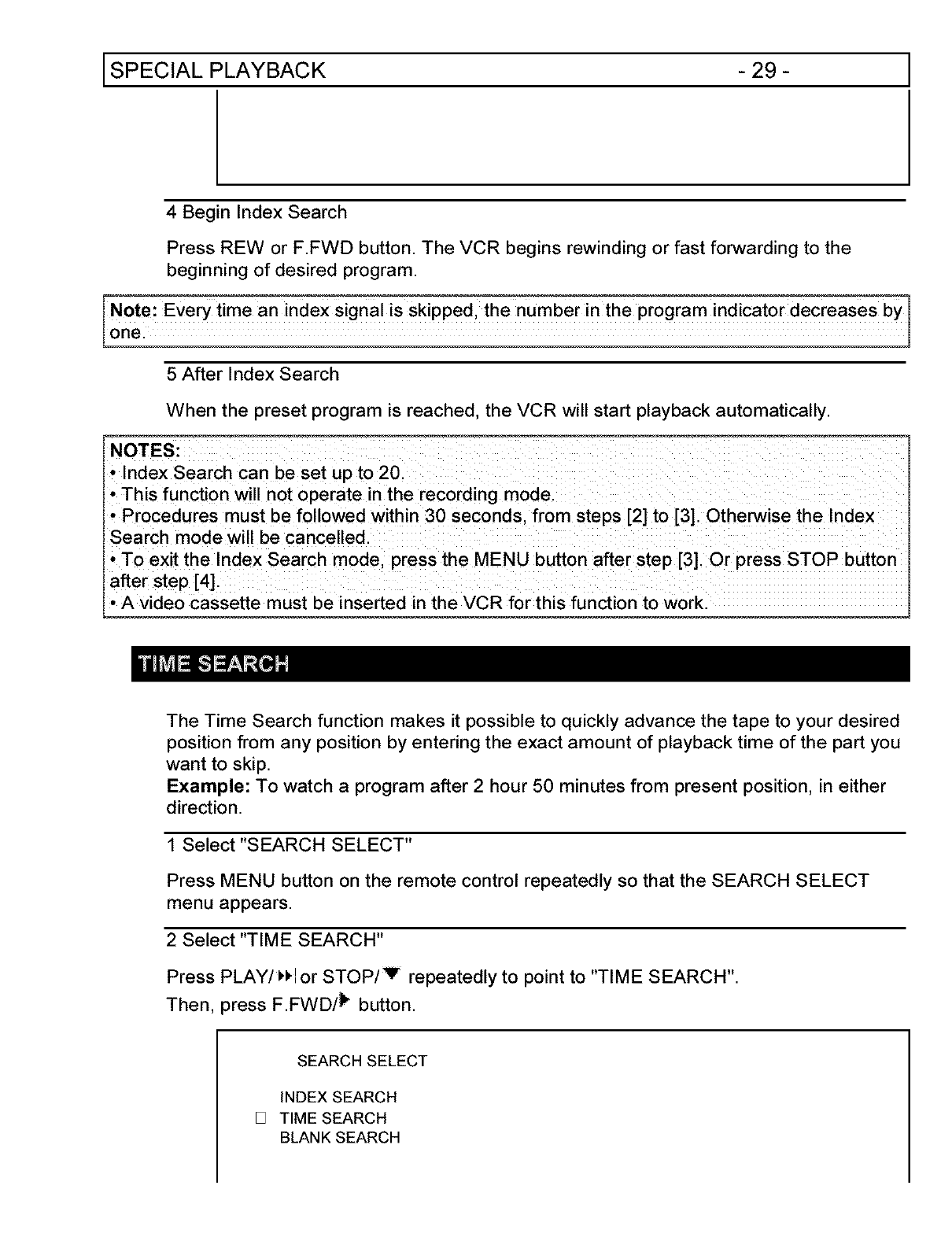

TIME SEARCH ..................................................................................................................... 29
BLANK SEARCH ..................................................................................................................
RECORDING ............................................................................................................................
VIEWING AND RECORDING THE SAME PROGRAM ........................................................

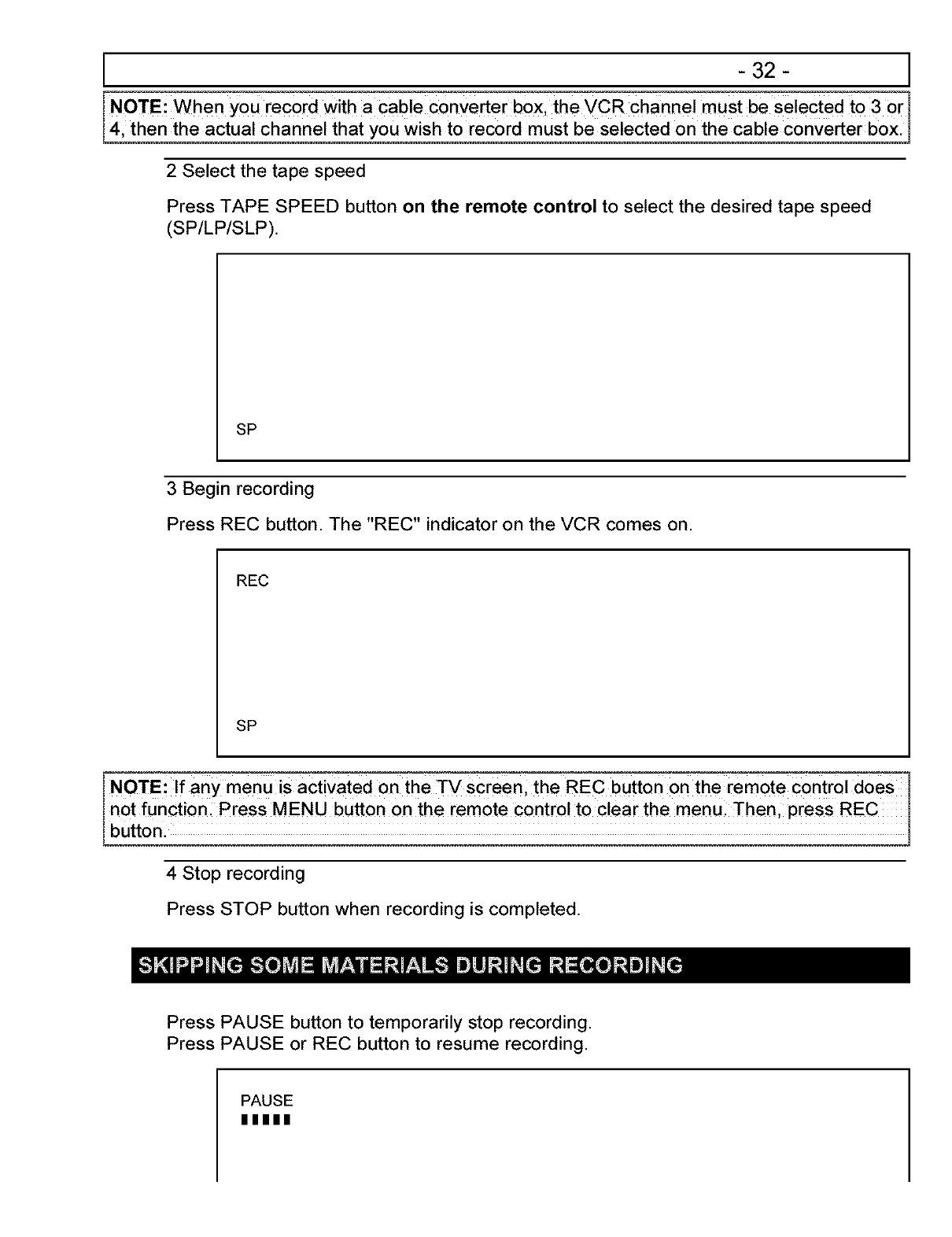

SKIPPING SOME MATERIALS DURING RECORDING ......................................................

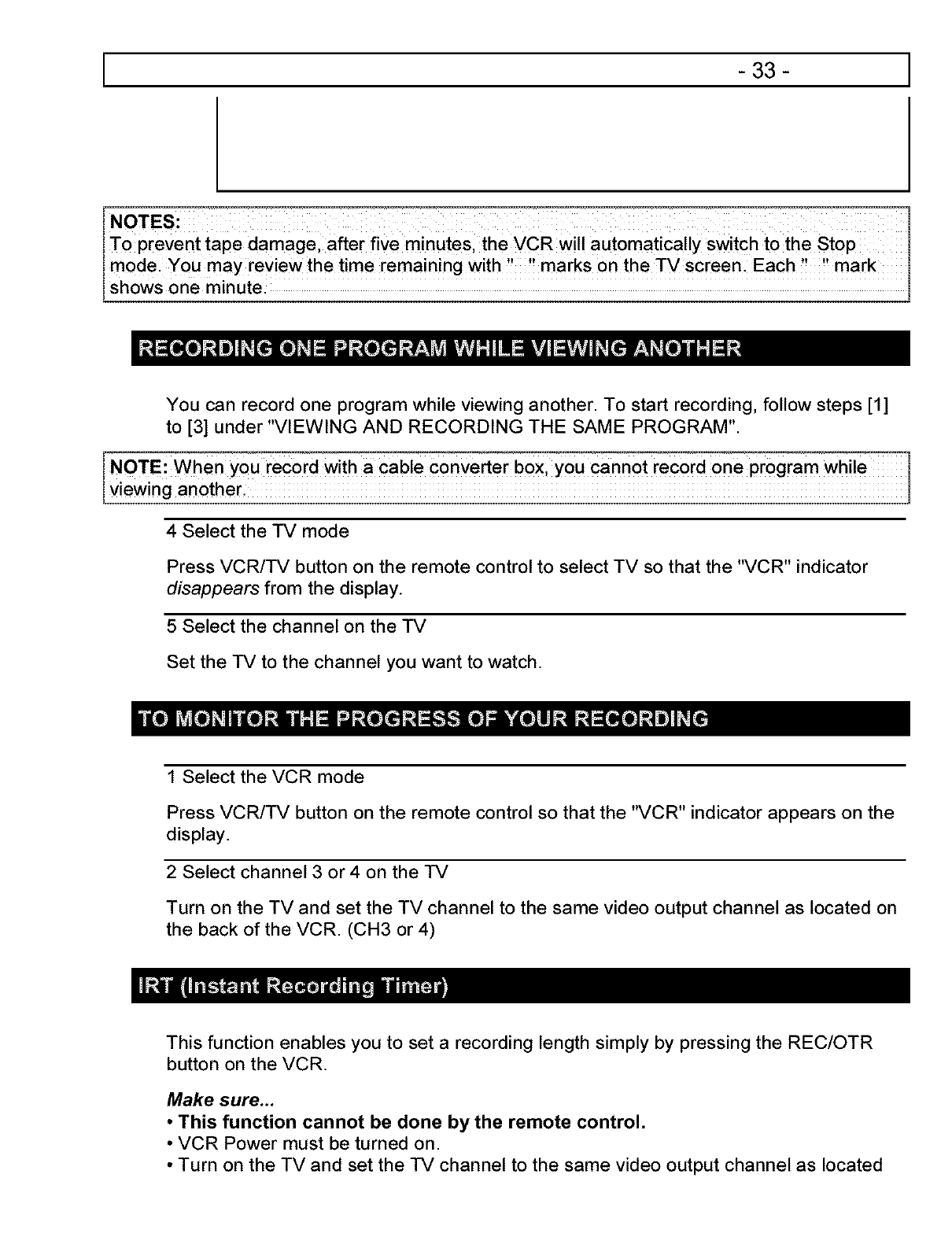

RECORDING ONE PROGRAM WHILE VIEWING ANOTHER .............................................
TO MONITOR THE PROGRESS OF YOUR RECORDING ..................................................
IRT (Instant Recording Timer) ...............................................................................................

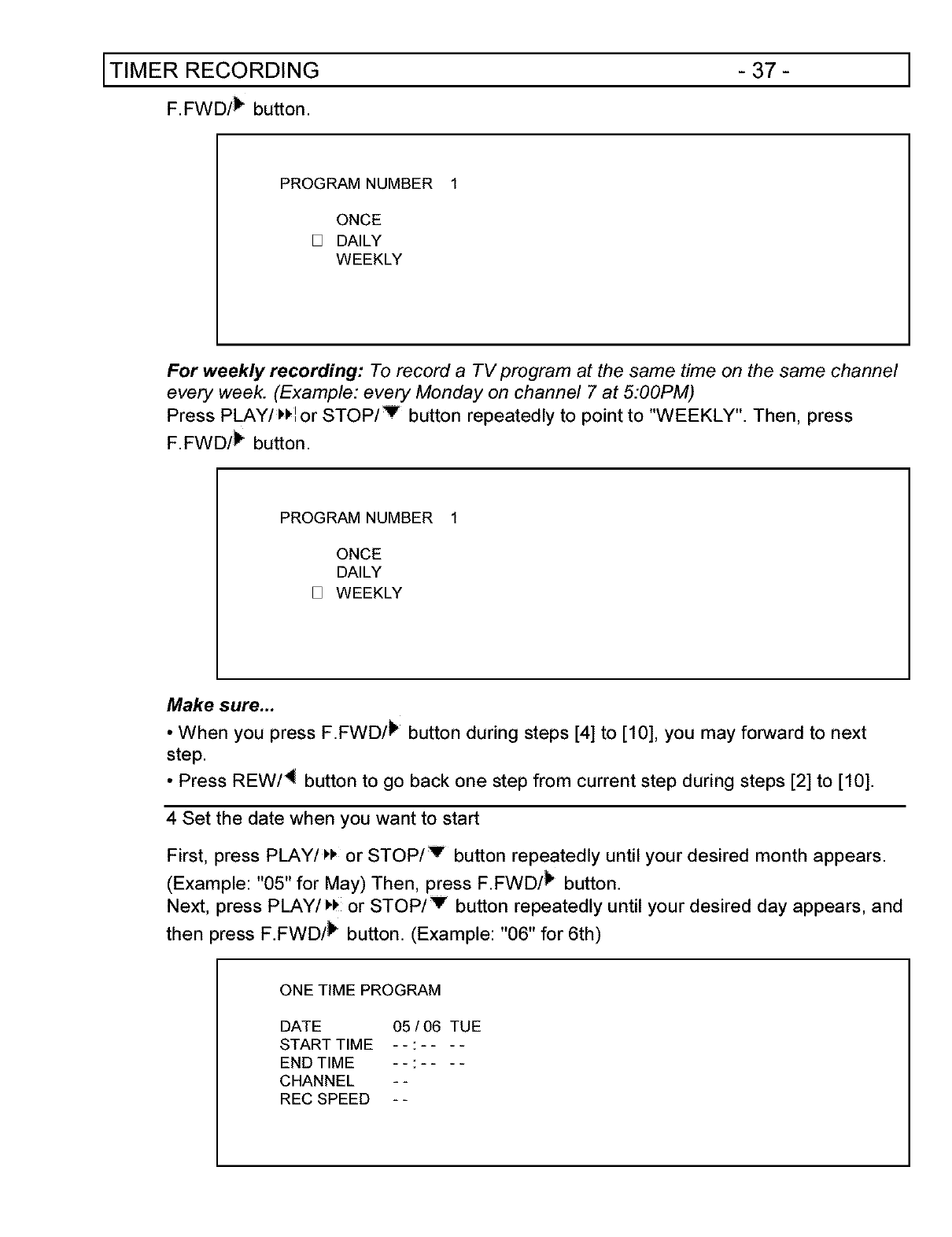

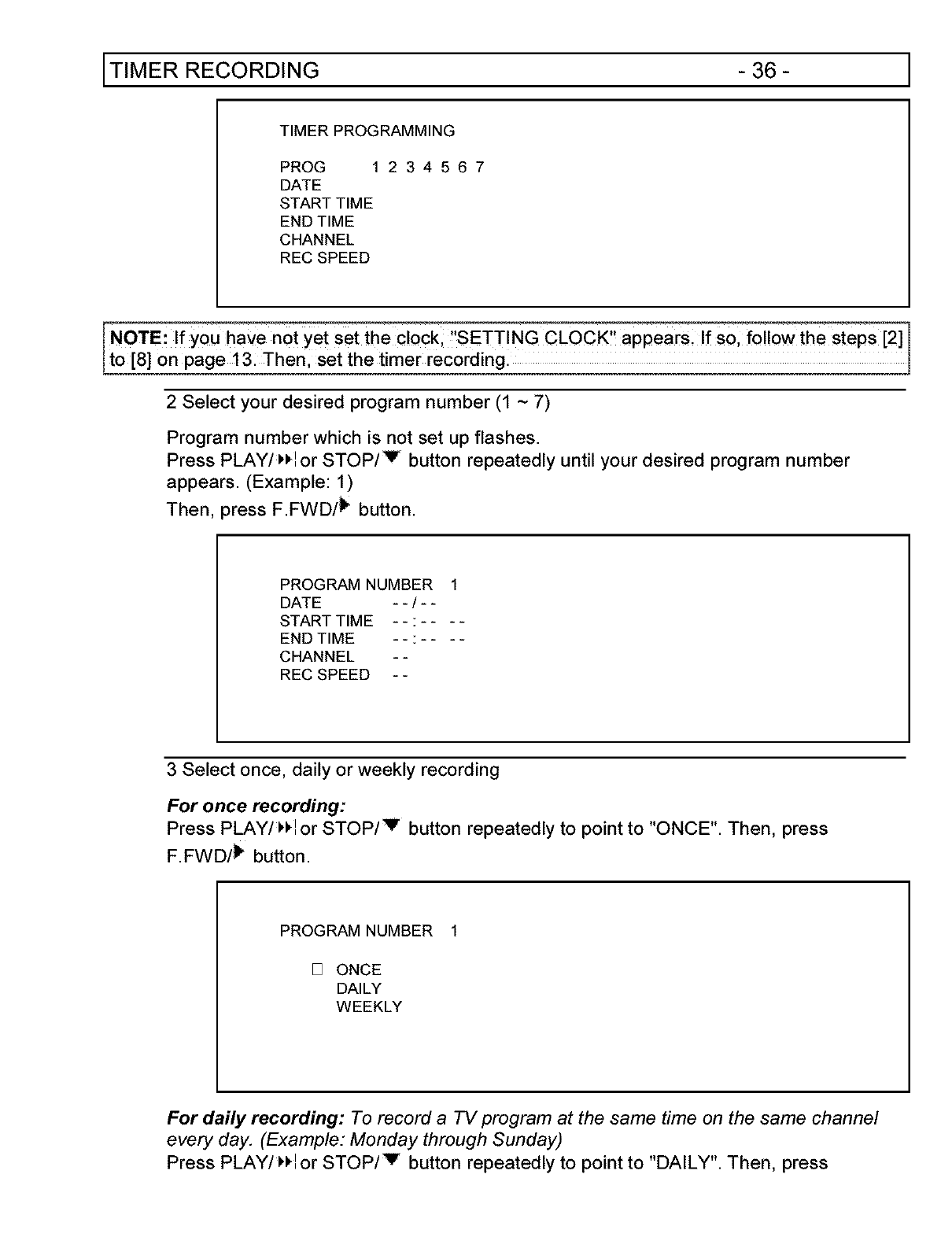

TIMER RECORDING ...............................................................................................................
30
31
31
32
33
33
33
35

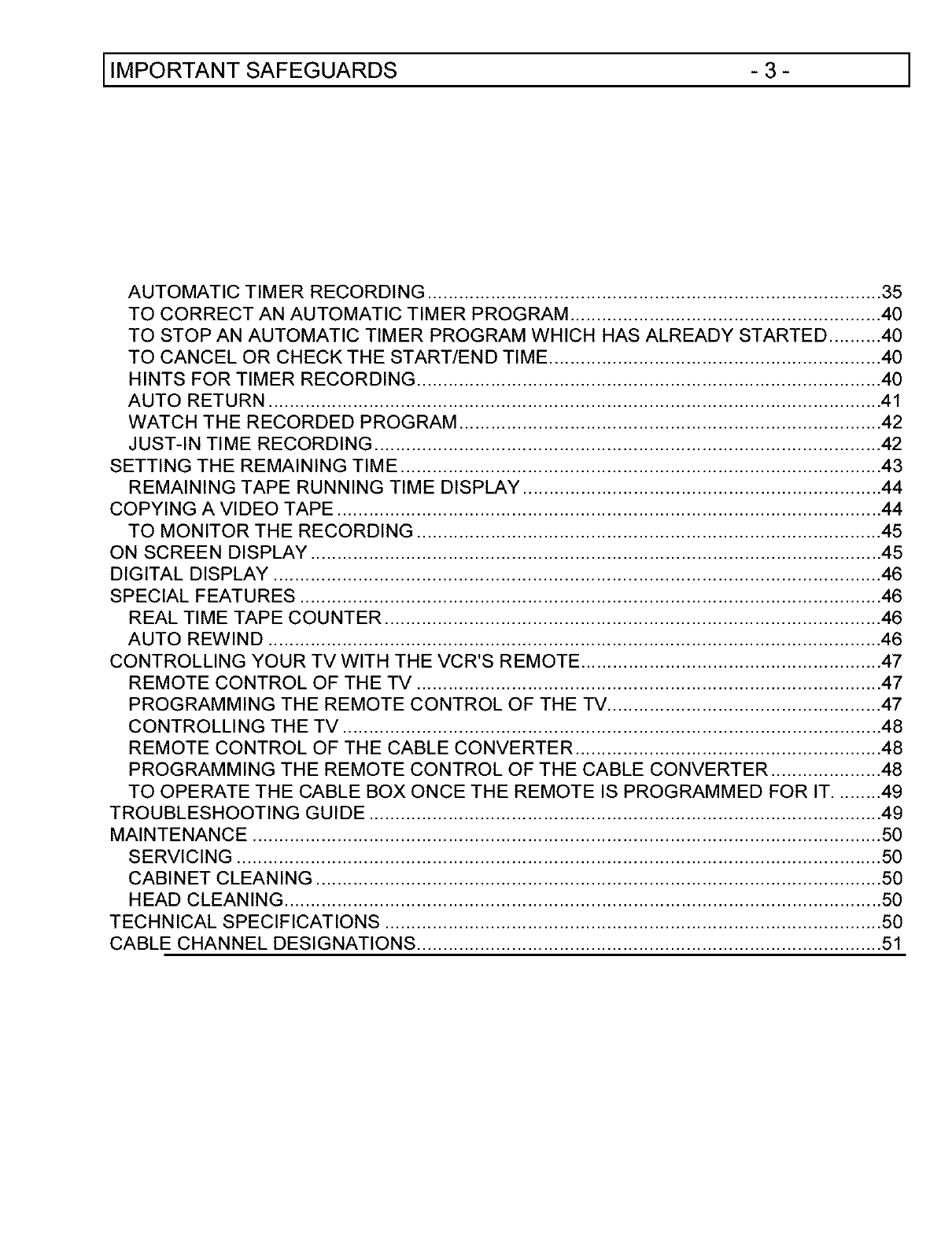

IMPORTANT SAFEGUARDS - 3 - ]
AUTOMATIC TIMER RECORDING ...................................................................................... 35

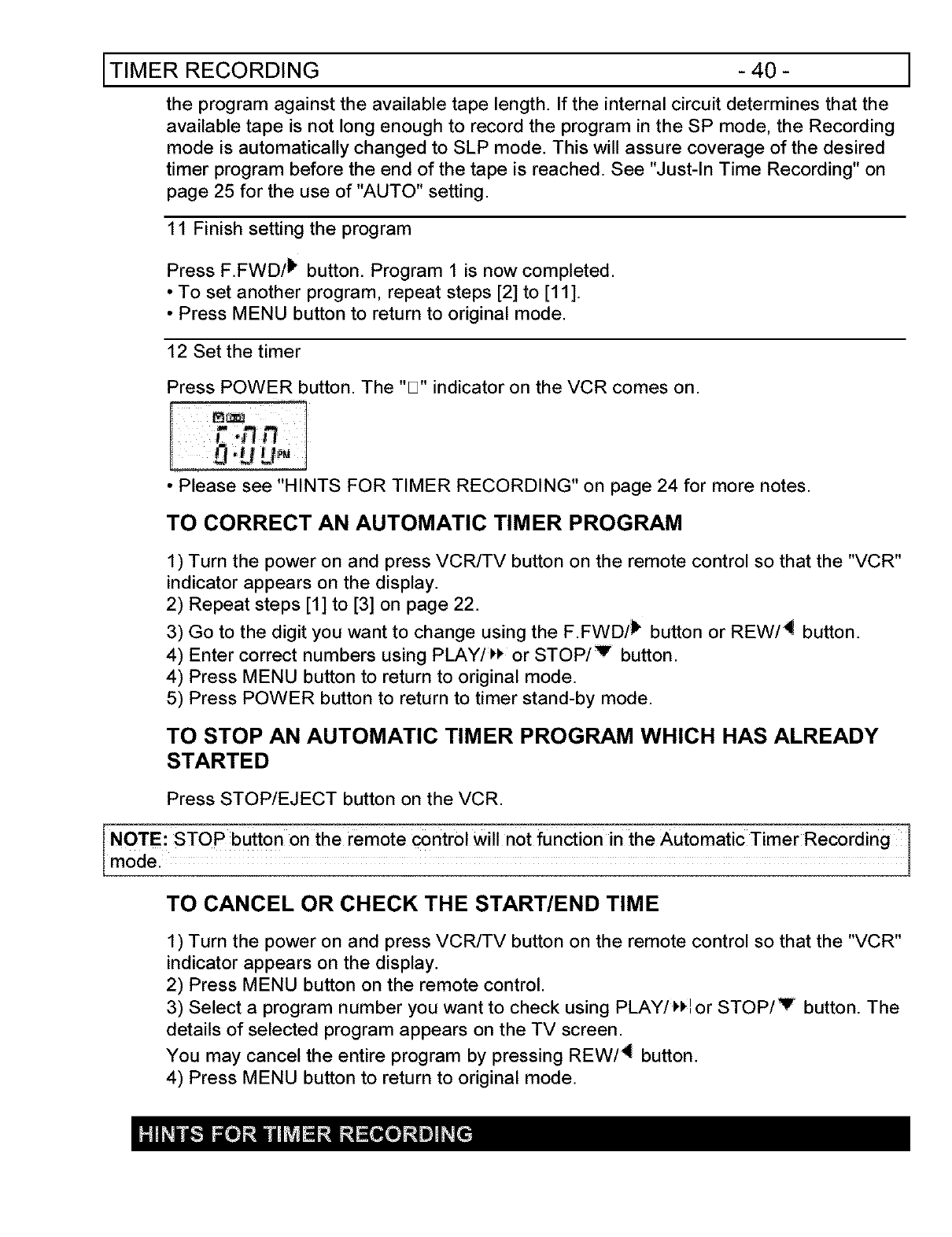

TO CORRECT AN AUTOMATIC TIMER PROGRAM ........................................................... 40
TO STOP AN AUTOMATIC TIMER PROGRAM WHICH HAS ALREADY STARTED .......... 40
TO CANCEL OR CHECK THE START/END TIME ............................................................... 40
HINTS FOR TIMER RECORDING ........................................................................................ 40

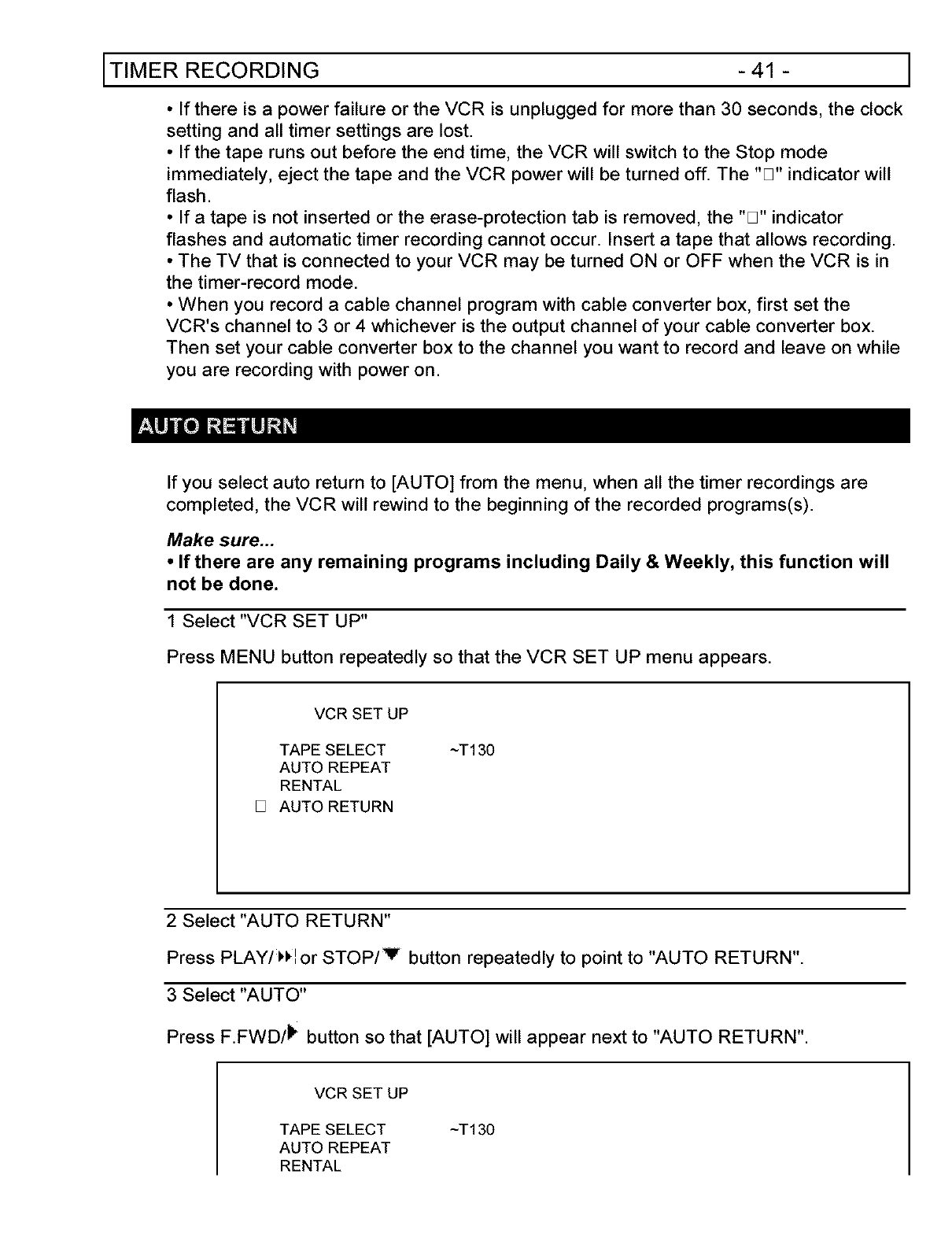

AUTO RETURN .................................................................................................................... 41
WATCH THE RECORDED PROGRAM ................................................................................ 42
JUST-IN TIME RECORDING ................................................................................................ 42

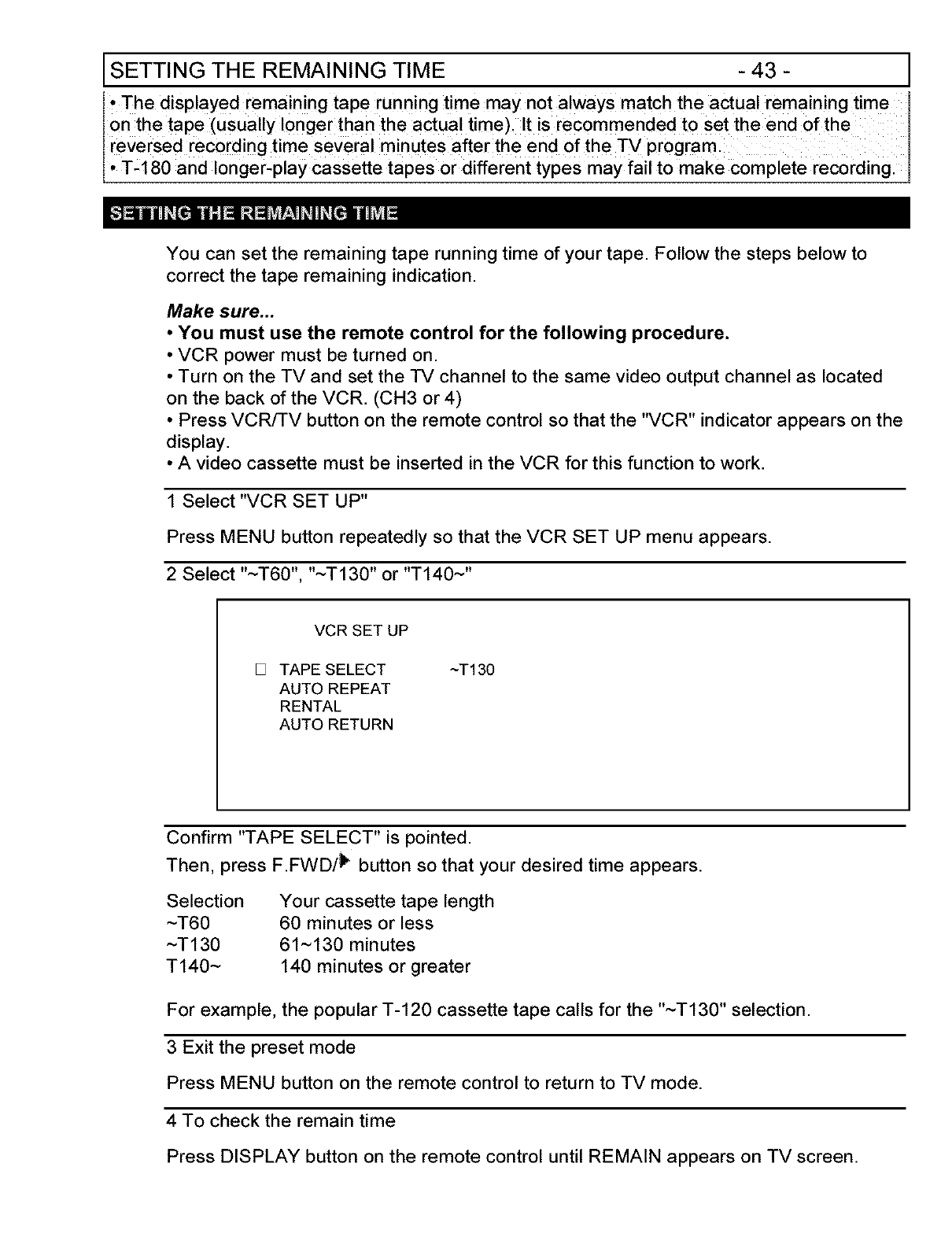

SETTING THE REMAINING TIME ........................................................................................... 43

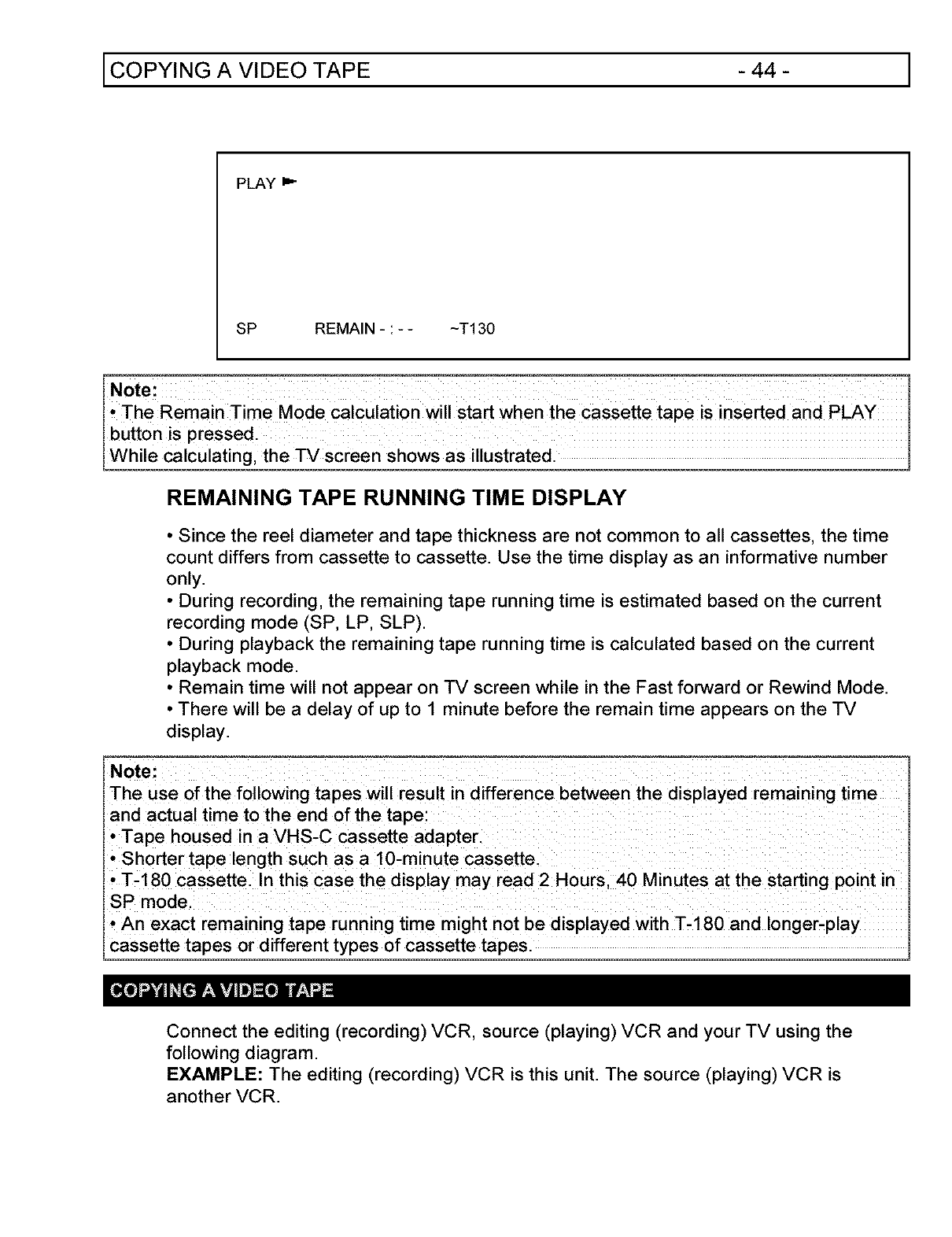

REMAINING TAPE RUNNING TIME DISPLAY .................................................................... 44
COPYING A VIDEO TAPE ....................................................................................................... 44
TO MONITOR THE RECORDING ........................................................................................ 45
ON SCREEN DISPLAY ............................................................................................................ 45
DIGITAL DISPLAY ................................................................................................................... 46
SPECIAL FEATURES .............................................................................................................. 46
REAL TIME TAPE COUNTER .............................................................................................. 46
AUTO REWIND .................................................................................................................... 46

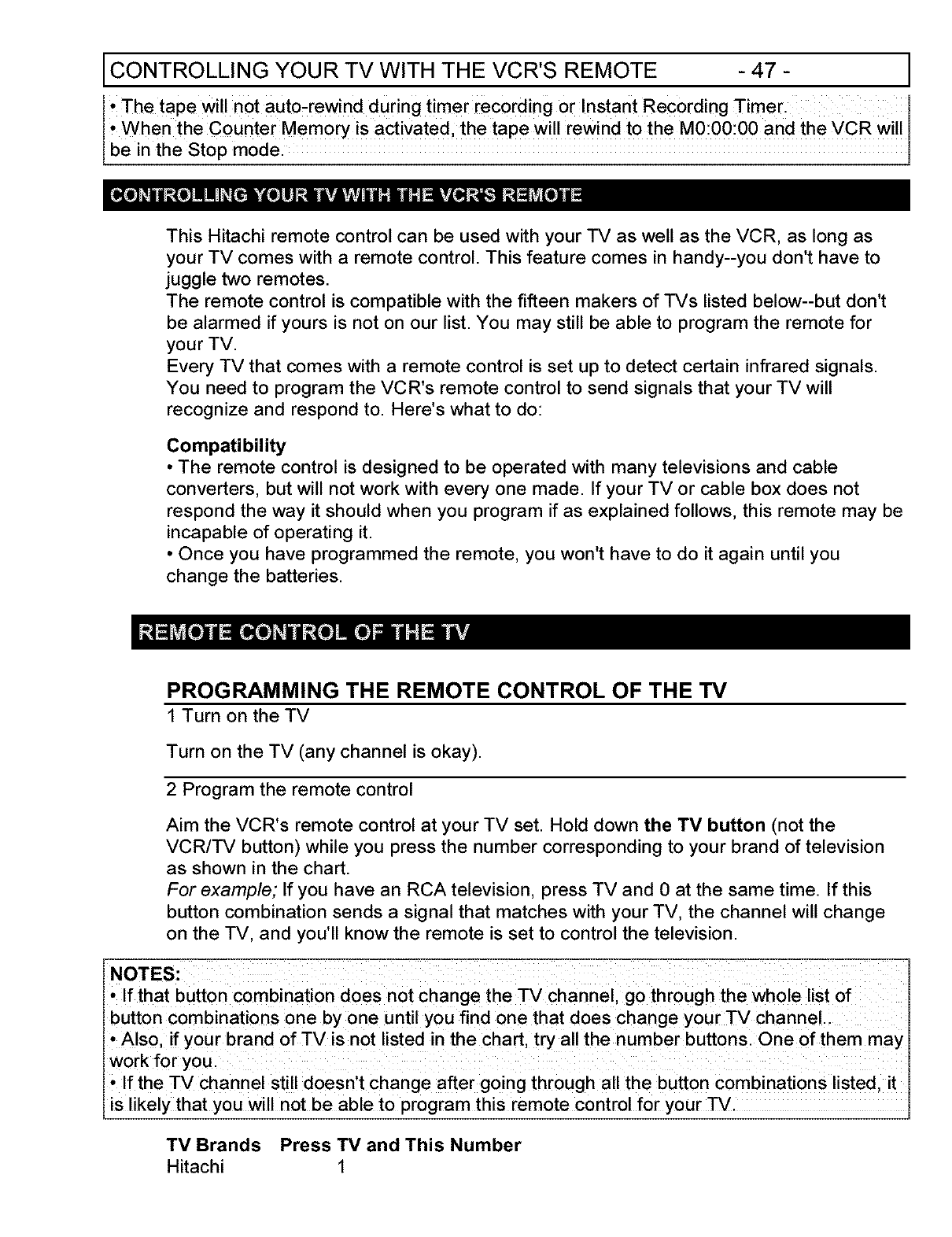

CONTROLLING YOUR TV WITH THE VCR'S REMOTE ......................................................... 47
REMOTE CONTROL OF THE TV ........................................................................................ 47
PROGRAMMING THE REMOTE CONTROL OF THE TV .................................................... 47

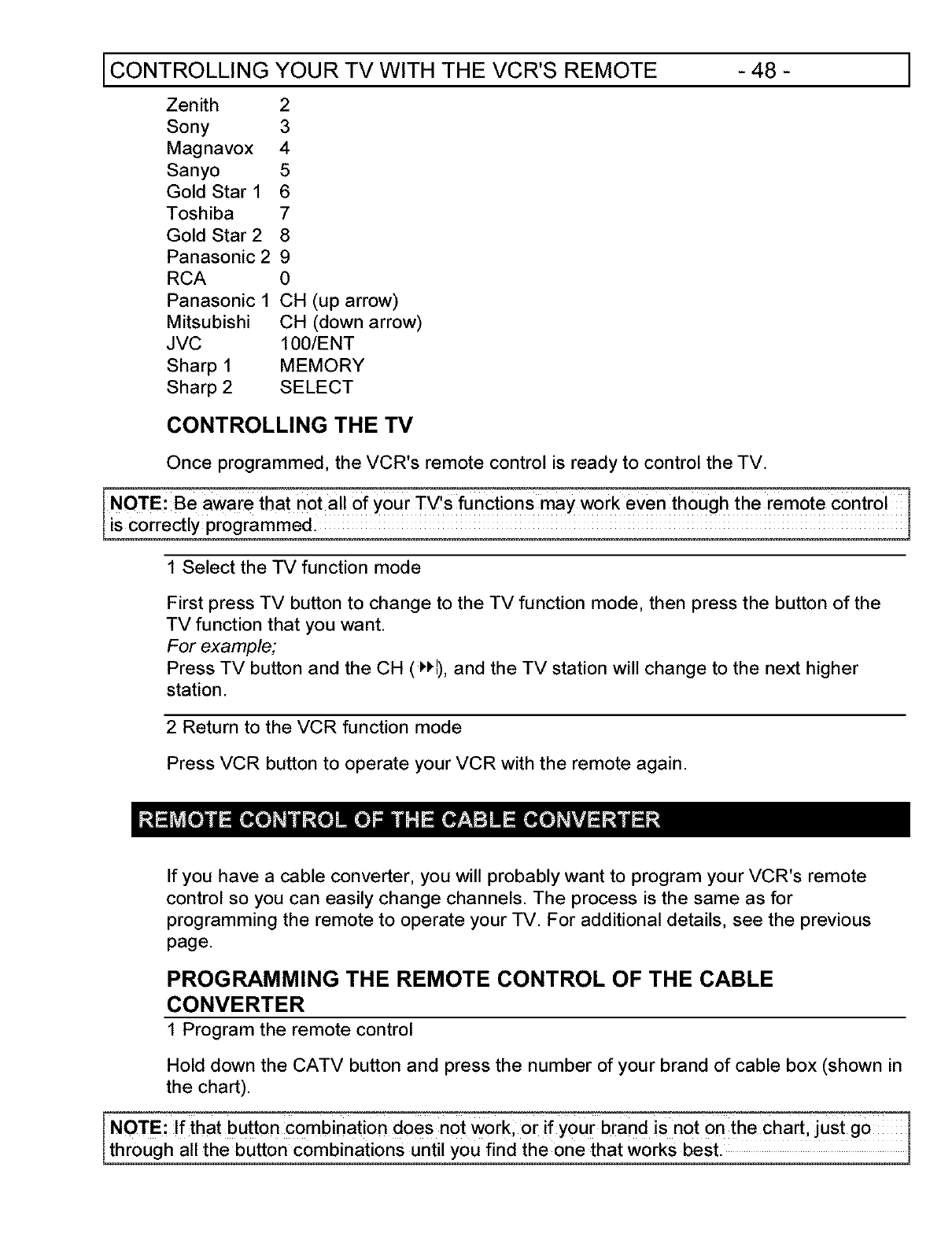

CONTROLLING THE TV ...................................................................................................... 48
REMOTE CONTROL OF THE CABLE CONVERTER .......................................................... 48
PROGRAMMING THE REMOTE CONTROL OF THE CABLE CONVERTER ..................... 48
TO OPERATE THE CABLE BOX ONCE THE REMOTE IS PROGRAMMED FOR IT ......... 49

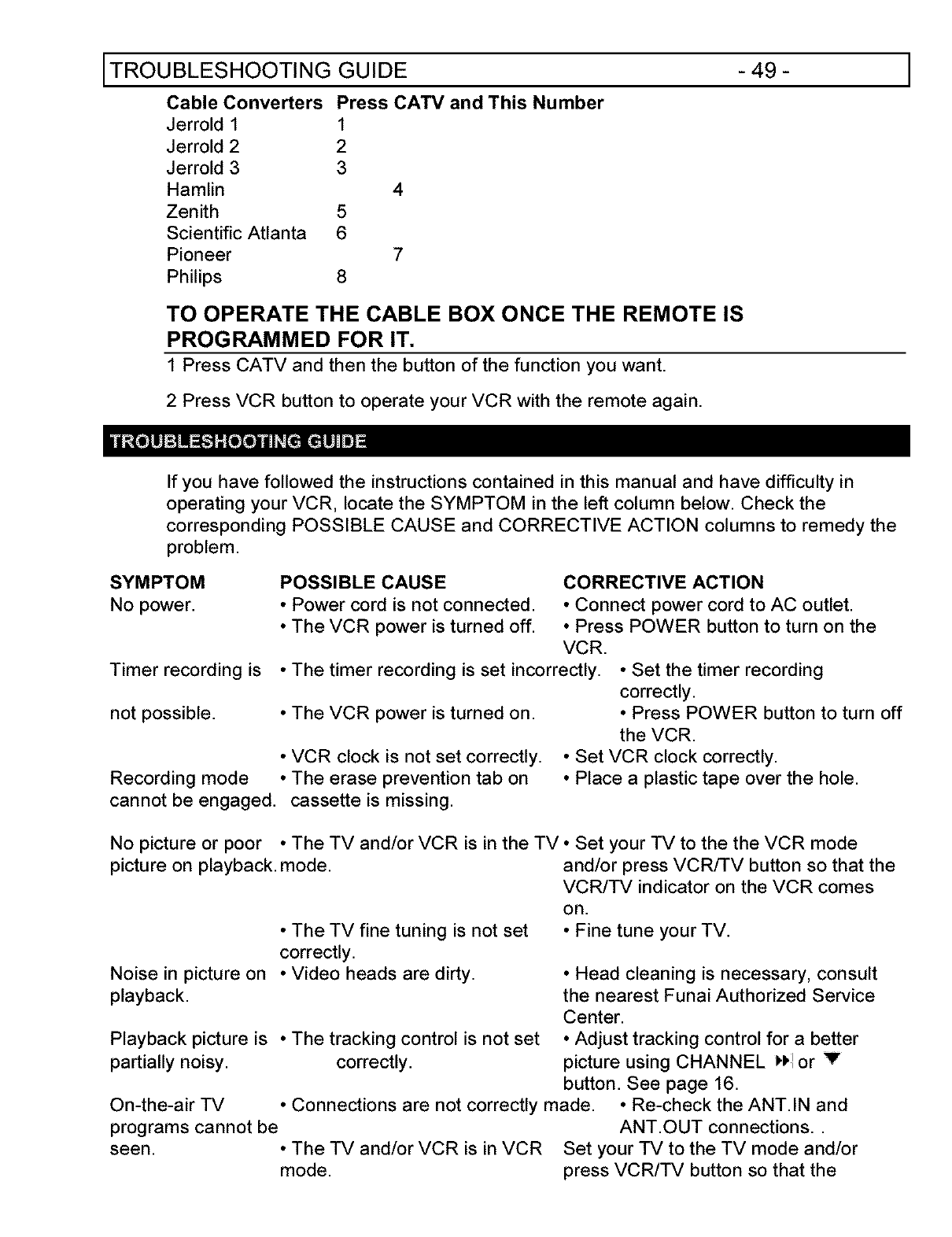

TROUBLESHOOTING GUIDE ................................................................................................. 49

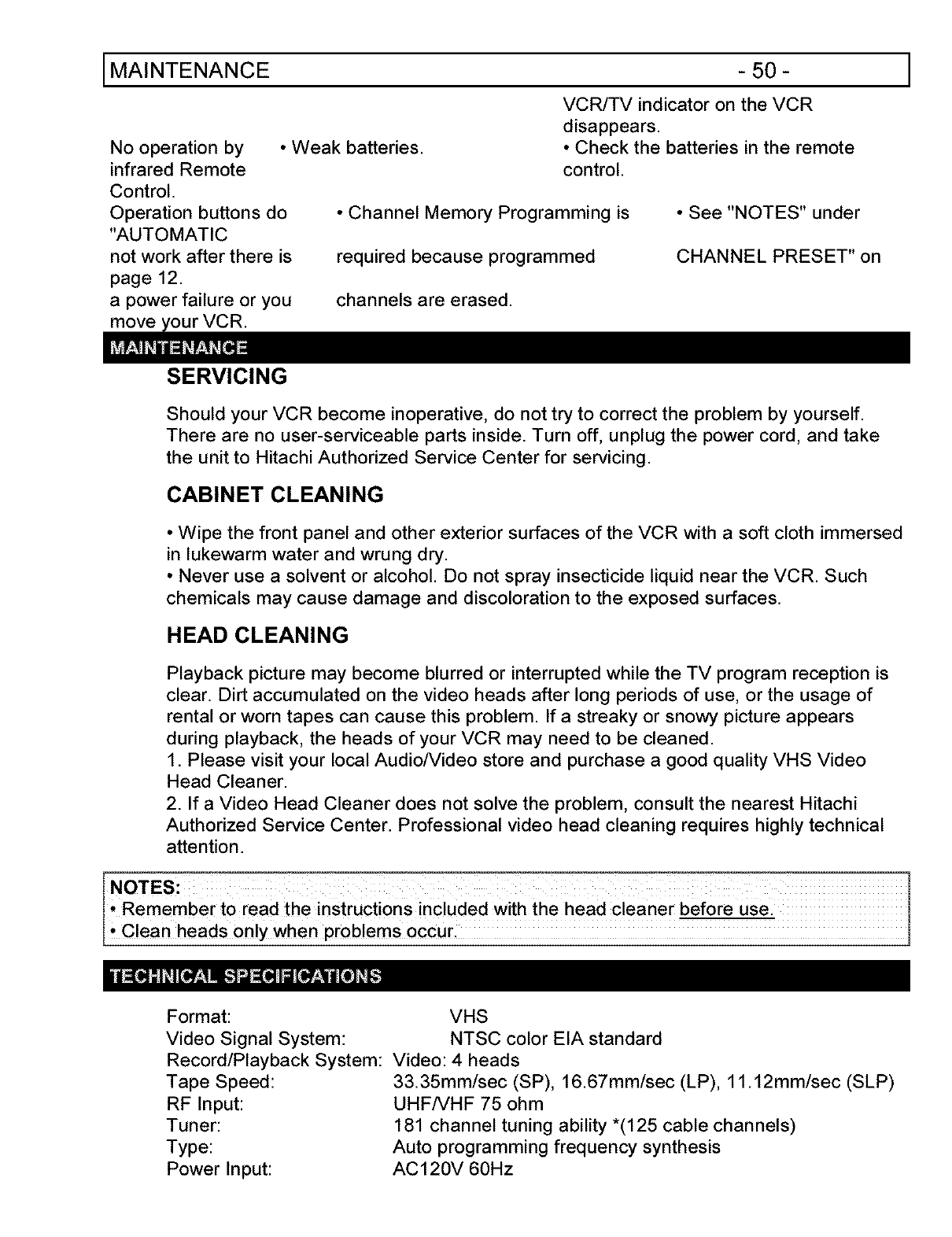

MAINTENANCE ....................................................................................................................... 50
SERVICING .......................................................................................................................... 50
CABINET CLEANING ........................................................................................................... 50
HEAD CLEANING ................................................................................................................. 50
TECHNICAL SPECIFICATIONS .............................................................................................. 50
CABLE CHANNEL DESIGNATIONS ........................................................................................ 51

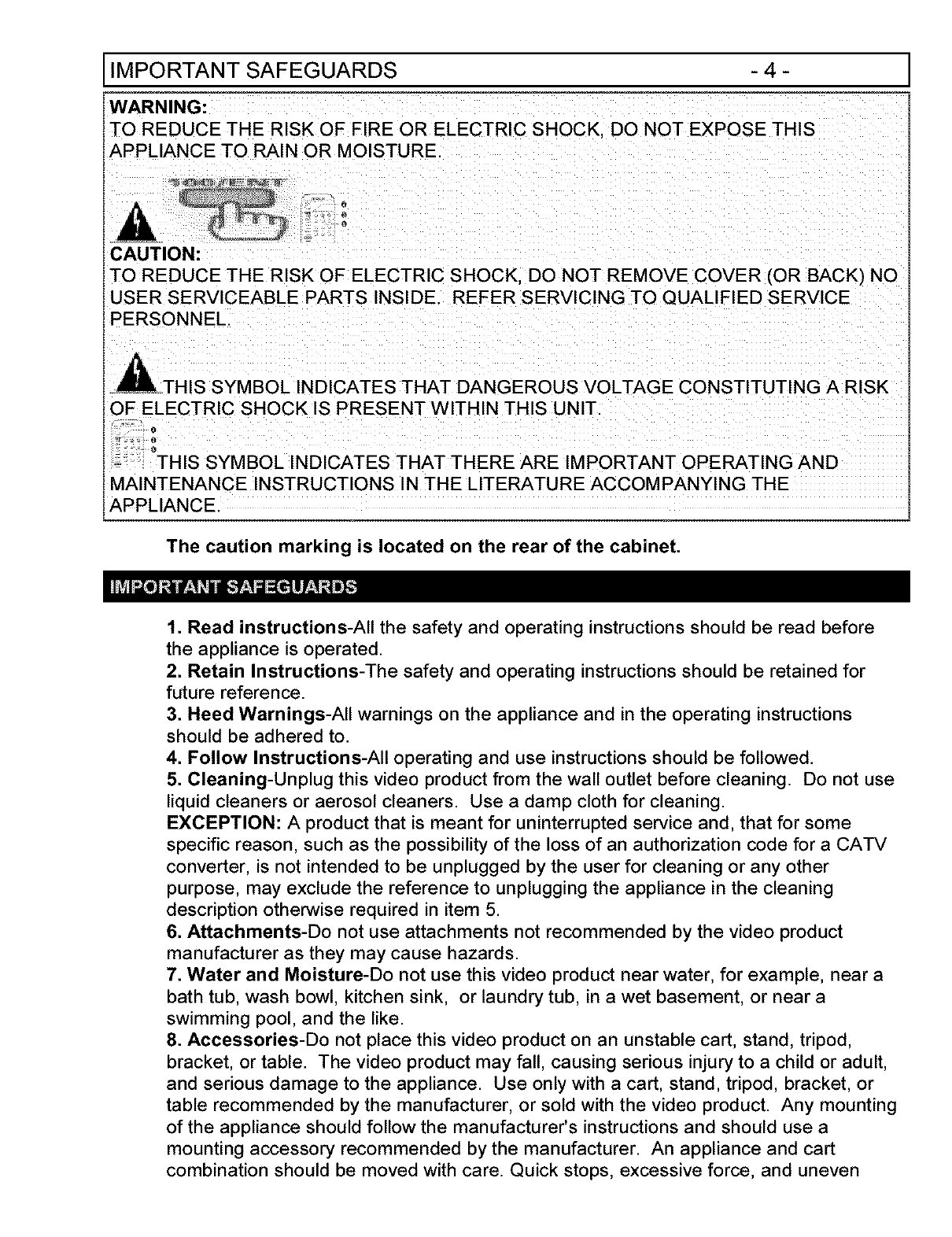

IMPORTANT SAFEGUARDS - 4 -
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTU RE
e
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO
USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
_ikTH S SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK
OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.
i:; °THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE
APPLIANCE.
The caution marking is located on the rear of the cabinet.
1. Read instructions-All the safety and operating instructions should be read before
the appliance is operated.
2. Retain Instructions-The safety and operating instructions should be retained for
future reference.
3. Heed Warnings-All warnings on the appliance and in the operating instructions
should be adhered to.
4. Follow Instructions-All operating and use instructions should be followed.
5. Cleaning-Unplug this video product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
EXCEPTION: A product that is meant for uninterrupted service and, that for some
specific reason, such as the possibility of the loss of an authorization code for a CATV
converter, is not intended to be unplugged by the user for cleaning or any other
purpose, may exclude the reference to unplugging the appliance in the cleaning
description otherwise required in item 5.
6. Attachments-Do not use attachments not recommended by the video product
manufacturer as they may cause hazards.
7. Water and Moisture-Do not use this video product near water, for example, near a
bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a
swimming pool, and the like.
8. Accessories-Do not place this video product on an unstable cart, stand, tripod,
bracket, or table. The video product may fall, causing serious injury to a child or adult,
and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or
table recommended by the manufacturer, or sold with the video product. Any mounting
of the appliance should follow the manufacturer's instructions and should use a
mounting accessory recommended by the manufacturer. An appliance and cart
combination should be moved with care. Quick stops, excessive force, and uneven

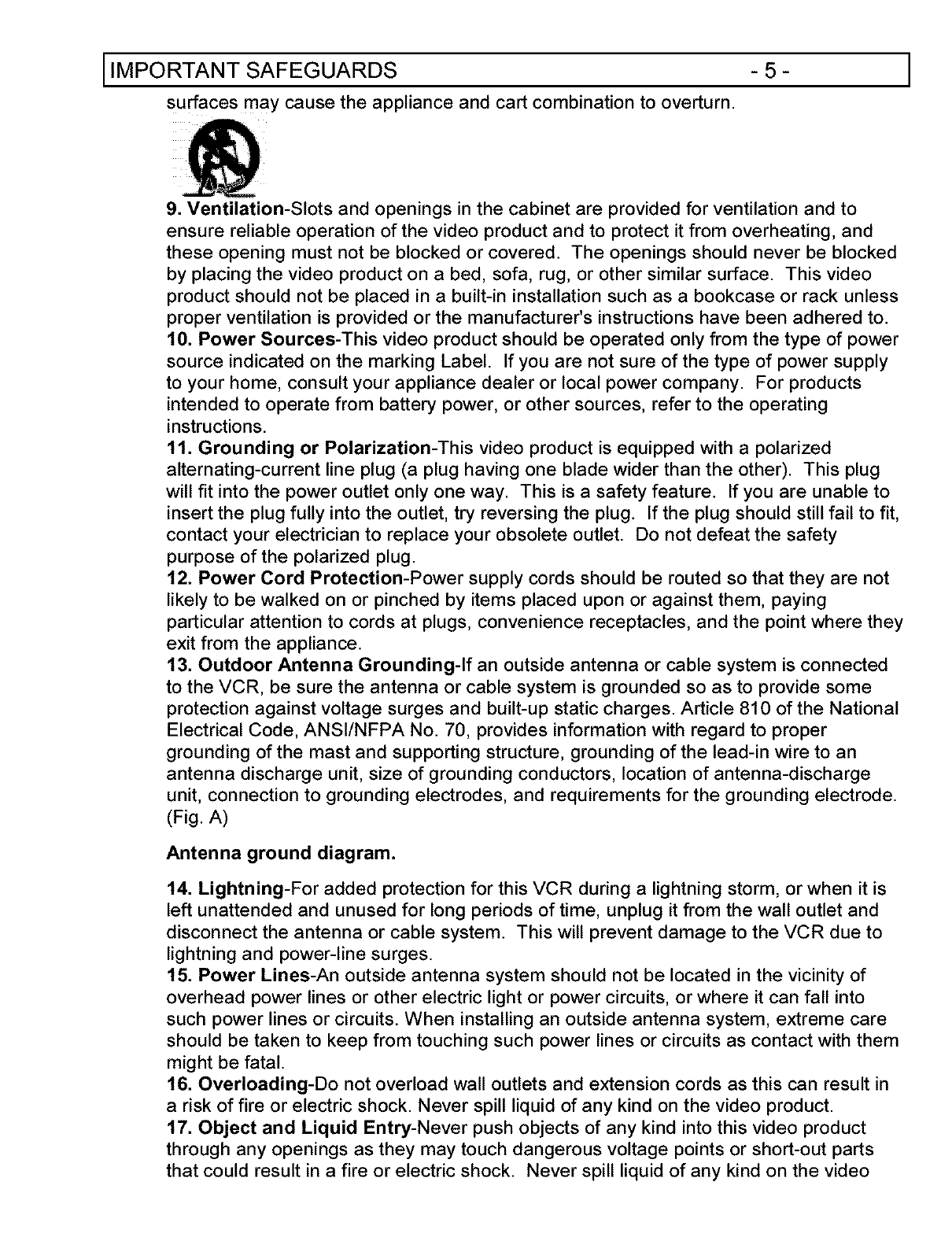

IMPORTANT SAFEGUARDS - 5 -
surfaces may cause the appliance and cart combination to overturn.
1
9. Ventilation-Slots and openings in the cabinet are provided for ventilation and to
ensure reliable operation of the video product and to protect it from overheating, and
these opening must not be blocked or covered. The openings should never be blocked
by placing the video product on a bed, sofa, rug, or other similar surface. This video
product should not be placed in a built-in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer's instructions have been adhered to.
10. Power Sources-This video product should be operated only from the type of power
source indicated on the marking Label. If you are not sure of the type of power supply
to your home, consult your appliance dealer or local power company. For products
intended to operate from battery power, or other sources, refer to the operating
instructions.
11. Grounding or Polarization-This video product is equipped with a polarized
alternating-current line plug (a plug having one blade wider than the other). This plug
will fit into the power outlet only one way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit,
contact your electrician to replace your obsolete outlet. Do not defeat the safety
purpose of the polarized plug.
12. Power Cord Protection-Power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience receptacles, and the point where they
exit from the appliance.
13. Outdoor Antenna Grounding-If an outside antenna or cable system is connected
to the VCR, be sure the antenna or cable system is grounded so as to provide some
protection against voltage surges and built-up static charges. Article 810 of the National
Electrical Code, ANSI/NFPA No. 70, provides information with regard to proper
grounding of the mast and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location of antenna-discharge
unit, connection to grounding electrodes, and requirements for the grounding electrode.
(Fig. A)
Antenna ground diagram.
14. Lightning-For added protection for this VCR during a lightning storm, or when it is
left unattended and unused for long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent damage to the VCR due to
lightning and power-line surges.
15. Power Lines-An outside antenna system should not be located in the vicinity of
overhead power lines or other electric light or power circuits, or where it can fall into
such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them
might be fatal.
16. Overloading-Do not overload wall outlets and extension cords as this can result in
a risk of fire or electric shock. Never spill liquid of any kind on the video product.
17. Object and Liquid Entry-Never push objects of any kind into this video product
through any openings as they may touch dangerous voltage points or short-out parts
that could result in a fire or electric shock. Never spill liquid of any kind on the video
PRECAUTIONS - 6 -
product.

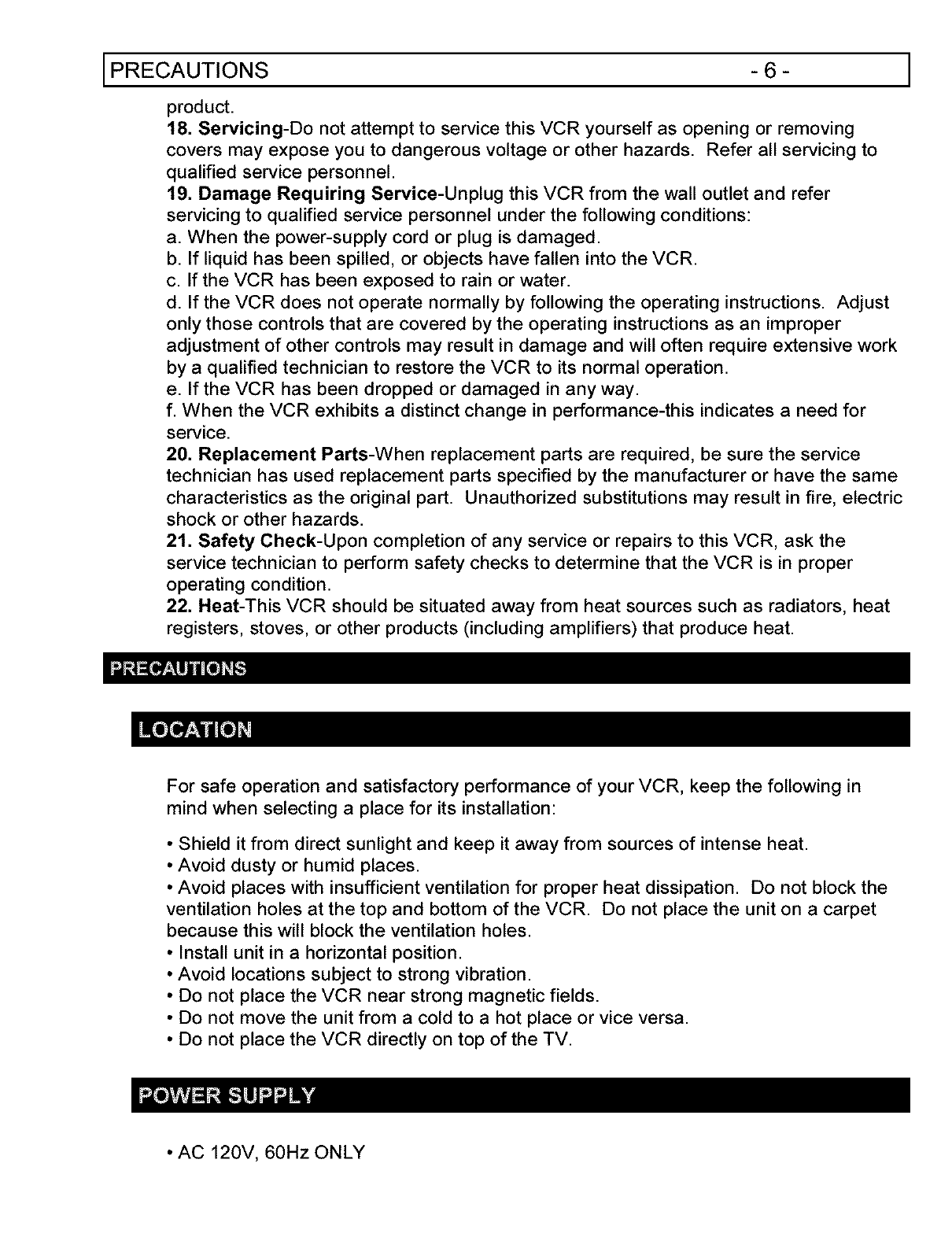

18. Servicing-Do not attempt to service this VCR yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
19. Damage Requiring Service-Unplug this VCR from the wall outlet and refer
servicing to qualified service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the VCR.
c. If the VCR has been exposed to rain or water.
d. If the VCR does not operate normally by following the operating instructions. Adjust
only those controls that are covered by the operating instructions as an improper
adjustment of other controls may result in damage and will often require extensive work
by a qualified technician to restore the VCR to its normal operation.
e. If the VCR has been dropped or damaged in any way.
f. When the VCR exhibits a distinct change in performance-this indicates a need for
service.
20. Replacement Parts-When replacement parts are required, be sure the service
technician has used replacement parts specified by the manufacturer or have the same
characteristics as the original part. Unauthorized substitutions may result in fire, electric
shock or other hazards.
21. Safety Check-Upon completion of any service or repairs to this VCR, ask the
service technician to perform safety checks to determine that the VCR is in proper
operating condition.
22. Heat-This VCR should be situated away from heat sources such as radiators, heat
registers, stoves, or other products (including amplifiers) that produce heat.
1
For safe operation and satisfactory performance of your VCR, keep the following in
mind when selecting a place for its installation:
• Shield it from direct sunlight and keep it away from sources of intense heat.
• Avoid dusty or humid places.
• Avoid places with insufficient ventilation for proper heat dissipation. Do not block the
ventilation holes at the top and bottom of the VCR. Do not place the unit on a carpet
because this will block the ventilation holes.
• Install unit in a horizontal position.
• Avoid locations subject to strong vibration.
• Do not place the VCR near strong magnetic fields.
• Do not move the unit from a cold to a hot place or vice versa.
• Do not place the VCR directly on top of the TV.
• AC 120V, 60Hz ONLY

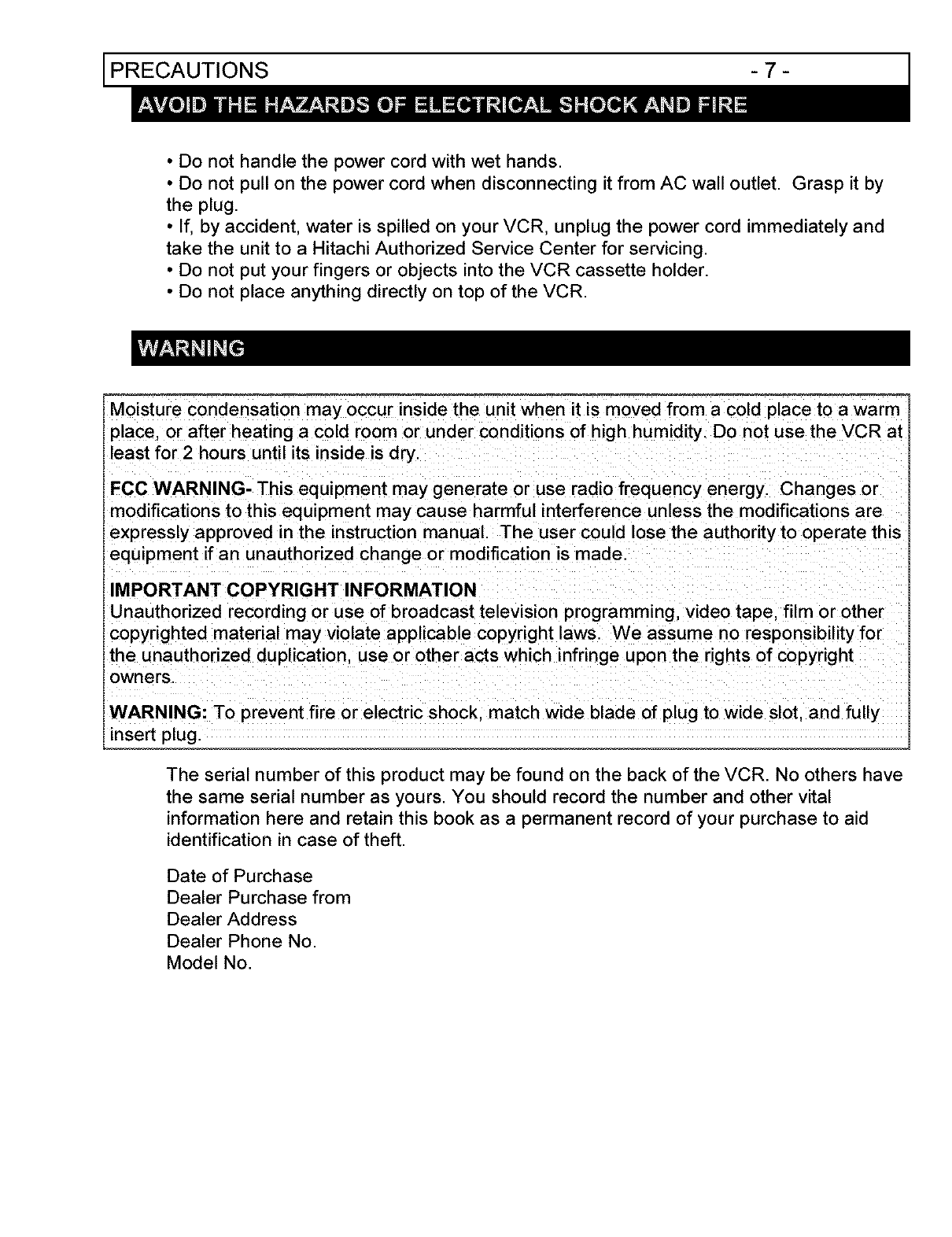

PRECAUTIONS 7
• Do not handle the power cord with wet hands.
• Do not pull on the power cord when disconnecting it from AC wall outlet. Grasp it by
the plug.
• If, by accident, water is spilled on your VCR, unplug the power cord immediately and
take the unit to a Hitachi Authorized Service Center for servicing.
• Do not put your fingers or objects into the VCR cassette holder.
• Do not place anything directly on top of the VCR.
Moisture condensation may occur inside the unit when it is moved from a cold place to a warm
place, or after heating a cold room or under conditions of high humidity. Do not use the VCR at
least for 2 hours until its inside is dry
FCC WARNING- This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the modifications are
expressly approved in the instruction manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made.
IMPORTANT COPYRIGHT INFORMATION
Unauthorized recording or use of broadcast television programming, video tape film or other
copyrighted material may violate applicable copyright laws. We assume no responsibility for
the unauthorized duplication, use or other acts which infringe upon the rights of copyright
owners
WARNING: To prevent fire or electric shock match wide blade of plug to wide slot. and fully
insert plug.
The serial number of this product may be found on the back of the VCR. No others have
the same serial number as yours. You should record the number and other vital
information here and retain this book as a permanent record of your purchase to aid
identification in case of theft.
Date of Purchase
Dealer Purchase from
Dealer Address
Dealer Phone No.
Model No.

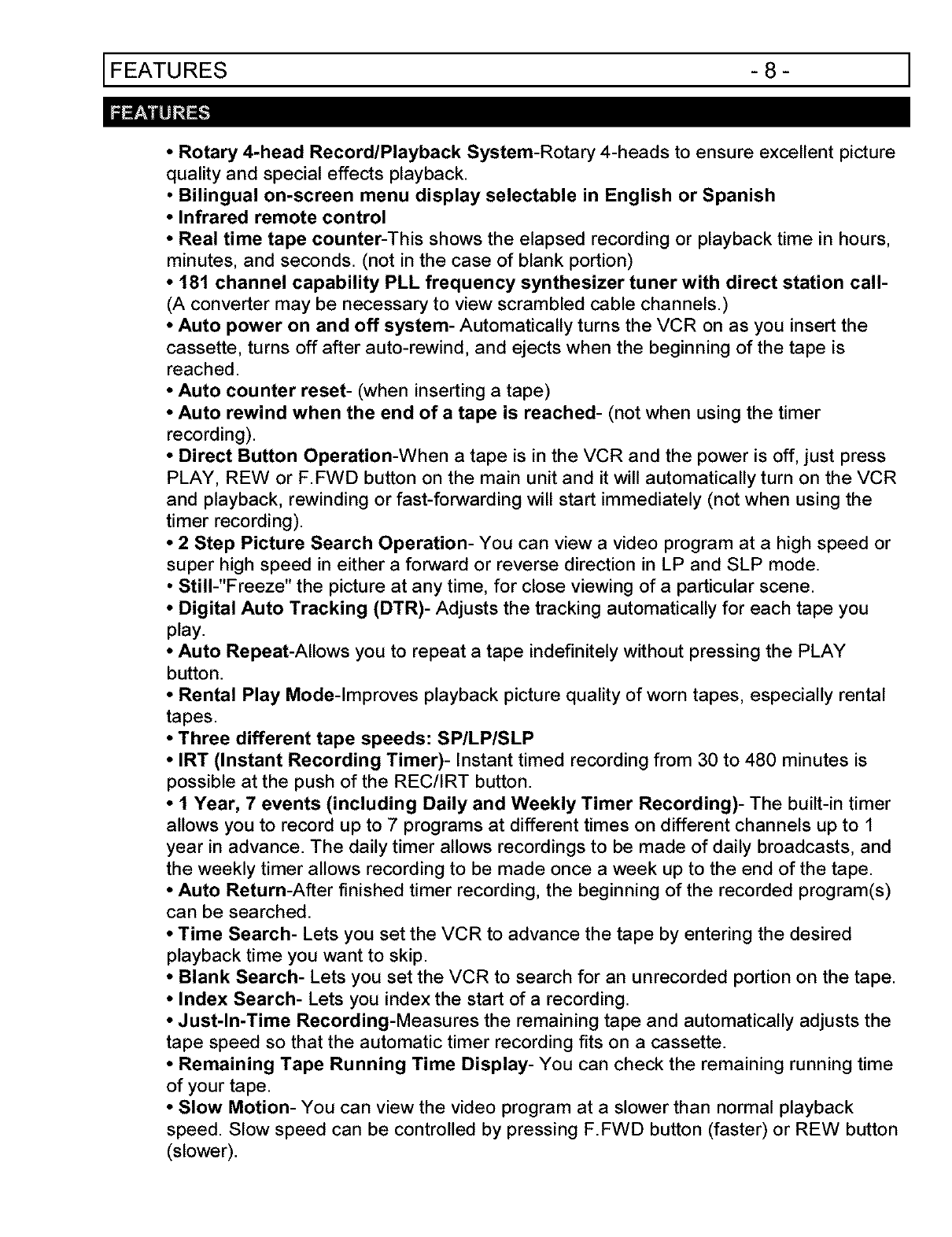

FEATURES -8- ]
• Rotary 4-head Record/Playback System-Rotary 4-heads to ensure excellent picture
quality and special effects playback.
•Bilingual on-screen menu display selectable in English or Spanish
•Infrared remote control
•Real time tape counter-This shows the elapsed recording or playback time in hours,
minutes, and seconds. (not in the case of blank portion)
• 181 channel capability PLL frequency synthesizer tuner with direct station call-
(A converter may be necessary to view scrambled cable channels.)
• Auto power on and off system- Automatically turns the VCR on as you insert the
cassette, turns off after auto-rewind, and ejects when the beginning of the tape is
reached.
• Auto counter reset- (when inserting a tape)
• Auto rewind when the end of a tape is reached- (not when using the timer
recording).
• Direct Button Operation-When a tape is in the VCR and the power is off, just press
PLAY, REW or F.FWD button on the main unit and it will automatically turn on the VCR
and playback, rewinding or fast-forwarding will start immediately (not when using the
timer recording).
• 2 Step Picture Search Operation- You can view a video program at a high speed or
super high speed in either a forward or reverse direction in LP and SLP mode.
• Still-"Freeze" the picture at any time, for close viewing of a particular scene.
• Digital Auto Tracking (DTR)- Adjusts the tracking automatically for each tape you
play.
• Auto Repeat-Allows you to repeat a tape indefinitely without pressing the PLAY
button.
• Rental Play Mode-Improves playback picture quality of worn tapes, especially rental
tapes.
•Three different tape speeds: SP/LP/SLP

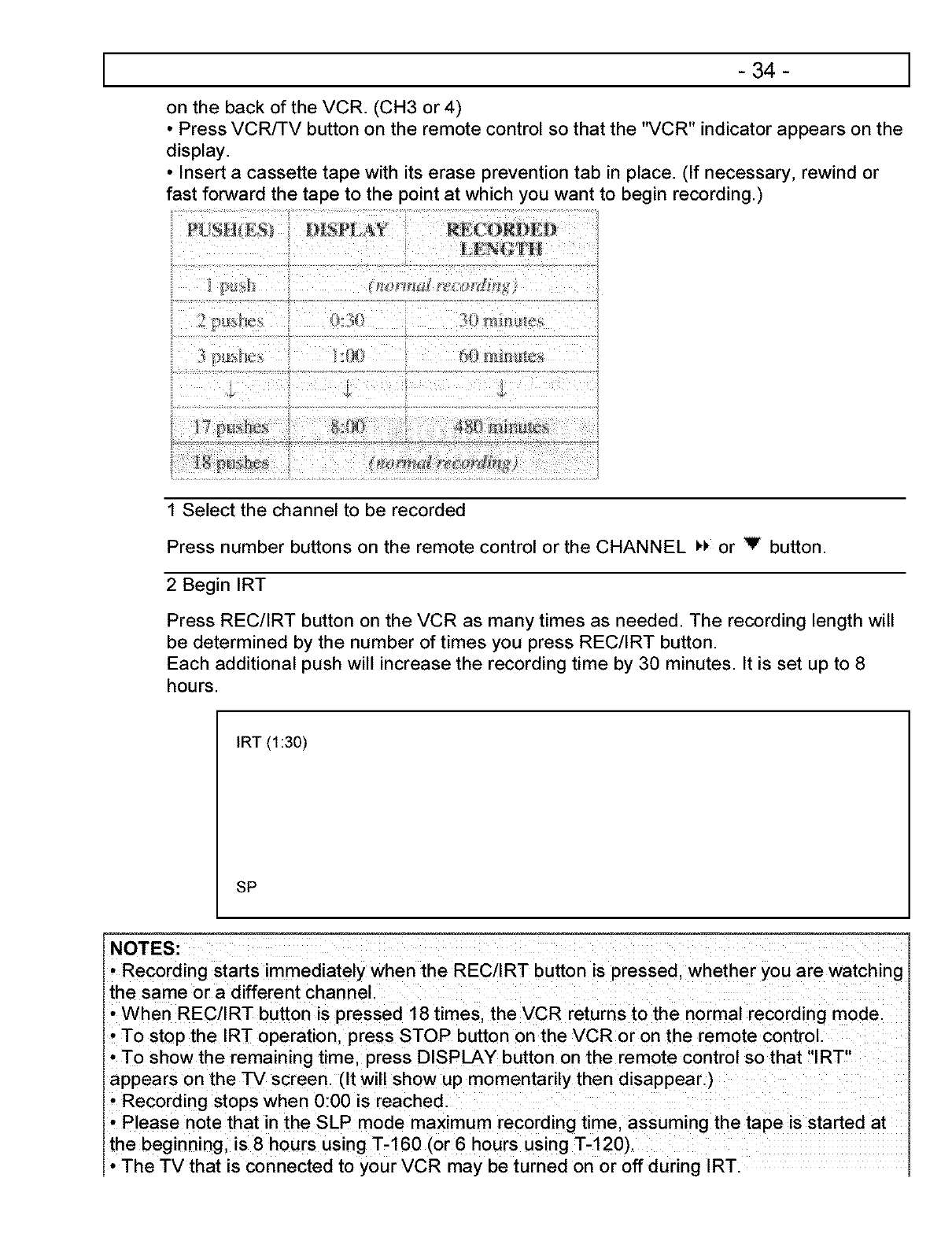

•IRT (Instant Recording Timer)- Instant timed recording from 30 to 480 minutes is
possible at the push of the REC/IRT button,
•1 Year, 7 events (including Daily and Weekly Timer Recording)- The built-in timer
allows you to record up to 7 programs at different times on different channels up to 1
year in advance. The daily timer allows recordings to be made of daily broadcasts, and
the weekly timer allows recording to be made once a week up to the end of the tape.
• Auto Return-After finished timer recording, the beginning of the recorded program(s)
can be searched.
• Time Search- Lets you set the VCR to advance the tape by entering the desired
playback time you want to skip.

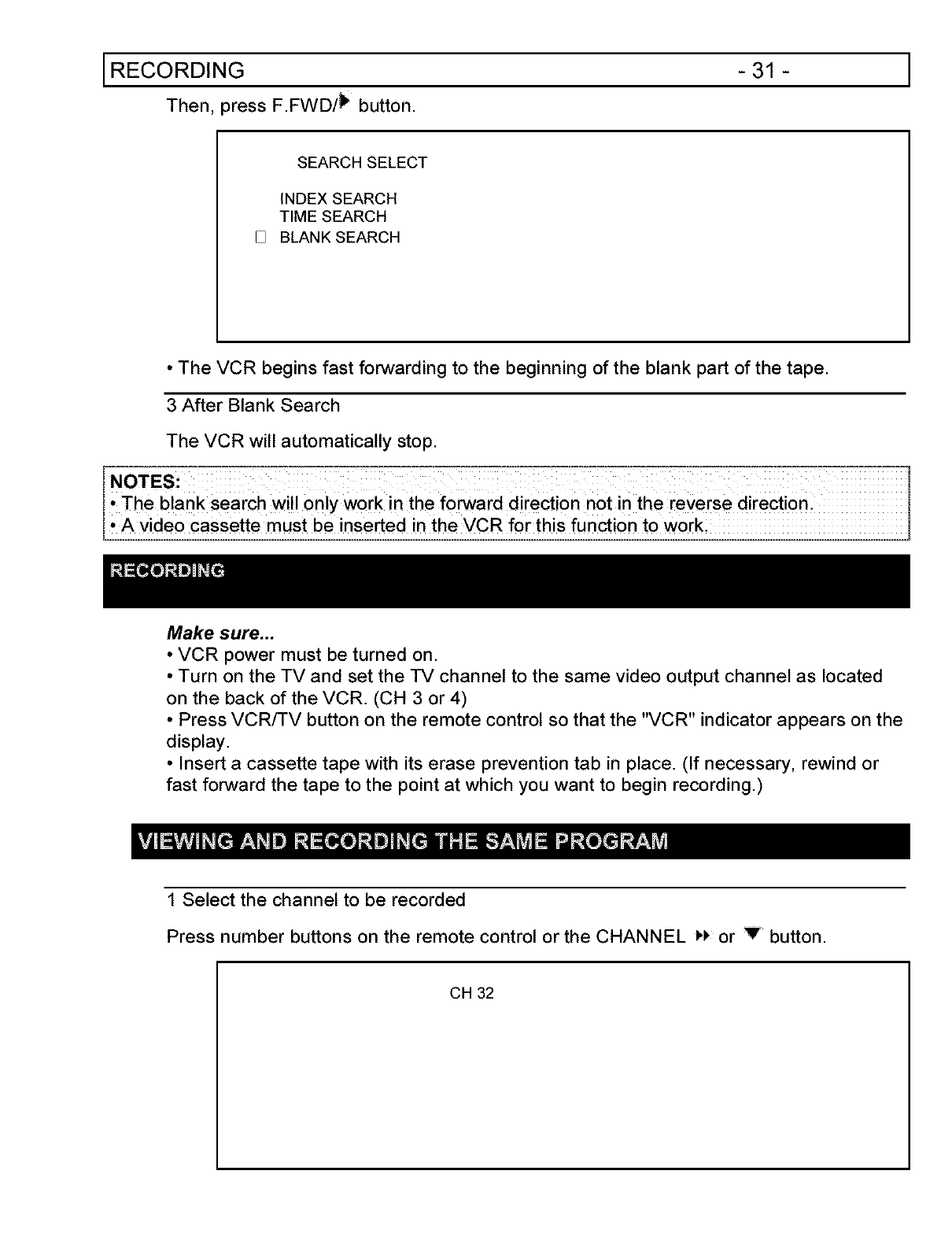

• Blank Search- Lets you set the VCR to search for an unrecorded portion on the tape.
•Index Search- Lets you index the start of a recording.

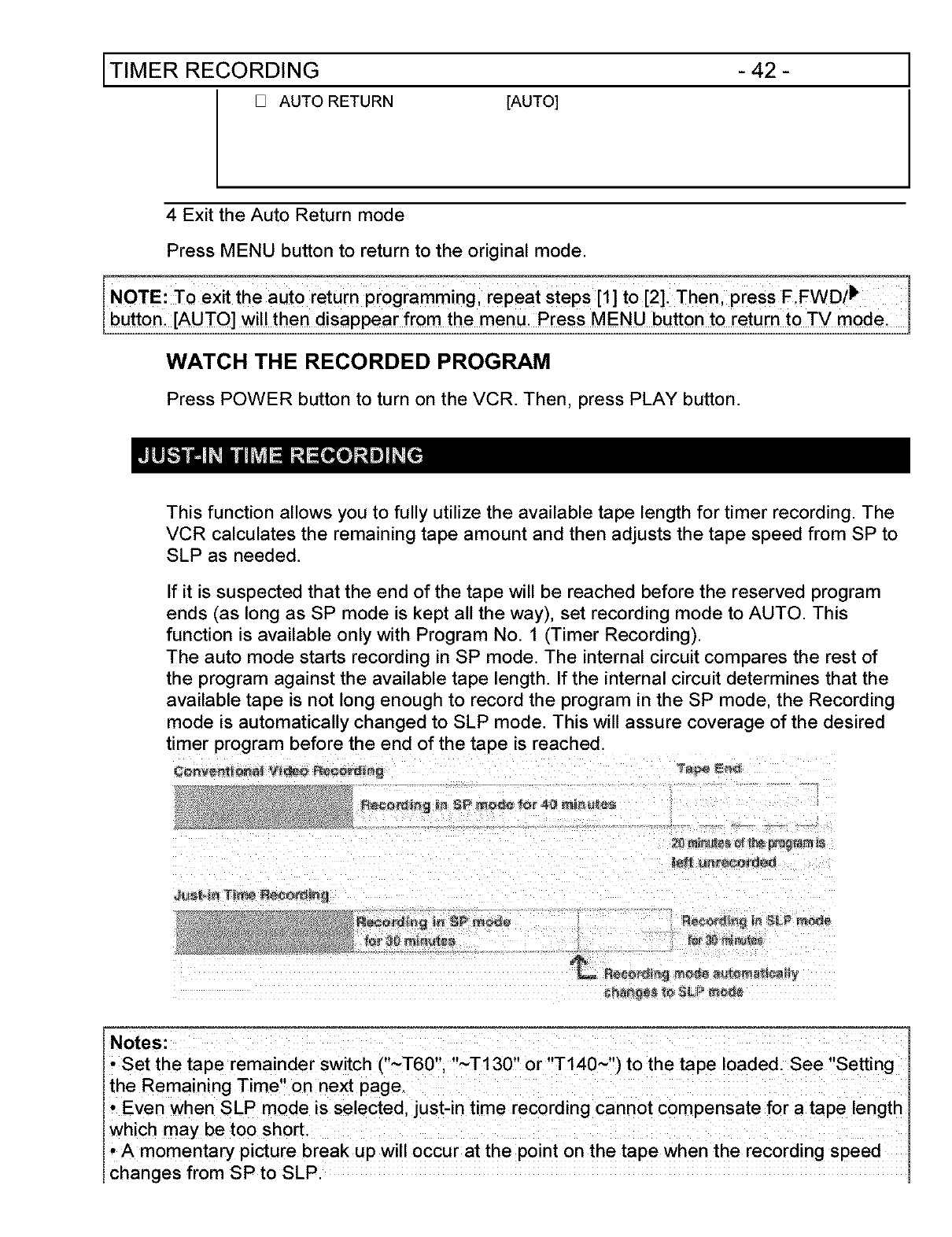

• Just-In-Time Recording-Measures the remaining tape and automatically adjusts the
tape speed so that the automatic timer recording fits on a cassette.
•Remaining Tape Running Time Display- You can check the remaining running time
of your tape.
•Slow Motion- You can view the video program at a slower than normal playback
speed. Slow speed can be controlled by pressing F.FWD button (faster) or REW button
(slower).

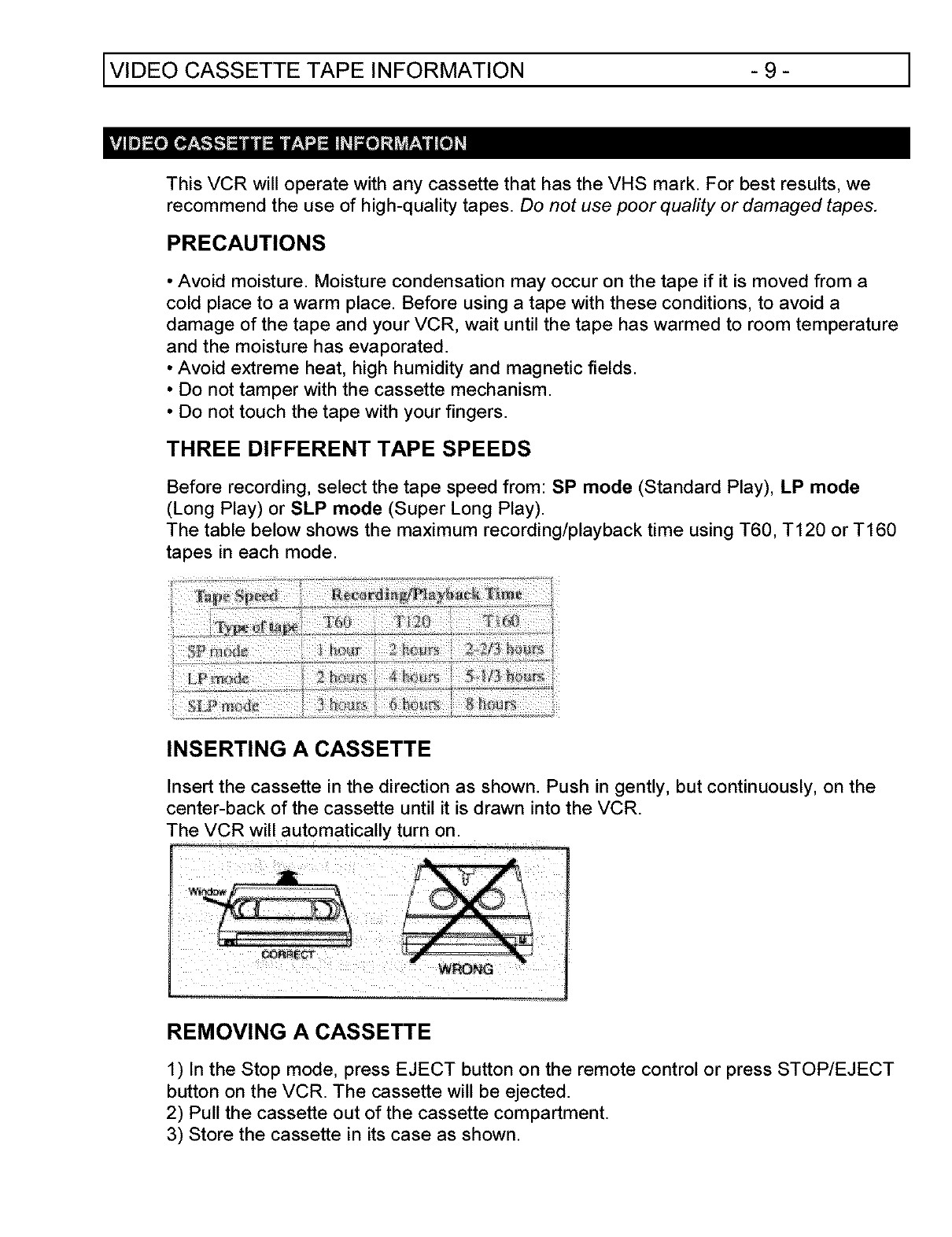

VIDEO CASSETTE TAPE INFORMATION - 9 - ]
This VCR will operate with any cassette that has the VHS mark. For best results, we
recommend the use of high-quality tapes. Do not use poor quafity or damaged tapes.
PRECAUTIONS
• Avoid moisture. Moisture condensation may occur on the tape if it is moved from a
cold place to a warm place. Before using a tape with these conditions, to avoid a
damage of the tape and your VCR, wait until the tape has warmed to room temperature
and the moisture has evaporated.
• Avoid extreme heat, high humidity and magnetic fields.
• Do not tamper with the cassette mechanism.
• Do not touch the tape with your fingers.
THREE DIFFERENT TAPE SPEEDS
Before recording, select the tape speed from: SP mode (Standard Play), LP mode
(Long Play) or SLP mode (Super Long Play).
The table below shows the maximum recording/playback time using T60, T120 or T160
tapes in each mode.
INSERTING A CASSETTE
Insert the cassette in the direction as shown. Push in gently, but continuously, on the
center-back of the cassette until it is drawn into the VCR.
The VCR will automatically turn on.
_:_RRECT _VF_N_
REMOVING A CASSETTE
1) In the Stop mode, press EJECT button on the remote control or press STOP/EJECT
button on the VCR. The cassette will be ejected.
2) Pull the cassette out of the cassette compartment.
3) Store the cassette in its case as shown.
OPERATING CONTROLS AND FUNCTIONS - 10 - ]
ERASE PREVENTION
You can prevent accidental erasing of recording by breaking off the tab on the back
edge of the cassette.
If you decide to record on the tape again, cover the hole with a plastic tape.
_Jog Dial
-FRONT VIEW-
Front View Illustration
-REMOTE CONTROL VIEW-
Remote Control Illustration
1. Cassette Compartment
2. STOP button-Press to stop the tape motion.
EJECT button-Press to remove a tape from the VCR. (only on the VCR)
Vbutton-Press to enter digits when setting program (for example: setting clock or
timer program). Press to select setting modes from on screen menu. (only on the
remote control)
3. REW button-Press to rewind the tape, or to view the picture rapidly in reverse during
the playback mode. (Rewind Search)
button-Press to cancel a setting of timer program. Press to correct digits when
setting program (for example: setting clock or timer program). (only on the remote
control)
4. PLAY button-Press to begin playback.
))] button- Press to enter digits when setting program (for example: setting clock or
timer program). Press to select setting modes from on screen menu. (only on the
remote control)
5. F.FWD button-Press to rapidly advance the tape, or view the picture rapidly in
forward during playback. (Forward Search)
1_ button-When setting program (for example: setting clock or timer program), press
to determine your selection and proceed to a next step you want to input. Press to
determine setting modes from on screen menu. (only on the remote control)

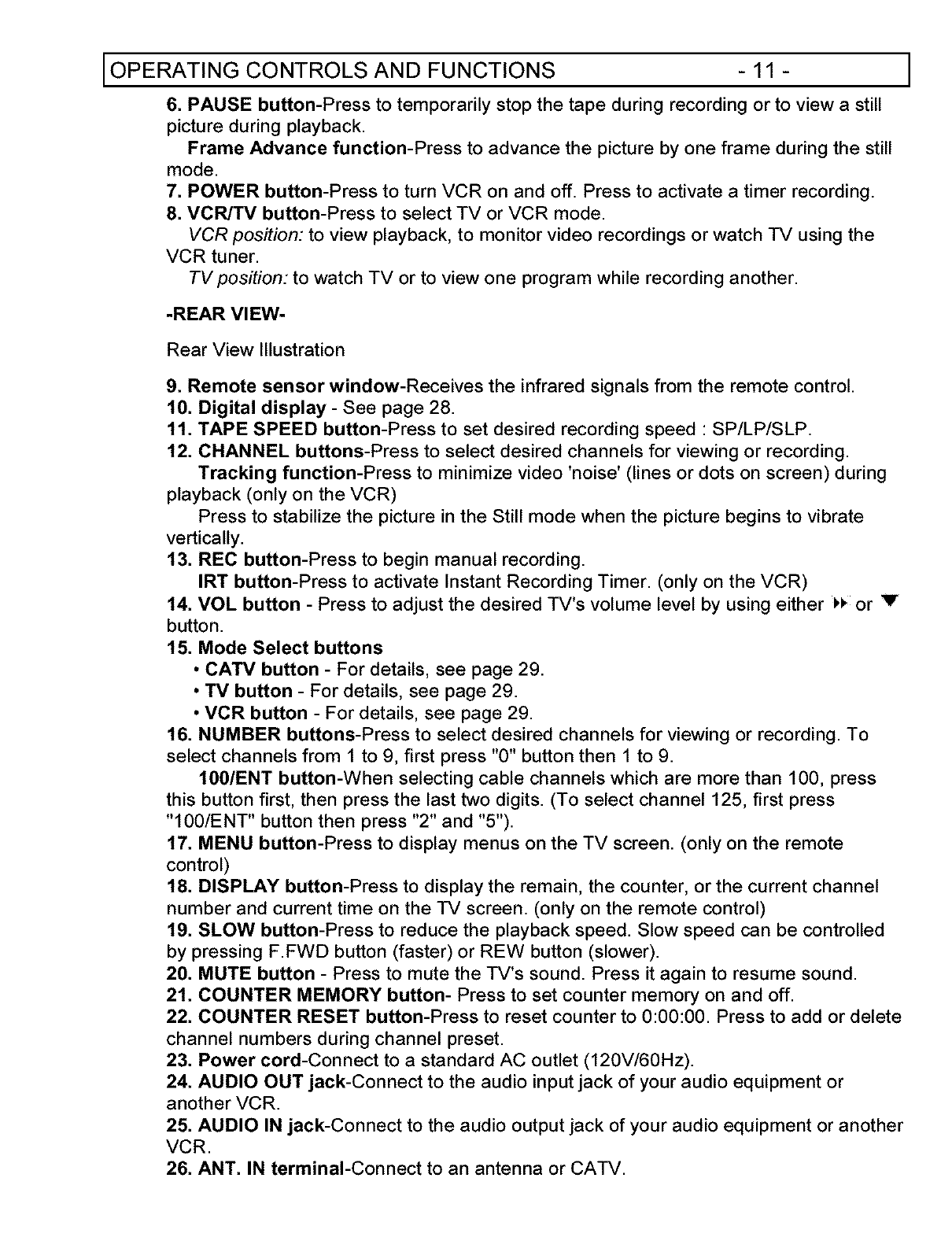

OPERATING CONTROLS AND FUNCTIONS - 11 -
6. PAUSE button-Press to temporarily stop the tape during recording or to view a still
picture during playback.
Frame Advance function-Press to advance the picture by one frame during the still
mode.
7. POWER button-Press to turn VCR on and off. Press to activate a timer recording.
8. VCR/TV button-Press to select TV or VCR mode.
VCR position: to view playback, to monitor video recordings or watch TV using the
VCR tuner.
TV position: to watch TV or to view one program while recording another.
-REAR VIEW-
1
Rear View Illustration
9. Remote sensor window-Receives the infrared signals from the remote control.
10. Digital display - See page 28.
11. TAPE SPEED button-Press to set desired recording speed : SP/LP/SLP.
12. CHANNEL buttons-Press to select desired channels for viewing or recording.
Tracking function-Press to minimize video 'noise' (lines or dots on screen) during
playback (only on the VCR)
Press to stabilize the picture in the Still mode when the picture begins to vibrate
vertically.
13. REC button-Press to begin manual recording.
IRT button-Press to activate Instant Recording Timer. (only on the VCR)
14. VOL button - Press to adjust the desired TV's volume level by using either or V
button.
15. Mode Select buttons
•CATV button - For details, see page 29.
•TV button - For details, see page 29.
•VCR button - For details, see page 29.
16. NUMBER buttons-Press to select desired channels for viewing or recording. To
select channels from 1 to g, first press "0" button then 1 to g.
100lENT button-When selecting cable channels which are more than 100, press
this button first, then press the last two digits. (To select channel 125, first press
"100/ENT" button then press "2" and "5").
17. MENU button-Press to display menus on the TV screen. (only on the remote
control)
18. DISPLAY button-Press to display the remain, the counter, or the current channel
number and current time on the -IV screen. (only on the remote control)
19. SLOW button-Press to reduce the playback speed. Slow speed can be controlled
by pressing F.FWD button (faster) or REW button (slower).
20. MUTE button - Press to mute the -I-V's sound. Press it again to resume sound.
21. COUNTER MEMORY button- Press to set counter memory on and off.
22. COUNTER RESET button-Press to reset counter to 0:00:00. Press to add or delete
channel numbers during channel preset.
23. Power cord-Connect to a standard AC outlet (120V/60Hz).
24. AUDIO OUT jack-Connect to the audio input jack of your audio equipment or
another VCR.
25. AUDIO IN jack-Connect to the audio output jack of your audio equipment or another
VCR.
26. ANT. IN terminal-Connect to an antenna or CATV.
PREPARATION FOR USE - 12 - 1
27. VIDEO OUT jack-Connect to a video input jack of your video camera or another
VCR.
28. VIDEO IN jack-Connect to a video output jack of your video camera or another
VCR.
29. CH3/CH4 selector switch-Use to select a video output channel (3 or 4) for
playback from the VCR.
30. ANT. OUT terminal-Connect to an antenna input terminal of your TV.
For some of the most common types of connections, see the following drawings. Use
only one connection. For any further complex connections, please contact your local
dealer or other qualified persons. (You may need additional accessories which are not
supplied).
1 Disconnect the antenna or cable from your TV.
2 Connect the antenna or cable to the ANT.IN jack of your VCR.
3 Connect one end of the coaxial cable (supplied) to the ANT.OUT jack of your VCR.
4 Connect the other end of the coaxial cable (supplied) to the UHF/VHF antenna jacks.
PREPARATION FOR USE
T
z ,
_o
-13- ]
If your TV does not have A/V terminals;
When the VCR is in the Playback mode or when the VCR is in the VCR position, your
TV will receive the signals from the VCR on either channel 3 or 4.
To use the VCR with your TV, set the selector switch to CH3 or CH4, whichever is not
used or least used for normal broadcasts in your area. Then set your TV to that same
channel.
When you copy a video tape, or watch a program recorded on an another source, use
audio/video input jacks.
INPUT SELECT
To use the external input jacks, select the AUX position. Press the CHANNEL _)I or v
button or enter "00" with number button on the remote control so that "AUX" appears on
the screen.
LNote:"AUX" is found before the lowest memorized Channel. (Examplei CH2) ]
PRESET FOR USE - 14 - ]
If your TV has A/V input jacks, you may connect your VCR's AUDIONIDEO OUTPUT
jacks to the audio/video input jacks on back of your TV.
Direct audio/video connections usually result in a better picture and sound quality for
tape playback. Please see your TV's owner's manual for AN input connections.
@ _ !
1) Open the battery compartment cover by pressing the cover on the remote unit in the
direction of the arrow.
2) Insert 2 "AA" penlight batteries into the battery compartment in the direction indicated
by the polarity (+/-) markings.
Note to CATV system installer
This reminder is provided to call the CATV system installer s attention to Article 820'40 of the
NEC that provides guidelines for proper "grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the buildingl as close to the point Of
cable entry as practical.
Channel memory programming is NOT needed when connected to a cable box. You
can program the tuner to scan only the channels you receive in your area. See page 33
for channel designations.
PRESET FOR USE - 15 - ]

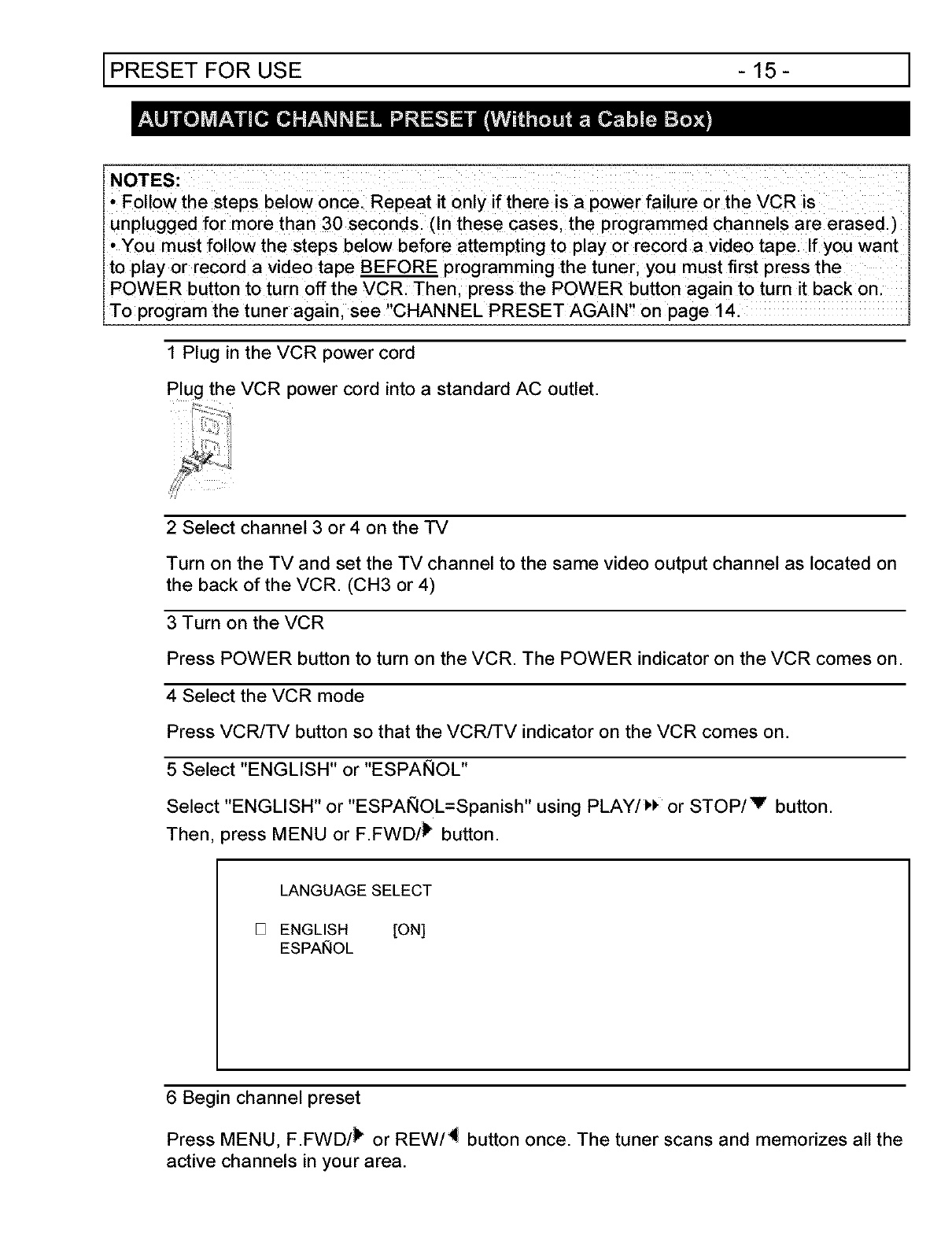

NOTES:
•Follow the steps below once. Repeat it only if there is a power failure or the VCR is
unplugged for more than 30 seconds. (In these cases, the programmed channels are erased.)
• You must follow the steps below before attempting to play or record a video tape. If you want
to play or record a video tape BEFORE programming the tuner, you must first press the
POWER button to turn off the VCR. Then, press the POWER button again to turn it back on.
To program the tuner again, see "CHANNEL PRESET AGAIN" on page 14.
1 Plug in the VCR power cord
Plug the VCR power cord into a standard AC outlet.
2 Select channel 3 or 4 on the TV
Turn on the TV and set the TV channel to the same video output channel as located on
the back of the VCR. (CH3 or 4)
3 Turn on the VCR
Press POWER button to turn on the VCR. The POWER indicator on the VCR comes on.
4 Select the VCR mode
Press VCR/TV button so that the VCR/TV indicator on the VCR comes on.
5 Select "ENGLISH" or "ESPAI_IOL"
Select "ENGLISH" or "ESPAl_lOL=Spanish" using PLAY/_)or STOP/V button.
Then, press MENU or F.FWD/1_ button.
LANGUAGE SELECT
[] ENGLISH [ON]
ESPAfqOL
6 Begin channel preset
Press MENU, F.FWD/_ or REW/4! button once. The tuner scans and memorizes all the
active channels in your area.
PRESET FOR USE - 16 -
CH 01
TUNER SET UP
• The VCR distinguishes between standard TV channels and cable channels.
7 After scanning
The tuner stops on the lowest memorized channel. The TV screen returns to TV mode.
CH 02
• If "TUNER SET UP" appears on the TV screen again, check the cable connections.
Then, press MENU, F.FWD/_ or REW/4 button once again. The VCR will begin preset
again.
TO SELECT A DESIRED CHANNEL
You can select the desired channel by using CHANNEL _I or V button or directly
pressing number buttons on the remote control.
Note for using number buttons:
•When selecting cable channels which are higher than 100, press +100 button first,
then press the last two digits. (To select channel 125, first press "+100" button then
press "2" and "5").
• You must precede single-digit channel numbers with a zero (For example: 02, 03, 04
and so on).
Set the clock accurately for proper automatic timer recording. We suggest that you use
a TV or radio station as your time source.
In the example below, the clock is to be set to:
DATE 1st March, 1997
SETTING TIME 5:40PM
PRESET FOR USE -17 -
Make sure...
•You must use the remote control for this procedure.
• VCR power must be turned on.
•Turn on the TV and set the -IV channel to the same video output channel as located
on the back of the VCR. (CH 3 or 4)
•Press VCR/-I-V button so that the VCR/rv indicator on the VCR comes on.
1 Select "SETTING CLOCK"
Press MENU button. The SETTING CLOCK menu appears.
1
SETTING CLOCK
MONTH DAY YEAR
HOUR MINUTE AM/PM
Make sure...
•When you press F.FWD/_ button during steps [2] to [6], you may forward to next step.
•Press REW/4 button to go back one step from current step during steps [3] to [7].
2 Select the month
Press PLAY/_l or STOP/v button repeatedly until your desired month appears.
(Example: March D03)
Then, press F.FWD/_ button.
SETTING CLOCK
MONTH DAY YEAR
03 /......
HOUR MINUTE AM/PM
3 Select the day
Press PLAY/_)l or STOP/v button repeatedly until your desired day appears.
(Example: 1st [] 01)
Then, press F.FWD/_ button.
SETTING CLOCK
MONTH DAY YEAR
03 /01 ....
PRESET FOR USE
HOUR MINUTE AM/PM
-18-
4 Select the year
Press PLAY/_l or STOP/v button repeatedly until your desired year appears.
(Example: 1997)
Then, press F.FWD/_ button.
SETTING CLOCK
MONTH DAY YEAR
03 /01 1997
HOUR MINUTE AM/PM
5 Select the hour
Press PLAY/))I or STOP/v button repeatedly until your desired hour appears.
(Example: 05)
Then, press F.FWD/_ button.
SETTING CLOCK
MONTH DAY YEAR
03 /01 SAT 1997
HOUR MINUTE
05 : ....
AM/PM
6 Select the minute
Press PLAY/_I or STOP/v button repeatedly until the desired minute appears.
(Example: 40)
Then, press F.FWD/_ button.
SETTING CLOCK
MONTH DAY YEAR
03 /01 SAT 1997
HOUR MINUTE
05 : 40 --
AM/PM
PRESET FOR USE - 19 -

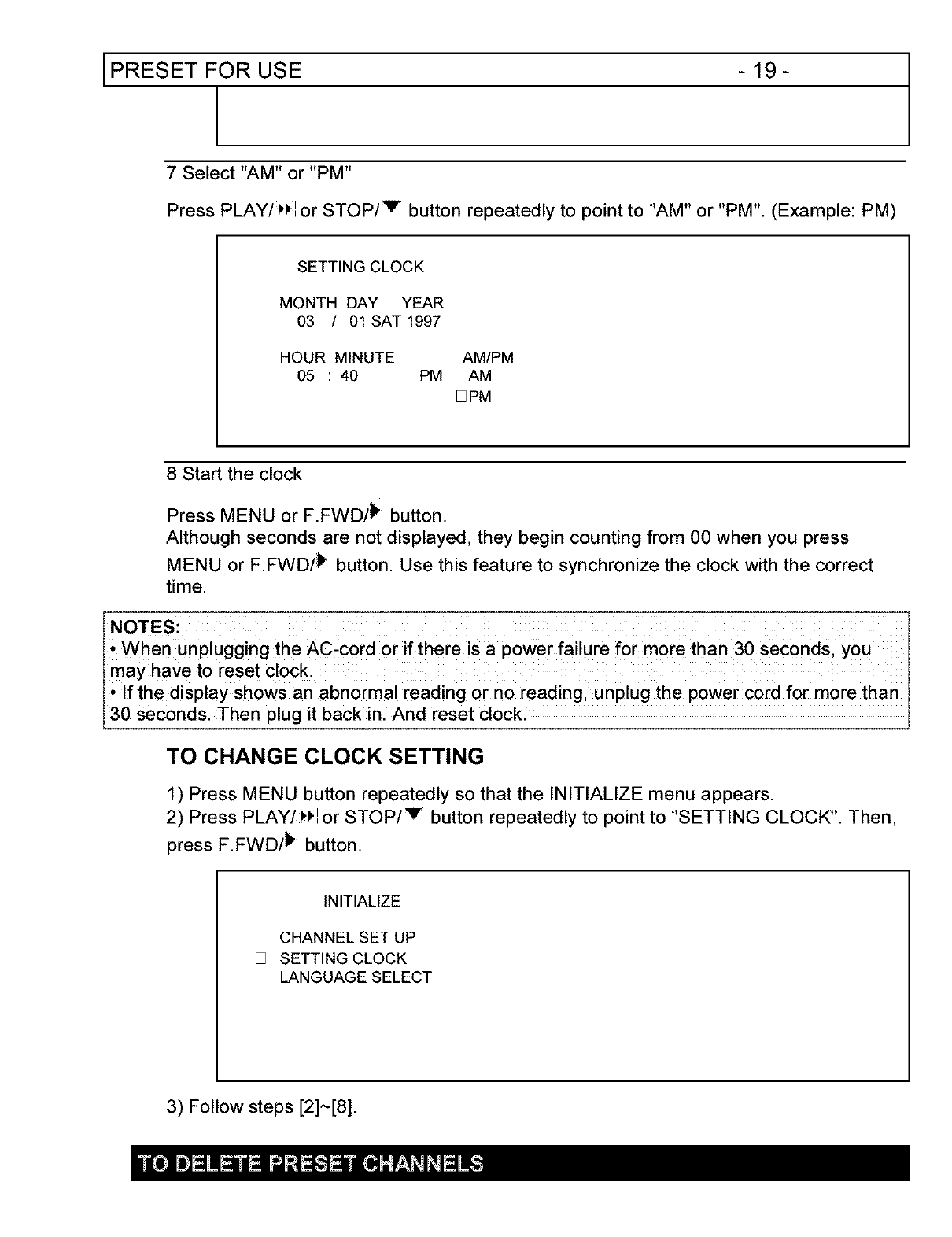

7 Select "AM" or "PM"
Press PLAY/_I or STOP/v button repeatedly to point to "AM" or "PM". (Example: PM)
SETTING CLOCK
MONTH DAY YEAR
03 /01 SAT 1997
HOUR MINUTE
05 : 40 PM
AM/PM
AM
[]PM
8 Start the clock
Press MENU or F.FWD/_ button.
Although seconds are not displayed, they begin counting from 00 when you press
MENU or F.FWD/_ button. Use this feature to synchronize the clock with the correct
time.
NOTES:
' When unplugging the AC'Cord or if there is a power failure for more than 30 seconds, you
• If the display shows an abnormal reading or no reading, unplug the power cord for more than
30 seconds. Then plug it back in. And reset clock.
TO CHANGE CLOCK SETTING
1) Press MENU button repeatedly so that the INITIALIZE menu appears.
2) Press PLAY/))I or STOP/v button repeatedly to point to "SETTING CLOCK". Then,
press F.FWD/_ button.
INITIALIZE
CHANNEL SET UP
[] SETTING CLOCK
LANGUAGE SELECT
3) Follow steps [2]~[8].
PRESET FOR USE - 20 -
The channels you no longer receive or seldom watch can be deleted from the memory.
(Of course, you can add the deleted channel into the memory again.)
Make sure...
• You must use the remote control for this procedure.
•VCR power must be turned on.
•Turn on the TV and set the -IV channel to the same video output channel as located
on the back of the VCR. (CH 3 or 4)
•Press VCR/-I-V button so that the VCR/TV indicator on the VCR comes on.
1 Select "INITIALIZE"
Press MENU button repeatedly so that the INITIALIZE menu appears.
2 Select "CHANNEL SET UP"
Confirm "CHANNEL SET UP" is pointed.
Then, press F.FWD/_ button.
1
INITIALIZE
[] CHANNEL SET UP
SETTING CLOCK
LANGUAGE SELECT
3 Select "ADD/DELETE CH"
Press PLAY/_I or STOP/v button repeatedly to point to "ADD/DELETE CH".
Then, press F.FWD/_ button.
CHANNEL SET UP
TV [ON]
CATV
[] ADD/DELETE CH
4 Enter the desired channel number
Press the number buttons or PLAY/_ or STOP/v button repeatedly until your desired
channel number appears. (Example: CH02)
ADD/DELETE CH
PRESET FOR USE - 21 -

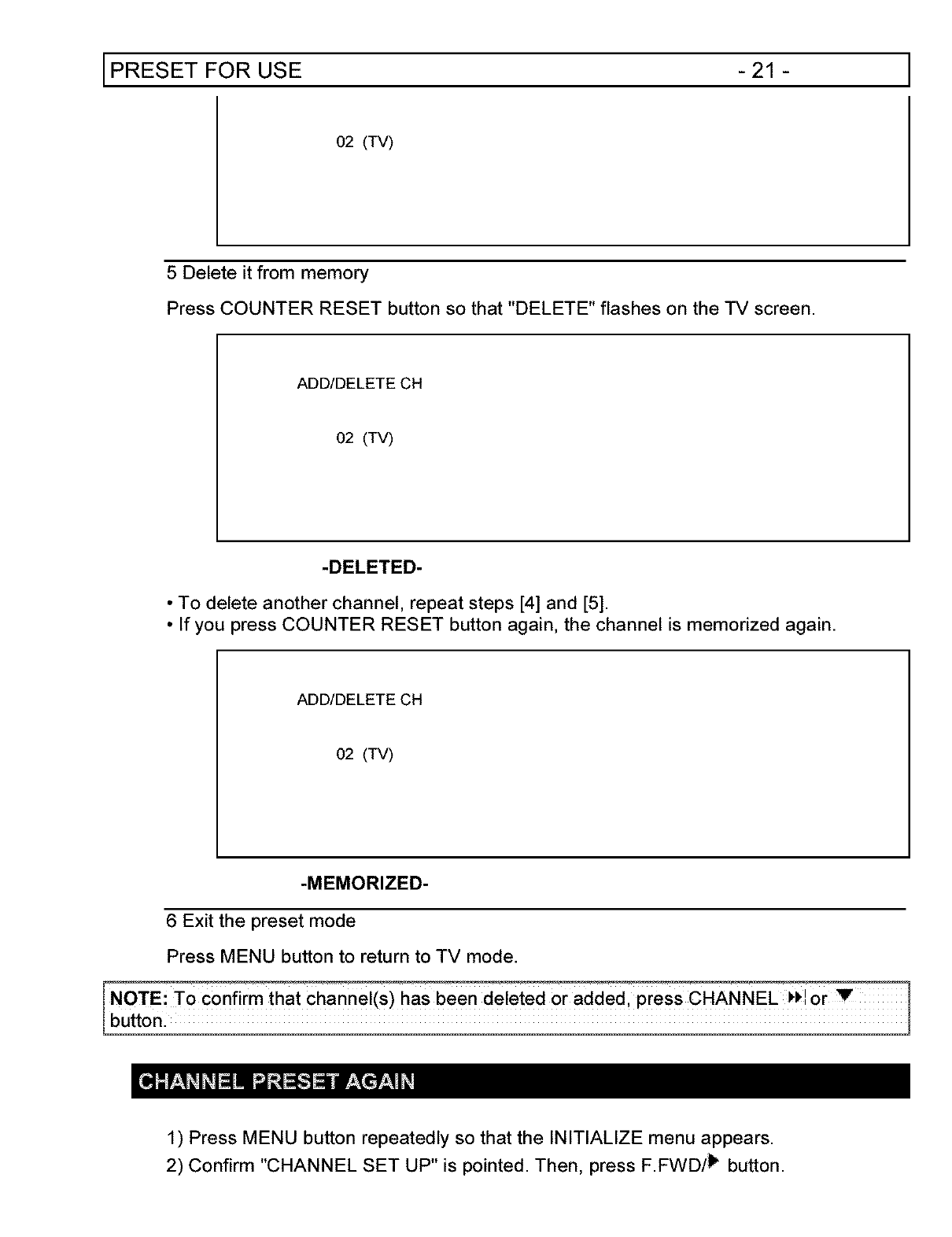

02 (TV)
5 Delete it from memory
Press COUNTER RESET button so that "DELETE" flashes on the TV screen.
ADD/DELETE CH
o2 (TV)
-DELETED-
. To delete another channel, repeat steps [4] and [5].
• If you press COUNTER RESET button again, the channel is memorized again.
ADD/DELETE CH
o2 (TV)
-MEMORIZED-
6 Exit the preset mode
Press MENU button to return to TV mode.
NOTE: To confirm that channel(s) has been deleted or addedl press CHANNEL I,_Ior
button.
1) Press MENU button repeatedly so that the INITIALIZE menu appears.
2) Confirm "CHANNEL SET UP" is pointed. Then, press F.FWD/1_ button.
!
PRESET FOR USE - 22 - J

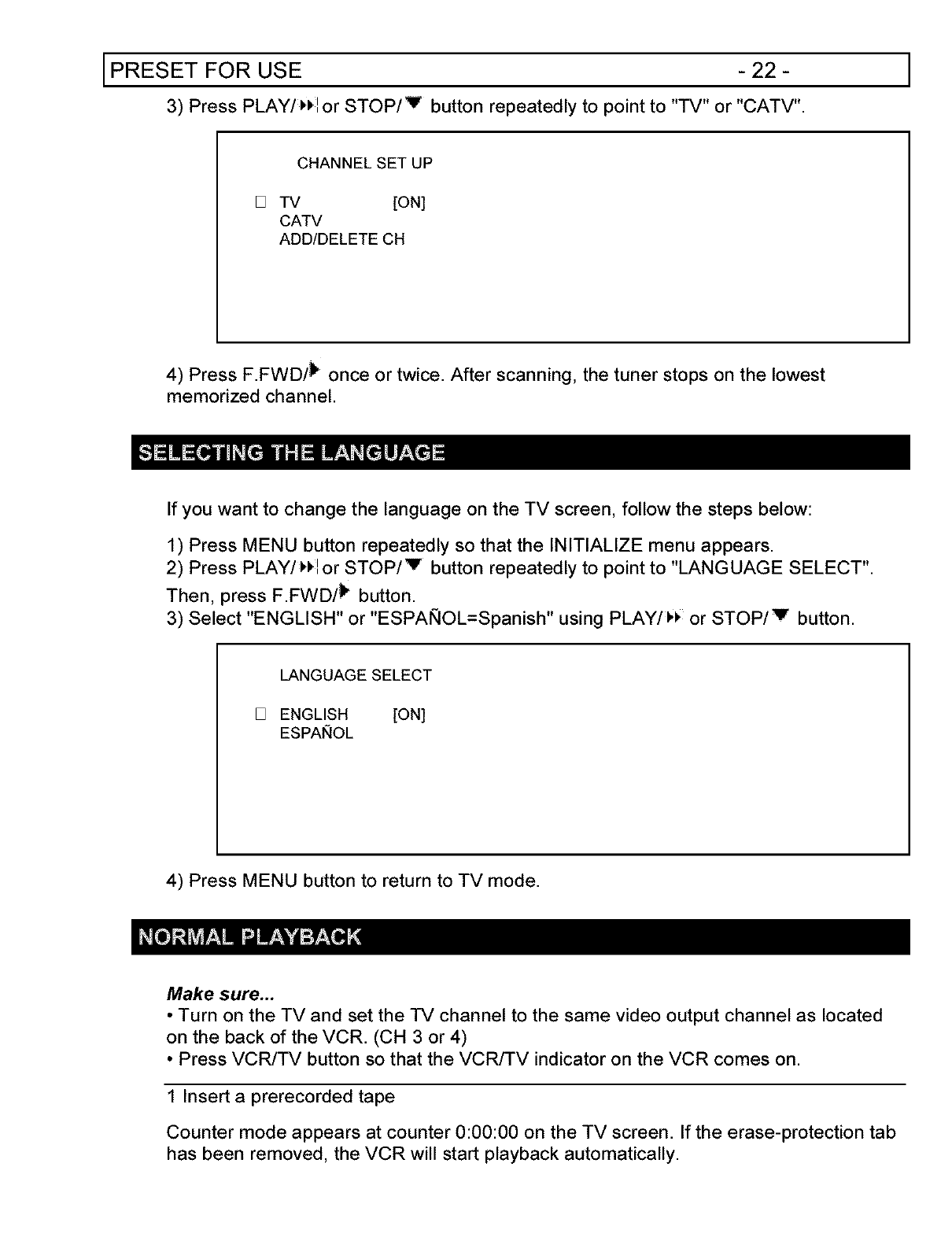

3) Press PLAY/_)l or STOP/v button repeatedly to point to "TV" or "CATV".
CHANNEL SET UP
[] TV [ON]
CATV
ADD/DELETE CH
4) Press F.FWD/_ once or twice. After scanning, the tuner stops on the lowest
memorized channel.
If you want to change the language on the TV screen, follow the steps below:
1) Press MENU button repeatedly so that the INITIALIZE menu appears.
2) Press PLAY/_)I or STOP/v button repeatedly to point to "LANGUAGE SELECT".
Then, press F.FWD/_ button.
3) Select "ENGLISH" or "ESPAl_lOL=Spanish" using PLAY/_ or STOP/v button.
LANGUAGE SELECT
[] ENGLISH [ON]
ESPAIqOL
4) Press MENU button to return to TV mode.
Make sure,,,
• Turn on the TV and set the -IV channel to the same video output channel as located
on the back of the VCR. (CH 3 or 4)
•Press VCR/-I-V button so that the VCR/TV indicator on the VCR comes on.
1 Insert a prerecorded tape
Counter mode appears at counter 0:00:00 on the TV screen. If the erase-protection tab
has been removed, the VCR will start playback automatically.
!
PRESET FOR USE - 23 - 1
2 To begin playback
Press PLAY button.
PLAY_
NOTE:!f any menu is activated onthe -I-V screen, the PLAy button on the remote contro! does ]
not function. Press MENU button to clear the menu. Then, press PLAY button.
If a tape is already in the VCR with power off
2A) Using button on the VCR
Just press PLAY button on the VCR. Power will automatically turn on and playback will
start. (Direct Button Operation)
2B) Using button on the remote control
Press POWER button to turn on, and then press PLAY button on the remote control.
3 To stop playback
Press STOP button.
[PICTURE SEARCH l
This feature is useful in finding or skipping over a particular scene on a tape. In this
mode, the sound will be muted.
1) You may view a video tape at a high speed in either a forward or reverse direction by
pressing F.FWD or REW button. (in the SP /LP /SLP modes)
2) Depress it again, the VCR will now search in super high speed. (in the LP /SLP
modes only)
3) Press PLAY button to return to normal speed.
STILL PICTURE ]
You can view a still picture on the screen during playback (the Still mode). Press
PAUSE button during playback. Press PLAY button to return to playback.
• You can advance the picture by one frame by pressing the PAUSE button repeatedly during
the still mode.
•!f it is !eft in the Still mode for more than five minutes, the VCR wi!!automaticallY switch to the
Stop mode.
[VERT,CALHOLDCONTROL 1
When the picture begins to vibrate vertically, stabilize the picture by pressing CHANNEL
!

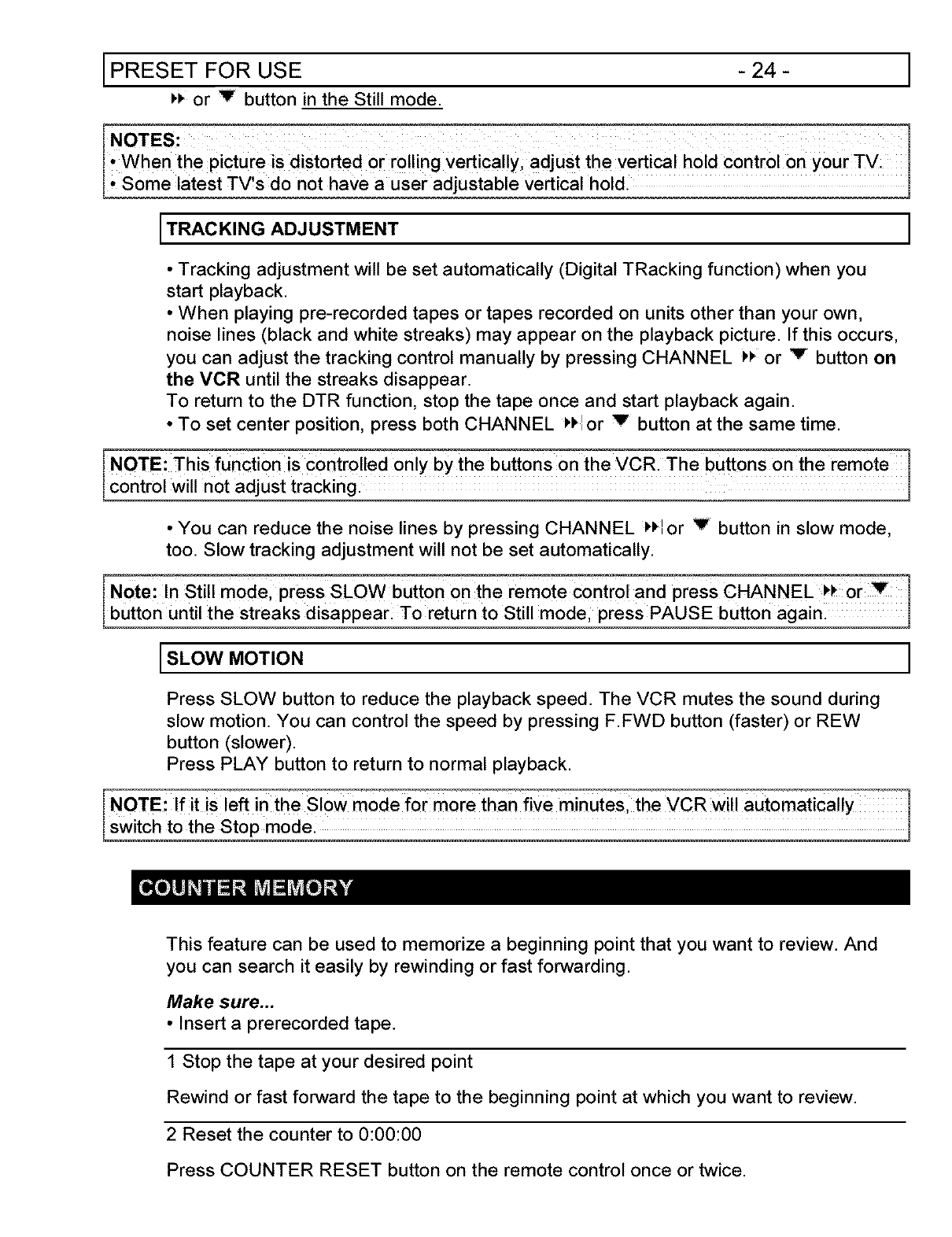

PRESET FOR USE - 24 - J
d
_ or V button in the Still mode.
NOTES:
, When the picture is distorted o[ rolling vertically i adjus t the vertica ! ho!d coat[o! on your TV: I
L' Some atest TV s do not have a user adjustab e vert ca hod. J
[TRACKING ADJUSTMENT ]
• Tracking adjustment will be set automatically (Digital TRacking function) when you
start playback.
• When playing pre-recorded tapes or tapes recorded on units other than your own,
noise lines (black and white streaks) may appear on the playback picture. If this occurs,
you can adjust the tracking control manually by pressing CHANNEL _ or v button on
the VCR until the streaks disappear.
To return to the DTR function, stop the tape once and start playback again.
• To set center position, press both CHANNEL _I or v button at the same time.
NOTE: This function is Contro!!ed o n!y by the buttons o nthe VCR. The buttons o n the remot e
contro w not adjust track ng.
• You can reduce the noise lines by pressing CHANNEL _I or V button in slow mode,
too. Slow tracking adjustment will not be set automatically.
Note:In Still model press SLOW button on the remote contro! and press CHANNEL _'_or
button until the streaks disappearl To return to Still model press PAUSE button again_
[SLOW MOTION l
Press SLOW button to reduce the playback speed. The VCR mutes the sound during
slow motion. You can control the speed by pressing F.FWD button (faster) or REW
button (slower).
Press PLAY button to return to normal playback.
NOTE: If it is !eft in the S!ow mode fo r mo rethanfi vemin Utesl theVCR w!ll automatica!!y 1
switch to the Stop mode. 1
This feature can be used to memorize a beginning point that you want to review. And
you can search it easily by rewinding or fast forwarding.
Make sure...
•Insert a prerecorded tape.
1 Stop the tape at your desired point
Rewind or fast forward the tape to the beginning point at which you want to review.
2 Reset the counter to 0:00:00
Press COUNTER RESET button on the remote control once or twice.
1
SPECIAL PLAYBACK - 25 - J
3 Select the Counter Memory mode
Press COUNTER MEMORY button on the remote control so that "M" appears on the TV
screen.
M 0:00:00
4 Begin recording or playback
Press RECORD or PLAY button.
Press STOP button when recording or playback is completed.
5 To activate the Counter Memory
Press DISPLAY button on the remote control so that the counter appears on the TV
screen.
Press REW (or F.FWD) button. The tape will automatically stop when the counter
returns to 0:00:00 (approx.)
TO EXIT THE COUNTER MEMORY
When the counter appears on the TV screen, press COUNTER MEMORY button on the
remote control once and then press DISPLAY button on the remote control twice so that
the "M" and the counter disappears from the TV screen.
Make sure...
• You must use the remote control for the following procedure.
•VCR power must be turned on.
•Turn on the TV and set the -IV channel to the same video output channel as located
on the back of the VCR. (CH 3 or 4)
•Press VCR/TV button on the remote control so that the "VCR" indicator appears on the
display.
SPECIAL PLAYBACK - 26 - ]
The VCR has the auto repeat function that allows you to repeat a tape indefinitely
without touching the PLAY button.
Make sure... Insert a prerecorded tape.
1 Select "VCR SET UP"
Press MENU button repeatedly so that the VCR SET UP menu appears.
2 Select "AUTO REPEAT"
Press PLAY/_I or STOP/v button repeatedly to point to "AUTO REPEAT".
VCR SET UP
TAPE SELECT
[] AUTO REPEAT
RENTAL
AUTO RETURN
~T 130
3 Begin Auto repeat playback
Press F.FWD/_ button so that [ON] will appear next to "AUTO REPEAT" on the TV
screen.
Repeat playback will start automatically.
AUTO REPEAT ,..-
NOTES:
• Once you select the Auto Repeat mode. it stays in effect even after you turn off the VCR.
• When the Counter Memory is activated, the tape will rewind to 0:00:00 and the VCR will be in
the Stop mode.
• If the Rental mode is set [ON], the "RENTAL PLAY I_" display has priority.
• To stop playback, press STOP button
TO EXIT THE AUTO REPEAT MODE
Repeat steps [1] to [2]. Then, press F.FWD/1_ button. [ON] will then disappear from the
SPECIAL PLAYBACK
menu.
Press MENU button on the remote control to return to TV mode.
- 27 - ]
This function enables you to improve the picture quality when playing back worn
cassettes such as those rented from a video shop.
1 Insert rental tape into VCR
Begin playback.
• Selecting ON or OFF must be done during playback.
2 Select "VCR SET UP"
Press MENU button repeatedly so that the VCR SET UP menu appears.
3 Select "RENTAL"
Press PLAY/_I or STOP/v button repeatedly to point to "RENTAL".
VCR SET UP
TAPE SELECT
AUTO PLAY
[] RENTAL
AUTO RETURN
~T 130
4 Select "RENTAL" to [ON]
Press F.FWD/1_ button so that "RENTAL ON" appears.
RENTAL ON
, Once you select the Rental mode, it stays in effect even after you tur n off th eVCR.
, To stop playback, press STOP button,
TO EXIT THE RENTAL PLAY MODE
SPECIAL PLAYBACK - 28 -
Repeat steps [1] to [3]. Then, press F.FWD/_ button so that "RENTAL OFF" appears on
the TV screen.
1
This feature provides a method of indexing the starting point so that it can be easily
returned to in either fast forward or rewind mode.
• The index mark will be made automatically when the REC button is pressed. It will also
be marked at the starting point of Timer recording and IRT.
• The index mark is not recorded if the PAUSE button is pressed and released during
recording.
• The time gap between making the index marks on the tape should be greater than 1
minute for SP recording, 2 minutes for LP recording and 3 minutes for SLP recording.
Example: You are watching program number 4 and want to fast forward to program
number 7. You must skip three programs.
1 Select "SEARCH SELECT"
Press MENU button repeatedly so that the SEARCH SELECT menu appears.
2 Select "INDEX SEARCH"
Confirm "INDEX SEARCH" is pointed. Then, press F.FWD/!_ button.
SEARCH SELECT
[] INDEX SEARCH
TIME SEARCH
BLANK SEARCH
3 Enter your desired number
Press PLAY/))I or STOP/Y button repeatedly until the number of programs that you
want to skip appears. (Example: "03" for 3 programs)
INDEX SEARCH
03
SPECIAL PLAYBACK - 29 -
4 Begin Index Search
Press REW or F.FWD button. The VCR begins rewinding or fast forwarding to the
beginning of desired program.
Note: Every time a n inde x signal is skipped, the numbei in the Program indicator decreases by 1
one.
5 After Index Search
When the preset program is reached, the VCR will start playback automatically.
NOTES:
•Index Search can be set up to 20.
•This function will not operate in the recording mode.
• Procedures must be followed within 30 seconds, from steps [2] to [3]. Otherwise the Index
Search mode will be cancelled.
• To exit the Index Search mode, press the MENU button after step [3]. Or press STOP button
after step [4].
•A video cassette must be inserted in the VCR for this function to work.
The Time Search function makes it possible to quickly advance the tape to your desired
position from any position by entering the exact amount of playback time of the part you
want to skip.
Example: To watch a program after 2 hour 50 minutes from present position, in either
direction.
1 Select "SEARCH SELECT"
Press MENU button on the remote control repeatedly so that the SEARCH SELECT
menu appears.
2 Select "TIME SEARCH"
Press PLAY/_)lor STOP/V repeatedly to point to "TIME SEARCH".
Then, press F.FWD/_ button.
SEARCH SELECT
INDEX SEARCH
[] TIME SEARCH
BLANK SEARCH
SPECIAL PLAYBACK - 30 -
3 Enter your desired time
Press PLAY/_I or STOP/v button repeatedly until your desired time appears.
(Example: "2:50" for 2 hours 50 minutes)
TIME SEARCH
2:50
4 Begin Time Search
Press REW or F.FWD button. The VCR begins rewinding or fast forwarding to the
specified point.
The time counts down as the searching progresses.
5 After Time Search
When 0:00 is reached, the VCR will start playback automatically.
NOTES:
• Time Search can be set up to 9 hours 59 minutes (9:59)
• This function will not operate in the recording mode.
• Procedures must be followed within 30 seconds, from steps [2] to [3] Otherwise the Time
Search mode will be cancelled.
• To exit the Time Search mode, press the MENU button after step [3]. Or press STOP button
after step [4].
• A video cassette must be inserted in the VCR for this function to work.
This function enables you to search for the unrecorded portion of the tape in the forward
direction.
•Tape must be fully rewound.
1 Select "SEARCH SELECT"
Press MENU button on the remote control repeatedly so that the SEARCH SELECT
menu appears.
2 Select "BLANK SEARCH"
Press PLAY/_lor STOP/V repeatedly to point to "BLANK SEARCH".
RECORDING - 31 - I
Then, press F.FWD/) button.
SEARCH SELECT
INDEX SEARCH
TIME SEARCH
[] BLANK SEARCH
• The VCR begins fast forwarding to the beginning of the blank part of the tape.
3 After Blank Search
The VCR will automatically stop.
• The blank search w!!l only work in the forward d!rection not inthe reverse direction
• A video cassette must be inserted in the VCR for this function to workl
Make sure...
• VCR power must be turned on.
•Turn on the TV and set the -IV channel to the same video output channel as located
on the back of the VCR. (CH 3 or 4)
•Press VCR/rv button on the remote control so that the "VCR" indicator appears on the
display.
•Insert a cassette tape with its erase prevention tab in place. (If necessary, rewind or
fast forward the tape to the point at which you want to begin recording.)
1 Select the channel to be recorded
Press number buttons on the remote control or the CHANNEL _) or V button.
CH 32
1
- 32 - i
NOTE: when you record with a cabie converter box the VCR channel must be selected to 3 or 1
4, then the actua Channel that yoU wish to record must be selected on the cable Converter box J
2 Select the tape speed
Press TAPE SPEED button on the remote control to select the desired tape speed
(SP/LP/SLP).
SP
3 Begin recording
Press REC button. The "REC" indicator on the VCR comes on.
REC
SP
NOTE:!f anY menu is activated onthe TV screenl the REC button on the remote Control does 1
not function. Press MENU button on the remote Control to clear the menu. Then, press REC I
buttonl
4 Stop recording
Press STOP button when recording is completed.
Press PAUSE button to temporarily stop recording.
Press PAUSE or REC button to resume recording.
PAUSE
IIIII
- 33 -
NOTES:
To prevent tape damage, after five minutes, the, VCR wil! automatically switch to the Stop I
model You may review the time remaining with marks on theTV screen I Each
shows one minute. 1
You can record one program while viewing another. To start recording, follow steps [1]
to [3] under "VIEWING AND RECORDING THE SAME PROGRAM".
NOTE:When you record with acable Converter box you cannot record one program while
view ng another 1
4 Select the TV mode
Press VCR/TV button on the remote control to select TV so that the "VCR" indicator
disappears from the display.
5 Select the channel on the TV
Set the TV to the channel you want to watch.
1 Select the VCR mode
Press VCR/TV button on the remote control so that the "VCR" indicator appears on the
display.
2 Select channel 3 or 4 on the TV
Turn on the TV and set the TV channel to the same video output channel as located on
the back of the VCR. (CH3 or 4)
This function enables you to set a recording length simply by pressing the REC/OTR
button on the VCR.
Make sure...
•This function cannot be done by the remote control.
• VCR Power must be turned on,
•Turn on the TV and set the TV channel to the same video output channel as located
- 34 -
on the back of the VCR. (CH3 or 4)
• Press VCR/TV button on the remote control so that the "VCR" indicator appears on the
display.
• Insert a cassette tape with its erase prevention tab in place. (If necessary, rewind or
fast forward the tape to the point at which you want to begin recording.)
1
1 Select the channel to be recorded
Press number buttons on the remote control or the CHANNEL _ or v button.
2 Begin IRT
Press REC/IRT button on the VCR as many times as needed. The recording length will
be determined by the number of times you press REC/IRT button.
Each additional push will increase the recording time by 30 minutes. It is set up to 8
hours.
IRT (1:30)
SP
NOTES:
• Recording starts immediately when the REC/IRT button is pressed whether you are watching
the same or a different channel.
• When REC/IRT button is pressed 18 times, the VCR returns to the normal recording mode.
• To stop the IRT operation, press STOP button on the VCR or on the remote control.
• To show the remaining time, press DISPLAY button on the remote control so that "IRT"
appears on the TV screen. (It will show up momentarily then disappear.)
• Recording stops when 0:00 is reached.
• Please note that in the SLP mode maximum recording time. assuming the tape is started at
the beginning, is 8 hours using T-160 ('or 6 hours using T-120).
• The TV that is connected to your VCR may be turned on or off during IRT.

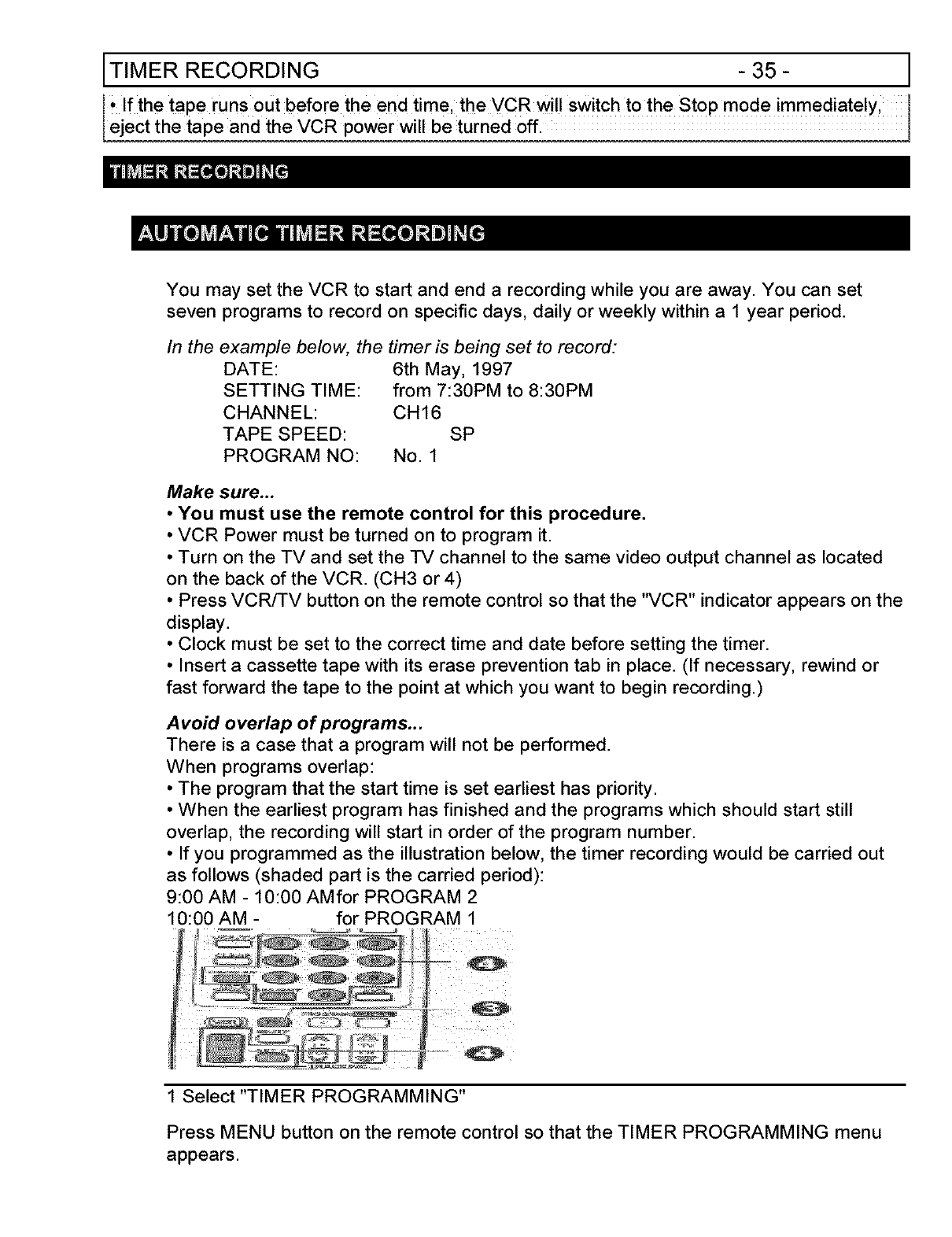

TIMER RECORDING - 35 - ]
, If the tape runs out before the end time, the VCR wil! switch to the Stop mode immediatelY,
eject the tape and the VCR power w be turned off. 1
You may set the VCR to start and end a recording while you are away. You can set
seven programs to record on specific days, daily or weekly within a 1 year period.
In the example below, the timer is being set to record:
DATE:
SETTING TIME:
CHANNEL:
TAPE SPEED:
PROGRAM NO:
6th May, 1997
from 7:30PM to 8:30PM
CH16
SP
No. 1
Make sure,,,
• You must use the remote control for this procedure.
• VCR Power must be turned on to program it.
•Turn on the TV and set the -IV channel to the same video output channel as located
on the back of the VCR. (CH3 or 4)
•Press VCR/rv button on the remote control so that the "VCR" indicator appears on the
display.
•Clock must be set to the correct time and date before setting the timer.
•Insert a cassette tape with its erase prevention tab in place. (If necessary, rewind or
fast forward the tape to the point at which you want to begin recording.)
Avoid overlap of programs...
There is a case that a program will not be performed.
When programs overlap:
•The program that the start time is set earliest has priority.
•When the earliest program has finished and the programs which should start still
overlap, the recording will start in order of the program number.
•If you programmed as the illustration below, the timer recording would be carried out
as follows (shaded part is the carried period):
9:00 AM - 10:00 AMfor PROGRAM 2
10:00 AM - for PROGRAM 1
1 Select "TIMER PROGRAMMING"
Press MENU button on the remote control so that the TIMER PROGRAMMING menu
appears.
TIMER RECORDING - 36 - ]
TIMER PROGRAMMING
PROG 1 2 3 4 5 6 7
DATE
START TIME
END TIME
CHANNEL
REC SPEED
NOTE: If you have not yet set the c!ock, "SETTING CLOCK,!appears, If sol foi!ow the steps [2]
to[8] on page 13: Then, set the timer recording.
2 Select your desired program number (1 ~ 7)
Program number which is not set up flashes.
Press PLAY/_)I or STOP/v button repeatedly until your desired program number
appears. (Example: 1)
Then, press F.FWD/) button.
PROGRAM NUMBER 1
DATE /-
START TIME :
END TIME
CHANNEL --
REC SPEED --
3 Select once, daily or weekly recording
For once recording:
Press PLAY/_I or STOP/V button repeatedly to point to "ONCE". Then, press
F.FWD/_ button.
PROGRAM NUMBER 1
[] ONCE
DALLY
WEEKLY
For daily recording: To record a TV program at the same time on the same channel
every day. (Example: Monday through Sunday)
Press PLAY/_)I or STOP/v button repeatedly to point to "DAILY". Then, press
1
TIMER RECORDING - 37 - 1
F.FWD/_ button.
PROGRAM NUMBER 1
ONCE
[] DAILY
WEEKLY
For weekly recording: To record a TV program at the same time on the same channel
every week. (Example: every Monday on channel 7at 5:00PM)
Press PLAY/))I or STOP/v button repeatedly to point to "WEEKLY". Then, press
F.FWD/_ button.
PROGRAM NUMBER 1
ONCE
DAILY
[] WEEKLY
Make sure...
• When you press F.FWD/_ button during steps [4] to [10], you may forward to next
step.
•Press REW/4 button to go back one step from current step during steps [2] to [10].
4 Set the date when you want to start
First, press PLAY/_ or STOP/v button repeatedly until your desired month appears.
(Example: "05" for May) Then, press F.FWD/_ button.
Next, press PLAY/_) or STOP/v button repeatedly until your desired day appears, and
then press F.FWD/_ button. (Example: "06" for 6th)
ONE TIME PROGRAM
DATE 05/06 TUE
START TIME :
END TIME
CHANNEL --
REC SPEED --
1

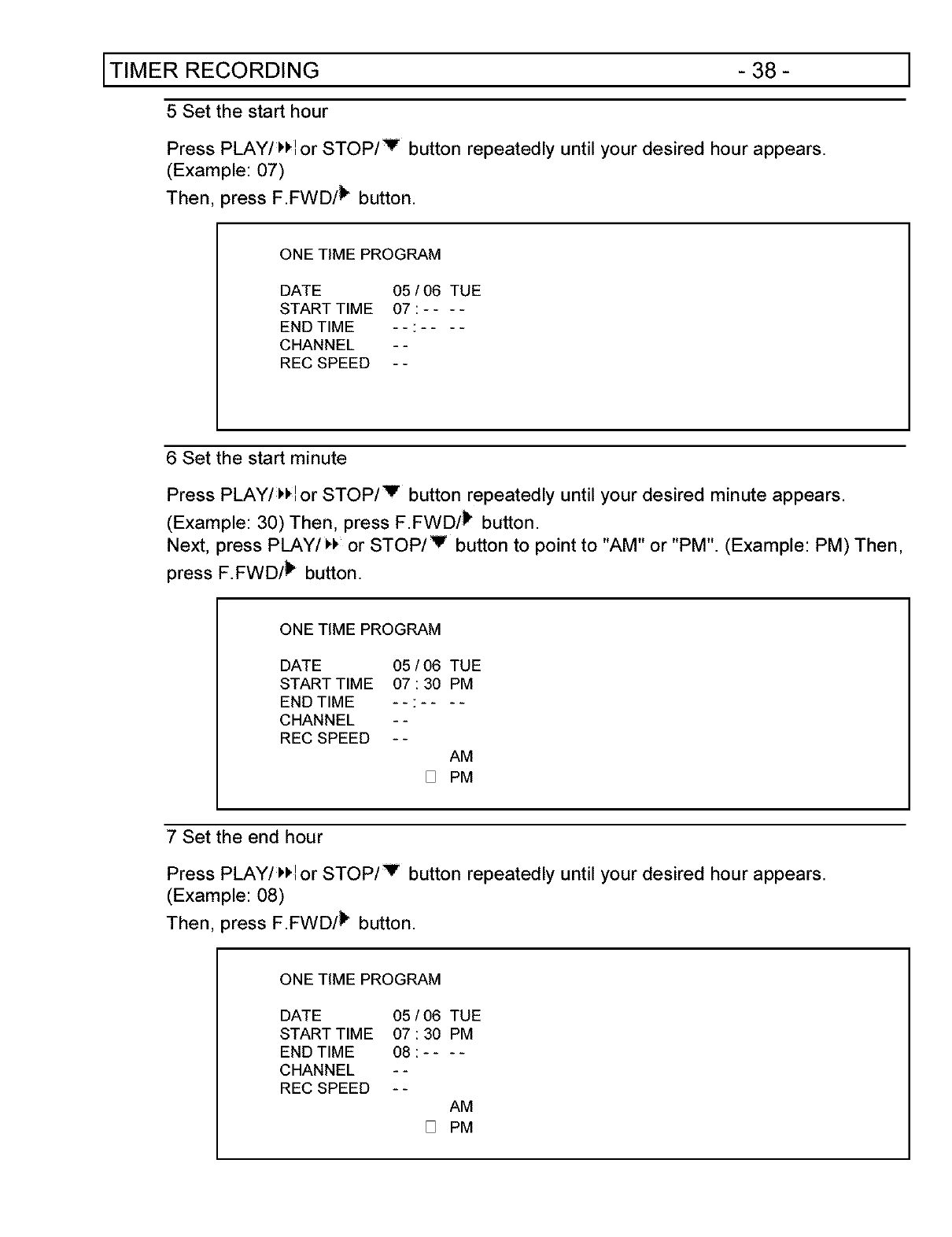

TIMER RECORDING - 38 - J
5 Set the start hour
Press PLAY/_I or STOP/v button repeatedly until your desired hour appears.
(Example: 07)
Then, press F.FWD/_ button.
ONE TIME PROGRAM
DATE 05/06 TUE
START TIME 07: ....
END TIME
CHANNEL --
REC SPEED --
6 Set the start minute
Press PLAY/_)I or STOP/v button repeatedly until your desired minute appears.
(Example: 30) Then, press F.FWD/} button.
Next, press PLAY/_ or STOP/V button to point to "AM" or "PM". (Example: PM) Then,
press F.FWD/!_ button.
ONE TIME PROGRAM
DATE 05/06 TUE
START TIME 07:30 PM
END TIME
CHANNEL --
REC SPEED -- AM
[] PM
7 Set the end hour
Press PLAY/))I or STOP/v button repeatedly until your desired hour appears.
(Example: 08)
Then, press F.FWD/_ button.
ONE TIME PROGRAM
DATE 05/06 TUE
START TIME 07:30 PM
ENDTIME 08: ....
CHANNEL --
REC SPEED -- AM
[] PM

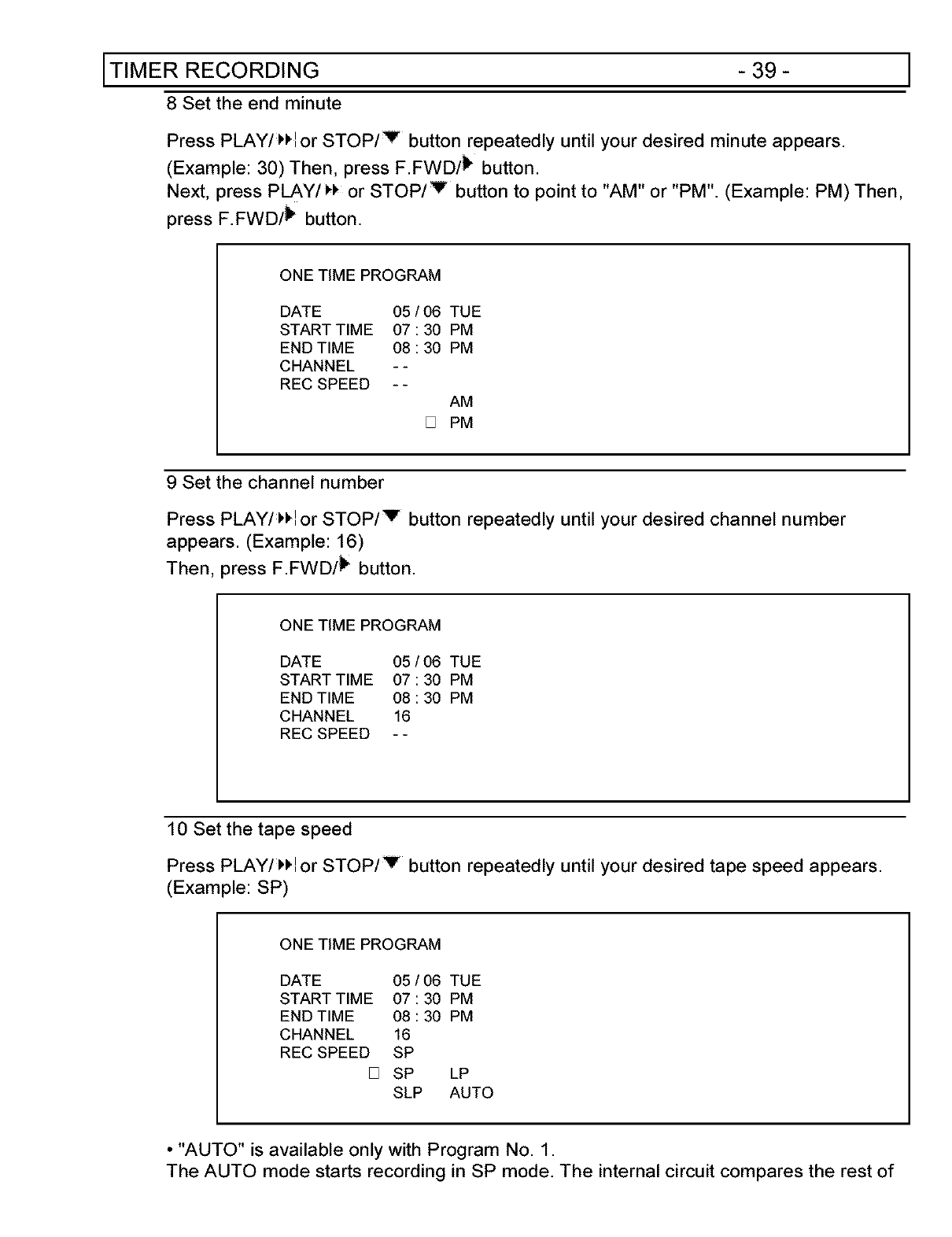

TIMER RECORDING
8 Set the end minute
- 39 - ]
Press PLAY/_I or STOP/V button repeatedly until your desired minute appears.
(Example: 30) Then, press F.FWD/!_ button.
Next, press PLAY/_ or STOP/v button to point to "AM" or "PM". (Example: PM) Then,
press F.FWD/_ button.
ONE TIME PROGRAM
DATE 05/06 TUE
START TIME 07:30 PM
END TIME 08:30 PM
CHANNEL --
REC SPEED -- AM
[] PM
9 Set the channel number
Press PLAY/_)l or STOP/v button repeatedly until your desired channel number
appears. (Example: 16)
Then, press F.FWD/) button.
ONE TIME PROGRAM
DATE 05/06 TUE
START TIME 07:30 PM
ENDTIME 08:30 PM
CHANNEL 16
REC SPEED --
10 Set the tape speed
Press PLAY/))/or STOP/Y button repeatedly until your desired tape speed appears.
(Example: SP)
ONE TIME PROGRAM
DATE 05/06 TUE
START TIME 07:30 PM
ENDTIME 08:30 PM
CHANNEL 16
REC SPEED SP
[] SP LP
SLP AUTO
• "AUTO" is available only with Program No. 1.
The AUTO mode starts recording in SP mode. The internal circuit compares the rest of
TIMER RECORDING - 40 -
the program against the available tape length. If the internal circuit determines that the
available tape is not long enough to record the program in the SP mode, the Recording
mode is automatically changed to SLP mode. This will assure coverage of the desired
timer program before the end of the tape is reached. See "Just-In Time Recording" on
page 25 for the use of "AUTO" setting.
11 Finish setting the program
Press F.FWD/I_ button. Program 1 is now completed.
• To set another program, repeat steps [2] to [11].
• Press MENU button to return to original mode.
12 Set the timer
Press POWER button. The "[1" indicator on the VCR comes on.
2J n I
• Please see "HINTS FOR TIMER RECORDING" on page 24 for more notes.
TO CORRECT AN AUTOMATIC TIMER PROGRAM
1
1) Turn the power on and press VCR/TV button on the remote control so that the "VCR"
indicator appears on the display.
2) Repeat steps [1] to [3] on page 22.
3) Go to the digit you want to change using the F.FWD/_ button or REW/¢ button.
4) Enter correct numbers using PLAY/_ or STOP/v button.
4) Press MENU button to return to original mode.
5) Press POWER button to return to timer stand-by mode.
TO STOP AN AUTOMATIC TIMER PROGRAM WHICH HAS ALREADY
STARTED
Press STOP/EJECT button on the VCR.
NOTE:STOP butto n on the remote control will not function in the Automatic Timer Recording 1
mode. l
TO CANCEL OR CHECK THE START/END TIME
1) Turn the power on and press VCR/TV button on the remote control so that the "VCR"
indicator appears on the display.
2) Press MENU button on the remote control.
3) Select a program number you want to check using PLAY/_l or STOP/v button. The
details of selected program appears on the TV screen.
You may cancel the entire program by pressing REW/4 button.
4) Press MENU button to return to original mode.
TIMER RECORDING - 41 - ]
• If there is a power failure or the VCR is unplugged for more than 30 seconds, the clock
setting and all timer settings are lost.
• If the tape runs out before the end time, the VCR will switch to the Stop mode
immediately, eject the tape and the VCR power will be turned off. The "IF' indicator will
flash.
• If a tape is not inserted or the erase-protection tab is removed, the "IF' indicator
flashes and automatic timer recording cannot occur. Insert a tape that allows recording.
• The TV that is connected to your VCR may be turned ON or OFF when the VCR is in
the timer-record mode.
• When you record a cable channel program with cable converter box, first set the
VCR's channel to 3 or 4 whichever is the output channel of your cable converter box.
Then set your cable converter box to the channel you want to record and leave on while
you are recording with power on.
If you select auto return to [AUTO] from the menu, when all the timer recordings are
completed, the VCR will rewind to the beginning of the recorded programs(s).
Make sure...
•If there are any remaining programs including Daily & Weekly, this function will
not be done.
1 Select "VCR SET UP"
Press MENU button repeatedly so that the VCR SET UP menu appears.
VCR SET UP
TAPE SELECT
AUTO REPEAT
RENTAL
[] AUTO RETURN
~T 130
2 Select "AUTO RETURN"
Press PLAY/_)I or STOP/V button repeatedly to point to "AUTO RETURN".
3 Select "AUTO"
Press F.FWD/1_ button so that [AUTO] will appear next to "AUTO RETURN".
VCR SET UP
TAPE SELECT ~T130
AUTO REPEAT
RENTAL
TIMER RECORDING - 42 -
[] AUTO RETURN [AUTO]
4 Exit the Auto Return mode
Press MENU button to return to the original mode.
NOTE: To eXit the auto return programmingl repeat steps [1]to [2]. Thenl press F.FWDi_
buttonl [AUTO] wi!! then disappear from the menu, Press MENU button to retum to TV model
WATCH THE RECORDED PROGRAM
Press POWER button to turn on the VCR. Then, press PLAY button.
This function allows you to fully utilize the available tape length for timer recording. The
VCR calculates the remaining tape amount and then adjusts the tape speed from SP to
SLP as needed.
If it is suspected that the end of the tape will be reached before the reserved program
ends (as long as SP mode is kept all the way), set recording mode to AUTO. This
function is available only with Program No. 1 (Timer Recording).
The auto mode starts recording in SP mode. The internal circuit compares the rest of
the program against the available tape length. If the internal circuit determines that the
available tape is not long enough to record the program in the SP mode, the Recording
mode is automatically changed to SLP mode. This will assure coverage of the desired
timer program before the end of the tape is reached.
' Set the tape remainder switch ("*.TOO"; "_.T!30" or ',T140_.,)to the tape i0aded, see"setting
the Remaining Time, on next page.
• Even when SLP mode is selected, just, in time recording cannot compensate fora tape length
which maY be too short.
• A momentary picture breakup will occur at the point on the tape when the recording speed
changes from SP to SLP.
SETTING THE REMAINING TIME - 43 -
• The displayed remaining tape running time may not always match the actual remaining time
on the tape (usually longer than the actual time), It is recommended to set the end of the
reversed recording time several minutes after the end of the TV program.
• T-180 and longer-play cassette tapes or different types may fail to make complete recording.
You can set the remaining tape running time of your tape. Follow the steps below to
correct the tape remaining indication.
Make sure...
• You must use the remote control for the following procedure.
•VCR power must be turned on.
•Turn on the TV and set the -IV channel to the same video output channel as located
on the back of the VCR. (CH3 or 4)
•Press VCR/TV button on the remote control so that the "VCR" indicator appears on the
display.
• A video cassette must be inserted in the VCR for this function to work.
1 Select "VCR SET UP"
Press MENU button repeatedly so that the VCR SET UP menu appears.
2 Select "~T60", "~T130" or "T140~"
VCR SET UP
[] TAPE SELECT
AUTO REPEAT
RENTAL
AUTO RETURN
~T 130
Confirm "TAPE SELECT" is pointed.
Then, press F.FWD/) button so that your desired time appears.
Selection
~T60
~T130
T140~
Your cassette tape length
60 minutes or less
61~130 minutes
140 minutes or greater
For example, the popular T-120 cassette tape calls for the "~T130" selection.
3 Exit the preset mode
Press MENU button on the remote control to return to TV mode.
4 To check the remain time
Press DISPLAY button on the remote control until REMAIN appears on TV screen.
COPYING A VIDEO TAPE - 44 - ]
PLAY_-
SP REMAIN - : -- ~T130
Note:
,The Remain Time Mode calculation wi!l start when the cassette tape is inserted and PLAY I
button !s pFessed:
While calculating, the TV screen shows as illustrated, l
REMAINING TAPE RUNNING TIME DISPLAY
•Since the reel diameter and tape thickness are not common to all cassettes, the time
count differs from cassette to cassette. Use the time display as an informative number
only.
• During recording, the remaining tape running time is estimated based on the current
recording mode (SP, LP, SLP).
• During playback the remaining tape running time is calculated based on the current
playback mode.
• Remain time will not appear on TV screen while in the Fast forward or Rewind Mode.
• There will be a delay of up to 1 minute before the remain time appears on the TV
display.
Note:
The use of the following tapes will result in difference between the displayed remaining time
and actual time to the end of the tape
•Tape housed in a VHS-C cassette adapter.
• Shorter tape length such as a 10-minute cassette.
• T-180 cassette, in this case the display may read 2 Hours 40 Minutes at the starting point in
SP mode.
• An exact remaining tape running time might not be displayed with T-180 and longer-play
cassette tapes or different types of cassette tapes.
Connect the editing (recording) VCR, source (playing) VCR and your TV using the
following diagram.
EXAMPLE: The editing (recording) VCR is this unit. The source (playing) VCR is
another VCR.

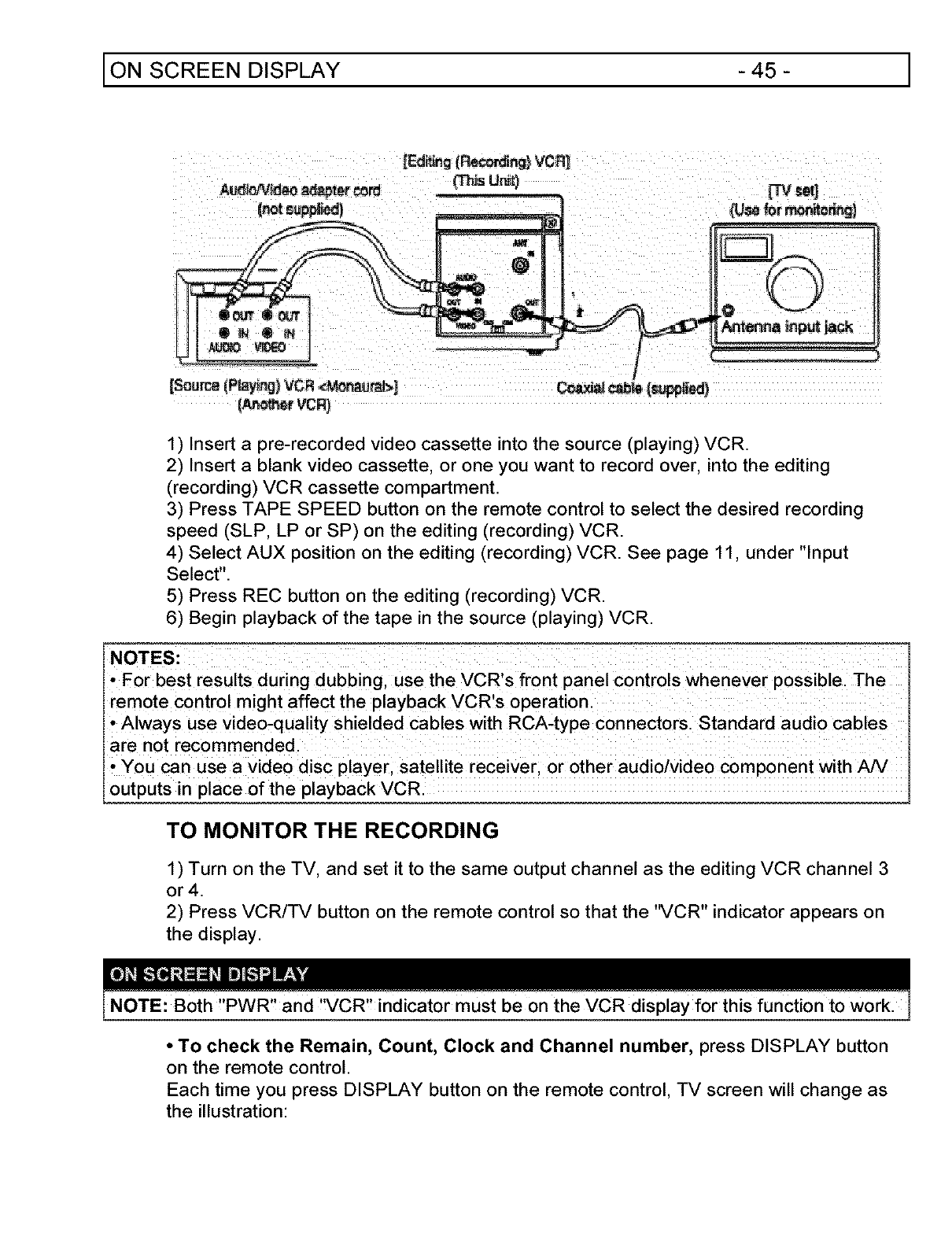

ON SCREEN DISPLAY -45- l
[Source (P6_) VCR _]
(_r VOR)
/
{Usefor_g_
G_k
1) Insert a pre-recorded video cassette into the source (playing) VCR.
2) Insert a blank video cassette, or one you want to record over, into the editing
(recording) VCR cassette compartment.
3) Press TAPE SPEED button on the remote control to select the desired recording
speed (SLP, LP or SP) on the editing (recording) VCR.
4) Select AUX position on the editing (recording) VCR. See page 11, under "Input
Select".
5) Press REC button on the editing (recording) VCR.
6) Begin playback of the tape in the source (playing) VCR.
• For best reSUlts during dubbing, use the VCR s front panel controls whenevei possible The
emote control might affect the playback VCR,s operation
Always use Video,quality shielded Cables with RCA4ype connector& Standard audio cables
are not recommended
You can use a Video disc playerl satellite receiverl or other audioivideo component With AN
outputs in place of the playback VCR
TO MONITOR THE RECORDING
1) Turn on the TV, and set it to the same output channel as the editing VCR channel 3
or4.
2) Press VCR/TV button on the remote control so that the '_/CR" indicator appears on
the display.
NOTE: Both "PWR" and "VCR" indicator must be on the VCR display for this function to work
•To check the Remain, Count, Clock and Channel number, press DISPLAY button
on the remote control.
Each time you press DISPLAY button on the remote control, -IV screen will change as
the illustration:
DIGITAL DISPLAY
_OFF mode> _REMAIN mede_ _COUNTmede> _CLOCK mode>
- 46 - ]
Digital Display Illustration
1. PWR. (power) indicator - Lights up when the power is turned on.
2. [] indicator - Lights up when a timer recording has been set. Flashes if a tape is not
inserted in the VCR even if you set a timer.
3. Cassette indicator - Lights up when there is a tape in the VCR.
4. VCR indicator - Indicates that the VCR is in the VCR position.
5. REC indicator - Lights up when the VCR is in the Recording mode. Flashes when a
recording has been paused.
6. Clock/Feature indicator - Indicates the current time (when the clock is set), and
briefly displays which feature the VCR is currently performing as the illustration.
• This shows the elapsed recording or playback time in hours, minutes, and seconds.
(not in the case of blank portion)
• The "-" indication will appear when the tape is rewound further than the tape counter
position "0:00:00".
- 0:00:12
When the end of a tape is reached during recording, playback, or fast-forward, the tape
will automatically rewind to the beginning. After that, the VCR will eject the tape and turn
itself to off.
CONTROLLING YOUR TV WITH THE VCR'S REMOTE - 47 -
,The tape wil ! not auto-rewind during timer recording or !nstant Recording Timer.
• When the Counter Memory is activated, the tape will rewind to the M0:00100 and the VCR wi! !
be in the Stop mode.
This Hitachi remote control can be used with your TV as well as the VCR, as long as
your TV comes with a remote control. This feature comes in handy--you don't have to
juggle two remotes.
The remote control is compatible with the fifteen makers of TVs listed below--but don't
be alarmed if yours is not on our list. You may still be able to program the remote for
your TV.
Every TV that comes with a remote control is set up to detect certain infrared signals.
You need to program the VCR's remote control to send signals that your TV will
recognize and respond to. Here's what to do:
Compatibility
• The remote control is designed to be operated with many televisions and cable
converters, but will not work with every one made. If your TV or cable box does not
respond the way it should when you program if as explained follows, this remote may be
incapable of operating it.
• Once you have programmed the remote, you won't have to do it again until you
change the batteries.
PROGRAMMING THE REMOTE CONTROL OF THE TV
1 Turn on the TV
Turn on the TV (any channel is okay).
2 Program the remote control
Aim the VCR's remote control at your TV set. Hold down the TV button (not the
VCR/TV button) while you press the number corresponding to your brand of television
as shown in the chart.
For example; If you have an RCA television, press TV and 0 at the same time. If this
button combination sends a signal that matches with your TV, the channel will change
on the TV, and you'll know the remote is set to control the television.
NOTES:
• If that button combination does not change the TV channel go through the whole list of
button combinations one by one until you find one that does change your TV channel.
• Also, if your brand of TV is not listed in the chart, try all the number buttons. One of them may
work for you.
•If the TV channel still doesn't change after going through all the button combinations listed, it
is likely that you will not be able to program this remote control for your -I-V,
TV Brands Press TV and This Number
Hitachi 1
CONTROLLING
Zenith 2
Sony 3
Magnavox 4
Sanyo 5
Gold Star 1 6
Toshiba 7
Gold Star 2 8
Panasonic 2 9
RCA 0
Panasonic 1 CH (up arrow)
Mitsubishi CH (down arrow)
JVC 100/ENT
Sharp 1 MEMORY
Sharp 2 SELECT
YOUR TV WITH THE VCR'S REMOTE - 48 - ]
CONTROLLING THE TV
Once programmed, the VCR's remote control is ready to control the TV.
NOTE:Be aware that not all of your TV's functions may work even though the rem0te control
is correctly programmed.
1 Select the TV function mode
First press TV button to change to the TV function mode, then press the button of the
TV function that you want.
For example;
Press TV button and the CH (_I), and the TV station will change to the next higher
station.
2 Return to the VCR function mode
Press VCR button to operate your VCR with the remote again.
If you have a cable converter, you will probably want to program your VCR's remote
control so you can easily change channels. The process is the same as for
programming the remote to operate your TV. For additional details, see the previous
page.
PROGRAMMING THE REMOTE CONTROL OF THE CABLE
CONVERTER
1 Program the remote control
Hold down the CATV button and press the number of your brand of cable box (shown in
the chart).
NOTE:!f that button Combination does not workl or if your brand is not on the chart, just go 1
throughall the button Combinationsuntil you find the one that works best. 1
TROUBLESHOOTING GUIDE
Cable Converters
Jerrold 1
Jerrold 2
Jerrold 3
Hamlin 4
Zenith 5
Scientific Atlanta 6
Pioneer 7
Philips 8
- 49 - ]
Press CATV and This Number
1
2
3
TO OPERATE THE CABLE BOX ONCE THE REMOTE IS
PROGRAMMED FOR IT.
1 Press CATV and then the button of the function you want.
2 Press VCR button to operate your VCR with the remote again.
If you have followed the instructions contained in this manual and have difficulty in
operating your VCR, locate the SYMPTOM in the left column below. Check the
corresponding POSSIBLE CAUSE and CORRECTIVE ACTION columns to remedy the
problem.
SYMPTOM
No power.
Timer recording is
not possible.
Recording mode
cannot be engaged.
POSSIBLE CAUSE
•Power cord is not connected.
• The VCR power is turned off.
CORRECTIVE ACTION
• Connect power cord to AC outlet.
•Press POWER button to turn on the
VCR.
• The timer recording is set incorrectly.
• The VCR power is turned on.
• VCR clock is not set correctly.
• The erase prevention tab on
cassette is missing.
• Set the timer recording
correctly.
• Press POWER button to turn off
the VCR.
• Set VCR clock correctly.
• Place a plastic tape over the hole.
No picture or poor • The TV and/or VCR is in the TV • Set your TV to the the VCR mode
picture on playback, mode. and/or press VCR/TV button so that the
• The TV fine tuning is not set
correctly.
Noise in picture on • Video heads are dirty.
playback.
Playback picture is • The tracking control is not set
partially noisy, correctly.
VCR/TV indicator on the VCR comes
on.
• Fine tune your TV.
• Head cleaning is necessary, consult
the nearest Funai Authorized Service
Center.
• Adjust tracking control for a better
picture using CHANNEL _)l or V
button. See page 16.
On-the-air TV • Connections are not correctly made. • Re-check the ANT.IN and
programs cannot be ANT.OUT connections..
seen. • The TV and/or VCR is in VCR Set your TV to the TV mode and/or
mode. press VCR/TV button so that the
MAINTENANCE - 50 - ]
No operation by
infrared Remote
Control.
Operation buttons do
"AUTOMATIC
not work after there is
page 12.
a power failure or you
•Weak batteries.
SERVICING
VCR/TV indicator on the VCR
disappears.
• Check the batteries in the remote
control.
• Channel Memory Programming is
required because programmed
channels are erased.
• See "NOTES" under
CHANNEL PRESET" on
Should your VCR become inoperative, do not try to correct the problem by yourself.
There are no user-serviceable parts inside. Turn off, unplug the power cord, and take
the unit to Hitachi Authorized Service Center for servicing.
CABINET CLEANING
• Wipe the front panel and other exterior surfaces of the VCR with a soft cloth immersed
in lukewarm water and wrung dry.
• Never use a solvent or alcohol. Do not spray insecticide liquid near the VCR. Such
chemicals may cause damage and discoloration to the exposed surfaces.
HEAD CLEANING
Playback picture may become blurred or interrupted while the TV program reception is
clear. Dirt accumulated on the video heads after long periods of use, or the usage of
rental or worn tapes can cause this problem. If a streaky or snowy picture appears
during playback, the heads of your VCR may need to be cleaned.
1. Please visit your local AudioNideo store and purchase a good quality VHS Video
Head Cleaner.
2. If a Video Head Cleaner does not solve the problem, consult the nearest Hitachi
Authorized Service Center. Professional video head cleaning requires highly technical
attention.
• Remember to read the instructions included with the head cleaner before use.
'C!ean heads on!y when prob!ems occur.
Format: VHS
Video Signal System: NTSC color EIA standard
Record/Playback System: Video: 4 heads
Tape Speed:
RF Input:
Tuner:
Type:
Power Input:
33.35mm/sec (SP), 16.67mm/sec (LP), 11.12mm/sec (SLP)
UHFNHF 75 ohm
181 channel tuning ability *(125 cable channels)
Auto programming frequency synthesis
AC120V 60Hz

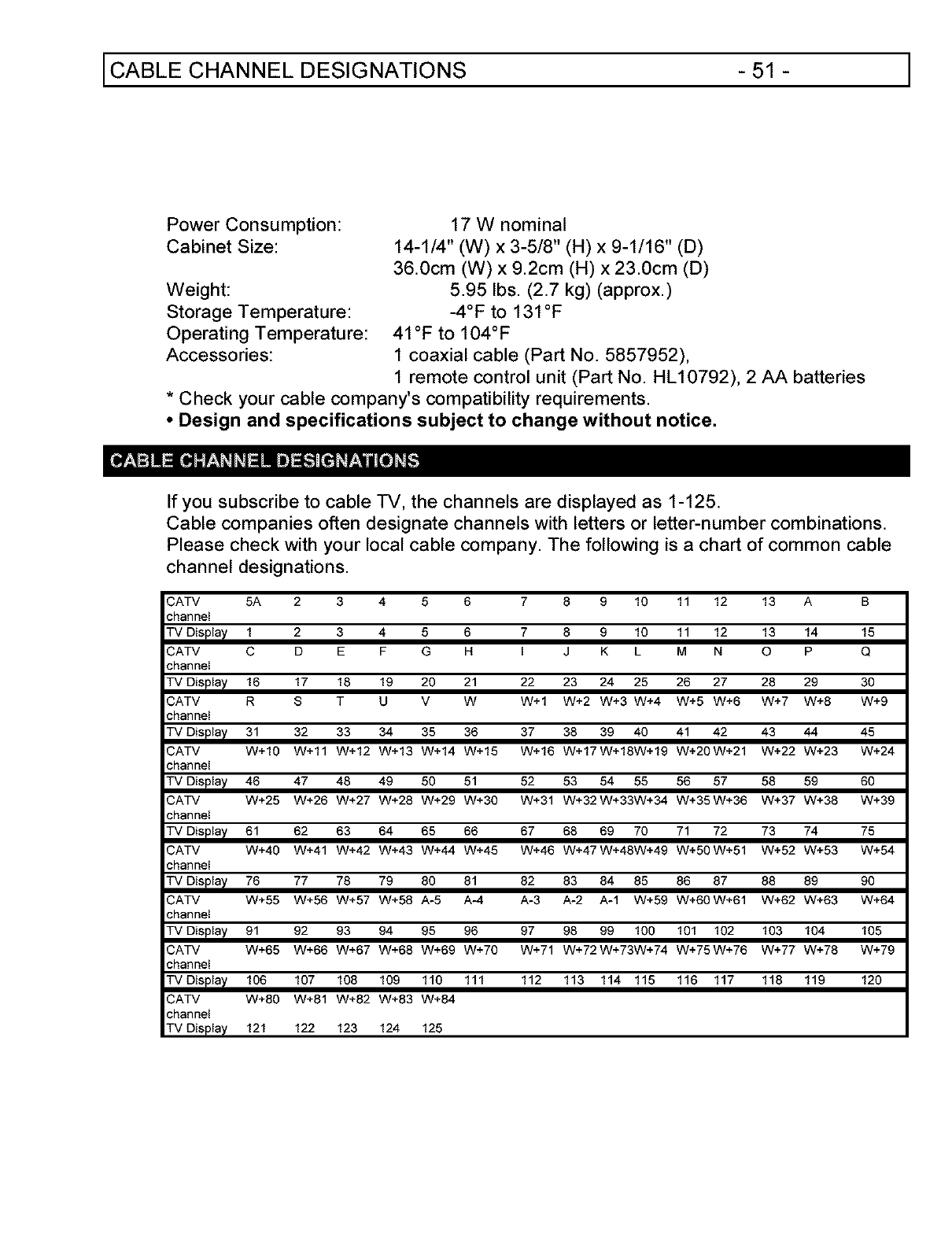

CABLE CHANNEL DESIGNATIONS - 51 - ]
Power Consumption:
Cabinet Size:
Weight:
Storage Temperature:
Operating Temperature:
Accessories:
17 W nominal
14-1/4" (W) x 3-5/8" (H) x 9-1/16" (D)
36.0cm (W) x 9.2cm (H) x23.0cm (D)
5.95 Ibs. (2.7 kg) (approx.)
-4°F to 131°F
41°F to 104°F
1 coaxial cable (Part No. 5857952),
1 remote control unit (Part No. HL10792), 2 AA batteries
*Check your cable company's compatibility requirements.
• Design and specifications subject to change without notice.
If you subscribe to cable TV, the channels are displayed as 1-125.
Cable companies often designate channels with letters or letter-number combinations.
Please check with your local cable company. The following is a chart of common cable
channel designations.
SATV 5A 2 3 4 5 6 7 8 9 10 11 12 13 A B
:hannel
TV Display 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
/ /
SATV C D E F G H IJ K L M N O P Q
:hannel
TV Display 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
/ /
3ATV R S T U V W W+I W+2 W+3 W+4 W+5 W+6 W+7 W+8 W+9
:hannel
TV Display 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45
/ /
SATV W+10 W+11 W+12 W+13 W+14 W+15 W+16 W+17W+18W+19 W+20W+21 W+22 W+23 W+24
shannel
TV Display 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
/ /
SATV W+25 W+26 W+27 W+28 W+29 W+30 W+31 W+32W+33W+34 W+35W+36 W+37 W+38 W+39
shannel
TV Display 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75
/ /
SATV W+40 W+41 W+42 W+43 W+44 W+45 W+46 W+47W+48W+49 W+50W+51 W+52 W+53 W+54
:hannel
TV Display 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90
/ /
SATV W+55 W+56 W+57 W+58 A-5 A-4 A-3 A-2 A-1 W+59 W+60W+61 W+62 W+63 W+64
:hannel
TV Display 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105
/ /
SATV W+65 W+66 W+67 W+68 W+69 W+70 W+71 W+72W+73W+74 W+75W+76 W+77 W+78 W+79
:hannel
TVDisplay 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120
/ /
SATV W+80 W+81 W+82 W+83 W+84
_hannel
TV Display 121 122 123 124 125
