HKC WD65NH4190 LCD TV User Manual

HKC Corporation Limited LCD TV Users Manual

User Manual

USER’S MANUALMANUEL DE L’UTILISATEURMANUAL DEL USUARIOWD65NH4190

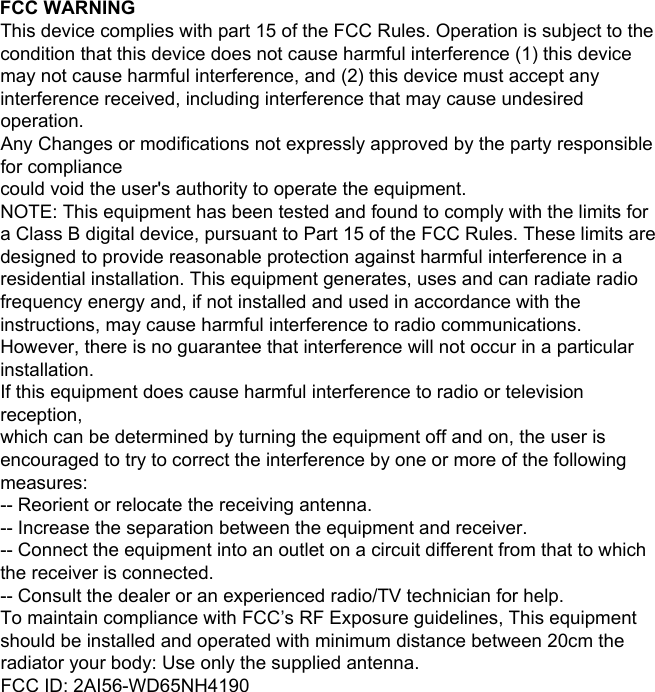

FCC WARNINGThis device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Any Changes or modifications not expressly approved by the party responsible for compliancecould void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.FCC ID: 2AI56-WD65NH4190
1EnCONTENTSImportant Safety InstructionsSafety InformationPreparationWhat's IncludedFront ViewRear ViewInstalling the StandRemoving the Stand for Wall-MountingRemote ControlConnecting External DevicesCustomizing TV SettingsInitial SetupNavigating the Setup SettingsAppsMediaViewing PhotosPlaying MusicSourceSetupSystemChannelSupportLockPictureNetworkAudioParental ControlTroubleshootingMaintainingOTT APP Service2344567789101011121313141515161818192021222325262728Playing Movie 14

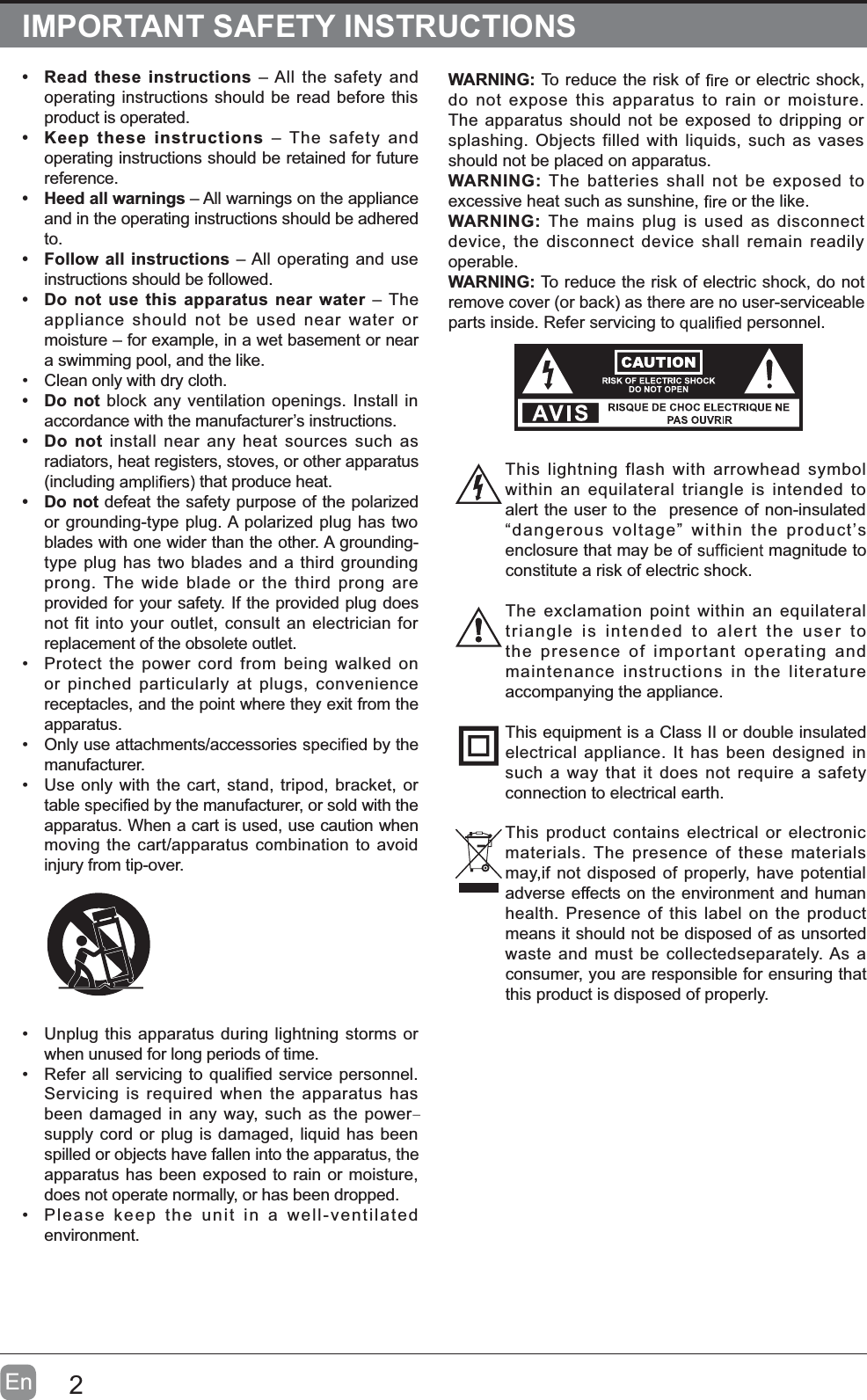

2En IMPORTANT SAFETY INSTRUCTIONStRead these instructions – All the safety and operating instructions should be read before this product is operated. tKeep these instructions – The safety and operating instructions should be retained for futurereference. tHeed all warnings – All warnings on the applianceand in the operating instructions should be adheredto. tFollow all instructions – All operating and use instructions should be followed. tDo not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or neara swimming pool, and the like. Clean only with dry cloth.t Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.tDo not install near any heat sources such as radiators, heat registers, stoves, or other apparatus(including that produce heat. t Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from theapparatus. Only use attachments/accessories by the manufacturer. Use only with the cart, stand, tripod, bracket, or table by the manufacturer, or sold with the apparatus. When a cart is used, use caution whenmoving the cart/apparatus combination to avoid injury from tip-over. WARNING: To reduce the risk of or electric shock,do not expose this apparatus to rain or moisture.The apparatus should not be exposed to dripping or splashing. Objects filled with liquids, such as vases should not be placed on apparatus. WARNING: The batteries shall not be exposed to excessive heat such as sunshine, or the like.WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readilyoperable.WARNING: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceableparts inside. Refer servicing to personnel. Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power－supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, theapparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Please keep the unit in a well-ventilated environment.This lightning flash with arrowhead symbolwithin an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of magnitude to constitute a risk of electric shock.The exclamation point within an equilateraltriangle is intended to alert the user to the presence of important operating andmaintenance instructions in the literature accompanying the appliance. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safetyconnection to electrical earth.This product contains electrical or electronicmaterials. The presence of these materialsmay,if not disposed of properly, have potentialadverse effects on the environment and human health. Presence of this label on the product means it should not be disposed of as unsorted waste and must be collectedseparately. As a consumer, you are responsible for ensuring that this product is disposed of properly.

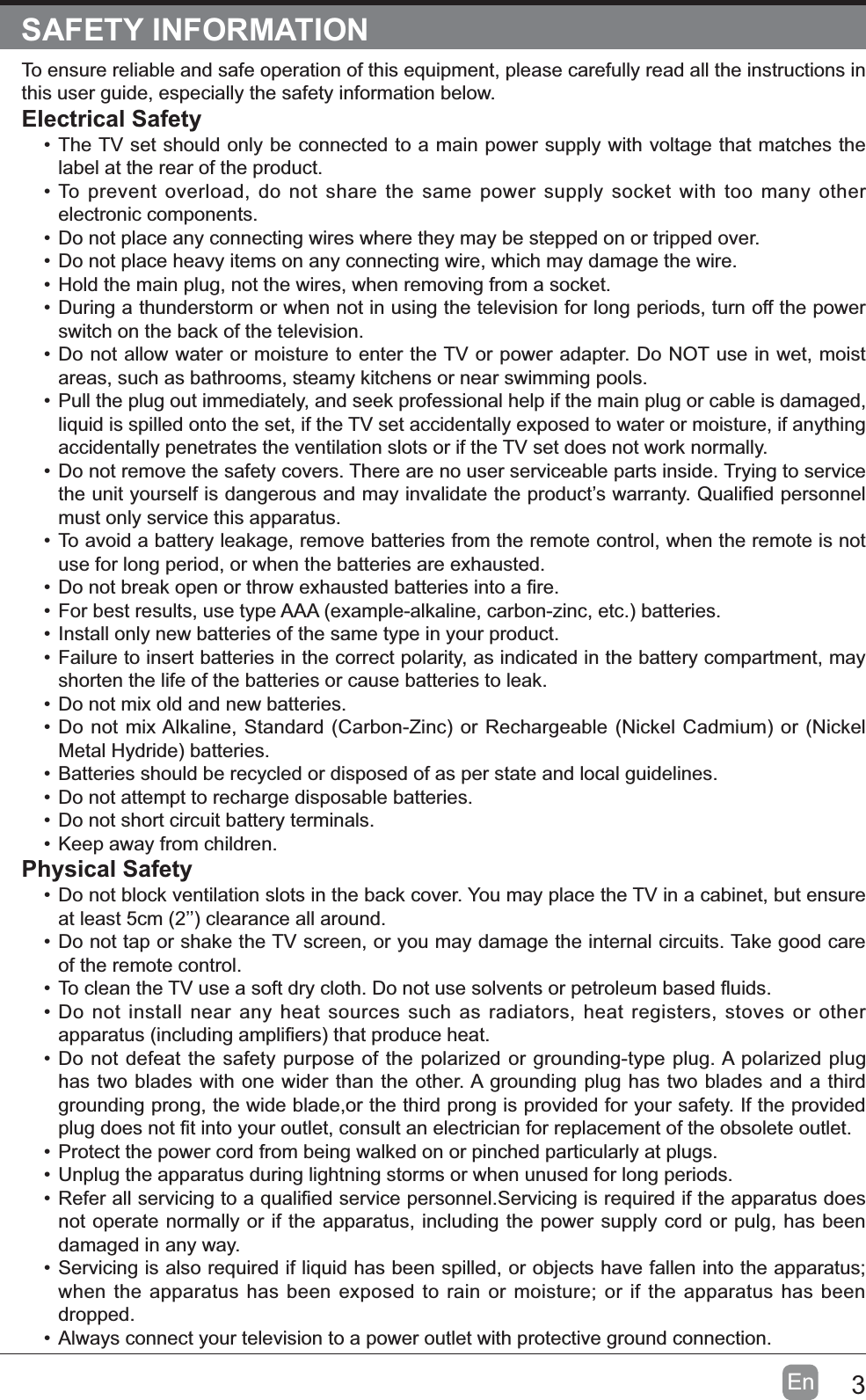

3EnSAFETY INFORMATIONTo ensure reliable and safe operation of this equipment, please carefully read all the instructions in this user guide, especially the safety information below.Electrical SafetyThe TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product.To prevent overload, do not share the same power supply socket with too many other electronic components.Do not place any connecting wires where they may be stepped on or tripped over.Do not place heavy items on any connecting wire, which may damage the wire.Hold the main plug, not the wires, when removing from a socket.During a thunderstorm or when not in using the television for long periods, turn off the power switch on the back of the television.Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist areas, such as bathrooms, steamy kitchens or near swimming pools.Pull the plug out immediately, and seek professional help if the main plug or cable is damaged, liquid is spilled onto the set, if the TV set accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the TV set does not work normally.Do not remove the safety covers. There are no user serviceable parts inside. Trying to service must only service this apparatus.To avoid a battery leakage, remove batteries from the remote control, when the remote is not use for long period, or when the batteries are exhausted.Install only new batteries of the same type in your product.Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may shorten the life of the batteries or cause batteries to leak.Do not mix old and new batteries.Batteries should be recycled or disposed of as per state and local guidelines.Do not attempt to recharge disposable batteries.Do not short circuit battery terminals.Keep away from children.Physical SafetyDo not block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure Do not tap or shake the TV screen, or you may damage the internal circuits. Take good care of the remote control.Do not install near any heat sources such as radiators, heat registers, stoves or other Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong, the wide blade,or the third prong is provided for your safety. If the provided Protect the power cord from being walked on or pinched particularly at plugs. Unplug the apparatus during lightning storms or when unused for long periods.not operate normally or if the apparatus, including the power supply cord or pulg, has been damaged in any way.Servicing is also required if liquid has been spilled, or objects have fallen into the apparatus; when the apparatus has been exposed to rain or moisture; or if the apparatus has been dropped.Always connect your television to a power outlet with protective ground connection.

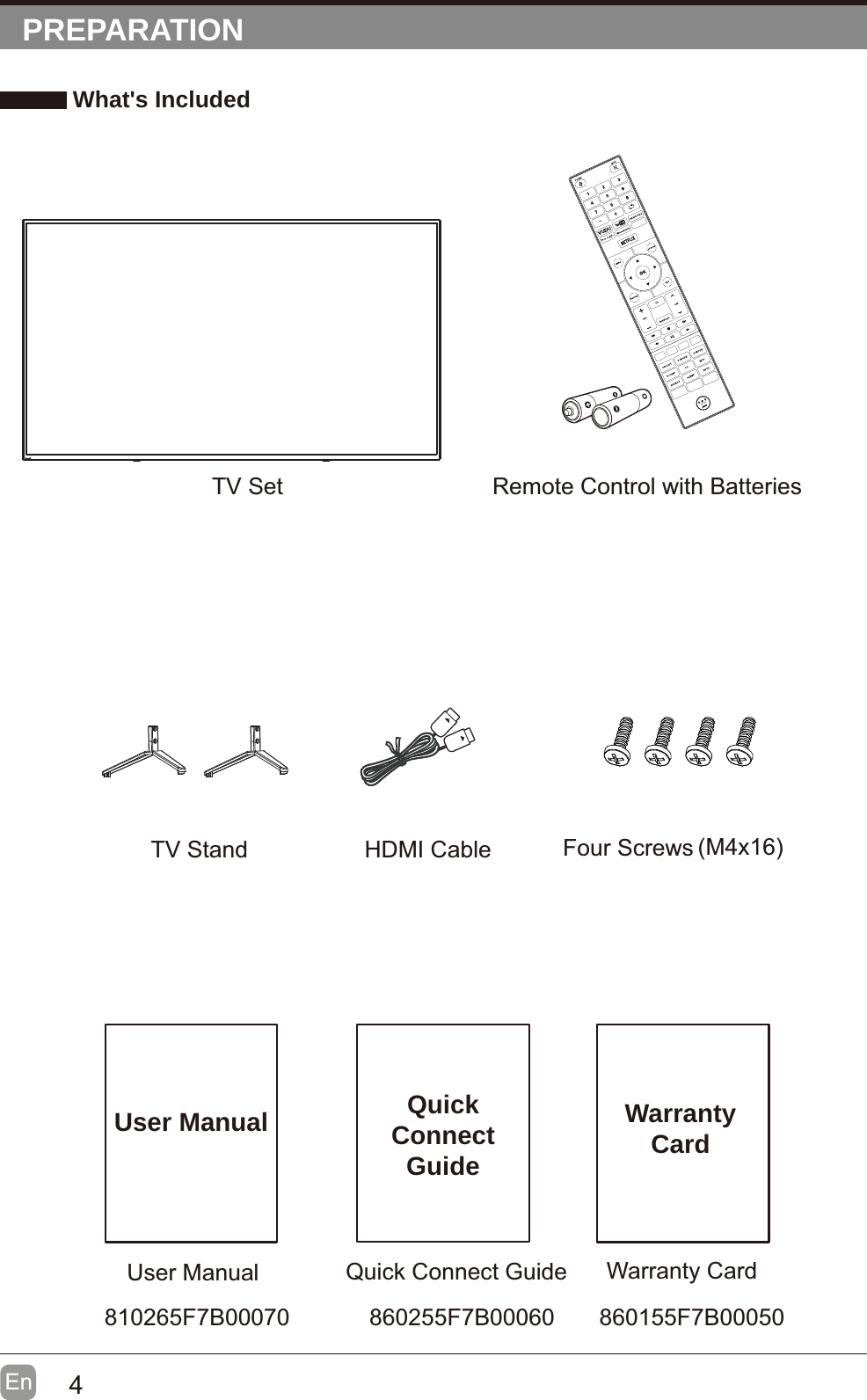

4En PREPARATION What's IncludedQuick Connect GuideQuickConnectGuideUser ManualUser ManualRemote Control with BatteriesWarranty CardWarranty CardTV SetTV Stand HDMI Cable Four Screws (M4x16)810265F7B00070 860255F7B00060 860155F7B00050

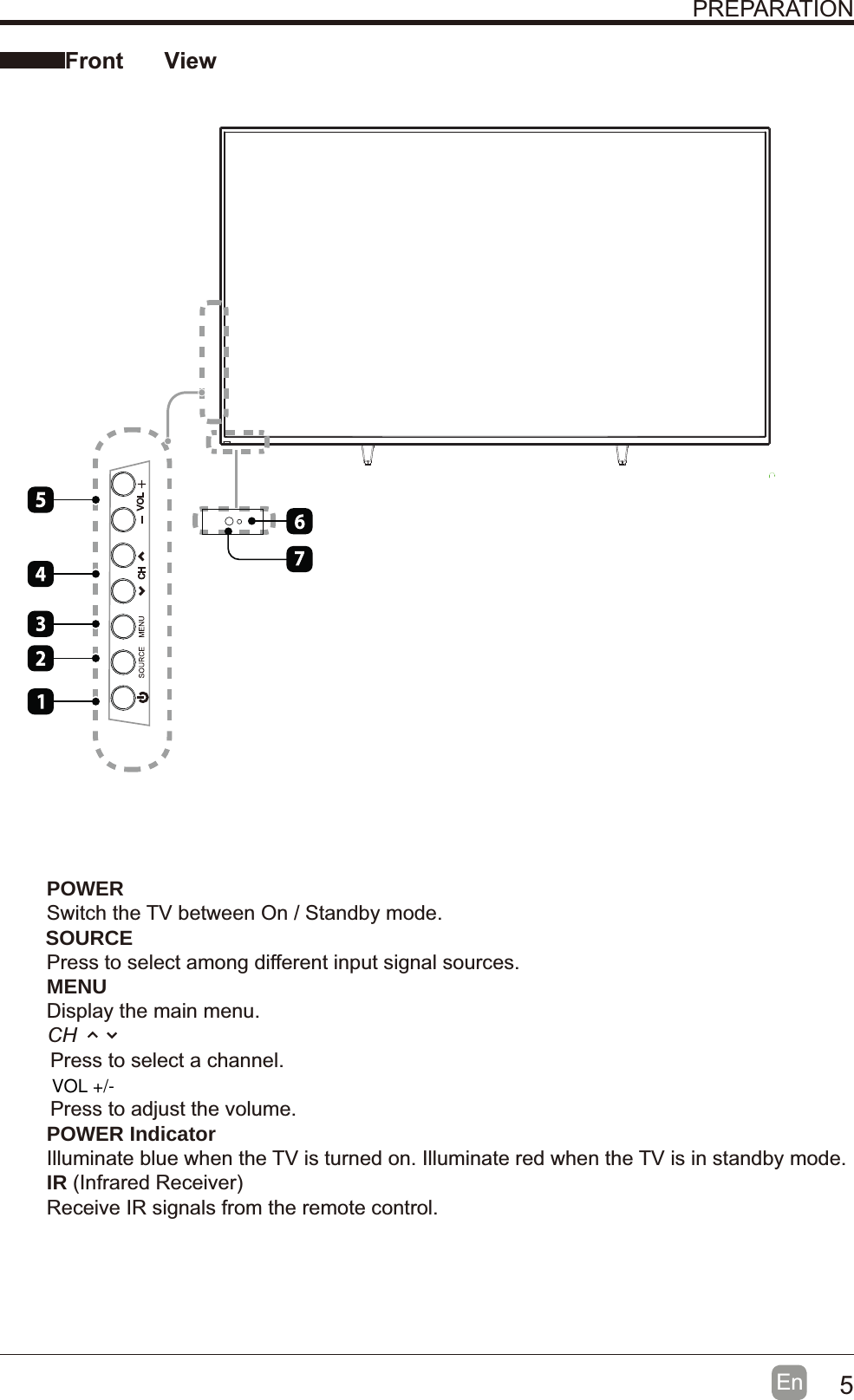

5En POWERSwitch the TV between On / Standby mode.SOURCEPress to select among different input signal sources. MENUDisplay the main menu. CH Press to select a channel.Press to adjust the volume. POWER IndicatorIlluminate blue when the TV is turned on. Illuminate red when the TV is in standby mode. IR (Infrared Receiver)Receive IR signals from the remote control.PREPARATIONFront ViewVOL +/-

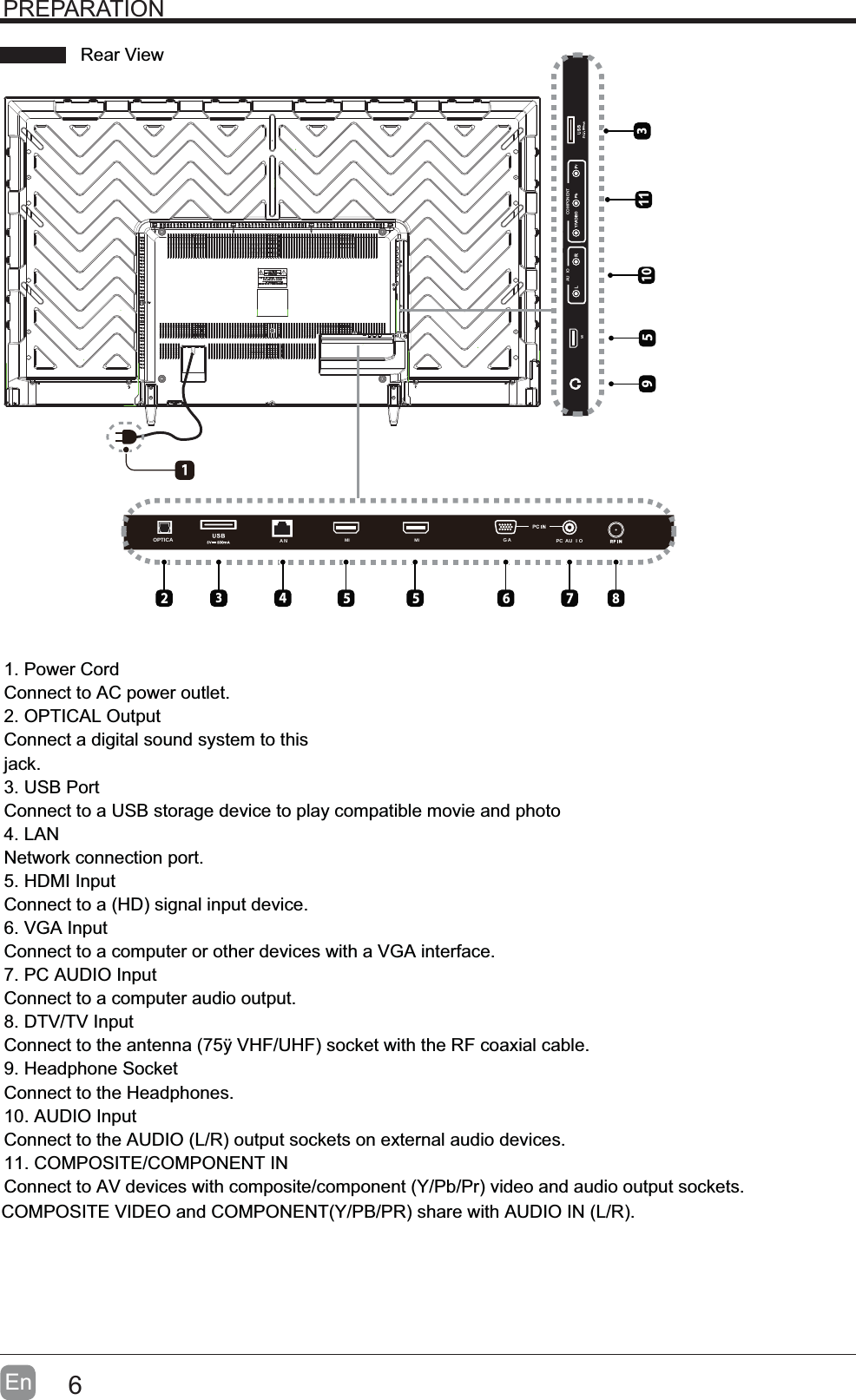

6En PREPARATION10COMPONENTAU IO900MIANOPTICA PC AU I OGAMIMIRear View1. Power CordConnect to AC power outlet.2. OPTICAL OutputConnect a digital sound system to thisjack.3. USB PortConnect to a USB storage device to play compatible movie and photo4. LANNetwork connection port.5. HDMI InputConnect to a (HD) signal input device.6. VGA InputConnect to a computer or other devices with a VGA interface.7. PC AUDIO InputConnect to a computer audio output.8. DTV/TV InputConnect to the antenna (75ÿ VHF/UHF) socket with the RF coaxial cable.9. Headphone SocketConnect to the Headphones.10. AUDIO InputConnect to the AUDIO (L/R) output sockets on external audio devices.11. COMPOSITE/COMPONENT INConnect to AV devices with composite/component (Y/Pb/Pr) video and audio output sockets. COMPOSITE VIDEO and COMPONENT(Y/PB/PR) share with AUDIO IN (L/R).

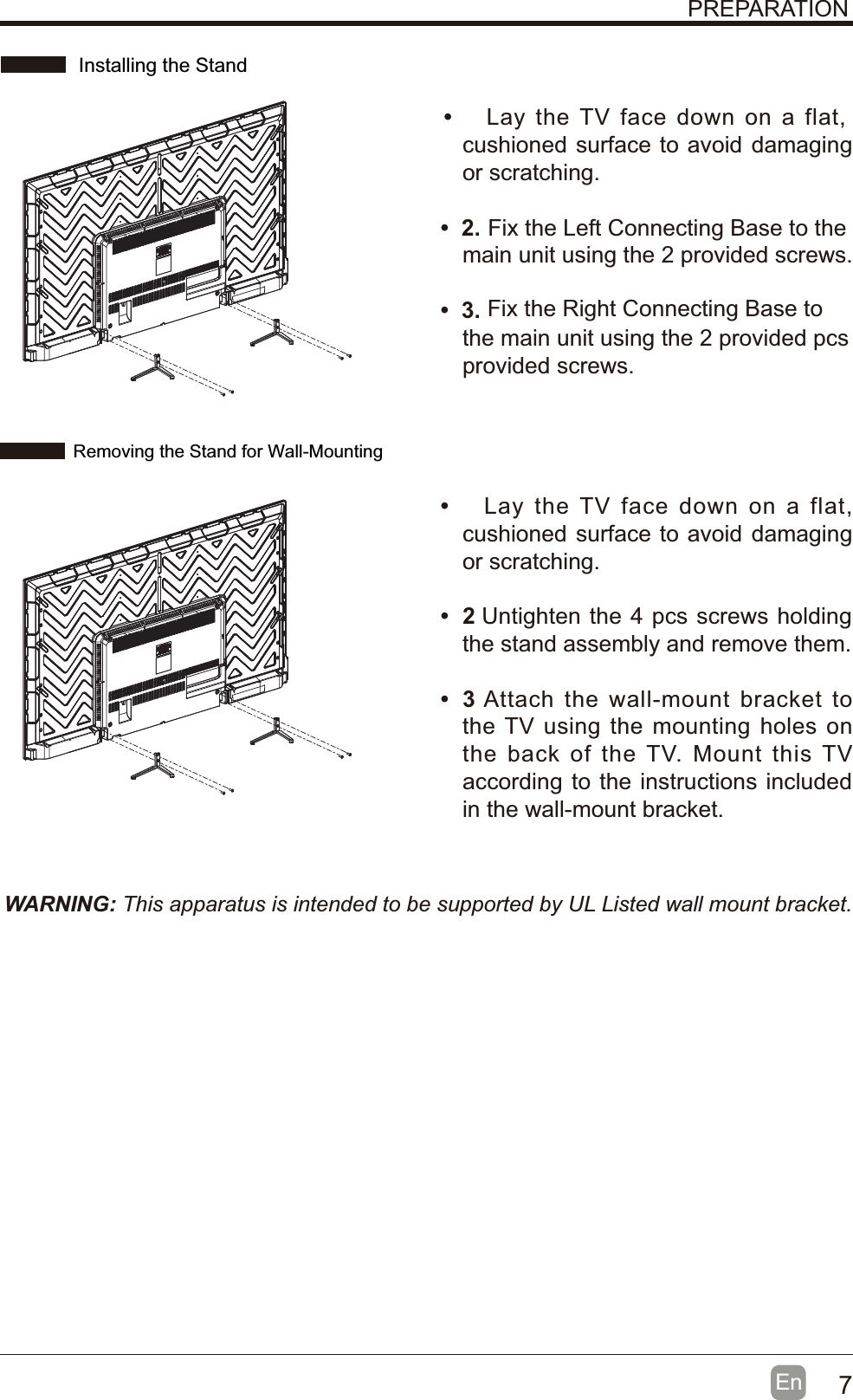

7En WARNING: This apparatus is intended to be supported by UL Listed wall mount bracket.PREPARATIONt Lay the TV face down on a flat, cushioned surface to avoid damaging or scratching.t Fix the Left Connecting Base to the main unit using the 2 provided screws.t Fix the Right Connecting Base to the main unit using the 2 provided pcs provided screws.t Lay the TV face down on a flat, cushioned surface to avoid damaging or scratching.t  Untighten the 4 pcs screws holding the stand assembly and remove them. t  Attach the wall-mount bracket to the TV using the mounting holes on the back of the TV. Mount this TV according to the instructions included in the wall-mount bracket. Installing the StandRemoving the Stand for Wall-Mounting

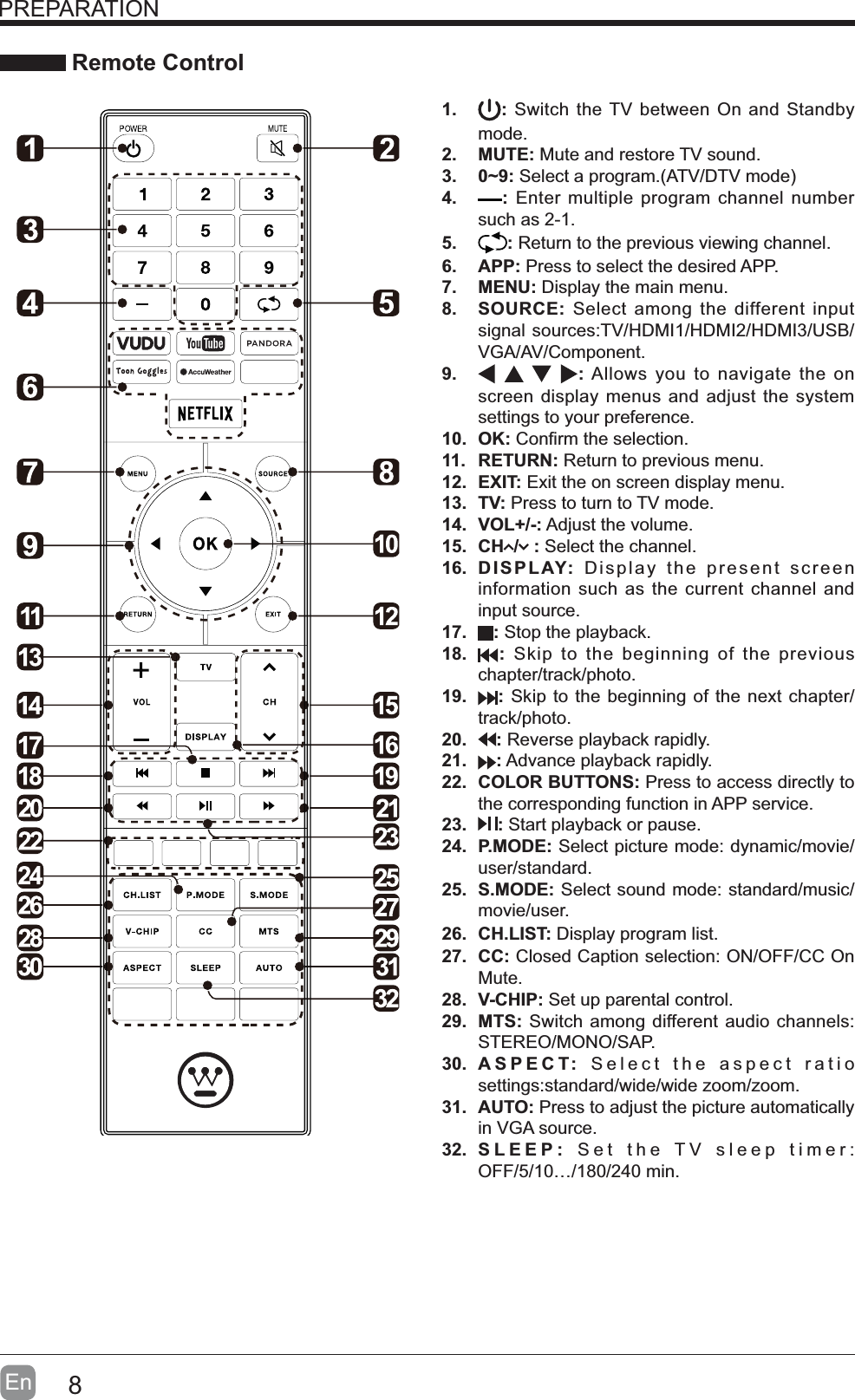

8EnPREPARATION Remote Control1. : Switch the TV between On and Standby mode.2. MUTE: Mute and restore TV sound.3. 0~9:4. : Enter multiple program channel numbersuch as 2-1.5. :Return to the previous viewing channel.6. APP: Press to select the desired APP.7. MENU: Display the main menu.8. SOURCE: Select among the different input signal sources:TV/HDMI1/HDMI2/HDMI3/USB/VGA/AV/Component.9. :Allows you to navigate the on screen display menus and adjust the system settings to your preference.10. OK:11. RETURN: Return to previous menu.12. EXIT: Exit the on screen display menu.13. TV: Press to turn to TV mode.14. VOL+/-: Adjust the volume.15. CH / : Select the channel.16. DISPLAY: Display the present screen information such as the current channel and input source. 17. : Stop the playback. 18. : Skip to the beginning of the previous chapter/track/photo.19. : Skip to the beginning of the next chapter/track/photo.20. : Reverse playback rapidly.21. : Advance playback rapidly. 22. COLOR BUTTONS: Press to access directly to the corresponding function in APP service.23. : Start playback or pause.24. P.MODE: Select picture mode: dynamic/movie/user/standard.25. S.MODE: Select sound mode: standard/music/movie/user.26. CH.LIST: Display program list.27. CC: Closed Caption selection: ON/OFF/CC On Mute.28. V-CHIP: Set up parental control.29. MTS: Switch among different audio channels: STEREO/MONO/SAP.30. ASPECT:Select the aspect ratio settings:standard/wide/wide zoom/zoom.31. AUTO: Press to adjust the picture automatically in VGA source.32. SLEEP: Set the TV sleep timer: OFF/5/10…/180/240 min.
9En CONNECTING EXTERNAL DEVICES

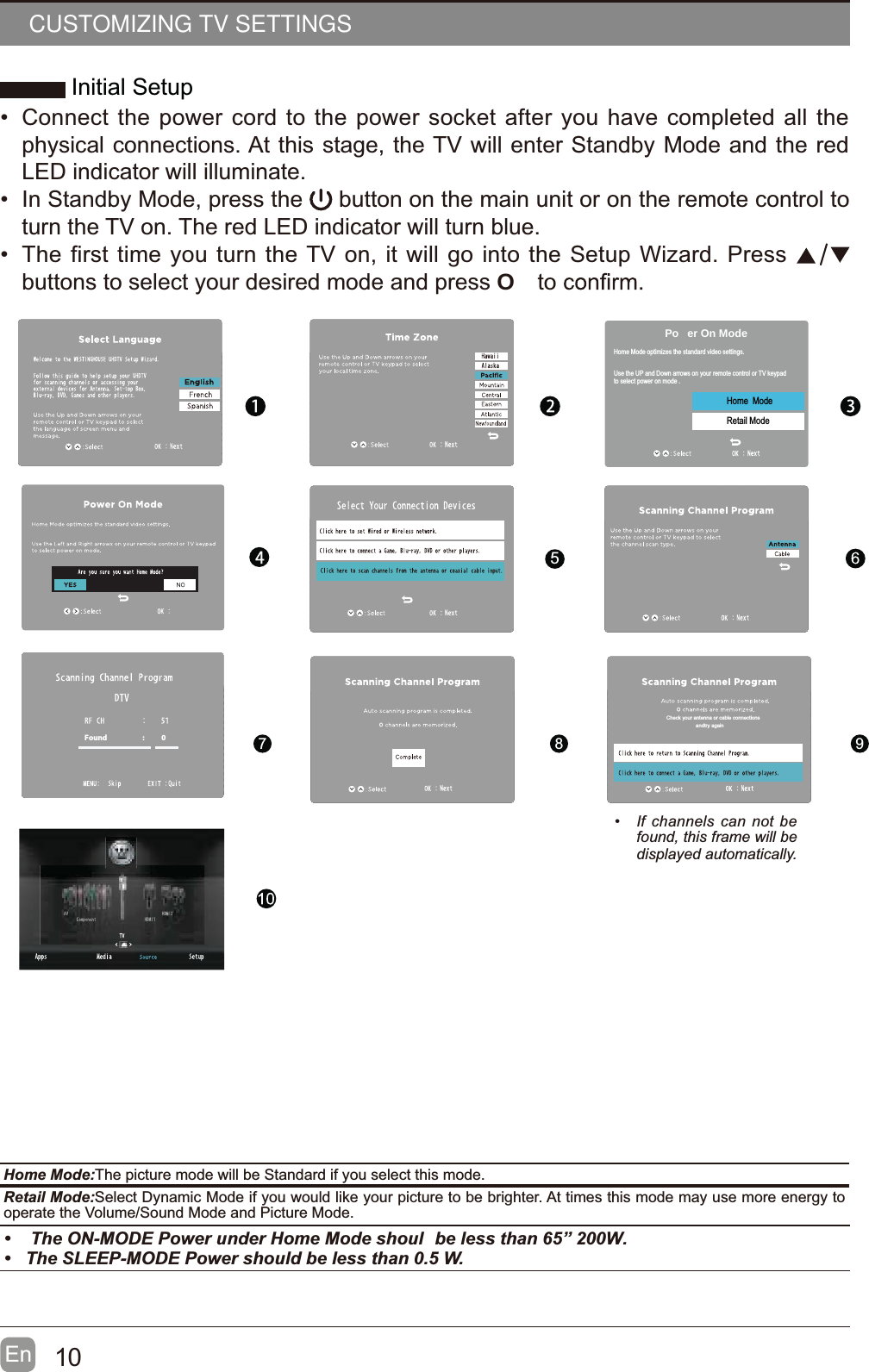

be less than 65” 200W.10En  Connect the power cord to the power socket after you have completed all the physical connections. At this stage, the TV will enter Standby Mode and the red LED indicator will illuminate.  In Standby Mode, press the button on the main unit or on the remote control to turn the TV on. The red LED indicator will turn blue. The first time you turn the TV on, it will go into the Setup Wizard. Press buttons to select your desired mode and press O to  The ON-MODE Power under Home Mode shoul The SLEEP-MODE Power should be less than 0.5 W. Ifchannelscannotbfound,thisframewilly5789Found : 0 Check your antenna or cable connectionsandtry againPo er On ModeHome Mode optimizes the standard video settings.Use the UP and Down arrows on your remote control or TV keypadto select power on mode .Home ModeRetail ModeHome Mode:The picture mode will be Standard if you select this mode.Retail Mode:Select Dynamic Mode if you would like your picture to be brighter. At times this mode may use more energy to operate the Volume/Sound Mode and Picture Mode.Initial SetupCUSTOMIZING TV SETTINGS

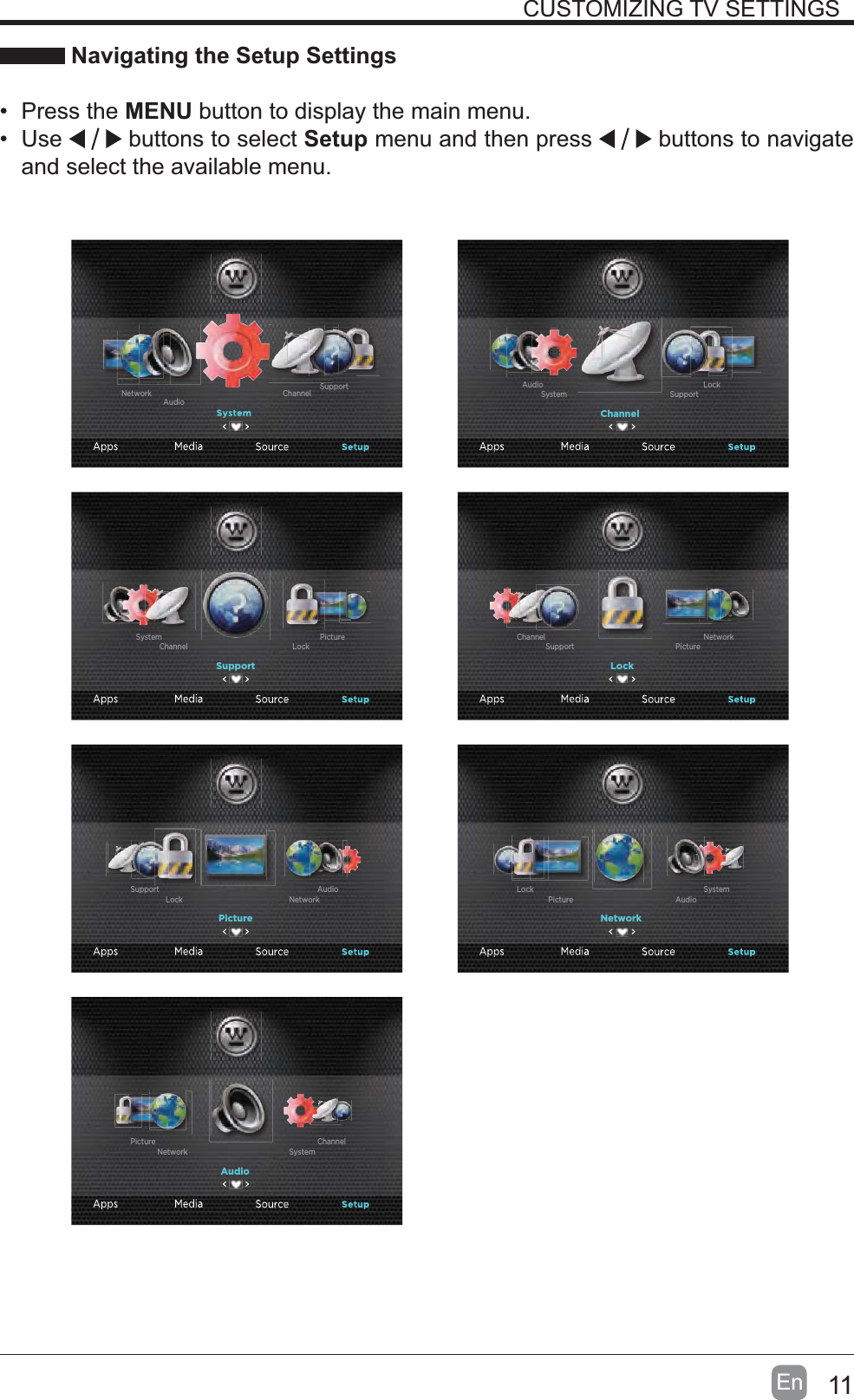

11En CUSTOMIZING TV SETTINGS Navigating the Setup Settings Press the MENU button to display the main menu.  Use buttons to select Setup menu and then press buttons to navigate and select the available menu.Channel SupportAudioNetworkChannelSupportSystemLockAudioSupportLockChannelPictureSystemLockPictureSupportNetworkChannelPictureNetworkLockAudioSupportNetworkAudioPictureSystemLockAudioSystemNetworkChannelPicture

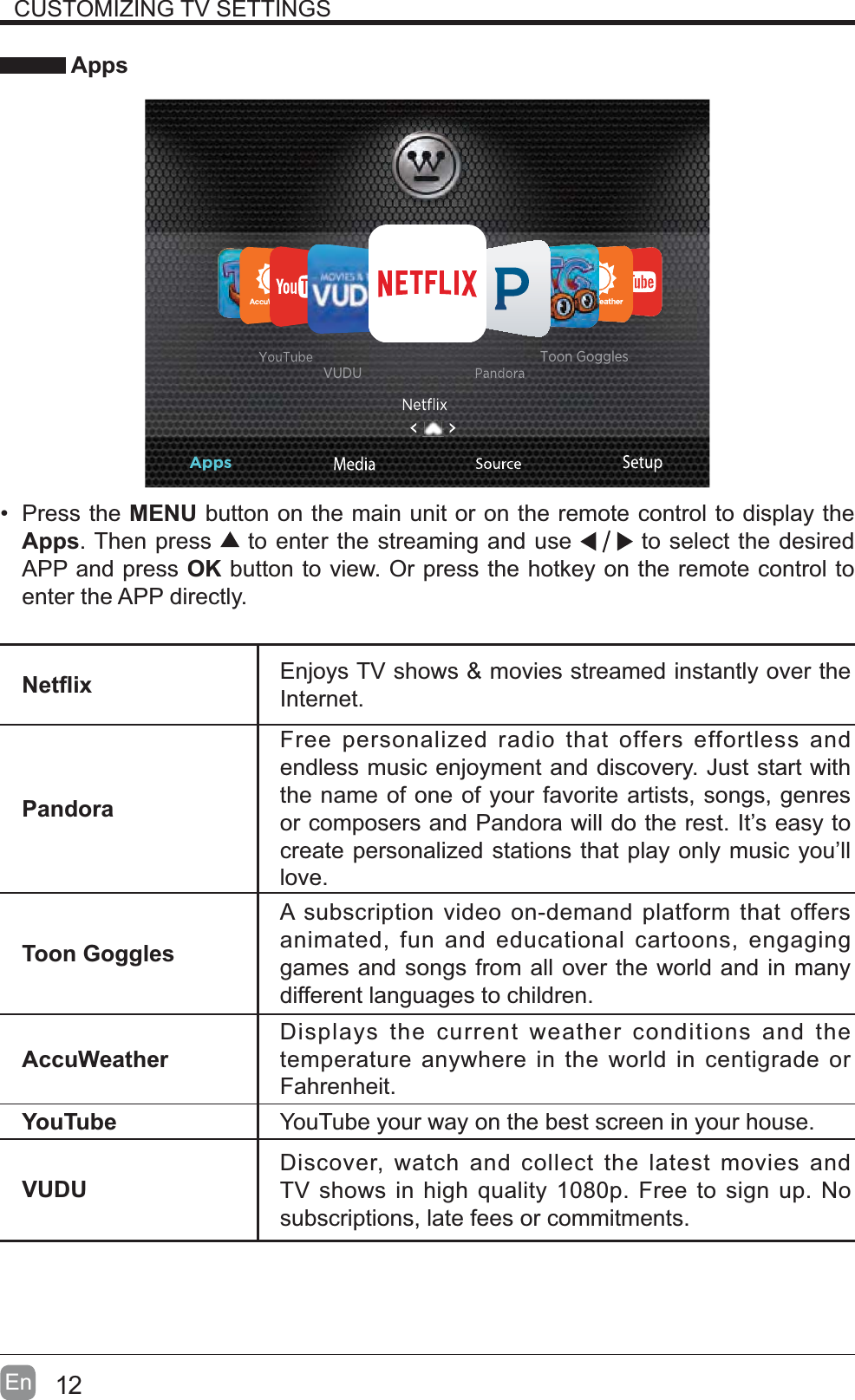

12En Apps Press the MENU button on the main unit or on the remote control to display the Apps. Then press to enter the streaming and use to select the desiredAPP and press OK button to view. Or press the hotkey on the remote control to enter the APP directly. Enjoys TV shows & movies streamed instantly over the Internet.PandoraFree personalized radio that offers effortless and endless music enjoyment and discovery. Just start with the name of one of your favorite artists, songs, genres or composers and Pandora will do the rest. It’s easy to create personalized stations that play only music you’ll love.Toon GogglesA subscription video on-demand platform that offers animated, fun and educational cartoons, engaging games and songs from all over the world and in many different languages to children. AccuWeatherDisplays the current weather conditions and the temperature anywhere in the world in centigrade or Fahrenheit.YouTube YouTube your way on the best screen in your house.VUDUDiscover, watch and collect the latest movies and TV shows in high quality 1080p. Free to sign up. No subscriptions, late fees or commitments.CUSTOMIZING TV SETTINGSVUDUToon Goggles

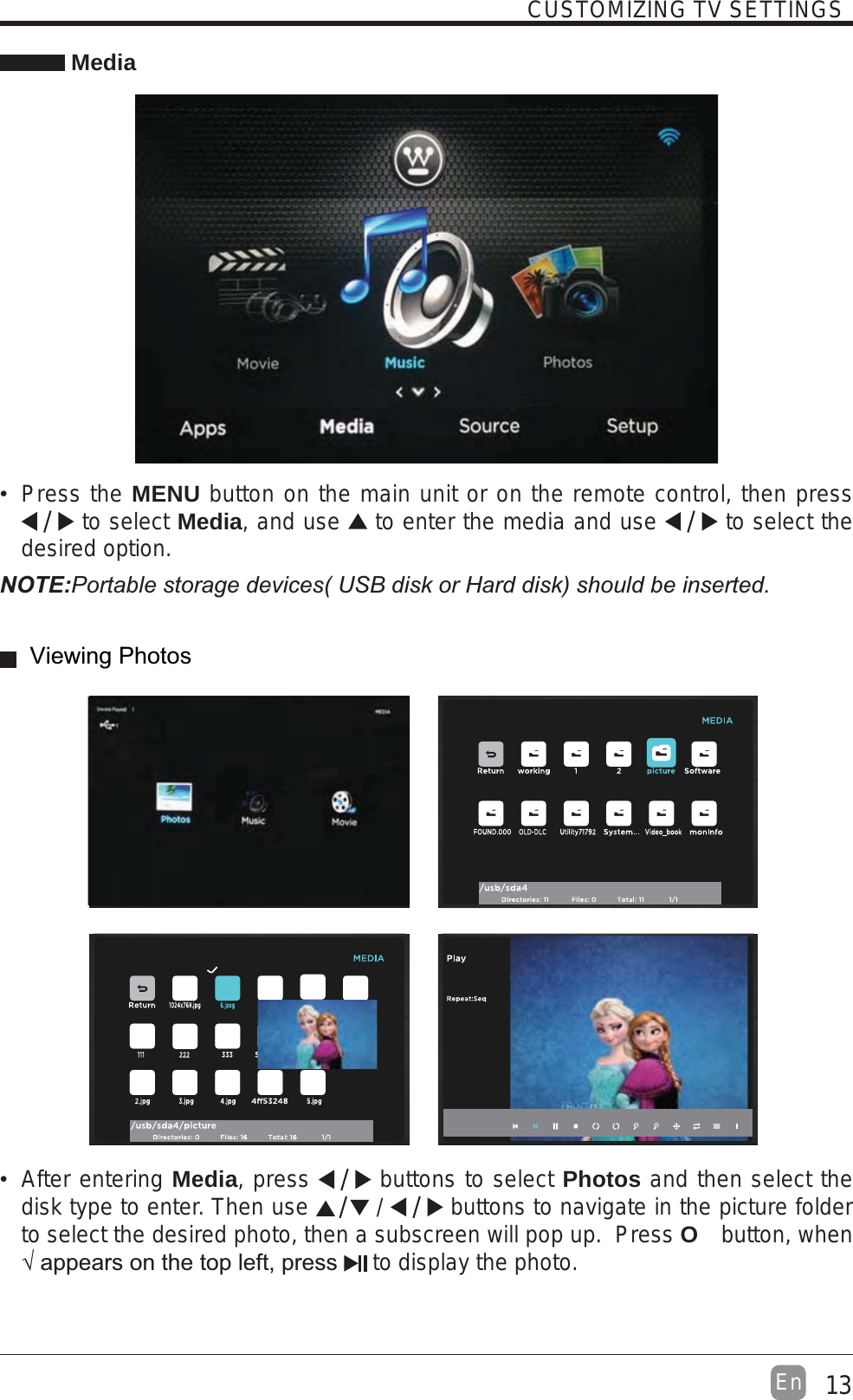

13EnCUSTOMIZING TV SETTINGS Media Press theMENU button on the main unit or on the remote control, then press to select Media,and use to enter the media and use to select the desired option.NOTE: After entering Media, press buttons to select Photos and then select the disk type to enter. Then use / buttons to navigate in the picture folder to select the desired photo, then a subscreen will pop up. Press O button, when  to display the photo.Viewing Photos

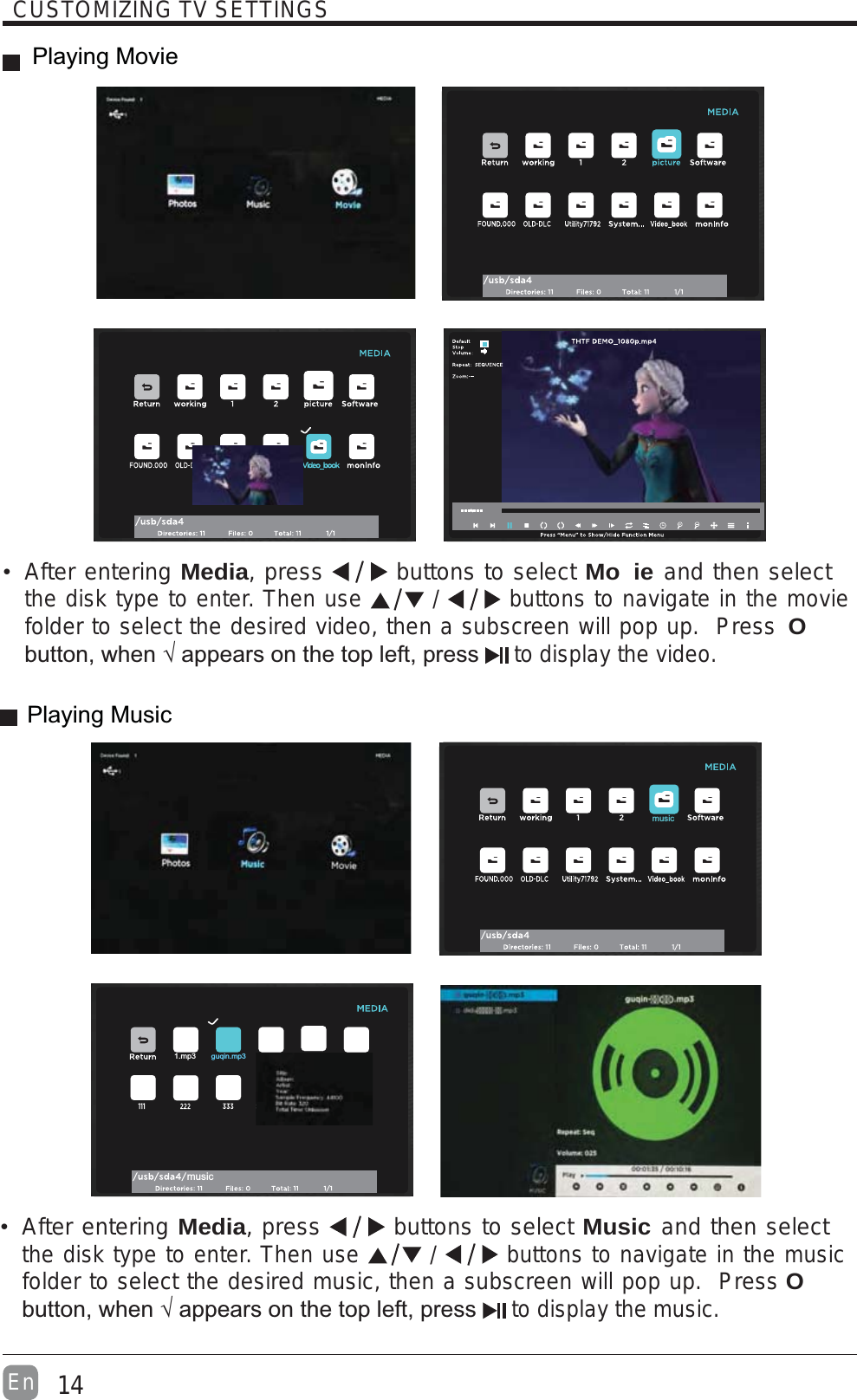

14EnCUSTOMIZING TV SETTINGSAfter entering Media, press buttons to select Mo ie and then select the disk type to enter. Then use / buttons to navigate in the movie folder to select the desired video, then a subscreen will pop up. Press O to display the video.After entering Media, press buttons to select Music and then select the disk type to enter. Then use / buttons to navigate in the music folder to select the desired music, then a subscreen will pop up. Press O to display the music.musicmusic1.mp3guqin.mp3Playing MoviePlaying Music

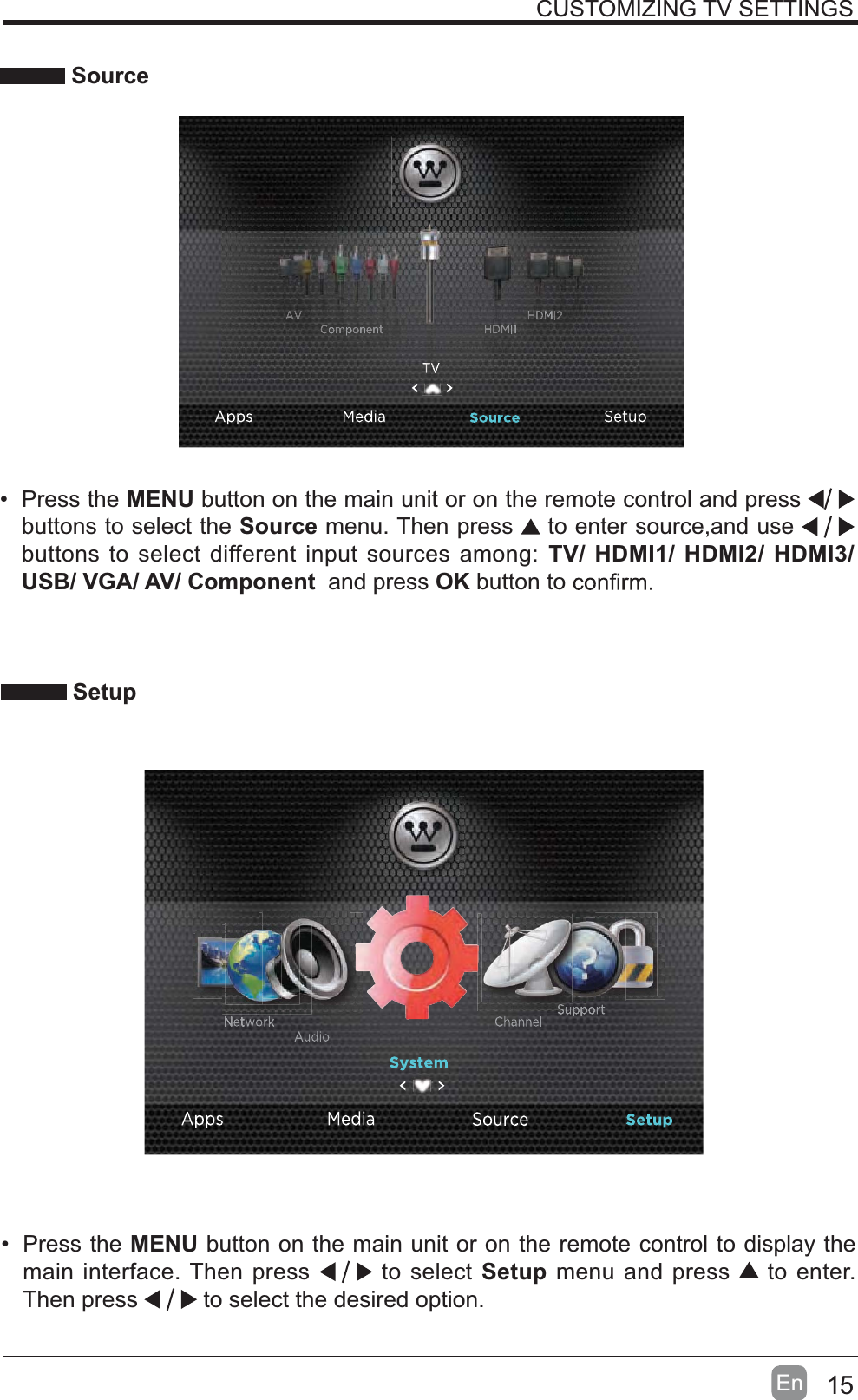

15En CUSTOMIZING TV SETTINGS Source Press the MENU button on the main unit or on the remote control and press buttons to select the Source menu. Then press to enter source,and use buttons to select different input sources among: TV/ HDMI1/ HDMI2/ HDMI3/USB/ VGA/ AV/ Component and press OK button to Setup Press the MENU button on the main unit or on the remote control to display the main interface. Then press to select Setup menu and press to enter. Then press to select the desired option.

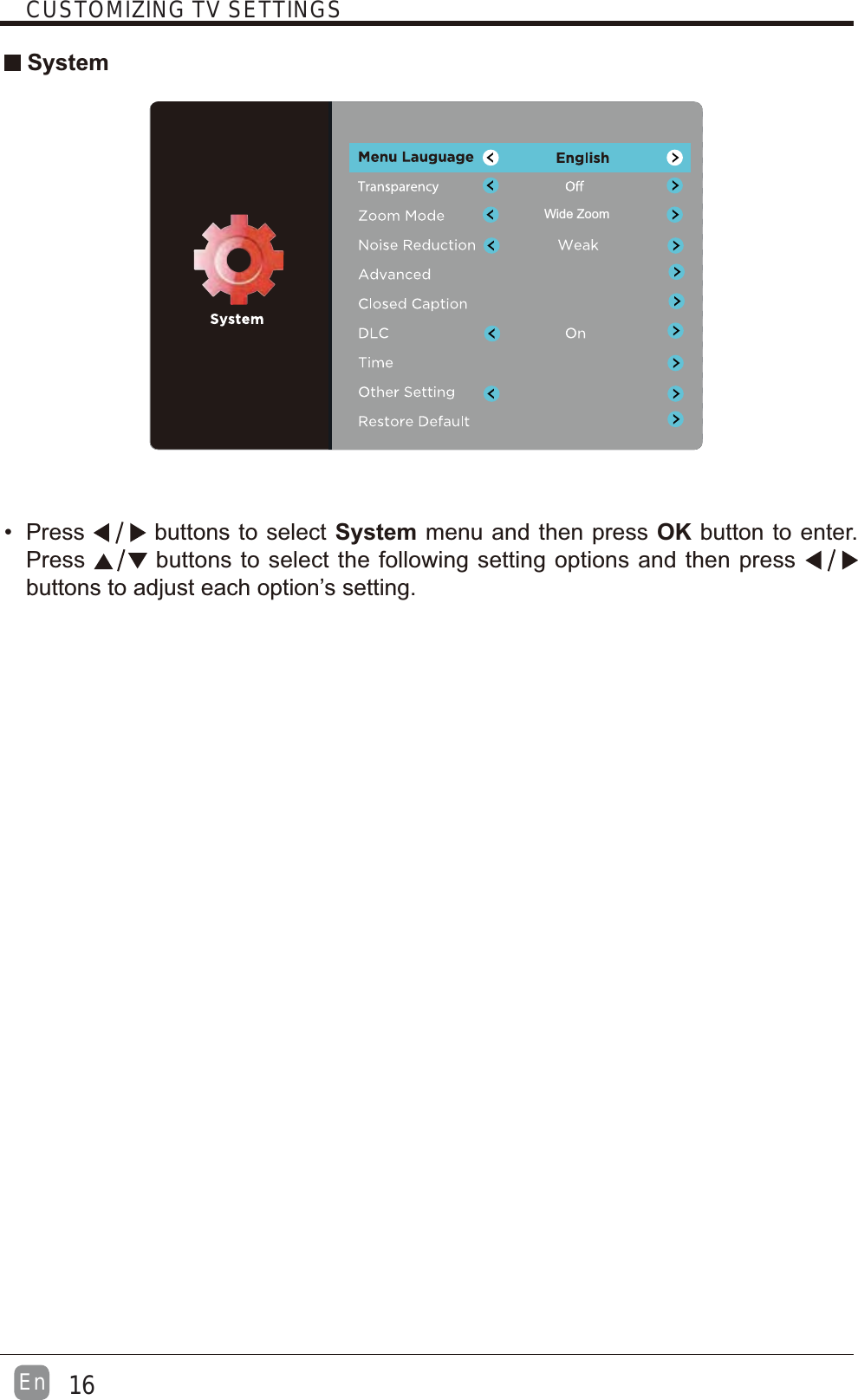

System Press buttons to select System menu and then press OK button to enter. Press buttons to select the following setting options and then press buttons to adjust each option’s setting. Wide Zoom16EnCUSTOMIZING TV SETTINGS

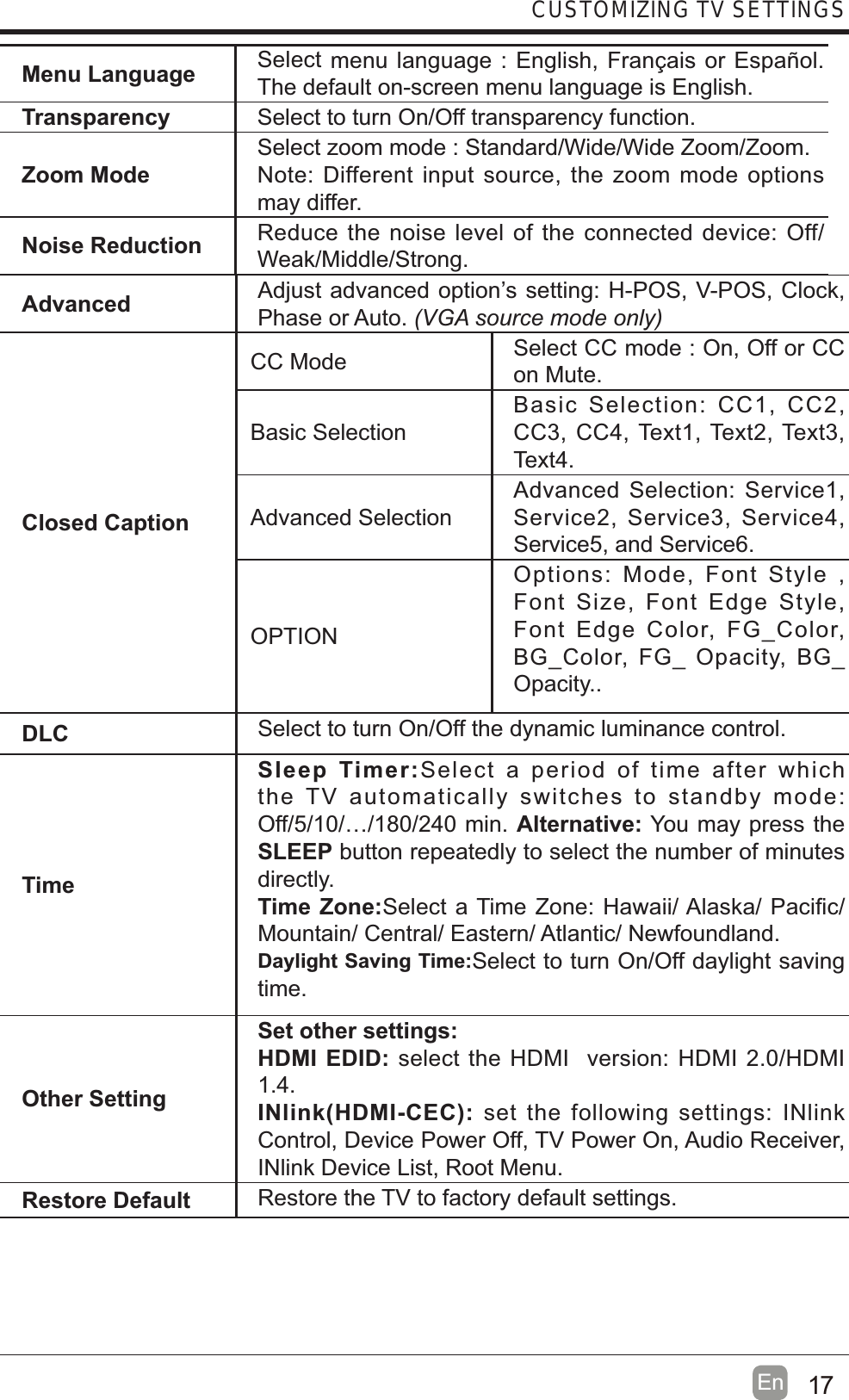

Advanced Adjust advanced option’s setting: H-POS, V-POS, Clock, Phase or Auto. Closed CaptionCC Mode Select CC mode : On, Off or CC on Mute.Basic SelectionBasic Selection: CC1, CC2, CC3, CC4, Text1, Text2, Text3, Text4.Advanced SelectionAdvanced Selection: Service1, Service2, Service3, Service4, Service5, and Service6.OPTIONOptions: Mode, Font Style , Font Size, Font Edge Style, Font Edge Color, FG_Color, BG_Color, FG_ Opacity, BG_Opacity..DLC Select to turn On/Off the dynamic luminance control.TimeSleep Timer:Select a period of time after which the TV automatically switches to standby mode: Off/5/10/…/180/240 min. Alternative: You may press the SLEEP button repeatedly to select the number of minutes directly.Time Zone:Mountain/ Central/ Eastern/ Atlantic/ Newfoundland.Daylight Saving Time:Select to turn On/Off daylight saving time.Other SettingSet other settings:HDMI EDID: select the HDMI version: HDMI 2.0/HDMI 1.4.INlink(HDMI-CEC): set the following settings: INlink Control, Device Power Off, TV Power On, Audio Receiver, INlink Device List, Root Menu.Restore Default Restore the TV to factory default settings.Menu Language Select menu language : English, Français or Español. The default on-screen menu language is English.Transparency Select to turn On/Off transparency function.Zoom ModeSelect zoom mode : Standard/Wide/Wide Zoom/Zoom.Note: Different input source, the zoom mode options may differ.Noise Reduction Reduce the noise level of the connected device: Off/Weak/Middle/Strong.17En CUSTOMIZING TV SETTINGS

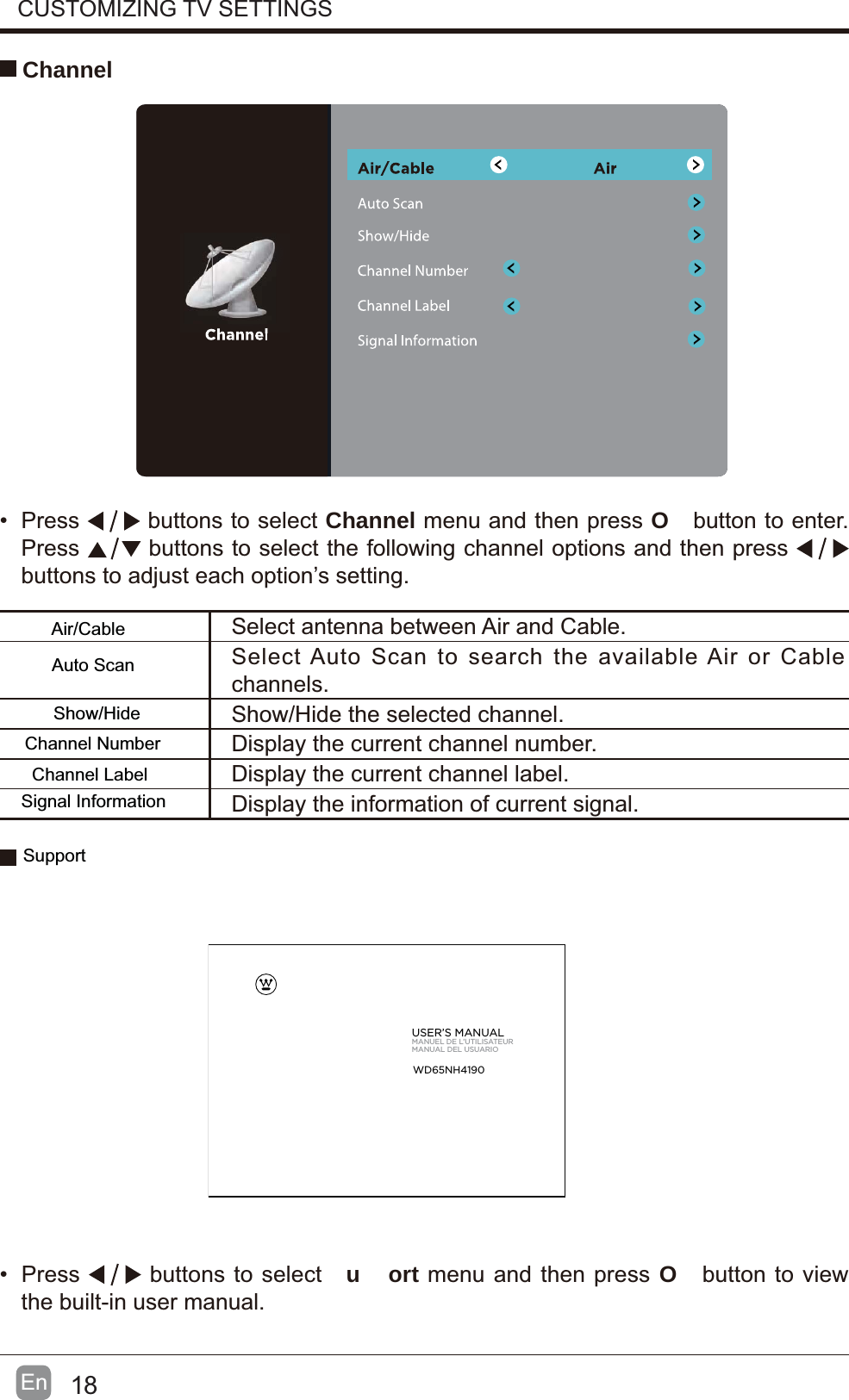

Channel  buttonstoChannelmenuandthenObuttontoenter buttonstoselectthefollowingchanneloptionsandthen ’SelectAutoScantosearchtheavailableAirorabltcr.ct Press buttonstoselect uortmenuandthenpressObuttontovieUSER’S MANUALMANUEL DE L’UTILISATEURMANUAL DEL USUARIOWD65NH419018EnTOMIZINGAir/CableAuto ScanShow/HideChannel NumberChannel LabelSignal InformationSupport
 Press buttons to select ock menu and then press O button to enter. Use the 0-9 buttons to input 4-digit password to enter the ock menu. Press buttons to select the following lock options and then pressbuttons to adjust each option’s setting.Note: the default password is “0000”. Use buttons to input the old password and then input the new 4-digit password. Re-enter new password for Select to turn On/Off system lock. The following options accessible when you turn the system lock on.TV TV RATING: Press O button to lock or unlock TV rating.MPAA Select MPAA rating : N/A,G, PG, PG-13, R, NC-17,or X.CanadaEnglish Select MPAA rating for English-speaking Canada : E, C, C8+, G, PG, 14+, 18+.CanadaFrench Select MPAA rating for Quebec Canada : E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+.Set Rating Region Table.Select to reset the RRT setting.Clear all lock settings. 19En COSTOMIZING TV SETTINGSLockChange PasswordSystem LockUSACanadaRRT SettingReset RRTClear Lock
 Press buttons to select Picture menu and then press Obutton to enter. Press buttons to select the following picture options and then press buttons to adjust each option’s setting. PicturePicture ModeCycle among picture mode: Dynamic/Movie/EnergySaving/User/Standard.Alternative: you may press the P.MODE button to select the picture mode directly.Allow the blue background to turn On/Off during weak or no signal conditions.Increase or decrease the amount of white in the picture. (For User mode)Contrast Adjust the difference between light and dark levels in the pictures. (For User mode)Color Control the color intensity. (For User mode)Adjust the level of crispness in the edges between light and dark areas of the picture. (For User mode)Adjust the balance between red and green levels.Cycle among color temperatures: Cool/Normal/Warm.Color ace To adjust the following settings: ColorMode, Color, Hue, Saturation, Brightness and Reset.White alance To adjust the settings of white balance.MEMC Cycle among Motion Estimate and MotionCompensation modes:Middle/High/Off/Low.Standard20EnCUSTOMIZING TV SETTINGSBlue ScreenBrightnessSharpnessTintColor TempAdvanced Setting
 Press buttons to select Net ork menu and then press O button to enter.Press buttons to select the following network options and then press buttons to adjust each option’s setting.Select two types of network: Wireless Network or Wired Network. Deactivate Vudu and clear the account information. Electronic Serial NumberAutoShow the network status.THTF4KOTT-00000000000000000000000100029265Scanning.Please wait...21En COSTOMIZING TV SETTINGSNetworkNetwork SettingsNetwork StatusDeactivate Vudu
 Press buttons to select Audio menu and then press Obutton to enter. Press buttons to select the following audio options and then pressbuttons to adjust each option’s setting. AudioRe inder or internet connection Below occasions are possible while your internet is connected to enjoy your OTT services. 1.Please check your internet signal strength while internet is connected, signal strength below 50 may result bad connection and non-smooth picture. 2.To enter OTT services, 30 seconds may be required for internet connection.Reco ended M a o e internet s eedAllow the selection of an audio-enhancement technique:Standard/Music/Movie/User.Alternative you may press the .MODE button to select the sound mode directly.Control the relative intensity of lower-pitched sounds. (For User mode)Control the relative intensity of higher-pitched sounds. (For User mode)Adjust the relative volume of the speaker in a multiplespeaker system.Select the digital audio output mode between RAW/PCM.Turn On/Off to provide an enhanced listening experience.Turn On/Off to automatically control volume levels.Select audio language among: English, French, Spanish22En COSTOMIZING TV SETTINGSSound ModeBassTrebleBalanceSPDIF ModeSurround SoundAuto VolumeAudio Language

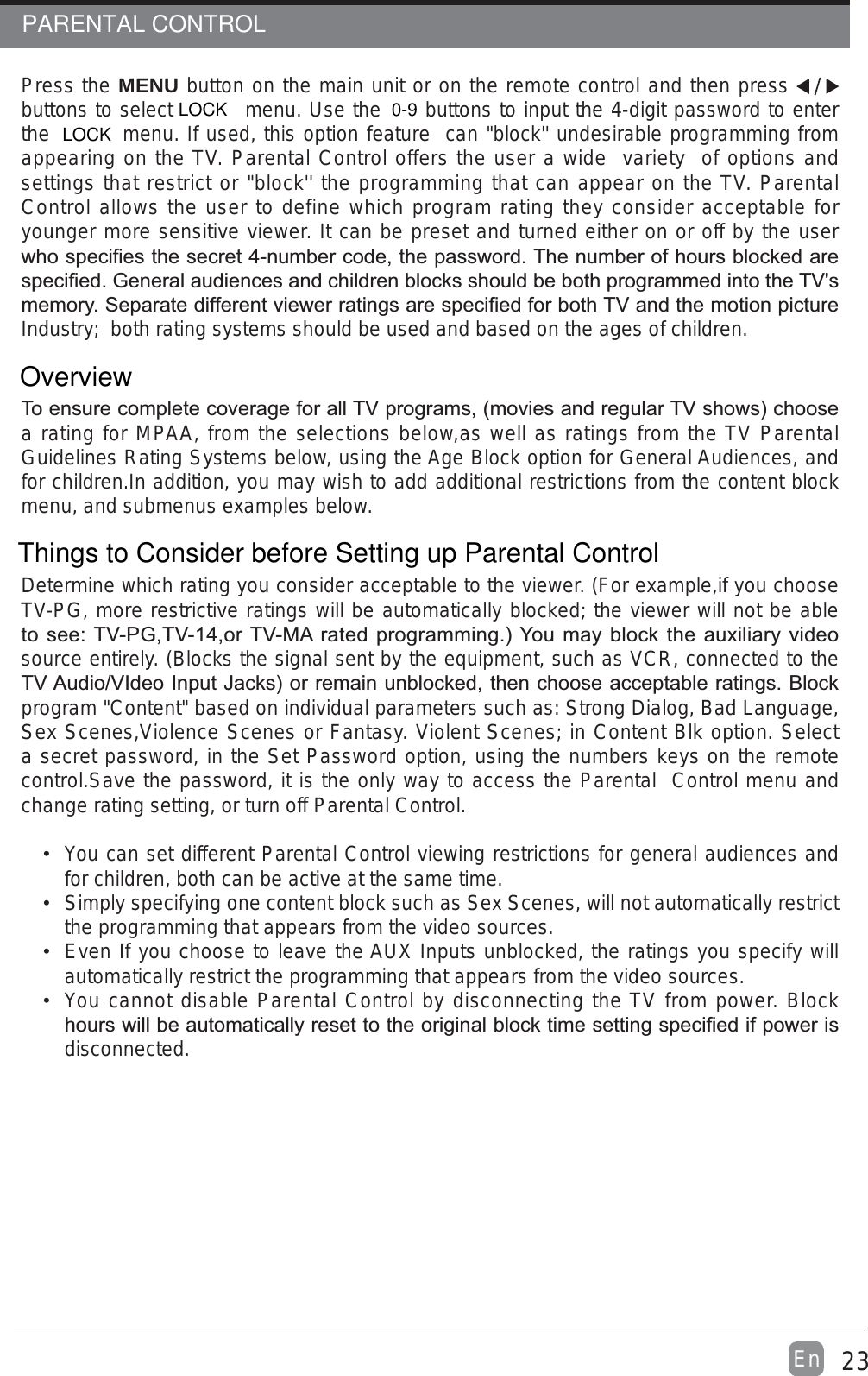

23EnPress the MENU button on the main unit or on the remote control and then press buttons to select menu. Use the buttons to input the 4-digit password to enter the menu. If used, this option feature can "block'' undesirable programming from appearing on the TV. Parental Control offers the user a wide variety of options and settings that restrict or "block'' the programming that can appear on the TV. Parental Control allows the user to define which program rating they consider acceptable for younger more sensitive viewer. It can be preset and turned either on or off by the user Industry; both rating systems should be used and based on the ages of children.a rating for MPAA, from the selections below,as well as ratings from the TV Parental Guidelines Rating Systems below, using the Age Block option for General Audiences, and for children.In addition, you may wish to add additional restrictions from the content block menu, and submenus examples below.Determine which rating you consider acceptable to the viewer. (For example,if you choose TV-PG, more restrictive ratings will be automatically blocked; the viewer will not be able source entirely. (Blocks the signal sent by the equipment, such as VCR, connected to the program "Content" based on individual parameters such as: Strong Dialog, Bad Language, Sex Scenes,Violence Scenes or Fantasy. Violent Scenes; in Content Blk option. Select a secret password, in the Set Password option, using the numbers keys on the remote control.Save the password, it is the only way to access the Parental Control menu and change rating setting, or turn off Parental Control. You can set different Parental Control viewing restrictions for general audiences and for children, both can be active at the same time. Simply specifying one content block such as Sex Scenes, will not automatically restrict the programming that appears from the video sources. Even If you choose to leave the AUX Inputs unblocked, the ratings you specify will automatically restrict the programming that appears from the video sources. You cannot disable Parental Control by disconnecting the TV from power. Block disconnected.PARENTAL CONTROL0-9LOCKOverviewLOCKThings to Consider before Setting up Parental Control

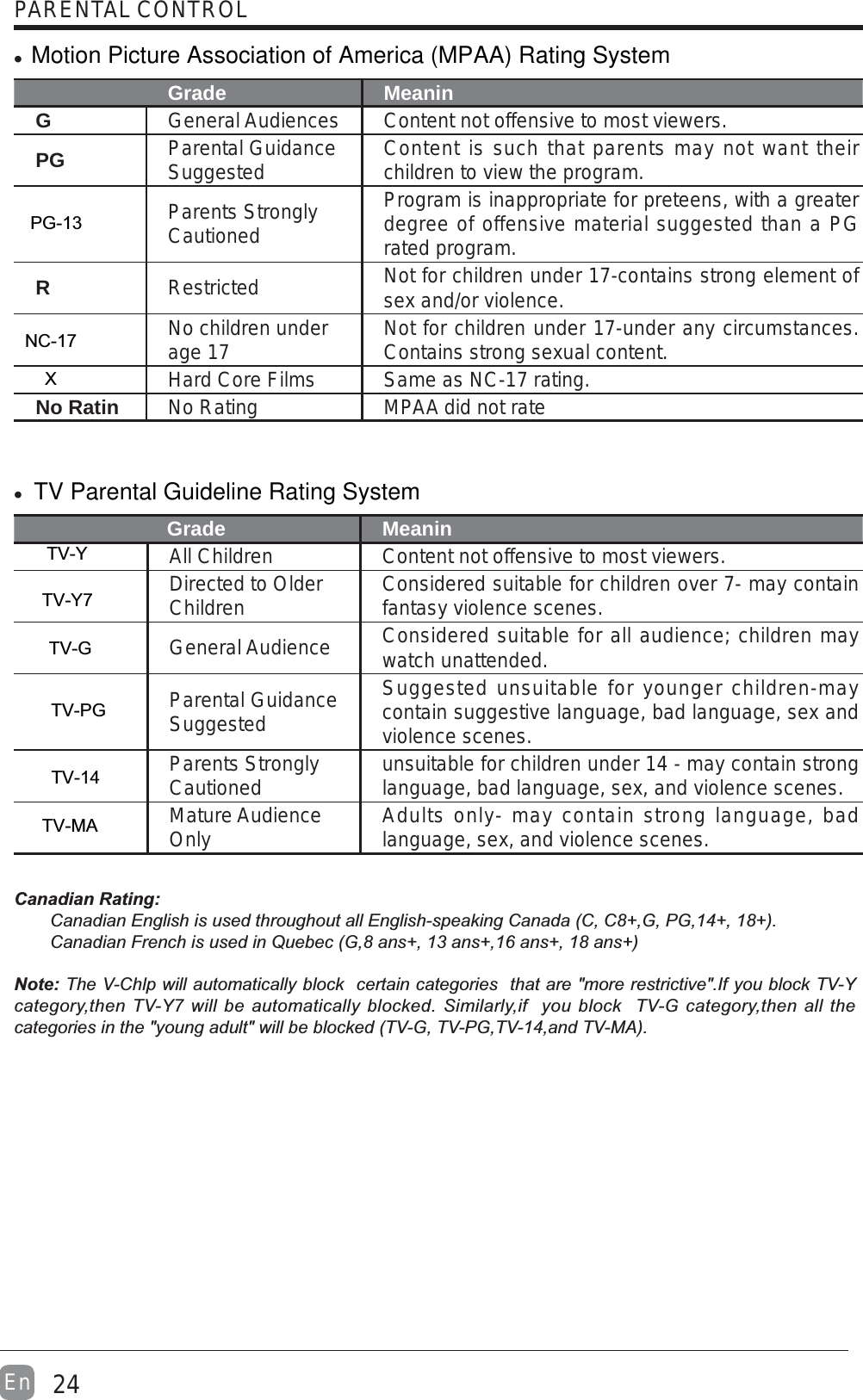

24EnGrade MeaninGGeneral Audiences Content not offensive to most viewers.PG Parental Guidance Suggested Content is such that parents may not want their children to view the program.Parents Strongly CautionedProgram is inappropriate for preteens, with a greater degree of offensive material suggested than a PG rated program.RRestricted Not for children under 17-contains strong element of sex and/or violence.No children under age 17 Not for children under 17-under any circumstances. Contains strong sexual content.Hard Core Films Same as NC-17 rating.No Ratin No Rating MPAA did not rateGrade MeaninAll Children Content not offensive to most viewers.Directed to Older Children Considered suitable for children over 7- may contain fantasy violence scenes.General Audience Considered suitable for all audience; children may watch unattended.Parental Guidance SuggestedSuggested unsuitable for younger children-may contain suggestive language, bad language, sex and violence scenes.Parents Strongly Cautioned unsuitable for children under 14 - may contain strong language, bad language, sex, and violence scenes.Mature Audience Only Adults only- may contain strong language, bad language, sex, and violence scenes.Canadian Rating:Note:PARENTAL CONTROLPG-13NC-17XTV-YTV-Y7TV-GTV-PGTV-14TV-MAMotion Picture Association of America (MPAA) Rating SystemTV Parental Guideline Rating System

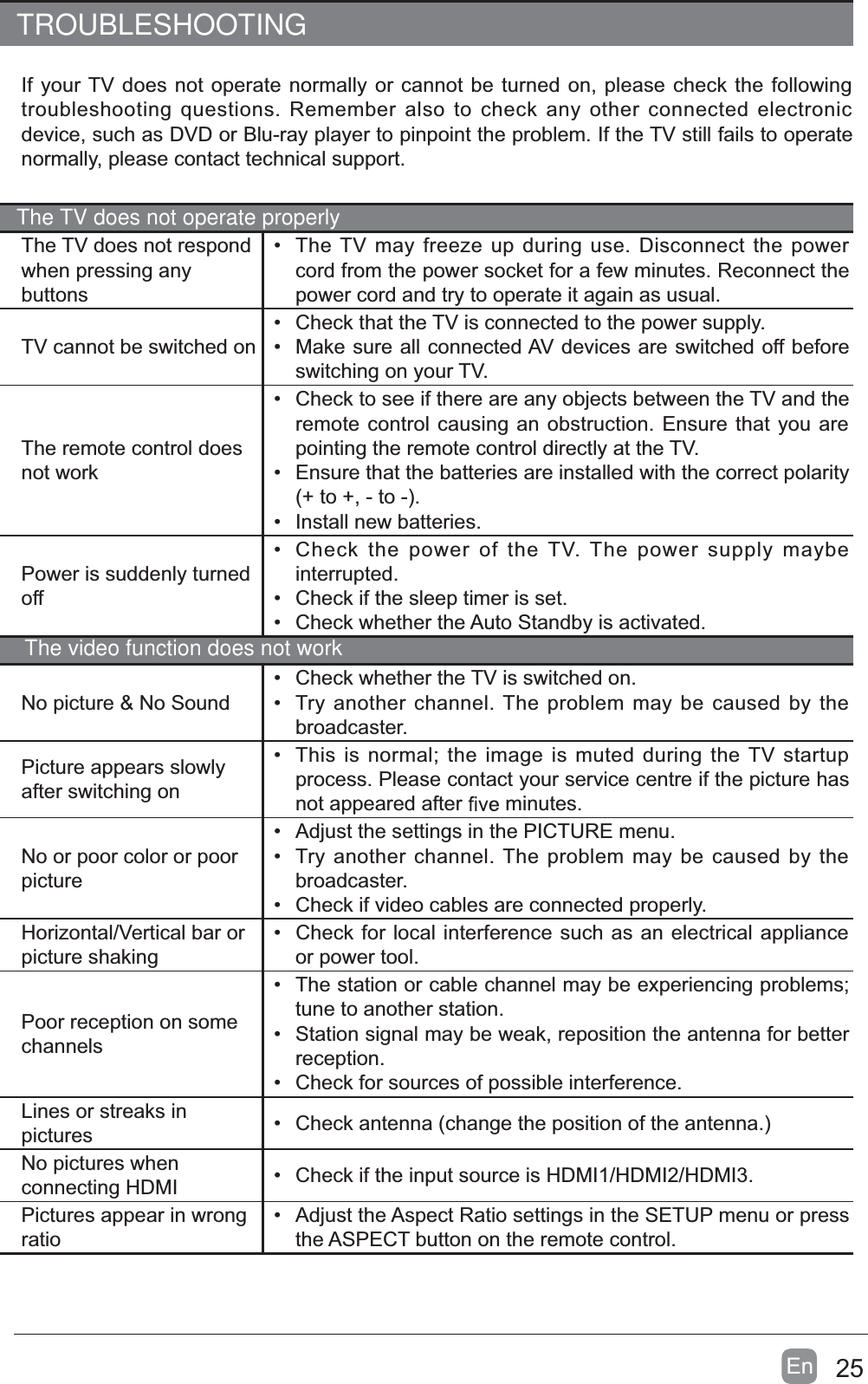

25En If your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as DVD or Blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support.The TV does not respond when pressing any buttons The TV may freeze up during use. Disconnect the power cord from the power socket for a few minutes. Reconnect the power cord and try to operate it again as usual.TV cannot be switched on Check that the TV is connected to the power supply. Make sure all connected AV devices are switched off before switching on your TV.The remote control does not work Check to see if there are any objects between the TV and the remote control causing an obstruction. Ensure that you are pointing the remote control directly at the TV. Ensure that the batteries are installed with the correct polarity (+ to +, - to -).  Install new batteries. Power is suddenly turned off Check the power of the TV. The power supply maybe interrupted. Check if the sleep timer is set. Check whether the Auto Standby is activated. No picture & No Sound Check whether the TV is switched on. Try another channel. The problem may be caused by the broadcaster.Picture appears slowly after switching on This is normal; the image is muted during the TV startup process. Please contact your service centre if the picture has not appeared after minutes.No or poor color or poor picture Adjust the settings in the PICTURE menu. Try another channel. The problem may be caused by the broadcaster. Check if video cables are connected properly.Horizontal/Vertical bar or picture shaking Check for local interference such as an electrical appliance or power tool.Poor reception on some channels The station or cable channel may be experiencing problems; tune to another station. Station signal may be weak, reposition the antenna for better reception. Check for sources of possible interference.Lines or streaks in pictures  Check antenna (change the position of the antenna.)No pictures when connecting HDMI  Check if the input source is HDMI1/HDMI2/HDMI3.Pictures appear in wrong ratio Adjust the Aspect Ratio settings in the SETUP menu or press the ASPECT button on the remote control.TROUBLESHOOTINGThe TV does not operate properlyThe video function does not work

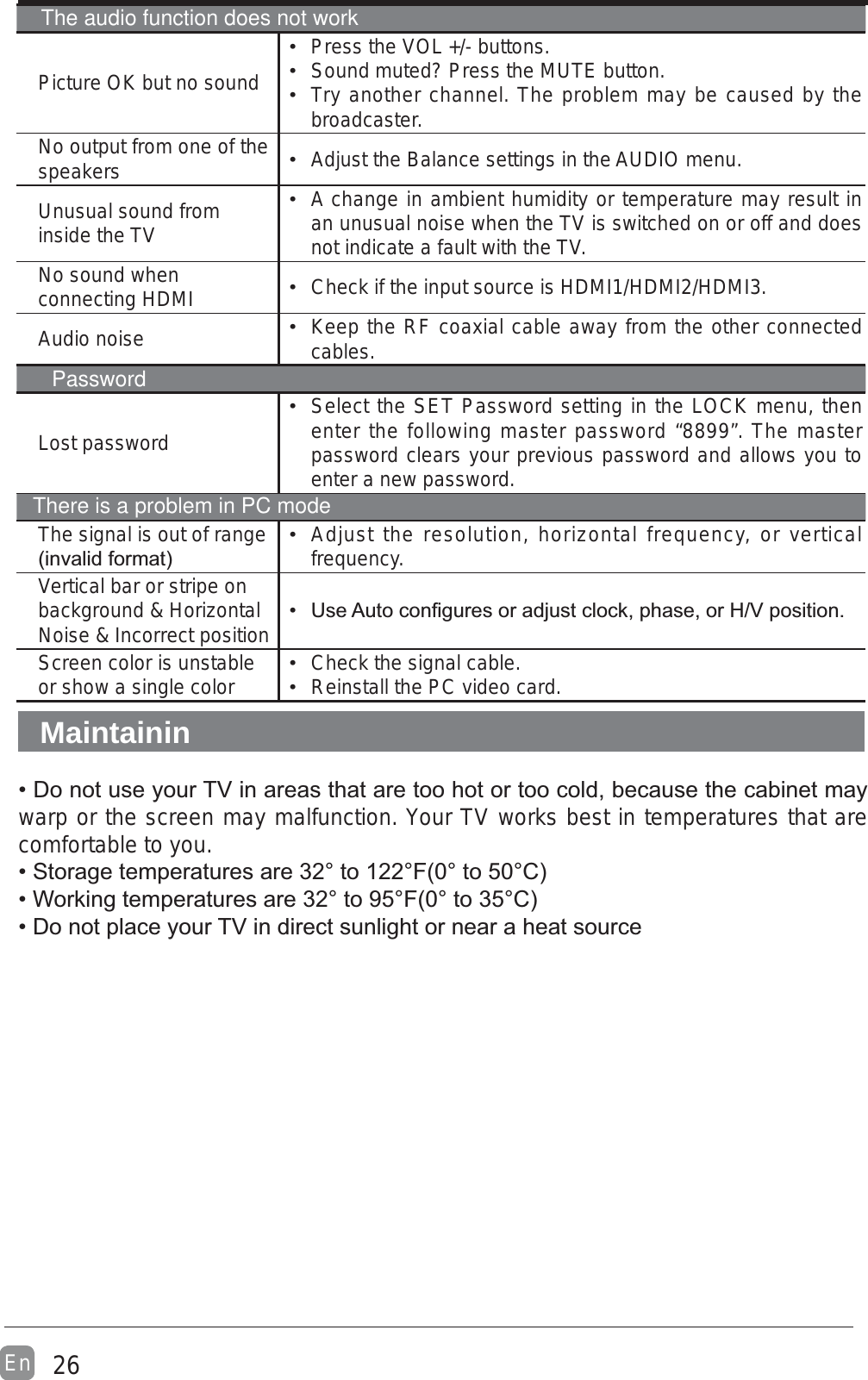

26EnPicture OK but no sound Press the VOL +/- buttons. Sound muted? Press the MUTE button. Try another channel. The problem may be caused by the broadcaster.No output from one of the speakers  Adjust the Balance settings in the AUDIO menu.Unusual sound from inside the TV A change in ambient humidity or temperature may result in an unusual noise when the TV is switched on or off and does not indicate a fault with the TV. No sound when connecting HDMI  Check if the input source is HDMI1/HDMI2/HDMI3.Audio noise  Keep the RF coaxial cable away from the other connected cables.Lost password Select the SET Password setting in the LOCK menu, then enter the following master password “8899”. The master password clears your previous password and allows you to enter a new password.The signal is out of range  Adjust the resolution, horizontal frequency, or vertical frequency.Vertical bar or stripe on background & Horizontal Noise & Incorrect position  Screen color is unstable or show a single color  Check the signal cable. Reinstall the PC video card.Maintaininwarp or the screen may malfunction. Your TV works best in temperatures that are comfortable to you.The audio function does not workPasswordThere is a problem in PC mode

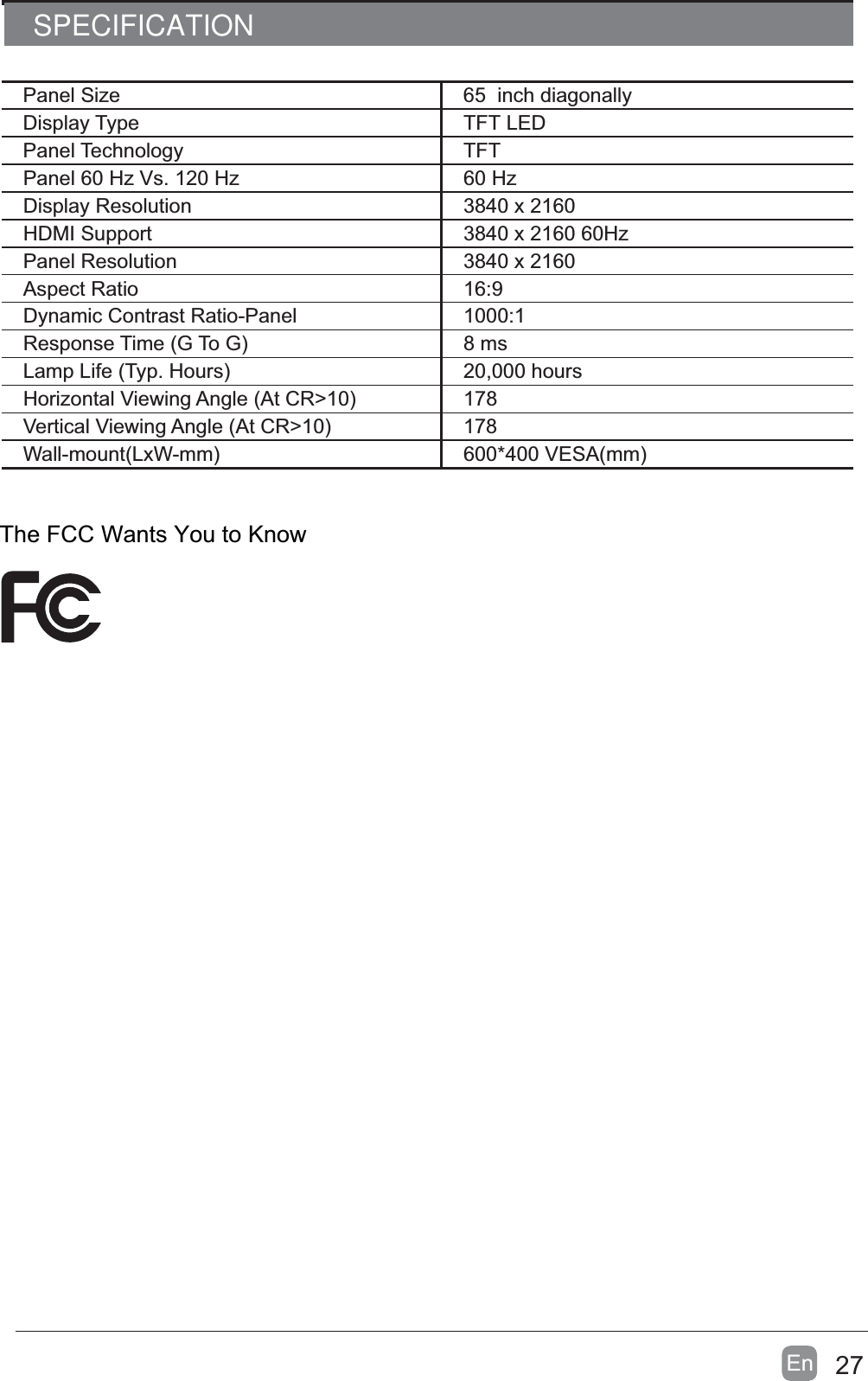

27En Panel Size 65 inch diagonally Display Type TFT LEDPanel Technology TFTPanel 60 Hz Vs. 120 Hz 60 HzDisplay Resolution 3840 x 2160HDMI Support 3840 x 2160 60HzPanel Resolution 3840 x 2160Aspect Ratio 16:9Dynamic Contrast Ratio-Panel 1000:1Response Time (G To G) 8 msLamp Life (Typ. Hours) 20,000 hoursHorizontal Viewing Angle (At CR>10) 178Vertical Viewing Angle (At CR>10) 178Wall-mount(LxW-mm) 600*400 VESA(mm)The FCC Wants You to KnowSPECIFICATION

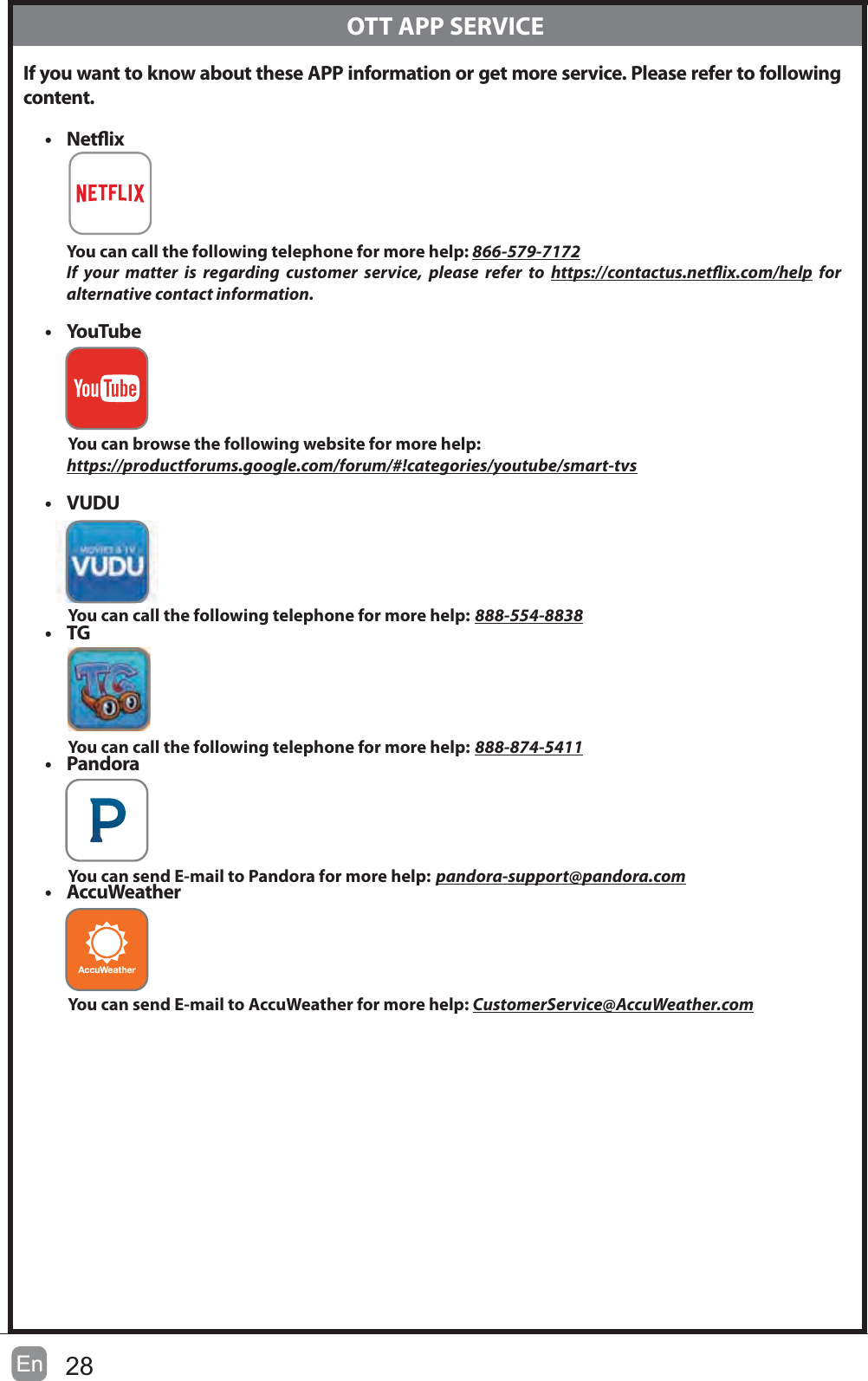

28En If you want to know about these APP information or get more service. Please refer to following content.t NetixYou can call the following telephone for more help: 866-579-7172If your matter is regarding customer service, please refer to https://contactus.netix.com/help for alternative contact information.t YouTubeYou can browse the following website for more help: https://productforums.google.com/forum/#!categories/youtube/smart-tvst VUDUYou can call the following telephone for more help: 888-554-8838t TGYou can call the following telephone for more help: 888-874-5411t PandoraYou can send E-mail to Pandora for more help: pandora-support@pandora.comt AccuWeatherYou can send E-mail to AccuWeather for more help: CustomerService@AccuWeather.com OTT APP SERVICE
SE-UM-6501 -1601
