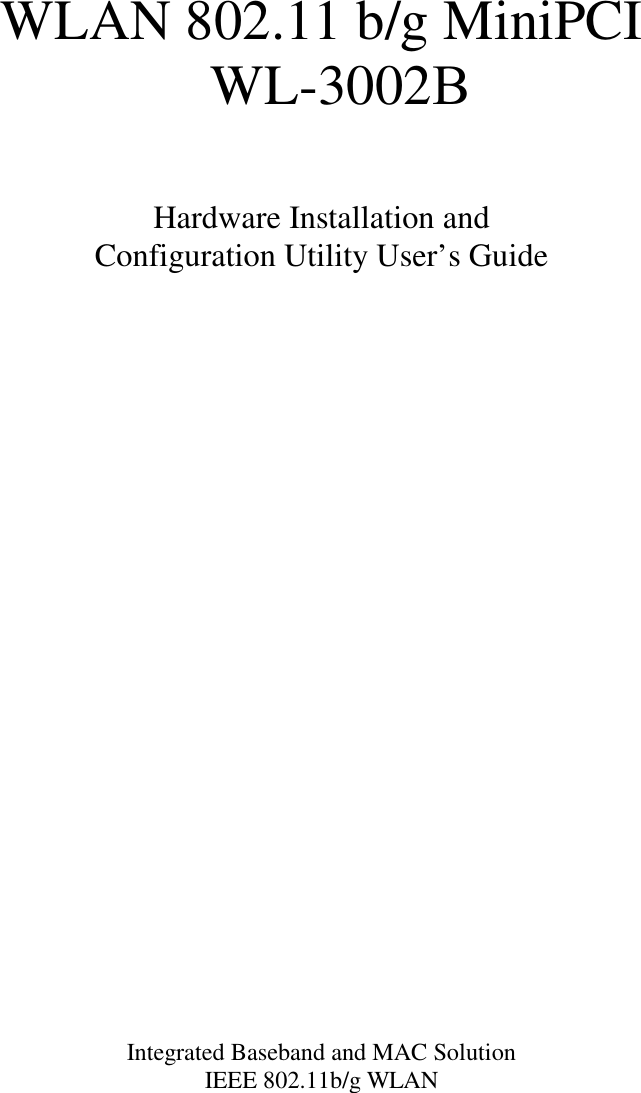

WLAN 802.11 b/g MiniPCI WL-3002BHardware Installation and Configuration Utility User’s Guide Integrated Baseband and MAC Solution IEEE 802.11b/g WLAN

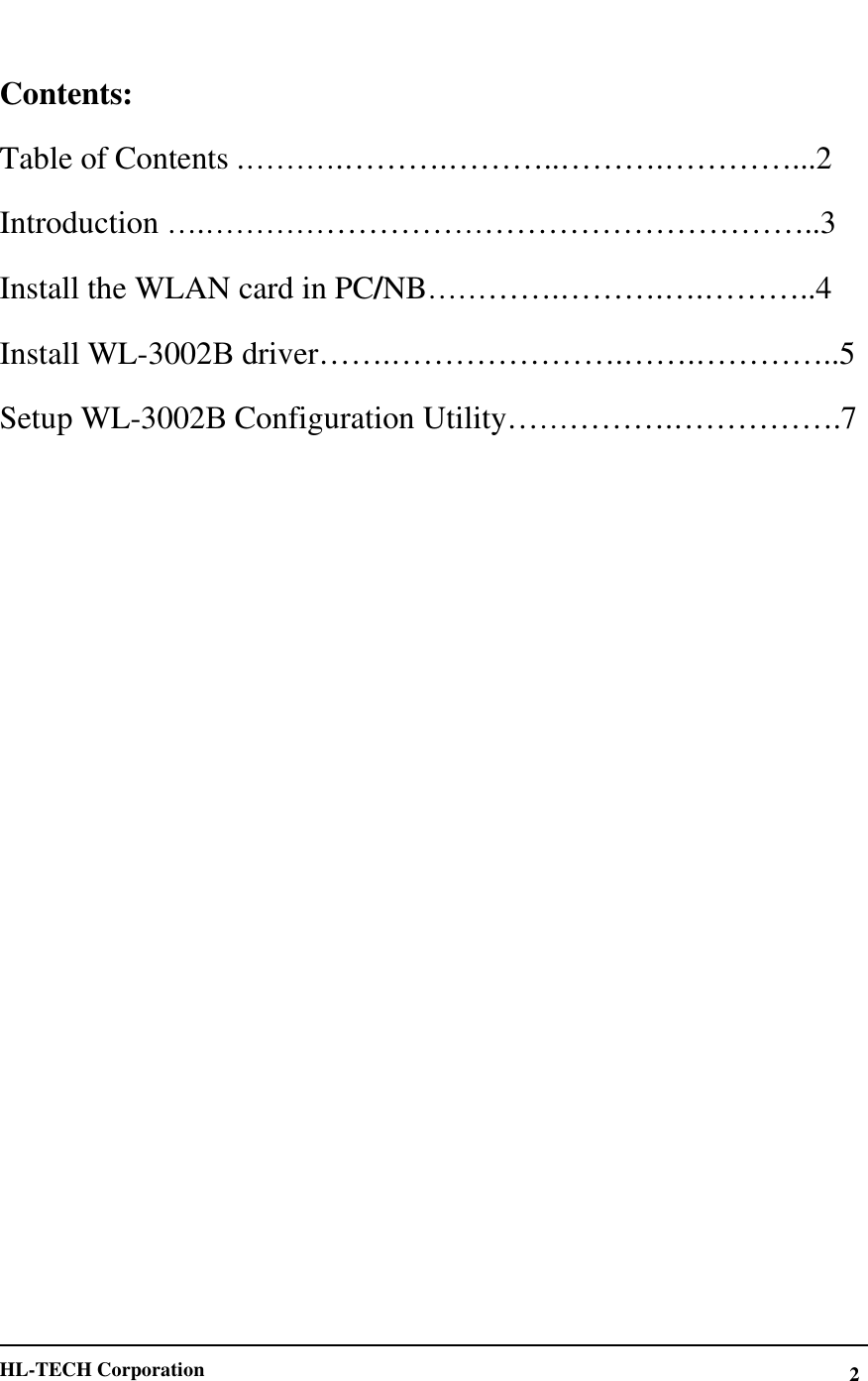

HL-TECH Corporation 2Contents: Table of Contents .……….……….………..……….…………...2 Introduction ….…………………………………………………..3 Install the WLAN card in PC/NB………….……….….………..4 Install WL-3002Bdriver…….………………….…….…………..5Setup WL-3002B Configuration Utility…………….…………….7

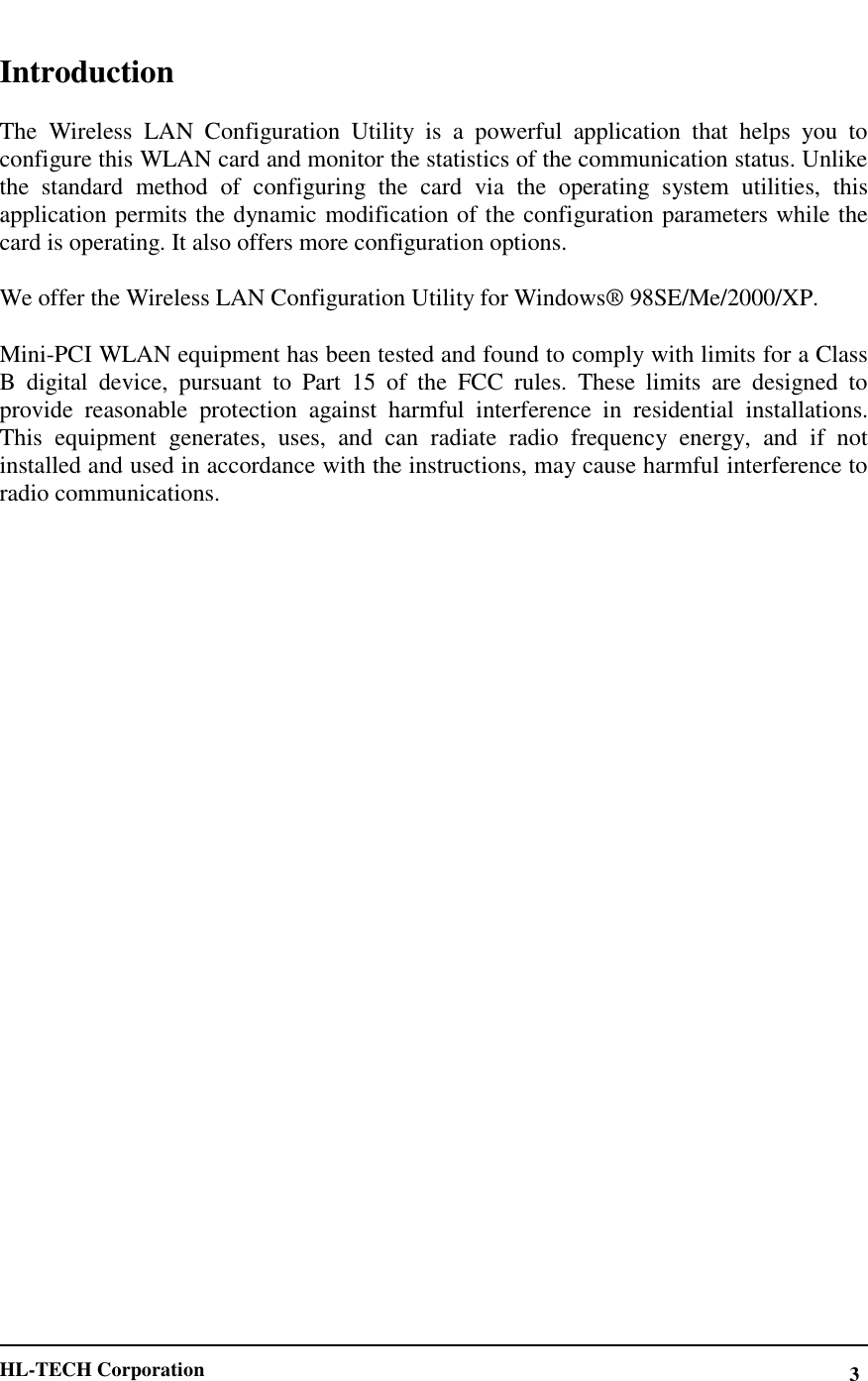

HL-TECH Corporation 3Introduction The Wireless LAN Configuration Utility is a powerful application that helps you to configure this WLAN card and monitor the statistics of the communication status. Unlike the standard method of configuring the card via the operating system utilities, this application permits the dynamic modification of the configuration parameters while the card is operating. It also offers more configuration options. We offer the Wireless LAN Configuration Utility for Windows® 98SE/Me/2000/XP. Mini-PCI WLAN equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
HL-TECH Corporation 4Install the WLAN card in PC/NB Release the screw from PC/NB Find out the pre-wired cable Connect the cable with Mini-PCI Align and firmly plug the Mini-PCI card into the slot. Re-place the cover to PC/NB Secure the screw with a cross screwdriver.

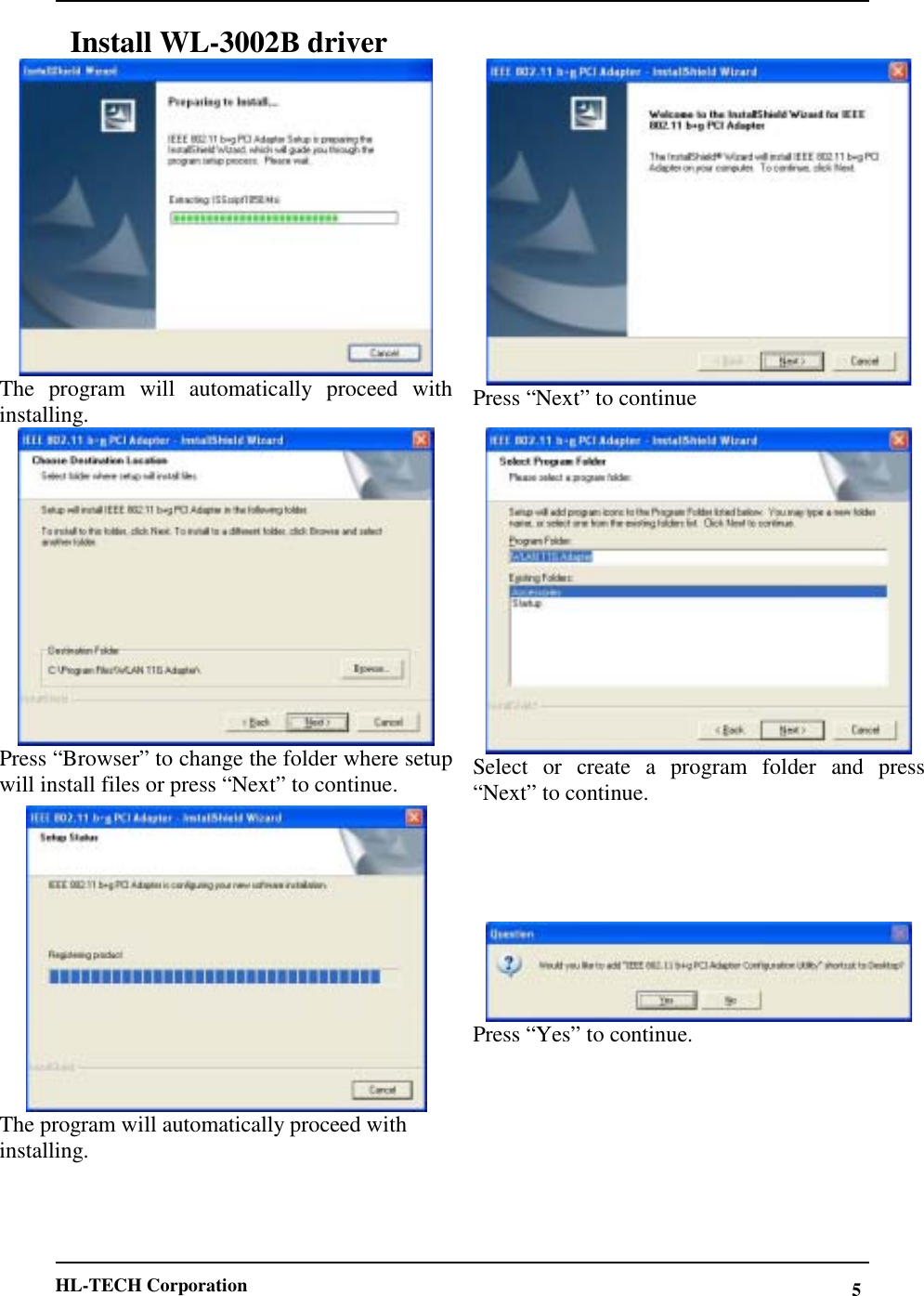

HL-TECH Corporation 5Install WL-3002BdriverThe program will automatically proceed with installing. Press “Next” to continuePress “Browser” to change the folder where setup will install files or press “Next” to continue. Select or create a program folder and press “Next” to continue. The program will automatically proceed with installing. Press “Yes” to continue.

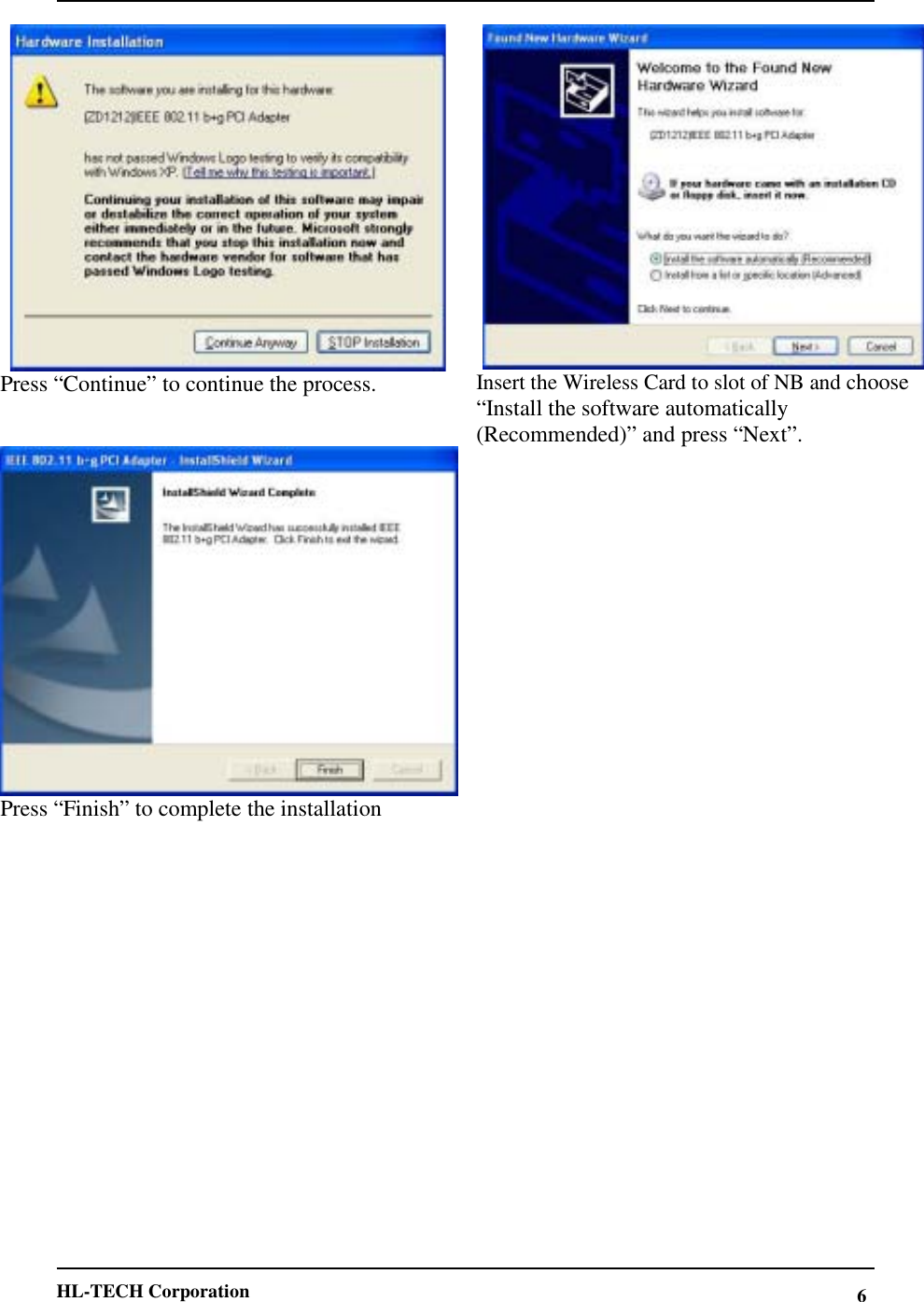

HL-TECH Corporation 6Press “Continue” to continue the process. Insert the Wireless Card to slot of NB and choose “Install the software automatically (Recommended)” and press “Next”. Press “Finish” to complete the installation

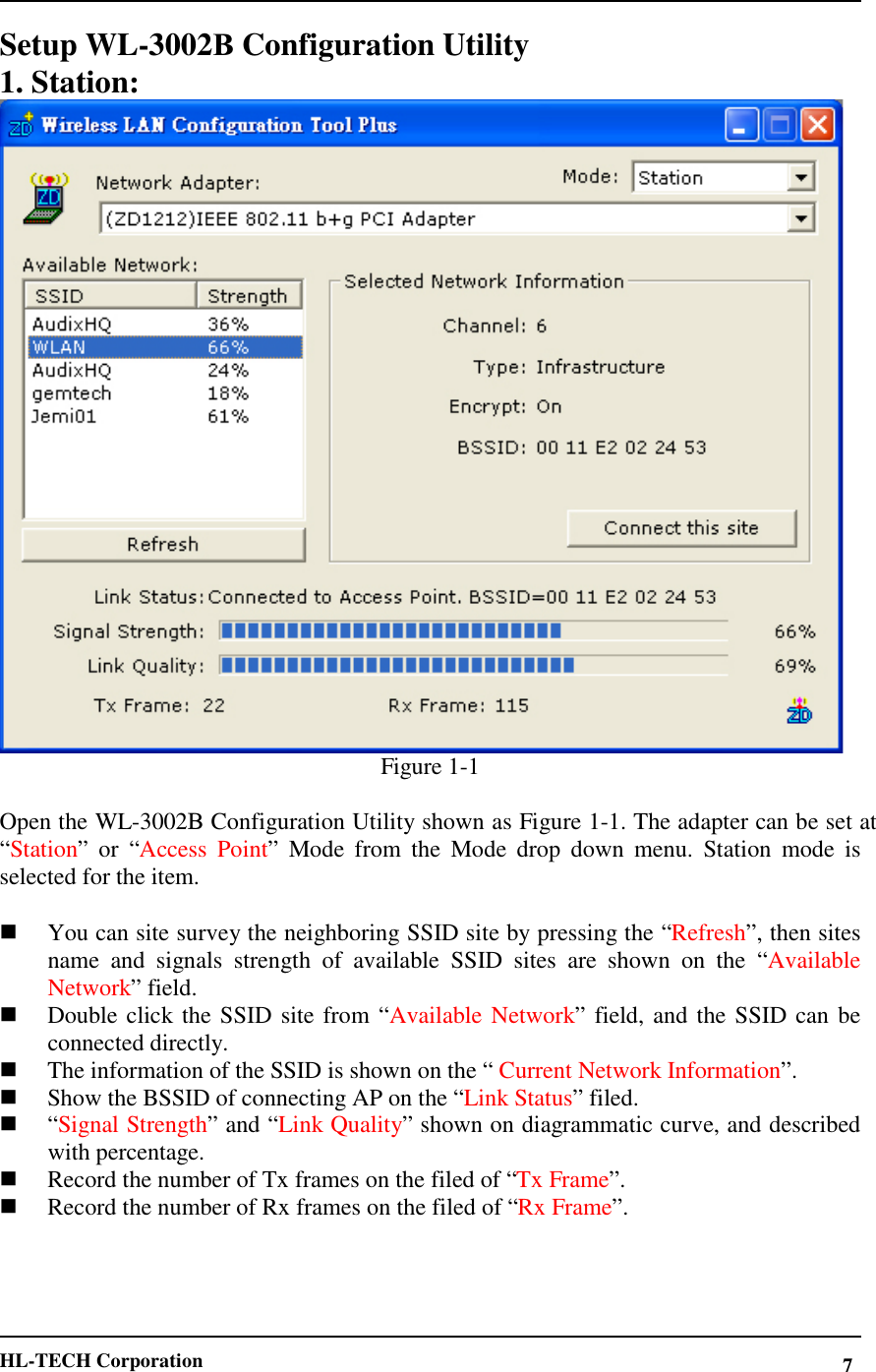

HL-TECH Corporation 7Setup WL-3002B Configuration Utility 1. Station: Figure 1-1 Open the WL-3002B Configuration Utility shown as Figure 1-1. The adapter can be set at“Station” or “Access Point” Mode from the Mode drop down menu. Station mode is selected for the item.  You can site survey the neighboring SSID site by pressing the “Refresh”, then sites name and signals strength of available SSID sites are shown on the “Available Network” field.  Double click the SSID site from “Available Network” field, and the SSID can be connected directly.  The information of the SSID is shown on the “ Current Network Information”. Show the BSSID of connecting AP on the “Link Status” filed.  “Signal Strength” and “Link Quality” shown on diagrammatic curve, and described with percentage.  Record the number of Tx frames on the filed of “Tx Frame”. Record the number of Rx frames on the filed of “Rx Frame”.

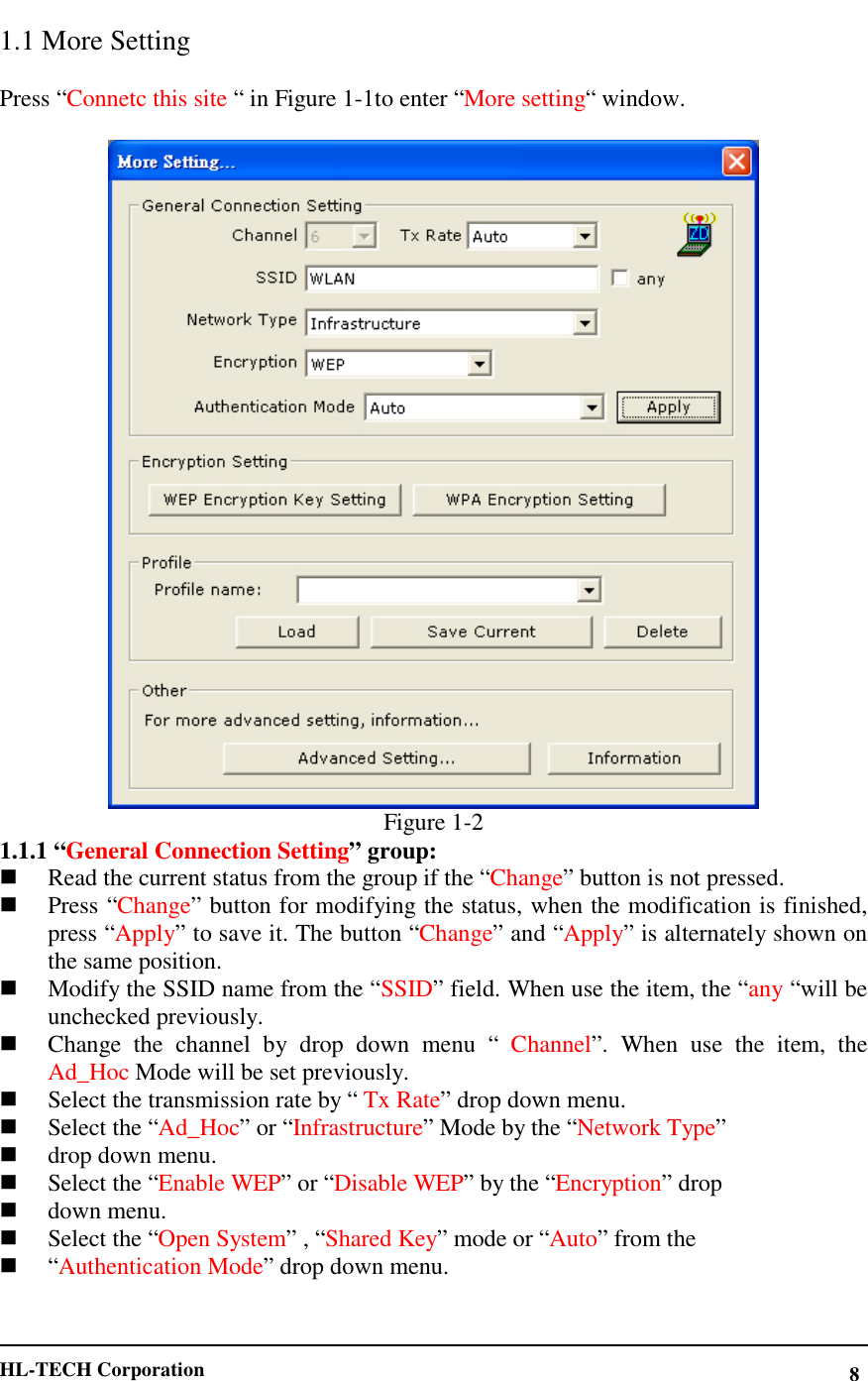

HL-TECH Corporation 81.1 More Setting Press “Connetc this site “ in Figure 1-1to enter “More setting“ window. Figure 1-2 1.1.1 “General Connection Setting” group:  Read the current status from the group if the “Change” button is not pressed.  Press “Change” button for modifying the status, when the modification is finished, press “Apply” to save it. The button “Change” and “Apply” is alternately shown on the same position.  Modify the SSID name from the “SSID” field. When use the item, the “any “will be unchecked previously.  Change the channel by drop down menu “ Channel”. When use the item, the Ad_Hoc Mode will be set previously.  Select the transmission rate by “ Tx Rate” drop down menu.  Select the “Ad_Hoc” or “Infrastructure” Mode by the “Network Type” drop down menu.  Select the “Enable WEP” or “Disable WEP” by the “Encryption” drop  down menu.  Select the “Open System” , “Shared Key” mode or “Auto” from the  “Authentication Mode” drop down menu.

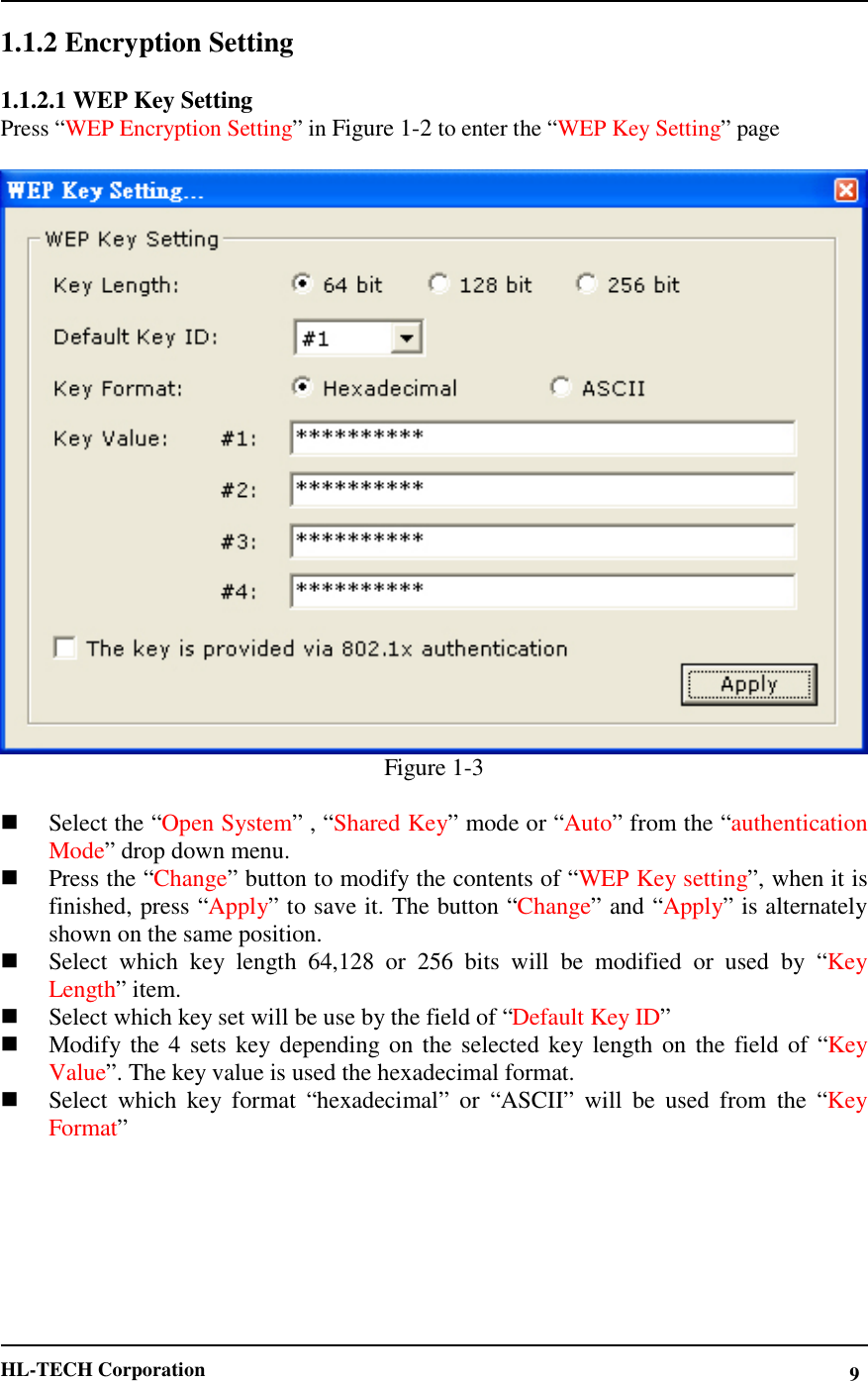

HL-TECH Corporation 91.1.2 Encryption Setting 1.1.2.1 WEP Key Setting Press “WEP Encryption Setting” in Figure 1-2 to enter the “WEP Key Setting” pageFigure 1-3  Select the “Open System” , “Shared Key” mode or “Auto” from the “authentication Mode” drop down menu.  Press the “Change” button to modify the contents of “WEP Key setting”, when it is finished, press “Apply” to save it. The button “Change” and “Apply” is alternately shown on the same position.  Select which key length 64,128 or 256 bits will be modified or used by “Key Length” item.  Select which key set will be use by the field of “Default Key ID” Modify the 4 sets key depending on the selected key length on the field of “Key Value”. The key value is used the hexadecimal format.  Select which key format “hexadecimal” or “ASCII” will be used from the “Key Format”

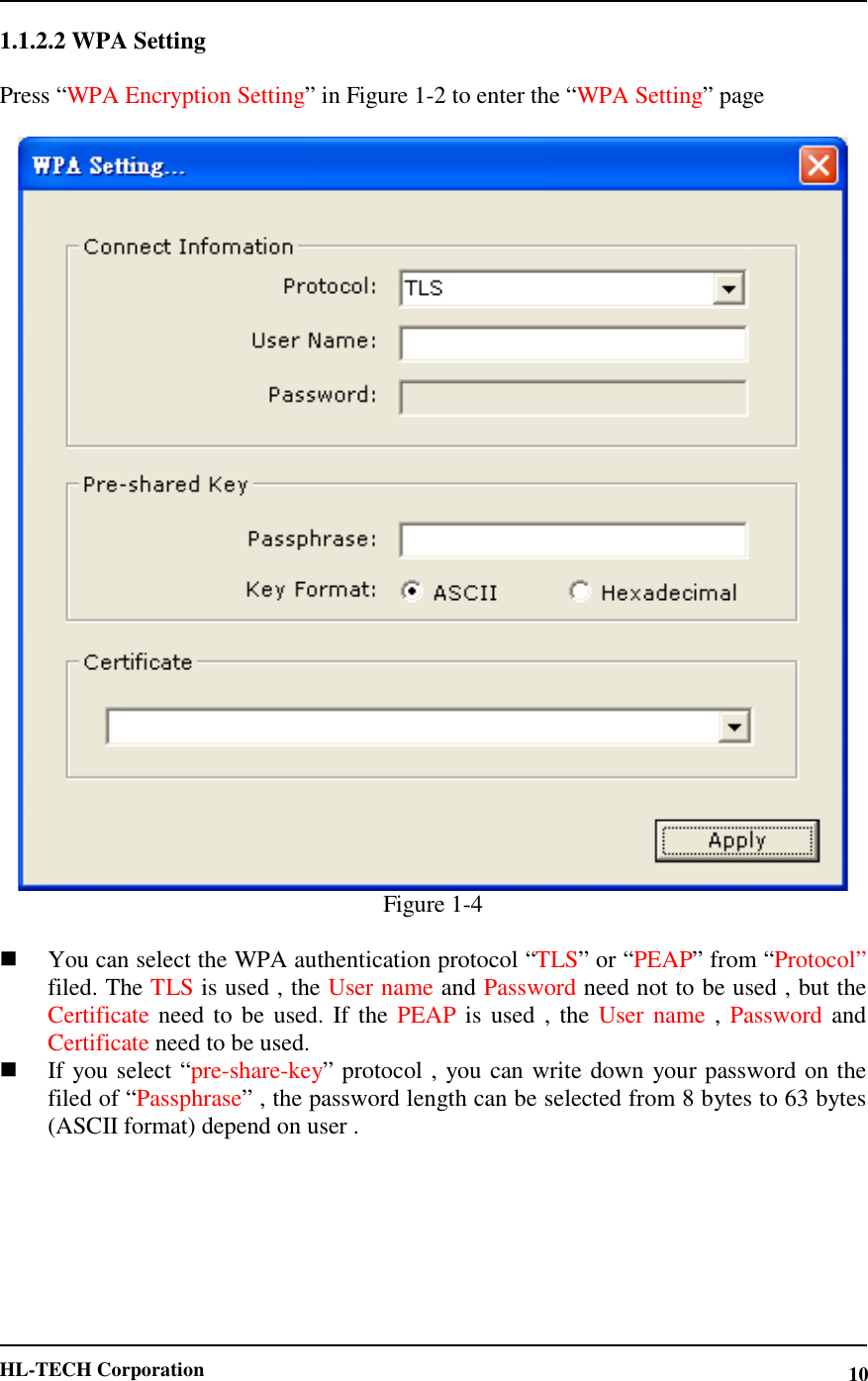

HL-TECH Corporation 101.1.2.2 WPA Setting Press “WPA Encryption Setting” in Figure 1-2 to enter the “WPA Setting” page Figure 1-4  You can select the WPA authentication protocol “TLS” or “PEAP” from “Protocol” filed. The TLS is used , the User name and Password need not to be used , but the Certificate need to be used. If the PEAP is used , the User name ,Password and Certificate need to be used.  If you select “pre-share-key” protocol , you can write down your password on the filed of “Passphrase” , the password length can be selected from 8 bytes to 63 bytes (ASCII format) depend on user .

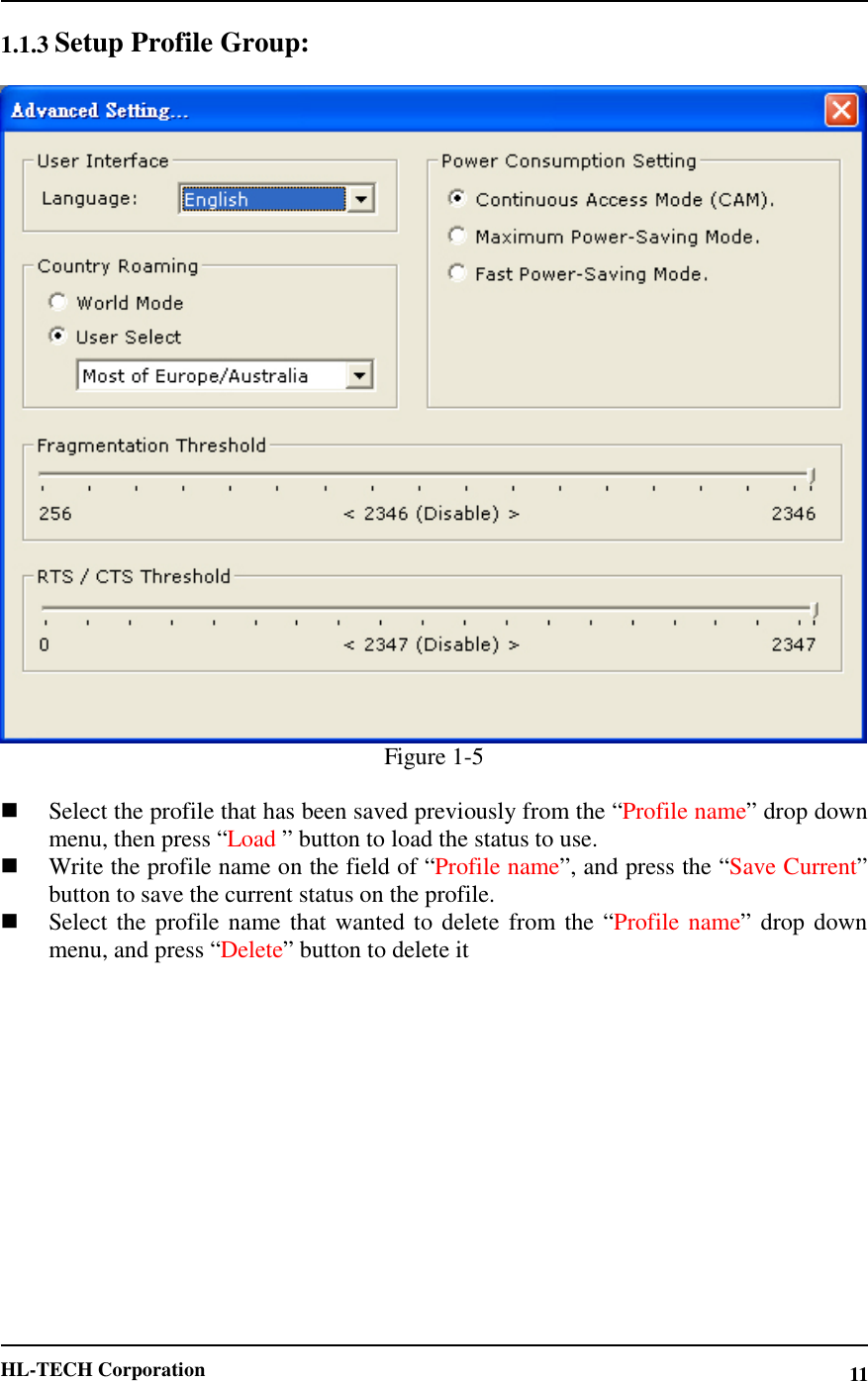

HL-TECH Corporation 111.1.3 Setup Profile Group: Figure 1-5 Select the profile that has been saved previously from the “Profile name” drop down menu, then press “Load ” button to load the status to use.  Write the profile name on the field of “Profile name”, and press the “Save Current”button to save the current status on the profile.  Select the profile name that wanted to delete from the “Profile name” drop down menu, and press “Delete” button to delete it

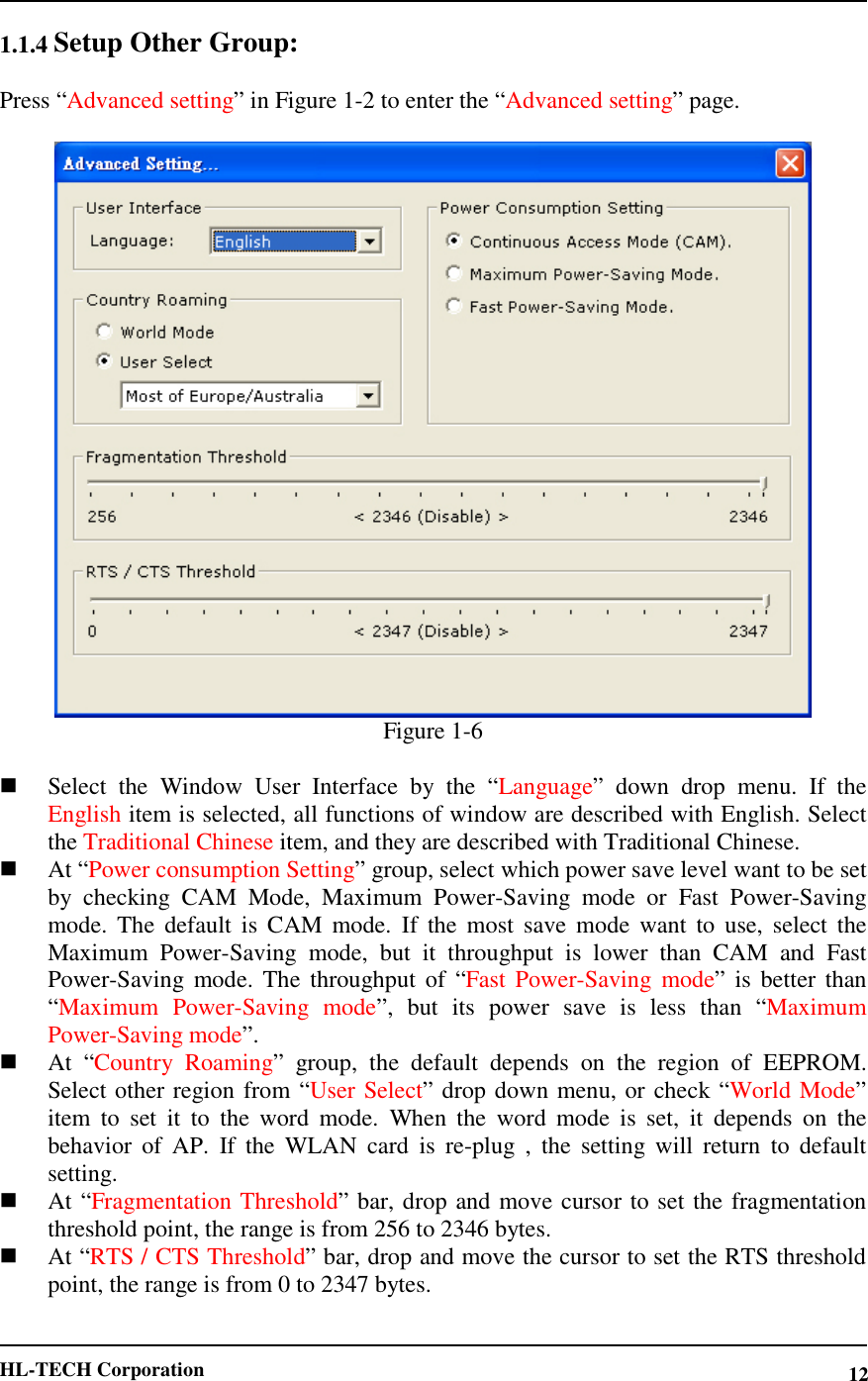

HL-TECH Corporation 121.1.4 Setup Other Group: Press “Advanced setting” in Figure 1-2 to enter the “Advanced setting” page. Figure 1-6  Select the Window User Interface by the “Language” down drop menu. If the English item is selected, all functions of window are described with English. Select the Traditional Chinese item, and they are described with Traditional Chinese.  At “Power consumption Setting” group, select which power save level want to be set by checking CAM Mode, Maximum Power-Saving mode or Fast Power-Saving mode. The default is CAM mode. If the most save mode want to use, select the Maximum Power-Saving mode, but it throughput is lower than CAM and Fast Power-Saving mode. The throughput of “Fast Power-Saving mode” is better than “Maximum Power-Saving mode”, but its power save is less than “Maximum Power-Saving mode”. At “Country Roaming” group, the default depends on the region of EEPROM. Select other region from “User Select” drop down menu, or check “World Mode”item to set it to the word mode. When the word mode is set, it depends on the behavior of AP. If the WLAN card is re-plug , the setting will return to default setting.  At “Fragmentation Threshold” bar, drop and move cursor to set the fragmentation threshold point, the range is from 256 to 2346 bytes.  At “RTS / CTS Threshold” bar, drop and move the cursor to set the RTS threshold point, the range is from 0 to 2347 bytes.

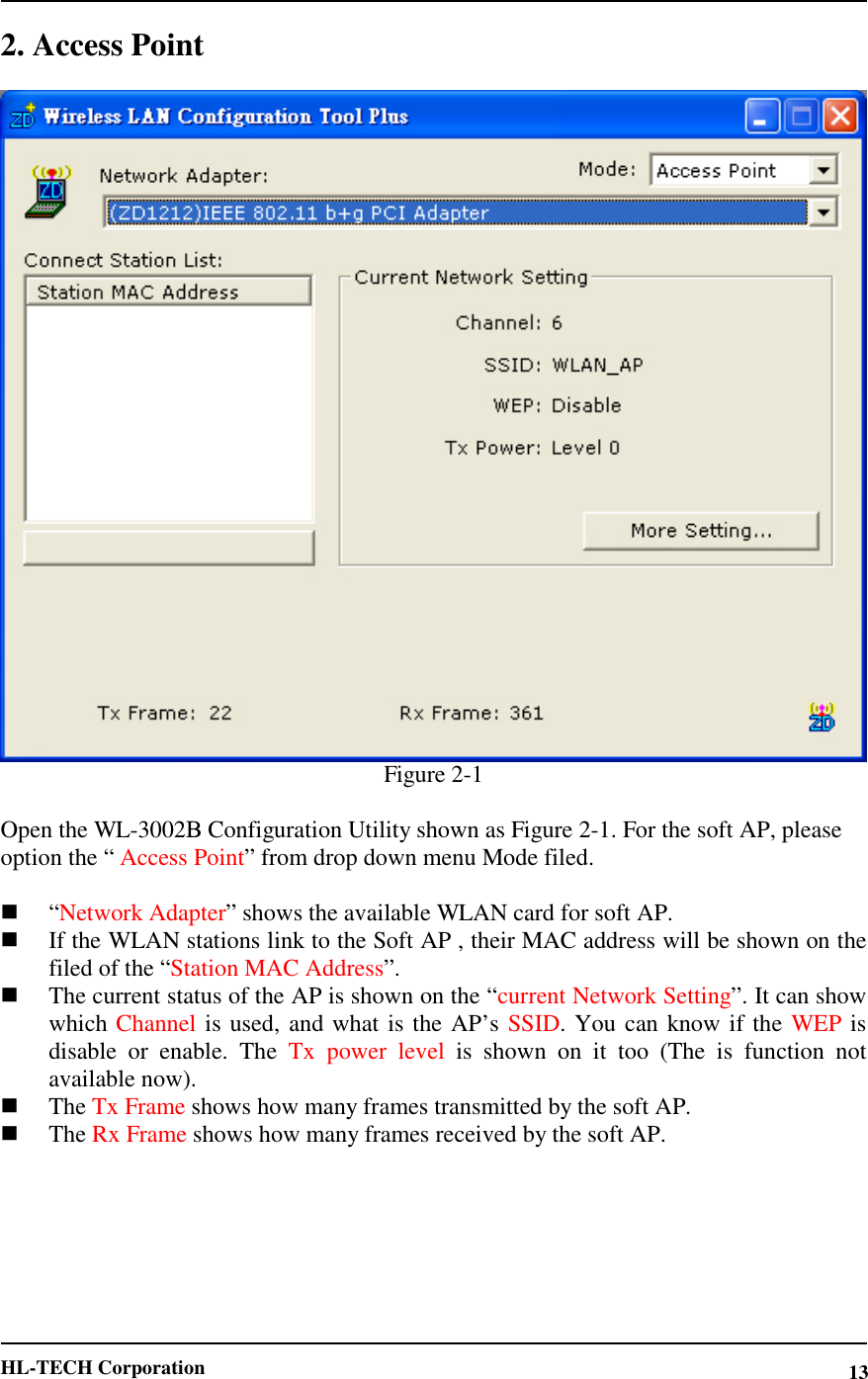

HL-TECH Corporation 132. Access Point Figure 2-1 Open the WL-3002BConfiguration Utility shown as Figure 2-1. For the soft AP, pleaseoption the “ Access Point” from drop down menu Mode filed.  “Network Adapter” shows the available WLAN card for soft AP.  If the WLAN stations link to the Soft AP , their MAC address will be shown on the filed of the “Station MAC Address”.  The current status of the AP is shown on the “current Network Setting”. It can show which Channel is used, and what is the AP’s SSID. You can know if the WEP is disable or enable. The Tx power level is shown on it too (The is function not available now).  The Tx Frame shows how many frames transmitted by the soft AP.  The Rx Frame shows how many frames received by the soft AP.

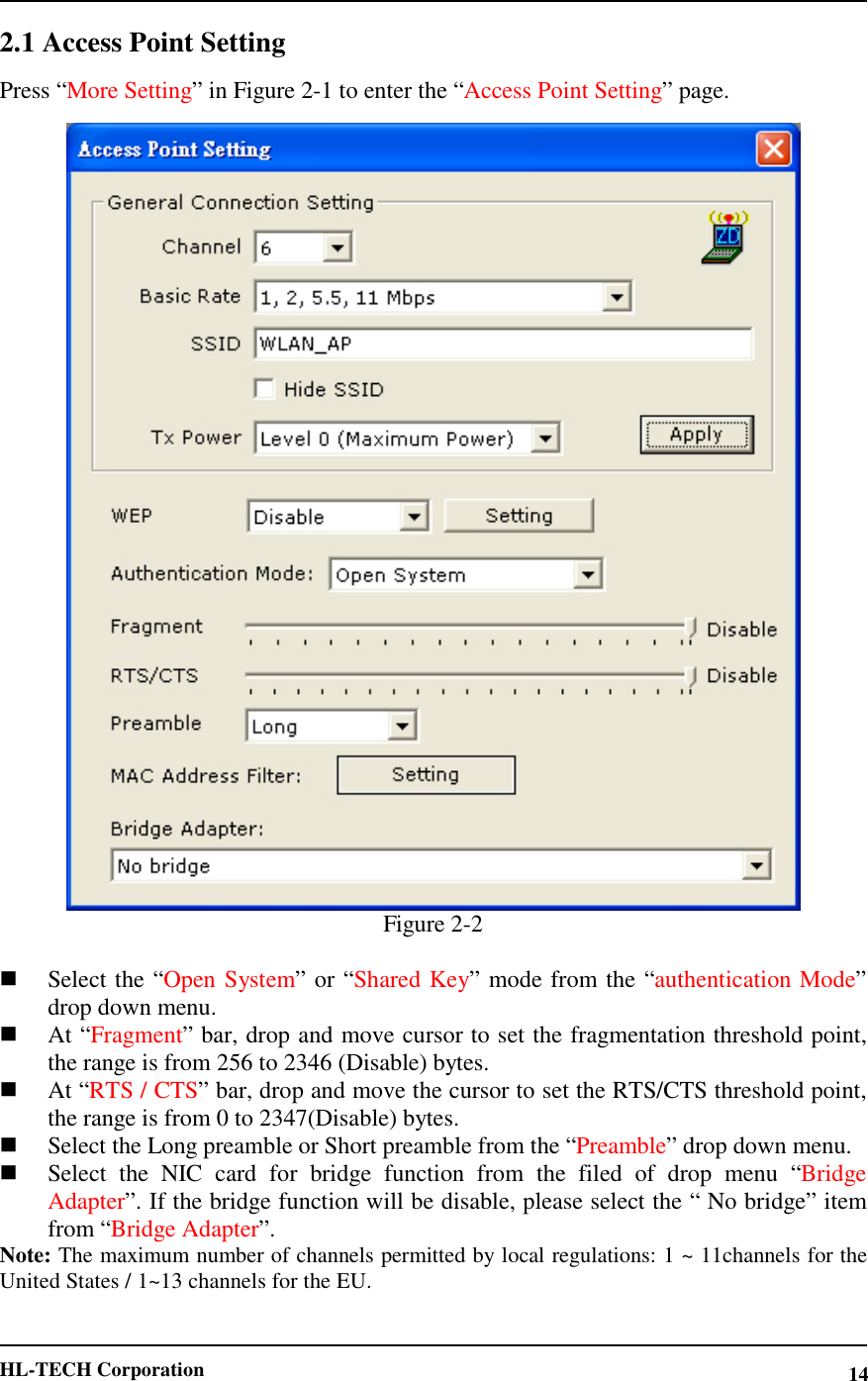

HL-TECH Corporation 142.1 Access Point Setting Press “More Setting” in Figure 2-1 to enter the “Access Point Setting” page. Figure 2-2  Select the “Open System” or “Shared Key” mode from the “authentication Mode”drop down menu.  At “Fragment” bar, drop and move cursor to set the fragmentation threshold point, the range is from 256 to 2346 (Disable) bytes.  At “RTS / CTS” bar, drop and move the cursor to set the RTS/CTS threshold point, the range is from 0 to 2347(Disable) bytes.  Select the Long preamble or Short preamble from the “Preamble” drop down menu.  Select the NIC card for bridge function from the filed of drop menu “Bridge Adapter”. If the bridge function will be disable, please select the “ No bridge” item from “Bridge Adapter”.Note: The maximum number of channels permitted by local regulations: 1 ~ 11channels for the United States / 1~13 channels for the EU.

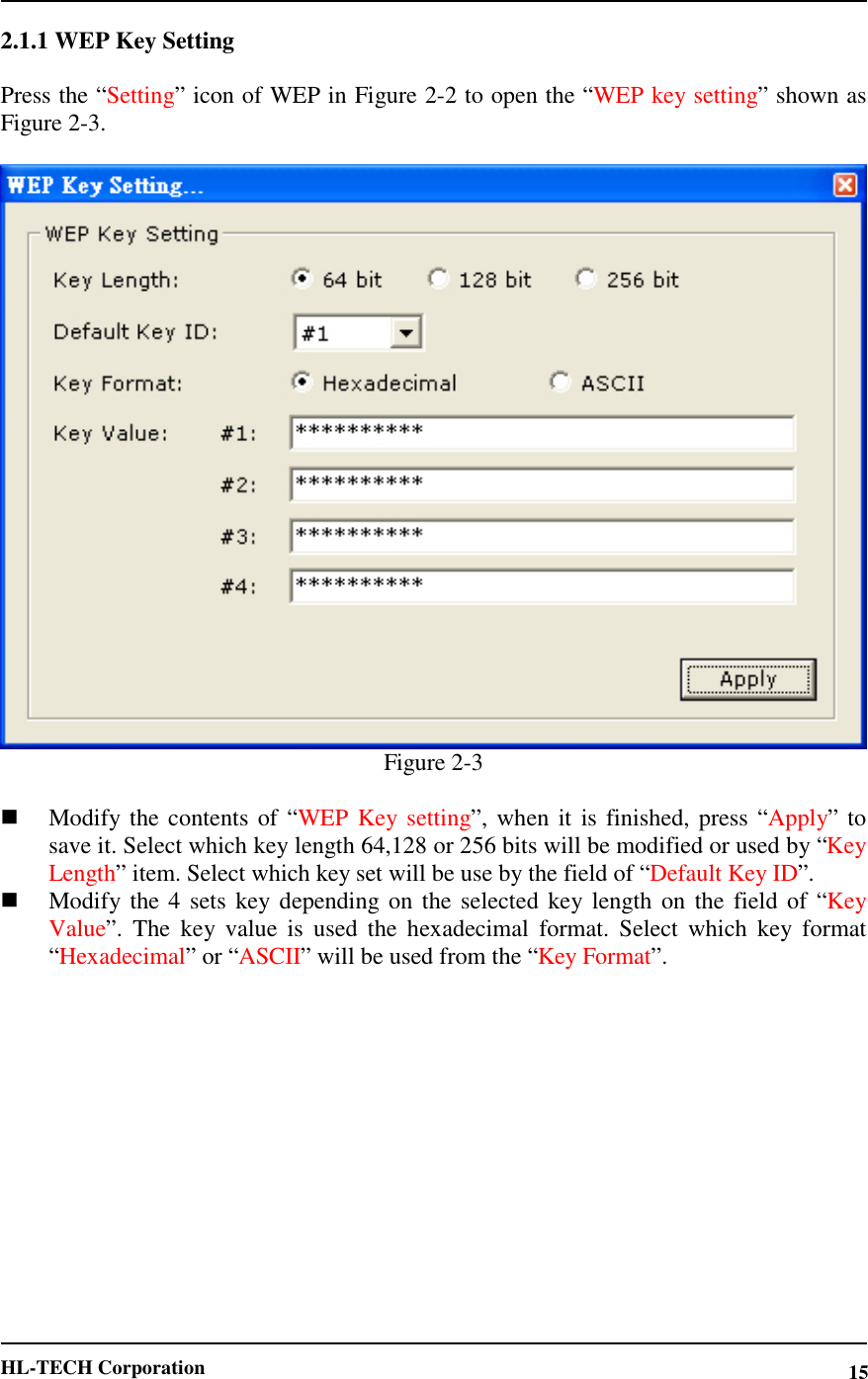

HL-TECH Corporation 152.1.1 WEP Key Setting Press the “Setting” icon of WEP in Figure 2-2 to open the “WEP key setting” shown as Figure 2-3. Figure 2-3  Modify the contents of “WEP Key setting”, when it is finished, press “Apply” to save it. Select which key length 64,128 or 256 bits will be modified or used by “Key Length” item. Select which key set will be use by the field of “Default Key ID”.  Modify the 4 sets key depending on the selected key length on the field of “Key Value”. The key value is used the hexadecimal format. Select which key format “Hexadecimal” or “ASCII” will be used from the “Key Format”.

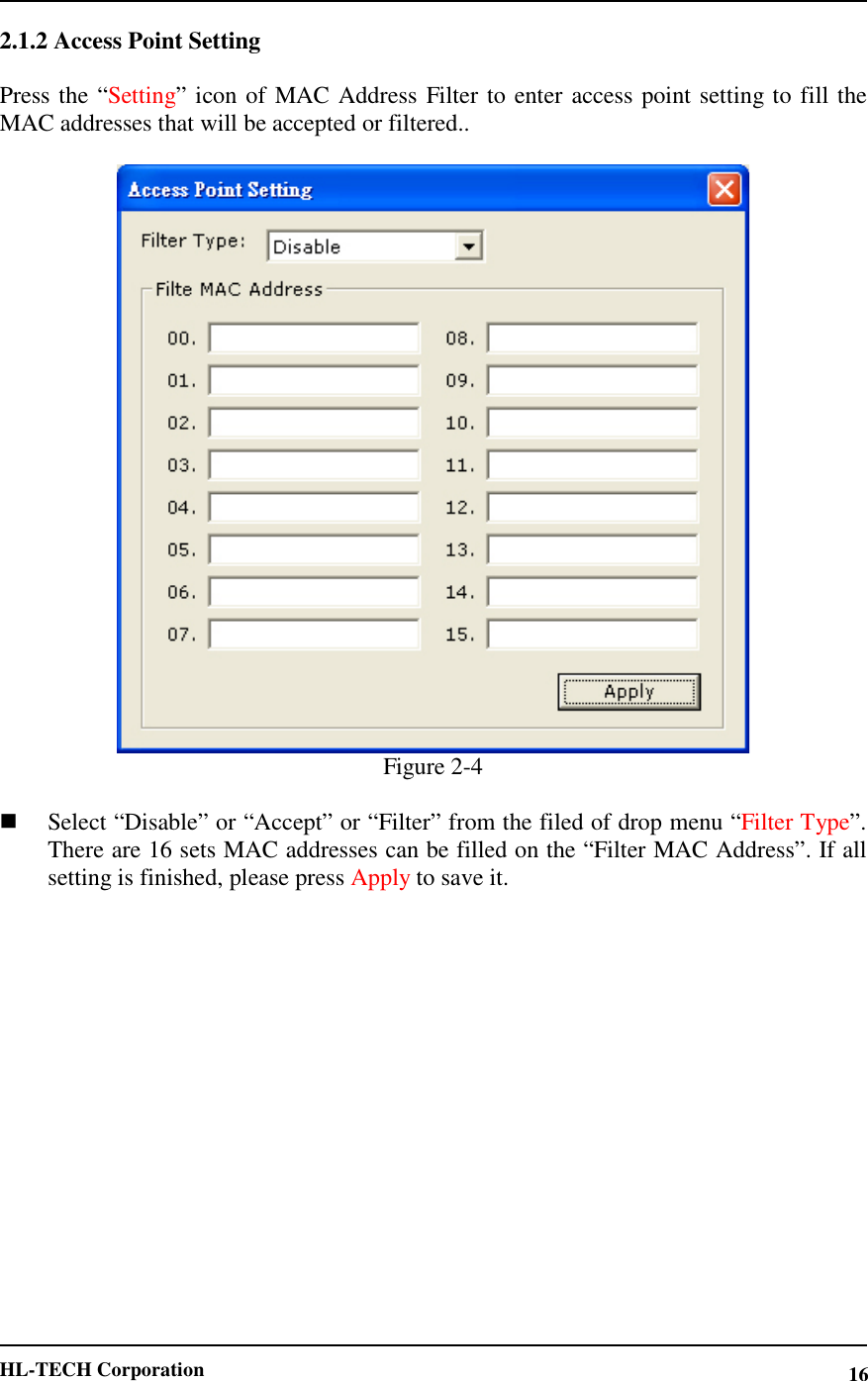

HL-TECH Corporation 162.1.2 Access Point Setting Press the “Setting” icon of MAC Address Filter to enter access point setting to fill the MAC addresses that will be accepted or filtered.. Figure 2-4  Select “Disable” or “Accept” or “Filter” from the filed of drop menu “Filter Type”. There are 16 sets MAC addresses can be filled on the “Filter MAC Address”. If all setting is finished, please press Apply to save it.

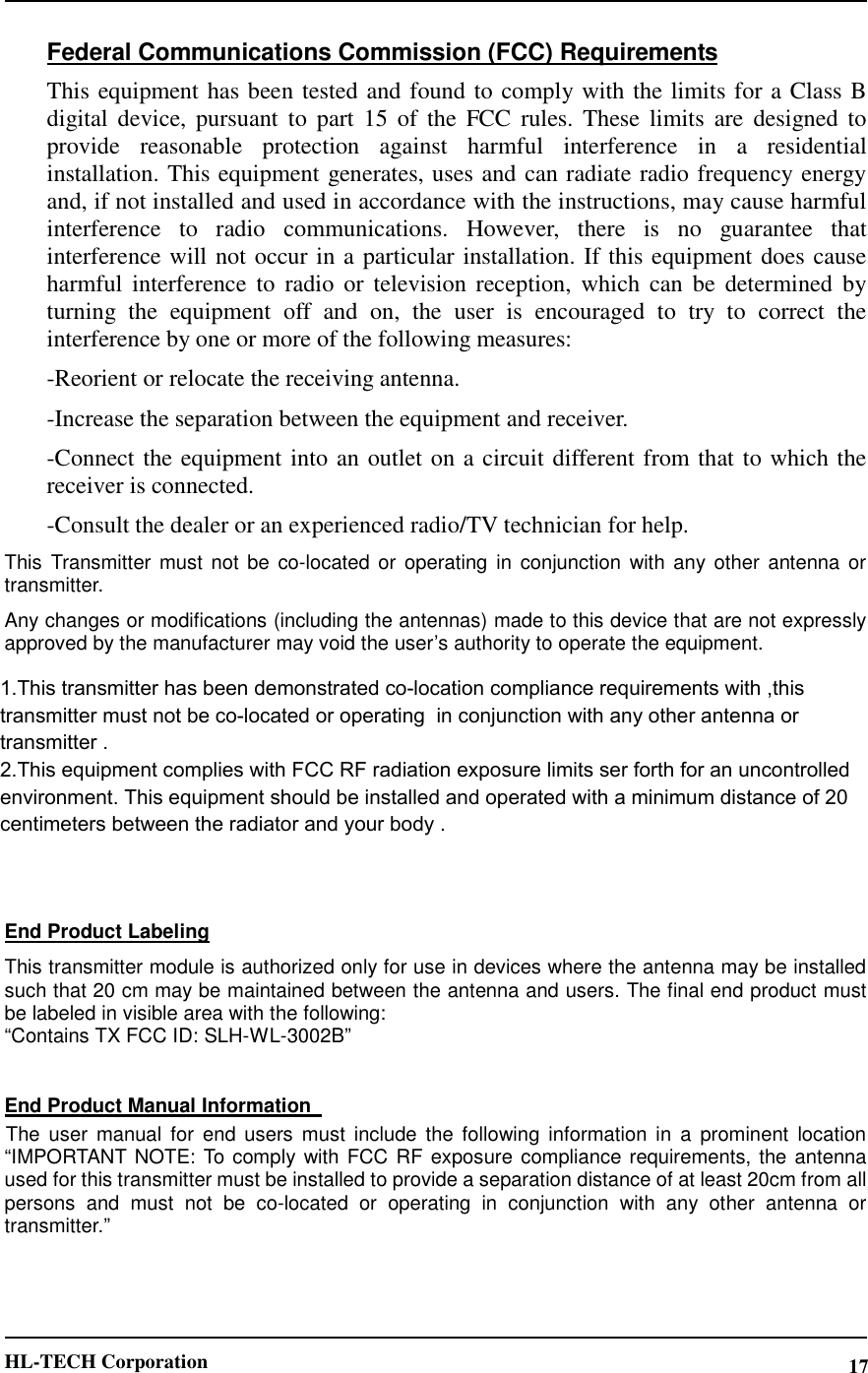

HL-TECH Corporation 17Federal Communications Commission (FCC) RequirementsThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. This device is intended only form OEM integrators under the following conditions: 1) The antenna must be installed such that 20cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product LabelingThis transmitter module is authorized only for use in devices where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in visible area with the following: “Contains TX FCC ID: SLH-WL-3002B” End Product Manual Information The user manual for end users must include the following information in a prominent location “IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” 1.This transmitter has been demonstrated co-location compliance requirements with ,this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter . 2.This equipment complies with FCC RF radiation exposure limits ser forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body . 

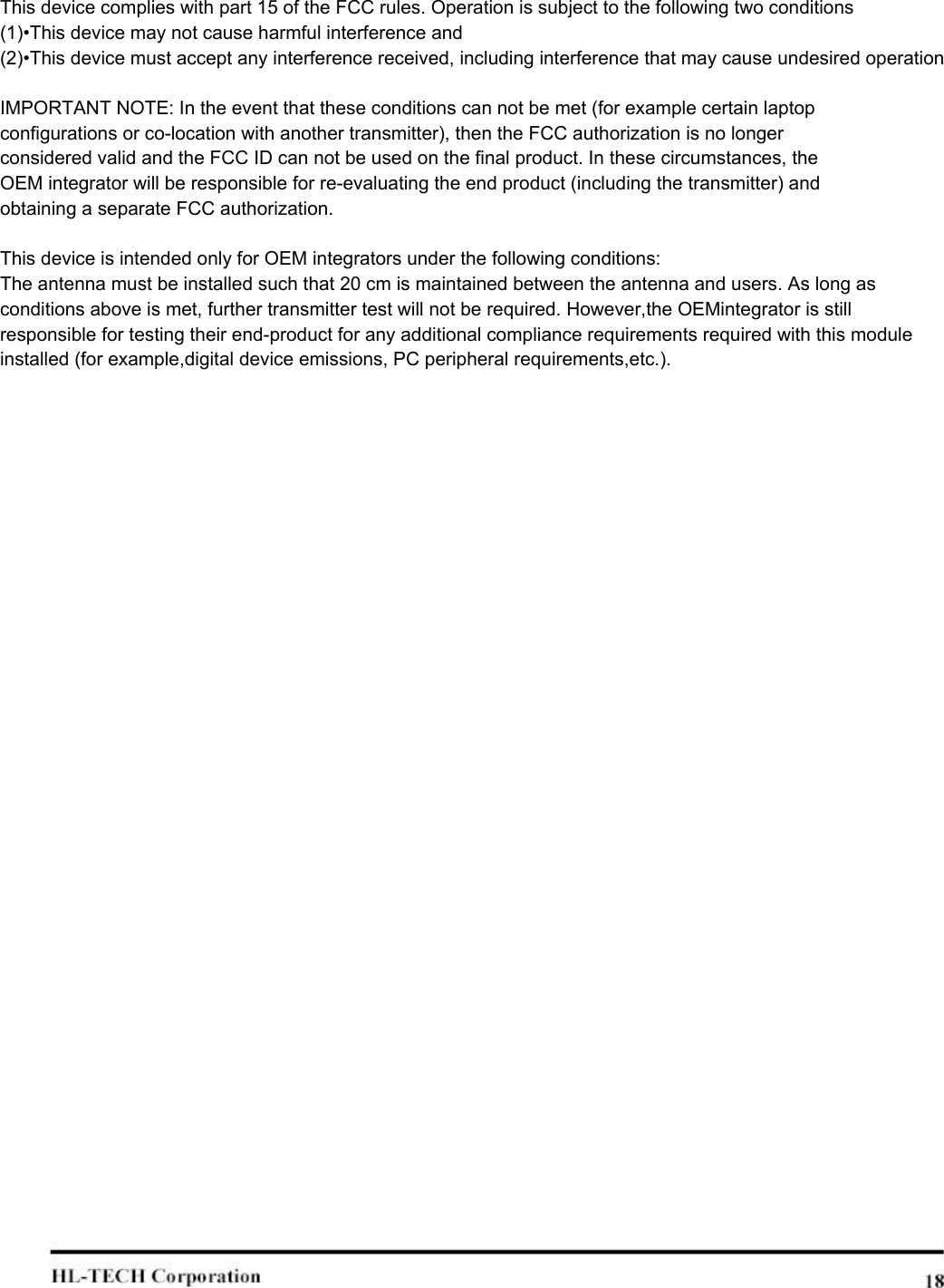

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions(1)•This device may not cause harmful interference and (2)•This device must accept any interference received, including interference that may cause undesired operation IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptopconfigurations or co-location with another transmitter), then the FCC authorization is no longerconsidered valid and the FCC ID can not be used on the final product. In these circumstances, theOEM integrator will be responsible for re-evaluating the end product (including the transmitter) andobtaining a separate FCC authorization.This device is intended only for OEM integrators under the following conditions:The antenna must be installed such that 20 cm is maintained between the antenna and users. As long asconditions above is met, further transmitter test will not be required. However,the OEMintegrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example,digital device emissions, PC peripheral requirements,etc.).
