HL Tech WL-8005 Wireless Access Point (AP) User Manual 9308397

HL-Tech Corporation Wireless Access Point (AP) 9308397

User manual

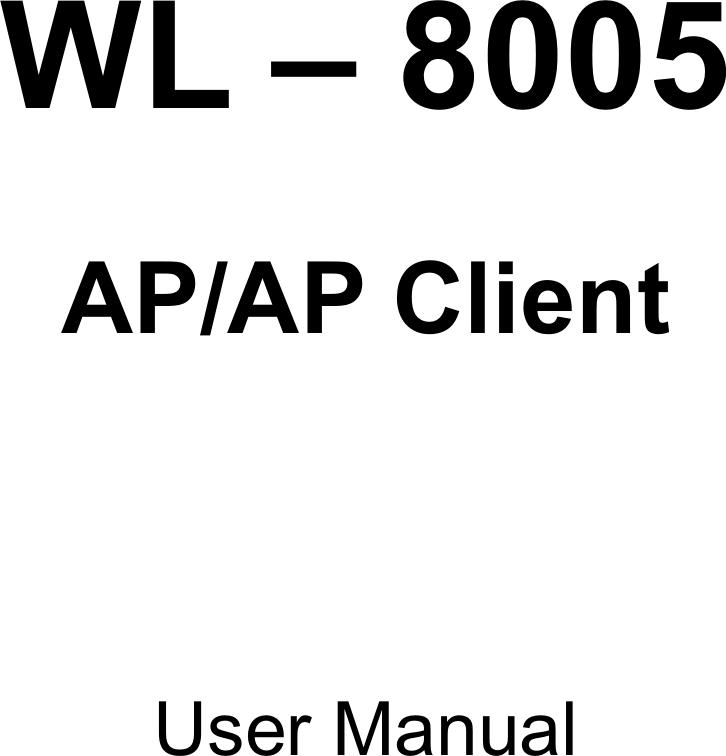

WL – 8005 AP/AP Client User Manual

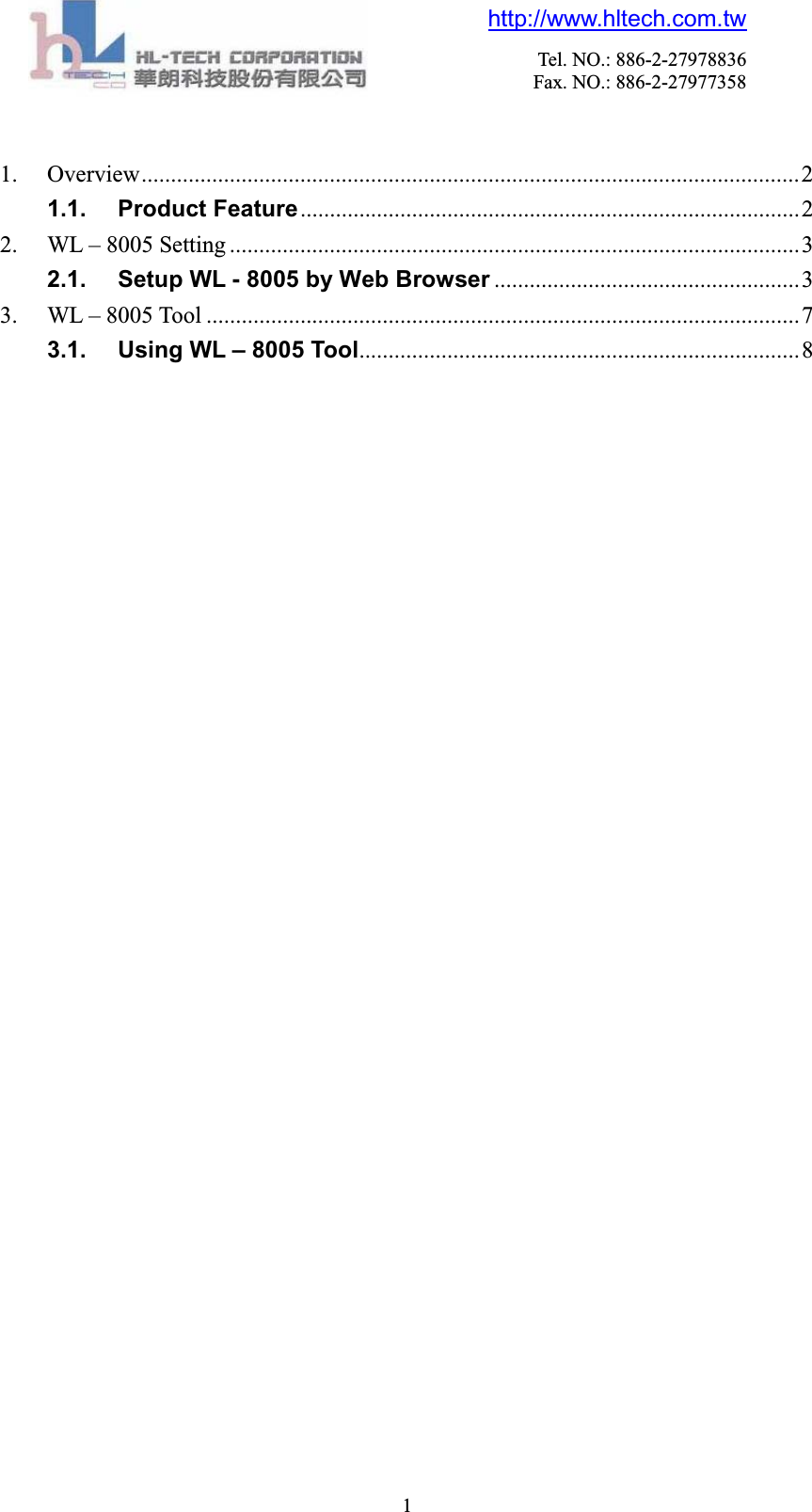

http://www.hltech.com.twTel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 11. Overview................................................................................................................2 1.1. Product Feature.....................................................................................2 2. WL – 8005 Setting .................................................................................................3 2.1. Setup WL - 8005 by Web Browser ....................................................3 3. WL – 8005 Tool .....................................................................................................7 3.1. Using WL – 8005 Tool...........................................................................8

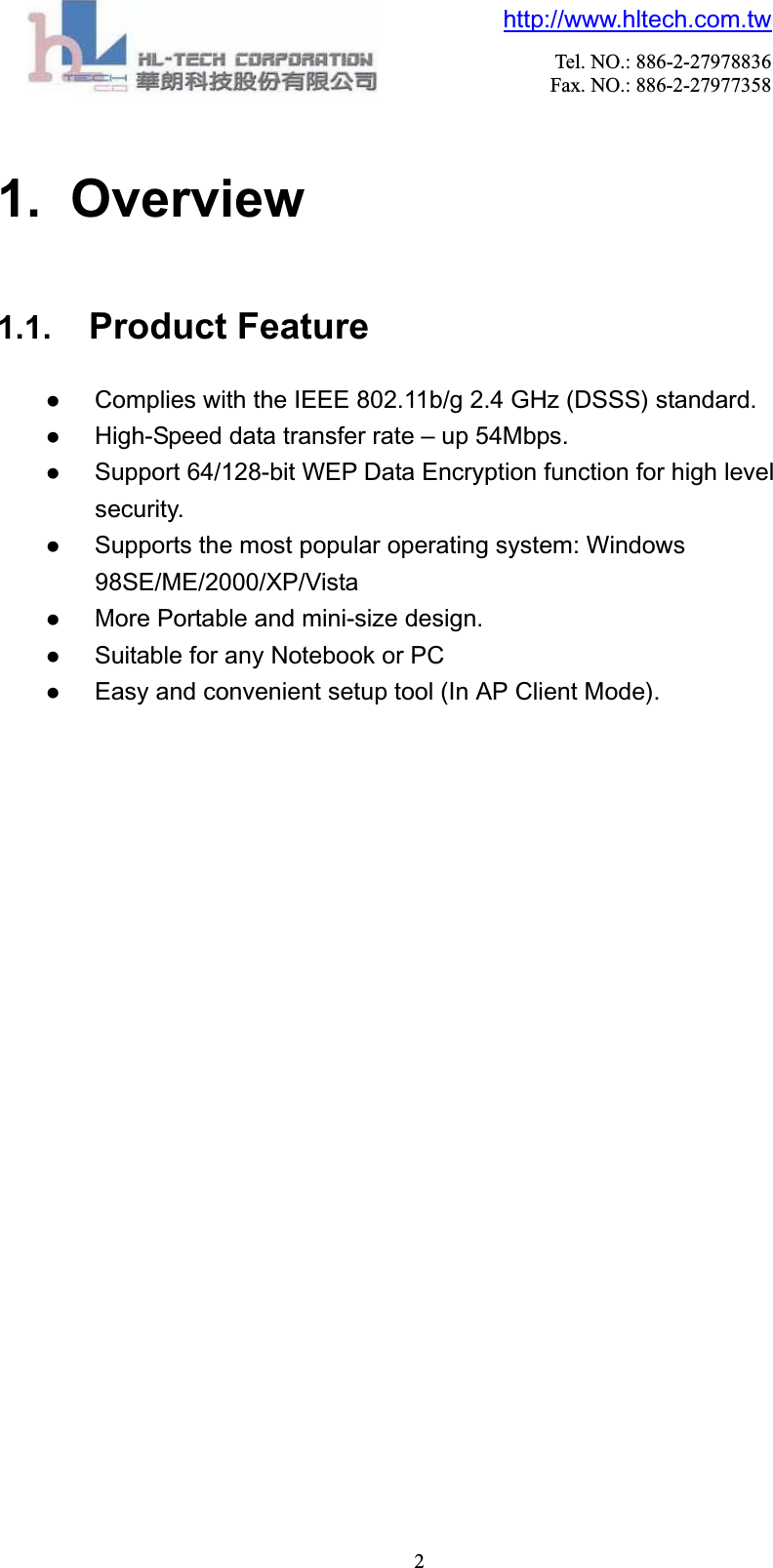

http://www.hltech.com.twTel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 21. Overview1.1. Product Feature zComplies with the IEEE 802.11b/g 2.4 GHz (DSSS) standard. zHigh-Speed data transfer rate – up 54Mbps. zSupport 64/128-bit WEP Data Encryption function for high level security. zSupports the most popular operating system: Windows 98SE/ME/2000/XP/Vista zMore Portable and mini-size design. zSuitable for any Notebook or PC zEasy and convenient setup tool (In AP Client Mode).

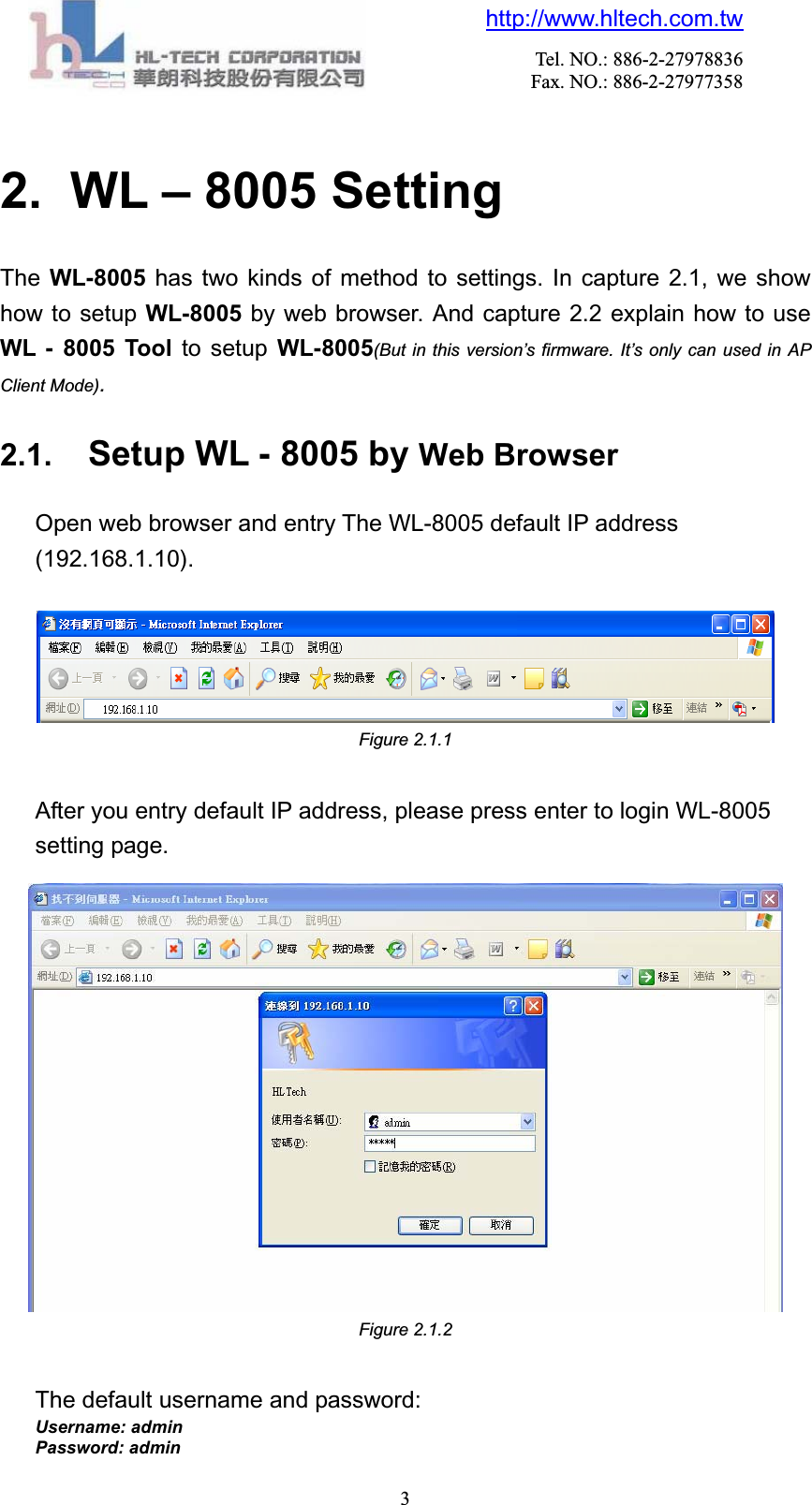

http://www.hltech.com.twTel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 32. WL – 8005 Setting The WL-8005 has two kinds of method to settings. In capture 2.1, we show how to setup WL-8005 by web browser. And capture 2.2 explain how to use WL - 8005 Tool to setup WL-8005(But in this version’s firmware. It’s only can used in AP Client Mode).2.1. Setup WL - 8005 by Web BrowserOpen web browser and entry The WL-8005 default IP address (192.168.1.10).Figure 2.1.1 After you entry default IP address, please press enter to login WL-8005 setting page. Figure 2.1.2 The default username and password: Username: admin Password: admin

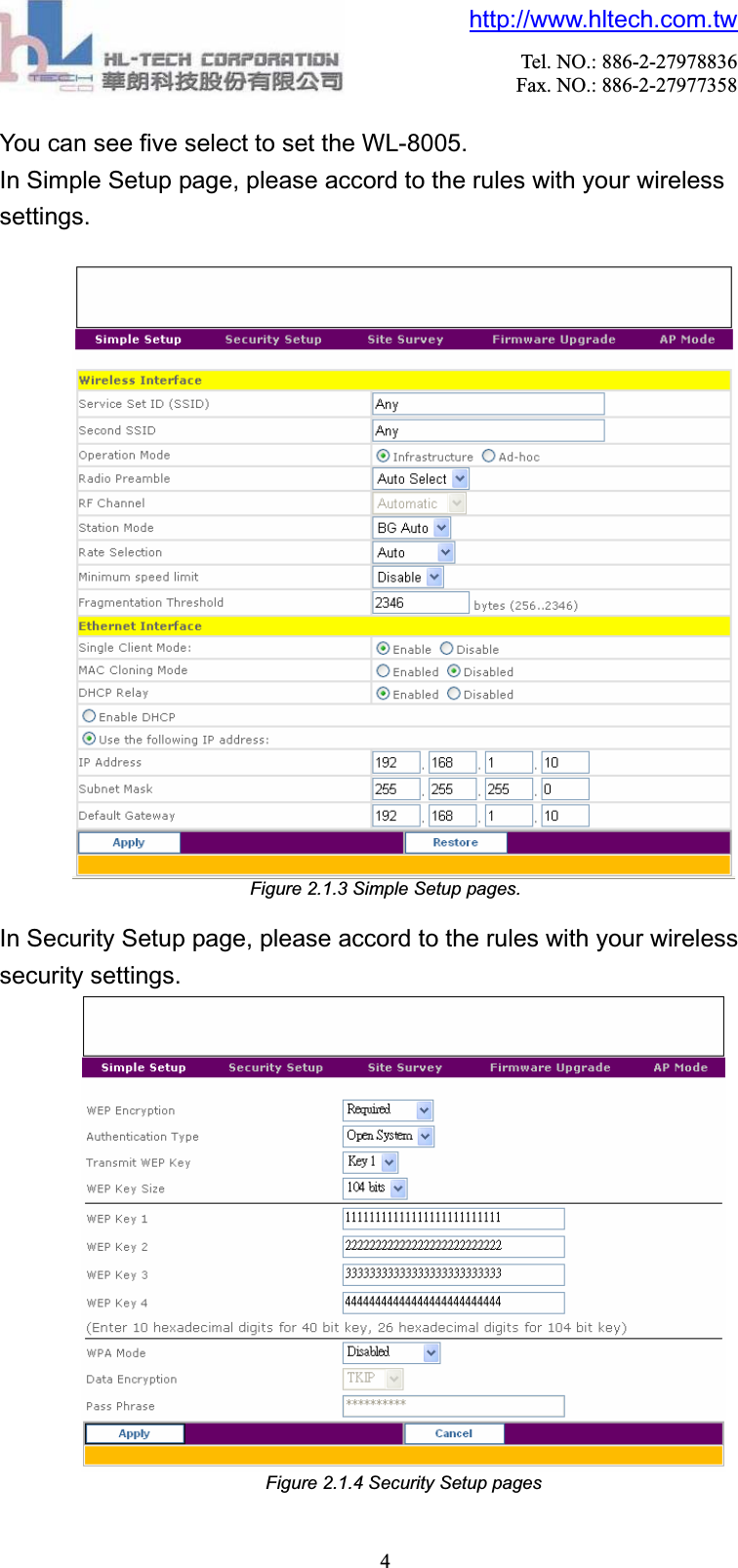

http://www.hltech.com.twTel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 4You can see five select to set the WL-8005. In Simple Setup page, please accord to the rules with your wireless settings.Figure 2.1.3 Simple Setup pages. In Security Setup page, please accord to the rules with your wireless security settings. Figure 2.1.4 Security Setup pages

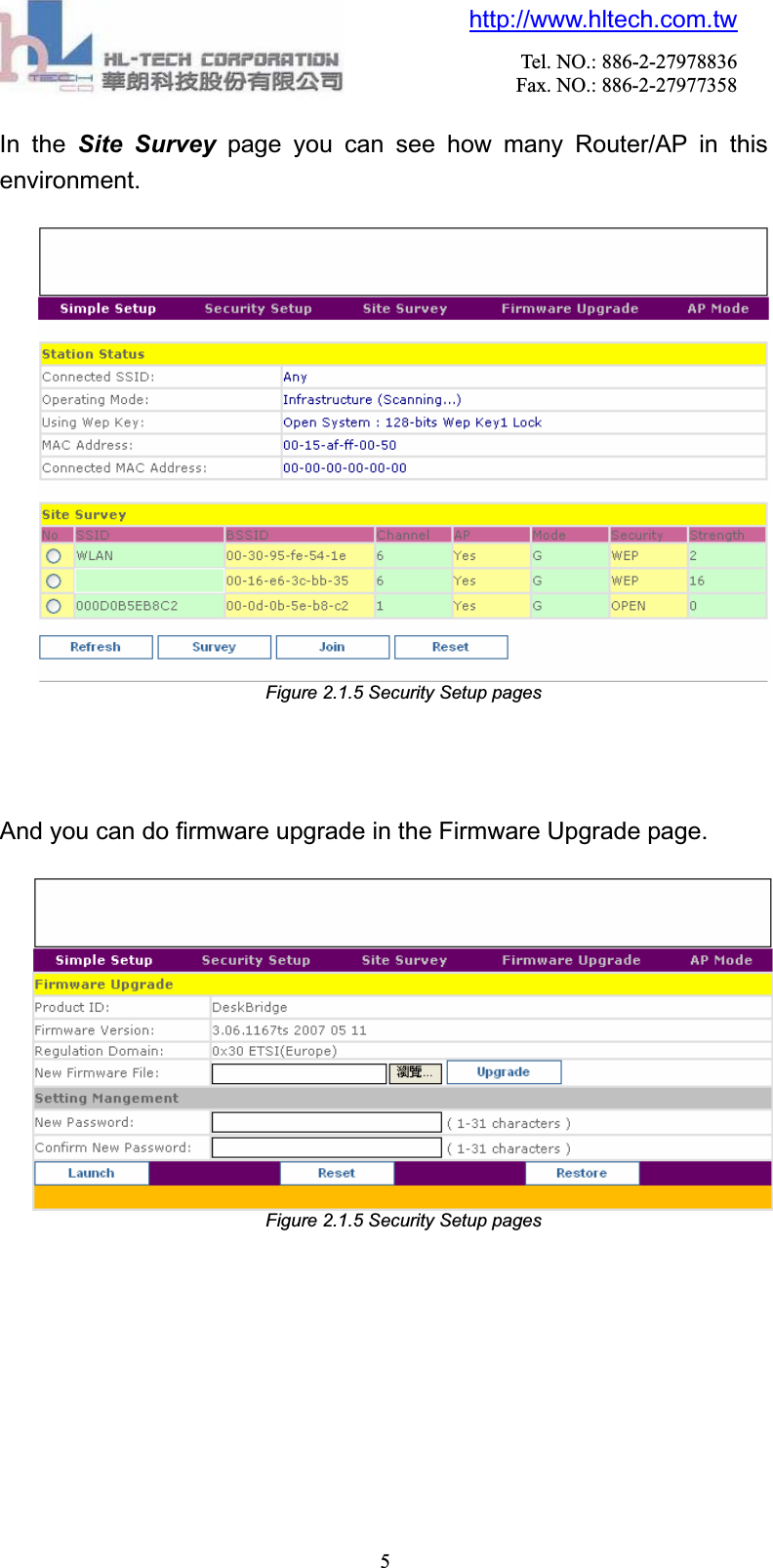

http://www.hltech.com.twTel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 5In the Site Survey page you can see how many Router/AP in this environment.Figure 2.1.5 Security Setup pages And you can do firmware upgrade in the Firmware Upgrade page. Figure 2.1.5 Security Setup pages

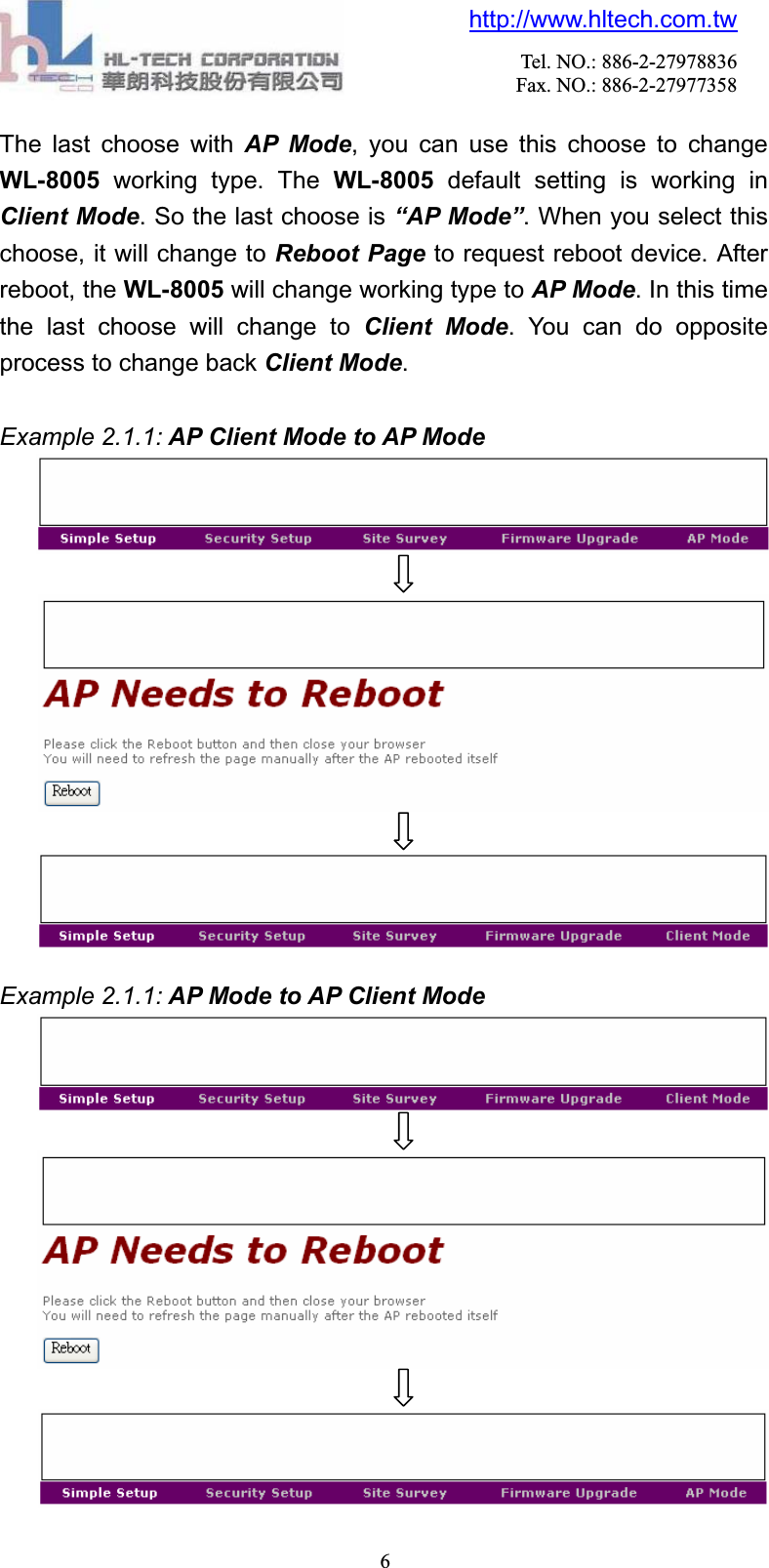

http://www.hltech.com.twTel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 6The last choose with AP Mode, you can use this choose to change WL-8005 working type. The WL-8005 default setting is working in Client Mode. So the last choose is “AP Mode”. When you select this choose, it will change to Reboot Page to request reboot device. After reboot, the WL-8005 will change working type to AP Mode. In this time the last choose will change to Client Mode. You can do opposite process to change back Client Mode.Example 2.1.1: AP Client Mode to AP ModeExample 2.1.1: AP Mode to AP Client Mode

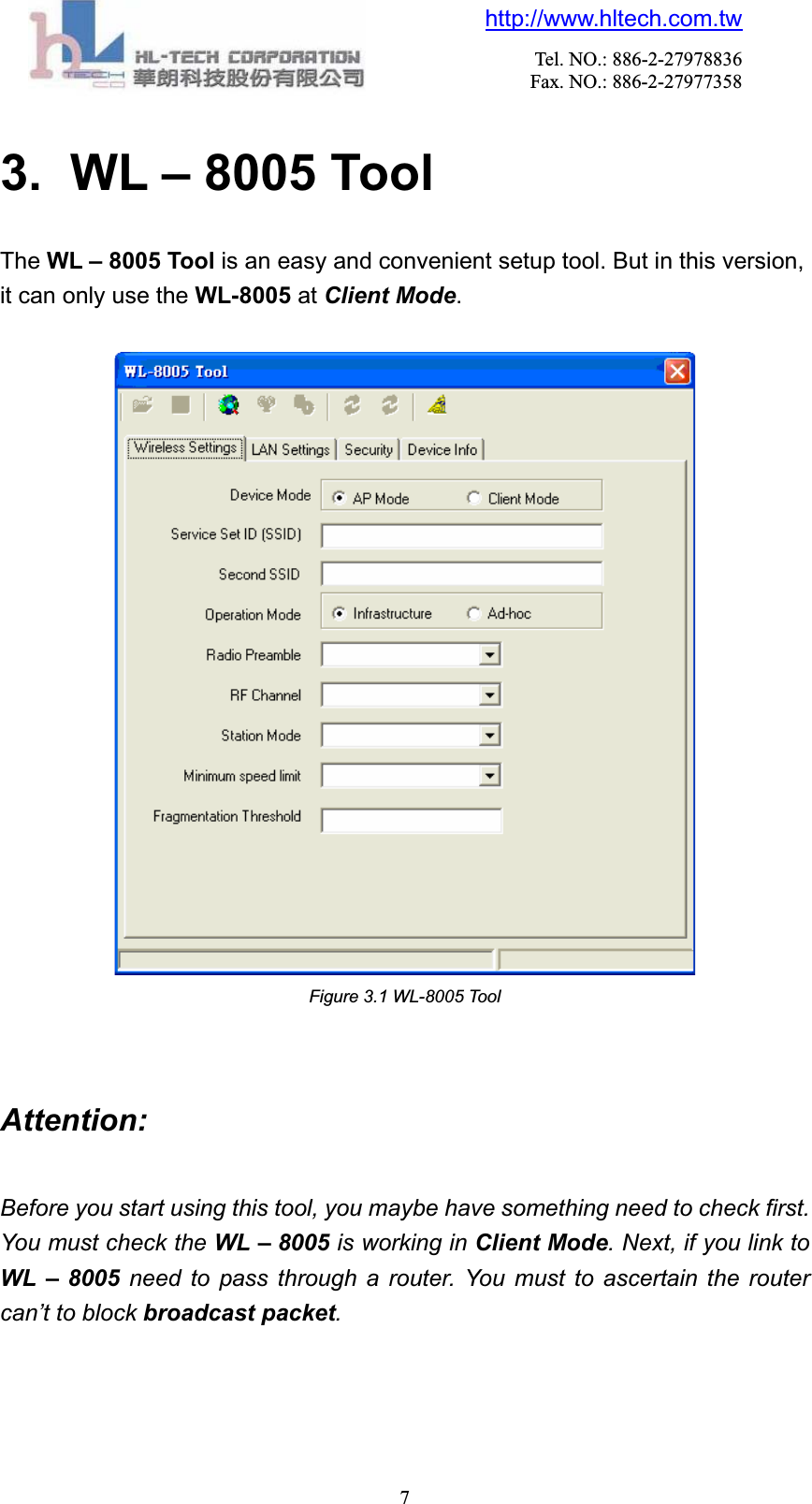

http://www.hltech.com.twTel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 73. WL – 8005 Tool The WL – 8005 Tool is an easy and convenient setup tool. But in this version, it can only use the WL-8005 at Client Mode.Figure 3.1 WL-8005 Tool Attention:Before you start using this tool, you maybe have something need to check first. You must check the WL – 8005 is working in Client Mode. Next, if you link to WL – 8005 need to pass through a router. You must to ascertain the router can’t to block broadcast packet.

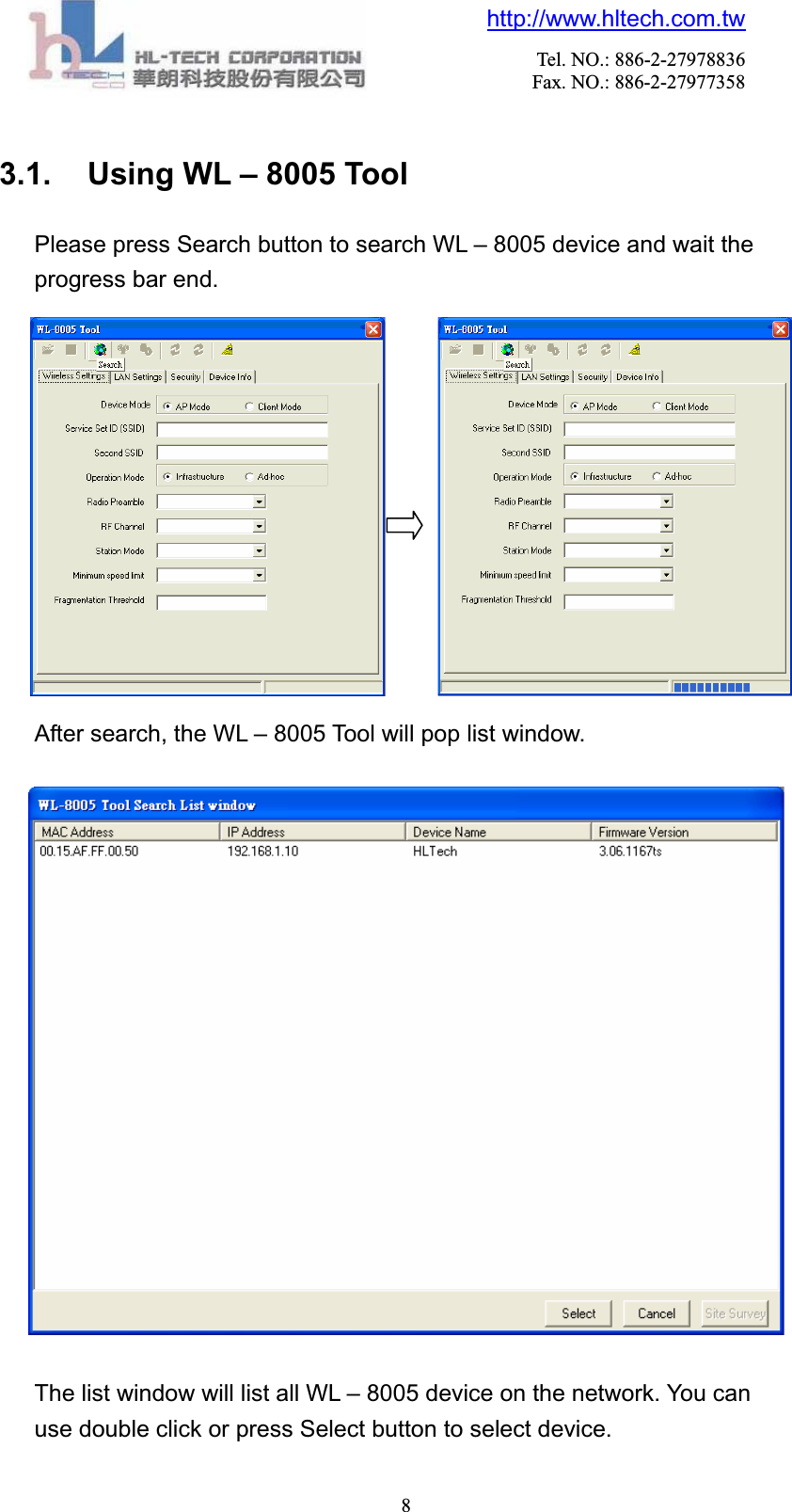

http://www.hltech.com.twTel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 83.1. Using WL – 8005 ToolPlease press Search button to search WL – 8005 device and wait the progress bar end. After search, the WL – 8005 Tool will pop list window. The list window will list all WL – 8005 device on the network. You can use double click or press Select button to select device.

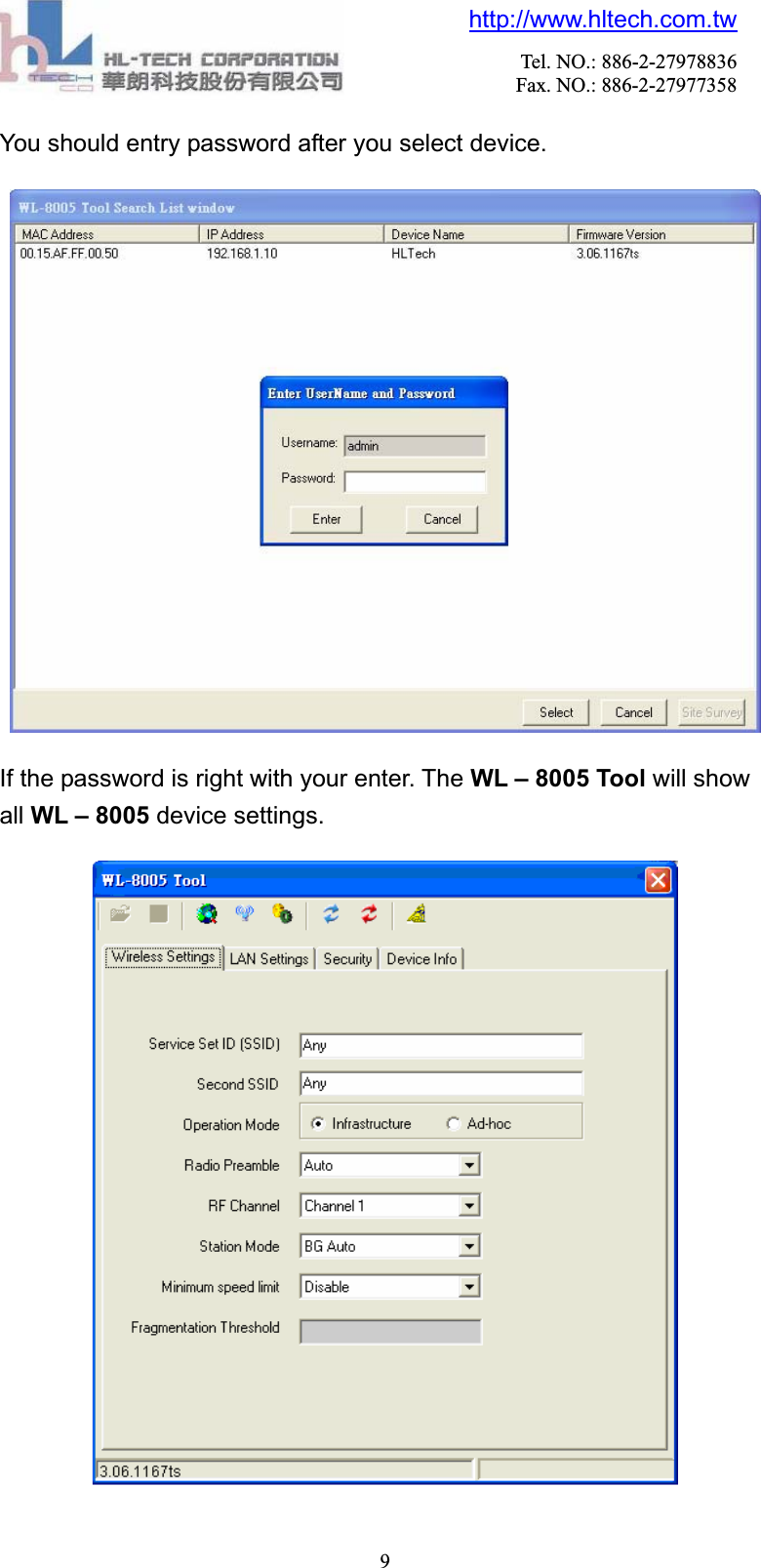

http://www.hltech.com.twTel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 9You should entry password after you select device. If the password is right with your enter. The WL – 8005 Tool will show all WL – 8005 device settings.

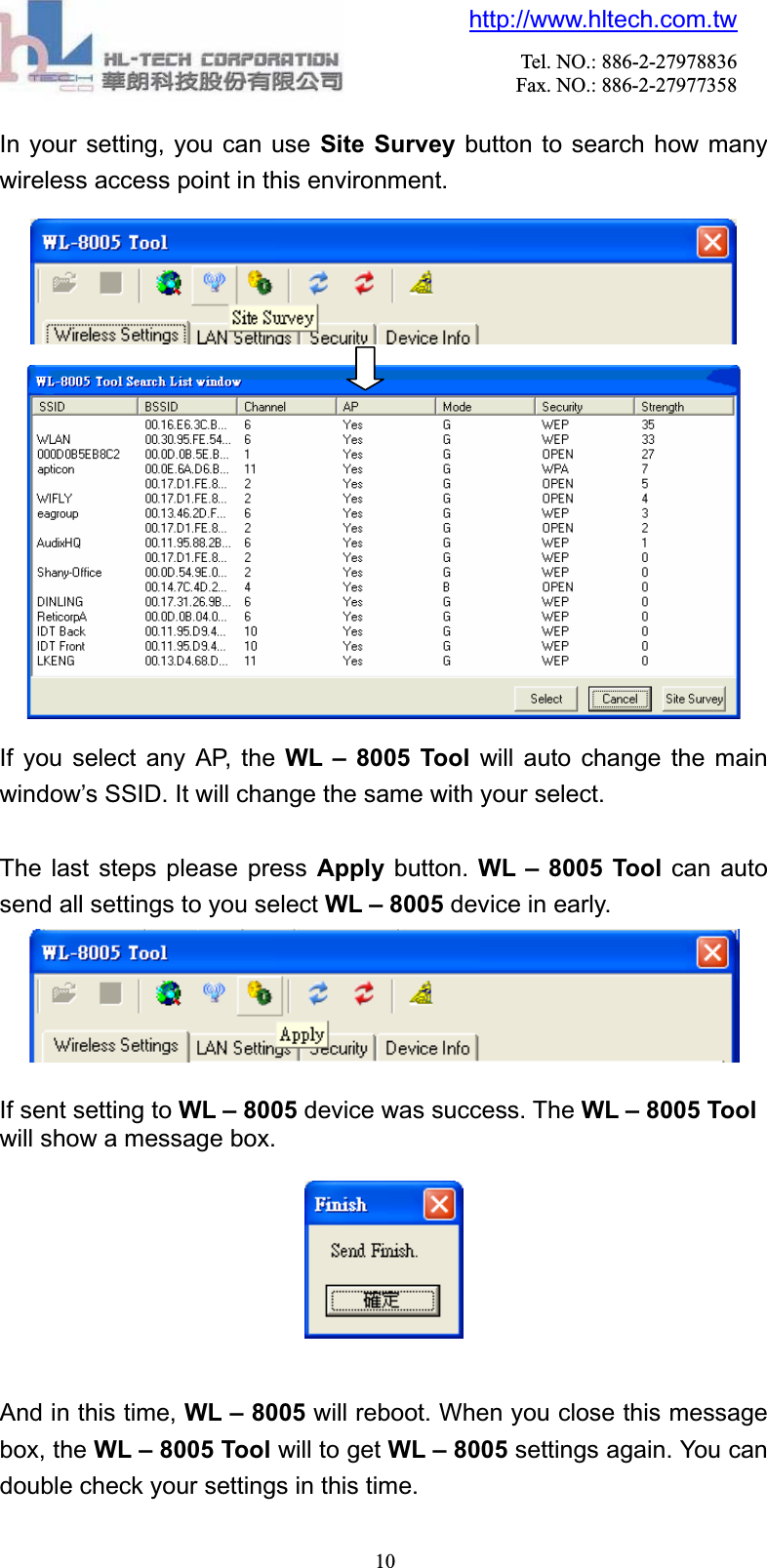

http://www.hltech.com.twTel. NO.: 886-2-27978836 Fax. NO.: 886-2-27977358 10In your setting, you can use Site Survey button to search how many wireless access point in this environment. If you select any AP, the WL – 8005 Tool will auto change the main window’s SSID. It will change the same with your select.The last steps please press Apply button. WL – 8005 Tool can auto send all settings to you select WL – 8005 device in early. If sent setting to WL – 8005 device was success. The WL – 8005 Toolwill show a message box. And in this time, WL – 8005 will reboot. When you close this message box, the WL – 8005 Tool will to get WL – 8005 settings again. You can double check your settings in this time.

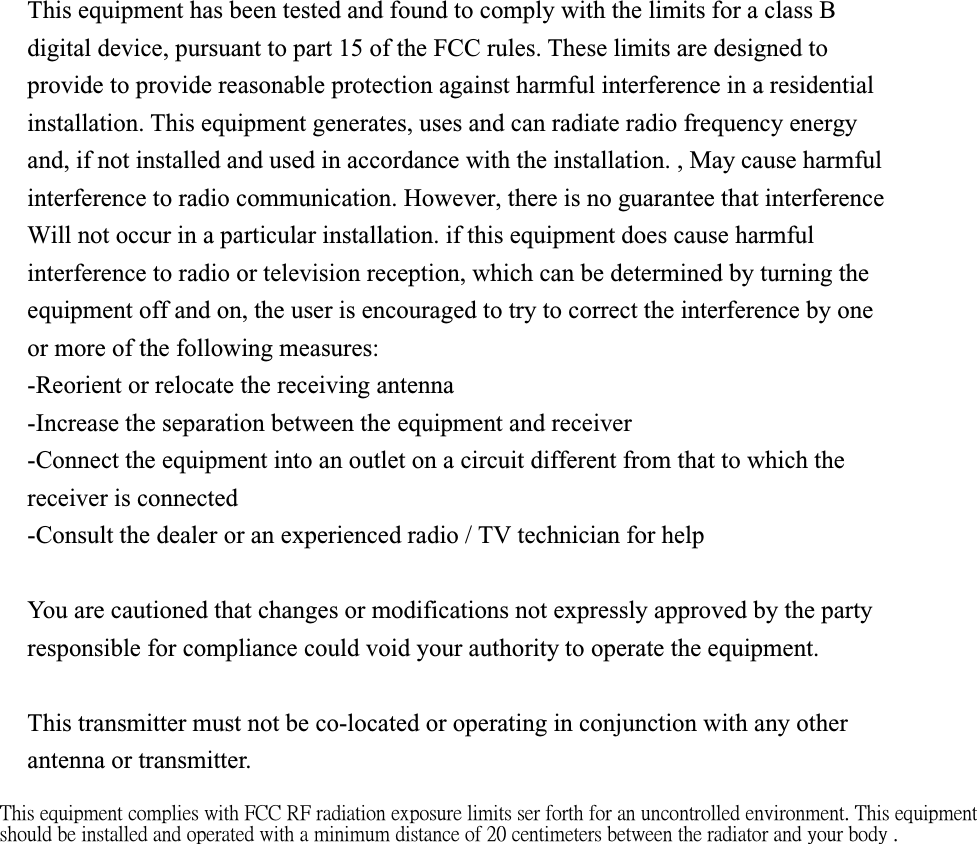

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the installation. , May cause harmful interference to radio communication. However, there is no guarantee that interferenceWill not occur in a particular installation. if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna-Increase the separation between the equipment and receiver-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected-Consult the dealer or an experienced radio / TV technician for helpYou are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.˧˻˼̆ʳ˸̄̈˼̃̀˸́̇ʳ˶̂̀̃˿˼˸̆ʳ̊˼̇˻ʳ˙˖˖ʳ˥˙ʳ̅˴˷˼˴̇˼̂́ʳ˸̋̃̂̆̈̅˸ʳ˿˼̀˼̇̆ʳ̆˸̅ʳ˹̂̅̇˻ʳ˹̂̅ʳ˴́ʳ̈́˶̂́̇̅̂˿˿˸˷ʳ˸́̉˼̅̂́̀˸́̇ˁʳ˧˻˼̆ʳ˸̄̈˼̃̀˸́̇ʳʳ̆˻̂̈˿˷ʳ˵˸ʳ˼́̆̇˴˿˿˸˷ʳ˴́˷ʳ̂̃˸̅˴̇˸˷ʳ̊˼̇˻ʳ˴ʳ̀˼́˼̀̈̀ʳ˷˼̆̇˴́˶˸ʳ̂˹ʳ˅˃ʳ˶˸́̇˼̀˸̇˸̅̆ʳ˵˸̇̊˸˸́ʳ̇˻˸ʳ̅˴˷˼˴̇̂̅ʳ˴́˷ʳ̌̂̈̅ʳ˵̂˷̌ʳˁʳʳʳ
