HM Funktechnik 70TX-S 70TX-S User Manual Part 90

HM-Funktechnik GmbH 70TX-S Part 90

Users Manual

Rhein Tech Laboratories Client: HM-Funktechnik GmbH 360 Herndon Parkway Model: 70TX-S Suite 1400 FCC ID: PUX-70TX-S Herndon, VA 20170 Standards: FCC Part 90/IC RSS-119 http://www.rheintech.com Report Number: 2003075 36 of 49 APPENDIX H: MANUAL Please see the following pages.

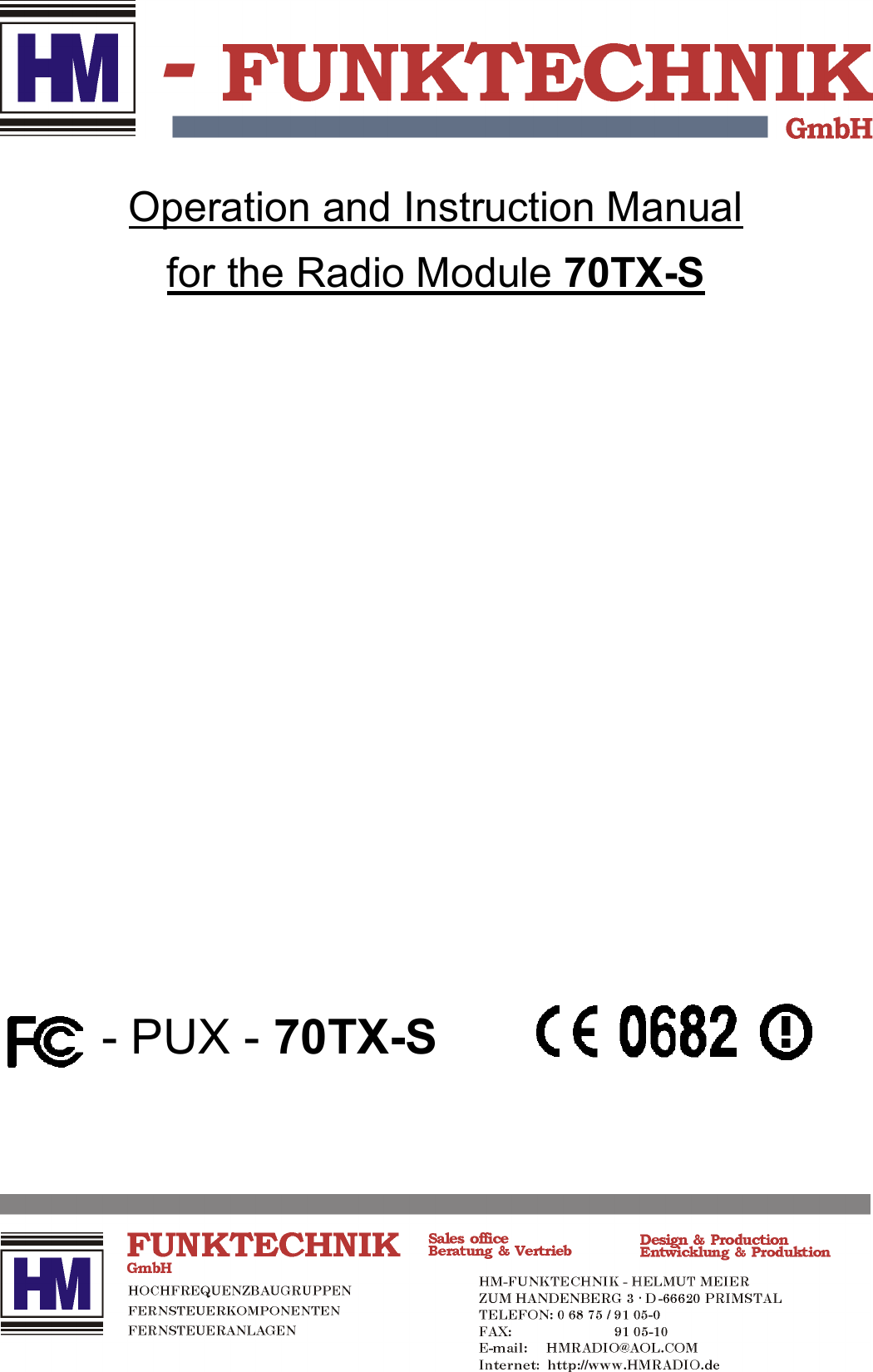

Operation and Instruction Manualfor the Radio Module 70TX-S - PUX - 70TX-S

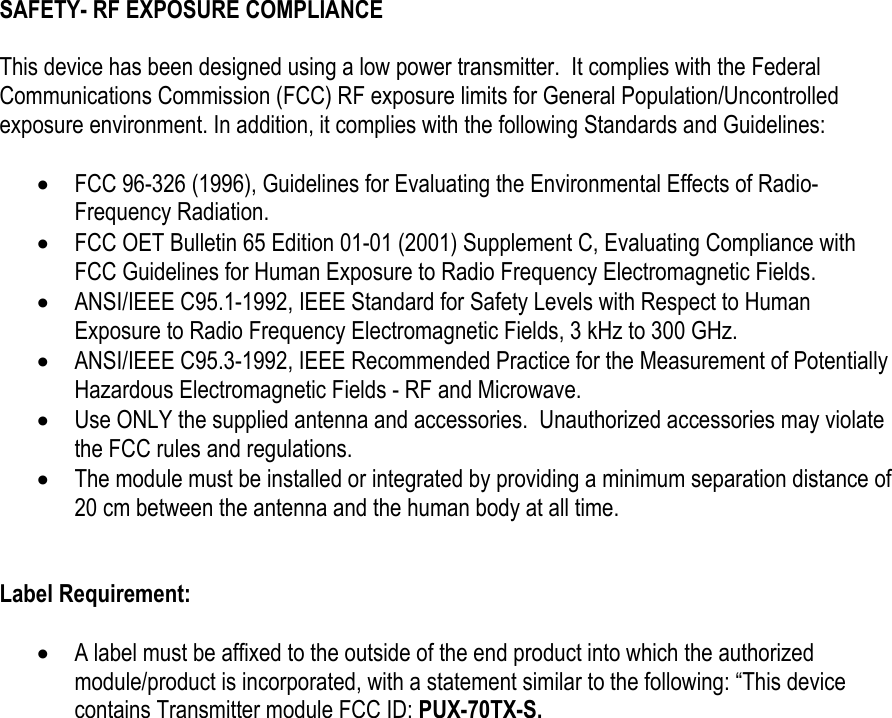

SAFETY- RF EXPOSURE COMPLIANCE This device has been designed using a low power transmitter. It complies with the Federal Communications Commission (FCC) RF exposure limits for General Population/Uncontrolled exposure environment. In addition, it complies with the following Standards and Guidelines: • FCC 96-326 (1996), Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation. • FCC OET Bulletin 65 Edition 01-01 (2001) Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. • ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave. • Use ONLY the supplied antenna and accessories. Unauthorized accessories may violate the FCC rules and regulations. • The module must be installed or integrated by providing a minimum separation distance of 20 cm between the antenna and the human body at all time. Label Requirement: • A label must be affixed to the outside of the end product into which the authorized module/product is incorporated, with a statement similar to the following: “This device contains Transmitter module FCC ID: PUX-70TX-S.

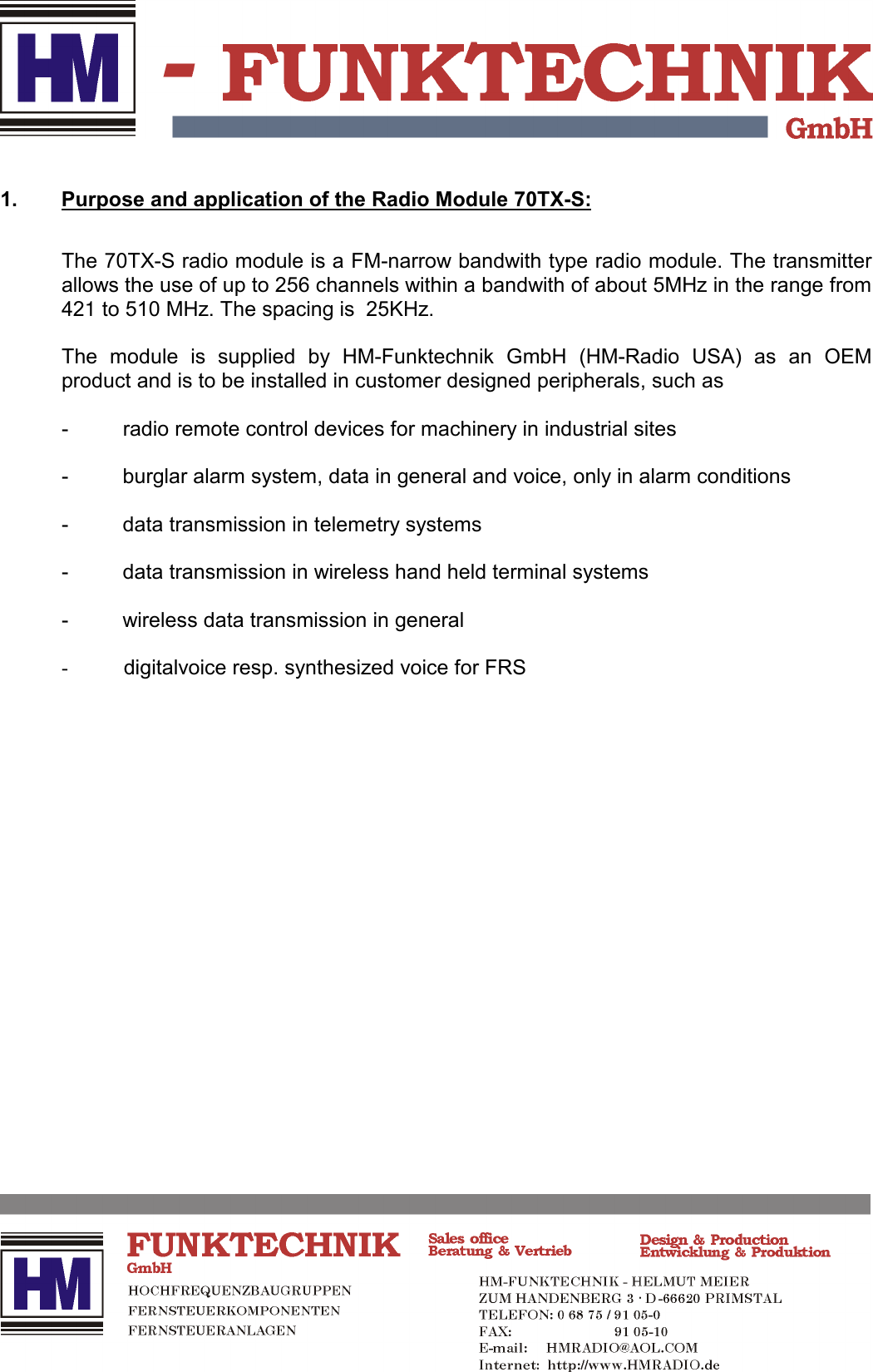

1. Purpose and application of the Radio Module 70TX-S:The 70TX-S radio module is a FM-narrow bandwith type radio module. The transmitterallows the use of up to 256 channels within a bandwith of about 5MHz in the range from421 to 510 MHz. The spacing is 25KHz.The module is supplied by HM-Funktechnik GmbH (HM-Radio USA) as an OEMproduct and is to be installed in customer designed peripherals, such as- radio remote control devices for machinery in industrial sites- burglar alarm system, data in general and voice, only in alarm conditions- data transmission in telemetry systems- data transmission in wireless hand held terminal systems- wireless data transmission in general- digitalvoice resp. synthesized voice for FRS

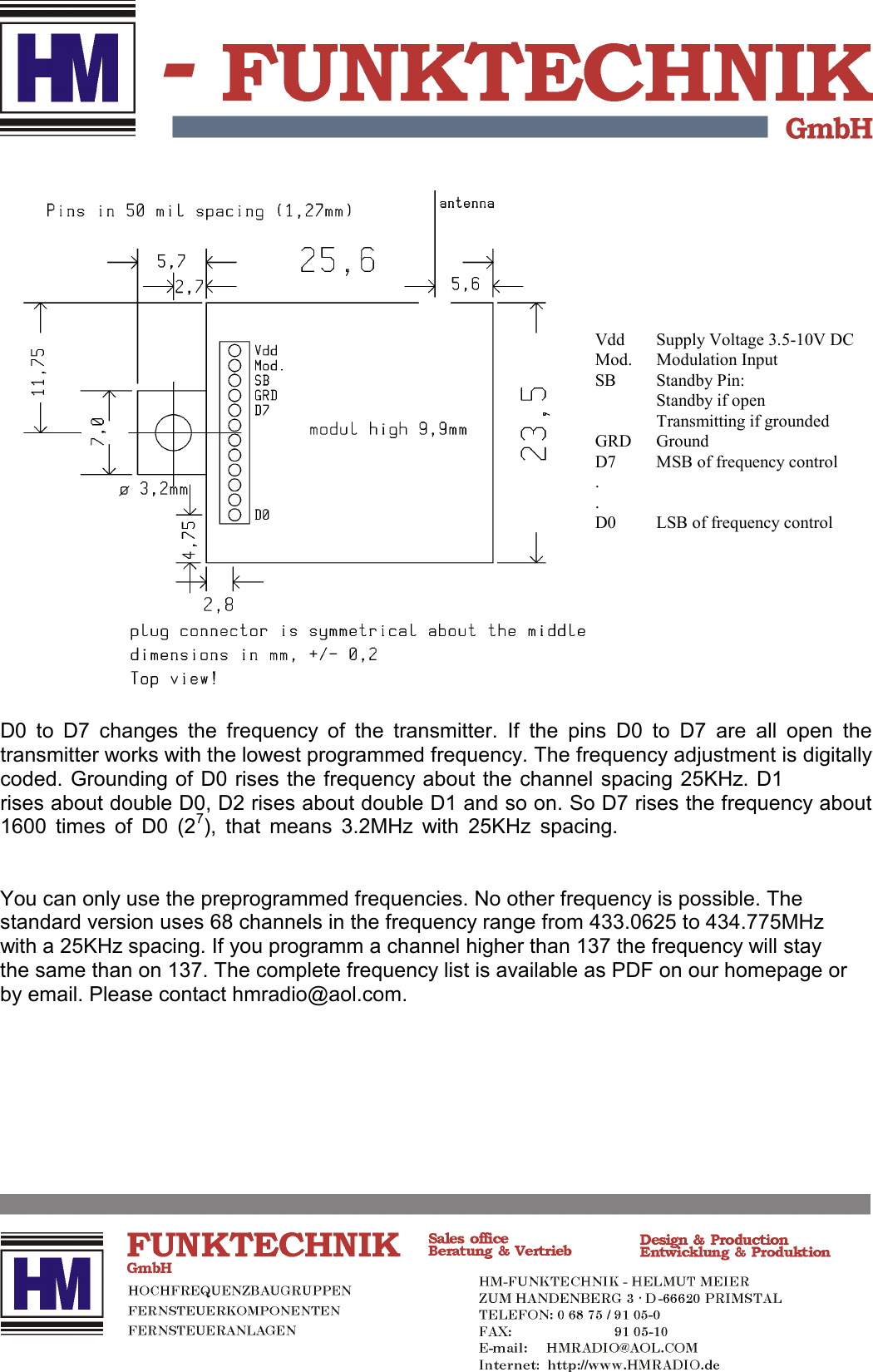

2. Dimensions and connections to peripheral devices: 805 220 (20.4) (5.6) 215(5.5) 325 (8.25)465 (11.75)275 (7) 925 (23.5)465 (11.75) 325 (8.25)1025 (26) 1220 (31) 125 (3.2)1455 (37)The module high is 400 mil (9.9mm).All dimensions are in mil, values in brackets are the corresponding mm numbers. Tolerance +/- 0.2 mm2) Information shown on this label is not identical with the label on the moduleFunktechnik GmbH, D-66620 PrimstalFCC ID PUX - 70TX-SCanada YYY TransmitterFrequency range USA 421 – 510 MHzCanada 420 – 430 MHz, 450 - 470 MHz256 channels, spacing 25KHzFrequency: 433.0625 – 434.775MHz Ser. Nr. 134001Made in Germany
D0 to D7 changes the frequency of the transmitter. If the pins D0 to D7 are all open thetransmitter works with the lowest programmed frequency. The frequency adjustment is digitallycoded. Grounding of D0 rises the frequency about the channel spacing 25KHz. D1rises about double D0, D2 rises about double D1 and so on. So D7 rises the frequency about1600 times of D0 (27), that means 3.2MHz with 25KHz spacing.You can only use the preprogrammed frequencies. No other frequency is possible. Thestandard version uses 68 channels in the frequency range from 433.0625 to 434.775MHzwith a 25KHz spacing. If you programm a channel higher than 137 the frequency will staythe same than on 137. The complete frequency list is available as PDF on our homepage orby email. Please contact hmradio@aol.com.Vdd Supply Voltage 3.5-10V DCMod. Modulation InputSB Standby Pin:Standby if openTransmitting if groundedGRD GroundD7 MSB of frequency control..D0 LSB of frequency control

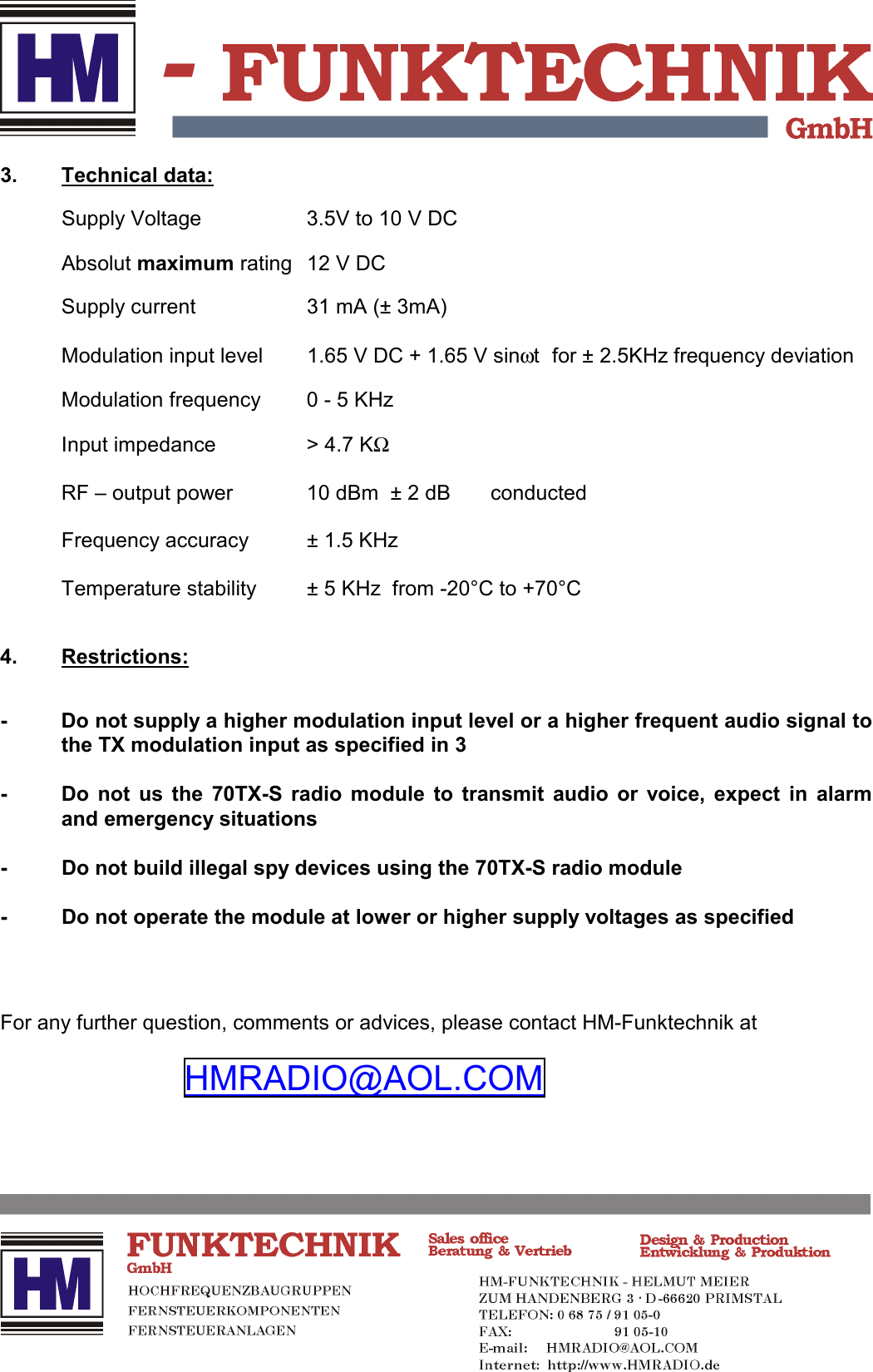

3. Technical data:Supply Voltage 3.5V to 10 V DCAbsolut maximum rating 12 V DCSupply current 31 mA (± 3mA)Modulation input level 1.65 V DC + 1.65 V sinωt for ± 2.5KHz frequency deviationModulation frequency 0 - 5 KHzInput impedance > 4.7 KΩRF – output power 10 dBm ± 2 dB conductedFrequency accuracy ± 1.5 KHzTemperature stability ± 5 KHz from -20°C to +70°C4. Restrictions:- Do not supply a higher modulation input level or a higher frequent audio signal tothe TX modulation input as specified in 3- Do not us the 70TX-S radio module to transmit audio or voice, expect in alarmand emergency situations- Do not build illegal spy devices using the 70TX-S radio module- Do not operate the module at lower or higher supply voltages as specifiedFor any further question, comments or advices, please contact HM-Funktechnik atHMRADIO@AOL.COM
