HOLUX Technology HRM01 HEART RATE MONITOR User Manual
HOLUX Technology, Inc HEART RATE MONITOR
Users Manual
ANT+ 2.4G Wireless
Heart Rate Monitor Sensor
(M/N: HRM)
User Manual
ver: 1.0
Holux Technology
www.holux.com
1
Content
Content ....................................................................................................................................................... 1
Heart Rate Monitor (HRM) Sensor ............................................................................................................. 2
Strapping HRM to your chest .............................................................................................................. 2
HRM Spec. .......................................................................................................................................... 4
Wireless Link- GPSport 260 ....................................................................................................................... 5
Activate Wireless Link ......................................................................................................................... 5
Scan Sensor........................................................................................................................................5
Connect and Detect.............................................................................................................................5
2
Heart Rate Monitor (HRM) Sensor
HRM is set to notify users with alarm when the heart rate exceeds or falls behind a specific range of heart
rates per minutes.
Strapping HRM to your chest
Each HRM set contains the heart rate monitor sensor and elastic chest strap.

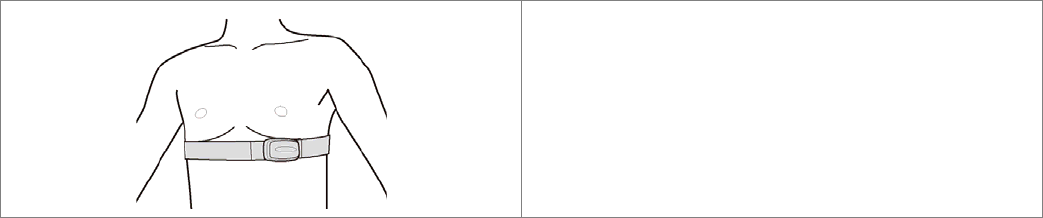

The HRM sensor and chest strap should be worn in the front position as shown.
There are two conductive rubbers on the elastic chest strap, slightly moisten them to have better
conductivity.
Adjust the length of the elastic chest strap so that it will not fall off when used.
The details please reference for below:

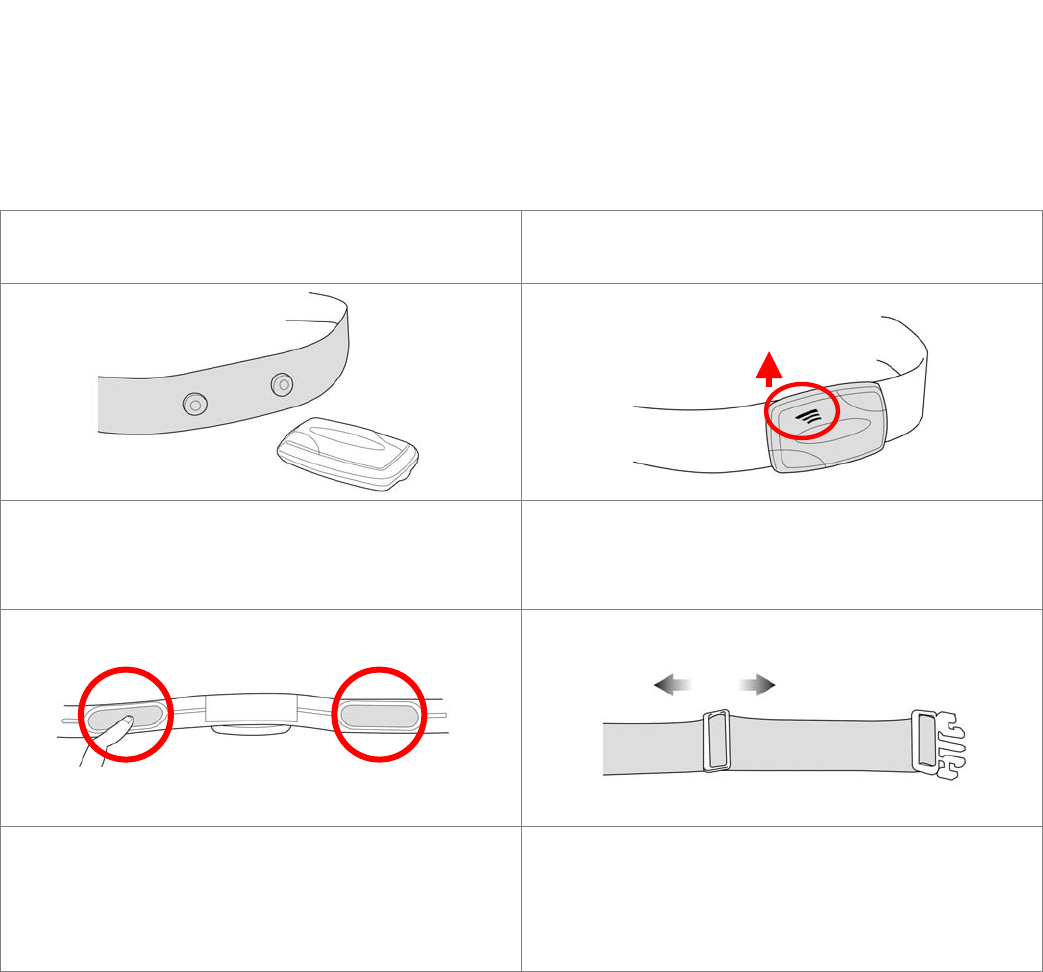

The HRM comes in two parts, the HRM sensor
itself and the chest strap.
Attach the sensor to the chest strap with the mark
facing up as shown.
There are two conductive rubbers on the chest
strap, slightly moisten them to have better
conductivity.
Adjust the length of the chest strap to fit your chest
circumference and will stay in place during your
exercise movement.
Wrap the chest strap around your chest and buckle
it up with the sensor placed in the front of your
chest. Adjust the strap to fit snugly against your
body.
3
4
HRM Spec.
Dimension 63.5X 32.2X12.9mm
HRM Sensor Heart Rate Range: 30-220 beats per minute.
Memory RAM: 768B
ROM: 16KB Flash
Wireless Built-in Nordic 2.4GHz wireless
Support ANT+ Sport Protocol
1 Mbps on-air date rate
GFSK modulation
2.4G ISM band, 1 Mhz frequency resolution, 78 RF channels
Up to 0 dBm output power
Transmission distance: 6-7m (Max)
Battery CR2032
Active voltage: 2-3V
Active average power consumption: 3.6mA
Sleep average power consumption: 12.9uA
Environment
temperature
Operation: -10 ~ 60℃℃
Storage: -20 ℃~ 70 ℃
5
Wireless Link- GPSport 260
The GPSport 260 Pro is using ANT+ to collect and transfer sensor data. The three sport sensors
supported are HRM, speed sensor and cadence.

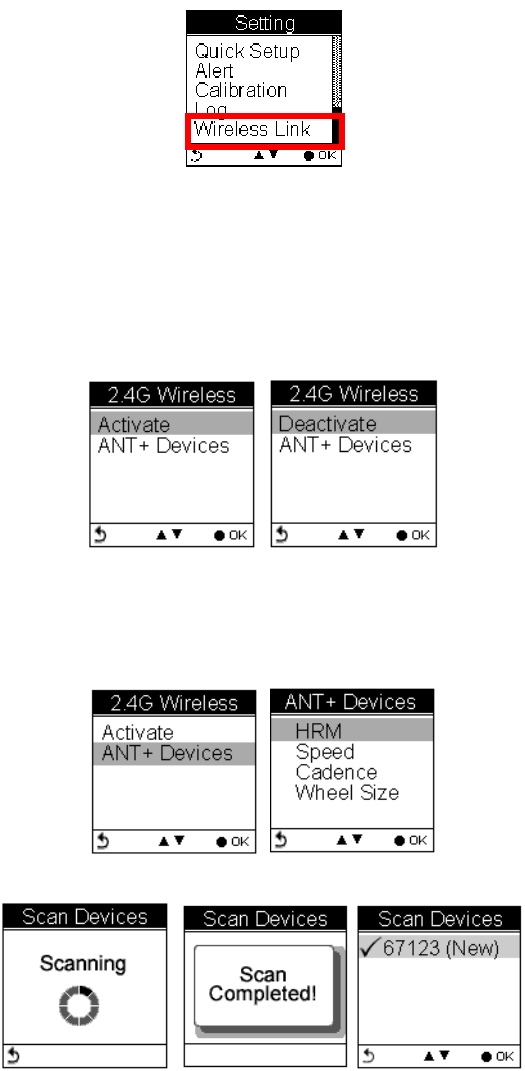

Activate Wireless Link
Users have to activate the GPSport 260 Pro wireless link before they connect the GPSport 260 Pro with
sport sensors. If the wireless link is not yet activated, the setting menu displays “Activate” for selection,
otherwise, “Deactivate” is displayed when the device is active.
Scan Sensor
Select ANT+ Devices to select the sport sensor to connect.
The device will start scanning devices nearby. When completed, scanned devices are listed.

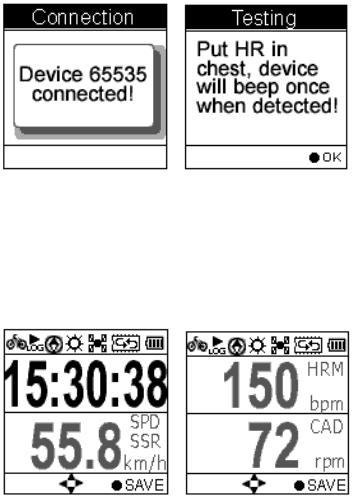

Connect and Detect
Move the Up/Down arrow to select the sensor to connect.
A warning message prompts to remind users to make sure the selected sensor is properly installed, for
example, HRM should be well-strapped to your chest so that the GPSport 260 Pro can detect without
6
failure.
The GPSport 260 Pro can connect up to 3 sensors of different kinds at a time, namely, one HRM, one
Speed sensor, and one Cadence sensor can be connected concurrently. If a sport device is detected, a
screen appears as shown.
7
"FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help."
"CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void
the user's authority to operate the equipment."
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired operation.
