HOLUX M-1000 Bluetooth GPS Receiver User’s Manual
M-1000
Bluetooth GPS Receiver
March,2007
Rev.A
HOLUX Technology Inc.
1F, No. 30, R&D Rd. II, HsinChu City 300, Science-based Industrial Park, Taiwan
TEL: 03-6687000 FAX: 03-6687111
Website: www.holux.com
All Right Reserved
User’s Guide
![](/img.php?id=783227&img=bg2.png)
HOLUX M-1000 Bluetooth Bluetooth GPS Receiver Manual
2
Table of Contents
TABLE OF CONTENTS ..............................................................................................................2
1. OVERVIEW ..........................................................................................................................3
2. PACKING LIST ....................................................................................................................4
3. MAIN FEATURES................................................................................................................5
4.1. BASIC SPECIFICATION ....................................................................................................6
4.2. ACQUISITION TIME (REFER TO MTK CHIP SPECIFICATION).........................................6
4.3. RECEIVER ACCURACY ....................................................................................................6
4.4. USE LIMITATION .............................................................................................................6
4.5. POWER SUPPLY ...............................................................................................................6
4.6. OUTPUT AND INTERFACE ................................................................................................6
4.7. PHYSICAL ........................................................................................................................7
4.8. OTHER FUNCTIONS .........................................................................................................7
5. GETTING STARTED ...........................................................................................................8
5.1. HARDWARE DESCRIPTION ..............................................................................................9
5.2. BLUETOOTH DEVICE CONNECTION INSTALLATION......................................................12
5.3. INSTALLATION OF MINI GPS VIEWER PROGRAM........................................................13
5.4. EXECUTE THE MINI GPS VIEWER PROGRAM..............................................................13
6. OPTIONAL CABLE ACCESSORY..................................................................................15
7. DRIVER INSTALLATION ................................................................................................15
7.1 SYSTEM REQUIREMENT................................................................................................15
7.2 INSTALLATION...............................................................................................................15
7.3 IMPORTANT ...................................................................................................................15
8. WARRANTY .......................................................................................................................16
9. TROUBLESHOOTING......................................................................................................17
RE-START PDA OR PC AND REFER TO SECTION 5.2 “BLUETOOTH DEVICE CONNECTION
INSTALLATION”TO RE-CONNECT..............................................................................................17
Federal Communications Commission (FCC) Statement………………..………………...18
![](/img.php?id=783227&img=bg3.png)
HOLUX M-1000 Bluetooth Bluetooth GPS Receiver Manual
3
1. Overview
(Fig.1)
The HOLUX M-1000 Bluetooth GPS Receiver (Fig. 1) is a total solution GPS
receiver with Bluetooth, UART interface and built-in rechargeable battery for high
sensitivity to tracking signal. M-1000 design is based on Media Tek Inc.(MTK) GPS
solution-MT3318 low power Architecture.
is a dual-function GPS receiver. Not only transmit satellite information
through the PDA or Notebook by Bluetooth interfaces but also is a G-Mouse GPS
receiver through a HOLUX designed data cable (Optional cable, see chapter 6 ) to
deliver satellite signal to the device without Bluetooth interface.
meets the requirement of field application, such as car navigation, mapping,
agriculture surveying and security use under clear view of sky. contacts to other
device through Bluetooth interface, and built-in rechargeable Li-ion battery to save
satellite information such as the status of satellite signal, the previous available location,
date and time.
With the advanced technology, can track up to 32 satellites simultaneously,
re-acquires satellite signals in 0.1 microsecond and updates position data per second.
![](/img.php?id=783227&img=bg4.png)
HOLUX M-1000 Bluetooth Bluetooth GPS Receiver Manual
4
2. Packing List
Thank you for purchasing the Bluetooth GPS Receiver. Before you start,
make sure that the following items are included in your package. If any of these items are
missing, please contact your original local HOLUX dealer or distributor.
z Bluetooth GPS receiver 1 Set
zCar Cigarette adapter 1 Set
zUser guide and Driver CD 1 Pcs
z Quick Guide 1 Pcs
zWarranty card 1 Pcs
Option
zTravel power supply 1 Set
zHOLUX USB data cable 1Set
![](/img.php?id=783227&img=bg5.png)
HOLUX M-1000 Bluetooth Bluetooth GPS Receiver Manual
5
3. Main features
zBuilt in MTK MT3318 Low power consumption GPS chipset.
z32 parallel satellite-tracking channels for fast acquisition and reacquisition.
zSuperior sensitivity up to -159 dBm.
zBuilt-in WAAS/EGNOS Demodulator without any additional hardware. Or use
the high-sensitive software to get the fast acquisition and reacquisition in the
urban, canyon and foliage environments.
zCompatible with Bluetooth Serial Port Profile (SPP) completely.
zLow power consumption. Built-in rechargeable and changeable Lithium-ion
battery, the working time can last 17 hours maximum.
zProvide expand terminal contact to other system without Bluetooth device.
zSupport NMEA0183 V 3.01 data protocol
z3 color-LEDs indicate to show the status of device.
zFLASH based program memory. New software revisions upgradeable through
serial interface.
zSmall, sleek, and lightweight design easily fits in your hand.
zOver-Temperature protection
zEnhanced algorithms -SnapLock and SnapStart provide superior navigation,
performance in urban, canyon and foliage environments.
zFor Car navigation, Marine navigation, Fleet management, AVL, Personal
navigation, Tracking System, and Mapping device application.
![](/img.php?id=783227&img=bg6.png)
HOLUX M-1000 Bluetooth Bluetooth GPS Receiver Manual
6
4.Technical Specification
4.1. Basic Specification
zChipsetMTK MT3318 chipset.
zChannels32 parallel satellite-tracking channels.
zFrequency1575.42 MHz
zReceiverL1, C/A code.
4.2. Acquisition Time (refer to MTK chip specification)
zReacquisition0.1 second.
zCold start< 36 seconds.
zWarm start< 33 seconds .
zHot start< 1 second
4.3. Receiver Accuracy
zNormal< 3 meters CEP without SA.
zEnable EGNOS or WAAS
Position: < 2.2 meters, horizontal 95% of time
< 5 meters, Vertical 95% of time
zVelocitywithin 0.1 meters / second
zTime0.1 microsecond synchronized GPS time
4.4. Use Limitation
zAltitude< 18,000 meters (60,000 feet)
zVelocity: < 515 meters/ second (1000Knots)
zAcceleration4 G.
zJerk20 meters / second3, max
4.5. Power Supply
zExternal Voltage: 5VDC +/-5%
zBatteries
Main Power: Built-in rechargeable Lithium-ion for system power.
Backup Power: Rechargeable Lithium-ion battery for memory backup.
zWorking voltage: 40~50mA (Normal mode).
35mA (Power Saving). .
zAuto Power Saving mode.
zCircuit protection on when over-temperature condition - 50 occurs.
4.6. Output and Interface
zOutput
I. Output protocol
![](/img.php?id=783227&img=bg7.png)
HOLUX M-1000 Bluetooth Bluetooth GPS Receiver Manual
7
Baud Rate38400 bps
Data bit8
ParityNo
Stop bit1
II. Format. NMEA0183 V3.01GPGGA (1time/1 sec), GPGSA (1 time/5 sec.),
GPGSV (1time /5 sec.), GPRMC (1time /1 sec.), GPVTG (1 time/1 sec), (GLL,
or MTK NMEA Command for optional).
III.DatumWGS84.
zInput/ Output Interface:
I. Compatible Bluetooth Serial Port Profile (SPP), Version1.2 and class 2(up
to 10 meter range).
II. In/Out Port. GPS signal (Out)/Command(In) with CMOS LevelMini USB
Type B Connector and Cable option
(a) GR230-A2 (USB data cable)
4.7. Physical
zSize65 43 17.6 mm
zWeight<53g
zOperating Temperature-10 to + 60 (under the un-charging condition);
Charging Temperature0to + 45
zStorage Temperature-20 to + 60
zOperating humidity5% to 95% No condensing
4.8. Other Functions
zBluetooth frequency: 2.4 ~2.48GHz
zBluetooth Input Sensitivity: -85dBm
zLow sensitivity of receiving satellite signal -159 dBm
zLED FunctionsIndicate Bluetooth status, GPS status, Battery Status and
Battery charging status
![](/img.php?id=783227&img=bg8.png)
HOLUX M-1000 Bluetooth Bluetooth GPS Receiver Manual
8

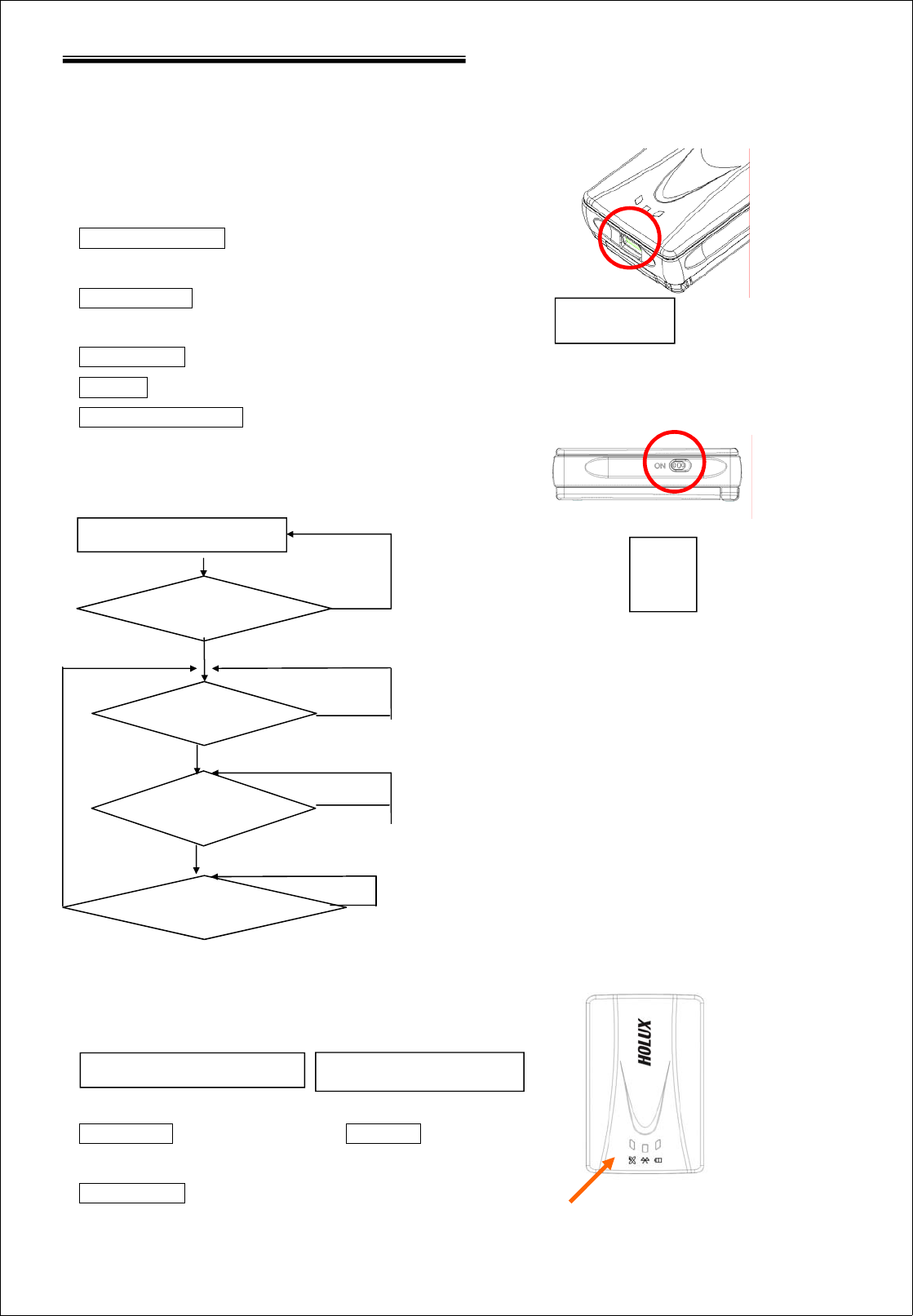

5. Getting Started
STEP 1. Charge Battery
Please charge battery till LED off for the first time.
Power cable plug in Power cable connect to power socket
Charge Battery
Battery indicator light:
Power too low Red LED
Charging -------------- Green LED
Full or Not in charging -- LED off
STEP 2. Turn on the power
Bluetooth Status –
Note:
Some PDAs have to re-open
Bluetooth manager for
Bluetooth device
re-connection.
GPS Status ---
Put in clear view of the sky without any obstruction for
better satellite acquiring.
Search GPS -- Power Off --
Position Fixed --
Power
switch
Turn on power
Blue LED blinking
(1time / 1sec)
Transferring…
Blue LED blinking
(1time / 3 sec)
Waiting for
reconnection…
Blue LED blinking
(1time / 1sec)
No
Searching
Bluetooth device
Stop data
transferring?
Data
is transferring?
Reconnect
Bluetooth device?
No
No
No
Yes
Yes
Yes
Yes
Turn on power Turn off power
Steady orange
LED on
Orange
LED blinking
Orange
LED off
Mini USB socket
![](/img.php?id=783227&img=bg9.png)
HOLUX M-1000 Bluetooth Bluetooth GPS Receiver Manual
9
5.1. Hardware Description

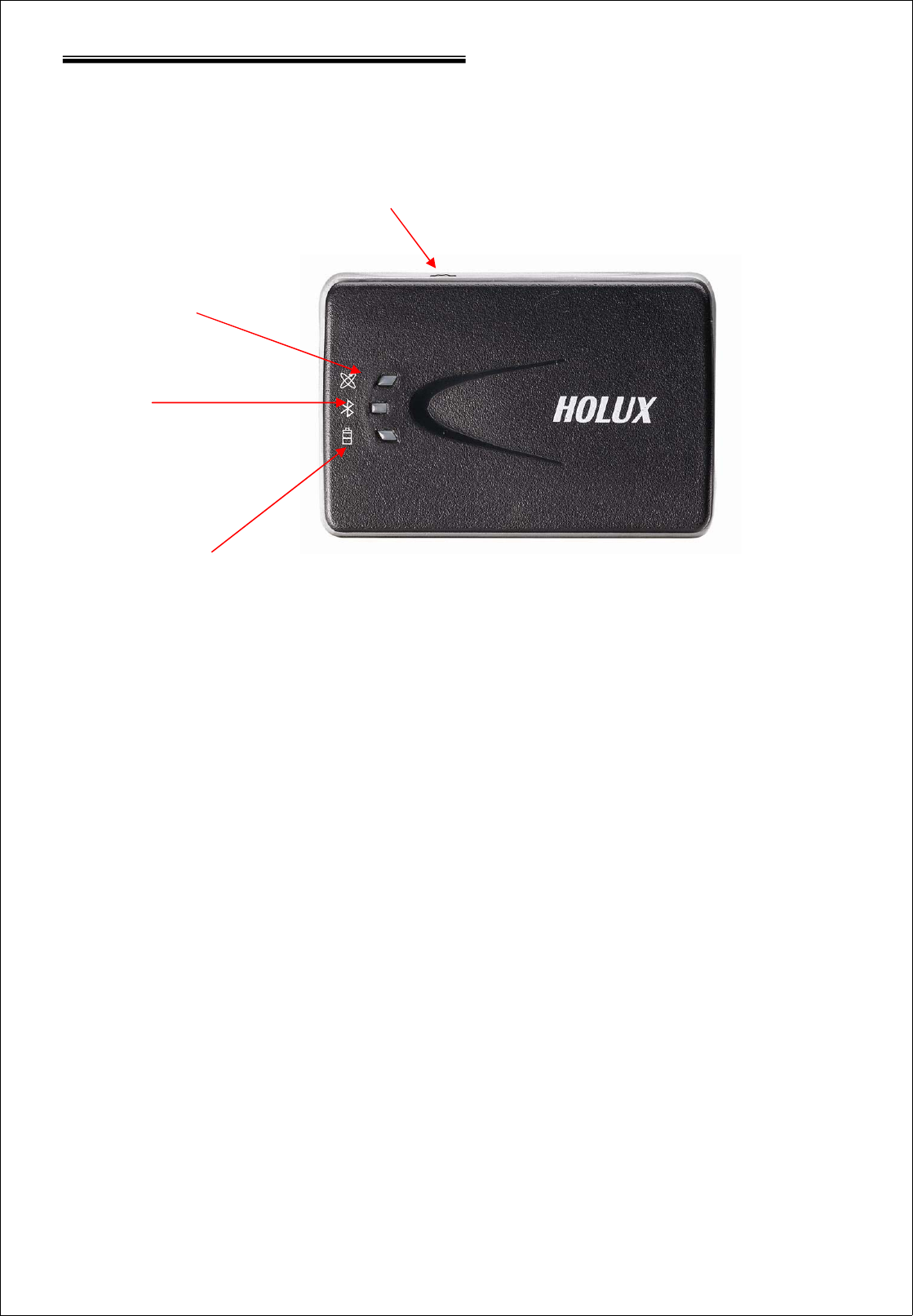

1). Body description see Fig. 2:
(Fig.2)
LED of Battery(Red /Green)
Bluetooth LED (Blue)
LED of GPS (Orange)
Power switch
![](/img.php?id=783227&img=bga.png)
HOLUX M-1000 Bluetooth Bluetooth GPS Receiver Manual
10

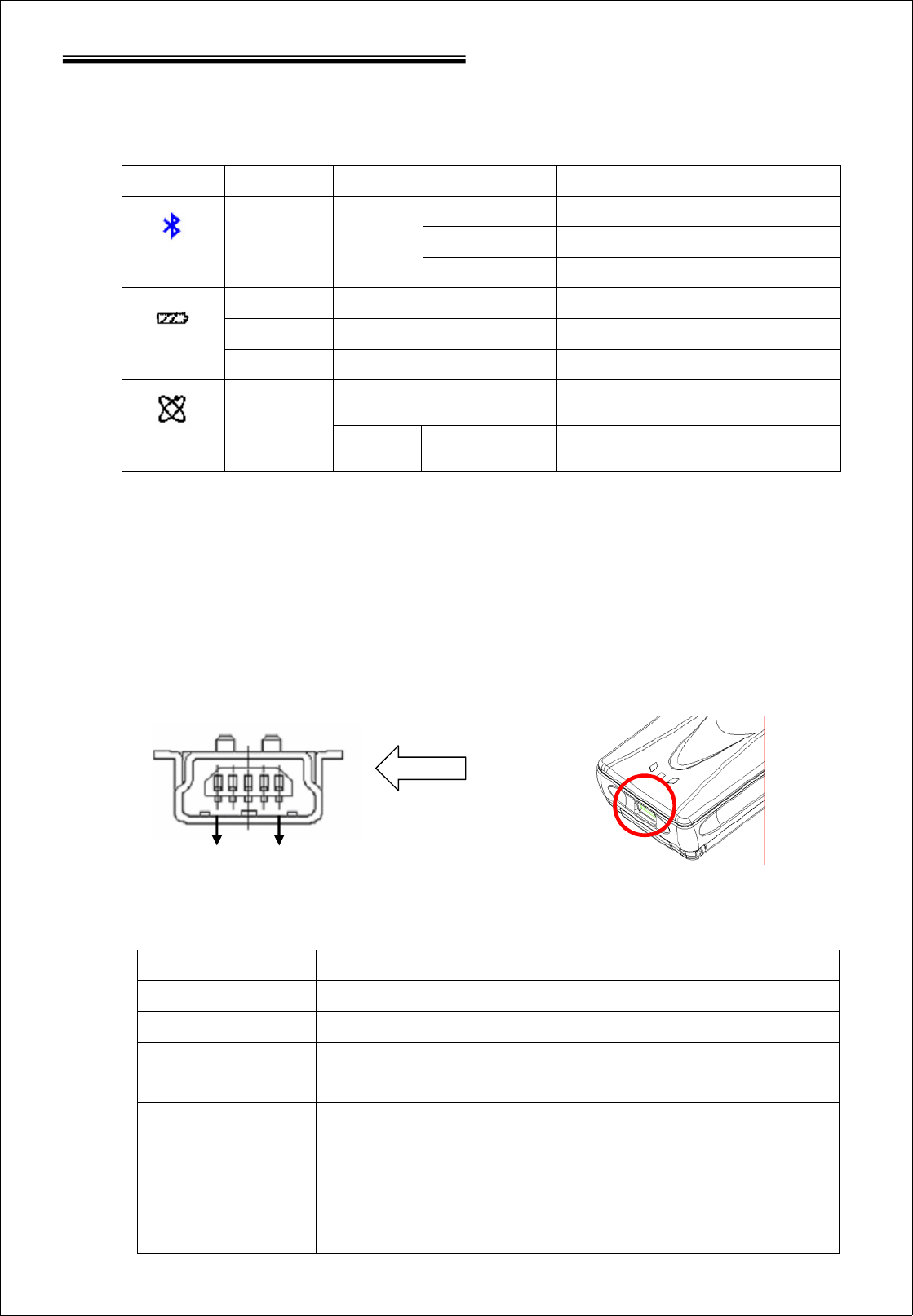

2). LED status :
3). Power Switch :
a. Power on, Orange light is on.
b. Power off, Orange light is off.
4). Power Jack & Data Port, see Fig.3
Jack type: Mating face of 5 pin Mini USB Type B female.
Pin definition see table 1.
(Fig.3)
Table 1
Pin Pin Name Signal and description
1 GND Signal ground, Battery charging ground.
2NC
3TXD
Transmit Data. From organizer to peripheral.(Voltage Level
is 3.3V ~ 5.0V).
4RXD
Receive Data. Form peripheral to organizer.(Voltage level
is 3.3V ~ 5.0V).
5 VCHARG
Positive terminal of DC adaptor that powers the internal
charging circuit of Li-Ion battery. The approved power
supply is 5.0V +/- 5%@800mA.
SYMBOL COLOR STATUS DESCRIPTION
1 times / 1 sec Search Bluetooth Device
1 time / 1 sec Standby Mode
Bluetooth
Blue Blinking
1 time / 3 sec Transferring Data
Red Light on Power too low
Green Light on In charging
Battery N/A Light off Battery full or Not in charging
Light on Acquiring Satellites
GPS
Orange Blinking 1 time / 1 sec Position Fixed
5
1
![](/img.php?id=783227&img=bgb.png)
HOLUX M-1000 Bluetooth Bluetooth GPS Receiver Manual
11

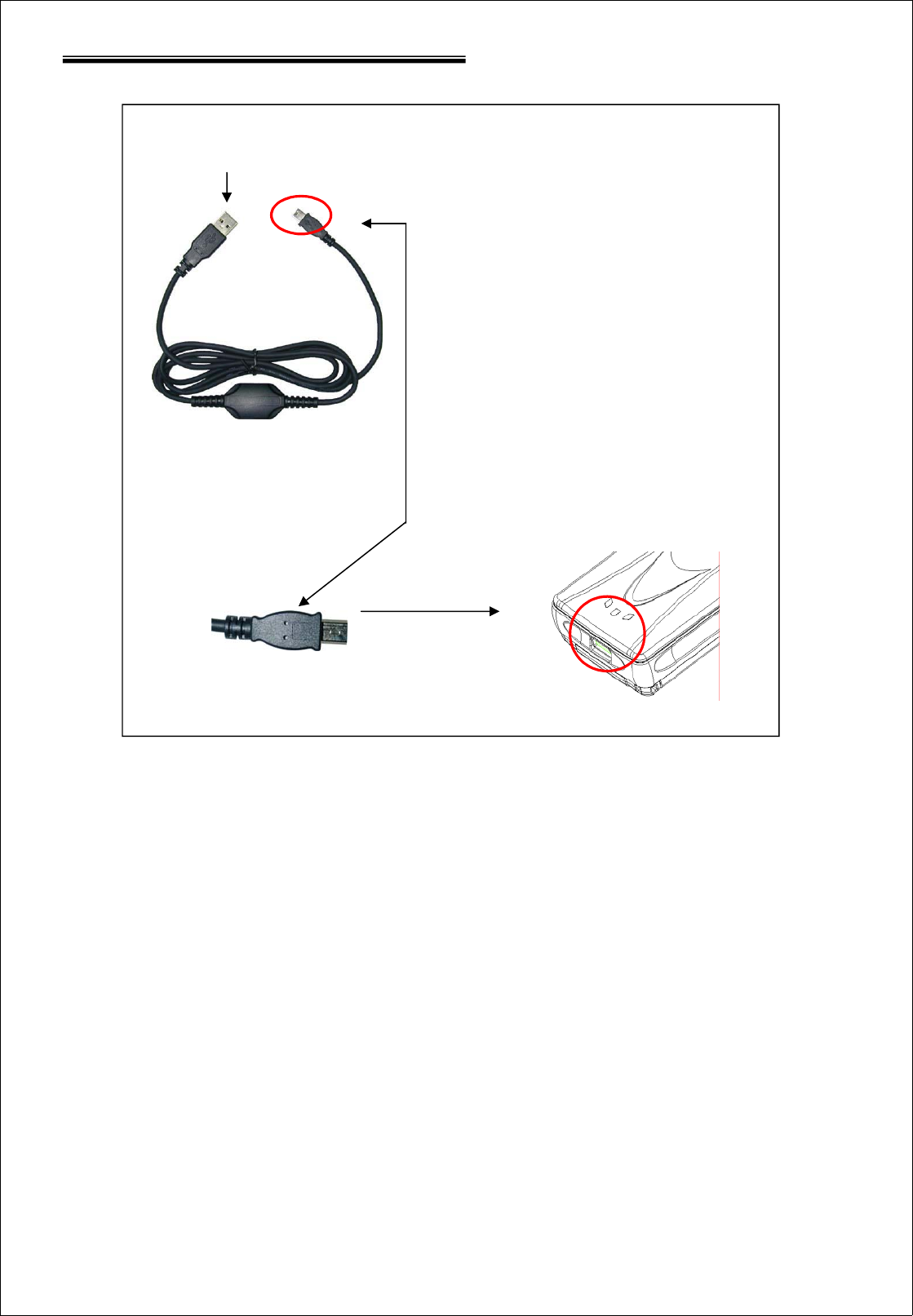

5). Optional accessories, and connector description, see Fig. 4
(Fig.4)
USB Cable
(GR230-A2)
Notics : This data cable is designed by HOLUX specially for G-mouse function, can’t be
replaced by common USB cable. The ordinary USB cable can only provide the charging
function.
USB Cable
(GR230-A2)
Mini USB
PC/Notebook
USB port
![](/img.php?id=783227&img=bgc.png)
HOLUX M-1000 Bluetooth Bluetooth GPS Receiver Manual
12

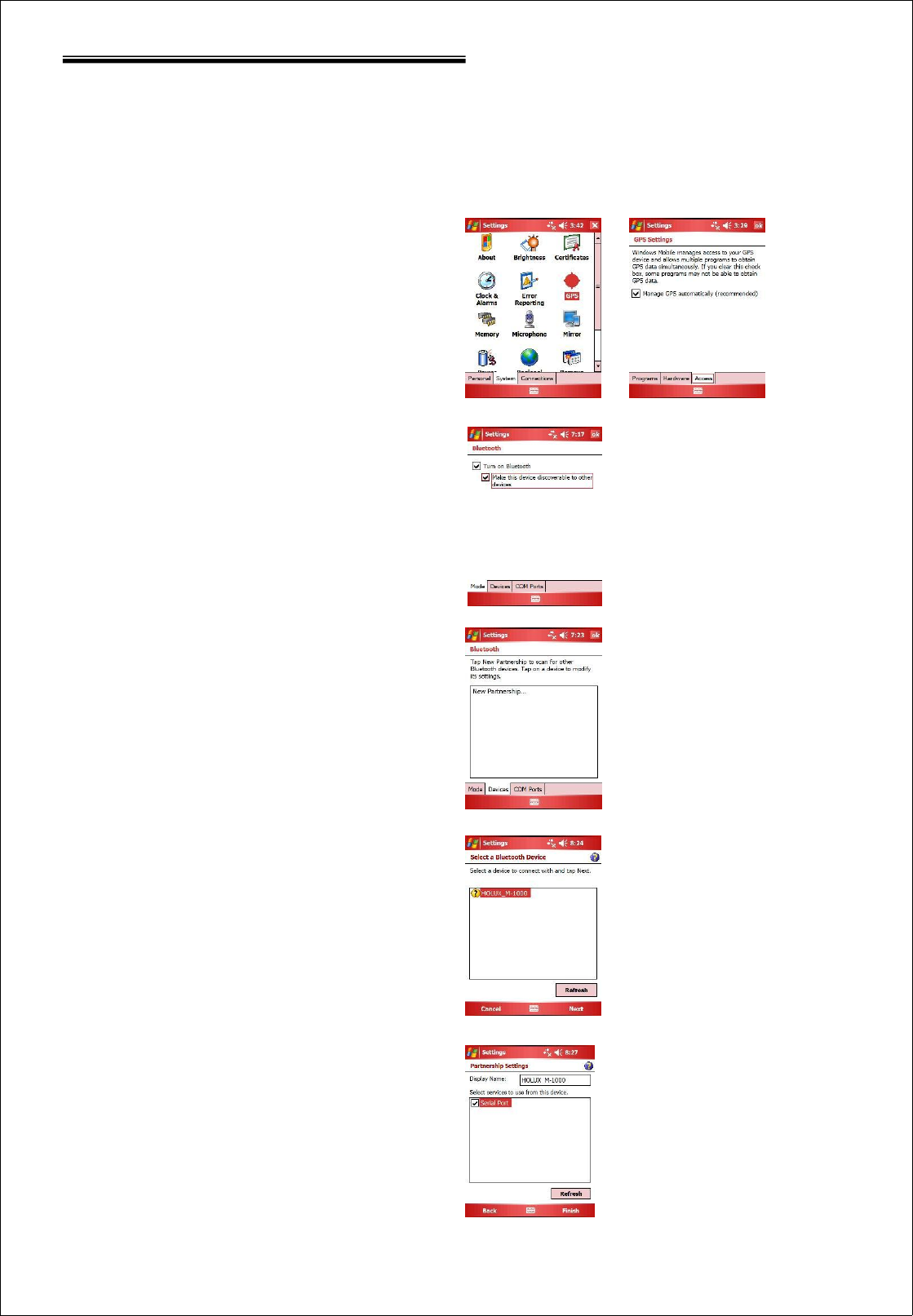

5.2. Bluetooth device connection installation
The following is the steps of software installation to setup on PDA, DELL AXIM x51v
with Bluetooth Manager. For other PDA or laptop device, the steps might vary.
1. In Pocket PC settingÆsystem panel,
enable “manage GPS automatically”.
Note:The setting may vary in other
PocketPC or Smartphone , please check
the manual or consult the technical
service respectively.
2. Tap the Bluetooth icon to start
“Bluetooth Manager” on PocketPC to
enable Bluetooth function.

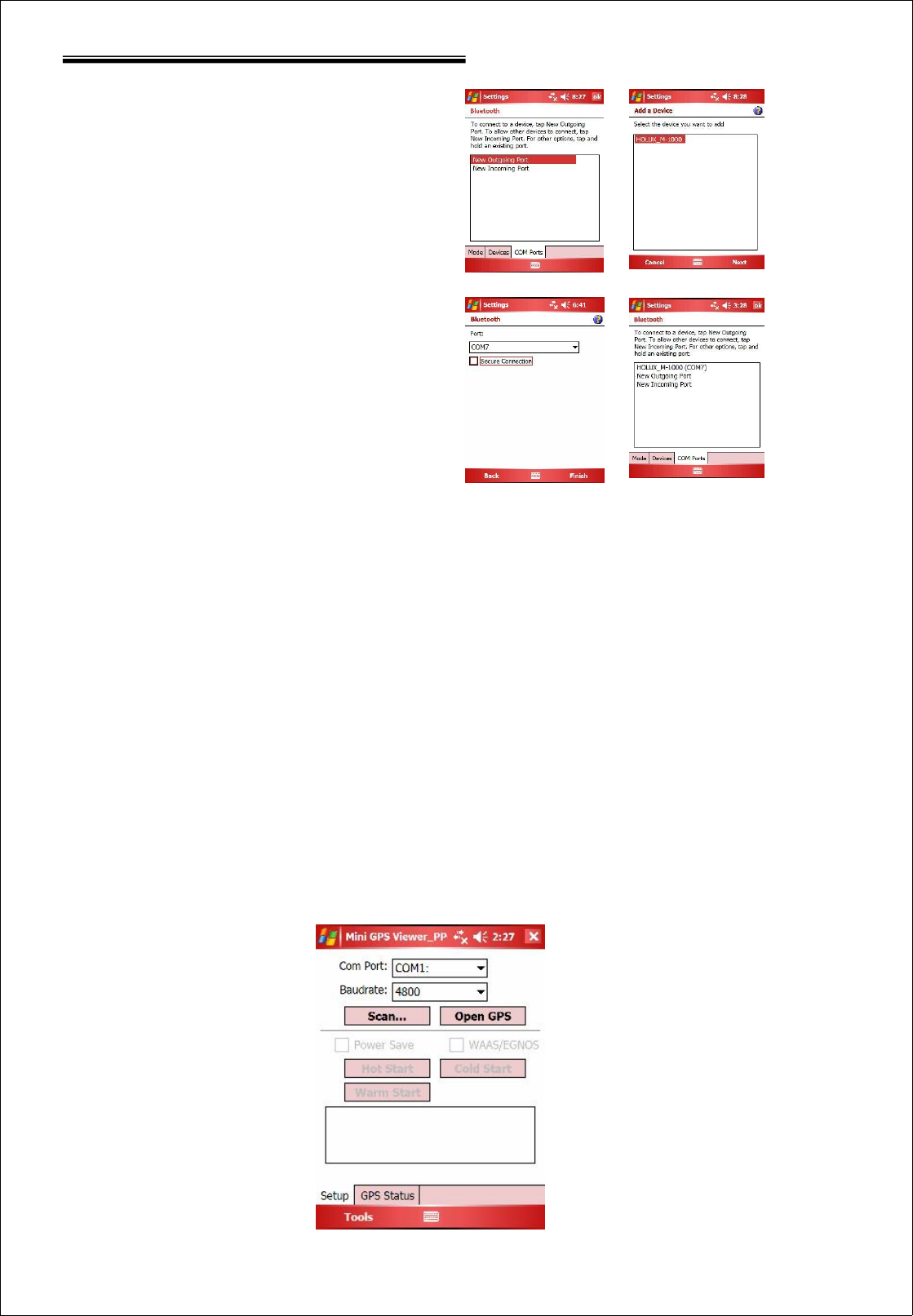

3. In “Devices” panel , tap “New
partnership” to search Bluetooth
devices nearby. If the result is not
found, tap “Refresh” to research again.
4. Choose the Bluetooth device
“HOLUX_M-1000” and tap “Next”
5. Connect to “Serial port” or “SPP
Slave”, then tap “Finish”
→
![](/img.php?id=783227&img=bgd.png)
HOLUX M-1000 Bluetooth Bluetooth GPS Receiver Manual
13
6. Go to the “COM ports” panel to tap
“New Outgoing Port”, choose
“HOLUX_M-1000” device and tap
“Next”.
7. Select the COM port, then tap finish, it
will show as right figure, and tap “OK”
to finish the Bluetooth setting.
Recommand not to use “Secure
Connection” which may cause
unstable connection.
8. Then you can enable your navigation
map program to enjoy GPS function
now.
5.3. Installation of Mini GPS Viewer program
We provide a program “Mini GPS viewer.exe” for end user to watch the satellite
signal receiving status on laptop or PDA device.
For Windows 2000/XP OS, you can execute “Mini GPS viewer_PC” directly.
For Microsoft Pocket PC, please copy “Mini GPS viewer_PPC” to SD card or device,
then execute “Mini GPS viewer_PPC”.
5.4. Execute the Mini GPS Viewer program
1) The following window is shown after executing Mini GPS Viewer_PPC,( see Fig.
5). The Windows 2000/XP version is just different on display.
→
![](/img.php?id=783227&img=bge.png)
HOLUX M-1000 Bluetooth Bluetooth GPS Receiver Manual
14
(Fig. 5)

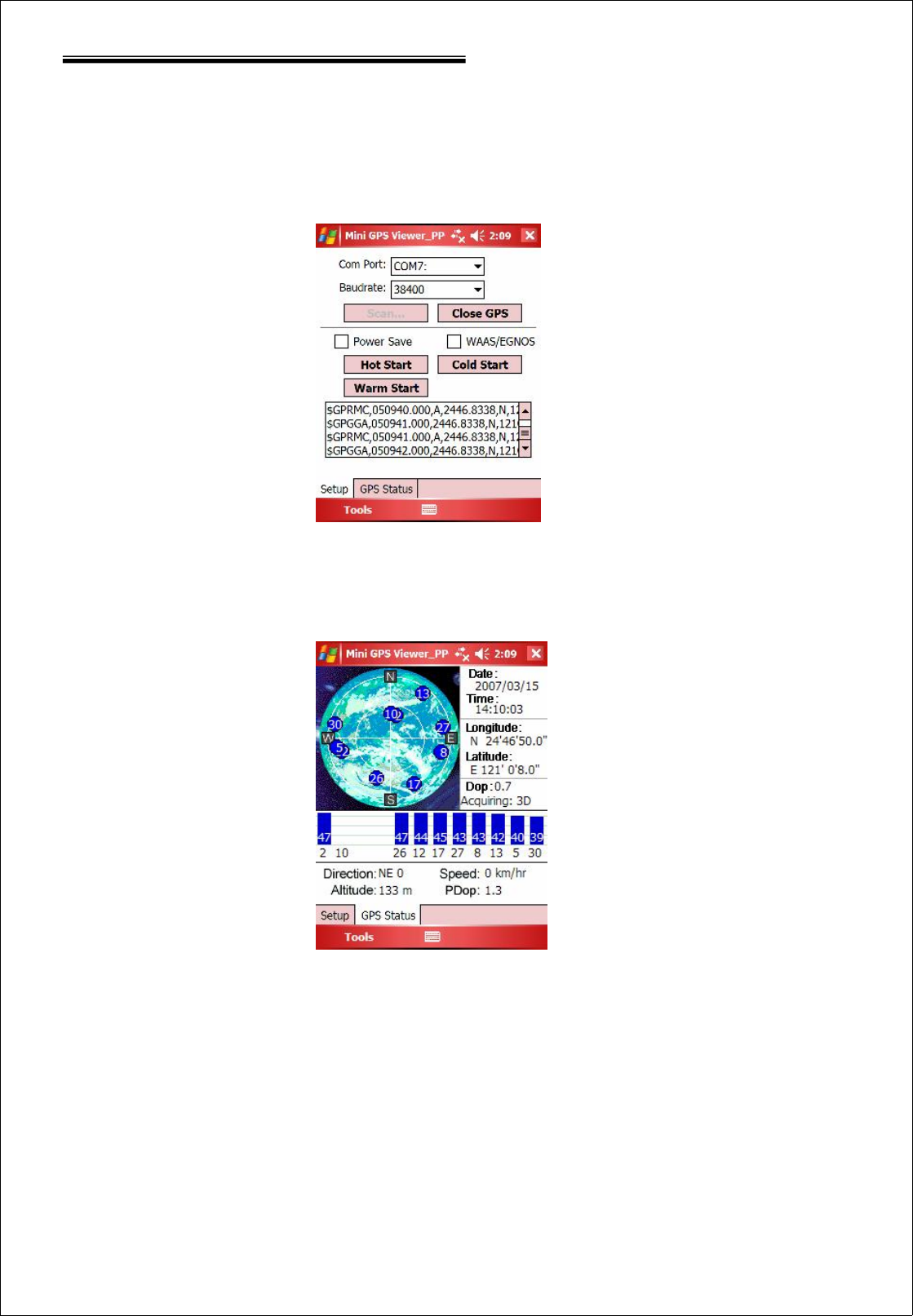

2) Setup the Baud rate : 38400, then tap “Scan” button to scan your COM Port.
Select your COM Port respectively, then tap “Open GPS” button. Check log
screen below if the satellite data is receiving correctly.
(Fig. )
3) Select “GPS Status” panel to observe the GPS information status , see Fig. 7.
(Fig. )
4) In “setup” panel you can see “Hot Start”“Warm Start”“Cold Start”which allow
you to re-acquisition of Ephemeris and Almanac. Basically the satellites are
always moving in the sky, if Ephemeris and Almanac data in GPS receiver can’t
meet real satellites status upon you if GPS receiver is over 0.5 hour power off but
you are no longer in the previous position , it takes more time for the GPS receiver
to get GPS position fix soon. We suggest you can click “Cold Start” or “Warm
start” to re-acquisitionOr you can remove the battery for 3 seconds and reinsert it,
this operation is the same with “Cold Start”.
![](/img.php?id=783227&img=bgf.png)
HOLUX M-1000 Bluetooth Bluetooth GPS Receiver Manual
15
6. Optional cable accessory
Option cable accessory is provided to meet customers’ need, see table 1. With
the data cable connected, it can transmit data with PDA, NoteBook easily as the
G-mouse role.
Table 1
Item Description Note
GR230-A2 HOLUX USB data cable
7. Driver Installation
The following is the steps of installation GR230-A2 USB data cable.
7.1 System Requirement
CPU: IBM, Pentium II or above, or other compatible PC.
Memory: above 32 MB
System: Windows 2000/XP
7.2 Installation
I. Starts the driver installer from driver CD.
II. Connect GR-230-A2 USB data cable to computer. System will search new
hardware and install the driver automatically
III.Connect GPS receiver with USB data cable.
7.3 Important
Verify the COM port to start using your own navigation software.
I. Click <Start> menu, select <Setting>, then enter<Controller>
II. After entering <Controller>, and select <System>.
III. Select <Device Manager>.
IV. Find the < Connector(COM & LPT)>and check the Virtual COM Port, which
was created by the USB driver.
Please note that the virtual COM port number might be different from every
computer. Before using navigation software, please confirm the COM Port numbers
created by your computer and provided by your navigation software. Otherwise, the
navigating software won’t receive the satellite signal, because of the un-match
COM Port setting.
![](/img.php?id=783227&img=bg10.png)
HOLUX M-1000 Bluetooth Bluetooth GPS Receiver Manual
16
8. Warranty
The is warranted to be free from defects in material and functions for a
period of one year from the date of purchase. Any failure of this product within this period
under normal conditions will be replaced at no charge to the customers.
has built Li-battery inside, please avoid closing to high temperature
environment or sun shine directly for a long time.
![](/img.php?id=783227&img=bg11.png)
HOLUX M-1000 Bluetooth Bluetooth GPS Receiver Manual
17
9. Troubleshooting
Problems Possible Reasons Methods
Weak or no GPS signal at the
place of
Test under open sky at a fix location and
run Mini GPS Viewer “Cold start” function.
No GPS
output but
GPS timer is
counting The ephemeris and almanac data
in GPS memory is no longer valid
after no use for a long time.
Remove the Battery for 3 seconds and
re-insert, then power on to test again.
Execute fail Bluetooth function unstable
Power On/Off M-1000.
Re-Start PDA or PC and refer to section
5.2 “Bluetooth device connection
installation” to re-connect.
Can not open
the COM port
Bluetooth connection interrupted
or COM port is conflicted/occupied
by other programs.
Check the Bluetooth connection again,
Check and close other programs that
might conflict with.
Can not find
Poor Bluetooth connection
Re-Start PDA or PC and refer to section
5.2 “Bluetooth device connection
installation” .
![](/img.php?id=783227&img=bg12.png)
HOLUX M-1000 Bluetooth Bluetooth GPS Receiver Manual
18
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. To maintain compliance with FCC RF exposure compliance
requirements, please avoid direct contact to the transmitting antenna during
transmitting
