Bluetooth Sound Bar User’s Manual
We Concentrate on perfect sound pursuit…
Thank you for using our product, please see the instruction manual carefully before
use!
一、 Function Overview: the optical fiber,AUX， Bluetooth，FM，
The clock，EQ.

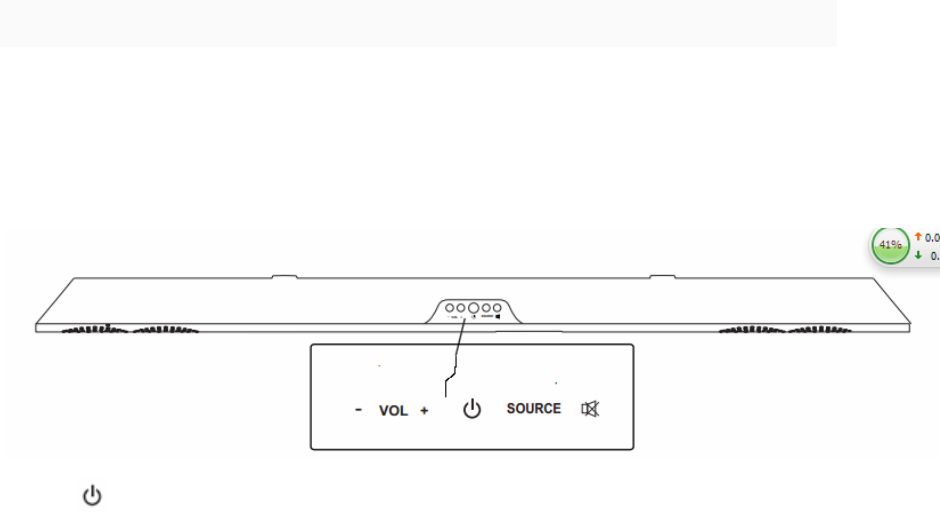

二、Panel buttons
1、 -------- The standby switch；
2、 VOL+-------------- The volume increase；
3、 VOL- ------------- The volume decreases；
4、 SOURCE------------ The audio signal source conversion
5、 MUTE----------------- The amplifier mute.
三、The remote control
1、
（ 电源符号 ）-------- The standby switch；
2、VOL+-------------- The volume increase；
3、VOL- ------------- The volume decreases；
4、SOURCE------------ The audio signal source conversion
5、MUTE----------------- The amplifier mute.
6、CH+--------------------- RREV channel OF FM MODE
7、CH- -------------------NEXT channel OF FM MODE
8、TREBLE+ ----------- The TREBLE volume increase；
9、TERBLE- ----------- The TREBLE volume decreases
10、BASS+ ----------- The BASS volume increase
11、BASS- ------------ The BASS volume decreases
12、MEM ------------------- Memory FM radio
13、TIMER--------------------- Set the time
14、CLOCK--------------------- set The clock
15、SLEEP----------------------- set the sleep
16、TUNE（”or“ ）----TUNE FM RADIO In the FM mode;(p REV or next)
In the bluetooth mode.
17、EQ----------------------------EQ mode :CLASSICAL, ROCK,POP,JAZZ(IN “NO
EQ MODE” IS “FLAT “(According to NOR)
四、INPUT & OUTPUT terminal diagram
1、SW OUT------------IS SUBWOOWFER OUTPUT
2、R-AUX-L ----------IS AUX （R channel & L channel）OUTPUT
3、OPT IN--------------IS optical fiber INPUT
五、Operation
六、Technical parameters
1、RMS：15W*2+60W
2、S/N：≥75d B
3、Frequency Effect: 60Hz-18KHz
4、AC IN：AC100V-240V 50/60HZ。
七、Accessories
1、 a soundbar +a subwoofer
2、a set of User’s Manual （Attached warranty card）
3、a （RCA plug *2 TO RCA plug *2） audio input wiring
4、a remote control(Attached 3V buttoncell CR2025)
八、warranty card
