HON HAI Precision Ind. Co., Ltd. Wireless USB Station Brochure
User Manual

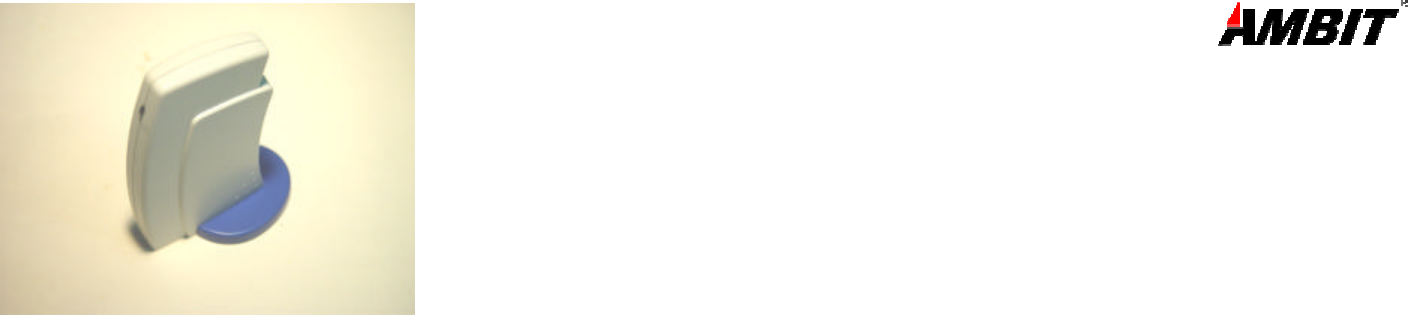

USB Wireless Card
Ambit Model Name : 60519W
AMBIT Wireless High Rate USB station complied with IEEE 802.11b 11Mbps Standard, it can be used to provide a variety of
low-cost wireless network interface card to connect your wireless LAN via fitting into the USB 1.1 connector. The Wireless High
Rate USB station that complies with this specification and combines networking with high-speed Internet access will let people
connect to the Internet anywhere, anytime.
With seamless roaming, fully interoperability and advanced security with WEP standard, Wireless High Rate USB station can
allow user to switch to different vendors’ Access Points through the wireless networks and to prevent from eavesdropping.
Function
l Compatible with IEEE 802.11b high rate standard to provide wireless Ethernet speeds of 11Mbps data rate
l Dynamic data rate switching with 11, 5.5, 2 and 1Mbps
l Allows auto fallback data rate for optimized reliability, throughput and transmission range
l Supports wireless data encryption with 64/128-bit WEP standard for security
l Integrated Microstrip dual diversity antennas for the multipath environment
l USB station fully support USB 1.1 defined mechanical and environmental stress conditions
l Drivers supports Windows 95, 98, 98SE, ME, 2000, NT
l WIFI Certified
Specification
Dynamic rate shifting 1, 2, 5.5, 11Mbit
(Auto-selects highest usable rate)
Network standard(s) IEEE 802.11b High rate
Frequency 2.4 ISM band
Wireless Medium Direct sequence spread spectrum
Encryption Encryption option; 64bit encryption option; 128bit encryption option
Modulation DBPSK @ 1Mbps; DQPSK @ 2Mbps; CCK @ 5.5Mbps and 11Mbps
Operating channel 11 channels (U.S. and Canada); 13 channels (Europe);
14 channels (Japan)
Roaming IAPP
Certification FCC Part 15 class B US U
nintentional Emissions; FCC Part 15.247, 15.205, 15.209 US Spread Spectrum; DOC RSS-210
Canadian spread spectrum; Europe ETS 300 328, ETS 300 826, CE marked; Japan RCR STD-33
; Contact US for other
information outside the U.S.
Environmental operating ranges Operating temperature: 0 to 55 oC; Storage –20 to 70 oC; Operating Humidity: 90% maximum non-condensing;
Notebook slot Type USB 1.1 interface
Device Drivers NDIS 4
Software Driver Windows 95, 98, 98SE, ME, 2000, NT
Software Utility Location profiles “Current station status”; “Link Test”; Real-time Link Quality & Signal Strength”; ”Configuration NIC”.
Network Architecture Types Supports peer to peer and communication to wired networks via Access Point
Operating Range
Indoor up to 50M(165ft.) @ up to 11Mbps
up to 70M(230ft.) @ up to 5.5Mbps
up to 90M(296ft.) @ up to 2Mbps
up to 100M(328ft.) @ up to 1Mbps
Outdoor up to 152M(500ft.) @ up to 11Mbps
up to 270M(885ft.) @ up to 5.5Mbps
up to 396M(1300ft.) @ up to 2Mbps
up to 457M(1500ft.) @ up to 1Mbps
Antenna Integrated internal diversity antenna.
LED Indicators Link Activity
Receive Sensitivity -90dbm @ 1Mbps; -88dbm @ 2Mbps; -86dbm @ 5.5bps; -84dbm @ 11bps
Output power Typical 13dbm.
Power 5V DC; Transmit 380mA typical (500mA max); Receive 215mA typical (300mA max);
Sleep 90mA typical (100mA max).
Safety compliance USA/Canada: UL1950/CSA 22.2; Europe: CE marked
Dimensions Length 11.02cm/4.34inch; Width 5,66cm/2.23inch; Thickness 5mm/0.20inch;
Weigh 1.6oz/45.35g
