SAFETY INFORMATION AND WARNINGS
Environmental conditions for product installation and use:
The Product shall be installed and configured in accordance with the user guide.
The Product shall be used and installed indoor with a maximum ambient temperature
of 40° C.
The Product shall be installed in offices and residential areas only, as they are free from
conducting polluting agents (i.e. areas considered pollution degree 2 environments as
per standard IEC 1010).
The Product shall not be placed near any source of heat or direct sunlight.
The Product shall be placed in a well-ventilated area in order to prevent overheating.
Do not cover or block the air vents on the Product. These are necessary for proper
ventilation.
Do not use this Product near water or in close proximity to bath tub, wash bowl,
kitchen sink, or laundry basin, in a wet basement, or near a swimming pool.
The Product shall not get in contact with water and moisture. Moving the Product
from a cold environment to a hot one may cause moisture on some internal parts of
the device. Wait until the Product is totally dry before turning it on. In case of fire, do
not use water for fire-extinguishing.
The Product shall not be used during a lightning storm. There is a remote risk of electric
shock from lightning.
Connections
Ethernet ports must be connected only to devices that support the same kind of in-
terface, and the cable used must not leave the building where the Product is installed.
This Product is not available to connect to outdoor cable distribution system
USB
The equipment has to be connected to a standard USB device compliant with limited
current circuit (as per UL 60950-1).
Before any operation is performed, please read the operation instructions and pre-
cautions carefully in order to minimize the possibility of accidents.
When you use this Product you shall always respect basic safety measures in
order to reduce risk of fire, electric shock or injury, following below instruc-
tions.
Power Source
Use only the Class II power adapter provided with the Product. The Product should be
operated only with power source of the same kind as indicated on the power adapter
rating plate.
The power adapter provided is a limited power source as per UL 60950-1/CAN/CSA-
C22.2 No. 60950-1 and it is compliant to national standards of the specific country
where the Product is installed. It is strictly forbidden to use different type of power
source.
The plug socket serves as the main power connection for the Product. Be sure that
the power socket being used is easily accessible and located as close to the Product
as possible.
In order to reduce the risk of fire or electric shock, do not overload the electrical
outlet, power strip, or extension power cable.
Cleaning Instructions
Unplug the Product from the power outlet (or socket) and any other telecommunica-
tion interfaces before cleaning.
Use a damp cloth for cleaning. Do not use liquid or aerosol cleansers.
Maintenance
Do not open the case in order to avoid electric shock or exposition to overvoltages.
Improper mounting can cause electric shock during further use of the Product. There
are no parts inside the Product that can be substituted by the user.
Damage requiring service/replacement
In case the Product requires service unplug the Product from the electrical outlet and
contact your service provider.
Typical conditions which may require service:
– Liquid has been spilled into the Product.
– The Product does not operate normally when you follow the operating instructions.
– The Product has been dropped or damaged.
– There are noticeable signs of overheating.
– The power cord, extension cord, or plug is damaged.
– A burning smell or smoke is perceived from the device.
3
GETTING STARTED
UNPACKING YOUR DIGITAL RECEIVER
FRONT PANEL
Receiver Power Supply
Installation
Guide
Quick Installation
Guide
HD TV
Power supply
Home Cinema
Ethernet
router
SD TV
SD card slot
Led indicator in the power on/off button:
Blue - operating mode. Blinks while receiving signals from the RCU
Red - deep standby mode
Purple - normal standby mode. Blinks during software update.
Rec LED - Red when recording is in progress (only when the ADB HDD
module is connected).

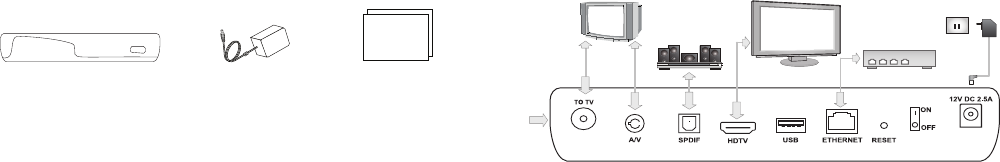

CONNECTIONS
Installation Notice: Connecting your TV directly to the Audio/Video
output of your Set-Top Box will assure a more vivid picture and enhance
your viewing enjoyment.
Plug in all cables before connecting the decoder to the power supply.
Similarly always unplug the decoder from the power supply first, before
disconnecting cables from the decoder or reconnecting them.
1. Connect the Ethernet cable.
2. Depending on the type of your TV set, connect your receiver either
with the HDMI cable (for an HD TV set), jack connector (for an SD
TV) or RF cable.
3. You can also connect audio devices such as home cinema.
4. The last step is connecting the decoder to the power supply socket.
Now you can switch on your TV set. Make sure that you have selected
the appropriate source of signal in the TV. If you are unsure how to do it,
please consult your TV user manual.
RF RCU CONFIGURATION
Important: Remote Control Unit is packaged separetly.
In case when you are provided with an RF RCU please perform
simultaneously the following steps in order to pair it with your STB:
1. RF RCU - enter the pairing mode according to the instructions
attached to the device.
2. STB - please keep the On/Off button pressed for 5 seconds.
