Cisco Edge 340 Series Installation Guide
OL-29523-01
• About this Guide, page 1
• Cisco Edge 340 Series Accessories, page 2
• Overview of the Cisco Edge 340 Series, page 2
• Installing the Cisco Edge 340 Series, page 7
• Powering On the Cisco Edge 340 Series, page 10
• Resetting to Factory Mode, page 10
• Technical Specifications, page 10
• Regulatory Standards Compliance, page 11
• EMC Class B Notices, Warnings, and Safety Information, page 12
• Declaration of Conformity for RF Exposure, page 16
• Obtaining Documentation and Submitting a Service Request, page 18
About this Guide
This guide describes how to install the Cisco Edge 340 Series device and describes the LEDs and ports.
For configuration information, see the Cisco Edge 340 Series documentation on Cisco.com. For system
requirements, important notes, limitations, open and resolved bugs, and documentation updates, see the
release notes on Cisco.com.
2
Cisco Edge 340 Series Installation Guide
OL-29523-01
Cisco Edge 340 Series Accessories
Cisco Edge 340 Series Accessories
The following list shows the accessories that you can purchase for the Cisco Edge 340 Series device:
• Power adapter
• Power cord
• Power cord retainer
• WiFi external antenna
• Console cable with RJ45 and DB9F
• RS-232 cable for Digital Media Player (DMP) and Cisco LCD connectivity
• Infrared Receiver (IR) remote control
• IR extender
Note All the accessories, except the Cisco Edge 340 Series chassis, should be purchased individually, and are
not included by default with the Cisco Edge 340 Series.
Note Verify that you have received the items you have purchased. If any item is missing or damaged, contact
your Cisco representative or reseller.
Overview of the Cisco Edge 340 Series
The Cisco Edge 340 Series is available in two variants: wireless SKU and non-wireless SKU. The
wireless SKU supports both Wi-Fi and Bluetooth, while the non-wireless SKU supports neither.
Ta b l e 1 Cisco Edge 340 Series Models
Model No. Description
CS-E340W Cisco Edge 340 Series (wireless)
CS-E340 Cisco Edge 340 Series (non-wireless)
3
Cisco Edge 340 Series Installation Guide
OL-29523-01
Overview of the Cisco Edge 340 Series

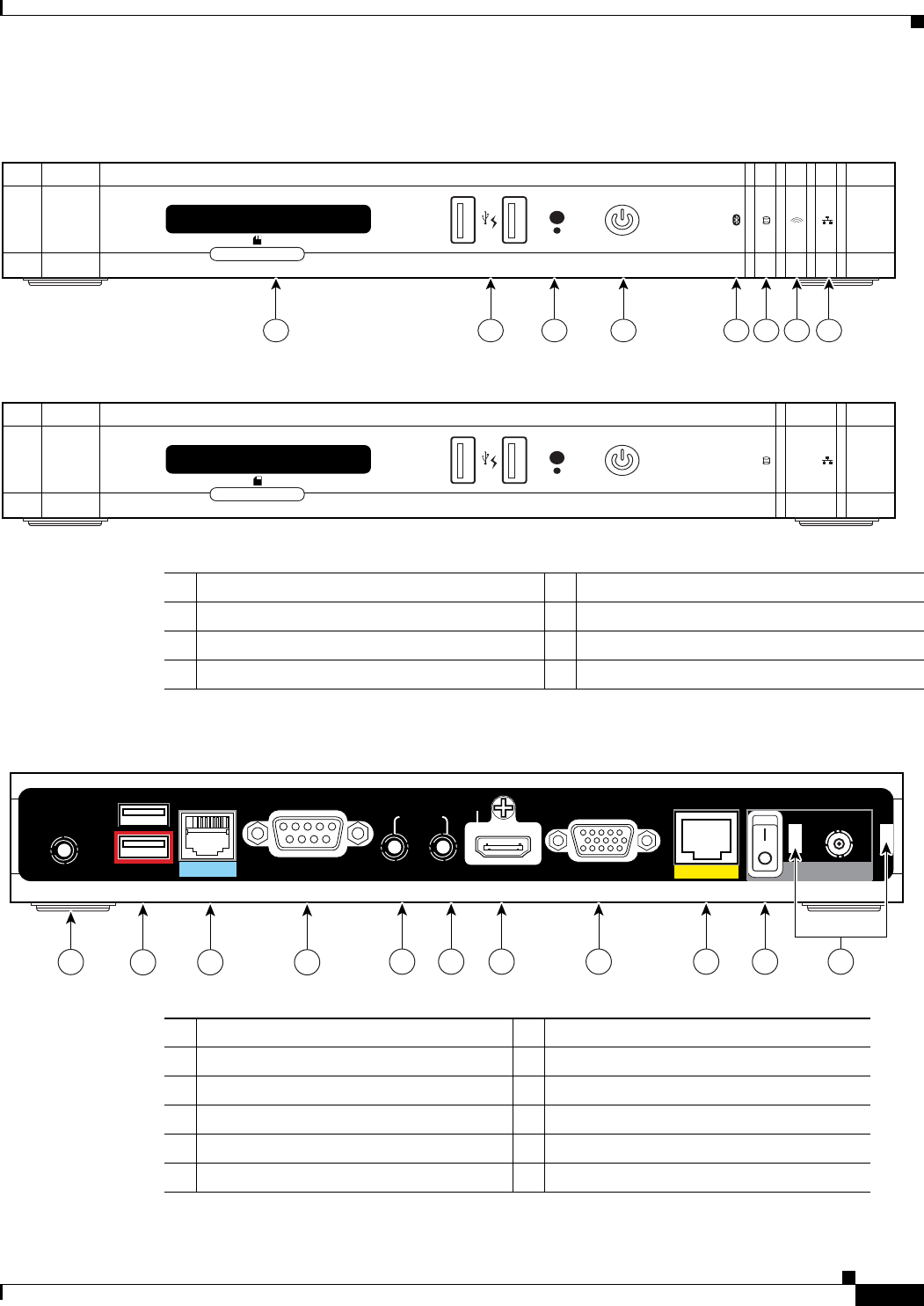

Figure 1 Cisco Edge 340 Series—Front panel
Figure 2 Cisco Edge 340 Series—Rear Panel
1SD card slot 5Bluetooth status
2USB ports 6Storage status
3Factory mode pinhole 7Wifi status
4Power button 8Gigabit Ethernet (uplink) status
1IR extension 7HDMI port
2USB ports 8VGA port
3Console port 9Gigabit Ethernet port
4RS-232 port 10 Power switch
5Audio out port 11 Power cord retainer hole
6Audio in port
Cisco Edge 340 Series
f
Cisco Edge 340 Series
f
390142
1 2 3 4 5 6 7 8
Wireless SKU
Non-wireless SKU
f
390143
12 3 4 5 6 7 8 9 10
HDMI
IR Extension 12V=3A
USB RS232 Out
HDMI
VGA
Audio
In
Console GE
11
4
Cisco Edge 340 Series Installation Guide
OL-29523-01
Overview of the Cisco Edge 340 Series
Port Descriptions
USB
There are four USB 2.0 Type A ports. Two of them are on the front panel, and two on the rear panel.
When the Cisco Edge 340 is powered by external power adapter, all four USB ports are enabled. The
port marked with red outline on the rear panel can provide up to 5W power to a connected device. Each
of the other three USB ports can provide up to 2.5W power. When the Cisco Edge 340 is powered by
PoE or PoE+ switch, only the two USB ports on the front panel are enabled, and each can provide up to
2.5W power. The two USB ports on the rear panel are disabled.
You can connect a wired USB keyboard and mouse, a wireless USB receiver for a keyboard and mouse,
a USB camera, or a USB thumb drive.
Console
The Cisco Edge 340 Series provides one console port. You can order a Cisco console cable to connect
the unit and enter the Clish environment.
RS-232
One male DB9 connector (DCE mode) is supported so that the Cisco Edge 340 Series can support access
and configuration of monitors (DTE mode) via RS232.
Audio Out
You can connect headphones or external speakers that use a 3.5-mm connector.
Audio In
You can connect a microphone that uses a 3.5-mm connector.
HDMI
The HDMI port can support 720p and 1080p HD video output with the maximum resolution of
1920x1200.
Note This product incorporates HDMI technology
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are or registered trademarks registered trademarks of HDMI Licensing LLC in
the United States and other countries.
®
5
Cisco Edge 340 Series Installation Guide
OL-29523-01
Overview of the Cisco Edge 340 Series
VGA
The VGA port can support 720p and 1080p HD video output with the maximum resolution of
1920x1200.
Gigabit Ethernet
The Gigabit Ethernet uplink port provides a 10/100/1000 Mb/s connection to other devices.
Wireless Features
WiFi
Supports 802.11a/b/g/n dual-band wireless AP or client.
Bluetooth
Supports Bluetooth 4.0 and Human Interaction Design Protocol (HIDP) for remote control or input
devices.
Power Management
Wake on LAN
The Cisco Edge 340 Series supports Wake on LAN when it is in the sleep mode or the soft off mode.
The system can be woken up via an Ethernet message, and changed to the full on mode.
PoE PD (IEEE 802.3at)
The Power Over Ethernet (PoE) solution for a Powered Device (PD) describes a standardized system that
transfers electrical power along with data, on the Ethernet cable. The Cisco Edge 340 Series supports
PoE PD so that the device can be powered on from the Power-Sourcing Equipment (PSE) via the Ethernet
cable when the external power supply is not connected. Given the power consumption of the Cisco Edge
340 Series, the IEEE 802.3at (the power available at PD is 25.50W) PSE will be supported.
The Cisco Edge 340 Series can be powered by an IEEE 802.3af (the power available at PD is 12.95W)
PSE. But if you use the USB ports, the total current might be over the maximum power current of the
IEEE 802.3af PSE, and the overcurrent event will be triggered. The PSE will shut down the power of the
Cisco Edge 340 Series and then perform another round of detection.
6
Cisco Edge 340 Series Installation Guide
OL-29523-01
Overview of the Cisco Edge 340 Series
LEDs

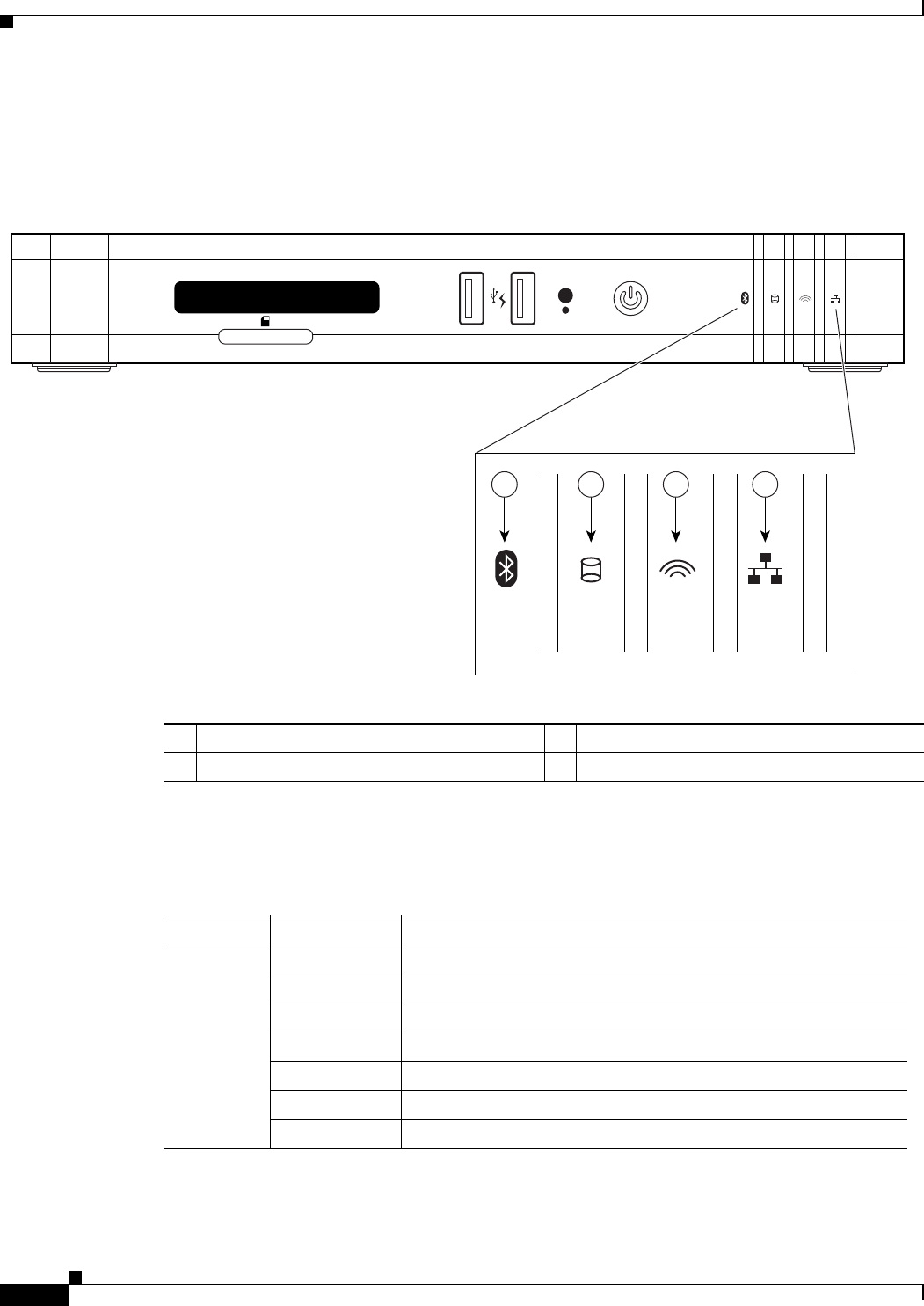

Figure 3 shows the LEDs on the front panel of the Cisco Edge 340 Series.
Figure 3 Cisco Edge 340 Series LEDs on the Front Panel
Table 2 shows the color and meaning of each LED.
1Bluetooth1
1. Only for the CS-E340W Series
3WiFi1
2Storage status 4Gigabit Ethernet uplink
Cisco Edge 340 Series
f
1 2 3 4
390141
Ta b l e 2LEDs
LED Color Meaning
Power
(behind
power
button)
Off There is no power.
Blinking blue System is in Power-on self test (POST) stage.
Blinking red System POST fails.
Blinking green System is in the factory mode.
Solid blue System is operating normally.
Solid red System is in the soft off mode.
Solid green System is in the sleep mode.
7
Cisco Edge 340 Series Installation Guide
OL-29523-01
Installing the Cisco Edge 340 Series
Installing the Cisco Edge 340 Series
You can install the Cisco Edge 340 Series on a wall or a pillar, a metal pole, or a ceiling T-joint by using
the wall-mount kit. You can also install the Cisco Edge 340 Series on almost any Video Electronics
Standards Association (VESA)-compliant flat-panel display that is attached to a third-party VESA
bracket. Besides, you can mount the Cisco Edge 340 Series on a desk or table vertically by using the
desktop-mount bracket.
Equipment That You Need
• Phillips screwdriver
• Scratch awl or other sharp-pointed object (wall-mount)
• Electric drill with a 6-mm drill bit (wall-mount)
• Crescent wrench or socket wrench
• Pencil
• Bubble level or laser level
Before You Begin
Before installing the Cisco Edge 340 Series, verify that these guidelines are met:
• Front clearance so that the LEDs can be seen.
• AC power cord reaches from the AC power outlet to the rear-panel connector.
• Cabling is away from sources of electrical noise, such as radios, power lines, and fluorescent
lighting. Make sure that the cabling is safely away from other devices that might damage the cables.
• Airflow around the Cisco Edge 340 Series is unrestricted.
• Temperature around the unit does not exceed 45°C.
Gigabit
Ethernet
Off No link.
Blue Link up.
Blinking blue Activity.
WiFi (AP
and client)
Off WiFi is disabled.
Solid blue WiFi is enabled and functioning.
Blinking blue WiFi is transmitting data.
Bluetooth Off Bluetooth is disabled.
Solid blue Bluetooth is enabled and functioning.
Blinking blue Bluetooth is transmitting data.
Storage Off Storage is not active.
Blinking blue Storage is active.
Table 2 LEDs (continued)
LED Color Meaning
8
Cisco Edge 340 Series Installation Guide
OL-29523-01
Installing the Cisco Edge 340 Series
• Humidity around the Cisco Edge 340 does not exceed 85 percent.
• Altitude at the installation site is below 2000m.
Warning Statements
Warning
In order to comply with FCC radio frequency (RF) exposure limits, antennas should be located at a
minimum of 7.9 inches (20 cm) or more from the body of all persons.
Statement 332
Warning
This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that
the protective device is rated not greater than:
20A
Statement 1005
Warning
The plug-socket combination must be accessible at all times, because it serves as the main
disconnecting device.
Statement 1019
Warning
Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Statement 1030
Warning
Ultimate disposal of this product should be handled according to all national laws and regulations.
Statement 1040
Warning
For connections outside the building where the equipment is installed, the following ports must be
connected through an approved network termination unit with integral circuit protection:
10/100/1000 Ethernet
Statement 1044
Warning
IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you
work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar
with standard practices for preventing accidents. Use the statement number provided at the end of
each warning to locate its translation in the translated safety warnings that accompanied this
device.
Statement 1071
SAVE THESE INSTRUCTIONS
9
Cisco Edge 340 Series Installation Guide
OL-29523-01
Installing the Cisco Edge 340 Series
Warning
To prevent the system from overheating, do not operate it in an area that exceeds the maximum
recommended ambient temperature of:
113°F (45°C)
Statement 1047
Warning
Installation of the equipment must comply with local and national electrical codes.
Statement 1074
Warning
To prevent airflow restriction, allow clearance around the ventilation openings to be at least:
3 inches (7.6 cm)
Statement 1076
Caution Be aware of the size and weight of the Cisco Edge 340 Series when mounting. Ensure that the mounting
location has a stable flat surface and can safely support the weight of the Cisco Edge 340 Series.
Installing the Cisco Edge 340 Series on a Wall, Pole, or Ceiling
Warning
Read the wall-mounting instructions carefully before beginning installation. Failure to use the
correct hardware or to follow the correct procedures could result in a hazardous situation to people
and damage to the system.
Statement 378
You can use the wall-mount kit to mount the Cisco Edge 340 Series to:
• A wall or pillar (concrete, plaster, or drywall)
• A suspended grid ceiling T-joint
• A metal pole
For more information and detailed installation procedures, see Mounting the Kit Assembly (Wall, Pole,
and Ceiling Mount) for Cisco Edge 340 Series.
Install the Cisco Edge 340 Series on a Flat-Panel Display
You can use your display-mounting kit to install a Cisco Edge 340 to almost any VESA-compliant
flat-panel display that is attached to a third-party VESA bracket. You can mount your Cisco Edge 340
Series above or below the flat-panel display, whether the display is oriented in landscape mode
(horizontal) or portrait mode (vertical).
Note See the manufacturer documentation pertaining to your display to learn if its casing is VESA compliant
and, if it is, where you can obtain a compatible VESA bracket for it. Cisco does not sell VESA brackets
or kits.
The LCD-mount plates for this product might not be long enough to mount your mounting kit to an
extremely large flat-panel display even if that display is VESA compliant.
For more information and detailed installation procedures, see Mounting the Kit Assembly (Display
Mount) for Cisco Edge 340 Series.
10
Cisco Edge 340 Series Installation Guide
OL-29523-01
Powering On the Cisco Edge 340 Series
Installing the Cisco Edge 340 Series on a Desk or Table
You can use your desktop-mounting kit to install a Cisco Edge 340 on a desk or table vertically by using
the desktop-mount bracket.
For more information and detailed installation procedures, see Mounting the Kit Assembly (Desktop
Mount) for Cisco Edge 340 Series.
Powering On the Cisco Edge 340 Series
Connect the power cord to an electrical outlet. Press the Power button to power on the Cisco Edge 340
Series. See Table 2 for a description of the LED colors and their meanings.
Resetting to Factory Mode
To reboot the Cisco Edge 340 to factory mode and force an image upgrade, press and hold the Factory
mode pinhole for more than 5 seconds when you press the Power button to power on.
Technical Specifications
Ta b l e 3 Cisco Edge 340 Series Environmental and Physical Specifications
Environmental Ranges
Operating temperature Without power supply and
powered by PoE
0 to 50°C
With power supply 0 to 45°C
Storage temperature –13 to 158°F (–25 to 70°C)
Relative humidity Operating and storage: 10 to 90% (noncondensing)
Operating altitude Without power supply and
powered by PoE
0 to 3000 m
With power supply 0 to 2000 m
Storage altitude Up to 4573 m
Physical Specifications
Weight (without bracket) 0.912 kg (2.01 bl)
Dimensions (H x W x D) 244 mm x 186 mm x 35 mm (9.6 in. x 7.3 in. x 1.4 in.) (without
mount)
11
Cisco Edge 340 Series Installation Guide
OL-29523-01
Regulatory Standards Compliance
Regulatory Standards Compliance
This section includes all the regulatory, safety, and EMC standards.
Ta b l e 4 Regulatory Standards Compliance for the Cisco Edge 340 Series
Specification Description
Safety UL 60950-1 Second Edition
CAN/CSA-C22.2 No. 60950-1 Second Edition
EN 60950-1 Second Edition
IEC 60950-1:2005 (Second Edition), Am 1:2009
AS/NZS 60950-1
GB4943.1- 2011
CCC (China compulsory certification)
EMC FCC Part 15 (CFR 47)
ICES-003
AS/NZS CISPR22
EN55022:2010
CISPR22:2008
EN61000-3-2:2006/A2:2009
EN61000-3-3:2008
VCCI
KN22
CNS13438
KN24
EN55024:2010
CISPR24:2010
Bluetooth BQB
WIFI 802.11a/b/g/n Mark
Wireless SRRC
Radio FCC Part 15.247 (CFR 47)
FCC Part 15.407
RSS-210
EN 300328 V1.7.1
EN 301-489-1
EN 301-489-17
EN 301-893
DGT LP0002
NOM-121
AS/NZS 4268
IDA
HKTA 1039
ARIB STD - T66
ARIB STD - T71
Anatel
EN 50385
Canada RSS-102 Issue 4
OET 65C/2.1091/ all applicable KDB’s including multiple transmitter
requirements
12
Cisco Edge 340 Series Installation Guide
OL-29523-01
EMC Class B Notices, Warnings, and Safety Information
EMC Class B Notices, Warnings, and Safety Information
This section includes the EMC Class B warnings for the Cisco Edge 340 Series.
Statement 2018—Class B Notice for FCC
Modifying the equipment without Cisco’s authorization may result in the equipment no longer
complying with FCC requirements for Class B digital devices. In that event, your right to use the
equipment may be limited by FCC regulations, and you may be required to correct any interference to
radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio or TV technician for help.
Caution The Part 15 radio device operates on a non-interference basis with other devices operating at this
frequency. Any changes or modification to said product not expressly approved by Cisco, including the
use of non-Cisco antennas, could void the user’s authority to operate this device.
Caution The band from 5600 to 5650 MHz will be disabled by the software during the manufacturing and cannot
be changed by the end user.
Caution Within the 5.15 to 5.25 GHz band, this device is restricted to indoor operations to reduce any potential
for harmful interference to co-channel Mobile Satellite System (MSS) operations. This device meets all
the other requirements specified in Part 15E, Section 15.407 of the FCC Rules.
Statement 2022—Class B Notice for Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
13
Cisco Edge 340 Series Installation Guide
OL-29523-01
EMC Class B Notices, Warnings, and Safety Information
Canadian Compliance for the Cisco Edge 340 Series
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire
de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and
compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and
compliance.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 et
la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information canadienne sur
l'exposition et la conformité de rf.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment should be installed and operated with a minimum distance of 20 centimeters between
the radiator and your body.
Cet émetteur ne doit pas tre Co-placé ou ne fonctionnant en même temps qu'aucune autre antenne ou
émetteur. Cet équipement devrait être installé et actionné avec une distance minimum de 20 centimètres
entre le radiateur et votre corps.
This radio transmitter MODEL has been approved by Industry Canada to operate with the antenna types
listed below with the maximum permissible gain and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated
for that type, are strictly prohibited for use with this device.
Le présent émetteur radio MODEL a été approuvé par Industrie Canada pour fonctionner avec les types
d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque
type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain
maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.

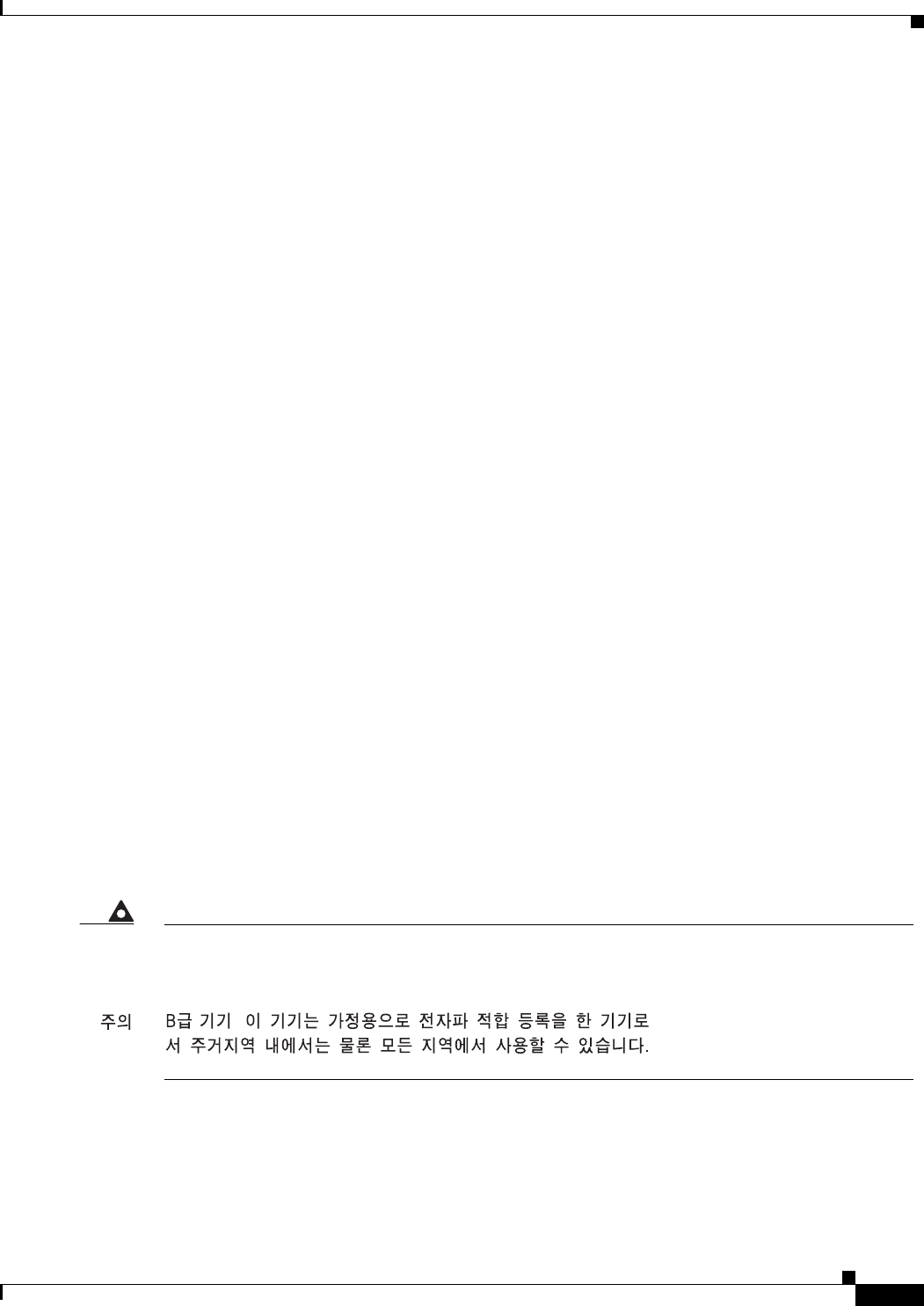

Statement 295—Class B Warning for Korea
Warning
This is a Class B Device and is registered for EMC requirements for residential use. This device can
be used not only in residential areas but in all other areas.
14
Cisco Edge 340 Series Installation Guide
OL-29523-01
EMC Class B Notices, Warnings, and Safety Information
Korea Application Statement
This equipment generates radio frequency that may cause harmful interference. This equipment must not
be co-located in the environment of human safety exposure.

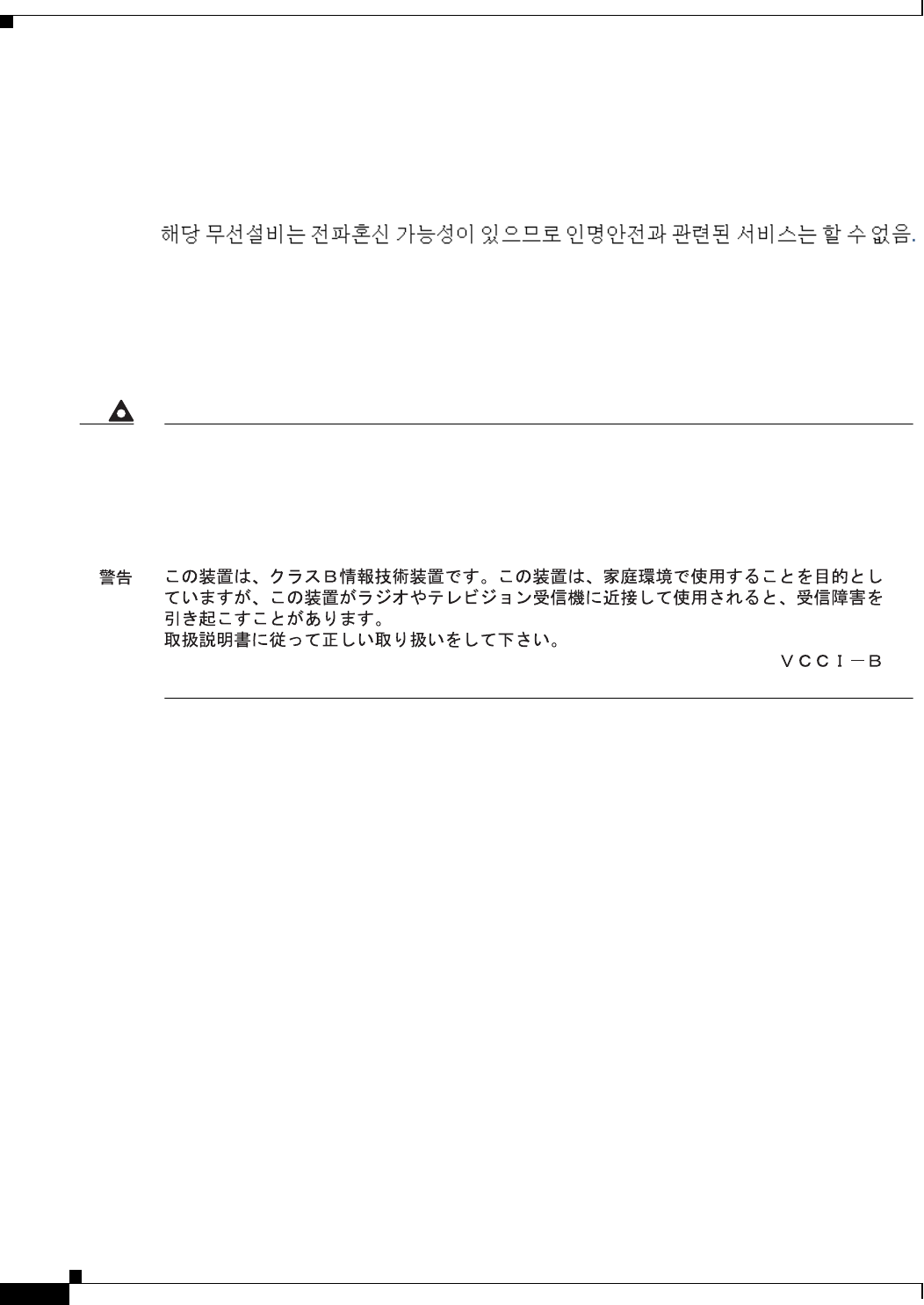

Statement 157—VCCI Compliance for Class B Equipment
Warning
This is a Class B product based on the standard of the VCCI Council. If this is used near a radio or
television receiver in a domestic environment, it may cause radio Interference. Install and use the
equipment according to the instruction manual.
VCCI-B
15
Cisco Edge 340 Series Installation Guide
OL-29523-01
EMC Class B Notices, Warnings, and Safety Information

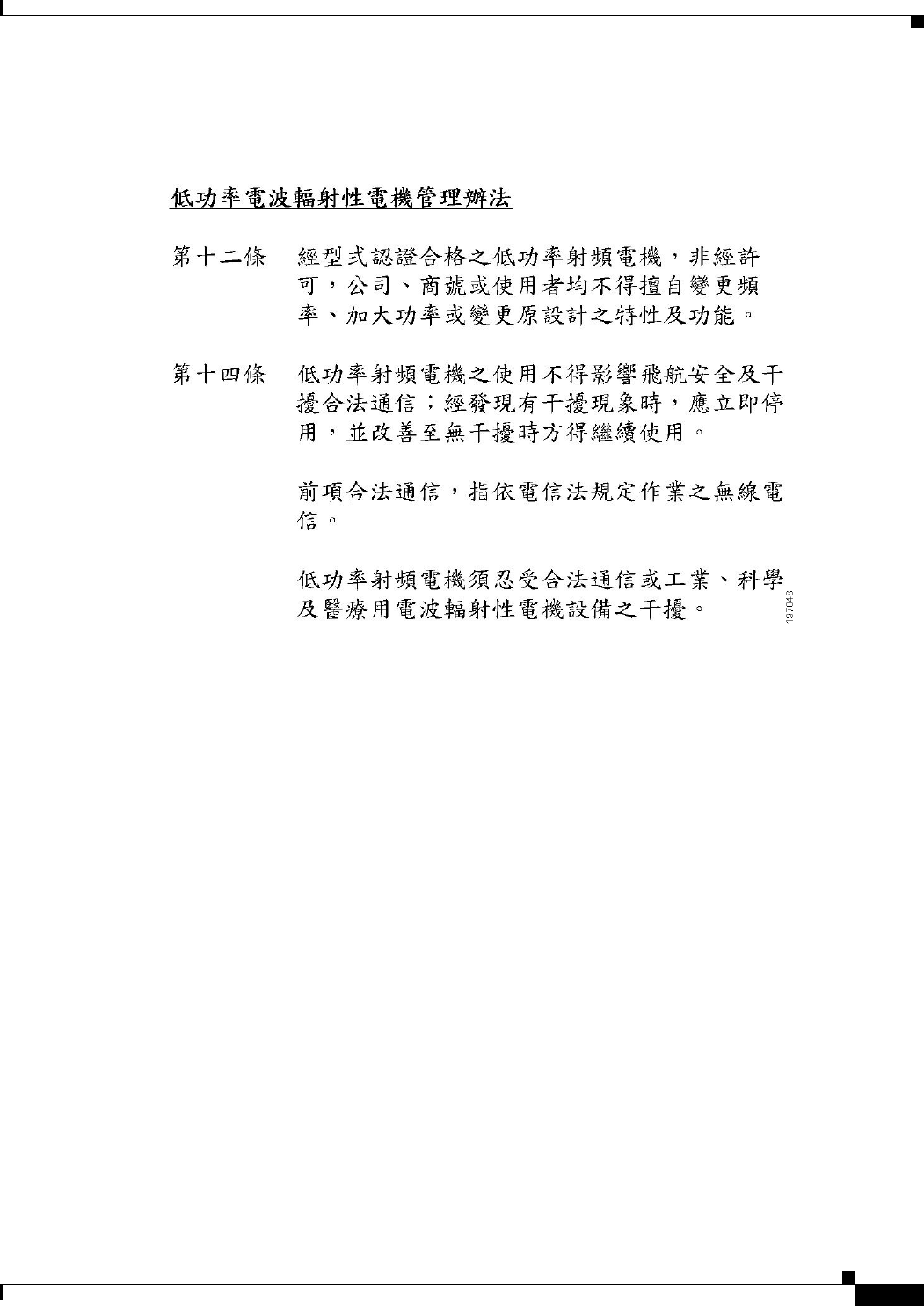

Compliance Statement for Taiwan
Compliance Statement for Device Working at 2.4 G and 5G in Brazil
This equipment operates on a secondary basis and, consequently, must accept harmful interference,
including from stations of the same kind, and may not cause harmful interference to systems operating
on a primary basis
Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência
prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em
caráter primário.
FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and
it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in
accordance with provided instructions and the antenna(s) used for this transmitter must not be co-located
or operating in conjunction with any other antenna or transmitter. End-users and installers must be
provide with antenna installation instructions and consider removing the no-collocation statement.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
16
Cisco Edge 340 Series Installation Guide
OL-29523-01
Declaration of Conformity for RF Exposure
Declaration of Conformity for RF Exposure
This section contains information on compliance with guidelines related to RF exposure.
This Device Meets International Guidelines for Exposure to Radio Waves
The Cisco Edge 340 series device includes a radio transmitter and receiver. It is designed not to exceed
the limits for exposure to radio waves (radio frequency electromagnetic fields) recommended by
international guidelines. The guidelines were developed by an independent scientific organization
(ICNIRP) and include a substantial safety margin designed to ensure the safety of all persons, regardless
of age and health.
As such the systems are designed to be operated as to avoid contact with the antennas by the end user. It
is recommended to set the system in a location where the antennas can remain at least a minimum
distance as specified from the user in accordance to the regulatory guidelines that are designed to reduce
the overall exposure of the user or operator.
The World Health Organization has stated that present scientific information does not indicate the need
for any special precautions for the use of wireless devices. They recommend that if you are interested in
further reducing your exposure then you can easily do so by reorienting antennas away from the user or
placing the antennas at a greater separation distance then recommended.
This Device Meets FCC Guidelines for Exposure to Radio Waves
The Cisco Edge 340 series device includes a radio transmitter and receiver. It is designed not to exceed
the limits for exposure to radio waves (radio frequency electromagnetic fields) as referenced in FCC Part
1.1310. The guidelines are based on IEEE ANSI C 95.1 (92) and include a substantial safety margin
designed to ensure the safety of all persons, regardless of age and health.
As such the systems are designed to be operated as to avoid contact with the antennas by the end user. It
is recommended to set the system in a location where the antennas can remain at least a minimum
distance as specified from the user in accordance to the regulatory guidelines that are designed to reduce
the overall exposure of the user or operator.
The device has been tested and found compliant with the applicable regulations as part of the radio
certification process.
Separation Distance
MPE Distance Limit
0.107 mW/cm220.00 cm (7.87 inches) 1.00 mW/cm2
Separation Distance
MPE Distance Limit
0.107 mW/cm220.00 cm (7.87 inches) 1.00 mW/cm2
17
Cisco Edge 340 Series Installation Guide
OL-29523-01
Declaration of Conformity for RF Exposure
The US Food and Drug Administration has stated that present scientific information does not indicate
the need for any special precautions for the use of wireless devices. The FCC recommends that if you
are interested in further reducing your exposure then you can easily do so by reorienting antennas away
from the user or placing the antennas at a greater separation distance than recommended or lowering the
transmitter power output.
This Device Meets the Industry Canada Guidelines for Exposure to Radio
Waves
The Cisco Edge 340 series device includes a radio transmitter and receiver. It is designed not to exceed
the limits for exposure to radio waves (radio frequency electromagnetic fields) as referenced in Health
Canada Safety Code 6. The guidelines include a substantial safety margin designed into the limit to
ensure the safety of all persons, regardless of age and health.
The systems are designed to be operated as to avoid contact with the antennas by the end user. It is
recommended to set the system in a location where the antennas can remain at least a minimum distance
as specified from the user in accordance to the regulatory guidelines that are designed to reduce the
overall exposure of the user or operator.
Health Canada states that present scientific information does not indicate the need for any special
precautions for the use of wireless devices. They recommend that if you are interested in further reducing
your exposure you can easily do so by reorienting antennas away from the user, placing the antennas at
a greater separation distance than recommended, or lowering the transmitter power output.
For More Information
These documents provide complete information about the Cisco Edge 340 and are available at:
www.cisco.com/go/cisco_edge_340
• Cisco Edge 340 Series Software Configuration Guide
• Release Notes for the Cisco Edge 340 Series
Note Before installing, configuring, or upgrading the Cisco Edge 340 Series, refer to the Release
Notes for the latest information.
Separation Distance
MPE Distance Limit
0.107 mW/cm220.00 cm (7.87 inches) 1.00 mW/cm2
18
Cisco Edge 340 Series Installation Guide
OL-29523-01
Obtaining Documentation and Submitting a Service Request
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional
information, see What’s New in Cisco Product Documentation at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html.
Subscribe to What’s New in Cisco Product Documentation, which lists all new and revised Cisco technical
documentation, as an RSS feed and deliver content directly to your desktop using a reader application. The
RSS feeds are a free service.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of
Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The
use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)
Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and
figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and
coincidental.
© 2013 Cisco Systems, Inc. All rights reserved.
