HON HAI PRECISION IND GML820U-915U Wireless Gateway User Manual 802

HON HAI Precision Ind. Co., Ltd. Wireless Gateway 802

User Manual

1
Outdoor IOT Gateway Installation Guide
2
WARNING:
MUST not install or remove GPS, LoRa or
LTE Antenna when DC power is applied to
the Gateway. It may damage the device.
For un-connected N Type Antenna Port,
MUST install a " N Type Connector Cap" to
prevent water getting into the device.
3
Our mounting bracket design will be able to fix in two different locations, which is antenna
pole and wall. Mounting bracket is also be able to fix in two direction, Vertical and Horizontal as
well.

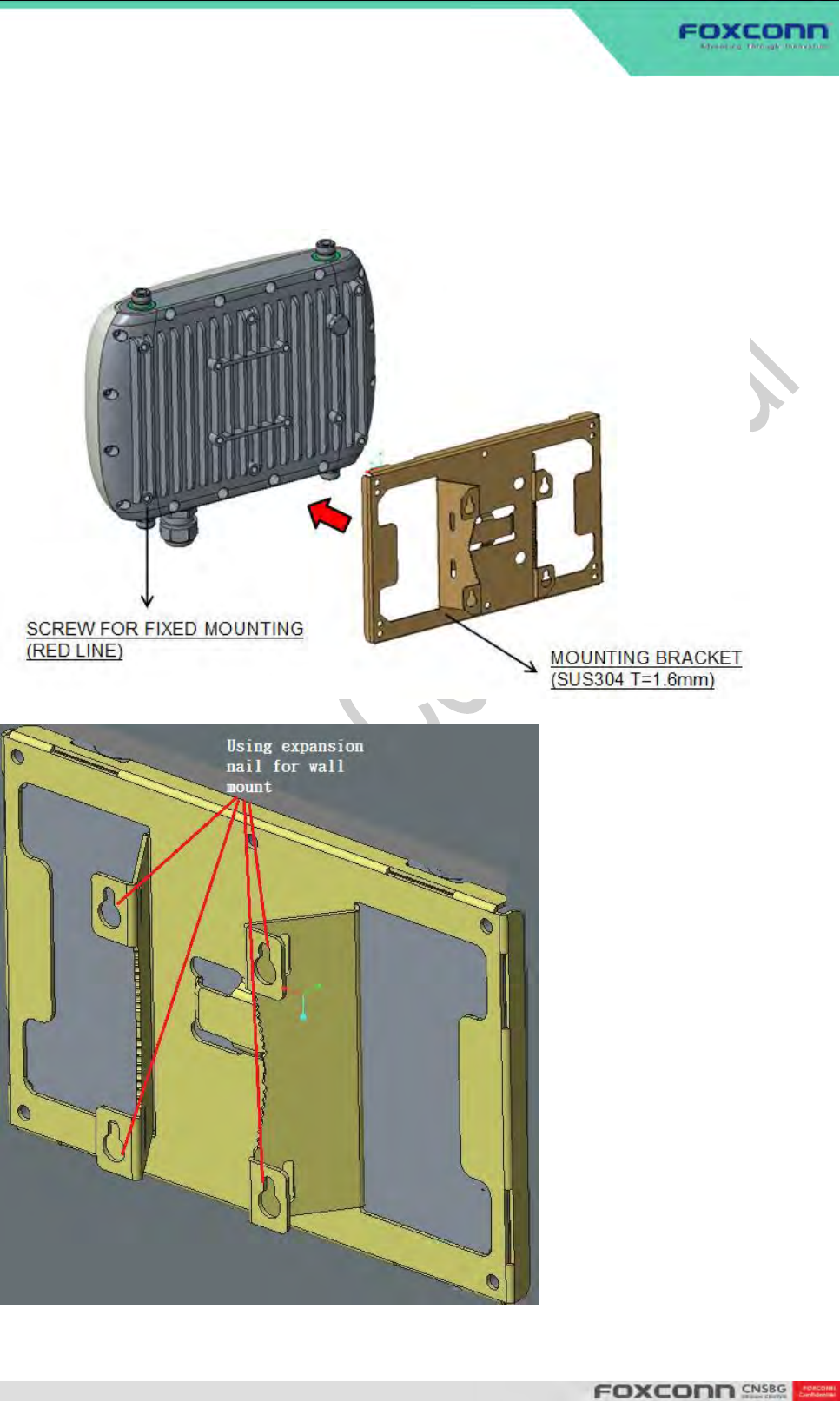

Bracket fix in the gateway for first step

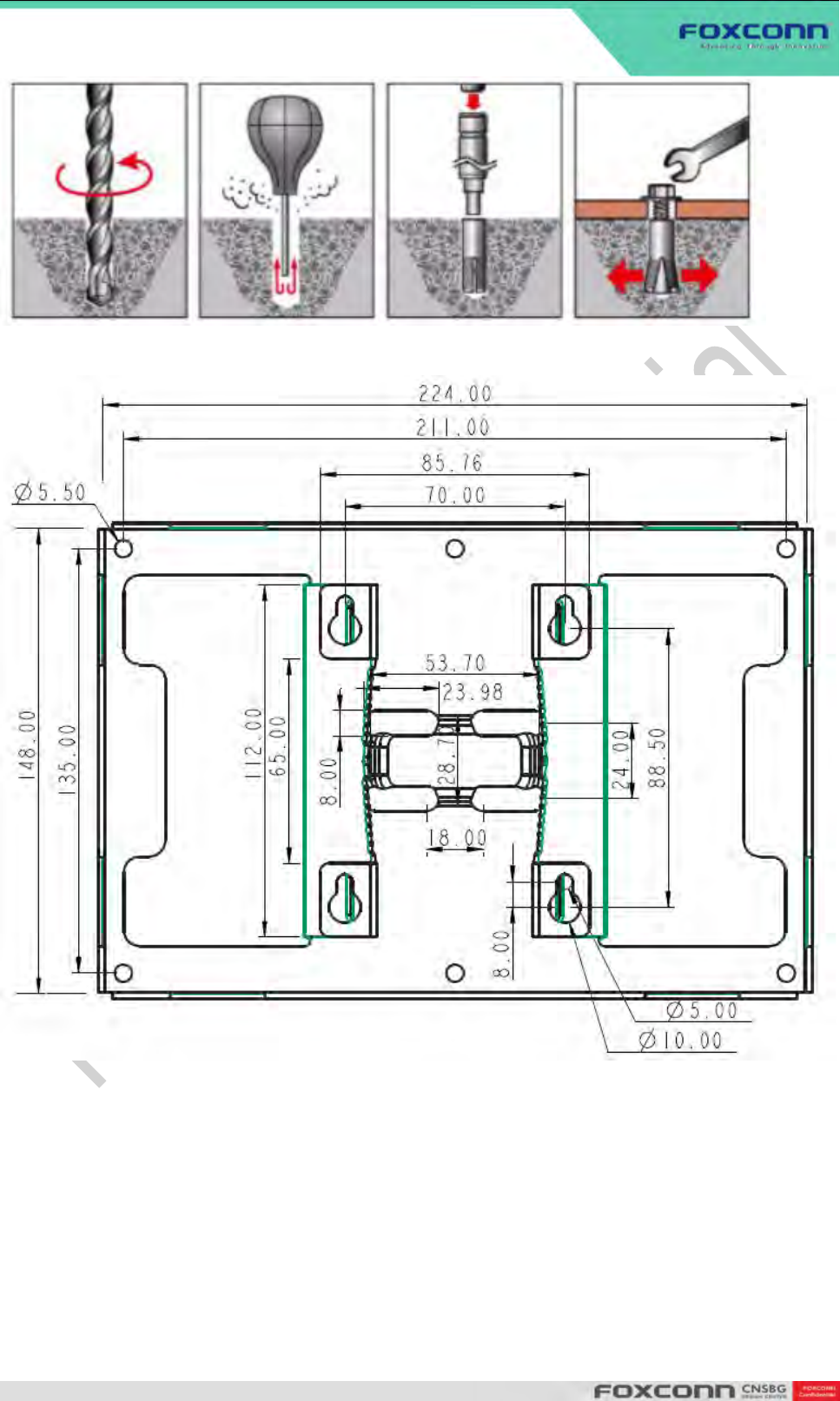

1. On Wall
locking the expansion nail for bracket. (Maximum 40Kg.cm torque for M5 nuts.)
4
After locking the nuts, Reverse 3~4 turns nuts on wall. Hang on the IOT gateway then locking the
nuts again.
5

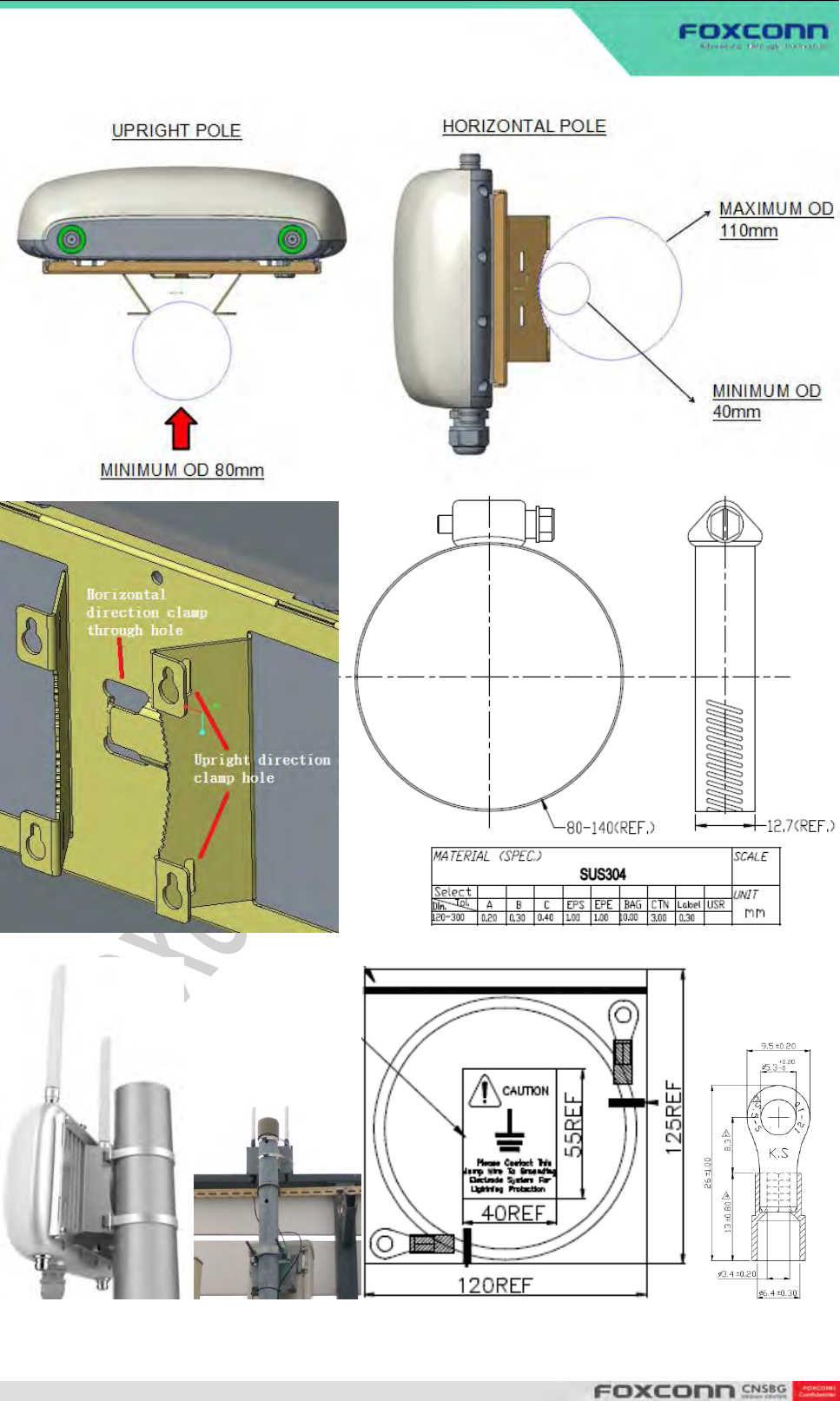

2. On a Pole
(Maximum 55Kg.cm torque for hose clamp)
Grounding Cable
6

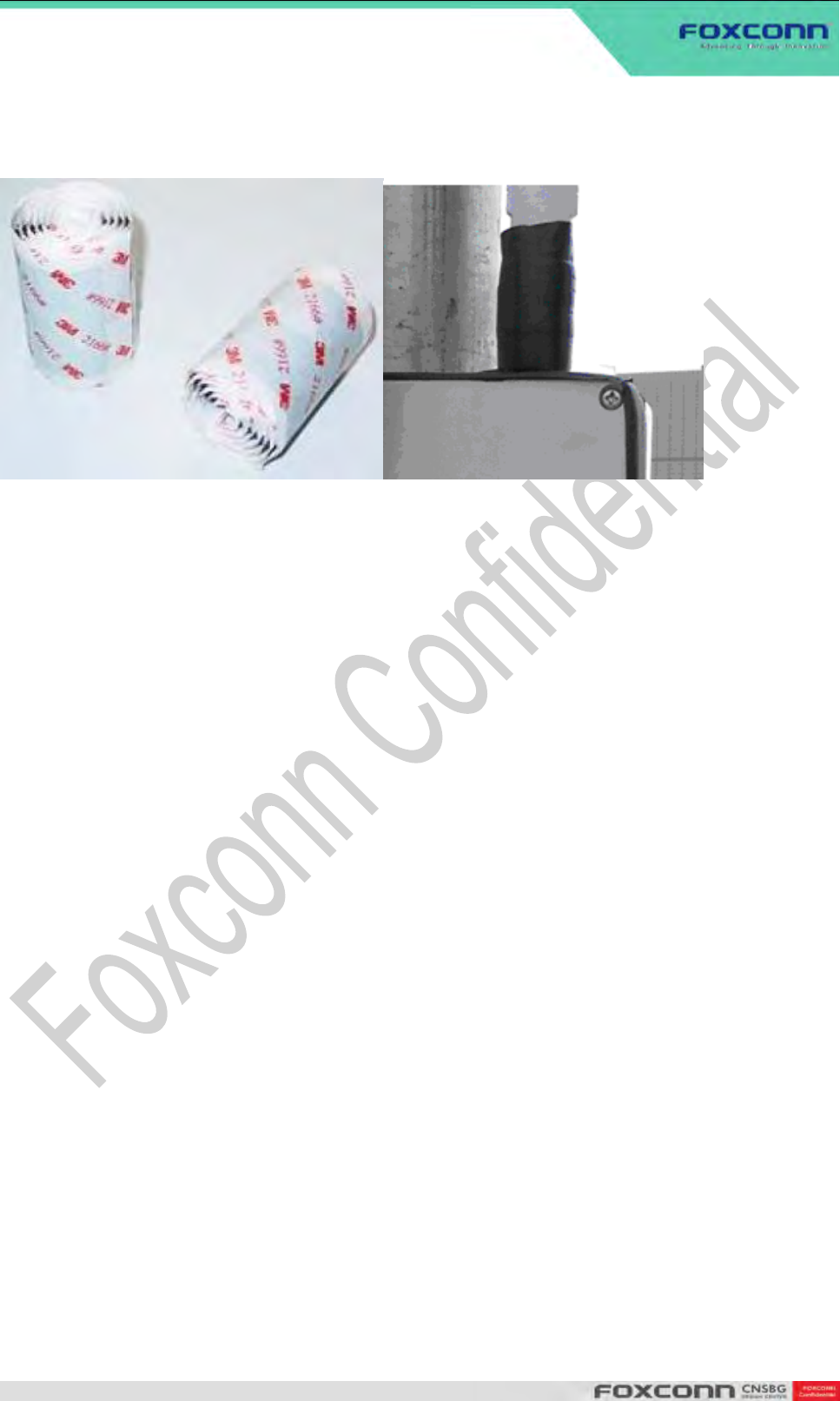

Due to IoT Gateway has been certified with IP67 that SI can install with no any waterproof
protection. But We still recommend that insert 3M 2166 waterproofing tape on antenna port
could enhance reliability and prevent intentionally destroy in field.
7

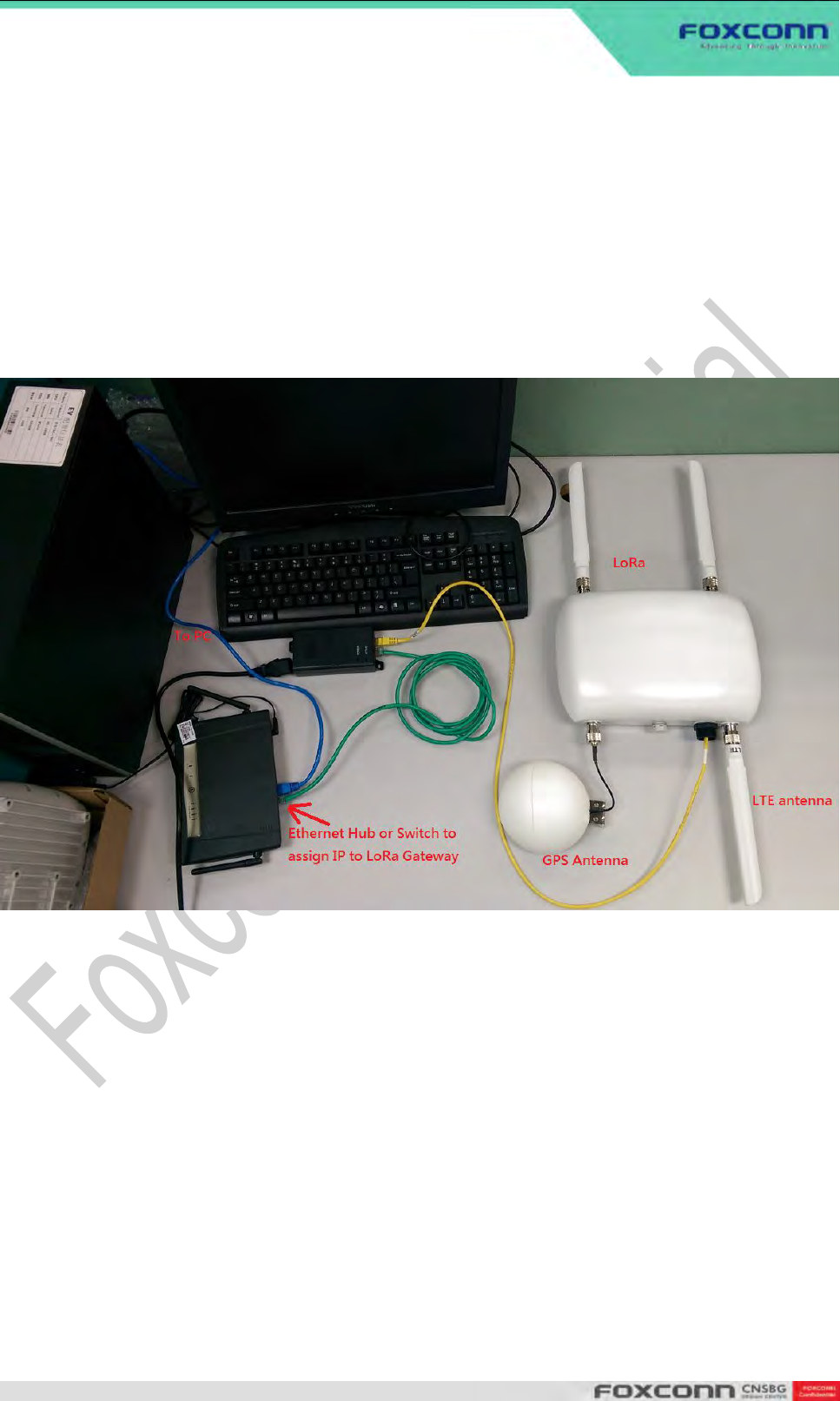

3. DHCP Setup
WARNING:
MUST not install or remove GPS, LoRa or
LTE Antenna when DC power is applied to
the Gateway. It may damage the device.

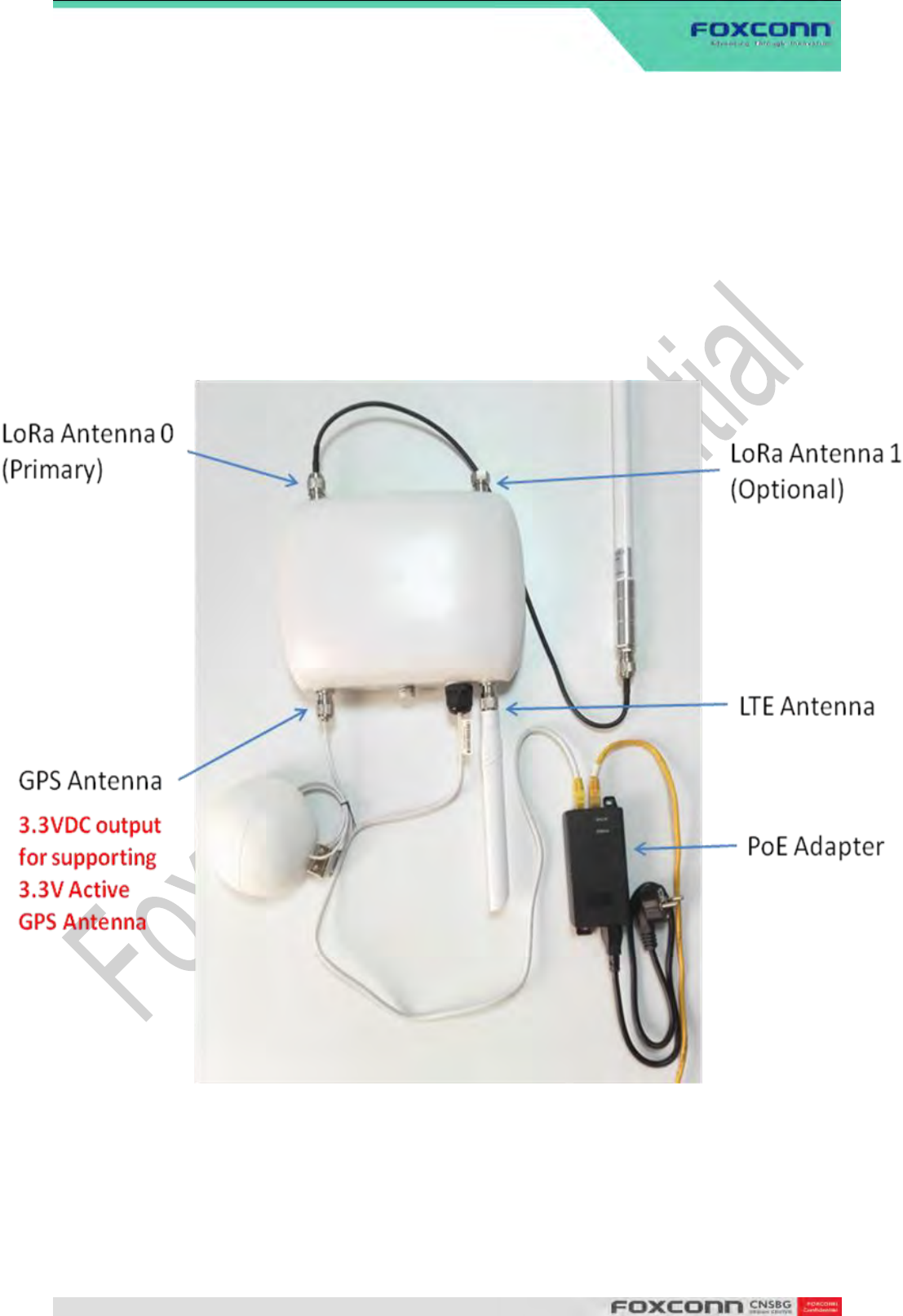

DHCP setup with 2 x 1dBi LoRa Antenna (LoRa Antenna 1 is Optional)
8
4. Setup with High Gain (8dBi) LoRa Antenna
8dBi Antenna
Antenna Mounting Accessory
9
Hardware Specification:
Item
Technical Information
WiFi
IEEE 802.11 b/g/n 2.4 GHz
GPS
1575.42 MHz
Ethernet
100/1000 Mbps
DC PWR
Max 60W, POE 802.3af compliant
Power Consumption
40W max
Antenna
2 N-type external LoRA antenna
1 N-type external LTE antenna
1 N-type external active GPS antenna
IP Code
IP67
UV Resistance
0.77 w/m2 @340nm
Operation Temperature &Humidity
-20~70 ℃, 20% ~90%
Dimension
269 × 184 × 85 mm
Weight
2.4 kg MAX
Regulatory
FCC
LoRaWAN 1.0 (GW2.1)
Technical Information
Frequency Band Tx/Rx
902-928 MHz
Tx Power
26.85 dBm
Rx Sensitivity @ SF12
-138 dBm
Sectorization
Omni
ADR
Yes
Geo-localization
Yes, GPS, GLONASS, BeiDou
RF Channel Scanning
Yes
Higher grade SAW filter
Yes
LoRa Channels
8
Class A,B,C end-device
Yes
Data Rate
980 bps to 21900 bps
Improvement of coexistence with LTE
Yes
LTE modem
Available upon request
LTE modem Band
Available upon request
10
Software Specification:
Item
Backhaul Connection
VPN
LoRa GW Application
FW upgrade
Link Monitor
Configuration Preserved in Flash
Web/GUI
ThingPark LRR integration
LoRa location without GPS (MCG022E)
Triangulation LBS
Zero-touch provisioning
IPSec (3DES,AES,SHA)
P&P (Plug and Play)
Transmission features
Management and manageability
11
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
RF Modules installed in this product must not be co-located or operating in conjunction with
any other antenna or transmitters, except when installed in accordance with FCC
multi-transmitter product guidelines.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
