HON HAI PRECISION IND HSTNH-F16C WLAN/BT HANDHELD PDA User Manual

Hon Hai Precision Ind. Co., Ltd. WLAN/BT HANDHELD PDA

USER MANUAL

HP iPAQ
Product Guide
© Copyright 2007 Hewlett-Packard
Development Company, L.P.
HP iPAQ products are powered by
Microsoft® Windows Mobile® 6.0 Classic
with Messaging and Security Feature Pack.
Microsoft Windows, the Windows logo,
Outlook, and ActiveSync/Windows Mobile
Device Center are trademarks of Microsoft
Corporation in the U.S. and other countries.
SD Logo is a trademark of its
proprietor.
Bluetooth® is a trademark owned by its
proprietor and used by Hewlett-Packard
Development Company, L.P. under license.
All other product names mentioned herein
may be trademarks of their respective
companies.
Hewlett-Packard Company shall not be liable
for technical or editorial errors or omissions
contained herein. The information is
provided ”as is” without warranty of any kind
and is subject to change without notice. The
warranties for Hewlett-Packard products are
set forth in the express limited warranty
statements accompanying such products.
Nothing herein should be construed as an
additional warranty.
This document contains proprietary
information that is protected by copyright. No
part of this document may be photocopied,
reproduced, or translated to another
language without the prior written consent of
Hewlett-Packard Development Company,
L.P.
First Edition August 2007
Document Part Number: 456222–001
Table of contents
1 Register your HP iPAQ
2 Box contents
3 Components
Front panel components ....................................................................................................................... 3
Top and bottom panel components ...................................................................................................... 4
Left and right side components ............................................................................................................ 5
Back panel components ....................................................................................................................... 6
4 Set up your HP iPAQ

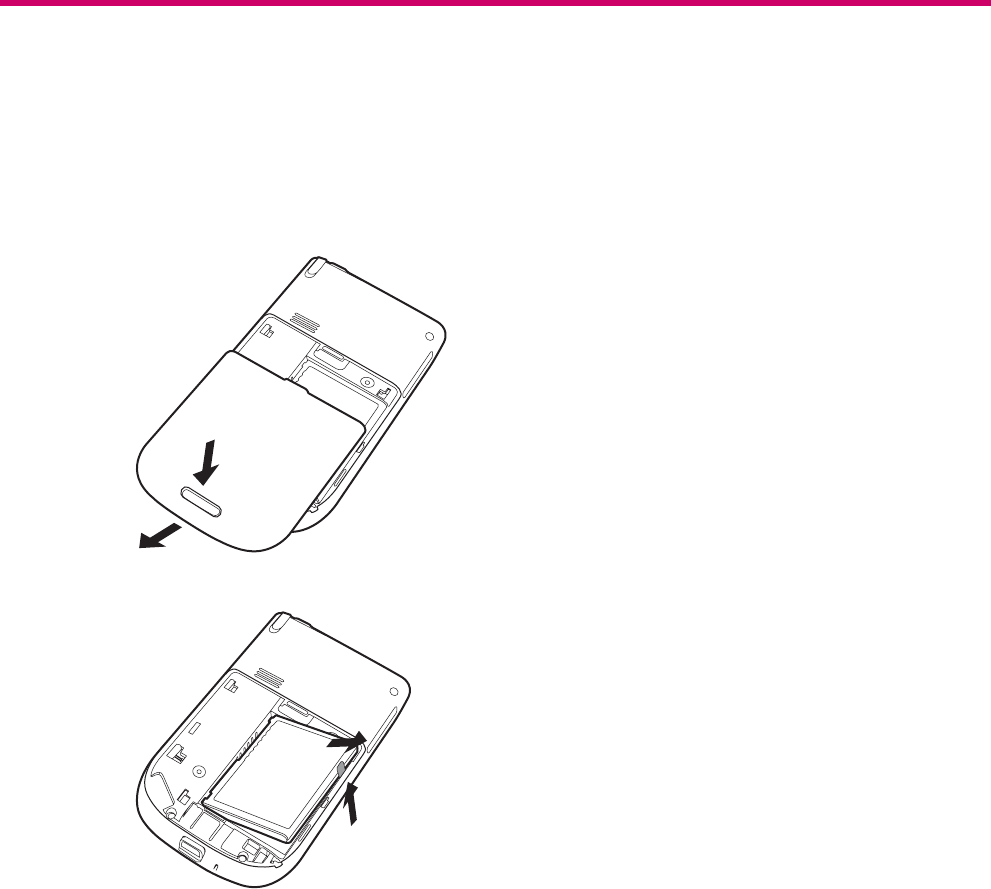

Step 1: Remove the battery cover and the battery ............................................................................... 7

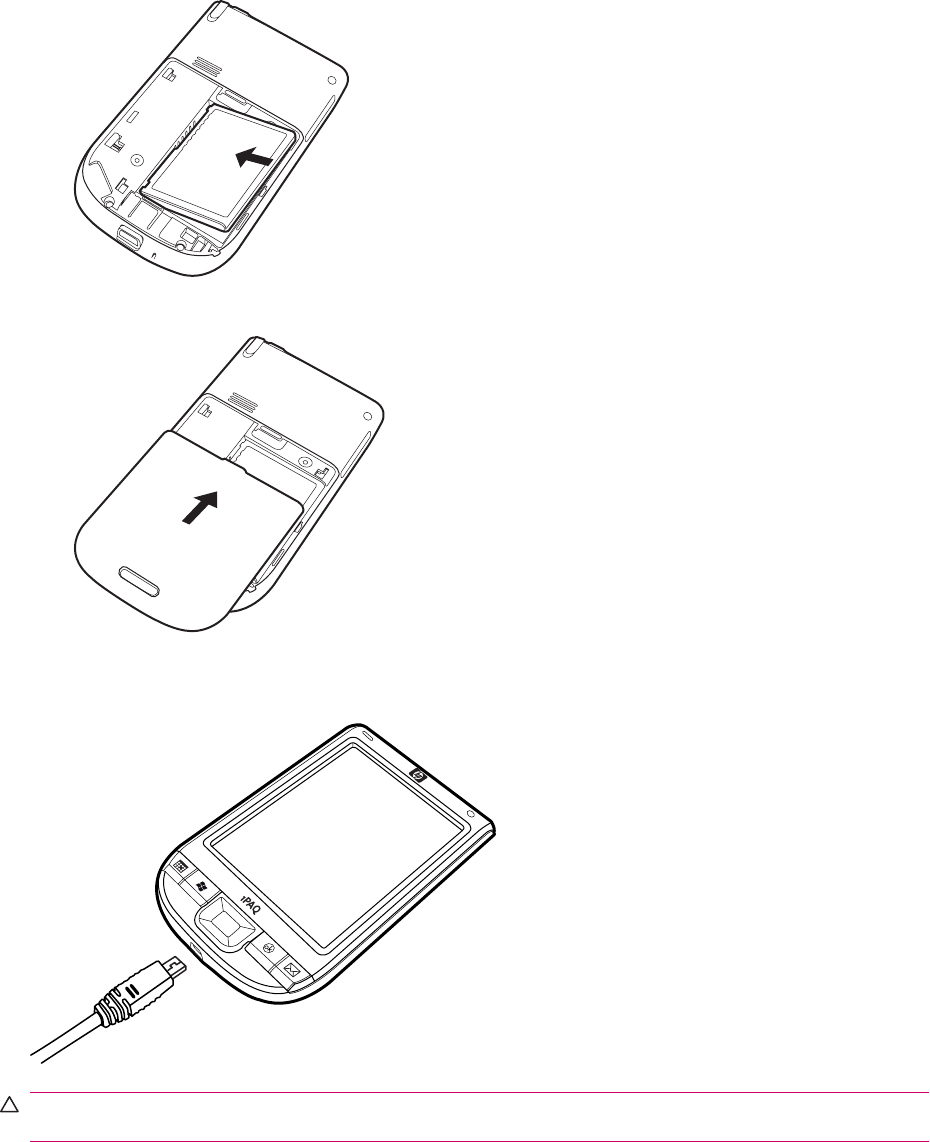

Step 2: Install the battery and replace the battery cover ...................................................................... 8
Step 3: Charge the battery ................................................................................................................... 8
Step 4: Turn on your HP iPAQ ............................................................................................................. 9
Protect your HP iPAQ with a password ................................................................................................ 9
Find the serial and model number ...................................................................................................... 10
View status icons ................................................................................................................................ 10
5 Learn the basics
The Today screen .............................................................................................................................. 11
Use TodayPanel Lite .......................................................................................................................... 11
Battery saving tips .............................................................................................................................. 12
The 5–Way Navigation key ................................................................................................................ 12
Lock and unlock your HP iPAQ .......................................................................................................... 13
Enter text ............................................................................................................................................ 13
Enter owner information ..................................................................................................................... 13
Perform a soft reset ............................................................................................................................ 13
View the Operating System (OS) information .................................................................................... 14
Change the device name ................................................................................................................... 14
Change the regional settings .............................................................................................................. 14
Adjust the volume ............................................................................................................................... 15
Change power management settings ................................................................................................. 15
Dim or adjust brightness of the backlight ........................................................................................... 15
Install and remove programs .............................................................................................................. 15
Open and close programs .................................................................................................................. 16
Set alarms and clocks ........................................................................................................................ 16
Shortcut menus .................................................................................................................................. 16
Display the clock in title bar ................................................................................................................ 17
Create and assign a category ............................................................................................................ 17
Adjust the speed for scrolling through items in a list .......................................................................... 17
iii
6 Connections
WLAN ................................................................................................................................................. 18
WLAN terms ...................................................................................................................... 18
Automatically connect to a WLAN network ........................................................................ 19
Manually connect to a WLAN network ............................................................................... 19
Find an IP Address ............................................................................................................ 20
Delete a wireless network .................................................................................................. 20
Configure the 802.1x authentication settings ..................................................................... 20
Bluetooth ............................................................................................................................................ 20
Bluetooth terms .................................................................................................................. 20
Bluetooth Manager ............................................................................................................ 21
Bluetooth Phone Manager ................................................................................................. 21
Connect to a computer via Bluetooth ................................................................................. 22
Bluetooth device profiles .................................................................................................... 22
Create, end, and accept a Bluetooth partnership .............................................................. 23
Rename a Bluetooth partnership ....................................................................................... 23
Pair and unpair devices ..................................................................................................... 24
Make a device discoverable .............................................................................................. 25
Connect to a Bluetooth Headset ........................................................................................ 25
Open Bluetooth settings .................................................................................................... 25
Authorization to access services ....................................................................................... 25
Use a passkey or bond ...................................................................................................... 25
Set a Bluetooth shared folder ............................................................................................ 26
Bluetooth Stack 2.0/EDR ................................................................................................... 26
Advanced settings .............................................................................................................................. 27
Connect to intranet URLs .................................................................................................. 27
Change an intranet URL .................................................................................................... 27
Set up proxy server settings .............................................................................................. 27
Set up a WAP gateway ...................................................................................................... 27
Configure advanced proxy settings ................................................................................... 28
Advanced connection settings ........................................................................................... 28
Set up a VPN server connection ........................................................................................ 28
Change a connection group name ..................................................................................... 29
End a connection ............................................................................................................... 29
7 HP Photosmart Mobile
HP Photosmart Mobile ....................................................................................................................... 30
Attach a voice note to a picture .......................................................................................................... 30
E-mail a picture .................................................................................................................................. 30
View a slideshow ................................................................................................................................ 31
8 Messaging
Understand messages ....................................................................................................................... 32
Types of folders .................................................................................................................................. 32
Synchronize e-mail ............................................................................................................................. 33
Set up Messaging accounts ............................................................................................................... 33
Set up e-mail using Exchange server ................................................................................ 33
Internet e-mail .................................................................................................................... 34
Receive attachments ......................................................................................................... 35
Send meeting requests ...................................................................................................... 36
iv
Receive meeting requests ................................................................................................. 36
Create or change a signature ............................................................................................ 37
Use Messaging ................................................................................................................................... 37
Compose and send messages .......................................................................................... 37
Reply to or forward a message .......................................................................................... 37
Add an attachment to a message ...................................................................................... 38
Download messages ......................................................................................................... 38
Download messages from a server ................................................................................... 38
Install an online address book ............................................................................................................ 38
Windows Live Messenger .................................................................................................................. 39
Sign in and out of Messenger ............................................................................................ 39
Send instant messages ..................................................................................................... 40
Change your status ............................................................................................................ 40
9 Calendar
Access calendar ................................................................................................................................. 41
Change the display of the work week ................................................................................................. 41
Set a default reminder for all new appointments ................................................................................ 41
Create an appointment ....................................................................................................................... 41
Update an appointment ...................................................................................................................... 42
Cancel an appointment ...................................................................................................................... 42
10 Contacts
Create a contact ................................................................................................................................. 43
Delete a contact ................................................................................................................................. 43
Change contact information ............................................................................................................... 43
Copy a contact ................................................................................................................................... 43
Find a contact ..................................................................................................................................... 44
Send an e-mail message to a contact ................................................................................................ 44
Add and remove a picture .................................................................................................................. 44
Use the contact list ............................................................................................................................. 45
11 Applications
HP applications .................................................................................................................................. 46
HP Help and Support ......................................................................................................... 46
HP iPAQ Setup Assistant .................................................................................................. 46
HP Asset Viewer ................................................................................................................ 47
Certificate Enroller ............................................................................................................. 47
Manage certificates ............................................................................................................ 48
HP iPAQ Tips ..................................................................................................................... 48
HP iPAQ QuickStart Tour .................................................................................................. 48
HP iPAQ Zip ...................................................................................................................... 48
HP Enterprise Mobility Agent ............................................................................................. 49
Windows Media Player ....................................................................................................................... 49
Windows Media Player 10 Mobile ...................................................................................... 49
Clear the Now Playing list .................................................................................................. 49
Update a Library ................................................................................................................ 50
MS Office applications ........................................................................................................................ 50
Word Mobile ....................................................................................................................... 50
v
Excel Mobile ...................................................................................................................... 50
PowerPoint Mobile ............................................................................................................. 51
PDF viewer ......................................................................................................................................... 51
Games ................................................................................................................................................ 52
Bubble Breaker .................................................................................................................. 52
Solitaire .............................................................................................................................. 52
Internet Explorer ................................................................................................................................. 52
12 Notes
Write a note ........................................................................................................................................ 54
Create a copy of a note ...................................................................................................................... 54
Create a voice note ............................................................................................................................ 54
13 Storage cards
Storage cards ..................................................................................................................................... 56
Insert a storage card .......................................................................................................................... 56
Remove a storage card ...................................................................................................................... 56
View content of a storage card ........................................................................................................... 56
14 Synchronization
Synchronization software ................................................................................................................... 58
Copy files ............................................................................................................................................ 58
Migrate data from Palm Desktop to Microsoft Windows Mobile 6.0 ................................................... 58
Wireless synchronization cost saving tips .......................................................................................... 59
Troubleshoot synchronization issues ................................................................................................. 59
15 Tasks
Set start and due dates for a task ...................................................................................................... 62
Show start and due dates in the task list ............................................................................................ 62
Set options for displaying tasks on the Today screen ........................................................................ 62
Mark a task as completed .................................................................................................................. 62
16 Product specifications
System specifications ......................................................................................................................... 63
Physical specifications ....................................................................................................................... 63
Operating environment ....................................................................................................................... 64
17 Regulatory notices
Federal Communications Commission Notice ................................................................................... 65
Modifications ...................................................................................................................... 65
Cables ................................................................................................................................ 65
Declaration of Conformity for Products Marked with the FCC Logo (United States Only) . 66
Canadian Notice ................................................................................................................................. 66
Avis Canadien .................................................................................................................................... 66
European Union Notice ...................................................................................................................... 66
Products with 2.4–GHz Wireless LAN Devices ................................................................. 68
Battery Warning .................................................................................................................................. 68
Battery Recycling ............................................................................................................................... 68
vi
Battery Disposal ................................................................................................................................. 68
Equipment Warning ............................................................................................................................ 69
Acoustics Warning .............................................................................................................................. 69
Airline Travel Notice ........................................................................................................................... 70
Medical Electronic Equipment ............................................................................................................ 70
Wireless Notices ................................................................................................................................. 70
U.S. Regulatory Wireless Notice ....................................................................................... 70
Canadian Regulatory Wireless Notice ............................................................................... 70
Brazilian Notice .................................................................................................................. 70
Japanese Notice ................................................................................................................................. 70
Wireless LAN 802.11b Devices ......................................................................................... 71
Wireless LAN 802.11g Devices ......................................................................................... 71
Bluetooth Devices .............................................................................................................. 71
Taiwan DGT Notice ............................................................................................................................ 71
Korean Notice ..................................................................................................................................... 71
18 Frequently asked questions
I am having trouble turning on my HP iPAQ. What should I do? ........................................................ 72
I have trouble connecting to the Internet. What should I do? ............................................................. 72
Why does the HP iPAQ operate slowly at times? .............................................................................. 72
Why do I see the Today screen layout error message on my HP iPAQ display screen? ................... 72
I have trouble charging my battery. What should I do? ...................................................................... 72
I am unable to use the ActiveSync feature. What should I do? .......................................................... 72
My HP iPAQ was not connected during WMDC installation? ............................................................. 73
My HP iPAQ was connected while I was installing but WMDC is not launching after
installation? ........................................................................................................................................ 73
Can I connect for the first time via Bluetooth? .................................................................................... 73
19 Guidelines for care and maintenance
Using your HP iPAQ ........................................................................................................................... 74
Cleaning your HP iPAQ ...................................................................................................................... 74
Carrying or storing your HP iPAQ ...................................................................................................... 74
Using accessories .............................................................................................................................. 74
vii
viii
1 Register your HP iPAQ
You need to register your HP iPAQ with Hewlett-Packard to be able to:
Access support and services, and get the most out of your HP products.
Manage your profile.
Sign up for free support alerts, driver notices, and personalized newsletters.
After registering your HP iPAQ, you will receive an e-mail message regarding special offers and
promotions. Visit http://www.register.hp.com to register your HP iPAQ or update your mail or e-mail
address after registration. You are required to enter your user ID and registration password to edit your
profile online.
1
2 Box contents
This illustration depicts the items that come in the box with your HP iPAQ.
NOTE: Box contents might vary by model.
(1) HP iPAQ
(2) Stylus
(3) 1200 mAh Li-Ion removable/rechargeable battery
(4) Getting Started CD with additional software
(5) HP iPAQ documentation
(6) AC adapter with interchangeable plug
NOTE: The AC adapter might be provided with more than one interchangeable plug, which might not be
attached. Attach the correct plug for your country/region.
(7) Mini-USB synchronization cable
(8) Slip case
2 Chapter 2 Box contents
3 Components
NOTE: Not all models or features are available in all countries/regions.
Front panel components
Component Function
(1) LEDs Solid Red – Charging
Solid Green – Full Charged
Off (Red/Green) – No Charging
Flashing Green – One or more notification received
Solid Blue – WLAN or Bluetooth on
(2) VoIP Receiver Receives a sequence of voice information, which is converted into
digital packets and transmitted over the Internet.
(3) Application Key 1 Press to launch the Calendar. Press and hold to launch the
Contacts list.
(4) Application Key 2 Press to display the Start menu. Press and hold to access the
Today screen.
(5) 5–Way Navigation Key Use to select items, navigate menus, change feature settings, or
play games. Scroll up, down, left, or right by pressing the button in
the direction you want to scroll. Release the button to stop the
scrolling action. Press the button to select the item highlighted on
the screen.
Front panel components 3
Component Function
(6) Application Key 3 Press to select ok or close the running application. Press and hold
to switch between the landscape and portrait views.
(7) Application Key 4 Press to launch the Messaging application. Press and hold to
launch the Windows Media Player.
(8) Touch Screen Use to view the contents on the screen. Use the stylus to select
items, navigate menus, change feature settings, or play games.
(9) Light Sensor Use to detect environment light change and adjust backlight setting
automatically in a small range by the current backlight setting.
Top and bottom panel components
Component Function
(1) 3.5 Headphone Connector Plug the headphone into this connector to listen to audio.
(2) Stylus Use to select elements on the screen and enter information.
(3) Charging/Communications
Port
Use to connect the mini-USB charging/synchronization cable.
(4) Microphone Use to record voice notes.
4 Chapter 3 Components
Left and right side components
Component Function
(1) SD/SDIO Card Slot Insert a Secure Digital (SD) or Secured Digital Input/Output (SDIO) card
with the label side up for data storage or other functions.
(2) Lanyard Hold Use to securely fasten accessories to your HP iPAQ or to insert a
lanyard to carry your HP iPAQ.
(3) Voice Recorder Button Use to launch the Voice Recorder application.
NOTE: This function is not available in China.
(4) Reset Press to reset your HP iPAQ.
(5) Power Key Press and hold to switch your HP iPAQ on or off.
Left and right side components 5
Back panel components
Component Function
(1) Back Speaker Use the speaker to listen to audio.
(2) Bluetooth Antenna Detects and radiates Bluetooth signals.
(3) Battery Latch Press the battery latch on the battery cover and slide the cover down
and away from the HP iPAQ to remove the battery.
(4) WLAN Antenna Detects WLAN hotspots.
6 Chapter 3 Components
4 Set up your HP iPAQ
Step 1: Remove the battery cover and the battery
1. Press the battery latch on the battery cover and slide the cover down and away from the HP iPAQ.
2. Remove the battery.
Step 1: Remove the battery cover and the battery 7
Step 2: Install the battery and replace the battery cover
1. Align the battery connectors on the battery with the housing pins in the battery compartment and
insert the battery.
2. Slide the battery cover until it clicks into place.
Step 3: Charge the battery
CAUTION: To avoid damaging your HP iPAQ or the AC adapter, make sure all connectors are properly
aligned before connecting.
8 Chapter 4 Set up your HP iPAQ
The battery provides power for your HP iPAQ to operate. Your HP iPAQ comes with a mini-USB
synchronization cable, which must be used to charge the device.
It takes approximately 2–4 hours to fully charge the battery for the first time. Subsequent charges might
take longer.
1. Insert the USB end of the mini-USB synchronization cable into the port on the AC adapter.
2. Connect the AC adapter to an electrical outlet.
3. Connect the mini-USB synchronization cable to the charging/communications port on your
HP iPAQ. The cable connector fits only one way. If the connector does not insert easily, turn it over.
TIP: You can also charge the battery by connecting your HP iPAQ to a USB port on your computer
using the mini-USB synchronization cable.
NOTE: Whenever a replacement battery is inserted into your HP iPAQ, press the Power key for
at least two seconds. In case the device does not switch on, attach the AC adapter to switch on
your HP iPAQ.
Step 4: Turn on your HP iPAQ
Press the Power key to turn on your HP iPAQ. Next, follow the instructions on the screen to complete
the setup. Use the on-screen keyboard to enter information.
Protect your HP iPAQ with a password
You can secure the data on your HP iPAQ by setting a password. Each time you turn on your HP iPAQ,
you will be prompted to enter the password.
To set a password:
1. Tap Start > Settings > Lock.
2. Select the Prompt if device unused for check box, and select the time that your HP iPAQ must
be unused before you are prompted for a password.
3. In the Password type list, select the type of password you would like to use. Enter the password,
and then confirm the password.
4. On the Hint tab, enter a phrase to help you remember your password. Make sure that your hint
does not allow others to guess your password. The hint is displayed after the wrong password is
entered five times in a row.
5. When prompted, tap ok. The next time your HP iPAQ remains unused for the specified amount of
time, you will be prompted to enter your password.
TIP: Follow the steps above to change or reset your password.
Step 4: Turn on your HP iPAQ 9
Find the serial and model number
Locate the serial and model numbers before contacting HP Customer Support, particularly if you are
calling for in-warranty support.
View the serial number and model ID by tapping Start > Programs > HP Help and Support > Serial
and Model Number.
You can also find this information next to the battery of your HP iPAQ. To locate the serial number:
1. Remove the battery cover.
2. Locate the label containing the serial number next to the battery.
View status icons
The following table lists the common status indicators and their meanings.
Icon Status Icon Status
Instant message received New e-mail
Sync error Battery level
Battery level low Battery charging
No battery or battery fault Bluetooth
Bluetooth off WLAN off
10 Chapter 4 Set up your HP iPAQ
5 Learn the basics
Get started with your HP iPAQ by learning basic functions such as knowing the Today screen, entering
text, and synchronizing data.
The Today screen
The Today screen displays the date and time and provides a quick status of the remaining battery
capacity and upcoming appointments. At the top of the Today screen, the connectivity icons, volume
indicator, and clock are displayed.
From the Today screen, tap the (iPAQ Wireless) icon to open the iPAQ Wireless application. On
the All tab, you can turn all wireless connections on/off.
To customize the Today screen:
1. Tap Start > Settings > Today.
2. On the Appearance tab, select the required theme for the background of the Today screen.
3. On the Items tab, select the items to appear on the Today screen.
TIP: To move the order in which the items appear, tap Start > Settings > Today. On the Items tab,
tap Move Up or Move Down.
Use TodayPanel Lite
Icon Name Function
TodayPanel Lite Use to change the TodayPanel Lite options or the
Today screen settings.
Battery power Use to view the amount of remaining battery power
on your HP iPAQ. Set the standby period, time
duration for turning off the HP iPAQ, and USB
charging method.
Main memory Use to view the amount of available main memory
on your HP iPAQ. View, activate, and stop all
running programs from this screen.
Storage memory Use to view the amount of available storage
memory on your HP iPAQ. View, activate, and stop
all running programs from this screen.
Backlight Use to view and change the backlight options on
your HP iPAQ.
To use TodayPanel Lite, tap the required icon, make the necessary changes, and tap ok.
The Today screen 11
You can change the TodayPanel Lite icons to compact mode, which allows more space on the Today
screen. You can also change the memory and storage settings to display as percentages instead of file
sizes.
To change the TodayPanel Lite icons to compact mode:
1.
Tap the (TodayPanel Lite) icon > Options to open the TodayPanel Lite application.
2. Tap the Display Mode list and select Compact.
To display memory and storage as percentages:
1.
Tap the (TodayPanel Lite) icon > Options to open the TodayPanel Lite application.
2. Tap the Display Memory as list or the Display Storage as list and select the percentage listed.
3. Tap ok.
To remove the TodayPanel Lite application from the Today screen:
1. Tap Start > Settings > Today > Items.
2. Clear the TodayPanel check box and tap ok.
For more options, visit http://www.rhinocode.com to upgrade to TODAYPANEL.PRO.
Battery saving tips
You can adjust the settings on your HP iPAQ to fit your individual needs and to help your battery last
as long as possible between charges. Here are some recommendations to conserve battery life:
Sounds – Every time you are notified of an event, battery power is consumed. Tap Start >
Settings > Personal > Sounds & Notifications to turn off any unnecessary notifications.
Auto Turn Off the Backlight – Tap Start > Settings > System > Backlight. Specify a short
amount of wait before turning off the backlight. On the Battery Power tab, set Turn off backlight
if device is not used for to 10 seconds.
Turn off Bluetooth and WLAN – Always turn off Bluetooth and WLAN when not in use.
HP also offers a variety of accessories to keep your HP iPAQ charged when you are out of the office
for extended time periods. These include the mini-USB synchronization cable and travel adapter. Use
original HP batteries and chargers to charge your HP iPAQ.
To check the battery power, tap Start > Settings > System > Power.
The 5–Way Navigation key
The 5–Way Navigation key is used to navigate the menu system, change feature settings, or play
games. It is also used to scroll up and down a list and select a required function.
TIP: Up and down are your primary movements while navigating within menus or through the
Contacts list. Move left and right to change the feature settings and edit text. Press the button to select
the item highlighted on the screen.
12 Chapter 5 Learn the basics
Lock and unlock your HP iPAQ
You can lock your HP iPAQ to prevent accidental key presses while you carry your device.
NOTE: When your device is locked, you can still receive e-mail notifications and see appointment
reminders.
To lock your HP iPAQ:
On the Today screen, tap Device unlocked.
To unlock your HP iPAQ:
On the Today screen, tap Unlock. Now, your iPAQ is unlocked and ready for use.
Enter text
Based on your preference, you can use the on-screen keyboard or a handwriting recognition feature
such as Block Recognizer, Keyboard Letter Recognizer, or Transcriber to enter text.
1. Tap Start > Settings > Personal > Input.
2. On the Input Method tab, select a text input method and change options as appropriate.
3. Tap ok.
You can now go to a program (such as Notes) and start entering text.
Text-Input Method Definition
Block Recognizer Use a single stroke to write letters, numbers, symbols, and
punctuation marks that get converted into typed text.
Keyboard Tap keys on the keyboard to enter text.
Letter Recognizer Write individual letters, numbers, and punctuation marks that
are converted into typed text.
Transcriber Write in cursive, print, or mixed handwriting (consisting of both
cursive and print), and convert your writing into typed text.
TIP: Change the text input method from within any program by tapping the Input Selector arrow and
selecting an input method.
Enter owner information
Enter your personal information, such as your name and address, so that the HP iPAQ can be returned
to you if it is lost.
1. Tap Start > Settings > Personal > Owner Information.
2. On the Identification tab, enter your personal information.
TIP: You can edit the owner information directly from the Today screen.
Perform a soft reset
A soft reset stops all running applications, but does not erase any programs or saved data.
Lock and unlock your HP iPAQ 13
NOTE: Be sure to close all running applications before performing a soft reset.
To perform a soft reset:
1. Locate the recessed Reset button on the HP iPAQ.
2. Use the stylus to lightly press the Reset button.
View the Operating System (OS) information
Tap Start > Settings > System > About.
The Version tab displays important device information, including the type of processor and the amount
of available memory.
Change the device name
The device name is used to identify your HP iPAQ in the following situations:
Synchronizing with a computer
Connecting to a network
NOTE: If you synchronize multiple devices with the same computer, each device must have a unique
name.
To change the device name:
1. Tap Start > Settings > System > About > Device ID tab.
2. Enter a name. The device name must begin with a letter, consist of letters from A to Z and numbers
from 0 to 9, and should not contain spaces.
Change the regional settings
The style in which numbers, currency, dates, and times are displayed is specified in regional settings.
To change the regional settings:
1. Tap Start > Settings > System > Regional Settings > Region.
2. Select a region.
The region you select determines the options available on the other tabs.
3. To customize additional settings, tap the tabs given below to display the required options:
Region
Number
Currency
Time
Date
14 Chapter 5 Learn the basics
Adjust the volume
You can change the volume for various sounds, such as the sound you hear when you tap program
names and menu options.
1. Tap the (Speaker) icon at the top of the screen.
2. Move the system volume slider on the screen to the required volume level.
3. To mute system sounds, tap Off.
You can also set a specific sound for a specific event.
1. Tap Start > Settings > Personal > Sounds & Notifications.
2. On the Sounds tab, choose how you want to be notified by selecting the appropriate check boxes.
3. On the Notifications tab, in the Event list, tap an event name and choose how you want to be
notified by selecting the appropriate check boxes. You can choose from several options, such as
a special sound, a message, or a flashing light.
NOTE: Turning off sounds and the LED notification helps conserve battery power.
Change power management settings
1. Tap Start > Settings > System > Power.
2. Tap Advanced and select the length of time the HP iPAQ should remain on when using battery
power or external power.
Dim or adjust brightness of the backlight
You can set the backlight to dim after a specified amount of time has elapsed.
1. Tap Start > Settings > System > Backlight.
2. Tap Battery power or External Power.
3. Select the backlight options of your choice.
You can also increase or decrease the brightness of the backlight.
Move the slider near the (Backlight) icon to increase or decrease the brightness. You can also
change the brightness by tapping Start > Settings > System > Backlight > Brightness.
Install and remove programs
To install programs on your HP iPAQ:
1. Use the mini-USB synchronization cable to connect your HP iPAQ to your computer.
2. Follow the instructions in the Installation Wizard provided with the program you want to install.
3. Check the screen on your HP iPAQ to see if any further steps are necessary to complete the
program installation.
Adjust the volume 15
To remove programs from your HP iPAQ:
1. Tap Start > Settings > System > Remove Programs.
2. Select the check boxes for programs you want to remove, and then tap Remove.
NOTE: By removing a program from your HP iPAQ, you can increase available memory on the device.
If programs are lost from your HP iPAQ for any reason, most of them can be re-installed using any
synchronization software. See Synchronization software on page 58 for more information.
Open and close programs
You do not need to exit a program to open another or to conserve memory. The system manages
memory automatically.
To open a program, tap Start, and then select the required program from the list. If you do not see the
program you want to launch, tap Start > Programs.
In most cases, selecting x or ok will close an application but will not stop the application from running
in memory. However, you can close it manually.
1. Tap Start > Settings > System > Memory > Running Programs.
2. From the Running Programs list, tap the program you want to close, and then tap Stop.
Set alarms and clocks
To set alarm on your HP iPAQ:
1. Tap Start > Settings > System > Clock & Alarms > Alarms.
2. Tap <Description> to enter a name for the alarm.
3. Tap a week day to set the alarm. You can also set the alarm for multiple days.
4. Tap Time and set the time for the alarm.
5. Tap the (Alarm) icon to specify the type of alarm. You can choose a single sound or a repeating
sound.
6. If you choose to play a sound, tap the list next to the Play sound check box, and then tap the sound
you want to set.
To set time on your HP iPAQ:
1. Tap Start > Settings > System > Clock & Alarms > Time.
2. Select Home to set the time zone, local time, and date when you are in your home country. Select
Visiting to set these options while traveling.
Shortcut menus
A shortcut menu is displayed when you tap and hold an item. This menu displays the most common
commands for the specific item. For example, you can delete an appointment by using commands on
a shortcut menu.
When the shortcut menu displays, tap the action you want to perform.
To close a shortcut menu without performing an action, tap anywhere outside the menu.
16 Chapter 5 Learn the basics
Display the clock in title bar
When viewing certain programs, the clock may not be displayed in the title bar. To display the clock in
the title bar at all times:
1. Tap Start > Settings > System > Clock & Alarms.
2. On the More tab, tap to select the Display the clock on the title bar in all programs check box.
Create and assign a category
In the Calendar, Contacts, and Tasks programs, you can use categories to organize and group your
appointments, contacts, and tasks.
1. From the list, select an existing item or create a new one.
2. Do one of the following:
For an existing item in Calendar, open the appointment and tap Menu > Edit > Categories.
For an existing item in Tasks, open the task and tap Edit > Categories.
For an existing item in Contacts, open the contact and tap Edit > Categories.
For a new item in Calendar, Contacts, and Tasks, select Categories.
3. Select the required check box (Business, Holiday, Personal, or Seasonal) and tap ok to assign
the category.
4. Tap ok to return to the appointment, task, or contact.
NOTE: To create a new category, tap New and assign a name to the category for a contact, task, or
an appointment. The new category is automatically assigned to the item.
Adjust the speed for scrolling through items in a list
To change the scrolling speed:
1. Tap Start > Settings > Personal > Buttons > Up/Down Control.
2. Under Delay before first repeat, move the slider to reduce or increase the time that elapses before
scrolling begins.
3. Under Repeat rate, move the slider to change the time it takes to scroll from one item to the next.
Display the clock in title bar 17
6 Connections
You can use your HP iPAQ to connect to and exchange information with other handheld devices, your
computer, various network types, or the Internet. Following are the ways to get connected:
WLAN
Bluetooth
You can access all these connection types by tapping Start > Settings > Connections.
WLAN
With wireless access, you do not need to use cables to connect your HP iPAQ to the Internet. Instead,
access points transmit data to and from your wireless device. Your HP iPAQ can connect to an Institute
of Electrical and Electronics Engineers (IEEE) 802.11b/g or connect directly to other WLAN-enabled
devices.
With WLAN, you can:
Access the Internet
Send and receive e-mail
Access corporate network information
Use Virtual Private Networks (VPNs) for secure remote access
Use hotspots for wireless connectivity
On the Today screen, tap the (iPAQ Wireless) icon to access the WLAN features.
NOTE: Use of dial-up and wireless Internet, e-mail, corporate networks, and other wireless
communications, such as Bluetooth devices, might require separately purchased additional hardware
and other compatible equipment, in addition to a standard WLAN infrastructure and a separately
purchased service contract. Not all Web content might be available. Some Web content might require
installation of additional software.
WLAN terms
It is recommended that you become familiar with the following terms as you begin to use WLAN
technology.
Term Definition
802.11 standard An approved standard specification of radio technology from the IEEE used for wireless local
area networks (WLANs).
Device-to-computer or ad-hoc A mode that does not use access points. It provides independent peer-to-peer connectivity in
a wireless LAN.
Domain Name System (DNS) The way that Internet domain names are located and translated into IP addresses. It is easy
to remember name for an Internet address. Every Web site has its own specific IP address
on the Internet.
18 Chapter 6 Connections
Term Definition
Encryption An alphanumeric (letters and/or numbers) conversion process of data primarily used for
protection against any unauthorized people.
Hotspots Public or private areas where you can access WLAN service. These wireless connections can
be located, for example, at a library, cyber cafe, hotel, airport lounge, or convention center.
This service can be free or sometimes requires a fee.
Infrastructure This connection mode uses wireless access points to connect to networks.
Automatically connect to a WLAN network
When you turn on the WLAN radio, your HP iPAQ automatically detects WLAN networks that are
broadcasting their signals. If your WLAN network is not set to broadcast, then you have to connect to it
manually. Before trying to connect to a WLAN network, determine if authentication information is needed
by contacting your network administrator.
1. Tap the (iPAQ Wireless) icon.
2. Tap the (WLAN) icon to turn on WLAN.
3. Once the HP iPAQ detects a WLAN network, you are asked to choose if you want to connect.
Select the network you want to connect to and tap Connect.
Manually connect to a WLAN network
A wireless network can be added manually by entering the settings information to add the network.
Before trying to connect to a WLAN network, determine if authentication information is needed by
contacting your network administrator.
1. Tap the (iPAQ Wireless) icon.
2.
Tap the (WLAN) icon to turn on WLAN.
3. Tap Start > Settings > Connections > iPAQ Wireless > WLAN > View WLAN Networks >
Wireless > Add New…
4. Enter the Network name.
5. Choose a connection method. Select The Internet to connect to the Internet through an ISP or
select Work to connect to a company network. You should select Work if the network requires a
proxy server.
6. Tap Next.
To use authentication, select the authentication method from the Authentication list.
To use data encryption, select an encryption method from the Data Encryption list.
To automatically use a network key, tap The key is automatically provided, else enter
the Network key and Key index.
NOTE: To delete a connection, tap Start > Settings > Connections > iPAQ Wireless > WLAN >
View WLAN Networks > Wireless. Tap and hold the connection you want to remove, and then tap
Remove Settings.
WLAN 19
Find an IP Address
1. Tap the (iPAQ Wireless) icon.
2.
Tap the (WLAN) icon to turn on WLAN.
3. Connect to a network automatically or manually by tapping Start > Settings > Connections >
iPAQ Wireless > WLAN > View WLAN Networks.
4. Select a WLAN network. The WLAN IP Address is shown here.
Delete a wireless network
You can delete networks you manually entered. However, if a network was automatically detected, you
cannot delete it.
To delete an existing or available wireless network:
1. Tap the (iPAQ Wireless) icon.
2.
Tap the (WLAN) icon to turn on WLAN.
3. Tap WLAN > View WLAN Networks > Wireless.
4. In the Configure Wireless Networks box, tap and hold the network you want to delete.
5. Tap Remove Settings.
Configure the 802.1x authentication settings
Before performing these steps, determine if authentication information is needed by contacting your
network administrator.
1. To manually enter information, tap Start > Settings > Connections > iPAQ Wireless > WLAN >
View WLAN Networks.
2. In Wireless networks list, select the network you want to configure.
3. For increased security, select the Use IEEE 802.1x network access control check box. Then,
select the appropriate EAP type.
Bluetooth
Bluetooth terms
It is recommended that you become familiar with the following terms as you begin to use Bluetooth
technology.
Term Definition
Authentication Verification of a numeric passkey before a connection or activity can be completed.
Authorization Approval of a connection, access, or activity before it can be completed.
20 Chapter 6 Connections
Term Definition
Bonding (Paired devices) Creating a trusted connection between your device and another. After a bond is created,
the two devices become paired. A paired device does not require authentication or
authorization.
Device address Unique electronic address of a Bluetooth device.
Device discovery Location and recognition of another Bluetooth device.
Device ID Name that a Bluetooth device provides when discovered by another device.
Encryption Method of protecting data.
Passkey Code you enter to authenticate connections or activities requested by other devices.
Personal Information Manager
(PIM)
Collection of programs used to manage daily business tasks (for example: Contacts,
Calendar, and Tasks).
Profiles Collection of Bluetooth settings.
Service discovery Determination of which programs you have in common with other devices.
Bluetooth Manager
Use Bluetooth Manager to:
Establish connections
Exchange business cards
Display shortcuts
To access the Bluetooth manager:
1.
Tap the (Bluetooth) icon to turn Bluetooth on.
2. Tap the (iPAQ Wireless) icon.
3. Tap Bluetooth > Bluetooth Connections. The first screen that displays is My Shortcuts.
When you are required to locate a device and connect to it, tap New. The Bluetooth browser then
searches for other Bluetooth devices.
Bluetooth Phone Manager
Use Bluetooth Phone Manager to connect your HP iPAQ to a Bluetooth-enabled cell phone, which
allows use of the phone as a modem to browse the Internet or transfer other information. To do this,
create a Bluetooth connection between your HP iPAQ and the cell phone, and then send information to
the phone using Bluetooth. The phone relays the information over the phone line and then sends back
to your HP iPAQ any information requested over the connection.
NOTE: Ensure both your HP iPAQ and the cell phone are turned on, discoverable, and within close
range.
Bluetooth 21
To establish a connection between your HP iPAQ and a cell phone using Bluetooth Phone Manager:
1. Tap Start > Programs > BT PhoneManager.
2. If using the application for the first time, tap Yes to set up a pairing with a Bluetooth phone.
3. Follow the on-screen instructions to create a pairing between your HP iPAQ and the phone.
For more information, open Bluetooth Phone Manager and tap Tools > Help.
Connect to a computer via Bluetooth
For best results, connect the HP iPAQ to the computer using USB to establish a synchronization
relationship before connecting via Bluetooth.
1. Follow the instructions in the synchronization software help on the computer for configuring
Bluetooth on your computer.
2. On the HP iPAQ, tap Start > Programs > ActiveSync.
3. Tap Menu > Connect via Bluetooth. Make sure the device and computer are within close range.
4. If this is the first time you have connected to this computer via Bluetooth, complete the Bluetooth
wizard on the HP iPAQ and set up a Bluetooth partnership with the computer.
5. Tap Sync.
6. Tap Menu > Disconnect Bluetooth.
TIP: To preserve battery power, turn off Bluetooth.
Bluetooth device profiles
The functions that Bluetooth supports are called services or profiles. You can communicate only with
Bluetooth devices that support at least one of the following profiles:
ActiveSync — Uses Serial Port Profile (SPP) to connect to ActiveSync on a computer
Advanced Audio Distribution Profile (A2DP)
Audio Video Remote Control Profile (AVRCP)
Basic Imaging Profile (BIP)
Basic Printer Profile (BPP)
Dial-up Networking (DUN)
File Transfer Protocol (FTP)
Generic Access Profile (GAP)
Headset Support Profile (HSP)
Human Interface Device Profile (HID)
Object Exchange (OBEX) Protocol
Object Push Protocol (OPP)
Personal Area Network (PAN)
Serial Port Profile (SPP)
Service Discovery Protocol (SDP)
22 Chapter 6 Connections
Create, end, and accept a Bluetooth partnership
You can exchange information between your HP iPAQ and another device that has Bluetooth
capabilities. For this, you will have to first create a Bluetooth partnership between the two devices.
NOTE: To exchange information between two Bluetooth enabled devices, make sure Bluetooth is
turned on both devices. The devices need not be in the discoverable mode.
1. Make sure the two devices are turned on, discoverable, and within close range.
2. Tap Start > Settings > Connections > Bluetooth.
3. Tap Bluetooth Manager > New > Explore a Bluetooth Device. Your HP iPAQ searches for other
devices with Bluetooth capabilities and displays them in the list.
4. Tap the name of the other device, and tap Next.
5. In Security, if you want to use a secure, encrypted connection (recommended for enhanced
security), check this box, and tap Next. Otherwise, leave the Security field blank and tap Next.
6. Enter the same passkey on the other device.
7. Tap Finish.
8. To give the partnership a more meaningful name, tap and hold the device name under My
Shortcuts, then tap Rename.
To end a Bluetooth partnership:
1. Tap Start > Settings > Connections > Bluetooth > Bluetooth Manager.
2. Tap and hold the partnership you want to end.
3. Tap Delete.
To accept a Bluetooth partnership:
1. Make sure your device is turned on, discoverable, and within close range.
2. When prompted to accept a partnership with the device that is requesting the relationship, tap Yes.
3. If a passkey is requested, enter an alphanumeric passkey between 1 and 16 characters in
Passkey box and tap Next. Enter the same passkey in the device requesting the partnership. Using
a passkey provides greater security.
4. To give the partnership a more meaningful name, change the name of the device in Name.
5. Tap Finish.
If you cannot discover another device, try the following:
Make sure Bluetooth is turned on.
Move closer to the device.
Make sure the device you are attempting to connect to is switched on and is in the discoverable
mode.
Rename a Bluetooth partnership
1. Tap Start > Settings > Connections > Bluetooth.
2. Tap the Browse icon located next to Current profile.
3. Select the partnership you want to rename, and tap Rename.
Bluetooth 23
4. In Enter the name of the new profile box, enter a new name for the partnership.
5. Tap ok.
Pair and unpair devices
You can pair devices such that they exchange a computer generated security key prior to each
connection. The security key is generated from a unique Bluetooth device address, a random number,
and a user-defined password. After two devices are paired, they have a trusted relationship with each
other. You do not need to give any additional input. Without giving constant authorization, your
connections and activities can then be performed between the paired devices.
To pair devices:
1.
Tap the (Bluetooth) icon to turn Bluetooth on.
2. Tap the (iPAQ Wireless) icon.
3. Tap Bluetooth >Bluetooth Connections > Menu > Paired devices.
4. Tap Add.
5. Tap Lookup icon.
6. Tap a device.
7. Enter a password in the Passkey field.
8. Tap ok.
9. Enter the same password into the other device.
If you can see other devices, but you cannot connect or exchange data with them, try the following:
Make sure the other device has not restricted your access.
Try initiating pairing from the other device. Some Bluetooth devices can only initiate pairing and
cannot respond to pairing requests from other devices.
If other devices cannot find or connect to your HP iPAQ, try the following:
Make sure Bluetooth is turned on.
Make sure you have not restricted other devices from finding yours. Refer to Requiring a Passkey
or Bond for more information.
Check your Bluetooth settings to make sure you have allowed your device to be discovered by
others to connect. Refer to Making a Device Discoverable for more information.
To remove a paired relationship between devices:
1. Tap the (iPAQ Wireless) icon.
2. Make sure that Bluetooth is already on. If not, turn on Bluetooth.
3. Tap Bluetooth > Bluetooth Connections > Menu > Paired devices.
4. Tap a device name.
5. Tap Remove.
6. Tap Yes to remove the pairing.
24 Chapter 6 Connections
Make a device discoverable
When your HP iPAQ is discoverable, other devices with Bluetooth capabilities can detect, or discover,
your HP iPAQ and attempt to beam information to it, establish a partnership, or use a Bluetooth service.
1. Tap Start > Settings > Connections.
2. Tap Bluetooth > Accessibility.
3. Select the Allow other devices to connect check box, and then select the Other devices can
discover me check box.
NOTE: If you no longer want your HP iPAQ to be discoverable, clear the Allow other devices to
connect check box.
Connect to a Bluetooth Headset
You can use a Bluetooth headset (or other Bluetooth hands-free device) with your HP iPAQ when you
create a partnership between them.
1. Make sure that the two devices are turned on, discoverable, and within close range.
2. Tap Bluetooth > Bluetooth Connections > Menu > New Shortcut.
3. Select Hands-free/Headset setup and follow the on-screen instructions.
Open Bluetooth settings
1.
Tap the (Bluetooth) icon to turn Bluetooth on.
2. Tap the (iPAQ Wireless) icon.
3. Tap Bluetooth > Bluetooth Settings.
Authorization to access services
If you choose to require authorization to access services, you have to authorize each connection. Your
HP iPAQ always asks you if the connection should be permitted.
1.
Tap the (Bluetooth) icon to turn Bluetooth on.
2. Tap the (iPAQ Wireless) icon.
3. Tap Bluetooth > Bluetooth Settings > Services.
4. Tap the service you want to enable: File Transfer, Information Exchange, Serial Port, Personal
Network Server, Hands Free, or Dial-up Networking Server.
5. Select Authorization required.
6. Tap ok.
Use a passkey or bond
To establish a secure connection with another device, you can use the passkey feature or an established
bond. You can also add data encryption to this type of security. A passkey is a code you enter to
Bluetooth 25
authenticate connections requested by other devices. The passkey must be known and used by both
parties or the connection will not be allowed.
1.
Tap the (Bluetooth) icon to turn Bluetooth on.
2. Tap the (iPAQ Wireless) icon.
3. Tap Bluetooth > Bluetooth Settings > Services.
4. Tap the service you want to enable:File Transfer, Information Exchange, Serial Port, Personal
Network Server, Hands free, or Dial-up Networking Server.
5. Select Authorization required and Authentication (Passkey) required if you want more security.
6. Select Encryption Required if you want all the data exchanged between the devices to be
encrypted.
7. Tap ok.
Set a Bluetooth shared folder
You can determine the folder that other devices access when they connect to your HP iPAQ.
1.
Tap the (Bluetooth) icon to turn Bluetooth on.
2. Tap the (iPAQ Wireless) icon.
3. Tap Bluetooth > Bluetooth Settings > Services > File Transfer.
4. Under Service Settings, select your preferred settings.
5. Tap Advanced.
6. Tap the (Folder) icon and locate the required file folder.
7. Tap ok.
Bluetooth Stack 2.0/EDR
A2DP technology allows users to send CD quality stereo music from one device to another using
Bluetooth wireless technology. A2DP is one of the modes available for Bluetooth technology.
NOTE: Even though the Bluetooth Stereo Headphones support A2DP profile, the user's iPAQ model
and OS should be compatible with A2DP in order for the user to use this feature. Operating systems
from Windows Mobile 5.0 (based on the Windows CE 5.0 kernel) onwards are compatible with and fully
support A2DP if an appropriate device (embedded in the PDA or phone) is used.
26 Chapter 6 Connections
Advanced settings
Connect to intranet URLs
To connect to intranet sites that have periods in their URLs (for example, intranet.companyname.com),
add them to the Work URL Exceptions list.
1. Tap Start > Settings > Connections > Connections > Advanced > Exceptions.
2. Tap Add new URL.
3. In Work URL, enter the intranet URL.
NOTE: If you use many URLs that share the same root company name, you can avoid entering them
individually by entering *.companyname.com.
Change an intranet URL
1. Tap Start > Settings > Connections > Connections > Advanced > Exceptions.
2. Tap the intranet URL exception you want to change, then make the required changes.
NOTE: To delete a work URL exception, tap and hold it in the list, then tap Delete.
Set up proxy server settings
If you are connected to your Internet Service Provider (ISP) or private network during synchronization,
your device should download proper proxy settings during synchronization from your computer. If these
settings are not on your computer or need to be changed, you can change them manually.
Before you begin, obtain the following information from your ISP or network administrator:
User name
Password
Proxy Server name
Port
Type of Socks protocol used
To set up proxy server settings:
1. Tap Start > Settings > Connections > Connections.
2. If a proxy server has not been set up, tap Set up my proxy server, else tap Edit my proxy server.
3. Select the This network connects to the Internet and This network uses a proxy server to
connect to the Internet check boxes.
4. In the Proxy server box, enter the proxy server name.
5. To change such settings as port number or proxy server type, tap Advanced and change the
required settings.
Set up a WAP gateway
To access Wireless Access Point (WAP) sites through Internet Explorer, configure your device to use
a WAP gateway.
Advanced settings 27
Before you begin, obtain the following information from your ISP or network administrator:
User name
Password
ISP server phone number
WAP gateway server name
Port number
1. Tap Start > Settings > Connections > Connections > Advanced > Select Networks > My
Work Network > Edit… If a proxy server has not been set up, tap New…
2. On the Proxy Settings tab, select the This network connects to the Internet and This network
uses a proxy server to connect to the Internet check boxes.
3. If necessary, in the Proxy server box, enter the proxy server name.
4. Tap Advanced > WAP.
5. In the Server box, enter the WAP gateway server name. Under Port, enter the port number. The
most common WAP port number is 9201.
6. Enter any logon credentials required by the WAP gateway server.
Configure advanced proxy settings
1. For the appropriate server type, enter the proxy server name and port.
2. If necessary, enter the credentials for connecting with your proxy server.
3. If you are configuring a Socks proxy, select Socks 4 or Socks 5. If using Socks 5, enter the
credentials for connecting with your proxy server.
Advanced connection settings
1. Tap the (iPAQ Wireless) icon.
2.
Tap the (WLAN) icon to turn on WLAN.
3. To connect to a network, tap Start > Settings > Connections > Connections > Advanced >
Select Networks.
4. Select My ISP to connect to the Internet through an ISP or select My Work Network to connect
to a company network. Select My Work Network if the network requires a proxy server. If you need
to change or create a new network management name, tap Edit… or New…, and then tap ok.
5. From the Connections screen, tap Advanced to set up your Dialing Rules and Exceptions and
tap ok.
Set up a VPN server connection
A VPN connection helps you to securely connect to servers, such as a corporate network, via the
Internet.
28 Chapter 6 Connections
Before you begin, obtain the following information from your network administrator:
User name
Password
Domain name
TCP/IP settings
Host name or IP address of the VPN server
To set up a VPN server connection:
1. Tap Start > Settings > Connections > Connections.
2. Under My Work Network, tap Add a new VPN server connection and follow the instructions in
the New Connection wizard.
3. Under most circumstances, you should not change any advanced settings. However, you need to
change advanced settings when:
The server to which you are connecting does not use dynamically-assigned addresses, and
you need to enter your TCP/IP settings.
You need to change server DNS or WINS settings.
If either of these circumstances applies, from the My VPN screen, tap Advanced and fill in the
appropriate information. Tap ok to save the changes and return to the My VPN screen.
4. To view additional information for any screen in the wizard or while changing settings, tap Help.
Change a connection group name
Your device is already set up with two groups of connection settings: My ISP and My Work Network.
You can also change the name of these groups. For example, if you put all of your corporate settings
under My Work Network Connections, you can change the name to your company's name.
1. Tap Start > Settings > Connections > Connections.
2. After you have created a new connection, under My ISP or My Work Network, tap Add a new
modem connection to create a new connection.
3. Under My ISP, or My Work Network, tap Manage Existing Connections.
4. Tap General.
5. Enter a name for the settings group and tap ok.
End a connection
It can be useful to end a connection when you are done using it. This frees resources on your HP iPAQ
and can save connection charges.
When connected via a modem or VPN, tap Connections > Disconnect.
When connected via cable, detach your HP iPAQ from the cable.
When connected via Bluetooth, tap Start > Settings > Connections > Bluetooth > Bluetooth
Manager > Active Connection. Tap and hold the connection name, and then tap Disconnect.
When connected via a network (Ethernet) card, remove the card from your HP iPAQ.
Advanced settings 29
7 HP Photosmart Mobile
HP Photosmart Mobile
You can use HP Photosmart Mobile to:
View pictures stored on your HP iPAQ or a storage card.
Add voice or text notes to pictures.
Print pictures.
View a slideshow.
Send pictures as e-mail attachments or via Bluetooth.
Associate a picture with a contact.
Assign a picture to the Today screen background.
Attach a voice note to a picture
To attach a voice note to a picture:
1. Tap Start > Programs > Photosmart Mobile.
2. Tap the thumbnail to which you want to add a voice note.
3. Tap the (Cassette) icon.
4. Tap the (Record) button on the Recording toolbar.
5. Speak into the microphone to record the voice note and tap the (Stop) button when finished.
6. Tap the (Cassette) icon again to close the Recording toolbar.
E-mail a picture
To e-mail a picture:
1. Tap Start > Programs > Photosmart Mobile.
2. Tap the thumbnail to be sent via e-mail.
NOTE: If the media file is protected by Digital Rights Management (DRM), you would not be able
to view or hear it. DRM is a software that enables secure distribution and prevents illegal distribution
of pictures, videos, music, movies, and ring tones over the Internet. For more information on DRM,
refer to the on-screen help by tapping Start > Help and search for DRM.
3. Tap Menu > Send > E-mail Attachment.
4. Select the Reduce sent photo size to check box, and then select the required reduction
percentage.
5. Tap Next.
30 Chapter 7 HP Photosmart Mobile
6. Enter the appropriate e-mail address or use Contacts by tapping Menu > Add Recipient.
7. Enter other appropriate information, such as an e-mail title and message.
8. Tap Send.
NOTE: To send the e-mail immediately, you need to either enable WLAN on your HP iPAQ or connect
the device to a computer for synchronization with the Exchange Server.
View a slideshow
To view a slideshow:
1. Tap Start > Programs > Photosmart Mobile.
2. Tap the (Slideshow) button at the bottom of the screen.
3. Tap the screen to view the (Forward), (Backward), and (Stop) buttons.
View a slideshow 31
8 Messaging
Understand messages
To send and receive e-mail messages from an e-mail account, you need to connect to the Internet or
your corporate network, depending on the account.
You can send and receive:
Outlook e-mail
Internet e-mail through an ISP
You can also access e-mail from work using a VPN connection.
E-mail in the Outlook e-mail account is sent and received through synchronization with a computer using
any synchronization software or through wireless synchronization directly with an Exchange Server.
See Synchronization software on page 58 for more information.
Internet e-mail is sent and received by connecting to a Post Office Protocol 3 (POP3) or Internet
Message Access Protocol 4 (IMAP4) e-mail server. When connecting to a POP3 or IMAP4 server, you
need to use a modem to connect to your ISP. You can use an Ethernet card to connect to the local area
network to which your e-mail server is connected.
Types of folders
Each messaging account has its own set of folders with the following default messaging folders:
Deleted Items
Drafts
Inbox
Outbox
Sent Items
The messages you send and receive through the account are stored in these folders. You can also
create additional folders within each account.
32 Chapter 8 Messaging
The way folders work vary by type:
If you use an Outlook e-mail account, e-mail messages in the Inbox folder in Outlook are
synchronized automatically with your HP iPAQ. You can choose to synchronize additional folders
by designating them for synchronization. The folders you create and the messages you move are
mirrored on the e-mail server. You can read the messages while you are away from your computer.
If you use a POP3 account and you move e-mail messages to a folder you created, the link is
broken between the messages on your HP iPAQ and their copies on the e-mail server. When you
connect, the e-mail server detects that the messages are missing from the Inbox folder on your
HP iPAQ and deletes them from the e-mail server. This prevents having duplicate copies of a
message, but it also means that you no longer have access to messages that you move to folders
created from anywhere except your HP iPAQ.
If you use an IMAP4 account, the folders you create and the e-mail messages you move are
mirrored on the e-mail server. Therefore, messages are available to you anytime you connect to
your e-mail server, whether it is from your HP iPAQ or computer. This synchronization of folders
occurs whenever you connect to your e-mail server, create new folders, or rename/delete folders
when connected. You can also set different download options for each folder.
Synchronize e-mail
When you synchronize Outlook e-mail on a computer with your device, e-mail messages are
synchronized as follows:
Messages in the Inbox folder on your computer or Exchange Server are copied to the Inbox folder
of the Outlook e-mail account on your device.
Messages in the Outbox folder on your device are transferred to Exchange Server or Outlook, and
then sent from those programs.
When you delete a message on your device, it gets deleted from your computer or Exchange Server
the next time you synchronize.
The default sync settings synchronize messages from the past three days and the first 0.5 KB of
each new message is downloaded. It does not download file attachments.
NOTE: For more information on starting Outlook e-mail synchronization or changing synchronization
settings, see the synchronization software help on the computer or tap Contents.
Set up Messaging accounts
Set up e-mail using Exchange server
1. Tap Start > Messaging > New E-mail Account.
2. Enter your e-mail address in the E-mail address box and tap Next.
3. Scroll and select the Exchange server option from the Your e-mail provider list.
4. Tap Next to synchronize outlook with your organization's Exchange e-mail server.
5. In Server address, enter the Outlook Web Access server address and tap Next.
NOTE: Select This server requires an encrypted (SSL) connection check box to ensure you
always send e-mail from this account using an Secure Sockets Layer (SSL) connection.
6. Enter the User name, Password, and Domain on the Edit Server Settings screen.
7. Select the check box for the items you want to synchronize, and tap Finish.
Synchronize e-mail 33
Internet e-mail
Create a new POP3 or IMAP4 account
You must set up an e-mail account that you have with an ISP or an account that you access using a
VPN server connection (typically a work account) before you can send and receive e-mail.
1. Tap Start > Messaging > New E-mail Account.
2. Enter the account name and then Tap Next .
3. Scroll and select the Internet e-mail option from the Your e-mail provider list and tap Next.
4. Enter your name and required account name and tap Next.
5. Enter the incoming server name and select the required account type, POP3 or IMAP4.
You can also perform the following functions:
Change the time intervals for downloading new messages.
Download attachments.
Limit the number of messages that are downloaded.
Setting Description
User name Enter the user name assigned to you by your ISP or network
administrator. This is often the first part of your e-mail address,
which appears before the at sign (@).
Password Choose a strong password. You have the option to save your
password so that you do not need to enter it each time you
connect to your e-mail server.
Domain Not required for an account with an ISP. Might be required for
a work account.
Account type Select POP3 or IMAP4.
Account name Enter a unique name for the account, such as Work or Home.
This name cannot be changed later.
Incoming mail Enter the name of your e-mail server (POP3 or IMAP4).
Outgoing mail Enter the name of your outgoing e-mail server (SMTP).
Require SSL connection Select this to ensure you always send e-mail from this account
using an SSL connection. This enables you to send personal
information more securely. Note that if you select this and your
ISP does not support an SSL connection, you might not be able
to send e-mail.
Outgoing mail requires authentication Select this if your outgoing e-mail server Simple Mail Transfer
Protocol (SMTP) requires authentication. Your user name and
password from above is used.
Use separate settings Select this if your outgoing e-mail server requires a different
user name and password than the ones you entered before.
Outgoing server settings Configure these settings to ensure that your outgoing e-mail
messages are delivered.
User name Enter your user name for the outgoing e-mail server.
Password Enter your password for the outgoing e-mail server.
34 Chapter 8 Messaging
Setting Description
Domain Enter the domain of the outgoing e-mail server.
Require SSL for outgoing mail Select this to ensure you always send e-mail from this account
using an SSL connection. This enables you to send personal
information more securely. Note that if you select this and your
ISP does not support an SSL connection, you might not be able
to send e-mail.
TIP: You can set up several e-mail accounts in addition to your Outlook e-mail account but you cannot
add a new account while connected. Tap Menu > Stop Send/Receive to disconnect.
Change e-mail download options
You can customize the following download options for each e-mail account that you have with an ISP,
or any account that you access using a VPN server connection (typically a work account).
You can choose:
Whether messages are downloaded automatically.
How much e-mail is downloaded.
If and how attachments are downloaded (IMAP4 only).
To change the e-mail download options, do the following:
1. In the message list, tap Menu > Options.
2. Select the e-mail account.
3. Tap Next until you reach Server information.
4. Tap Next until you reach Message download Limit, and then select Entire Message Receive
attachments check box.
TIP: To send and receive messages automatically, tap Connect, check for messages and enter a
time interval. Connecting automatically might result in higher connection charges.
To save memory, limit the number of e-mails downloaded to your device by lowering the number of days
to display.
To change options for an Outlook e-mail account, tap Start > ActiveSync > Menu > Options.
Delete an account
1. Tap Start > Messaging.
2. Tap Menu > Options.
3. Tap and hold the account name, and tap Delete.
Receive attachments
An attachment sent with an e-mail message or downloaded from the server is displayed below the
subject of the message. Tapping the attachment opens the attachment if it has been fully downloaded
or marks it for download the next time you send and receive e-mail. You can also download attachments
automatically with your messages if you have an Outlook e-mail or IMAP4 e-mail account.
Set up Messaging accounts 35
If you have an Outlook e-mail account, do the following:
1. Tap Start > ActiveSync.
2. Tap Menu > Options.
3. Tap E-mail > Settings, and then select Include File Attachments.
If you have an IMAP4 e-mail account with an ISP or an account that you access using a VPN server
connection (typically a work account), do the following:
1. Tap Start > Messaging.
2. Tap Menu > Options.
3. Tap the name of the IMAP4 account.
4. Tap Next until you reach Message download Limit, and then select Entire Message Receive
attachments check box.
TIP: Embedded images and objects cannot be received as attachments.
An embedded message can be viewed as an attachment when using IMAP4 to receive e-mail. However,
this feature does not work if Transport Neutral Encapsulation Format (TNEF) is enabled so that you can
receive meeting requests.
To store attachments on a storage card rather than on the device, tap Menu > Tools > Options >
Storage, and select the Store attachments on a storage card check box.
Send meeting requests
To send meeting requests:
1. Tap Start > Calendar.
2. Tap the appointment , and then tap Menu > Edit > Appointment > Attendees.
3. For required attendees, tap Add Required Attendees… and for optional attendees, tap Add
optional Attendees
4. Select a contact, and then tap Done.
5. Tap ok, and then tap Yes to send the meeting request.
Receive meeting requests
If you receive your e-mail messages through any synchronization software, you can receive meeting
requests. When connecting directly to an e-mail server, the server must be running Microsoft Exchange
Server version 5.5 or later for you to receive meeting requests. See Synchronization software
on page 58 for more information.
If the server is running Microsoft Exchange Server 2000 or later, your meeting requests are automatically
received in your Inbox. However, to receive meeting requests on Microsoft Exchange Server 5.5, do the
following:
Ask your system administrator to activate Rich Text Format (RTF) and TNEF support for your
account.
With TNEF enabled, your messages that are included in other messages as attachments are not
received, and you cannot know if a message has an attachment until you get the full copy. In
addition, download time might be longer.
Change e-mail download options if your account is not set up to receive attachments.
36 Chapter 8 Messaging
After you are set up to receive meeting requests, do the following:
1. Open the meeting request.
2. Tap Accept, or Menu > Tentative, or Menu > Decline. If you want, you can also include a
message with the response. The response will be sent the next time that you synchronize or
connect to your e-mail server, and your device calendar will be updated.
Create or change a signature
1. Tap Start > Messaging.
2. Tap Menu > Options.
3. Tap Accounts > Signatures…
4. Select the account for which you want to create or change a signature.
5. Select the Use signature with this account check box if it is not already selected.
6. Select the Use when replying and forwarding check box if wanted.
7. Enter a signature in the box.
To stop using a signature, clear the Use signature with this account check box.
TIP: You can use a different signature with each messaging account.
Use Messaging
Compose and send messages
1. In the message list, tap and select an account.
2. Tap Menu > New.
3. Enter the e-mail address of one or more recipients, separating them with a semicolon. To access
addresses and phone numbers from Contacts, tap To.
4. Enter your message. To quickly add common messages, tap Menu > My Text and tap a required
message.
5. To check the spelling, tap Menu > Spell Check.
6. Tap Send.
TIP: To set the priority, tap Menu > Message Options…
NOTE: If you are working offline, e-mail messages are moved to the Outbox folder and are sent the
next time you connect.
Reply to or forward a message
1. Tap on the message to open it, and then tap Menu > Reply, Reply All, or Menu > Forward.
2. Enter your response. To quickly add common messages, tap Menu > My Text and tap a required
message.
3. To check the spelling, tap Menu > Spell Check.
4. Tap Send.
Use Messaging 37
NOTE: If you want to keep the original text with the outgoing message, tap Menu > Tools >
Options… then tap Message. You must select the When replying to e-mail, include body check box.
Add an attachment to a message
1. In an open message, tap Menu > Insert and tap the item you want to attach: Picture, Voice
Note, or File.
2. Select the file you want to attach or record a voice note.
NOTE: Embedded objects cannot be attached to messages.
Download messages
The manner in which you download messages depends on the type of account you have:
To send and receive e-mail for an Outlook e-mail account, begin synchronization through
ActiveSync.
TIP: By default, messages you send are not saved on your device to help conserve memory. If you
want to keep copies of sent messages in the messaging list, tap Menu > Tools > Options… >
Message, and select the Keep copies of sent items in Sent folder check box. If your account is an
Outlook E-mail or IMAP4 account, you must also select the Sent Items folder for synchronization. To
do this, tap Menu > Tools > Manage Folders… and select the check box next to the Sent Items folder.
Download messages from a server
1. Tap Menu > Go To and tap the account you want to use.
2. Tap Menu > Send/Receive.
The messages on your device and e-mail server are synchronized. New messages are downloaded
to the device Inbox folder, messages in the device Outbox folder are sent, and messages that
have been deleted from the server are removed from the device Inbox folder.
TIP: To read the entire message, tap Menu > Download Message while in the message window. If
you are in the message list, tap and hold the message, and then tap Menu > Download Message. The
message will download the next time you send and receive e-mail. This will also download message
attachments if you have selected those options while setting up your e-mail account.
The size column in the message list displays the local size and server size of a message. These numbers
might differ because the size of a message can vary between the server and the device.
Install an online address book
Many e-mail servers, including servers running Exchange Server, can verify names with an online
address book called a directory service, using a protocol known as Lightweight Directory Access
Protocol (LDAP). When you create an e-mail account, the directory service of your e-mail server is added
to the Address, and you are given the option to enable it. After it is enabled, Messaging checks your
contact list and then the directory service to verify names that you enter in the To, Cc, and Bcc fields.
To enable a directory service or if you want to use additional services, follow these steps:
1. If you are adding a new account, ask your network administrator for the name of the directory
service and the server.
2. In the message list, tap Menu > Tools > Options… > Address.
3. In the In Contacts, get e-mail addresses from list, select which e-mail address book to check in
contacts. Contacts will be checked first unless you select None.
38 Chapter 8 Messaging
4. If your e-mail server is already listed, select the server's directory service check box to enable it
and tap ok.
5. If your e-mail service is not listed, tap Add…
6. In the Directory name and Server boxes, enter the LDAP directory and server names.
7. Ask your network administrator if authentication is necessary for your server. If so, select the
Authentication is necessary on this server check box, and enter your user name and password.
8. If you want the Messaging application to check this service, select the Check name against this
server check box.
TIP: To delete a service, tap and hold the service, and then tap Delete.
While synchronizing your Outlook E-mail account, disable any directory services you have installed by
clearing the Check name against this server check box. This helps avoid getting error messages when
Messaging tries to verify names against the service that you are not connected to.
Windows Live Messenger
You can use MSN Messenger on your HP iPAQ to send instant messages. MSN Messenger provides
the same chat environment as of the MSN Messenger on your computer.
With the MSN Messenger feature, you can:
Send and receive Instant Messages.
Change your own status or view the status of others on your list.
Invite others for a chat conversation.
Block certain contacts from seeing your status or sending you messages.
To use MSN Messenger, you need a Microsoft.NET Passport account unless you already have a Hotmail
account. To set up a Microsoft.NET Passport account, go to http://www.passport.net. After you have an
account, you can use your HP iPAQ MSN Messenger feature.
Sign in and out of Messenger
Tap Start > Programs > Messenger to open MSN Messenger feature.
To sign into the Messenger:
1. Tap Sign In after navigating to a required sign-in status.
2. Enter your information in the Sign-in and Password box. Tap Sign In.
To sign out of the Messenger:
Tap Menu > Sign Out to sign-out of MSN Messenger.
If you do not sign out of MSN Messenger, you remain on a data connection, which might result in
additional charges from your service provider. The session will not time out or end unless one of the
following occurs:
User ends instant messenger session
The device is turned off or moves out of range
Windows Live Messenger 39
Send instant messages
You can send Instant Messages from your MSN Messenger to contacts on your messenger list.
To send Instant Messages:
1. Select the person to whom you want to send an Instant Message and tap Send.
2. Enter your message, and tap Send.
You can also manage your contacts and control their visibility.
To manage contacts in the MSN Messenger:
Tap Menu > Add new contact to create a new contact.
Tap Menu > Contact options > Delete to delete an existing contact.
Tap Menu > Block/Unblock to block or unblock the selected contact from seeing your status and
sending you Instant Messages.
NOTE: Tap Menu > My Text to add common messages when composing instant messages. Tap
Menu > Invite to invite a contact to an ongoing chat. You can also see who is already talking to you or
change between chats by tapping Menu > Chats.
Change your status
You can change your status on MSN Messenger according to your need. To change your status:
1. Tap and select your name in the contact list.
2. Press Menu > Change Appearances, and navigate to select the required status.
40 Chapter 8 Messaging
9 Calendar
Access calendar
Use Calendar to schedule appointments, including meetings and other events. You can display
appointments for the day on the Today screen.
To access Calendar, tap Start > Calendar.
Change the display of the work week
You can customize your calendar for a work week to start on Sunday or Monday. You can schedule
your calendar for a five to seven-day week.
To change the display of the work week:
1. Tap Start > Calendar.
2. Tap Menu > Tools > Options > General.
To specify the first day of the week, tap Sunday or Monday in the 1st day of week box.
3. To specify the number of days to appear in a work week, tap 5-day week, 6-day week, or 7-day
week in the Week view box.
4. Tap ok.
Set a default reminder for all new appointments
To automatically turn on a reminder for all new appointments:
1. Tap Start > Calendar.
2. Tap Menu > Tools > Options > Appointments.
3. Select the Set reminders for new items check box.
4. Set the time for the reminder to alert you.
5. Tap ok.
Create an appointment
To create an appointment:
1. Tap Start > Calendar.
2. Tap Menu > New Appointment > Appointment.
3. Enter the required information, and then tap ok.
Access calendar 41
Update an appointment
To update an appointment on your calendar:
1. Tap Start > Calendar.
2. Tap the appointment, and then tap Menu > Edit to make your changes.
3. Tap ok.
Cancel an appointment
When you delete an appointment in calendar on your HP iPAQ, it is also deleted on your computer the
next time you synchronize. If the appointment has not been synchronized with a computer, it will be
deleted only from your HP iPAQ.
1. Tap Start > Calendar.
2. Tap to select the appointment you want to delete, and then tap Menu > Delete Appointment.
3. Tap Yes to delete the appointment, or tap No to keep it.
NOTE: Calendar items can be deleted only from the Agenda view or from an open calendar
appointment. To delete from other views, open the appointment, and tap Menu > Delete.
42 Chapter 9 Calendar
10 Contacts
Create a contact
1. Tap Start > Contacts.
2. Tap New and enter the contact information.
3. Tap ok.
NOTE: If your contact list has been filtered by a category when you create a contact, that category is
automatically assigned to the new contact.
If most of the contacts you create have phone numbers that begin with the same area code, in
Contacts, tap Menu > Options… and enter that area code in the Area code box.
For more information on creating contacts, tap Start > Help.
Delete a contact
1. On the Today screen, tap Contacts or Start > Contacts.
2. Tap and hold the contact to delete.
3. Tap Delete Contact.
4. Tap Yes to confirm the deletion.
Change contact information
1. On the Today screen, tap Contacts or Start > Contacts.
2. Tap the required contact.
3. Tap Menu > Edit and enter the changes.
4. Tap ok.
Copy a contact
1. On the Today screen, tap Contacts or Start > Contacts.
2. Tap and hold the contact you want to copy.
3. Tap Copy Contact.
4. Tap the copy of the contact.
5. Tap Menu > Edit.
6. Change the contact information as needed and tap ok.
NOTE: The displayed category is automatically assigned to the new contact.
Create a contact 43
Find a contact
1. On the Today screen, tap Contacts or Start > Contacts.
2. If you are not in the Name view, tap Menu > View By > Name.
3. Do one of the following:
Begin entering a name or phone number in the provided text box until the contact you want
is displayed. To show all contacts again, tap the text box and clear the text, or tap the arrow
to the right of the text box.
Use the alphabetical index displayed at the top of the contact list.
Filter the list by categories. In the contact list, tap Menu > Filter. Then tap a category you
have assigned to a contact. To show all contacts again, tap All Contacts.
NOTE: To search for a contact by entering a name or number, or by using the alphabetical index, you
need to be in the Name view.
Send an e-mail message to a contact
1. On the Today screen, tap Contacts or Start > Contacts.
2. Tap the contact you want to send a message to.
3. Tap the address you want to send a message to.
4. Tap the account you want to send the message from.
NOTE: To quickly add a contact's address to a new message, tap To, Cc, or Bcc, and then tap Menu >
Add Recipient…. Tap the contact you want to send the message to and choose the address, if
necessary.
Add and remove a picture
To add a picture to the contact information:
1. On the Today screen, tap Contacts or Start > Contacts.
2. Tap the contact.
3. Tap Menu > Edit.
4. Tap Picture.
5. Tap the picture you want to add.
To remove a picture from the contact information:
1. On the Today screen, tap Contacts or Start > Contacts.
2. Tap the contact.
3. Tap Menu > Edit.
4. Tap Menu > Remove Picture.
44 Chapter 10 Contacts
Use the contact list
There are several ways to use and customize the contact list. Here are a few tips on how to make it
work for you.
1. On the Today screen, tap Contacts or Start > Contacts.
2. In the contact list, do any of the following:
To search for a contact by entering a name or number, or by using the alphabetical index,
enter the name or number into the Enter a name… box.
To see a list of contacts employed by a specific name or company, tap Menu > View By >
Name or Company.
To see a list of available actions for a contact, tap and hold the contact.
NOTE: To display a greater number of contacts on the screen, tap Menu > Options…, select the
Show contact names only check box, and clear the Show alphabetical index check box.
Use the contact list 45
11 Applications
HP applications
HP Help and Support
The HP Help and Support application increases visibility, accessibility, and usability of the existing
help, support.
To access HP Help and Support:
1. Tap Start > Programs > HP Help and Support.
2. To view additional information, tap the appropriate HTML links.
Serial and Model Numbers – displays the product's serial number, model ID, product ID, and
OS version.
HP iPAQ QuickStart Tour – launches the HP iPAQ QuickStart Tour application.
HP iPAQ Tips – launches the HP iPAQ Tips application.
Help Topics – launches a table of content that lists help topics for programs installed on your
iPAQ.
Customer Support – launches the Find More Information screen, which lists the sources
for information on various topics.
System Details – launches the HP Asset Viewer application.
NOTE: Tap About to view the application name, version number, and copyright information.
HP iPAQ Setup Assistant
Use HP iPAQ Setup Assistant to simplify configuring settings on your HP iPAQ.
HP iPAQ Setup Assistant lets you save the settings on your computer. This can help you restore
configuration settings on your HP iPAQ at any time. HP iPAQ Setup Assistant also allows you to perform
a factory reset on your HP iPAQ and view detailed product information.
Using HP iPAQ Setup Assistant, you can manage multiple configurations and apply them quickly to your
HP iPAQ. You can create a new configuration, modify existing settings, delete a selected configuration,
or apply selected settings to your HP iPAQ.
Select the following tabs to configure your settings:
Owner Information – Enter your identification information and notes to describe you and your
HP iPAQ. This is helpful if you lose your HP iPAQ.
Wireless Network – Wireless Network settings describe the configuration needed to connect to
your work, home, or other wireless network.
Proxy – Proxy servers are located between two networks and are used to help prevent an attacker
from invading a private network. You can enter proxy settings to specify the proxy configuration for
your network.
46 Chapter 11 Applications
E-mail – E-mail settings describe the configuration required to connect to and check your Internet
e-mail accounts.
Exchange Server – Exchange Server is used to access e-mail, calendars, contacts, tasks, and
other mailbox contents while on the go. You can set up Outlook on your HP iPAQ to synchronize
directly with your organization's Exchange Server.
VoIP – Voice over Internet Protocol (VoIP) routes voice conversations using an IP-based network.
VoIP to VoIP phone calls to any provider are typically free. SIP Proxy servers are used to implement
call-routing policies and provide features to users.
Browser Favorite – Use your HP iPAQ Setup Assistant to create and manage a list of your favorite
URLs. You can access these URLs using the Internet Explorer on your HP iPAQ.
Finish – In case of a new configuration, after you click Finish, enter a configuration name and an
optional password, and then click OK in the save configuration. If this is an existing configuration,
the existing name and password will be used.
HP Asset Viewer
Using the HP Asset Viewer application to view information about the system, integrated modules, and
attached accessories.
To access Asset Viewer:
1. Tap Start > Settings > System > HP Asset Viewer.
2. To view additional system information, tap the appropriate tabs:
The Identity tab displays the serial number and the user information.
The Memory tab displays the iPAQ device memory information.
The Version tab displays the iPAQ device version information.
The Display tab displays the iPAQ device display panel information.
The System tab displays the iPAQ device system information.
The Bluetooth tab displays the iPAQ device Bluetooth information.
The WLAN tab displays the iPAQ device WLAN information.
Certificate Enroller
Certificate Enroller is an enhanced security feature for retrieving and registering new certificates. This
application-initiated enrollment allows you to request a user certificate from a certificate server.
NOTE: Certificate Enroller picks up certificate types from Active Directory as well as from the device
data store. You must enter a server name for retrieving the certificate, and if required, a valid username
and password.
To access Certificate Enroller:
1. Tap Start > Programs > Enroller.
2. Use the on-screen keyboard to enter server name, user name, and password. Tap ok to save the
settings.
NOTE: Tap Retrieve to initiate the transaction of downloading the certificate from the server.
3. Once the certificate is retrieved, tap Menu > Cancel to exit.
HP applications 47
NOTE: Tap Menu > About to view a brief description of the application, application name, version
number, and copyright statement.
Manage certificates
1. Tap Start > Settings > System > Certificates.
2. Select a certificate tab.
The Personal tab displays your personal certificates.
The Intermediate tab displays the intermediate certification authorities.
The Root tab displays the root certification authorities.
NOTE: To view the certificate details, tap the required certificate on each tab.
HP iPAQ Tips
Use HP iPAQ Tips to perform operations on your HP iPAQ in a quick and efficient manner. A tip is
displayed on your screen every time you switch on your HP iPAQ. Tap Next to display the next tip. To
quit the application, tap Menu > Exit. You can also access HP iPAQ Tips by tapping Start >
Programs > HP Help and Support > HP iPAQ Tips.
TIP: You can also access the HP iPAQ Tips application by tapping Start > Programs.
HP iPAQ QuickStart Tour
HP iPAQ QuickStart Tour is a fun way to learn more about your HP iPAQ. It provides basic information
about the tasks and activities you can perform using your HP iPAQ. You can try each feature as you go
through this tutorial. You can return to the same position in the QuickStart tour by simply tapping Start >
Programs > HP Help and Support > HP QuickStart Tour.
TIP: You can also access the HP iPAQ QuickStart application by tapping Start > Programs.
HP iPAQ Zip
Use the HP iPAQ Zip application to:
View and extract contents of a zip file received as an e-mail attachment.
View and extract contents of a zip file using the file explorer.
Open a selected item from the zipped file.
Extract/view encrypted files.
To view the file contents, tap the required zip file. This will display the filename, the date and time when
the file was last modified, and the file size.
Tap Open to open a file you want to view. This file will open as a Read Only document.
Tap Menu, and then tap the following commands to perform the respective functions:
Extract all: Extract all the files at the same time to the user directory.
Extract: Extract the selected files to the user directory.
View: Change the display layout of the file. The contents of the zipped file can be displayed as
details, list, icons, or tiles.
48 Chapter 11 Applications
About: Display the version of theHP iPAQ Zip application.
Exit: Exit from the HP iPAQ Zip application.
NOTE: You will not be able to open or extract files that are larger than 20 MB in size.
If the zip file is encrypted using a password, the HP iPAQ Zip Password screen is displayed when you
try to open any of the zip file contents. Type the appropriate password in the Enter Password box using
the on-screen keyboard to view the required files.
HP Enterprise Mobility Agent
Use the HP Enterprise Mobility Agent to help you easily configure and manage your HP iPAQ.
Visit http://redirect.hp.com/svs/rdr to download and install the HP Enterprise Mobility Agent.
After you install the HP Enterprise Mobility Agent, the application will configure, download, and
install different applications from the Internet on your HP iPAQ. This application requires WLAN
connection with access to internet.
Windows Media Player
Windows Media Player 10 Mobile
Windows Media Player 10 Mobile has enhanced features that allow you to enjoy your digital media both
at home and on the go. The personal computer version of Windows Media Player 10 can be downloaded
for free from Microsoft.
With this version of media player, you can:
Sync your music, photos, videos, and recorded TV to your HP iPAQ for easy enjoyment on the go.
Automatically convert video and recorded TV during sync to an optimized and size-reduced format
for better viewing on your HP iPAQ.
Manually select digital media to sync to your HP iPAQ, or automatically sync to your HP iPAQ each
time you connect, based on your preferences.
For a complete list of features and more, visit http://www.microsoft.com/windowsmedia.
NOTE: Protected files are digital media files that are secured with a license to prevent unauthorized
use or playback. Licenses are created and managed by using the DRM technology. To learn more about
Windows Media DRM 10, protected files, and other features, refer to the on-screen help by tapping
Start > Help > Contents > Search >Using Windows Media Player Mobile.
Clear the Now Playing list
Under Windows Media Player, the Now Playing playlist displays the currently playing file and any files
that are queued up to play next. You can quickly remove all items from the playlist by clearing it.
1. If you are on the Library screen, select the Now Playing category to display the Now Playing
screen. If you are on the Playback screen, select Now Playing to display the Now Playing screen.
2. On the Now Playing screen, tap Menu > Clear Now Playing.
For more details, refer to the on-screen help, tap Start > Help > Contents > Using Windows Media
Player Mobile.
Windows Media Player 49
Update a Library
In most cases, Windows Media Player Mobile automatically updates your libraries as necessary.
However, you can manually update a library to ensure that it has links to any new files that you might
have recently copied to your HP iPAQ or a removable storage card.
1. If you are not already on the Library screen, tap Menu > Library…
2. On the Library screen, tap Menu > Update Library…
3. Wait for the files to be added, and then tap Done.
For more details, refer to the on-screen help, tap Start > Help > Contents > Using Windows Media
Player Mobile.
MS Office applications
Word Mobile
You can create and edit documents and templates in Word Mobile. You can also save the documents
and templates as .doc, .rtf, .txt, and .dot files.
With Word Mobile, you can:
Edit Word documents and templates created on your computer.
Open and edit Pocket Word (*.psw) documents
NOTE: If you edit a document, you will need to save it in .doc, .rtf, .txt, or .dot format.
To access Word Mobile, tap Start > Office Mobile > Word Mobile.
Options available when you tap Menu allow you to:
Create a new document or edit an existing document.
Format a document.
Check spellings and count words in a document.
Save, move, rename, or delete a document.
Send a document via e-mail or Bluetooth.
Excel Mobile
You can create and edit workbooks and templates on your HP iPAQ with Excel Mobile.
With Excel Mobile, you can:
View, edit, and create charts and graphics, which can be embedded as objects in a worksheet or
placed on a separate worksheet.
Enter formulas and functions, and then filter data to see the subset of information you want.
Split panes to view different parts of a worksheet at the same time.
Freeze the top and left-most panes in a worksheet to keep row and column labels or other data
visible as you scroll through a sheet.
To access Word Mobile, tap Start > Office Mobile > Excel Mobile.
50 Chapter 11 Applications
To access options for organizing and formatting a worksheet, open a worksheet and tap Menu. In
addition to Cut, Copy, and Paste, there are options in Menu that allow you to:
Paste cells using Paste Special.
Clear cell contents and formats applied to cells.
Insert new cells, charts, symbols, functions, and define names in a workbook.
Set dimensions for rows and columns. Align cells, set font and style for the text, and set cell borders.
Create new worksheets and save, rename, or delete existing worksheets.
Send a worksheet via e-mail or Bluetooth.
PowerPoint Mobile
Use PowerPoint Mobile to open and view slide show presentations created on your computer.
With PowerPoint Mobile, you can:
Open a presentation from an e-mail message.
Download a presentation from a file share or the Internet.
Copy a presentation to your HP iPAQ via a storage card.
NOTE: Slide shows created in *.ppt or *.pps format with PowerPoint ‘97 and later can be viewed on
your device.
PowerPoint features that are not supported on your HP iPAQ include:
Notes: Notes written for slides are not visible.
Rearranging or editing slides: PowerPoint Mobile is a viewer only.
To access Word Mobile, tap Start > Office Mobile > PowerPoint Mobile.
Options available when you tap Menu allow you to:
Set up a slide show.
Rename, move, delete, or create a copy of a presentation.
Send a presentation via e-mail or Bluetooth.
PDF viewer
The ClearVue PDF application lets you view any PDF document on your HP iPAQ. To access this
application:
1. Tap Start > Programs > ClearVue PDF.
2. Tap File > Open… > to open a PDF.
3. Tap Zoom to select the appropriate option for better viewing.
4. Tap File > Exit to quit the application.
PDF viewer 51
Games
Bubble Breaker
The objective of Bubble Breaker is to have balls (more than one) of the same color deleted from the
screen. The fewer balls you leave behind, the higher your score will be.
To start a new game:
1. Tap Start > Programs > Games > Bubble Breaker.
2. Tap New Game to start a new game.
3. Tap Menu > Statistics to select a style to display relative entries.
4. Tap Menu > Options… to edit the settings for the game.
NOTE: To recall the balls you deleted, tap Menu > Undo Move.
To play a game:
1. Tap Start > Programs > Games > Bubble Breaker.
2. Tap New Game to start a new game.
3. Scroll and select a ball which is of the same color as the other balls around.
4. Tap the selected balls twice to delete the balls from the screen.
Solitaire
The objective of Solitaire is to use all the cards in the deck to build up four suit stacks in ascending order,
beginning with the aces. You win the game when all cards are on the suit stacks.
To play a game:
1. Tap Start > Programs > Games >Solitaire.
2. Tap Menu > New Game to start a new game.
3. Tap and hold the card you want to move and drag it to the card stack to which you want to move
the card.
4. Move any aces on the seven stacks to the four card spaces at the top of the screen, and then make
any other available plays.
5. Tap a card twice to move it to the four card stack on the upright corner of the screen if it belongs
there. The card that is faced up on the four card stacks is always available for play.
6. When you have made all the available plays, tap Draw to turn over cards.
Internet Explorer
Use Internet Explorer to view and download Web pages as well as browse Web sites through
synchronization or when connected to the Internet.
52 Chapter 11 Applications
Before connecting to the Internet, setting up a wireless connection or network card, you need to obtain
the following:
ISP or wireless service provider
ISP server phone number or access point
User name and password
You can learn more about Internet Explorer by tapping Start > Help > Contents > Browse the Web.
To access Internet Explorer, tap Start > Internet Explorer.
Internet Explorer 53
12 Notes
Write a note
1. Tap Start > Programs > Notes.
NOTE: Writing must be selected as the default input mode.
2. Tap New.
3. Write your text on the screen.
4. Tap ok to return to the note list.
To select the handwritten text, tap and hold next to the writing. As soon as dots appear and before they
form a complete circle, quickly drag across the writing.
If the writing crosses three ruled lines, it is treated as a drawing rather than text.
Create a copy of a note
To create a copy of a note:
1. Tap Start > Programs > Notes.
2. Tap the note you want to copy.
3. Select the text on the screen, and then tap Menu > Copy.
4. Open the required note from the note list or a new note to which the selected content is to be copied.
5. Tap Menu > Paste.
If you paste the contents in a new note, a copy of the note displays in the note list.
Create a voice note
To create a stand-alone recording (voice note) or add a recording to a note:
1. Tap Start > Programs > Notes.
2. Do one of the following:
To create a stand-alone recording, record from the note list.
To add a recording to a note, create or open a note.
NOTE: If the Recording toolbar does not appear, tap Menu > View Recording Toolbar.
3. Tap the (Record) button.
4. Speak into the microphone located at the bottom of the unit.
5. When finished recording the note, tap the (Stop) button on the Recording Toolbar.
6. Tap ok to return to the note list.
54 Chapter 12 Notes
NOTE: If recording in an open note, an icon displays in the note. If creating a stand-alone recording,
an icon displays in the note list.
Also, you can create a voice note in Photosmart Mobile and attach the note to a picture.
Create a voice note 55
13 Storage cards
Storage cards
Use optional storage cards for:
Expanding the memory of your HP iPAQ
Adding functionality
NOTE: Storage cards must be purchased separately and are not included with your HP iPAQ.
To locate information about storage cards, visit http://www.hp.com/accessories/ipaq.
Insert a storage card
To insert a storage card into the storage card slot on your HP iPAQ:
1. Locate the storage card slot on the side of your HP iPAQ.
2. Open the protective cover.
3. Insert the storage card into the storage card slot and push the connection edge of the card firmly
into the storage card slot.
NOTE: If your storage card is not recognized, follow the card manufacturer's instructions to install it.
If you have trouble inserting a storage card, try the following:
Make sure the label is facing down.
Make sure you are not inserting the card at an angle.
Make sure you insert the connection area (the metal area) first.
Remove a storage card
To remove a storage card from the storage card slot on your HP iPAQ:
1. Close all programs that are using the storage card.
2. Remove the card from the storage card slot by lightly pushing on the card to unlock it.
3. When the card disengages and pops out, pull it from the storage card slot.
View content of a storage card
Use File Explorer to view the files that are located on your optional storage card.
1. Tap Start > Programs > File Explorer.
2. Navigate to select the Memory Card folder to see a list of files and folders.
56 Chapter 13 Storage cards
If the HP iPAQ does not recognize your storage card, try the following:
Make sure you have firmly pushed the storage card into the storage slot.
Make sure to install any drivers that came with the storage card.
View content of a storage card 57
14 Synchronization
Synchronization software
If your computer is running Windows XP or an earlier version, synchronization settings are managed
through Microsoft ActiveSync. Microsoft ActiveSync 4.5 is available on the Getting Started CD. You can
also visit http://www.microsoft.com/windowsmobile for more information or to download Microsoft
ActiveSync.
If your computer is running Windows Vista, synchronization settings are managed through Windows
Mobile Device Center (WMDC). WMDC 6.1 is available on the Getting Started CD. You can also visit
http://www.microsoft.com/windowsmobile to download WMDC.
Copy files
You can copy files to and from the computer using ActiveSync.
To copy files using ActiveSync:
1. Connect your HP iPAQ to the computer using the mini-USB synchronization cable.
2. On the computer, select Start > Programs > ActiveSync.
3. In the ActiveSync window, select Explore.
4. Double-click Windows Mobile-Based Device.
5. Open Windows Explorer on your computer and locate the files to be copied.
NOTE: You cannot copy preinstalled files or system files.
6. Drag and drop the files between your HP iPAQ and the computer. ActiveSync converts the files so
that they can be used by the Office Mobile programs, if necessary.
To copy files using WMDC:
1. Connect your HP iPAQ to the computer and wait for WMDC to launch automatically.
2. Click File Management to open the Mobile Device folder for your device.
3. In the Mobile Device folder, navigate and select the file that you want to copy on your device or
computer.
Move the files directly into My Documents on your HP iPAQ (or into a folder inside My Documents).
Migrate data from Palm Desktop to Microsoft Windows
Mobile 6.0
If you used a Palm OS based device before purchasing your HP iPAQ, you need to migrate your data
from the Palm Desktop software to Microsoft Windows Mobile 6.0.
58 Chapter 14 Synchronization
To migrate data from Palm Desktop to Windows Mobile 6.0:
1. Ensure that you have Microsoft Outlook 98 or higher installed on your computer.
2. Insert the Companion CD that came with your Palm unit into your computer's CD-ROM drive. From
the Discover Your Handheld screen, select Install Microsoft Conduits. Alternatively, you may
reinstall the Palm Desktop software. During the configuration process, select Synchronize your
handheld with Microsoft Outlook and Palm Desktop software.
NOTE: Microsoft Outlook must be set as your default e-mail program to properly synchronize
with the Palm Desktop software. If you need to change your settings, open Microsoft Outlook, then
click Tools > Options > Other tab and check the Make Outlook the default program for E-mail,
Contacts, and Calendar check box. Click Apply > OK, and then restart your computer.
3. Use the HotSync software located on the Companion CD that came with your Palm unit to
synchronize your Palm information with Outlook. Refer to the instructions that came with your Palm
unit for help installing or using HotSync.
4. When Outlook is synchronized with your Palm device, uninstall Hotsync from your computer. Click
Start > Control Panel > double-click Add or Remove Programs. Select Palm Desktop, then
click Remove. Follow the on-screen instructions.
5. Insert the Getting Started CD into your computer's CD-ROM drive and follow the on-screen
instructions to install ActiveSync on your computer and create a partnership between your HP iPAQ
and your computer.
Wireless synchronization cost saving tips
How you manage the cost of wireless synchronization from your HP iPAQ depends on your priorities.
To Do this
Reduce network connection or data transfer costs Increase the time between scheduled synchronizations or
synchronize manually. Check the details of your rate plan.
Extend battery life Schedule synchronization less frequently or synchronize
manually.
Keep your information up to date During periods of high mail volume, schedule synchronization
at regular but frequent intervals. During periods of low mail
volume, schedule synchronization as items arrive.
NOTE: The device power-down timer is reset each time you synchronize. If you schedule a
synchronization interval that is smaller than the time interval set for the device to automatically power
down, the device never turns off to save battery power.
Troubleshoot synchronization issues
Following is a list of symptoms that might indicate synchronization issues:
No ActiveSync tone plays (or a gray icon displays), and there is no activity in the Microsoft
ActiveSync window on your computer.
ActiveSync tone plays, and the ActiveSync icon on your computer changes to a swirling green icon.
The Retrieving settings message displays on your computer, but the ActiveSync connection
drops prior to establishing the partnership.
Wireless synchronization cost saving tips 59
ActiveSync is searching for a connection but cannot establish one. (The green icon on your
computer continues to spin.)
Synchronization has been established between your HP iPAQ and computer but connection has
dropped. (The green icon on your computer stops spinning and grays out.)
The firewall or other network protection software message box is displayed when ActiveSync tries
to access the network or Internet.
WMDC does not launch even after installation.
Here is a list of tips to help you troubleshoot synchronization issues:
Check the OS on your computer before you begin synchronizing information between your
HP iPAQ and computer. The synchronization method varies depending on the OS running on the
computer.
NOTE: HP does not guarantee the accurate functionality of any third party applications with
Windows Vista.
If you are running ActiveSync 4.5 or WMDC 6.1and personal firewall software on your computer,
please add ActiveSync 4.5 or WMDC 6.1 to the firewall program's exception list.
(Firewall software, such as Sygate Personal Firewall, TrendMicro PC-cillin Internet Security 2005,
Norton Personal Firewall, McAfee Personal Firewall, or Zone Alarm Security Suite might block
synchronization.) Refer to the documentation that came with your firewall program to determine
how to add ActiveSync 4.5 or WMDC 6.1 to the program's exception list. To further troubleshoot a
firewall application, visit: http://www.microsoft.com/windowsmobile.
During the ActiveSync installation, if you inadvertently selected the Microsoft Exchange Server
check box and are not planning to connect to an Exchange server, follow these steps:
Connect your HP iPAQ to your computer. Make sure an ActiveSync connection is established.
On your computer, click Start > All Programs > Microsoft ActiveSync.
Click Tools > Options.
Clear the boxes for the sync items listed under the Server group.
Select the check boxes under the Computer group for those items you want to synchronize.
Disconnect your HP iPAQ from your computer and wait for the ActiveSync or WMDC message
confirming that your device is no longer connected. Reconnect your HP iPAQ to your computer.
Wait to see if your HP iPAQ connects to your computer.
On your computer, in the ActiveSync application, select File > Connection Settings. Confirm that
USB is selected as a potential connection method.
Connect your HP iPAQ to a different USB port on your computer.
Check your mini-USB synchronization cable. Consider using another mini-USB synchronization
cable, if available.
Try synchronizing via a Bluetooth connection.
60 Chapter 14 Synchronization
Restart your computer and HP iPAQ and reconnect your iPAQ to your computer.
Uninstall ActiveSync or WMDC from your computer, and then reinstall it.
To uninstall ActiveSync from your computer, click Start > Control Panel > Add or Remove
Programs > Microsoft ActiveSync. Then click Remove > Yes.
To uninstall WMDC from your computer, click Start > Control Panel > Uninstall or Change
a Program > Windows Mobile Device Center and Windows Mobile Device Center Driver
Update. Then click Uninstall.
After trying the above solutions without any success in solving your connection problem, perform a
factory reset on your HP iPAQ using the HP iPAQ Setup Assistant.
You can reinstall applications on your HP iPAQ after the hard or clean reset is complete by using
ActiveSync or WMDC on your computer.
After your HP iPAQ is synchronized properly, do the following:
For ActiveSync, select Tools > Add/Remove Programs, and then select any programs you want
to reinstall.
For WMDC, when the device is not synchronizing, select Programs and Services > Add/Remove
Programs. Select the programs you want to reinstall and click OK.
Troubleshoot synchronization issues 61
15 Tasks
Set start and due dates for a task
1. Tap Start > Programs > Tasks.
2. Tap the task you want to set start and due dates for.
3. Tap Edit and do one or both of the following:
Tap Starts to enter a start date for the task.
Tap Due to enter a due date for the task.
4. Tap ok.
Show start and due dates in the task list
1. Tap Start > Programs > Tasks.
2. Tap Menu > Options…
3. Select the Show start and due dates check box.
4. Tap ok.
Set options for displaying tasks on the Today screen
If you have a large number of tasks, you might want to specify the kind of tasks that are displayed on
the Today screen.
1. Tap Start > Settings > Personal > Today.
2. Tap Items, and then select the Tasks check box.
3. Tap Tasks to access options, then tap Options…
4. Under Display number of, select the type of tasks to appear on the Today screen.
5. In the Category list, select whether to display only tasks assigned to a specific category or to display
all tasks.
Mark a task as completed
To mark a task as completed:
1. Tap Start > Programs > Tasks.
2. In the task list, select the check box next to the task you want to mark as completed.
To mark an open task as completed:
1. Tap Edit.
2. In the Status box, tap Completed.
62 Chapter 15 Tasks
16 Product specifications
System specifications
NOTE: Not all models described are available in all countries/regions. For more information on
specifications for your particular model, on your HP iPAQ, tap Start > Settings > System >
AssetViewer.
System Feature Description
Processor Marvell® PXA 310
Operating System Microsoft® Windows Mobile 6.0
Memory 256 MB Flash & 64 MB SDRAM
External Power Power adapter: input 100–200 Vac, 200 mA, 50 to 60 Hz and
output +5 Vdc, 1 A
USB charger: 5 Vdc, 100/500 mA
Display 3.5 inches QVGA TFT with touch screen
SD Slot Supports SD memory
Headphone Jack 3.5 mm with 3 and 4 pin support for stereo or VoIP headphone
Antenna Internal WLAN and Bluetooth antennas
Audio Speaker, and one 3.5 mm stereo headset jack
Battery 1200 mAh Li-Ion removable/rechargeable battery
Bluetooth Bluetooth 2.0, Profiles: Handsfree/ OBEX/ PAN/ FTP/ Serial
Port/ A2DP, 10 m range (approximately 33 ft)— High-speed,
low-power, short-range wireless communication with other
Bluetooth devices
WLAN IEEE 802.11b/g
Physical specifications
US Metric
Length 4.59 inches 116.7 mm
Width 2.71 inches 68.9 mm
Depth 0.54 inches 13.6 mm
Weight With battery: 4.08 oz
Without battery: 3.17 oz
With battery: 115.8 g
Without battery: 89.9 g
System specifications 63
Operating environment
US Metric
Temperature Operating 32° to 113° F 0° to 45° C
Non-operating -4° to 140° F -20° to 60° C
Relative Humidity Operating 30% to 85% 30% to 85%
Non-operating 90% 90%
Maximum Altitude Operating 15000 ft 4572 m
Non-operating 40000 ft 12,192 m
64 Chapter 16 Product specifications
17 Regulatory notices
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio or television technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that are
not expressly approved by HP may void the user's authority to operate the equipment.
Cables
To maintain compliance with FCC Rules and Regulations, connections to this device must be made with
shielded cables having metallic RFI/EMI connector hoods.
Federal Communications Commission Notice 65
Declaration of Conformity for Products Marked with the FCC Logo
(United States Only)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following 2 conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
If you have questions about the product that are not related to this declaration, write to
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, TX 77269–2000
or call 1–800–HP–INVENT (1–800–474–6836)
For questions regarding this FCC declaration, write to
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, TX 77269–2000
or call HP at 281–514–3333
To identify your product, refer to the part, series, or model number located on the product.
Canadian Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
European Union Notice
Products bearing the CE marking comply with the following EU Directives:
Low Voltage Directive 2006/95/EC
EMC Directive 2004/108/EC
CE compliance of this product is valid only if powered with the correct CE-marked AC adapter provided
by HP.
If this product has telecommunications functionality, it also complies with the essential requirements of
the following EU Directive:
R&TTE Directive 1999/5/EC
Compliance with these directives implies conformity to harmonized European standards (European
Norms) that are listed in the EU Declaration of Conformity issued by HP for this product or product family.
This compliance is indicated by one of the following conformity markings placed on the product.
66 Chapter 17 Regulatory notices
This CE marking is valid for non-telecommunications products and for EU harmonized
telecommunications products, such as Bluetooth®.
This CE marking is valid for EU non-harmonized telecommunications products.
*If applicable, a notified body number is used. Refer to the regulatory label provided on this product.
Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, D-71034 Böblingen, Germany
The telecommunications functionality of this product may be used in the following EU and EFTA
countries:
Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Slovak Republic, Romania, Slovenia, Spain, Sweden,
Switzerland, and United Kingdom.
European Union Notice 67
Products with 2.4–GHz Wireless LAN Devices
France
L'utilisation de cet equipement (2.4GHz wireless LAN) est soumise à certaines restrictions: cet
equipement peut être utilisé à l'interieur d'un batiment en utilisant toutes les frequences de 2400 a
2483.5MHz (Chaine 1–13). Pour une utilisation en environnement exterieur, vous devez utiliser les
frequences comprises entre 2454 a 2483.5–MHz (Chaine 10–13). Pour les dernières restrictions,
voir http://www.art-telecom.fr.
For 2.4–GHz wireless LAN operation of this product, certain restrictions apply. This equipment may use
the entire–2400–MHz to 2483.5–MHz frequency band (channels 1 through 13) for indoor applications.
For outdoor use, the 2454–MHz to 2483.5–MHz frequency band (channels 10 through 13) may not be
used. For the latest requirements, see http://www.art-telecom.fr.
Italy
E'necessaria una concessione ministeriale anche per l'uso del prodotto. Verifici per favore con il proprio
distributore o direttamente presso la Direzione Generale Pianificazione e Gestione Frequenze.
License required for use. Verify with your dealer or directly with the General Direction for Frequency
Planning and Management (Direzione Generale Pianificazione e Gestione Frequenze).
Battery Warning
WARNING! This HP iPAQ contains a lithium ion rechargeable battery. To reduce the risk of fire or
burns, do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
Replace only with the HP spare.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries
according to the instructions.
Battery Recycling
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and
rechargeable batteries. For more information about recycling programs, visit http://www.hp.com/recycle.
Battery Disposal
WARNING! When a battery has reached the end of its useful life, do not dispose of the battery in
general household waste. Follow the local laws and regulations in your area for computer battery
disposal.
68 Chapter 17 Regulatory notices
Equipment Warning
WARNING! To reduce the risk of personal injury, electrical shock, fire or damage to the equipment:
Plug the AC adapter into an AC outlet that is easily accessible at all times.
Disconnect power from the equipment by unplugging the AC adapter from the AC outlet or unplugging
the synchronization cable from the host computer.
Do not place anything on the power cord or any of the other cables. Arrange them so that no one may
accidentally step on or trip over them.
Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the cord by the plug
or, in the case of the AC adapter, grasp the AC adapter and pull out from the electrical outlet.
Do not use converter kits sold for appliances to power your HP iPAQ.
Acoustics Warning
WARNING! Listening to this device at high volume levels and for extended durations may damage
one's hearing. In order to reduce the risk of damage to hearing, one should lower the volume to a safe,
comfortable level, and reduce the amount of time listening at high levels.
For your own safety, before using headsets or earphones, always reset the volume. Some
headphones are louder than other headphones, even if the volume control setting is the same.
Changing the default audio or equalizer settings might lead to higher volume and should only be
done with caution.
Headsets or earphones used with this device should comply with the headphone limits in EN
50332-2.
Equipment Warning 69
Airline Travel Notice
Use of electronic equipment aboard commercial aircraft is at the discretion of the airline.
Medical Electronic Equipment
If you have a medical condition that requires you to use a pacemaker, hearing aid, or any type of medical
electronic equipment, consult the manufacturer of the equipment to determine if the medical equipment
is shielded from RF energy. Turn off your HP iPAQ in health care facilities or hospitals when there are
posted restrictions requiring you to do so.
Wireless Notices
In some environments, the use of wireless devices may be restricted. Such restrictions may apply aboard
airplanes, in hospitals, near explosives, in hazardous locations, etc. If you are uncertain of the policy
that applies to the use of this device, please ask for authorization to use it prior to turning it on.
U.S. Regulatory Wireless Notice
WARNING! Exposure to Radio Frequency (RF) Radiation The radiated output power of this device
is below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a
manner that the potential for human contact during normal operation is minimized.
To avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the
antenna should be minimized. No metallic body accessories are allowed and 1.5 cm spacing between
PDA and the body must be maintained to satisfy RF Exposure.
This PDA has been tested and demonstrated compliance when Bluetooth and Wi-Fi are transmitting
simultaneously. This PDA must not be co-located or operating in conjunction with any other antenna or
transmitter.
Canadian Regulatory Wireless Notice
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired operation of
the device.
Brazilian Notice
Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência
prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando
em caráter primário.
Japanese Notice
70 Chapter 17 Regulatory notices
Wireless LAN 802.11b Devices
Wireless LAN 802.11g Devices
Bluetooth Devices
Taiwan DGT Notice
Korean Notice
Taiwan DGT Notice 71
18 Frequently asked questions
I am having trouble turning on my HP iPAQ. What should I
do?
Your HP iPAQ displays problems with the battery. Please perform the following checks:
Is the battery charged?
Is the battery properly installed?
I have trouble connecting to the Internet. What should I do?
If you have trouble connecting to the Internet, please perform the following checks:
Make sure you have subscribed for a data service from your service operator.
Make sure you entered correct setting parameters, such as APN and IP addresses in data profile
setup.
Why does the HP iPAQ operate slowly at times?
You should have at least 1.5 to 2 MB of free memory space on your HP iPAQ so that the device operates
efficiently. To check the free memory space, tap Start > Settings > System > Memory. Remember to
delete or transfer old e-mail messages and pictures on your HP iPAQ to free available memory space.
Why do I see the Today screen layout error message on my
HP iPAQ display screen?
You will get a Today screen layout error message if you did not select a Today screen layout. To correct
this, tap Start > Settings > Personal and select a layout for the Today screen.
I have trouble charging my battery. What should I do?
If you have trouble charging your battery, please perform the following checks:
Is the battery charger correctly plugged into the battery charger socket on the HP iPAQ?
Is the power cord of the charger damaged?
Is the battery very old? If yes, replace with a new battery and try again.
I am unable to use the ActiveSync feature. What should I
do?
To be able to use the ActiveSync feature, upgrade your computer to the latest version of ActiveSync. It
is recommended to use ActiveSync 4.5 or a higher version. Visit http://www.microsoft.com/downloads
for the latest versions.
72 Chapter 18 Frequently asked questions
My HP iPAQ was not connected during WMDC installation?
Although you do not need to connect your HP iPAQ during the installation process of WMDC, it is highly
recommended to have it connected.
My HP iPAQ was connected while I was installing but
WMDC is not launching after installation?
In some cases after an upgrade, you will need to disconnect and reconnect the device for WMDC to
launch.
Can I connect for the first time via Bluetooth?
The initial connection between your HP iPAQ and the desktop WMDC application needs to happen with
a mini-USB synchronization cable. After this initial connection, you will be able to set up Bluetooth for
future connections.
My HP iPAQ was not connected during WMDC installation? 73
19 Guidelines for care and maintenance
It is recommended that you follow certain guidelines to prevent possible damage to your HP iPAQ and
to keep it in a good condition.
Using your HP iPAQ
Avoid using your HP iPAQ in dusty and extremely high or low temperature environments.
Do not spill water on your HP iPAQ or expose it to the rain.
Avoid removing the battery without turning off your HP iPAQ.
Do not apply strong force or shocks to your HP iPAQ.
Keep the HP iPAQ and its accessories away from children.
Do not insert metal objects into the charging/communications port of your HP iPAQ. This can
short-circuit the battery and result in danger.
Turn off your HP iPAQ or switch it to silent mode when you are asked to in public places.
Cleaning your HP iPAQ
Use a soft, clean, and slightly moistened cloth to clean your HP iPAQ. Do not let water come into
contact with the earpiece, microphone, or the metal surface.
Do not wipe your HP iPAQ with any corrosive liquid or coarse objects. This can damage the outer
surface of your HP iPAQ.
Carrying or storing your HP iPAQ
Do not leave your HP iPAQ in extremely high or low temperature environments.
Remove the battery from your HP iPAQ if it is not going to be used for a long period of time. Store
the HP iPAQ and its battery in a cool, dark, and dry place.
Using accessories
Use original HP batteries and chargers to charge your HP iPAQ.
Do not use your HP iPAQ battery and charger for other purposes.
For information on accessories for your iPAQ, visit http://www.hp.com/accessories/ipaq.
74 Chapter 19 Guidelines for care and maintenance

Navigation menu
