HON HAI Precision Ind. Co., Ltd. ThinkPad Bluetooth with Enhanced Data Rate Manual for J07H081 NEW
Users Manual
INSTALLATION MANUAL
J07H081
ThinkPad Bluetooth with Enhanced Data Rate
Contents
SECTION ONE: INTRODUCTION ............................................................................................ 1
1.1 FEATURES .............................................................................................................................. 1
1.1.1 BLUETOOTH FUNCTION................................................................................................................ 1
1.2 HARDWARE REQUIREMENTS........................................................................................................... 1
SECTION TWO: BLUETOOTH INSTALLATION........................................................................... 3
2.1 BLUETOOTH INSTALLATION.................................................................................................... 3
SECTION THREE: FCC NOTICE................................................................................................... 1
3.1 FCC COMPLIANCE ................................................................................................................. 9
3.2 FCC CLASS B STATEMENT .................................................................................................. 10
The information contained in this manual has been verified at the time of this manual printing. The
manufacturer reserves the right to make any changes and improvements in the product described in this
manual at any time and without notice.
All registered trademarks are the property of their respective owners.
Section One: Introduction
The Bluetooth Module use a monolithic single-chip, Broadcom BCM2045 and it can compliant Bluetooth
2.0.This Bluetooth module is base on the highly integrated BCM2045 stand-alone baseband processor with an
integrated 2.4GHz transceiver. It is fully compliant with the Bluetooth radio specification and incorporates new
modulation schemes to support enhanced data rate(EDR) of 3MBps.
1.1 Features
1.1.1 Bluetooth Function
o Bluetooth radio firmware is upgradeable for bug fixes, initial version compatible with Bluetooth
specification version 2.0
o Fully compliant to Bluetooth SIG (BQB) compatibility testing.
o USB Pin assignment is to use MDC reserve pin to communicate with Host.interface
o Bluetooth Profile Support
- Pim Item Transfer
- Pim Synchronization
- Network Access
- Dial-up Networking
- Bluetooth Serial Port
- Fax
- Audio Gateway
- Headset
- Bluetooth Imaging
o Drivers support Windows 98, 98SE, ME, 2000, XP.
o Supports Power Management
1.2 Hardware Requirements
Supply Voltage 3.3V
Frequency Range 2.400-2.4835 GHz
Antenna Load 50 Ohm
Receive Sensitivity –78 dBm@0.1% BER
Maximum Receiver Signal -20 dBm
TX Power 4 dBm maximum (class 2)
RF Power Control Step Size 2 dB
Range 10 meters at 0 dBm TX power (class 2)
Radio Compliant with Bluetooth radio specification and incorporates
new modulation schemes to supports enhance data rate (EDR)
of 3Mbps
Pico Net 1 master to 7 slaves
Operating Channels 79 channels of 1 MHz BW
Security Full support of Bluetooth security provisions including
hardware support for full length 128 bit encryption keys.
Host Interface (USB) USB specification 2.0 compliant and using MDC reserve pin to
communicate with Host
Software Requirements Windows 98SE, ME, 2000, XP.
Mechanical Requirements 26mm x 14mm
Section Two: Bluetooth Installation
The following steps provide instructions for installing Bluetooth.
1. Make sure your Bluetooth device already insert into your notebook.
2. Make sure your notebook operating system support Windows 98SE or ME or 2000 or XP.
2.1 Bluetooth Installation
Proceed to the following section.

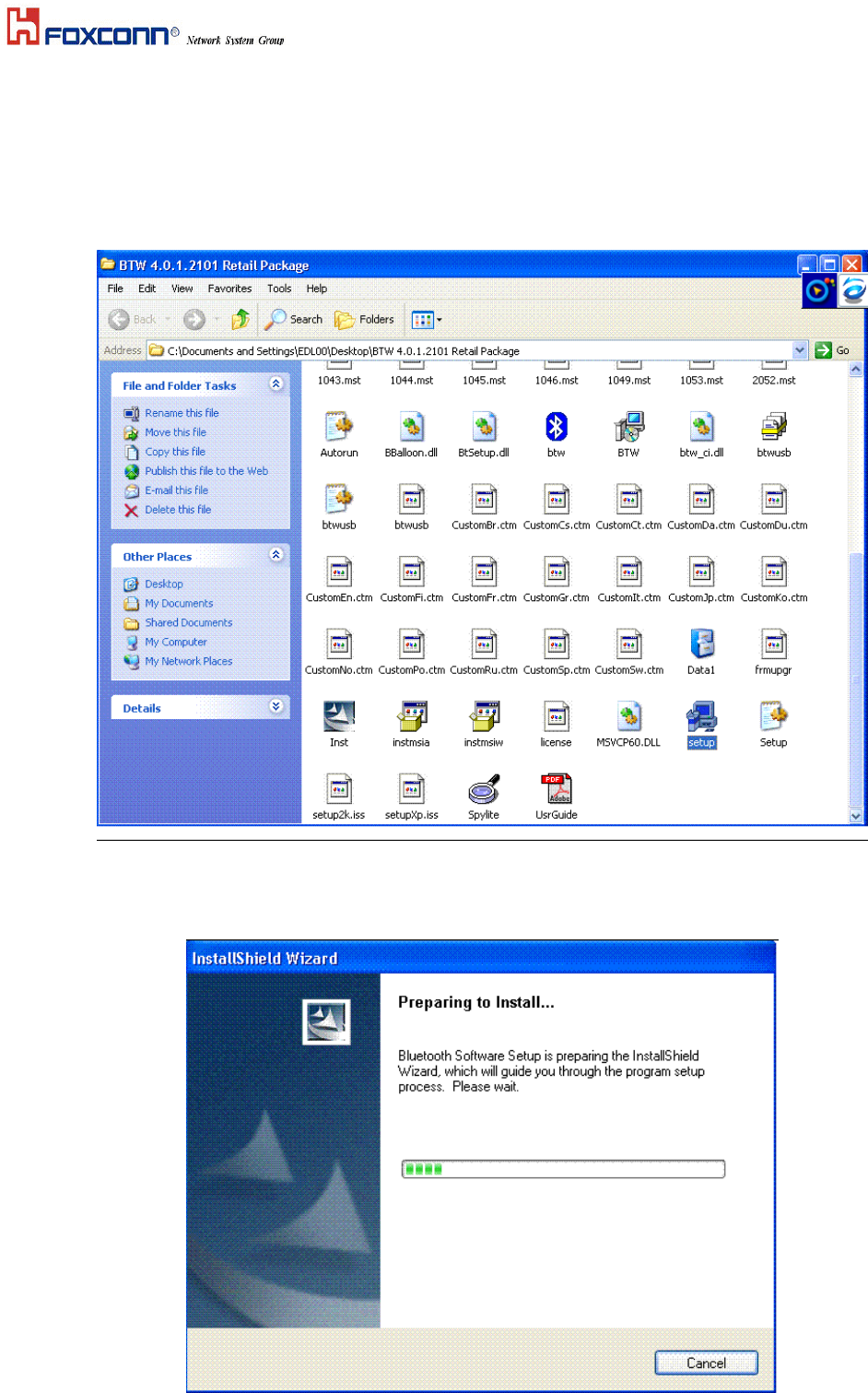

Double click the program “Setup.exe” to execute the setup procedure in the software package：
1. Windows shows the dialog as below to check your operation system version：

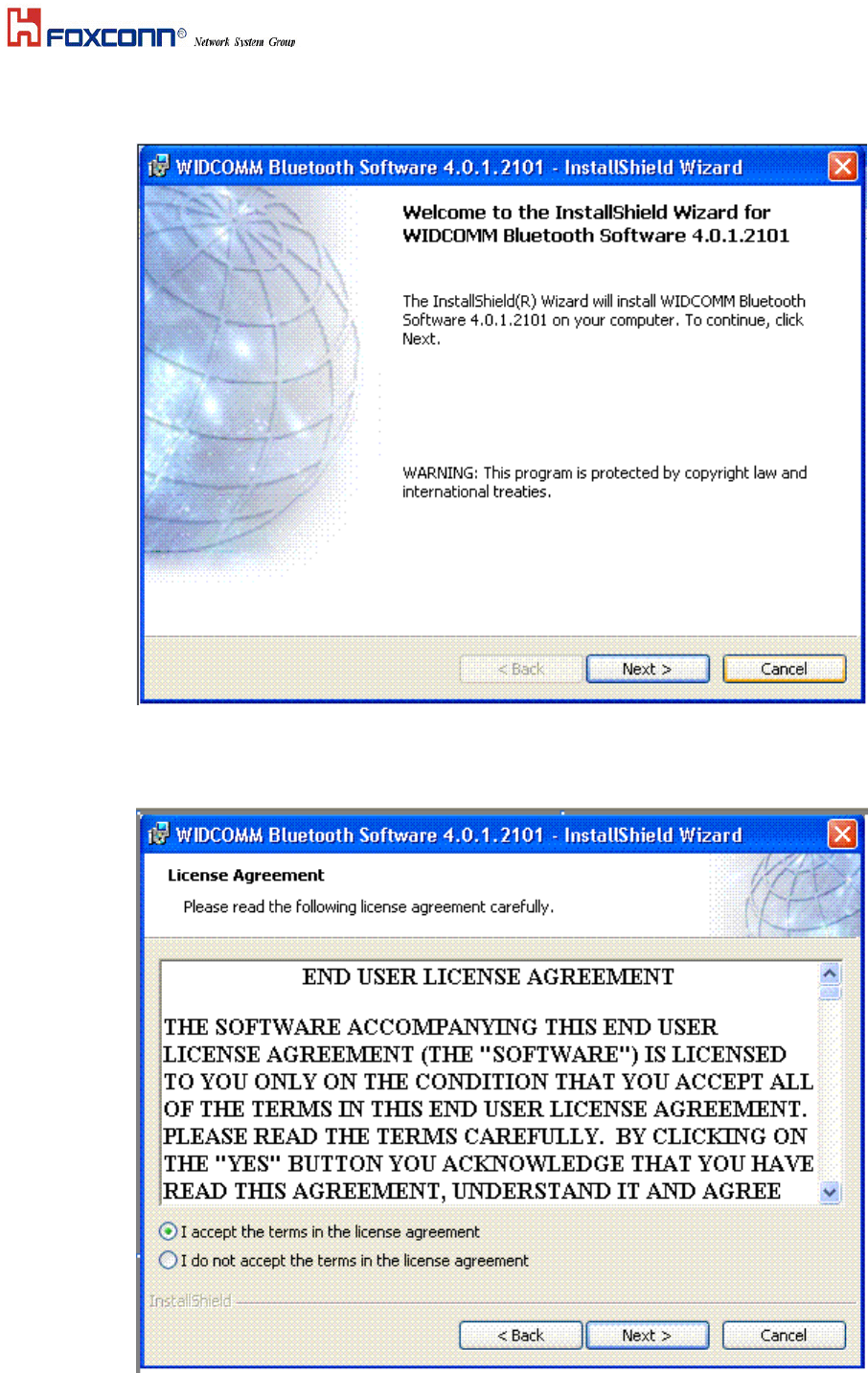

2. Windows shows the welcome dialog as below, click the “Next” to begin the process：
3. The license agreement dialog will pop up, please read it carefully. If you agree it, choose “I
accept the terms in the license agreement” and click “Next”：

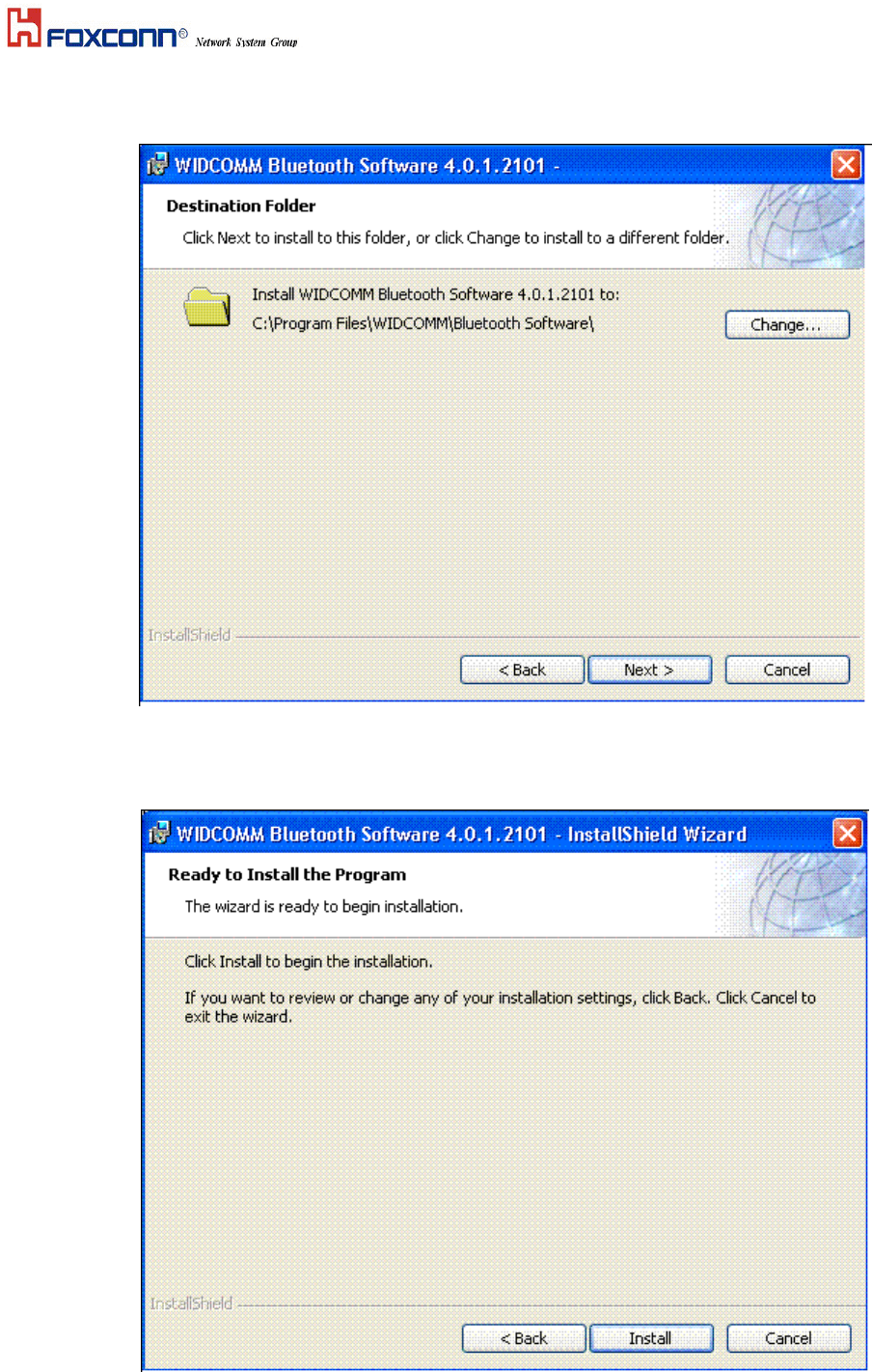

4. Specify the destination folder in your local system, which you want the software install to.
You may use the default folder or click “Change” to install to different folder, then click
“Next”：
5. The dialog “Ready to install the program” shows. Make sure the driver software is ready to
be installed, click “Install”：

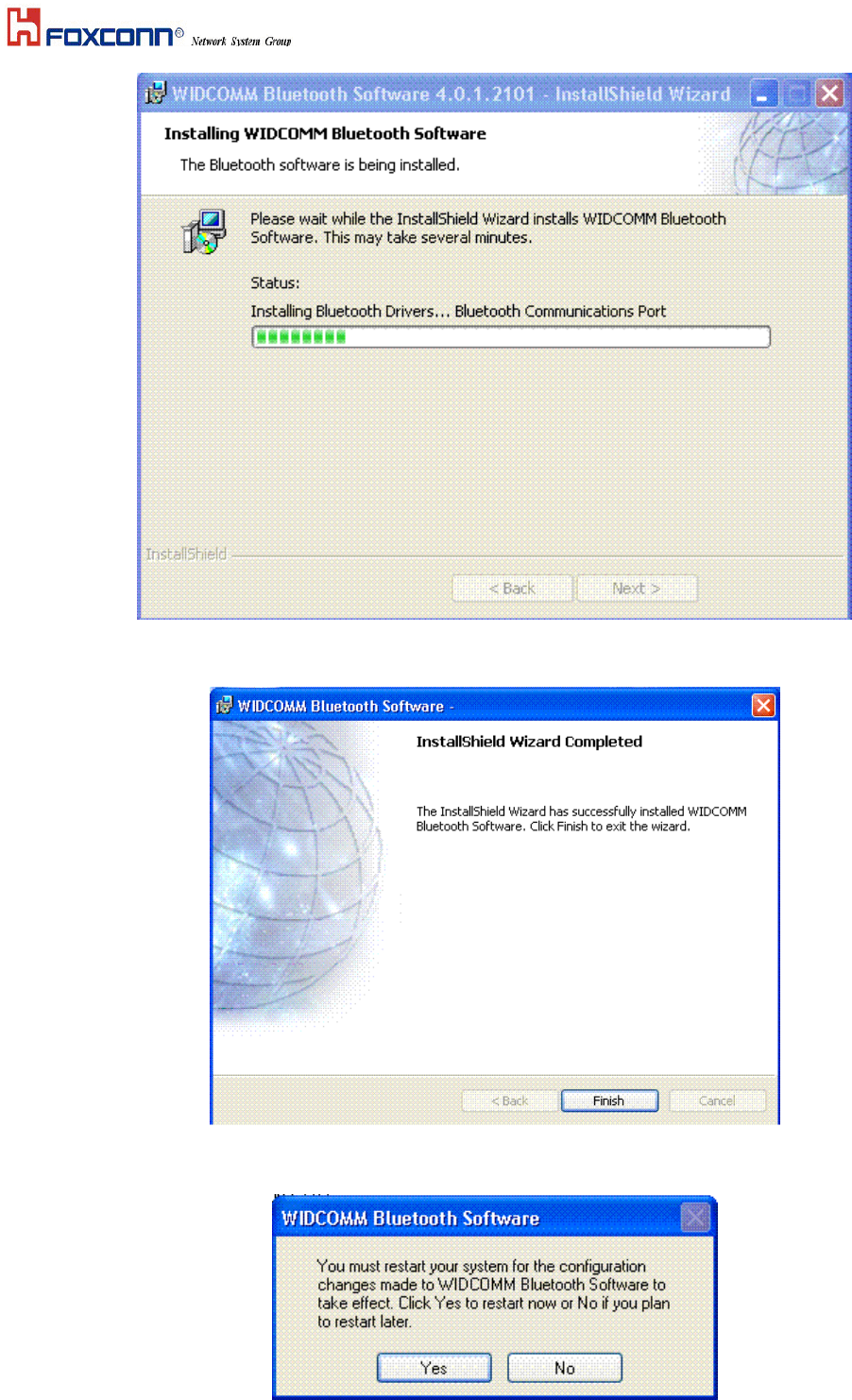

6. Windows shows the dialog as below indicate the driver software in installing：
7. Click “Finish” to exit the setup wizard：
8. Finished the installation, you must restart the system to effect settings, click “Yes”：

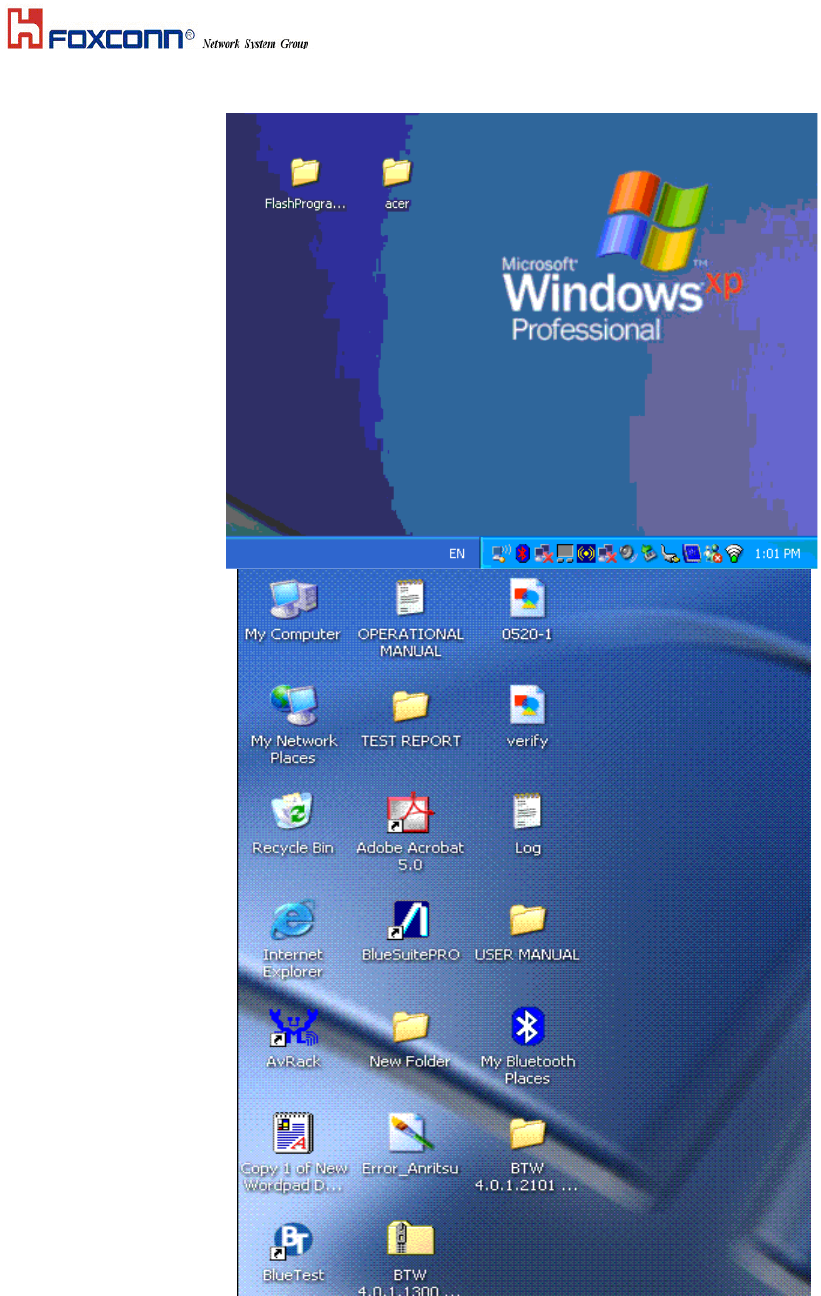

9. After starting the Windows, you may check the Bluetooth Icon has show in your system：

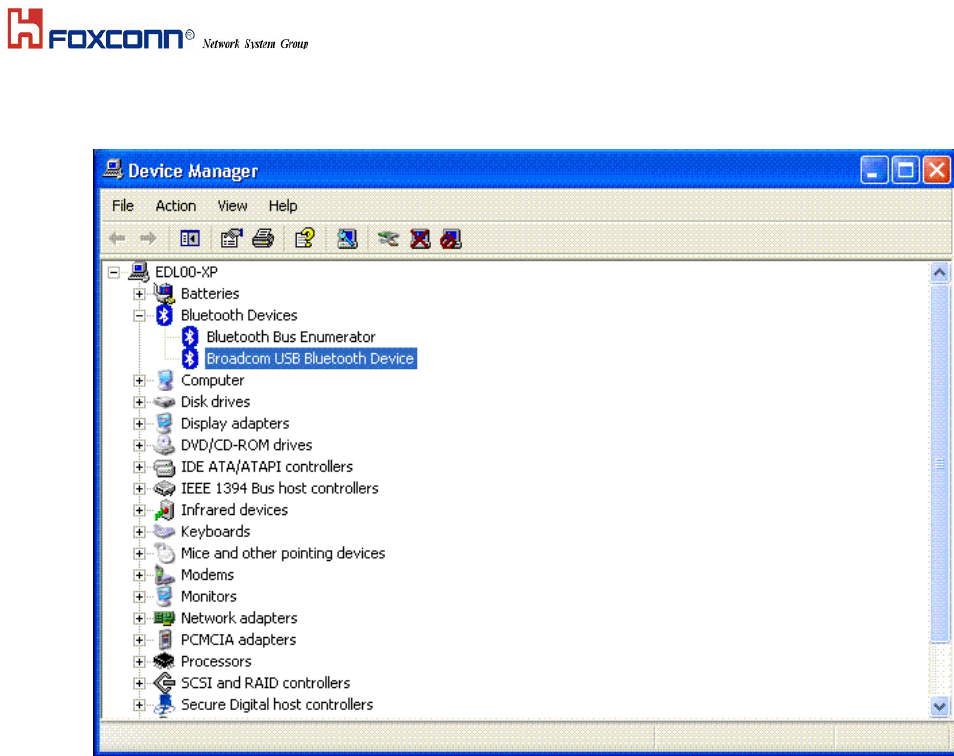

10. you could open the Windows “Device Manage” and check the Bluetooth device is running：
Section Three: FCC Notice
3.1 FCC Compliance
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
HON HAI PRECISION IND. CO., LTD. declared that J07H081 is limited in CH0~78 from 2402 to 2480 MHz by
specified firmware controlled in USA.
This device is intended only for OEM integrators under the following conditions:
The antenna must be installed such that 20 cm is maintained between the antenna and users, and
The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator
is still responsible for testing their end-product for any additional compliance requirements required with this
module installed (for example, digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid
and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC
authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm
may be maintained between the antenna and users. The final end product must be labeled in a visible area with
the following: “Contains TX FCC ID: MCLJ07H081”.
Manual Information That Must be Included
The OEM integrator has to be aware not to provide information to the end user regarding how to install or
remove this RF module in the users manual of the end product which integrate this module.
The users manual for OEM integrators must include the following information in a prominent location
“ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be
co-located or operating in conjunction with any other antenna or transmitter.
Industry Canada Statement
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation of the
device

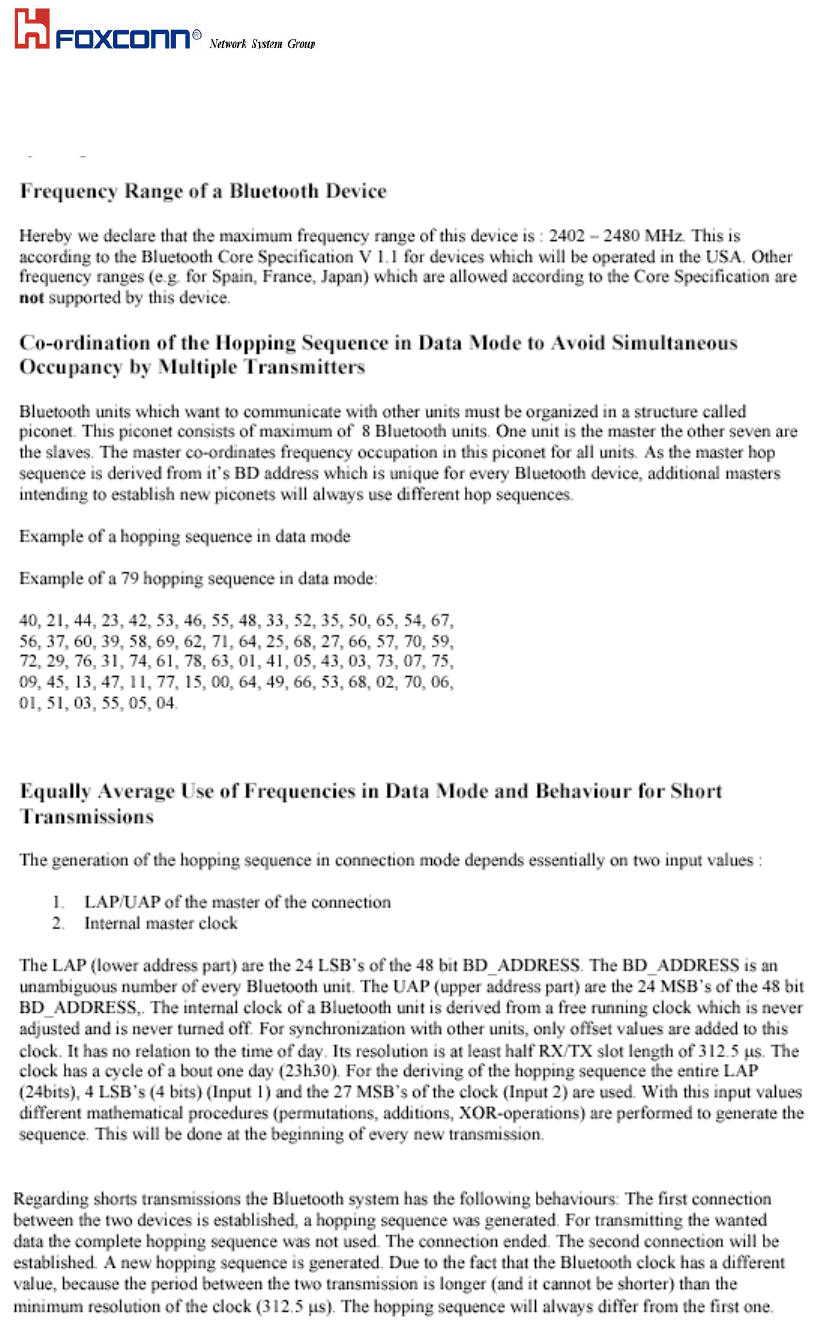

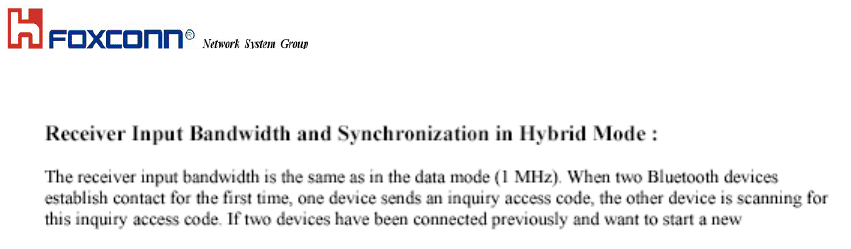

Appendix
