HON HAI PRECISION IND J20H069 Wi-Fi Module User Manual
HON HAI Precision Ind. Co., Ltd. Wi-Fi Module
User Manual
COMPANY CONFIDENTIAL
Part Name Wi-Fi Module
Doc. Rev. 0.0
Foxconn P/N. J20H069
Prepared by Reviewed by Approved by
Fei-shan Feng Opo. Li
User Manual
Wi-Fi Module
HON HAI PRECISION IND. CO., LTD.
5F-1, 5 Hsin -An Rd.
Ambit Microsystems(Shanghai) LTD.
TEL: 86-21-6120-6688
Fax: 86-21-5774-9230
+886-3-577-5100
COMPANY CONFIDENTIAL
Content
1. Introduction ......................................................................................................................................3
1.1 Scope .................................................................................................................................... 3
1.2 Function ............................................................................................................................... 3
2. Product Overview ............................................................................................................................4
2.1 Block Diagram .................................................................................................................... 4
2.2 Interface and Connector .................................................................................................. 5
3. Product Specification .......................................................................................................................6
3.1 RF Specification ................................................................................................................. 6
3.2 Electrical Specification .................................................................................................... 6
3.2.1 Recommended operating rating ............................................................................... 6
3.2.2 DC Characteristics ..................................................................................................... 6
3.2.3 ESD Information ........................................................................................................ 6
3.3 Mechanical Specifications .............................................................................................. 6
COMPANY CONFIDENTIAL
1. Introduction
The J20H069 802.11b/g/n module provides wireless modem functionality utilizing
direct sequence spread spectrum and OFDM/CCK technology. This module is based
on Atheros MCKY AR9374 solution which is integrated 2.4GHz IEEE802.11 b/g/n
(MAC/baseband/radio) and power amplifiers (PA).
1.1 Scope
The wireless LAN is compliant to IEEE 802.11b and IEEE 802.11g and IEEE 802.11n
standard. The data rate of 802.11b is up to 11Mbps and fallback rates of 5.5, 2, 1Mbps.
The data rate of 802.11g is up to 54Mbps and fallback rates of 48,36,24,18,12,9, 6Mbps.
The data rate of 802.11n HT20 with 800ns GI is up to 65Mbps and fallback rates of 58.5,
52, 39, 26, 19.5, 13, 6.5Mbps; the data rate of 802.11n HT20 with 400ns GI is up to
72.2Mbps and fallback rates of 65, 57.8, 43.3, 28.9, 21.7, 14.4, 7.2Mbps. The data rate of
802.11b/g/n is backward compatible.
This is 2T2R MIMO device.
This module is installed as a client device in TV platform.
1.2 Function
¾ IEEE802.11b/g/n (2X2) based on Atheros AR9374 solution
¾ USB 2.0 Interface, High and Full Speeds supported.
¾ Module is powered by the host with a 3.3V +/- 10% supply.
¾ Two PCB printed antennas. (TBD)
¾ Two switch type antenna connector for test
¾ 4 layers through hole PCB design with halogen free FR4 material
COMPANY CONFIDENTIAL
2. Product Overview

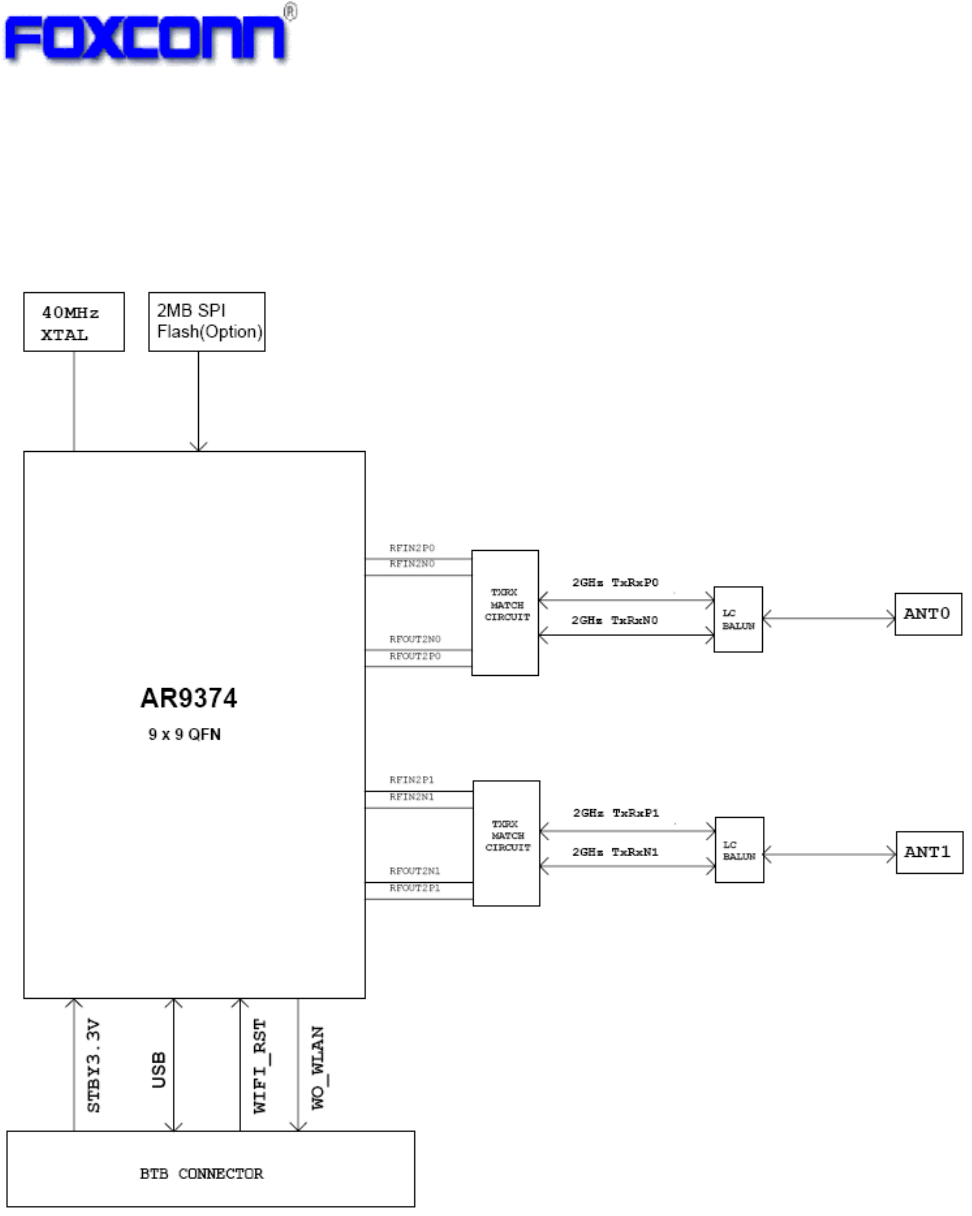

2.1 Block Diagram
The general HW architecture is shown below Figure:
COMPANY CONFIDENTIAL

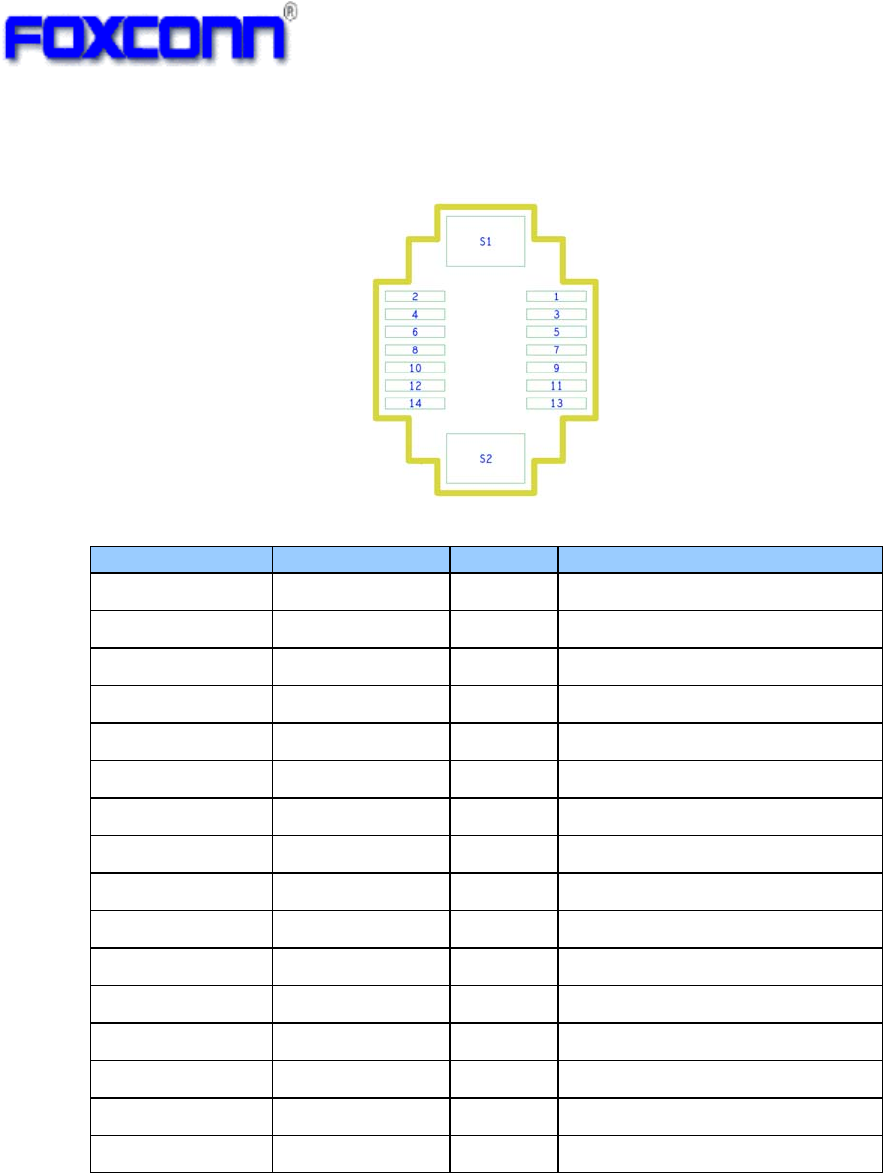

2.2 Interface and Connector
Pin definition:
Pin Number Symbol Name Status Pin definition
1 GND Ground
2 WIFI_RST I/O Reset pin
3 USB_DP I/O USB positive data
4 NC
5 USB_DN I/O USB negative data
6 NC
7 GND Ground
8 WO_WLAN I/O
9 GND Ground
10 STBY3.3V P +3.3 V Power input
11 GND Ground
12 STBY3.3V P +3.3 V Power input
13 GND Ground
14 STBY3.3V P +3.3 V Power input
S1 GND Ground
S2 GND Ground
COMPANY CONFIDENTIAL
3. Product Specification
3.1 RF Specification
IEEE802.11b ( For CE testing , Refer to the CE regulating power table )
802.11b:20dBm
802.11g:24dBm
802.11n:24dBm
3.2 Electrical Specification
3.2.1 Recommended operating rating
Element Symbol Min Typ Max Unit
DC supply voltage UV+ 3.0 3.3
3.6 (V)
3.2.2 DC Characteristics
Symbol Parameter Min Typ Max Unit
STBY3.3V
Supply voltage 3.0 3.3 3.6 (V)
Tx Current(1M/18dBm MIMO) -- 450 540 (mA)
Tx Current(54M/15dBm MIMO) -- 350 420 (mA)
Tx Current(MCS7/14dBm/HT20 MIMO) -- 350 420 (mA)
Rx Current -- 170 200 (mA)
3.2.3 ESD Information
Mode Level Unit
HBM +/-1500 V
MM +/-200 V
3.3 Mechanical Specifications
Dimension (W x L ): 55mmx20mm
PCB: 4 layer HF-FR4 design
COMPANY CONFIDENTIAL
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux
appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions
suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce
dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de
provoquer un fonctionnement indésirable.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour
un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un
minimum de 20 cm de distance entre la source de rayonnement et votre corps.
This device is intended only for OEM integrators under the following conditions:
(For module device use)
1) The antenna must be installed such that 20 cm is maintained between the antenna and
users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed.
Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions
suivantes: (Pour utilisation de dispositif module)
1) L'antenne doit être installée de telle sorte qu'une distance de 20 cm est respectée entre
l'antenne et les utilisateurs, et
2) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne.
Tant que les 2 conditions ci-dessus sont remplies, des essais supplémentaires sur
l'émetteur ne seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours
responsable des essais sur son produit final pour toutes exigences de conformité
supplémentaires requis pour ce module installé.
IMPORTANT NOTE:
COMPANY CONFIDENTIAL
In the event that these conditions can not be met (for example certain laptop configurations
or co-location with another transmitter), then the Canada authorization is no longer
considered valid and the IC ID can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate Canada authorization.
NOTE IMPORTANTE:
Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines
configurations d'ordinateur portable ou de certaines co-localisation avec un autre
émetteur), l'autorisation du Canada n'est plus considéré comme valide et l'ID IC ne peut
pas être utilisé sur le produit final. Dans ces circonstances, l'intégrateur OEM sera chargé
de réévaluer le produit final (y compris l'émetteur) et l'obtention d'une autorisation distincte
au Canada.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The final
end product must be labeled in a visible area with the following: “Contains IC: 2878D-
J20H069”.
Plaque signalétique du produit final
Ce module émetteur est autorisé uniquement pour une utilisation dans un dispositif où
l'antenne peut être installée de telle sorte qu'une distance de 20cm peut être maintenue
entre l'antenne et les utilisateurs. Le produit final doit être étiqueté dans un endroit visible
avec l'inscription suivante: "Contient des IC: 2878D- J20H069".
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module in the user’s manual of the end product which
integrates this module.
The end user manual shall include all required regulatory information/warning as show in
this manual.
Manuel d'information à l'utilisateur final
L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final
quant à la façon d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur
du produit final qui intègre ce module.
Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises
et avertissements comme indiqué dans ce manuel.
COMPANY CONFIDENTIAL
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna
and users, and
2) The transmitter module may not be co-located with any other transmitter or
antenna.
COMPANY CONFIDENTIAL
As long as 2 conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example
certain laptop configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID can not be used on the
final product. In these circumstances, the OEM integrator will be responsible for
reevaluating
the end product (including the transmitter) and obtaining a separate FCC
authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The
final end product must be labeled in a visible area with the following: “Contains FCC
ID: MCLJ20H069”. The grantee's FCC ID can be used only when all FCC compliance
requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the end
product which integrates this module.
The end user manual shall include all required regulatory information/warning as show
in this manual.
CE statement:
Declare under our own responsibility that the product J20H069 to which this declaration
refers conforms with the relevant standards according to the regulation in Article 3.1.a, 3.1.b
and 3.2 of the R&TTE Directive
1999/5/EEC of the European Community
Applied Standards:
- ETSI EN 300 328 V1.7.1
- ETSI EN 301 489-1
COMPANY CONFIDENTIAL
- ETSI EN 301 489-17
- ETSI EN 62479
- IEC/EN 60950-1
National Authorities were informed according to Article 6.4 of Frequency Notification.
Special Requirements are considered. The product is labeled with CE Marking.
Any unauthorized modification of the product voids this declaration.
This product can be used in the following countries
For Taiwan 警語： (電信管制射頻器材使用)
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻
率、加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立
COMPANY CONFIDENTIAL
即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線
電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之
干擾。
Note: 1. 本模組於取得認證後將依規定於模組本體標示審驗合格標籤 2. 系統廠商應於平台上標示「本產品內
含射頻模組: XXXyyyLPDzzzz-x (NCC ID) 」字樣
COMPANY CONFIDENTIAL
