HON HAI PRECISION IND J20H078 802.11bgn wireless module User Manual J20H078 00
HON HAI Precision Ind. Co., Ltd. 802.11bgn wireless module J20H078 00
User Manual.pdf
!
2!
Project Name WiFi module
Approval Sheet Rev. 1.0
Foxconn Part No. J20H078.00
Prepared by Reviewed by Approved by
May Sun Eddie Huang Choro Chuang
Ambit Microsystems (Shanghai) LTD.
No 1925, Nanle Road Songjiang Export
Processing Zone Shanghai, China
Tel :86-21-61206688 Ext:22165
FAX:86-21-57749230
!
User Manual of J20H078
802.11b
g
n wireless module
!
3!
CONTENTS
1
REVISION HISTORY
2
MANUFACTURING INFORMATION
3
PRODUCT OVERVIEW
3.1
A
PPLICATION SCOPE
4
MODULE HARDWARE OVERVIEW
4.1
B
LOCK
D
IAGRAM
4.2
F
EATURES
4.3
I
NTERFACE AND
C
ONNECTOR
5
ELECTRICAL SPECIFICATION
5.1
A
BSOLUTE MAXIMUM RATING
5.2
R
ECOMMENDED OPERATING RATING
5.3
DC
C
HARACTERISTICS
5.4
ESD
I
NFORMATION
5.5
E
NVIRONMENT
S
TORAGE
C
ONDITION
6
RF SPECIFICATION
6.1
IEEE802.11
B
6.2
IEEE802.11
G
6.3
802.11
N
HT20
6.4
A
NTENNA
E
LECTRICAL
S
PECIFICATION
7
MECHANICAL SPECIFICATIONS
7.1
S
HIELDING
C
OVER
D
IMENSION
7.2
PCB
A
SSEMBLY
D
IMENSION
7.3
M
OUNT
P
OSITION OF
M
ATERIALS
!
4!
1 Revision History
!
Date Document revision Change Description
2013/07/09 1.0
Initial release
!
!
5!
2 Manufacturing Information
Manufacture Country:
Made in China
Manufacturer:
Ambit Microsystems (Shanghai) LTD.
Manufacture Address:
No 1925, Nanle Road Songjiang Export Processing Zone Shanghai, China
!
6!
3 Product Overview
The J20H078.00 802.11b/g/n module provides wireless modem functionality utilizing direct
sequence spread spectrum and OFDM/CCK technology. This module is based on MTK
MT7601U solution .It fully complies with IEEE 802.11n and IEEE 802.11 b/g standards,
offering feature-rich wireless connectivity at high standards, and delivering reliable,
cost-effective throughput from an extended distance. Optimized RF architecture and
baseband algorithms provide superb performance and low power consumption. Intelligent
MAC design deploys a high efficient DMA engine and hardware data processing
accelerators which offloads the host processor.
3.1 Application scope
The wireless LAN is compliant to IEEE 802.11b and IEEE 802.11g and IEEE 802.11n
standard. The data rate of 802.11b is up to 11Mbps and fallback rates of 5.5, 2, 1Mbps.
The data rate of 802.11g is up to 54Mbps and fallback rates of 48,36,24,18,12,9, 6Mbps.
The data rate of 802.11n HT20 is up to 65Mbps and fallback rates of 58.5, 52, 39, 26, 19.5,
13, 6.5Mbps;
!
!
72.2Mbps.
!
7!
4 Module Hardware Overview
4.1 Block Diagram
The general HW architecture is shown below Figure:
.
Module Block Diagram
4.2 Features
♦ IEEE802.11b/g/n (1X1) based on MTK MT7601U solution.
♦ USB 2.0 Interface, High and Full Speeds supported.
♦ Module is powered by the host with a 5.0V +/- 5% supply.
♦ External PCB printed antennas.
♦ 2 layers through hole PCB design with halogen free FR4 material
4.3 Interface and Connector

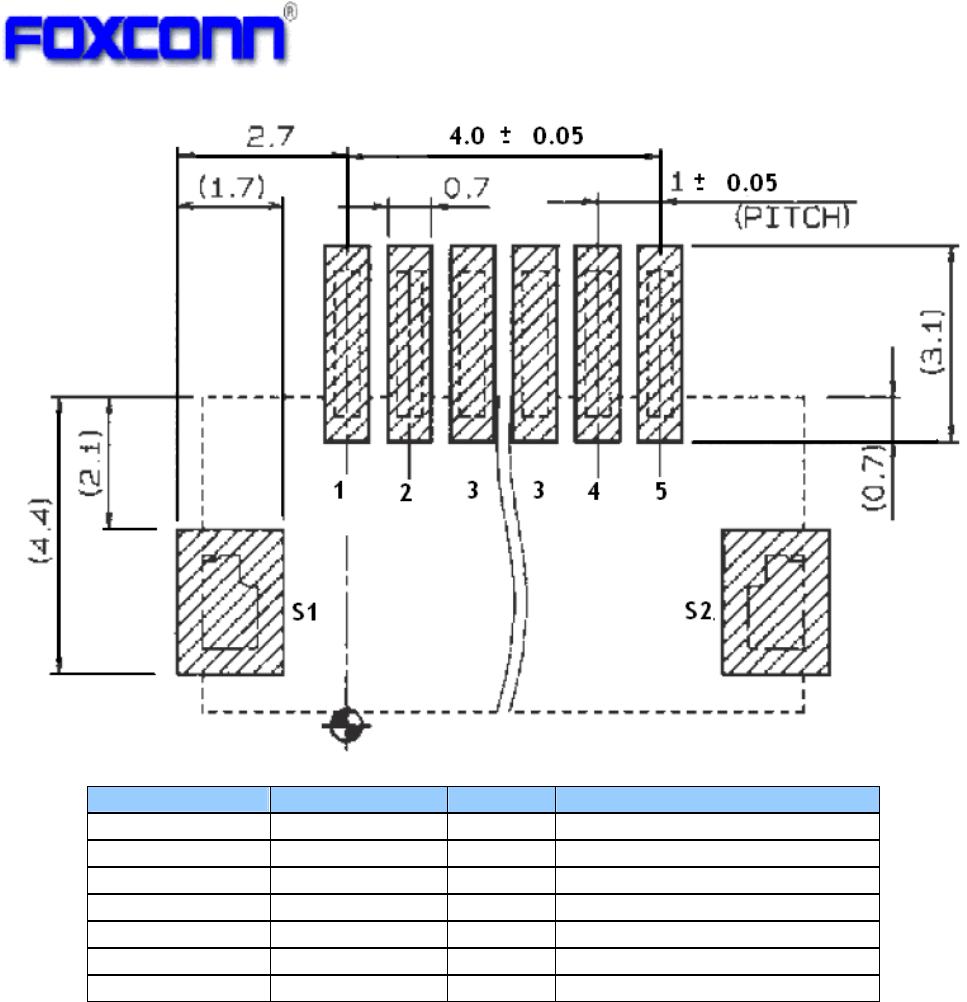

♦ Pin definition:
♦ Vendor: Kyocera Elco
♦ Vendor P/N: 046232105102800+
!
8!
Pin Number Symbol Name Status Pin definition
1 GND Ground
2 DP I/O USB positive data
3 DM I/O USB negative data
4 GND Ground
5 UV+ P USB +5V power input
S1 GND Ground
S2 GND Ground
!
9!
5 Electrical Specification
5.1 Absolute maximum rating
!
Element Symbol Min Typ Max Unit
DC supply voltage UV+ 5.0
6.5 (V)
5.2 Recommended operating rating
!
Element Symbol Min Typ Max Unit
DC supply voltage UV+ 4.5 5.0
5.5 (V)
5.3 DC Characteristics
Symbol Parameter Min Typ. Max Unit
Supply voltage 4.5 5.0 5.5 (V)
Tx Current(1M/15dBm) (mA)
Tx Current(11M/15dBm) 110 140 170 (mA)
Tx Current(6M/15dBm) (mA)
Tx Current(54M/15dBm) (mA)
Tx Current(MCS0/15Bm/HT20) 120 150 180 (mA)
Tx Current(MCS7/15dBm/HT20) 60 90 120 (mA)
Rx Current 10 30 50 (mA)
UV+
!
5.4 ESD Information
Mode Level Unit
HBM 1000 V
!
5.5 Environment Storage Condition
!
!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!
Environment condition
Operating Temperature: -10 deg.C ~70 deg.C
Temperature Storage Temperature: -40 deg.C ~85 deg.C
Operating Humidity: 20% ~90%
Humidity Storage Humidity: 20% ~90%
!
:!
6 RF Specification
6.1 IEEE802.11b
Items Contents
Specification IEEE802.11b
Mode DSSS / CCK
Channel CH1 to CH13
Data rate 1, 2, 5.5, 11Mbps
TX Characteristics Min. Typ. Max. Unit
1. Power Levels (Calibrated)
1) Target Power@1Mbps 13.5 15 16.5
dBm
2) Target Power@2Mbps
13.5 15 16.5
dBm
3) Target Power@5.5Mbps
13.5 15 16.5
dBm
4) Target Power@11Mbps
13.5 15 16.5
dBm
2. Spectrum Mask @15dBm
1) fc-33MHz f fc-22MHz - - -50 dBr
2) fc-22MHz f fc-11MHz - - -30 dBr
3) fc+11MHz f fc+22MHz - - -30 dBr
4) fc+22MHz f fc+33MHz - - -50 dBr
3. Frequency Error -10 - +10 ppm
4 Modulation Accuracy(EVM)@15dBm
1) 1Mbps - -10 dB
2) 2Mbps - -10 dB
3) 5.5Mbps - -10 dB
4) 11Mbps - -10 dB
RX Characteristics Min. Typ. Max. Unit
5 Minimum Input Level Sensitivity
1) 1Mbps (FER 8%) - -91 - dBm
2) 2Mbps (FER 8%) - -89 - dBm
3) 5.5Mbps (FER 8%) - -87 - dBm
4) 11Mbps (FER 8%) - -85 - dBm
6 Maximum Input Level (FER 8%) -10 -5 - dBm
!
21!
6.2 IEEE802.11g
Items Contents
Specification IEEE802.11g
Mode OFDM
Channel CH1 to CH13
Data rate 6, 9, 12, 18, 24, 36, 48, 54Mbps
TX Characteristics Min. Typ. Max. Unit
1. Power Levels (Calibrated)
1) Target Power@6Mbps
13.5 15 16.5 dBm
2) Target Power@9Mbps
13.5 15 16.5 dBm
3) Target Power@12Mbps
13.5 15 16.5 dBm
4) Target Power@18Mbps
13.5 15 16.5 dBm
5) Target Power@24Mbps
13.5 15 16.5 dBm
6) Target Power@36Mbps
13.5 15 16.5 dBm
7) Target Power@48Mbps
13.5 15 16.5 dBm
8) Target Power@54Mbps
13.5 15 16.5 dBm
2. Spectrum Mask @15dBm
1) at fc +/- 11MHz - - -20 dBr
2) at fc +/- 20MHz - - -28 dBr
3) at fc > +/-30MHz - - -40 dBr
3 Modulation Accuracy(EVM)@15dBm
1) 6Mbps - - -5 dB
2) 9Mbps - - -8 dB
3) 12Mbps - - -10 dB
4) 18Mbps - - -13 dB
5) 24Mbps - - -16 dB
6) 36Mbps - - -19 dB
7) 48Mbps - - -22 dB
8) 54Mbps - -28 -25 dB
4 Frequency Error -10 - +10 ppm
RX Characteristics Min. Typ. Max. Unit
5 Minimum Input Level Sensitivity
1) 6Mbps (PER <10%) - -83 - dBm
2) 9Mbps (PER < 10%) - -81 - dBm
3) 12Mbps (PER < 10%) - -79 - dBm
4) 18Mbps (PER < 10%) - -77 - dBm
5) 24Mbps (PER < 10%) - -75 - dBm
6) 36Mbps (PER < 10%) - -73 - dBm
7) 48Mbps (PER < 10%) - -71 - dBm
8) 54Mbps (PER < 10%) - -69 - dBm
6 Maximum Input Level (PER < 10%) -20 -11 - dBm
!
!
22!
6.3 802.11n HT20
6.4 Antenna Electrical Specification
!
Parameter Value Units
Operating frequency range 2.4 ~ 2.4835 GHz
0.59 dBi (Main)
Antenna gain (max) -0.08 dBi (Aux)
Items Contents
Specification IEEE802.11n HT20
Mode OFDM
Channel CH1 to CH10
Data rate (MCS index) MCS0/1/2/3/4/5/6/7
TX Characteristics Min. Typ. Max. Unit
1. Power Levels (Calibrated)
1) Target Power@MCS0
13.5 15 16.5 dBm
2) Target Power@ MCS1
13.5 15 16.5 dBm
3) Target Power@ MCS2
13.5 15 16.5 dBm
4) Target Power@ MCS3
13.5 15 16.5 dBm
5) Target Power@ MCS4
13.5 15 16.5 dBm
6) Target Power@ MCS5
13.5 15 16.5 dBm
7) Target Power@ MCS6
13.5 15 16.5 dBm
8) Target Power@ MCS7
13.5 15 16.5 dBm
2. Spectrum Mask @15dBm
1) at fc +/- 11MHz - - -20 dBr
2) at fc +/- 20MHz - - -28 dBr
3) at fc > +/-30MHz - - -45 dBr
3. Modulation Accuracy(EVM)@15dBm
1) MCS0 - - -5 dB
2) MCS1 - - -10 dB
3) MCS2 - - -13 dB
4) MCS3 - - -16 dB
5) MCS4 - - -19 dB
6) MCS5 - - -22 dB
7) MCS6 - - -25 dB
8) MCS7 - - -28 dB
4. Frequency Error -10 - +10 ppm
RX Characteristics Min. Typ. Max. Unit
5. Minimum Input Level Sensitivity
1) MCS0 (PER < 10%) - -81 - dBm
2) MCS1 (PER < 10%) - -79 - dBm
3) MCS2 (PER < 10%) - -77 - dBm
4) MCS3 (PER < 10%) - -75 - dBm
5) MCS4 (PER < 10%) - -73 - dBm
6) MCS5 (PER < 10%) - -71 - dBm
7) MCS6 (PER < 10%) - -69 - dBm
8) MCS7 (PER < 10%) - -67 - dBm
6. Maximum Input Level (PER < 10%) -20 -10 - dBm
!
23!
7 Mechanical Specifications

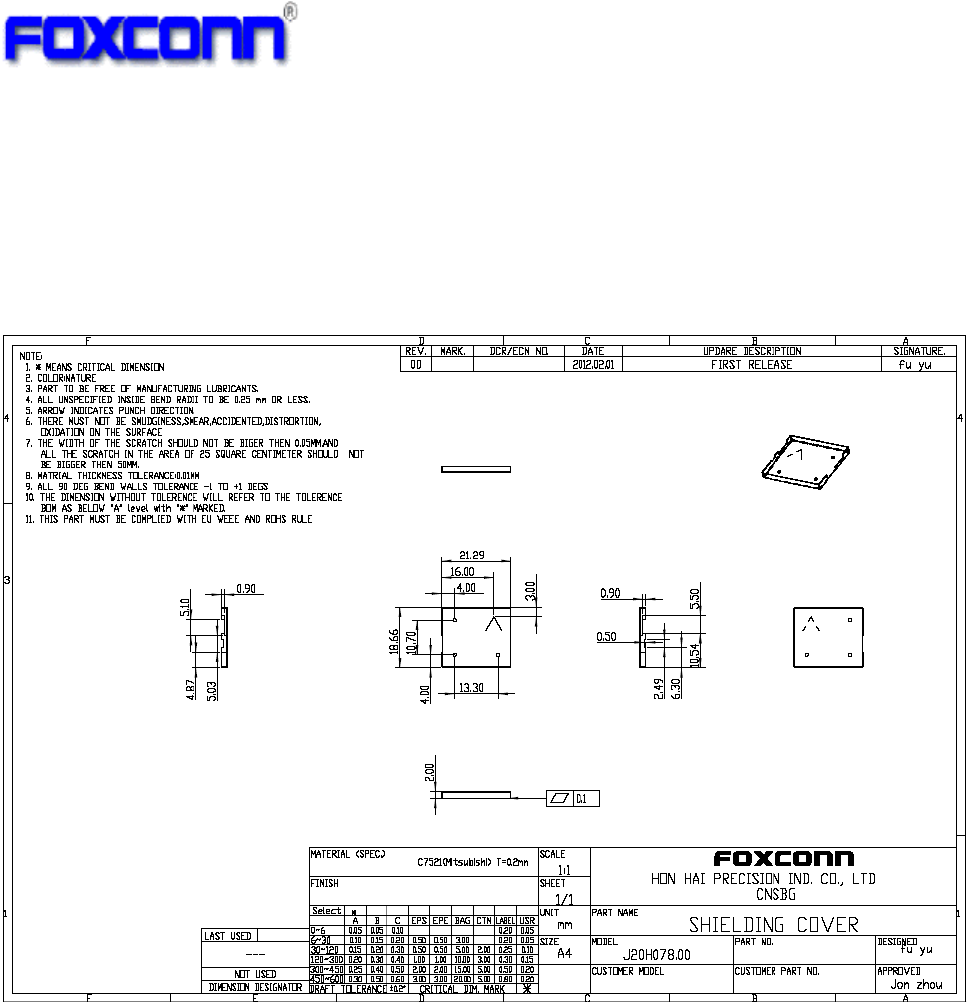

7.1 Shielding Cover Dimension
Dimension (LxWxH): 21.29mm x 18.66mm x 2.0mm
Thickness: 0.2mm
!
!
!
!
!
!
!
!
!
!
24!

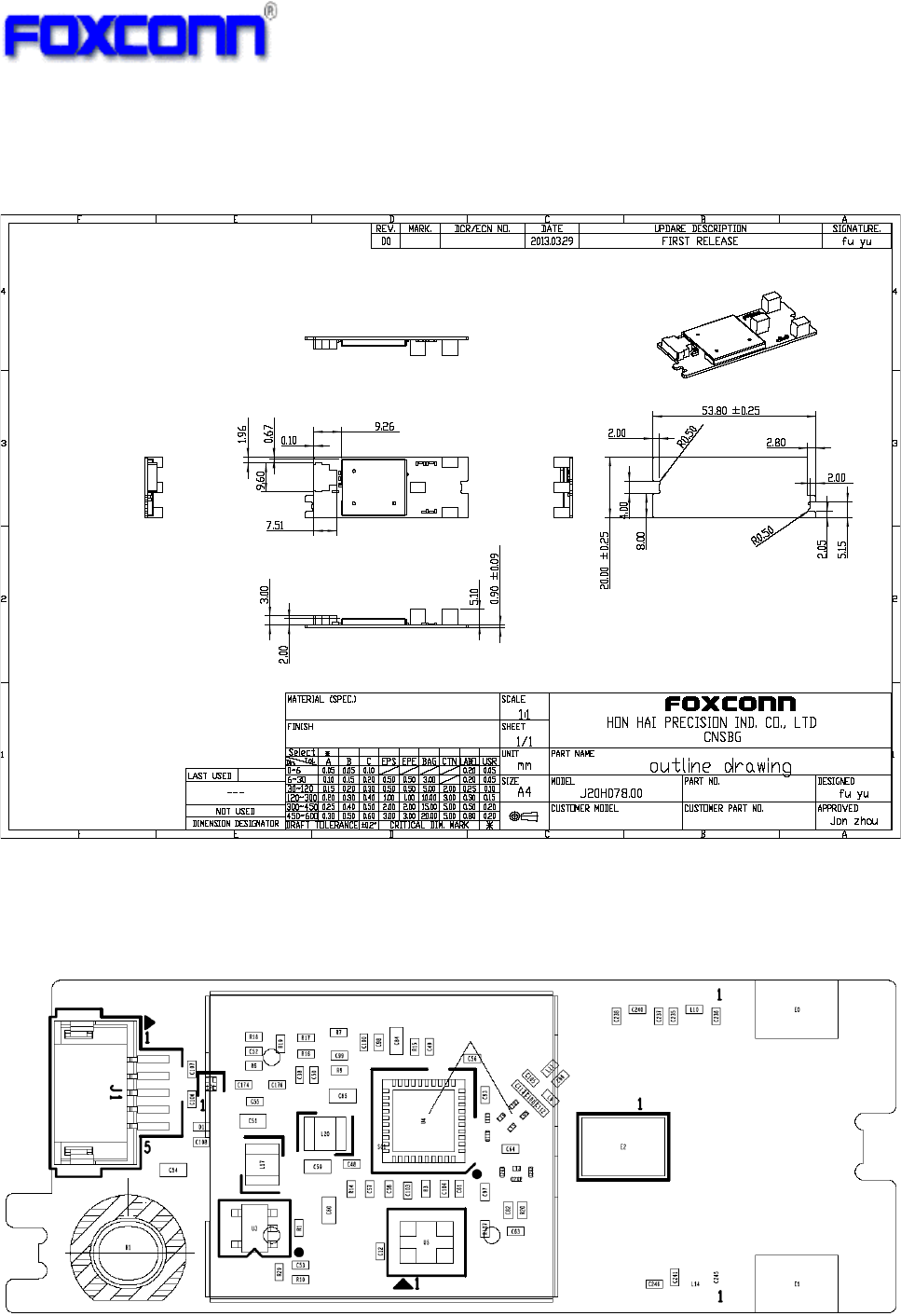

7.2 PCB Assembly Dimension
Dimension (W x Lx H ): 51.8mmx20mmx0.9mm
PCB: 2 layer HF-FR4 design
7.3 Mount Position of Materials
All materials should be populated on a side.
Component Placement On Top Layer
!
25!
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux
appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions
suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce
dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de
provoquer un fonctionnement indésirable.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour
un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un
minimum de 20 cm de distance entre la source de rayonnement et votre corps.
This device is intended only for OEM integrators under the following conditions:
(For module device use)
1) The antenna must be installed such that 20 cm is maintained between the antenna and
users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed.
Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions
suivantes: (Pour utilisation de dispositif module)
1) L'antenne doit être installée de telle sorte qu'une distance de 20 cm est respectée entre
l'antenne et les utilisateurs, et
2) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne.
Tant que les 2 conditions ci-dessus sont remplies, des essais supplémentaires sur
l'émetteur ne seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours
responsable des essais sur son produit final pour toutes exigences de conformité
supplémentaires requis pour ce module installé.
IMPORTANT NOTE:
In the event that these conditions can not be met (for example certain laptop configurations
or co-location with another transmitter), then the Canada authorization is no longer
considered valid and the IC ID can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate Canada authorization.
NOTE IMPORTANTE:
Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines
configurations d'ordinateur portable ou de certaines co-localisation avec un autre
émetteur), l'autorisation du Canada n'est plus considéré comme valide et l'ID IC ne peut
pas être utilisé sur le produit final. Dans ces circonstances, l'intégrateur OEM sera chargé
de réévaluer le produit final (y compris l'émetteur) et l'obtention d'une autorisation distincte
au Canada.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The final
!
26!
end product must be labeled in a visible area with the following: “Contains IC:
2878DJ20H064”.
Plaque signalétique du produit final
Ce module émetteur est autorisé uniquement pour une utilisation dans un dispositif où
l'antenne peut être installée de telle sorte qu'une distance de 20cm peut être maintenue
entre l'antenne et les utilisateurs. Le produit final doit être étiqueté dans un endroit visible
avec l'inscription suivante: "Contient des IC: 2878D- J20H064".
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module in the user’s manual of the end product which
integrates this module.
The end user manual shall include all required regulatory information/warning as show in
this manual.
Manuel d'information à l'utilisateur final
L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final
quant à la façon d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur
du produit final qui intègre ce module.
Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises
et avertissements comme indiqué dans ce manuel.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna
2878D-J20H078
2878D-J20H078
!
27!
and users, and 2) The transmitter module may not be co-located with any other transmitter
or antenna.
As long as 2 conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example
certain laptop configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID can not be used on the
final product. In these circumstances, the OEM integrator will be responsible for
reevaluating
the end product (including the transmitter) and obtaining a separate FCC
authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The
final end product must be labeled in a visible area with the following: “Contains FCC
ID: MCLJ20H064”. The grantee's FCC ID can be used only when all FCC compliance
requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the end
product which integrates this module.
The end user manual shall include all required regulatory information/warning as show
in this manual.
For Taiwan ᤞΚ!(ሽॾጥࠫ୴᙮ᕴޗࠌش)
ᆖীڤᎁᢞٽհ܅פ୴᙮ሽᖲΔॺᆖױΔֆΕᇆࢨࠌشृ݁լᖐ۞᧢ޓ᙮!
ΕףՕפࢨ᧢ޓૠհࢤ֗פ౨Ζ!
܅פ୴᙮ሽᖲհࠌشլᐙଆڜ٤֗եឫٽऄຏॾΙᆖ࿇ڶեឫွழΔᚨم!
ܛೖشΔࠀޏ۟ྤեឫழֱᤉᥛࠌشΖছႈٽऄຏॾΔਐࠉሽॾऄࡳ܂ᄐհྤᒵ!
ሽຏॾΖ܅פ୴᙮ሽᖲႊݴ࠹ٽऄຏॾࢨՠᄐΕઝᖂ֗᠔᛭شሽंᘿ୴ࢤሽᖲໂհ!
եឫΖ!
Note: 1. ءᑓิ࣍࠷ᎁᢞ৵ലࠉࡳ࣍ᑓิء᧯ᑑقᐉ᧭ٽᑑ᧘!2. ߓอᐗᚨ࣍ؓ!
Ղᑑقψءขփܶ୴᙮ᑓิ: XXXyyyLPDzzzz-x (NCC ID) ωڗᑌ!
!
!
!"
#$
%&'((%$)(('*+$)((*+$)((*+)$)(
,#-!#
%&').$)((/
+0!1(
23%.((4235
1-').$)((61755
&.((.)/8 6 $)(('
%!"#71759:"#9
!);<423-,7"!923&!
. )
&.(</%8 / $)((/
!"#,717597!"#175
9=$
MCLJ20H078

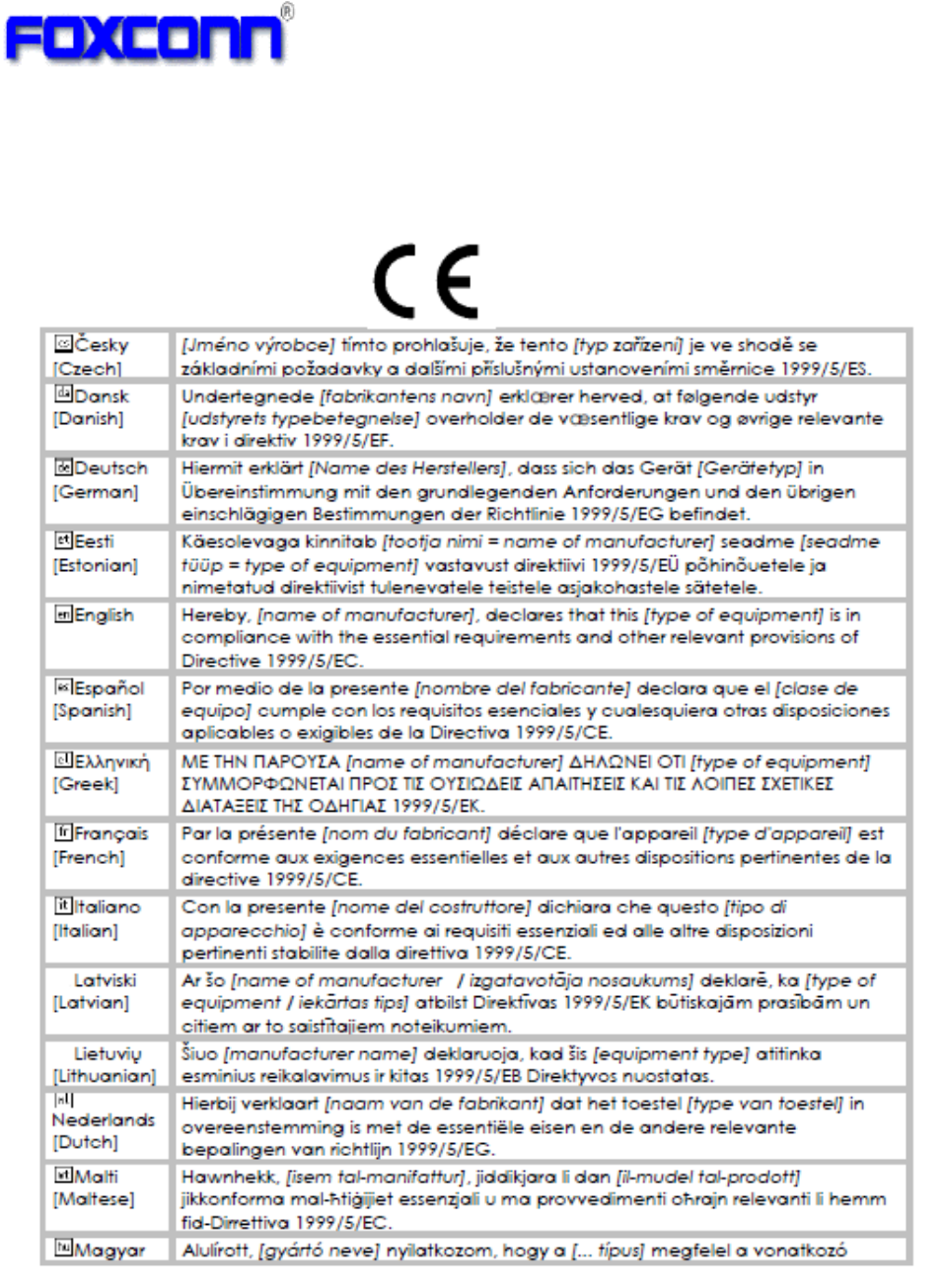

Europe - EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The
following test methods have been applied in order to prove presumption of conformity with the
essential requirements of the R&TTE Directive 1999/5/EC:
EN 60950-1: 2006+A11:2009+A1:2010+A12:2011
EN 50364:2010
EN300 330-2 V1.5.1(2010-02); EN300 330-1 V1.7.1(2010-02)
EN 301 489-1 V1.9.2 (2011-09)
EN 301 489-17 V2.2.1 (2012-09)
!
28!
&.(</%68) )((
!"#717597!"#175
9=6$,);<423"#423!
>+&
&+!+' <?#&
, "7@!
National Authorities were informed according to Article 6.4 of Frequency Notification.
Special Requirements are considered. The product is labeled with CE Marking.
