HON HAI PRECISION IND J27H003 Wireless Module User Manual InsideLine Device Driver Internal Design
HON HAI Precision Ind. Co., Ltd. Wireless Module InsideLine Device Driver Internal Design
User Manual
BCM94318SDIO driver install on Windows XP
How to Install BCM94318 SDIO Driver
with Arasan Adapter Card on Windows
XP
Revision 1.0
Date: December 9, 2005
Page 1
Broadcom Confidential and Proprietary
BCM94318SDIO driver install on Windows XP
Copyright © 2005 Broadcom Corporation
All Rights Reserved
No part of this document may be reproduced, in any form or by any means, without permission in
writing from Broadcom Corporation.
Broadcom Corporation reserves the right to make changes to the products or information contained
in this document without notice. No liability is assumed as a result of their use or application. No
rights under any patent accompany the sale of any such products or information.
Epigram, InsideLine, and iLine10 are trademarks of Broadcom Corporation.
Broadcom Corporation
190 Mathilda Place
Sunnyvale CA 94086
www.broadcom.com
Page 2
Broadcom Confidential and Proprietary
BCM94318SDIO driver install on Windows XP
Contents
1. INSTALL ARASAN STARDARD SD HOST PCI BOARD ...........................................................4
2. INSTALL WIRELESS DEVICE DRIVER ........................................................................................5
Page 3
Broadcom Confidential and Proprietary
BCM94318SDIO driver install on Windows XP
1. Install Arasan Standard SD Host PCI Board
1.1 Shutdown the computer and plug in the Arasan Standard SD Host PCI card on PCI
slot and reboot the PC.
1.2 Uninstall Microsoft SDIO drivers. We will be using our own instead of Microsoft’s
o Device Manager -> Find entry for Secure Digital IO Bus (or winPCI)-
>Right click-> Uninstall
1.3 Uninstall BRCM wl driver. Get rid of any previous BRCM wireless driver.
o Device manager - >Networks -> Broadcom driver->Right click/uninstall
1.4 Edit c:\windows\inf\sdbus.inf:
o Search for the section '[Generic]'. Comment out these lines by inserting a
semicolon ';' in the first column, like so:
[Generic]
;PCI\CC_080500.DeviceDesc%=SDHost,PCI\CC_080500
;PCI\CC_080501.DeviceDesc%=SDHost,PCI\CC_080501
Also comment out these lines:
;PCI\CC_080500.DeviceDesc="SDA Standard Compliant SD Host
Controller"
;PCI\CC_080501.DeviceDesc="SDA Standard Compliant SD Host
Controller"
1.5 Rename sdbus.PNF to sdbus_old.PNF
1.6 Edit c:\windows\inf\usb.inf.
o Search for any line containing '1095' (which is the Arasan/CMD Vendor
ID). Comment out these lines by inserting a ';' in the first column.
1.7 Rename usb.PNF to usb_old.PNF
1.8 Reboot the PC
1.9 Note: The system must have a Windows XP and SP2 pre-installed.
Page 4
Broadcom Confidential and Proprietary
BCM94318SDIO driver install on Windows XP
2. Install Wireless Device Driver

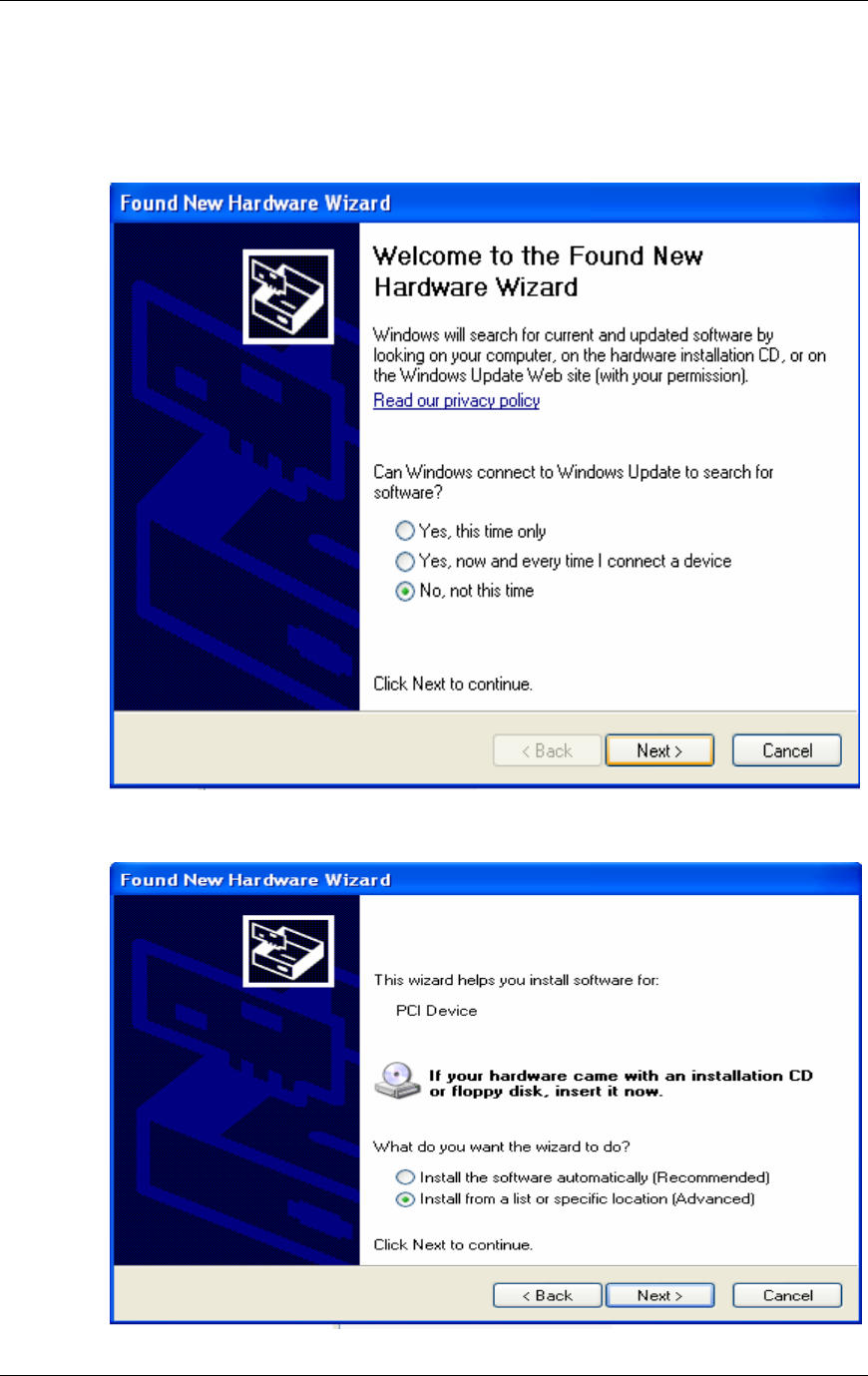

2.1 Finding new wireless device. Do not use Windows update for searching software.
2.2 Install from a list of locations.
Page 5
Broadcom Confidential and Proprietary
BCM94318SDIO driver install on Windows XP

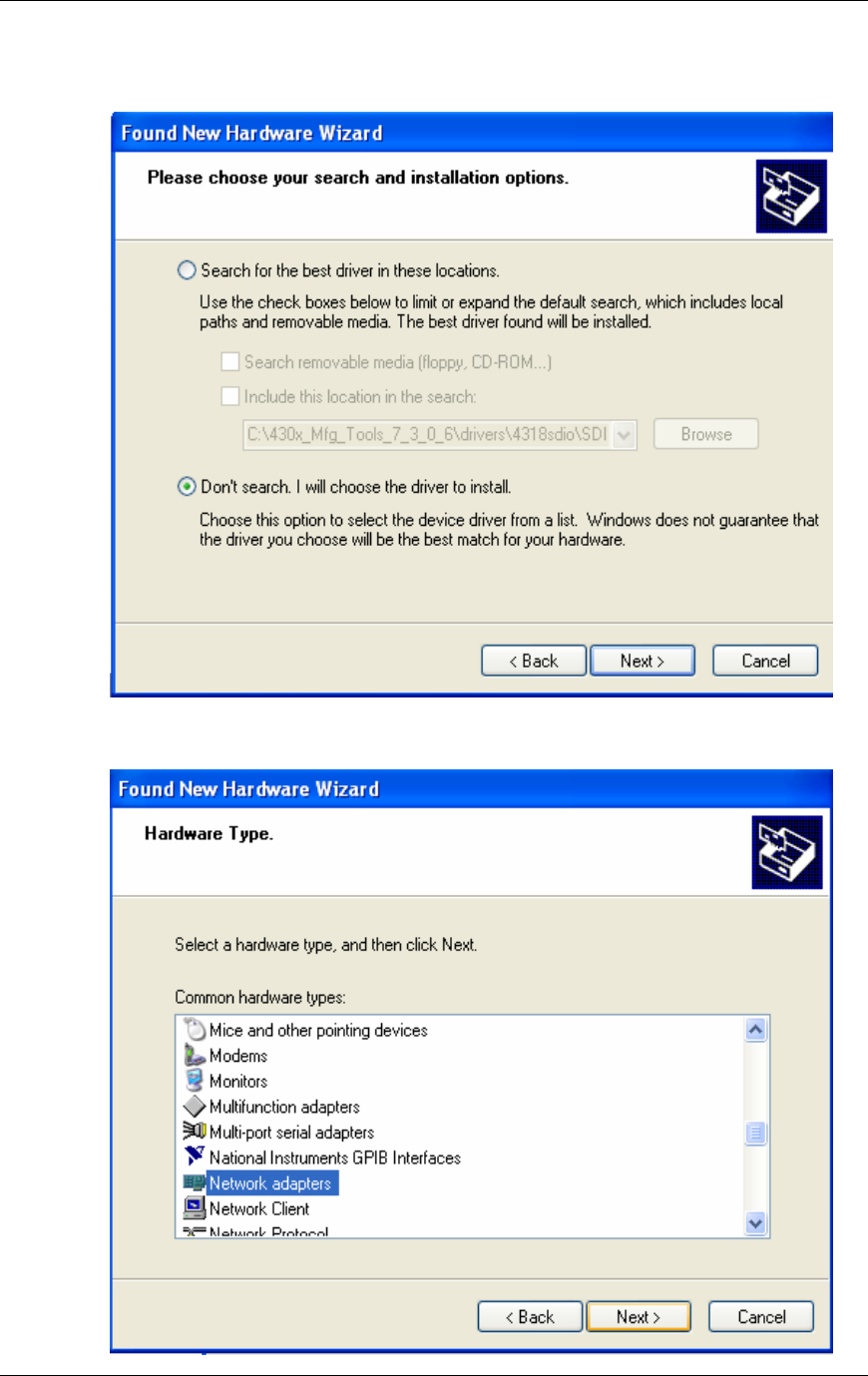

2.3 Choose the driver to install
2.4 Select Hardware Type as Network Device and clink on Next
Page 6
Broadcom Confidential and Proprietary
BCM94318SDIO driver install on Windows XP

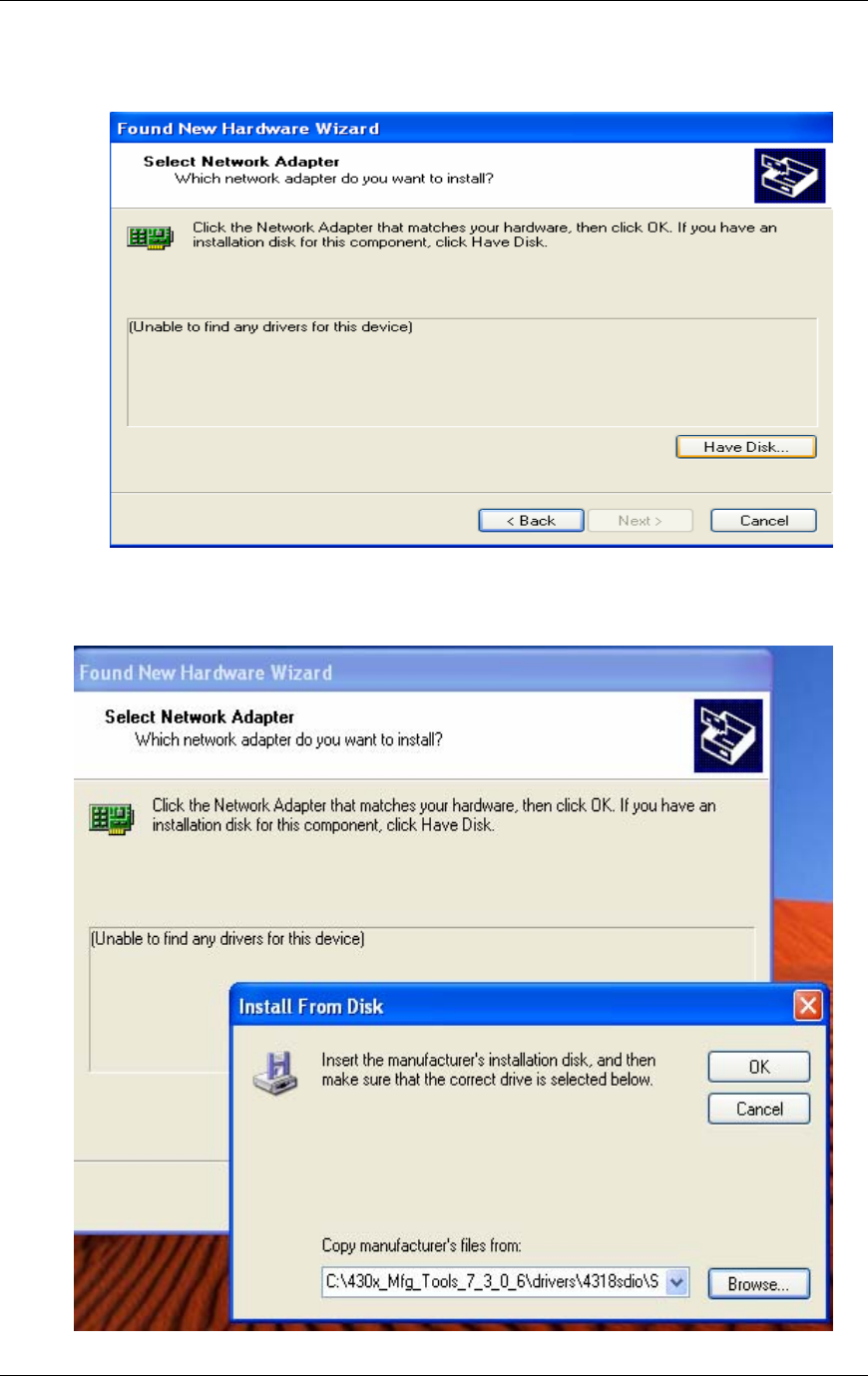

2.5 Click on “Have Disk”
2.6 Browse to the driver directory
Page 7
Broadcom Confidential and Proprietary
BCM94318SDIO driver install on Windows XP

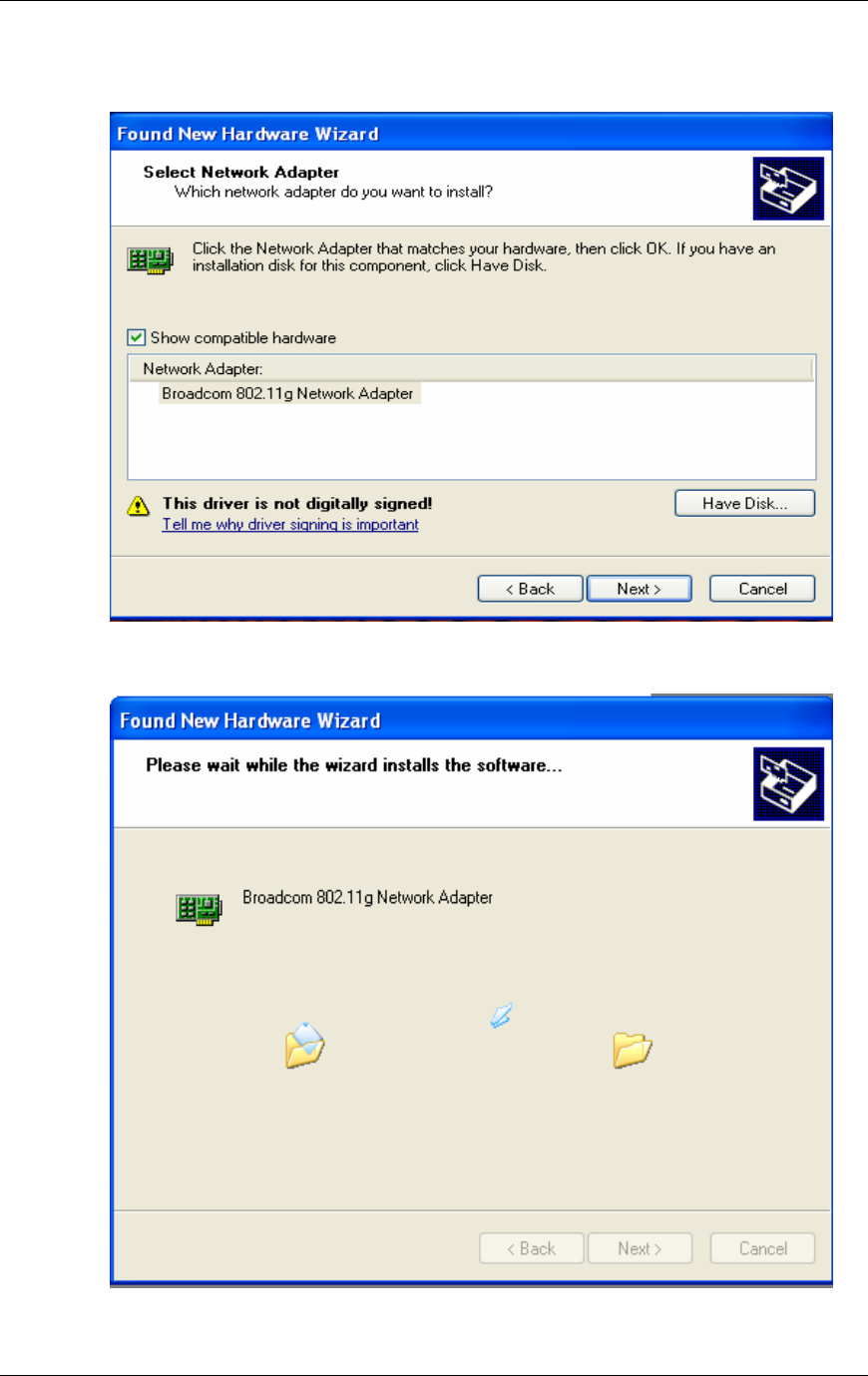

2.7 Select “Broadcom 802.11g Network Adapter Card”
2.8 Waiting while install software

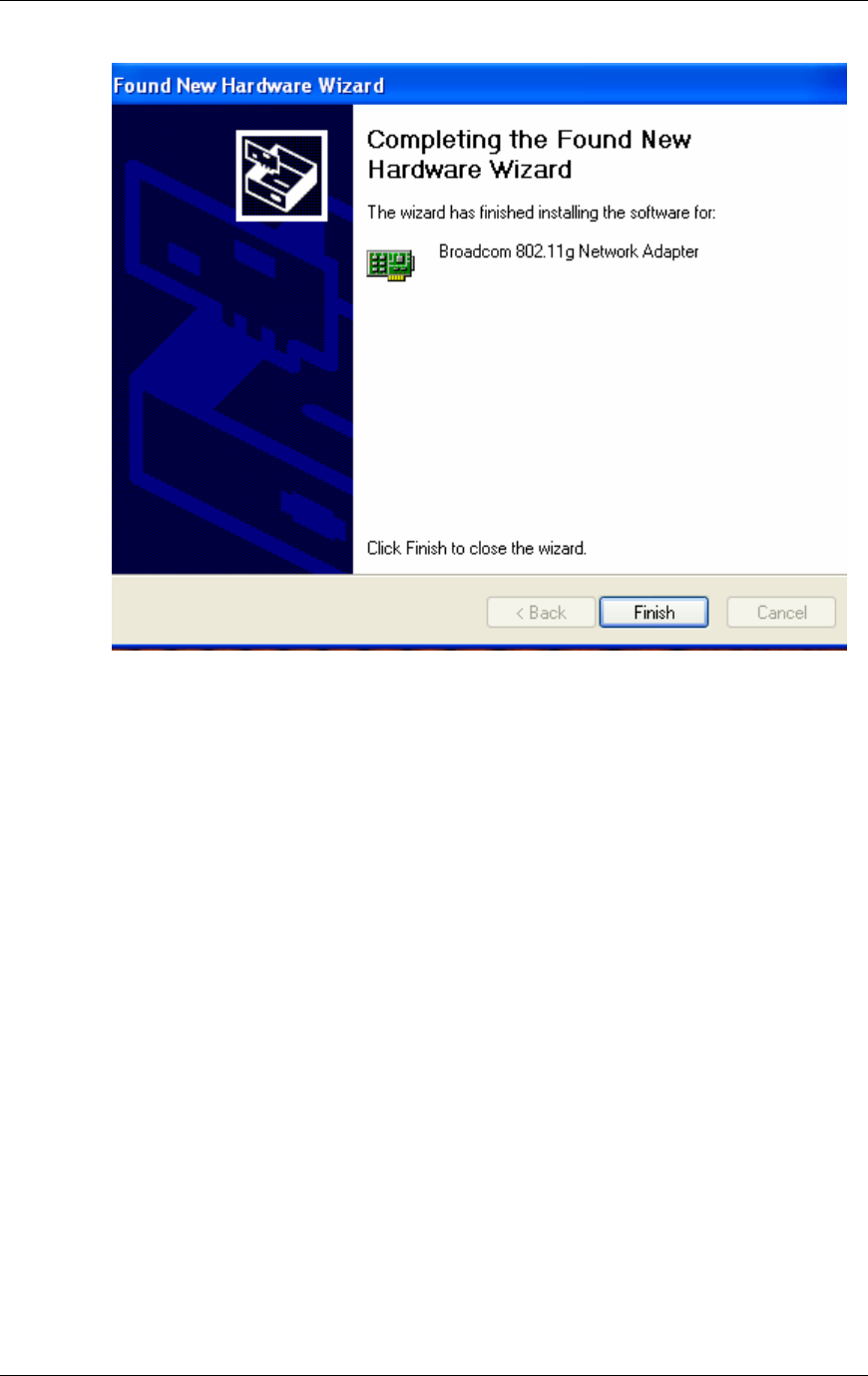

2.9 Click on “finish” to complete installation
Page 8
Broadcom Confidential and Proprietary
Page 9
Broadcom Confidential and Proprietary
低功率電波幅性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功
率或變更原設計之特性及功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並
改善至無干擾時方得繼續使用。
前項合法通信，指依電信規定作業之無線電信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性
電機設備之干擾。
“Operation is subject to the following two conditions:(1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.” This Class B digital apparatus complies with Canada RSS-210. Cet
appareil numerique de la classe B est conforme a la norme CNR -210 du Canada The abbreviation,
IC, before the registration number signifies that registration was performed based on a Declaration
of Conformity indicating that Industry Canada technical specifications were met. It does not imply
that Industry Canada approved the equipment.(DoC) The term “IC:” before the
certification/registration number only signifies that the Industry Canada technical specifications
were met.
BCM94318SDIO driver install on Windows XP
This device is intended only for OEM integrators under the following conditions:
The antenna must be installed such that 20 cm is maintained between the antenna and
users. As long as conditions above is met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed (for example,
digital device emissions, PC peripheral requirements, etc.).
This device is intended only form OEM integrators under the following conditions:
1) The antenna must be installed such that 20cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations
or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID
can not be used on the final product. In these circumstances, the OEM integrator will be responsible for
re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in devices where the antenna may be installed such that 20 cm
may be maintained between the antenna and users. The final end product must be labeled in visible area with the
following: "Contains TX FCC ID: MCLJ27H003 manual information that Must be include."
Page 10
Broadcom Confidential and Proprietary
BCM94318SDIO driver install on Windows XP
End Product Manual Information
The user manual for end users must include the following information in a prominent location "IMPORTANT NOTE":
To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed
to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.
Page 10
Broadcom Confidential and Proprietary
BCM94318SDIO driver install on Windows XP
如使用本模組之平台,無法在外部看見審驗合格標籤時，
應再該平台的外部明顯處標示內含射頻模組 CCXXxxYYyyyZzW
