HON HAI PRECISION IND J27H010 Wireless Module User Manual We

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE

WLAN MODULE

J27H010

Foxconn

USER’S MANUAL

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE

Contents

SECTION ONE: INTRODUCTION..........................................................................................................3

1.1 WLAN FEATURES .........................................................................................................................................................3

1.2 FCC NOTICE .................................................................................................................................................................4

1.3 CANADA NOTICE ............................................................................................................................................................5

SECTION TWO: WIRELESS UTILITY AND CONFIGURATION.................................7

2-1 WINDOWS 98/ME/2000 WIRELESS UTILITY ................................................................................................................7

SECTION THREE: WINDOWS XP WIRELESS UTILITY AND

CONFIGURATION.................................................................................................................................................12

3-1 WINDOWS XP WIRELESS UTILITY...............................................................................................................................12

APPENDIX A GLOSSARY...............................................................................................................................................17

The information contained in this manual has been verified at the time of this manual printing. The manufacturer reserves

the right to make any changes and improvements in the product described in this manual at any time and without notice.

All registered trademarks are the property of their respective owners.

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE

Section One: Introduction

This WLAN USB Module is in compliance with IEEE 802.11b and IEEE 802.11g Standards. The data rate of

802.11g is capable of up to 54 Mbps with fallback rates of 48, 36, 24, 18, 12, 9 and 6 Mbps. The data rate of

802.11b is capable of up to 11 Mbps with fallback rates of 5.5, 2 and 1 Mbps.

1.1 WLAN Features

Form Factor & Bus Interface Form Factor: Non-standard, Interface: USB 2.0.

Wireless LAN Compliance Compatible with IEEE 802.11b and IEEE802.11g standard

and USB2.0 Specification.

Operating Frequency 2400 ~ 2483.5 MHz ISM band

Modulation Schemes 802.11g: OFDM, DQPSK, DBPSK and CCK

802.11b: DQPSK, DBPSK and CCK

Channel Numbers IEEE 802.11b compliant

1 ~ 11 channels for United States

1 ~ 13 channels for Europe

1 ~ 13 or 14 channels for Japan

WLAN Data Rate 802.11g: Up to 54 Mbps with auto fallback to 48, 36, 24, 18, 12,

9 and 6 Mbps.

802.11b: Up to 11 Mbps with auto fallback to 5.5, 2 and 1Mbps.

Media Access Protocol CSMA/CA with ACK

Antenna Type Integrated diversity switch with Omni-directional Antenna.

Antenna gain 2.01dBi

Operating Voltage 3.3 VDC

Operating Systems Windows 98/Me/2000/XP

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE

1.2 FCC Notice

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate this equipment.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

FOXCONN declared that T60H989 is limited in CH1~11 from 2412 to 2462 MHz by specified firmware

controlled in USA.

This device is intended only for OEM integrators under the following conditions:

The antenna must be installed such that 20 cm is maintained between the antenna and users, and

The transmitter module may not be co-located with any other transmitter or antenna.

As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM

integrator is still responsible for testing their end-product for any additional compliance requirements

required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.).

IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop

configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid

and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be

responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC

authorization.

End Product Labelling

This transmitter module is authorized only for use in device where the antenna may be installed such that

20 cm may be maintained between the antenna and users. The final end product must be labelled in a

visible area with the following: “Contains FCC ID: MCLJ27H010”.

Manual Information That Must be Included

The OEM integrator has to be aware not to provide information to the end user regarding how to install or

remove this RF module in the users manual of the end product which integrate this module.

The users manual for OEM integrators must include the following information in a prominent location

“ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this

transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be

co-located or operating in conjunction with any other antenna or transmitter.

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE

1.3 Canada Notice

Industry Canada Statement

Operation is subject to the following two conditions:

1) this device may not cause interference and

2) this device must accept any interference, including interference that may cause undesired operation of the

device

To prevent radio interference to the licensed service, this device is intended to be operated indoors and away

from windows to provide maximum shielding.

Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

1.4 Taiwan NCC Notice

低功率電波輻射性電機管理辦法

第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率

或變更原設計之特性及功能。

第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改

善至無干擾時方得繼續使用。

前項合法通信，指依電信法規定作業之無線電通信。

低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

1.5 EU CE Notice

It is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of

the Laws of the Member States relating to Electromagnetic Compatibility (2004/108/EC), Low-voltage Directive

(2006/95/EC) and the Amendment Directive (93/68/EEC), the procedures given in European Council Directive

(1999/5/EC) and (2004/108/EC).

The equipment was passed. The test was performed according to the following European standards:

 EN 300 320 V1.7.1: 2006

 EN 301 489-1 V1.6.1: 2005 / EN 301 489-17 V1.2.1: 2002

 EN 50385:2002

 EN 60950-1:2001+All:2004; IEC 60950-1:2001

Regulatory statement (R&TTE)

 European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range

2.400-2.4835GHz;

 In France, the equipment much be restricted to the 2.4465-2.4835GHz frequency range and must be

restricted do indoor use.

Operation of this device is subjected to the following National regulations and may be prohibited to use if certain

restriction should be applied.

You are cautioned that changes or modifications not expressly approved by the party responsible for

compliance could void your authority to operate the equipment.

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE

＊

E=10.028 V/m is the maximum E-Field strength when safety distance between the EUT and

human body is maintained at least 20cm

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE

Section Two: Wireless Utility and Configuration

The following sections describe the Wireless Network Configuration Utility. This utility provides quick access and

friendly interface to configure the card setup.

2-1 Windows 98/ME/2000 Wireless Utility

After installation is completed, a Wireless LAN Utility icon will appear in Desktop screen. Click it, then you will

see the screen below. If you cannot find the icon, you can select “Start” ->”Program”->”Wireless LAN

Configuration Utility” Icon.

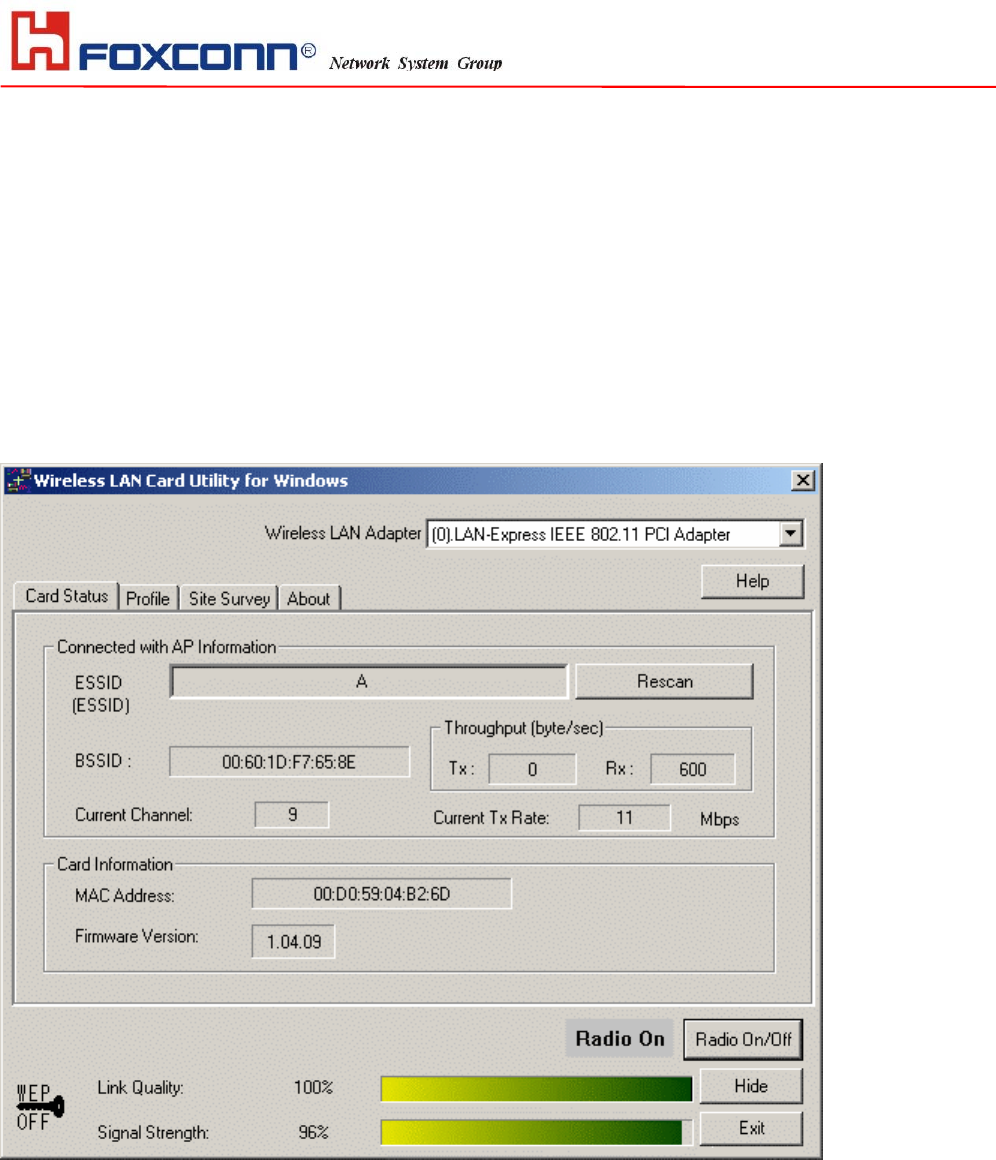

Card Status

You can see the AP information that your card connected to. In this page you also can find Firmware Version,

MAC Address and Frequency Domain.

ESSID: An acronym for Extended Service Set Identifier, ESSID is the unique name shared among all clients

and Access Points in a wireless network. The ESSID must be identical for all clients or Access Points

participating in the same network. The ESSID is case sensitive and must not exceed 32 characters. Press

‘Rescan’ it will scan the specific ESSID that your profile set. If your profile set the ESSID to be ANY, then while

you press ‘Rescan’, it will scan AP in the nearby area and choose the stronger one. From Link Quality and

Signal Strength, you can tell the wireless transmission quality.

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE

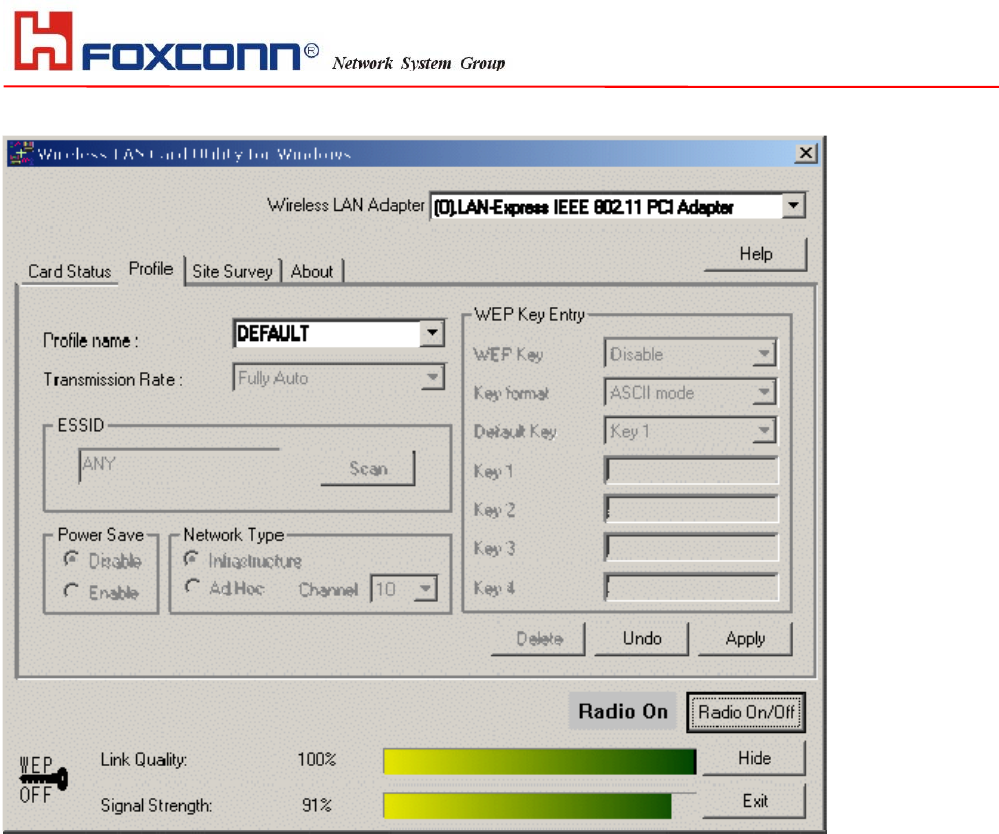

Profile

If you want to use default Profile setting, then choose the DEFAULT at profile name.

If you want to set up your own profile, then select PROFILE1 and you can change this PROFILE1 name to the

one you like.

There are two network types:

Ad-Hoc: This mode is used for a simple peer-to-peer network. It offers file sharing between wireless clients

without a wireless Access Point (AP).

Infrastructure: This mode allows a wireless LAN to be integrated into an existing wired network through an AP.

Infrastructure type networks also permit roaming between Access Points while maintaining connection to all

network resources. Infrastructure mode provides additional features, such as WEP security, power saving and

extended range.

ESSID: You can either choose specific AP or connect to any AP in the nearby area.

Power Save: enable it, so it will be triggered when your computer system is inactive.

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE

WEP Key: Wired Equivalent Privacy, WEP is an encryption scheme used to protect your wireless data

communications. WEP uses a combination of 40-bit keys, 128-bit keys to provide data encryption for your

wireless network. AP and wireless card should use the same WEP key in order to communication.

KEY Format: You can choose to enter ASCII Characters (0~9, a~z, A~Z) or Hexadecimal number (0~9, a~f,

A~F)

Default Key: The current KEY you choose.

KEY1~4: If you choose 40-bit keys, then you must enter 5 ASCII Characters or 10 Hexadecimal numbers. If you

choose 128-bit keys, then you must enter 13 ASCII Characters or 26 Hexadecimal numbers.

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE

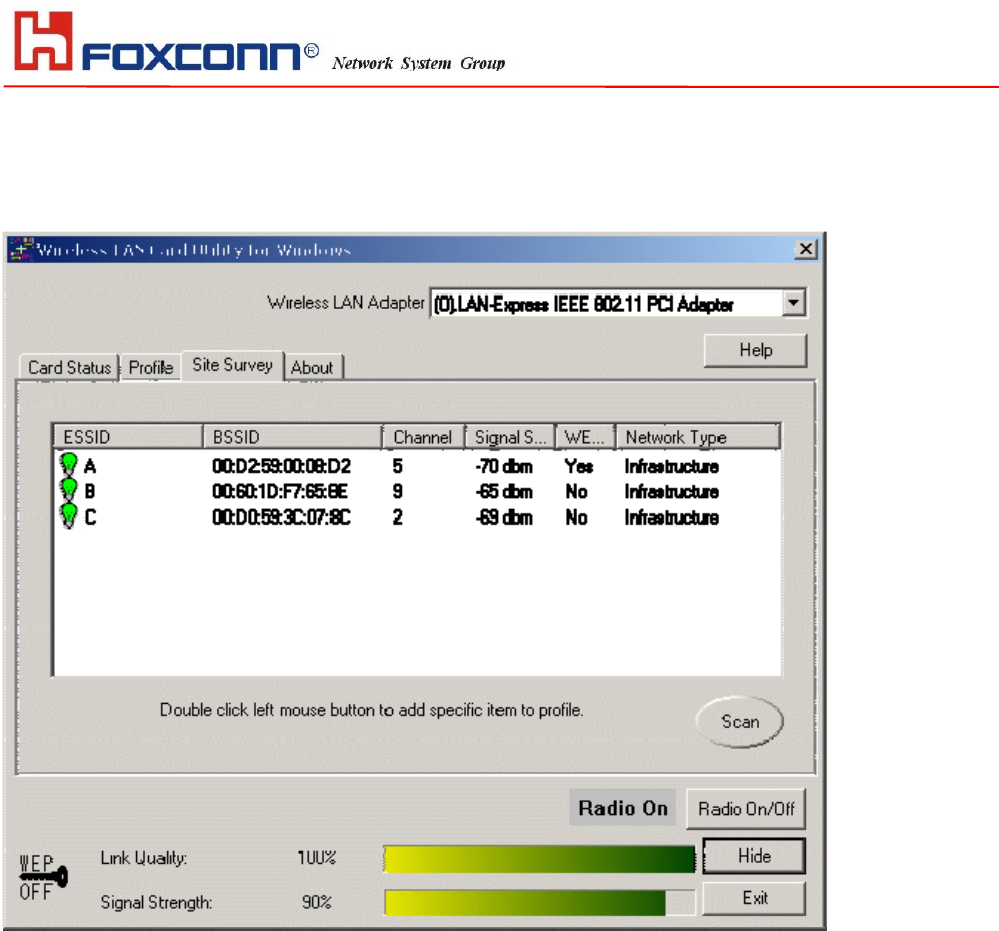

Site Survey

Use the Site Survey Tool. You can identify each channel transmission quality.

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE

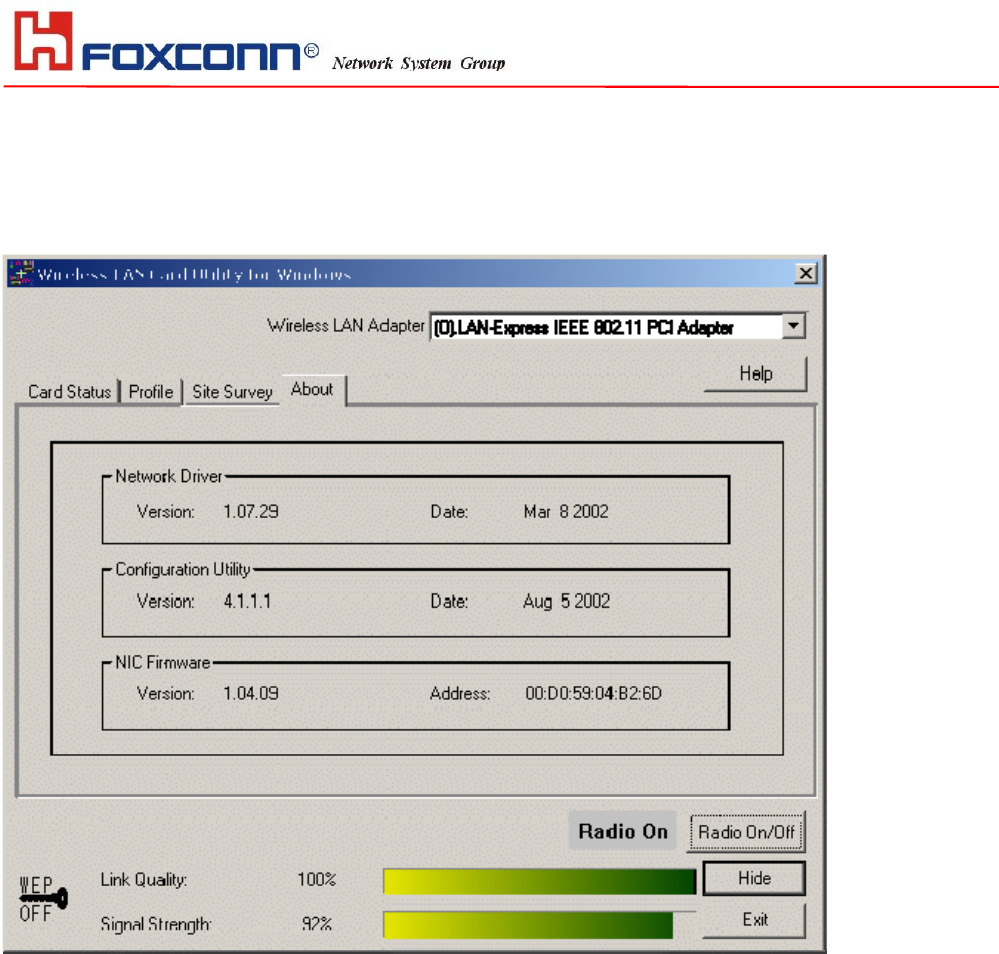

About

Use the About, you can see the information of Network Driver, Configuration Utility and Firmware Version.

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE

Section Three: Windows XP Wireless Utility and Configuration

3-1 Windows XP Wireless Utility

1. To configure the wireless card setting, you can select Start\Settings\Network Connection in the

Windows XP. Choose the wireless network connection, then you will see below screen. From this

screen, you can see wireless connection status and wireless signal level.

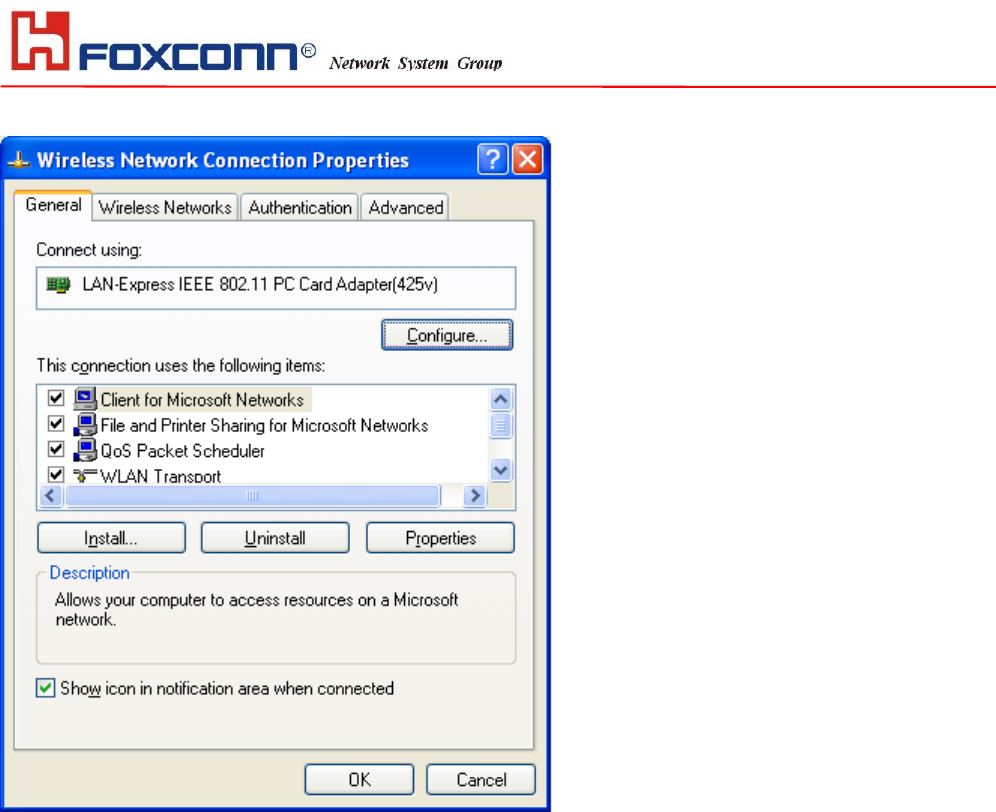

2. Select ‘Properties’ in the above screen. The following windows will show up.

In ‘General’ page, Wireless LAN card information and networking protocol have been displayed. Extra

networking protocol can be installed in this page.

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE

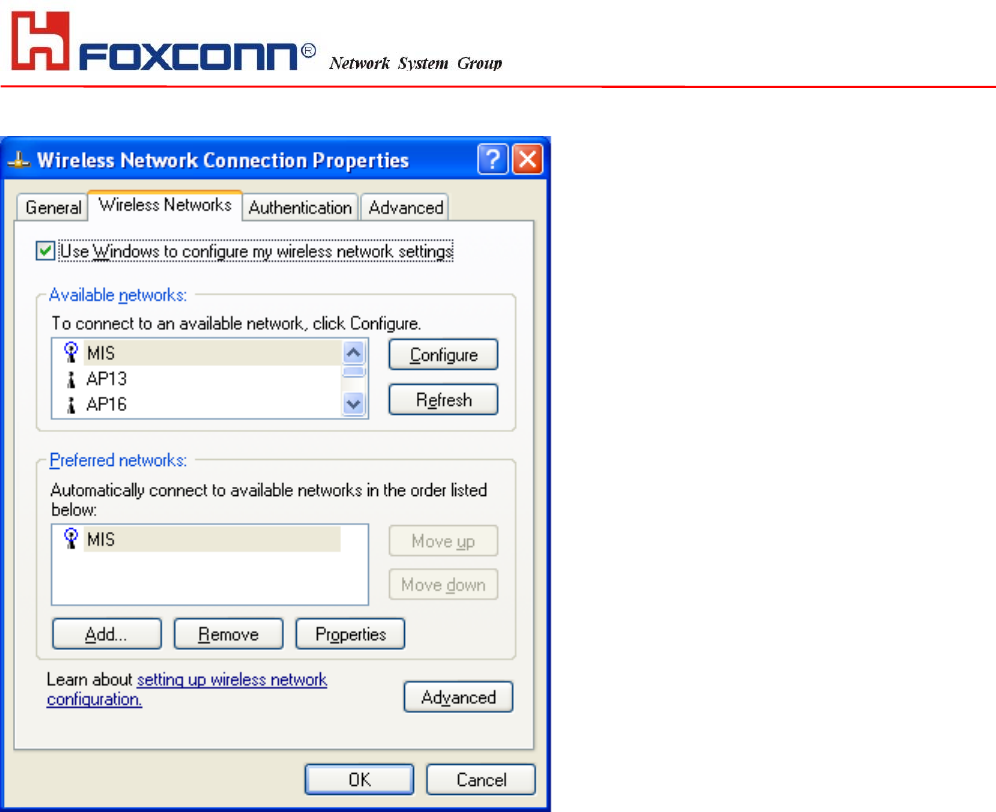

3. Select Wireless Networks page, you can see available wireless networks in your nearby area. You can add

your preferred wireless Access Point to your list, so your wireless card will search for specific wireless

networks.

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE

Configure

To connect to an existing access point (infrastructure) network, under Available networks, click the network

name, and then click ‘Configure’ to setup wireless security and data encryption.

Reflesh

To update the list of available networks that are within range of your computer, click Refresh.

Add

To connect to an access point (infrastructure) network that you know is available but that does not appear under

Available networks, under Preferred networks, click Add. In Wireless Network Properties, specify the network

name (Service Set Identifier).

Remove

To remove a wireless network from the list of preferred networks.

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE

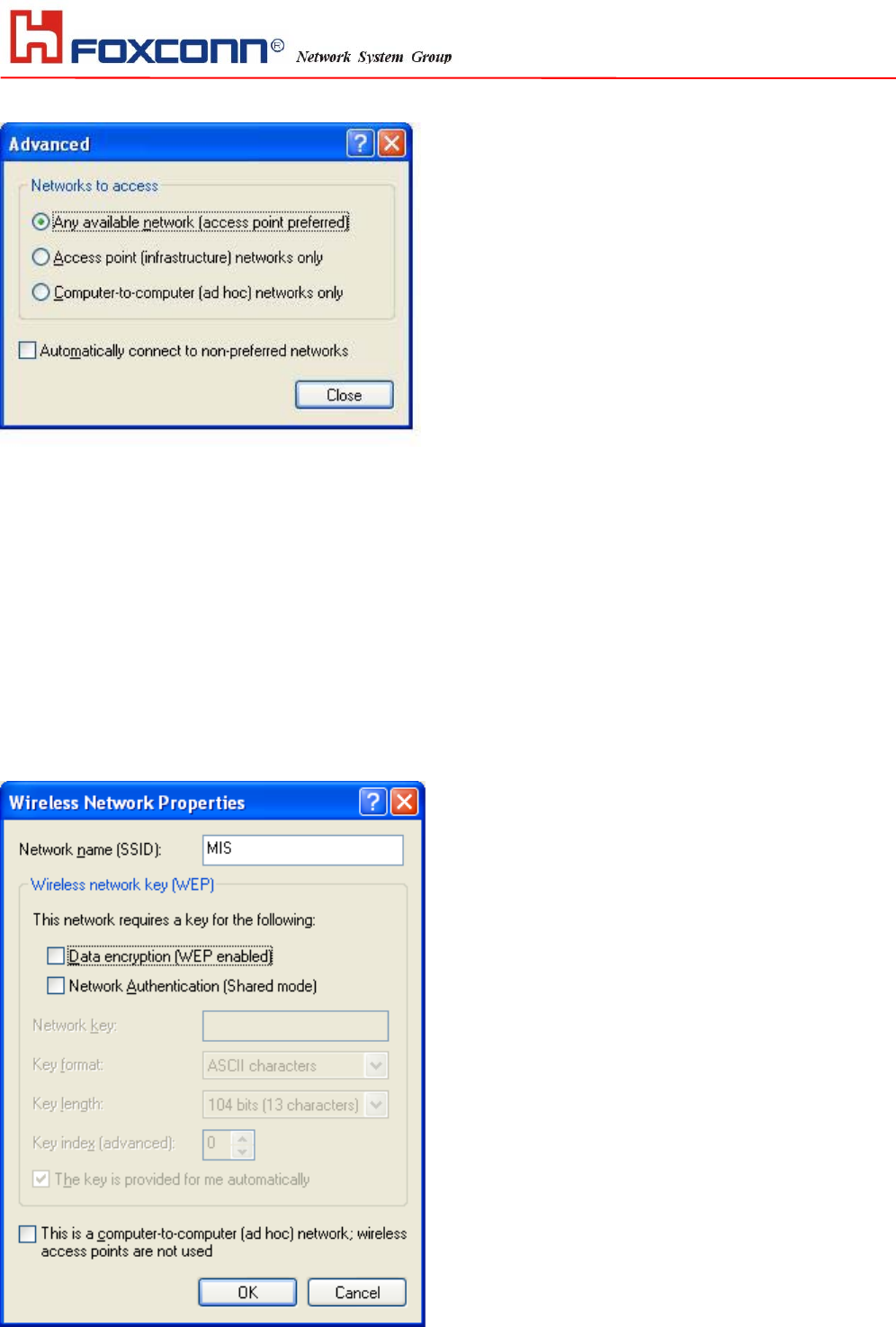

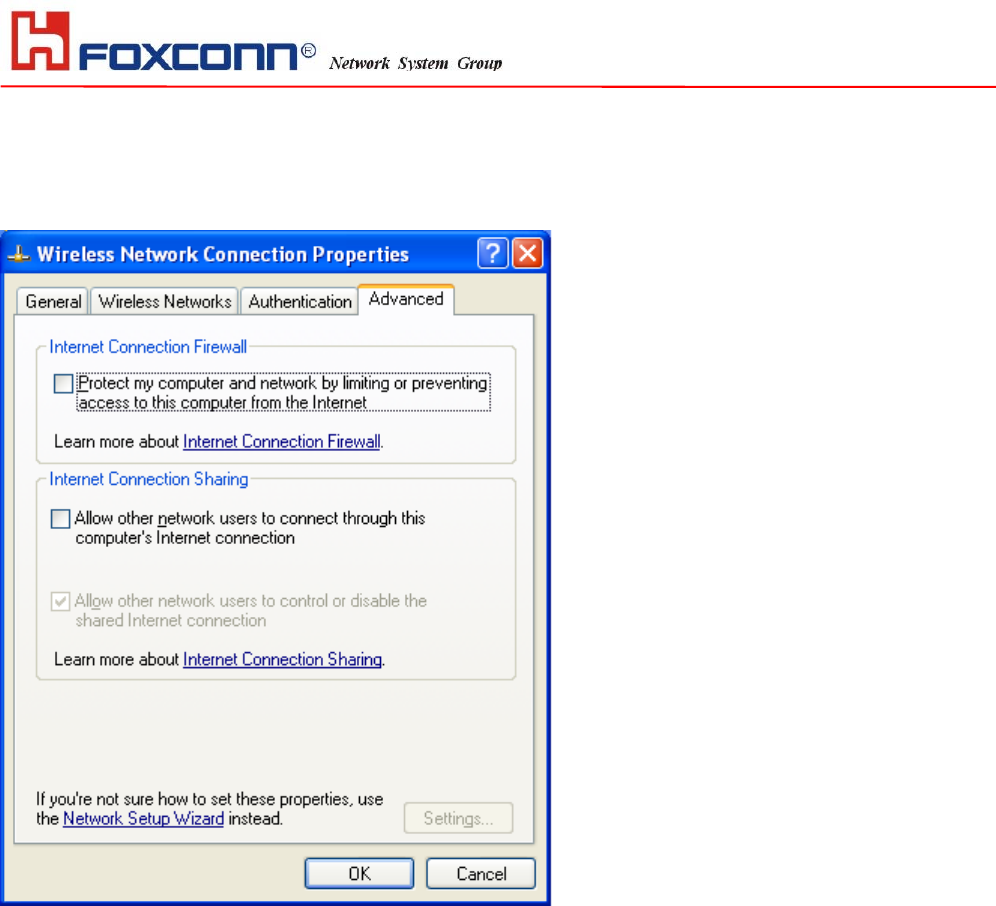

Advanced

 If your network are configuring to a computer-to-computer (ad hoc) network, select ‘Computer-to computer

(ad hoc) network only’.

 If you want to connect to a computer-to-computer and access point (infrastructure) networks are within

range of your computer, click ‘Access point (infrastructure)network only’.

 If you want to connect to a computer-to-computer (ad hoc) network and both computer-to-computer and

access point (infrastructure) networks are within range of your computer, click ‘Any available network

(access point preferred)’.

To automatically connect to available networks that do not appear in the Preferred networks list, click Advanced,

and then select the Automatically connect to non-preferred networks check box.

Define your network name (SSID) in the following windows, so your can join a specific wireless network. Check

AP has WEP on or not. You wireless network will need to have same WEP setting with AP in order to

communicate. If your wireless network don’t have any AP, check the ‘This is computer-to computer (ad-hoc)

network; wireless access points are not used’

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE

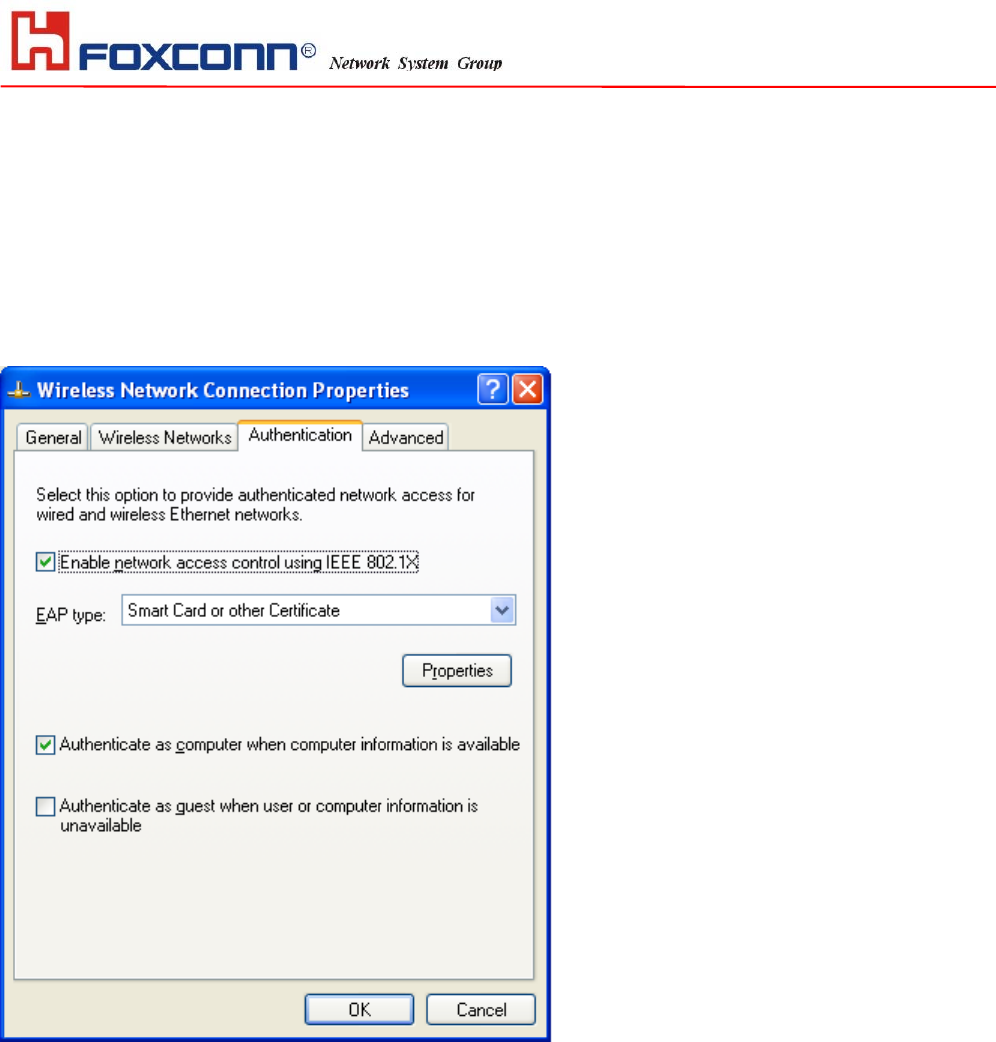

This window provides authentication via 802.1X. 802.1X, an IEEE standard that provides an authentication

framework for 802-based LANs. 802.1X takes advantage of an existing authentication protocol known as the

Extensible Authentication Protocol. 802.1x, giving someone secure, encrypted, wireless access on a Microsoft

network will be as easy as setting a flag on the users domain account.

What does this mean for the Home Network user?

802.1x will ensure that if and when you make the change over to Wireless Ethernet, your neighbour will not be

able to access your wireless LAN!

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE

The ‘Advanced’ window offers Firewall and Internet Connection Sharing functions.

Depends on your networking environment, you can select below functions.

Appendix A Glossary

Access Point - An internetworking device that seamlessly connects wired and wireless networks together.

Ad-Hoc - Ad-Hoc is a peer- to-peer wireless network without Access Point. A group of wireless clients

consistent an independent wireless LAN.

Backbone - The core infrastructure of a network, the portion of the network that transports information from one

central location to another central location. The information is then off-loaded onto a local system.

BSS - Stands for “Basic Service Set.” An Access Point associated with several wireless stations.

ESS - Stands for “Extended Service Set.” More than one BSS can be configured as an Extended Service Set.

An ESS is basically a roaming domain.

Ethernet - A popular local area data communications network, originally developed by Xerox Corp., which

accepts transmission from computers and terminals. Ethernet operates on 10/100 Mbps transmission rate over

shielded coaxial cable or over shielded twisted pair telephone wire.

Infrastructure - An integrated wireless and wired LAN is called an Infrastructure configuration.

Roaming - A function that allows one to travel with a mobile end system (wireless LAN mobile station, for

example) through the territory of a domain (an ESS, for example) while continuously connecting to the

infrastructure.

HON HAI PRECISION IND J27H010 Wireless Module User Manual We

HON HAI Precision Ind. Co., Ltd. Wireless Module We

Users Manual

Navigation menu

Namespaces

Views

Navigation
