HON HAI PRECISION IND J27H02301 WLAN Module User Manual

HON HAI Precision Ind. Co., Ltd. WLAN Module

Contents

User Manual

HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE
1
J27H023 WLAN MODULE
USER’S MANUAL
HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE
2
Contents
INTRODUCTION ................................................................................................................................................................... 3
1.1 WLAN FEATURES .......................................................................................................................................................... 3
1.2 FCC NOTICE .................................................................................................................................................................. 4
1.3 CANADA NOTICE ............................................................................................................................................................ 5
The information contained in this manual has been verified at the time of this manual printing. The manufacturer reserves
the right to make any changes and improvements in the product described in this manual at any time and without notice.
All registered trademarks are the property of their respective owners.
HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE
3
Introduction
The J27 H023.00 80 2.11b/g module provide s w ireless modem f unctionality utilizing dir ect sequence spr ead
spectrum and OFDM/CCK technology.
1.1 WLAN Features
Operating Frequency 2412 ~ 2483.5 MHz ISM band
Modulation Schemes 802.11: DPSK,DBPSK
802.11g: OFDM, DQPSK, DBPSK and CCK
802.11b: DQPSK, DBPSK and CCK
Channel Numbers IEEE 802.11 compliant:
1 ~ 13 channels for 802.11 b
1 ~ 11 channels for 802.11 g
WLAN Data Rate 802.11g: Up to 54 Mbps with auto fallback to 48, 36, 24, 18, 12,
9 and 6 Mbps.
802.11b: Up to 11 Mbps with auto fallback to 5.5, 2 and 1Mbps.
802.11: Up to 1Mbps and 2Mbps
Media Access Protocol CSMA/CA with ACK
Transmitter Output Power
Item Condition Min Typ. Max Unit
Transmit
power level
802.11 1Mbps -2 0 1.5 dBm
2Mbps -2 0 1.5 dBm
802.11g
6Mbps 1-11ch 3 5 6.5 dBm
9Mbps 1-11ch 3 5 6.5 dBm
12Mbps 1-11ch 3 5 6.5 dBm
18Mbps 1-11ch 3 5 6.5 dBm
24Mbps 1-11ch 3 5 6.5 dBm
36Mbps 1-11ch 2 4 5.5 dBm
48Mbps 1-11ch 2 4 5.5 dBm
54Mbps 1-11ch 1.5 3.5 5 dBm
HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE
4
802.11b
1Mbps 1-11ch 3.5 5.5 7 dBm
12-13ch -2 0 1.5 dBm
2Mbps 1-11ch 3.5 5.5 7 dBm
12-13ch -2 0 1.5 dBm
5.5Mbps 1-11ch 3.5 5.5 7 dBm
12-13ch -2 0 1.5 dBm
11Mbps 1-11ch 3.5 5.5 7 dBm
12-13ch -2 0 1.5 dBm
Antenna Type Single antenna connector for off board antenna
Operating Voltage 1.8 VDC and 3.3 VDC
Operating Systems Windows 98/Me/2000/XP
1.2 FCC Notice
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This eq uipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This denice complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This de vice may not cause harmful in terference, and (2) this device must accept any inter ference rece ived,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
FOXCONN declared that J27H023.01 is limited in CH1~11 from 2412 to 2462 MHz for 802.11g and
CH1~13 from 2412 to 2472 MHz for 802.11b by specified firmware controlled in USA.
This device is intended only for OEM integrators under the following conditions:
HON HAI PRECISION IND. CO., LTD. HSINCHU SCIENCE PARK BRANCH OFFICE
5
To comply with FCC RF exposure compliance requirements, this device must not be co-located or
operating in conjunction with any other antenna or transmitter.
As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements
required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid
and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC
authorization.
End Product Labelling
The final end product must be labelled in a
visible area with the following: “Contains FCC ID: MCLJ27H02301”.
Manual Information That Must be Included
The OEM integrator has to be aware not to provide information to the end user regarding how to install or
remove this RF module in the users manual of the end product which integrate this module.
The users manual for OEM integrators must include the following information in a prominent location
“ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, this device must not be
co-located or operating in conjunction with any other antenna or transmitter.
1.3 Canada Notice
Industry Canada Statement
This Device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation of the
device
Labeling
The final end product must be labelled in a visible area with the following: “Contains IC: 2878D-J27H02301”.

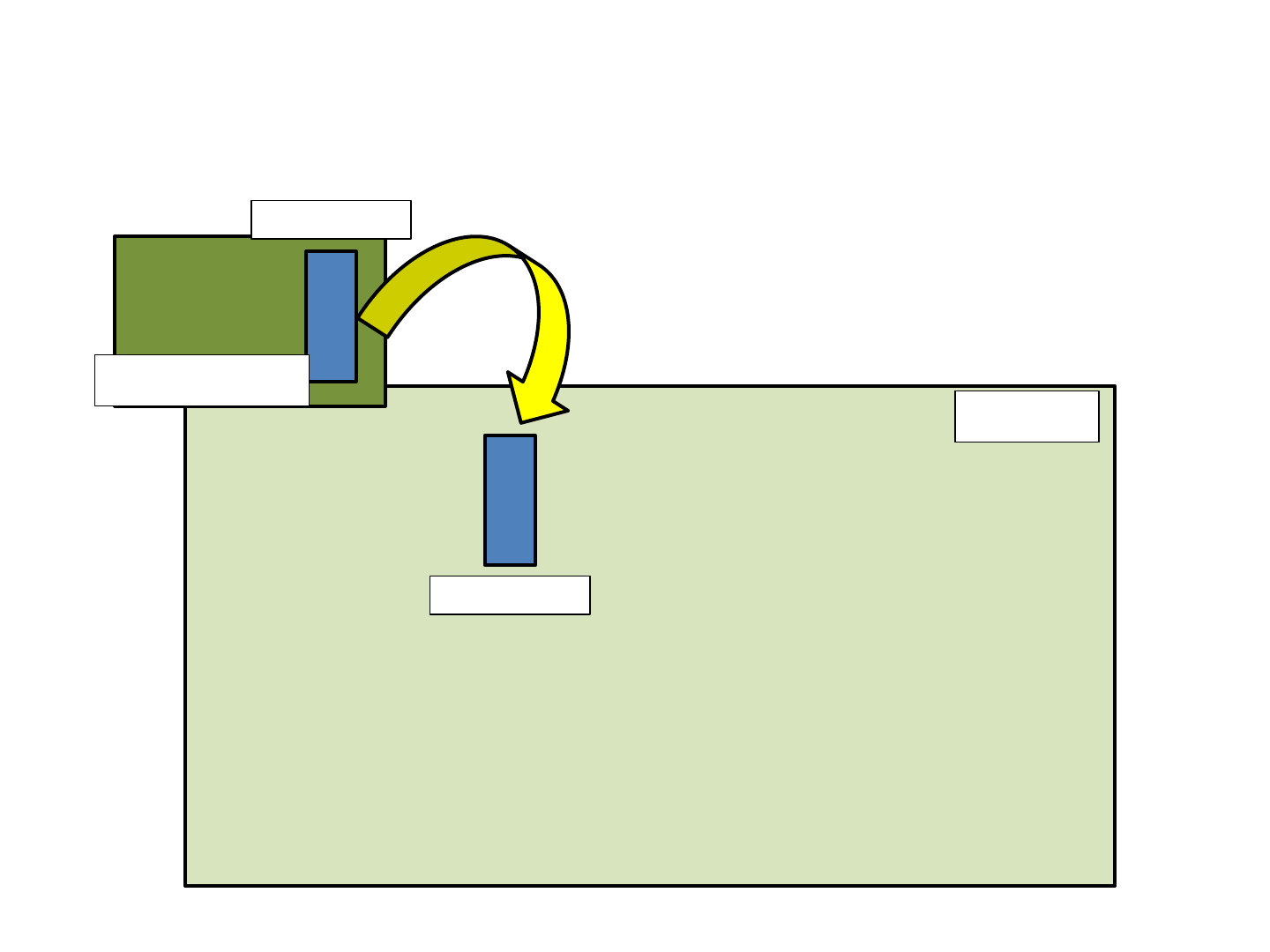

Installation Manual
Host PCB
BtoB connector
BtoB connector
WLAN module
