HON HAI PRECISION IND T60093 AMBIT PCI Full Rate ADSL Modem User Manual MLT9912P15001
HON HAI Precision Ind. Co., Ltd. AMBIT PCI Full Rate ADSL Modem MLT9912P15001
USER MANUAL
![](/img.php?id=78598&img=bg1.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 1 Man_A2.DOC1
Ambit PCI Full Rate ADSL Modem
Installation Manual
For Windows 95, 98, and NT4.0
Dec 16, 1999
![](/img.php?id=78598&img=bg2.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 2 Man_A2.DOC2
Table of Contents
ABOUT THIS GUIDE
1.INTRODUCTION......................................................................................................................................................3
SYSTEM REQUIREMENT .............................................................................................................................................. 4
Hardware Requirement.......................................................................................................................................... 4
Software Requirement ........................................................................................................................................... 4
2.INSTALLING THE AMBIT PCI FULL RATE ADSL MODEM BOARD...............................................6
3.INSTALLING THE AMBIT PCI DEVICE DRIVERS AND UTILITY....................................................7
3.1 WINDOWS 98......................................................................................................................................................... 7
3.2 WINDOWS 95 ........................................................................................................................................................ 11
3.3 WINDOWS NT4.0 WITH SERVICE PACK 3....................................................................................................... 12
3.4 INSTALLING THE AMBIT PCI MODEM ICON UTILITY................................................................... 12
4.VERIFYING THE DRIVER INSTALLATION..............................................................................................13
4.1 WINDOWS 95 AND WINDOWS 98...................................................................................................................... 13
4.2 WINDOWS NT 4.0................................................................................................................................................ 14
5.CONFIGURING THE ADSL NETWORK FOR ETHERNET OVER ATM (RFC1483)...................14
6.ACTIVATING THE AMBIT PCI ADSL MODEM........................................................................................20
7.MONITORING THE AMBIT PCI ADSL MODEM......................................................................................20
8.UNINSTALLING THE AMBIT PCI ADSL MODEM AND TEST APPLICATION..........................20
![](/img.php?id=78598&img=bg3.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 3 Man_A2.DOC3
1. INTRODUCTION
The Ambit PCI Full Rate ADSL Modem is an internal ADSL modem, which conveniently plugs
into a PC system, eliminating the need for an external modem. The Ambit PCI ADSL Modem
connects to a telephone line via a standard RJ-11 connector and fully complies with practices
governing the PC world (e.g. Plug 'n Play). The Ambit PCI ADSL Modem supports DMT (Discrete
Multi-Tone) modulation to ensure interoperability with the service providers DSL systems.
Feature
Remote bridging with RFC 1483 encapsulation, both LLC-SNAP and PVC multiplexing options
WAN Protocols Supported under Microsoft Operation Systems
The following is a list of supported WAN protocols by Ambit PCI ADSL Network Modem.
Microsoft Windows
Operating Systems RFC
1483
Win95 -- OSR1 and OSR2 Yes
Win98 – 1st edition Yes
Win98 – 2nd edition Yes
NT 4.0 – Service Pack 3 Yes
![](/img.php?id=78598&img=bg4.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 4 Man_A2.DOC4
System Requirement
The following equipment and information is required (at a minimum) to setup your ADSL network
modem.
Hardware Requirement
The following is the minimum hardware requirement. Please make sure your PC system
meets ALL of the following requirements.
ü IBM PC/AT or its compatibles
ü CPU speed: Pentium 100Mhz or above
ü Hard disk space: 6Mbyte space available or above
ü CD-ROM: 24x CD-ROM drive or above
ü Main memory: 32Mbyte or above
Software Requirement
The Ambit PCI ADSL Modem supports most of Microsoft Windows operating systems. Please
make sure you have one of the following operating systems in your PC.
♦ Microsoft Windows 95 – OSR1 and OSR2, or
♦ Microsoft Windows 98 – 1st edition and 2nd edition, or
♦ Microsoft NT – NT 4.0 service pack 3.
NOTE: You need the Windows operating system installation files (CAB files) to complete
the installation.
![](/img.php?id=78598&img=bg5.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 5 Man_A2.DOC5
Before you start:
Insert Ambit
ADSL card
Connect the
card to ADSL
network
Installing
driver and
application
programs
Reboot and
verify last
step
Configure
ADSL
network
Monitoring
the Ambit
ADSL
modem
Reboot and
activating
Ambit ADSL
modem
Ambit ADSL Modem Installation
&
Configuration Flow Chart
![](/img.php?id=78598&img=bg6.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 6 Man_A2.DOC6
2. INSTALLING THE ADSL NETWORK MODEM BOARD
To install the Ambit PCI Full Rate ADSL Modem in your PC and connect it to ADSL
network, follow these steps:
Insert ADSL Network Interface Card – Step 1
1) Open the shipping container and inspect each item for damage.
2) Remove all jewelry from your hands and wrists. Use only insulated or
nonconductive tools.
3) Unplug the PC and disconnect all cables.
4) Remove the PC cover.
5) Choose an empty bus mastering PCI slot.
6) Unscrew the screw holding the PCI slot’s backplate and remove it.
7) Insert the Ambit PCI ADSL Modem into an empty PCI slot.
8) Secure the NIC with the screw you removed earlier.
9) Replace the PC cover and reconnect all previously connected cables.
10) Turn on the power to the PC.
11) Proceed to the next section, “Connecting to the ADSL Network.”
Connect NIC to ADSL Network – Step 2
Connect the telephone cable to the RJ-11 port on the Ambit PCI ADSL Modem.
![](/img.php?id=78598&img=bg7.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 7 Man_A2.DOC7
3. INSTALLING THE AMBIT PCI DEVICE DRIVERS AND UTILITY
Please have the following information available in order to complete the installation and setup of
the Ambit PCI ADSL Modem.
1. TCP/IP properties, this includes the PVC values (VPI and VCI), IP address, the gateway, and
the domain name server. You will need this information to complete the configuration of the
network modem card. Please contact your MIS manager for more information regarding the
TCP/IP settings.
2. Windows 95, 98 or NT4.0 diskettes or Installation CD.
3.1 Windows 98
* BEFORE YOU START: You need the Windows 98 system installation files (CAB files)
to complete the installation (Which comes with your PC system).
This section describes how to install the network driver when your PC is running Windows 98.
There are two major revisions of Windows 98:
1) Windows 98 original (or it may be referred to as the 1st Edition)
2) Windows 98 2nd Edition
Please make sure your OS is either Windows 98 1st Edition or Windows 98 2nd Edition. Windows
98 2nd Edition can support advanced features which Windows 98 1st Edition can not. If you are
running Windows 98 2nd Edition, installing the Windows drivers to your system is highly
recommended. If you are not sure of the operating system version currently used, please contact
your original PC manufacturer for information. Make sure the Ambit PCI ADSL Network Modem
is installed. Turn your PC on.

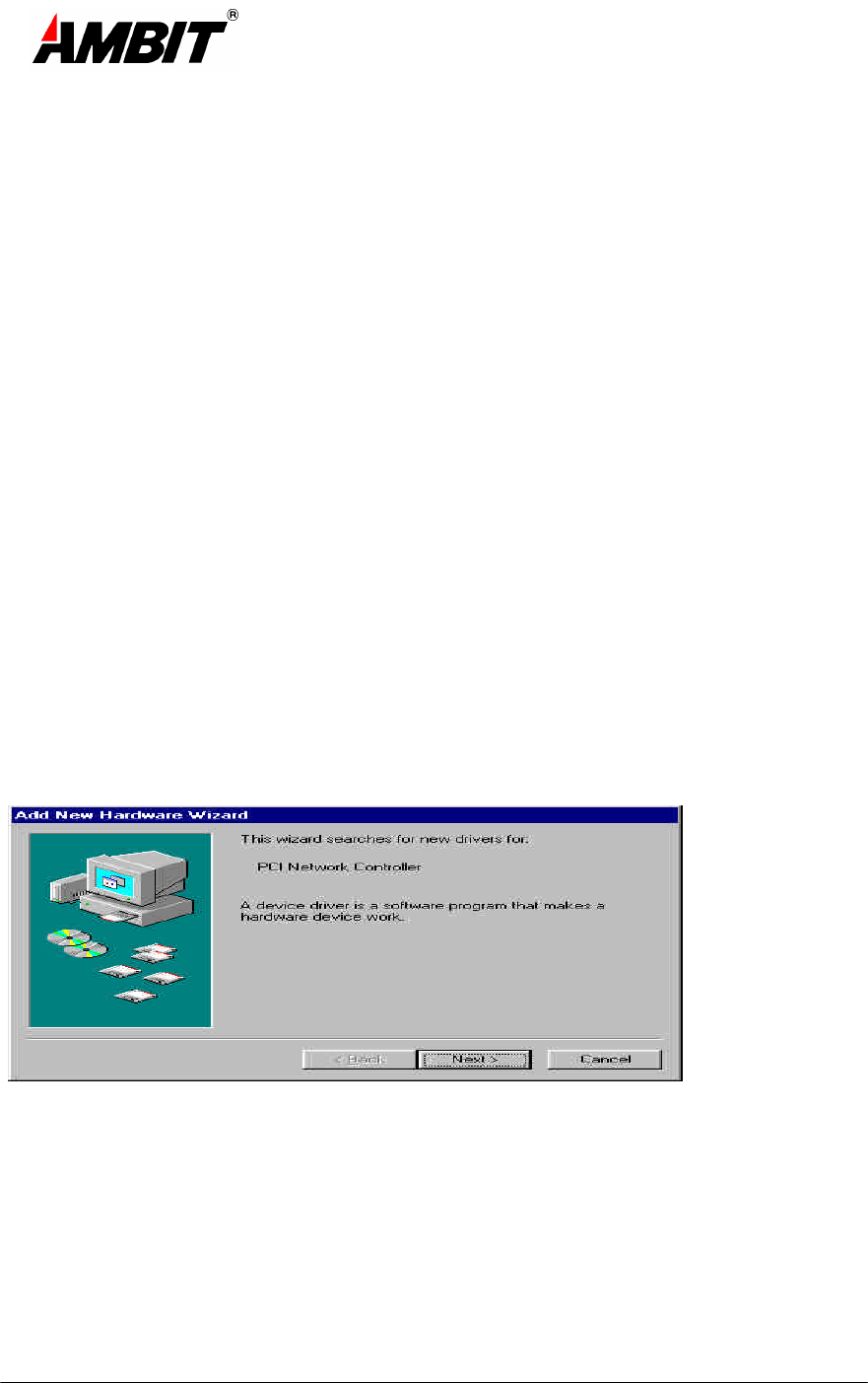

Windows will find the Ambit ADSL Network Modem and will search for a device driver for the card.
Click Next.
![](/img.php?id=78598&img=bg8.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 8 Man_A2.DOC8

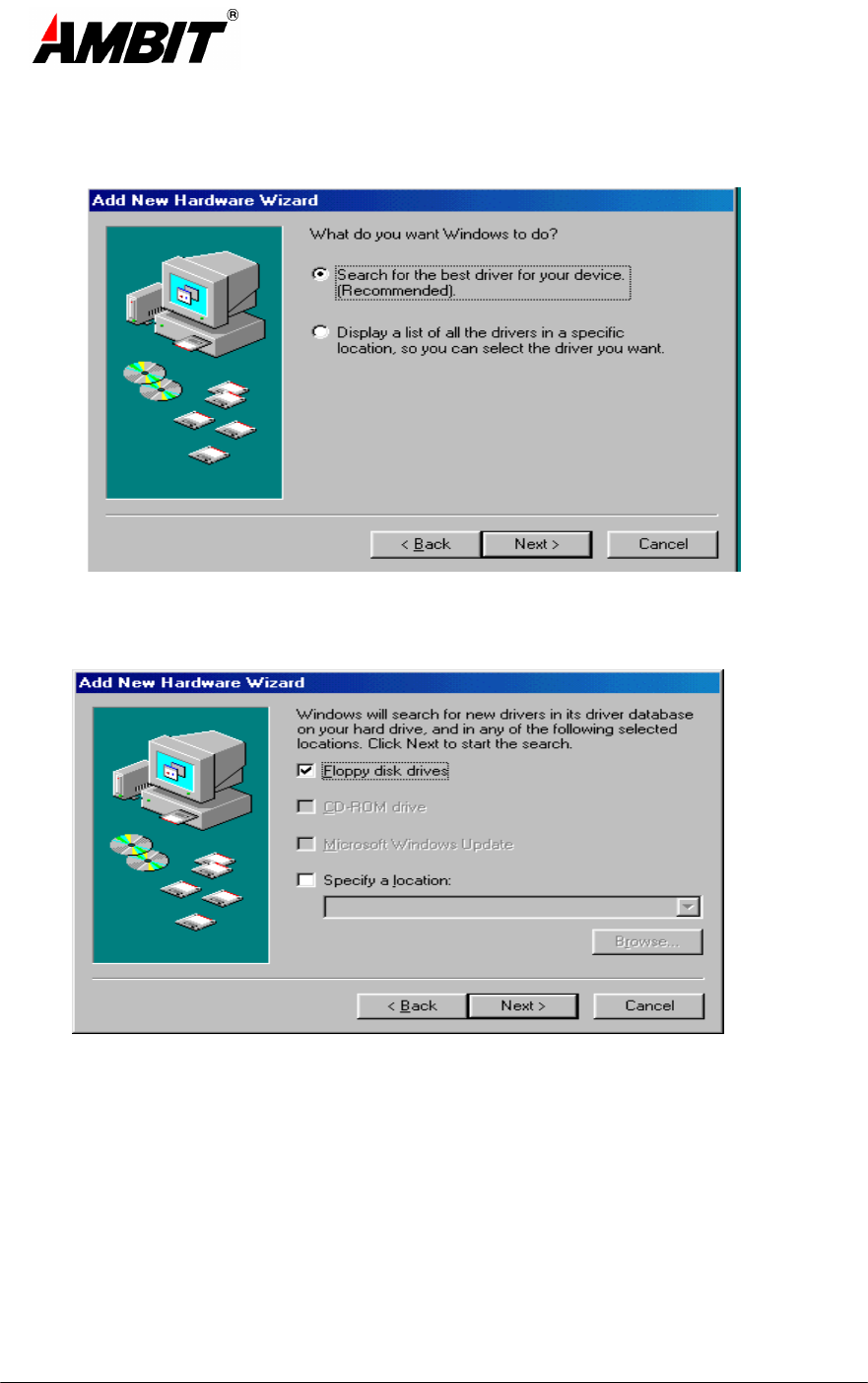

The Add New Hardware Wizard window will appear. When prompted, select "Search for the best
driver for your device. (Recommended)". Click "Next".
If your Ambit PCI ADSL Modem comes with floppy diskettes, then insert the Windows 98 driver
diskette (use the Windows 98 2nd edition diskette for installing on Windows 98 2nd edition and the
Windows 98 diskette for installing on Windows 98 1st edition) into the floppy disk drive. Select the
"Floppy disk drives" option from the menu and click "Next.”
If your Ambit PCI ADSL Modem comes with a CD, then insert the CD into the CD-ROM, select
"Specify a location", enter the correct path (i.e. d:\win98-v1 for Windows 98 1st edition; d:\win98-
v2 for Windows 98 2nd edition). Select "Next.”
![](/img.php?id=78598&img=bg9.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 9 Man_A2.DOC9
Windows should find the *.INF (NETITEX.INF for Windows 98 2nd edition) file in the directory
specified. Click "Next" to continue.
Windows will start to copy the drivers. Make sure that the Windows 98 CD is in the CD-ROM or
that it is easily accessible.
![](/img.php?id=78598&img=bga.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 10 Man_A2.DOC10

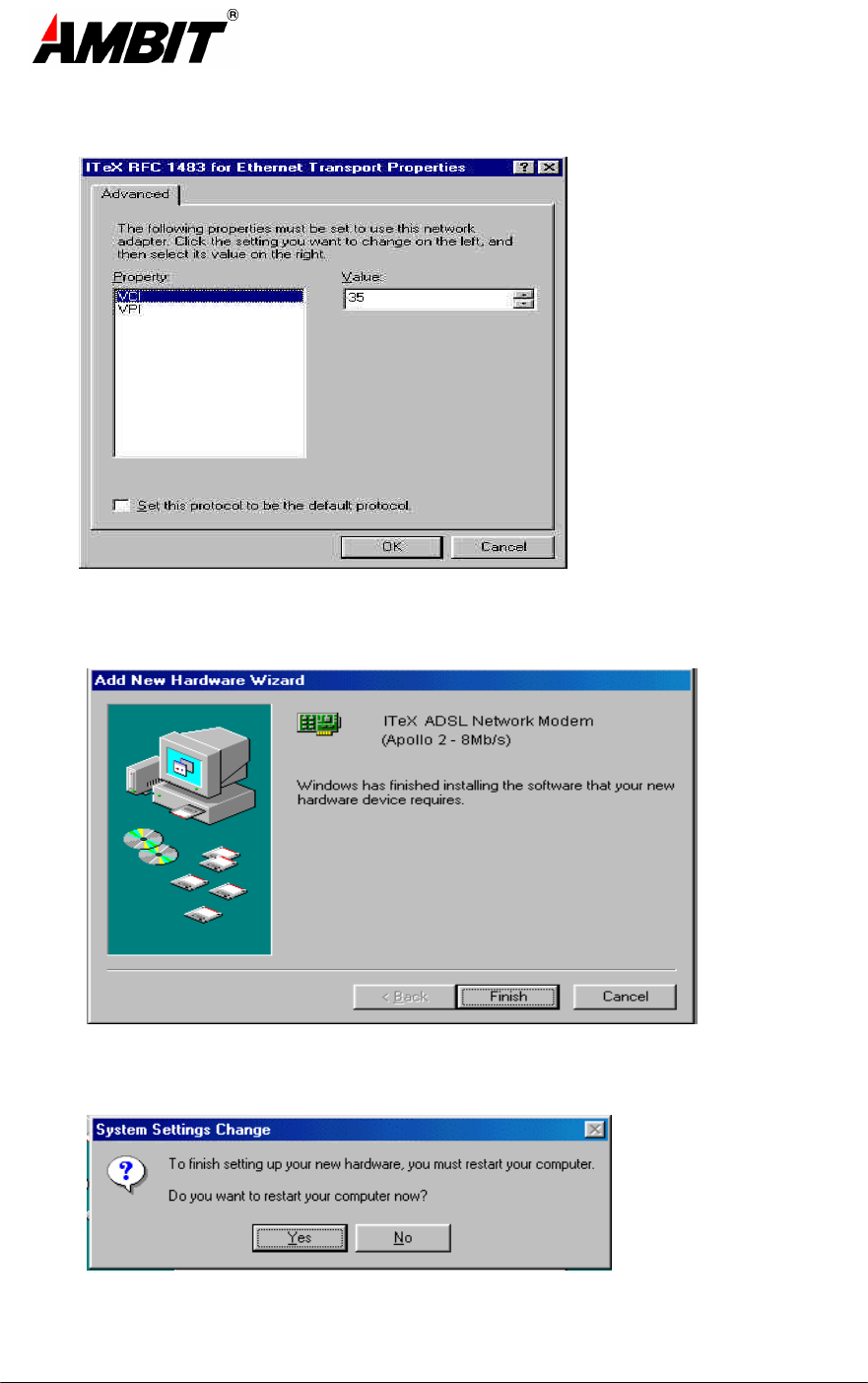

For RFC1483, the default PVC values are 8 and 35 for VPI and VCI respectively. If necessary,
these values can be changed at this time. The range for both VPI and VCI is from 0 to 255.
Windows has finished installing all the Ambit ADSL Modem drivers. Click "Finish" to complete the
installation.

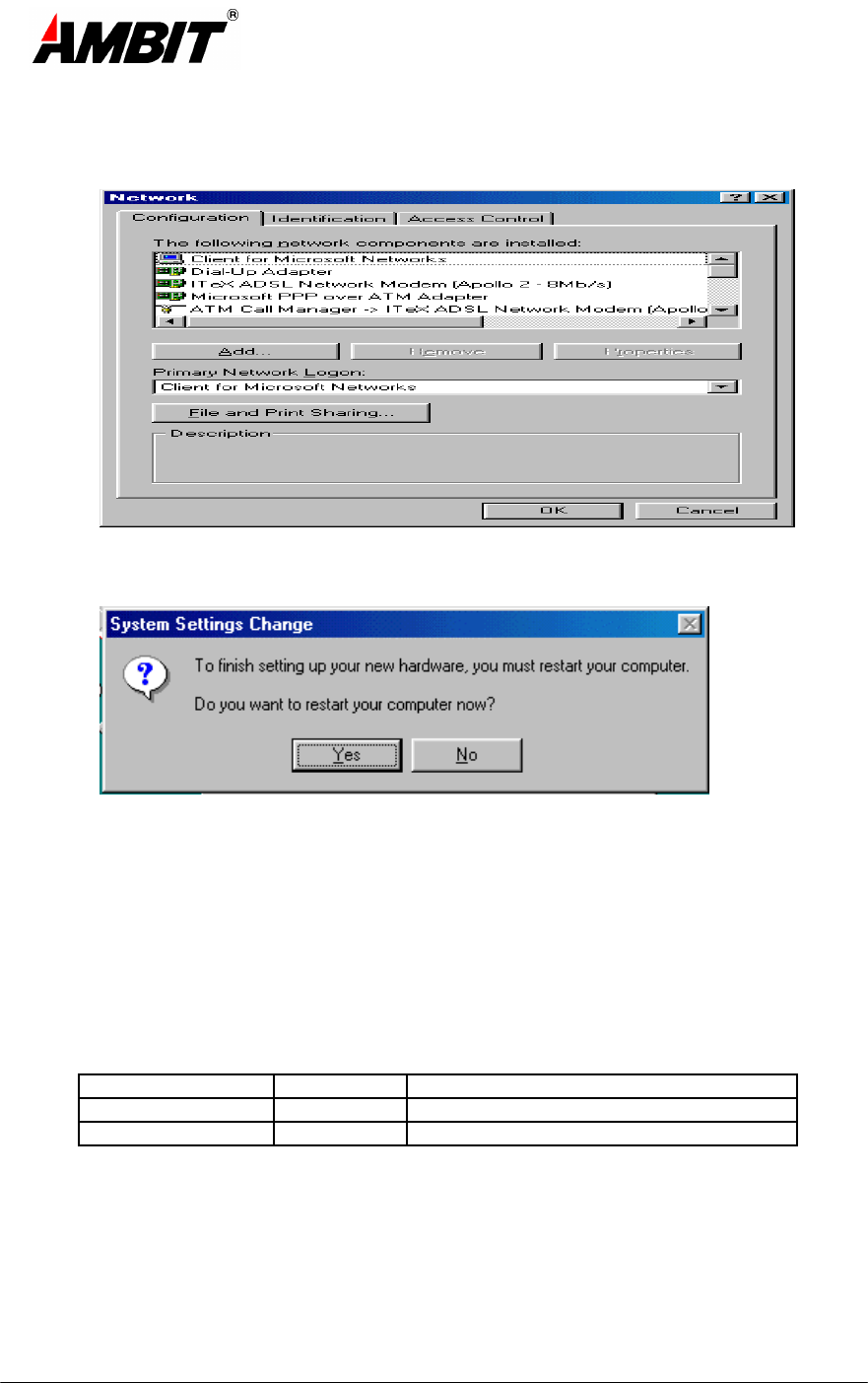

Click "Yes" when prompted "Do you want to restart your computer now?" If you are using floppy
diskettes, remove the floppy diskette from the diskette drive. Continue on to 3.4
![](/img.php?id=78598&img=bgb.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 11 Man_A2.DOC11
3.2 Windows 95
* BEFORE YOU START: You need the Windows 95 system installation files to complete the
installation.
This section describes how to install the network driver when your PC is running Windows 95.
There are three major revisions of Windows 95:
Windows 95 original
Windows 95 OSR1
Windows 95 OSR2
NOTE: Before you install your Ambit PCI ADSL Modem, please make sure your operating system
is either Win95 OSR1 or Win95 OSR2 to ensure the ADSL network performs well. If you are not
sure of the operating system version, please contact your original PC manufacturer for
information.
Make sure you have already installed the Ambit PCI ADSL Modem into your PC.
Power on the PC. Windows 95 automatically detects the NIC in the PC. The Add Hardware
Wizard window will appear. When prompted, select “Search for the best driver for your device.”
If your Ambit PCI ADSL Modem comes with diskettes, insert the Windows 95 driver diskette in the
floppy disk driver and select "Floppy Disk Drives". Click "Next.”
If your Ambit PCI ADSL Modem comes with a CD, insert the Ambit PCI CD into your CD-ROM
and select “Specify a location.” Enter the correct path (i.e. “d:\win95”) and click “Next.”
Follow the screen instructions until the “ITeX RFC 1483 for Ethernet Transport Properties”
window appears.
![](/img.php?id=78598&img=bgc.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 12 Man_A2.DOC12

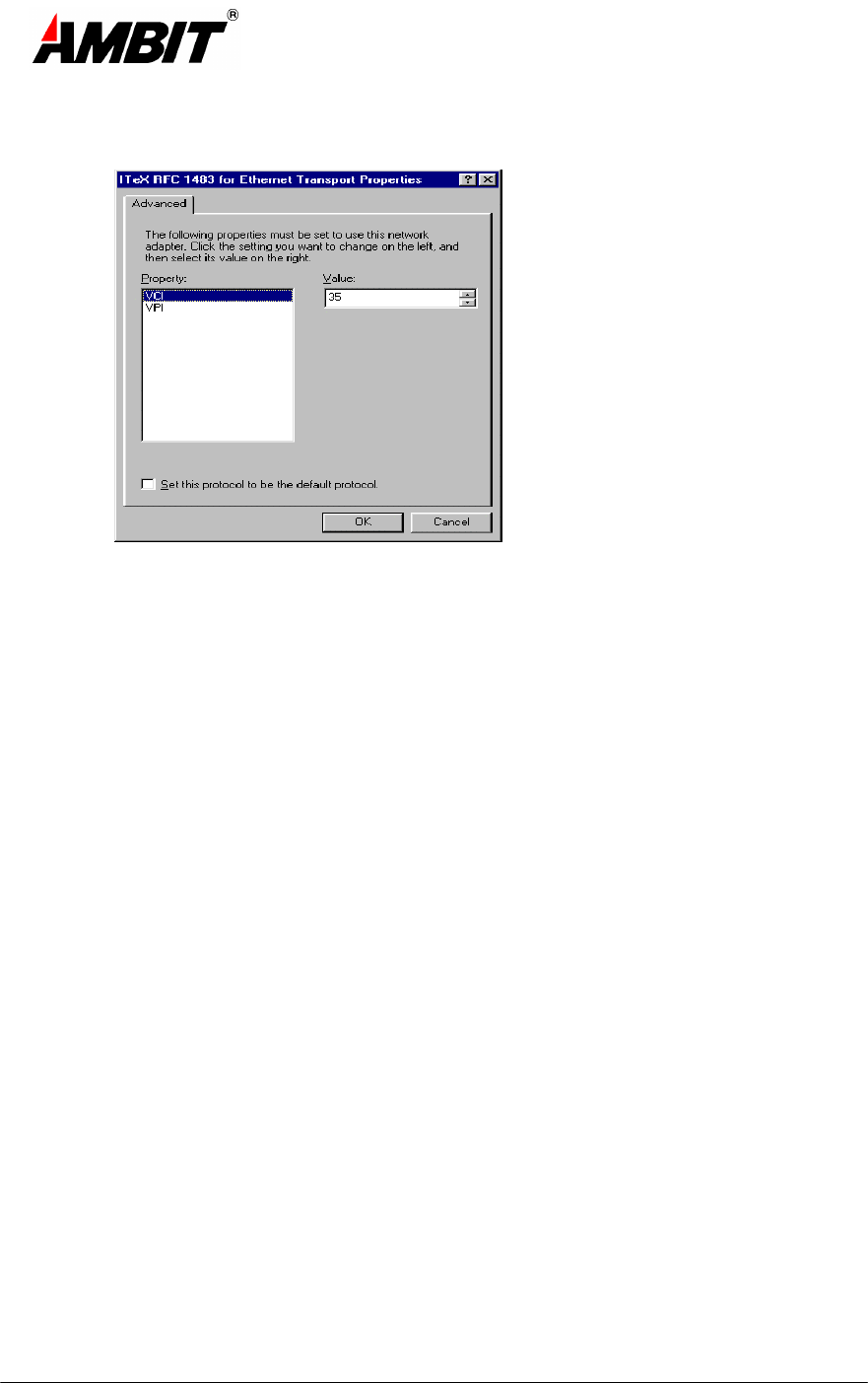

For RFC 1483, the default PVC values
are VPI=8 and VCI=35 respectively.
If necessary, these values can be
changed at this time.
The range for both VPI and VCI is 0 to
255.
For more detailed information regarding the values of VPI and VCI, please check with your ADSL
service provider.
CAUTION: Failure to setup the right VPI, VCI may cause the ADSL network to fail.
Follow the screen instructions until Windows 95 asks you to restart your computer. Click “Yes” to
restart your computer. Restart Your System. If you are using floppy diskettes, then remove the
disk from the diskette drive. Continue on with section 3.4
3.3 Windows NT4.0 with Service Pack 3
From the Start menu, select Settings and then select Control Panel. Double-click on the Network
icon.
In the Network dialog window, select Adapters. Click "Add".
In the Select Network Adapter dialog window, Click "Have Disk".
If the Ambit PCI ADSL Network Modem comes with diskettes, insert the Windows NT4.0 driver
diskette into the floppy disk drive. If the Ambit PCI ADSL Network Modem comes with a CD,
insert the Ambit PCI CD into your CD-ROM drive.
Click Ok.
Select OEM Option window
You don’t have to restart your computer when under Windows NT4.0.
3.4 INSTALLING THE AMBIT PCI MODEM ICON UTILITY
Note: The Ambit PCI modem icon utility is provided as a tool to monitor and test the Ambit PCI
ADSL modem. Please refer to the User's Guide for more advanced information regarding this
test application.
Windows will ask if you want to install the ITeX utility software, click "Yes" to continue. To install
the software into the default folder, click “Next”. Otherwise, click "Browse" to select a different
folder. Click “Next” again to complete the installation. Select “No” when prompted if you want to
restart your computer. Click “OK.”
![](/img.php?id=78598&img=bgd.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 13 Man_A2.DOC13
4. Verifying the Driver Installation
4.1 Windows 95 and Windows 98

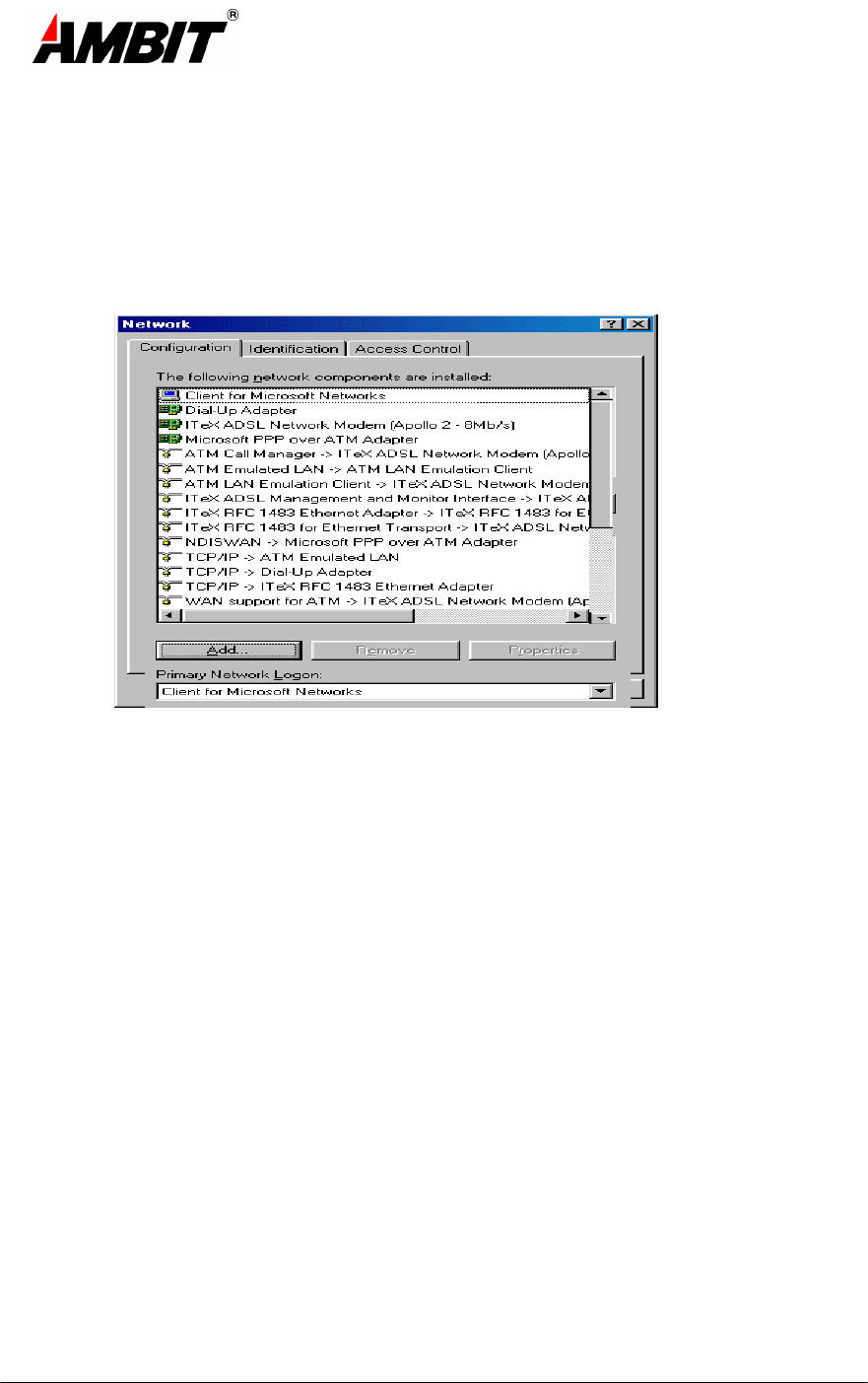

From the Start menu, select settings and open the control panel. Double click on the Network
Icon. Verify that the following network components were installed:
Windows 98 1st Edition
§ ITeX ADSL Network Modem (Apollo 2 - 8MB/s)
§ ITeX ADSL Management and Monitor InterfaceàITeX ADSL Network
Modem (Apollo 2 - 8MB/s)
§ TCP/IP à Dial up Adapter
§ TCP/IP à ITeX ADSL Network Modem(Apollo2-8MB/s)
Windows 98 2nd Edition
§ ITeX ADSL Network Modem (Apollo 2 - 8MB/s)
§ ATM Call Manager à ITeX ADSL Network Modem (Apollo 2 - 8MB/s)
§ ATM Emulated LAN à ATM LAN Emulation Client
§ ATM LAN Emulation ClientàITeX ADSL Network Modem(Apollo2-8MB/s)
§ ITeX ADSL Management and Monitor InterfaceàITeX ADSL Network
Modem (Apollo 2 - 8MB/s)
§ ITeX RFC1483 Ethernet Adapter à ITeX RFC1483 for Ethernet Transport
§ ITeX RFC1483 for Ethernet Transport à ITeX ADSL Network Modem
(Apollo 2 - 8MB/s)
§ TCP/IP à ATM Emulated LAN
§ TCP/IP à Dial up Adapter
§ TCP/IP à ITeX ADSL Network Modem(Apollo2-8MB/s)
§ TCP/IP à ITeX RFC1483 Ethernet Adapter
![](/img.php?id=78598&img=bge.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 14 Man_A2.DOC14
Windows 95
§ ITeX ADSL Network Modem (Apollo 2 - 8MB/s)
§ ATM Call Manager à ITeX ADSL Network Modem (Apollo 2 - 8MB/s)
§ TCP/IP
Click "Cancel" to close the Network window.
4.2 Windows NT 4.0
Double-click the Network icon. The network dialog window appears. In the Network dialog
window, select the Configuration tab.
Verify the following network components were installed in the:
Adapters Tab
§ ITeX ADSL Network Modem (Apollo 2 – 8Mb/s)
Protocols Tab
§ ADSL Management and Monitor Interface
§ TCP/IP Protocol
Click Ok to close the Network dialog window.
5.CONFIGURING THE ADSL NETWORK FOR ETHERNET OVER ATM (RFC1483)
5.1 Windows 95 (OSR1/OSR2) and Windows 98 (1st and 2nd Edition)
From the Start menu, select settings and open the control panel. Double click on the Network
icon. The Network window will appear.
![](/img.php?id=78598&img=bgf.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 15 Man_A2.DOC15

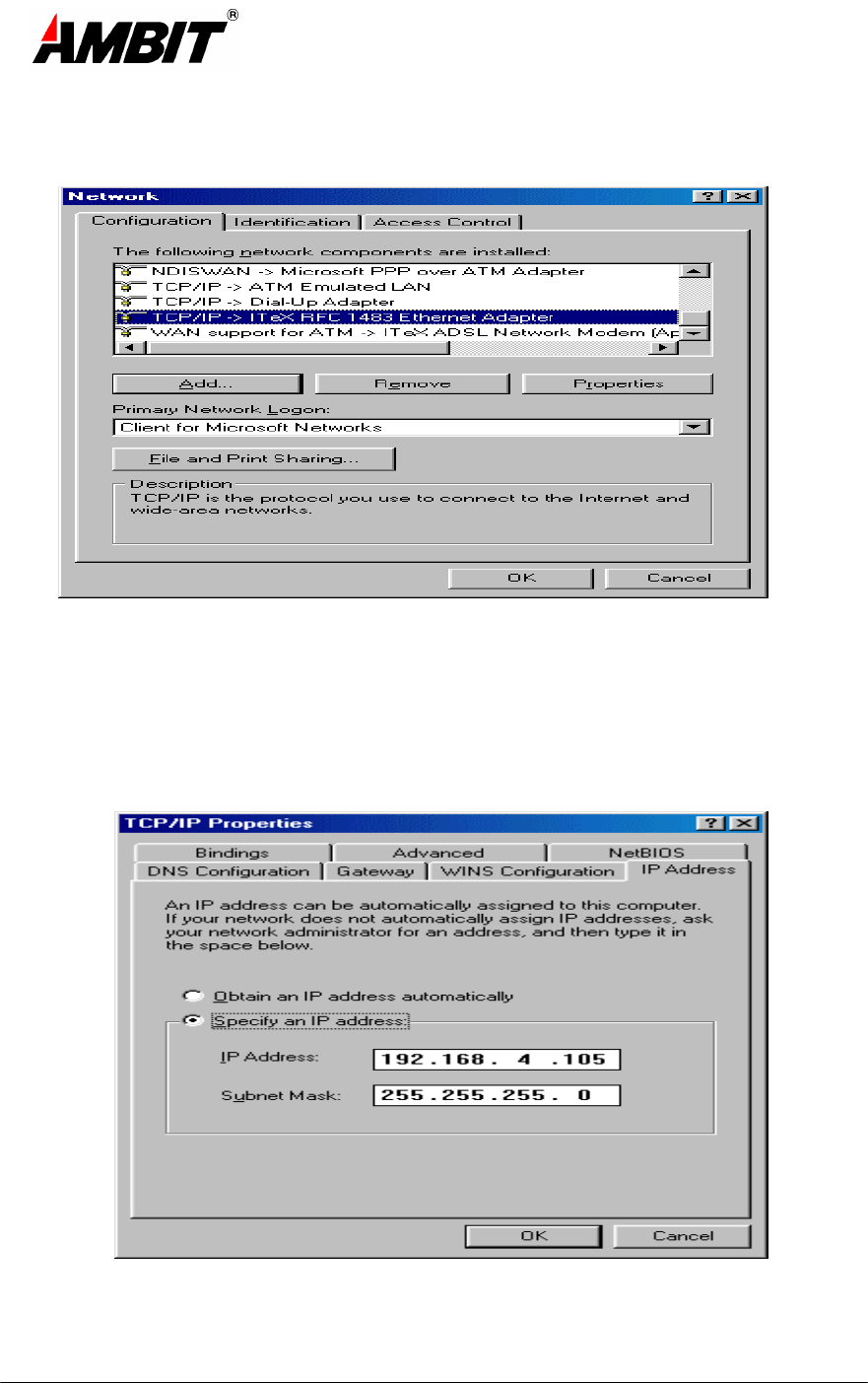

Select the Configuration Tab and scroll through the installed network component list.
For Windows 98 2nd Edition, highlight the TCP/IP à ITeX RFC1483 Ethernet Adapter component.
For Windows 98 1st Edition, highlight the TCP/IPàITeX ADSL Network Modem (Ambit PCI -
8Mbps). For Windows 95, highlight "TCP/IP". Click "Properties.” The TCP/IP Properties window
will appear.
To setup the IP Address, select the IP Address tab and then select the "Specify an IP address"
option. Enter the IP Address and Subnet Mask settings.
![](/img.php?id=78598&img=bg10.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 16 Man_A2.DOC16

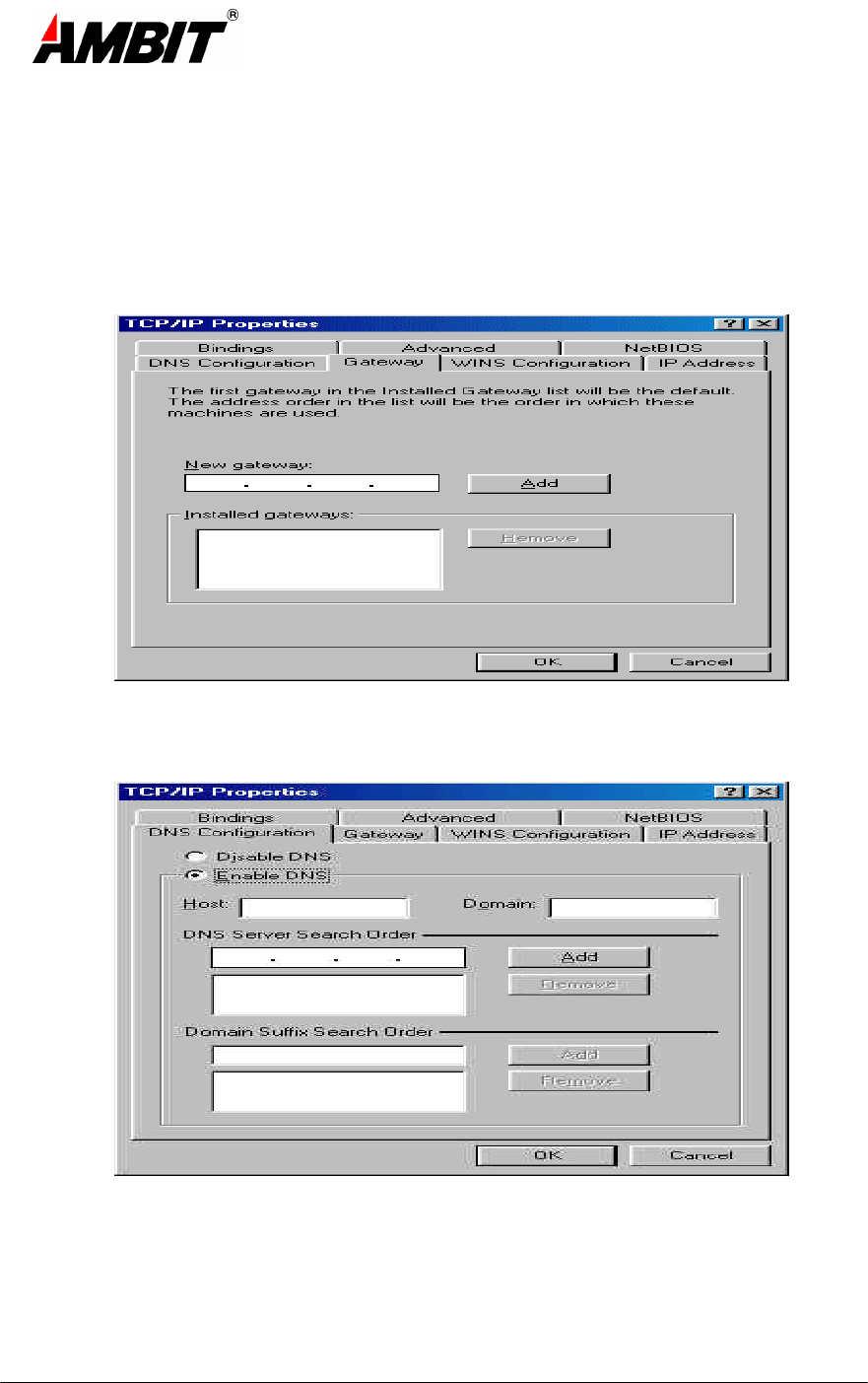

To setup a new gateway, enter the setting in the new gateway section and click "Add.” This will
add the setting into the installed gateways.
To configure the Domain Name Server, simply select the Enable DNS option. Enter the Host and
Domain settings. Enter the DNS Server search order and click "Add.”
Once all the TCP/IP properties have been set, click "OK" to return to the Network window.
![](/img.php?id=78598&img=bg11.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 17 Man_A2.DOC17
Click "OK" to close the Network window.
Click "No" when prompted "Do you want to restart your computer now?"
SETTING THE PVC VALUES FOR ETHERNET OVER ATM (RFC1483)
Windows 98 2nd Edition
For RFC1483, the VPI and VCI have a default setting of 8 and 35 respectively. To change the
values for RFC1483, follow these instructions:
Using the Modem Icon Utility to Set the PVC Values
Refer to "User's Guide to the Modem Icon Utility" for more information.
Parameter Value Meaning
VPI 0 - 255 Virtual Path Identifier
VCI 0 - 255 Virtual Channel Identifier
Close the ITeX ADSL Test Application window and restart the computer.
Configuring the ADSL modem for RFC1483 is completed.
Windows 98 1st Edition and Windows 95
From the Network configuration window, select "ITeX ADSL Network Modem (Apollo 2 - 8Mb/s)".
Select Properties and then select the Advanced tab. Enter the VPI and VCI values.
![](/img.php?id=78598&img=bg12.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 18 Man_A2.DOC18
5.2 Windows NT4.0
Ethernet over ATM (RFC1483)

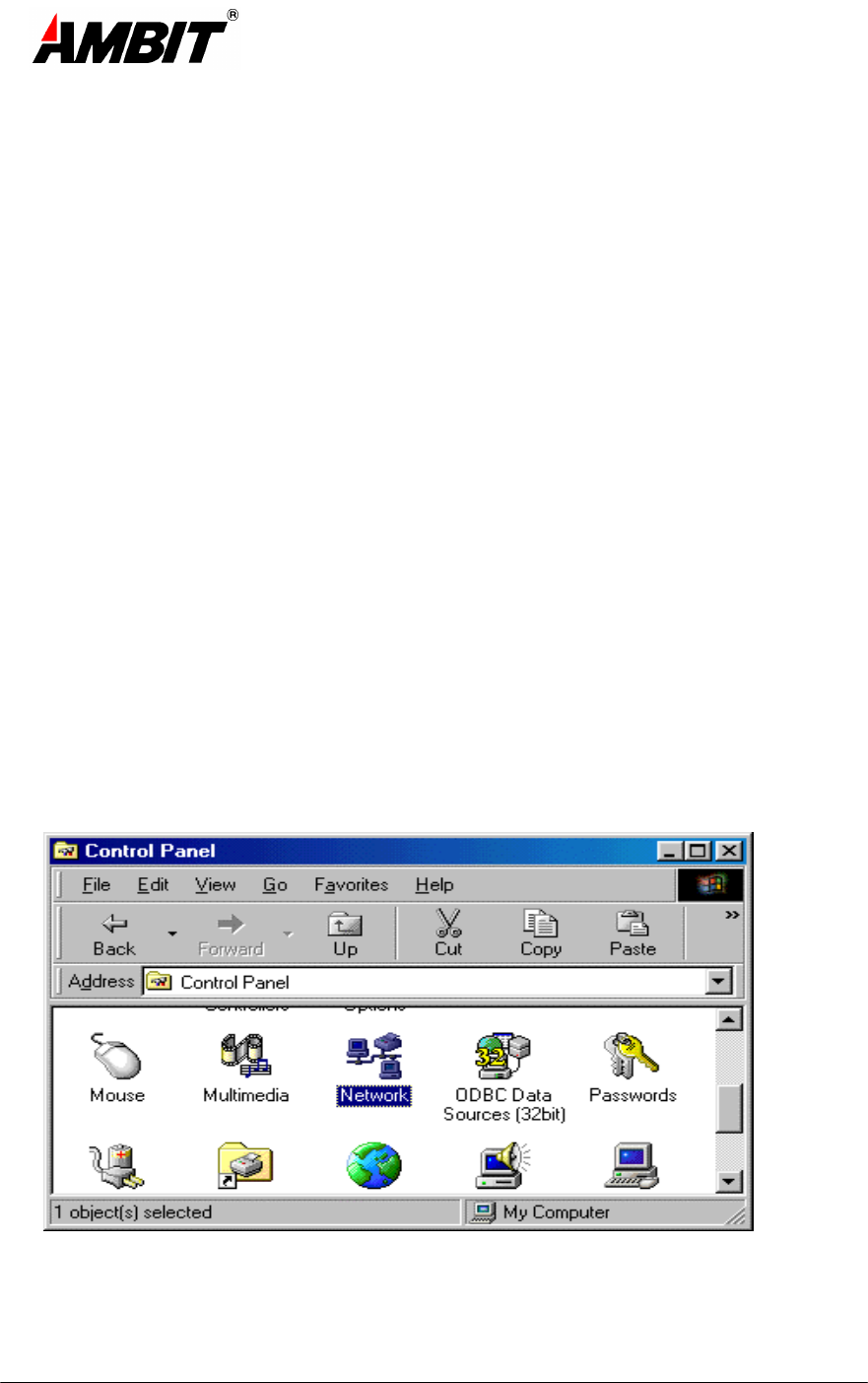

Open the Network dialog window by double clicking My Computer->Control Panel->Network.
In the Network window, select the Adapters tab.
Scroll through the installed network components list. Highlight the "ITeX ADSL Network Modem
(Apollo 2 - 8Mbps)" and click Properties.
The TCP/IP Properties window appears.
Please check your TCP/IP configuration with your Internet service provider.

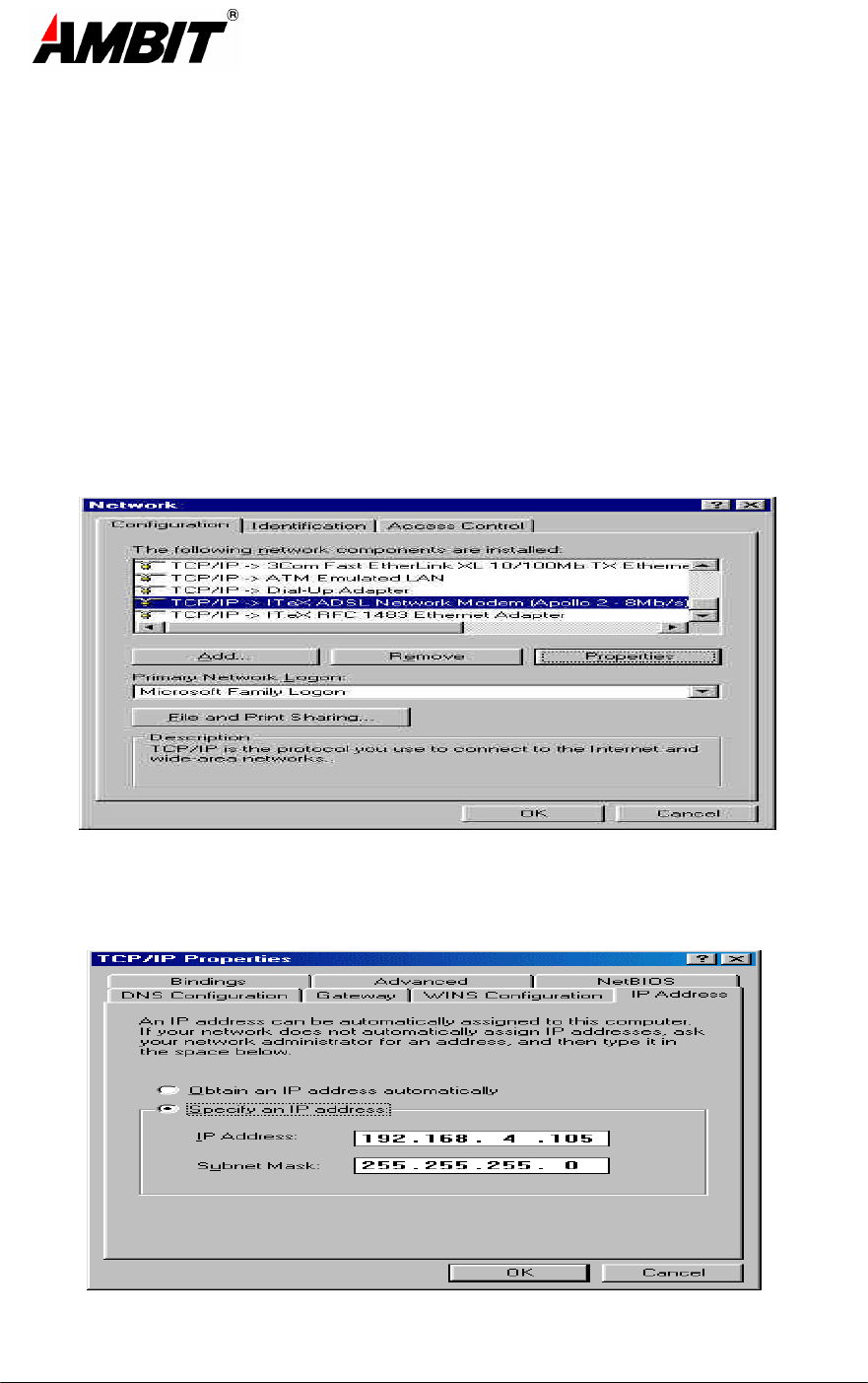

From the Network configuration window, select the "TCP/IP à ITeX ADSL Network Modem
(Ambit PCI - 8 Mb/s)" option in the configuration tab, click "Properties.” The TCP/IP Properties
window will appear.
To setup the IP Address, select the IP Address tab and then select the "Specify an IP address"
option. Enter the IP Address and Subnet Mask settings.
![](/img.php?id=78598&img=bg13.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 19 Man_A2.DOC19

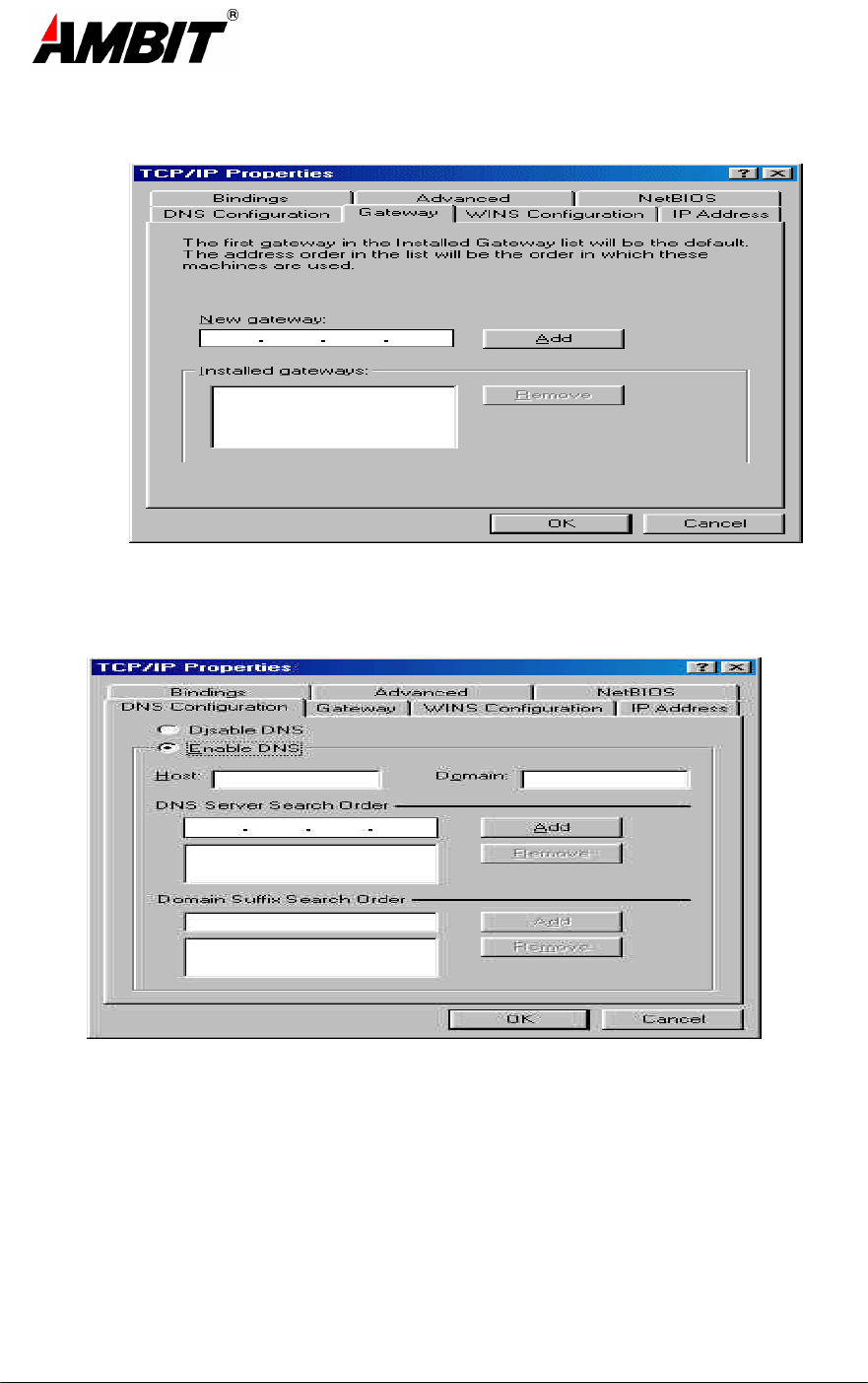

To setup a new gateway, enter the setting in the new gateway section and click "Add.” This will
add the setting into the installed gateways.
To configure the Domain Name Server, simply select the Enable DNS option. Enter the Host and
Domain settings. Enter the DNS Server Search Order and click "Add.”
Once all the TCP/IP properties have been set, click "OK" to return to the Network window.
![](/img.php?id=78598&img=bg14.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 20 Man_A2.DOC20

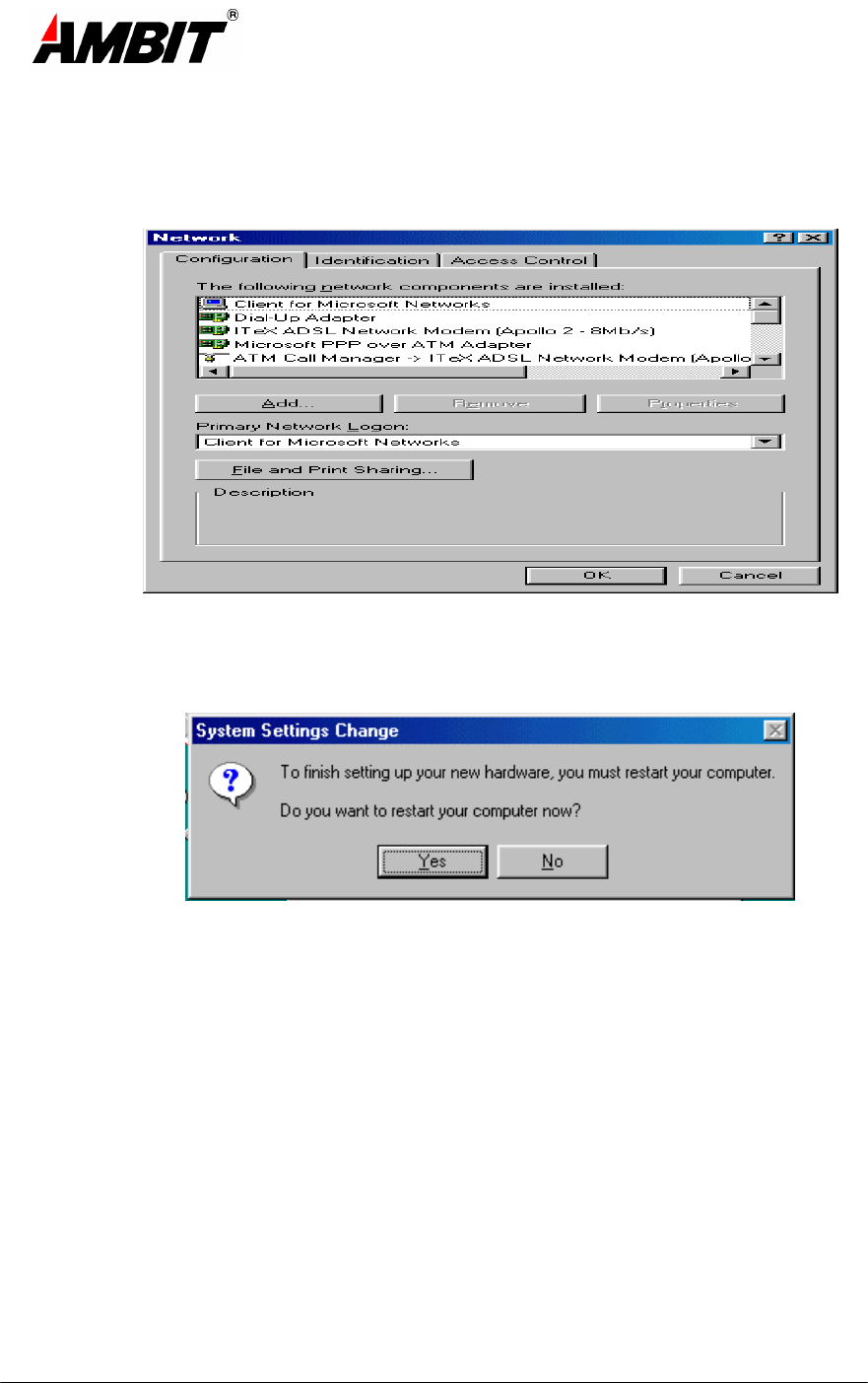

Click "OK" to close the Network window.
Click "Yes" when prompted "Do you want to restart your computer now?"
6. ACTIVATING THE AMBIT PCI ADSL NETWORK MODEM
For RFC1483 :
Once the drivers are installed and the setup is complete, the Ambit ADSL Modem is ready to run.
Each time the computer is turned on, the modem automatically connects to the central office
equipment. Simply run the internet browser software to verify.
7. MONITORING THE AMBIT PCI ADSL NETWORK MODEM
Please refer to the User's Guide to the Modem Icon for more information on how to monitor the
Ambit PCI ADSL network modem.
8. UNINSTALLING THE AMBIT PCI FULL RATE ADSL MODEM AND TEST APPLICATION
To uninstall the software drivers:
![](/img.php?id=78598&img=bg15.png)
PCI Full Rate ADSL Modem Driver Installation
A2RAI-081699
Date Printed: 12/20/99 Page 21 Man_A2.DOC21
• Right click on the “My Computer” icon; select Properties; select Device Manager; Scroll down
to "Network Adapters.” Open the "Network Adapters" folder.
• Right click "ITeX A2 ADSL NIC" and click "Remove.” Click "OK" when prompted with a
warning about removing and adapter. Click "OK" to close the Systems window.
To uninstall the test application:
• From the Start menu, select "Programs,” select "ITeX ADSL,” select "Uninstall ADSL,” then
click on the "Uninstall Test Application.”
