First things first
We would like to thank you for making the TravelMate series of
notebook computers your choice for your mobile computing needs.
We hope you will be happy with your TravelMate as much as we
enjoyed making it for you.
Your guides
To help you use your TravelMate, we have designed a set of guides:
For more information about our products, services, and support
information, please visit our Web site (www.acer.com).
First off, the Just for Starters... poster helps you get
started with setting up your computer.
This User’s guide introduces you to the many ways your
computer can help you be more productive. This guide
provides clear and concise information about the computer,
so read it thoroughly.
If you ever need to print out a copy, this User’s guide is also
available in PDF (Portable Document Format). Follow these
steps:
1 Click on Start, Programs, TravelMate.
2 Click on TravelMate User’s guide.
Note: Viewing the file requires Adobe Acrobat Reader
installed. For instructions on how to use Adobe Acrobat
Reader, access the Help menu.
iv
English
Basic care and tips for using your computer
Turning your computer on and off
To turn on the computer, simply press the power button on the left of
the launch keys found above your TravelMate’s standard keyboard. See
“Front open view” on page 3 for the location of the power switch.
To turn the power off, do any of the following:
•Use the Windows shutdown command
For Windows 2000: Click on Start, Shut Down..., and select Shut
down; then click on OK.
- or -
For Windows XP: Click on Start, Turn off Computer; then click
Turn Off.
•Use the power switch
Note: You can also use the power switch to perform power
management functions. See Windows help for more information.
•Use the customized functions for power management
You can also shut down the computer by closing the display cover,
or by pressing the sleep hot key (Fn-F4). See the online guide for
details.
Note: If you cannot power off the computer normally, press and
hold the power switch for more than four seconds to shut down
the computer. If you turn off the computer and want to turn it on
again, wait at least two seconds before powering up.
Taking care of your computer
Your computer will serve you well if you take care of it.
•Do not expose the computer to direct sunlight. Do not place it
near sources of heat, such as a radiator.
•Do not expose the computer to temperatures below 0ºC (32ºF) or
above 50ºC (122ºF).
•Do not subject the computer to magnetic fields.
v
English
•Do not expose the computer to rain or moisture.
•Do not spill water or any liquid on the computer.
•Do not subject the computer to heavy shock and vibration.
•Do not expose the computer to dust and dirt.
•Never place objects on top of the computer to avoid damaging the
computer.
•Do not slam the computer display when you close it.
•Never place the computer on uneven surfaces.
Taking care of your AC adapter
Here are some ways to take care of your AC adapter:
•Do not connect the adapter to any other device.
•Do not step on the power cord or place heavy objects on top of it.
Carefully route the power cord and any cables away from personal
traffic.
•When unplugging the power cord, do not pull on the cord itself
but pull on the plug.
•The total ampere ratings of the equipment plugged in should not
exceed the ampere rating of the cord if you are using an extension
cord. Also, the total current rating of all equipment plugged into
a single wall outlet should not exceed the fuse rating.
Taking care of your battery pack
Here are some ways to take care of your battery pack:
•Use only batteries of the same kind as replacements. Turn the
power off before removing or replacing batteries.
•Do not tamper with batteries. Keep them away from children.
•Dispose of used batteries according to local regulations. Recycle if
at all possible.
Cleaning and servicing
When cleaning the computer, follow these steps:
1Power off the computer and remove the battery pack.
2Disconnect the AC adapter.
vi
English
3Use a soft cloth moistened with water. Do not use liquid or aerosol
cleaners.
4To clean the display screen, use an LCD cleaning kit.
If any of the following occurs:
•The computer has been dropped or the body has been damaged.
•Liquid has been spilled into the product.
•The computer does not operate normally.
Please refer to "Troubleshooting my computer" on page 55.
First things first iii
Your guides iii
Basic care and tips for using your computer iv
1 Getting to know your TravelMate 1
A TravelMate tour 3
Front open view 3
Front view 4
Left view 6
Right view 7
Rear view 8
Bottom view 9
Features 11
Indicators 13
Using the keyboard 14
Special keys 14
Launch Keys 20
Touchpad 22
Touchpad basics 22
Storage 24
Hard disk 24
AcerMedia bay 24
Using software 25
Audio 27
Adjusting the volume 27
Power management 28
Moving around with your TravelMate 29
Disconnecting from the desktop 29
Moving around 29
Taking the computer home 30
Traveling with the computer 32
Traveling internationally with the computer 32
Securing your computer 34
Using a computer security lock 34
Using the Smart Card 34
Using passwords 40
2 Customizing my computer 43
Expanding through options 45
Connectivity options 45
Upgrade options 50
Using system utilities 53
Notebook Manager 53
Contents
Contents
viii
Launch Manager 54
BIOS Utility 54
3 Troubleshooting my computer 55
Frequently-asked questions 57
Troubleshooting tips 60
Error messages 61
Requesting service 62
International Traveler’s Warranty (ITW) 62
Before you call 62
Appendix A Specifications 65
Appendix B Notices 71
Index 81
1 Getting to know your
TravelMate
Your TravelMate computer combines high-
performance, versatility, power management
features and multimedia capabilities with a
unique style and ergonomic design. Work
with unmatched productivity and reliability
with your new power computing partner.
3
English
A TravelMate tour
After setting up your computer as illustrated in the Just for
Starters... poster, let us show you around your new TravelMate
computer.
Front open view

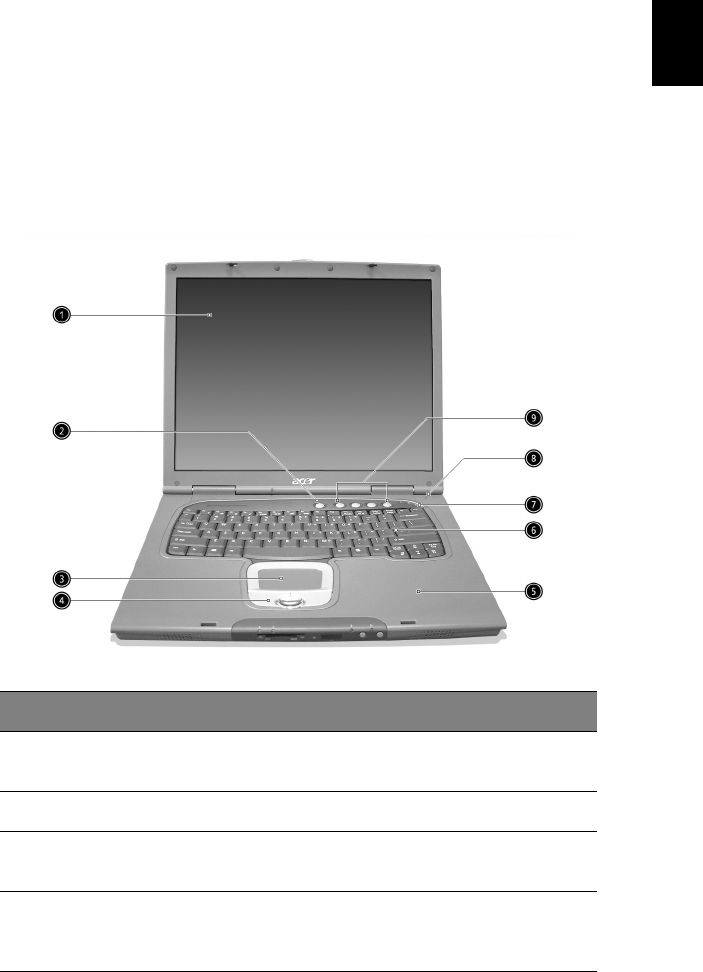

#Item Description
1Display screen Also called LCD (liquid-crystal display),
displays computer output.
2Power button Turns on the computer.
3Touchpad Touch-sensitive pointing device which
functions like a computer mouse.
4Click buttons (left,
center and right)
The left and right buttons function like the
left and right mouse buttons; the center
button serves as a 4-way scroll button.
1 Getting to know your TravelMate4
English
Front view
5Palmrest Comfortable support area for your hands
when you use the computer.
6Keyboard Inputs data into your computer.
7Status indicators LEDs (light-emitting diode) that turn on and
off to show the status of the computer, its
functions and components.
8Microphone Internal microphone for sound recording.
9Launch keys Special keys for launching internet browser,
email program and frequently used
programs. See “Launch Keys” on page 20 for
more details.
#Item Description
1Speaker Outputs sound.
24-in-1 card reader1Reads cards from Smart Media, Memory
Stick, MultiMedia, and Secure Digital cards.
34-in-1 card reader1
indicator
Displays activity of 4-in-1 card reader.
4Infrared port Interfaces with infrared devices (e.g.,
infrared printer, IR-aware computer).
#Item Description
5
English
Notes:
1.Four-in-one card reader is a manufacturing option, subject to
configuration. Only one card can operate at any given time.
2.Bluetooth button and indicator work on models with Bluetooth
only.
3.InviLink button and indicator work on models with wireless
LAN only.
5Bluetooth button2Enables or disables Bluetooth functionality.
6Bluetooth indicator2 Indicates that (optional) Bluetooth is
enabled.
7InviLink button3Enables or disables wireless LAN feature.
8InviLink indicator3 Indicates status of wireless LAN
communication.
9Latch Latch for opening and closing the laptop.
#Item Description
1 Getting to know your TravelMate6
English
Left view

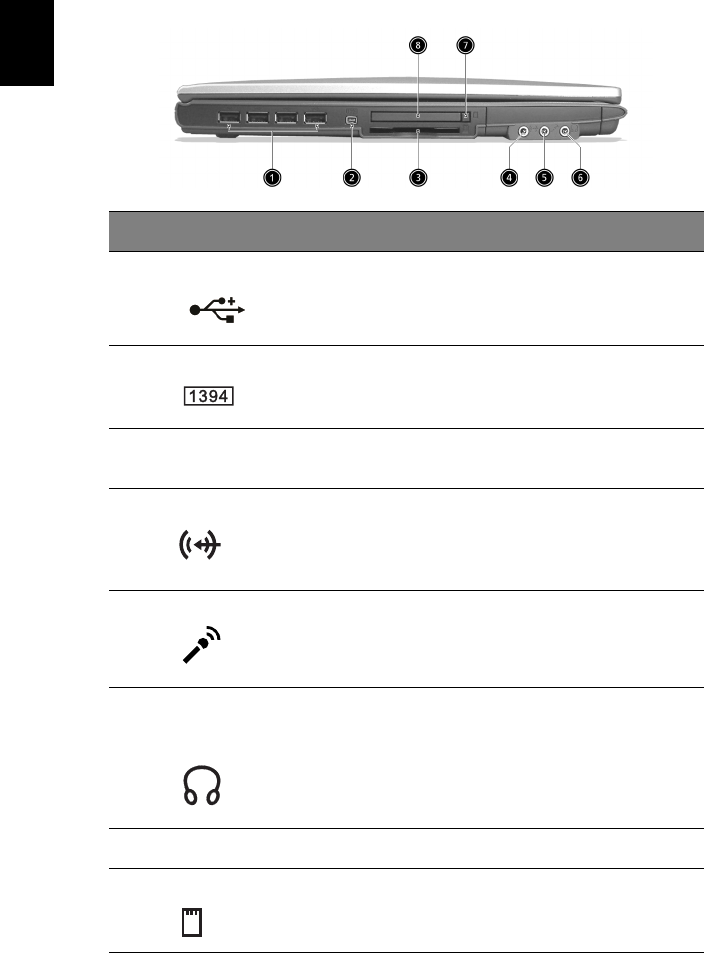

#Item Description
1Four USB 2.0 ports Connect to Universal Serial Bus devices (e.g.,
USB mouse, USB camera).
2IEEE 1394 port Connects to IEEE 1394 devices.
3Smart Card slot Slot for Smart Card interface with pre-boot
authentication system.
4Line-in jack Accepts audio line-in devices (e.g., audio CD
player, stereo walkman).
5Microphone jack Accepts input from external microphones.
6Headphone/
Speaker/ Line-out
jack
Connect to headphones or other line-out
audio devices (speakers).
7PC Card eject button Ejects the PC Card from the slot.
8PC Card slot Accepts one Type II 16-bit PC Card or 32-bit
CardBus PC Card.
7
English
Right view
Note: The positions of the AcerMedia indicator, eject button and
emergency eject hole may differ depending on the optical drive
module installed.
#Item Description
1AcerMedia drive Houses a removable media drive module.
2AcerMedia indicator Lights up when the AcerMedia drive is active.
3Eject button Ejects the drive tray.

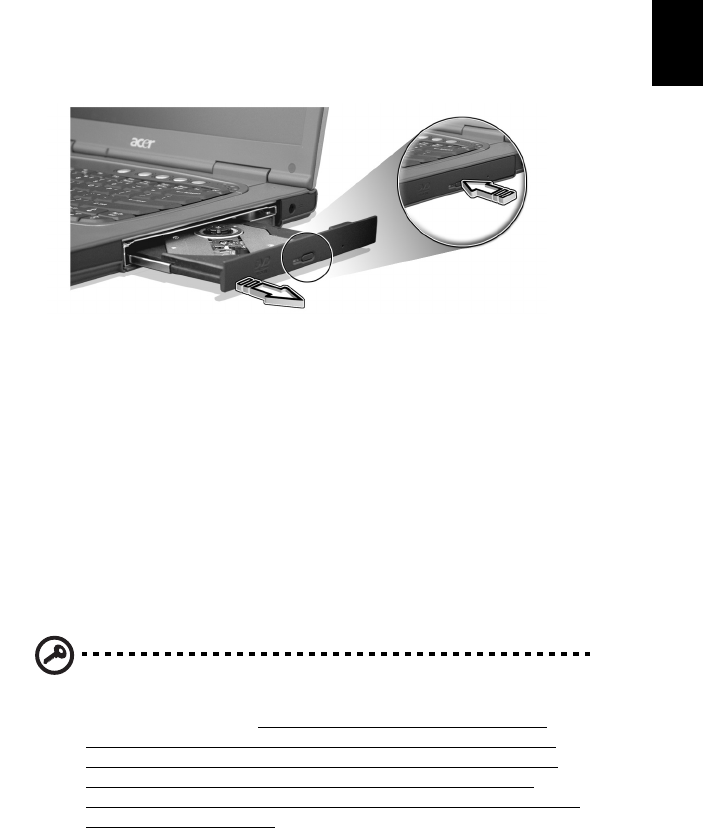

4Emergency eject slot Ejects the drive tray when the computer is
turned off. See page 58 for more details.
5Power jack Connects to an AC adapter.
1 Getting to know your TravelMate8
English
Rear view

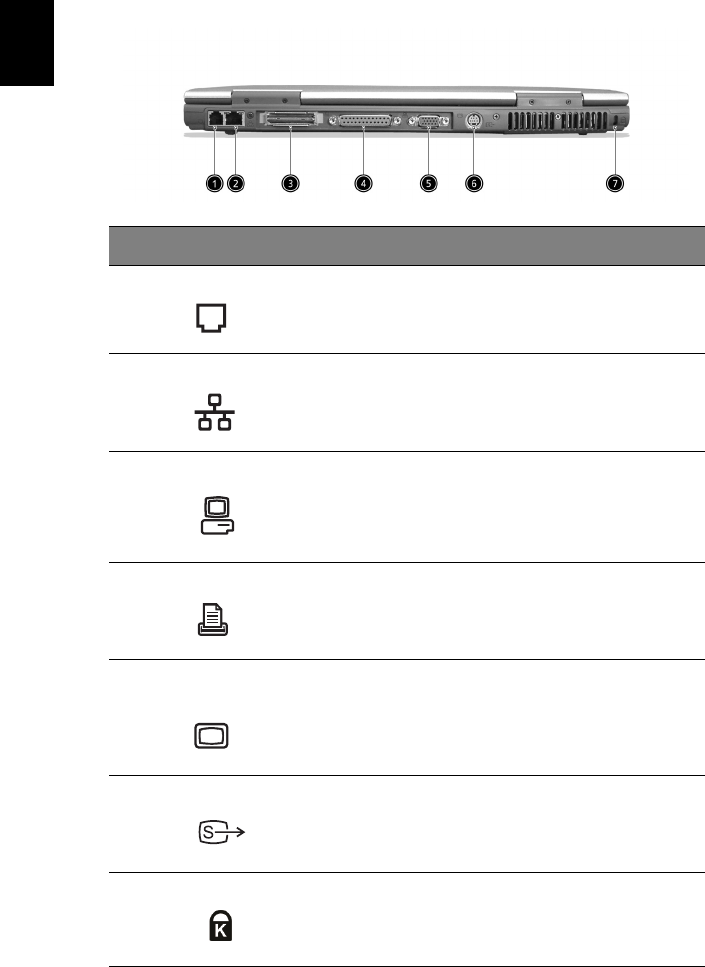

#Item Description
1Modem jack Connects to a phone line.
2Network jack Connects to an Ethernet 10/100-based
network.
3Expansion port Connects to I/O port replicator or EasyPort
expansion devices.
4Parallel port Connects to a parallel device (e.g., parallel
printer).
5External display
port
Connects to a display device (e.g., external
monitor, LCD projector) and displays up to
16.7 million colors and up to 1400x1050
resolution.
6S-video Connects to a television or display device
with S-video input.

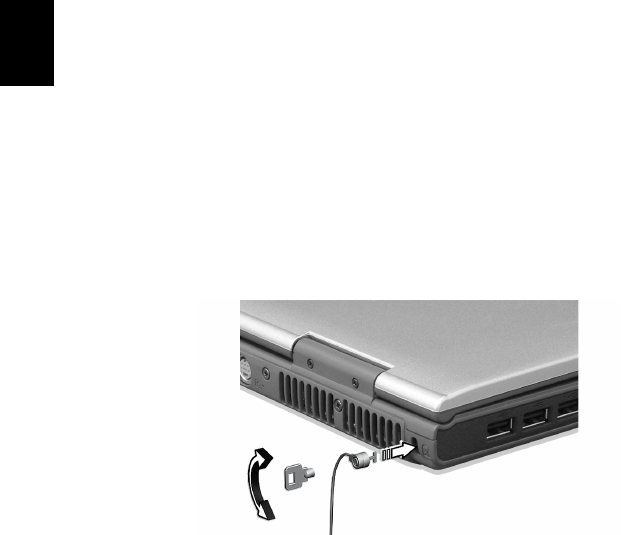

7Security keylock Connects to a Kensington-compatible
computer security lock.
9
English
Bottom view

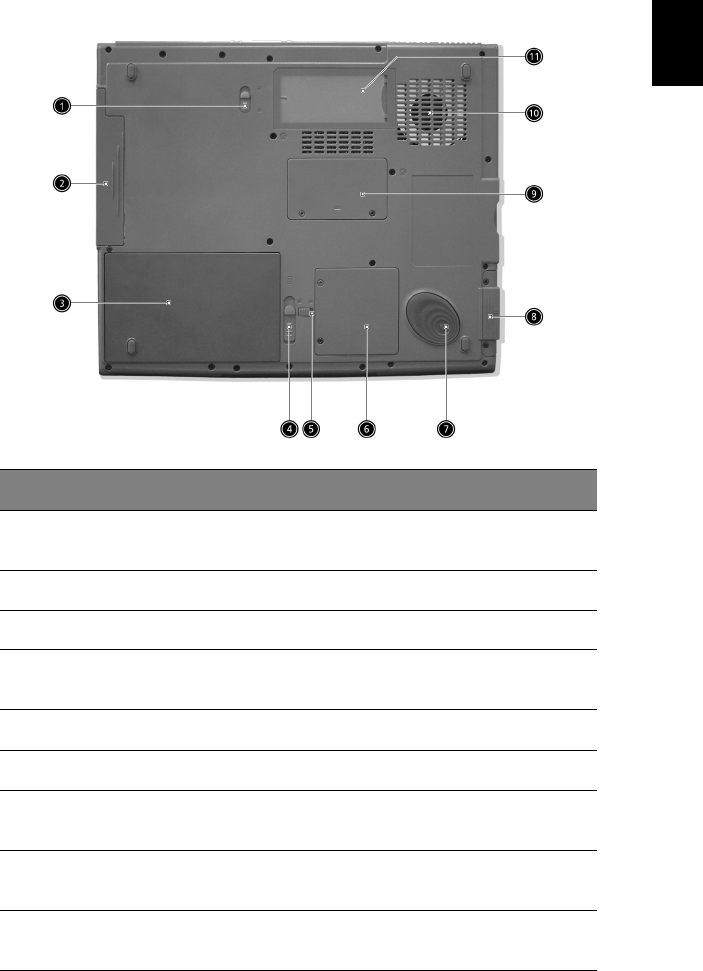

#Item Description
1AcerMedia bay
release latch
Unlatches the AcerMedia drive for
removing the optical drive.
2AcerMedia bay Houses an AcerMedia drive module.
3Battery bay Houses the computer's battery pack.
4Battery release latch Unlatches the battery to remove the
battery pack.
5Battery lock Locks the battery in place.
6Mini-PCI slot Slot for adding mini-PCI cards.
7Hard disk protector Protects the hard disk from accidental
bumps and vibration.
8Hard disk bay Houses the computer's hard disk (secured
by a screw).
9Memory
compartment
Houses the computer’s main memory.
1 Getting to know your TravelMate10
English
10 Cooling fan Helps keep the computer cool.
Note: Don’t cover or obstruct the opening
of the fan.
11 Personal
identification slot
Insert a business card or similar-sized
identification card to personalize your
computer.
#Item Description
11
English
Features
Below is a brief summary of the computer’s many features:
Performance
•Intel® Pentium® M Processor at 1.3G~1.6G and higher
•Memory upgradeable up to 2 GB with 2 slots (Only one slot for
user accessible)
•Internal removable optical drive (AcerMedia bay)
•High-capacity, Enhanced-IDE hard disk
•Li-ion main battery pack
•Power management system with ACPI (Advanced Configuration
Power Interface)
•Smart Card interface with pre-boot authentication system for
added security
Display
•Thin-Film Transistor (TFT) liquid crystal display (LCD) displaying 32-
bit high color up to 1024 x 768 eXtended Graphics Array (XGA)
resolution for 14.1”/15” and 1400 x 1050 Super eXtended Graphics
Array + (SXGA+) resolution for 15” models (specification varies
depending on the model)
•3D graphics engine
•Simultaneous LCD and CRT display support
•S-video for output to a television or display device that supports S-
video input
•"Automatic LCD dim" feature that automatically decides the best
settings for your display and conserves power
•Dual indenpendent display
Multimedia
•16-bit high-fidelity AC’97 stereo audio
•Built-in dual speakers
•Built-in microphone
•High-speed optical drive (AcerMedia bay)
1 Getting to know your TravelMate12
English
Connectivity
•High-speed fax/data modem port
•Ethernet/Fast Ethernet port
•Fast infrared wireless communication
•Four (4) USB 2.0 (Universal Serial Bus) ports
•IEEE 1394 port
•InviLink 802.11b or 802.11a/g wireless LAN (manufacturing
optional)
•Bluetooth ready (manufacturing optional)
•SD/MMC/SM/MS memory slot (manufacturing optional)
Human-centric design and ergonomics
•Internet 4-way scroll button
•Sleek, smooth and stylish design
•Acer FinTouch full-sized curved keyboard
•Ergonomically-centered touchpad pointing device
Expansion
•One type II CardBus PC Card slot
•Upgradeable memory
13
English
Indicators

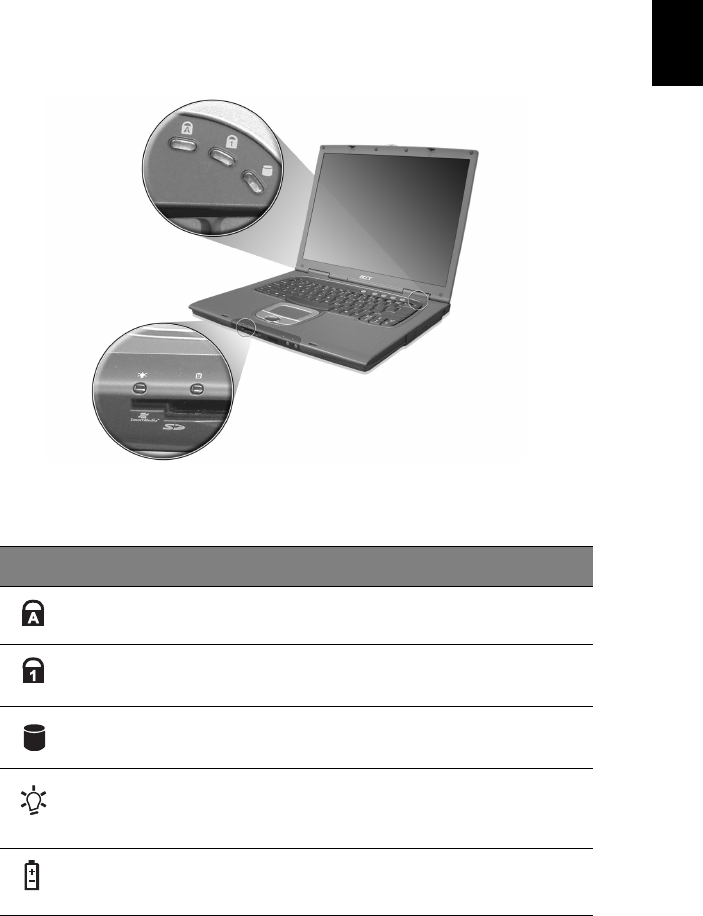

The computer has three easy-to-read status indicators below the
display screen, and two on the front of the computer.
The Power and Battery status indicators are visible even when the
display is closed.
Icon Function Description
Caps lock Lights when Caps Lock is activated.
Num lock Lights when Num Lock is activated.
Media Activity Lights when the disc or AcerMedia is
activated.
Power Lights green when the power is on and
orange when the computer is in standby
mode.
Battery Lights orange when the battery is charging.
1 Getting to know your TravelMate14
English
Using the keyboard

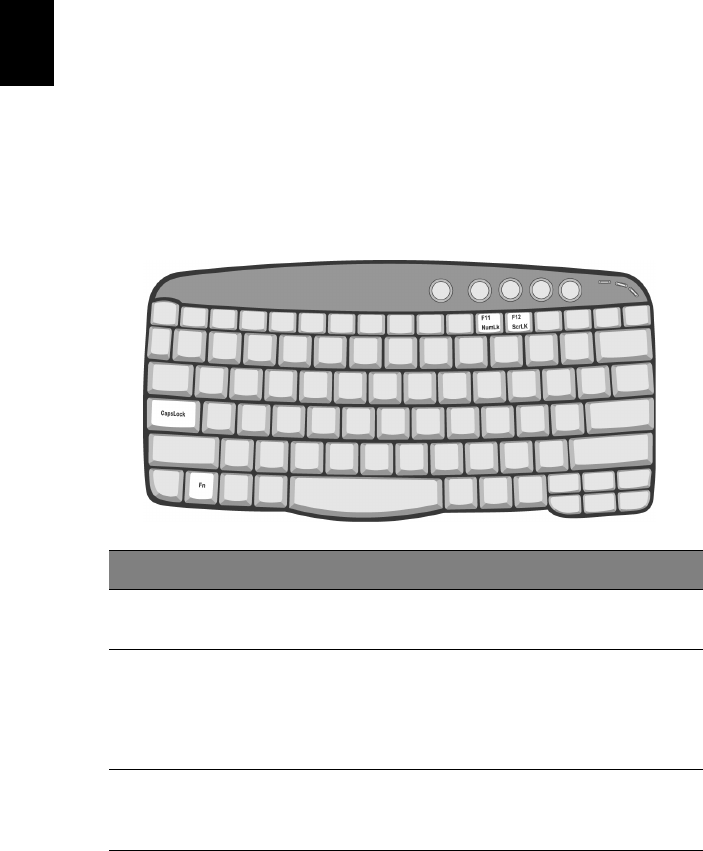

The full-sized keyboard includes an embedded numeric keypad,
separate cursor keys, two Windows keys and twelve function keys.
Special keys
Lock keys
The keyboard has three lock keys which you can toggle on and off.
Lock key Description
Caps Lock When Caps Lock is on, all alphabetic characters typed are in
uppercase.
Num Lock
(Fn-F11)
When Num Lock is on, the embedded keypad is in numeric
mode. The keys function as a calculator (complete with the
arithmetic operators +, -, *, and /). Use this mode when you
need to do a lot of numeric data entry. A better solution
would be to connect an external keypad.
Scroll Lock
(Fn-F12)
When Scroll Lock is on, the screen moves one line up or down
when you press the up or down arrow keys respectively. Scroll
Lock does not work with some applications.
15
English
Embedded numeric keypad

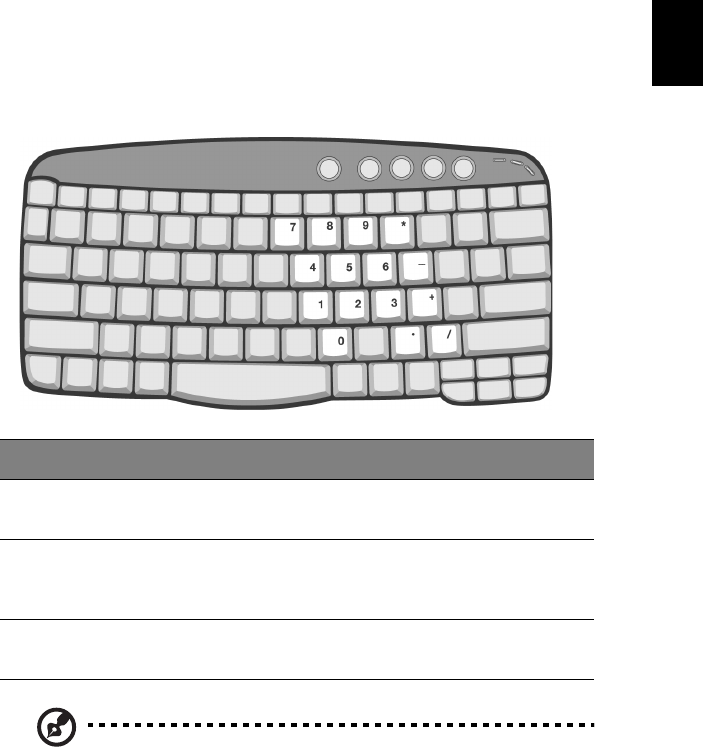

The embedded numeric keypad functions like a desktop numeric
keypad. It is indicated by small characters located on the upper right
corner of the keycaps. To simplify the keyboard legend, cursor-control
key symbols are not printed on the keys.
Note: If an external keyboard or keypad is connected to the
computer, the Num Lock feature automatically shifts from the
internal keyboard to the external keyboard or keypad.
Desired access Num lock on Num lock off
Number keys on
embedded keypad
Type numbers in a normal
manner.
Cursor-control keys
on embedded
keypad
Hold Shift while using
cursor-control keys.
Hold Fn while using
cursor-control keys.
Main keyboard keys Hold Fn while typing letters
on embedded keypad.
Type the letters in a
normal manner.
1 Getting to know your TravelMate16
English
Windows keys

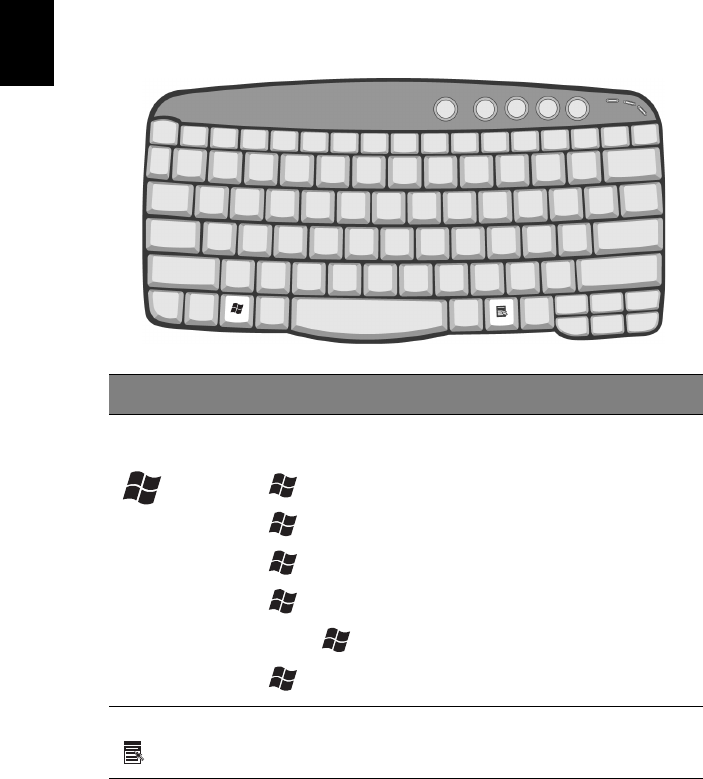

The keyboard has two keys that perform Windows-specific functions.
Hot keys
The computer employs hot keys or key combinations to access most of
the computer’s controls like screen brightness, volume output and the
BIOS Utility.
Key Description
Windows logo
key
Start button. Combinations with this key perform
shortcut functions. Below are a few examples:
+ Tab (Activates next taskbar button)
+ E (Explores My Computer)
+ F (Finds Document)
+ M (Minimizes All)
Shift + + M (Undoes Minimize All)
+ R (Displays the Run... dialog box)

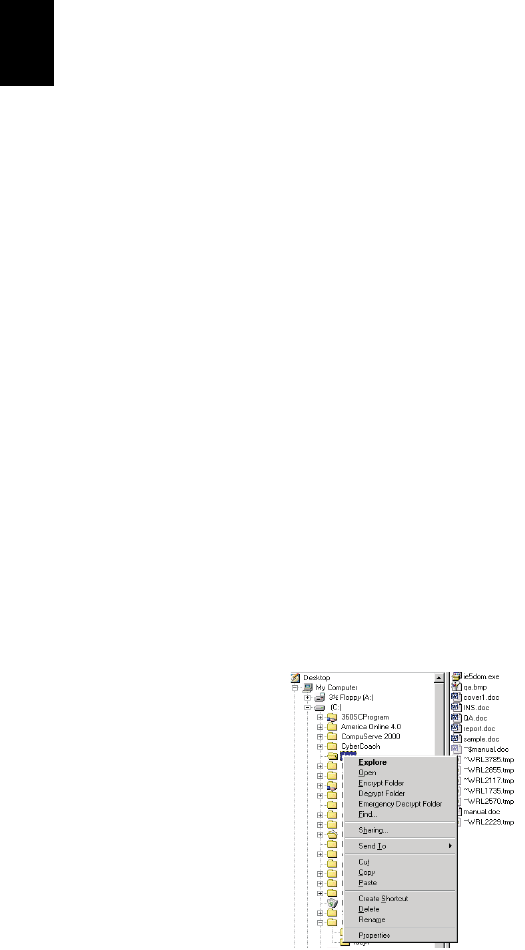

Application key Opens a context menu (same as a right-click).
17
English

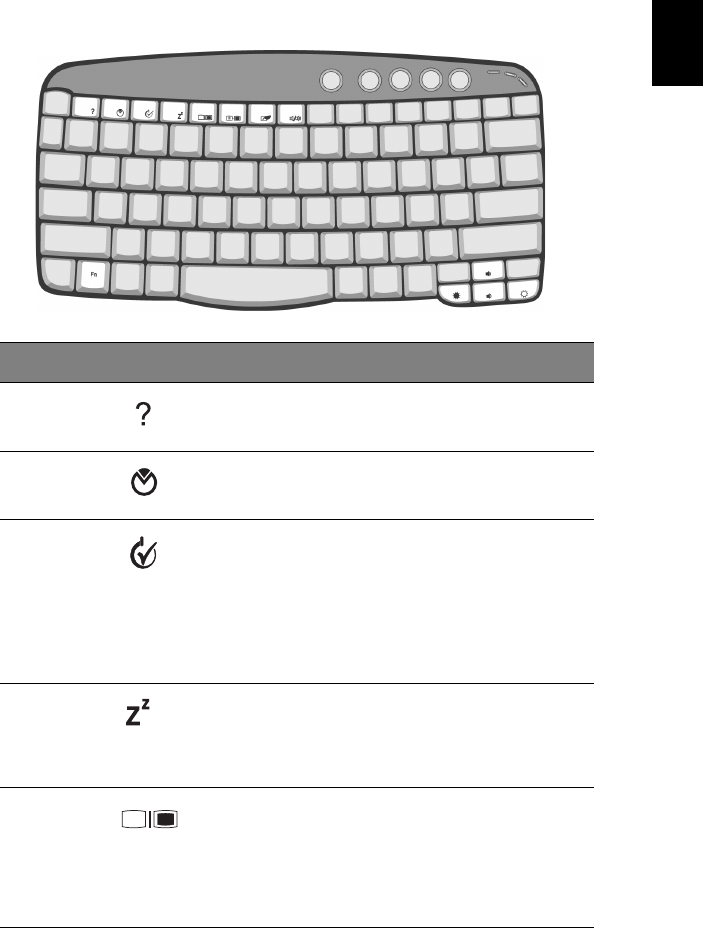

To activate hot keys, press and hold the Fn key before pressing the
other key in the hot key combination.
Hot key Icon Function Description
Fn-F1 Hot key help Displays help on hot keys.
Fn-F2 Setup Accesses the computer’s
configuration utility.
Fn-F3 Power
management
scheme toggle
Switches the power
management scheme used by
the computer (function
available if supported by
operating system).
See “Power management” on
page 28.
Fn-F4 Sleep Puts the computer in Sleep
mode.
See “Power management” on
page 28.
Fn-F5 Display toggle Switches display output
between the display screen,
external monitor (if
connected) and both the
display screen and external
monitor.
1 Getting to know your TravelMate18
English
The Euro symbol
If your keyboard layout is set to United States-International or United
Kingdom or if you have a keyboard with a European layout, you can
type the Euro symbol on your keyboard.
Fn-F6 Screen blank Turns the display screen
backlight off to save power.
Press any key to return.
Fn-F7 Touchpad toggle Turns the internal touchpad
on and off.
Fn-F8 Speaker toggle Turns the speakers on and off.
Fn-↑Volume up Increases the speaker volume.
Fn-↓Volume down Decreases the speaker
volume.
Fn-→Brightness up Increases the screen
brightness.
Fn-←Brightness down Decreases the screen
brightness.
Hot key Icon Function Description
19
English
Note for US keyboard users: The keyboard layout is set when
you first set up Windows. For the Euro symbol to work, the
keyboard layout has to be set to United States-International.
To verify the keyboard type in Windows Millennium Edition and
Windows 2000, follow the steps below:
1 Click on Start, Settings, Control Panel.
2 Double-click on Keyboard.
3 Click on the Language tab.
4 Verify that the keyboard layout used for "En English (United
States)" is set to United States-International.
If not, select and click on Properties; then select United States-
International and click on OK.
5 Click on OK.
To verify the keyboard type in Windows XP, follow the steps below:
1 Click on Start, Control Panel.
2 Double-click on Regional and Language Options.
3 Click on the Language tab and click on Details.
4 Verify that the keyboard layout used for "En English (United
States)" is set to United States-International.
If not, select and click on ADD; then select United States-
International and click on OK.
5 Click on OK.
To type the Euro symbol:
1 Locate the Euro symbol on your keyboard.
2 Open a text editor or word processor.
3Hold Alt Gr and press the Euro symbol.
Note: Some fonts and software do not support the Euro symbol.
Please refer to www.microsoft.com/typography/faq/faq12.htm for
more information.
1 Getting to know your TravelMate20
English

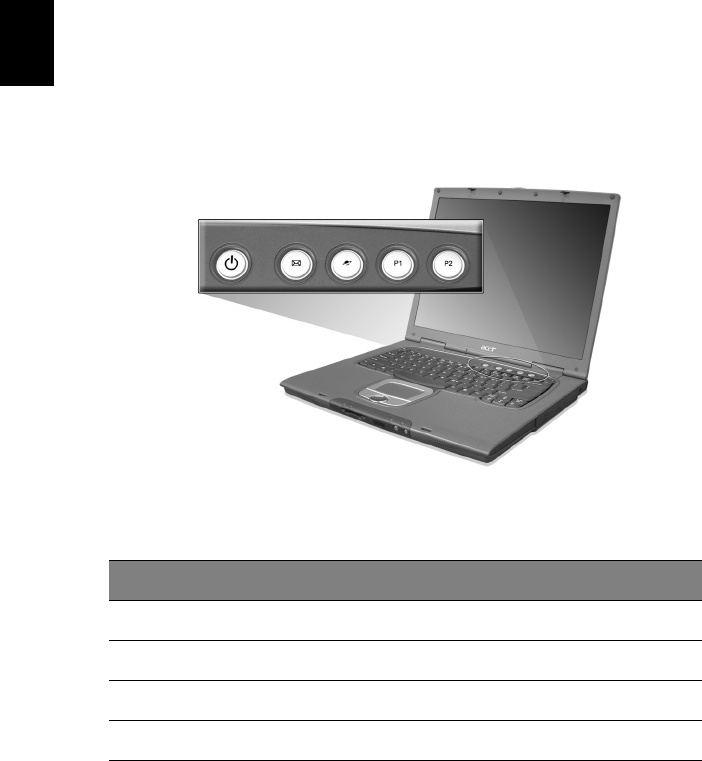

Launch Keys
Located above the keyboard are five buttons. The left-most button is
the power button. To the right of the power button are the four
launch keys. They are designated as the mail button, the web browser
button, and two programmable buttons (P1 and P2).
E-Mail Detection
Click right button at the Launch Manager icon on the taskbar and click
on E-Mail Detection. In this dialog box, you have the option to enable
disable mail checking, set the time interval for mail checking, etc. If
you already have an email account, you can fill in User Name, Password
and POP3 Sever in the dialog box. The POP3 Sever is the mail server
where you get your email.
Launch key Default application
Mail Email application
Web browser Internet browser application
P1 User-programmable
P2 User-programmable
21
English
Aside from the email checking function, there is a mail button that is
used to launch the email application. It is located above the keyboard
right below the LCD.
1 Getting to know your TravelMate22
English
Touchpad

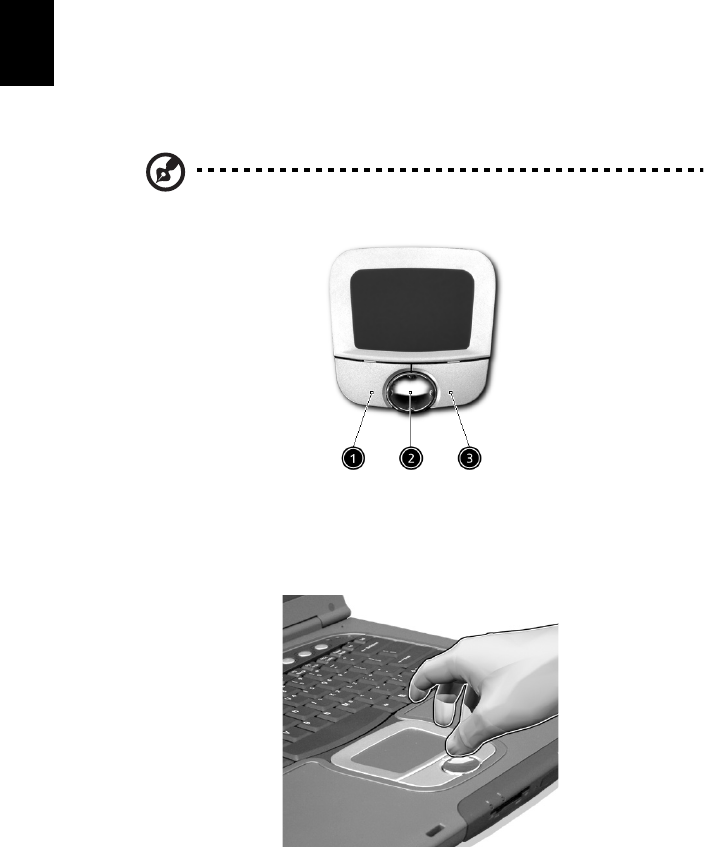

The built-in touchpad is a pointing device that senses movement on its
surface. This means the cursor responds as you move your finger on the
surface of the touchpad. The central location on the palmrest provides
optimum comfort and support.
Note: When using an external USB mouse, you can press Fn-F7 to
disable the touchpad.
Touchpad basics
The following items teach you how to use the touchpad:
•Move your finger across the touchpad to move the cursor.
•Press the left (1) and right (3) buttons located on the edge of the
touchpad to do selection and execution functions. These two
buttons are similar to the left and right buttons on a mouse.
23
English
Tapping on the touchpad produces similar results.
•Use the 4-way scroll (2) button (top/bottom/left and right) to scroll
a page up, down, left or right. This button mimics your cursor
pressing on the vertical and horizontal scroll bars of Windows
applications.
Note: Keep your fingers dry and clean when using the touchpad.
Also keep the touchpad dry and clean. The touchpad is sensitive to
finger movements. Hence, the lighter the touch, the better the
response. Tapping harder will not increase the touchpad’s
responsiveness.
Function Left button Right
button
Center
buttons Tap
Execute Click twice
quickly
Tap twice (at the
same speed as
double-clicking a
mouse button)
Select Click once Tap once
Drag Click and
hold, then
use finger to
drag the
cursor on the
touchpad
Tap twice (at the
same speed as
double-clicking a
mouse button)
then hold finger
to the touchpad
on the second tap
and drag the
cursor
Access
context
menu
Click
once
Scroll Click and
hold the
button in
the desired
direction
(up/down/
left/right)
1 Getting to know your TravelMate24
English
Storage
This computer supplies you with the following media storage:
•High-capacity Enhanced-IDE hard disk
•AcerMedia drive
Hard disk
The high-capacity hard disk is the answer to your storage needs. This is
where your programs and data are stored.
AcerMedia bay
The AcerMedia bay accepts a wide variety of optional media drive
modules for use with your computer. These optional items include:
•CD-ROM drive
•DVD-ROM drive
•DVD/CD-RW drive
•Second hard disk drive
•Second battery
Note: To swap AcerMedia drive modules, see “Swapping
AcerMedia drive modules” on page 52
25
English
Ejecting the optical (CD or DVD) drive tray
To eject the optical drive tray when the computer is turned on, press
the drive eject button.
When the power is off, you can eject the drive tray using the
emergency eject hole. See page 58.
Using software
Playing DVD movies
When the DVD-ROM drive module is installed in the AcerMedia bay,
you can play DVD movies on your computer.
1 Eject the DVD tray and insert a DVD movie disc; then close the DVD
tray.
Important! When you launch the DVD player for the first time,
the program asks you to input the region code. DVD discs are
divided into 6 regions. Once your DVD drive is set to a region
code, it will play DVD discs of that region only. You can set the
region code a maximum of five times (including the first time),
after which the last region code set will remain permanent.
Recovering your hard disk does not reset the number of times the
region code has been set. Refer to the table below for DVD movie
region code information.
1 Getting to know your TravelMate26
English
2 The DVD movie will automatically play after a few seconds.
Note: To change the region code, insert a DVD movie of a
different region into the DVD-ROM drive. Please refer to the
online help for more information.
Region code Country or region
1U.S.A., Canada
2Europe, Middle East, South Africa, Japan
3Southeast Asia, Taiwan, Korea (South)
4Latin America, Australia, New Zealand
5Former U.S.S.R., parts of Africa, India
6People's Republic of China
27
English
Audio
The computer comes with 16-bit high-fidelity AC’97 stereo audio, and
includes a built-in sensitive microphone and dual stereo speakers.
There are audio ports on the left of the computer. See “Left view” on
page 6 for more information on connecting external audio devices.
Adjusting the volume
Adjusting the volume on the computer is as easy as pressing some
buttons. See “Hot keys” on page 16 for more informations on
adjusting the speaker volume.
1 Getting to know your TravelMate28
English
Power management
This computer has a built-in power management unit that monitors
system activity. System activity refers to any activity involving one or
more of the following devices: keyboard, mouse, floppy drive, hard
disk, peripherals connected to the serial and parallel ports, and video
memory. If no activity is detected for a period of time (called an
inactivity timeout), the computer stops some or all of these devices in
order to conserve energy.
This computer employs a power management scheme that supports
ACPI (Advanced Configuration and Power Interface), which allows for
maximum power conservation and maximum performance at the same
time. Windows handles all power-saving chores for your computer.
29
English
Moving around with your TravelMate
This section gives you tips and hints to consider when moving around
or traveling with your computer.
Disconnecting from the desktop
Follow these steps to disconnect your computer from external
accessories:
1 Save your work in progress.
2 Remove any media, diskette or compact disc, from the drive(s).
3 Shut down the computer.
4 Close the display cover.
5 Disconnect the cord from the AC adapter.
6 Disconnect the keyboard, pointing device, printer, external
monitor, and other external devices.
7 Disconnect the Kensington lock if you are using one to secure the
computer.
Moving around
“when you are just moving within short distances, for example, from
your office desk to a meeting room”
Preparing the computer
Before moving the computer, close and latch the display cover to place
it in Sleep mode. You can now safely take the computer anywhere you
go within the building. To bring the computer out of Sleep mode,
open the display; then slide and release the power switch.
If you are taking the computer to a client's office or a different
building, you may choose to shut down the computer:
1 Click on Start, Shut Down... or Turn off Computer (Windows
XP).
2 Select Shut down and click on OK, or select Turn Off (Windows
XP).
1 Getting to know your TravelMate30
English
- or -
you can put the computer in Sleep mode by pressing Fn-F4. Then close
and latch the display.
When you are ready to use the computer again, unlatch and open the
display; then slide and release the power switch.
Note: If the sleep indicator is off, the computer has entered
Hibernation mode and turned off. If the power indicator is off but
the sleep indicator is on, the computer has entered Sleep mode. In
both cases, slide and release the power switch to turn the
computer back on. Note that the computer may enter Hibernation
mode after it is in Sleep mode for a period of time.
What to bring to short meetings
A fully charged battery runs the computer for about 3 hours under
most circumstances. If your meeting is shorter than that, you probably
do not need to bring anything with you other than the computer.
What to bring to long meetings
If your meeting will last longer than 3 hours or if your battery is not
fully charged, you may want to bring the AC adapter with you to plug
in your computer in the meeting room.
If the meeting room does not have an electrical outlet, reduce the
drain on the battery by putting the computer in Sleep mode. Press Fn-
F4 or close the display cover whenever you are not actively using the
computer. To resume, open the display (if closed); then slide and
release the power switch.
Taking the computer home
“when you are moving from your office to your home or vice versa”
Preparing the computer
After disconnecting the computer from your desktop, follow these
steps to prepare the computer for the trip home:
•Check if you have removed all media, diskettes and compact discs,
31
English
from the drive(s). Failure to remove the media can damage the
drive head.
•Pack the computer in a protective case that can prevent the
computer from sliding around and cushion it if it should fall.
Caution: Avoid packing items next to the top cover of the
computer. Pressure against the top cover can damage the screen
What to bring with you
Unless you already have some items at home, bring the following items
with you:
•AC adapter and power cord
•The printed user’s guide
•AcerMedia drive module(s)
Special considerations
Follow these guidelines to protect your computer while traveling to
and from work:
•Minimize the effect of temperature changes by keeping the
computer with you.
•If you need to stop for an extended period of time and cannot
bring the computer with you, leave the computer in the trunk of
the car to avoid exposing the computer to excessive heat.
•Changes in temperature and humidity can cause condensation.
Allow the computer to return to room temperature, and inspect
the screen for condensation before turning on the computer. If the
temperature change is greater than 18°F (10°C), allow the
computer to come to room temperature slowly. If possible, leave
the computer for 30 minutes in an environment with a
temperature between outside and room temperature.
Setting up a home office
If you frequently work on your computer at home, you may want to
purchase a second AC adapter for use at home. With a second AC
adapter, you can avoid transporting the extra weight to and from
home.
1 Getting to know your TravelMate32
English
If you use your computer at home for significant periods of time, you
might also want to add an external keyboard, monitor, or mouse.
Traveling with the computer
“when you are moving within a larger distance, for instance, from your
office building to a client’s office building or traveling locally”
Preparing the computer
Prepare the computer as if you were taking it home. Make sure that
the battery in the computer is charged. Airport security may require
you to turn on your computer when bringing it into the gate area.
What to bring with you
Bring the following items with you:
•AC adapter
•Spare, fully-charged battery pack(s)
•AcerMedia drive module(s)
•Additional printer driver files if you plan to use another printer
Special considerations
In addition to the guidelines for taking the computer home, follow
these guidelines to protect your computer while traveling:
•Always take the computer as carry-on luggage.
•If possible, have the computer inspected by hand. Airport security
X-ray machines are safe, but do not put the computer through a
metal detector.
•Avoid exposing floppy disks to hand-held metal detectors.
Traveling internationally with the computer
“when you are moving from country to country”
Preparing the computer
Prepare the computer as you would normally prepare it for traveling.
33
English
What to bring with you
Bring the following items with you:
•AC adapter
•Power cords that are appropriate for the country to which you are
traveling
•Spare, fully-charged battery packs
•AcerMedia drive module(s)
•Additional printer driver files if you plan to use another printer
•Proof of purchase, in case you need to show it to customs officials
•International Traveler’s Warranty passport
Special considerations
Follow the same special considerations as when traveling with the
computer. In addition, these tips are useful when traveling
internationally:
•When traveling in another country, check that the local AC voltage
and the AC adapter power cord specifications are compatible. If
not, purchase a power cord that is compatible with the local AC
voltage. Do not use converter kits sold for appliances to power the
computer.
•If you are using the modem, check if the modem and connector is
compatible with the telecommunications system of the country
you are traveling in.
1 Getting to know your TravelMate34
English
Securing your computer
Your computer is a valuable investment that you need to take care of.
Learn how to protect and take care of your computer.
Security features include hardware and software locks — a security
notch, Smart Card and passwords.
Using a computer security lock
A security keylock notch located on the left panel of the computer lets
you connect a Kensington-compatible computer security lock.
Wrap a computer security lock cable around an immovable object such
as a table or locked drawer handle. Insert the lock into the notch and
turn the key to secure the lock. Some keyless models are also available.
Using the Smart Card
This software includes the following components: PlatinumPAS™,
PlatinumSecure™ and PlatinumKey™. Together, they provide you with
multiple levels of security.
• PlatinumPAS implements the first security measure at the BIOS
level and runs during the BIOS routine check when a computer is
powered up or rebooting. If no Smart Card or Emergency Card is
detected, the computer will stop booting up to prevent any illegal
access to the system.
• PlatinumSecure enhances the secure logon procedure for your
Windows at the operating system level. It provides user
authentication through its encryption/decryption function using
35
English
the Smart Card. If your Smart Card is unavailable, you can use the
Emergency Card as a temporary replacement card.
• PlatinumKey auto-authenticate and auto cache with one-click
logons to all password-required websites (patent pending),
eliminates the overhead costs associated with memorizing and
typing user IDs and passwords when surfing the Internet with
Microsoft or Netscape web browsers.
A slot for your Smart Card is located on the left panel of the computer.
This new security feature helps you boot up your computer with all
your settings built right into your Smart Card. You don’t have to
remember your password to access your computer.

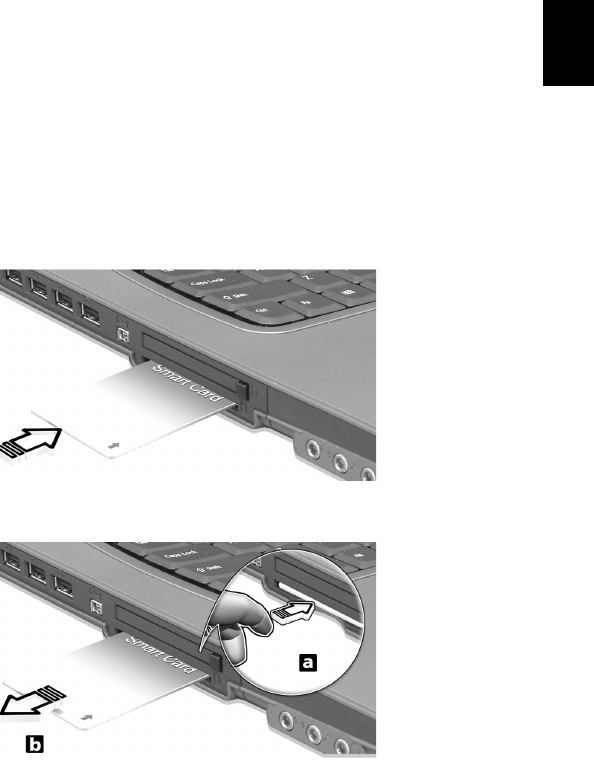

To remove the Smart Card first press the Smart Card (a) and remove the
Smart Card (b) as shown in the illustration below.
For more details consult your Smart Card documentation.
1 Getting to know your TravelMate36
English
Registering your Smart Card
Important! Your Acer notebook is equipped with a Smart Card
security feature that protects the computer from unauthorized
access. If you enable this feature, please make sure that your
warranty card is completed and sent back to Acer. This
information will be used by Acer service centers to confirm
ownership in case your Smart Card "key" is lost or damaged.
Registering your notebook with Acer's service center is extremely
important when replacing your lost Smart Card "key".
If you have already bypassed the Smart Card registration, please
reinstall the application as follows:
1 Insert your System CD and reinstall from it.
2 Follow the onscreen instructions.
To enable the Smart Card security feature, please refer to your Smart
Card user manual.
Running PlatinumSecure
PlatinumSecure enhances the secure logon procedure for Windows
2000 or XP at the operating system level. It provides user
authentication with an encryption/decryption function using the Smart
Card. If your Smart Card is unavailable, the Emergency Card can serve
as a temporary replacement for the Smart Card. After installation, the
PlatinumSecure icon appears on the Windows desktop.

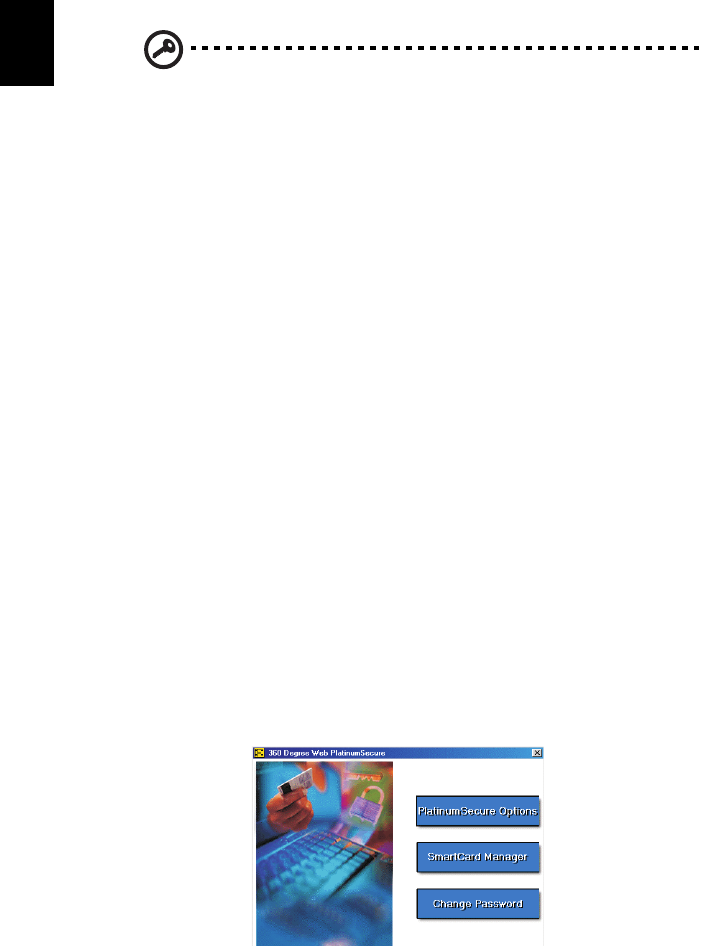

Double-click on it or click the right mouse button, then select Open
from the pop-up menu (or launch it from the PlatinumSecret program
group). From the menu that appears, you can directly access three
operations: PlatinumSecure Options, Smart Card Manager, and Change
Password.
37
English
PlatinumSecure Options
Click on the PlatinumSecure Options button to open the Smart Card
Options window. It provides great flexibility to meet the various
privacy protection needs of many different users.
• Disable Smart Card Authentication
When Disable PlatinumPAS is selected, the PlatinumPAS Preboot
Authentication System will be disabled.
When Disable PlatinumSecure is selected, the PlatinumSecure
Windows Logon Authentication with the Smart Card will be
disabled, which means that the protection of your PC as well as
other options under System Lock Option and Password Option
will be disabled, too. The Smart Card password is required for this
selection.
• System Lock Option
When Lock system when the Smart Card is not in use
(default) is selected, if the Smart Card is removed, the
PlatinumSecure screensaver comes up and access to the system is
locked. When Never lock the system after bootup is selected,
there is no protection for the PC after boot up, and Password
Option is disabled.
• Password Option
When Always enter password when the Smart Card is in use
(default) is selected, the password is required whenever you need
to regain access to the system while the Smart Card is inserted.
When Auto authenticate when Smart Card is in use is
selected, no password is required. All you need to do is insert the
Smart Card.
1 Getting to know your TravelMate38
English
Smart Card Manager
The Multiple user support is implemented and managed in Smart Card
Manager. Please note that five users can be registered on one PC. If
you registered as the Primary User, ONLY you can add/remove other
users. If you registered as a regular user, other registered users could
add/remove you. All registered users will be able to use the View Smart
Card users option.
Change Password
Click the Change Password button, fill in the three fields in the
Change Password dialog box, and then close the dialog box by clicking
the OK button to change the Smart Card password.
Encrypt/Decrypt
PlatinumSecure can also be used to encrypt/decrypt files except for
system files or files that are already encrypted with other applications.
Double-click on a file to automatically encrypt/decrypt it. However, if
the file is associated with an application, it will be opened with that
application instead of being encrypted. Note that the encryption is not
recursive, i.e., when you encrypt a folder, only the files immediately
under that folder are encrypted. Other files under subfolders are not.
To find the Encrypt/Decrypt commands:
•Right-click on the Start menu,
•Right-click on a folder or icon on your Windows desktop, or
•In Windows Explorer, right-click on a selected folder, file, or group
of files.
39
English
Running PlatinumKey
PlatinumKey provides one-click logon to all password-required
websites. With its unique Smart Card caching technology, you can
greatly extend the limited card memory size to unlimited use by
storing your private data in an encrypted file either on the Smart Card,
or on the 360 Degree Web secure website server.
Information in PlatinumKey like the one in My Info and Credit Cards,
can be transferred to other applications using the "drag-and-drop"
method: simply point the cursor to the field containing the
information, press and hold the left mouse button, then drag the
cursor to the application and drop the information there.
PlatinumKey also makes it convenient to change your password. There
is always a PWD button available, which is equivalent to the Change
Password button in PlatinumSecure.
Follow these steps to use PlatinumKey:
1 Open your browser to connect to the Internet.
2 Double-click on the PlatinumKey icon on your Windows desktop.
3 Enter your Smart Card password and click OK.
4 If PlatinumKey is being used for the very first time, it will ask
"Would you like to link to 360 Degree Web secure website server
to backup the information on your Smart Card?" The default
answer is Yes, and it will enable you to store your information
(excluding the Credit Cards) on the 360 Degree Web secure
website server for backup purposes in case the card is lost/stolen. If
you choose No, you will only be able to save My Info, Credit Cards
and 5 Websites on your Smart Card.
5 Log in to a website where you are already registered.
6 PlatinumKey automatically stores your login data and asks for your
confirmation to automatically log you in the next time you access
the site. Click Yes and continue browsing.
7 To close PlatinumKey when you are finished browsing, right-click
on the PlatinumKey icon on your Windows taskbar and select
Close PlatinumKey.
PlatinumKey provides a list of all the logon pages that you have stored.
To go directly to any site on the list either double-click it or select it
and click the Go button. Also, you can click the View button to view
the selected website information including Web Name, User Name,
1 Getting to know your TravelMate40
English
Password, and Web URL. Similarly, type the first letter(s) of a site on
the list, and the site will be searched and selected.
You can Edit and Delete the sites as well as other information, and
Save or Cancel the changes you made, by selecting the button
corresponding to each command.
Using passwords
Passwords protect your computer from unauthorized access. Setting
these passwords creates several different levels of protection for your
computer and data:
•Supervisor Password prevents unauthorized entry into the BIOS
Utility. Once set, you must key-in this password to gain access to
the BIOS Utility. See “BIOS Utility” on page 54.
•User Password secures your computer against unauthorized use.
Combine the use of this password with password checkpoints on
boot-up and resume from hibernation for maximum security.
•Password on Boot secures your computer against unauthorized
use. Combine the use of this password with password checkpoints
on boot-up and resume from hibernation for maximum security.
•Hard Disk Password protects your data by preventing
unauthorized access to your hard disk. Even if the hard disk is
removed from the computer and moved to another computer, it
cannot be accessed without the Hard Disk Password.
Important! Do not forget your Supervisor and Hard Disk
Password! If you forget your password, please get in touch with
your dealer or an authorized service center.
Entering passwords
When a password is set, a password prompt appears in the left-hand
corner of the display screen.
•When the Supervisor Password is set, a prompt appears when you
press F2 to enter the BIOS Utility at boot-up.
•Type the Supervisor Password and press Enter to access the BIOS
Utility. If you enter the password incorrectly, a warning message
appears. Try again and press Enter.
•When the User Password is set and the Password on boot
41
English
parameter is enabled, a prompt appears at boot-up.
•Type the User Password and press Enter to use the computer. If
you enter the password incorrectly, a warning message appears.
Try again and press Enter.
•When the Hard Disk Password is set, a prompt appears at boot-up.
•Type the Hard Disk Password and press Enter to use the computer.
If you enter the password incorrectly, a warning message appears.
Try again and press Enter.
Important! You have three chances to enter a password. If you
fail to enter the password correctly after three tries, the system
halts. Slide and hold the power switch for four seconds to shut
down the computer. Then turn on the computer again, and try
again. If you fail to enter the Hard Disk Password, please contact
your dealer or an authorized service center.
Setting passwords
You can set passwords using the BIOS Utility.
1 Getting to know your TravelMate42
English
