Users Manual



 



WBUB15



IEEE802.11a/b/g/n/ac2x2+BTComboModule



ProductSpecification1.0



Approved:Approved:Preparedby:



________________________



_________________________



_________________________

ZekeWuMattLinBenHo

ManagerSupervisorEngineer



WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 1

This preliminary specification is subject to change without notice.

RevisionHistory

DateNumberApproverComments

July.8,20151.0BenHoInitialDraft

 





RESTRICTED AND CONFIDENTIAL INFORMATION STATEMENT

AllinformationcontainedinthisdocumentistheexclusivepropertyofFoxconnTechnologyInc.andits

developmentpartners.Anyreproductionordisclosureofallorpartofthisdocumentwithoutthe

expressedwrittenconsentofFoxconnTechnologyInc.isstrictlyprohibited.





WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 2

This preliminary specification is subject to change without notice.

TABLEOFCONTENTS

RevisionHistory................................................................................................1

Chapter1.ModuleOverview...........................................................................4

1‐1KeyCharacteristic.........................................................................................................................4

1‐2Certification...................................................................................................................................4

1‐3BlockDiagram...............................................................................................................................5

1‐4LGAPinDefinition.........................................................................................................................5

Chapter2.ElectricalandRFSpecificaiton.........................................................7

2‐1RecommendedOperationRating.........................................................................................7

2‐3WiFiRFSpecification–TX.....................................................................................................7

2‐4WiFiRFSpecification–RX.....................................................................................................9

2‐5BluetoothRFSpecification..........................................................................................................11

2‐6BluetoothLowEnergyRFSpecification......................................................................................13

2‐7AntennaSpecificationRequirement...........................................................................................14

Chapter3.MECHANICALSPECIFICATION........................................................15

3‐1ModuleAssemblyDimension.............................................................................................15

3‐2LabelSpecification..............................................................................................................16

Chapter4.AdditionalInformation.................................................................16

4‐1EEPROMInformation..........................................................................................................16

4‐2ModulePhoto.............................................................................................................................17

4‐3FCC/ICStatements......................................................................................................................18



WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 3

This preliminary specification is subject to change without notice.

Figures:

Figure1ModuleBlockDiagram.....................................................................................................................................5

Figure2PinDefinitions(ModuleBottomView).............................................................................................................5

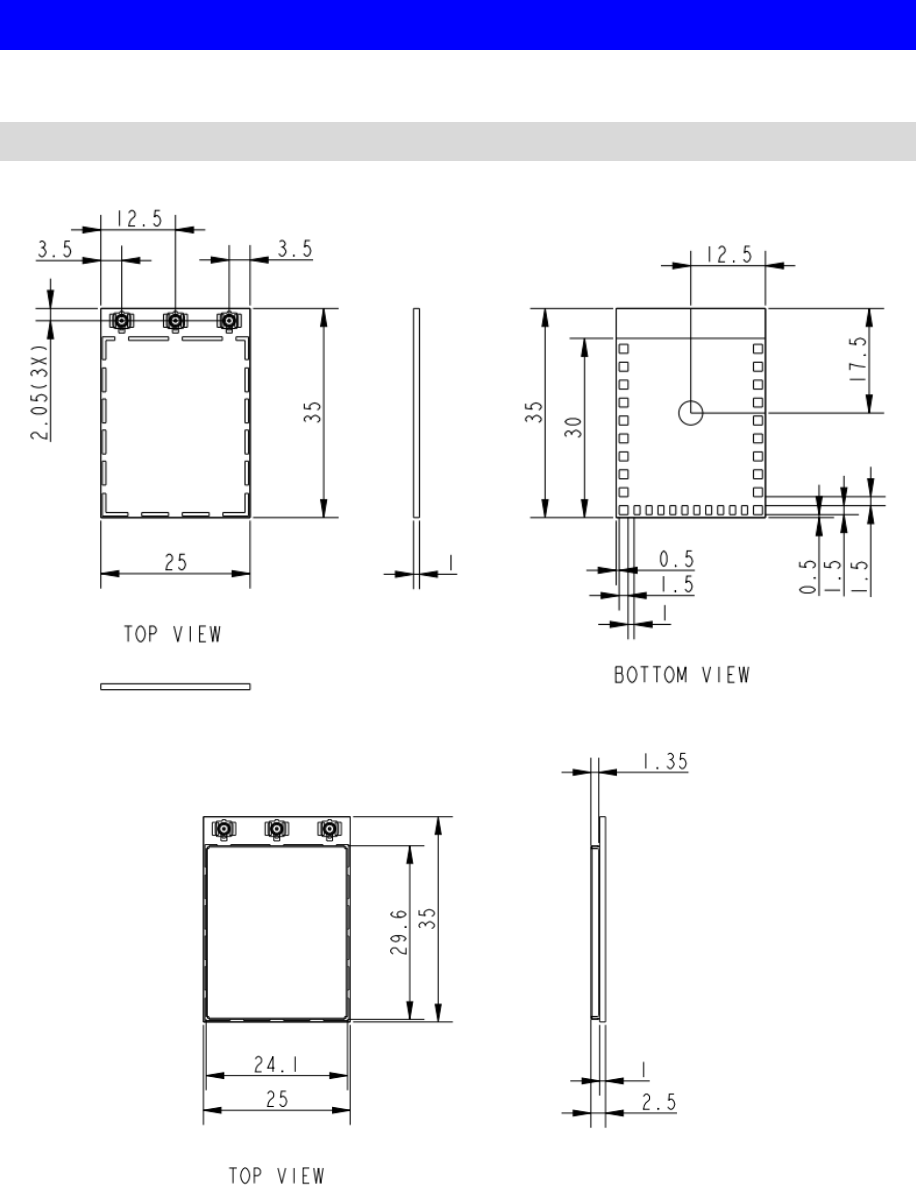

Figure3MechanicalDrawing....................................................................................................................................155

Figure4LabelDrawing.................................................................................................................................................16

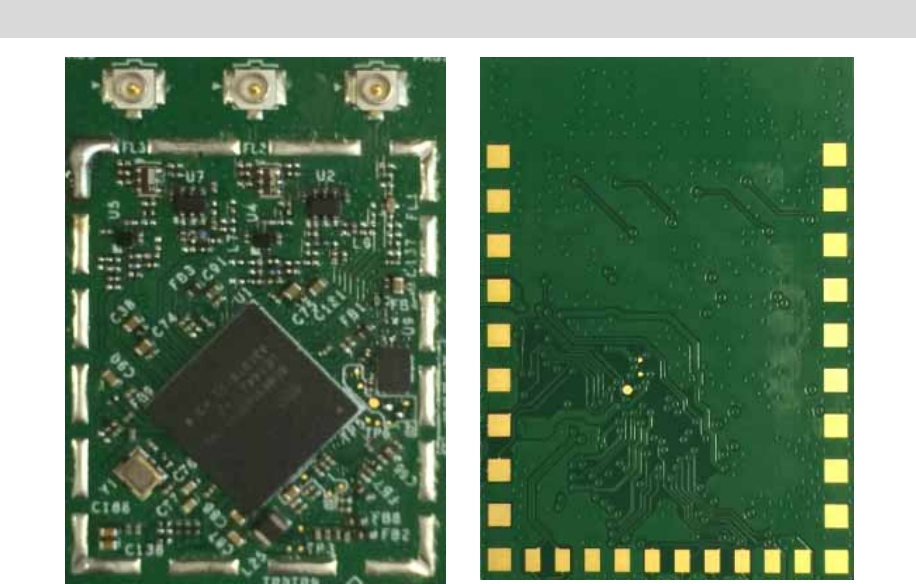

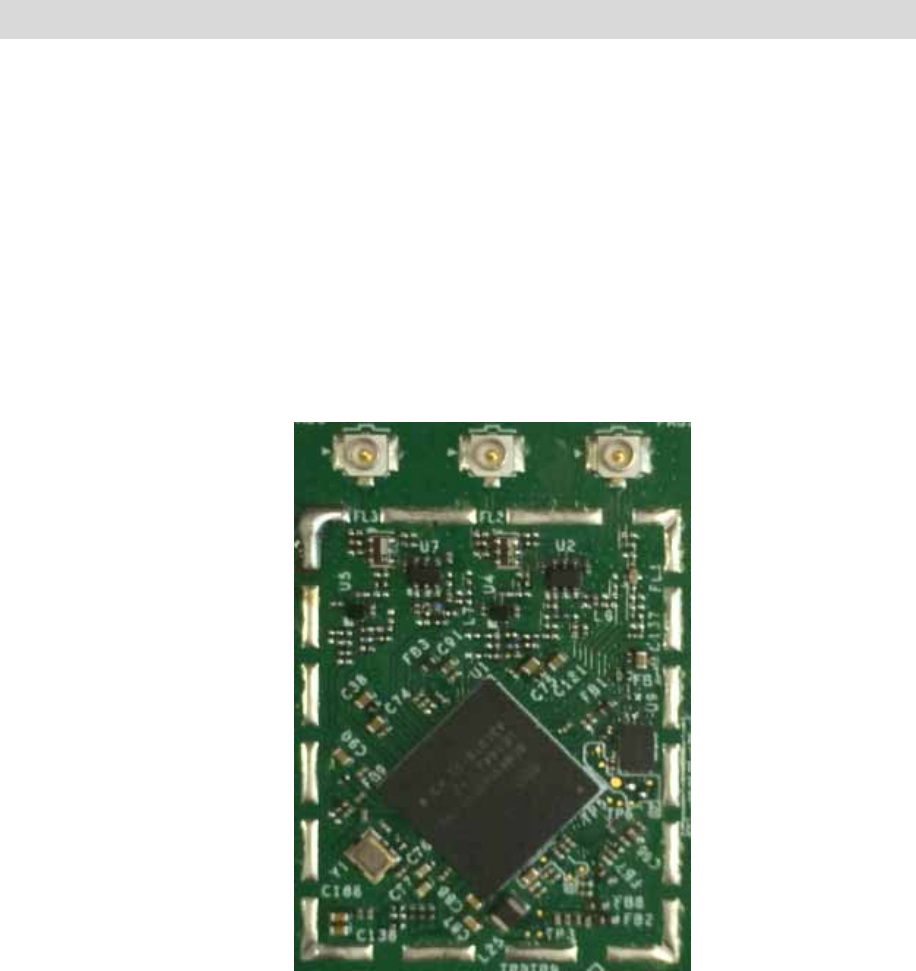

Figure5TopSidePhoto...............................................................................................................................................17

Figure6BottomSidePhoto.......................................................................................................................................177

Tables

Table1PinDefinitions...................................................................................................................................................6

Table2OperationRating...............................................................................................................................................7

Table3PowerConsumption..........................................................................................................................................7

Table4IEEE802.11b/g/n/acTXOutputPower(WLAN0&WLAN1)............................................................................7

Table5IEEE802.11a/n/acTXOutputPower(WLAN0&WLAN1)...............................................................................8

Table6IEEE802.11b/g/n/acRxsensitivity(WLAN0&WLAN1)...................................................................................9

Table7IEEE802.11a/n/acRxsensitivity(WLAN0&WLAN1)....................................................................................10

Table8USBPID/VIDSetting......................................................................................................................................166





WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 4

This preliminary specification is subject to change without notice.

CHAPTER1. MODULEOVERVIEW

TheFoxconnWBUB15WLAN/BTmodulecontainstheBroadcom®BCM43569single‐chipwhich

isahighlyintegratedIEEE802.11a/b/g/n/acMAC/baseband/radioandBluetooth4.1+EDR.Itprovidesa

smallform‐factorsolutionwithminimalexternalcomponentstodrivedowncostfor

1‐1KeyCharacteristic

 AnIEEE802.11a/b/g/b/acdual‐band2x2MIMOradiowithvirtual‐simultaneousdual‐band

operatoin

 Bluetooth4.1+EDRwithanintegratedclass1PA

 ConcurrentBluetoothandWLANoperation

 20/40/80MHzbandwidth

 Reversedirectiongrantdataflowandframeaggregation

 Security:WEP,WPA,WPA2,TKIP,AES,CKIP

 QoS‐WMM,WMM‐PS,WMM‐SA

 Afull‐speedUSB2.0‐compliantinterfaceforWLANandBluetooth

 BluetoothSmartAudio®technologyimprovesvoiceandmusicqualitytoheadsets

 Bluetoothlow‐power(BLE)support

 Bluetoothpacketlossconcealment(PLC)

1‐2 Certification

TBD



WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 5

This preliminary specification is subject to change without notice.

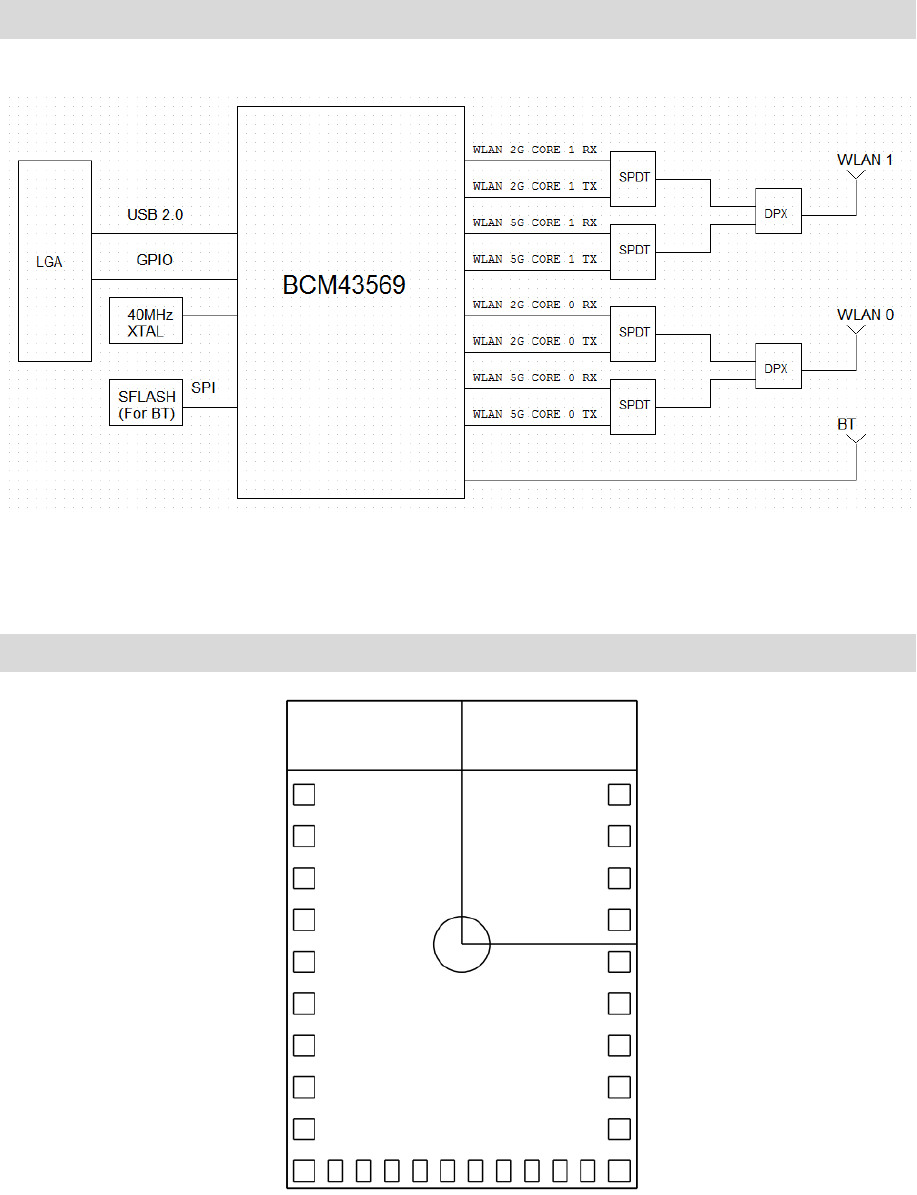

1‐3BlockDiagram

ThegeneralHWarchitectureisshownbelowFigure:



Figure1ModuleBlockDiagram

1‐4 LGAPinDefinition



Figure2PinDefinitions(ModuleBottomView)

1

2

3

10111221

30

29

WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 6

This preliminary specification is subject to change without notice.

Table1PinDefinitions

PinNumberSymbolNameTypePinDescription

1GND GNDGround

2GND GNDGround

3GND GNDGround

4VDD3_3 Power3.3V

5GND GNDGround

6GND GNDGround

7BT_Host_Wake OHostwakeup

8BT_DEV_WAKE IBluetoothdevicewakeup

9NC NCNC

10GND GNDGround

11USB_D‐ I/OUSB2.0D‐

12USB_D+ PowerUSB2.0D+

13GND GNDGround

14GND GNDGround

15BT_REG_ON IPower‐up/Power‐Down/ResetControlSignal

16WL_REG_ON IPower‐up/Power‐Down/ResetControlSignal

17WL_HOST_WAKE OHostwakeup

18WL_DEV_WAKE IWLANdevicewakeup

19GND GNDGround

20VDD3_3 Power3.3V

21GND GNDGround

22GND GNDGround

23GND GNDGround

24GND GNDGround

25GND GNDGround

26GND GNDGround

27GND GNDGround

28GND GNDGround

29GND GNDGround

30GND GNDGround



WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 7

This preliminary specification is subject to change without notice.

CHAPTER2. ELECTRICALANDRFSPECIFICAITON



2‐1 RecommendedOperationRating

Table2OperationRating

ParameterConditionMinTyp.Max.Unit

VDD3_33.3V3.3V3.3V3.6VV

RFInterfaceZo50 Ohm



2‐3 WiFiRFSpecification–TX



Table3IEEE802.11b/g/n/acTXOutputPower(WLAN0&WLAN1)

DataRate

(Mbps)ModulationTxTypical

Power(dBm)

DataRate

(Mbps)ModulationTxTypicalPower

(dBm)

1DBPSK17HT20‐MCS0BPSK14.5

2DQPSK17HT20‐MCS1BPSK14.5

5.5CCK17HT20‐MCS2QPSK14.5

11CCK17HT20‐MCS3QPSK14.5

6OFDM15.5HT20‐MCS416‐QAM14.5

9OFDM15.5HT20‐MCS516‐QAM14.5

12OFDM15.5HT20‐MCS664‐QAM14.5

18OFDM15.5HT20‐MCS764‐QAM14.5

24OFDM15.5HT40‐MCS0BPSK14

36OFDM15.5HT40‐MCS1QPSK14

48OFDM15.5HT40‐MCS2QPSK14

54OFDM15.5HT40‐MCS316‐QAM14

  HT40‐MCS416‐QAM14

  HT40‐MCS564‐QAM14

  HT40‐MCS664‐QAM14

  HT40‐MCS764‐QAM14



WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 8

This preliminary specification is subject to change without notice.



Table5IEEE802.11a/n/acTXOutputPower(WLAN0&WLAN1)

DataRate

(Mbps)ModulationTxTypical

Power(dBm)

DataRate

(Mbps)ModulationTxTypicalPower

(dBm)

6OFDM15HT20‐MCS0BPSK13

9OFDM15HT20‐MCS1BPSK13

12OFDM15HT20‐MCS2QPSK13

18OFDM15HT20‐MCS3QPSK13

24OFDM15HT20‐MCS416‐QAM13

36OFDM15HT20‐MCS516‐QAM13

48OFDM15HT20‐MCS664‐QAM13

54OFDM15HT20‐MCS764‐QAM13

  HT40‐MCS0BPSK12

  HT40‐MCS1QPSK12

  HT40‐MCS2QPSK12

  HT40‐MCS316‐QAM12

  HT40‐MCS416‐QAM12

  HT40‐MCS564‐QAM12

  HT40‐MCS664‐QAM12

  HT40‐MCS764‐QAM12

  HT80_MCS0BPSK10

  HT80_MCS1QPSK10

  HT80_MCS2QPSK10

  HT80_MCS316‐QAM10

  HT80_MCS416‐QAM10

  HT80_MCS564‐QAM10

  HT80_MCS664‐QAM10

  HT80_MCS764‐QAM10

  HT80_MCS8256‐QAM10

  HT80_MCS9256‐QAM10

    



WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 9

This preliminary specification is subject to change without notice.



2‐4 WiFiRFSpecification–RX



Table6IEEE802.11b/g/nRXSensitivity(WLAN0&WLAN1)

Data

Rate

(Mbps)

Modulation

RxSensitivity

(dBm)DataRate

(Mbps)Modulation

RxSensitivity

(dBm)

Max.Typ.Max.Typ.

1DBPSK‐83‐94HT20‐7.22BPSK‐82‐89.5

2DQPSK‐80‐93.5HT20‐14.44QPSK‐79‐87.5

5.5CCK‐83‐91HT20‐21.67QPSK‐77‐85.5

11CCK‐80‐88.5HT20‐28.8916‐QAM‐74‐82.5

6OFDM‐85‐90HT20‐43.3316‐QAM‐70‐80.5

9OFDM‐84‐89.5HT20‐57.7864‐QAM‐66‐76

12OFDM‐82‐89HT20‐6564‐QAM‐65‐75

18OFDM‐80‐86HT20‐72.2264‐QAM‐64‐73.5

24OFDM‐77‐83.5HT40‐15BPSK‐79‐89.5

36OFDM‐73‐80HT40‐30QPSK‐76‐86.5

48OFDM‐69‐76HT40‐45QPSK‐74‐84

54OFDM‐68‐74.5HT40‐6016‐QAM‐71‐81

 HT40‐9016‐QAM‐67‐78.5

 HT40‐12064‐QAM‐63‐74

 HT40‐13564‐QAM‐62‐71.5

 HT40‐15064‐QAM‐61‐68



WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 10

This preliminary specification is subject to change without notice.



Table4IEEE802.11a/n/acRXSensitivity(WLAN0&WLAN1))

Data

Rate

(Mbps)

Modulation

RxSensitivity

(dBm)DataRate

(Mbps)Modulation

RxSensitivity

(dBm)

Max.Typ.Max.Typ.

6OFDM‐85‐88HT20‐7.22BPSK‐82‐88

9OFDM‐84‐88HT20‐14.44QPSK‐79‐87

12OFDM‐82‐86.5HT20‐21.67QPSK‐77‐85

18OFDM‐80‐84.5HT20‐28.8916‐QAM‐74‐82

24OFDM‐77‐82HT20‐43.3316‐QAM‐70‐79

36OFDM‐73‐78.5HT20‐57.7864‐QAM‐66‐75

48OFDM‐69‐74.5HT20‐6564‐QAM‐65‐73

54OFDM‐68‐73HT20‐72.2264‐QAM‐64‐72

HT40‐15BPSK‐79‐85

HT40‐30QPSK‐76‐84

HT40‐45QPSK‐74‐82

HT40‐6016‐QAM‐71‐79

HT40‐9016‐QAM‐67‐75.5

HT40‐12064‐QAM‐63‐71.5

HT40‐13564‐QAM‐62‐70

HT40‐15064‐QAM‐61‐68.5

HT80_MCS0BPSK‐76‐87

HT80_MCS1QPSK‐73‐83

HT80_MCS2QPSK‐71‐81

HT80_MCS316‐QAM‐68‐78

HT80_MCS416‐QAM‐64‐75

HT80_MCS564‐QAM‐60‐70

HT80_MCS664‐QAM‐59‐69

HT80_MCS764‐QAM‐58‐67

HT80_MCS8256‐QAM‐53‐62

HT80_MCS9256‐QAM‐51‐60



WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 11

This preliminary specification is subject to change without notice.

2‐5BluetoothRFSpecification



ParameterConditionMin.Typ.Max.Unit

BasicDataRate–TransmitPerformance

RFTransmitPower(TRM01)‐6720dBm

PowerDensity(TRM02)Per100kHz≤20dBm

PowerControl(TRM03)2≤stepsize≤8dB

TXOutputSpectrum–

Freq.Range(TRM04)

F(low)‐CH0>2400MHz

F(high)‐CH78<2483.5

TXOutputSpectrum–20dBBW(TRM05)

∣

fH‐fL

∣

<1000MHz

TXOutputSpectrum–

AdjacentChannelPower(TRM06)

∣

f‐f0

∣

=2MHz≤‐20dBm

∣

f‐f0

∣

≥3MHz≤‐40

TXOutputSpectrum–

OutofBandSpuriousEmission

30MHz–1GHz≤‐36dBm

1GHz‐12.75GHz≤‐30

5.15GHz‐5.35GHz≤‐47

5.725GHz‐5.825GHz≤‐47

ModulationCharacteristic(TRM07)Deltaf1avg140≤∆f1avg≤175kHz

Deltaf2max≥115at99.9%

Deltaf2avg/Deltaf1avg ≥0.8

InitialCarrierFrequencyTolerance(TRM08)≤±75kHz

CarrierFrequencyDrift(TRM09)DH1≤±25kHz

DH3≤±40

DH5≤±40

MaximumDriftRate(TRM09)20kHz/50us

EnhancedDataRate–TransmitPerformance

RFTransmitPowerπ/4DQPSK‐1.513.5dBm

8DPSK‐1.513.5

RelativeTransmitPower(TRM10)Allpairs(PGFSK‐4dB)<PDPSK<(PGFSK+1dB)

CarrierFrequencyStability(TRM11)Allpackets‐75≤wi≤75kHz

Allblocks‐75≤(w0+wi)≤75

Allblocks‐10≤w0≤10

ModulationAccuracy–

RMSDEVM(TRM11)

π/4DQPSK≤20%

8DPSK≤13

ModulationAccuracy–

PeakDEVM(TRM11)

π/4DQPSK≤35

8DPSK≤25

ModulationAccuracy–

99%DEVM(TRM11)

π/4DQPSK≤30

8DPSK≤20

EDRDifferentialPhaseEmissions(TRM12)≥99%

In‐bandSpuriousEmission(TRM13)

∣

f‐f0

∣

=1MHz≤‐26dB

∣

f‐f0

∣

=2MHz≤‐20dBm

∣

f‐f0

∣

≥3MHz≤‐40

TXOutputSpectrum–

OutofBandSpuriousEmission

30MHz–1GHz≤‐36dBm

1GHz‐12.75GHz≤‐30

WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 12

This preliminary specification is subject to change without notice.

5.15GHz‐5.35GHz≤‐47

5.725GHz‐5.825GHz≤‐47

Enhancedpowercontrol(TRM14)StepSize2≤StepSize≤8dB

Difference.Btw.GFSK,

π/4DQPSK,&8DPSK

≤10

BasicDataRate–ReceiverPerformance

Sensitivityat0.1%BER(RCV01‐02)≤‐81dBm

C/ICo‐Channelinterference(RCV03)≤11dB

C/IAdjacentCHinterference(RCV03)

∣

f‐f0

∣

=1MHz≤0

∣

f‐f0

∣

=2MHz≤‐30

∣

f‐f0

∣

≥3MHz≤‐40

C/IImageCHinterference(RCV03)C/Iimage≤‐9

C/Iimage±1MHz≤‐20

OutofbandBlocking(RCV04)30MHz–2000MHz‐10dBm

2003MHz–2399MHz‐27

2484MHz–2997MHz‐27

3000MHz–12750MHz‐10

IntermodulationPerformanceat≤0.1%BER(RCV05)‐64dBm

Maximuminputpowerlevel ≥‐20dBm

SpuriousEmission30MHz–12.75GHz≤‐57dBm

EnhancedDataRate–ReceiverPerformance

Sensitivityat0.1%BER(RCV07)π/4DQPSK≤‐85dBm

8DPSK≤‐77

EDRBERFloorPerformanceat≤0.0007%BER(RCV08)‐60dBm

C/ICo‐Channelinterference(RCV09)π/4DQPSK≤+13dB

8DPSK≤+21

C/IAdjacentChannelC/I

∣

f‐f0

∣

=1MHz

(RCV09)

π/4DQPSK≤0

8DPSK≤+5

C/IAdjacentChannelC/I

∣

f‐f0

∣

=2MHz

(RCV09)

π/4DQPSK≤‐30

8DPSK≤‐25

C/IAdjacentChannelC/I

∣

f‐f0

∣

≥3MHz

(RCV09)

π/4DQPSK≤‐40

8DPSK≤‐33

C/IImageChannelC/Iimage(RCV09)π/4DQPSK≤‐7

8DPSK≤0

C/IImageChannelC/Iimage±1MHz(RCV09)π/4DQPSK≤‐20

8DPSK≤‐13

Maximuminputpowerlevel(RCV10)≥‐20dBm

SpuriousEmission30MHz–12.75GHz≤‐57Pass



WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 13

This preliminary specification is subject to change without notice.

2‐6BluetoothLowEnergyRFSpecification



ParameterConditionMin.Typ.Max.Unit

TransmitPerformance

RFTransmitPower(TRM‐LE01,02)‐6720dBm

In‐BandEmission(TRM‐LE03,04)

∣

f‐f0

∣

=2MHz≤‐20dBm

∣

f‐f0

∣

≥3MHz≤‐30

TXOutputSpectrum–

OutofBandSpuriousEmission

30MHz–1GHz≤‐36dBm

1GHz‐12.75GHz≤‐30

5.15GHz‐5.35GHz≤‐47

5.725GHz‐5.825GHz≤‐47

ModulationCharacteristic(TRM‐LE05)Deltaf1avg225≤∆f1avg≤275kHz

Deltaf2max≥185at99.9%

Deltaf2avg/Deltaf1avg ≥0.8

CarrierFrequencyDrift(TRM‐LE06,07)Centerfrequency≤±150kHz

Duringanypacket≤±50

MaximumDriftRate(TRM‐LE06,07)20Hz/50us

ReceiverPerformance

Sensitivityat30.8%PER(0.1%BER)(RCV‐LE01,02)≤‐81dBm

C/ICo‐Channelinterference(RCV‐LE03)Co‐channel≤21dB

C/IAdjacentCHinterference(RCV‐

LE03)

∣

f‐f0

∣

=1MHz≤15

∣

f‐f0

∣

=2MHz≤‐17

∣

f‐f0

∣

≥3MHz≤‐27

C/IImageCHinterference(RCV‐LE03)C/Iimage≤‐9

C/Iimage±1MHz≤‐15

OutofbandBlocking(RCV‐LE04)30MHz–2000MHz‐30dBm

2003MHz–2399MHz‐35

2484MHz–2997MHz‐35

3000MHz–12750MHz‐30

IntermodulationPerformanceat≤30.8%(≤0.1%BER)(RCV‐LE05)‐64dBm

Maximuminputpowerlevel(RCV‐LE06)≥‐10dBm

PERReportIntegrity50%≤PER≤65.4%(RCV‐LE07)‐30dBm

SpuriousEmission30MHz–12.75GHz≤‐57dBm



WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 14

This preliminary specification is subject to change without notice.

2‐7AntennaSpecificationRequirement

Nominalantennaportimpedancespecificationis50ohmsfortheFoxconnWBUB15.

Forregulatoryrequirements,itisassumedthattheantennagainis:

ForWLAN1&WLAN2(WiFi):

Antennagainforthe2.4GHzband:4.02dBi

Antennagainforthe5GHzband:4.61dBi

ForBT(Bluetooth):

Antennagainforthe2.4GHzband:3.97dBi



WLAN1WLAN0BT

WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 15

This preliminary specification is subject to change without notice.

CHAPTER3. MECHANICALSPECIFICATION



3‐1 ModuleAssemblyDimension



Figure3MechanicalDrawing

WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 16

This preliminary specification is subject to change without notice.

3‐2 LabelSpecification



Figure4LabelDrawing



CHAPTER4. ADDITIONALINFORMATION

4‐1 EEPROMInformation

Table8USBPID/VIDSetting



WLANTypeModePIDVID

Broadcomm802.11acUSB3.0NetworkAdapterACBD270A5C

BTTypeModePIDVID

BCM435694.0BD270A5C

WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 17

This preliminary specification is subject to change without notice.

4‐2ModulePhoto

Figure4TopSidePhotoFigure5BottomSidePhoto



WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 18

This preliminary specification is subject to change without notice.

4‐3FCC/ICStatements

STATEMENTS

Federal Communications Commission (FCC) Statements

Federal Communications Commission (FCC) Statements:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including any interference that may cause undesired operation of the device.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

FCC Warning: The FCC requires that you be notified that any changes or modifications to this device

not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

Operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful

interference to co-channel mobile satellite systems. Please note that high-power radars are allocated as

primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars

could cause interference and/or damage to LE-LAN devices.

WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 19

This preliminary specification is subject to change without notice.

RF Radiation Exposure Statement:

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance of 20 centimeters

between the radiator and your body.

This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Only those antennas with same type and lesser gain filed under this FCC ID number can be used with this

device.

The final system integrator must ensure there is no instruction provided in the user manual or customer

documentation indicating how to install or remove the transmitter module.

Release Notes

Required end product labeling:

Any device incorporating this module must include an external, visible, permanent marking or label

which states: “Contains FCC ID: YE5-WBUB15.”

WFU02HPRODUCTSPECIFICATIONNovember13,2015

FOXCONNCONFIDENTIAL 20

This preliminary specification is subject to change without notice.

Industry Canada (IC) Statements

Industry Canada (IC) Statements:

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the

following two conditions: (1) this device may not cause interference, and (2) this device must accept any

interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de

licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de

brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le

brouillage est susceptible d'en compromettre le fonctionnement.

This Class B digital apparatus complies with Canadian ICES-003

Cet appareil numérique de classe B est conforme à la norme NMB-003.

Operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful

interference to co-channel mobile satellite systems. Please note that high-power radars are allocated as

primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars

could cause interference and/or damage to LE-LAN devices.

Operation in the band 5150-5250 MHz is only for indoor use .

La bande 5 150-5 250 MHz est réservés uniquement pour une utilisation à l'intérieur

RF Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20 centimeters between the

radiator and your body.

Déclaration d'exposition aux radiations:

Cet appareil est conforme aux limites d'exposition aux rayonnements définies pour un environnement non

contrôlé. Cet équipement doit être installé et utilisé à une distance minimale de 20 centimètres entre le

radiateur et votre corps.

Required end product labeling:

Any device incorporating this module must include an external, visible, permanent marking

or label which states: “Contains IC:4613B-WBUB15”



HON HAI PRECISION IND WBUB15 801.11 a/b/g/n/ac WLAN and BT 4.1 Combo Module User Manual

HON HAI PRECISION IND. Co., LTD. 801.11 a/b/g/n/ac WLAN and BT 4.1 Combo Module

Users Manual

Navigation menu

Namespaces

Views

Navigation
