HON HAI PRECISION IND WINA1 WiFi 11b/g/n Module User Manual WIN A user manual
HON HAI Precision Ind. Co., Ltd. WiFi 11b/g/n Module WIN A user manual
Users Manual
![](/img.php?id=1362395&img=bg1.png)
Confidential 1
WIN-A1
WIFI Module
User Manual
Rev. 0.0
![](/img.php?id=1362395&img=bg2.png)
Confidential 2
1.
Introduction
The WIN-A1 802.11b/g/n module provides wireless modem
functionality utilizing direct sequence spread spectrum and OFDM/CCK
technology. The objective of this use manual is to verify the functionality of
the WIN-A1 802.11b/g/n module RF/Digital electronic design against the
design specifications.
This revision includes results taken at various temperatures (0к,25
к,70 к) and voltages (3.0V,3.3V,3.6V). Included are statements of test
purpose, test methodologies, test modes and parameters, environmental
conditions, applicable specifications, and typical reference design
performance.
The major specifications and documents are listed below and upon
to update in the following new revisions.
z 802.11b: IEEE Std 802.11b/D8.0-Sept 2001 Part 11 Paragraph
18.4.7.3
z 802.11g: IEEE Std 802.11g/D8.2-Apr 2003 Part 11 Paragraph
19.5.4
z 802.11n: IEEE P802.11n/D2.07-Mar 2006 Paragraph 20.3.20.1
![](/img.php?id=1362395&img=bg3.png)
Confidential 3

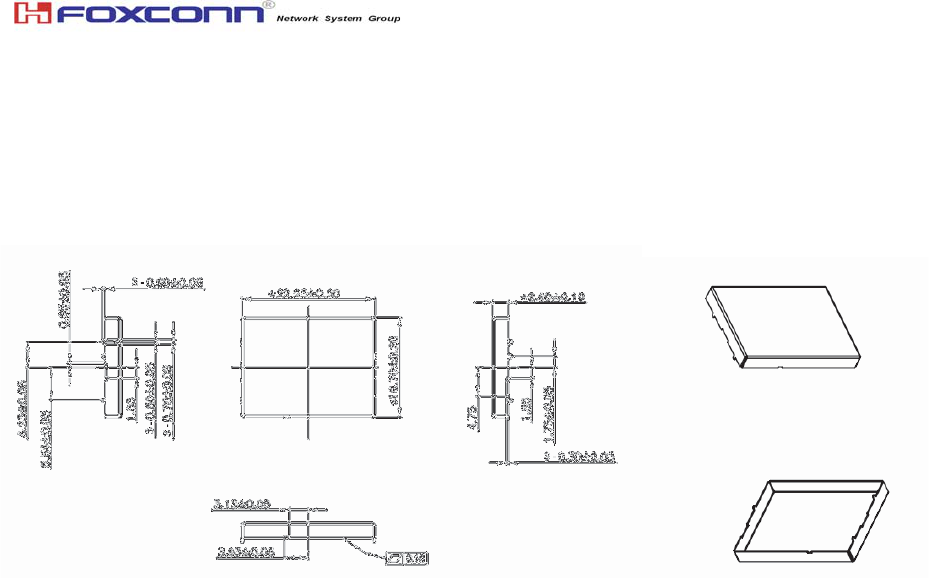

2.Mechanical Drawing
![](/img.php?id=1362395&img=bg4.png)
Confidential 4
3. Regulatory Information
USA-Federal Communications Commission (FCC)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Caution
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Labeling
Hon Hai Precision WiFi 11b/g/n module WIN-A1 labelled as below.
FCC ID: MCLWINA1
The proposed with FCC ID label format is to be placed on the module. If
FCC ID is not visible when the module is installed into the system,
“Contains FCC ID: MCLWINA1” shall be placed on the outside of final host
system.
Caution: Exposure to Radio Frequency Radiation.
To comply with FCC RF exposure compliance requirements, a separation
distance of at least 20 cm must be maintained between the antenna of this
device and all persons. This device must not be co-located or operating in
conjunction with any other antenna or transmitter.
Canada-Industry Canada (IC)
This device complies with RSS 210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that
may cause undesired operation of this device.
The term “IC” before the equipment certification number only signifies that
the Industry Canada technical specifications were met.
To reduce potential radio interference to other users, the antenna type and
its gain should be so chosen that the equivalent isotropically radiated
power (EIRP) is not more than that required for successful communication.
![](/img.php?id=1362395&img=bg5.png)
Confidential 5
To prevent radio interference to the licensed service, this device is intended
to be operated indoors and away from windows to provide maximum
shielding. Equipment (or its transmit antenna) that is installed outdoors is
subject to licensing.
Caution: Exposure to Radio Frequency Radiation.
To comply with IC RF exposure compliance requirements, a separation
distance of at least 20 cm must be maintained between the antenna of this
device and all persons. This device must not be co-located or operating in
conjunction with any other antenna or transmitter.
