User Manual
The Jukebox Wizard is a small speaker device with big sound and
connects to your mobile phone or tablet device via Bluetooth®. Charge your
Jukebox Wizard with the included USB cable for hours of musical
enjoyment anywhere you go. Use your Jukebox Wizard as a speakerphone
instead of your phone for clear and convenient group participation.
Initially, the battery is not full charged. It needs to be fully charged to power
the Jukebox Wizard.
1. Put the speaker on a stable surface.
2. Plug USB cable to 3.5 DC Jack interface of speaker’s power supply and
other end into USB outlet. The power button LED indicator turns RED while
charging. Let Jukebox Wizard fully charge 3.5 hours until the LED indicator
light turns GREEN. Use the included cable ONLY.
• When using your Jukebox Wizard with your mobile phone and a call
comes in- the speaker will pause your music and your stereo will emit
a ringing tone
• The call can be answered by pressing the function button once
Redial the last calling number:
1）No music, just press the key twice swiftly to redial the number;
2）if you’re playing music, press once to pause the music first, and
press twice swiftly to redial.
Ring off，press the key once to resume the music playing
NOTE: The LED will flash red if no signal is received from your mobile
phone after 3 minutes.
Amplifier:
Input port (data): Bluetooth® 2.4 G wireless digital transmission input
Input port (imitation): Stereo L/R; 3.5mm Stereo Mini Plug
Output power (trends): 2.5W x 2（1 kHz,1% THD）
Output power (Maximum instantaneous): 3W x 2（1 kHz, 10% THD）
AUX3.5mm Line input impedance：4.7kΩ
Input sensitivity: 560mV
Power supply: Built-in lithium polymer 3.7V 1500mAH
Charging: USB interface, charge Current: 750mA, charge time: 3.5 hours
Bluetooth®
Specification of Bluetooth®
： Version 2.1+EDR
Online distance of Bluetooth®: Appro.10M
Type of Speaker: Stereo（ Passive radiation technology）
Speaker Unit：4.5cm full-range tapered unit 4Ω 3W
Frequency Response：90Hz-20kHz
Separation Degree：≥45 dB
INSTRUCTION MANUAL
Specifications
Before you Start
How to Answer a Call
Hold the function key to cycle the modes between standby and
working. No need use the main Power switch on the right. Hold the function
key about 5S, the LED indicator on front will go out, and the speak is
automatically in standby mode. Continue in the same way to resume the
working status.
Note: If the system is not used for an extended period of time, the system
will enter the battery protection mode to protect the battery power. To
resume working status, please turn off the main power switch on the right,
and connect to a computer or any other standard USB port to activate it.
When storing it for a long time without use, please turn off the main power
switch. Then the system can not enter the battery protection mode.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and
any use of such marks by Innovage,LLC. is under license.
Other trademarks and trade names are those of their respective owners.
Setting up Standby Mode

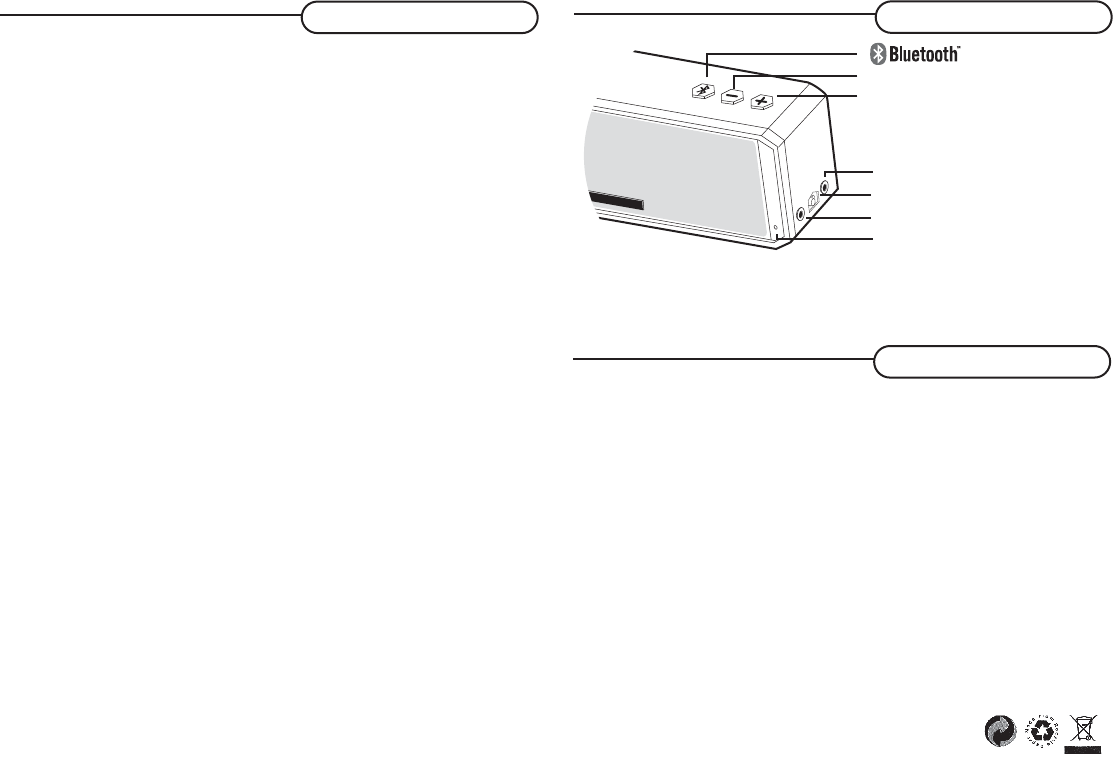

FUNCTION button
Volume UP
DC USB in
Power Button (on/off)
Auxiliary Audio
LED Indicator
Volume DOWN
Power on/off
1. Turn on the Speaker by on/off- switch on lower right.
Function key ( Bluetooth® Activation button )- Pairing
2. Hold the function key about 5 seconds, the Red/Blue indicator LED on
the front will flash. You will also hear a “BEEP” indicating that the Jukebox
Wizard is ready for pairing with your device. As the Bluetooth® discovers
your device look for the speaker’s name: “Jukebox Wizard”.
And pairing with your mobile can begin.
(after 10 minutes, if no pairing or AUX not connect with any cable, unit will
automatically into STANDBY mode)
3. If a password is required for your device, use the password “0000”and
choose for connecting “XXXXXX”, After pairing is finished the front LED
changes from Red/Blue flashing to only Blue flashing
Important notice： Above is the typical hands-free Bluetooth® pairing
instructions, and it may vary with different mobile phone models. For more
information, please refer to the user manual or contact the mobile phone’s
manufacturers.
5. Play music - open the phone’s music player after pairing and connecting.
Press the Bluetooth logo function key to pause music during playing music,
and press again to resume.
Important Notice： Some phones need to manually connect Jukebox
Wizard, in this case, you need to manually select the "Play via Bluetooth®
*(Because of differences in phone models, please refer to the mobile
phone user manual for accessing to music through Jukebox Wizard).
4. Function Key (Bluetooth® Activation button) - Previously Paired
If you have previously paired the Jukebox Wizard to your device just hold
down the function key until the RED light is “ON”.
Your phone or audio device will show you “Bluetooth® connection is
successful or ask for permission to accept connection- choose ”yes”.
Functions
How To Operate
The Jukebox Wizard has a 3.5 mm audio input plug. It can be used with
other MP3, iPod, CD players and other audio players to transmit audio
signals. Connect your audio player with the required audio cable. At this
point the device can be connected to the maximum volume setting, and
then use the system to adjust its volume buttons.
Note: If the system is set to 80％ volume, a fully charged battery sustainable supply for about 5-7
hours. However, the battery discharge rate is due to the music type and volume setting. Decreasing
the volume can greatly extend the battery life.
Other Audio Sources
LED states:
a) Pairing--- red and blue LED flashes and ‘BEEP’ tone when ready for paring
b) Bluetooth® mode---Blue LED flashes slowly
c) AUX mode--- LED only light up in permanent Red
d) no signal received---LED flashes red slowly
e) ON--- solid red
AUX
