HONGTIANTAI 1648206 The Tablet User Manual
Hong Tian Tai (H.K.) CO., LTD The Tablet
User Manual
Instruction Manual
Model: T492
1
Dear client,
We thank you for purchasing this product.
This appliance was submitted to several laboratorial tests, which certify its quality. To simplify the use
of this appliance, this instruction manual has been provided. The instructions must ensure a quick and
safe use.
Please read carefully the instructions and safety measures described in this manual.
We wish our clients great satisfaction in using their new appliance.
2
1.Safety Instructions………………………………………………………………………….3
1.1. Power Energy……………………………………………………………………………3
1.2. Power Cord and Other Cables…………………………………………………….….4
1.3. Humidity and Water………………………………………………………………….…4
1.4. Cleaning…………………………………………………………………………………..4
1.5. General Precautions……………………………………………………………………4
2. Utilization and Functioning………………………………………………………………5
2.1. Product Description……………………………………………………………………5
2.2. Power On/Off…………………………………………………………………………….5
2.3. Desktop…………………………………………………………………………………...6
2.4. Standby Mode (Screen Off Mode)/Unlock the Screen…………………………….6
2.5. System Settings………………………………………………………………………....7
2.5.1. Wireless & Network………………………………………………………………......8
2.5.2. Sound ………………………………………………………………………………....8
2.5.3.Display………………………………………………………………………………….8
2.5.4.Storage …………………………………………………………………………………9
2.5.5. Battery …………………………………………………………………………….......9
2.5.6. Apps…………………………………………………………………………………...11
2.6. Account & Sync ………………………………………………………………………...10
2.7. Location Service ………………………………………………………………………..10
2.8. Security ……………………………………………………………………....................11
2.9. Language & Input…………………………………………………………………….....11
2.10. Date & Time ……………………………………………………………………………12
2.11.Accessibility …………………………………………………………………………….12
2.12. Developer Options …………………………………………………………………….12
2.13. About Tablet ……………………………………………………………………………12
3. Installation ………………………………………………………………………………….12
3.1. How to Connect/Disconnect the Device with/from the Computer……………...12
3.2. How to Install Applications (.apk file) into the Device …………………………...13
3.3. Desktop Icons …………………………………………………………………………...14
3.4. Keyboard Input 4. Technical Specifications……………………………………….15
4. Technical Specifications…………………………………………………………………..16
5. Aftermarket ………………………………………………………………………………….16
6. Environment Conservation………………………………………………………………..17
7. FCC Notice…………………………………………………………………….……………..18
3
1. Safety Instructions
ATTENTION
Risk of Electric Shock
Do Not Open
Attention: to avoid the risk of electric shock, do not remove the
cover. The interior does not contain any parts that may be
repaired by the user. Ask for assistance to qualified personnel.
Important Warnings
Before using your appliance, read carefully this instruction manual and keep it in a safe place, as you
may need it for future consultations.
Before you start your appliance, and to ensure a correct use, do not use it if:
- It has fallen on the ground;
- You notice any evidence of damage;
- Any anomaly occurs during its operation;
To avoid hazards and deterioration of your appliance by an incorrect use, it is advisable to read the
instructions carefully and attentively.
Your appliance must not be used to other ends than the ones foreseen in the instructions manual.
Your safety is only guaranteed in a household use and not for commercial use. The incorrect use will
not be covered and automatically cancels the right to warranty.
Assistance
Be sure that, in case of malfunction, you take your appliance to a qualified technician for assistance.
This appliance can be used by children from 8 years old and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they have been given instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and maintenance shall not be made by children without supervision.
1.1. Power Energy
Make sure the voltage of the electric network is compatible with the one of the appliance. If it does not
match, consult the vendor or Customer Support Service.
4
1.2. Power Cord and Other Cables
Do not roll up or pull the cord to disconnect the appliance, and do not use to twine the appliance. Keep
the cord far from warm surfaces.
Never use the appliance if it has a damaged cable or socket, or if it is not working properly.
In case of damage of the power cord, do not use your appliance. Take it to technical assistance for its
replacement.
1.3. Humidity and Water
Do not use your appliance in humid places. Do not let your appliance to catch water under any
circumstance, as it may be dangerous. TO AVOID FIRE HAZARD OR ELECTRIC SHOCK DO NOT
EXPOSE YOUR APPLIANCE TO HUMIDITY OR WATER. Do not place your appliance under water
(for example for washing).
1.4. Cleaning
Turn off your appliance before cleaning it; some time after clean it with a soft and dry cloth. Do not use
cleaning products.
1.5. General Precautions
Please follow the instructions of the user manual, which helps properly installing and operating
this product and enjoying its advanced features. Please keep the instructions for future
reference.
Read all instructions before using the appliance.
Do not expose this product to fire.
Do not expose this product to extreme temperatures, humidity or direct sunlight.
Do not attempt to disassemble this product or any parts of it.
Never allow liquid or small particles to enter the device.
Do not place the product in hot, wet or dusty environment, especially in summer.
Do not leave the product inside a car with all windows closed.
Avoid dropping, impacting or shaking the product violently; otherwise it may cause damages or
malfunctions.
Select a proper volume to avoid hearing problem when using earphones.
Be sure to use the provided chargers and accessories in the package.
5
2. Utilization and Functioning

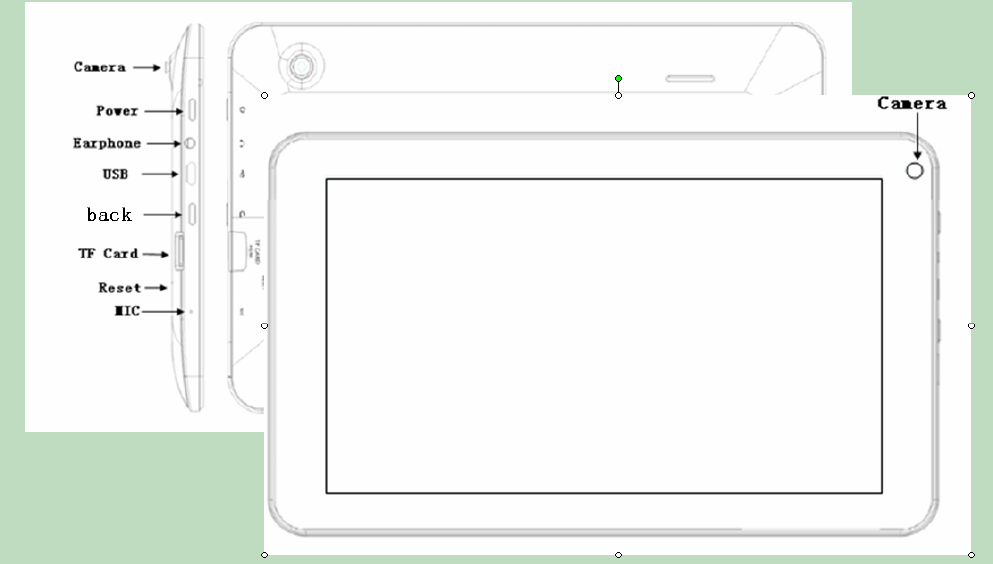

2.1. Product Description
Important Notice
- If the device is freezing or stuck, long press power button for 10 seconds, or connect with adapter
to activate device.
- When the performance is slow after using some applications, it is recommended to close running
application in setting menu.
Caution
- For charging, be sure to use the power adapter (DC5V) that is provided in the package, otherwise,
the device may be damaged and does not work.
2.2. Power On/Off
Long press power button to power on/off the device. It may take one minute to boot the device.
Short press power button to turn on/off the screen (Standby mode, refer to 2.4. below).
6

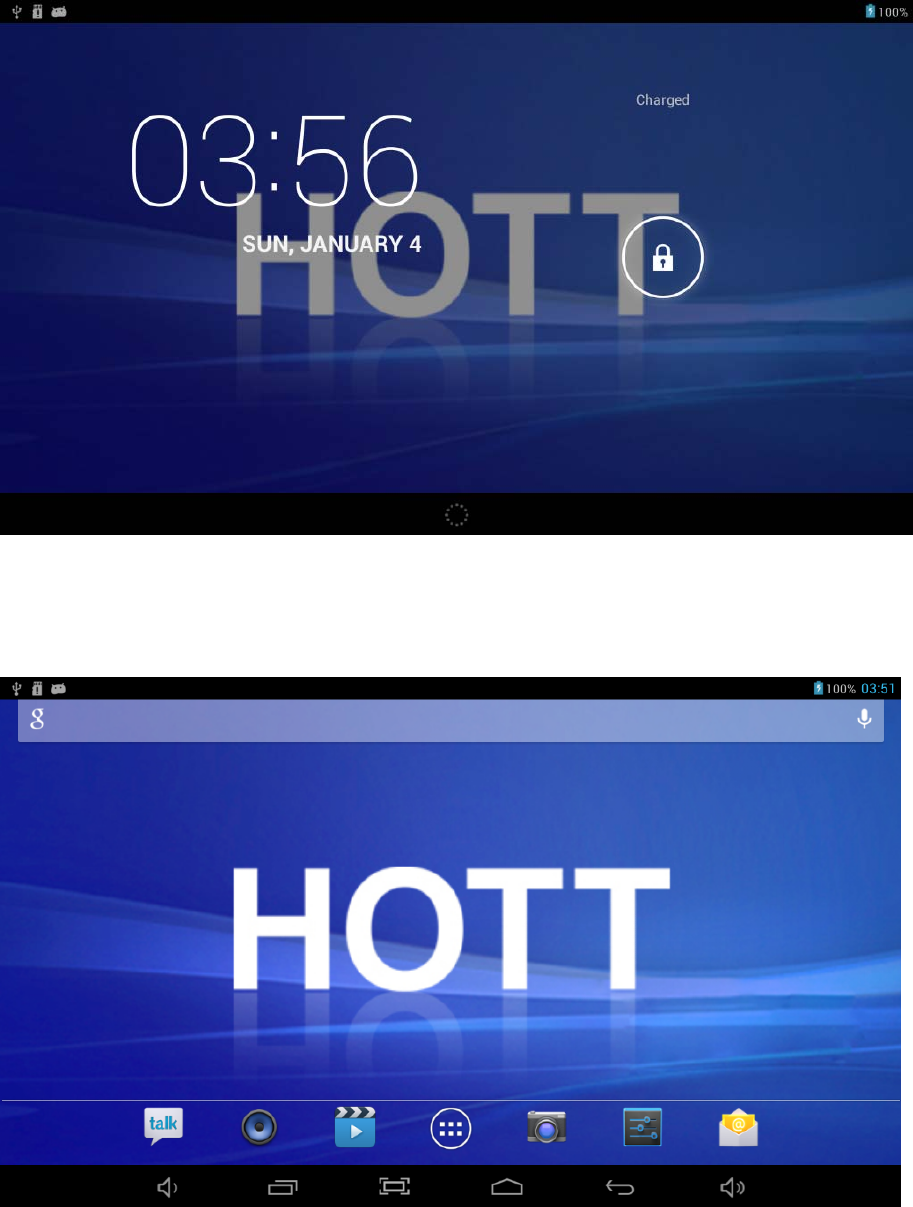

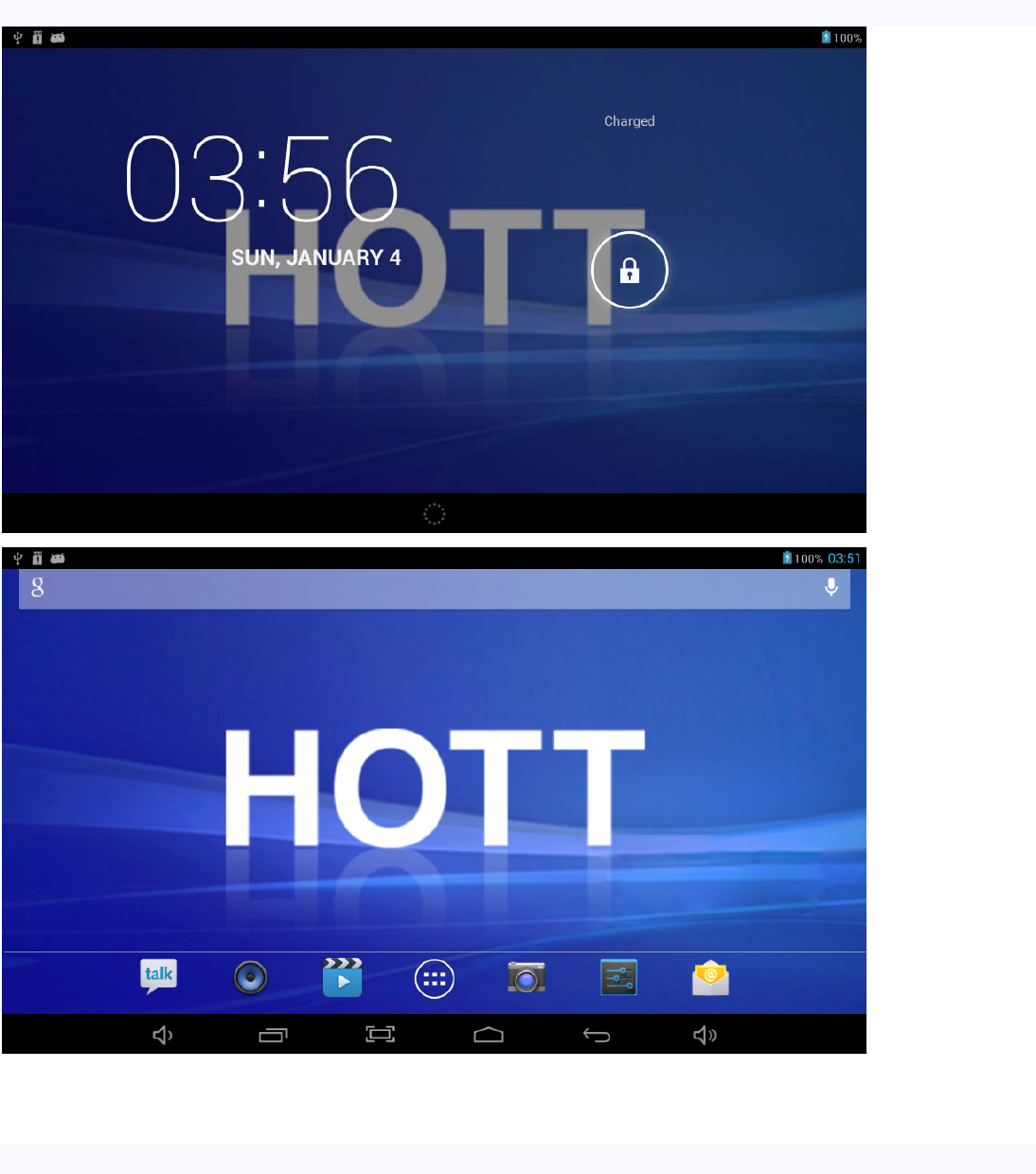

2.3. Desktop
Slide the screen lock standard, Show Desktop
2.4. Standby Mode (Screen Off Mode)/Unlock the Screen
Short press the power button to turn on/off the screen (Standby mode On/Off)
After standby mode off, slide the lock icon in order to unlock the screen.
7
2.5. System Settings
On the desktop, press menu button and select system settings.
8

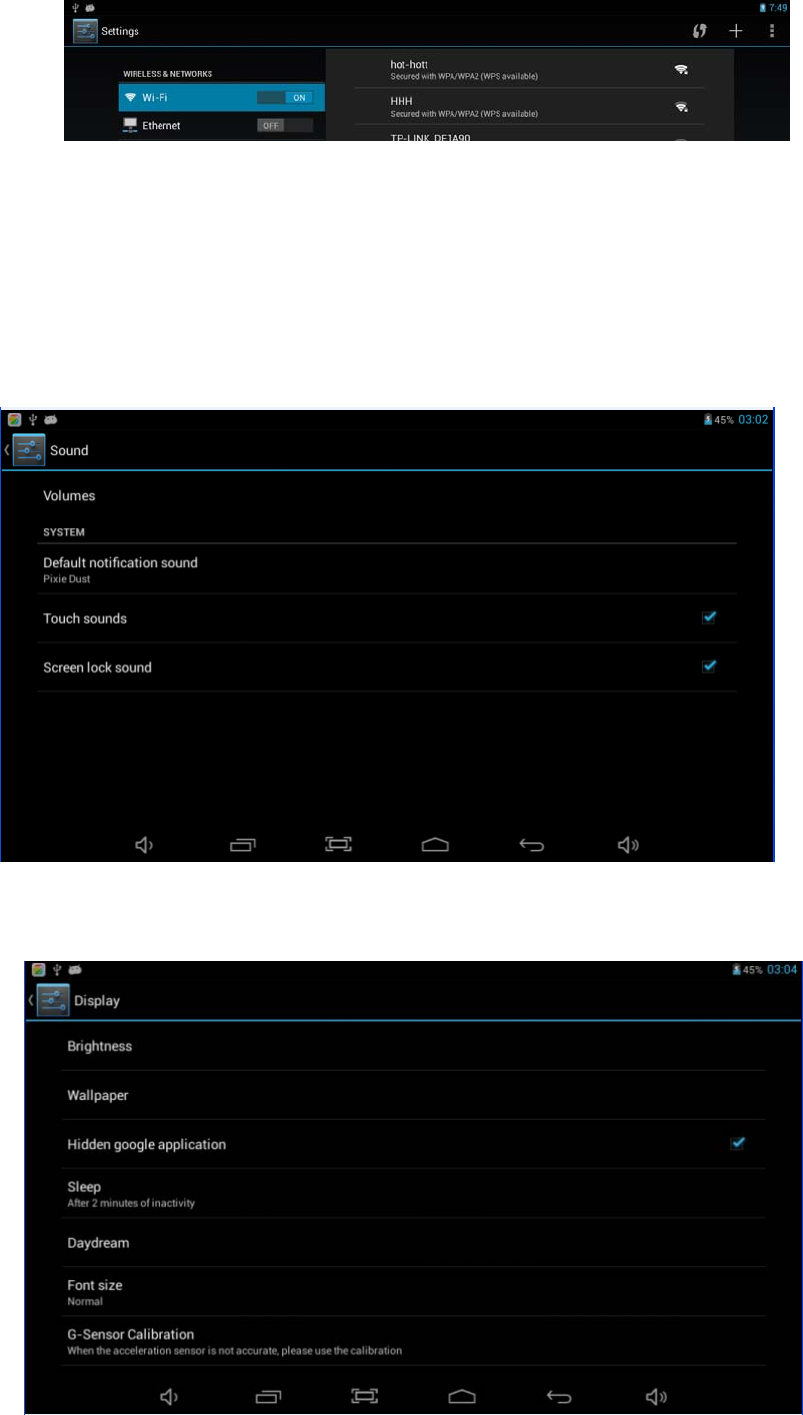

2.5.1. Wireless & Network
Wi-Fi: Off/On.
Wi-Fi settings: Press Wi-Fi settings, then the device will automatically search the available Wi-Fi
signals.
Select the network you want to connect with.
2.5.2. Sound
Set up each setting as you like.
2.5.3. Display
Set up each setting as you like.
9

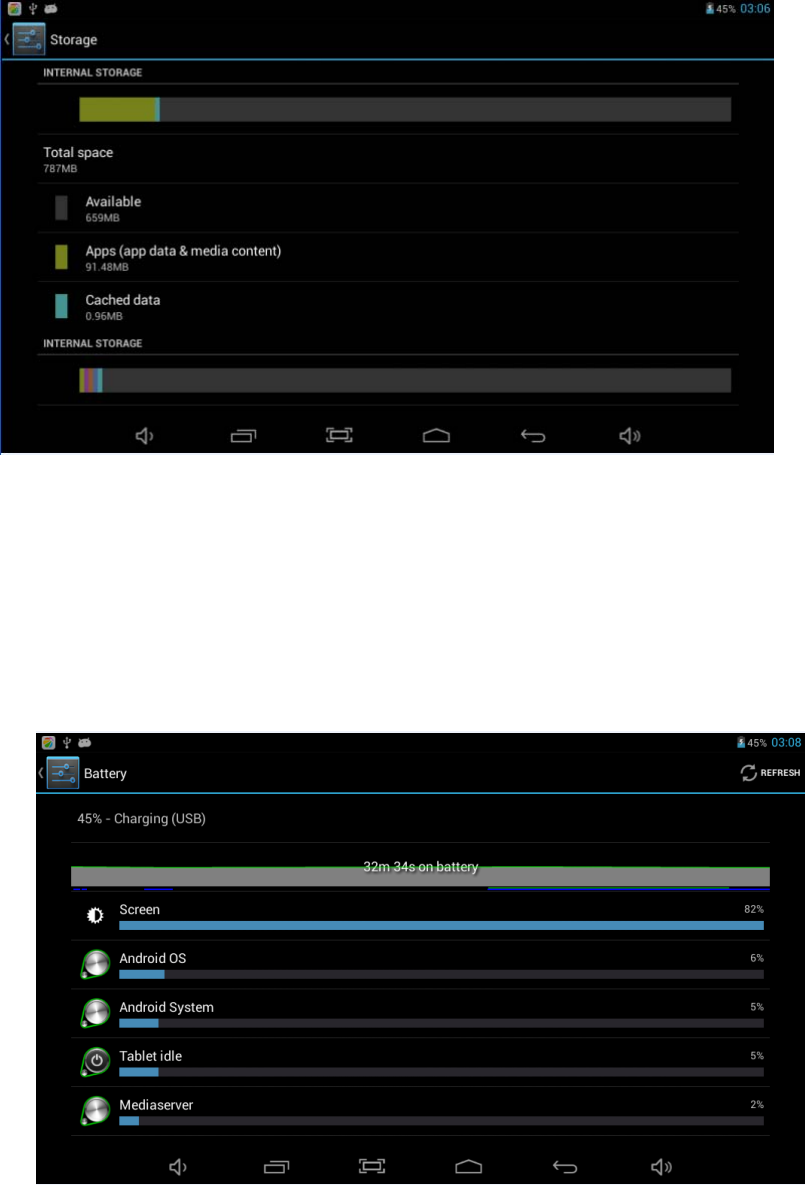

2.5.4. Storage
Check device memory and TF card status.
Unmount TF card: Unmount the TF card for safe removal.
2.5.5. Battery
Check the battery usage status.
10

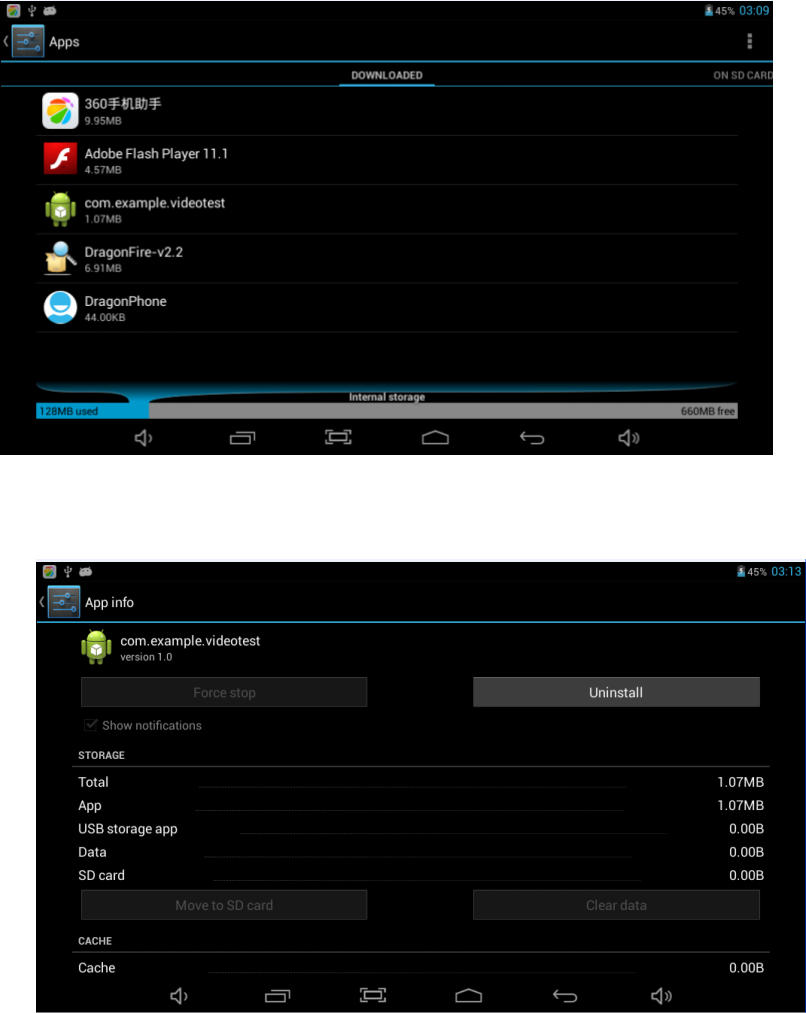

2.5.6. Apps
Manage downloaded or running applications.
换图片
Press Uninstall to uninstall the selected application.
2.6. Account & Sync
Create your account. After connecting Wi-Fi network, the e-mailing system synchronizes your account
with the device. Emails are automatically downloaded into the device.
2.7. Location Service
Google’s location service: Let apps use data from sources such as Wi-Fi and mobile networks to
determine your approximate location.
11

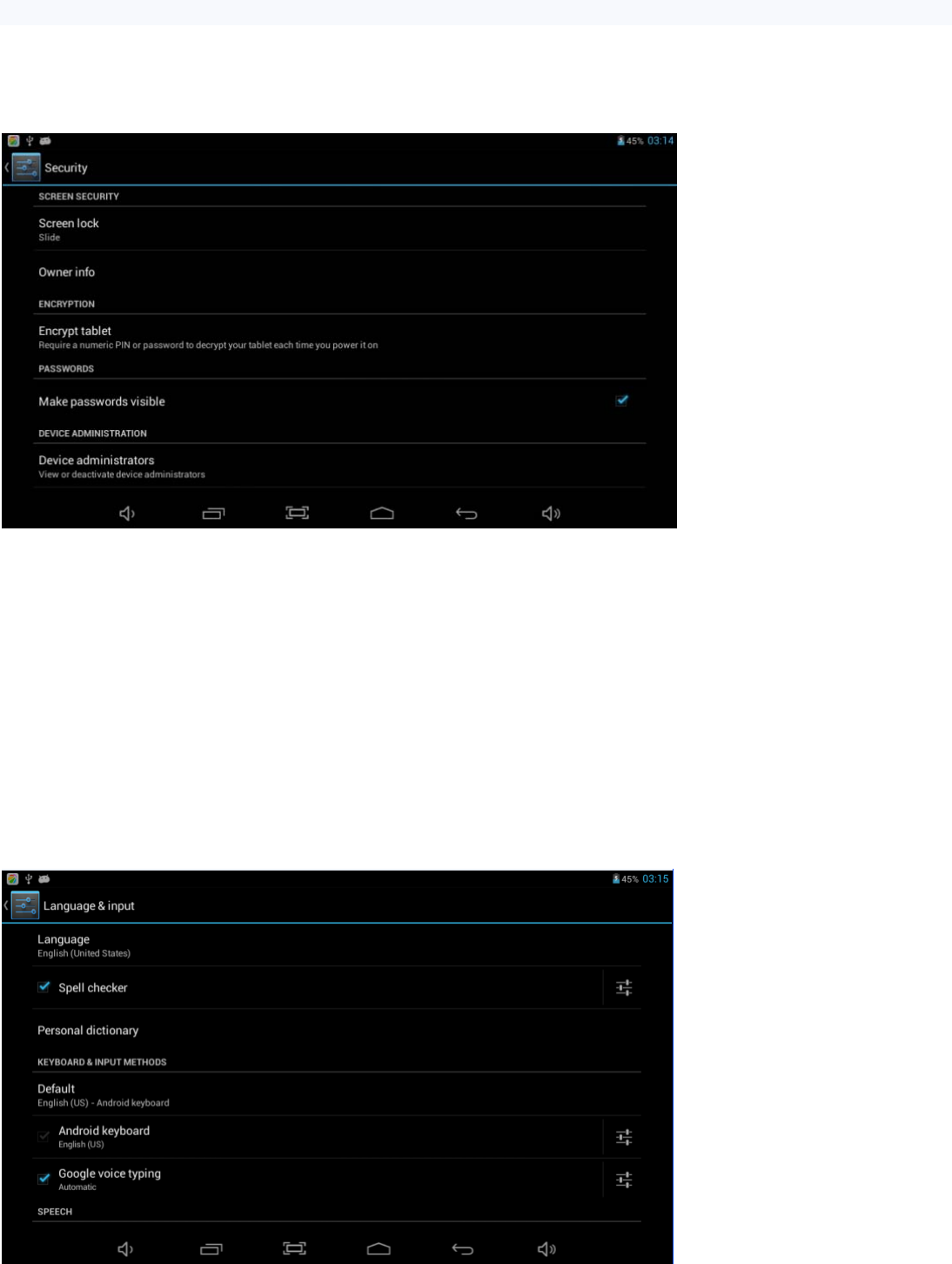

2.8. Security
Screen lock: Protect your device from unauthorized use by creating a personal screen unlock pattern.
Make passwords visible: Show password as you type.
Unknown sources: If you want to allow installation of non-Market Applications, press Unknown
sources and press OK.
Install from TF card: Install encrypted certificates from TF card
2.9. Language & Input
Language: Choose your preferable language.
Keyboard & input method: Change keyboard & keyboard settings.
On Language & input settings, if you need other languages besides English on keyboard, press the
relevant keyboard, enter the chosen Keyboard settings, select Keyboards and press the language you
need.
12
2.10. Date & Time
Set date & time and format.
2.11.Accessibility
Click to enter using some auxiliary functions on the machine
2.12. Developer Options
Set options for application development.
2.13. About Tablet
See status, legal information, etc.
3. Installation

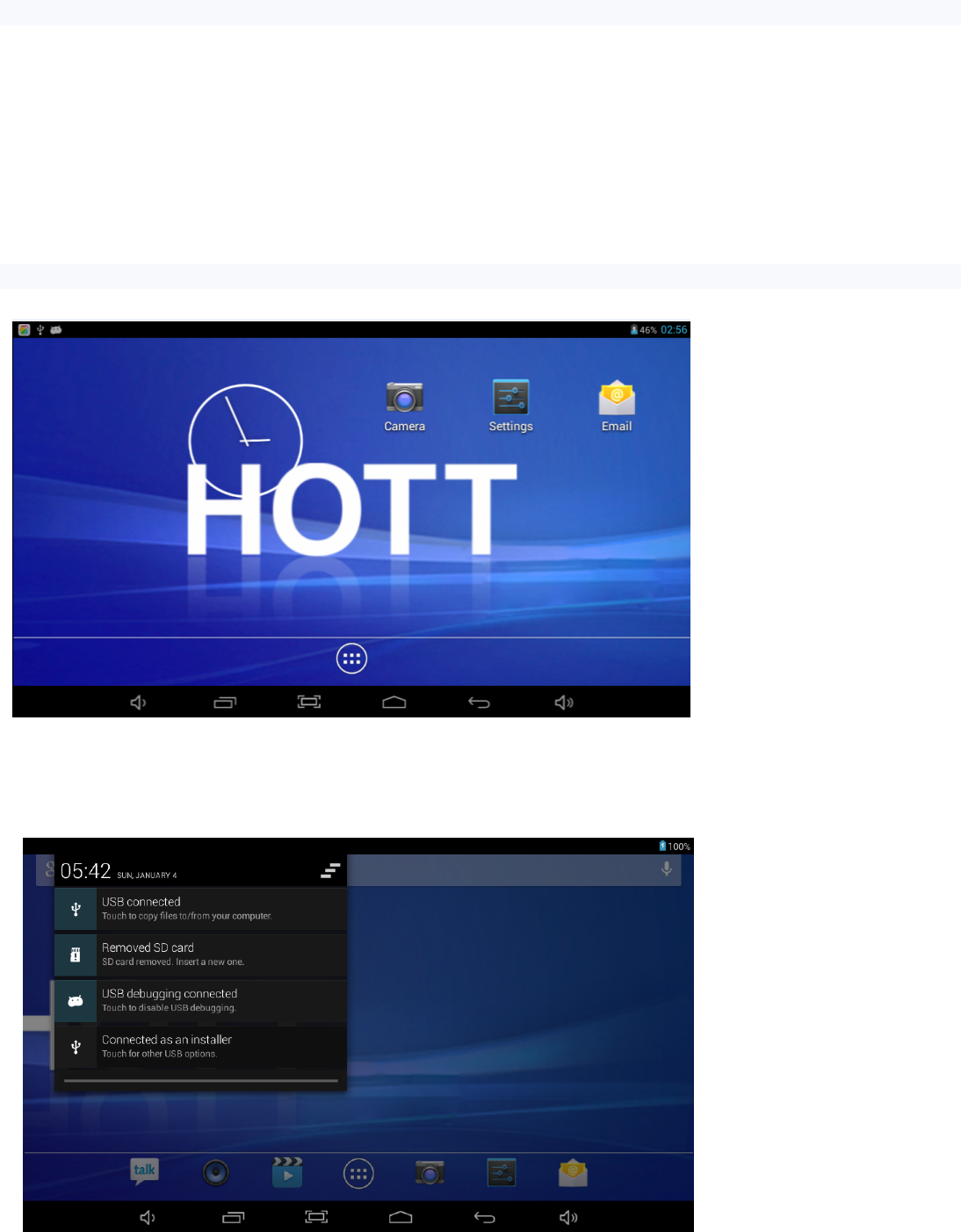

3.1. How to Connect/Disconnect the Device with/from the Computer
On the main desktop, connect the device with the PC, touch left side of the status bar on the TOP of
desktop.

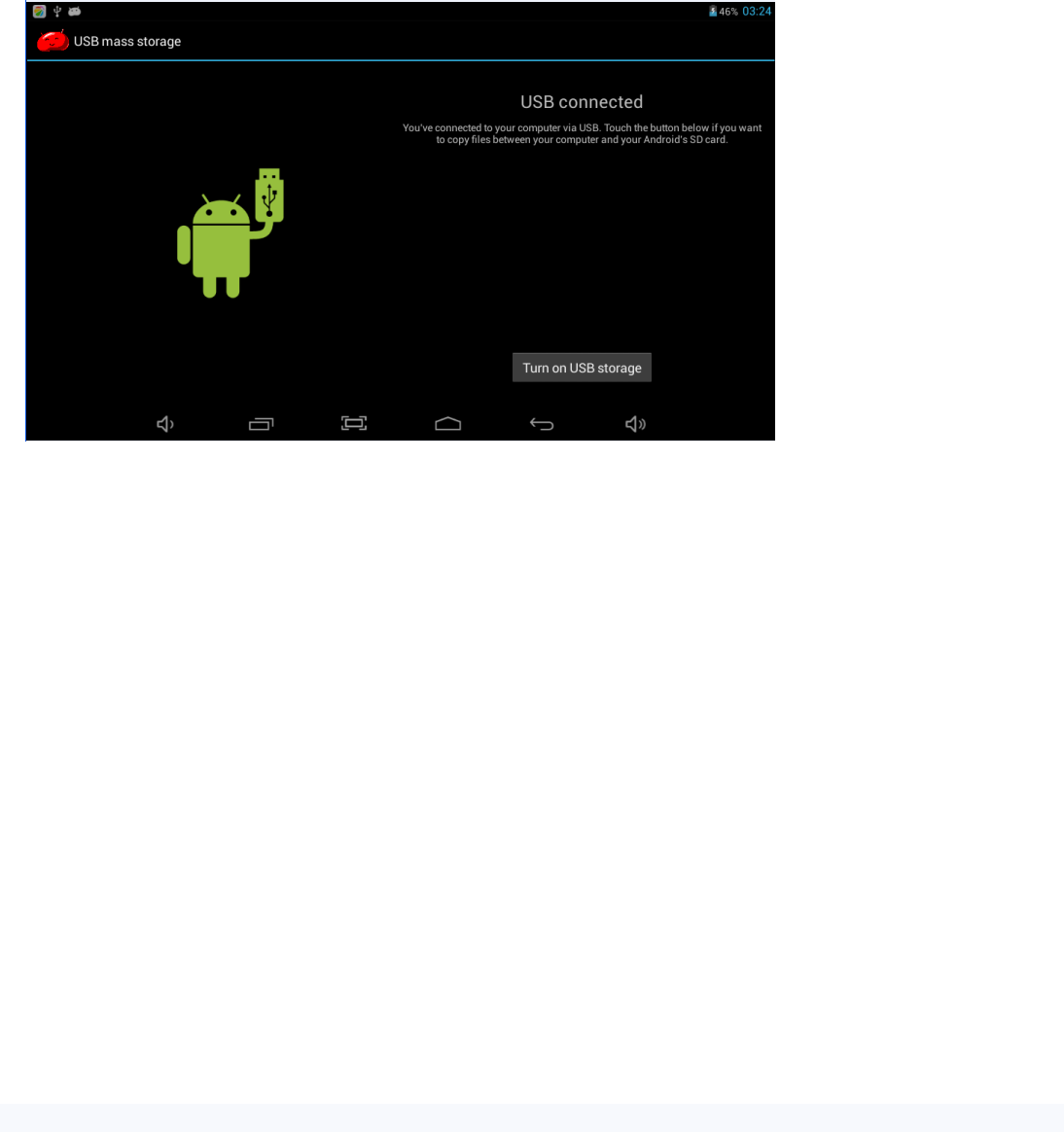

Press “USB connected”, select “Turn on USB storage”. Now you can use it as an external storage.
13
After finishing your work, Press “Turn off USB storage” to unmount it.
3.2. How to Install Applications (.apk file) into the Device
Method 1:
Connect the device with internet. See above (2.5.1 Wireless & Networks) to connect the Internet.
Run “Market” and search the applications you want to install.
Follow the instruction on the screen for installation.
Method 2:
1. With your computer, search application file (.apk) that you want to install into the device.
2. Download the file (.apk) into your computer.
3. Connect the device with your computer.
4. See above [How to connect/disconnect the device with/from the computer.]
5. Copy and paste .apk file into the device and disconnect it from your computer.
Run “File Manager” and .apk file that was copied into the device.
6. Press the file to install and follow the instruction on the screen.
14

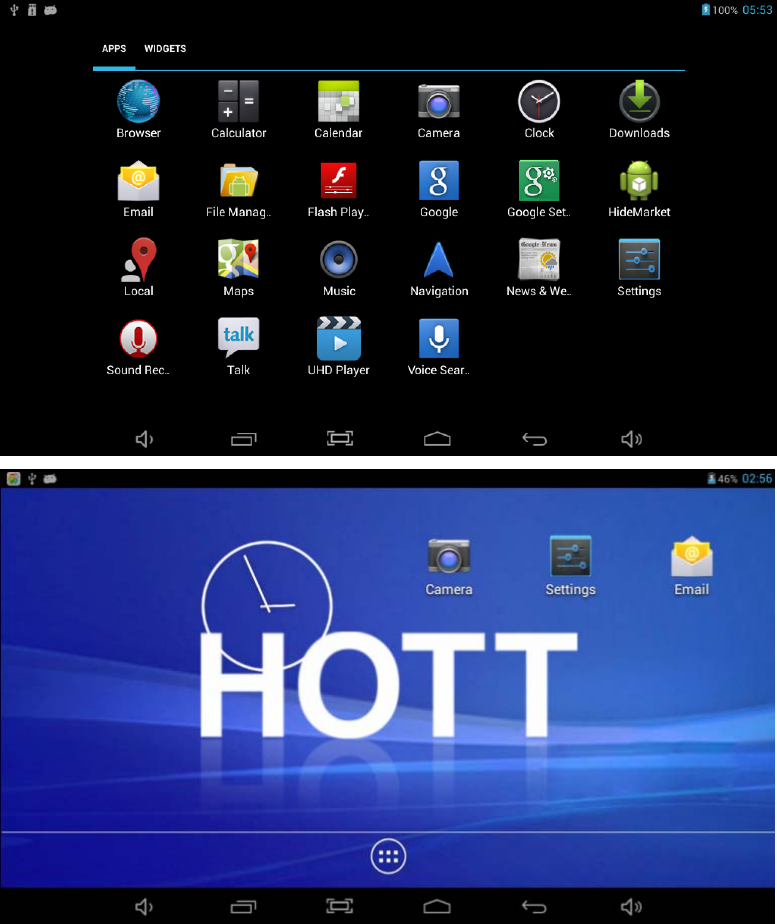

3.3. Desktop Icons
Press the upper right side icon of desktop, the pop-up displays.
15
Shortcuts
Long press your desired APK icon and put it on the desktop.

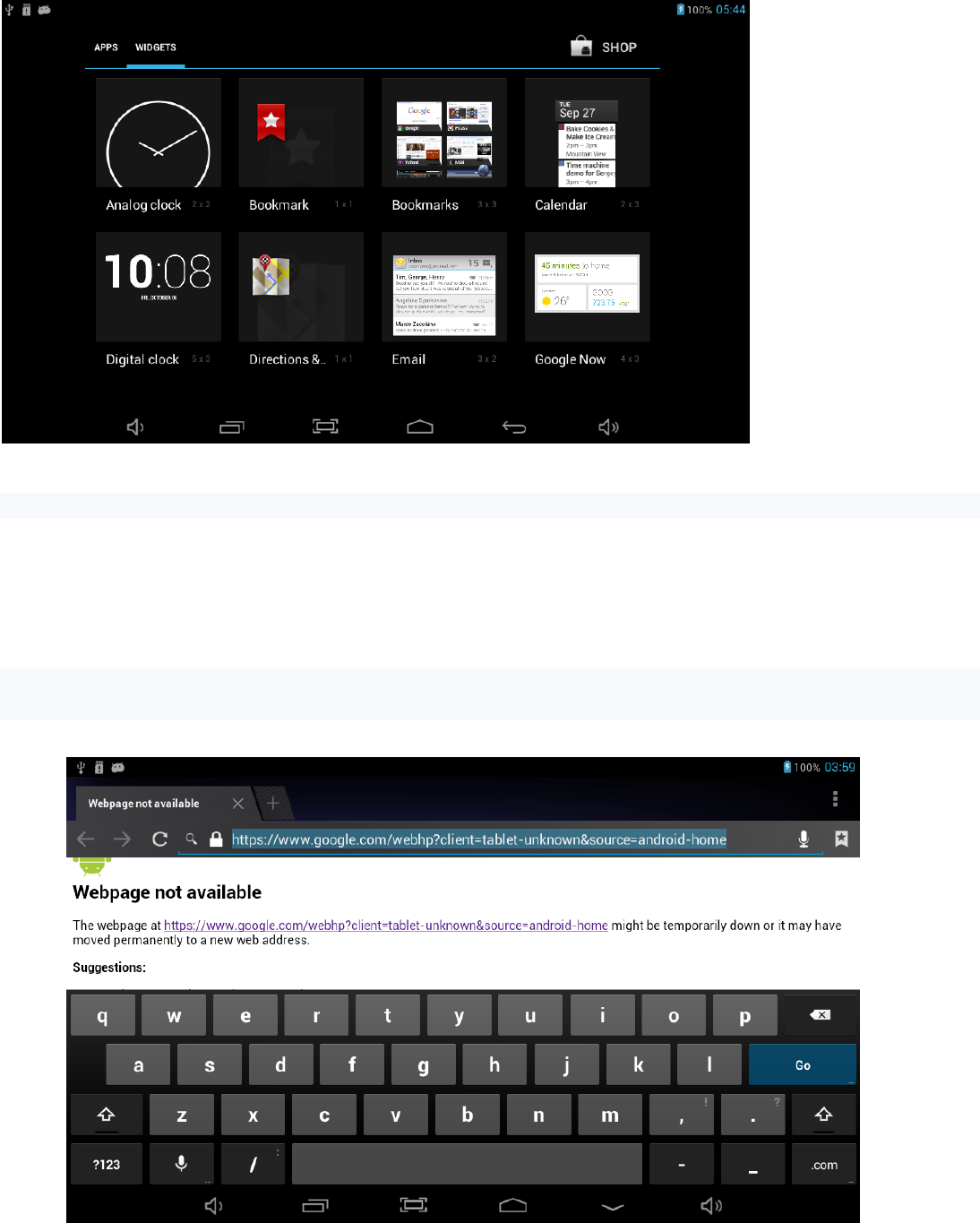

Widgets
Press Widgets and press your desired icon to put it on the desktop.
Wallpaper
Long press the desktop, press Wallpapers and select one of categories of wallpaper.
Select one you desired and press Set wall paper.
3.4. Keyboard Input
Tap the text input area to open the on-screen keyboard
Select the installed keyboard, then the keyboard will appear with your desired language you installed.
16
4. Technical Specifications
OS Android 4.2.2
CPU A23
RAM 1GB DDR3
Display 9.’’ 1024x600pixels Capacitive touch
panel
Muti-touch Screen Yes : 5 point multi-touch
Built-in Flash Memory 4 GB / 8 GB / 16GB
Audio Port 3.5ø earphone
USB Port Micro 5PIN support OTG function
TF Card Support TF Card
OTG Port Same as USB Port
IO Ports
Button Power, home, reset
Speaker Frequency response:20 Hz - 20 k Hz,
G-sensor Yes
Camera 0.3M pixel(front); 2.0M pixel(rear)
Wi-Fi 802.11b/g/n(HT20)
Power Adaptor DC5V/2A
Battery 3.7V 3800mA Li-Polymer
Charging Time By Charger Approx. 5-6 hours
Note: All pictures of product interface in this manual are for reference only; please refer to the actual
interface of product!
5. Aftermarket
Hott has designed this appliance in order to guarantee the maximum reliability. However, if a problem
occurs, by following the procedures suggested in this section you may be able to determine its cause.
Do not attempt to open the appliance – there is a risk of electrical shock.
If you are not able to solve the problem, please contact your seller or manufacturer.
All users must be familiarized with this section. Knowing what could go wrong can help you avoid the
occurrence of problems.
WARNING: any attempt of fixing the appliance without contacting the manufacturer will nullify the
warranty.
In case the problem persists, take your appliance to an aftermarket section of any Worten, Modelo or
Continente store in order to solve the problem.
Worten Equipamentos para o Lar ensures for a period of 2 years, counting from the date of purchase
of this appliance, a warranty against any found manufacturing defect. The warranty supposes a
correct use and maintenance of the appliance, namely according to the instructions expressed in this
manual. In case otherwise identified, the malfunctions will not be under the warranty.
17
The repairing of electrical appliances must only be made by qualified technicians, as otherwise there
may occur future complications on the appliances.
To avoid unnecessary risks, in case there are any malfunctions on the wires or on another type of
components, repairing must be made on the specialized locations of technical assistance, as
appropriate tools are needed.
6. Environment Conservation
Aiming to protect the environment, we try to reduce to a maximum the volume of the packages which
are confined to three easy separation materials: cardboard, paper and plastic.
The appliance is made of recyclable material, once disassembled by a specialized company. Follow
the local legislation concerning recycling of all materials.
18
7. FCC Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference. (2) This device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
---Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
The device has been evaluated to meet general RF exposure requirement. The device can be used in
portable condition without restriction.
