HONGTIANTAI HTT-MD700 Mobile Internet Device User Manual V2
HONGTIANTAI(H.K.)CO.,LIMITED Mobile Internet Device V2
user manual August 05 V2
Preface
For your ease as soon as possible to operate the machine, when you start using this machine, please read
the instructions we have supplied so that you can properly use the machine. The information in this manual
subject to change without notice and does not take up this manual errors or omissions arising from any event
caused.
Directory
1. Foreword 2. Contents 3. Understanding of models 4. Main functions 5. Basic Operation 6. Connect the computer
and File Transfer 7. The main interface 8. Music player 9. Video Player 10. Image View 11. Recording 12.
File 13. Set 14. Book 15. Additional features

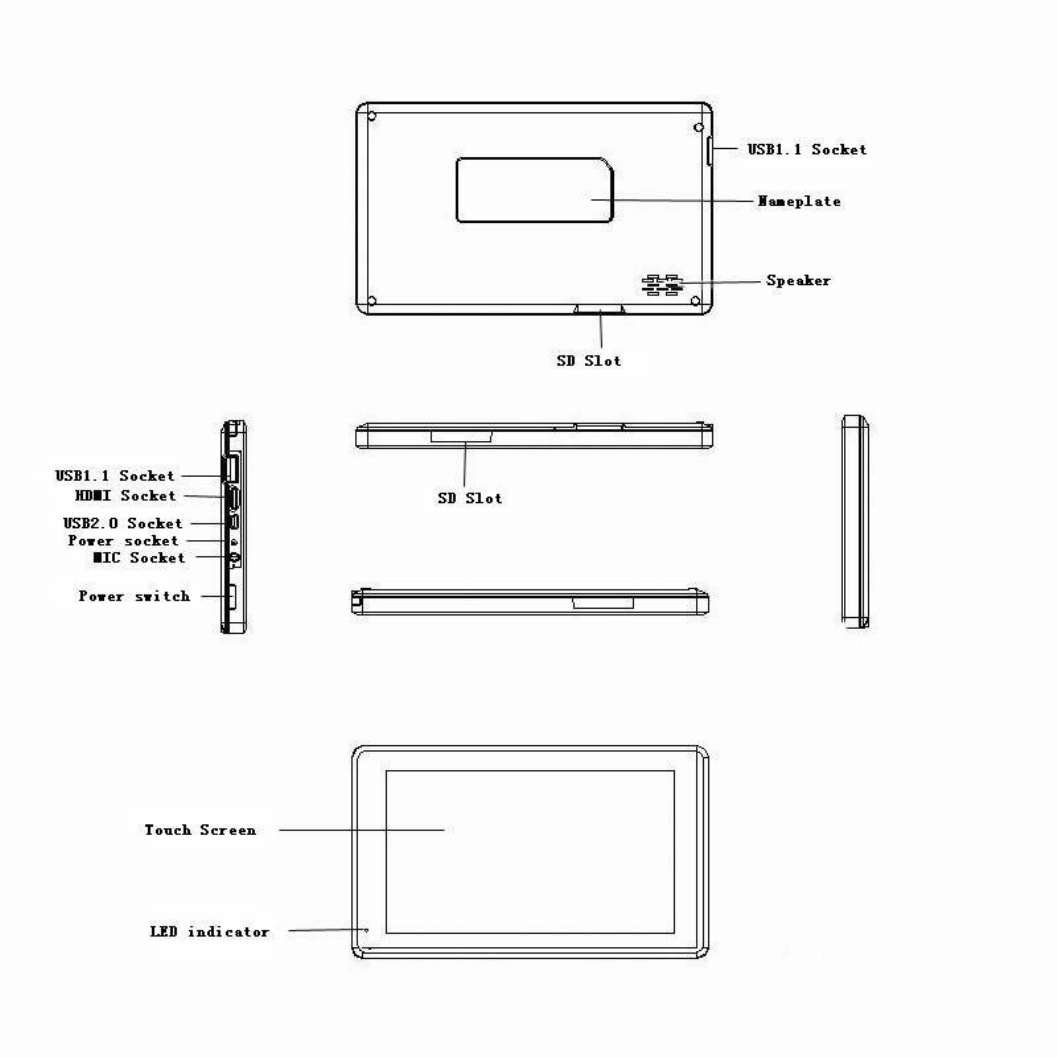

一、understanding models
二、Main Fuction:
●7-inch wide-screen TFT TFT resistive touch screen the whole 800 * 480 resolution, high-definition display.
●Support MP3, WMA, WAV, OGG, APE format music player, support sequence playing a variety of play modes,
lyrics display, album picture playback. ●support AVI, RMVB, DAT, WMV, MPEG, FLV, H.264 supports video
click-to-play, 800 * 480 resolution, ultra-clear video playback. ●support 1080P and PAL,λ NTSC standard
TV-OUT TV output function. ●support from the ring features. ●supports up to 32GB capacity SD card. ●
support the highest 4096 * 4096 resolution JPG, BMP, GIF, PNG formats picture browsing, picture automatically
browsing. ●Energy-saving setting, brightness can be adjusted freely. ●support for ultra-long recording
capability. ●Support E-book reading and bookmark feature. ●support WINCE system. ●High-speed USB2.0
transfer. ● mobile hard disk function. ●support for external mouse, keyboard. ● Support firmware
upgrade function. ●Support multi-tasking function, λ can look books while listening to music. The
information in this manual subject to change without notice and does not take up this manual errors or omissions
arising from any event caused.
三、Basic Operation
Boot: Long press the power button about 3 seconds, the player displays the boot screen to enter the
function selection main interface.
● Shutdown: a. Click the desktop Start menu, choose Shut Down pop-up "Shutdown" "hang" selection
dialog box, click on "shutdown", to achieve a shutdown operation. b. in the boot state, long
press the power button about 3 seconds, select Shut Down pop-up "Shutdown" "hang" selection dialog
box, click on "shutdown", to achieve a shutdown operation. c. In the absence of sufficient power,
the machine automatically shut down. ●hang: When you do not have the interim, you can choose
hang. At this point the system will be low-power operation, and the program will not be open until
closed; again, just a short press the power button, you can revert to the original state of operation.
To do the following: a. Click the desktop Start menu, choose Shut Down pop-up "Shutdown" "hang"
selection dialog box, click the "hang" and realize suspend operations. b. in the boot state,
long press the power button about 3 seconds, select Shut Down pop-up "Shutdown" "hang" selection
dialog box, click the "hang" and realize suspend operations. System reset function If you use
MID disorder occurred during the procedure, crashes, etc. are not normal circumstances, you can
use the stylus hits the fuselage reset reset button on this machine, and then restart the machine.
Power Supply Monitoring
●System reset function If you use MID disorder occurred during the procedure, crashes, etc. are not normal
circumstances, you can use the stylus hits the fuselage reset reset button on this machine, and then restart
the machine. ●Power Supply Monitoringλ Click on the desktop "Control Center" icon into the Control Center
interface, choose the power management, monitor battery power status, along with the increase in use of time
machine, the battery icon in the cell number will be reduced accordingly, and the battery life time and play
the type of file the screen display state and the volume size. Through the power settings: automatic, power
and optimal performance, three kinds of options to select the power mode, when the battery icon shows the
number of empty cells, please charge. ●Battery Chargingλ This machine adopts built-in high-capacity
polymer battery, you can use our company is equipped with a battery charger charging, charging, the player
has a certain degree of warming, are a normal phenomenon. ▲ Note: When the red charging indicator light
lit, full of light extinguished after. Full charge in 3 hours.
四．Connect the computer and File Transfer The machine via USB cable connected to the computer, so that can
achieve the removable disk function for data transmission. The machine and the computer through the USB
interface can be used as a U disk to use. You just need to enjoy music directly copied to the player, which
can be, without the need for any third-party process Order to achieve.
五、Interface

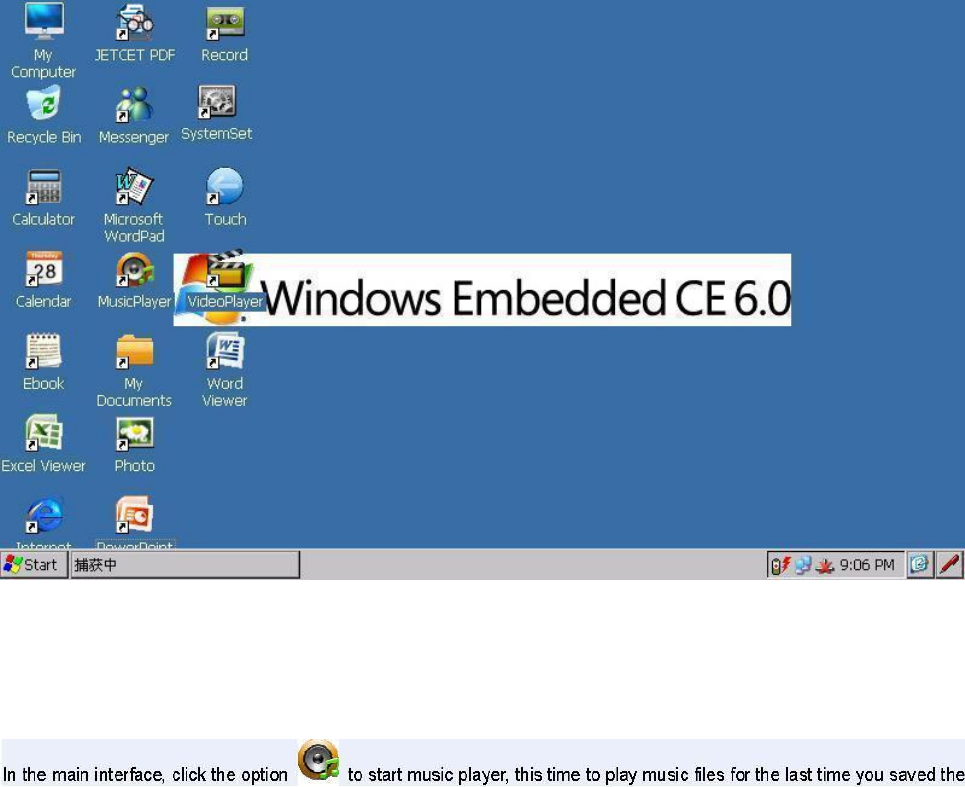

Boot into the main interface, you can choose music, movies, pictures, sound recordings, calendar, computer.
Control center and e-books and other models
六、Music
main interface, click the option to start music player, this time to play music files for the last time
you saved the list first tracks; In addition, music files can also click on to start music player, this time
to play the file for the selected file.

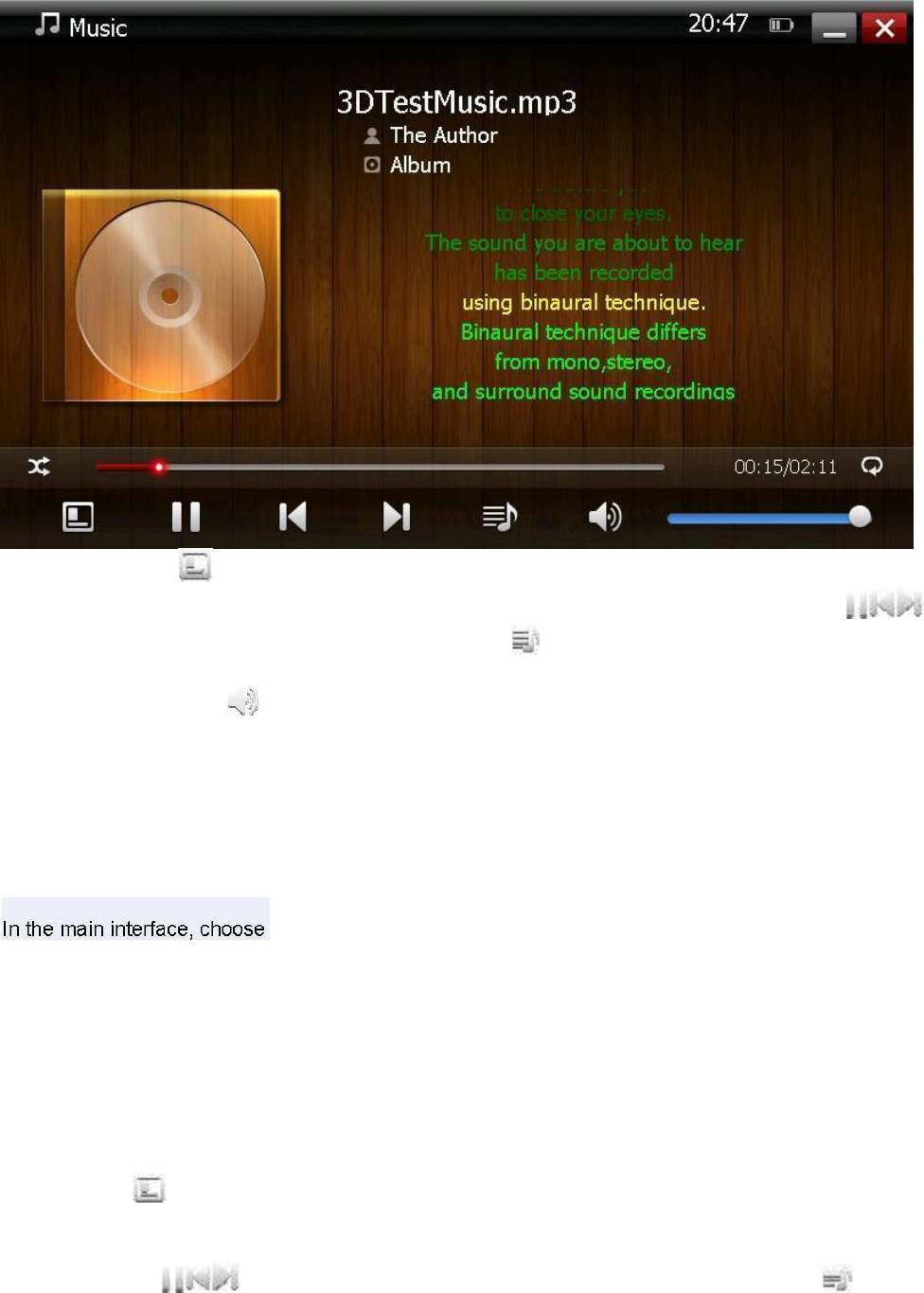

music interface：
In the
a. click the button
to enter the music to set the page, respectively, are: disordered playback, repeat
playback and sound settings to choose three options, based on individual set. b. Click to
pause, on the one, the next one operation. c. Click, drag the page to next page. In the song list, by
clicking the "Update Playlist" Achieving the list update; selected to delete the file, click the "Delete"
to remove. d. Click to select Mute and volume models. Note: Mute is only valid for this procedure does
not affect the system volume. e. Scroll volume adjustment of the volume size of music player. f. Drag to
draw a realization of the progress that the point-to-play operation. g. to support the same file name the
same directory LRC format lyrics fade display.
h. support for album art display.
七、Video
In the main interface, choose to start video player, this time playing video
files saved for the last time the list the first file. In addition, you can click on video files play selected
files.
Video interface

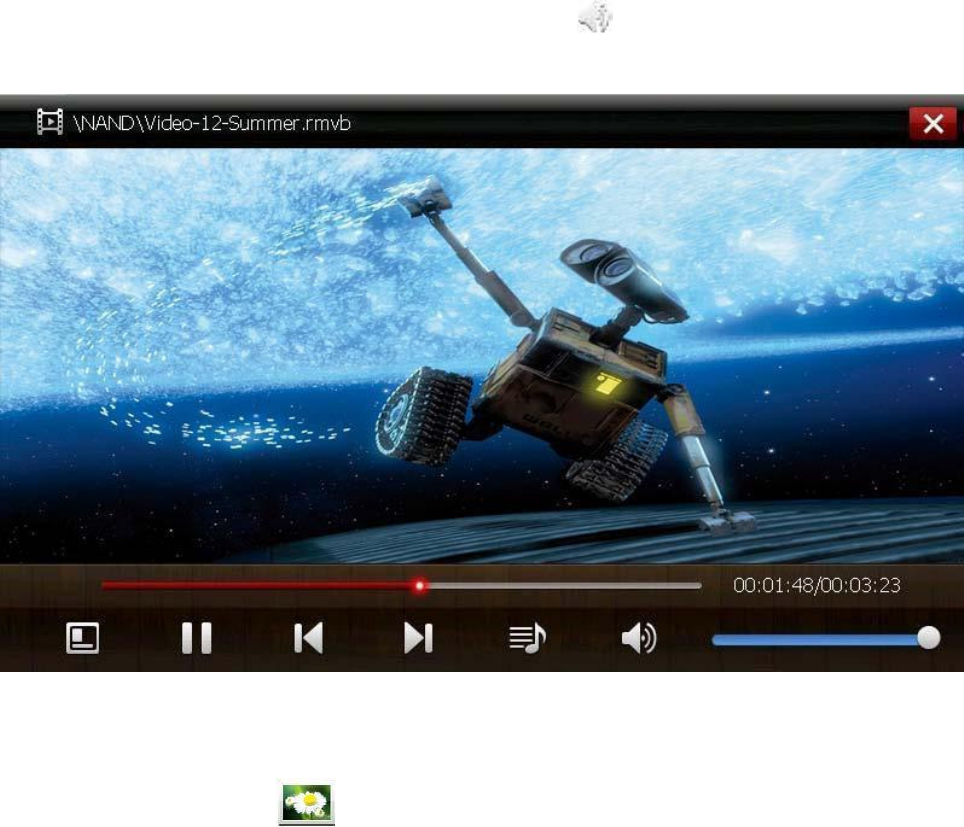

a. Double-click the video player interface through the user interface can be realized and the full-screen
conversion, interface in 5 seconds will automatically switch to full-screen playback mode.
●Video interface
a. Click into the video settings interface. Respectively, the "random play", "repeat" and "Scaling" 3
feature set. Click to enter the configuration mode were set. "Scaling" setting page are: the original ratio
of five kinds of 16:9,5:4,4:3 and covered with full-screen playback mode, choose according to individual
musical
needs. b. Click video pause, on the one, the next one operation. c. Click into the video list,
drag to next page. Click the "Update List" update the current directory; selected list of files, click the
"Delete" to delete the selected video files. d. Click to select mute or volume mode. (Note: Mute is
only valid for this procedure does not affect the system volume.) e. Scroll volume adjustment of the volume
size of music player. f. Drag to draw a realization of the progress of fast-forward or rewind operation.
g. In the playback mode, double-click the screen can switch to full screen display, or 5S, without touching
the screen will automatically switch to after the full-screen mode.
七、Picture
In the menu，choose to enter picture function.

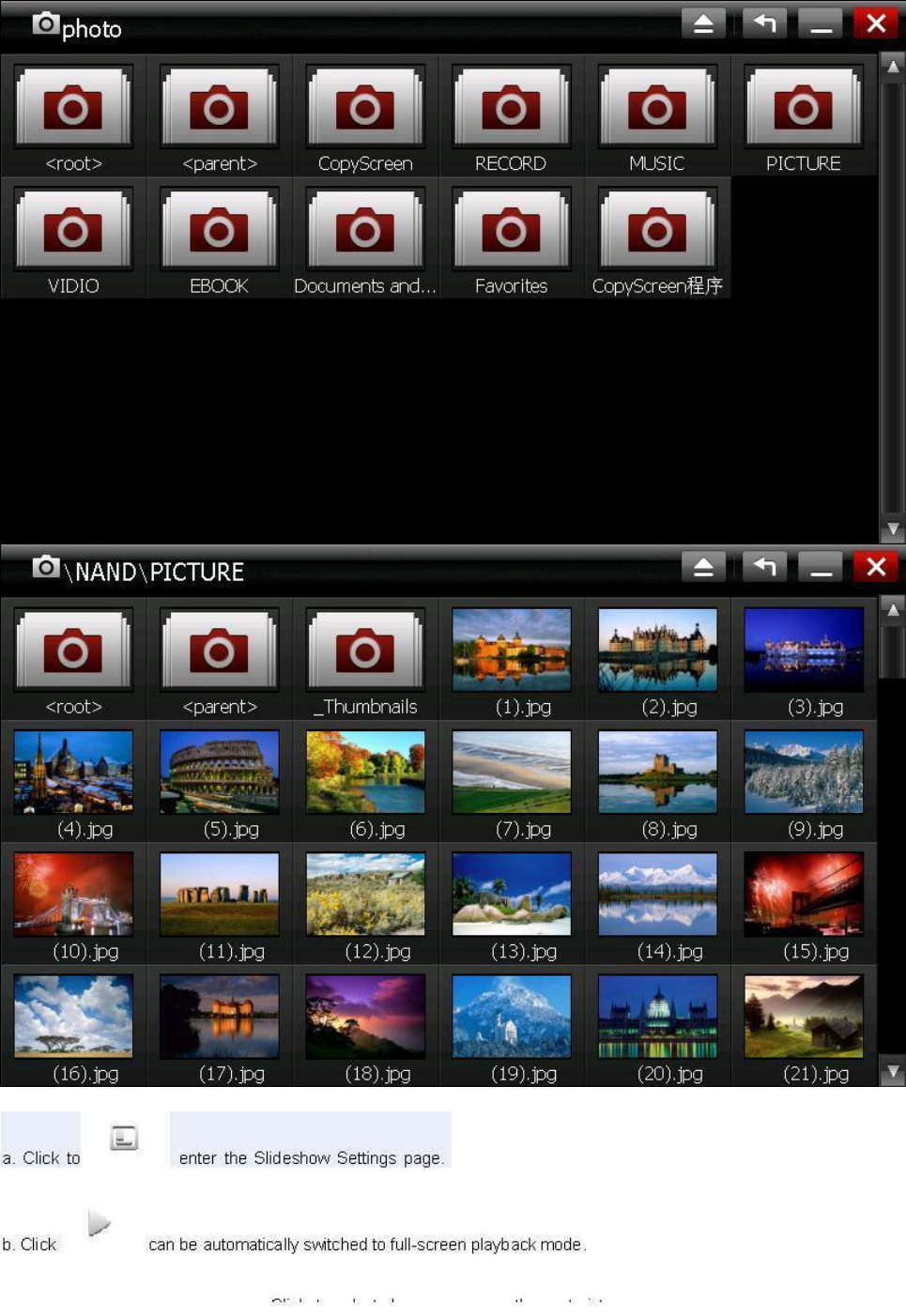

The selected image file playback picture file. Double-click "root" icon to return to the root directory.
Double-click the "parent" to return to the parent directory. in the picture playback interface
a. Click to enter the Slideshow Settings page. Respectively:
a slide set up two kinds of speed and repeat functions, respectively, click set.
b. Click can be automatically switched to
full-screen playback mode.
c. Click to select players on one or the
next picture.
operations.
need for clockwise and counterclockwise image conversion.

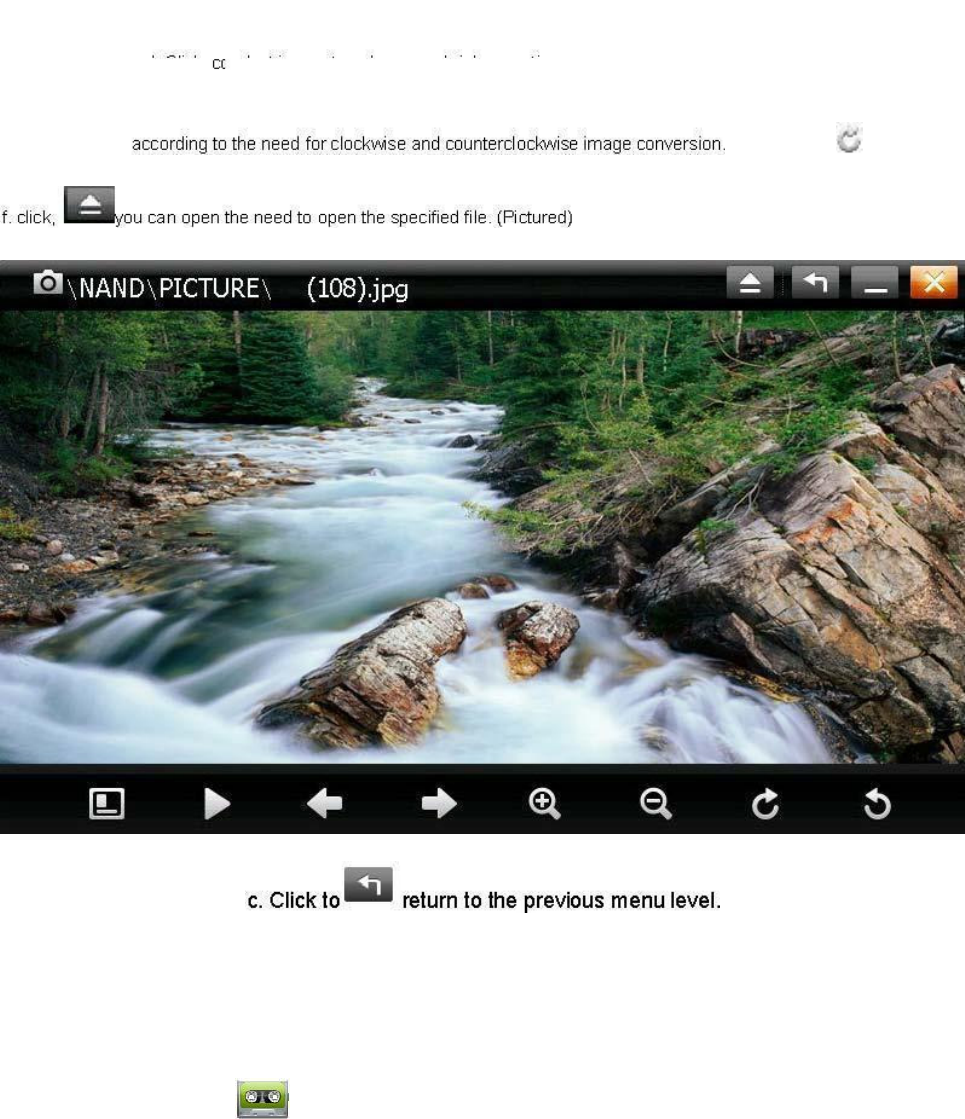

specified file. (Pictured)
d. Click conduct image to enlarge or shrink
e. Click, according to the
f. click, you can open the need to open the

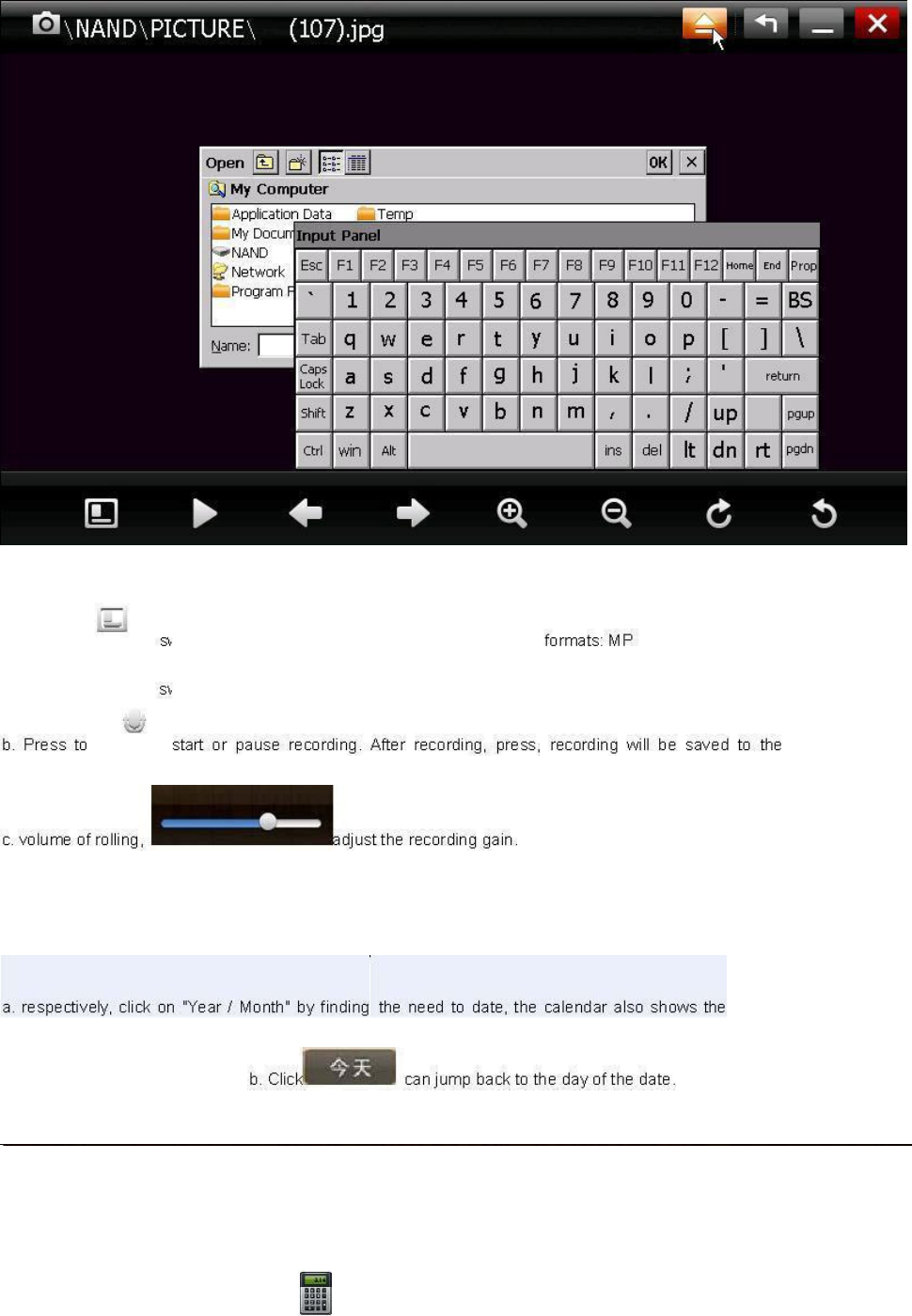

a. Double-click the screen to switch to full screen mode. b. using the zoom feature, the full screen, you
can use moving pictures.
menu level.
八、Recording
Main menu，choose ，enter the recording
interface。
c. Click to return to the previous
In the recording interface, will be prompted to the current format and the current remaining NAND space
current recording format, can be switched formats: MP3 and WMA two kinds.
pause recording. After recording, press, recording will be saved to the specified directory.
a. Click, switch the
b. Press to start or
c. volume of rolling, adjust the recording gain.
▲Recording documents are available in the NAND space RECODE folder to find and play。
九、Calendar
In the main interface, select, enter the calendar feature.
a. respectively, click on
"Year / Month" by finding the need to date, the calendar also shows the search interface, the date the
corresponding lunar time.
of the date.

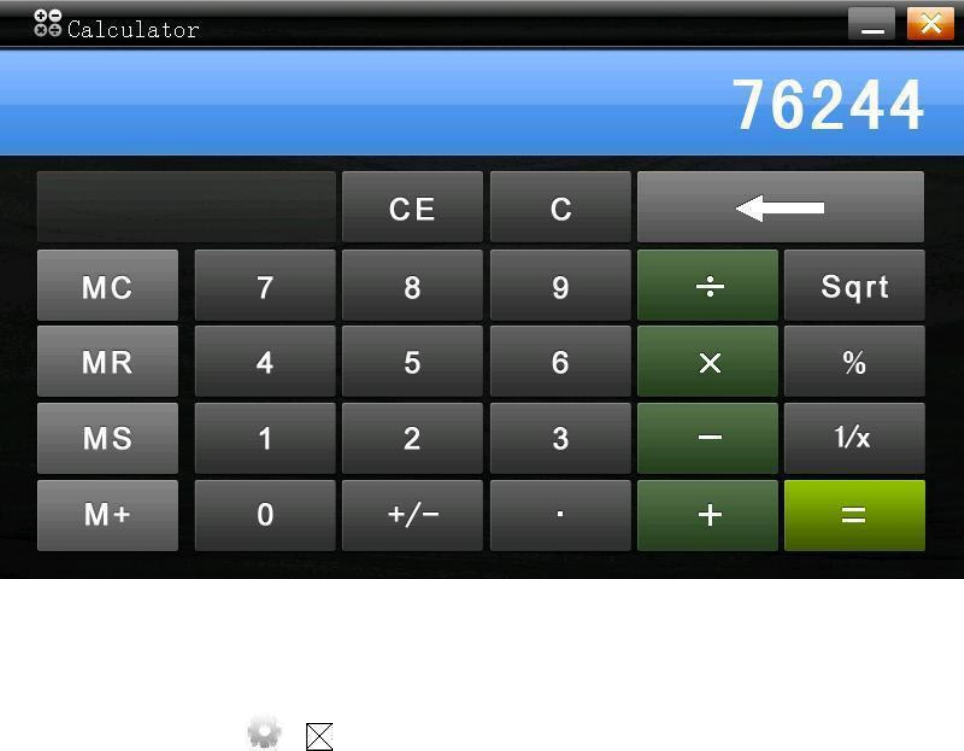

十．Calculator
In the
main menu，
choose
to enter calculator interface
b. Click can jump back to the day
十一、Control Center
In the main menu，choose
page
Into the Control Center interface. Drag the page, can be realized next

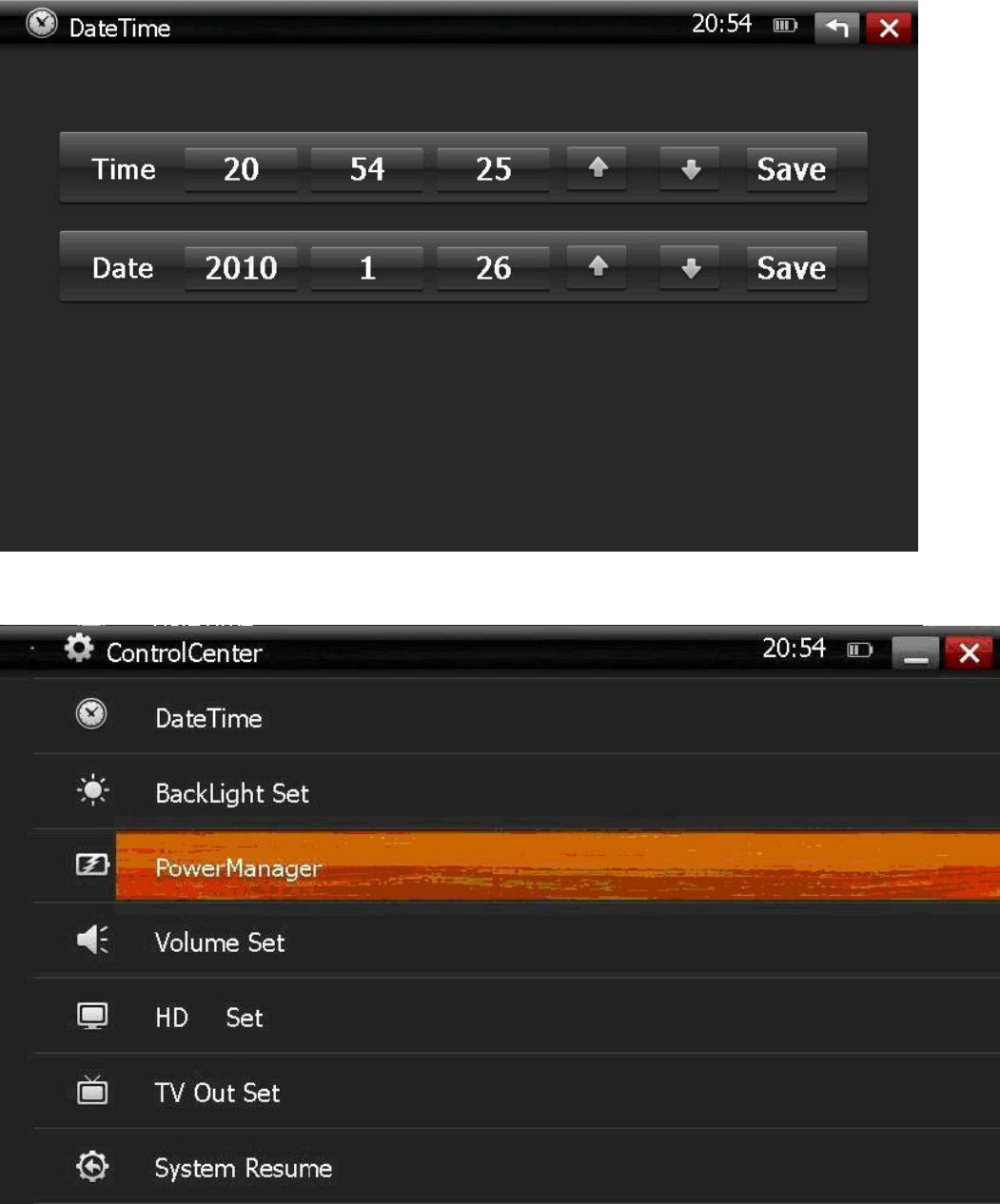

The time and date In the "time date" item listed in the relevant time, the settings menu (see below), select
the desired setting year, month, day, hours, or minutes after, press UP ARROW or DOWN ARROW to set (can
be up and down a long fast by jump), click Save Settings to achieve..
Backlight In the backlight settings, scroll to draw a set "Backlight Brightness"; "backlight delay" has 30
seconds, 60 seconds, 90 seconds, 120 seconds and never five kinds of mode selection.
Power Management

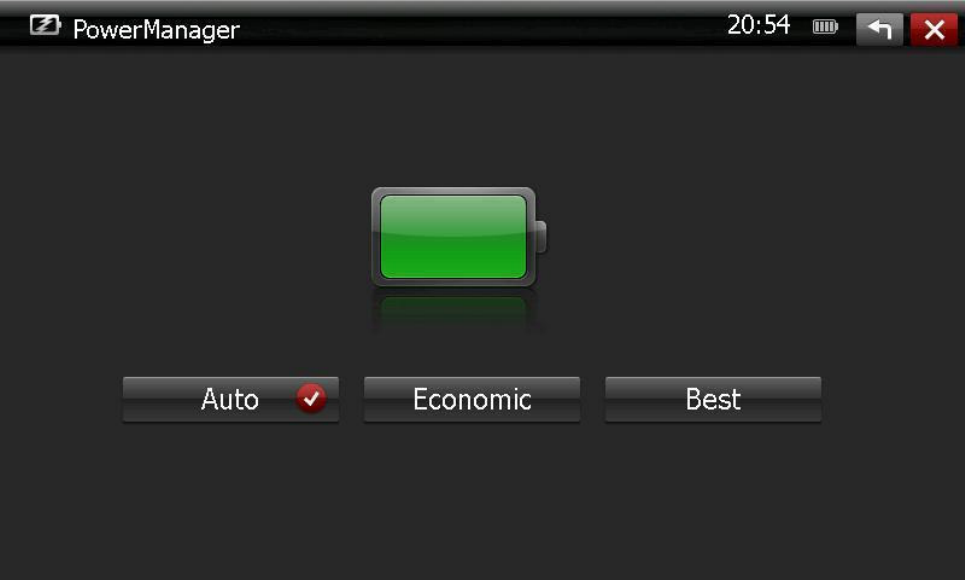

Enter "Power Management" setting interface (see figure below), can monitor the status of battery, with the
increase in use of time machine, the battery icon in the cell number will be reduced accordingly, and the
battery life time and play the type of file, screen display status and volume size. Through the power settings:
automatic, power and optimal performance, three kinds of options to select the power mode, when the battery
icon shows the number of empty cells, please charge.

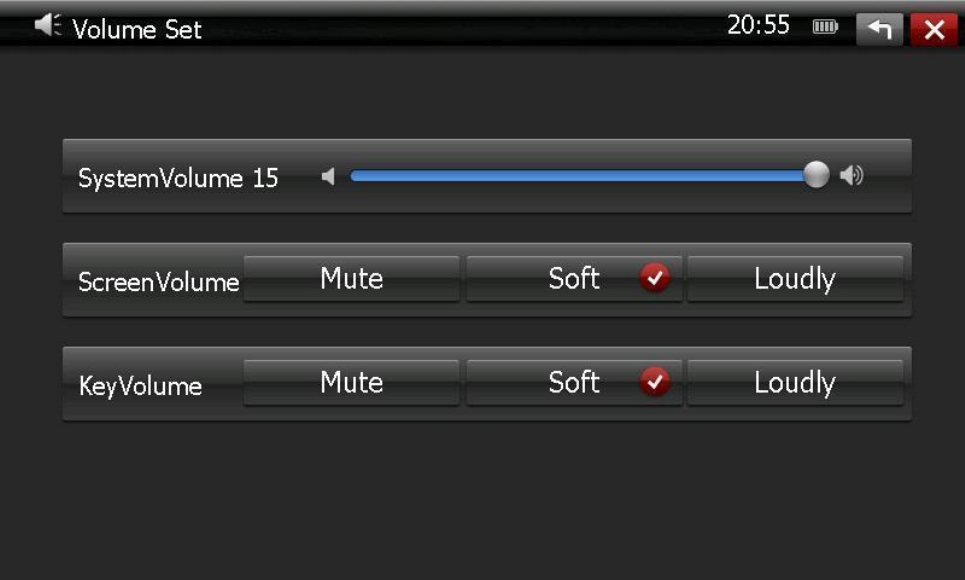

Volume Set "Volume Settings" interface provides three volume settings: system settings, touch-screen volume
and volume buttons. Can be set according to individual needs. (See below)
TVOUT Setting
The use of "TVOUT Settings" feature, please verify that connected TVOUT cable and mouse. a. Set the
list are "NTSC" and "PAL" two kinds of output formats, according to the output device selection
matching format. b. Select "TV output", MID black screen, this time with the mouse to control all
operations. TVOUT output video mode. c. Quit video post, automatically switch to "LCD output."

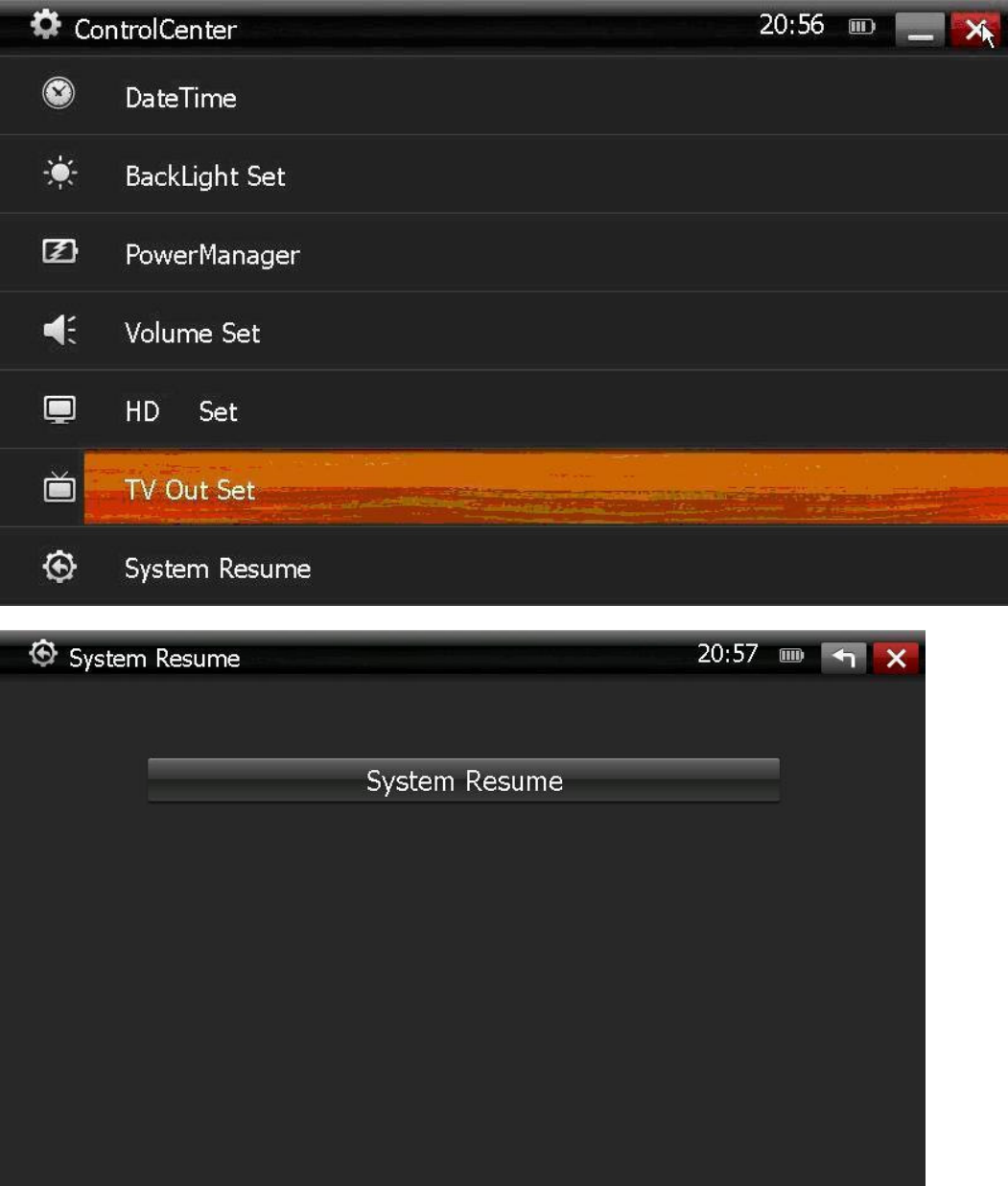

One button to restore

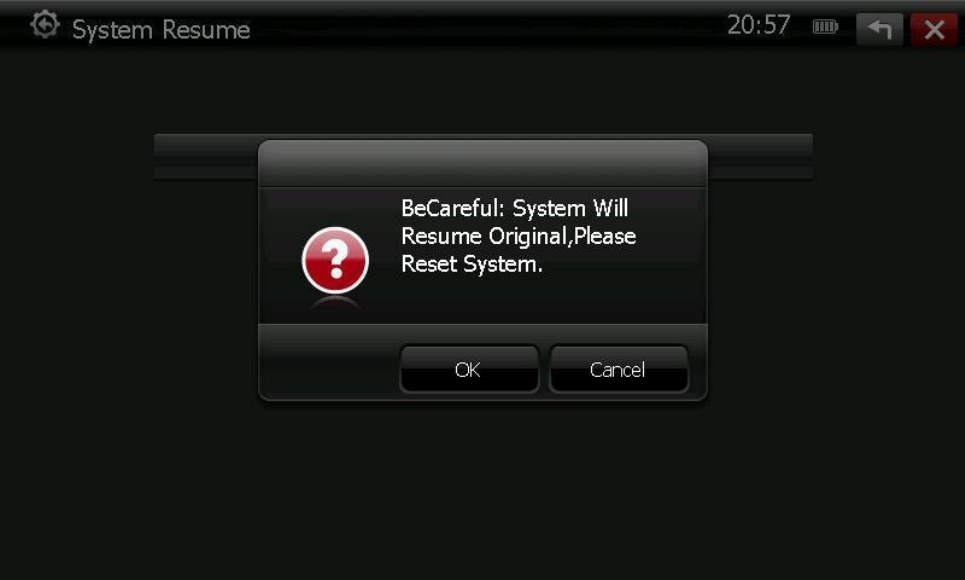

Click on "one button to restore", the system configuration will be restored to factory settings, you need
to restart to take effect. Please be used with caution!

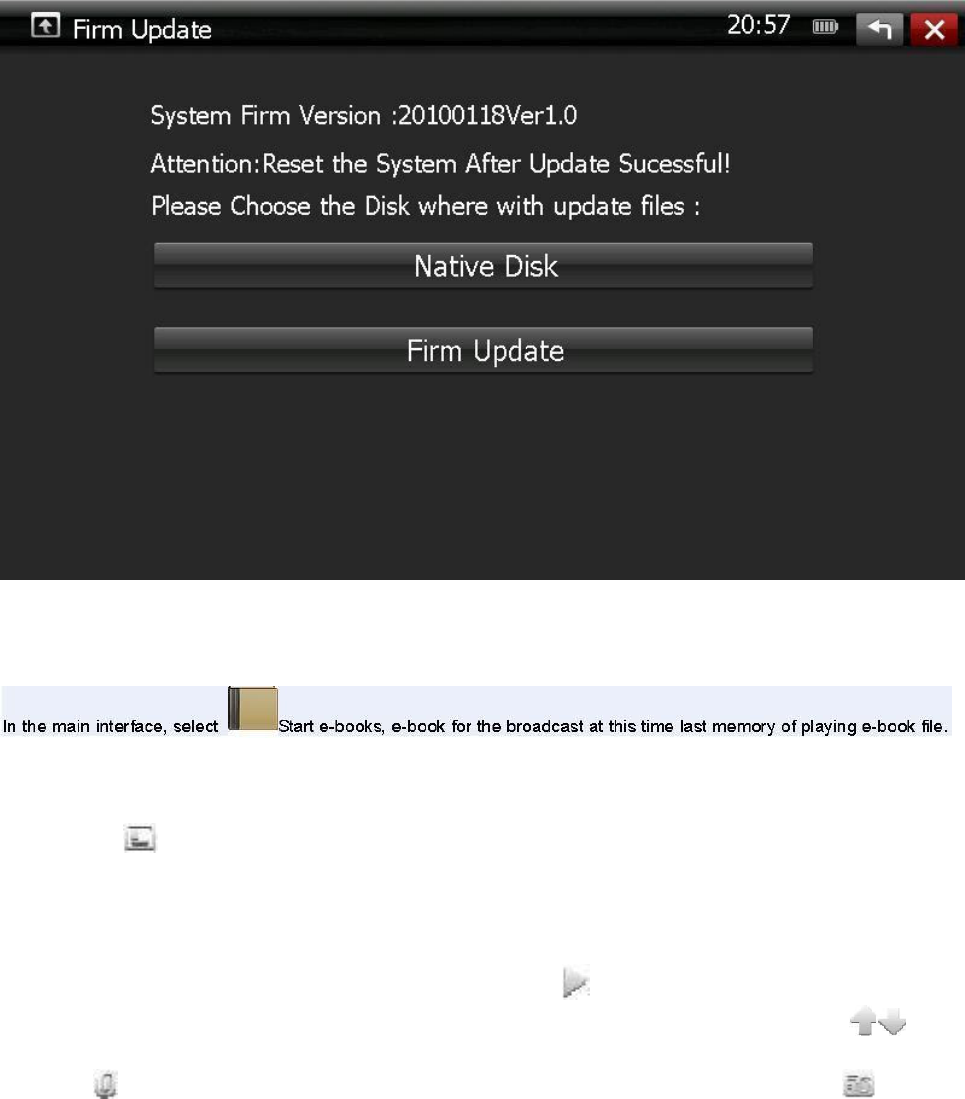

Firmware Upgrade
a. In the firmware upgrade, please provide our upgrade program "TCBOOT.ROM" and "NK.ROM" into the
root directory of NAND or SD card root directory. b. select the upgrade path, if you choose into the
NAND directory, select the local disk; if released c. In the SD card, select the external removable
disk. d. Click the upgrade, the upgrade has been completed, you can shutdown restart. e. The machine
also provides another kind of upgrade: to upgrade the root directory on the SD card, insert the SD
card, plug in an external power supply, turn will be prompted whether to upgrade, and then press the
power button, you can upgrade . Will automatically restart after the upgrade is complete.
Note: In the firmware upgrade, make sure the plug in an external power supply; the upgrade process, do not
do anything else.

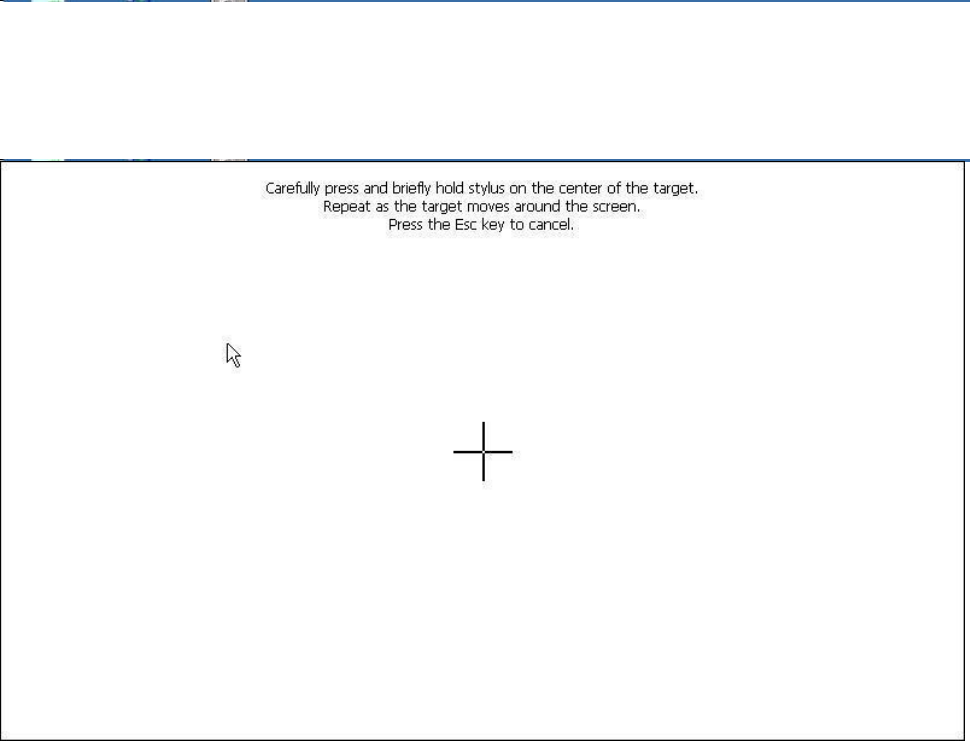

touch-screen calibration Into the touch-screen calibration interface, follow the prompts, click the touch
screen using a stylus to complete rectification work. WIFI settingsλ In WIFI Settings interface, set the
WIFI status "open" or "off."
十二．Electronic Book

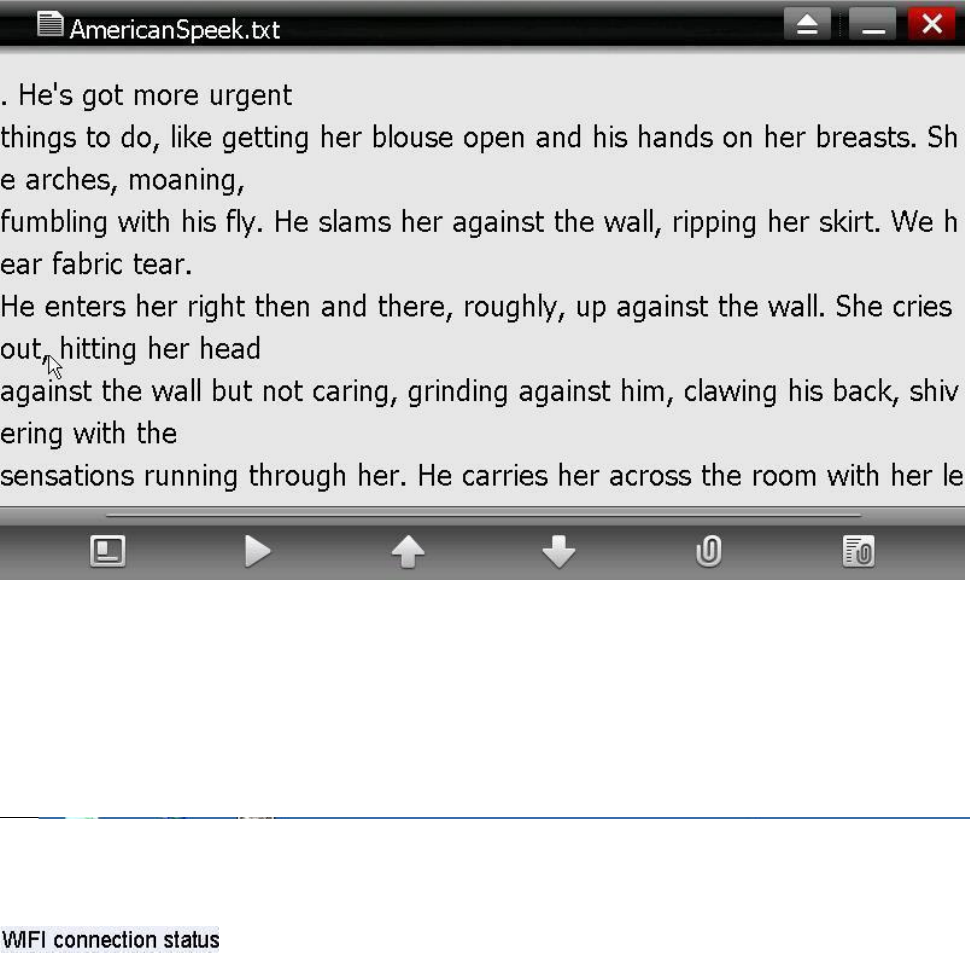

interface, select Start e-books, e-book for the broadcast at this time last memory of playing e-book file.
In addition, you can play the selected files directly to double-click the e-book e-book file.
a. Click to enter e-books Settings page, the "auto-surf", "font color" and "font size" 3 kinds of
feature set, namely, Click to enter settings. (1) auto-surf: 5 seconds, 15 seconds, 25 seconds, 35
seconds and 45 seconds, five kinds of browsing patterns to choose from. The system defaults to 45 seconds;
(2) font color: black, blue, green, white and yellow five kinds of colors to choose from. The system
defaults to black; (3) Font size: 16pt, 18pt, 20pt, 22pt, and 24pt font size to choose from five kinds.
The system defaults to 18pt. b. auto-surf: Click, switch to the e-books automatically play full
In the main
screen mode, page jump speed automatic browsing mode has been set up. c. Click
and down the flip operation; direct drag interface that enables fast next page. d. Add a Bookmark:
Click to add books to bookmark the current page. e. Read bookmarks: Click,
saved bookmark, vice list, select the need to open a bookmark will have a direct jump to the beginning
of the bookmark the page to begin. f. Press the Left to return to previous menu, return key to exit
to the main interface.
carried out up
choose to enter a
十三．Internet setting：
MID built-in WIFI, and also can use an external 3G USB Dongle。
WIFI Setting
Use of WIFI settings, please ensure that the WIFI environment and the MID of the WIFI setting is turned on.

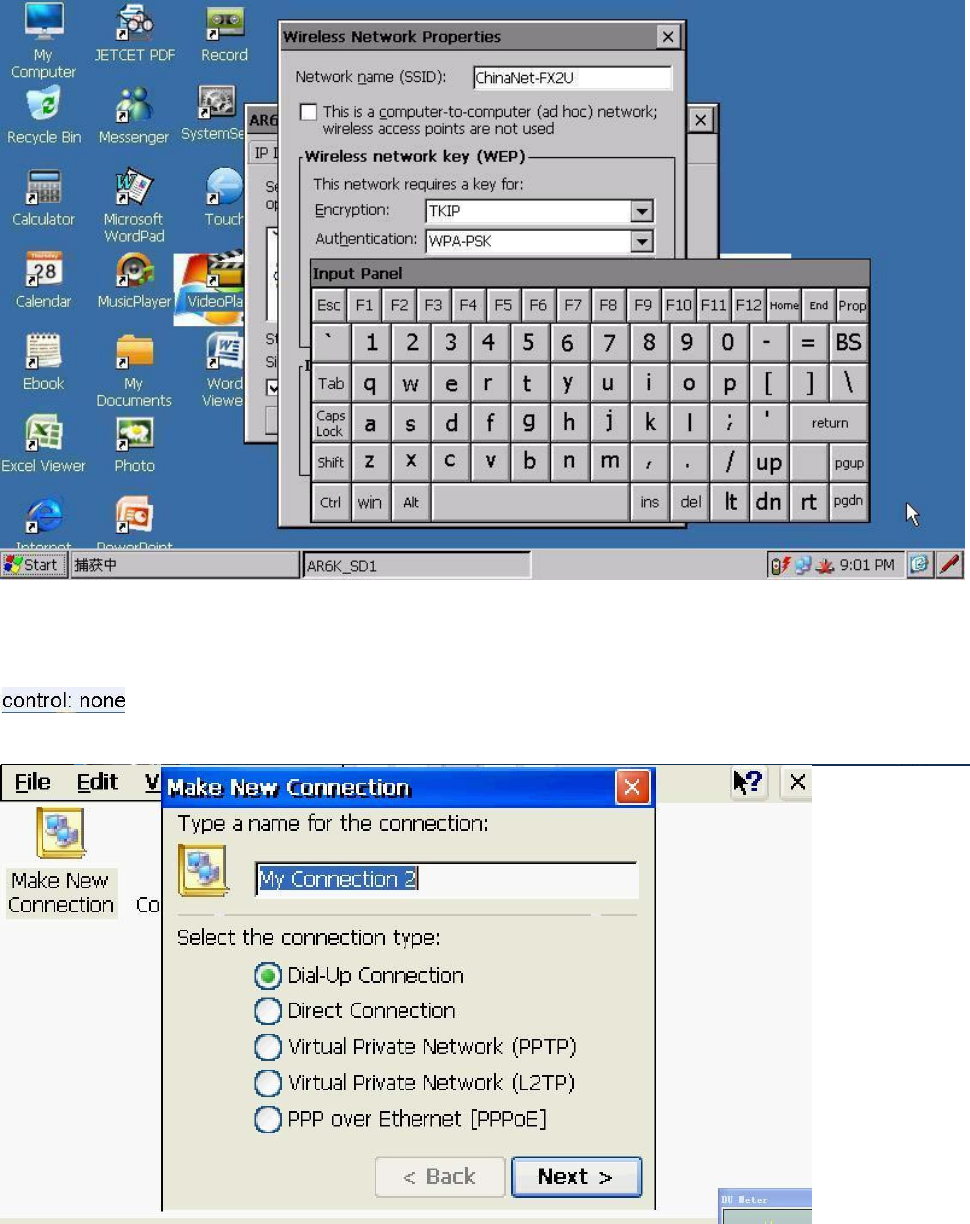

Through the Control Center → WIFI settings view. a. Double-click the task bar at the main interface, wireless
connection, the dialog box will pop up the following tips:
b. in the wireless information page select the network you need, click on "Connect" after pop-up the following
dialog box:
c. Select the network, such as a password, please enter the password, press OK to enter after the WIFI
connection status
In the Open IE browser, enter the URL you can normally browse the web.
3G Setting

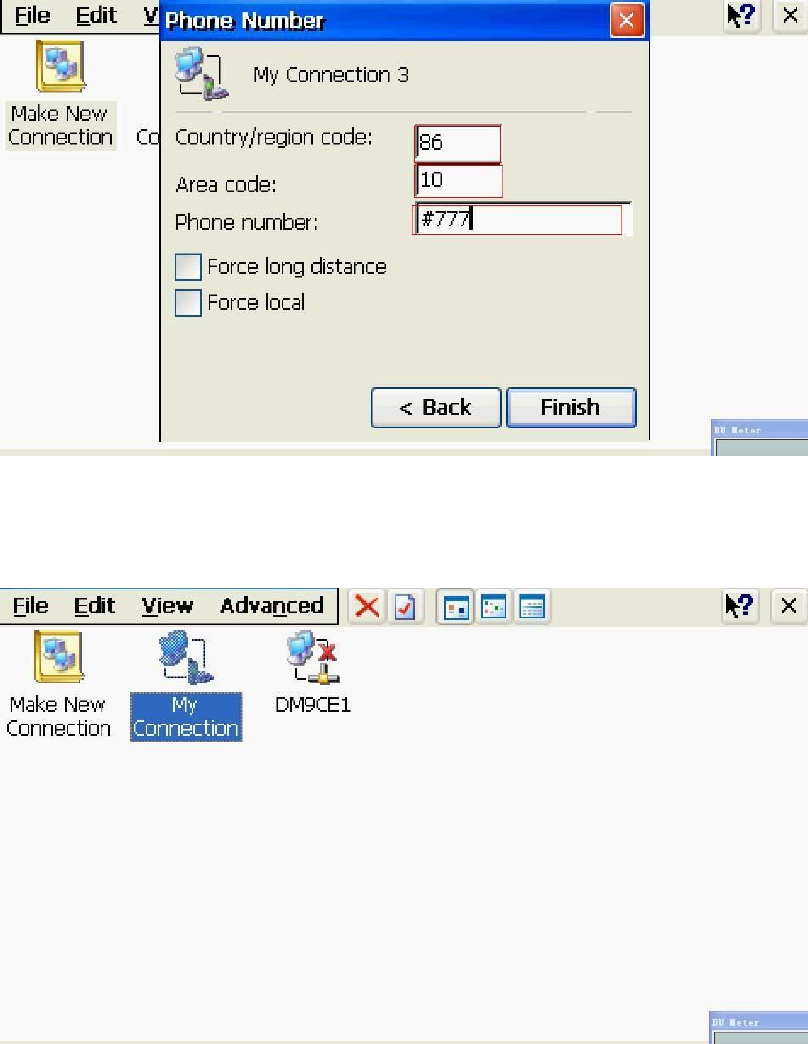

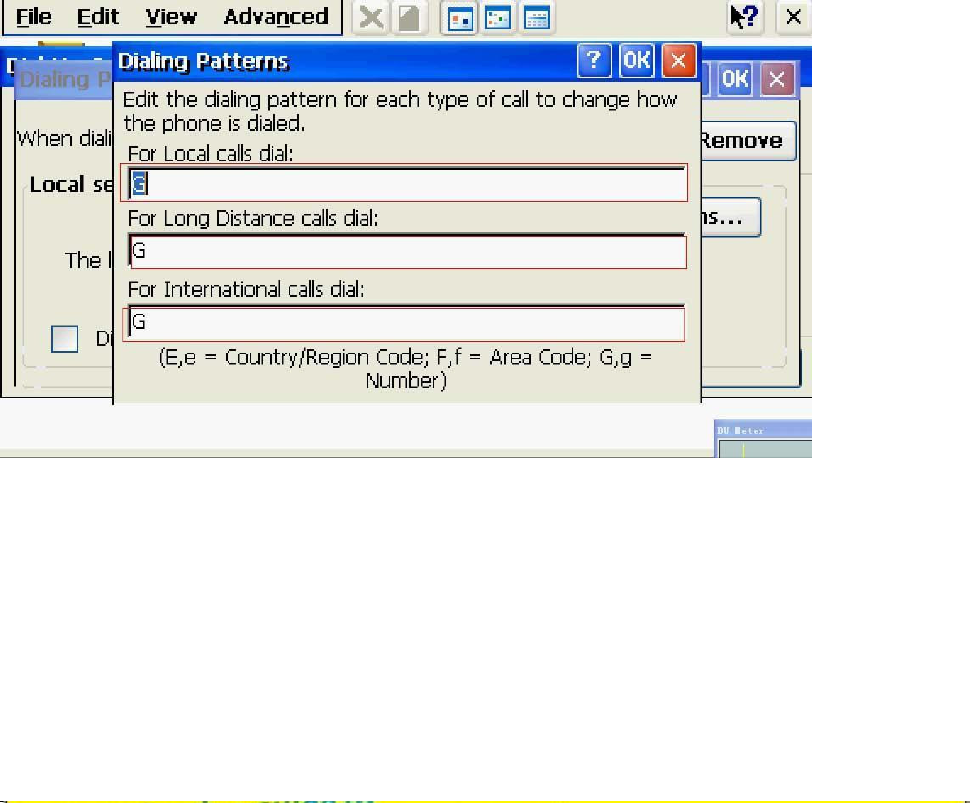

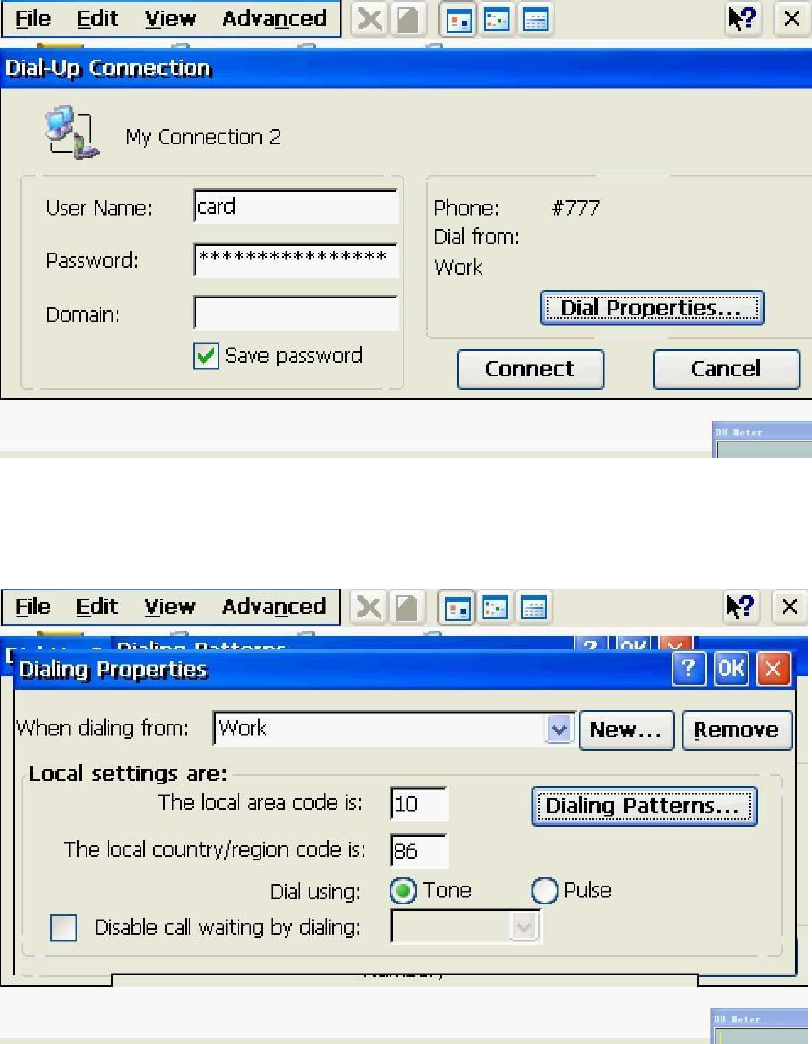

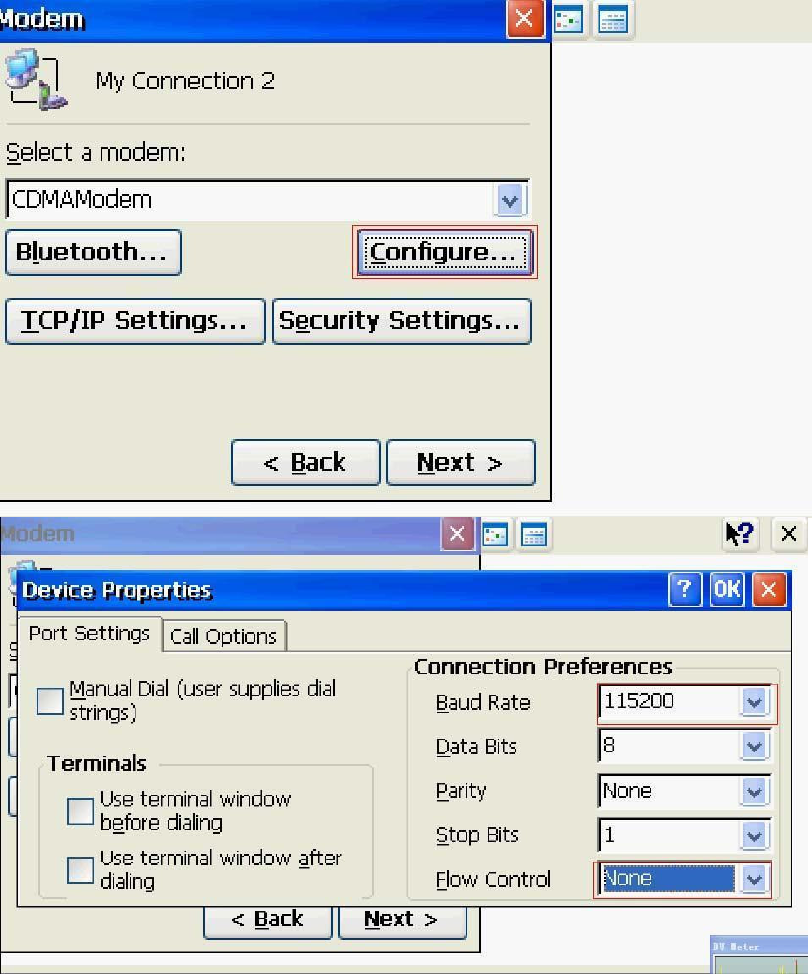

WIN CE 6.0 comes with the use of dial-up software to create dial-up link, baud rate: 115200, flow control:
none
b. Open the link has been created
EG：
User Name: card
Password :card
Area code :10
Country code: 86
done。
十三．Others：

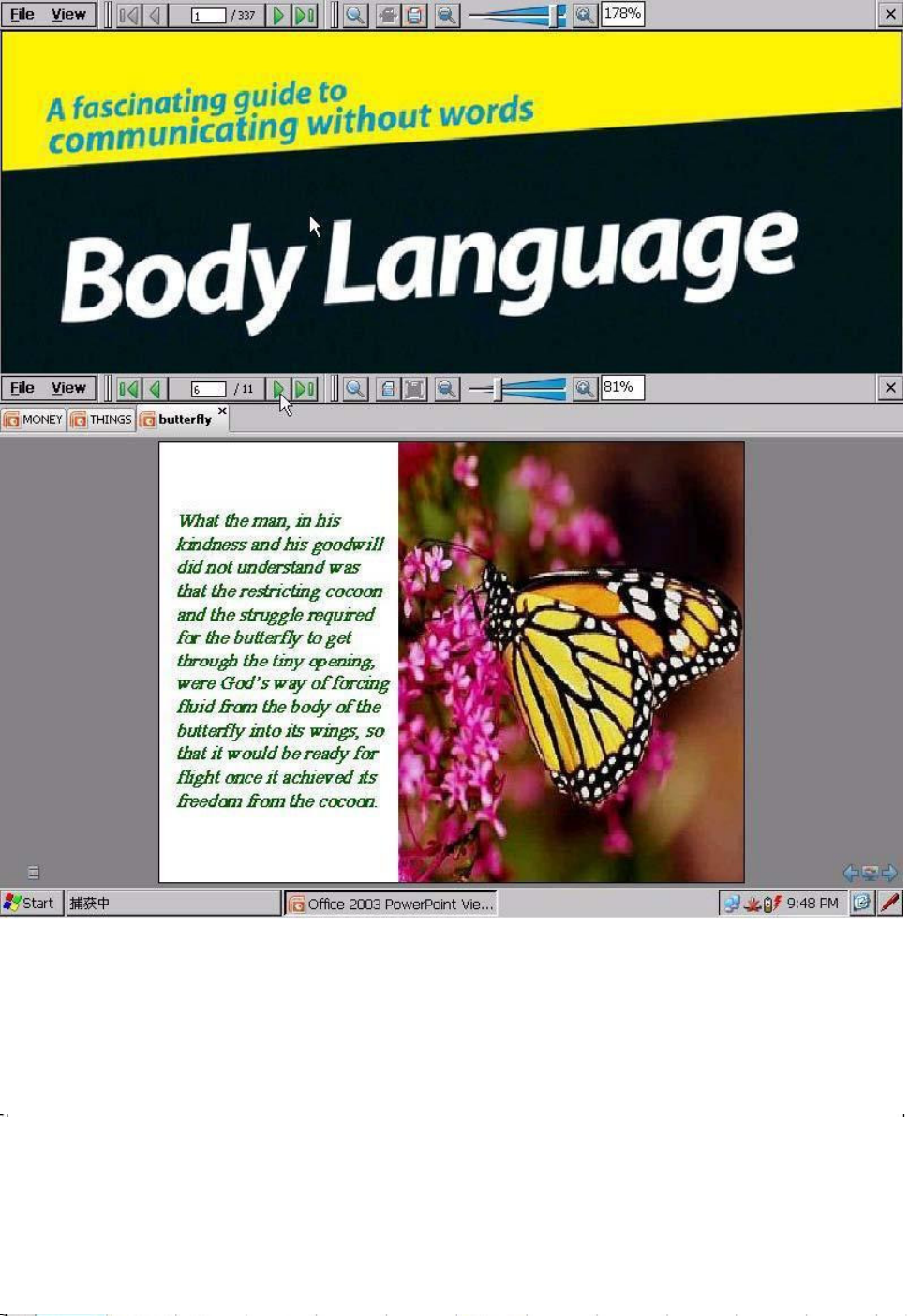

PDF, WORD, EXCEL, POWERPOINT use the results as so, and the PC on the mode of operation is basically the
same
PDF
POWERPOINT
WORD
Excel
十三．Input：
In the main interface, click on the task bar input method input method pop-up menu, choose the input method
you want. Such as: Mengtian input method. End use, select Hide Input Panel
十三．Touchscreen calibration
In the main interface, double-click the touch screen calibration, enter the touch-screen calibration
interface。
Into the touch-screen calibration interface, follow the prompts, click the touch screen using a stylus to
complete rectification work.
▲ FAQ
● player can not boot a. Check the battery is no electricity. b. Connect the power adapter and
re-check the machine. c. If the charge still does not boot, please contact with our vendors.
●headphones can not hear the voice within a. Please check the volume is set to 0. b. Check
the headset connection no problem. ●serious noise a. Check whether the headphone plug clean,
dirt may cause a noise. b. check the music file is damaged, try playing other music, to determine.
If the file has been damaged, may lead to serious noise. ●screen display garbled Please check
whether it has set the correct language option, language selection in (set) = "(language selection)
in the set. can not download the fileλ a. Verify that the computer and the player is properly
connected between. b. to confirm whether the memory is full of storage space. c. confirm that
the connection cable is damaged. ●Why do music without lyricsλ display
a. confirm whether the music files with the corresponding lyrics, and stored in the same directory.
b. identified as LRC lyrics file format and the file name to play music files with the same name. Why
do not switch when playing videoλ subtitle a. confirm whether the video played with the corresponding
subtitle file, and stored in the same directory. b. identified as SUB or SRT subtitle file format and
the file name with the same name as the video playback. ▲ headset Caution: Suggested the use of this
machine should first reduce and then plug in the headphones the volume, and then slowly increase the
volume, you can effectively prevent the large volume of right eardrum damage and to prevent the headset
overload caused by broken voice coil burnout.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End
user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter
must not be co-located or operating in conjunction with any other antenna or transmitter.
The mobile device is designed to meet the requirements for
exposure to radio waves established by the Federal Communications
Commission (USA). These requirements set a SAR limit of 1.6 W/kg
averaged over one gram of tissue. The highest SAR value for Mobile Internet Device as reported to the FCC is 1.45 W/kg
on the body with 0 mm separation between Mobile Internet Device to SAR phantom.
This Class【B】 digital apparatus complies with Canadian ICES-003
