User manual
1/18
Ｕｓｅｒ
ＵｓｅｒＵｓｅｒ
Ｕｓｅｒ's
's's
's
Manual
ManualManual
Manual
P
PP
Preparation day
reparation day reparation day
reparation day ：
：：
：
30/July/2009
30/July/200930/July/2009
30/July/2009
Product Name
Product NameProduct Name
Product Name
：
：：
：ＵＳＢ
ＵＳＢＵＳＢ
ＵＳＢ
ＷＩＲＥＬＥＳＳ
ＷＩＲＥＬＥＳＳＷＩＲＥＬＥＳＳ
ＷＩＲＥＬＥＳＳ
ＵＮＩＴ
ＵＮＩＴＵＮＩＴ
ＵＮＩＴ
Model Name
Model NameModel Name
Model Name
：
：：
：１５００
１５００１５００
１５００＃
＃＃
＃００
００００
００-
--
-Ｂ
ＢＢ
Ｂ
(Model Number)
(Model Number) (Model Number)
(Model Number)
2/18
Revision History.
Date Edition number Revision content Writer
30/July/2009 First version First version publication T.Ogawa
3/18
■On safety design
Though our company has paid close attention to quality, semi-conductive products
can malfunction and fail.
Our company has gone to great lengths to create a safe product which does not cause
any injury accidents, fire accidents, public harm, etc., and incorporated safety
features such as fire prevention and malfunction prevention into our design.
■On exemption from obligatory matter
The company is not responsible for damages resulting from natural disaster,
actions by a third person and other accidents, deliberate misuse or negligence
by the customer, and damages due to abnormal use.
The company is not responsible for any incidental damage caused by our product
(loss of business, loss of the business profit, loss and/or changes in memory
content, etc. ).
The company is not responsible for all other damages caused through failure to
abide by the description of this material.
The company is not responsible for damages resulting from connection with
equipment or combination with the software for which we are not concerned with.
Finally, our company is not responsible for damages resulting from error from this
material.
■On equipment certification
Following matters may be punishable by law:
・ If any modification is made to this product.
・ If the label of proof is removed from the product.
4/18
Contents
１．Application range ５
２．General specifications ６
３．Usage ８
４．USB functions １０
５．Radio specifications １６
６．Precautions for each standard １７
5/18
１．Application range
1-1 Application
This specification is applied to the following.
Product Name ： USB WIRELESS UNIT
Model Name ： 1500＃00-B
（Model Number）
1-2 Applicable with
Sony Computer Entertainment 『Playstation3』
※However, it must be used with model name 1500＃00-A as a set.
1-3 Application standard
・ Wireless Telegraphy Act Article 38 Section 2 - 1 - 19
・ FCC Part15 Subpart C
・ EN300 328
6/18
２．General specification
2-1 Shape and dimension
Dimension : Approximately 20mm× 69mm× 8mm
Mass : About 9ｇ
2-2 Operational temperature and humidity range （In operation）
Temperature ： 0℃∼＋40℃
Humidity ： 20∼25％RH
(Assuming there is no dew condensation.)
2-3 Storage temperature and humidity range （In storage）
Temperature ： -25℃∼＋60℃
Humidity ： 20∼85％RH
(Assuming there is no dew condensation.)
2-4 Function
This product is a USB port connective, radio unit.
It is necessary to be used with product model number 1500＃00-A as a
set.
By setting the unit, the controller becomes operational with the Sony
Computer Entertainment『Playstation3』.

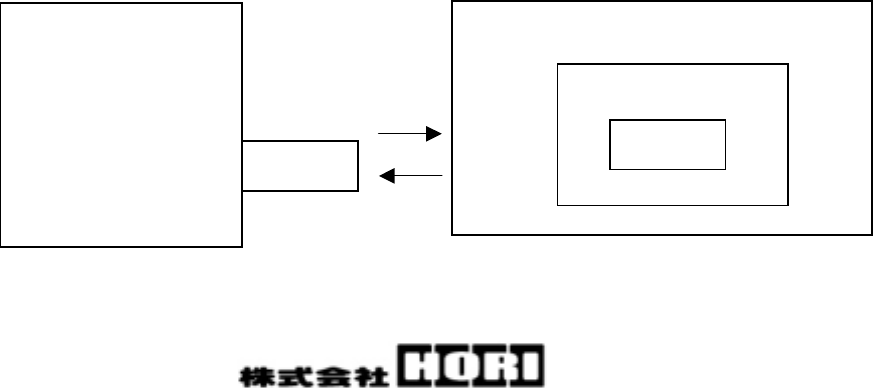

2-5 System constitution
It is connected to the USB port.
Main PCB
Controller
Playstation3
1500＃00-B 1500#00-A
7/18
2-6 Connection unit number
1500#00-B communicates one-to-one with 1500#00-A.
A maximum 7 sets of 1500＃00-A and 1500＃00-B, can be connected to one
『Playstation3』.
Also, in the presence of multiple『Playstation3』, a maximum 25 sets of
1500#00-A and 1500＃00-B can be connected simultaneously.
2-7 Power
Input voltage ： DC+5.0V（Supply from the USB port）
Consumption current :30mA (In normal operation)
2-8 Communication range
The communication range of the radio communication is within 10m.

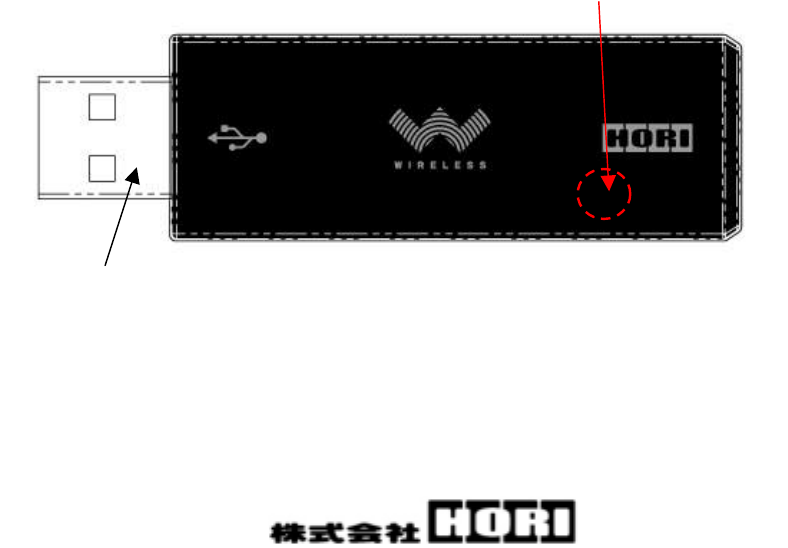

2-9 Appearance and name of each part
Communication indicator LED （within case ）
USB connector
8/18
３．Usage
3-1 Connection method
① It is connected to the USB port of the Playstation3 console.
② Communication indicator LED flashes on and off.
（Light will turn on and off every 250msec intervals.）
③ The controller with 1500＃00-A mounted is supplied with power.
（Power is supplied from 2 batteries）
④ When a controller with 1500＃00-A mounted establishes communication the
Communication indicator LED either stays lit or continues to flashes on
and off.
（The flashing, in this case, occurs at every 100msec intervals. ）
3-2 Communication indicator LED function
The relationship between the communication indicator LED and the system
is as follows.
①Lights-out (Not Flashing)
It is not connected with Playstation3 USB port.
②Flashing on and off in 250msec intervals
The controller with 1500＃00-A mounted is not supplied with the power,
or the communication has not yet been established.
③Continually Lit
The controller with 1500＃00-A mounted has established communication
and there is sufficient power left in the battery.
（The voltage of the 2 batteries are over 2.0V. ）
9/18
④Flashing on and off in 100msec intervals
The controller with 1500＃00-A mounted has established communication
but there is not sufficient power left in the battery.
（The voltage of the 2 batteries is under 2.0V.）
10/18
４．USB function
4-1 Specification
・
It is designed for USB2.0 Full speed.
・
It communicates in HID class.
4-2 Parameter of each descriptor
4-2-1 Device descriptor
==============================================
Value Field Description
----------------------------------------------
0x12 bLength 018
0x01 bDescrType STD_DEVICE(1)
0x0200 bcdUSB 02.00
0x00 bDevClass Undefined class
0x00 bDevSubClass Subclass undefined
0x00 bDevProtocol Protocol undefined
0x40 bMaxPktSize0 064
0x0f0d idVendor 03853
0x0013 idProduct 00019
0x0001 bcdDevice 00.01
0x01 iManufacturer 001
0x02 iProduct 002
0x00 iSerialNumber 000
0x01 bNumbConfigs 001
11/18
4-2-2 Configuration descriptor
=============================================
Value Field Description
---------------------------------------------
0x09 bLength 009
0x02 bDescrType STD_CONFIGURATION(2)
0x0029 wTotalLength 00041
0x01 bNumInterfaces 001
0x01 bConfigValue 001
0x00 iConfiguration 000
0x80 bmAttributes BusPowered: YES
SelfPowered: NO
RemWakeup: NO
0x32 MaxPower 100mA
4-2-3 Interface descriptor
=============================================
Value Field Description
---------------------------------------------
0x09 bLength 009
0x04 bDescrType STD_INTERFACE(4)
0x00 bInterfaceNo 000
0x00 bAltSetting 000
0x02 bNumEndpoints 002
0x03 bIntClass HID
0x00 bIntSubClass Subclass undefined
0x00 bIntProtocol Protocol undefined
0x00 iInterface 000
12/18
4-2-4 Endpoint descriptor
==============================================
Value Field Description
----------------------------------------------
0x07 bLength 007
0x05 bDescrType STD_ENDPOINT(5)
0x81 bEndpAddress 129
0x03 bmAttributes xfer type: INTR(3)
0x0040 wMaxPktSize 00064
0x0a bInterval 010
==============================================
Value Field Description
----------------------------------------------
0x07 bLength 007
0x05 bDescrType STD_ENDPOINT(5)
0x02 bEndpAddress 002
0x03 bmAttributes xfer type: INTR(3)
0x0040 wMaxPktSize 00064
0x0a bInterval 010
4-2-5 HID（0x21）descriptor
==============================================
Value Field Description
----------------------------------------------
0x09 bLength 009
0x21 bDescrType HID(0x21)
0x0110 bcdHID 01.10
0x00 bCountryCode 000
0x01 bNumDescriptors 001
0x22 bDescrType HID_REPORT(0x22)
0x0070 wDescrLength 00112
13/18
4-2-6 HID report（0x22）descriptor
05 01 USAGE_PAGE (Generic Desktop Controls)
09 05 USAGE (Game Pad CA)
a1 01 COLLECTION (Application)
15 00 LOGICAL_MIN (0)
25 01 LOGICAL_MAX (1)
35 00 PHYSICAL_MIN (0)
45 01 PHYSICAL_MAX (1)
75 01 REPORT_SIZE (1)
95 0d REPORT_COUNT (13)
05 09 USAGE_PAGE (Button)
19 01 USAGE_MIN (Button 1)
29 0d USAGE_MAX (Button 13)
81 02 INPUT
95 03 REPORT_COUNT (3)
81 01 INPUT
05 01 USAGE_PAGE (Generic Desktop Controls)
25 07 LOGICAL_MAX (7)
46 3b 01 PHYSICAL_MAX (315)
75 04 REPORT_SIZE (4)
95 01 REPORT_COUNT (1)
65 14 UNIT
09 39 USAGE (Hat switch DV)
81 42 INPUT
65 00 UNIT
95 01 REPORT_COUNT (1)
81 01 INPUT
26 ff 00 LOGICAL_MAX (255)
46 ff 00 PHYSICAL_MAX (255)
09 30 USAGE (X DV)
09 31 USAGE (Y DV)
09 32 USAGE (Z DV)
09 35 USAGE (Rz DV)
75 08 REPORT_SIZE (8)
95 04 REPORT_COUNT (4)
81 02 INPUT
06 00 ff USAGE_PAGE (Vendor-defined)
09 20 USAGE (0x20)
14/18
09 21 USAGE (0x21)
09 22 USAGE (0x22)
09 23 USAGE (0x23)
09 24 USAGE (0x24)
09 25 USAGE (0x25)
09 26 USAGE (0x26)
09 27 USAGE (0x27)
09 28 USAGE (0x28)
09 29 USAGE (0x29)
09 2a USAGE (0x2a)
09 2b USAGE (0x2b)
95 0c REPORT_COUNT (12)
81 02 INPUT
0a 21 26 USAGE (0x9526)
95 08 REPORT_COUNT (8)
b1 02 FEATURE
c0 END_COLLECTION
4-3 Data format
ByteOffset Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
0 R2
（※1） L2
（※1） R1
（※1） L1
（※1） △
（※1） ○
（※1） ×
（※1） □
（※1）
1 Reserved
（※2） Reserved
（※2） Reserved
（※2） PS
(※1) R3
（※3） L3
（※3） START
（※1） SELECT
（※1）
2 Reserved
（※2） Reserved
（※2） Reserved
（※2） Reserved D-PAD
3 Analog Left Stick X Axis（※4）
4 Analog Left Stick Y Axis（※4）
5 Analog Right Stick X Axis（※4）
6 Analog Right Stick Y Axis（※4）
7 Analog Right（※5）
8 Analog Left（※5）
9 Analog Up（※5）
10 Analog Down（※5）
11 Analog △（※5）
12 Analog ○（※5）
13 Analog ×（※5）
14 Analog □（※5）
15 Analog L1（※5）
16 Analog R1（※5）
17 Analog L2（※5）
18 Analog R2（※5）
15/18
D-Pad Direction Note
0 Up
1 Right-Up Set when Right and Up are depressed
together
2 Right
3 Right-Down Set when Right and Down are depressed
together
4 Down
5 Left-Down Set when Left and Down are depressed
together
6 Left
7 Left-Up Set when Left and Up are depressed
together
8∼15 Center
（※1）Bits values of the digital output button are as follows.
Release：0 Depression：1
（※2）The bit value of Reserved is made to be 0.
（※3）Bit value of the digital output button of the un- mounting is made to be 0.
（※4）Analog value of the analog output button of the un- mounting is made
to be 0x80.
（※5）Analog values of the button without the analog output are as follows.
Release：0x00 Depression：0xff
16/18
５．Radio specification
5-1 General specification
Parameter Value/Note
Modulation system GFSK
Spectrum diffusion process Frequency hopping
Number of channels 25ch
Frequency range 2405MHz∼2477MHz
IC transmission output 0dBm[Max.]
Data rate 1Mbps[Max.]
Rock crystal vibrator frequency
16MHz
Operating voltage DC+5.0V（Supply from the USB port）
5-2 Channel frequency
Channel Frequency [MHz]
1 2405
2 2408
3 2411
4 2414
・
・
・
・
22 2468
23 2471
24 2474
25 2477
5-2 Antenna
Parameter Value/Note
Type Monopole antenna
Composition Pattern antenna
Gain 1.92 dBi[Max.]
17/18
６．Precautions for each standard
6-1 FCC ClassB
CAUTION:
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
6-2 FCC (15.19) /IC（RSS-210 Low Power Device）
Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
18/18
6-3 IC and FCC（Radio）
RF exposure compliance
1) This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
