optimal combination of
features, performance and
expandability to meet
your handheld computing
needs

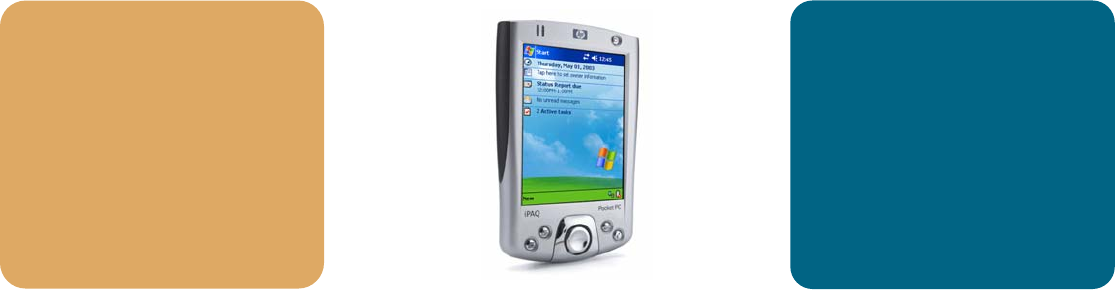

iPAQ Pocket PC h2200
series product overview
find the information you need fast
find the information you need fast .......................................................................................................... 2
for more information............................................................................................................................. 3
executive summary............................................................................................................................... 4
what’s iPAQ........................................................................................................................................ 4
what’s new ......................................................................................................................................... 4
small, sleek design........................................................................................................................ 4
integrated Bluetooth™................................................................................................................... 4
screen ......................................................................................................................................... 5
dual integrated expansion slots ...................................................................................................... 5
wireless ready with addition of WLAN 802.11b and other wireless cards2......................................... 5
removable / rechargeable battery.................................................................................................. 5
400 MHz Intel XScale processor............................................................................................... 5
increased memory ........................................................................................................................ 5
back up and restore...................................................................................................................... 6
universal remote control................................................................................................................. 6
design & features................................................................................................................................. 7
benefits............................................................................................................................................... 8
small, sleek design with dual slot expansion ....................................................................................8
get wireless connectivity in or out of the office.................................................................................. 8
greater productivity with optimal performance and storage................................................................ 8
enjoy your favorite multimedia when you want................................................................................. 8
print your documents, email attachments and pictures from your iPAQ Pocket PC to an HP printer.......... 8
technical specifications ......................................................................................................................... 9
options* ........................................................................................................................................... 10

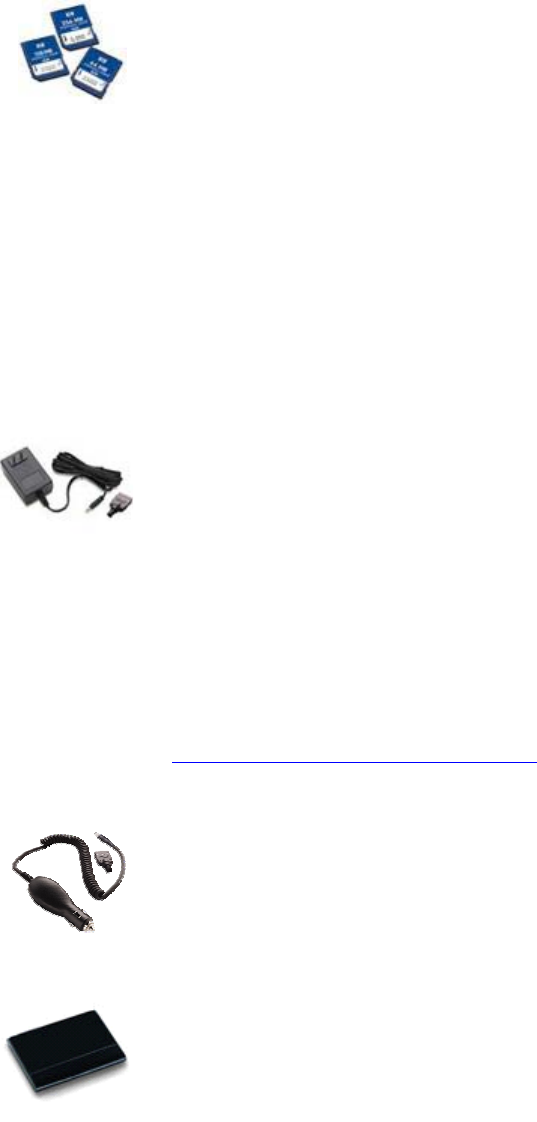

memory and storage....................................................................................................................... 10
128 MB, 256 MB, and 512 MB SD memory card.......................................................................... 10
power........................................................................................................................................... 10
iPAQ A/C Power Adapter........................................................................................................... 10
iPAQ Universal Auto Power Adapter............................................................................................. 10
h2200 900 mAh Battery ............................................................................................................. 10
h2200 Extended Battery.............................................................................................................. 11
iPAQ Charger Adapter ............................................................................................................... 11
synchronization.............................................................................................................................. 11
iPAQ USB/Serial AutoSync Cable................................................................................................ 11
iPAQ h2200 Cradle ................................................................................................................... 11
Scanners ....................................................................................................................................... 11
SDIO In-Hand Scan Card ............................................................................................................ 11
CF In-Hand Scan Card Type 1 .....................................................................................................11
wireless products............................................................................................................................ 12
Wireless LAN CF Card Type 1.....................................................................................................12
other............................................................................................................................................. 12
56K CompactFlash Fax Modem ................................................................................................... 12
h2200 Stylus 3-pack................................................................................................................... 12
iPAQ Micro Keyboard ................................................................................................................ 12
iPAQ Foldable Keyboard ............................................................................................................ 12
Custom Cases for the iPAQ Pocket PC........................................................................................... 13
software and solutions................................................................................................................. 13
competitive advantage ....................................................................................................................... 13
warranty........................................................................................................................................... 14
for more information
HP home page: www.hp.com
HP services: www.hp.com/services
HP support: www.hp.com/support
HP contact information: www.hp.com/country/us/eng/contact.htm
executive summary
The new hp iPAQ Pocket PC h2200 series is a Microsoft® Windows® Powered Pocket PC
with an optimal combination of features, performance and expandability to meet your
handheld computing needs. The small, sleek design includes dual slot expansion for
flexibility and storage. With integrated Bluetooth, connect wirelessly to other Bluetooth
devices. Plus, wireless ready capabilities1 allows you to access the Internet, email, and
corporate data at home, at work or on the go. A removable battery and transflective
display give you optimal performance. Popular productivity applications, Universal
Remote Control, iPAQ Backup and other features bring convenience at an outstanding
value. View photos, play games, listen to music and enjoy your favorite multimedia. A
broad range of features, Bluetooth, expansion capabilities, and multimedia make the
iPAQ Pocket PC h2200 series essential for you to communicate, access, and manage
information when you want.
what’s iPAQ
The HP iPAQ is a family of innovative, personal devices, which let you take advantage of
the Internet, make life easier and keep you in control. iPAQ products are distinguished for
their innovation (design & functionality), simplicity (acquisition, ownership, manageability
& service), usability (tailored), and experiences (customer-focused & productivity). The HP
iPAQ Pocket PC h2200 series achieves these criteria.
what’s new
small, sleek design
Small and sleek iPAQ Pocket PC with both Compact Flash and Secure Digital slots for
flexibility and convenience in storage and expansion.
integrated Bluetooth™
Bluetooth allows users to communicate wirelessly with other wireless and computing
devices using Bluetooth technology1. It enables connectivity with any Bluetooth equipped
wireless device, such as a phone, without requiring support for multiple physical
connections. Users have the ability to:
Access the Internet1 or your email via a Bluetooth enabled mobile phone3
Print to a Bluetooth equipped printer
Exchange business cards, calendar appointments, documents, and more with other
Bluetooth devices1
Wirelessly synchronize data with your Bluetooth desktop or notebook PC using ActiveSync
Pack fewer cables and cords for travel
Use Instant Messenger to keep in contact with co-workers and friends4
The HP Bluetooth compatibility list provides the list of Bluetooth devices that have been
tested with our Bluetooth enabled hp iPAQ Pocket PCs
http://h18000.www1.hp.com/products/wireless/wpan/btcompmatrix.html
screen
One of the innovations that hp will continue to support is the use of the transflective
display. Transflective display combines the transmissive and reflective technologies,
however, it is backlit and like the reflective display on earlier devices it is optimized for
outdoor use. It offers over 65,000 brilliant colors and high contrast ratio with rich color
saturation. Uses of this new display technology provide crisper and clearer images and
text.
dual integrated expansion slots
Integrated Secure Digital slot supports SD and MMC memory cards and is SDIO ready
(Secured Digital Input/Output), so that you can easily expand your storage capacity, play
your multimedia files and bring your important documents with you. In the future,
peripheral SDIO options will be offered from 3rd party developers such as cameras,
scanners, etc. that will utilize the SDIO ready capability.
CF slot supports CompactFlash Type I and II cards for greater expansion, flexibility and
convenience. Use with larger storage cards, wireless cards (such as WLAN 802.11b or
Global Positioning System (GPS) cards) and more.
wireless ready with addition of WLAN 802.11b and other wireless cards2
Enables wireless solutions such as the Internet, email, and corporate data access at high-
speed1
Connect at the office, home, or WLAN hotspots (even your local coffee shop)1
Store multiple profiles for office, home, airport, coffee shop
Use Instant Messenger to keep in contact with co-workers and friends4
removable / rechargeable battery
Keep your iPAQ Pocket PC running longer when away from your desk. It’s easy to install,
remove and recharge. A slim 900-mAh Lithium-Ion user swappable battery provides
usage up to 12 hours. Additional batteries can be purchased separately so that you can
always have a spare available and ready. Recharging is easy using the extra battery slot
in your cradle/charger.
400 MHz Intel XScale processor
400 MHz Intel® XScale™ technology- base focuses on accelerating multimedia and
security.
increased memory
Many customers have expressed the need to safely store critical information. iPAQ File
Store* is a non-volatile memory to store critical data, databases, and other important files.
The data stored in the iPAQ File Store* is safe from being erased as a result of a battery
discharge or a full reset. iPAQ File Store can also be used as an iPAQ Back Up
destination.
*On select skus only
The memory configuration of the h2200 iPAQ Pocket PC series offers 64 MB SDRAM (56
MB main memory).
back up and restore
To ensure protection of data on the device, iPAQ Back Up is an application on the iPAQ
Pocket PC h2200 series that allows fast and easy back up and restore, selective backup
and restore, scheduled backup, battery monitoring, password protect, and compression of
the backup file. The selective backup and restore feature allows selection of the entire
system, specific file or database. Scheduled backup can be established based on defined
time, date or battery level. Scheduled back up and battery monitoring notifies the user
with the option to accept, decline or postpone the back up.
universal remote control
Control your audio and video home entertainment center
• Integrated Universal Remote Control turns your handheld into a sophisticated remote
control for all your audio and video equipment
o eliminate the clutter of numerous remotes
o intuitive graphical user interface
• Convenient, easy to use, and robust setup of your audio/video equipment
o customize rooms, users, and more
o easy, wizard based setup
o comprehensive coverage of over 1500 brand name devices
o downloadable upgrades for new devices or to add advanced key function
o express learning from original remotes.
design & features
Power Button
Color Display
Inbox Button
ITask Button
5-way Navi
g
ation Button
Contacts List
Button
Calendar Button
A
ctive Bluetooth
Indicator
LED Power Indicator
benefits
small, sleek design with dual slot expansion
• Contains both CompactFlash (CF) and Secure Digital (SD) slots for flexibility and convenience in storage
and expansion
• Small enough to fit in almost any pocket or purse
• Soft touch sides for an ergonomically comfortable feel and slip free grip
get wireless connectivity in or out of the office
• Integrated Bluetooth for wireless communication with other Bluetooth devices1
• Wireless ready with the addition of WLAN 802.11b and other wireless cards2
greater productivity with optimal performance and storage
• Dazzling display provides incredible viewing both indoors and out
• Powerful processor for the quick handling of tasks
• Independent graphics controller for fast smooth video playback
– playback motion provides up to 30 fps
– accelerates multimedia and security
• Removable/rechargeable Lithium-lon battery for on the go power
• Stay productive on the go applications
– Pocket Outlook, Pocket Word, Pocket Excel, and Spell-checker and Pocket Internet Explorer
– iPAQ Image viewer for conveniently viewing your favorite photos
– iPAQ Backup allows for safe, easy, automatic backups of all your important data
• Integrated microphone and speaker
• Third-party solutions provide a wide range of add-on devices and applications
enjoy your favorite multimedia when you want
• Entertainment at your fingertips
• Integrated Universal Remote Control turns your handheld into a sophisticated remote control for your audio
and video equipment
print your documents, email attachments and pictures from your iPAQ Pocket PC to an HP printer
• Local printing or corporate-class network printing with add on software (link provided on CD)
• Wireless1 print to local printers via Bluetooth or infrared port (HP Bluetooth printing software included on
Companion CD. Note: printer must be equipped with Bluetooth or infrared port)
optimal features,
performance and
expandability
hp iPAQ Pocket PC
2200 Series
technical specifications
Bluetooth Integrated Bluetooth (v 1.1)
operating system Powered by Microsoft Windows Pocket PC 2003
Pocket versions of Microsoft software are included (Outlook, Word, Excel and Internet Explorer for Pocket PC)
processor 400 MHz Intel XScale technology-based processor
Type transflective type TFT color with LED Backlight
Number of Colors 64K color (65,536 colors) 16-bit
Touch Screen Yes
Resolution (W x H) 240 x 320
display
Viewable Image Size 3.5 in (89 mm)
memory SDRAM 64 MB (56 MB main memory)
dimensions (L x W
x H) 4.54 x 3.00 x 0.61 in. (115.4 x 76.4 x 15.4 mm)
weight 5.1 oz (144.2 g)
Alarms
Solid amber LED – battery in unit fully charged
Flashing amber LED – battery in unit is charging
Flashing green LED – event alarm/notification
Flashing blue LED – Bluetooth radio on
interfaces /
notification
systems
Notification Sound and message on the display
Battery
Rechargeable 900 mAh Lithium-lon user swappable battery. Estimated
usage time of fully charged battery up to 12 hours. Charging time up to 4
hours.
AC Power AC Input: 100~240 Vac, 50/60 Hz, AC Input current: 0.2 Aac max
Output Voltage: 5Vdc (typical), Output Current: 2A (typical)
power
NOTE: Battery life varies based on the usage pattern of an individual user and the configuration of the
handheld. Use of some optional accessories may significantly decrease battery life.
SD Slot SD, SDIO, and MMC support
expansion CF Slot Compact Flash Type I and II
Bluetooth Class II device; up to 4 dBm transmit, typical 10 meter range
Universal Remote
Control Universal Remote Control; Data transfer up to 115.2 kb per second
audio Microphone, speaker, one 3.5 mm headphone jack, MP3 stereo (through audio jack)
hp exclusive
applications
iPAQ Task Manager: access and launch programs easily
Diagnostic Tool kit* (* on select skus only)
iPAQ Backup: utility for Backup/Restore to Main Memory, Memory Card, or iPAQ File Store
iPAQ Image Viewer: view images and create slide shows
Nevo: Universal Remote Control,
iPAQ File Store*: non-volatile storage in flash ROM (* on select skus only)
Adjustable Standby Settings: Utility for adjusting power conservation modes,
Utilities: Self Test, iPAQ Audio, Power Status
ergonomic design
features
Instant-on/off and Backlight
Navigation button
Touch-sensitive display for stylus
4 programmable application launch buttons – Calendar, Contacts, Inbox, and iTask buttons
2 alarm settings
Built-in speaker
Soft touch sides for slip free grip
what’s in the box hp iPAQ Pocket PC h2200 series, USB Desktop cradle/charger, AC Adapter, Slip case, battery, getting
started poster; charger adapter; hp iPAQ Pocket PC Companion CD
warranty Worldwide warranty one-year parts and labor. North America / Europe: Next Business Day Replacement
CarePAQ available for purchase
options*
HP offers a broad range of options to complement and increase functionality for the iPAQ
Pocket PC producing the most powerful productivity tools available today: Customize
your iPAQ Pocket PC for functionality, style and fun with several accessories.
* Options sold separately
memory and storage
128 MB, 256 MB, and 512 MB SD memory card
Secure Digital Memory Cards let you store more programs and files than ever before.
Create music cards to use during your daily commute or to take with you on long trips.
Use SD cards to back up sensitive files that are stored on your iPAQ Pocket PC. Store
special programs on an SD card to free up memory on your iPAQ Pocket PC for daily
operations.
Part Numbers:
253479-B21 or FA135A#AC3—128 MB
287464-B21 or FA136A#AC3—256 MB
FA184A#AC3—512 MB
power
iPAQ A/C Power Adapter
An AC adapter provides rapid charging of your iPAQ Pocket PC at home, at work, or
when traveling. It also works great with a Universal Desktop Cradle (sold separately), so
your iPAQ Pocket PC can charge while you are synchronizing with your desktop PC.
Part Number:
253629-001 or FA130A#ABA—U.S., Canada, Latin America, Japan, Taiwan
253629-011 or FA130A#ABG—Australia
253629-021 or FA130A#ABB—Europe, Brazil
253629-031 or FA130A#ABU—United Kingdom, Asia Pacific, Hong Kong
Note: For more information on the correct AC Adapter for your country, visit
www.hp.com/products/pocketpc/options
iPAQ Universal Auto Power Adapter
Use your iPAQ Pocket PC while it is charging or leave it off to charge the battery even
faster, just like your cellular phone. One end of the auto adapter plugs into your iPAQ
Pocket PC and the other end plugs into your car’s cigarette lighter.
Part Number: 253508-B21 or FA125A#AC3
h2200 900 mAh Battery
Removable and rechargeable battery enables you to keep your iPAQ Pocket PC running
longer so you don’t have to hurry back to your desk to charge it. This battery can be
recharged while the iPAQ Pocket PC is in your USB Synchronization Cradle/Charger or
in the spare slot in your cradle.
Part Number: FA110A#AC3
h2200 Extended Battery
Keep your iPAQ Pocket PC running longer when away from your desk. It’s easy to install,
remove, and recharge. An extended 3,400-mAh Lithium-Ion user swappable battery
provides extra life for your iPAQ Pocket PC h2200 series.
Part Number: FA197A#AC3
iPAQ Charger Adapter
Keep an extra at the office, in the car, at home, or as a spare for when you’re traveling.
The Charger Adapter works with the AC Adapter and Auto Adapter to convert the barrel
plug to the universal connector plug.
Part Number: 274707-B21 or FA133A#AC3
synchronization
iPAQ USB/Serial AutoSync Cable
An AutoSync Cable provides easy synchronization of your iPAQ Pocket PC with your
office or home PC through a USB or serial connection. It’s great to have one at both
locations, and this cable takes up less space than the cradle when you’re traveling.
Part Number: 250178-B21 or FA122A#AC3
iPAQ h2200 Cradle
Don’t fumble around with cables to synchronize your iPAQ Pocket PC with your office or
home PC. With an AC Adapter (sold separately), you can also charge your battery every
time the iPAQ Pocket PC sits in the cradle. Keep an extra at home.
Part Number: FA109A#AC3
Scanners
SDIO In-Hand Scan Card
Socket’s SDIO In-Hand Scan Card (ISC) provides affordable bar code scanning for your
iPAQ Pocket PC. The SDIO In-Hand ISC scans all popular linear bar code symbologies
and uses only 57mA of power during scanning to maximize battery life. The SocketScan
keyboard emulation software sends decoded data to any Windows application as virtual
keystrokes.
Part Number: IS5300-464
CF In-Hand Scan Card Type 1
Enables you to turn your iPAQ Pocket PC into a high performance mobile bar code
scanner! With the Socket In-Hand Scan Card, you will gain a high level of functionality,
efficiency, convenience, and portability to information.
Part Number: IS5007-321
wireless products
Wireless LAN CF Card Type 1
Imagine, no cables or wires and the ability to access email, transfer files and information,
and operate in peer-to-peer and ad-hoc modes. The CF WLAN Card enables you to work
where you are most productive—in a conference room, on the road, in a coffee shop, a
hotel, or at the airport. 1
Part Number: WL6000-320
other
56K CompactFlash Fax Modem
Using this modem, access the Internet with your iPAQ Pocket PC. Plug into a standard
phone jack for dial-up access to your e-mail, the Internet, or your company’s Intranet. 1
Part Number:
268927-001 or FA132A#ABA—United States
268927-031 or FA132A#ABU—United Kingdom, Netherlands
268927-A21 or FA132A#AK9—France, Germany, Italy
268927-B31 or FA132A#B13—All other EU/EFTA countries
h2200 Stylus 3-pack
Lost another stylus? Order a Stylus Three-Pack for your iPAQ Pocket PC and never be
without a stylus again!
Part Number: FA111A#AC3
iPAQ Micro Keyboard
This remarkably small and lightweight keyboard fits seamlessly and securely to your iPAQ
Pocket PC h2200 series. Its ergonomic design and standard QWERTY layout let you
conveniently type quickly and comfortably anywhere.
Part Number: FA162A#AC3
iPAQ Foldable Keyboard
When using your iPAQ Pocket PC, the standard layout allows you to effortlessly take
notes, create e-mail, or write reports. When not in use, the keyboard folds up into an ultra-
small package for easy portability.
Part Number:
249693-001 or FA118A#ABA—United States English
249693-031 or FA118A#ABU—United Kingdom English
249693-041 or FA118A#ABD—German
249693-051 or FA118A#ABF—French
249693-061 or FA118A#ABZ—Italian
249693-161 or FA118A#B16—Latin American Spanish
249693-201—Brazilian Portuguese
249693-291—Japanese
Custom Cases for the iPAQ Pocket PC
Protect your investment with a cool new carrying case—custom-designed especially for the
iPAQ Pocket PC! Create a case that suits your lifestyle from more than 200 combinations
of case styles, materials, and colors. Then personalize your case with your initials.
To select one of our many case styles and to place your order, visit our Accessories page
at: www.hp.com/products/pocketpc/options
software and solutions
Looking for additional software? From games to voice recognition to presentation display
software, find the solution you need at www.hp.com/go/ipaqsolutions .
For the latest information on accessories, visit www.hp.com/products/pocketpc/options.
competitive advantage
Small, sleek and comes with an optimal combination of features, performance and
expandability to meet you’re your handheld computing needs
• Smallest Pocket PC in the market with dual slot expansion5
• Built-in Compact Flash and Secure Digital (SD) expansion slots provide flexibility and
convenience in storage and expansion
• Wireless ready with addition of WLAN 802.11b card or other wireless cards2
• Pocket PC 2003 Premium Edition
• Integrated Bluetooth for wireless communication with other Bluetooth devices
• Universal Remote Control turns your handheld into a sophisticated remote control for all
your audio and video equipment
• Robust software package to meet a broad range of needs: iPAQ Image viewer, iPAQ
Backup, Pocket Outlook, Pocket Word, Pocket Excel, Spell-checker, Pocket Internet
Explorer, iPAQ Diagnostic Tool kit* (*on select skus only)
warranty
Worldwide warranty: one year, parts and labor. North America/Europe: Next Business
Day Replacement CarePAQ available for purchase.
1 A standard WLAN infrastructure, other Bluetooth-enabled devices, and a service contract with a wireless airtime provider
may be required for applicable wireless communication. Wireless Internet use requires a separately purchased service
contract. Check with service provider for availability and coverage in your area. Not all web content available.
2 Wireless cards and options are available at additional costs
3 Available at additional cost from other manufactures
4 Instant Messaging requires WLAN card and Internet access (not included)
5 As of March 17, 2003.
HP iPAQ Pocket PC is Powered by Microsoft® Windows®
For more information on HP products and solutions, visit our website at www.hp.com/
©2003 Hewlett-Packard Development Company, L.P.
The information in this document is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained
herein. Microsoft, Windows, and the Windows Logo are registered trademarks of Microsoft Corporation in the
United States and/or other countries. Intel is a U.S. registered trademark of Intel Corporation

Navigation menu
