User’s Guide
L1530 and L1730 Flat Panel Monitors
Document Part Number: 335576-B21
July 2003
This guide provides information on setting up the monitor,
installing drivers, using the on-screen display menu,
troubleshooting and technical specifications.
© 2003 Hewlett-Packard Development Company, L.P.
HP, Hewlett Packard, and the Hewlett-Packard logo are trademarks of
Hewlett-Packard Company in the U.S. and other countries.
Adobe, Acrobat, and Acrobat Reader are trademarks or registered
trademarks of Adobe Systems Incorporated.
All other product names mentioned herein may be trademarks of their
respective companies.
Hewlett-Packard Company shall not be liable for technical or editorial
errors or omissions contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this
material. The information in this document is provided “as is” without
warranty of any kind, including, but not limited to, the implied warranties
of merchantability and fitness for a particular purpose, and is subject to
change without notice. The warranties for HP products are set forth in the
express limited warranty statements accompanying such products. Nothing
herein should be construed as constituting an additional warranty.
This document contains proprietary information that is protected by
copyright. No part of this document may be photocopied, reproduced, or
translated to another language without the prior written consent of
Hewlett-Packard Company.
WARNING: Text set off in this manner indicates that failure to
follow directions could result in bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to
follow directions could result in damage to equipment or loss of
information.
User’s Guide
L1530 and L1730 Flat Panel Monitors
First Edition (July 2003)
Document Part Number: 335576-B21
Contents
1 Product Features
2 Safety and Maintenance Guidelines
Important Safety Information........................................... 2–1
Maintenance Guidelines................................................... 2–2
Cleaning the Monitor................................................. 2–4
Shipping the Monitor................................................. 2–4
3 Setting Up the Monitor
Connecting the Monitor.................................................... 3–1
Adjusting the Monitor ...................................................... 3–4
Changing the Viewing Position........................................ 3–5
Removing the Monitor Base............................................. 3–7
Mounting the Monitor................................................ 3–9
4 Operating the Monitor
Installing the Information Files ........................................ 4–1
Front Panel Components .................................................. 4–2
Adjusting Monitor Settings........................................ 4–3
Using the On-Screen Display..................................... 4–4
Adjusting Screen Quality........................................... 4–7
Optimizing Analog Conversion ................................. 4–7
Identifying Monitor Conditions................................. 4–8
Sleep Timer Mode...................................................... 4–9
User’s Guide iii
Contents
iv User’s Guide
A Troubleshooting
Solving Common Problems............................................. A–1
Using the Worldwide Web .............................................. A–3
Preparing to call Technical Support ................................ A–3
B Technical Specifications
Entering User Modes ................................................ B–4
Energy Saver Feature................................................ B–5
C Agency Regulatory Notices
Federal Communications Commission Notice................ C–1
Modifications............................................................ C–1
Cables........................................................................ C–2
Declaration of Conformity for Products Marked with FCC Logo,
United States Only........................................................... C–2
Canadian Notice........................................................ C–3
Avis Canadien........................................................... C–3
European Notice........................................................ C–3
Japanese Notice......................................................... C–3
Korean Notice........................................................... C–4
EPA Energy Star Compliance................................... C–4
Power Cord Set Requirements......................................... C–4
Recycling Information..................................................... C–5
D LCD Monitor Quality
and Pixel Policy
1
Product Features
The Flat Panel Display has an active matrix, thin-film transistor
(TFT), liquid crystal display (LCD). The monitor features
include:
L1530 Model
15-inch (38.1 cm) viewable area display.
1024 x 768 resolution, plus full-screen support for lower
resolutions.
Wide viewing angle to allow viewing from a sitting or standing
position, or moving side-to-side.
Tilt and swivel adjustment capabilities.
Removable pedestal and VESA 75mm and 100mm mounting
holes for flexible mounting solutions.
Plug and play capability if supported by your system.
On-screen Display (OSD) adjustments in the following seven
different languages: English, French, German, Italian, Spanish,
Simplified Chinese, and Japanese for ease of set-up and screen
optimization.
Software and Reference Library CD includes an information file
(INF), Image color Matching File (ICM), and product
documentation.
Energy Saver feature for Energy Star Compliance.
Security lock slot.
User’s Guide 1-1
Product Features
AssetControl.
Speakers on the front panel.
Compliant with the following regulated specifications:
EPA ENERGY STAR
Europeam Union CD Directives
Swedish MPR II 1990
Swedish TCO Display Requirements
L1730 Model
17-inch (43.18 cm) viewable area display.
1280 x 1024 native resolution, plus full-screen support for lower
resolutions.
Wide viewing angle to allow viewing from a sitting or standing
position, or moving side-to-side.
Tilt and swivel adjustment capabilities.
Removable pedestal and VESA 75mm and 100mm mounting
holes for flexible mounting solutions.
Plug and play capability if supported by your system.
On-screen Display (OSD) adjustments in the following seven
different languages: English, French, German, Italian, Spanish,
Simplified Chinese, and Japanese for ease of set-up and screen
optimization.
Software and Reference Library CD includes an information file
(INF), Image color Matching File (ICM), and product
documentation.
Energy Saver feature for Energy Star Compliance.
AssetControl.
Speakers on the front panel.
1-2 User’s Guide
Product Features
User’s Guide 1-3
Compliant with the following regulated specifications:
EPA ENERGY STAR
Europeam Union CD Directives
Swedish MPR II 1990
Swedish TCO Display Requirements
2
Safety and Maintenance
Guidelines
Important Safety Information
A power cord is included with your monitor. If another cord is
used, use only a power source and connection appropriate for
this monitor. For information on the correct power cord set to
use with your monitor, refer to the “Power Cord Set
Requirements” section in Appendix C.
WARNING: To reduce the risk of electric shock or damage to your
equipment, do not disable the power cord grounding feature. This
equipment is designed to be connected to a grounded (earthed)
power outlet that is easily accessible to the operator. The grounding
plug is an important safety feature.
WARNING: For your safety, be sure that the power outlet you
plug the power cord into is easily accessible and located as close to
the equipment as possible. When you need to disconnect the power
to the equipment, unplug the power cord from the power outlet by
grasping the plug firmly. Never pull on the cord.
User’s Guide 2-1
Safety and Maintenance Guidelines
CAUTION: For the protection of your monitor, as well as your computer,
connect all power cords for your computer and its peripheral devices
(such as a monitor, printer, scanner) to some form of surge protection
device such as a power strip or Uninterruptible Power Supply (UPS). Not
all power strips provide surge protection; the power strips must be
specifically labeled as having this ability. Use a power strip whose
manufacturer offers a Damage Replacement Policy so you can replace
your equipment if surge protection fails.
Maintenance Guidelines
To enhance the performance and extend the life of your monitor:
Do not open your monitor cabinet or attempt to service this
product yourself. Adjust only those controls that are covered
in the operating instuctions. If your monitor is not operating
properly or has been dropped or damaged, contact your HP
authorized dealer, reseller, or service provider.
Use only a power source and connection appopriate for this
monitor, as indicated on the label/back plate of the monitor.
Be sure the total ampere rating of the products connected to
the outlet does not exceed the current rating of the products
connected to the cord does not exceed the rating of the cord.
Look on the power label to determine the ampere rating
(AMPS or A) for each device.
Install your monitor near an outlet that you can easily reach.
Disconnect the monitor by grasping the plug firmly and
pulling it from the outlet. Never disconnect the monitor by
pulling the cord.
Turn your monitor off when not in use. You can
substantially increase the life expectancy of your monitor by
using a screen saver program and turning off the monitor
when not in use.
2-2 User’s Guide
Safety and Maintenance Guidelines
Unplug your monitor from the wall outlet before cleaning.
Do not use liquid cleaners or aerosal cleaners. Use a damp
cloth for cleaning. If the screen requires additional cleaning,
use an antistatic screen cleaner.
CAUTION: Do not use benzene, thinner, ammonia, or any other
volatile substances to clean your monitor or the screen. These
chemicals may damage the cabinet finish as well as the screen.
Slots and openings in the cabinet are provided for
ventilation. These openings must not be locked or covered.
Never push object of any kind into cabinet slots or other
openings.
Do not drop your monitor or place it on an unstable surface.
Do not allow anything to rest on the power cord. Do not
walk on the cord.
Keep the monitor in a well-ventilated area, away from
excessive heat or moisture.

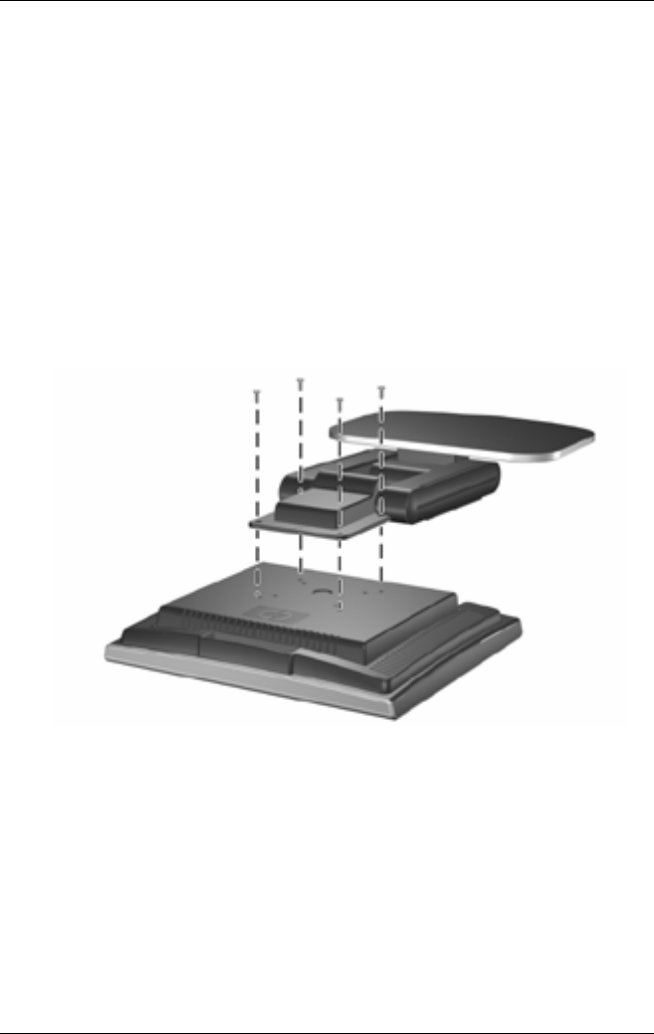

When removing the monitor base, you must lay the monitor
face down on a soft are to prevent it from getting scratched,
defaced, or broken.
User’s Guide 2-3
Safety and Maintenance Guidelines
2-4 User’s Guide
Cleaning the Monitor
To clean the monitor, follow these steps:
1. Turn off the monitor and the computer.
2. Dust the monitor by wiping the screen and the cabinet with a
soft, clean cloth.
If the screen requires additional cleaning, use a clean cloth
dampened with isopropyl alcohol.
CAUTION: Do not use benzene, thinner, ammonia, or any volatile
substance to clean the monitor screen or cabinet. These chemicals
may damage the monitor. Never use water to clean an LCD screen.
Shipping the Monitor
Keep the original packing box in a storage area. You may need it
later if you move or ship your monitor.
3
Setting Up the Monitor
To set up the monitor, ensure that the power is turned off to the
monitor, computer system, and other attached devices, then
follow the steps below.
Connecting the Monitor
The monitor has two video signal connectors on the rear panel:
one analog (VGA) and one digital (DVI-D). This allows you to
connect the monitor to up to two computers at the same time.
When two computers are connected, you will need to set the
Video Input Select on the on-screen display (OSD) menu to
specify which monitor input has priority. Refer to chapter 4,
“Operating the Monitor” for OSD menu settings.
1. Place the monitor in a convenient, well-ventilated location
near your computer.
2. Connect the monitor signal cable into the correct video
connector (VGA or DVI-D) on the back of the monitor and
into the corresponding video connector on the rear panel of
the computer.
Your computer must have a DVI-compatible graphics card
installed for use with the DVI-D cable. When connecting the
DVI-D signal cable to the DVI connector on the monitor,
connect the other end of the DVI-D cable to the DVI connector
on the computer.
User’s Guide 3-1
Setting Up the Monitor
3. Connect one end of the power cable to the back of the
monitor, and the other end to an electrical wall outlet.
WARNING: To reduce the risk of electical shock or damage to your
equipment:
Do not disable the cord grounding plug. The grounding plug is an
important safety feature.
Plug the power cord into a grounded (earthed) electrical outlet that is
easily accessible at all times.
Disconnect power from the monitor by unplugging the power cord
from the electrical outlet.
Do not place anything on power cords or cables. Arrange them so
that no one may accidentally step on or trip on them. Do not pull on
a cord or cable. When unplugging from an electical outlet, grasp
the cord by the unplug.
Connecting the VGA Signal and Power Cable
3-2 User’s Guide
Setting Up the Monitor
Connecting the DVI-D Signal Cable
4. Turn on the power source for both the computer and the
monitor.
CAUTION: Burn-in image damage may occur on monitors that display
the same static image on screen for a prolonged period of time. To avoid
burn-in image damage on your monitor screen, you should always
activate a screen saver application or turn off the monitor when it is not in
use for a prolonged period of time. Image retention is a condition that
may occur on all LCD screens.
5. If your monitor includes a PC Comm Station, refer to the
documentation included with the accessory for instructions
on attaching it to your monitor.
User’s Guide 3-3
Setting Up the Monitor
Adjusting the Monitor
The monitor is attached to an adjustable pedestal that allows you
to position the monitor screen for the best viewing in your
particular environment.
1. Grasp the sides of the monitor screen and gently but firmly
tilt the top of the screen foward or backward as needed for
your comfort.
CAUTION: The maximum forward tilt is 5 degrees. The maximum
backward tilt is 25 degrees for operation and 90 degrees for packing
only.
Tilting the Monitor
3-4 User’s Guide
Setting Up the Monitor
2. While still holding the screen sides, move the screen up or
down to the appropriate height within the range of the
pedestal arm.
Adjusting the Monitor Height
3. Grasp the sides of the monitor screen and swivel the screen
left or right (45 degrees) as needed.
Changing the Viewing Position
You can rotate the monitor’s viewing position to either a
landscape or portrait position.
To rotate the display, you will need to install the Pivot software,
which is contained on the CD-ROM included with your monitor.
When the CD menu launches, select “Install Pivot Software” and
follow the on-screen instructions.
User’s Guide 3-5
Setting Up the Monitor
1. Tilt the lower part of the monitor upwards.
2. Rotate the monitor clockwise until the monitor controls
are on the left side.
3. Firmly push the lower part of the monitor downwards to
secure it to the new position.
Rotating the Monitor Screen
3-6 User’s Guide
Setting Up the Monitor
Removing the Monitor Base
You can remove the monitor base to mount the monitor on a
wall, a swing arm, or other mounting fixture. Read the caution
and warning statements below before beginning the procedure.
CAUTION: Before beginning to disassemble the monitor, be sure the
monitor is turned off and the power and signal cables are both
disconnected. If your monitor has a connected audio cable, disconnect it.
WARNING: Do not remove the base from the monitor while the monitor
is in the upright position. Lay the front bezel down on a soft area to
prevent it from getting scratched, defaced, or broken. Before removing
the monitor from the base, ensure that the base is set to the maximum
base extension. Attempting to remove the monitor from the base while
upright in the minimum base extension may result in injury to the user.
1. Disconnect and remove the signal and power cables from the
back of the monitor.
User’s Guide 3-7
Setting Up the Monitor
2. Remove the four screws as shown in the following
illustration.
Removing the Monitor Base
CAUTION: Ensure that the bottom of the monitor base is positioned
over a table or desktop before removing the base from the monitor.
3. Remove the monitor base from the monitor.
3-8 User’s Guide
Setting Up the Monitor
Mounting the Monitor
1. Remove the monitor base. Refer to “Removing the Monitor
Base” steps in the previous section.
After the base is removed from the monitor, four threaded
mounting holes are exposed on the monitor back panel to be
used for mounting purposes. These mounting holes are spaced 75
or 100mm apart and are compliant with the Video Electronics
Standards Association (VESA) standard for mounting flat panel
displays.
2. Mount the monitor to a swing arm or other mounting fixture
by following the instructions included with the mounting
fixture to be used.
User’s Guide 3-9
4
Operating the Monitor
Installing the Information Files
The CD-ROM included with this monitor contains two
information files to be installed onto your computer; an .INF file
and an .ICM file.
The .INF file defines monitor resources and provides
specifications used by most operating systems to install
support software for certain hardware devices. The .INF file
ensures monitor compatibility and optimization with your
computer’s graphics adapter. INF files are also
downloadable by clicking: http:www.hp.com/go/support and
selecting the desired monitor.
The .ICM file provides color matching consistency from
monitor screen to printer and is activated from within
graphics programs that have this feature.
To install these files on your computer, insert the Software and
Reference Library CD in your computer CD-ROM drive. When
the CD menu launches, select “Install INF and ICM Files” and
follow the on-screen instructions.
User’s Guide 4-1
Operating the Monitor
Front Panel Components
L1530 and L1730 Monitor Components
No. Control Function
1 Speakers Audio feature for music, alarms, etc. (multimedia
models only)
2 Menu button Launches the On-Screen Display (OSD) menu and
selects functions.
3 (Minus button) • When OSD is inactive, press to auto-adjust
the screen image.
• When OSD is active, press to navigate in
reverse through the OSD and adjust OSD scale
settings.
4 Volume Control Controls the volume level of the monitor speakers.
4-2 User’s Guide
Operating the Monitor
No. Control Function
5 + (Plus button) When the OSD is active, press to navigate through
the OSD and adjust OSD scale settings.
When the OSD is inactive, press to select VGA or
DVI input.
6 Power LED Fully powered = Green. Sleep mode = Amber. Sleep
Timer mode = Flashing Amber.
7 Power Switch Powers the monitor on and off.
Adjusting Monitor Settings
Use the On-Screen Display (OSD) to adjust the screen image
based on your viewing preferences. To access the OSD, do the
following:
1. If the monitor is not already on, press the Power switch to
turn on the monitor.
2. To access the OSD Menu, press the Menu button on the
monitor’s front panel.
User’s Guide 4-3
Operating the Monitor
3. To navigate through the OSD Menu, press the + (Plus) button
on the monitor’s front panel to scroll up, or the – (Minus)
button to scroll in reverse.
4. To select an item from the OSD Menu, use the + or – buttons
to scroll to and highlight your selection, then press the Menu
button to select that function.
5. Adjust the item using the + or – buttons on the front panel to
adjust the scale.
6. After adjusting the function, select Save and Return, or
Cancel if you don’t want to save the setting, then select Exit
from the Main Menu.
If the buttons remain untouched for 10 seconds while displaying
a menu, new adjustments will be discarded and the settings will
revert to previous settings and exit the menu.
Using the On-Screen Display
There are two On-Screen Display menus available; one for basic
adjustments, and one for advanced adjustments.
To access the Basic OSD Menu, press the menu button on the
monitor's front panel.
Basic OSD Menu Levels
Menu Level 1 Menu Level 2
Brightness Adjustment Scale
Contrast Adjustment Scale
Auto Adjustment
4-4 User’s Guide
Operating the Monitor
Basic OSD Menu Levels
Menu Level 1 Menu Level 2
Advanced Menu
Exit
To access the Advanced OSD Menu, press the menu button
again, or select Advanced Menu from the Basic OSD Menu.
After selecting the Advanced Menu from the Basic Menu, the
Advanced Menu remains the default OSD on subsequent power-
ups of the monitor until the Basic Menu is selected or Factory
Reset is applied.
The Advanced OSD Menu has up to three sublevels and can be
viewed in one of seven available languages. The following table
provides the menus and their functions at each level:
User’s Guide 4-5
Advanced OSD Menu Levels
Level 1 Level 2 Level 3 Factory
Reset
Brightness Adjustment Scale Y
Contrast Adjustment Scale Y
Image Control Auto Adjustment “Adjusting” Message Y
Horizontal Position Adjustment Scale Y
Vertical Position Adjustment Scale Y
Clock Adjustment Scale Y
Clock Phase Adjustment Scale Y
Cancel
Save and Return
Color 9300 K
sRGB-6500 K Y
Operating the Monitor
Advanced OSD Menu Levels (Continued)
Level 1 Level 2 Level 3 Factory
Reset
Custom Color Custom Color
Adjustment
Cancel
Save and Return
Language Deutsch
English N
Espanol
Francais
Italiano
Simplified Chinese
Japanese
Cancel
Save and Return
Management Power Saver On / Off Selection N
Power On Recall On / Off Selection N
Mode Display On / Off Selection N
Sleep Timer Timer Menu
Video Input Select VGA/DVI Selection
Basic Menu
Cancel
Save and Return
OSD Control Horizontal OSD
Position
Adjustment Scale Y
Vertical OSD
Position
Adjustment Scale Y
OSD Timeout Adjustment Scale Y
OSD Transparency Adjustment Scale
Cancel
Save and Return
Factory Reset Yes
4-6 User’s Guide
Operating the Monitor
Advanced OSD Menu Levels (Continued)
Level 1 Level 2 Level 3 Factory
Reset
No
Exit
Adjusting Screen Quality
Allow the monitor to warm up for 20 minutes before performing
the following procedures.
The Auto-adjustment feature automatically fine-tunes the image
quality each time a new video mode is displayed. If additional
image quality improvement is desired, run the Auto-Adjust
software on the CD and press the – (Minus) button on the
monitor front panel to manually activate the Auto-Adjustment
function.
For more precise adjustments, run the Auto-Adjust software on
the CD, and use the Clock and Phase controls of the monitor to
fine-tune the image.
Optimizing Analog Conversion
This monitor contains advanced circuitry that allows the flat
panel screen to function like a standard monitor. Two controls in
the on-screen display can be adjusted to improve image
performance: Clock and Clock Phase. Use these controls only
when the auto-adjust function does not provide a satisfactory
image.
The Clock must first be set correctly since the Clock Phase
settings are dependent on the main Clock setting.
Clock—Increase/decrease the value to minimize any vertical
bars or stripes visible on the screen background.
User’s Guide 4-7
Operating the Monitor
Clock Phase—Increase/decrease the value to minimize video
distortion or video jitter.
When using the controls, you will obtain the best results by using
the Auto-Adjustment pattern application provided on the CD-
ROM.
When adjusting the Clock and Clock Phase values, if the monitor
images become distorted, continue adjusting the values until the
distortion disappears. To restore the factory settings, select Yes
from the Factory Reset menu in the on-screen display.
Identifying Monitor Conditions
Special messages will appear on the monitor screen when
identifying the following monitor conditions:
Input Signal Out of Range— Indicates the monitor does not
support the input signal because the resolution and/or refresh
rate are set higher than the monitor supports. For 15”
monitors, set the resolution and refresh rate to 1024 x 768 at
60 Hz. For 17” monitors, set the resolution and refresh rate
to 1280 x 1024 at 60 Hz. Restart your computer for the new
settings take effect.
Going to Sleep— Indicates the screen display is entering a
sleep mode.
Check Video Cable— Indicates the video cable is not
properly connected to the computer.
OSD Lock—The OSD can be enabled or disabled by
pressing and holding the Menu button on the front panel for
10 seconds. If the OSD is locked, the warning message
“OSD Lock” displays for five seconds.
4-8 User’s Guide
Operating the Monitor
If the OSD is locked, press and hold the Menu button for
10 seconds to unlock the OSD.
If the OSD is unlocked, press and hold the Menu button
for 10 seconds to lock the OSD.
Sleep Timer Mode
The Sleep Timer mode is an energy-saving feature that enables
you to set a time for the monitor to power on and off at the same
time every day. This also extends the life of the backlight bulbs
in the monitor. The Sleep Timer has five settings:
Set Current Time
Set Sleep Time
Set On Time
Timer: On/Off
Sleep Now
To set the timer:
1.Press the Menu button on the monitor front panel to display the
Advanced Menu.
2.Scroll down and highlight Management.
3.Press the Menu button to select Management.
4.Scroll down and highlight and select Sleep Timer > Set
Current Time.
You must set the current local time before you reset the time for
Sleep Time or On Time. Note that the time is displayed in a 24
hour clock format. For example, 1:15 p.m. displays as 13 hours
15 minutes.
5. Press the Menu button once to enter the adjustment mode for
hours.
User’s Guide 4-9
Operating the Monitor
6. Press the - (Minus) or + (Plus) buttons to adjust the hour.
7. Press the Menu button again to enter the time for minutes.
8. Press the - (Minus) or + (Plus) buttons to adjust the minutes.
9. Press the Menu button to lock in the time chosen.
10. After setting the current time, the highlight automatically
skips to Set Sleep Time hours. Repeat steps 6 through 9 to
set Sleep Time.
11. If you do not want to set Sleep Time, press the Menu button
twice, then select Save and Return to exit the menu.
12. After setting Sleep Time, the highlight automatically skips to
Set On Time hours. Repeat steps 6 through 9 to set On Time.
13. Set the Timer mode to On to activate the Sleep Timer
settings.
The fifth selection, Sleep Now, turns the monitor backlights off
immediately and stays in sleep mode until the next On Time
activates or a monitor button is pressed.
4-10 User’s Guide
A
Troubleshooting
Solving Common Problems
The following table lists possible problems, the possible cause of
each problem, and the recommended solutions.
Problem Possible Cause Solution
Screen is blank. Power cord is
disconnected.
Connect the power cord.
Power switch is turned off. Turn on the power.
Video cable is improperly
connected.
Connect the video cable
properly. Refer to Chapter 3,
Setting Up the Monitor, for
more information.
Screen blanking utility is
active.
Depress any key on the
keyboard or move the mouse
to inactivate the screen
blanking utility.
User’s Guide A-1
Troubleshooting
Problem Possible Cause Solution
Image appears blurred,
indistinct, or too dark.
Brightness and contrast are
too low.
Press the Minus button on the
monitor front panel to auto-
adjust the screen. If that
doesn’t work, press the Menu
button to open the Basic OSD
Menu, and adjust the
brightness and contrast scales
as needed.
Image is not centered. Position may need
adjustment.
When OSD is inactive, press
(minus button) to auto-adjust
the screen image.
Press the Menu button to
access the Advanced OSD
menu. Select Image
Control/Horizontal Position or
Vertical Position to adjust the
horizontal or vertical position
of the image.
“Check Video Cable”
is displayed on screen.
Monitor video cable is
disconnected.
Connect the 15-pin monitor
video cable to the VGA
connector on the computer. Be
sure that the computer power
is off while connecting the
video cable.
“Input Signal Out of
Range” is displayed on
screen.
Video resolution and/or
refresh rate are set higher
than what your monitor
supports.
Restart your computer and
enter Windows Safe Mode by
pressing the F6 Function key
when the computer starts to
boot up. Change your settings
to a supported setting. Restart
your computer so that the new
settings take effect.
A-2 User’s Guide
Troubleshooting
Using the Worldwide Web
Before contacting customer services, refer to the support Web
site at: http://www.hp.com/go/support
Preparing to call Technical Support
If you cannot solve a problem using the troubleshooting tips in
this section, you may need to call technical support. Have the
following information available when you call:
The monitor
Monitor model number (on front and back panel)
Serial number for the monitor (on back panel)
Purchase date on invoice
Conditions under which the problem occurred
Error messages received
Hardware configuration (found on Windows Control Panel)
Hardware and software you are using
User’s Guide A-3
B
Technical Specifications
L1530 Model
15-inch Flat Panel Monitor
Display
Type
15.0 in.
TFT LCD
38.1 cm
Viewable Image Size 15.0-inch diagonal 38.1 cm
Maximum Weight
(Unpacked)
9.9 lb. 4.5 kg (unpacked)
Dimensions (includes pedestal)
Height (adjustable)
Depth
Width
12.13 to 14.69 in.
10 in.
13.82 in.
308 to 373 mm
254mm
351 mm
Preferred Mode 1024 x 768 (60 Hz)
Text Mode 720 x 400
Dot Pitch 0.297 (H) x 0.297 (W) mm
Horizontal Frequency 30 to 63 kHz
Vertical Refresh Rate 56 to 76 Hz
Environmental Requirements
Temperature:
Operating Temperature
Non-operating Temperature
41to 95o F
--4 to 140o F
5 to 35o C
--20 to +60o C
User’s Guide B-1
Technical Specifications
15-inch Flat Panel Monitor (Continued)
Relative Humidity 20 to 80%
Altitude:
Operating
Non-operating
0 to 12,000 ft.
0 to 40,000 ft.
0 to 3657.6 m
0 to 12192 m
Power Source 100 –- 240 VAC, 50 – 60 Hz
Power Consumption <40 watts typical
Input Terminals 15-pin D-type connector with cable included.
DVI-D connector with DVI-D cable included
Tilt Stand
Maximum tilt angle range (Tilt
range may vary depending on
height adjustment)
Maximum Height adjustment
range (Height adjustment may
vary depending on tilt angle
adjustment)
--5 to 90o+
(25o for operation)
(90o for packing only)
2.56 in.
65 mm
Security Lock Monitor cabinet is provided with a slot allowing
the use of a security lock device.
B-2 User’s Guide
Technical Specifications
L1730 Model
17-inch Flat Panel Monitor
Display
Type
17.0 in.
TFT LCD
43.18 cm
Viewable Image Size 17.0-inch diagonal 43.18 cm
Maximum Weight
(Unpacked)
15.43 lb. 7 kg (unpacked)
Dimensions (include pedestal)
Height (adjustable)
Depth
Width
13.94 to 16.46 in.
9.65 in.
15 in.
354 to 418 mm
245 mm
381 mm
Preferred Mode 1280 x 1024 (60 Hz)
Text Mode 720 x 400
Dot Pitch 0.264 (H) x 0.264 (W) mm
Horizontal Frequency 30 to 83 kHz
Vertical Refresh Rate 56 to 76 Hz
Environmental Requirements
Temperature:
Operating Temperature
Non-operating Temperature
41 to 95o F
-4 to 140o F
5 to 35o C
--20 to +60o C
Relative Humidity 20 to 80%
Altitude:
Operating
Non-operating
0 to 12,000 ft.
0 to 40,000 ft.
0 to 3657.6 m
0 to 12192 m
Power Source 100 – 240 VAC, 50 – 60 Hz
User’s Guide B-3
Technical Specifications
L1730 Model
17-inch Flat Panel Monitor (Continued)
Power Consumption <50 watts typical
Input Terminal 15-pin D-type connector with cable included.
DVI-D connector with DVI-D cable included
Tilt Stand
Maximum tilt angle range (Tilt
range may vary depending on
height adjustment)
Maximum Height adjustment
range
-5 to 90o+
(25o for operation)
(90o for packing only)
2.56 in.
65 mm
Security Lock Monitor cabinet is provided with a slot allowing
the use of a security lock device.
Entering User Modes
The video controller signal may occasionally call for a mode that
is not preset if:
You are not using a standard graphics adapter.
You are not using a preset mode.
If this occurs, you may need to readjust the parameters of the
monitor screen by using the on-screen display. Your changes can
be made to any or all of these modes and saved in memory. The
monitor automatically stores the new setting, then recognizes the
new mode just as it does a preset mode. In addition to the 15
factory preset modes, there are 15 additional user modes that can
be entered and stored.
B-4 User’s Guide
Technical Specifications
Energy Saver Feature
When the monitor is in its normal operating mode, the Power
light is green.
The monitor also supports a reduced power state. The reduced
power state is entered into if the monitor detects the absence of
either the horizontal sync signal and/or the vertical sync signal.
Upon detecting the absence of these signals, the monitor screen
blanks, the backlight turns off, and the Power light turns amber.
When the monitor is in the reduced power state, the monitor
utilizes less than 2 watts of power. There is a brief warm up
period before the monitor returns to its normal operating mode.
Refer to your computer manual for instructions on setting energy
saver features (sometimes called power management features).
The above energy saver feature only works when connected to
computers that have energy saver features.
By selecting settings in the monitor’s Energy Saver utility, you
can also program the monitor to enter into the reduced power
state at a predetermined time. When the monitor’s Energy Saver
utility causes the monitor to enter the reduced power state, the
power light blinks amber.
User’s Guide B-5
C
Agency Regulatory Notices
Federal Communications
Commission Notice
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio or television
technician for help.
Modifications
The FCC requires the user to be notified that any changes or
modifications made to this device that are not expressly
approved by Hewlett Packard Company may void the user's
authority to operate the equipment.
User’s Guide C-1
Agency Regulatory Notices
Cables
Connections to this device must be made with shielded cables
with metallic RFI/EMI connector hoods to maintain compliance
with FCC Rules and Regulations.
Declaration of Conformity for
Products Marked with FCC Logo,
United States Only
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
For questions regarding your product, contact:
Hewlett Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or, call1
1-800- 652-6672
For questions regarding this FCC declaration, contact:
Hewlett Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or, call
(281) 514-3333
To identify this product, refer to the Part, Series, or Model
number found on the product.
C-2 User’s Guide
Agency Regulatory Notices
Canadian Notice
This Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les
exigences du Règlement sur le matériel brouilleur du Canada.
European Notice
Products with the CE Marking comply with both the EMC
Directive (89/336/EEC) and the Low Voltage Directive
(73/23/EEC) issued by the Commission of the European
Community.
Compliance with these directives implies conformity to the
following European Norms (in brackets are the equivalent
international standards):
EN55022 (CISPR 22) - Electromagnetic Interference
EN55024 (IEC61000-4-2,3,4,5,6,8,11) - Electromagnetic
Immunity
EN61000-3-2 (IEC61000-3-2) – Power Line Harmonics
EN61000-3-3 (IEC61000-3-3) – Power Line Flicker
EN60950 (IEC950) - Product Safety
Japanese Notice
User’s Guide C-3
Agency Regulatory Notices
Korean Notice
EPA Energy Star Compliance
Monitors that are marked with the Energy Star Logo meet the
requirements of the EPA Energy Star program. As an Energy
Star Partner, Hewlett Packard Company has determined that this
product meets the Energy Star guidelines for energy efficiency.
Specific details on using the Energy Saving features can be
found in the energy saver or power management section of the
computer manual.
Power Cord Set Requirements
The monitor power supply is provided with Automatic Line
Switching (ALS). This feature allows the monitor to operate on
input voltages between 100-120V or 200-240V.
The power cord set (flexible cord or wall plug) received with the
monitor meets the requirements for use in the country where you
purchased the equipment.
If you need to obtain a power cord for a different country, you
should purchase a power cord that is approved for use in that
country.
C-4 User’s Guide
Agency Regulatory Notices
The power cord must be rated for the product and for the voltage
and current marked on the product's electrical ratings label. The
voltage and current rating of the cord should be greater than the
voltage and current rating marked on the product. In addition, the
cross-sectional area of the wire must be a minimum of 0.75 mm²
or 18AWG, and the length of the cord must be between 6 feet
(1.8 m) and 12 feet (3.6 m). If you have questions about the type
of power cord to use, contact your HP authorized service
provider.
A power cord should be routed so that it is not likely to be
walked on or pinched by items placed upon it or against it.
Particular attention should be paid to the plug, electrical outlet,
and the point where the cord exits from the product.
Recycling Information
For information on the HP recycling program, refer to the HP
Web site at:
http://www.hp.com/hpinfo/globalcitizenship/environment/
recycle/hardware.html
User’s Guide C-5
D
LCD Monitor Quality
and Pixel Policy
The TFT monitor uses high-precision technology, manufactured
according to HP standards, to guarantee trouble-free
performance. Nevertheless, the display may have cosmetic
imperfections that appear as small bright or dark spots. This is
common to all LCD displays used in products supplied by all
vendors and is not specific to the HP LCD. These imperfections
are caused by one or more defective pixels or sub-pixels.
A pixel consists of one red, one green, and one blue sub-
pixel.
A defective whole pixel is always turned on (a bright spot on
a dark background), or it is always off (a dark spot on a
bright background). The first is the more visible of the two.
A defective sub-pixel (dot defect) is less visible than a
defective whole pixel and is small and only visible on a
specific background.
The HP display does not have more than:
3 bright dots.
5 dark dots.
5 total bright and dark dots.
No more than two adjacent (less than 2.5 mm edge-to-edge)
defective pixels.
User’s Guide D-1
LCD Monitor Quality and Pixel Policy
To locate defective pixels, the monitor should be viewed under
normal operating conditions, in normal operating mode at a
supported resolution and refresh rate, from a distance of
approximately 50 cm (16 in.).
HP expects that, over time, the industry will continue to improve
its ability to produce LCDs with fewer cosmetic imperfections
and HP will adjust guidelines as improvements are made.
D-2 User’s Guide

Navigation menu
