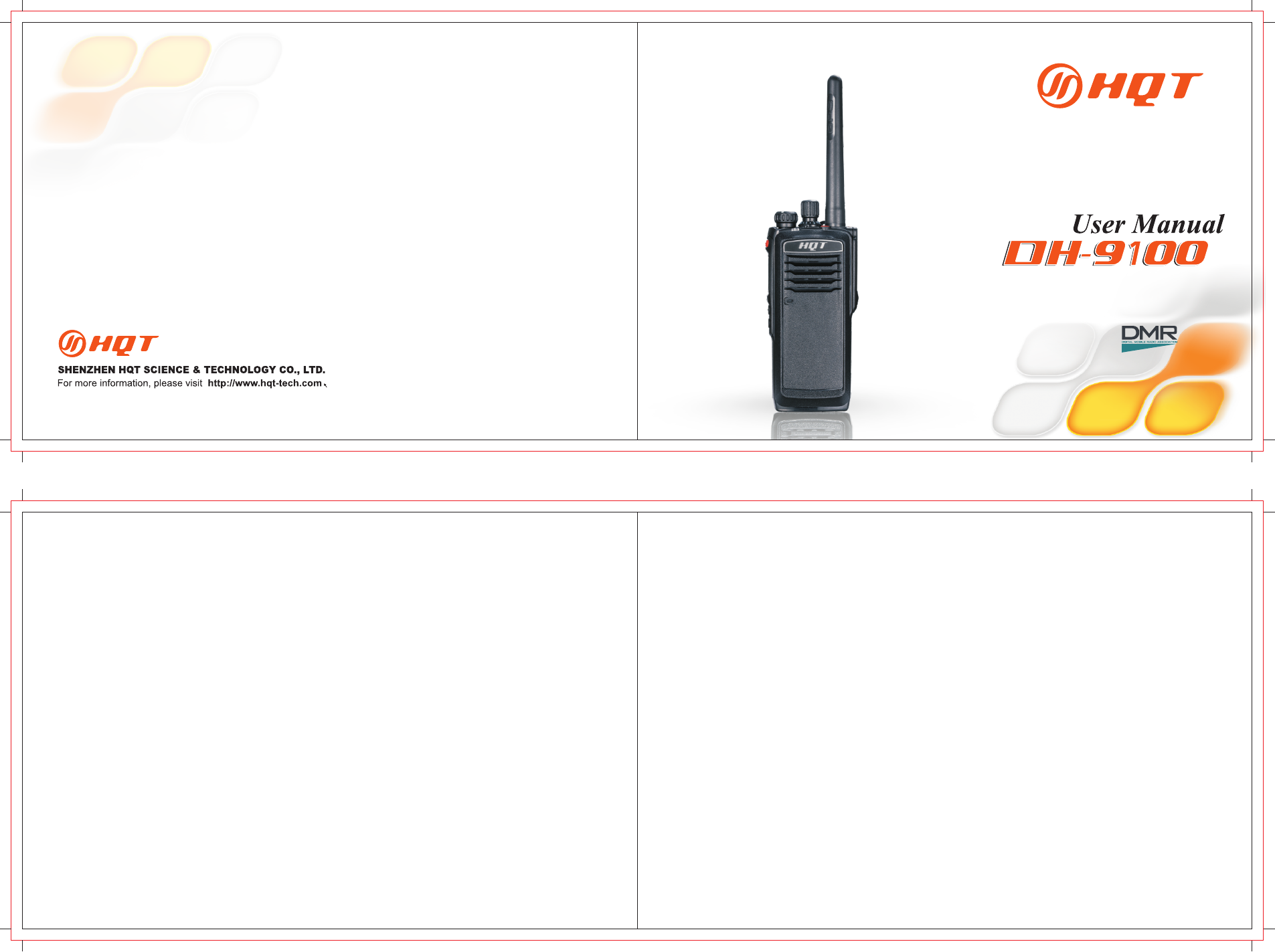

HQT Science and Technology DH-9100V Digital portable Radio User Manual
Shenzhen HQT Science&Technology; Co., Ltd. Digital portable Radio Users Manual
Users Manual
We appreciate your purchasing DH-9100 digital portable radio!
We believe that the quality and function of this radio will bring
you stable performance and smooth communication.
As a product built to the DMR standard, DH-9100 is gifted with
ergonomic design, all round digital functions and remarkable
quality to refresh your experience and enable you to be responsive
to critical situations.
Please read this manual before use.
All rights reserved to HQT. Pictures shown in this manual are for your reference
only, if there is fluctuation, according to the real object, please.
Hello
Digital portable radios
The Federal Communications Commission (FCC), with its action in General Docket 93-62, November 7, 1997,
has adopted a safety standard for human exposure to Radio Frequency (RF) electromagnetic energy emitted
by FCC regulated equipment. Proper operation of this radio will result in user exposure far b el ow t h e
Occupational Safety and Health Act (OSHA) and Federal Communications Commission limits.
FCC RF EXPOSURE COMPLIANCE REQUIREMENTS FOR OCCUPATIONAL USE ONLY
transmit for more than 50% of total radio use time (50% duty cycle). Transmitting more than 50% of the
time can cause FCC RF exposure compliance requirements to be exceeded.
This radio is NOT approved for use by the general population in an uncontrolled environment. This radio is
restricted to occupational use, work related operations only where radio operator must have the knowledge to
control the user’s exposure conditions for satisfying the higher exposure limit allowed for occupational use.
When transmitting, hold the radio in a vertical position with its microphone 1 inch (2.5cm) away from your mouth.
The radio is transmitting when the red LED on the front of the radio is illuminated. You can cause the radio to
transmit by pressing the PTT bar on the radio.
These are required operating configurations for meeting FCC RF exposure compliance. Failure to observe these
restrictions mean violation.
FCC Caution
DO NOT
Any Changes or modifications not expressly approved by the party responsible for compliance could void user's
authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
More detailed product
information
More professional
technique support
More plentiful
product models
More optional
accessories
HQT ser ice network provides more information about
on-line service of HQT two-way radio.
More detailed product information
To deepen your understanding of the functions of this radio.
More plentiful product models.
To display more plentiful product models, so that you can understand
the details of these products in advance and make decisions correctly
according to the requirement of work.
For more details, please visit: www.hqt-tech.com.cn
v
On-line Service Center
User manual and brochures
To provide download or on-line reading of the latest user manuals and brochures in covering detailed information
of two-way radios.
software download
To provide downloading of the latest programming software from HQT website. Your two-way radio can be
connected to the computer with programming cable to manage or edit the parameters of channel frequency and
other items.
On-line learning
To offer guidelines for detailed setting of the two-way radio.
More optional accessories
To provide various kinds of accessories, which can offer more comfortable operation an more remarkable
performance of the radio to you.
More professional technique support
HQT endeavors to achieve the accuracy and completeness of this manual. As
for any inaccuracies a n d omissions that may possibly occur, the right to
interpretation is reserved to Shenzhen HQT Science & Technology Co., Ltd.
The design or specification of this product is subject to be modified by Shenzhen
HQT Science & Technology Co., Ltd. Without prior notice.
It is prohibited to copy, transmit, excerpt and store in any retrieval system, or
translated to any languages without written authorization of HQT.
Statement
01 02
03 04
Contents
Contents
Safety Matters
Product Inspection
04
05
05
06
07
07
08
09
03
Attaching/Removing the battery
Attaching/Removing the antenna
Installing/Removing the Belt Clip
Installing Hand Strap
Attaching the Audio Accessory /Removing
Radio Overview
LED Indicator 13
Programmable Keys 14
Basic Operations 16
Calling on Digital Channel 17
Man Down (Optional) 18
18
Talk Around
18
Monitor
18
Squelch Off
19
Emergency Alarm
19
Busy Channel Lockout
19
Time-out Timer (TOT)
20
Invalid Channel Indication
Squelch 20
Transmission Management 20
Optioanl Accessories 21
Care and Maintenance 22
Maintenance 23
Service and Support 24
24
Service Commitment
24
Warranty
25
Terms of Warranty
25
Appendix
09
10
11
Contents
Safety Matters
Product Inspection
Get Acquainted
Battery Information
Cautions in Charging
Attaching and Removing
24
Cautions
Safety Matters
Please read rules below. Nonobservance of these rules
may cause danger or violation of law.
The use this radio must comply with regulations of
local government.
Turn off the radio before you enter places of flammable
or explosive environment.
Do not replace or charge battery pack in places of
flammable or explosive environment.
Turn off the radio before you approach blast area and
detonator area.
Do not use the damaged antenna which may cause
lightly burn on skin.
Only qualified technician are allowed to maintain this
two-way radio. Do not disassemble the radio by
yourself.
To avoid problems caused by electromagnetic
interference or electromagnetic compatibility,
pl ea s e turn off the radio in places with “Wireless
Communication Transmit Equipment Prohibited”
mark, such as hospitals or other health care places.
When taking a plane, turn off the radio if required.
In a car with air bag, do not place the radio
within possibly involved area when air bag expands.
Do not expose the radio to direct sunlight or
near heating devices for a long time.
Keep the radio vertical and speak near the
microphone during transmitting.
Make sure that the antenna is 2.5 cm away from
the body during transmitting if you carry the radio
on your body.
Thanks for using DH-9100 Digital portable radio. Before use, we recommend that:
First check the package for any signs of damage;
Carefully open the package and identify the items listed below;
If any items are missing or damaged during shipment, please contact your dealer.
Product Inspection

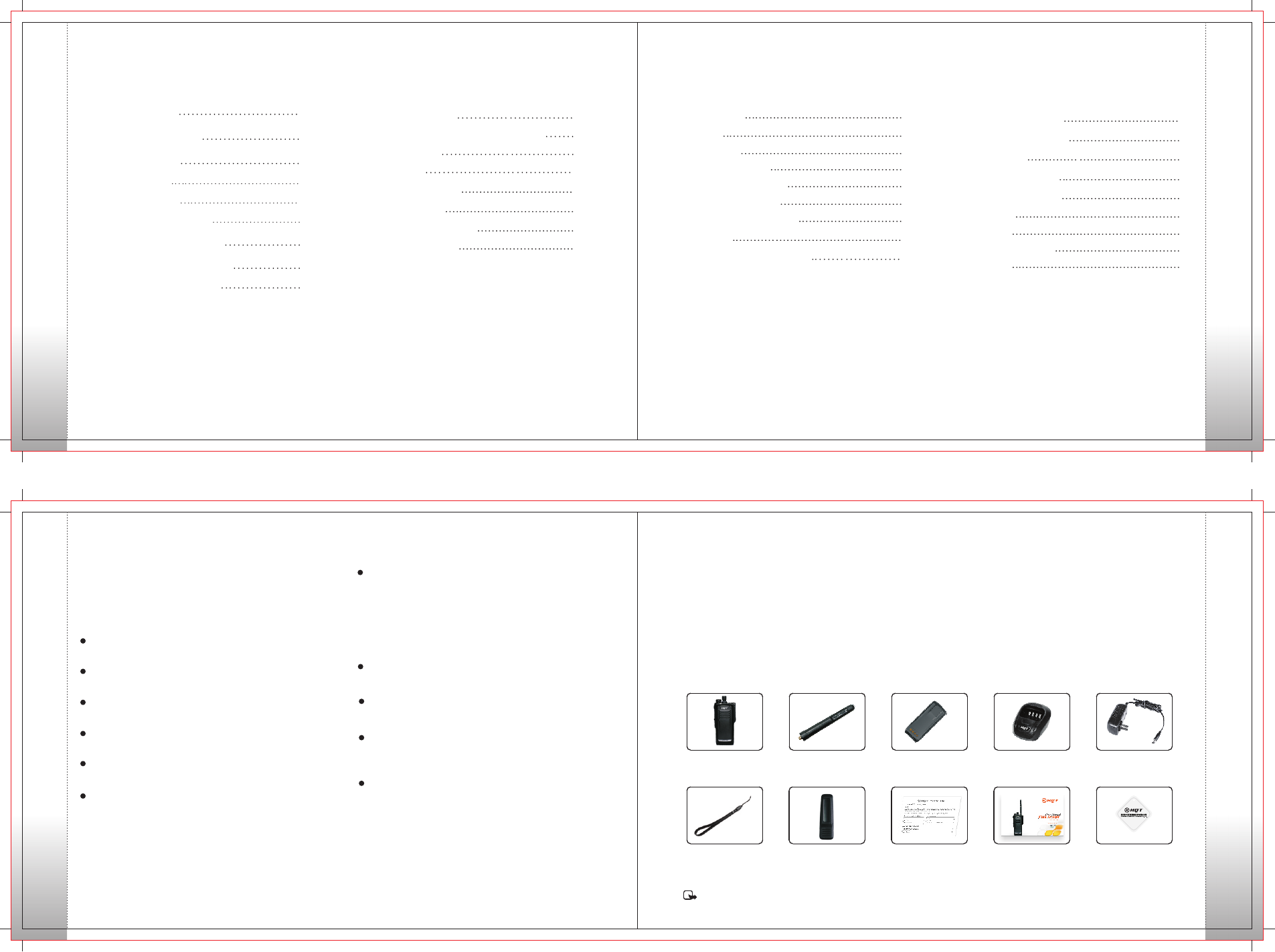

Items
Radio DH-9100
Qty:1
Li-Ion Battery
Qty:1
Charger
Qty:1
Adapter
Qty:1
Antenna
Qty:1
Lanyard Strap
Qty:1
Belt Clip
Qty:1
User Manual
Qty:1
Warranty Card
Qty:1
Certificate
Qty:1
Note: Frequency is marked on the color circle at the bottom of the antenna.
Removing the Antenna:
Rotate the antenna counter clockwise until you
can remove it.

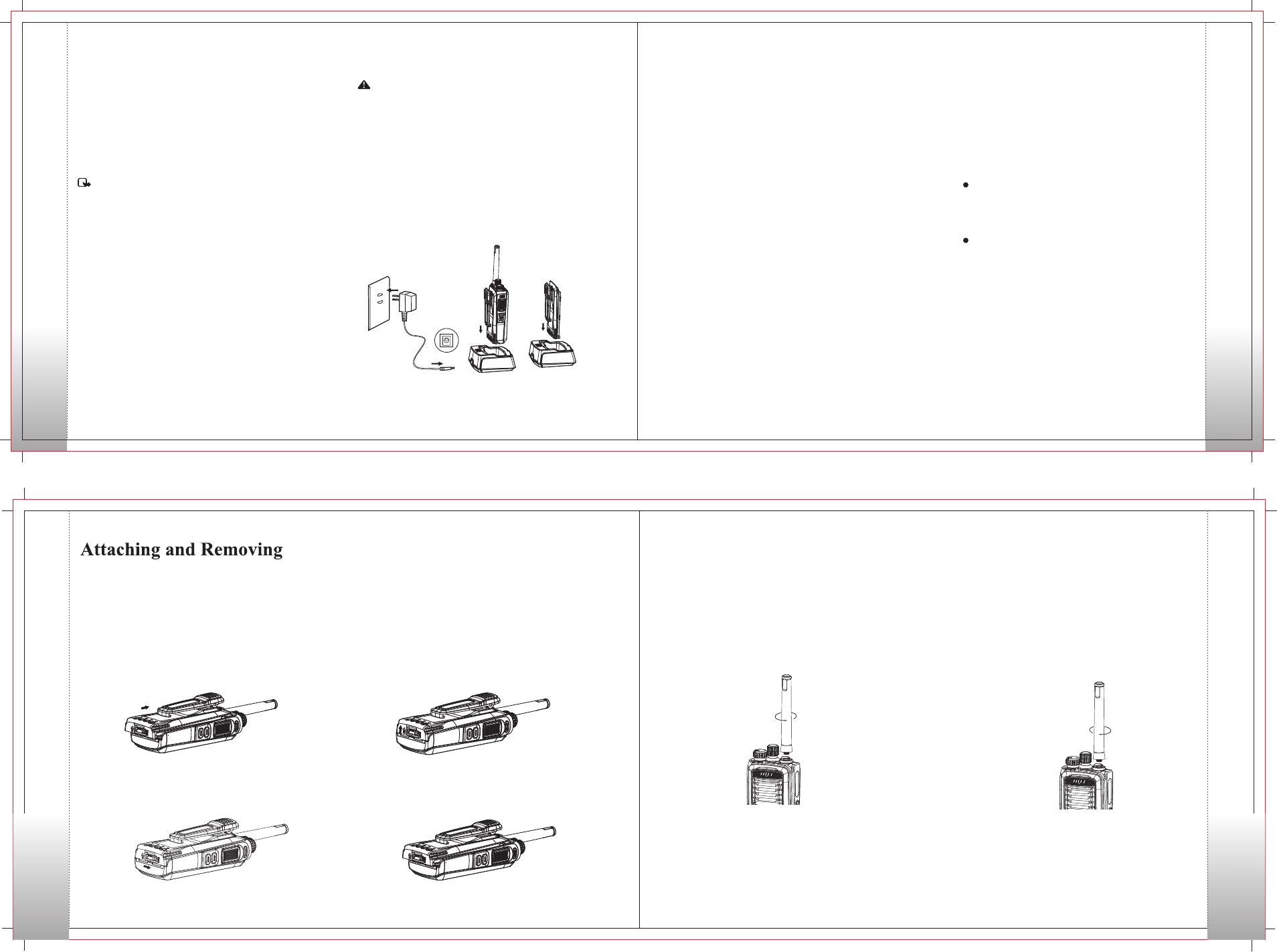

Attaching/Removing the Antenna
Attaching the antenna:
1.Insert the antenna into the connector on the top
of radio by holding the antenna at its base.
2.Rotate the antenna clockwise to fasten it.
(Figure 1)
Match the two grooves of battery with corresponding
guides on the back of the radio. And make sure the full
contact and parallel between the battery and aluminum
chassis.
Then push the battery along the guide until the battery
latch locks.
Slide the battery away from the radio.
(Figure 2)
(Figure3)
Attaching the Battery
To remove the battery,first make sure the radio is
turned off, then push the battery latch in the opposite
direction of the mark “LOCK” to unlock it,and push
the battery latch downwards.
Removing the Battery
(Figure 5) (Figure 6)
(Figure 4)
05 06
07 08
Get Acquainted
Attaching and Removing
Attaching and Removing
Get Acquainted
Applicable Battery Model:
lease charge with HQT approved battery; Using
other batteries may burst and cause personal damage.
Get Acquainted
Battery Information
Note:
1. Do not short-circuit the battery terminals or dispose
the battery in fire. Never attempt to disassemble
the battery pack.
2. Charge the battery in 0-45℃ temperature.
Otherwise the battery may not be fully charged.
3. Turn off the radio equipped with battery before
charge. Use the radio while charging may
interfere with charging.
4. Do not pull/plug the adapter and the battery during
charging to avoid interfere with the charging
procedure.
5. When the battery power consumes quickly even
if it is fully and correctly charged, that means the
battery life is over and please replace with new
battery.
6. Do not charge if the battery or radio is wet. Before
charge, you should dry it with cloth to avoid danger.
Warning:
Conductive metals suc h a s j e w e l ry, k e y o r
decorating lace may result in short ci r c u i t a n d
generate a large quantity of heat when coming to
contact with battery electrodes. Treat any battery
carefully especially when placing it into pocket, wallet
or other metal container.
Charge Operation
Please charge as follows:
1. Turn off the radio. Plug the DC connector of adapter
into the DC jack on the rear of the charger.
2. Plug the AC connector of adapter into an AC outlet.
3. After the charger is electrified, the LED glows red for
1 second and goes out. That means the charger is
ready for normal charging. If the LED flashes red, it
means the charger is not ready for battery charging.
4. Insert the battery or radio equipped with battery into
the charger. Make sure the battery is in good
connection with the charger electrode.
5. LED glows red during charging and flashed during
trickle charging because of very low battery power.
And after the battery power reached a certain mount
during trickle charge, the charger automatically turns
to normal charge mode.
6. The battery is fully charged when LED glows green.
The charger stops charging automatically.
Cautions in Charging
1. The battery is not charged in factory. Please charge
the battery before initial use or after long-time
storage.
2. Repeat charging 2 to 3 times will make the battery
reach its best capacity. Please replace or charge
the battery if battery power is low.
3. When the battery power consumes quickly even
if it is fully and correctly charged, that means the
battery life is over and please contact your dealer
and buy new HQT approved battery.
Antenna Information
Stubby antenna is suitable for short-distance
communication; thin and long antenna will
provide best communication effect. Also it is
comfortable to carry on the waist.
The communication range may be shortened in
rainy days or in forest. Please make preparations
for that .
Push the battery latch towards the mark “Lock” to
lock it.

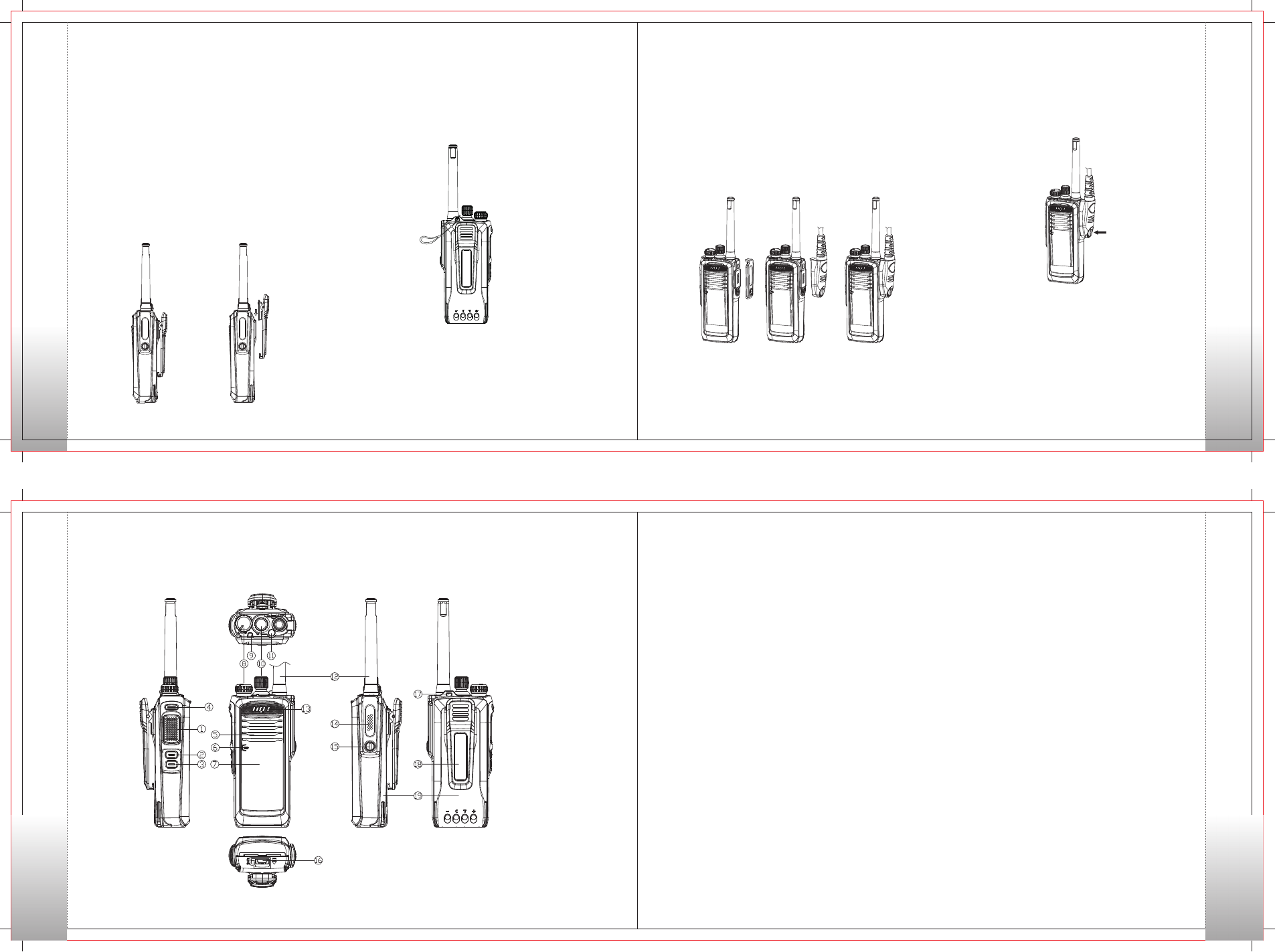

1. PTT Key
2. Sk1(SideKey 1)
3. SK2(Side Key 2)
4. SK3(Side Key 3)
5. Speaker
6. Microphone
7. Body Case
8. Radio On-Off/Volume Control Knob
9. LED Indicator
10. Channel Selector
11. Top key
12. Antenna
14. Accessory Jack
15. Accessory Screw
16. Battery Latch
17. Strap Hole
18. Belt Clip
19. Battery
13. Name Plate
Installing Belt Clip
Match the grooves of belt clip with those on the rear of
radio and press the belt clip downwards until it is locked.
Installing/Removing the Belt Clip
Removing Belt Clip
Use your nail or a tool to lift the metal spring piece in
the belt clip from topside and pull the belt clip upward
from the battery pack.
Note:
1. To use belt clip, please install the belt clip onto the
battery before the installing of battery pack.
2. Remove the battery from the radio before the
removing of belt clip.
Installing Hand Strap
Thread the strap into the hole at the back of the
radio and fasten it.
Attaching the Audio Accessory
Programming Cable
1.Remove the screw on the accessory jack cover,
open the accessory jack cover as figure show below.
2.Align the plug with the accessory jack.
3.Tighten the screw on the plug.
Removing the Accessory
To remove accessories, loosen the
screw as figure shown below.
(Figure 1) (Figure 2)
09 10
11 12
Radio Overview
Attaching and Removing
Attaching and Removing
Radio Overview
Radio Overview
13 14
15 16
No.Shortcut Keys Description
1
2
3
4
5
6
7
8
9
10
11
12
13
None
Zone Down
Zone Up
Scan
Nuisance Temporary Delete
Emergency On
Emergency Off
Adjust Power Level
Adjust Squelch Level
One Touch Call1
One Touch Call2
One Touch Call3
One Touch Call4
No feature will be assigned.
To select a desired zone quickly
To select a desired zone quickly
To receive signals on other channels
To temporarily ignore unwanted channel activity
To summon help in emergent situations
Emergency function is off
To adjust power level
To adjust the squelch threshold required for the speaker to unmute
To transmit a call, short message or other service to a preset contact quickly
To transmit a call, short message or other service to a preset contact quickly
To transmit a call, short message or other service to a preset contact quickly
To transmit a call, short message or other service to a preset contact quickly
No.Shortcut Keys Description
14
15
16
17
18
OneT ouch Call5
Squelch Off Momentary
Squelch Off
Monitor
TalkA round
To transmit a call, short message or other service to a preset contact quickly
To momentary open the speaker
To always open the speaker
To adjust the condition for incoming signal match
To directly communicate with other radios
Scramble: To encrypt your voice so as to guarantee privacy of your communication
Encrypt: To encrypt your voice and message so as to guarantee privacy of your communication
To enable or disable the VOX function
Scramble/Encrypt
VOX

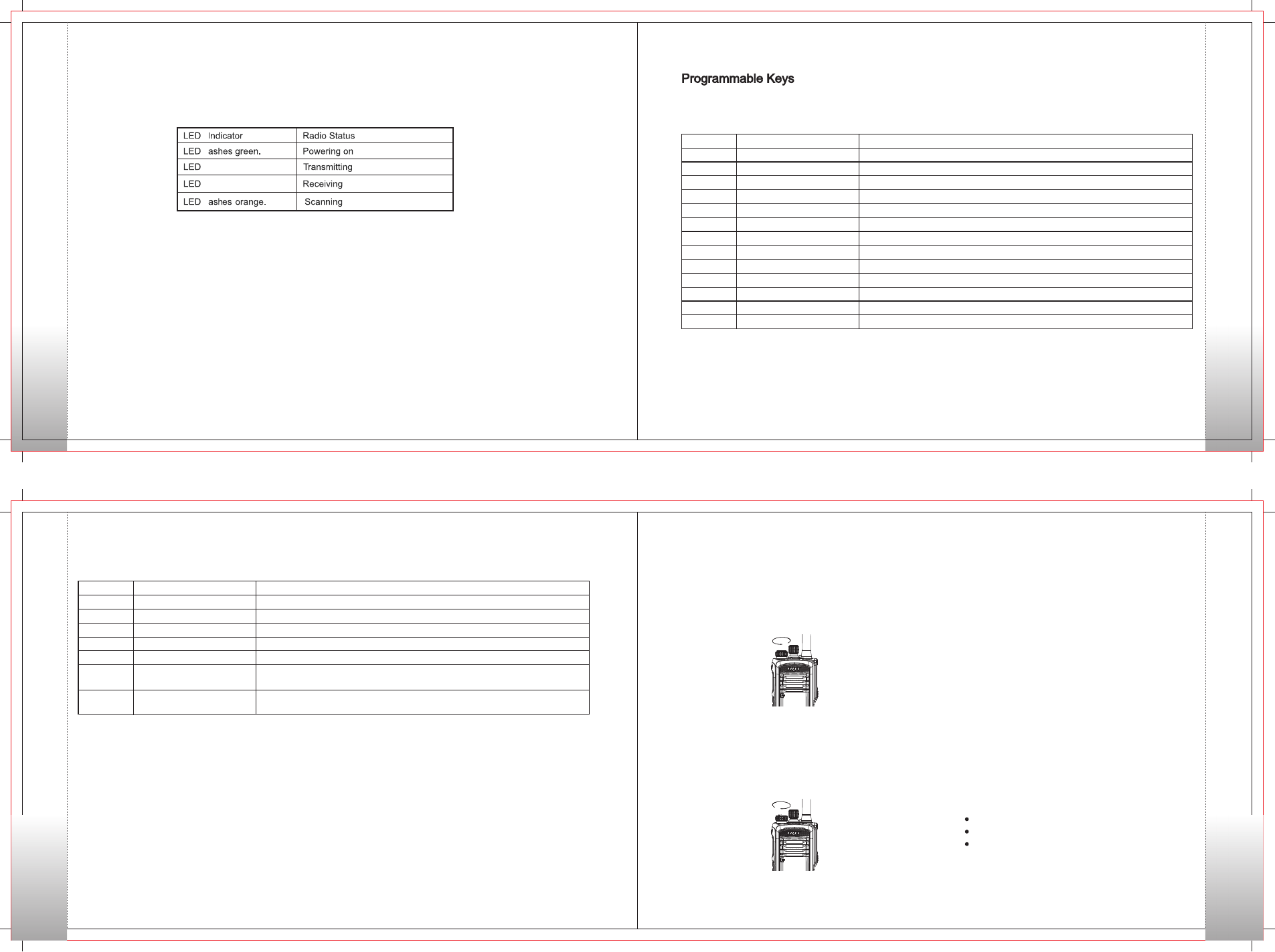

LED lndicator
Programmable Keys
Basic Operations
LED lndicator
The top LED indicator will help you easily identify current radio status. For enhanced convenience, you may request your dealer to program the keys SK1,SK2,SK3,P1,P2,TK as
shortcuts to the functions listed below:
Note: (1) Long and short press of a key can be assigned with different functions by your dealer.
(2) The TK is programmed as the Emergency key by default, and is programmable by your dealer.
Programmable Keys
flashes red.
flashes green.
Turning the Radio On/Off
Rotate the Radio On-Off/Volume Control knob clockwise/
counter-clockwise until a click is heard to turn the radio
on/off.
After turning the radio on, rotate the Radio On-Off/Volume
Control knob clockwise to increase the volume, or counter-
clockwise to decrease the volume.
Selecting a Zone
You can include a group of channels with the same property
in to a zone for convenient management. The radio supports
three zones, each of which consists of up to 16 channels.
You can switch to the appropriate zone by pressing the
programmed Zone Up or Zone Down key preset by your dealer.
Selecting a Channel
After the radio is powered on, you can rotate the Channel
Selector knob to select an appropriate channel. You can
also switch to the designated channel directly by pressing
the programmed Preset Channel key preset by your dealer.
If the Channel Notify feature is enabled by your dealer, the
radio will play the channel number upon channel switching.
After the radio is powered on, you can make different kinds
of calls. To ensure optimal volume of the receiving radio,
keep the microphone about 2.5 to 5 centimeters away from
your mouth when transmitting. The types of calls you may
initiate are listed below:
Private call: A call made to a private contact.
Group call: A call made to the group contacts.
All call: A call made to all the contacts on the current channel.
Adjusting the Volume
Basic Operations
20
19
Emergency Alarm
Man Down (Optional)
Transmission Management
You can initiate a private call, group call or all call (your radio
must be programmed to allow you to use the all call service)
through the same operations on digital channel. When calling
back, the radio will make a call to the calling party in private call
and all call (your radio must be programmed to allow you to call
back in an all call); but in group call, the radio will make a call to
all parties involved when calling back.
Here we take the private call as example to illustrate the call
process:
1. User A and B select the same digital channel.
2. User A holds down the PTT key to initiate a call.
You preset a regular private call/group call/all call contact
for each digital channel via your dealer.
3. User A can talk to the microphone when the LED indicator on
the radio glows red.
4. User A releases the PTT key to finish talking.
User A can hold down the PTT key to talk when the LED
indicator on the radio is glowing orange.
When receiving, the LED indicator on the radio glows green.
5. User B can receive the call without any operation. When
receiving, the LED indicator glows green.
6. User B can hold down the PTT key to talk when the LED
indicator on the radio is glowing orange.
Note: The duration of LED indicator glowing orange (Call Hold
Time) is preset by your dealer. If neither one talks before this
duration expires, the call will end.
Calling on Digital Channel
Calling on Analog Channel (No Signaling)
On the analog channel without signaling, the calling operations
are the same as on the digital channel. The difference is that
the called parties are all the users on the channel, rather
than the preset contact for the channel.
Please refer to the corresponding Feature Book for calling
operations on the analog channel with signaling.
Calling on Digital Channel
Scan On/Off
The function “Scan” allows you to listen to communication
activities on other channels so that you can keep a close
track of your team members. This option is used to enable
or disable the function.
Zone
This radio supports up to 64 zones. You can set it by CPS.
LED
VOX
If enabled, the VOX function allows users to transmit
every time the user speaks into the radio directly without
pressing the PTT key.
All LEDs: to enable /disable all LED indications.
TX LED: to set whether the Tx LED indicates during
RX LED: to set whether the Rx LED indicates during
reception.
Scan LED: to set whether the Scan LED indicates in
Scan mode.
transmission.
Low Battery LED: to set whether the Low Battery LED
indicates when the battery is low.
Carrier LED: to set whether Carrier LED indicates when
receiving carrier.
Man Down (Optional)
With this feature, your radio will alarm automatically to
summon help from your companion when it is tilts to
a certain gradient for a certain time period.
19 20
1817
Talk Around
You can continue to communicate in DM mode by pressing
the programmed Talk Around key, when your repeater
malfunctions, or when your terminal is out of the repeater’s
range but within talking range of other terminals.
Operation:
Press the programmed Talk Around key to switch between
DM mode and RM mode.
Monitor
To adjust match conditions for signal receiving, you
can enable the feature “Monitor”.
Operation:
Press the programmed Monitor key to enable
the feature, To disablethe feature, press this
key again.
Squelch Off
If the feature “Squelch Off” is enabled, your radio’s
speaker will keep unmuted no matter whether carrier is
present.
Press the programmed Squelch Off Momentary key
to enable the feature. Then the radio sounds background
noise. To disable the feature, release this key.
Operation:
Press the programmed Squelch Off key to enable
the feature. Then the radio sounds background
noise. To disable the feature, press this key again.
Emergency Alarm
In case of emergency, you can use this feature to inform
your colleagues or control center for help. The Emergency
Alarm has the highest priority which can terminate the
ongoing activities on the current channel.
You can make emergency call even when your radio is
transmitting or receiving.
Emergency Alarm feature needs to be configured and
enabled by your dealer. Please refer to the corresponding
Feature Book for details. The purpose of TOT is to prevent any user from
occupying a channel for an extended period.
If the preset time expires, the radio will automatically
terminate transmission and keep beeping.
To s t o p beeping, please release the PTT key.
You must wait for a certain time period (preset
by your dealer) before you can press and hold
down the PTT key to transmit again. If the pre-alert
function is set by your dealer, your radio will alert
you to the TOT expiration in advance.
Note: This feature is null in Emergency mode.
Time-out Timer (TOT)
Busy Channel Lockout
If enabled via the programming software, this
feature can prevent your radio interfering with other
transmitting terminals on the same channel. If you
hold down the PTT key while the channel is in use,
your radio will keep beeping and display text information
“Channel Busy”,alerting you to transmission
prohibition. To stop beeping, please release the
PTT key. When the channel is free, you can press
and hold down the PTT key to transmit.
Invalid Channel Indication
If current operating channel is invalid channel, the
radio will send continuous “Dududu” as alert tone,
which means current channel is unable to transmit or
receive.
Squelch
Through setting squelch level to decide how strong the
signal is to unmute the speaker.The lower the squelch
level the stronger the background noise to ummute the
speaker, the larger the talk range and the weaker the
Rx anti-interference ability. Setting range is 0~9,
selecting “0” causes the squelch open. the higher
the squelch level, the harder to open the squelch.
Transmission Management
This feature can prevent your radio interfering with
other transmitting radios on the same channel. If you
hold down the PTT key while the channel is in use,
your radio will keep beeping, alerting you to
transmission prohibition. It can be programmed via
the CPS.TX Admit includes the followings:
Always Allow: The User can transmit all the time by
holding down the PTT key, regardless the channel
is being interfered or not.
Channel Free: The radio is allowed to transmit
when the channel is not being interfered.
CTCSS/CDCSS Match: the radio can transmit
when CTCSS/CDCSS is matched.
CTCSS/CDCSS Mismatch: the radio can transmit
when CTCSS/CDCSS is mismatched.
Question and Answer
Care and Maintenance
Phenomena Analysis Solution
The equipment can
not be powered on.
During receiving
signals, the voice
is weak,
discontinuous or
totally inactive.
You can not
communicate with
other members.
Irrelevant
communications or
noises are heard
on the channel.
The battery may run out.
The battery may be improperly installed.
The battery may suffer from poor contact
caused by dirtied or damaged battery
contacts.
The battery strength may be too low.
The volume may be set to a low level.
The antenna may get loose or may be
improperly installed.
The speaker may be blocked or damaged.
The frequency or signaling may be
inconsistent with that of other members.
The channel type (digital/analog) may be
set inconsistently.
You may be too far away from the group
members.
You may be interrupted by radios using the
same frequency.
The radio may not be set with any signaling.
Remove the battery and attach it again.
Recharge or replace the battery.
Clean the battery contacts. If the problem can not
be solved, contact your dealer or authorized service
center for inspection and repair.
Recharge or replace the battery.
Increase the volume.
Power off the radio, and re-install the antenna.
Clean surface of the speaker. If the problem can not
be solved, contact your dealer or authorized service
center for inspection and repair.
Set your TX/RX frequency and signaling to the same
as that of other members.
Make sure all members are on the same digital/
analog channel.
Move towards other members.
Change the frequency, or adjust the squelch level.
Set signaling for all member radios to avoid
interference at the same frequency.
Maintenance
Your radio is a product with excellent design
can help you ef fective ly
May damage the inner IC or other elements.
antenna or modifications of
damage to the radio.
Use lint-free cloth to clean the dust or stains on
the radio.
Cover the earphone/microphone pad when not
using the radio.
Use mild detergent (not corrosive chemicals)
and cloth to clear the casing, control knob and
keyboard after long-time use.
Note:
All recommendations above also refer to your
charger and accessories. If any of them
please send it to nearest
and technology, please treat it with care.These
recommendations
use the radio.
Keep the radio dry. Rain, moisture or other liquid
may cause damage to the radio.
Do not throw, hit or vibrate the radio. Brutal
treatment.
Do not hold the radio by the antenna or external
Please use the original or s tandard antenna.
Unapproved.
accessories may cause
MIC.
battery,
works abnormally,
service center.
21 22
23 24

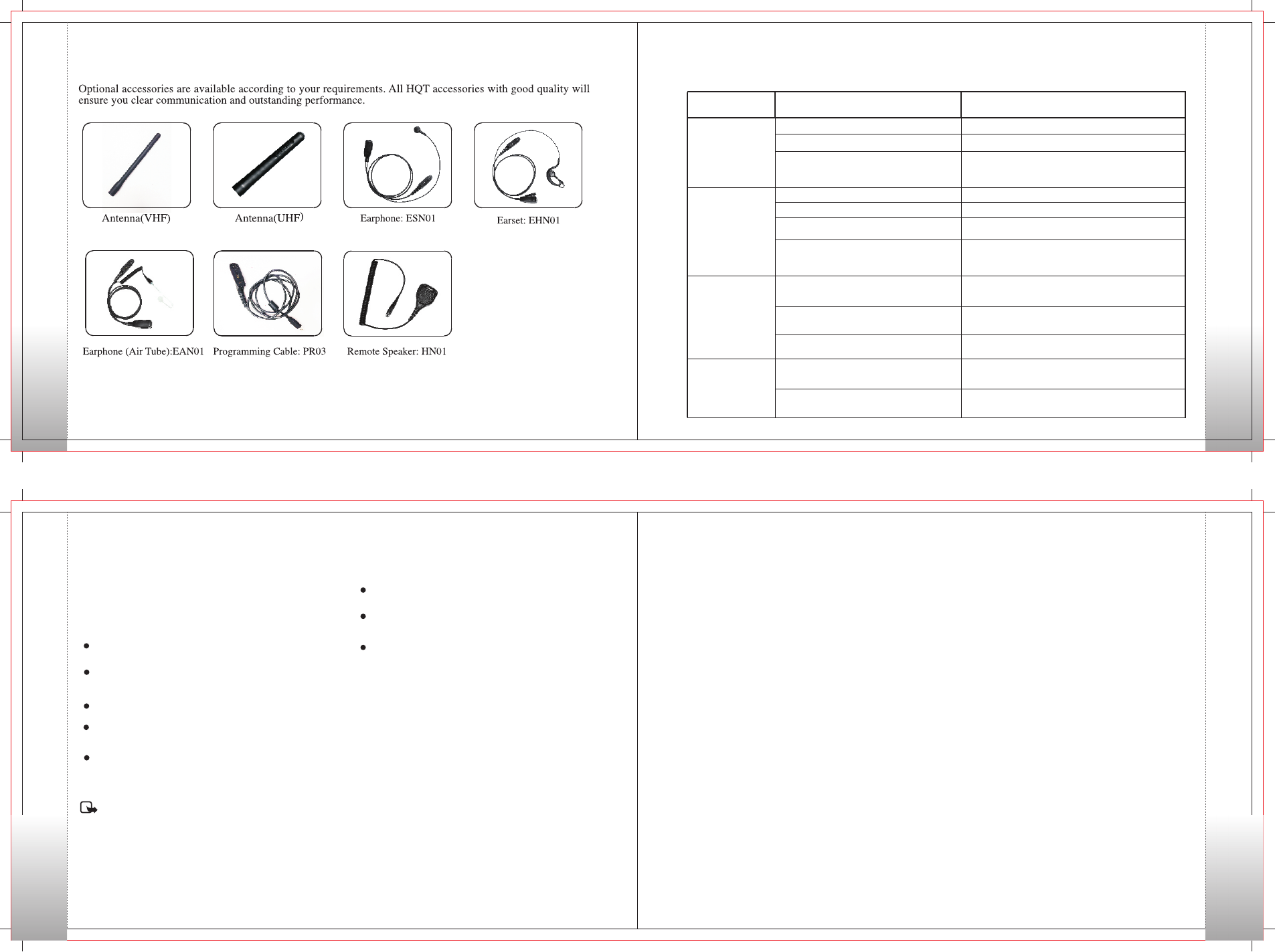

Optioanl Accessories
Service and Support
Care and Maintenance
Care and Maintenance
Optioanl Accessories
Service and Support
Shenzhen HQT Science & Technology Co., Ltd.
provides long-time support for its products, including
repair and supply of the radio and its parts.
Service Commitment
1. HQT two-way radio body has an 18-month guarantee;
accessories (battery, charge adapter, charger and
antenna)6 months; earphone 3 months.
2. Replacement is available subject to the presentation
of fully-filled warranty card or original purchasing
invoice in case that the radio cannot work normally
due to non-personal cause within the guarantee.
3. Replacement and repair is available subject to the
presentation of fully-filled warranty card or original
purchasing invoice in case that the radio or accessories
cannot work normally within 30 days from the purchase
date.
4. The repaired part has its own guaranty or 90-day
guaranty from the repair date. The longer one is valid.
Warranty
1. The guaranty is only valid under normal use. And
guaranty is unavailable under such conditions
dissembling or modifications, damages caused by
outside force, water let-in, fire burning, and usage
of unapproved accessories or antenna, not according
to unapproved accessories or antenna, not according
to the instruction manual and so on.
2. The guaranty is in effect from the purchase date on
the invoice.
3. Free repair is unavailable if the HQT mark or Serial
Number mark is torn off.
4. Only the fully-filled warranty card and original
purchasing invoice with HQT’s seal or dealer’s seal
affixed is valid for identifying the guarantee.
Cautions
1. Read the user manual before use.
2. Do not use the radio with damaged antenna. Use
the radio only with standard antenna.
3. Turn off the radio in potential dangerous
environment.
4. Avoid the contact between the battery and the
metal oily or corrosive objects.
5. Do not dip the radio or battery into water or throw
them in fire.
6. Use the radio only with standard battery, adapter
charger and earphone.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Appendix : Frequency Chart (Used to record the frequency.)
Model:
Serial number:
Tx FrequencyChannel Tx CTCSS/CDCSS Rx Frequency Rx CTCSS/CDCSS Optional Signaling
25 26
Terms of Warranty
Appendix
Terms of Warranty
1. HQT two-way radio body has an 18-month guarantee;
accessories (battery, adapter, charger and antenna)
6 months; earphone 3 months.
2. Only the fully-filled warranty card or original purchasing
invoice with HQT 's seal or dealer's seal affixed
is valid for identifying the guarantee.(The invoice
should give clear indication of accessories, radio,
serial-numver, purchasing date, purchasing price
and other items.)
3.If the radio body went wrong within the guarantee,it
should be ensured to work normally over 30 days
after the repair.
4.Replacement and repair is available subject to
the presentation of fully-filled warranty card
or original purchasing invoice in case that the radio
cannot work normally as the instruction says within
30 days from the purchase date.(Not that there
must not be visible abrasion on radio body and
accessories.)
5.Replacement of the same model is available
subject to the presentation of 3-time repair
receipt in case that the r a d i o bo dy still work
abnormally after 3-time-or-above repairs within
the guarantee.
6.Repair of accessories(battery, adapter, charger
and antenna) is available to the original purchasing
invoice.
7.The cost of materials and repair are co v e r e d
during the time of guarantee.
8. Guarantee is unavailable in case that the HQT
mark or the serial-number mark is torn off.
9. Guarantee is unavailable in cases below:
1) Beyond the warranty period;
2) Defects or damages under abnormal use;
3) Defects or damages because of misoperation,
accident, water penetration and carelessness;
4) Defects or damages because of incorrect
testing, operation, repair, installation, reconfiguration
or adjustment;
5) Defects or damages to antenna because of
non-material or nin-processing problems;
6) Defects or damages because of unauthorized
repair and disassembling;
7) Product that the serial-number mark is torn
off or unable to identify;
8) Product with unclear purchasing date;
9) Battery under such conditions;
a. Any damages or unsealing to the battery
pack;
b. Defects or damages to battery because of
charging with improper equipment use beyond
regulated maintain condition;
10) Abrasion under normal use.
Note: The warranty ordinance, with is in accord wit Chinese
warranty regulations, will be modified properl according to
marking. If modified, the warranty ordinanc is subject to our
latest updating notice issued by HQT service center.
Appendix
DH-9100 DH-9100
2000mAh
1024
FM/4FSK
7.4V
320g
1.5W
UHF:4W/1W
5%
Appendix 1: Specification
Item
Frequency
Range
Channel Capacity
Modulation Type
Frequency Stability
Operating
Temperature
Antenna Impedance
Operating Voltage
Item
Audio Distortion
Sensitivity
Max Audio Output
Power
Weight (with antenna
& battery)
Battery
RF Output Power VHF:5W/1W
0.22u
VHF: 136~174MHz
UHF: 350~390MHz
400~470MHz
450~520MHz
-30 60 130X55X34mm
27 28
