HTC BG Pocket PC User Manual Rook Additional Information
HTC Corporation Pocket PC Rook Additional Information
HTC >
User Manual
iii
iii
Learning the Basics
Viewing the Operating System Information
Adjusting the Volume
Changing Power Management Settings
Dimming or Adjusting the Brightness of the Backlight
Adding a Custom Background Image
Installing and Removing Programs
Locking and Unlocking the Today Screen
Opening and Closing Programs
Reassigning Programs or Shortcuts to Program Buttons
Setting Alarms
Shortcut Menus
Showing the Clock in All Programs
Creating or Assigning a Category
Adjusting the Speed for Scrolling Through Items in a List
Realigning the Touch Screen
Entering Text
Entering Text
Entering Text using Block Recognizer
Entering Text using Letter Recognizer
Writing with Transcriber
Entering Text Using the Keyboard
Synchronizing
Rook (Draft)
HP iPAQ Additional Product Information
iv
Transferring Files Between a Computer and HP iPAQ
Migrating Data from Palm Desktop to Microsoft Windows
Mobile 5.0
Wireless Synchronization Cost Saving Tips
Calendar
Accessing Calendar
Changing the Display of the Work Week
Scheduling an Appointment
Editing an Appointment
Setting a Default Reminder for All New Appointments
Contacts
Accessing Contacts
Creating a Contact
Changing Contact Information
Copying a Contact
Working with the Contact List
Finding a Contact
Sending an E-mail Message to a Contact
Sending a Text Message to a Contact
Tasks
Tasks
Locating a Task
Setting the Start and Due Dates for a Task
Showing Start and Due Dates in the Task List
Setting Options for Displaying Tasks on the Today Screen
Marking a Task as Completed
Messaging
Setting up an E-mail Account
v
Changing E-mail Download Options
Downloading Messages and Attachments
Replying to or Forwarding a Message
Adding an Attachment to a Message
Installing an Online Address Book
Managing Folders
Deleting All Messages and Folders
Expansion Cards
Using Expansion Cards
Installing an Expansion Card
Removing an Expansion Card
Viewing Content of an Expansion Card
Connections
Connections
Infrared
Receiving an Infrared Beam
Synchronizing with the Infrared Connection
Beaming an Item
Wi-Fi
Wi-Fi
Automatically Connecting to a Network
Monitoring Signal Strength and Status
Entering New Settings
Searching for Networks to Access
Setting Up a Wireless Network
Deleting a Wireless Network
Setting Up an Automatic Choice for Connections
Logging on to Network Services
vi
Connecting to Intranet URLs
Connecting to the Internet
Connecting to My Work Network
Ending a Connection
Advanced Network Settings
Looking Up an IP Address
Setting Up a Network Card
Changing Network Card Settings
Setting Up a VPN Server Connection
Setting Up Proxy Server Settings
Configuring Advanced Proxy Settings
Changing a Connection Group Name
Changing an Intranet URL
Changing Server Settings
Setting Up a Wireless Access Point (WAP) Gateway
Changing Modem Connection Settings
Configuring Network Security Settings
Configuring 802.1x Authentication Settings
Regulatory Notices
Battery Warning
Taiwan Battery Recycling Notice
Canadian Notice
Avis Canadien
Disposal of Waste Equipment by Users in Private Household in
the European Union
Likvidace zaøízení soukromými domácími uživateli v Evropské
unii
Bortskaffelse af brugt udstyr hos brugere i private hjem i EU
Seadmete jäätmete kõrvaldamine eramajapidamistes Euroopa
vii
Liidus
Laitteiden hävittäminen kotitalouksissa Euroopan unionin
alueella
Élimination des appareils mis au rebut par les ménages dans
l'Union européenne
Entsorgung von Altgeräten aus privaten Haushalten in der EU
Áðüññéøç Ü÷ñçóôïõ åîïðëéóìïý áðü ÷ñÞóôåò óå éäéùôéêÜ
íïéêïêõñéÜ óôçí ÅõñùðáúêÞ ¸íùóç
Készülékek magánháztartásban történõ selejtezése az Európai
Unió területén
Smaltimento delle apparecchiature da parte di privati nel
territorio dell'Unione Europea
Vartotojø ið privaèiø namø ûkiø árangos atliekø ðalinimas
Europos Sàjungoje
Nolietotu iekârtu iznîcinâðanas noteikumi lietotâjiem Eiropas
Savienîbas privâtajâs mâjsaimniecîbâs
Verwijdering van afgedankte apparatuur door privé-gebruikers
in de Europese Unie
Eliminering av utstyr i privathusholdningen i Den europeiske
unions medlemsland
Pozbywanie siê zu¿ytego sprzêtu przez u¿ytkowników w
prywatnych gospodarstwach domowych w Unii Europejskiej
Destruição, por Utilizadores na União Europeia, de
Equipamento Usado no Lixo Doméstico
Bortskaffande av avfallsprodukter från användare i privathushåll
inom Europeiska Unionen
Odstranjevanje odslužene opreme uporabnikov v zasebnih
gospodinjstvih v Evropski uniji
Likvidácia vyradených zariadení v domácnostiach v Európskej
únii
viii
Eliminación de residuos de equipos eléctricos y electrónicos por
parte de usuarios particulares en la Unión Europea
European Union Regulatory Notice
Equipment Warning
Federal Communications Commission Notice
Modifications
Cables
Declaration of Conformity for products marked with the FCC
logo—United States only
Wireless Notices
Brazilian Regulatory Wireless Notice
French Regulatory Wireless Notice

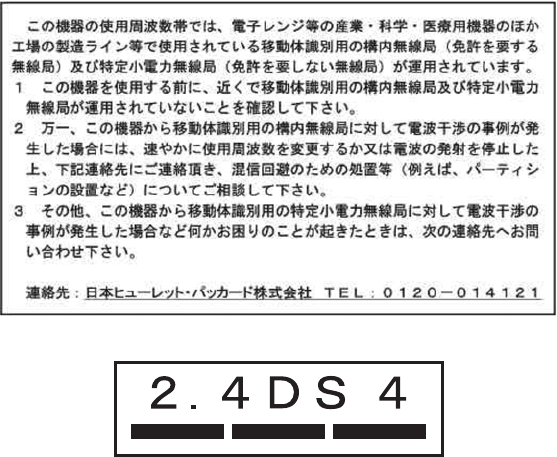

Japanese Regulatory Wireless Notice
Notice for Italy for use of
2.4 GHz Wireless Communication

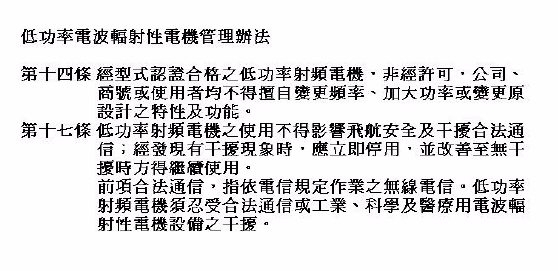

Taiwan DGT Regulatory Wireless Notice
U.S. Regulatory Wireless Notice
Environmental Notices
Copyright
1
Learning the Basics
2
Viewing the Operating System Information
Tap Start > Settings > System tab > About.
The version of the operating system on your device will be listed near the
top of the screen.
3
Adjusting the Volume
You can change the volume for various sounds, such as the sound you
hear when you tap program names and menu options.
1. Tap the Speaker icon at the top of the screen.
2. Move the system volume slider to the desired volume level.
3. To mute system sounds, tap Off.
NOTE: You can also press the volume control on your HP iPAQ to quickly
change system volume settings.
You can also specify the sound you want to here for a notification.
1. Tap Start > Settings > Personal tab > Sounds & Notifications.
2. On the Sounds tab, choose how you want to be notified by
selecting the appropriate check boxes.
3. On the Notifications tab, in Event, tap an event name and choose
how you want to be notified by selecting the appropriate check
boxes. You can choose from several options, such as a special
sound, a message, or a flashing light.
NOTE: Turning off sounds and the LED notification helps conserve
battery power.
4
Changing Power Management Settings
1. Tap Start > Settings > System tab > Power.
2. Tap the Battery tab to view how much battery power is available.
3. Tap the Wireless tab to turn Wireless signals on or off.
4. Tap the Advanced tab to select the length of time the HP iPAQ
stays on when using battery power or external power.
5
Dimming or Adjusting the Brightness of the
Backlight
You can set the backlight to dim after a specified amount of time has
elapsed.
1. Tap Start > Settings > System tab > Backlight.
2. Tap the Battery power tab or the External power tab.
3. Select the Turn off backlight if device is not used for
check box, then specify the time delay.
You can also increase or decrease the brightness of the backlight.
1. Tap Start > Settings > System tab > Backlight >
Brightness tab.
2. Move the sliders up to increase and down to decrease the
brightness.
6
Adding a Custom Background Image
You can use one of your own pictures as the background image on the
Today screen.
1Tap Start > Settings > Today.
2Select the Use this picture as the background check box
and tap Browse to view a list of your picture files.
3Tap the filename of the picture you want to use.
4Tap OK.
NOTE: Pictures can affect the readability of text on the Today screen.
7
Installing and Removing Programs
To install programs on your HP iPAQ:
1. Use the HP Desktop Cradle or autosync cable to connect your HP
iPAQ to your personal computer.
2. Follow the instructions in the Installation Wizard provided with the
program you want to install.
3. Check the screen on your HP iPAQ to see if any further steps are
necessary to complete the program installation.
To remove programs from your HP iPAQ:
1. Tap Start > Settings > System tab > Remove Programs.
2. Select the checkbox for the program(s) you want to remove, then
tap Remove.
NOTE: By removing a program from your HP iPAQ, you may increase
available memory on the device.
8
Locking and Unlocking the Today Screen
To prevent accidental screen taps when you are not using your HP iPAQ,
you can lock the Today screen so that taps are not recognized.
To lock the Today screen, tap the Open Lock icon. The icon changes
to the Closed Lock icon and the screen is locked.
To unlock the Today screen:
1. Tap the Unlock soft key at the lower left of the screen.
2. When the Unlock screen is displayed, tap the Unlock button.
The Today screen is displayed and unlocked.
9
Opening and Closing Programs
You do not need to exit a program to open another or to conserve
memory. The system manages memory automatically.
To open a program, tap Start, then tap the program you want from the
list. If you don't see the program you want, tap Start > Programs.
In most cases, programs automatically stop to free needed memory.
However, you can close programs manually if you prefer.
1. Tap Start > Settings > System tab > Memory > Running
Programs tab.
2. In the Running Programs list, tap the program you want to
close, then tap Stop.
10
Reassigning Programs or Shortcuts to Program
Buttons
Your HP iPAQ comes with programs already assigned to hardware
buttons. You can customize these buttons to open the programs you use
most or to perform certain shortcuts such as changing the screen
orientation, opening the Today screen, or opening Input Panel.
1. Tap Start > Settings > Personal tab > Buttons. A list of
buttons and their current assignments is displayed on the
Program Buttons tab.
2. Tap the button you want to reassign. To help you identify the
buttons, there are numbers and icons representing the original
function of the button.
3. In the Assign a program box, tap the program or shortcut you
want to assign.
4. Tap OK.
11
Setting Alarms
1. Tap Start > Settings > System tab > Clock & Alarms >
Alarms tab.
2. Tap <Description> and enter a name for the alarm.
3. Tap the day of the week for the alarm. You can select multiple days
by tapping each desired day.
4. Tap the time to open a clock and set the time for the alarm.
5. Tap the Alarm icon to specify the type of alarm you want. You
can choose a flashing light, a single sound, a repeating sound, or
vibration.
6. If you choose to play a sound, tap the list next to the Play sound
check box, then tap the sound you want.
12
Shortcut Menus
A shortcut menu appears when you tap and hold an item. The menu
displays the most common commands for the specific item. For example,
you can delete an appointment or send a text message to a contact by
using commands on a shortcut menu.
To use a shortcut menu, tap and hold the item. When the menu appears,
tap the action you want to perform.
To close a shortcut menu without performing an action, tap anywhere
outside the menu.
13
Showing the Clock in All Programs
The clock may not show in the title bar of certain programs by default. To
choose to have the clock always show in the title bar:
1. Tap Start > Settings > System tab > Clock & Alarms.
2. On the More tab, click to select the Display the clock on the
title bar in all programs check box.
14
Creating or Assigning a Category
In the Calendar, Contacts, and Tasks programs, you can use categories
to help you organize and group your appointments, contacts, and tasks.
1. From the program, tap an existing item or create a new one.
2. Do one of the following:
• For an existing item in Calendar and Tasks, tap Edit >
Categories.
• For an existing item in Contacts, tap Menu > Edit >
Categories.
• For a new item in Calendar, Contacts, and Tasks, tap
Categories.
3. Tap New, enter the category name, then tap Done. The new
category is automatically assigned to the item.
4. Tap OK to return to the appointment, contact, or task.
NOTE: Categories are shared between your appointments, contacts,
and tasks. A category remains in the list of shared categories as long as
it is assigned to at least one appointment, contact, or task.
15
Adjusting the Speed for Scrolling Through Items in
a List
You can scroll through items in a list by pressing and holding the
Navigation button up or down. To change the speed at which scrolling
occurs:
1. Tap Start > Settings > Personal tab > Buttons > Up/
Down Control tab.
2. Under Delay before first repeat, move the slider to shorten or
lengthen the time that elapses before scrolling begins.
3. Under Repeat rate, move the slider to change the time it takes to
scroll from one item to the next.
16
Realigning the Touch Screen
1. Tap Start > Settings > System tab > Screen.
2. Tap Align Screen and follow the instructions.
17
Entering Text
18
Entering Text
Depending on your preference, you can use the on-screen keyboard or a
handwriting recognition feature such as Block Regognizer, Letter
Recognizer, or Transcriber to enter text in programs. Experiment with the
methods and select the one that best suits your writing style and input
needs.
19
Entering Text using Block Recognizer
1. From any program, tap the Input Selector arrow, and then
Block Recognizer.
2. Write characters, numbers, and symbols in the designated writing
area.
• Enter letters by writing in the abc (left) area of the box.
• Enter numbers by writing in the 123 (right) area of the box.
• Enter symbols and punctuation by tapping in either area of the
box and then writing the desired character.
NOTE: Block Recognizer is available when text entry is possible.
TIP: For help with writing characters with Block Recognizer, tap the
question mark near the writing area.
20
Entering Text using Letter Recognizer
1. From any program, tap the Input Selector arrow, and then
Letter Recognizer.
2. Write characters, numbers, and symbols in the designated writing
area.
• Enter capital letters by writing in the ABC (left) area of the box.
• Enter lowercase letters by writing in the abc (middle) area of
the box.
• Enter numbers by writing in the 123 (right) area of the box.
• Enter punctuation and symbols by tapping in either area of the
box and then writing the desired character.
NOTE: Letter Recognizer is available when text entry is possible.
TIP: For help with writing characters with Letter Recognizer, tap the
question mark near the writing area.
21
Writing with Transcriber
Transcriber works transparently in the background of programs,
recognizing words with its integrated dictionary. When Transcriber is
turned on, it interprets stylus movement anywhere on the screen as
handwriting input.
To write with Transcriber:
1. From any program, position the cursor where you want the text to
appear.
2. Use the stylus to write anywere on the screen.
The handwriting will be converted to text shortly after you lift the
stylus from the screen.
22
Entering Text Using the Keyboard
1. From any program, tap the Input Selector arrow, and then
Keyboard.
2. Tap on the appropriate characters, numbers, and symbols on the
on-screen keyboard.
You can increase the size of the on-screen keyboard keys to make them
easier to tap.
1. Tap Start > Settings > Personal tab > Input.
2. On the Input Method tab, select Keyboard as the input
method, and tap Large Keys.
3. Tap OK.
NOTE: You can enlarge the keys even more by selecting the Use
gestures for the following keys check box. Fewer keys appear on
the keyboard, but you can do gestures for Space, Backspace, Enter, and
Shift+key.
23
Synchronizing
24
Transferring Files Between a Computer and HP
iPAQ
You can transfer files to and from your computer using Explore in
ActiveSync and Windows Explorer.
To transfer files:
1. Insert your HP iPAQ into the sync cradle.
2. From the Start menu on your computer, click Programs >
Microsoft ActiveSync.
3. Click Explore.
4. Double-click My Pocket PC.
5. On your computer, right-click the Start menu, and select
Explore.
6. Locate the file to be moved.
NOTE: You cannot copy preinstalled files or system files.
7. Drag and drop your files between your HP iPAQ and your
computer. ActiveSync converts the files so that they can be used by
the Office Mobile programs, if necessary.
NOTE: Move your files directly into My Documents on your HP iPAQ (or
into a folder inside My Documents) so the programs on your HP iPAQ
can locate them.
25
Migrating Data from Palm Desktop to Microsoft
Windows Mobile 5.0
If you used a Palm Operating System (OS) based device before
purchasing your HP iPAQ, you need to migrate your data from the Palm
Desktop software to Microsoft Windows Mobile 5.0.
To migrate data from Palm Desktop to Windows Mobile 5.0:
1. If you do not already have Microsoft Outlook 98 or higher installed
on your personal computer, follow the on-screen instructions to
install Outlook 2002 from the Getting Started disc.
2. Insert the Companion CD that came with your Palm unit into your
computer’s CD-ROM drive. From the Discover Your Handheld
screen, select Install Microsoft Conduits. Alternatively, you
may reinstall the Palm Desktop software. During the configuration
process, select Synchronize your handheld with Microsoft
Outlook and Palm Desktop software.
NOTE: Microsoft Outlook must be set as your default e-mail program to
properly synchronize with the Palm Desktop software. If you need to
change your settings, open Microsoft Outlook, then click Tools >
Options > Other tab and check the Make Outlook the default
program for E-mail, Contacts, and Calendar checkbox. Click
Apply > OK, and then restart your personal computer.
3. Use the HotSync software located on the Companion CD that came
with your Palm unit to synchronize your Palm information with
Outlook. Refer to the instructions that came with your Palm unit for
help installing or using Hotsync.
4. When Outlook is synchronized with your Palm device, uninstall
Hotsync from your personal computer. Click Start > Control
Panel > double-click Add or Remove Programs. Select
Palm Desktop, then click Remove. Follow the on-screen
instructions.
Continued
26
5. Insert the Getting Started disc into your computer’s CD-ROM drive
and follow the on-screen instructions to install ActiveSync on your
personal computer and create a partnership between your HP
iPAQ and your personal computer.
27
Wireless Synchronization Cost Saving Tips
How you manage the cost of synchronizing wirelessly from your HP iPAQ
depends on your priorities.
IMPORTANT: The device power-down timer is reset each time you
synchronize. If you schedule a synchronization interval that is smaller
than the time interval set for the device to automatically power down, the
device never turns off to save battery power.
To Do this
Reduce network connection or
data transfer costs Increase the time between scheduled
synchronizations, or synchronize manually.
Check the details of your rate plan.
Extend battery life Schedule synchronization less frequently or
synchronize manually.
Keep your information up to
date During periods of high mail volume, schedule
synchronization at regular but frequent intervals.
During periods of low mail volume, schedule
synchronization as items arrive.
28
Calendar
29
Accessing Calendar
Use Calendar to schedule appointments, including meetings and other
events. You can dispaly your appointments for the day on the Today
screen.
To access Calendar, tap Start > Calendar.
If you use Outlook on your computer, you can synchronize appointments
between your HP iPAQ and computer. For more information on using
Microsoft Outlook, refer to Outlook Help.
30
Changing the Display of the Work Week
You can customize your calendar so that a work week starts on Sunday
or Monday and has from five to seven days.
1. Tap Start > Calendar.
2. Tap Menu > Options and do one or both of the following:
• To specify the first day of the week, in the 1st day of week
box, tap Sunday or Monday.
• To specify the number of days you want to appear in a work
week, in the Week view box, tap 5-day week, 6-day
week, or 7-day week.
3. Tap OK to return to the calendar.
31
Scheduling an Appointment
1. Tap Start > Calendar.
2. Tap Menu > New Appointment.
3. Enter a name for the appointment and information such as start
and end times.
To schedule an all-day event, in the All Day box, tap Yes.
4. When finished, tap OK to return to the calendar.
NOTE: All-day events do not occupy blocks of time in Calendar; instead,
they appear in banners at the top of the calendar.
To cancel an appointment, tap the appointment and tap Menu >
Delete.
To have the time entered automatically in Day view, tap the time slot for
the new appointment, and tap Menu > New Appointment.
If you cannot see an appointment, be sure the appointment you created
is in the selected category.
32
Editing an Appointment
1. Tap Start > Calendar.
2. Tap Menu > Edit.
3. Make the necessary edits.
4. Tap OK.
NOTE: To cancel an appointment, tap the appointment and tap Menu
> Delete.
33
Setting a Default Reminder for All New
Appointments
You can have a reminder automatically turned on for all new
appointments you schedule.
1. Tap Start > Calendar.
2. Tap Menu > Options > Appointments tab.
3. Select the Set reminders for new items check box.
4. Set the time when you want the reminder to alert you.
5. Tap OK to return to the calendar.
34
Contacts
35
Accessing Contacts
Use Contacts to:
•Store phone numbers, e-mail addresses, home addresses, and any
other information that relates to a contact, such as a birthday or
an anniversary date.
•Add a picture or assign a ring tone to a contact.
•Quickly communicate with people.
For easy access to your contacts, tap Contacts on the bottom-right of the
screen. You can also access your contacts by tapping Start >
Contacts.
Tap a contact in the list for a summary of contact information.
From the Contacts menu, you can call or send a message.
If you use Outlook on your computer, you can synchronize contacts
between your HP iPAQ and computer.
36
Creating a Contact
1. Tap Start > Contacts.
2. Tap New and enter the contact information.
3. When finished, tap OK.
NOTE: If your contact list has been filtered by a category when you
create a contact, that category is automatically assigned to the new
contact.
To include a nickname, title, and more, while creating a contact, tap the
Name arrow.
If most of the contacts you create have phone numbers that begin with the
same area code, in the contact list, tap Menu > Options and enter that
area code in the Area code box.
If someone who isn't in your list of contacts calls you or sends you a
message, you can create a contact from Call History (not available on all
models) or from the message by tapping Menu > Save to Contacts.
37
Changing Contact Information
1. Tap Start > Contacts.
2. Tap the contact.
3. Tap Menu > Edit and enter the changes.
4. When finished, tap OK.
To include a nickname, title, and more, for an existing contact in the
contact list, tap the contact, tap Menu > Edit, and tap the Name arrow.
38
Copying a Contact
1. Tap Start > Contacts.
2. Tap and hold the contact you want to copy.
3. Tap Copy Contact.
4. Tap the copy of the contact.
5. Tap Menu > Edit.
6. Change the contact information as needed and tap OK.
NOTE: The displayed category is automatically assigned to the new
contact.
39
Working with the Contact List
There are several ways to use and customize the contact list. Here are a
few tips on how to make it work for you.
1. Tap Start > Contacts.
2. In the contact list, do any of the following:
•In Name view, search for a contact by entering a name or
number, or by using the alphabetical index.
• To see a summary of information about a contact, tap the
contact. From there you can also make a call or send a
message.
• To see a list of available actions for a contact, tap and hold
the contact.
• The last method of communication you used to reach a contact
is displayed in the contact list. However, you can change what
is displayed. Select a contact and press NAVIGATION left or
right until the contact method you want appears with the
contact's name. A single letter next to the contact information
signifies which method you have chosen. For example, If you
choose a contact's e-mail address, the letter e is displayed.
• To see a list of contacts employed by a specific company, tap
Menu > View By > Company. Then, tap the company name.
When working in Company view, you can filter by categories
you've assigned to contacts. Then, only the companies with
contacts that have that category assigned to them will appear
in the list.
NOTE: To display a greater number of contacts, tap Menu > Options,
select the Show contact names only check box, and clear the Show
alphabetical index check box.
40
Finding a Contact
To find a contact on a long list:
1. Tap Start > Contacts.
2. If you are not in Name view, tap Menu > View By > Name.
3. Do one of the following:
• Begin entering a name or phone number in the provided text
box until the contact you want is displayed. To show all
contacts again, tap the text box and clear the text, or tap the
arrow to the right of the text box.
• Use the alphabetical index displayed at the top of the contact
list.
• Filter the list by categories. In the contact list, tap Menu > Filter.
Then tap a category you've assigned to a contact. To show all
contacts again, select All Contacts.
NOTE: To search for a contact by entering a name or number, or by
using the alphabetical index, you must be in Name view.
41
Sending an E-mail Message to a Contact
1. Tap Start > Contacts.
2. Tap the contact you want to send a message to.
3. Tap the address you want to send a message to.
4. Tap the account you want to send the message from.
NOTE: To quickly add a contact's address to a new message, tap the To,
Cc, or Bcc line, and tap Menu > Add Recipient. Tap the contact you want
to send the message to and choose the address if necessary.
42
Sending a Text Message to a Contact
1. In the message list, tap Menu > Switch Accounts and select the
account.
2. Tap New.
3. Enter the e-mail address or text message address of one or more
recipients, separating them with a semicolon. To access addresses
and phone numbers from Contacts, tap To.
4. Enter your message. To quickly add common messages, tap Menu
> My Text and tap a desired message.
NOTE: To enter symbols, tap Shift using the on-screen keyboard.
5. To check the spelling, tap Menu > Spell Check.
NOTE: To set the priority, tap Menu > Message Options.
6. Tap Send.
If you are working offline, e-mail messages are moved to the Outbox
folder and will be sent the next time you connect.
If you are sending a text message and want to know if it was received,
before sending the message, tap Menu > Tools > Options. Tap Text
Messages and select Request delivery notifications.
43
Tasks
44
Tasks
You can create a list of tasks and your HP iPAQ will remind you of what
they are and when they are due. You can sort tasks by status, priority,
subject, or start or due date. If your list of tasks is really long, you can also
set filters to further sort them out.
To open Tasks, tap Start > Programs > Tasks.
45
Locating a Task
When your list of tasks is long, you can display a subset of the tasks or
sort the list to quickly find a specific task.
1. Tap Start > Programs > Tasks.
2. In the task list, do one of the following:
• Sort the list. Tap Menu > Sort by, and tap a sort option.
• Filter the list by category. Tap Menu > Filter, and tap the
category you want displayed.
NOTE: To filter your tasks further, tap Menu > Filter > Active Tasks or
Completed Tasks.
46
Setting the Start and Due Dates for a Task
1. Tap Start > Programs > Tasks.
2. Tap the task you want to set start and due dates for.
3. Tap Edit and do one or both of the following:
• Tap Starts to enter a start date for the task.
• Tap Due to enter a due date for the task.
4. Tap OK.
47
Showing Start and Due Dates in the Task List
1. Tap Start > Programs > Tasks.
2. Tap Menu > Options.
3. Select the Show start and due dates check box.
4. Tap OK.
48
Setting Options for Displaying Tasks on the Today
Screen
If you have a large number of tasks, you may want to specify the kind of
tasks that show on the Today screen.
1. Tap Start > Settings > Personal tab > Today.
2. Tap the Items tab.
3. Select Tasks, then tap Options.
4. Under Display number of, select the type of tasks you want to
appear on the Today screen.
5. In the Category list, select whether to display only tasks assigned
to a specific category or to display all tasks.
49
Marking a Task as Completed
1. Tap Start > Programs > Tasks.
2. In the task list, select the check box next to the task you want to
mark as completed.
NOTE: To mark an open task as completed, tap Edit, and in the Status
box, tap Completed.
50
Messaging
51
Setting up an E-mail Account
Before you can send and receive e-mail, you must have access to an e-
mail account through an Internet Service Provider (ISP) or a VPN server
connection (typically a work account).
To set up an e-mail account on your HP iPAQ:
1. Tap Start > Messaging.
2. Tap Menu > Tools > New Account.
3. Enter your e-mail address, and tap Next.
Auto configuration attempts to download necessary e-mail server
settings so that you do not need to enter them manually.
4. Once Auto configuration has finished, tap Next.
5. Enter your name (the name you want displayed when you send e-
mail) and your password.
If Auto configuration was successful, your user name is already entered
and you can tap Next, then Finish to complete setting up your account,
or tap Options to access additional settings. For example:
•Change the time intervals for downloading new messages
•Download attachments
•Limit the amount of messages that are downloaded
If Auto configuration is unsuccessful, refer to the Help file on your HP
iPAQ.
NOTE: You can set up several e-mail accounts in addition to your
Outlook E-mail account.
You cannot add a new account while connected. Tap Menu > Stop
Send/Receive to disconnect.
52
Changing E-mail Download Options
You can customize the following download options for each e-mail
account that you have with an Internet Service Provider (ISP) or that you
access using a VPN server connection (typically a work account).
You can choose:
•Whether messages are downloaded automatically.
•How much e-mail is downloaded.
•If and how attachments are downloaded (IMAP4 only).
1. In the message list, tap Menu > Tools > Options.
2. Select the e-mail account.
3. Tap Next until you reach Server information.
4. Tap Options.
5. Enter your changes on the next three screens, and tap Finish.
NOTE: To send and receive messages automatically, tap Connect and
check for messages and enter a time interval. Connecting automatically
may result in higher connection charges.
To save memory, limit the number of e-mails that are downloaded to
your device by lowering the number of days to display.
To change options for an Outlook E-mail account, tap Start > ActiveSync
> Menu > Options.
53
Downloading Messages and Attachments
To send and receive e-mail for an Outlook e-mail account, begin
synchronization through ActiveSync.
To send and receive e-mail messages accessed from an Internet Service
Provider (ISP) e-mail account or a VPN server connection (typically a work
account), download messages through a remote e-mail server.
An attachment sent with an e-mail message or downloaded from the
server appears below the subject of the message. Tapping the attachment
opens it if it was fully downloaded, or marks it for download the next time
you send and receive e-mail. You can also download attachments
automatically with your messages if you have an Outlook e-mail or
IMAP4 e-mail account.
If you have an Outlook e-mail account:
1. Tap Start > ActiveSync.
2. Tap Menu > Options.
3. Tap E-mail > Settings, then select Include File Attachments.
If you have an IMAP4 e-mail account with an ISP or a VPN server
connection account:
1. Tap Start > Messaging.
2. Tap Menu > Tools > Options.
3. Tap the name of the IMAP4 account.
4. Tap Next until you reach Server information, and tap Options.
5. Tap Next twice, and select Get full copy of messages and When
getting full copy, get attachments.
6. To store attachments on a storage card rather than on the device,
tap Menu > Tools > Options > Storage tab, and select the Store
attachments on a storage card check box.
Continued
54
NOTE: Embedded images and objects cannot be received as
attachments.
An embedded message can be viewed as an attachment when using
IMAP4 to receive e-mail. However, this feature does not work if TNEF is
enabled so that you can receive meeting requests.
Use of dial-up and wireless Internet, e-mail, corporate networks, and
other wireless communications, such as Bluetooth-enabled devices, might
require separately purchased additional hardware and other compatible
equipment, in addition to a standard Wi-Fi infrastructure and a
separately purchased service contract. Check with your service provider
for availability and coverage in your area. Not all Web content may be
available. Some Web content might require installation of additional
software.
55
Replying to or Forwarding a Message
1. Open the message and tap Reply, or Menu > Reply All, or Menu >
Forward.
2. Enter your response. To quickly add common messages, tap Menu
> My Text and tap a desired message.
NOTE: To edit a My Text message, in a new message, tap Menu > My
Text > Edit My Text Messages. Tap the message you want to edit
and enter new text at the bottom of the screen.
3. To check the spelling, tap Menu > Spell Check.
4. Tap Send.
NOTE: To see more header information, scroll up.
To always include the original message, from the list view, tap Menu >
Tools > Options > Message tab, and select the When replying to e-mail,
include body check box.
In the Outlook E-mail account, you will send less data if you do not edit
the original message. This may reduce data transfer costs based on your
rate plan.
56
Adding an Attachment to a Message
1. In an open message, tap Menu > Insert and tap the item you want
to attach: Picture, Voice Note, or File.
2. Select the file you want to attach or record a voice note.
NOTE: Embedded objects cannot be attached to messages.
57
Installing an Online Address Book
Many e-mail servers can verify names with an online address book,
called a directory service, using Lightweight Directory Access Protocol
(LDAP). When you create an e-mail account, your e-mail server's
directory service is added to the Address tab, and you can choose to
enable it. After it is enabled, Messaging checks your contact list and then
the directory service to verify names that you enter in the To, Cc, and Bcc
fields.
To enable a directory service, or if you want to use additional services:
1. If you are adding a new account, ask your network administrator:
• for the name of the directory service and the server
• whether authentication is necessary for your server
2. Tap Start > Messaging > Menu > Tools > Options > Address
tab.
3. In the In Contacts, get e-mail addresses from list, select
which e-mail address book to check in Contacts. Contacts will be
checked first unless you select None.
4. If your e-mail server is already listed, select the server's directory
service check box to enable it and tap OK.
5. If your e-mail service is not listed, tap Add.
6. In the Directory name and Server boxes, enter the LDAP directory
and server names.
7. If authentication is necessary for your server, select the
Authentication is necessary on this server check box, and enter
your user name and password.
8. To have Messaging check this service, select the Check name
against this server check box.
Continued
58
NOTE: To delete a service, tap and hold the service, and tap Delete.
While synchronizing your Outlook E-mail account, disable any directory
services you have installed by clearing the Check name against this
server check box. This helps avoid getting error messages when
Messaging tries to verify names against the service that you are not
connected to.
59
Managing Folders
You can create, rename, or delete a folder or select it for synchronization.
1. Tap Menu > Switch Accounts, and select the account.
2. Tap Menu > Tools > Manage Folders.
3. Do one of the following:
• To create a subfolder, tap and hold a folder, and tap New.
• To change the name of a folder, tap and hold the folder, and
tap Rename.
• To delete a folder and its contents, tap and hold the folder,
and tap Delete.
• To select a folder for synchronization in an Outlook E-mail or
IMAP4 account, select the check box next to the folder.
NOTE: You must be online and connected to delete or rename an
Outlook E-mail or IMAP4 account folder.
Default folders (Drafts, Outbox, Inbox, Deleted Items, and Sent Items)
cannot be renamed or deleted.
60
Deleting All Messages and Folders
You can quickly delete all messages and the non-default folders in a
Messaging account.
1. Tap Start > Messaging.
2. Tap Menu > Tools > Clear <Account>.
All messages and folders linked to the selected account are
cleared, and memory is expanded on the HP iPAQ without
deleting messages on the server. The next time you connect, the
messages and folders are downloaded again.
NOTE: You cannot clear messages and folders from the Outlook E-mail
account.
61
Expansion Cards
62
Using Expansion Cards
Use optional expansion cards for:
•Expanding the memory of your HP iPAQ by using a Compact Flash
(CF) or Secure Digital (SD) memory card
•Adding functionality such as a Secure Digital Input/Output (SDIO)
camera
NOTE: Expansion cards must be purchased separately and are not
included with your HP iPAQ.
To locate information about expansion cards, visit the HP Web site at
www.hp.com/go/ipaqaccessories.
63
Installing an Expansion Card
To install an expansion card into the expansion slot on the HP iPAQ:
1. Locate the slot on the top of the HP iPAQ.
2. Remove the protective plastic card.
3. Insert the expansion card into the expansion slot and push the
connection edge of the card firmly into the expansion slot.
NOTE: If your expansion card is not recognized, follow the card
manufacturer’s instructions to install it.
If you have trouble installing an expansion card, try the following:
•Be sure the label is facing the front of the HP iPAQ.
•Be sure you are not inserting the card at an angle.
•Be sure you insert the connection area first.
64
Removing an Expansion Card
To remove a Secure Digital (SD) expansion card from the expansion slot
on the HP iPAQ:
1. Close all programs that are using the expansion card.
2. Remove the card from the expansion slot by slightly pushing
down on the card to unlock it.
3. When the card disengages and pops up, pull it from the
expansion slot.
CAUTION: SD cards must be unlocked before removal.
To remove a Compact Flash (CF) expansion card from the expansion slot
on the HP iPAQ, pull it from the expansion slot.
NOTE: HP recommends inserting the protective plastic cards that came
with your HP iPAQ into the expansion slots when they are not in use.
65
Viewing Content of an Expansion Card
Use File Explorer to view the files that are located on your optional
expansion card.
1. Tap Start > Programs > File Explorer.
2. Tap the Up soft key at the bottom of the screen, then select the
Storage Card folder to see a list of files and folders.
If the HP iPAQ does not recognize your expansion card, try the following:
•Be sure you have firmly pushed the expansion card down into the
expansion slot.
•Be sure to install any drivers that came with the expansion card.
•Reset the HP iPAQ by using the stylus to lightly press the Reset
button.
66
Connections
67
Connections
You can use your HP iPAQ to connect to and exchange information with
other handheld devices, your computer, various network types, or the
Internet. There are several ways to get connected, including:
•Infrared (Beam)
•Bluetooth
•Wi-Fi
All these connection types can be accessed by tapping Start >
Settings > Connections tab.
68
69
Infrared
70
Receiving an Infrared Beam
If you set your HP iPAQ to receive all incoming infrared (IR) beams, it
detects and notifies you of IR beams.
1. Tap Start > Settings > Connections tab > Beam.
2. Select the Receive all incoming beams check box.
3. Be sure your HP iPAQ is turned on and within close range of the
device that is beaming the information.
4. When prompted to receive an incoming beam, tap Yes to receive
the beamed information.
71
Synchronizing with the Infrared Connection
As an alternative to using the desktop cradle or autosync cable, you can
synchronize your HP iPAQ and your computer using the infrared
connection if you have an infrared port or an infrared USB adapter
installed on your computer. The infrared connection option works only on
computers that have Microsoft Windows 2000 or XP operating systems
installed.
To set up an infrared connection to a computer:
1. Synchronize your HP iPAQ with your computer using the desktop
cradle or autosync cable before the first time you establish an
ActiveSync connection via infrared.
2. Follow your computer manufacturer’s instructions to install and set
up an infrared port.
3. Remove the HP iPAQ from the cradle or autosync cable and line up
the infrared port with the computer infrared port so they are
unobstructed and within 12 inches (30.5 cm) of each other.
4. Initiate a connection by tapping Start > Programs >
ActiveSync > Tools > Connect via IR. Synchronization
begins on your device.
5. To disconnect, move the devices away from each other or tap X in
the upper right of the screen to turn off.
72
Beaming an Item
In the Calendar, Contacts, Notes, Tasks, Excel Mobile, Word Mobile, and
PowerPoint Mobile, you can beam files and information to other devices
using infrared.
1. From the program, select the item you want to beam, such as an
appointment in Calendar, a task in Tasks, a contact card in
Contacts, or a file in File Manager.
2. Tap Menu > Beam.
3. Align the infrared (IR) ports at close range until the target device
name appears, then tap the device to which you want to send the
item.
CAUTION: Files are saved automatically before they are beamed. If a
Word document or Excel workbook was created on a computer,
unsupported content and formatting may be lost when the files are
saved.
NOTE: If you want your HP iPAQ to detect or receive beams, tap Start
> Settings > Connections tab > Beam, and select the Receive all
incoming beams check box.
73
Wi-Fi
74
Wi-Fi
With wireless access, you do not need to use cables to connect your HP
iPAQ to the Internet. Instead, access points transmit data to and from your
wireless device. Your HP iPAQ can connect to an 802.11b WLAN or
connect directly to other WLAN-enabled devices. With Wi-Fi, you can:
•Access the Internet
•Send and receive e-mail
•Access corporate network information
•Use virtual private networks (VPNs) for secure remote access
•Use hotspots for wireless connectivity
From the Today screen, tap the iPAQ Wireless icon located in the
Navigation bar at the bottom of the screen to access the Wi-Fi features.
NOTE: Use of dial-up and wireless Internet, e-mail, corporate networks,
and other wireless communications, such as Bluetooth-enabled devices,
may require separately purchased additional hardware and other
compatible equipment, in addition to a standard Wi-Fi infrastructure and
a separately purchased service contract. Check with your service
provider for availability and coverage in your area. Not all web content
may be available. Some web content may require installation of
additional software.
75
Automatically Connecting to a Network
1. If Wi-Fi is on and one or more broadcast networks are present, the
Network Indicator icon appears in the Navigation bar. Tap
the network you want to connect to, then select whether the
network connects to the Internet (does not use proxy settings) or
Work (uses proxy settings).
2. If you are prompted for a Network Key (WEP), enter it and tap
Connect. If you are not sure, contact your network administrator.
CAUTION: A new network that does not request an encryption key may
not be a secure network. To check whether an existing network uses
encryption, check the Encryption Status of the network. Tap Start >
iPAQ Wireless > Wi-Fi icon > Settings button.
If you cannot connect to a network, be sure that:
•Wi-Fi is turned on.
•the HP iPAQ identified the network you want to connect to.
•you have added the necessary server information.
•the network you are attempting to connect to is not busy.
•the proper drivers for your card are installed if you are using an
SDIO Ethernet card
•your user name and password are correct.
•WEP key is correct.
•IP Address is correct.
•the hardware you are using with your HP iPAQ is properly
configured and operational.
•the HP iPAQ is within range of the access point.
Tap Start > Settings > Connections tab > Connections and check
your connection settings. Tap OK when you are finished to save your
changes.
You can also reset the device. To reset the device, use the stylus and lightly
press the Reset button.
76
If you cannot connect to an available network that shows in the list of
networks without a name, it is likely that the network is a “hidden” or non-
SSID broadcast network. You must know the network name (SSID) to be
able to connect. Try the following:
1. Tap Start > Settings > Connections tab > Connections
icon > Advanced tab > Network Card.
2. Select Add Network Settings.
3. Enter the network name (SSID).
4. Select the appropriate values in the Connects to box.
5. If WEP settings are required, tap the Authentication tab and
enter them.
If you cannot connect reliably to an available network or connections are
frequently dropped, be sure there is ample signal strength available in the
area.
Monitoring Signal Strength and Status
To view the signal strength between your HP iPAQ and an access point
Wi-Fi connection:
1. Tap the Connections icon in the Navigation bar.
2. When the Connectivity box displays, you will be able to view
the type of network the HP iPAQ is connected to (for example,
Work or Internet) and an icon displaying the signal strength.
NOTE: The Signal Strength icon will not be displayed if a connection
is not present.
3. To make changes to the connection settings, tap Settings.
4. To exit the Connectivity box, tap the Hide button.
For more detailed information:
1. Tap Start > iPAQ Wireless.
2. Tap the Wi-Fi icon to turn Wi-Fi on.
3. Tap the Manager button.
4. If a wireless connection has been established, you can view
information on signal strength, SSID, Encryption Status, Access
Point, and IP Address.
5. To add a new wireless network, tap the Configure Wireless
Networks button.
6. For more detailed information on your connection status, tap the
Advanced tab.
78
Entering New Settings
You can add a wireless network when the network is detected. Or, you
can manually add it by entering settings information.
1. To manually enter information, tap Start > Settings >
Connections tab > Network Cards > Wireless tab.
2. Tap Add New. If the network was detected, tap the network
name.
3. In the General tab, enter a network name. If the network was
detected, the network name is entered automatically and can’t be
changed.
4. In Connects to, select what your network connects to, Work or
My ISP. To connect directly to another computer instead of a
network access point, select the This is a device-to-device
(ad-hoc) connection check box.
79
Searching for Networks to Access
1. Networks you have already configured are preferred networks.
You can choose whether to connect only to preferred networks or
to have your HP iPAQ search for and connect to any available
network (preferred or not).
2. From the Today screen, tap the iPAQ Wireless icon.
3. Tap the Wi-Fi icon to turn Wi-Fi on.
4. Tap the Settings button > Wireless tab.
5. In the Networks to access box, tap the type of network you
want to connect to (All Available, Only access points, or
Only computer-to-computer).
6. To connect only to networks that have already been configured,
clear the Automatically connect to non-preferred
networks checkbox.
NOTE: If you check the Automatically connect to non-preferred
networks checkbox, your HP iPAQ detects any new networks and
provides you the opportunity to configure them.
80
Setting Up a Wireless Network
1. Tap Start > Settings > Connections tab > Network Cards
> Wireless tab.
2. Do one of the following:
• If you do not see a desired network, tap Add New and
follow the instructions on the screen.
• Any networks that you have already configured are preferred
networks and are listed under Wireless networks. To
change network settings, in Wireless networks, tap a
network.
NOTE: To manually start a connection, tap and hold the connection,
then tap Connect.
If you cannot see your wireless network on your HP iPAQ, it could be a
non-broadcasting network. Try the following:
1. Tap Start > Settings > Connections tab > Connections
icon > Settings.
2. Tap the Advanced tab > Select Networks.
3. Follow the on-screen instructions.
81
Deleting a Wireless Network
You can delete networks you manually entered. However, if a network
was automatically detected, you are not able to delete it.
To delete an existing or available wireless network:
1. From the Today screen, tap the iPAQ Wireless icon.
2. Tap the Wi-Fi icon to turn Bluetooth on.
3. Tap the Settings button > Wireless tab.
4. In the Wireless networks box, tap and hold the network you
want to delete.
5. Tap Remove Settings.
82
Setting Up an Automatic Choice for Connections
If you have already created more than one connection, you can set up
your HP iPAQ to connect to the best available connection automatically.
1. Tap Start > Settings > Connections tab > Connections.
2. Under My ISP or My Work Network, tap Manage
existing connections.
3. Tap Auto pick.
83
Logging on to Network Services
Before you begin, obtain the following information from your network
administrator:
•user name
•password
•domain
To log on to a network service:
1. Enter your user name, password, and domain.
2. To save your password so that you can be prompted each time you
connect, select the Save password check box.
84
Connecting to Intranet URLs
If you want to connect to intranet sites that have periods in their URLs (for
example, intranet.companyname.com), you must add them to the Work
URL Exceptions list.
1. Tap Start > Settings > Connections tab.
2. Tap Connections > Advanced tab > Exceptions.
3. Tap Add new URL.
4. In Work URL, enter the intranet URL.
NOTE: If you use many URLs that share the same root company name,
you can avoid entering them inidividually by entering
*.companyname.com.
85
Connecting to the Internet
Before you begin, obtain the following information from your Internet
Service Provider (ISP) or wireless service provider:
•ISP server phone number or access point
•user name
•password
To connect to the Internet:
1. Tap Start > Settings > Connections tab.
2. Do one of the following:
• Tap Connections, and in My ISP set up a modem
connection.
• Tap Network Cards and set up a network card or a
wireless network connection.
3. To start the connection, insert any necessary equipment into your
HP iPAQ, such as a modem card or network (Ethernet) card. Begin
using the desired program. For example, switch to Internet Explorer
Mobile and browse the Internet. Your HP iPAQ will connect
automatically. To manually start a connection, tap and hold the
connection, then tap Connect.
NOTE: To set up a network card or wireless network connection to your
ISP, add a new connection in Network Cards.
To delete a connection, tap and hold the connection, then tap Delete.
86
Connecting to My Work Network
Before you begin, obtain the following information from your network
administrator:
•user name
•password
•server phone number
To connect to My Work Network:
1. Tap Start > Settings > Connections tab.
2. Do one of the following:
• Tap Connections. Under My Work Network, tap the
appropriate selection to set up a modem or VPN server
connection.
• Tap Network Cards and set up a network card or a
wireless network connection.
3. To start a connection, insert your modem card or network card.
Begin using the desired program. For example, switch to Internet
Explorer Mobile and browse the Internet. Your HP iPAQ will
connect automatically. To manually start a connection, tap and
hold the connection, then tap Connect.
NOTE: To delete a connection, tap and hold the connection, then tap
Delete.
87
Ending a Connection
It can be useful to end a connection when you are done using it. This frees
resources on your HP iPAQ and can save connection charges.
•When connected via a modem or VPN, tap Connections icon >
Disconnect.
•When connected via a cable or cradle, detach your device from
the cable or cradle.
•When connected via infrared or Bluetooth, move the HP iPAQ
away from the other computer or device.
•When connected via a network (Ethernet) card, remove the card
from your device.
88
Advanced Network Settings
89
Looking Up an IP Address
To find the IP address, which the wireless network is using:
1. Be sure Wi-Fi is turned on.
2. Connect to a network by tapping Stat > Settings >
Connections tab > Connections icon > Advanced tab >
Select Networks button.
If you have already connected to a network, skip to step 5.
3. Select the network name you want to use to either connect to the
Internet using an ISP or a Virtual Private Network (VPN) for work. If
you need to change or create a new network management name,
tap the Edit... or New... button. Tap OK once you have
completed this step.
4. From the Connections screen, set up your Dialing Rules and
Exceptions and press OK.
5. From the iPAQ Wireless screen, tap the Wi-Fi Settings button
> Network Adapters tab.
6. Tap the appropriate adapter to modify the settings. The IP address
appears in the IP Address box.
90
Setting Up a Network Card
Use a network card to connect directly to an Ethernet network. Once
connected, you can view the Internet or intranet or download e-mail. Be
sure to purchase and configure a network card that is compatible with
your HP iPAQ.
Before you begin, obtain the following information from your network
administrator:
•user name
•password
•domain name
•proxy server, if required by your network
•VPN connection settings, if required by your network
To set up a network card:
1. Insert the network card into your HP iPAQ.
2. The first time you insert the card, Network Settings should appear
automatically to allow configuration of the network card. If it does
not appear, or to change settings later, from the Today screen,
tap the iPAQ Wireless icon, then tap the Wi-Fi icon to turn Wi-
Fi on. Tap the Settings button > Wireless tab.
3. To enter specific server information, on the Network Adapters
tab, tap the appropriate network adapter, then tap the Name
Servers tab. Most networks use DHCP so you should not have to
change these settings unless instructed to do so by your network
administrator.
4. If necessary, connect the network card to the network using
network cable. For information, see the documentation that came
with your network card.
5. To start a connection, insert the network card, and begin using the
desired program (such as Internet Explorer Mobile) to browse the
Internet. Your device will connect automatically.
91
NOTE: If you use your network card with two networks, such as a private
network at work and one at home for the Internet, you will need to
change the network to which the network card connects. For more
information, refer to “Changing Network Card Settings.”
92
Changing Network Card Settings
If you use your network card in two locations, such as work and home,
you must also change the network to which the network card connects.
1. Tap Start > Settings > Connections tab > Network Cards
> Network Adapters tab.
2. In the My network card connects to list, select Internet or
Work. When connecting to a private network, such as a
corporate network at work, select Work. When connecting to
your ISP at home, select Internet.
93
Setting Up a VPN Server Connection
A VPN connection helps you to securely connect to servers, such as a
corporate network, via the Internet.
Before you begin, obtain the following information from your network
administrator:
•user name
•password
•domain name
•TCP/IP settings
•host name or IP address of the VPN server
To set up a VPN server connection:
1. Tap Start > Settings > Connections tab > Connections.
2. Under My Work Network, tap Add a new VPN server
connection and follow the instructions in the New Connection
wizard.
3. Under most circumstances, you should not need to change any
advanced settings. However, you must change advanced settings
when:
• The server to which you are connecting does not use
dynamically-assigned addresses, and you need to enter your
TCP/IP settings.
• You need to change server DNS or WINS settings.
If either of these circumstances applies, from the My VPN screen,
tap the Advanced button and fill in the appropriate information.
Tap OK to save the changes and return to the My VPN screen.
4. To view additional information for any screen in the wizard or
while changing settings, tap the Help question mark.
94
NOTE: To change existing settings, under My Work Network, tap
Manage existing connections > VPN tab. Select the desired VPN
connection, tap Edit, then follow the instructions on the screen.
To manually start a connection, tap and hold the connection, then tap
Connect.
To delete a connection, tap and hold the connection you want to
remove, then tap Delete.
95
Setting Up Proxy Server Settings
If you are connected to your Internet Service Provider (ISP) or private
network during synchronization, your device should download proper
proxy settings during synchronization from your computer. If these settings
are not on your computer or need to be changed, you can change them
manually.
Before you begin, obtain the following information from your Internet
Service Provider (ISP) or network administrator:
•user name
•password
•server type
•proxy server name
•port
•type of Socks protocol used
To set up proxy server settings:
1. Tap Start > Settings > Connections tab > Connections.
2. If a proxy server has not been set up, tap Set up my proxy
server. Otherwise, tap Edit my proxy server, select the
desired proxy server, and tap Settings.
3. Select the This network connects to the Internet and This
network uses a proxy server to connect to the Internet
check boxes.
4. In the Proxy server box, enter the proxy server name.
5. To change such settings as port number or proxy server type, tap
Advanced and change desired settings.
NOTE: To manually start a connection, tap and hold the connection,
then tap Connect.
To delete a connection, tap and hold the connection you want to
remove, then tap Delete.
96
Configuring Advanced Proxy Settings
1. For the appropriate server type, enter the proxy server name and
port.
2. If necessary, enter the credentials for connecting with your proxy
server.
3. If you are configuring a Socks proxy, select Socks 4 or Socks 5.
If using Socks 5, enter the credentials for connecting with your
proxy server.
97
Changing a Connection Group Name
Your device is already set up with two groups of connection settings: My
ISP and My Work Network. You can change the name of these groups to
something more meaningful. For example, if you put all of your corporate
settings under My Work Network connections, you can change the name
to your company’s name.
1. Tap Start > Settings > Connections tab > Connections.
2. Under My ISP or My Work Network, tap Manage Existing
Connections.
3. Tap the General tab.
4. Enter a name for the settings group.
98
Changing an Intranet URL
1. Tap Start > Settings > Connections tab.
2. Tap Connections > Advanced tab > Exceptions.
3. Tap the intranet URL exception you want to change, then make the
desired changes.
NOTE: To delete a work URL exception, tap and hold it in the list, then
tap Delete.
99
Changing Server Settings
You should not need to change these settings unless your server does not
use dynamically-assigned IP addresses. Most ISPs and private networks
use dynamically-assigned IP addresses.
Servers that require an assigned IP address may also require a way to
map computer names to IP addresses. Your device supports two name
resolution options: DNS and WINS.
Contact your ISP to determine which name resolution you need to use,
obtain the specific server address, and enter the information in the
Server tab. Also, ask if alternate addresses are available. An alternate
address may enable you to connect when the primary server is
unavailable.
100
Setting Up a Wireless Access Point (WAP)
Gateway
To access WAP sites through Internet Explorer Mobile, configure your
device to use a WAP gateway. Use the following steps to create a new
set of connections to the Internet with WAP gateway settings.
Before you begin, obtain the following information from your Internet
Service Provider (ISP), wireless service provider, or network administrator:
•user name
•password
•ISP server phone number
•WAP gateway server name
•port number
To set up a WAP gateway:
1. Tap Start > Settings > Connections tab > Connections.
2. Tap Edit my proxy server. If a proxy server has not been set
up, tap Set up my proxy server.
3. On the Proxy Settings tab, select the This network
connects to the Internet and This network uses a proxy
server to connect to the Internet check boxes.
4. If necessary, in the Proxy server box, enter the proxy server
name.
5. Tap Advanced > WAP.
6. In the Server box, enter the WAP gateway server name. Under
Port, enter the port number. The most common WAP port number
is 9201.
7. Enter any logon credentials required by the WAP gateway server.
101
Changing Modem Connection Settings
Before you begin, obtain the following information from your Internet
Service Provider (ISP) or wireless service provider:
•user name
•password
•domain name
•TCP/IP settings, if necessary
•ISP server phone number or access point
To change modem connection settings:
1. Insert a modem card.
2. Tap Start > Settings > Connections tab > Connections.
3. In either My ISP or My Work Network, tap Manage
existing connections.
4. Select the desired modem connection, tap Edit, then follow the
instructions in the connection wizard.
NOTE: To manually start a connection, tap and hold the connection,
then tap Connect.
To delete a connection, tap and hold the connection you want to
remove, then tap Delete.
102
Configuring Network Security Settings
A wireless network can be added when the network is automatically
detected. Or, you can manually enter the settings information to add the
network. Before doing these steps, determine if authentication information
is needed.
1. To manually enter information, tap Start > Settings >
Connections tab > Network Cards > Wireless tab.
2. In Wireless networks, select the network you want to
configure.
3. To use authentication, tap the Network Key tab and select the
authentication method from the Authentication list.
4. To use data encryption, select an encryption method from the
Data encryption list.
5. To automatically use a network key, tap The key is
automatically provided. Otherwise, enter the network key.
103
Configuring 802.1x Authentication Settings
Before performing these steps, determine if authentication information is
needed.
1. To manually enter information, tap Start > Settings >
Connections tab > Network Cards > Wireless tab.
2. In Wireless networks, select the network you want to
configure.
3. For increased security, tap 802.1X tab > Use IEEE 802.1x
network access control. Then select the appropriate EAP type.
104
Regulatory Notices
105
Battery Warning
WARNING! This HP iPAQ device contains a LITHIUM-ION rechargeable
battery. To reduce the risk of fire or burns, do not disassemble, crush,
puncture, short external contacts, or dispose of in fire or water. Replace
only with the HP battery Spare Part Number 383745-001. Replacing
with a non-approved HP battery will void the warranty.
CAUTION: Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Because of the type of battery used in your HP iPAQ, follow local
regulations regarding the safe disposal of the battery. Your vendor
can advise you on local regulations, and/or the existence of any
battery disposal programs in operation.
106
Taiwan Battery Recycling Notice
107
Canadian Notice
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les exigences du
Règlement sur le matériel brouilleur du Canada.
Disposal of Waste Equipment by Users in Private
Household in the European Union
This symbol on the product or on its packaging indicates that
this product must not be disposed of with your other household
waste. Instead, it is your responsibility to dispose of your
waste equipment by handing it over to a designated collection
point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your
waste equipment at the time of disposal will help to conserve natural
resources and ensure that it is recycled in a manner that protects human
health and the environment. For more information about where you can
drop off your waste equipment for recycling, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.
Likvidace zaízení soukromými domácí
mi uživateli v
Evropské unii
Tento symbol na produktu nebo balení označuje výrobek, který
nesmí být vyhozen spolu s ostatním domácím odpadem.
Povinností uživatele je pedat takto označený odpad na
pedem určené sbrné místo pro recyklaci elektrických a
elektronických zaízení. Okamžité tídní a recyklace odpadu
pomže uchovat pírodní prostedí a zajistí takový zpsob
recyklace, který ochrání zdraví a životní prostedí človka. Další
informace o možnostech odevzdání odpadu k recyklaci získáte na
píslušném obecním nebo mstském úad, od firmy zabývající se sbrem
a svozem odpadu nebo v obchod, kde jste produkt zakoupili.
Bortskaffelse af brugt udstyr hos brugere i private
hjem i EU
Dette symbol på produktet eller på emballagen angiver, at
dette produkt ikke må bortskaffes sammen med det øvrige
husholdningsaffald. I stedet er det dit ansvar at bortskaffe dit
brugte udstyr ved at aflevere det ved et autoriseret
indsamlingssted med henblik på genbrug af elektrisk og
elektronisk udstyr. Den særskilte indsamling og genbrug af dit
brugte udstyr i forbindelse med bortskaffelsen er med til at bevare
naturlige ressourcer og sikre, at udstyret genbruges på en måde, som
beskytter helbred og miljø. Yderligere oplysninger om steder, hvor du kan
aflevere dit brugte udstyr med henblik på genbrug, kan du få på dit lokale
kommunekontor, hos renovationsfirmaet for dit lokalområde eller den
butik, hvor du købte produktet.
Seadmete jäätmete kõrvaldamine
eramajapidamistes Euroopa Liidus
See tootel või selle pakendil olev sümbol näitab, et kõnealust
toodet ei tohi koos teiste majapidamisjäätmetega kõrvaldada.
Teie kohus on oma seadmete jäätmed kõrvaldada, viies need
elektri- ja elektroonikaseadmete jäätmete ringlussevõtmiseks
selleks ettenähtud kogumispunkti. Seadmete jäätmete eraldi
kogumine ja ringlussevõtmine kõrvaldamise ajal aitab kaitsta
loodusvarasid ning tagada, et ringlussevõtmine toimub viisil, mis kaitseb
inimeste tervist ning keskkonda. Lisateabe saamiseks selle kohta, kuhu
oma seadmete jäätmed ringlussevõtmiseks viia, võtke palun ühendust
oma kohaliku linnakantselei, majapidamisjäätmete kõrvaldamise
teenistuse või kauplusega, kust Te toote ostsite.
Laitteiden hävittäminen kotitalouksissa Euroopan
unionin alueella
Jos tuotteessa tai sen pakkauksessa on tämä merkki, tuotetta ei
saa hävittää kotitalousjätteiden mukana. Tällöin hävitettävä
laite on toimitettava sähkölaitteiden ja elektronisten laitteiden
kierrätyspisteeseen. Hävitettävien laitteiden erillinen käsittely
ja kierrätys auttavat säästämään luonnonvaroja ja
varmistamaan, että laite kierrätetään tavalla, joka estää
terveyshaitat ja suojelee luontoa. Lisätietoja paikoista, joihin hävitettävät
laitteet voi toimittaa kierrätettäväksi, saa ottamalla yhteyttä jätehuoltoon
tai liikkeeseen, josta tuote on ostettu.
Élimination des appareils mis au rebut par les
ménages dans l'Union européenne
Le symbole apposé sur ce produit ou sur son emballage
indique que ce produit ne doit pas être jeté avec les déchets
ménagers ordinaires. Il est de votre responsabilité de mettre
au rebut vos appareils en les déposant dans les centres de
collecte publique désignés pour le recyclage des équipements
électriques et électroniques. La collecte et le recyclage de vos
appareils mis au rebut indépendamment du reste des déchets contribue à
la préservation des ressources naturelles et garantit que ces appareils
seront recyclés dans le respect de la santé humaine et de l'environnement.
Pour obtenir plus d'informations sur les centres de collecte et de recyclage
des appareils mis au rebut, veuillez contacter les autorités locales de votre
région, les services de collecte des ordures ménagères ou le magasin
dans lequel vous avez acheté ce produit.
Entsorgung von Altgeräten aus privaten Haushalten
in der EU
Das Symbol auf dem Produkt oder seiner Verpackung weist
darauf hin, dass das Produkt nicht über den normalen
Hausmüll entsorgt werden darf. Benutzer sind verpflichtet, die
Altgeräte an einer Rücknahmestelle für Elektro- und Elektronik-
Altgeräte abzugeben. Die getrennte Sammlung und
ordnungsgemäße Entsorgung Ihrer Altgeräte trägt zur
Erhaltung der natürlichen Ressourcen bei und garantiert eine
Wiederverwertung, die die Gesundheit des Menschen und die Umwelt
schützt. Informationen dazu, wo Sie Rücknahmestellen für Ihre Altgeräte
finden, erhalten Sie bei Ihrer Stadtverwaltung, den örtlichen
Müllentsorgungsbetrieben oder im Geschäft, in dem Sie das Gerät
erworben haben.
ᡝ♙ᡞᡞᡖᡤᡔ ♒ᡣᡞᡔᡟᡠᡜᡡ ᡒᡛᡜᡝᡘᡖᡟµᡜ♜ ᡎᡝ♙ ᡣᡞ♖ᡟᡠᡒ⍿ ᡟᡒ
ᡖᡑᡖᡥᡠᡖᡗ♒ ᡚᡜᡖᡗᡜᡗᡡᡞᡖ♒ ᡟᡠᡔᡚ ᡡᡞᡥᡝᡎ⛺ᡗ♖ ϵᡚᡥᡟᡔ
ᡇᡜ ᡟ♜µᡏᡜᡘᡜ ᡎᡡᡠ♙ ᡟᡠᡜ ᡝᡞᡜ⛺♙ᡚ ♖ ᡠᡔ ᡟᡡᡟᡗᡒᡡᡎᡟ♘ᡎ ᡠᡜᡡ ᡡᡝᡜᡑᡒᡖᡗᡚ♜ᡒᡖ
♙ᡠᡖ ᡠᡜ ᡟᡡᡐᡗᡒᡗᡞᡖµ♔ᡚᡜ ᡝᡞᡜ⛺♙ᡚ ᡑᡒᡚ ᡝᡞ♔ᡝᡒᡖ ᡚᡎ ᡑᡖᡎᡠ♘ᡕᡒᡠᡎᡖ µᡎᡓ♘ µᡒ ᡠᡎ
♒ᡘᡘᡎ ᡜᡖᡗᡖᡎᡗ♒ ᡟᡎ⍿ ᡎᡝᡜᡞᡞ♘µµᡎᡠᡎ. ᡚᡠ♘ᡕᡒᡠᡎ, ᡒ♘ᡚᡎᡖ ᡑᡖᡗ♖ ᡟᡎ⍿
ᡒᡡᡕ♜ᡚᡔ ᡚᡎ ᡎᡝᡜᡞᡞ♘ᡤᡒᡠᡒ ᡠᡜᡚ ♒ᡣᡞᡔᡟᡠᡜ ᡒᡛᡜᡝᡘᡖᡟµ♙ ᡟᡎ⍿
ᡝᡎᡞᡎᡑ♘ᡑᡜᡚᡠ♒⍿ ᡠᡜᡚ ᡟᡒ ᡗᡎᡕᡜᡞᡖᡟµ♔ᡚᡜ ᡟᡔµᡒ♘ᡜ ᡟᡡᡘᡘᡜᡐ♖⍿ ᡐᡖᡎ ᡠᡔᡚ
ᡎᡚᡎᡗ♜ᡗᡘᡥᡟᡔ ♒ᡣᡞᡔᡟᡠᡜᡡ ᡔᡘᡒᡗᡠᡞᡖᡗᡜ♜ ᡗᡎᡖ ᡔᡘᡒᡗᡠᡞᡜᡚᡖᡗᡜ♜
ᡒᡛᡜᡝᡘᡖᡟµᡜ♜. ᡛᡒᡣᡥᡞᡖᡟᡠ♖ ᡟᡡᡘᡘᡜᡐ♖ ᡗᡎᡖ ᡎᡚᡎᡗ♜ᡗᡘᡥᡟᡔ ᡠᡜᡡ ♒ᡣᡞᡔᡟᡠᡜᡡ
ᡒᡛᡜᡝᡘᡖᡟµᡜ♜ ᡟᡎ⍿ ᡗᡎᡠ♒ ᡠᡔᡚ ᡎᡝ♙ᡞᡞᡖᡤᡔ ᡕᡎ ᡟᡡµᡏ♒ᡘᡒᡖ ᡟᡠᡔ ᡑᡖᡎᡠ♖ᡞᡔᡟᡔ ᡠᡥᡚ
ᡢᡡᡟᡖᡗ♝ᡚ ᡝ♙ᡞᡥᡚ ᡗᡎᡖ ᡕᡎ ᡑᡖᡎᡟᡢᡎᡘ♘ᡟᡒᡖ ♙ᡠᡖ ᡔ ᡎᡚᡎᡗ♜ᡗᡘᡥᡟᡔ ᡐ♘ᡚᡒᡠᡎᡖ µᡒ ᡠᡞ♙ᡝᡜ ᡝᡜᡡ
ᡝᡞᡜᡟᡠᡎᡠᡒ♜ᡒᡖ ᡠᡔᡚ ᡎᡚᡕᡞ♝ᡝᡖᡚᡔ ᡡᡐᡒ♘ᡎ ᡗᡎᡖ ᡠᡜ ᡝᡒᡞᡖᡏ♒ᡘᡘᡜᡚ. ᡖᡎ ᡝᡒᡞᡖᡟᡟ♙ᡠᡒᡞᡒ⍿
ᡝᡘᡔᡞᡜᡢᡜᡞ♘ᡒ⍿ ᡟᡣᡒᡠᡖᡗ♒ µᡒ ᡠᡜ ᡝᡜ♜ µᡝᡜᡞᡒ♘ᡠᡒ ᡚᡎ ᡝᡎᡞᡎᡑ♝ᡟᡒᡠᡒ ᡠᡜᡚ ♒ᡣᡞᡔᡟᡠᡜ
ᡒᡛᡜᡝᡘᡖᡟµ♙ ᡟᡎ⍿ ᡐᡖᡎ ᡎᡚᡎᡗ♜ᡗᡘᡥᡟᡔ, ᡒᡝᡖᡗᡜᡖᡚᡥᡚ♖ᡟᡠᡒ µᡒ ᡠᡜ ᡎᡞµ♙ᡑᡖᡜ ᡠᡜᡝᡖᡗ♙
ᡐᡞᡎᡢᡒ♘ᡜ, ᡠᡔᡚ ᡠᡜᡝᡖᡗ♖ ᡡᡝᡔᡞᡒᡟ♘ᡎ ᡑᡖ♒ᡕᡒᡟᡔ⍿ ᡜᡖᡗᡖᡎᡗ♝ᡚ ᡎᡝᡜᡞᡞᡖµµ♒ᡠᡥᡚ ♖ ᡠᡜ
ᡗᡎᡠ♒ᡟᡠᡔµᡎ ♙ᡝᡜᡡ ᡎᡐᡜᡞ♒ᡟᡎᡠᡒ ᡠᡜ ᡝᡞᡜ⛺♙ᡚ.
Készülékek magánháztartásban történ selejtezése
az Európai Unió területén
A készüléken, illetve a készülék csomagolásán látható azonos
szimbólum annak jelzésére szolgál, hogy a készülék a
selejtezés során az egyéb háztartási hulladéktól eltér módon
kezelend. A vásárló a hulladékká vált készüléket köteles a
kijelölt gyjthelyre szállítani az elektromos és elektronikai
készülékek újrahasznosítása céljából. A hulladékká vált
készülékek selejtezéskori begyjtése és újrahasznosítása hozzájárul a
természeti erforrások megrzéséhez, valamint biztosítja a selejtezett
termékek környezetre és emberi egészségre nézve biztonságos
feldolgozását. A begyjtés pontos helyérl bvebb tájékoztatást a
lakhelye szerint illetékes önkormányzattól, az illetékes szemételtakarító
vállalattól, illetve a terméket elárusító helyen kaphat.
Smaltimento delle apparecchiature da parte di
privati nel territorio dell'Unione Europea
Questo simbolo presente sul prodotto o sulla sua confezione
indica che il prodotto non può essere smaltito insieme ai rifiuti
domestici. È responsabilità dell'utente smaltire le
apparecchiature consegnandole presso un punto di raccolta
designato al riciclo e allo smaltimento di apparecchiature
elettriche ed elettroniche. La raccolta differenziata e il corretto
riciclo delle apparecchiature da smaltire permette di proteggere la salute
degli individui e l'ecosistema. Per ulteriori informazioni relative ai punti
di raccolta delle apparecchiature, contattare l'ente locale per lo
smaltimento dei rifiuti, oppure il negozio presso il quale è stato acquistato
il prodotto.
Vartotojƥ iš privačiƥ namƥ ʦkiƥ ʂrangos atliekƥ
šalinimas Europos Séjungoje
Šis simbolis ant gaminio arba jo pakuot଼s rodo, kad šio
gaminio šalinti kartu su kitomis namƥ ʦkio atliekomis negalima.
Šalintinas ʂrangos atliekas privalote pristatyti ʂ specialié
surinkimo vieté elektros ir elektronin଼s ʂrangos atliekoms
perdirbti. Atskirai surenkamos ir perdirbamos šalintinos
ʂrangos atliekos pad଼s saugoti gamtinius išteklius ir užtikrinti,
kad jos bus perdirbtos tokiu bʦdu, kuris nekenkia žmoniƥ sveikatai ir
aplinkai. Jeigu norite sužinoti daugiau apie tai, kur galima pristatyti
perdirbtinas ʂrangos atliekas, kreipkit଼s ʂ savo seniʦnijé, namƥ ʦkio
atliekƥ šalinimo tarnybé arba parduotuvê, kurioje ʂsigijote gaminʂ.
Nolietotu iekrtu iznɾcinšanas noteikumi lietotjiem
Eiropas Savienɾbas privtajs mjsaimniecɾbs
Šds simbols uz izstrdjuma vai uz t iesai⎏ojuma norda,
ka šo izstrdjumu nedrɾkst izmest kop ar citiem sadzɾves
atkritumiem. Jʦs atbildat par to, lai nolietots iekrtas tiktu
nodotas specili iekrtotos punktos, kas paredzɶti izmantoto
elektrisko un elektronisko iekrtu savkšanai otrreizɶjai
prstrdei. Atseviš⎍a nolietoto iekrtu savkšana un otrreizɶj
prstrde palɾdzɶs saglabt dabas resursus un garantɶs, ka šɾs iekrtas
tiks otrreizɶji prstrdtas td veid, lai pasargtu vidi un cilvɶku
veselɾbu. Lai uzzintu, kur nolietots iekrtas var izmest otrreizɶjai
prstrdei, jvɶršas savas dzɾves vietas pašvaldɾb, sadzɾves atkritumu
savkšanas dienest vai veikal, kur izstrdjums tika nopirkts.
Verwijdering van afgedankte apparatuur door privé-
gebruikers in de Europese Unie
Dit symbool op het product of de verpakking geeft aan dat dit
product niet mag worden gedeponeerd bij het normale
huishoudelijke afval. U bent zelf verantwoordelijk voor het
inleveren van uw afgedankte apparatuur bij een
inzamelingspunt voor het recyclen van oude elektrische en
elektronische apparatuur. Door uw oude apparatuur apart aan
te bieden en te recyclen, kunnen natuurlijke bronnen worden behouden
en kan het materiaal worden hergebruikt op een manier waarmee de
volksgezondheid en het milieu worden beschermd. Neem contact op met
uw gemeente, het afvalinzamelingsbedrijf of de winkel waar u het
product hebt gekocht voor meer informatie over inzamelingspunten waar
u oude apparatuur kunt aanbieden voor recycling.
Eliminering av utstyr i privathusholdningen i Den
europeiske unions medlemsland
Dette symbolet på produktet eller emballasjen betyr at
produktet ikke må kastes med vanlig husholdningsavfall. I
stedet er du ansvarlig for at utbrukt utstyr leveres inn til et angitt
innsamlingssted for resirkulering av elektrisk og elektronisk
utstyr. Denne separate innsamlingen og resirkuleringen av
utbrukt utstyr vil bidra til å bevare naturressursene -
resirkuleringen foretas på en måte som beskytter menneskelig helse og
miljø. For å få vite hvor du kan levere inn utbrukt utstyr for resirkulering,
vennligst ta kontakt med det lokale kommunekontoret, renovasjonsvesenet
eller forretningen der du kjøpte produktet.
Pozbywanie si zuytego sprztu przez
uytkowników w prywatnych gospodarstwach
domowych w Unii Europejskiej
Ten symbol na produkcie lub jego opakowaniu oznacza, e
produktu nie wolno wyrzucać do zwykłych pojemników na
mieci. Obowizkiem uytkownika jest przekazanie zuytego
sprztu do wyznaczonego punktu zbiórki w celu recyklingu
odpadów powstałych ze sprztu elektrycznego i
elektronicznego. Osobna zbiórka oraz recykling zuytego
sprztu pomog w ochronie zasobów naturalnych i zapewni ponowne
wprowadzenie go do obiegu w sposób chronicy zdrowie człowieka
i rodowisko. Aby uzyskać wicej informacji o tym, gdzie mona
przekazać zuyty sprzt do recyklingu, naley si skontaktować z
urzdem miasta, zakładem gospodarki odpadami lub sklepem, w którym
zakupiono produkt.
Destruição, por Utilizadores na União Europeia, de
Equipamento Usado no Lixo Doméstico
Este símbolo, no produto ou na respectiva embalagem, indica
que este material não deve ser destruído com outro lixo
doméstico. É da sua responsabilidade destruir o equipamento
usado levando-o para um local de recolha apropriado,
destinado à reciclagem de produtos eléctricos e electrónicos
usados. A recolha e reciclagem separada do seu
equipamento doméstico quando da destruição, ajudará a preservar os
recursos naturais e a assegurar que ele é reciclado através de um
processo que protege a saúde humana e o ambiente. Para obter mais
informações sobre onde pode colocar o seu equipamento usado para
reciclagem, contacte a entidade responsável local, o serviço de
destruição do lixo doméstico, ou a loja onde adquiriu o produto.
Bortskaffande av avfallsprodukter från användare i
privathushåll inom Europeiska Unionen
Om den här symbolen visas på produkten eller förpackningen
betyder det att produkten inte får slängas på samma ställe som
hushållssopor. I stället är det ditt ansvar att bortskaffa avfallet
genom att överlämna det till ett uppsamlingsställe avsett för
återvinning av avfall från elektriska och elektroniska produkter.
Separat insamling och återvinning av avfallet hjälper till att
spara på våra naturresurser och gör att avfallet återvinns på ett sätt som
skyddar människors hälsa och miljön. Kontakta ditt lokala kommunkontor,
din närmsta återvinningsstation för hushållsavfall eller affären där du
köpte produkten för att få mer information om var du kan lämna ditt avfall
för återvinning.
Odstranjevanje odslužene opreme uporabnikov v
zasebnih gospodinjstvih v Evropski uniji
Ta znak na izdelku ali njegovi embalaži pomeni, da izdelka
ne smete odvreči med gospodinjske odpadke. Nasprotno,
odsluženo opremo morate predati na zbirališče, pooblaščeno
za recikliranje odslužene električne in elektronske opreme.
Ločeno zbiranje in recikliranje odslužene opreme prispeva k
ohranjanju naravnih virov in zagotavlja recikliranje te opreme
na zdravju in okolju neškodljiv način. Za podrobnejše informacije o tem,
kam lahko odpeljete odsluženo opremo na recikliranje, se obrnite na
pristojni organ, komunalno službo ali trgovino, kjer ste izdelek kupili.
Likvidácia vyradených zariadení v domácnostiach v
Európskej únii
Symbol na výrobku alebo jeho balení označuje, že daný
výrobok sa nesmie likvidovat’s domovým odpadom.
Povinnost’ou spotrebitea je odovzdat’ vyradené zariadenie v
zbernom mieste, ktoré je určené na recykláciu vyradených
elektrických a elektronických zariadení. Separovaný zber a
recyklácia vyradených zariadení prispieva k ochrane
prírodných zdrojov a zabezpečuje, že recyklácia sa vykonáva spôsobom
chrániacim udské zdravie a životné prostredie. Informácie o zberných
miestach na recykláciu vyradených zariadení vám poskytne miestne
zastupitestvo, spoločnost’ zabezpečujúca odvoz domového odpadu
alebo obchod, v ktorom ste si výrobok zakúpili.
Eliminación de residuos de equipos eléctricos y
electrónicos por parte de usuarios particulares en la
Unión Europea
Este símbolo en el producto o en su envase indica que no debe
eliminarse junto con los desperdicios generales de la casa. Es
responsabilidad del usuario eliminar los residuos de este tipo
depositándolos en un "punto limpio" para el reciclado de
residuos eléctricos y electrónicos. La recogida y el reciclado
selectivos de los residuos de aparatos eléctricos en el momento
de su eliminación contribuirá a conservar los recursos naturales y a
garantizar el reciclado de estos residuos de forma que se proteja el
medio ambiente y la salud. Para obtener más información sobre los
puntos de recogida de residuos eléctricos y electrónicos para reciclado,
póngase en contacto con su ayuntamiento, con el servicio de eliminación
de residuos domésticos o con el establecimiento en el que adquirió el
producto.
9
European Union Regulatory Notice
This product complies with the following EU Directives:
•Low Voltage Directive 73/23/EEC
•EMC Directive 89/336/EEC
NOTE: CE Compliance of this product is valid only if powered with the
correct HP-provided and CE marked AC adapter.
If this product has telecommunication functionality, it also complies with
the essential requirements of:
•R&TTE Directive 1999/5/EC
Compliance with these directives implies conformity to applicable
harmonized European standards (European Norms) which are listed on
the EU Declaration of Conformity issued by Hewlett-Packard for this
product or product family.
This compliance is indicated by the following conformity marking placed
on the product:
This marking is valid for non-
Telecom products and EU
harmonized Telecom products (e.g.
Bluetooth).
This marking is valid for EU non-harmonized
Telecom products .
*Notified body number (used only if applicable -
refer to the product label).
XXXX
*
10
The telecommunications functionality of this product may be used in the
following EU and EFTA countries:
Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Slovak Republic, Slovenia, Spain, Sweden, Switzerland,
and United Kingdom.
11
Equipment Warning
WARNING! To reduce the risk of personal injury, electrical shock, fire
or damage to the equipment:
•Plug the AC Adapter into an electrical outlet that is easily
accessible at all times.
•Disconnect power from the equipment by unplugging the
AC Adapter from the electrical outlet.
•Do not pull on power cables. When unplugging from the electrical
outlet, grasp the AC Adapter and pull out from the electrical outlet.
•Do not place anything on the power cables. Arrange them so that
no one may accidentally step on or trip over them.
12
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and receiver
•Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected
•Consult the dealer or an experienced radio or television technician
for help
Modifications
The FCC requires the user to be notified that any changes or modifications
made to this device that are not expressly approved by Hewlett-Packard
Company may void the authority to operate the equipment.
Cables
Connections to this device must be made with shielded cables with
metallic RFI/EMI connector hoods in order to maintain compliance with
FCC Rules and Regulations.
Declaration of Conformity for products marked with the
FCC logo—United States only
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
13
For questions regarding your product, contact:
Hewlett-Packard Development Company, L.P.
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or, call 1-800-652-6672
For questions regarding this FCC declaration, contact:
Hewlett-Packard Development Company, L.P.
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or, call (281) 514-3333
To identify this product, refer to the Part, Series, or Model number found
on the product.
14
Wireless Notices
In some environments, the use of wireless devices may be restricted. Such
restrictions may apply aboard airplanes, in hospitals, near explosives, in
hazardous locations, etc. If you are uncertain of the policy that applies to
the use of this device, please ask for authorization to use it prior to turning
it on.
15
Brazilian Regulatory Wireless Notice
Este equipamento opera em caráter secundário, isto é, não tem direito a
proteção contra interferência prejudicial, mesmo de estações do mesmo
tipo, e não pode causar interferência a sistemas operando em caráter
primário.
16
French Regulatory Wireless Notice
L'utilisation de cet equipement (2.4GHz Wireless LAN) est soumise a
certaines restrictions: Cet equipement peut etre utilise a l'interieur d'un
batiment en utilisant toutes les frequences de 2400 a 2483.5MHz
(Chaine 1-13). Pour une utilisation en environement exterieur, vous devez
utiliser les frequences comprises entre 2454-2483.5MHz (Chaine 10-13).
Pour les dernieres restrictions, voir http://www.art-telecom.fr.
For 2.4 GHz Wireless LAN operation of this product certain restrictions
apply: This product may be used indoors for the entire 2400-2483.5 MHz
frequency band (channels 1-13). For outdoor use, only 2454-2483.5
MHz frequency band (channels 10-13) may be used. For the latest
requirements, see http://www.art-telecom.fr.
17
Japanese Regulatory Wireless Notice
18
Notice for Italy for use of
2.4 GHz Wireless Communication
E'necessaria una concessione ministeriale anche per l'uso del prodotto.
Verifici per favore con il proprio distributore o direttamente presso la
Direzione Generale Pianificazione e Gestione Frequenze.
License required for use. Verify with your dealer or directly with General
Direction for Frequency Planning and Management (Direzione Generale
Pianificazione e Gestione Frequenze).
19
Taiwan DGT Regulatory Wireless Notice
20
U.S. Regulatory Wireless Notice
WARNING! Exposure to Radio Frequency (RF) Radiation
The radiated output power of this device is far below the FCC radio
frequency exposure limits. Nevertheless, users concerned with the risk of
Radio Frequency exposure may wish to limit the duration of calls and
position the antenna as far away from the body as practical. For body
worn operation, this device has been tested and meets the FCC RF
exposure guidelines when used with the Hewlett-Packard accessories
supplied with or designated for this product. Use of other accessories
may not ensure compliance with FCC RF exposure guidelines.
21
Environmental Notices
22
Copyright
23
© 2005 Hewlett-Packard Development Company, L.P.
Microsoft, Windows, the Windows logo, Outlook, and ActiveSync are
trademarks of Microsoft Corporation in the U.S. and other countries.
HP iPAQ Products are Powered by Microsoft® Windows MobileTM 5.0
software for Pocket PC.
SD Logo is a trademark of its proprietor.
Bluetooth® is a trademark owned by its proprietor and used by Hewlett-
Packard Company under license.
Hewlett-Packard Company shall not be liable for technical or editorial
errors or omissions contained herein. The information is provided “as is”
without warranty of any kind and is subject to change without notice.
The warranties for Hewlett-Packard products are set forth in the express
limited warranty statements accompanying such products. Nothing
herein should be construed as an additional warranty.
This document contains proprietary information that is protected by
copyright. No part of this document may be photocopied, reproduced,
or translated to another language without the prior written consent of
Hewlett-Packard Company.
CAUTION: Text set off in this manner indicates that failure to follow
directions could result in damage to equipment or loss of information.
HP iPAQ Additional Product Information
[First Edition (June 2005)
Document Part Number: 398505-001
